Broadband Sound Absorption of Subwavelength Porous Meta-Liner

This work proposes a subwavelength porous meta-liner with broadband sound absorption from 900 to 1,200 Hz. The meta-liner consists of four subunits, which are made up of porous material and hollow coiling slit embedded in it. Each subunit is designed by adjusting the length of its coiling slit to achieve resonance in the target frequency and examined by the finite element method (FEM). These subunits are arranged in an axial direction uniformly and radial direction periodically to propose a meta-liner duct. Then, the noise reduction of the propeller system with the meta-liner duct is measured by the microphone array. The result shows that the propeller with the meta-liner duct can reduce the noise level of the ducted propeller between 3.6 and 5.5 dB in the design frequency range, which also effectively reduces the noise level in the broadband frequency range. Therefore, the meta-liner shows a good application prospect in the noise reduction of the propeller.

Introduction

The noise reduction problem of small-scale unmanned aerial vehicles (UAVs) is widely researched for the improvement of the competitiveness in the civil market and the increase of the concealment in the military application (Mueller, 2001; Christian and Cabell, 2017). The primary noise source of the UAVs is the propeller noise (Zhou and Fattah, 2017). The propeller emission noise may be divided into broadband noise and tonal noise (Kemp, 1932; Kurtz and Marte, 1970). The broadband noise results from the turbulence generated by the interaction between the air and the propeller blade, and the tonal noise comes from the motion of the rotor.

Usually, the tonal noise is a significant noise source, which is most prominent at the harmonics of the passing frequency of the propeller blade. In order to control the noise of the propeller, several techniques have been utilized to reduce the noise level both in the generation and propagation of the noise. For example, the serrated trailing edge blades can reduce the broadband noise and the ducted propeller. Except for reducing the noise level of the propeller, the ducted propeller can also improve the aerodynamic efficiency of the UAVs and protect the propeller blade from damage.

Meanwhile, Pereira et al. pointed out that a hard wall duct can result in a slight increment of noise if the duct is not designed well (Pereira, 2008). Malgoezar et al. investigated the characteristics of the noise of the propeller with a rigid duct according to the experiment (Malgoezar et al., 2019). They found the introduction of the duct will result in the increase of the broadband noise, a decrease of the first harmonics, and an overall decrease in the noise level. Furthermore, Lu et al. investigated the acoustic performance of the rigid duct and a micro-perforated duct. Their acoustic benefits were not as high as expected (Lu et al., 2016). Guo et al. designed a lined duct using a Helmholtz resonator with an extended neck and achieved approximately 3 dB noise reduction in the range of 700–1,000 Hz (Guo et al., 2021). In general, a ducted propeller can significantly increase the aerodynamic and acoustic performance if the duct is designed properly. There is still a lack of design for the new ducted propellers to reduce the propeller noise in the wider frequency. Moreover, it is significant to control the weight of the ducted propellers to meet the lightweight requirement of the aircraft (Reducing the weight of ai, 2014). Therefore, a new lightweight duct occupying a small space, which also has excellent acoustic performance both in low and high frequencies, needs to be studied and designed.

Traditional Helmholtz resonator (HR)-type acoustic liners, composed of a honeycomb layer placed between a perforated plate and a rigid back-plate (Nark and Jones, 2017), are commonly used to control noise in many duct sound suppression problems (e.g., aero-engines and air-conditioning ducts). This type of liner is effective across a narrow band of frequencies (Durau, 2012), thus making it unsuitable for broadband noise reduction. Fortunately, new acoustic metamaterials offer greater potential for noise control. Most metamaterials for sound absorption have only been studied in lab tests (Li and Assouar, 2016; Zhou et al., 2017; Fang et al., 2018a; Fang et al., 2018b; Wang et al., 2018; Wang et al., 2019; Wu et al., 2019; Li et al., 2020; Liu et al., 2020; Zhao et al., 2020; Liang et al., 2021; Liu et al., 2021), leaving a research gap of their applications to aeroacoustic problems. In this article, we present the numerical and experimental investigations on sound absorption of subwavelength porous meta-liner. The coiling slit with rigid walls is embedded in the porous material to build the subunit of the meta-liner. The sound absorption of each subunit in the meta-liner is examined by using the finite element method (FEM). Then, the designed meta-liner, which is composed of several subunits, is applied in the duct. A meta-liner duct is proposed to reduce the propeller-induced noise. Finally, we verify the noise reduction of the designed meta-liner in the duct for the propeller system by carrying out experiments.

Meta-Liner Subunit Description and Design

Meta-Liner Subunit Description

The propeller-induced noise includes broadband noise and tonal noise. Usually, the porous material panel and microperforated panel are used to reduce broadband noise at high frequency and tonal noise at low frequency, respectively. It is perfect to integrate these two structures in the limited space for reducing the propeller-induced noise in the wide frequency range. Therefore, the subunit of a meta-liner is designed and shown in Figure 1. It is seen that the subunit is composed of a coiling slit and porous material. The coiling slit with rigid walls is embedded in porous material to build the subunit and works as a composite structure.

FIGURE 1

FIGURE 1. Structure of acoustic liner and its subunit.

Melamine foam is chosen as the base porous material of the subunit in the design, because of its good sound absorption performance in the high-frequency range. A microperforated panel is placed at the entrance of the coiling slit, which constitutes a microperforated panel (MPP) system. The length of the sound propagating channel in the coiling slit is longer and presents a good sound absorption performance at low frequency. The subunit structure and its cross section are also shown in Figure 1. The length, width, and height of the whole subunit are l, b, and h, respectively. The width and height of the porous material part are b_p and h_p, respectively. The thickness of the rigid wall is h_w, and the diameter of the micro-perforation is r. The width of the acoustic channel in the coiling slit is b_a. To obtain the broadband sound absorption at target frequencies, it is significant to design the parameters of the subunit and construct a meta-liner.

Calculation of Absorption Performance by the Finite Element Method

As a powerful calculation method, the FEM is widely used in the sound absorption performance prediction of acoustic metamaterials. Therefore, the sound absorption performance of the designed meta-liner is calculated by the FEM in this study. The acoustic control equation considering non-viscosity and thermal loss is also built first in the FEM, which can be expressed as

${\nabla }^{2}p=\frac{{\partial }^{2}p}{c_0^2\partial t^2},(1)$

where c₀ is the speed of sound, p is the acoustic pressure, and ${\nabla }^2$ is the Laplacian operator. In the thermoacoustic domain, fluid motion is controlled by the following equation (Beltman et al., 1998):

$i\omega \rho =-\nabla \cdot \left({\rho }_{0}v\right),(2)$

$i\omega {\rho }_{0}v=\nabla \cdot \left[-pI+\eta [\nabla v+{(\nabla v)}^T]-(2\eta /3-{\eta }_B)(\nabla \cdot v)I\right]+F,(3)$

${\rho }_0{C}_p(i\omega T+v\cdot \nabla T_0)-{\alpha }_P{T}_0(i\omega p+v\cdot \nabla T)=\nabla \cdot (K\nabla T)+Q,(4)$

where $\omega =2\pi f$ is the angular frequency, and ρ₀, v, and T represent the air density, velocity vector, and temperature, respectively. η and η_B denote the dynamic viscosity and the bulk viscosity, respectively. K is the thermal conductivity. α_p is the thermal expansion coefficient at constant pressure. C_p is the heat capacity at constant pressure. I is the momentum. $T_0=293.15\text{K}$ is the equilibrium temperature. F and Q represent volume force and external heat source, respectively.

Under the combined effect of viscous loss and heat conduction absorption, the density change of the acoustic medium can be expressed as

$\rho ={\rho }_0({\beta }_{T}p-{\alpha }_{p}T),(5)$

where β_T is the isothermal compressibility.

There are hard boundary conditions around the structure, and the total temperature change T_t and boundary velocity u_t on the boundary are zero:

$T_t=0,(6)$

$u_t=0.(7)$

If the boundary condition belongs to a soft type of the porous material, the density and bulk modulus should be obtained to the present boundary velocity. The vibration of the skeleton in the porous material has a very small effect on acoustic performance and can be ignored. Assuming that the skeleton is rigid, the sound propagation in the porous material can be described by the Johnson–Champoux–Allard model (JCA model), which can describe the acoustic properties of porous materials accurately. In this study, the equivalent density of porous material ρ_e based on the JCA model can be written as (Allard and Atalla, 2009)

${\rho }_e=\frac{{\alpha }_{\infty }{\rho }_0}{\varphi }\left[1+\frac{\sigma \varphi }{j\omega {\rho }_0{\alpha }_{\infty }}{\left(1+\frac{4j{\alpha }_{\infty }^2\eta {\rho }_0\omega }{{\sigma }^2{\mathrm{\Lambda }}^2{\varphi }^2}\right)}^{1/2}\right].(8)$

The equivalent bulk modulus K_e is written as

$K_e=\frac{\gamma P_0/\varphi }{\gamma -\frac{\gamma -1}{1+\frac{8\eta }{j\mathrm{\Lambda }{\prime }^2{B}^2\omega {\rho }_0}{\left(1+j{\rho }_0\frac{\omega B^2\mathrm{\Lambda }{\prime }^2}{16\eta }\right)}^{1/2}}},(9)$

where $\gamma$ is the specific heat ratio. P₀ = 1.013 × 10⁵ Pa is a standard atmospheric pressure. B² is the Plank constant. The five parameters of the porous material in the JCA model are as follows: tortuosity ${\alpha }_{\infty }$, porosity $\varphi$, characteristic viscous length $\Lambda$, characteristic thermal length ${\Lambda }^{\prime }$, and flow resistivity $\sigma$, respectively.

The boundary conditions are substituted into Eq. 2–4 with the sound pressure of the incident field, and the sound pressure of the reflected field can be calculated. The reflection coefficient of the composite structure can be expressed as

$R=\frac{P_r}{P_i},(10)$

where P_r and P_i are the average sound pressure of the incident field and the average reflected field, respectively. The sound absorption of the metasurface can then be obtained by

$\alpha =1-{\left|R\right|}^2,(11)$

In this article, a finite element solver COMSOL Multiphysics is implemented to solve the problem of sound absorption performance mentioned above. The thermoviscous acoustics module is used to study the sound pressure distribution of the small holes, considering the effect of thermal viscosity on sound waves.

The acoustic property of the porous material is described by the JCA model. In the JCA model, the five parameters of the melamine foam used in this study are${\alpha }_{\infty }=1.01$, $\varphi =0.99$, $\Lambda =1.79\text{e}-4\text{m}$, ${\Lambda }^{\prime }=2.31e-4\text{m}$, and $\sigma =18895\text{N}\cdot \text{s}/{\text{m}}^4$. Then, the porous material layer and the rigid walls of the structure are set as acoustic soft and hard boundaries in the pressure acoustics module. Furthermore, the periodic boundary conditions are set on both sides of the computational domain to simulate an infinite period structure. A perfect match layer (PML) is attached to the top for avoiding spurious reflections from the boundaries. The whole model is already established and shown in Figure 2. In the pressure acoustics module, a plane wave with an amplitude of 1.0 Pa is used as the background pressure field to simulate the incident sound field.

FIGURE 2

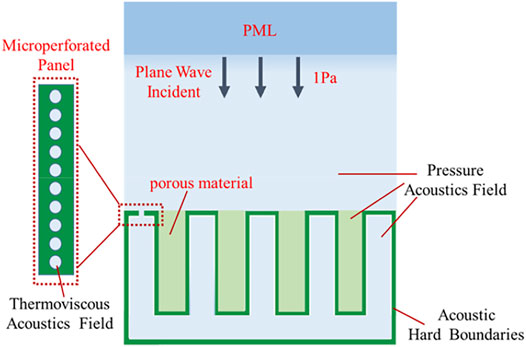

FIGURE 2. Structure of acoustic liner and its subunit.

Meta-Liner Subunit Design

The target frequency range of the meta-liner is chosen as 900–1,200 Hz in this study. To obtain broadband absorption performance, several subunits with different parameters are designed for achieving good absorption performance at different frequencies and combined to work for reducing noise in broadband frequency. The target frequency of sound absorption is tunable by changing the length of the coiling slit. The expected length of the coiling slit can be adjusted by placing a rigid partition into the slit, while the thickness and width of the whole structure are unchanged. Therefore, the whole size of the subunit is designed as 50 mm (length l) × 50 mm (width b) × 10 mm (height h), and the thicknesses h_w of the rigid wall of the subunit and the diameter r of the micro-perforation are both 1 mm. The sound absorption peaks of these structures are chosen as 910 Hz, 1,000 Hz, 1,110 Hz, and 1,140 Hz. For the convenience of description, these subunits are numbered sequentially 1, 2, 3, and 4, as shown in Figure 3. The width b_a of the cavity is designed as 2 mm. By the finite element method, the absorption performances of these subunits are calculated and plotted in Figure 3. The highest sound absorption coefficients of these subunits are all above 0.9. Therefore, broadband sound absorption can be well achieved by combining these four subunits into a meta-liner.

FIGURE 3

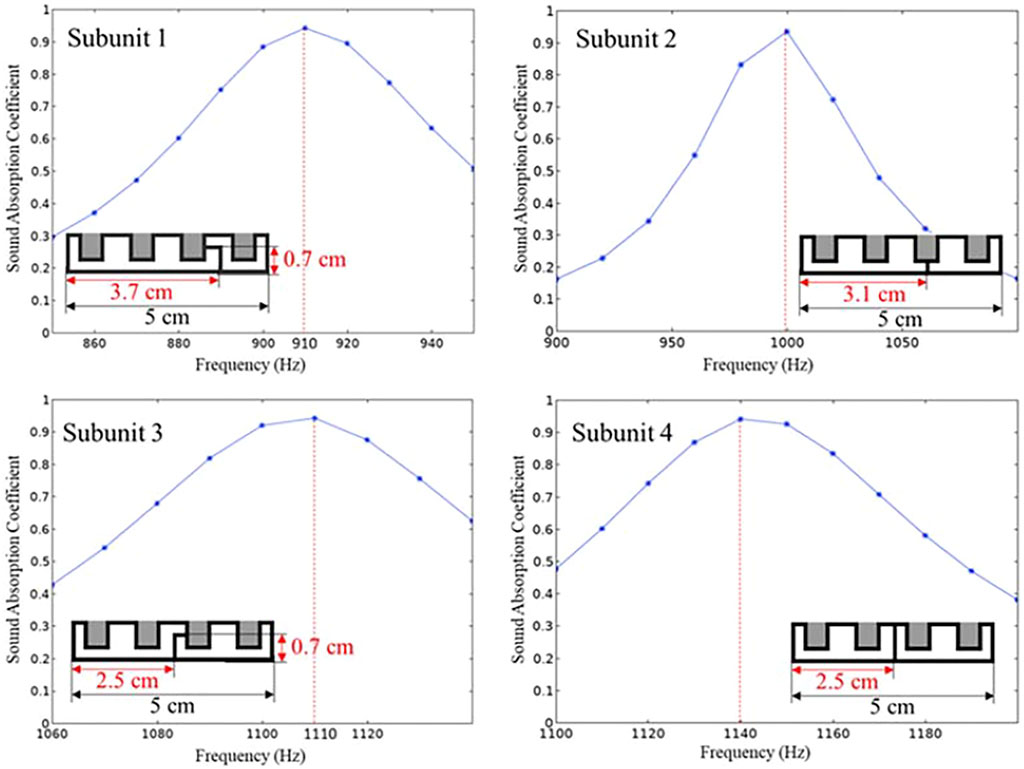

FIGURE 3. Sound absorption coefficient of each subunit.

Experiment Validation of Meta-Liner

Application of Meta-Liner in the Duct

The duct is a cylinder-shaped structure and is shown in Figure 4. Its length, diameter, and thickness are L, D, and t, respectively. In this article, the length L of the duct is selected as 150 mm. The diameter D and the thickness t of the duct are chosen as 254 and 12 mm, respectively. To decrease the propeller-induced noise, subunit 1 to subunit 4 of the meta-liner are arranged uniformly from S1 to S4 along the length direction inside the duct. Also, these subunits are arranged periodically along the circumferential direction of the duct. Then, the meta-liner duct is proposed and made by 3D printing.

FIGURE 4

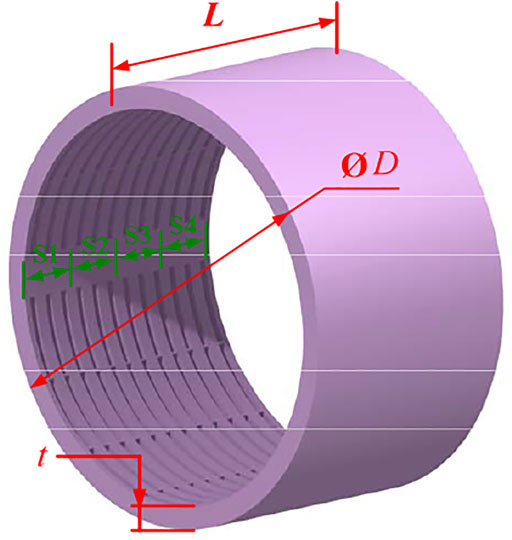

FIGURE 4. Structure of the meta-liner duct.

Experimental Configurations

In this work, a commercial fixed-wing propeller was used for testing. As shown in Figure 5A, the propeller is made of glass fiber nylon with an outer diameter of 228.6 mm (9 inches), and its weight is 17.4 g. The distance between the propeller tip and the internal face of the duct is 2.7 mm. The propeller is driven by a brushless motor (X2814-KV1, 200). The speed of the motor is controlled by the control transceiver system WFT07. Figures 5B,C present the brushless motor and WFT70, respectively. The entire blade rotation system is fixed on the optical vibration isolation table to avoid test errors caused by the shaking of the propeller.

FIGURE 5

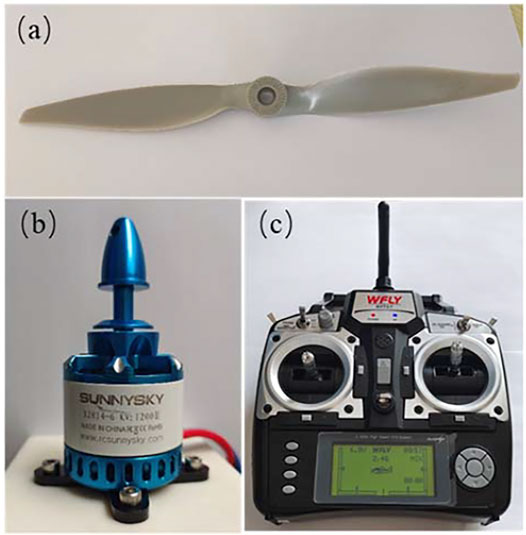

FIGURE 5. Photographs of the (A) propeller, (B) motor, and (C) remote-controller.

The experimental study focuses on the overall noise of the propeller system that varied with the change of the meta-liner duct. A ring microphone array was used to measure the effect of the meta-liner on the propeller noise. It was placed at a distance of 1.47 m from the propeller blades for testing. In order to reduce interference from the flow field, each microphone was covered with a spherical windscreen, as shown in Figure 6A. The microphone array is composed of 40 GRAS 40PH free-field array microphones. The minimum inner ring diameter and the maximum outer ring diameter of the array were set as 0.2 and 0.8 m, respectively, which are shown in Figure 6B. The center of the microphone array was aligned with the center of the propeller. The sound signal was acquired by the NI PXIe-4499 system. The sampling frequency for the acoustic test was selected as 20,000 Hz. The experiment was carried out in the anechoic room (size 2 m × 2.8 m × 2.5 m, cutoff frequency 275 Hz) of Northwestern Polytechnical University. The established system for noise reduction measurement of the meta-liner duct is shown in Figure 7.

FIGURE 6

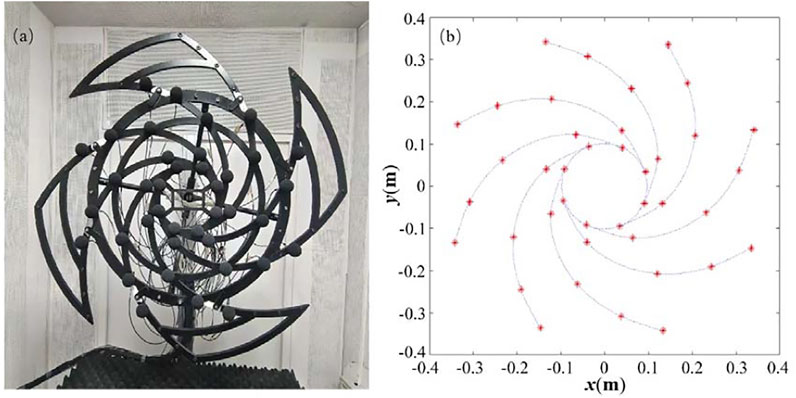

FIGURE 6. (A) Photograph of the microphone array and (B) sketch of microphone position.

FIGURE 7

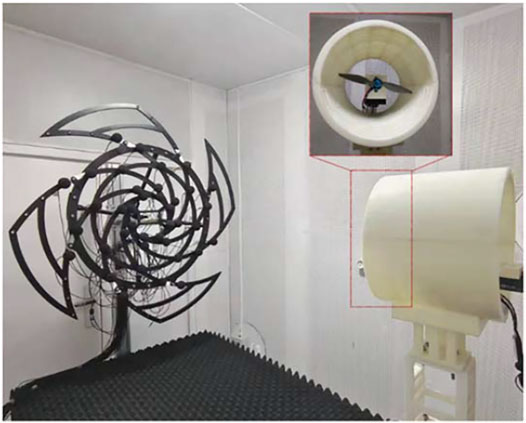

FIGURE 7. Test system arranged in the anechoic chamber.

Experimental Results and Discussions

In order to compare the sound suppression performance of the rigid duct and the meta-liner duct, the average spectrum level is used to evaluate the general noise level. According to the data obtained by the microphone array, it can be expressed by

$\text{Average Spectrum Level}=10\log \left(\frac{{\displaystyle \sum _{j=1}^n{\text{PSD}}_j\left(f\right)df}}{n{p}_0^2}\right),(12)$

where j is the index of the microphones, n is the number of the microphones, ${\text{PSD}}_j\left(f\right)$ is the power spectral density (PSD) of the jth microphone for frequency f, and $p_0=20\mu \text{Pa}$ is the reference pressure. The sound pressure level $L_p\left(f_{band}\right)$ for the given frequency band $f_{band}$ can be obtained by

$L_p\left(f_{band}\right)=10\log \left(\frac{{\displaystyle \underset{band}{\int }\text{PSD}\left(f\right)df}}{p_0^2}\right),(13)$

which can be viewed as the overall sound pressure level (OASPL). The factor $\Delta L_p$ in dB is used to present a change in the noise level, resulting from the meta-liner duct. It is expressed in the following

$\mathrm{\Delta }{L}_p=10\log \left(\frac{{{\displaystyle \underset{band}{\int }\text{PSD}\left(f\right)df}|}_{Linedduct}}{{{\displaystyle \underset{band}{\int }\text{PSD}\left(f\right)df}|}_{rigidduct}}\right).(14)$

During the test, the motor was kept at the same speed of 5,100 r/min. The center of the duct and the center of the propeller blade were kept concentric, and the distance between the center of the propeller blade and the inlet of the pipe is 0.4 times the total length of the lined duct.

The average spectrum levels for the propeller with a rigid duct, a meta-liner duct, and the background are shown in Figure 8. It can be seen from Figure 8 that the measured average spectrum level is over 10 dB above the background noise. The maximum averaged spectrum level of the propeller with a rigid duct is 61.1 dB at 1,118 Hz, and the meta-liner duct reduced the noise level by 7.1 dB at that frequency. Figure 9 shows the reduction of the OASPL (filtered between 50 and 6,000 Hz) of the propeller with the meta-liner duct which is relative to the rigid duct. A significant reduction in the OASPL can be found for all the microphones. The maximum and minimum noise reduction are 4.1 and 3.2 dB, respectively. In order to show the effect of the designed duct, the sound pressure level (filtered between 900 and 1,200 Hz) for all the microphones is shown in Figure 10. The maximum and minimum noise reduction are 5.5 and 3.6 dB, respectively. In summary, the addition of meta-liner in the duct can reduce the noise level of the propeller with the rigid duct, not only in the design frequency but also in the whole frequency.

FIGURE 8

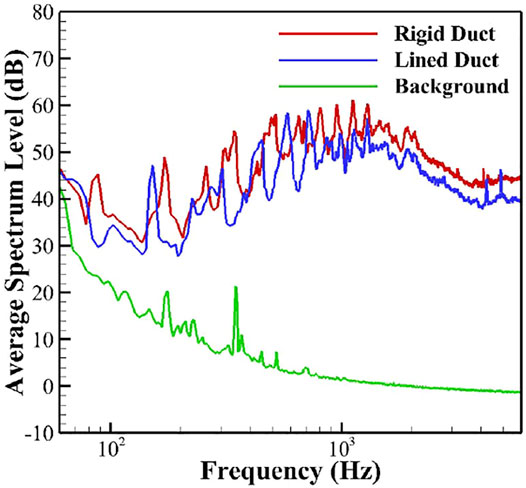

FIGURE 8. Averaged spectrum levels over the microphones in the array for the propeller with a rigid duct, a lined duct, and the background.

FIGURE 9

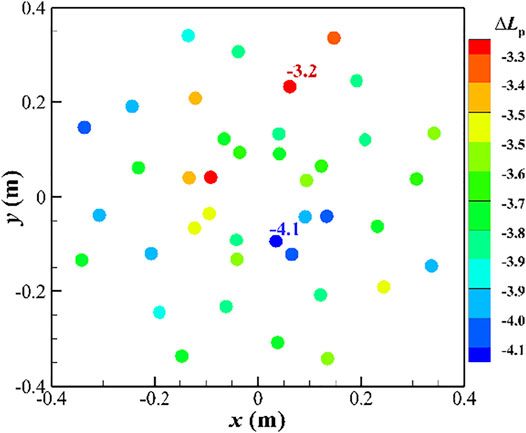

FIGURE 9. Difference in OASPL (filtered between 50 and 6,000 Hz) of the propeller at 5,100 r/min in the acoustic array.

FIGURE 10

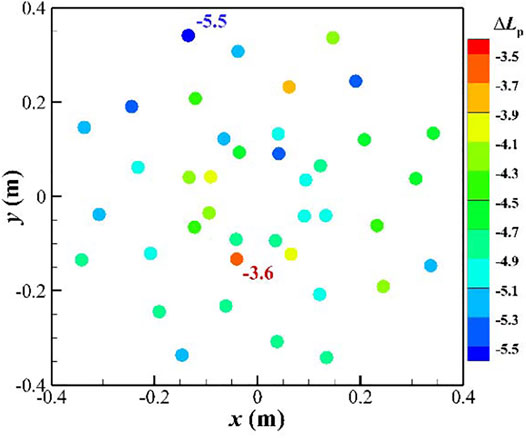

FIGURE 10. Difference in OASPL (filtered between 900 and 1,200 Hz) of the propeller at 5,100 r/min in the acoustic array.

The noise attenuation at the microphone array is close to each other. It seems that the aperture of the array is small, which means the range of the observation angle is narrow. Meanwhile, the radius of the microphone array is larger than that of the meta-liner duct. The tested results are accurate enough to describe the noise changes which are originated from the meta-liner duct.

Conclusion

In this work, a subwavelength porous meta-liner with broadband sound absorption is designed, which is composed of four subunits with different target frequencies. A hollow coiling slit with rigid walls is embedded in the porous material to build subunits as a composite structure. Then, the target frequency of sound absorption is achieved by adjusting the length of the coiling slit in each subunit. For the four designed subunits, the sound absorption coefficient is over 0.9 at the target frequency of 910 Hz, 1,000 Hz, 1,110 Hz, and 1,140 Hz, respectively. By arranging these subunits in axial direction uniformly and radial direction periodically, a meta-liner duct is built to achieve noise reduction of the ducted propeller in broadband frequency.

Finally, the change of the meta-liner duct to the overall noise of the propeller system is studied experimentally by a ring microphone array. Compared with the propeller system with a rigid duct, the meta-liner duct can reduce the noise level of the ducted propeller at broadband frequency. In particular, in the design frequency range, the propeller with the meta-liner duct can reduce the noise level between 3.6 and 5.5 dB. Therefore, our research provides an excellent method to improve the noise reduction of propeller systems with comparatively less cost, which is convenient for practical engineer applications.
