Analysis on Experimental Performance of Hysteretic Behavior of Concrete-Filled Circular CFRP Steel Tubular Beam-Column

In order to study the test performance of the concrete-filled CFRP steel tubular (CF-CFRP-ST) beam-column under hysteretic load, 12 specimens were designed. During the test loading, the effects of axial compression ratio and longitudinal CFRP reinforcement coefficient on hysteric load were studied. Based on experimental research, a finite element method for establishing CF-CFRP-ST beam-column is proposed by FE simulation, and the influence of main parameters on performance is studied by this method. The test results show that CFRP and the steel tube can work together well, and the local buckling of specimens is delayed. In addition, the simulation results are in good agreement with the experimental results. Based on the experiment and finite element method, the influence of main parameters on the hysteretic behavior of specimens is studied.

1 Introduction

As a kind of building material with high bearing capacity and convenient construction, the forthputting of the concrete-filled tubular (CFT) structure has gradually improved in recent decades (Li et al., 2016). However, the corrosion of the concrete-filled steel tubular outer wall directly affects its durability and bearing capacity in the process of use (Li et al., 2018). Carbon fiber reinforced plastics (CFRP) are widely used in the civil engineering field because of their lightweight and low cost. Concrete is poured into the prefabricated steel tube, and the outside of the steel pipe is wrapped with CFRP to make a concrete-filled CFRP steel tube (Che et al., 2012).

Park et al. (2011) studied the axial compression performance and compression-bending performance of CFRP-concrete-filled steel tube. In the axial compression test, the cross-sectional width–thickness ratio of the specimen and the number of CFRP layers are used as parameters. Wrap the carbon fiber material on the test piece to improve the ductility of the test piece and increase the pressure resistance of the test piece. The concrete strength and the number of CFRP layers are used as parameters under the compression-bending loading. CFRP improves the hysteresis performance of the specimen and has a certain effect on the improvement of the overall bearing capacity of the specimen. Nie et al. (2013) conducted a study on the flexural-shear-torsion coupling bearing capacity of concrete-filled steel tube short columns and concluded that the failure mechanism of concrete-filled steel tube short columns was significantly affected by the bending moment-torque ratio. The short column has good ductility. Increasing the torque significantly reduces the ultimate flexural bearing capacity of the concrete-filled steel tube short column. A nonlinear finite element analysis was carried out to accurately predict the ultimate bearing capacity of concrete-filled steel tube short columns under the coupling of bending, shear, and torsion. According to the regression results of finite element parameter analysis, a simplified design formula for calculating the B-S-T coupling bearing capacity of concrete-filled steel tube short columns is proposed. Tao et al. found that square the CFRP-CFST specimens’ bearing capacity was reduced significantly after fire damage (Tao et al., 2007a; Tao et al., 2007b). Alam et al. (2017) conducted a study on the dynamic performance of FRP reinforced concrete-filled steel tube members under lateral impact loads and conducted mid-span lateral impact tests on 16 concrete-filled steel tube specimens. The research results show that FRP cloth can reduce the permanent lateral displacement of concrete-filled steel tube members by 18.2%. The effects of FRP type, FRP coating direction, number of carbon fiber reinforced polymer (CFRP) coating layers, coating length, and impact speed on the properties of reinforced CFST specimens were studied. CFRP laminates exhibit weak performance only when wound in the longitudinal direction under impact load. However, the longitudinal layer and circumferential lamination of carbon fiber composite materials can significantly reduce the severity of damage and failure of carbon fiber composite materials under the transverse impact on concrete-filled steel tube specimens. Cao (2015) conducted an experimental study on the performance of rectangular concrete-filled steel tube columns under reciprocating eccentric tension and compression loads. In practical application, members often also bear hysteretic loads, such as wind and earthquake load.

Accordingly, 12 specimens were designed. During the test loading, the effects of axial compression ratio and longitudinal CFRP reinforcement coefficient were studied under hysteric load. Based on experimental research, a finite element method for establishing CF-CFRP-ST bending member is proposed by finite element simulation. The influence of the main parameters on the performance is studied by this method to provide some theoretical reference for engineering practice.

2 Raw Material Performance and Experimental Design

2.1 Performance of Raw Materials

2.1.1 Steel

The measured material properties of the steel tube are shown in Table 1, where f_y is the yield strength, f_u is the tensile strength, E_s is the elastic modulus, ε_sy is the yield strain, v_s is Poisson’s ratio, and ε′ is the elongation of steel.

TABLE 1

TABLE 1. The performance of the steel tube.

2.1.2 Concrete

The particle size of coarse aggregate gravel of concrete is 5–15 mm. The compressive strength of the concrete cube (f_cu) is 47.8 MPa, and the elastic modulus (E_c) is 34.6 GPa. The compressive strength of the concrete cube is 77.7 MPa during the hysteretic test.

2.1.3 Carbon Fiber

Carbon fiber fabric is a unidirectional fabric woven by Toray T-700 12K carbon fiber in Japan. The thickness of the single layer and the weight of CFRP are 0.111 mm and 200 g/m³, respectively. Elongation at break of CFRP is 2.1%, and the tensile strength of the monofilament is 4.9 GPA.

2.2 Test Design

Twelve CF-CFRP-ST specimens were designed. Axial compression ratio (n) and longitudinal CFRP reinforcement coefficient (η) are the main parameters in the test:

$\mathit{n}={\mathit{N}}_0/{\mathit{N}}_{\mathit{u}},(1)$

Specimens’ length is 2000 mm, the outer diameter is 140 mm, and the steel tube’s thickness is 4 mm. One-layer transverse CFRP is tied in CFST. m_l is the number of longitudinal CFRP layers. N₀ is the axial force applied to the specimen_. N_u is axial load-bearing capacity. Δ_y is yield displacement of the specimen. Specific indexes of the specimen are shown in Table 2. The loading test’s equipment is shown in Figure 1. The schematic diagram of the C-CF-CFRP-ST specimen is shown in Supplementary Figure S1.

TABLE 2

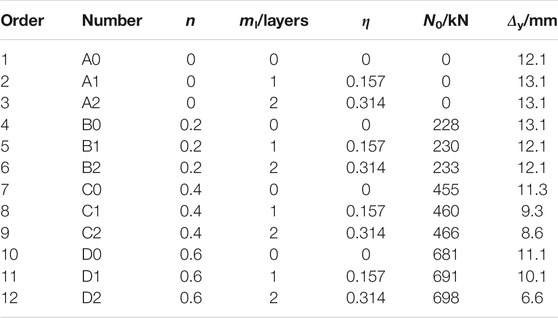

TABLE 2. Specific indexes of specimens.

FIGURE 1

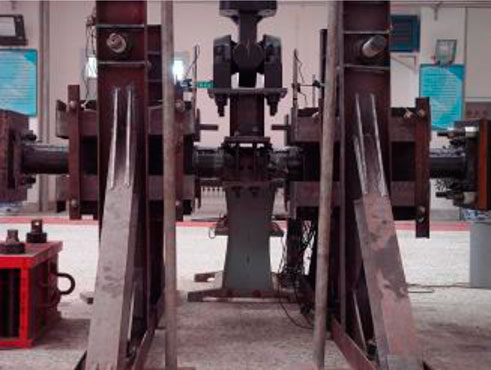

FIGURE 1. Loading test’s equipment.

Specimens were loaded during the method of loading-displacement control. The loading protocol of C-CF-CFRP-ST specimens is shown in Supplementary Figure S2. The loading control method was used in stages at the initial stage according to 0.25 P_uc (P_uc is the estimated lateral bearing capacity, and the calculation of P_uc is suggested by Han et al. (2001) and Peng et al. (2022) as 0.5 P_uc and 0.7 P_uc. After two cycles per stage, the displacement control method was used according to 1.0, 1.5, 2.0, 3.0, 5.0, 7.0, and 8.0 Δ_y (Δ_y = P_uc/K_0.7), and the secant stiffness of P-Δ skeleton curve when K_0.7 is 0.7 P_uc.

3 Test Results and Analysis

3.1 Test Phenomena

For small axial pressure specimens (n $\le$ 0.2), as the loading progresses, slight protrusions will repeatedly appear on both sides of the fixture. When loaded to the later stage, CFRP began to crack. Through observation, it was found that the transverse CFRP outside the component was slightly broken, and the longitudinal CFRP close to the steel tube was largely broken, as shown in Figure 2A. For the specimen without longitudinal CFRP, as shown in Figure 2B, when the deflection in the later stage of loading is large, there is a large number of transverse CFRP fractures because longitudinal CFRP can enhance the strength of members. In the failure process of members, only longitudinal CFRP fractures, transverse CFRP will gradually lose its restraint effect on members. Therefore, when the member has no longitudinal CFRP, the transverse CFRP is very easy to fracture, and the steel pipe is more likely to fracture.

FIGURE 2

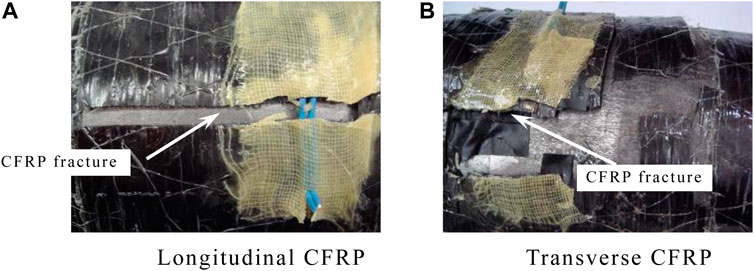

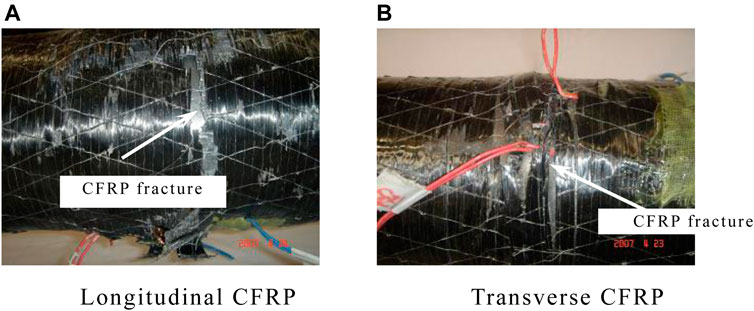

FIGURE 2. CFRP of small axial compression ratio’s specimens. (A) Longitudinal CFRP. (B) Transverse CFRP.

Figure 3A shows that specimen’s change at the initial loading stage is basically the same as that of the specimen with a small axial compression ratio. After loading to the later stage, the CFRP of the specimen began to fracture gradually. For the specimen with only transverse CFRP, the CFRP began to break gradually, as shown in Figure 3B. Unlike the small axial compression ratio, the failure degree of the specimen under the large axial compression ratio is more serious because, with the increase in axial force, when the energy consumption of the member is greater, the macroscopic performance means that the member failure is more serious.

FIGURE 3

FIGURE 3. CFRP of large axial compression ratio’s specimens. (A) Longitudinal CFRP. (B) Transverse CFRP.

It can be found that the damage degree of the specimen decreases with the increase in η. After the failure of the loaded specimen, it can be seen that there are some small protrusions in the specimen. Figures 4A,B shows the damage situation of concrete. Both concrete and steel tube have an obvious bulge in the middle of the specimen, indicating that the cooperative working performance of the concrete and steel tube is good. All specimens after loading are shown in Supplementary Figure S3.

FIGURE 4

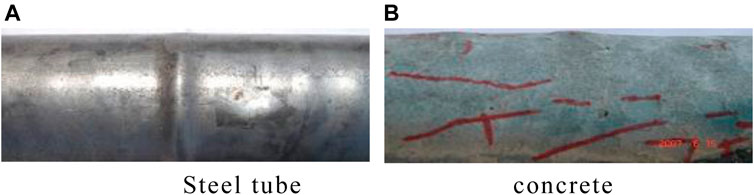

FIGURE 4. Internal and external damage of specimen failure. (A) Steel tube. (B) concrete.

3.2 P-Δ Curve

The P-Δ curve of the specimen is the most intuitive reflection between member load and displacement, and the most representative group of the m = 2 specimens are selected. It can be seen that all groups of specimens show good performance in the process of bearing hysteretic load, and the curves are full without a pinch, as shown in Figure 5.

FIGURE 5

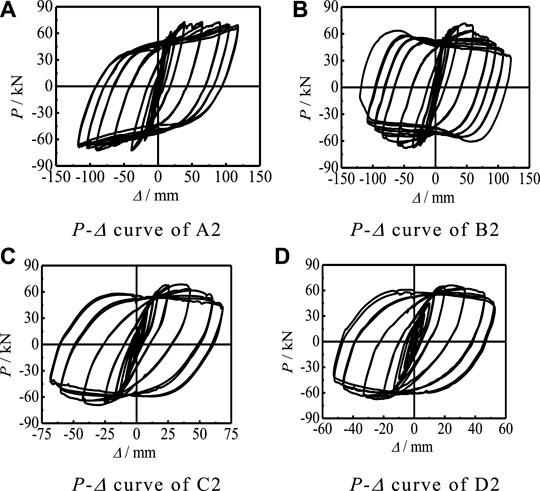

FIGURE 5. P-Δ curves of specimens with m_l = 2. (A) P-Δ curve of A2. (B) P-Δ curve of B2. (C) P-Δ curve of C2. (D) P-Δ curve of D2.

3.2.1 Skeleton Curve

The P-Δ skeleton curves of specimens are shown in Supplementary Figure S4.

3.3 M-ϕ Skeleton Curve

Supplementary Figure S5 shows the deflection curve shape of the most representative A2 specimen. Herein, the curvature and bending moment of the middle section of the specimen are calculated by formulas (2) and (3), respectively:

$\phi ={\pi }^2\frac{u_m}{L^2},(2)$

$M=PL/4+N_0,(3)$

where ϕ is the curvature of the middle section, u_m is the deflection of the middle section, p is the lateral bearing capacity, and N₀ is the axial force.

3.3.1 M-ϕ Hysteresis Curve

Figure 6 shows that the M-ϕ hysteretic curves of each group have no obvious pinch phenomenon. When the force control is adopted at the initial loading stage, the deformation of the specimen is elastic. After the displacement control, the component produces a less obvious Bauschinger effect, and the curves of each group become full with the decrease in the axial compression ratio.

FIGURE 6

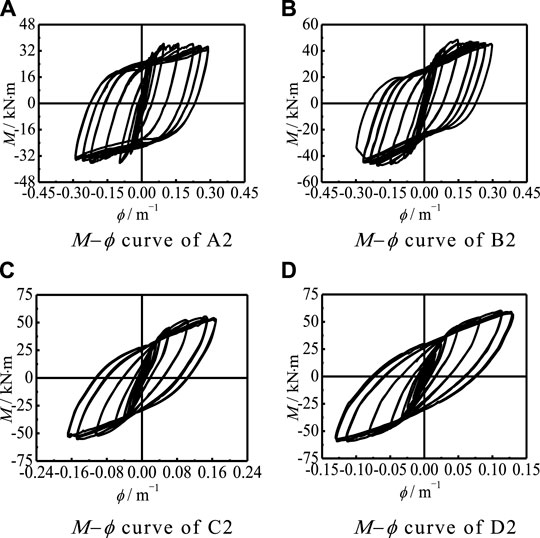

FIGURE 6. Μ−ϕ curve of partial specimens. (A) The Μ−ϕ curve of A2. (B) The Μ−ϕ curve of B2. (C) The Μ−ϕ curve of C2. (D) The Μ−ϕ curve of D2.

3.3.2 M-ϕ Skeleton Curve

Supplementary Figure S6 shows the influence of n and η on the M-ϕ skeleton curve. The increase in the axial compression ratio and longitudinal CFRP reinforcement coefficient can improve the bending capacity of the specimens, and the change of the axial compression ratio is more sensitive to the bending capacity of the specimens.

3.4 Strain Relationship

3.4.1 Strain of Steel Tube and CFRP

In order to ensure the accuracy of the test results, the transverse strain curves (P-ε_t) of the steel tube and CFRP at two test points of B0 specimens were compared, as shown in Figures 7A,B. In the same way, the transverse strain curves (P-ε₁) at the same two test points of B0 specimens are compared, as shown in Figures 7C,D, where ε_st and ε_cft are the transverse strains of the steel tube and CFRP, and ε_sl and ε_cfl are the longitudinal strains of the steel tube and CFRP. The transverse and longitudinal strains of the steel tube and CFRP are consistent, indicating that, under the action of hysteretic force, the steel tube and CFRP can work together in transverse and longitudinal directions.

FIGURE 7

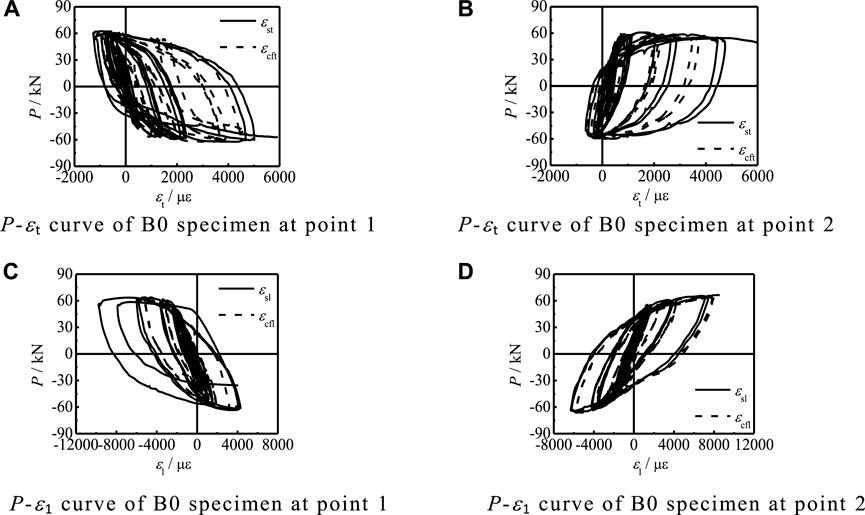

FIGURE 7. P-ε_t and P-ε₁ curves of steel tube and CFRP at two test points of B0 specimen. (A) The P-ε_t curve of B0 specimen at point 1. (B) P-ε_t curve of B0 specimen at point 2. (C)P-ε₁ curve of B0 specimen at point 1. (D) P-ε₁ curve of B0 specimen at point 2.

3.4.2 Comparison of Transverse and Longitudinal Strains of Steel Tube

Figure 8 shows the comparison curve of the transverse and longitudinal strains of the steel tube (P-ε_s) in partial specimens. The signs of longitudinal strain ε_sl and transverse strain ε_st of specimens at the same point are different. When the specimens are subjected to longitudinal compression, they are subjected to transverse tension at the same time, and when subjected to longitudinal tension, they are subjected to transverse compression at the same time.

FIGURE 8

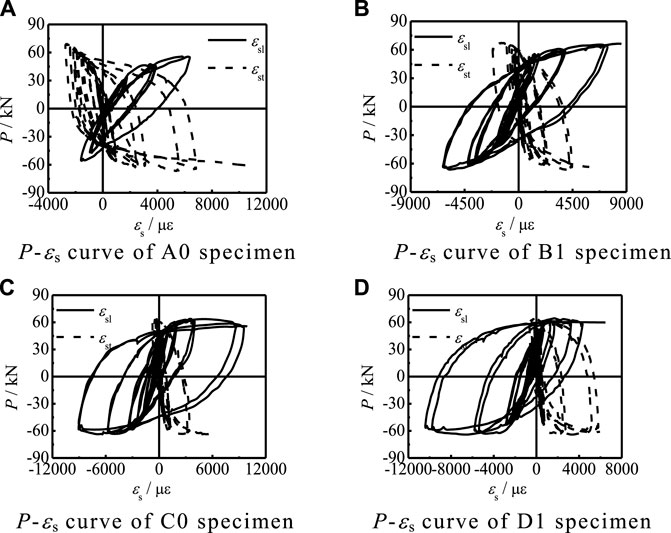

FIGURE 8. TheP-ε_s curves of partial specimens. (A) The P-ε_s curve of the A0 specimen. (B) The P-ε_s curve of the B1 specimen. (C) The P-ε_s curve of the C0 specimen. (D) The P-ε_s curve of the D1 specimen.

4 Analysis of Main Indicators

4.1 Strength Degradation

According to Wang and Shao’s method (2015), the strength degradation coefficient λ_ji is determined. Figure 9 shows the strength degradation of the specimen. It is obvious from Figure 9 that the strength degradation of the round specimen is not obvious.

FIGURE 9

FIGURE 9. Strength degradation of specimens. (A) η = 0 specimens. (B) η = 0.157 specimens. (C) η = 0.314 specimens.

4.2 Stiffness Degradation

The stiffness EI of each cycle was determined according to Wang et al.’s method (2016). Figures 10A,B show the effects of n and η on the stiffness degradation, respectively, where EI_Δ=0 is the initial stiffness of the specimens. Figure 10 shows that the increase in n can delay the stiffness degradation of the specimen. In addition, the increase in η can delay the stiffness degradation of the specimen because, with the increase in the number of CFRP layers, the ability to delay buckling of members is significantly improved, and the macroscopic performance is that the energy dissipation is slow.

FIGURE 10

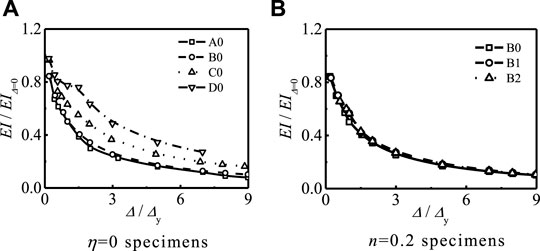

FIGURE 10. Effect of n and η on stiffness degradation of specimens. (A) η = 0 specimens. (B) n = 0.2 specimens.

4.3 Displacement Ductility Factor

The specimen ductility is calculated by the following displacement ductility coefficient μ:

$u=\frac{{\mathrm{\Delta }}_u}{{\mathrm{\Delta }}_y},(4)$

where Δ_u is the corresponding displacement when the load on the skeleton line decreases by 15%.

The comparison of the ductility coefficient of each group of specimens is shown in Figure 11. Since the load of n = 0 specimen does not drop to 85% of its peak bearing capacity at the end of the test, it is impossible to determine its ductility coefficient, which is taken as a larger value in comparison. It can be seen from Figure 11 that, in terms of the overall trend, the increase in n and η will reduce the specimen ductility. The reason is that the larger n and η is, the more the failure mode of the specimen tends to the brittle failure mode of the concrete being crushed.

FIGURE 11

FIGURE 11. Comparison of specimens’ displacement ductility coefficient μ.

5 Finite Element Simulation

5.1 Stress-Strain Relationship

The stress-strain relationship is shown in the supplementary materials.

5.2 Division of Mesh and Interactions

The division of mesh and interactions is shown in the supplementary materials.

5.3 Finite Element Calculation Model

Finite element calculation model is shown in supplementary materials.

5.4 Comparison of FE Simulation and Test Results

Figure 12 and Supplementary Figure S8 show the comparison between the result of the FE model and the test about P-Δ curve and P-Δ skeleton curve. For the hysteresis and the skeleton curves, the most important indicators are the bearing capacity and the previous stiffness. Through calculations, Supplementary Table S1 shows that the error between the initial stiffness of the component simulation and the initial stiffness of the test is within 20%. The error between the simulated load-bearing capacity of the component and the test load-bearing capacity is within 20%.

FIGURE 12

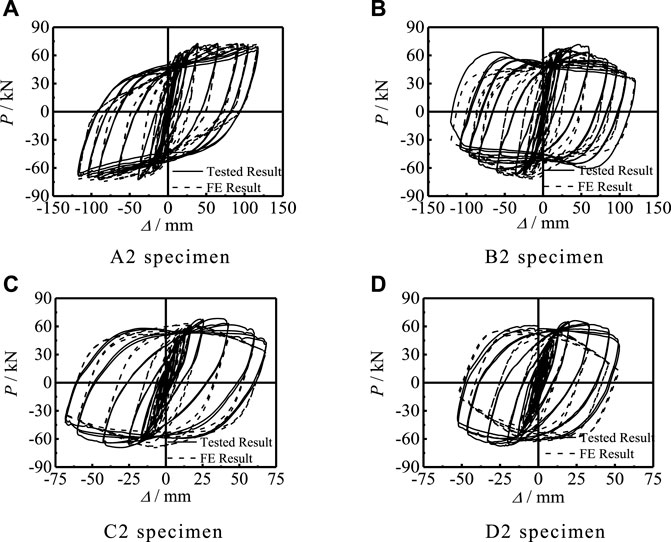

FIGURE 12. Comparison of FE and test results of P-Δ curves of specimens. (A) A2 specimen. (B) B2 specimen. (C) C2 specimen. (D) D2 specimen.

Figures 13, 14, respectively, show the comparison of the failure modes of steel pipe and concrete. Combined with the comparison of the P-Δ and P-Δ skeleton curves, the finite element calculation method for the compression-bending hysteresis specimen has a certain reference. The finite element result calculated by this method is in good agreement with test results.

FIGURE 13

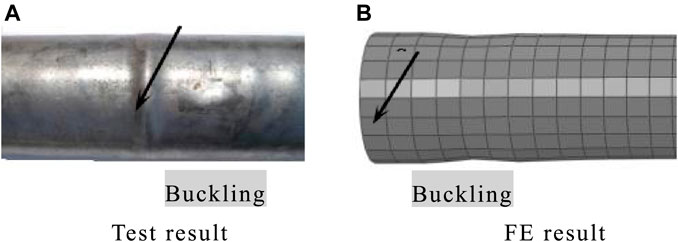

FIGURE 13. Failure modes of steel tube. (A) Test result. (B) FE result

FIGURE 14

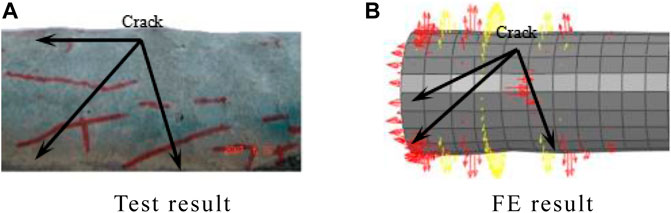

FIGURE 14. Failure modes of concrete with the middle section. (A) Test result. (B) FE result.

6 Parameter Analysis

Based on the reliable finite element model, parameter analysis is researched. The axial compression ratio, slenderness ratio, number of CFRP layers, steel yield strength, concrete strength, and steel ratio are the main indexes to evaluate the performance, which have a significant influence on the skeleton curve of members with compression-bending hysteretic behavior. Therefore, a typical example is used to analyze the influence of the above parameters on the p-Δ skeleton curve of members.

6.1 Influence of Axial Compression Ratio n and Slenderness Ratio λ

Figure 15 shows the effect of axial compression ratio on the P-Δ skeleton curve of members. The increase in n, the bearing capacity, and the stiffness of the elastic stage of the member decrease significantly. The shape of the curve also has obvious changes: when n = 0, there is no descending segment in the P-Δ skeleton curve. With the increase in n, the descending segment appears in the curve and the amplitude of the descending segment increases because, with the increase in the axial compression ratio, the energy lost in the loading process is large, resulting in the earlier unloading point of the component, and the macro performance means the component is more vulnerable to damage. Figure 16 shows the effect of λ on the P-Δ skeleton curve. It can be seen that the bearing capacity and the stiffness of the elastic stage of the member decrease significantly with the increase in λ, the shape of the curve also has obvious change, and the stability coefficient decreases with the increase in λ. With the increase in the slenderness ratio, the member is more prone to instability during loading. With the increase in load, the damage in the middle of the member increases significantly with the increase in the slenderness ratio, the bearing capacity of the member decreases significantly, and the curve unloading point appears earlier.

FIGURE 15

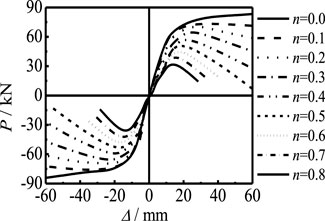

FIGURE 15. Effect of n on the P-Δ skeleton curve of specimens.

FIGURE 16

FIGURE 16. Effect of λ on the P-Δ skeleton curve of specimens.

6.2 Effect of CFRP Layers

Figure 17 shows the effect of the number of longitudinal CFRP layers on the P-Δ skeleton curve of members. With the increase in m_l, the initial stiffness of the elastic stage is basically unchanged and the bearing capacity of the member is slightly increased. Figure 18 shows the effect of the number of transverse CFRP layers on the P-Δ skeleton curve of members. It can be seen that, with the increase in m_t, the initial stiffness stage has no obvious changes, and the bearing capacity of the member increases slightly. There is no obvious relationship between CFRP and member stiffness, but CFRP can significantly improve the restraint effect on members. Therefore, increasing the number of layers of CFRP will not affect the stiffness of the curve, but the bearing capacity will be slightly improved.

FIGURE 17

FIGURE 17. Effect of m₁ on the P-Δ skeleton curve of specimens.

FIGURE 18

FIGURE 18. Effect of m_t on the P-Δ skeleton curve of specimens.

6.3 Influence of Steel Yield Strength and Concrete Strength

Figure 19 shows the effect of steel yield strength on the P-Δ skeleton curve of members. It can be seen that, with the increase in f_y, the shape of the skeleton curve and the stiffness of the elastic stage are basically unchanged, and the bearing capacity of the component is improved. Figure 20 shows the effect of concrete strength on the P-Δ skeleton curve of members. It can be seen that, with the increase in f_cu, the shape of the skeleton curve and the stiffness of the elastic stage are basically unchanged and the bearing capacity of members is slightly improved. Steel and concrete are the main components of the concrete-filled steel tubular. Compared with the two, steel mainly bears pressure, and concrete mainly plays the role of internal filling. Therefore, with the improvement of the strength of steel and concrete, the bearing capacity of members increases significantly. However, the strength of steel has a greater impact on the bearing capacity.

FIGURE 19

FIGURE 19. Effect of f_y on the P-Δ skeleton curve of specimens.

FIGURE 20

FIGURE 20. Effect of f_cu on the P-Δ skeleton curve of specimens.

7 Conclusion

1) CFRP has a good lateral restraint and longitudinal strengthening effect on CFST. The hysteretic curves of the specimens are relatively full, indicating that each specimen has good hysteretic performance and the steel tube and CFRP can keep cooperation in both longitudinal and transverse directions.

2) n is beneficial to the seismic performance of the specimens within a certain range, and the strength degradation of the specimens is not significant. In the later stage of loading, the bearing capacity of the specimens without axial compression does not decrease, and there is axial compression, whereas the bearing capacity of the specimen decreases obviously.

3) A finite element modeling method based on ABAQUS is used in the compression flexural hysteretic load model of members. The P-Δ hysteretic curves of members established by ABAQUS can be used to analyze the stress distribution of the components of members. By comparing the curve with the mode, it can be seen that the FE is in good agreement with the test results.
