Temperature denpendent microwave absorption properties of SrFe12O19 in X-band

Researchers are currently focusing on the electromagnetic and microwave absorption properties of SrFe₁₂O₁₉ hexaferrites. The high-temperature absorption (more than 573 K) is highly demanded in various including the military, national defense, aviation, and other fields. SrFe₁₂O₁₉ has good thermal stability at high temperature, and it has large coercivity, which also determines that it has good stability in magnetic properties and is not easy to be affected by the environment. Thus, it is necessary to explore the magnetic characteristics of SrFe₁₂O₁₉ hexaferrites at high temperatures. SrFe₁₂O₁₉ hexaferrites were fabricated by the molten salt method and their microstructure, high-temperature electromagnetic properties, and microwave properties were investigated in detail. The complex permeability and permittivity of SrFe₁₂O₁₉ were measured at varying temperatures (293–673 K) in the X band. While the real parts of permittivity and permeability increased with the increasing temperature, the imaginary parts of permittivity and permeability did not change significantly with increasing temperature. The calculated absorption properties displayed that as temperature increased from 293K to 623K, the frequency of the RL peaks moved to a low-frequency direction, and the sample’s minimum value of RL could be smaller than -10dB across the whole X band. The results indicate that SrFe₁₂O₁₉ particles have better absorption properties and can be used in high-temperature environments. These particles can be possibly used in many particular fields.

Introduction

Microwave absorption materials are widely used in computers, communication, household appliances, national defense, and military fields, especially in the GHz band. Consequently, the investigation into the microwave absorption capabilities of materials has always been a major concern. The electromagnetic parameter is directly related to the microwave absorption capabilities of absorbent materials. Efforts have been made to improve high-frequency electromagnetic efficiency as demands for GHz-band microwave absorbers have grown significantly (Li et al., 2014; Mehdipour and Shokrollahi, 2013; Zheng et al., 2016; Li et al., 2015). Therefore, it is essential to use a stable magnetic material. As absorbing materials, ferrites and metallic magnetic materials with a magnetic loss mechanism have been extensively studied (Mehdipour and Shokrollahi, 2013; Zheng et al., 2016; Li et al., 2015). Typically, metallic magnetic materials have a low resistivity, which could lead to a significant eddy current loss in the GHz frequency range, hence limiting their technological applications. Meanwhile, ferrites are considered to be the optimal choice for industrial applications due to their high resistivity, minimal eddy current loss, high saturation magnetization, and outstanding electromagnetic characteristics (Tang et al., 2016; Zhang et al., 2016; Ye et al., 2015).

Due to the Snoek’s limit, the cut-off frequency for typical soft spinel ferrite, such as NiZnFe₂O₄ or MnFe₂O₄, is as low as a few MHz despite the material’s considerable permeability at low frequencies (Ghasemi and Mousavinia, 2014). However, to obtain a ferrite with a high cut-off frequency, the effective anisotropy field must be increased. As M-type SrFe₁₂O₁₉ is a typical hexagonal ferrite, with a high magnetocrystalline anisotropy field that is primarily used as a permanent magnet material due to its high coercive force, relatively high saturation magnetization, and high Curie temperature, as well as its high dielectric loss, good chemical stability, and corrosion resistance, it has attracted the attention of researchers, especially, about their electromagnetic and microwave absorption properties [Nie et al., 2010; Wang et al., 2001; Ghasemi et al., 2006; Zi et al., 2009; Fathi et al., 2020]. Due to the thermal impacts of the devices or particular working requirements for high-temperature, microwave devices typically run at temperatures greater than room temperature. Thus, it is necessary to explore microwave absorption performance of absorbing materials at high temperatures (Cao et al., 2010; Luo et al., 2017; Shi et al., 2008; Yuan et al., 2017). Many research groups use pure dielectric materials with outstanding thermal stability as absorbing materials, such as graphite, carbon nanosheets, SiC fiber, BiFeO₃ and so on, to study their microwave absorption performance at high temperature (Shi et al., 2008; Song et al., 2009; Li et al., 2015; Li et al., 2016; Lu et al., 2016; Li et al., 2018; Li et al., 2019; Yuan et al., 2017; Guan et al., 2022; Li et al., 2022; Mu et al., 2022). It is reported that all the RL can exceed -10 dB in the whole X band at elevated temperature (573–873 K). SrFe₁₂O₁₉ has good thermal stability at high temperature, and it has large coercivity, which also determines that it has good stability in magnetic properties and is not easy to be affected by the environment. Therefore, it is necessary to study the high-temperature absorption of SrFe₁₂O₁₉. However, currently, there is no research on its high-temperature electromagnetic and wave absorption characteristics. This is due to the difficulty of conducting research at ultra-high temperatures, the necessity of highly specialized equipment, and that this kind of test is not mature. Since it is still in the research phase, no commercially available direct-use equipment is available. Therefore, we have built a set of equipment that can test high-temperature electromagnetic parameters to study the related properties of magnetic materials.

In this work, M-type SrFe₁₂O₁₉ was prepared by the molten salt method. M-type SrFe₁₂O₁₉ powder and polymer were thoroughly mixed, pressed into blocks, subjected to high-temperature sintering to volatilize the polymer, and then ferrite blocks were produced. The electromagnetic properties and SrFe₁₂O₁₉ microwave absorption were then examined in the entire X band at temperatures ranging from 293 K to 673 K.

Experiment

SrFe₁₂O₁₉ was obtained by the molten salt method, and the raw materials used in the experiment were strontium carbonate (SrCO₃, 99%), and ferric oxide (Fe₂O₃, 99%). The mass fraction of Fe₂O₃ and SrCO₃ is 82.64% and 17.36% respectively. The molecular formula of M-type ferrite is MFe_2nO₁₉, and the structure of ferrite can be determined that n = 6 in theory, but the value of n is less than six in the actual configuration process. This is because some iron-containing substances on the ball milling tank will be ground into the ingredients in the process of ball milling, resulting in an increase in the content of iron in the ingredients. The weighed raw materials were added to the ball mill tank along with the appropriate amount of alcohol, and the mixture was allowed to mix for around 30 min. A suitable amount of alcohol was then added after mixing. Total alcohol mass to raw material mass was around 1.5:1. The ball grinding tank was placed in a planetary ball mill with a revolving speed of 200 r/min. After 2 h of ball grinding, 10% cosolvent was added, and the abrasive was placed in an oven to dry at 80°C. After drying, a small amount of dry powder was placed in a muffle furnace and prefired at different prefiring temperatures at a heating rate of 5°C/min. The prefiring temperatures were respectively 1,140°C, 1,160°C, 1,180°C, and 1,200°C for 2 h. After the holding was completed, turn off the power and allow the sample to drop to room temperature with the furnace. Finally, the cosolvent in the sample was washed with distilled water after grinding, and the sample was air dried to obtain strontium ferrite powder. Single phase M-type strontium ferrite can be prepared at all pre-firing temperature points. With the same formula, that is, the same iron content, the higher the temperature, the sharper the diffraction peak, and the stronger the intensity, indicating that the higher the temperature, the better the crystallization of the sample, and the smaller the diameter thickness ratio. However, the diffraction Angle corresponding to the diffraction peak does not change, indicating that the increase of the prefiring temperature has no obvious effect on the lattice constant. Therefore, in this paper, the sample with a prefiring temperature of 1,200°C was selected as the research object. The crystallographic and microstructure properties of SrFe₁₂O₁₉ were analyzed by the X-ray diffractometer (XRD, X’Pert Pro PANalytical with Cu Kα radiation) and scanning electron microscope (SEM, MIRA3 TESCAN), respectively. The static magnetic characteristics of SrFe₁₂O₁₉ were measured at elevated temperatures using a vibrating sample magnetometer (VSM, Micro Sense VSM-EV9). The electromagnetic properties (complex permittivity and permeability) of the composite at high temperature were determined using the waveguide technique and a vector network analyzer (VNA, Agilent E8363B) in the 8.2–12.4 GHz frequency range. The samples for this assessment were made as follows: Hexaferrites were mixed with polyvinyl alcohol (the hexaferrites to paraffin weight ratio was 5:1), and then pressed into a rectangle flake with length (22.80 mm), width (10.16 mm), and thickness (2 mm) at 6 Mpa. Finally, it was heated to 1473 K in an argon atmosphere and kept there for 2 h.

Results and Discussion

Crystal structure, phase, and component

SEM images of SrFe₁₂O₁₉ samples are shown in Figure 1A, demonstrating that the sample has a more regular shape and structure, as well as good particle uniformity. The police force’s morphology had a regular hexagonal structure, and the particle diameter thickness ratio is lower. The morphology of SrFe₁₂O₁₉ particles and the standard M phase (PDF 33–1,340) is shown in Figure 1B, demonstrating that SrFe₁₂O₁₉ is the primary phase presented by the XRD pattern. The results showed that the diffraction peak is highly sharp and intense, indicating that the sample crystallinity is very good, and the SrFe₁₂O₁₉ generated by this approach is a M-type hexagonal ferrite phase. Figure 1C displays the atomic percentages of various constituent elements resulting from quantitative EDS analysis for the SrFe₁₂O₁₉ particles, revealing that the molecular formula and the atomic ratios of Sr and Fe are in good agreement.

FIGURE 1

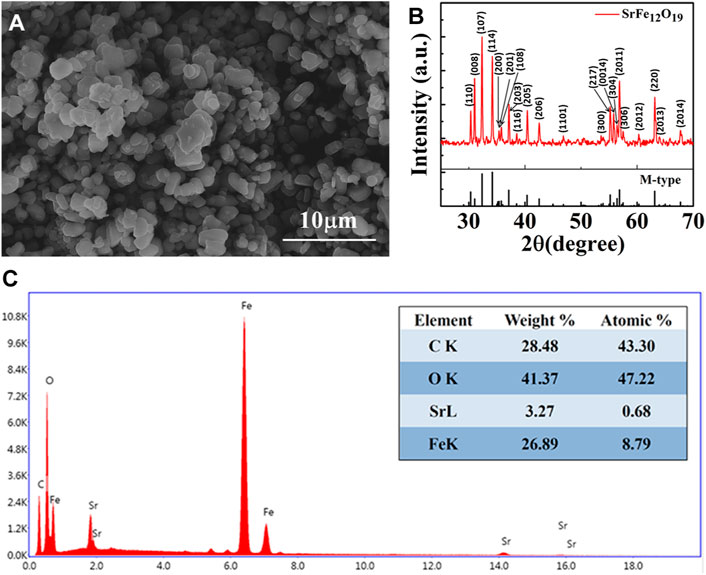

FIGURE 1. (A) SEM of SrFe₁₂O₁₉. (B) X-ray diffraction pattern of SrFe₁₂O₁₉. (C) EDS spectra and elemental mappings of the sample.

The static magnetic characteristics at high temperature

The hysteresis loop of SrFe₁₂O₁₉ measured at different temperatures is depicted in Figure 2A, which reveals that the saturation magnetization decreased gradually with temperature increase, then rapidly with temperature increase below the Curie temperature, until they became zero. At elevated temperatures, saturation magnetization and remanent magnetization gradually declined as temperature increased; when the temperature reached 723K, it dropped rapidly; and when the temperature continued to rise to 773K (Figures 2B,C), the original ferrimagnetic phase transformed into the paramagnetic phase. However, the coercivity firstly increased and then decreased gradually declined as temperature increased; when the temperature continued to rise to 773K, it decreased to zero (Figure 2D). According to the theory of the spontaneous magnetization process, when the temperature rises, the atomic distance increases, reducing the exchange effect. In addition, as a result of the law of thermal motion’s continual destruction of the atomic magnetic moment’s orientation, the saturation intensity of spontaneous magnetization decreases until the temperature exceeds the Curie point. This leads to the destruction of the atomic magnetic moment’s regular orientation, the absence of the spontaneous magnetic moment, and the transition of the material from the ferrimagnetic phase to the paramagnetic phase.

FIGURE 2

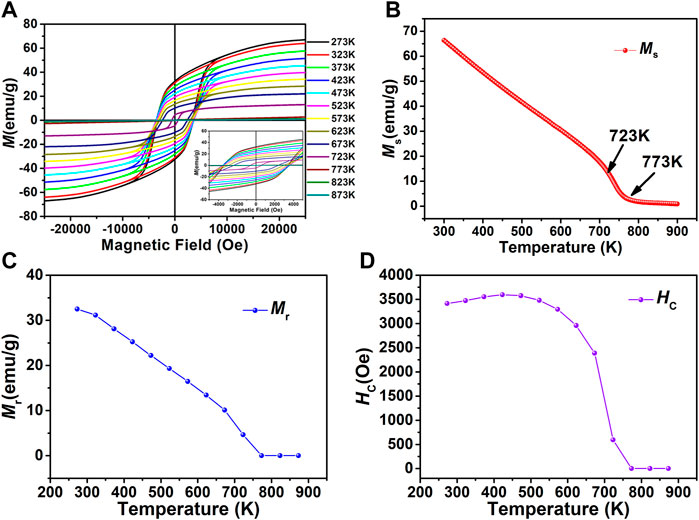

FIGURE 2. (A) Magnetic hysteresis loops of the sample. (B) Diagram of saturation magnetization with temperature of the sample. (C) Diagram of remanent magnetization with temperature of the sample. (D) Diagram of coercivity field with temperature of the sample.

Electromagnetic parameters at elevated temperature

High-temperature electromagnetic parameters are mostly examined using specifically designed testing equipment (Nayak et al., 2013). The test system consists primarily of a vector network analyzer, a high-temperature variable and temperature control system, a water cooling circulation system, an X-band high-temperature calibration kit, a high-temperature insulation waveguide, and a constant temperature waveguide with a water tank, and other accessories. The vector network analyzer is connected to the high-temperature insulation waveguide by a rigid cable, and the waveguide is put in a temperature box heated by radiation. Simultaneously, the cooling water circulation system is connected to the connection between the waveguide end and the cable, and the temperature at the cable connection point is rapidly lowered. Figure 3 depicts a waveguide technique high-temperature test device. The center 100 mm of the furnace is a constant-temperature zone that may accommodate the needs of high-temperature testing. Both ends are linked to the cooling water pipe, as illustrated in Figure 3.

FIGURE 3

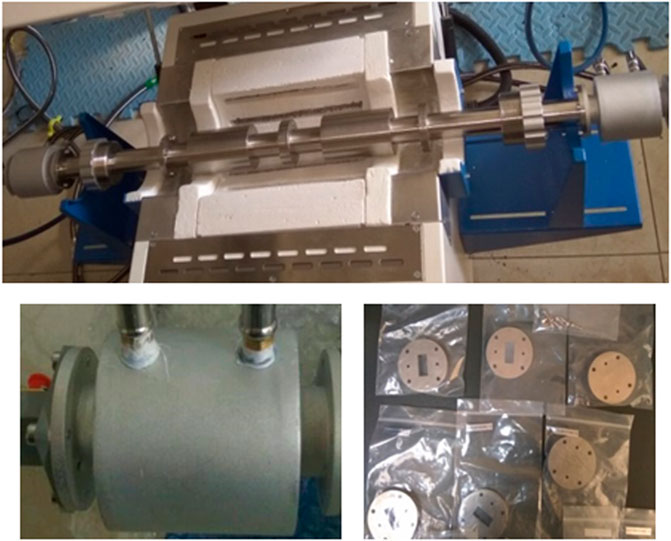

FIGURE 3. Waveguide method high-temperature test device, local magnification of water cooling part, high-temperature calibration kit, and test fixture.

The Thru-Reflect-Line (TRL) calibration method is selected (Stumper, and Schrader, 2014), and the supporting high-temperature calibration components and test fixtures are depicted in Figure 3. The entire device is then linked and ready for use. First, the test device was calibrated at room temperature. Secondly, in this calibrated state, the temperature was increased, and then the S_cavity parameter of the cavity at different temperature points was tested. In the third step, when the temperature dropped to room temperature, the sample was put into the test fixture, and the S_total parameter at different temperature points was tested by increasing the temperature, so S_sample = S_total - S_cavity, then the real S_sample parameter of the sample at different temperature points was obtained. In the last step, the characteristic spectral lines of electromagnetic parameters varying with frequency at different temperature points were calculated according to the S_sample parameter.

The frequency dependency of the complex permittivity of SrFe₁₂O₁₉ in the X band at high temperature is illustrated in Figures 4A,B. The results indicated that the real part (ε′) of permittivity increases with temperature from 9.43 at 273K to 15.37 at 673K at 8.2GHz, however, the imaginary part (ε″) does not change much with temperature. It can also be analyzed that both ε′ and ε″ at varying temperatures, maintain the diagram’s basic consistency. Debye’s theory helps explain the dependence of permittivity on temperature (Atwater and Wheeler, 2004),

${\epsilon }^{\prime }={\epsilon }_{\infty }+\frac{{\epsilon }_{\mathrm{S}}-{\epsilon }_{\infty }}{1+(\omega \tau (T){)}^2},(1)$

${\epsilon }^{″}\left(\omega \right)=\frac{{\epsilon }_{\mathrm{S}}-{\epsilon }_{\infty }}{1+(\omega \tau (T){)}^2}\omega \tau \left(T\right),(2)$

where ω represents angular frequency, τ(T) represents temperature based on relaxing time, ${\epsilon }_S$ is static permittivity, and ${\epsilon }_{\infty }$ is the relative permittivity at the limit of high frequency. In accordance with the Arrhenius formula (Correia and Ramos, 2000), the τ(T) reduces as temperature rises. According to Eq. 1, a decrease in τ(T) leads to an increase in ε′. In addition, for oxide materials, because the frequency of dielectric relaxation is very high, and the test frequency is significantly lower than the resonance frequency, so ε″ tends to zero. Therefore, ε″ have no evident changes as the temperature changes.

FIGURE 4

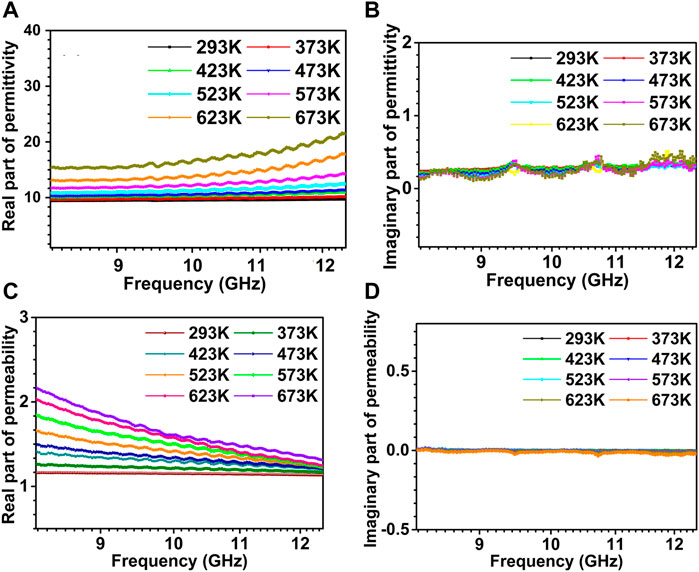

FIGURE 4. The results of the VNA samples were summarized. Frequency dependence of the real part (A) and imaginary part of the complex permittivity (B). Frequency dependence of the real part (C) and imaginary part of the complex permeability (D).

It is known that the ε′ and ε″ represent the ability of dielectric materials to store and dissipate electric energy, respectively. Additionally, the dielectric loss can be used to describe the capacity for dissipating electrical energy. The results show that its electric energy storage is excellent over the whole temperature range, below the phase transition temperature. The ε″ of all the samples are relatively small, and they do not exhibit any discernible variations in temperature over their whole range. As a result, the findings indicate that these hexaferrites have extremely little dielectric loss.

The frequency dependence of complex permeability of SrFe₁₂O₁₉ in the X band at high temperature is depicted in Figures 4C,D. The results show that the permeability of the real part (μ′) increases with temperature from 1.16 at 273K to 2.17 at 673K at 8.2GHz, but the imaginary part (μ″) does not change much with temperature. According to the Hopkinson effect (Buzinaro et al., 2016), the magnetic materials’ magnetocrystalline anisotropy constant will reduce as the temperature rise, which results in a decrease in the effective field’s overall magnetocrystalline anisotropy, hence μ′ increases as the temperature rises. Furthermore, because the sample’s magnetocrystalline anisotropic effective field is very strong, its resonance frequency is quite high; yet, the test frequency is significantly lower than the resonance frequency, so μ″ tends to zero. Therefore, μ″ are unaffected by variations in temperature.

Microwave absorption performance

The absorption property of materials is extremely important for certain application scenarios, in which absorbing materials must operate at extremely high temperatures; therefore, it is necessary to investigate whether absorbing materials retain their excellent absorption property at such temperatures. The RL represents the sample absorption characteristics for microwaves. The RL values were calculated with the complex μ and ε at given thickness d and frequency f based on the transmission line theory (Buzinaro et al., 2016). When μ and ε values are measured at different temperatures, RL values at corresponding temperatures can be calculated. The RL can be calculated as a function of the input impedance once it has been normalized, as shown in ref. [26] (Naito and Suetake, 1971):

$RL=20\log \left|\frac{Z_{\mathrm{i}\mathrm{n}}-Z_0}{Z_{\mathrm{i}\mathrm{n}}+Z_0}\right|,(3)$

Typically, the following calculation can be used to calculate the normalized input impedance, Z_in, of a metal-backed microwave absorption layer (Wessling, 1991):

$Z_{\mathrm{i}\mathrm{n}}=Z_0\sqrt{\mu /\epsilon }\tanh \left[j\frac{2\pi fd\sqrt{\mu \epsilon }}{c}\right],(4)$

where Z₀ represents the free space’s intrinsic impedance, μ denotes the sample’s complex relative permeability, ε represents the relative complex permittivity, f denotes the electromagnetic wave’s frequency, d represents absorber thickness, and c is the vacuum velocity of light.

The frequency dependency of the RLs for the sample at varying temperatures in the X band was determined using Eqs. 3, 4 and plotted in Figure 5 Different colors represent the RL curve at corresponding temperatures. According to the theoretical formula, when the thickness is 5 mm, the RL of the sample can be less than -10dB. Moreover, it is revealed that the minimum value of the sample’s RL can be less than -10dB in the entire X band from ambient temperature to 623 K; when the temperature reached 673K, it began to deteriorate. As the temperature rose to 673K, there were two or three peaks seen in all samples’ RL curves. Additionally, as the temperature rose to 623K, the frequency of RL peaks shifted to the low-frequency direction. When the temperature was raised to 673K, this sample demonstrated remarkable microwave absorption efficiency. During the whole test, it was held for 15 min at each temperature point. In the entire X band, the absorption performance has almost remained unaltered and is still effective. The outcome demonstrated that SrFe₁₂O₁₉ absorbing materials may retain stable RL performance at elevated temperatures. In addition, the temperature of SrFe₁₂O₁₉ absorbing material can be regulated to achieve the control of the absorbing frequency band within the 8–12 GHz frequency range.

FIGURE 5

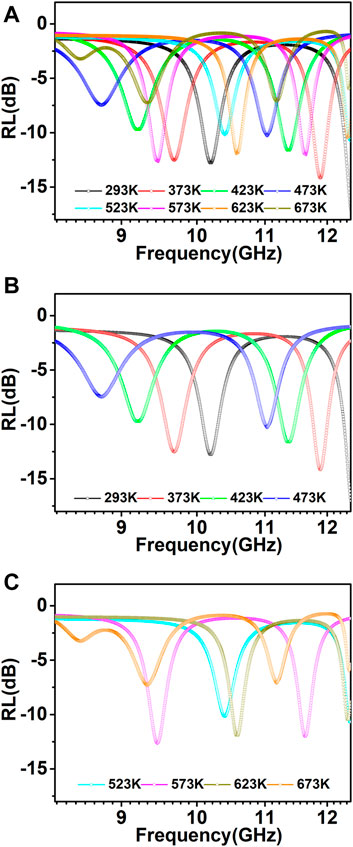

FIGURE 5. The temperature dependence microwave absorption performance of the sample, (A) when the temperature change from 293K to 673K; (B) when the temperature change from 293K to 473K; (C) when the temperature change from 523K to 673K.

Conclusion

In conclusion, SrFe₁₂O₁₉ hexaferrites have been successfully produced using the molten salt process, and the microstructure, magnetic characteristics, and microwave properties have been examined in depth. The XRD analysis revealed that the lattice parameters of SrFe₁₂O₁₉ exhibit a typical hexagonal surface morphology. In particular, we evaluated systematically the changes in electromagnetic characteristics and microwave absorption performance of SrFe₁₂O₁₉ in the X band at 293–673 K. Temperature increased both the real components of permittivity and permeability. The temperature had no discernible effect on either the permittivity or permeability of imaginary parts. As the temperature increased to 673K, two or three peaks could be detected in the RL curves of all samples. In addition, as the temperature reached 623K, the frequency of RL peaks shifted towards low-frequency. In the X band from ambient temperature to 623 K, the minimum value of the sample’s RL can be less than -10dB. All of the results showed that an absorber loaded with SrFe₁₂O₁₉ particles can be used in a high-temperature environment and perform well in terms of absorption. In addition, the temperature of SrFe₁₂O₁₉ absorbing material can be regulated to achieve the control of the absorbing frequency band within the 8–12 GHz frequency range.
