ORIGINAL RESEARCH article

Front. Mater., 26 January 2022
Sec. Polymeric and Composite Materials
This article is part of the Research Topic Polymer Blends for Drug Release Systems View all 10 articles

Hydroxyapatite Growth on Poly(Dimethylsiloxane-Block-ε-Caprolactone)/Tricalcium Phosphate Coatings Obtained by Electrophoretic Deposition

Franco Leonardo Redondo,Franco Leonardo Redondo1,2María Carolina Giaroli,María Carolina Giaroli1,2Andrs Eduardo Ciolino,Andrés Eduardo Ciolino3,4Mario Daniel Ninago,
Mario Daniel Ninago1,2*
  • 1Universidad Nacional de Cuyo, Facultad de Ciencias Aplicadas a La Industria, San Rafael, Mendoza, Argentina
  • 2Consejo Nacional de Investigaciones Científicas y Técnicas (CONICET), Ciudad Autónoma de Buenos Aires, Buenos Aires, Argentina
  • 3Planta Piloto de Ingeniería Química, PLAPIQUI (UNS-CONICET), Bahía Blanca, Argentina
  • 4Departamento de Ingeniería Química, Universidad Nacional Del Sur (UNS), Bahía Blanca, Argentina

For the first time, composite coatings based on poly(dimethylsiloxane-block-ε-caprolactone) copolymer and tricalcium phosphate were obtained on stainless steel plates by using the electrophoretic deposition technique. The effect of different deposition times on the final characteristics of the resulting coatings was also studied. Block copolymers were obtained through a combination of anionic and ring-opening polymerization, with good homogeneity and chemical composition (Ð < 1.3 and wPCL = 0.39). The composites obtained at different electrophoretic deposition times revealed a linear dependence between the deposited weight and time during assays. When immersing in simulated body fluid, a higher amount of residual solids ( ∼ 20 %) were observed by thermogravimetric analysis after 7 days of immersion. Scanning electron microscopy micrographs revealed a porous microstructure over the metallic substrate and the absence of micro-cracks, and X-ray diffraction patterns exhibited diffraction peaks associated with a hydroxyapatite layer. Finally, energy-dispersive X-ray analysis revealed values of the Ca/P ratio between 1.40 and 1.50 in samples, which are closer to the stoichiometric hydroxyapatite values reported in hard tissues. The results obtained in this article confirm the usefulness of poly(dimethylsiloxane-block-ε-caprolactone) copolymer and cheaper tricalcium phosphate as precursors of compact and homogenous coatings obtained by electrophoretic deposition, which yields useful substrates for hydroxyapatite growth.

1 Introduction

Biocompatible materials play an important role in the area of tissue engineering mainly because they give a new vision of the development materials destined to the repair and regeneration of tissues or the replacement of missing human bones and teeth, among other applications (Qu et al., 2019). One of the main challenges for polymer´s researchers is to develop non-toxic, biodegradable, bioactive, and osteoconductive materials with good mechanical properties at the time of application. For such a purpose, composites formed from two or more materials with excellent properties (polymers, ceramics, and bioglasses) are widely used in tissue engineering (Yeong et al., 2010; Qu et al., 2019; Bonetti et al., 2020; Ninago et al., 2020; Redondo et al., 2020). Therefore, tissue engineering is a promising area of growing interest in the design and obtaining of polymer-based bioactive materials because of the large number of opportunities that polymeric materials offer.

The use of these materials can be explained according to their ability to be re-absorbed or degraded after a certain time of being implanted without generating toxic products in the receptor organism, and they provide more controllability on physicochemical characteristics such as pore size, porosity, solubility, biocompatibility, enzymatic reactions, and allergic response (Yang et al., 2015; Clavijo et al., 2016; Ghassemi et al., 2018; Quiroga et al., 2018; Ghalayani Esfahani et al., 2019; Taale et al., 2019). In last years, various methodologies capable of developing these new materials have appeared, such as melt mixing (Pishbin et al., 2015), dissolution-leaching (Jordan et al., 2005), and electrophoretic deposition (EPD) technique (El-Ghannam, 2005; Cabanas-Polo and Boccaccini, 2015; Redondo et al., 2020), among others.

The EPD technique is used for the fabrication of coatings because of its simplicity, versatility, and usefulness on substrates with complex geometry (Ghalayani Esfahani et al., 2019; Bonetti et al., 2020; Pereira et al., 2020). EPD is an extremely promising technique for producing organic/inorganic composite scaffolds over several substrates (magnesium, titanium, and stainless steel, among others) to avoid the release of metal ions due to corrosion phenomena (Ghalayani Esfahani et al., 2019; Joy-anne et al., 2019). In addition, a strong union between the material to be implanted and the bone tissue is achieved with this type of methodology (El-Ghannam, 2005; Cabanas-Polo and Boccaccini, 2015). In particular, EPD of soft composites is an attractive technique that can be used to produce uniform coatings with a controlled microstructure, without requiring expensive equipment (Clavijo et al., 2016; Pereira et al., 2020; Redondo et al., 2020). The use of a polymer matrix in biodegradable composites allows obtaining materials with specific geometries and provides a platform for incorporation and release of biomolecules and drugs. These materials can be used in varied applications such as implants in orthopedic surgery, scaffolds, ligament union, sutures, controlled release of drugs, flexible tubes for cardiovascular surgery, and dental repairs, among others (Zhao et al., 2008; Ghasemi-Mobarakeh et al., 2010; Ghalayani Esfahani et al., 2019; Redondo et al., 2020).

Synthetic polymers such as poly(ε-caprolactone) (PCL), poly-lactic acid (PLA), or poly (lactic-co-glycolic) acid (PLGA) are biodegradable and can be used for applications in bone tissue engineering (Boccaccini et al., 2010; Seuss et al., 2016; Pereira et al., 2020). PCL is one of the Food and Drug Administration (FDA)–approved biopolymers and has been extensively used in biomedical applications because of its inherent properties of good mechanical strength, biocompatibility, and biodegradability (Thinakaran et al., 2020). In addition, within the most prominent physicochemical properties of PCL, we can mention its good compatibility with a large variety of polymers (Miola et al., 2015; Joy-anne et al., 2019). Besides, because of being a non-toxic polymer, it is widely used in biomedical applications as long-term implantable devices, scaffolds for tissue growth, drug-delivery systems, and 3D printing or electrospinning devices, among others (Wietor et al., 2011; Liang et al., 2013; Yazdimamaghani et al., 2015; Redondo et al., 2020). PCL or PCL-based copolymers can be obtained by various polymerization techniques such as “click” chemistry, ring-opening polymerization (ROP), or hydrogen-transfer polymerization (Öztürk et al., 2016; Öztürk and Meyvacı, 2017; Savaş et al., 2021). In this sense, ROP is defined as “polymerization in which a cyclic monomer yields a monomeric unit that is either acyclic or contains fewer rings than the cyclic monomer.” The technique is widely used for a lot of systems with many monomers, initiators, and catalysts, including lactones and silicones, among others (Öztürk and Meyvacı, 2017).

Silicones, or polysiloxanes, are other biocompatible polymers that are used extensively in the field of biomedicine (Danesin et al., 2012; Redondo et al., 2020). The chemical structure of these polymers has a simple sequence of atoms: polysiloxanes: Si(<)–O–Si(<)–. Usually, substituents at the Si atoms are methyl groups, thus generating the poly(dimethylsiloxane) (PDMS), which is obtained either by polycondensation of Si(CH3)2(Cl)2 or by ROP of cyclic monomers, such as hexamethyl (cyclotrisiloxane) (D3) or octamethyl (cyclotetrasiloxane) (D4). In addition, PDMS derivatives are widely employed in drug-delivery systems or nanotechnology applications, among others (Nag et al., 2018a; Wolf et al., 2018; Joy-anne, et al., 2019; Luo et al., 2019). PDMS-based organic–inorganic materials have high degrees of flexibility, excellent electrical-insulating properties, and exceptional heat resistance at higher temperatures (Chen et al., 2018; Nag et al., 2018b; Raj et al., 2018; Aoki, 2020). For example, composites from PDMS and ceramic powder allow reducing the thermal stress between the metal substrate and EPD film, while achieving a high thermal conductivity and an enhanced electrical insulation without sintering (Aoki, 2020).

Ceramic materials such as calcium phosphates and silicate glasses are interesting biomaterials due to their bioactivity properties (osteoconduction and osteoinduction) and their ability to form a reactive hydroxyapatite (HA) layer. In recent years, specific compositions of them have been used to obtain hard and soft implants for tissue engineering (Zhou and Lee, 2011; Sartore et al., 2019; Wang et al., 2019; Pereira et al., 2020). The development of bioresorbable and bioactive composites for tissue engineering applications is being investigated worldwide, and many approaches have been published by including combinations of resorbable homopolymers such as PLA, PLGA, and PCL, with HA, tricalcium phosphate (Ca3(PO4)2, TCP), or bioactive glasses and glass-ceramics in different scaffold architectures (Duruncan and Brown, 2001; Ma et al., 2001; Yang et al., 2005; Ghassemi et al., 2018; Sungsee and Tanrattanakul, 2019). In the most usual approach, HA, TCP, and bioactive glass particles are combined with polymeric biodegradable substrates in order to obtain the desired scaffolds or coatings (Roether et al., 2002; Taale et al., 2019; Mondal et al., 2020; Shah Mohammadi et al., 2020).

HA particles exhibit a chemical composition and crystalline structure similar to that of living bones, and show high osteoconductivity as well as bioresorbability in biological environments (Maeda et al., 2007; Ramezani et al., 2017). One of the main purposes for employing HA in the synthesis of biodegradable polymeric scaffolds is its ability to modify surface properties in the resulting composites, which are suitable for their use in bone-tissue engineering (Ramezani et al., 2017; Qu et al., 2019; Zhao et al., 2019). The deposition of the HA layer on polymeric materials by using a simulated body-fluid (SBF) solution is often generated by the increase in the supersaturation of inorganic ions in the medium. On the other hand, TCP excels in terms of degradability and bioactivity (two important reasons for its frequent use in clinical applications), and it has attracted much interest since it has been postulated as a precursor of HA formation (Loher et al., 2006). Consequently, it might be reasonable to use TCP as a Ca2+ ions–releasing source, by supplying the desired Ca2+ ions when immersed in SBF and by promoting HA synthesis (Yu et al., 2018; Dorozhkin, 2010).

In one of the previous work, we reported the capability of block copolymers to induce the precipitation of a HA layer (Redondo et al., 2018; Ninago et al., 2020; Redondo et al., 2020). In this sense, the effect of molecular architecture (linear or branched) of block copolymers and the use of Bioglass® on EPD tests (t = 6 min) was analyzed. It was observed that linear block copolymers promote a better HA deposition when in vitro assays were performed. By taking into account these results, in this work, bioactive coatings based on PDMS-b-PCL block copolymer and TCP as a mineral filler were employed for HA deposition by using the EPD technique. The emphasis of this work is placed on the combination of these materials for the first time, by obtaining bioactive coatings that promote HA growth. In addition, the effect of EPD time was also studied. It is envisioned that the coatings obtained from this methodology will combine PDMS-b-PCL and HA composites in a synergic way, which could be considered as an alternative for scaffolds in bone-tissue engineering (Chen et al., 2019; Qu et al., 2019; Mondal et al., 2020).

2 Materials and Methods

Materials

The reagents used for anionic and ROP polymerization were purified by the traditional procedures reported in the literature (Uhrig and Mays, 2005; Redondo et al., 2020). Hexamethyl (cyclotrisiloxane) monomer (D3, Sigma-Aldrich, 98 %) for anionic polymerization and ε-caprolactone (ε-CL, Sigma-Aldrich, 99 %) for block copolymer synthesis were purified by mixing with the calcium hydride powder (CaH2, Sigma-Aldrich, 95 %), followed by heating and distilling under vacuum according to conventional procedures. Tetrahydrofuran (THF, Ciccarelli), cyclohexane (Dorwill), and methanol (Química Industrial) were used for the reaction (Agudelo and Pérez, 2016), and stannous octoate was used as a polymerization catalyst (Satti et al., 2017).

For EPD assays, the obtained block copolymers and TCP (CARLO ERBA Reagents) were employed (Boccaccini et al., 2007; Quiroga et al., 2018). Acetone (Sintorgan) was used as a solvent and stainless steel (AISI 316L) plates as metallic substrates. For bioactivity assessments, simulated body fluid (SBF) was prepared according to the suggestions given by Kokubo and Takadama (2006).

Synthesis of PDMS-OH Macroinitiator and Linear Block Copolymer

2.1.1 PDMS-OH

The poly(dimethylsiloxane) (PDMS-OH) homopolymer was synthesized by anionic polymerization, employing hand-made polymerization reactors and high-vacuum techniques (Scheme 1) (Ninago et al., 2017; Redondo, 2018). In brief, the sealed ampoule of the D3 monomer (12.5 g, previously dissolved in 40–50 ml of dry cyclohexane) was gently broken and poured into the reactor flask, followed by the addition of the sec-Bu-Li+ ampoule (2.9 ml, 0.28 M). The reagents were gently mixed by employing manual movements, and the reaction was left to proceed during ∼ 20 h at room temperature. Then, the THF ampoule (10 ml) was broken, and polymerization was left to proceed, at room temperature, during 20 h. The reaction was finished by the addition of the well-degassed methanol ampoule (5 ml), and the resulting PDMS-OH polymer was then precipitated in cold methanol (Scheme 1).

SCHEME 1
www.frontiersin.org

SCHEME 1. Reactor for PDMS-OH synthesis. References: I: sec-Bu-Li+ ampoule; S: THF ampoule; M: D3 monomer in a cyclohexane ampoule; F: methanol ampoule; R: main reactor; VLC: vacuum line connection.

2.1.2 PDMS-B-PCL Copolymer

The PDMS-b-PCL copolymer was synthesized by ROP polymerization of ε-CL monomer, according to the methodology already published by the group (Redondo et al. 2018). Copolymerization was carried out in a glass reactor under the nitrogen atmosphere, by employing degassed toluene as a solvent and tin (II) 2-ethylhexanoate (Sn(Oct)2) as a catalyst, at 110°C for 24 h (Scheme 2). A catalyst/PDMS-OH ratio of 0.5 was employed (Satti et al., 2017). The obtained copolymers were precipitated, filtered, and stored until their use.

SCHEME 2
www.frontiersin.org

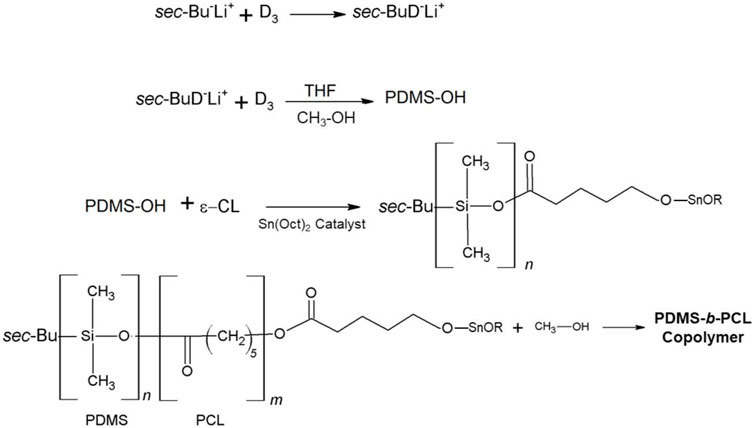

SCHEME 2. Reaction pathway in the synthesis of PDMS-OH and PDMS-b-PCL copolymer.

Characterization of the Linear Block Copolymer and TCP Powder

2.1.3 Nuclear Magnetic Resonance (1H-NMR)

The 1H-NMR spectrum of PDMS-b-PCL copolymer was performed by using an Avance DPX 400 spectrometer (400 MHz for H and 100 MHz for C) employing CDCl3 as a solvent. From the spectrum, the content of PCL in PDMS-b-PCL (the weight fraction of PCL in the copolymer, wPCL) was determined.

2.1.4 Size-Exclusion Chromatography

The molar mass and polydispersity were determined by using an SEC-employing system, a Waters 515 HPLC pump, and a Waters model 410 differential refractometer detector. Toluene and polystyrene were employed as a solvent and standard for calibration, respectively.

2.1.5 Fourier-Transform Infrared Spectroscopy (FTIR-ATR)

Spectra of block copolymer and TCP particles were registered on a Nicolet®iS5 spectrometer, equipped with an attenuated total reflectance accessory (iD7-ATR). Samples were recorded with an accumulation of 16 scans between 3,500–550 cm−1 range and a resolution of 4 cm−1.

2.1.6 Differential Scanning Calorimetry

Thermal transitions of PDMS-OH macroinitiator and PDMS-b-PCL copolymer were studied on a TA Instruments Calorimeter. Samples ( ∼ 10 mg) were measured under an inert atmosphere of nitrogen, with a flow of 50 ml min−1. First heating was performed from -90–210°C at 10°C min−1. Then, samples were kept at 210°C during 5 min in order to avoid the influence of previous thermal history. After cooling at 10°C min−1, they were heated again from -90–210°C at 10°C min−1. Glass-transition (Tg) and melting temperature (Tm) of PDMS and PCL blocks were determined from this second heating process. With the data obtained, the percentage of crystallinity (% Xc) was obtained by following the equation reported by Yam et al. (1999).

2.1.7 Thermogravimetric Analysis

Thermal stabilities of PDMS-b-PCL copolymer and TCP were analyzed by using TGA equipment (Discovery TA Instruments TGA5500 balance). The tests were studied under the nitrogen atmosphere, with a flow of 25 ml min−1 and 2°C min−1 heating rate, in the 30–700°C range. The percentage of weight loss versus temperature was registered.

2.1.8 Laser Diffraction

Particle-size distribution of TCP was determined by using a Horiba Partica LA-950 Laser Diffraction Particle Size Distribution Analyzer (Kyoto, Japan).

2.1.9 X-Ray Diffraction

The crystal structure identification of TCP was determined by XRD. The patterns were obtained on an Philips PW1710 X-ray diffractometer (Philips, Holland), provided with a tube, a copper anode, and a detector operating at 45 kV and 30 mA within 2θ from 5 to 60°.

2.1.10 Scanning Electron Microscopy

The TCP particles were analyzed by SEM, by using a LEO 40XVP scanning electron microscope, operated at 10 kV. To perform this study, the samples were dispersed over 3M® aluminum conductive tape by using air flow and coated with gold in an SPI sputter coater. From this analysis, the topographical characteristics of particles were obtained from the secondary electron signal.

Electrophoretic Co-Deposition

Electrophoretic co-deposition assays were performed by following the procedure reported in a previous work (Redondo et al., 2020). For this purpose, a mixture of TCP/copolymer was suspended into a water/acetone solution (10 % v/v) in a [copolymer]:[TCP] ratio equal to 50:50 (wt/wt). It is important to note that prior to the co-EPD deposition procedure, the suspension was stabilized through magnetic stirring and ultrasonic bath for 30 min, by following the procedure previously reported (Redondo et al., 2020). A stainless-steel sample, with rectangular geometry (20 mm × 7 mm x 0.5 mm) was used as a substrate to be coated (working electrode). EPD was carried out by employing an electrophoretic cell connected to an adjustable source (ATTEN model TPR3020S, 220 V/50 Hz). The deposition cell included two parallel stainless-steel foils as a deposition and counter electrodes. The deposition area was fixed at 15 mm × 7 mm, and the distance between electrodes was 10 mm. The deposition conditions for all samples were the following: 20 V by keeping suspension at 56°C and different deposition times: 1, 10, 20, and 30 min. Finally, the samples were removed from suspension and kept in a desiccator, at room temperature.

Characterization of Coatings

2.1.11 Thickness, Deposited Weight, and Thermal Analysis

Coating thicknesses were determined by the use of a digital coating thickness measuring instrument (Digital meter-Microprocessor). Ten values were measured in order to determine the average thickness and standard deviation values. In addition, the deposited weight (Wd) was calculated by employing gravimetric techniques according to Equation 1:

Wd=ΔmSd,(1)

where Δm corresponds to the weight difference between the metallic substrate and the coating, and Sd is the effective deposition area (Redondo et al., 2020).

In addition, the thermal transitions of coatings were studied by employing the aforementioned DSC calorimeter, following the procedure described previously.

In Vitro Assays

Bioactivity tests were carried out by immersion of coatings in SBF during 7 and 28 days at 37°C, replacing SBF solution every 3 days, and by following the protocol already reported by Kokubo and Takadama (2006). FTIR spectra of coatings (before and after being soaked in SBF solution) were obtained by the scratching material employing the aforementioned spectrometer.

Thermal stability of samples after incubation in SBF solution was studied by TGA analysis. Surface appearance of coatings was analyzed by SEM, by using a LEO 40XVP scanning electron microscope, operated at 10 kV. In addition, energy-dispersive X-ray detector (EDX, Model DX-4) with a UTW window was used to quantify the elementary composition of samples. From this analysis, it was possible to visualize the surface of the coatings and the Ca/P ratio. Finally, HA identification was determined by the XRD technique, employing aforementioned equipment.

3 Results and Discussion

Copolymers and TCP Powder

Figure 1 and Table 1 summarize the molar mass distribution of PDMS-OH macroinitiator and PDMS-b-PCL copolymer. PDMS-OH presents a low dispersity value (Ð = 1.06), which agrees with those obtained by anionic polymerization (almost a symmetric and narrow chromatogram is observed). Besides, PDMS-b-PCL shows Ð = 1.36. This value is similar to the values reported in the scientific literature for the synthesis of homopolymers and copolymers based of ε-CL using ROP (Duruncan and Brown, 2001; Ma et al., 2001; Redondo, 2018; Wang et al., 2019). In addition, a clear shift of the PDMS-b-PCL chromatogram is also observed in Figure 1. This fact constitutes clear evidence of the increase in molar mass due to the incorporation of the PCL block in the resulting copolymer. The PCL content in PDMS-b-PCL copolymer was determined by 1H-NMR as wPCL = 0.39 (Zhou and Lee, 2011; Sultana, 2018).

FIGURE 1
www.frontiersin.org

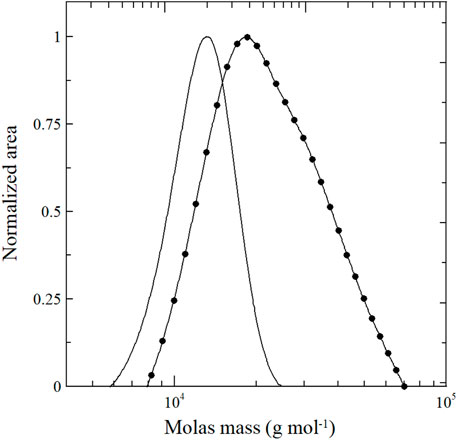

FIGURE 1. SEC chromatograms: (_) PDMS-OH macroinitiator and (●) PDMS-b-PCL copolymer.

TABLE 1
www.frontiersin.org

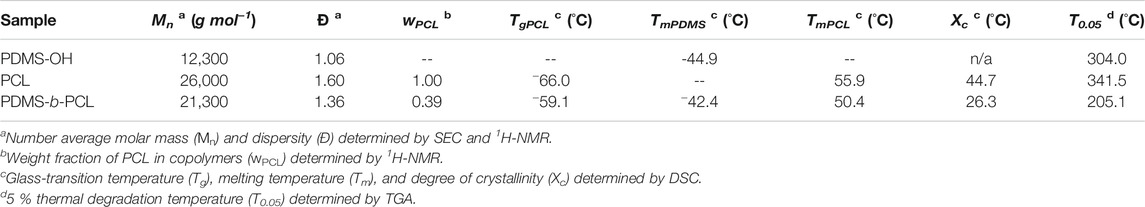

TABLE 1. Thermal characterization of synthesized polymers.

Figure 2 shows the FTIR-ATR spectra of the TCP precursor, PDMS-OH macroinitiator, and PDMS-b-PCL copolymer. PDMS-OH macroinitiator exhibits the typical absorption bands detected at 2,963 cm−1 (associated with C–H vibration bonds attached to Si atoms) (Liang and Ruckenstein, 1996; Wu et al., 2006; Redondo, 2018); 1,261 cm−1 (associated with out-of-phase vibrations of -Si(CH3)2- and O–Si–O groups) (Agudelo and Pérez, 2016); and 1,094, 1,024, and 801 cm−1 (bands associated with the vibration of the Si–O–Si and C–Si–C bonds, respectively) (Agudelo and Pérez, 2016; Ninago et al., 2017; Redondo, 2018). Regarding to PDMS-b-PCL copolymer, absorption bands associated to the PCL block are observed at 2,960 and 2,865 cm−1 (vibration bands from methylene, -CH2, groups) and 1,724 cm−1 (a pronounced signal attributed to the stretching vibrations from carbonyl groups, >C=O) (Redondo, 2018). In addition, the corresponding absorption bands associated to the PDMS block are also observed at 1,260, 1,091, 1,032, and 801 cm−1. On the other hand, the TCP spectrum shows absorption bands at 1,088, 561, and 600 cm−1 (bands associated with bending out-of-plane of the PO43- group); 1,026 and 962 cm−1 (bands associated with the asymmetric vibration of the PO43- group); and typical absorption bands of TCP (Peña and Vallet- Regı, 2003; Reid et al., 2006; Mohandes and Salavati-Niasari, 2014a; Park et al., 2014).

FIGURE 2
www.frontiersin.org

FIGURE 2. Normalized FTIR-ATR spectra of TCP particles, PDMS-OH macroinitiator, and PDMS-b-PCL copolymer (spectra were shifted from the y-axis in order to show differences).

Figure 3 shows X-ray diffraction patterns of TCP. Twelve peaks associated to the structure of TCP are detected at 2Ɵ ∼ 24.8°, 25.8°, 28.1°, 29.0°, 31.8°, 32.8°, 34.1°, 39.8°, 46.7°, 48.1°, 49.5°, and 53.1° (Cordero-Arias et al., 2015). The most prominent peaks in the diffractogram are the following: 2Ɵ ∼ 25.8°, 31.8°, 39.8°, 46.7°, and 53.1°, which correspond to the planes (002), (211), (221), (222) y, and (004), respectively (Lala et al., 2016; Aguiar et al., 2018).

FIGURE 3
www.frontiersin.org

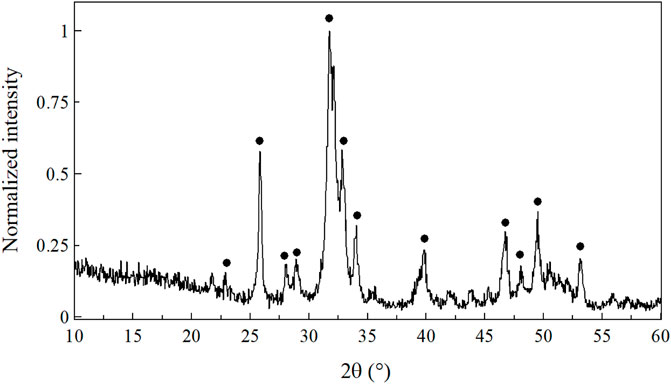

FIGURE 3. XRD spectrum of TCP particles.

The distribution of the particle size from the TCP powder is shown in Figure 4A. From LD analysis, an average size of 12.1 μm in a unimodal distribution with a smaller population shoulder (with an average size of 2.9 μm) was determined. The SEM micrograph of TCP shows irregular particles with conglomerates of asymmetric morphology (Figure 4B), in accordance with the literature reported by Ginebra et al. (2004) and Nagase et al. (1989).

FIGURE 4
www.frontiersin.org

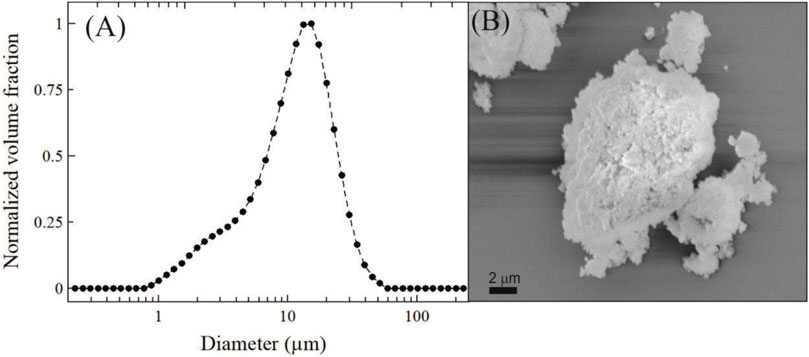

FIGURE 4. (A) Particle size distribution of TCP by LD and (B) SEM micrograph of TCP particles.

The thermal characterization of synthesized polymers is shown in Table 1 and Figure 5. Regarding to DSC measurements, PDMS-OH macroinitiator presents only a thermal transition (TmPDMS) in the range of temperature analyzed. Besides, three thermal transitions are detected in PDMS-b-PCL copolymer: TgPCL and TmPCL of the PCL block and TmPDMS of the PDMS semi-crystalline phase (Redondo et al., 2018). Besides, % crystallinity (Xc) was obtained by taking into account the PCL content and ΔHref = 136.1 J g−1 (Yam et al., 1999). The value of Xc is reduced in PDMS-b-PCL copolymer (26.3 %) when comparing to reference PCL homopolymer (44.7 %) due to the coupling of the PDMS block. Moreover, two thermal transitions were detected in PCL homopolymer: TgPCL and TmPCL.

FIGURE 5
www.frontiersin.org

FIGURE 5. Thermal transitions of PDMS-b-PCL copolymer, PCL homopolymer, and coating (before soaking in SBF solution) by DSC.

On the other hand, the thermal degradation initiation temperature (T0.05, for 5% mass loss) was calculated from TGA curves (not shown). PDMS-OH macroinitiator shows a T0.05 value at ∼ 304°C (Ninago et al., 2013; Ramezani et al., 2017; Redondo, 2018). PCL homopolymer shows a T0.05 value at 341.5°C, becoming more noticeable after approximately 400°C (the thermal degradation event which corresponds to polyester chain decomposition) (Cai et al., 2014; Ninago et al., 2015; Redondo, 2018). On the other hand, the following degradation events in the copolymer were detected at 193°C (associated to the rupture of polyester chains through the ester pyrolysis reaction generating H2O, CO2, and 5-hexenoic acid); at 289°C (associated to the PCL block decomposition); and at 366°C (associated to the PDMS block degradation) (Persenaire et al., 2001; Ninago et al., 2013; Redondo et al., 2018). Regarding to TCP, no decomposition event was observed in the studied range.

Characterization of Coatings

Figure 6 shows thickness and deposited weight values for the coatings obtained at different test times: 1, 10, 20, and 30 min. A linear dependence between deposited weight and time was observed (an R2 value of 0.98). In addition, an increase in the thickness is also observed for higher EDP times at constant deposition voltage. In accordance, higher thickness and weight values are found at 30 min of EPD assay. In order to obtain thicker coatings, it is convenient to extend the EPD time. In this sense, Bartmanski et al. (2019) and Wang et al. (2002) reported the same behavior in EPD tests obtaining a nanohydroxyapatite coating. These authors stressed that the prolongation of EPD time did not cause any adverse effects on the coating structure and resulted in a significantly higher thickness of the coatings. On the other hand, Figure 5 includes the thermal transitions of the coatings obtained. In this sense, the glass transition and melting point of the PCL block were detected at −64.0°C and 57.5°C, respectively. Besides, the thermal transition of the PDMS block was also detected at −45.2°C. In addition, a significant reduction in the Xc value for PCL is observed: 3.3 % due to the incorporation of TCP particles interfere in the ordering of the PCL chains during the crystallization process. This phenomenon encourages the decreasing of the Xc value. Chen et al. (2014) reported a similar behavior during the study of PCL composites reinforced with bioactive particles.

FIGURE 6
www.frontiersin.org

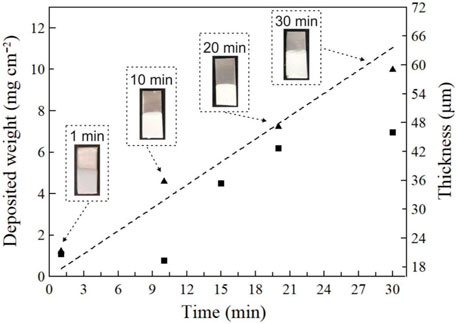

FIGURE 6. (■) Thickness and (▲) deposited weight of coatings obtained by EPD procedures.

In Vitro Assays

In vitro assays were performed by soaking in SBF solution for 7 and 28 days. For these tests, the sample with higher thickness and weight values was selected (t = 30 min for EPD co-deposition).

Figure 7 shows the normalized FTIR-ATR spectra of the coating before and after immersion in SBF solution for 7 and 28 days, respectively. PCL and PDMS absorption bands are distinguishable in all samples as well as the absorption bands at 1,024 and 600 cm−1 (bands associated with the asymmetric vibration and bending out-of-plane of the PO43- group, respectively [Peña and Vallet- Regı, 2003; Reid et al., 2006; Mohandes and Salavati-Niasari, 2014a; Park et al., 2014]) attributed to the TCP filler.

FIGURE 7
www.frontiersin.org

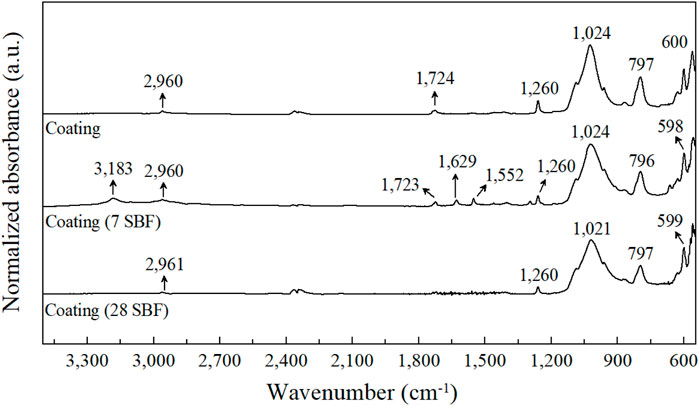

FIGURE 7. Normalized FTIR-ATR spectra of coatings before and after soaking in SBF solution.

After immersion in SBF solution, new vibration bands were detected at 3,183 cm−1 (stretching vibration attributed to the crystal water and surface-adsorbed water molecules), 1,629 cm−1 (vibrations of the –COOH group), and 1,552 cm−1 (vibration of the CO32− group). These results are in good agreement with those described by Mohandes and Salavati-Niasari (2014b). In addition, this fact could be explained considering the formation of carboxylic ethers in the coatings and their interaction with a new-formed HA phase on the surface (Chen et al., 2014; Mohandes and Salavati-Niasari, 2014b).

Figure 8 shows X-ray diffraction patterns of coatings after being soaked in SBF solution during 7 and 28 days. XRD patterns of coatings exhibit diffraction peaks associated to the HA phase (Chen et al., 2014). The existence of characteristic diffraction peaks associated with the HA phase are detected at 2Ɵ values of 26.0°, 31.9°, 33.0°, 34.1°, 39.9°, 46.8°, 49.6°, and 53.3°, corresponding to the diffraction planes (002), (211), (300), (202), (310), (222), (213), and (004), respectively (Mohandes and Salavati-Niasari, 2014a; Mohandes and Salavati-Niasari, 2014b; Miola et al., 2015; Lala et al., 2016; Redondo et al., 2020). This fact confirms the effectiveness of the mineralization process. A similar behavior was observed in a previous work, where composite coatings were obtained by employing the same copolymer and Bioglass® as an inorganic filler. The presence of HA was also detected as an acute and intense signal that appeared at 2Ɵ ∼ 31.8° and other characteristic diffraction peaks at 2Ɵ ∼ 25.9°, 29°, 39°, and 46.7° (Redondo et al., 2020).

FIGURE 8
www.frontiersin.org

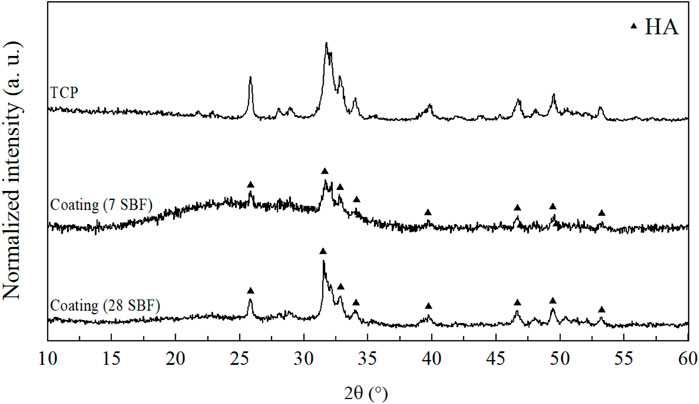

FIGURE 8. XRD spectra of coatings after immersion in SBF solution.

In a similar analysis, Dorozhkin (2010) and Suchanek and Yoshimura (1998) stressed that chemical changes can occur in bioceramic materials when they are exposed to in vitro conditions. Therefore, in an acidic medium, it was found that TCP particles can be partially dissolved by causing the liberation of Ca2+ and PO43− ions to the solution. Consequently, the increase of ions leads to the supersaturation of the biologic fluid by promoting the precipitation of biological HA nanocrystals. In this context, Roether et al., (2002) reported that HA is formed on PLA/Bioglass composite materials after 7 days of immersion in SBF. Zhang et al., (2004) also reported that after 7 days of immersion in SBF, PLA/Bioglass composite materials fabricated by using thermally induced phase separation (TIPS) developed HA on their surfaces. In addition, the absence of stainless-steel substrate peaks confirms the successful co-deposition methodology employed. According to the obtained results, TCP/PDMS-b-PCL coatings evidenced the ability to form a HA layer onto the composite substrate (Zhang et al., 2004; Maeda et al., 2007).

Thermogravimetric tests before and after in vitro assessment are shown in Figure 9. Weight loss events in coatings before being soaked in SBF solution are undoubtedly attributed to degradation processes of polymeric chains of PDMS and PCL since TCP particles present thermal stability without degradation events at TGA test temperatures.

FIGURE 9
www.frontiersin.org

FIGURE 9. TGA and first derivative dW/dT curves of the coating before (_) and after (--) immersion in SBF solution during 7 days.

The coatings exhibit a slight reduction in T0.05 temperatures (239.2°C) when comparing to their respective polymers. The TGA curve of the coating shows a weight loss event associated to the rupture of the PCL block at 236°C, while the PDMS block degradation is evidenced at 368°C (see the two peaks in the first derivative dW/dT). The TGA analysis showed the individual decomposition temperatures of the polymeric blocks that constitute the copolymer. Öztürk et al., (2013) reported the same behavior for the thermal analysis of triarm block copolymers of poly(styrene-block-β-butyrolactone) (PS-b-PBL). Regarding to the coating after being soaked in SBF solution, only an event of degradation was observed. The decomposition started at 300°C, and it is completed at 400°C, by reaching ∼ 89 % weight loss. The first derivative dW/dT curve shows a single peak at 365°C.

When comparing, the weight loss percentage for the coating before immersion in SBF solution is lower than that of the coating after immersion in SBF solution. These results could be indicating that the coating after immersion in SBF solution has a higher content of the HA precipitate itself. This behavior could be attributed to a better transformation of TCP into HA by a dissolution–precipitation mechanism, which produces a new inorganic phase (Suchanek and Yoshimura, 1998; Somrani et al., 2003). Besides, it was possible to calculate the value of the experimental [Polymer]:[TCP]e wt/wt ratio. The samples tested show a higher TCP value when compared to the theoretical value (50:50 wt/wt). That is to say, coatings before and after immersion in SBF solution presented [Polymer]:[TCP]e ratios equal to 26:74 (wt/wt) and 11:89 (wt/wt), respectively. In this sense, the macromolecular structure in blocks encourages a higher TCP deposition due to higher values was obtained after soaking in SBF solution.

Figure 10 shows the SEM images of coatings after immersion in SBF solution during 7 days (Figure 10A) and 28 days (Figure 10B). In addition, EDX patterns were also included in the figure in order to analyze the elementary composition of coatings as well as the Ca/P ratio. A microporous structure is observed in the SEM micrographs, with a thin continuous layer without superficial fractures that covered the metallic substrate. Besides, a more compact and uniform coating (surface covered) is obtained for longer immersion times. Figure 10B reveals a more compact and smoother surface, whereas Figure 10A exhibits the presence of aggregates and a porous structure. Moreover, TCP particles are evenly distributed within the polymer matrix, obtaining a good mix between materials. Fauré et al., (2012) reported a similar behavior of bioactive particles during the EPD methodology: the particles that settle induce the incorporation of more particles on the coating, thus achieving surfaces with the interconnected macroporous and microporous structure.

FIGURE 10
www.frontiersin.org

FIGURE 10. SEM micrographs (1,000x) and EDX spectra of coatings after immersion in SBF solution during (A) 7 days and (B) 28 days.

Finally, EDX analysis revealed a value of the Ca/P ratio between 1.40 and 1.50 for both immersion times (7 and 28 days), by exhibiting values closer to those reported in the literature (Raynaud et al., 2002; Yu et al., 2018). In this sense, Raynaud et al., (2002) and Yu et al., (2018) reported the same behavior by using powders of apatite calcium phosphate with the Ca/P ratio ranging from 1.50 to 1.67. These authors stressed that HA growing could be attributed to the higher diffusion rate of calcium species relative to that of phosphate anions inside the polymeric matrix, which leads to a higher release of calcium from the surface. Altogether, this induces a rapid formation of a thin HA layer owing to the large surface area over which it is distributed and significantly decreases when the PO43− content in the solution approaches zero (Yu et al., 2018).

According to Ramezani et al., (2017), the rapid exchange of Ca2+ and Mg2+ ions with H+ or H3O+ from SBF solution increases the hydroxyl concentration of the solution. This change leads to the superficial modification of the coating, which causes HA nucleation. Then, the migration of PO43−, Ca2+, and OH ions from the surrounding fluid to the surface of the coating accelerates the nucleation and precipitation of an HA layer (Ramezani et al., 2017; Yu et al., 2018). In this sense, it is plausible that the synergistic effects of co-EPD time + TCP/PDMS-b-PCL promote a coating surface that induces the further HA growth.

4 Conclusion

Poly(dimethylsiloxane-block-ε-caprolactone) copolymer was obtained by a combination of anionic and ring-opening polymerization. The resulting block copolymer showed a good compatibility with the tricalcium phosphate powder to obtain compact and potentially bioactive coatings by electrophoretic deposition. A linear dependence of deposited weight and thickness was observed for electrodeposition time. After in vitro assays in SBF solution, new absorption bands and new patterns assigned to tricalcium phosphate were detected by FTIR-ATR and XRD analysis, while SEM-EDX analysis revealed similar Ca/P ratio values those reported for natural bone tissues. According to these results, the coatings obtained in this work evidence an enhanced capacity to induce the precipitation of tricalcium phosphate and suggest the chemical transformation of tricalcium phosphate into HA through a dissolution–precipitation mechanism.
