The Maximal Wrinkle Angle During the Bubble Collapse and Its Application to the Bubble Electrospinning

  • 1National Engineering Laboratory for Modern Silk, College of Textile and Clothing Engineering, Soochow University, Suzhou, China
  • 2School of Mathematics and Information Science, Henan Polytechnic University, Jiaozuo, China
  • 3Zhejiang Sci-Tech University, College of Textile Science and Engineering (International Silk College), Hangzhou, China

Polymer bubbles are ubiquitously used for the fabrication of nanofibers by the bubble electrospinning. When a bubble is broken, the fragments tend to be wrinkled. The wrinkle angle plays an important in controlling the fiber morphology during the bubble electrospinning. This paper shows the maximal angle is about 49°, which is close to the experimental value of 50°. This maximal angle can be used for the optimal design of the nozzle in the bubble electrospinning for the fabrication of non-smooth nanofibers.

Introduction

Bubble dynamics is an old discipline, and the Young-Laplace equation (Liu and Dou, 2013) is widely used for static analysis. The bubble’s rupture affects many materials’ fabricating processes (Zhang et al., 2021), especially for nanofiber fabrication by bubble electrospinning (Kong, 2015; Liu et al., 2020a; Li and He, 2020; Yin et al., 2020). When a bubble is broken, many jets are ejected, or many daughter bubbles are formed (Bird et al., 2010). Oratis et al. (2020) found the wrinkle mechanism of a liquid sheet during a bubble collapse, which has attracted skyrocketing attention from various fields, including mathematics and material science. Although this mechanism is new and has great promise, a mathematical model lacks for the prediction of the wrinkle angle. Here we establish a simple formula to study the wrinkle angle.

Maximal Wrinkle Angle

The bubble collapse and the wrinkle of the liquid sheet (Oratis et al., 2020) play an important role in the bubble electrospinning (Yin et al., 2020), Gratis et al. obtained an unparalleled achievement in the bubble collapse dynamics and found the surface tension drives the collapse and initiates its wrinkle (Oratis et al., 2020).

The surface tension depends upon the liquid sheet’s curvature radius, we assume that the initial surface tension is F0, and the initial angle between the free sheet section and the solid surface is α0, see Figure 1. During the collapse process, the liquid sheet tends to zero when it is completely collapsed, and we assume the surface tension becomes zero at its final collapse. Accordingly, we assume that the surface tension can be expressed as

F(α)=F0α0α(1)

FIGURE 1
www.frontiersin.org

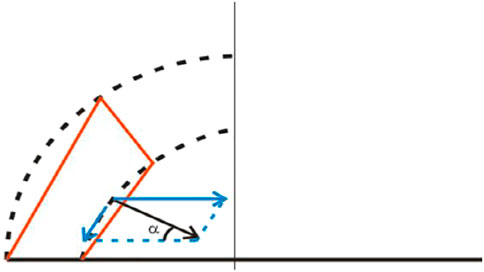

FIGURE 1. Force analysis of a fragment section of the bubble before rupture.

From Eq. 1, it is obvious that the surface tension vanishes completely when the bubble is completely collapsed when α = 0°.

The force given in Eq. 1 can be decomposed into the radial and tangential forces, as shown in Figure 1, the former is the main force for collapse, and the latter is perpendicular to the section of the sheet, and it is the main force for liquid sheet’s instability, which leads finally to the wrinkle. According to Figure 1, the tangential force, σ, can be expressed as

σ=F(α)cosα=F0α0αcosα(2)

The maximal σ happens when

ddασ=F0α0(cosααsinα)=0(3)

That is

cosααsinα=0(4)

This equation can be solved by the ancient Chinese algorithm (He, 2016). We choose two angles α1=π/3 and α2=π/4, and the following two residuals are obtained:

R1=cosα1α1sinα1=12π3×32=0.4069(5)

and

R2=cosα2α2sinα2=22π4×22=0.1517(6)

By the ancient Chinese algorithm (He, 2016), we have

α=R1α2R2α1R1R2=0.4069×π40.1517×π30.40690.1517=0.2726π(7)

The exact root of Eq. 4 is α=0.2737π, the relative error is 0.4%. The ancient Chinese algorithm given in Eq. 7 was further developed into an iteration method, which was called Chun-Hui He iteration method (Khan, 2021).

When α=0.2737π or 49°, σ reaches its maximum; this maximal surface tension leads to instability of the fragments; as a result, the wrinkle occurs. The instability can be analyzed in a similar way as discussed in Refs. (He et al., 2021; Zuo and Liu, 2021).

Experiment

Bubble electrospinning was originally designed for the fabrication of smooth fibers (Liu et al., 2020b; Wan, 2020). In order to verify the theoretical prediction, we carried out an experiment where the angle between the solution surface and the bubble’s wall is about 49°, see Figure 2.

FIGURE 2
www.frontiersin.org

FIGURE 2. Schematic illustration of the bubble eletrospinning.

The spun solution was prepared by adding certain amounts of Lithium chloride (LiCl) dropwise to a 15 wt% Polyacrylonitrile/Polyethersulfone (PAN/PES) solution in N, N-Dimethylacetamide (DMAC) following with ultrasonic excitation agitating. The weight ratio of PAN and PES was controlled at 3/2, and the weight percentage of LiCl in the mixed solution was 1 wt%. Afterward, the PAN/PES/LiCl blend nanofibers were obtained using a high DC voltage power supply at a 20 kV potential and the collector with a distance of 15 cm from the bubble top. The SEM image of PAN/PES/LiCl nanofibers was presented in Figure 3. It is seen that we obtain the non-smooth fibers.

FIGURE 3
www.frontiersin.org

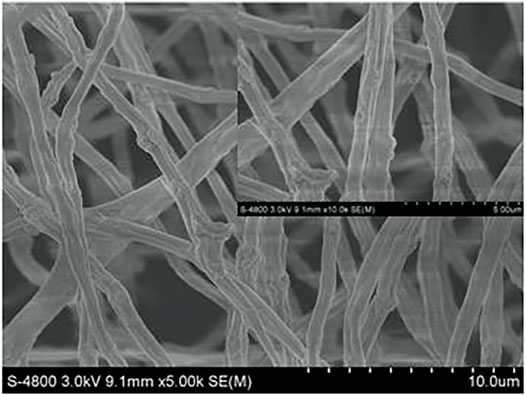

FIGURE 3. Unsmooth fibers by controlling the bubble shape.

Discussion and Conclusion

This short paper gives a simple mathematical analysis, showing that the maximal wrinkle angle is about 49°, which is much closed to Oratis, et al.'s experimental value, which was about 50°. This angle can be used to design the nozzle angle in the bubble electrospinning; when wrinkled nanofibers are to be fabricated, the nozzle angle should be 49°. If smooth nanofibers are wanted, the nozzle angle should deviate from 49°.
