Deformation of Steel Slag Asphalt Mixtures Under Normal Temperature Water Immersion

To study the deformation resistance of steel slag asphalt mixtures (SSAMs) under rainy conditions, limestone–asphalt mixtures (LAMs) and SSAM were soaked in water at room temperature for 120 days and rutting tests and triaxial compression tests were carried out. The results show that the deformation resistance of SSAM was improved after 120 days of immersion, the cohesion did not decrease significantly, and the internal friction angle increased by 25.1%; the deformation resistance of LAM decreased significantly, the cohesion decreased by 27.1%, and the internal friction angle decreased by 21.1%. To better understand the reason for the increased anti-deformation ability, adhesion tests of asphalt and microscopic studies of the steel slag surface were performed. The experimental results showed that the cohesion of steel slag did not decrease significantly after immersion because of the excellent adhesion between steel slag and asphalt. The increased internal friction angle was caused by calcium hydroxide and other crystals formed on the surface of the steel slag mixture after immersion, which increased the surface roughness of the steel slag aggregates and the internal friction angle of the SSAM. The mechanical properties of semirigid asphalt pavement were analyzed by ANSYS. It was determined that the shear stress of this type of pavement is large, and it can easily produce permanent deformations. Under the influence of moisture, the anti-deformation ability of SSAMs can grow, which promotes the high-temperature deformation resistance of asphalt pavement. Based on a test road used for 2 years, the SSAM pavement exhibited no pavement problems, such as cracking, loosening, or rutting, which indicates good practical road performance.

Introduction

China is the largest steel-producing country, accounting for about 50% of global steel production. By the end of 2020, China’s steel production reached 1.05 billion tons, with an annual growth of 5.4%. Steel slag is the waste generated during steel making in the steel refining process, which corresponds to approximately 10–15% of crude steel output.

Steel slag is a reusable resource in many fields, and it can be employed as a soil conditioner or a steel slag cement compound (Lian et al., 2021). However, in order to be used in such applications, steel slag must go through a complex processing treatment. This process requires significant manpower and material resources and has a low utilization rate. Therefore, to date, the comprehensive utilization rate of steel slag in China is only about 38.7%.

Considering conventional methods of industrial and construction waste utilization, most solid waste is used as concrete aggregate (Tang et al., 2020; Tang et al., 2021a; Tang et al., 2021b). If a significant amount of steel slag can be applied in road-engineering projects, this would not only solve the urgent challenges regarding material shortages but would also help to reduce steel slag pollution on land. Therefore, numerous researchers around the world have evaluated whether steel slag can be used in asphalt mixtures.

The chemical composition of steel slag has an important influence on its applicability. The iron content in steel slag impacts its heating efficiency, such that a high iron content corresponds to a high heating efficiency (Wan et al., 2018). Additionally, as the steel slag content in asphalt mixtures increases, the thermal conductivity of the asphalt mixture first increases and then decreases (Barišić et al., 2017). Alkaline substances in steel slag can increase the concentration of asphalt components on the aggregate surface and enhance the adhesion between asphalt and steel slag (Jiao et al., 2020). Some heavy metals may also exist in steel slag. Reports have shown that the application of steel slag in highways does not lead to environmental pollution (Liu et al., 2020).

Steel slag asphalt mixtures (SSAMs) have many unique characteristics. If the free calcium oxide content in steel slag is too high, expansion cracking may occur during use, which could lead to performance degradation of the mixture. However, the influence of steel slag expansion on asphalt pavement can be reduced by properly designing the surface water isolation structure (Ma et al., 2020). If steel slag aggregates are used in an asphalt mixture, its permanent deformation resistance will be improved (Ameri et al., 2013). This means that replacing the skeleton of coarse aggregates with steel slag aggregates could improve the rutting resistance of the mixture (Ameli et al., 2020). Furthermore, it has been demonstrated that it is technically feasible to use steel slag as the coarse aggregate (Chen and Wei, 2016).

In addition to enhancing the deformation resistance of SSAM, steel slag aggregates can improve the anti-fatigue cracking performance of asphalt mixtures (Qazizadeh et al., 2018; Ziaee and Behnia, 2020), as well as their low-temperature performance (Chai et al., 2020). The improvement mechanism is governed by the alkalinity and a large specific surface area of steel slag (Zhu et al., 2020) and benefits from the physical anchoring and chemical adhesion effects between steel slag and asphalt (Pathak et al., 2020).

In an open-graded friction course, replacing part of the coarse aggregate with steel slag can improve the water damage resistance of the material. Incorporating 75% steel slag aggregate into OGFC promoted good road performance (Pattanaik et al., 2021). It was also demonstrated that using steel slag as coarse aggregate improved the friction resistance of OGFC; specifically, it was suggested that in hilly and rainy areas, 50% steel slag should be used instead of coarse aggregate in OGFC mixtures to improve the water damage resistance of roads (Preti et al., 2019).

In snow melting pavement, steel slag can improve the microwave heating efficiency to enhance snow melting on the road. Asphalt concrete mixed with 60% steel slag can effectively improve the snow melting efficiency of thermally conductive asphalt concrete and pavement temperature distribution (Lyu et al., 2021). When steel slag is used as the microwave deicing aggregate in an asphalt mixture, the steel slag serves as a microwave absorption reinforcement material to improve the heating efficiency of the asphalt mixture (Gao et al., 2017). Previously, a co-precipitation method was used to modify the steel slag particles, which increased the Fe₃O₄ content on the surface to completely replace the fine aggregate; after microwave heating, the internal temperature of the modified SSAM was 74.4% higher than that of the basalt asphalt mixture (Gulisano et al., 2020). Overall, adding steel slag and using microwave heating can clearly improve the performance of emulsified asphalt repair materials (Liu et al., 2017).

The application of steel slag in the gravel seal can recover industrial waste, reduce the consumption of natural resources, and promote the development of economic pavement maintenance technology by reducing CO₂ emissions (Bonoli et al., 2020). In a warm mixture, adding steel slag can improve the water damage resistance of the asphalt mixture (Wei et al., 2020).

Objective

Although research regarding steel slag in general has been fruitful, the enhancement of SSAM’s anti-deformation ability is still not entirely understood. Steel slag is a material that is easily affected by water. Therefore, in the rainy season, changes in the anti-deformation performance of SSAMs must be considered to evaluate the potential applicability of steel slag aggregates in road engineering.

The main purpose of the present work was to study the causes and magnitudes of the changes to SSAMs’ anti-deformation performance under normal temperature immersion. The water stability, low-temperature deformation performance, and fatigue performance of SSAMs were also studied following normal temperature immersion.

Research Approach

In this study, SSAM was used as the research object, and a limestone–asphalt mixture was used as a reference. Rutting tests, triaxial compression tests, adhesion tests, and atomic force scanning tests were conducted to study the macroscopic and microscopic changes in the anti-deformation properties of asphalt mixtures immersed in water at 30°C for 120 days during the summer. A water stability test, a low-temperature bending test, and a fatigue test were also employed to detect the changes in the performance of SSAMs after immersion.

Materials and Methods

Raw Materials and Specimens

For the asphalt base of penetration (70 ± 0.01 mm), steel slag aggregates and limestone aggregates from Tangshan, Hebei, were selected as the raw materials. After testing, the raw materials met the relevant requirements of Chinese standard JTG F40-2004. The parameters of these aggregate-related materials are shown in Table 1.

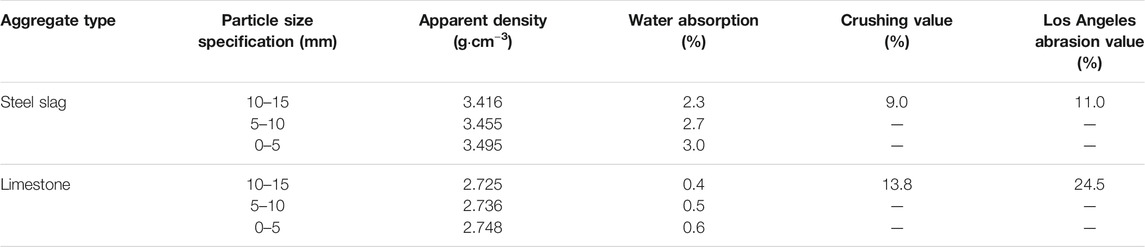

TABLE 1

TABLE 1. Measured parameters of steel slag and limestone aggregates.

Steel slag was used for the coarse aggregate and fine aggregate of the AC-13 SSAM, and limestone powder was used as a filler. Limestone was used for the coarse aggregate, fine aggregate, and mineral powder of the AC-13 limestone–asphalt mixture (LAM). The relevant Marshall volume parameters are shown in Table 2, and the unified mixture gradation is presented in Table 3.

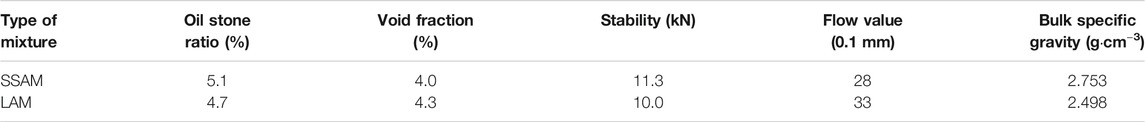

TABLE 2

TABLE 2. Marshall indices of asphalt mixtures.

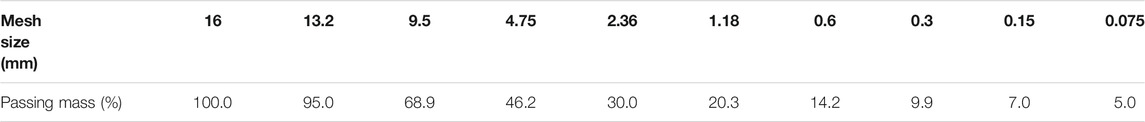

TABLE 3

TABLE 3. Preliminary gradation quality.

According to the Marshall test’s results, and to ensure consistent height and uniformity of the test specimens, a press machine and rut-forming machine were used to separately generate specimens’ triaxial compression and rutting tests. The size of the static pressure specimen was 250 mm in diameter and 160 mm in height, and these specimens were further processed into samples 150 mm in diameter and 150 mm in height; the size of each rutting specimen was 300 mm × 300 mm × 50 mm.

The micro test samples required special treatments because atomic force microscopy (AFM) generally adopts a tapping mode. The sample size is typically less than 1 cm², the height should be controlled below 0.5 cm, and the surface fluctuation of the sample should not exceed 15 μm, otherwise the needle tip may be damaged. It was, therefore, necessary to cut the Marshall specimen into 3–5 mm slices, dissolve them in trichloroethylene, select the slices that met the test requirements, and wrap them with a layer of asphalt film.

The prepared triaxial compression specimens, rutting specimens, Marshall specimens, trabecular specimens, and microscopic specimens were immersed in normal temperature water in the summer for 120 days.

Testing Methods

Water Stability Test Method

Water resistance tests, rutting tests, and low-temperature bending tests were conducted on the asphalt mixtures in strict accordance with the technical requirements of Chinese standard JTG E20-2011.

Fatigue Tests

The fatigue testing machine used in this study was a universal testing machine (UTM), a multifunctional testing machine. The equipment was mainly composed of a refrigeration system, a hydraulic system, a temperature system, a pressure system, splitting accessories, a transverse displacement sensor, and a spindle displacement sensor. The instrument continuously applied pressure to the splitting accessories through the spindle, and the splitting accessories applied force to the Marshall specimen. The transverse displacement sensor was used to measure the transverse deformation of each Marshall specimen under pressure.

During these tests, the displacement sensor accessories were first installed on the Marshall specimen. Then the specimens were maintained at 15°C for at least 6 h. At that time, the test was begun immediately, according to the parameters compiled in Table 4.

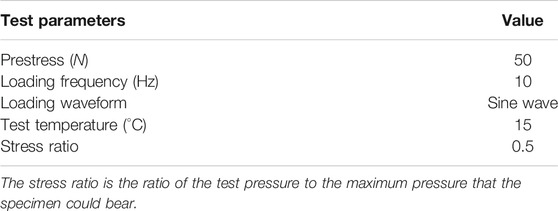

TABLE 4

TABLE 4. Fatigue test parameters.

Triaxial Tests

The equipment used for the triaxial tests was a UTM-30 multifunctional testing machine, and the test temperature was 60°C. The instrument was mainly composed of a pressure chamber, an axial pressure system, a confining pressure application system, data acquisition system, and a control system.

The standard size of each specimen for the triaxial test was 100 mm in diameter and 150 mm in height. During the test, the control and acquisition systems of the triaxial apparatus were turned on, the designated confining pressure was applied, and the axial load was applied according to the constant loading rate. For specimens with a height of 150 mm, the constant loading rate was 7.5 mm/min, which corresponds to an axial strain rate of about 0.05 mm/(mmmin). When the peak value of axial pressure was reached, the test was stopped. If there was no peak value, the test was stopped when the strain reached 20%. After each test, the computer automatically calculated the cohesion and internal friction angle.

Results and Discussion

Analysis of Rutting Test Results

Numerous studies have demonstrated that the deformation of asphalt pavement under a certain load undergoes the following three stages: 1) a further compaction stage, wherein the asphalt mixture is further compacted before about 1,000 load cycles; 2) the creep stability stage, wherein the asphalt mixture has been fully compacted (this deformation stage mainly involves slow creep under the load cycle); and 3) spalling in the accelerated deformation stage, wherein part of the asphalt spalling generates strain, and the strain rate of the asphalt mixture increases rapidly with time because of the influence of moisture. Therefore, moisture must be considered when evaluating the asphalt mixtures’ permanent deformation resistance to understand its performance during the rainy season.

In China, the evaluation index of the rutting test is dynamic stability, which refers to the walking times of a standard axle load borne by the asphalt mixture when a deformation of 1 mm occurs at 60°C; the larger the value, the better the anti-rutting performance of the asphalt mixture. The process of forming the test pieces is shown in Figure 1A, the soaking of the specimen is shown in Figure 1B, the rutting test is shown in Figure 1C, and the test results are shown in Figure 1D.

FIGURE 1

FIGURE 1. Rutting performance of asphalt mixtures: (A) test piece formation; (B) test piece soaking; (C) rutting test; and (D) results.

As shown in the figure, the dynamic stability of LAM after immersion decreased by 73% relative to the sample that was not immersed. In contrast, the dynamic stability of SSAM after immersion increased by 50% relative to that without immersion. These results indicated that the deformation resistance of LAM decreased after immersion, whereas SSAM endured some changes that increased the deformation resistance of SSAM upon immersion in water. The changes in deformation resistance are closely related to the cohesion and internal friction of the asphalt mixtures. Therefore, to further explore the origin of this phenomenon, triaxial compression tests were performed.

Triaxial Compression Tests

Asphalt mixtures are viscoelastic materials, meaning that under the action of shear stress, viscoelastic deformation of asphalt mixture occurs. The main properties that contribute to the shear capacity of an asphalt mixture are cohesion (с) and the internal friction angle (φ). To study the cohesion and internal friction angles of LAM and SSAM before and after immersion, triaxial compression tests were performed. The test procedures are shown in Figure 2A, and the test results are shown in Figure 2B.

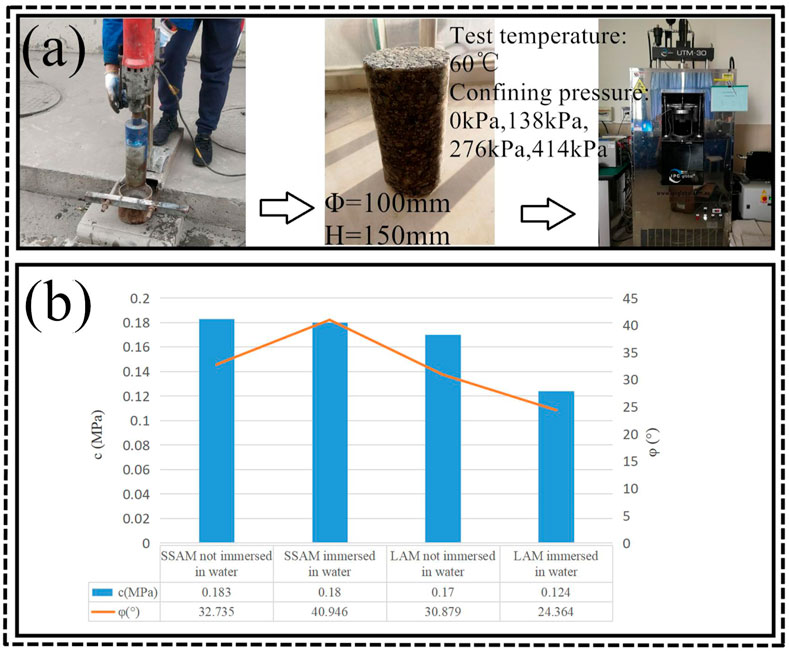

FIGURE 2

FIGURE 2. Triaxial tests: (A) testing process and (B) results.

The results of the triaxial compression tests indicate that the cohesion of SSAM does not decrease significantly, but that of LAM decreases by 27.1%; the internal friction angle of SSAM increases by 25.1% and that of LAM decreases by 21.1%. The reduction in LAM cohesion and the internal friction angle are the main reasons for this material’s decreased deformation resistance after immersion, while the increase in the SSAM internal friction angle and the stability of its cohesion are the main reasons for the improvement of deformation resistance in the case of SSAM. To further explore the reasons why the cohesion of the SSAM remained unchanged and the internal friction increased after immersion, it was necessary to carry out asphalt adhesion and micro tests.

Asphalt Adhesion Tests

The adhesion test of asphalt is typically used to evaluate the adhesion between the aggregate surface and the asphalt to understand the anti-stripping ability of the asphalt film on the aggregate surface. According to the anti-stripping ability, the adhesion can be divided into five grades, where grade 5 is the best and grade 1 is the worst. The sample should be boiled for 3 min in a conventional laboratory, but to further study the aggregate adhesion, the boiling time in this study was extended to 6 min; the test results are shown in Figure 3C.

FIGURE 3

FIGURE 3. Adhesion tests between aggregates and asphalt: (A) steel slag aggregate adhesion test at 6 min; (B) limestone aggregate adhesion test at 6 min; and (C) results of aggregate adhesion.

As the boiling time increased, the adhesion grade of the steel slag and asphalt changed from 5 to 4, while that of limestone changed from 4 to 2. Figures 3A,B present test photos showing the asphalt adhesion of limestone and steel slag at 6 min. It is clear that the adhesion of steel slag/asphalt is much better than that of limestone/asphalt. This result indicates that the interface between steel slag and asphalt has a stronger resistance to high temperature and water immersion than the limestone–asphalt interface. This indirectly explains why the cohesion of SSAMs is only slightly reduced after long-term water immersion.

In the asphalt mixtures, the main function of asphalt is to provide the required cohesion and stabilizing force. When asphalt is gradually stripped from the asphalt mixture, the cohesion and stability also decrease, which consequently reduces the deformation resistance of the asphalt mixture.

Microscopic Tests

The longitudinal resolution of AFM images is less than 0.01 nm, which allows us to distinguish atomic level surface changes and to calculate the roughness of samples. Therefore, AFM was used to study the surface changes of steel slag before and after immersion.

The asphalt steel slag slices were soaked in trichloroethylene after immersion, and the asphalt on the surface was removed. Then, AFM scans were carried out on the steel slag slices. The testing process is shown in Figure 4A.

FIGURE 4

FIGURE 4. Microscopic tests: (A) test preparation; (B) specimen after 60 days of water immersion; (C) specimen after 120 days of water immersion; (D) scanning area and surface area of steel slag aggregates before water immersion; and (E) scanning area and surface area of steel slag aggregates after immersion.

Figure 4B shows the electron microscope scanning diagram of a specimen after 60 days of immersion, revealing hexagonal plate-like crystals. Figure 4C presents the atomic force scanning diagram of the sample immersed for 120 days, which clearly shows crystals that make the steel slag surface uneven.

Using Gwyddion software for data visualization and analysis, the surface area data from atomic force scanning was obtained, as shown in Figures 4D,E.

According to Figures 4D,E, the ratios of the steel slag surface area to the scanning area were 1.29 and 1.93 before and after soaking, respectively. This means that over the same scanning area, the surface area of steel slag soaked in room temperature water for 120 days was 1.5 times of that of non-immersed steel slag aggregate.

The aforementioned phenomenon indicates that with the prolongation of the soaking time, water soaked the steel slag along cracks and initiated hydration reactions on the surface of steel slag. This increased the surface roughness of the steel slag aggregate and the internal friction angle of the SSAM. Higher internal friction can enhance the anti-deformation ability of an asphalt mixture, which also improves its anti-rutting performance.

Other Road Performance Tests

The water stability, low-temperature deformation performance, and fatigue performance of LAM and SSAM after immersion were tested to evaluate their water damage resistance and tensile deformation resistance. Figure 5 illustrates the low-temperature bending test, the fatigue test, and the water stability test, and the results are presented in Table 5.

FIGURE 5

FIGURE 5. Other road performance tests: (A) Marshall test piece; (B) water stability test; (C) fatigue test; and (D) low-temperature test.

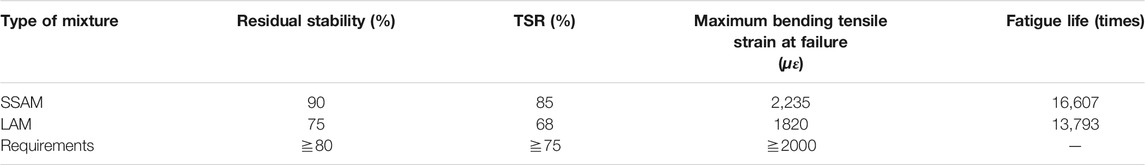

TABLE 5

TABLE 5. Experimental data of water stability and low-temperature deformation performance.

Table 5 indicates that when the SSAM specimen was immersed in water for 120 days, the residual stability, the freeze-thaw splitting strength ratio (TSR), and maximum bending tensile strain at failure met the specification requirements. Furthermore, SSAM had a higher fatigue life, which indicates that the SSAM still has excellent water damage resistance and low-temperature deformation capacity.

However, it should be noted that the expansion of the steel slag aggregate (less than 2%) and SSAM expansion (less than 1.5%) met the specification requirements. For a SSAM whose expansion does not meet the requirements, the TSR value and maximum bending tensile strain at failure would be significantly reduced. This is because SSAMs will expand and produce cracks, thus greatly reducing their deformation capacity.

As shown in Figure 6A, the Marshall specimen of the asphalt mixture with unqualified expansion in room temperature water for 120 days had large cracks on its surface, which were mainly caused by the large expansion of the steel slag aggregate. Based on Figure 6B, the stability of the Marshall specimen reached 23.68 kN; however, the maximum bending tensile strain of the asphalt mixture with unqualified expansion was only 500 µɛ, and the fatigue life was 3,000 times, which greatly reduced the material’s low-temperature tensile deformation resistance ability. When SSAM with unqualified expansion is used to pave roads, it can easily form cracks.

FIGURE 6

FIGURE 6. Expansion cracking: (A) Marshall specimen after 120 days of immersion; (B) Marshall stability after 120 days of immersion.

Therefore, the SSAM with qualified expansion has the growth resistance, excellent water damage resistance, and low-temperature deformation ability. However, the SSAM with unqualified expansion capacity is affected by moisture in the use process, and its low-temperature deformation performance and fatigue performance will be greatly reduced due to expansion cracks. In the process of production, it is inevitable that steel slag with unqualified expansion rate is used in asphalt pavement. In order to reduce the cracking caused by the expansion of steel slag, modified asphalt and fiber can be used in asphalt mixture (Jiang et al., 2020).

Significance and Engineering Practice of the Research Results

In China, semirigid base asphalt pavement is the main part of asphalt road. The semirigid base has high stiffness, strong load diffusion capacity, and plays the role of structural bearing, while asphalt pavement only plays the role of functional layer. In order to study the failure mode of semirigid base asphalt pavement structure, ANSYS is used to simulate the structure. The pavement structure, material parameters, and mesh division are shown in Figure 7A, and the profile of pavement structure along the load center is shown in Figure 7B.

FIGURE 7

FIGURE 7. Finite element analysis: (A) mesh dividing; (B) cross section; (C) stress intensity; and (D) maximum principal stress.

From Figures 7C,D, it is clear that the asphalt layer is in a high shear state, and the maximum shear stress appears on the road surface in the wheel gap center, meaning that the pavement surface can easily undergo permanent deformation. The semirigid base course bears too much bending tensile stress, so the pavement can easily produce reflection cracks (Figure 8). Therefore, most of the pavement issues on China’s expressways involve ruts and cracks. In the latest Chinese specifications, the design indices of semirigid pavement include the lowest layer tensile stress of the inorganic binder and the permanent deformation of the asphalt mixture layer.

FIGURE 8

FIGURE 8. Typical diseases: (A) local settlement of asphalt pavement; (B) removal of asphalt pavement surface; and (C) reflection crack of base course.

Under the influence of water, the high-temperature deformation resistance of SSAMs will undergo a certain amount of growth. If the SSAM is paved on the surface of asphalt pavement, it will effectively reduce the permanent deformation of the asphalt pavement to alleviate the development of ruts in semirigid asphalt pavement.

To verify the feasibility of steel slag application in high-grade highways, steel slag with qualified expansion is used in the asphalt pavement surface of a highway in Tangshan city, Hebei Province. The pavement structure is shown in Figure 9A, and core sampling at a representative site location is shown in Figure 9B.

FIGURE 9

FIGURE 9. Test road: (A) schematic diagram of a main line pavement structure; (B) core drilling sample; (C) condition of the test section; and (D) surface of the test section.

After two years of operation, the surface of the test section was smooth, and there was no cracking, loosening, rutting, or other pavement problems. Therefore, the material demonstrated shows good skid resistance and excellent road performance (Figures 9C,D).

Conclusion

1) After soaking SSAM and LAM in water for 120 days, the dynamic stability of LAM decreased by 73% relative to that before immersion, and the dynamic stability of SSAM after immersion increased by 50%.

2) Through triaxial compression tests, it was determined that the cohesion of SSAM did not decrease significantly, but that of LAM decreased by 27.1%; the internal friction angle of SSAM increased by 25.1%, and that of LAM decreased by 21.1%. The increase in the internal friction angle and stability of cohesion after immersion led to increased deformation resistance.

3) According to the asphalt adhesion tests, the adhesion between steel slag and asphalt was grade 4, and that of limestone was grade 2 after boiling for 6 min. The adhesion between steel slag and asphalt was superior to that between limestone and asphalt. Therefore, the reason why the cohesion did not decrease after long-term immersion was that steel slag and asphalt had excellent adhesion.

4) Based on the microscopic test, it was determined that hydration reactions occurred on the aggregate surface of the SSAM after immersion, which produced calcium hydroxide, and other crystals. These crystalline substances increased the surface roughness of the steel slag aggregate and the internal friction angle.

5) The SSAM with qualified expansion demonstrated growth resistance, excellent water damage resistance, and low-temperature deformation ability. However, the SSAM with unqualified expansion capacity was affected by moisture during use, and its low-temperature deformation performance was greatly reduced because of expansion cracks.

6) Through the ANSYS analysis, it was determined that the semirigid asphalt pavement could easily produce permanent deformations. Additionally, the high-temperature deformation resistance of SSAMs after contact with water could effectively reduce the permanent deformation of asphalt pavement, which alleviated the development of pavement ruts. The steel slag asphalt road that was open to traffic for two years exhibited no cracking, loosening, or rutting, which indicated that SSAMs with qualified expansion can be used in high-grade highways.
