Synthesis of Different Sizes TiO2 and Photovoltaic Performance in Dye-Sensitized Solar Cells

For more than 2 decades, extensive research has been done in the field of Dye-Sensitized Solar Cells (DSSCs) due to their low cost, easy preparation methodology, less toxicity, and ease of production. In this work, the performance of DSSCs containing different particle sizes is studied. N₂-doped TiO₂ was prepared by the sol-gel method, controlling the particle size through the addition of different H₂O/Ti mole ratios R = 0, 20, 30, and 40. The dried samples at 100°C were characterized by X-ray diffraction, Optical Properties, High-Resolution Transmission Electron Microscope, Scanning Electron Microscope, Fourier-Transform Infrared Spectroscopy, N₂-Adsorption-Desorption Isotherm, Raman Spectroscopy, and Dynamic Light Scattering (DLS). DLS results show that the size of TiO₂ decreases as the H₂O/TiO₂ content increases from 0 to 40. It is found that TiO₂ nanoparticles with smaller particle size distribution has the lowest conversion efficiency of 0.95% with H₂O/Ti ratio = 40, and the photoelectrode with higher size has a conversion efficiency of 1.59% for the water-free sample. This could be explained as the larger particles have better dye adsorption, indicating that it has an effective surface area for greater photon absorption and electron-hole generation. The results also indicate that trimodal distribution with larger size also absorbs different wavelengths due to the broad distribution of the particle size.

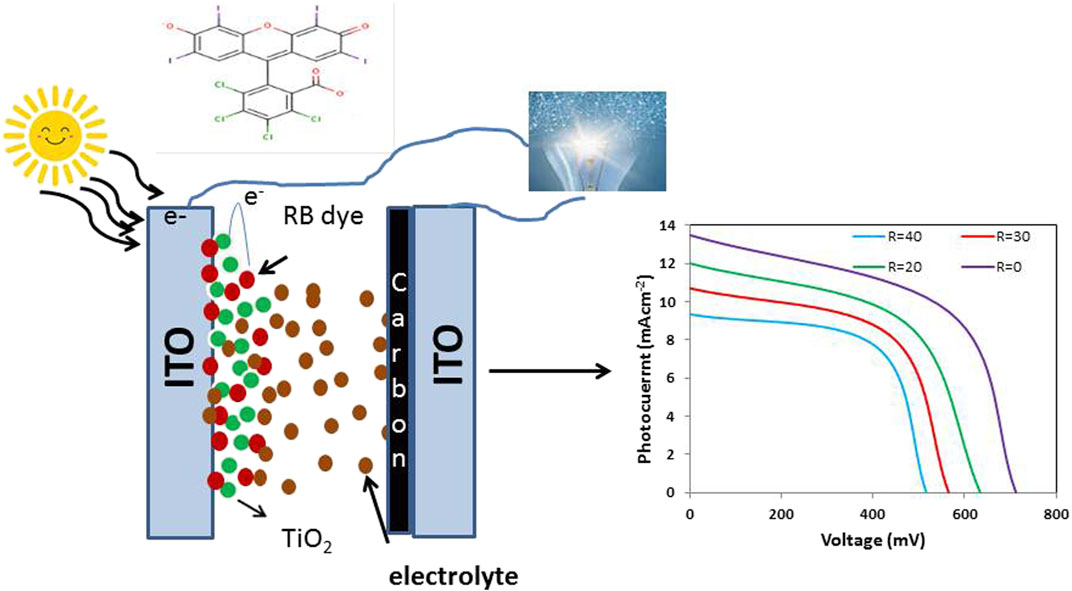

GRAPHICAL ABSTRACT

GRAPHICAL ABSTRACT

Introduction

Solar Energy Technology has recently emerged as a viable option for meeting our energy demands, particularly in areas in which coal and natural resources are being depleted at a frightening rate (Kamat, 2007; Gonçalves et al., 2008). Because of the high manufacturing costs, silicon-based solar cells are widely used (Moskowitz and Fthenakis, 1990; Moskowitz and Fthenakis, 1991). The next stage is to use basic manufacturing techniques to create solar cells from low-cost components. O’Regan and Gratzel designed dye-sensitized solar cells (DSSCs) in 1991, and they are an example of this type (O’Regan and Grätzel, 1991; Grätzel, 2001; Zhao et al., 2009; Park et al., 2012; Mir and Salavati-Niasari, 2013; Ramasamy et al., 2013). In DSSCs, the “sensitizer” is a dye that is either produced or derived from natural resources. The sensitizer dye produces electrons and holes when exposed to light. The electrons are moved to the CB of the Aceptor Semiconductor Metallic Oxide while the holes are transmitted to the electrolyte. The scientific community has worked hard to promote more effective dyes, such as Ruthenium complexes (Aghazada and Nazeeruddin, 2018), Porphyrin (Birel et al., 2017; Zeng et al., 2019), Carbazole (Carella et al., 2018; Lokhande et al., 2019), metal-free organic dyes (Błaszczyk, 2018; Lee et al., 2018; Wu et al., 2019), natural colors (Ammar et al., 2019; Ananthi et al., 2019; Sanjay et al., 2019; Trihutomo et al., 2019), and Rose Bengal (Mahmoud and Fouad, 2015; Mahmoud and Mohamed, 2015; Mahmoud et al., 2016; Mahmoud et al., 2017a; Mahmoud et al., 2017b; Mahmoud et al., 2021).

The particle size of the TiO₂ film electrode, particularly in its Amorphous form, is an essential issue that has received little attention. The influence of particle size on the implementation of DSSCs is clarified, and it may be performed by running electrodes containing bigger or smaller pure (without additives that affect the size) TiO₂ particles (Gregg, 2003; Gracia et al., 2004; Gregg, 2004; Hagfeldt et al., 2004). The catalytic performance of important and valuable metal nanoparticles is primarily determined by the effective atoms, which are proportional to the nanoparticle’s specific surface area (Zhu et al., 2021). The SBET of small nanoparticles is bigger. The high surface energy of small particles, on the other hand, induces nanoparticles to combine during catalysis and tend to agglomerate, resulting in a drop in the number of active surface atoms and a considerable loss in catalytic activity. This issue greatly limits the use of precious nanoparticles as catalysts in practical manufacturing.

As Photoactive semiconductor nanomaterials, TiO₂ can successfully Engage Light and Display Effective Photon Size, Interface, and Quantum Reservation Effects, and it is widely used in Optical, Electrical, Magnetic, and Biological Fields (Geng et al., 2021; Qian et al., 2021; Yin et al., 2021).

Structural features have been offered to Anatase and Rutile, which have been the most extensively considered, rendering them extremely appealing for different purposes, such as solar cells (Bach et al., 1999; Park et al., 2000); Photo-catalysis (Kaneko and Okura, 2002; Anpo and Kamat, 2010); Electrodes in semiconductor designs (Nogami et al., 1991); catalysis (Topoglidis et al., 1998); catalyst supports (Zhang et al., 1994; Geserick et al., 2011); in Coatings, Toothpaste, and Makeup (Shubert et al., 2001); Adsorption of Proteins (Hsu et al., 1993); and others.

Materials with larger particle sizes possess larger contact points, permitting easier dye access and superior dye gathering. Smaller TiO₂ particles have a bigger surface area and a greater number of joint sites between colloidal particles at the particle–core substrate interface, allowing for better dye adsorption. TiO₂ with bigger particles has a slenderer surface area, which means there is less surface area available for adsorption capacity, potentially lowering the amount of light absorbed and the amount of the generated electrons and holes. The smaller TiO₂ particles, on the other hand, have a greater number of grain boundaries where electrons require passing throughout, which results in a higher electron trapping probability. The high surface energy of small particles, on the other hand, induces nanoparticles to combine during catalysis, resulting in a drop in the number of active surface atoms and a considerable loss in catalytic activity.

Amorphous TiO₂ has been synthesized through a wide range of processes as detailed in the literature (Hong and Sattler, 2010; Hong and Ganguli, 2012; Vargas and Rodríguez-Páez, 2017). Wang et al. (Wang et al., 2003) produced amorphous TiO₂ utilizing a dodecylamine as an organic template to produce a wormhole-like framework mesostructure. Li et al. (Li et al., 2015a) used the sol-gel approach with further calcination to synthesize TiO₂ nanoparticles using acetic acid to adjust the size of the TiO₂-ANPs while polyethylene glycol was used to keep the dispersion of the particles. Pressure-induced amorphization (Li et al., 2010; Li et al., 2015b) and impulse plasma in dielectric liquid (Omurzak et al., 2009) approaches stand out among the innovative synthesis strategies used to prepare TiO₂-ANPs.

In this paper, the DSSC photo-anode consists of TiO₂ nanoparticle film with different particle sizes examined to understand whether the overall light conversion efficiency was affected by the variation in particle size. By using a sol-gel method with varying the H₂O/Ti mole ratio, the diameter of different particle sizes of TiO₂ was changed. The J-V curves of the manufactured TiO₂ powders were compared and observed under light.

Experiment

Chemicals

The chemicals used were Titanium (IV) Isopropoxide (TIP) (97%), rose Bengal dye (Sigma-Aldrich), and conductive Indium-Tin-Oxide (ITO)–coated glass slides (Aldrich, Rs∼8–10 ohm/sq). Urea and Ethanol were provided from Adwic.

Synthesis of TiO₂

The sol was prepared through the hydrolysis of TIP in ethanol with dropwise addition of urea dissolved in alcoholic solution, and then the amounts of the added deionized water were adjusted to obtain the supposed molar ratio of 0, 10, 20, 30, and 40 for H₂O/Ti, respectively. The solutions were stirred for about 2 h at 25°C after the prompt formation of white precipitate while nitrogen gas was purged in the solution. The pH value of the gel was about 3.8, so a positively charged TiO₂ is formed. The TiO₂ nanoparticles were centrifuged and dried at 60°C. The produced powder was grounded using ball mail.

Characterization Techniques

The X'Pert Philips XRD Diffractometer was used to record the X-ray diffraction (XRD). The operating voltage and effective ampere of the diffractometer were set to 40 kV and 20 mA, respectively. The scans were performed at a rate of 0.02 scans/s from 20° to 80°. Optical characterization of TiO₂ samples were carried out by JASCO-750 UV-Vis spectrophotometer. FTIR was carried out using Nicolet Is50, Thermo Fisher Scientific Spectrophotometer. Qualitative Chemical structure assessment was done by Raman Spectroscopy analysis using SENTERRA Bruker. The excitation laser wavelength was 532 nm. SEM was performed using JEOL, JEM 3500 electron microscope. DLS was used to determine particle size distribution using Malvern Zetasizer ver. 6.32 equipment. HR-TEM images and EDX spectrum were captured using a 120 KV JEOL JEM-1230 electron microscope. At -196°C, the nitrogen adsorption desorption isotherms were determined using the Quantachrome NOVA automated gas sorption system. Degassing the samples was done at 60°C and 10–5 mmHg for 4 h.

Cell Construction and Investigation of Solar Cells

Manufacturing of Photo-Anode and Counter Electrode

ITO (8–12 Ω/sq) glass was ultrasonically washed with isopropanol, ethanol, and deionized water using a bath for 30 min. The prepared TiO₂ was ground with a ball mill and formed a colloidal blend paste through mixing with water, ethanol, acetyl acetone, and Triton X-100, and then the film was deposited on the conductive side of the ITO glass by the doctor-blade approach to construct the photo-anode film. The obtained film was heated at 450°C for 30 min using a hotplate. The obtained photo-anodes were bathing in RB dye at 25°C, and then the photoanodes were rinsed using ethanol. The opposite electrode poised a film of salable carbon on the ITO glass. The cells contain I-/I3- as electrolyte, which was injected into the cell by capillary action. The active area of the cells was 4.25 cm².

Electrical Properties

To measure the J–V curves, a solar box was used equipped with the photocell test device. To estimate the cell conversion efficiency, the J-V curve and Eq. 1 were used to calculate the Fill Factor (FF) using all cell outputs Voc and Jsc. The conversion efficiency can be calculated from Eq. 2.

$\mathit{FF}=\frac{{\mathit{V}}_{\mathit{pp}}\times {\mathit{I}}_{\mathit{PP}}}{{\mathit{V}}_{\mathit{oc}}\times {\mathit{I}}_{\mathit{sc}}}.(1)$

$\mathit{\eta }=\frac{{\mathit{V}}_{\mathit{oc}}\times {\mathit{J}}_{\mathit{sc}}\times \mathit{FF}}{\mathit{ }{\mathit{I}}_{\mathit{s}}}.(2)$

Where $jpp$ and $vpp$ are maximum power output, and Is the incident light intensity $\left(\mathit{mW}/\mathit{c}{\mathit{m}}^{-2}\right)$.

Results and Discussion

Crystal Structure and Optical Properties

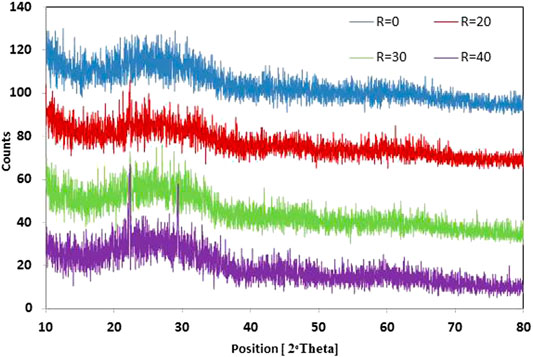

Figure 1 shows the XRD patterns of the TiO₂ powders prepared by the sol-gel method using different H₂O/Ti molar ratios. The graphs noticeably confirm that the prepared samples encompass an amorphous phase among all the used molar ratios of H₂O/Ti perhaps owing to the presence of short-range crystalline order in XRD amorphous TiO₂. The absence of the long-range order is reported by several authors (Tiron et al., 2016; Nair et al., 2013; Grilli et al., 201844). This could be attributed to the lack of the energy required for the crystal growth or the presence of urea suppressing the crystallinity.

FIGURE 1

FIGURE 1. XRD of N₂ doped TiO₂ with different molar ratios of H₂O/Ti.

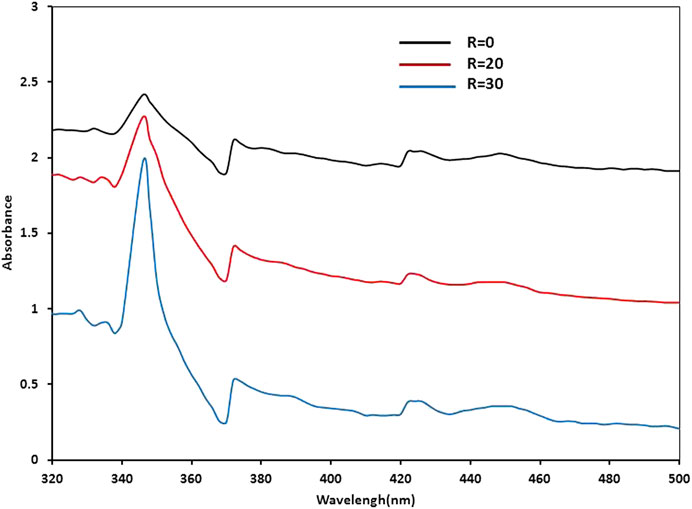

Figure 2 shows the UV-Vis absorption spectra of TiO₂ R = 0, R = 20, and R = 30. The analysis was carried out using a sonicated solution of barium sulfate in water containing TiO₂ for 30 min. The figure shows the λmax of the prepared samples centered at 346 (R = 20 and 30) and at 348 nm for R = 0 samples. Bands between 205 and 215 nm, according to the literature (Marchese et al., 1991a), (Raimondi et al., 2000) can be ascribed to separated dissolved titania species coordinated tetrahedrally, whereas bands around λ >250 nm can be associated with cores of Ti(IV) in Penta and Octahedral configurations.

FIGURE 2

FIGURE 2. UV-Vis spectra of N₂ doped TiO₂ prepared with different molar ratios of H₂O/Ti.

By extrapolation of the absorption edge to zero, the bandgap energy can be calculated by the following equation:

$\mathit{Eg}=1239.8/\lambda (3)$

Where $Eg$ is the band gap energy $\left(\mathit{eV}\right)$ and $\lambda \left(\mathit{nM}\right)$ is the wavelength of the absorption edge. The calculated bandgap energy of the samples were 2.81, 3.07, and 3.22 eV for R = 0, R = 20, and R = 30, respectively. The bandgap energy increases from 2.81 to 3.22 eV as the water content increases from 0 to 30 mol. This could be attributed to an increase in agglomerating with the increase in water content.

Surface Properties

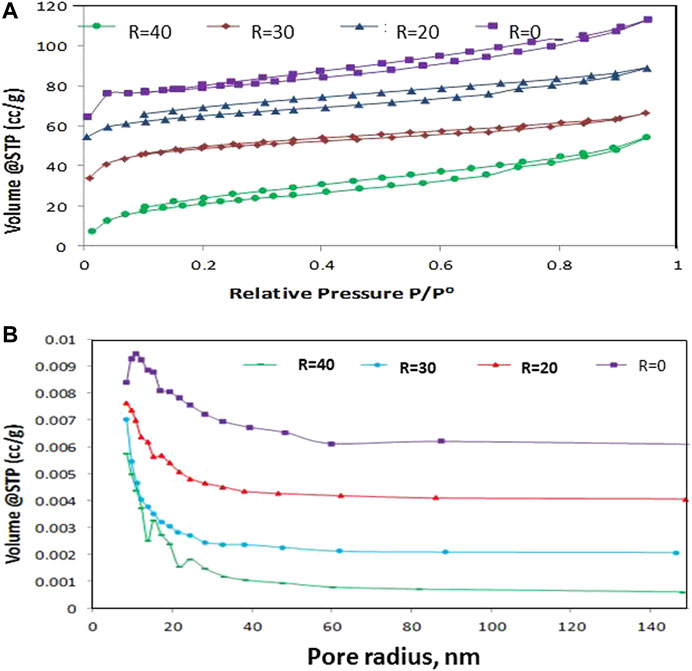

Figure 3A, B shows the N2 Adsorption-Desorption Isotherms (Figure 3A) and the pore size distribution of the prepared samples (Figure 3B). Figure 3A depicts a decrease in the surface area as the water of hydrolysis increases. The samples represent type IV isotherm with an H4 hysteresis loop according to IUPAC classifications. Figure 3B shows that the pores are selective with the size in the mesoporous range. This effect indicates the vital role of water of hydrolysis in the features of TiO₂.

FIGURE 3

FIGURE 3. Adsorption-desorption isotherms of N₂ doped TiO₂ with different molar ratios of H₂O/Ti (A) and pore size distribution of the prepared samples (B).

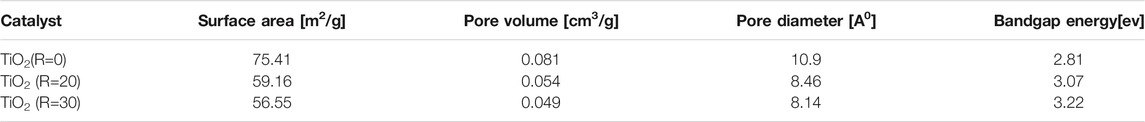

Table 1 shows the surface properties of the prepared TiO₂. The results reveal that the surface area slightly decreases as the H₂O/Ti ratio increases from R = 0 to R = 40. The pore volume and diameter also increase as the water ratio increases. The pore diameter ranges between 1.7 and 10.9 Ao and the pore volume ranges from 0.04 to 0.08 cm³/g.

TABLE 1

TABLE 1. Surface area properties and bandgap energy of the prepared samples.

Particle and Surface Morphology

Figure 4 shows the effect of H₂O/Ti ratios on particle morphology using HR-TEM. The prepared samples show a cloud feature due to the presence of moisture in TiO₂. The figures disclose the ordering degree of the TiO₂ mesoporous arrangement. A wormlike pore structure of mesoporous material was observed. The existence of the crystalline phases is not detected in the XRD pattern due to the little extent of crystallization of the TiO₂ and the smaller size of the nuclei. The pore morphology of the R = 40 catalyzed system was less marked than that of R = 0, R = 30, and R = 40, i.e., as the molar ratio of the water increased to R = 40, the order of the pore structure was decreased.

FIGURE 4

FIGURE 4. HR-TEM of N₂ doped TiO₂ with different molar ratios of H₂O/Ti and EDX spectrum.

Figure 5 shows the surface morphology of the prepared samples R = 0 and R = 40 at different magnifications. The figures show that the agglomeration increases as the water content increases with the initial formation of spherical crystals.

FIGURE 5

FIGURE 5. SEM of N₂ doped TiO₂ R = 0 (A,B) and R = 40 (C,D) at different magnifications.

Fourier-Transform Infrared and Raman Spectroscopy

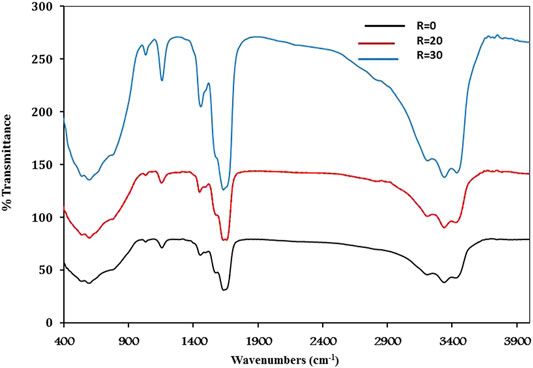

Figure 6 depicts the FTIR of R = 0, R = 20, and R = 30. The figure shows two vibrational bands at 3,385 and 3,314 cm^-1 due to the presence of 2 Amine. A stretching band at 3,170 cm^-1 confirms the complete hydrogen bonding between water molecules in tetrahedral coordination (the ice-like water structure) (Cheng et al., 2013). The shape of the peak changed as the water content increase to become more sharp and intense for R = 30. A blue shift was also observed as the molar ratio of water increases. The OH bending appears at 1,432, 1,436, and 1,444 for R = 0, R = 20, and R = 30, respectively. The peak becomes intense as the water molar ratio increases and a blue shift was observed. The vibrational band at 1,614 cm^-1 corresponds to C=O stretching and the Amide II band near 1,550 cm⁻¹ could be confirmed to C–N stretch together with N–H bending. The asymmetric stretching of Ti-O-Ti in the linear structure centered at 1,147 cm^-1. However, Ti-O-Ti increases with increasing water content. C–H rocking (CH3 in TIP) at 980 cm^-1 while the band at 749 cm^-1 shows the presence of Ti-O-Ti bending. The bands at 478 cm^-1 show O-Ti-O bending.

FIGURE 6

FIGURE 6. FTIR spectra of N₂ doped TiO₂ at R = 0, R = 20, and R = 30.

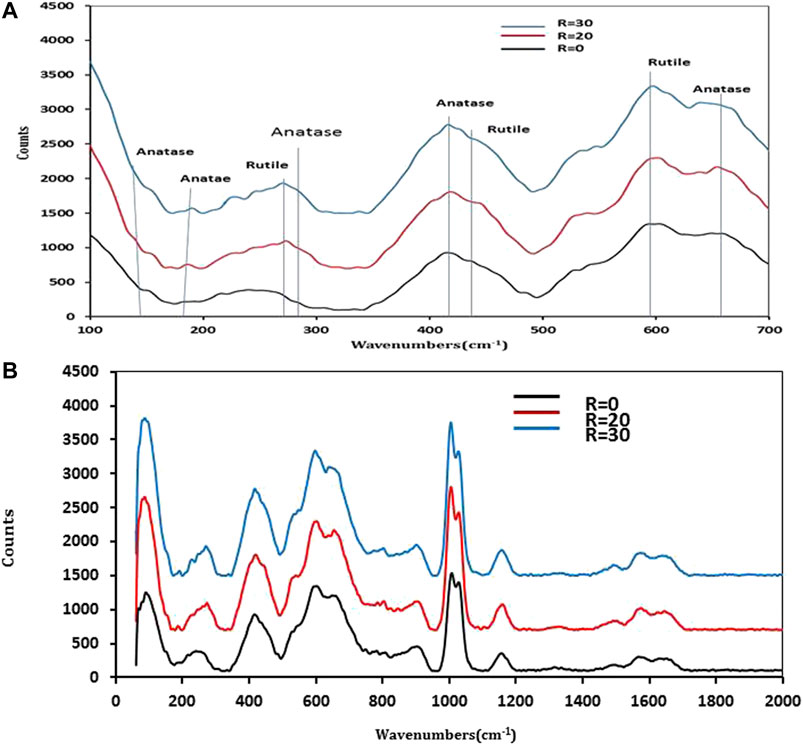

Figure 7A shows the Raman spectra of R = 0, R = 10, R = 20, and R = 30. The samples show small Raman bands at 146 (Eg), 185 (Eg), 401 (B1g), 518 (A1g), and 634 (Eg) cm⁻¹ could be attributed to the characteristics the anatase phase. On the other hand, the Raman bands at 243, 431, and 590 cm^-1 could be attributed to the rutile phase that corresponds to the symmetries of B1g, Eg, and A1g, respectively (Tamilselvan et al., 2012). In addition, a distinctive broad vibrational peak at 200–300 cm^-1 was clearly identified as a result of several phonon scattering mechanisms.

FIGURE 7

FIGURE 7. Raman analysis of N₂ doped TiO₂ in the range 100–700 cm⁻¹ (A) and in the range of 0–2000 (B).

To investigate the effect of Nitrogen doping on the structure of Titanium Dioxide in the Raman Spectra, in general, the vibrational characteristic band of Ti–N can be clearly found in the Raman Spectra, which indicates the substitution of Nitrogen for some Oxygen Atoms in the Titania lattice. Ti-N could be observed at 209 for the sample R = 0 and shifted to higher frequency as the water content increase. This indicates the N₂ deficiencies increase as the water content increase. A Raman peak at 1,452 cm^-1 (weak) is attributed to the asymmetric deformation mode of Methyl group (Figure 7B). The strongest Raman peak at 1,005 cm⁻¹ is attributed to the symmetric stretching CN vibration. Another two weak peaks observed at 1,546 cm⁻¹ and 1,625 cm⁻¹ are assigned to symmetric stretching CO and NH+3 vibrations, respectively. In addition, the peaks found at 1,593, 1,277, 1,161, and 904 cm⁻¹ corresponds to the CH₃ symmetric deformation, C–O vibration band, bending OH and stretching (C–C) + Methyl, respectively. Raman spectra of TiO₂ containing R = 20 and R = 30 compared with R = 0 show that all function groups formed in the same position with small shifts. From Raman results, we observe the intensity of peaks attributed to C–N and C–O increase with an increase in water content due to an increase in hydrolysis of urea.

DLS

The physical and chemical features of materials are strongly dependent on their size distribution (Barbe´ et al., 1997; GraciaHolgado et al., 2004; Grätzel, 2001; Bohren and Huffman, 1998). Figures 8A–D shows the particle size distribution by number. It is clear that the TiO₂ sample prepared at R = 0 has a bimodal size distribution with Z-average 1,230 nm. The first unimodal has a symmetric particle size distribution ranging from 164.2 to 458.7 nm with a maximum intensity at 255 nm, and the second unimodal has a particle size distribution ranging from 531 to 1718 nm with a maximum intensity at ∼1,000 nm. As the water ratio increases up to R = 20, the particle size distribution shows the presence of symmetric unimodal size distribution (z-average 1,422) with a size ranging from 531 to 1718 nm with a maximum intensity at 955 nm. As the water content decreases, a larger particle is formed due to the aggregation of the initially formed cluster, which could occur during the hydrolysis and condensation of the Alkoxy groups of the Ti cluster (Chou et al., 2007). This could be interpreting the retardation of gel formation as the water content decreases. Because the TiO₂ powders were all composed of the same sol material and manufactured in the same way, the surface chemistry and particle filling were all the same. The shift in short-circuit current density and total light conversion efficiency, which is linked to particle size, is a particularly noticeable trend.

FIGURE 8

FIGURE 8. Size distribution by intensity of the N₂ doped TiO₂ through different water ratios.

J-V Characteristics

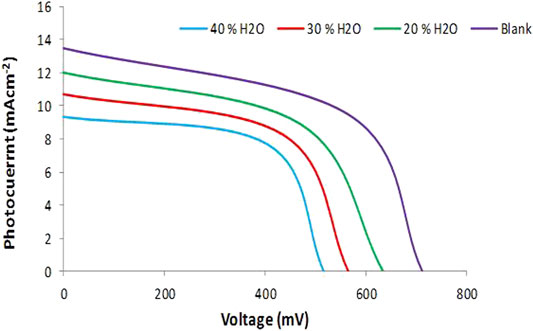

Figure 9 depicts the J-V Characteristics of each solar cell consisting of TiO₂ film with different particle sizes. Table 2 shows the calculated values achieved from the J-V curves of each solar cell. The most significant trend is the change in Short-Circuit Current Density, Open Circuit Voltage, and Conversion Efficiency, which correlates with the particle size. This could be attributed to the increase in the amount of dye adsorbed on the surface with increasing particle size (Tammy et al., 2007). DLS analysis shows that the larger surface area particles have larger pores into which the redox couple could diffuse more effectively than into the smaller pores, which could be generated by the smaller particles; consequently, the larger particles show maximum short circuit current density. This style is acceptable because the TiO₂ nanoparticle powders were all prepared from the same TiO₂ sol and in the same approach, therefore resulting in the same surface chemistry and particle packing. The most prominent inclination is the change in short-circuit current density and overall light conversion efficiency, which correlates with the particle size only. Although it was expected that small particles could adsorb more dye due to their greater surface area, it was proved that particles among larger diameters have better dye absorption due to the successful diffusion of the electrolyte in the pores, resulting in improvement in the overall light conversion efficiency. Bigger particles displayed better dye adsorption, indicating that TiO₂ films consisting of bigger particles possess greater effective surface area for more photon absorption and electron-hole generation (Chou et al., 2007). Moreover, the large particle size is greatly related to enhancing the optical absorption of light in the photoelectrode. The larger particle size acts as light scatters, which leads to an increase in the possibility of adsorbed photons according to Mie scattering theory (Kerker, 1969; van de Hulst, 1981; Bohren and Huffman, 1998; Zhang et al., 2012). The potential increased to 516, 565, 634, and 712 mv with a further increase in particle size to 715.8, 715.8, 1,139, and 1,218 nm, respectively. In addition, the overall light conversion efficiency increased to 0.95, 1.01, 1.2, and 1.59%, respectively. The improvement in VOC could be correlated to the relaxed recombination and superior electron collection efficiency. Hence, a promising description for the increase in VOC is related to the better electron mobility of the semiconductor used, which improves the electron transfer and facilitates the charge carrier separation. On the other hand, there are several factors that influence the JSC: 1) the amount of RB dye adsorbed on the TiO₂ surface, which results in efficient light harvesting; 2) the electron injection efficiency; 3) the electron gathering efficacy; and 4) RB dye regeneration efficiency.

FIGURE 9

FIGURE 9. J-V curve of N₂ doped TiO₂ prepared through different H₂O/Ti molar ratios.

TABLE 2

TABLE 2. Photovoltaic performance ofN₂ -TiO₂ at different molars ratio of H₂O/Ti.

More dye adsorption can also be influenced by the presence of larger contact points for easier access of the dye, which would increase the generation of electron-hole pairs. This increase in the generation of electron-hole pairs with increasing pore size is evidenced by the increase in short-circuit current density values as confirmed by our results. It was found that the amount of dye adsorbed on the surface increased with increasing pore size. One possible explanation for this trend was brought up by Grant et al. (Mahmoud et al., 2016), where it was reported that smaller particles resulted in smaller pore sizes, and larger particles resulted in larger pore sizes after sintering at elevated temperatures.

Several studies in DSSCs were reported using RB dye;Khadtare andPathan (Khadtare and Pathan, 2014) studied the performances of DSSCs ZnO photoanodes at different RB dye sensitization times. An enhancement of power conversion efficiency from 0.83 to 1.90% has been observed. Roy et al. (Roy et al., 2008) report that the power conversion efficiency of modified nanocrystalline TiO₂ sensitized with rose Bengal dye is 2.09%. Sarode et al. (Sarode et al., 2016) used N2-nanocrystalline TiO₂ powder prepared by simple hydrolysis route sensitized with RB dye obtain η = 0.52%.

Stability of the Cell

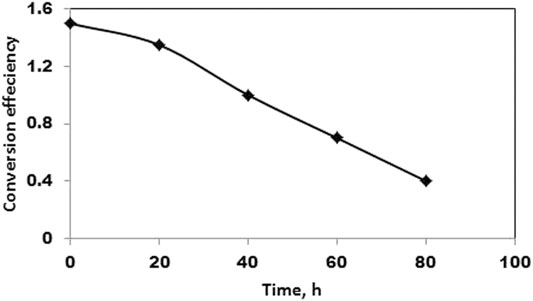

The stability of the fabricated cell is studied in Figure 10. The stability of the DSSCs was studied through measuring the photovoltaic performance at various times. It is evident that PCE of the device suffers a rapid downfall after a few hours of 80 h. This could be attributed to the usage of liquid electrolyte.

FIGURE 10

FIGURE 10. Stability of the fabricated cell with the ratio R = 0.

Conclusion

According to the findings, larger particles resulted in an increase in Short-Circuit Current Density, Open Circuit Voltage, and Total Light Conversion Efficiency. The working electrode films, which were made up of TiO₂ nanoparticles with a diameter of 516 nm, resulted in a short-circuit current density of 9.33 mA/cm² and a light conversion efficiency of 0.95%. An increase in particle size to 1,218 nm diameter resulted in a higher open circuit voltage of 712 mV and a 1.59% overall light conversion efficiency. The increased Short-Circuit Current Density, Short-Circuit Current Density, and overall light conversion efficiency, which coincides with particle size, could be due to the larger TiO₂ nanoparticles better dye adsorption behavior by which larger particles allow for more dye adsorption via the extremely easy dye access, resulting in more electrification generation.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

SAM: Conceptualization; methodology; investigation; visualization; writing; review and editing. BSM: methodology; investigation; formal analysis; writing - original draft. HMK: Conceptualization; review and editing.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
