Role of Grain Size and Shape in Superplasticity of Metals

Superplasticity is characterized by an elongation to failure of >300% and a measured strain rate sensitivity (SRS), close to 0.5. The superplastic flow is controlled by diffusion processes; it requires the testing temperature of 0.5T_m or greater where T_m is the absolute melting temperature of metals. It is well established that a reduction in grain size improves the optimum superplastic response by lowering the deformation temperature and/or raising the strain rate. The low-temperature superplasticity (LTSP) is attractive for commercial superplastic forming, in view of lowering energy requirement, increasing life for conventional or cheaper forming dies, improving the surface quality of structural components, inhibiting quick grain growth and solute-loss from the surface layers, thus resulting in better post-forming mechanical properties. This paper will summarize the dependence of superplasticity on grain size and shape in various metallic materials, including ferrous and non-ferrous alloys, which has been considered as an effective strategy to enable the LTSP.

Introduction

Superplasticity is the ability of metals to exhibit extremely large elongations of at least 300% prior to tensile failure, when deformation is imposed at relatively low strain rates (e.g., $\dot{\epsilon }=$10⁻³ to 10⁻⁵ s⁻¹) and elevated temperatures (T > 0.5T_m), where T_m is the melting temperature of metals (Edington, 1982; Langdon, 1982). To date, superplasticity has been demonstrated in various metals, such as aluminium, copper, magnesium, zinc, titanium and iron base alloys etc., (Maehara and Langdon, 1990; Chokshi et al., 1993; Langdon, 2009; Reddy et al., 2017). Basically, superplastic flow may occur in two different ways (Maehara and Langdon, 1990; Langdon, 1991; Kaibbyshev, 2002): 1) In transformation superplasticity, the superplastic effect is induced by temperature cycling through phase transformation; 2) In structural superplasticity, the superplastic flow happens at constant temperature without phase transformation. As for structural superplasticity, several essential characteristics are involved. First, the initial microstructure is very fine (usually a few microns or less) and stable equiaxed grains upon tensile loading. Second, a strain-rate sensitivity exponent ($m=\partial ln\sigma /\partial ln\dot{\epsilon }$) ranges from 0.3 to 0.7 where $\sigma$ is the true stress and $\dot{\epsilon }$ is the strain rate. Third, a dominant grain boundary sliding (GBS) mechanism occurs to facilitate isotropic deformation.

It is well established that a reduction in grain size improves the optimum superplastic response by lowering the deformation temperature to lower than 0.5T_m (low temperature superplasticity) and/or raising the strain rate higher than 10⁻³ s⁻ (high strain rate superplasticity), which is beneficial for rapid superplastic forming of structural parts with nearly arbitrarily complex shapes at relatively low costs (Zhang et al., 2015). For achieving the superplasticity of metals, two groups of plastic deformation have been proposed to refine its microstructure down to ultrafine or nanoscale levels: One group is conventional plastic working processing (Tanaka et al., 2002; Tanaka et al., 2003; Xia et al., 2008), such as rolling, extrusion, forging and the other is severe plastic deformation (SPD) processing (Kumar et al., 2006; Chou et al., 2007; Yang et al., 2008; Kawasaki and Langdon, 2011) like equal-channel angular pressing (ECAP), high-pressure torsion (HPT) and friction stir welding (FSW), etc. By definition, nanoscaled materials have grain sizes of less than 100 nm and ultrafine-grained (UFG) materials have average grain sizes ranging from 100 nm to 1 μm. Various processing techniques to achieve ultra/nano-grain refinement of metals are represented in Figure 1.

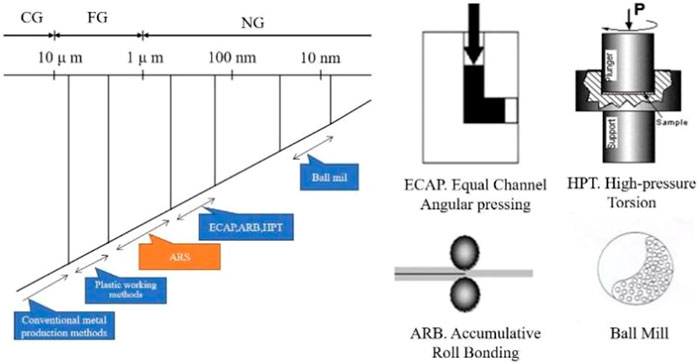

FIGURE 1

FIGURE 1. Various techniques for production of UFG materials and the corresponding grain size levels. Note: CG-Coarse grains; FG-Fine grains; NG-Nano-sized grains.

Superplasticity in Al Alloys

An early report documented the occurrence of superplasticity in Al-based alloys over strain rates covering several orders of magnitude (Higashi, 1994; Kawasaki and Langdon, 2007). It was found that samples processed by cold rolling (CR) were not superplastic because the imposed strains were insufficient to refine the size to the ultrafine or even smaller levels. Instead, it was necessary to use powder metallurgy (PM), physical vapor deposition or other techniques for the superplasticity of Al alloys achieved at low temperatures or high strain rates.

In contrast, the Al-alloys processed by ECAP were superplastic over at least a limited range of strain rates (Komura et al., 2001). It was found that several of the Al alloys exhibited exceptionally high elongations of >2000%, and the general trend of a bell-shaped curve of total elongation against strain rate indicates three distinct flow regions where region II was superplastic at intermediate strain rates. It is also evident that superior elongations were achieved at high strain rates of no less than 10⁻² s⁻¹, thus implying the occurrence of high-strain-rate superplasticity.

Liu and Ma (2011) investigated the influence of grain size on superplastic behavior in the Al-Mg-Sc alloy processed by friction stir processing (FSP), as plotted in Figure 2. It was found that the medium-grained samples exhibited the largest elongation at the highest strain rate due to the optimum combination of grain size and its thermal stability. The superplasticity of Al-Mg-Sc alloy was mainly governed by the effective grain size (the grain size just before deformation) and its distribution just before tension rather than the initial grain size.

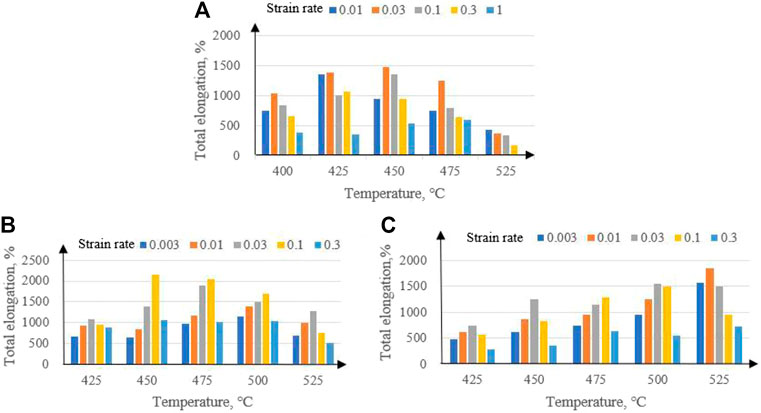

FIGURE 2

FIGURE 2. Changes in total elongation with strain rate at different deformation temperatures in the Al-Mg-Sc alloy with grain sizes of 1.6 μm (A), 2.6 μm (B) and 2.9 μm (C) (Liu and Ma, 2011).

It was worth noting that the Al-6Mg-0.25Sc-0.1Zr alloy produced by asymmetric rolling (AsR) exhibited an average grain size of ∼1.5 μm, corresponding to an elongation of ∼3,200% at 773 K and 5 × 10⁻² s⁻¹ (Xu et al., 2016). The superior superplasticity was ascribed to the ultrafine grains with a high fraction of high-angle grain boundaries (HAGBs) and disperse, coherent and nano-scaled Al₃(Sc, Zr) particles.

Superplasticity in Ti Alloys

It has been demonstrated that the Ti alloy processed by conventional SPD methods exhibited an average grain size of 75–400 nm and the LTSP was achieved at temperatures as low as 823–973 K (Kim et al., 1998; Salishchev et al., 2001; Ko et al., 2005; Ko et al., 2006; Matsumoto et al., 2013; Zhang et al., 2014a; Fu et al., 2015; Wu et al., 2016; Zhang et al., 2018a), as summarized in Table 1.

TABLE 1

TABLE 1. Maximum elongations for the LTSP (below 973 K) in the SPDed Ti-6Al-4V alloy (Kim et al., 1998; Salishchev et al., 2001; Ko et al., 2005; Ko et al., 2006; Matsumoto et al., 2013; Zhang et al., 2014a; Fu et al., 2015; Wu et al., 2016; Zhang et al., 2018a).

FSP is a novel solid-state processing technique for grain refinement and microstructural modification in view of the principle of friction stir welding (FSW) (Liu et al., 2009). Wu et al. (2016) reported that the friction stir welded Ti-6Al-4V alloy with a fully lamellar morphology had an excellent superplastic ductility of ∼728% at 1198 K and 3.0 × 10⁻³ s⁻¹, which reached 442% at 873 K and 3.0 × 10⁻⁵ s⁻¹.

In addition to the above-mentioned SPD methods, the initial microstructure also played an important role on ultra-grain refinement of Ti-6Al-4V alloy and the resultant superplastic behavior. Wang and Langdon et al. (Wang and Langdon, 2013) demonstrated that the grain size of the HPT-processed Ti-6Al-4V alloy dropped with increasing the volume fraction of lamellar structure. Preliminary work (Fu et al., 2015; Zhang et al., 2018b) has also showed that as the fraction of lamellar structure reached 70%, the grain size of the HPT-processed Ti-6Al-4V alloy was refined to 75 ± 15 nm, and an excellent LTSP of ∼780% was achieved at 873 K and 5.0 × 10⁻⁴ s⁻¹.

Yoon et al. (2015) investigated the effect of initial microstructure (as-received material, furnace-cooled, material and water-quenched material) on microstructural evolution in Ti-6Al-4V alloy during FSW, and the equixaed microstructure with the smallest grain size in stir zone (SZ) center was formed for the initial martensitic microstructure. As demonstrated in Zhang et al. (2018a), an ultrafine microstructure consisting of α grains (∼510 nm) and a small amount of ß phase was successfully achieved in the FSPed Ti-6Al-4V alloy. The fraction of HAGBs with random crystallographic orientation was close to 90%, revealing dynamic recrystallization was responsible for ultra-grain refinement during FSP. The LTSP of such an ultrafine microstructure was found in the temperature range of 773–923 K and strain rates from 1.0 × 10⁻⁴ s⁻¹ to 3.0 × 10⁻³ s⁻¹. Specifically, an exceptional LTSP of 1130% was achieved at 873 K and 3.0 × 10⁻⁴ s⁻¹.

Shahmir et al. (2018) examined the effect of initial microstructures, e.g. martensitic and lamellar on the superplasticity in the Ti-6Al-4V alloy processed by HPT. It was demonstrated that significant grain refinement was achieved under both conditions with grain sizes of ∼30 and ∼40 nm, respectively. The nanostructured samples exhibited excellent ductility at 923–1073 K, including superplastic elongations at 973 K with maximum values of 815 and 690%, respectively.

To provide a direct comparison with other published data on superplasticity in the Ti-6Al-4V alloy processed by HPT, Table 2 summarizes the results reported under various parameters including initial microstructure and tensile elongation (Sergueeva et al., 2000; Sergueeva et al., 2002; Shahmir et al., 2018). All results showed high superplastic elongations but the maximum value of 815% was obtained. From this work, it was apparent that the initial grain size of the martensitic microstructure was smaller than the lamellar one and this would contribute to higher elongations, thus exhibiting exceptional superplasticity when compared with the lamellar microstructure.

TABLE 2

TABLE 2. Summary of experimental parameters and elongations in the Ti-6Al-4V alloy processed by HPT (Sergueeva et al., 2000; Sergueeva et al., 2002; Shahmir et al., 2018).

Superplasticity in Fe Alloys

The development of ferrous superplastic alloys allowed the mass production of complex parts at relatively low costs. For example, a promising superplasticity was found in some duplex stainless steels (DSS) and ultrahigh carbon steels (UCS) (Li et al., 2014; Zhang et al., 2014b). However, the requirements of high alloying contents (Cr, Ni, and Mo), high temperature or low strain rate hindered broad industrial applications for intricate parts. More recently, lean-alloyed Fe–Mn–Al–C steels (e.g., medium Mn steel, MMS) revealed an extraordinary superplasticity and they have significant potentials to be used as the next-generation automotive steels due to their high strength, excellent ductility, comparatively low density and material cost (Cao et al., 2017; Cao et al., 2018; Han et al., 2017). Table 3 summarized the chemical composition, thermomechanical processing and total elongation and deformation conditions for various ferrous superplastic alloys (Zhang et al., 2014b; Li et al., 2014; Cao et al., 2017; Han et al., 2017; Cao et al., 2018).

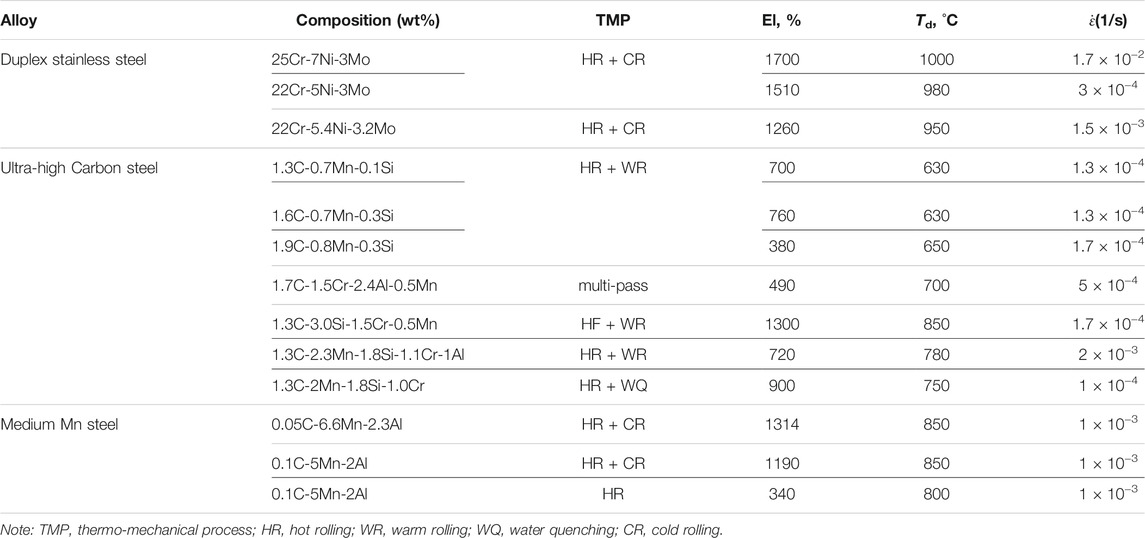

TABLE 3

TABLE 3. Statistic results of chemical composition, thermomechanical processing and total elongation and deformation conditions for various ferrous superplastic alloys (Zhang et al., 2014b; Li et al., 2014; Cao et al., 2017; Han et al., 2017; Cao et al., 2018).

The superplastic MMSs were produced via either hot rolling or cold rolling followed by rapid cooling or inter-critical annealing, which evolved into a fully lath-typed or equiaxed ferrite and austenite (α+γ) duplex structure, respectively.

Han et al. (2017) investigated the superplasticity of Fe-6.6Mn-2.3Al cold rolled alloy. The tensile specimens were heated to 1123 K, where the equilibrium volume fractions of both α and γ phases were almost identical, held for 5 min and then tested at various initial strain rates. The process of lamella shearing happened during cold rolling, so that the equiaxed (α+γ) structure was quickly developed at elevated temperatures. Accordingly, a maximum elongation of ∼1314% was obtained at 1.0 × 10⁻³ s⁻¹. In contrast, the hot-rolled (HRed) lamellar structure induced high flow stresses at initial and steady states, making intergranular deformation occur more readily than GBS. This corresponds to a relatively low ductility of ∼340% at 800°C and 10⁻³ s⁻¹ (Cao et al., 2018). The low temperature or high strain rate superplasticity of medium Mn steels is believed as a result of ultra-grain refinement and the slow diffusion of Mn and Al elements.

Grain Size Effect on Superplasticity of Metals

Taking into account the grain size effect on high-temperature deformation, a model on superplastic deformation was proposed by Lou and Woo (2002), based on the theory of GBS and the theory of cavity growth, as follows:

$r_f+\frac{B}{d}=C_{f}exp\left({\epsilon }_f\right)(1)$

where B is defined as:

$B=\left(\frac{45\Omega \delta }{A{b}^2}-\frac{3\gamma }{2G}\right)\sqrt{\frac{A{D}_{gb}Gb}{\dot{\epsilon }kT}}(2)$

where ${\epsilon }_f$ is the total elongation to fracture, $C_f$ is an integrating constant, $r_f$ is the valid radius of cavity in fracture, $\Omega$ is the atomic volume, $\delta$ is the grain boundary width, $\gamma$ is the mean radius of cavity, $b$ is the Burgers vector, $D_{gb}$ is the grain boundary diffusivity,$\dot{\epsilon }$ is the strain rate, $k$ is the Boltzman constant, $T$is the absolute temperature, $A$ is the dimensionless constant and $G$ is the shear modulus.

The predictions of the model were compared with several published experimental data, as shown in Figure 3 (Liu and Ma, 2011). It was apparent that the total elongation increased with decreasing the grain size at various strain rates, i.e., the linear relationship between total elongation and 1/d was kept in a strain rate range.

FIGURE 3

FIGURE 3. Total elongation against inverse grain size for several superplastic materials. + Ti-6Al-4V deformed at 1200 K and 2.0 × 10⁻⁴ s⁻¹; Ternary brass deformed at 874 K and 1.67 × 10⁻⁴ s⁻¹; 7475 Al alloy deformed at 789 K and 3.0 × 10⁻⁴ s⁻¹; × Al-Mg-Sc alloy deformed at 698 K and 3.0 × 10⁻² s⁻¹; × Al-14Ni-14Mn alloy deformed at 873 K and 1.0 s⁻¹; • ZrO-dispersed Al deformed at 1727 K and 1.7 × 10⁻⁴ s⁻¹ (Liu and Ma, 2011).

It is also well known that the contribution of GBS to the total macroscopic strain was estimated as being less than 70%, so the remainder should be accommodated by other existing mechanisms. In some cases, high dislocation activity was still visible, not only in the vicinity of interphase boundaries, but also within grains even after failure, verifying that GBS was accommodated by dislocation slip or climb mechanisms. Regarding the dislocation accommodating mechanism, a common resemblance was found with the Rachinger GBS effect. The process was generally controlled by the equilibrium subgrain size parameter λ, which can be expressed as (Alabort et al., 2015):

$\raisebox{1ex}{$\text{λ}$}\!\left/ \!\raisebox{-1ex}{$b$}\right.=\text{ζ}{\left(\raisebox{1ex}{$\text{σ}$}\!\left/ \!\raisebox{-1ex}{$\text{μ}$}\right.\right)}^{-1}(3)$

where b is the magnitude of the Burgers’ vector, σ is the flow stress, μ is the shear modulus and ζ is a constant. Given that average grain size (d) was constant, but λ was related to the imposed stress and hence, as a function of deformation conditions.

In the case of phases whose size d>λ, intragranular dislocations would form subgrains and even evolve into new grains upon straining; whereas for phases whose size d<λ, intragranular dislocations traveled through the softer phase, in favor of intragranular slip.

It is well known that the flow stress of materials is a function of deformation temperature T, grain size d and strain rate $\dot{\epsilon }$during superplastic deformation, as below (Zhu and Langdon, 2004):

$\dot{\epsilon }=A{\sigma }^n{d}^{-p}{D}_0\exp \left[-Q/\left(RT\right)\right]$

where A is a constant, n is an exponent related to the flow stress, p is an exponent related to the grain size, Q is an activation energy, R is a gas constant. Thus, the strain rate can be found increase significantly when the grain size of materials is refined to a nano-scaled level. Langdon et al. reported that as the grain size is refined from 2 μm to 200 nm, the superplastic period is reduced from 20–30 min to 20–30 s.

Conclusion

This work summarized the dependence of superplasticity of various metals on grain size and shape, including Al alloy, Ti alloy and ferrous alloy, etc. The smaller grains can contribute to lowering the deformation temperature and/or raising the strain rate, which is beneficial for rapid superplastic forming of parts with nearly arbitrarily complex shapes at relatively low costs. In comparison with severe plastic deformation, most of metals processed by conventional plastic deformation were not superplastic because the imposed strains were insufficient to refine the size to the ultrafine or even smaller levels. Meanwhile, the superplasticity of metals can be significantly improved as well by tailoring the initial microstructural parameters (grain shape, phase fraction, grain size distribution etc.), which is crucial for developing novel superplastic metals with commercial application potential.
