One-part or “just add water” geopolymer is a cementitious material, which is friendly to environment and users in applications. However, the mechanical behavior of the soft soil stabilized by one-part geopolymer is not well acknowledged. In this study, soft clay was stabilized with ground granulated blast furnace slag (GGBFS) and fly ash (FA)-based geopolymer, which is a mixture of solid aluminosilicate precursor (Al-Si raw materials: GGBFS and FA), solid alkali activator, and water. The objective was to adopt one-part geopolymer as an alternative soil binder to completely replace ordinary Portland cement (OPC) for stabilizing the soft clay and evaluate the effect of the factors (i.e., GBFS/FA ratio in Al-Si precursor, activator/Al-Si precursor ratio, and water/binder ratio) that influenced the early strength. Results showed that the increase of the FA content in the Al-Si precursor increased the unconfined compressive strength (UCS) values significantly through the geopolymerization process. The highest UCS values were achieved with 90% GGBFS to 10% FA in the precursor when the activator/precursor and water/binder ratio is 0.15 and 0.7, respectively. The UCS values of geopolymer-stabilized clay could reach 1.5 MPa at 14 days at ambient temperature, which is much higher than that of OPC-stabilized clay. The microstructure and mineralogy analyses indicated that the prolific hydration products, such as calcium silicate hydrate (C-S-H), calcium aluminum hydrate (C-A-H), and calcium aluminum silicate hydrate (C-A-S-H), contributed greatly to strengthen the soft clay by forming the soil skeleton and infilling among clay particles, while sodium aluminosilicate (N-A-S-H) gel is only served to fill the part of porosities in the soil and cannot effectively enhance the UCS of the one-part geopolymer-stabilized soft clay. This paper results suggested that one-part GGBFS-FA–based geopolymers have the potential to replace OPC in the manufacture of stabilized soft clay.

Introduction

Geopolymer is an alternative binder agent that belongs to a new type of cementitious material, which is polymerized from Al-Si raw materials. The Al-Si raw materials are usually available from low-cost industrial by-products such as ground granulated blast furnace slag (GGBFS) and fly ash (FA). With the activation of alkali-activator, the Al-Si raw materials produce hydration materials with the characteristics of high early strength. In geotechnical engineering, the ordinary Portland cement (OPC) is normally used as a soil stabilizer to improve soil with poor mechanical properties (Keshawarz and Dutta, 1993; Taha et al., 2002; Horpibulsuk et al., 2006; Chinkulkijniwat et al., 2012; Du et al., 2013; Ma et al., 2018). However, it is well known that the OPC consumes a lot of energy resources and emits a lot of CO₂ gases, causing environmental pollutions in the production process (Davidovits, 1991; Bakharev et al., 2001a; Bakharev et al., 2001b; Huntzinger and Eatmon, 2009). At the same time, the OPC-stabilized soft clay often has the problem of insufficient early strength. Since the Al-Si raw materials of the geopolymer came from industrial by-products with the lower cost compared to OPC, adopting the geopolymer as the binder agent to stabilize the soil had a great potential to solve the “3H” problems (high pollution, high energy consumption, and high cost) induced by the application of OPC binder. Furthermore, the early strength development of geopolymer paste was faster than that of OPC paste, which might enhance the early strength of stabilized soil and shorten the constriction time.

In recent years, the application of geopolymers in the stabilized soil has been widely studied. Cristelo et al. (2011) investigated the mechanical strength of FA-based geopolymer-stabilized soft soil with the sodium-based alkali activators and found that the unconfined compressive strength (UCS) values of FA-based geopolymer-stabilized soft soil increased to 900 kPa compared to untreated soil with the initial strength of 100 kPa. Zhang et al. (2013) adopted the metakaolin-based geopolymer to stabilize the soil at shallow depth. It was found that the geopolymer gel could help soil particles form dense microstructures and improve the original strength of the soil significantly. Itthikorn et al. (2018) used the FA and GGBFS as Al-Si raw materials and liquid alkali as the activator to stabilize the base layer in pavement engineering. The effects of GGBFS, the molarity of the liquid alkali activator, and curing time on the early strength development of the stabilized soil were investigated. It was reported that at seven days, the UCS values of the geopolymer-stabilized soil achieved 7 MPa. The scanning electron microscope (SEM) results indicated that the calcium silicate hydrate (C-S-H) and sodium aluminosilicate hydrate (N-A-S-H) products were formed in the geopolymer-stabilized soil.

However, the above application of geopolymers in the stabilized soil usually adopted the two-part geopolymer technology. As for the two-part geopolymer, a liquid alkali activator was first prepared by a mixture of sodium hydroxide (NaOH, NH) solution and sodium silicate (Na₂SiO₃, NS) solution with certain Al/Si molar ratio (Duxson et al., 2007; Provis and John, 2014). The liquid alkali activator was then added to the silicoaluminate raw material to synthesize the geopolymer paste. Finally, the geopolymer paste was used as a binder agent to stabilize the soil. In the practice of soil improvement, the deep cement mixing and the jet grouting were the main techniques to enhance the strength and stiffness of the soft soil at varied depths. In the jet grouting technique, the OPC and water were prepared within different pipes. After the drilling bit reached the soft soil at a certain depth, the OPC paste formed by the mixing of OPC and water with certain ratio would fill into an in situ soil layer. However, adopting alkaline solutions limits the commercial application of the two-part technology since it is difficult to handle these viscous, corrosive solutions in the construction site. The traditional two-part technology has some problems, such as high transportation cost and environmental protection. Thus, it is urgent to develop a new kind of geopolymer that could be used similarly to OPC. As for the one-part geopolymer, the alkali activator is prepared in the form of solid particles. It is expected that only a dry mixture would be needed in addition to water if the geopolymer was adopted for in situ ground improvement. Solid alkali activators can be more convenient in transportation and lower the price of transport costs. At the same time, solid alkali activators can reduce the harm of alkaline activator solution.

The major difference between two- and one-part geopolymers was the reactive rate and the availability of Si, Al, and Ca in source materials, which influenced the strength and microstructure development of geopolymers. Hence, the solid Al-Si materials were usually adopted in one-part geopolymers (Zhang et al., 2013). Research has been carried out to synthesize one-part geopolymers using a combination of different kinds of solid Al-Si raw materials and solid alkali activators. The common solid Al-Si raw materials adopted in one-part geopolymer mixes were FA and GGBFS (Nematollahi et al., 2017a; Nematollahi et al., 2017b; Wang et al., 2017). Since the high-calcium FA (defined as the ASTM class C FA) had the drawback of too rapid setting (Chindaprasirt et al., 2012), the low calcium FA (known as the ASTM class F FA) was the majority of FA used in one-part geopolymers. The GGBFS was seemed as a calcium-rich Al-Si raw material and commonly used with class F FA in the one-part geopolymer mixtures (Kim et al., 2013). It was found that adopting GGBFS in source materials can significantly promote the reactivity of low calcium content in FA during the synthesizing process of geopolymers (Duxson and Provis, 2008; Bondar et al., 2019). Alkali activators adopted in one-part geopolymer mixtures are mainly solid NH (or NS, Na₂CO₃, NaAlO₂, and KOH) (Nematollahi et al., 2017a; Nematollahi et al., 2017b). It was observed that the modulus (i.e., Si/Na molar ratio) of activators had impacts on the settling time and strength of the geopolymer paste significantly (Nematollahi et al., 2015; Wang et al., 2017). The main binding phases of one-part alkali-activated geopolymers were found to be amorphous C-S-H, calcium aluminate hydrates (C-A-H), and calcium aluminosilicate hydrates (C-A-S-H) gels (Gluth et al., 2013; Venkatanarayanan and Rangaraju, 2013; Sturm et al., 2015; Sturm et al., 2016a; Sturm et al., 2016b; Peys et al., 2016), which were similar to what generated in two-part geopolymers in the high-calcium system. These hydrate gels were the main contributors to enhance the strength of geopolymers. In addition, these hydrate gels can play an important role in the cementation between soil particles, which leads to the improvement of soil strength. Therefore, it is very promising to adopt the one-part geopolymer as a novel binder to stabilize soft soil. However, to the best of the author’s knowledge, there are no published studies investigating the feasibility of the one-part geopolymer as a soil stabilizer or the mechanical behavior of the soft soil stabilized by one-part geopolymers.

Therefore, this paper intends to adopt one-part geopolymer as an alternative binder to completely replace OPC for stabilizing the soft clay. In the present study, the solid precursor of GGBFS and FA and solid NH activator were mixed and used as the source material. Water was then added to the solid source material to form the geopolymer binder-slurry, which was employed to stabilize the soft clay. The OPC-stabilized soft clay was also made for comparison. The effect of the amount of GGBFS and FA in the solid aluminosilicate precursor, the ratio of solid NH to precursor, and the water-to-binder ratio on the early strength development of one-part geopolymer-stabilized soil was investigated and evaluated through the UCS test. The SEM, energy-dispersive X-ray spectrometer (EDS), and X-ray diffraction (XRD) analysis were conducted to investigate the development of microstructure of the one-part geopolymer-stabilized soil. The outcome of this paper would enable one-part GGBFS and FA-based geopolymers to be used as alternative binders to OPC in soil improvement.

Materials and Methods

Materials

The soil sample used in the current study was the silt clay taken from the construction site at a depth of 12 m in Putuo district of Shanghai, China. The basic physical and mechanical properties of the soil are reported in Table 1. In addition, the particle size distribution curves of soil are given in Figure 1. The chemical composition of soil obtained from X-ray fluorescence spectroscopy (XRF) is given in Table 2. The undrained shear strength of this type of soil was about 20 kPa, which was too weak to support the proposed construction. Therefore, this soil was selected to be stabilized by one-part geopolymers in the current study.

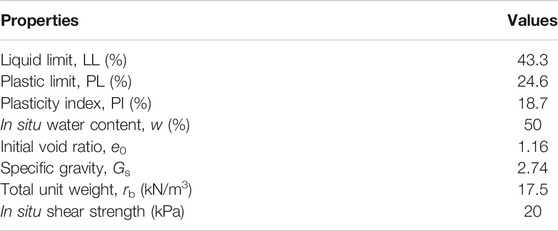

TABLE 1

TABLE 1. Basic properties of the soil used in the current study.

FIGURE 1

FIGURE 1. Particle size distribution curves of soil.

TABLE 2

TABLE 2. Chemical compositions of soil, GGBFS, and FA from XRF analysis (%).

GGBFS adopted in the current study was obtained from Suqian Huayi Concrete Co., Ltd., from Jiangsu Province, China. The chemical composition of GGBFS obtained from XRF is given in Table 2. The main chemical composition in the current GGBFS is CaO, SiO₂, and MgO. The XRD pattern indicates that GGBFS mainly has the trace of calcium silicate in which the amorphous humps were in the region of 20°–45°, as shown in Figure 2. FA was supplied from a power plant in Jiangyin City, Jiangsu Province, China. Table 2 reports the chemical composition of FA obtained from XRF. Hence, the FA in the current study was classified as a low calcium class F FA. The XRD pattern of FA is given in Figure 3. The alkali activator used in this paper was commercially available solid NH particles with a purity of 99%. In addition, the particle size distribution curves of GGBFS and FA are shown in Figure 4.

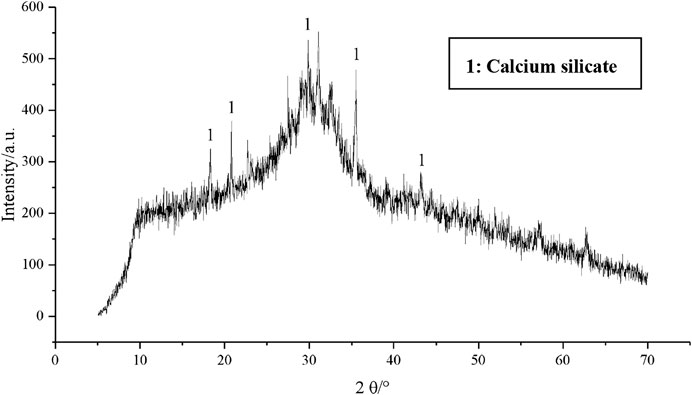

FIGURE 2

FIGURE 2. XRD pattern of GGBFS in the current study.

FIGURE 3

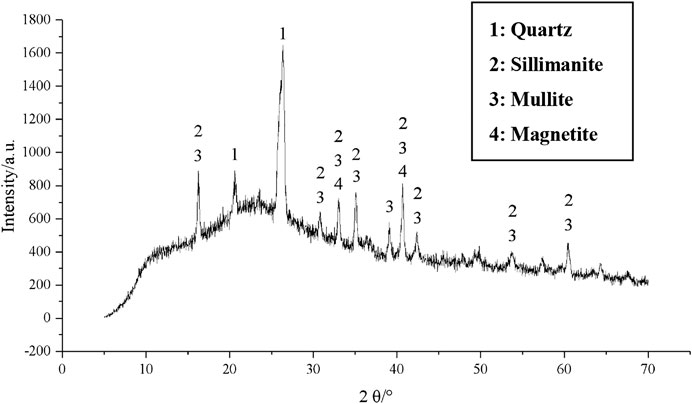

FIGURE 3. XRD pattern of FA in the current study.

FIGURE 4

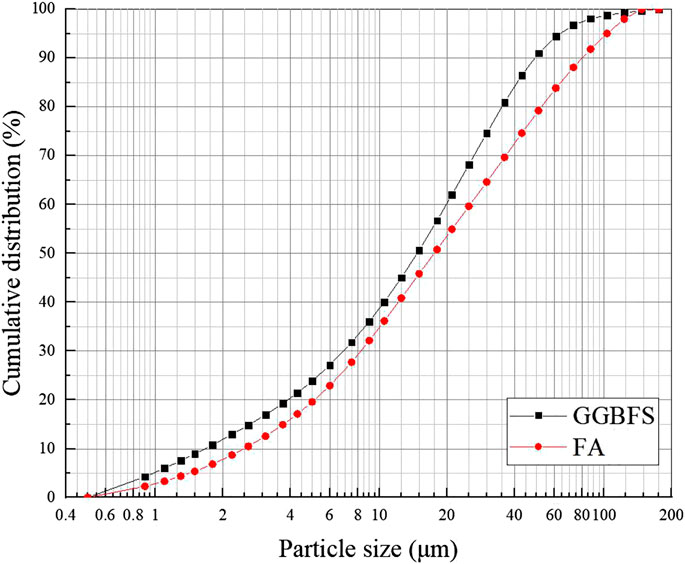

FIGURE 4. Particle size distribution curves of GGBFS and FA.

Sample Preparation

After being placed in an oven drying for 24 h, the raw soil was sieved through a 5 mm sieve to prepare a remolded specimen. The water content used in the remolded soil was 50%, which was the soft clay’s natural in situ water content. The procedure for preparing the one-part geopolymer-stabilized soil sample was similar to that cement-stabilized soil (Chew et al., 2004). The prescribed amount of water was first added into the dry soil particles to form clay-slurry. Binder (solid aluminosilicate precursor and solid alkali activator)-slurry was obtained through mixing with a certain water–binder ratio and was then added to clay-slurry to achieve the uniform mixing in the stabilized soil sample. All mixing was done within 45 min to avoid hardening of the soft clay–geopolymer mixture. The mixture was then placed into a PVC mold with a dimension of 39.8 mm in diameter and 80 mm height until the UCS test. In the laboratory test (Palomoa et al., 1999; Bakharev, 2006), the prepared geopolymer-stabilized soil samples were sealed with a plastic sheet and cured at a room temperature of 21 ± 2°C with a relative humidity of 95%. After 24 h, the samples were demolded and then immediately wrapped in a plastic sheet and cured under the same condition as the abovementioned curing condition.

After completing the preparation of the sample, the UCS test of the one-part geopolymer-stabilized soil samples was conducted after 3, 7, and 14 days’ curing time to investigate the early strength development. To study the development of microstructure in the one-part geopolymer-stabilized soil samples, the SEM analysis was performed on selected samples. In order to investigate the chemical compositions of the formed hydration products in the geopolymer-stabilized soft clay, the EDS test was conducted on the selected areas of SEM samples. The XRD was also carried out on the broken samples after UCS tests to observe the mineralogical changes in the one-part geopolymer-stabilized soft clay.

The cement-stabilized soil was set as the baseline test for comparison. The cement binder was the OPC with a grade of 42.5. The soil was the same as that used in one-part geopolymer-stabilized soft clay. After curing times of 3, 7, and 14 days, the UCS values of the cement-stabilized soft soil were tested and then compared to that of one-part geopolymer-stabilized soft clay.

Test Design

According to the previous research on OPC-stabilized soft clay (Keshawarz and Dutta, 1993; Taha et al., 2002; Horpibulsuk et al., 2006; Chinkulkijniwat et al., 2012; Du et al., 2013; Kang et al., 2016), the optimum proportion of the binder in the cement-stabilized soft clay was suggested to be in the range of 20–60% (binder to dry soil mass). In order to highlight the advantage of the one-part geopolymer stabilizer over the OPC binder in the application of ground improvement, the ratio between the binder and dry soil mass remained at 20% for both soil stabilizers. For the geopolymer binder in the current study, the binder was composed of raw materials (GGBFS and FA) and solid NH activator. The factors were considered as follows: the ratio of GGBFS to FA in the solid aluminosilicate precursor, the ratio of the solid NH activator to the precursor, and the ratio of the water to binder. Table 3 summarizes the samples with consideration of the above three factors. In the test, each design mixture is used in three samples to eliminate the sample error and ensure the accuracy of the test results.

TABLE 3

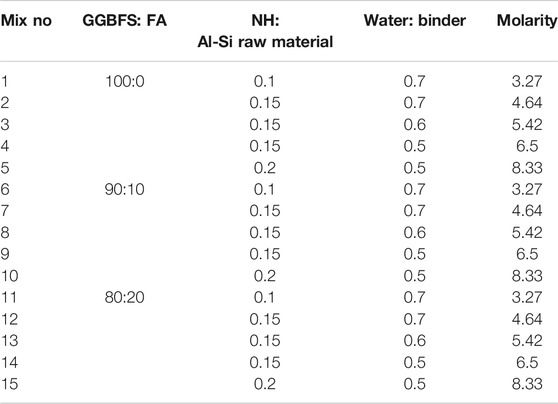

TABLE 3. Mixing proportion of samples in the current study (by mass).

However, for the analysis purpose, the ratio of NH to raw materials and the water-to-binder ratio can be combined to the factor of molality of the alkali activator similar to that in two-part geopolymers (Glukhovsky et al., 1980; Bakharev et al., 1999). In the current study, the ratio of NH to raw and the water to binder ratio can be expressed in terms of molality of NH solution as follows:

$C\left(\mathrm{NH}\right)=\frac{n\left(\mathrm{mol}\right)}{v\left(l\right)}=\frac{m_{\mathrm{NH}}/M_{\mathrm{NH}}}{m_W/{\rho }_W},(1)$

in which C(NH) is defined as the molarity of NH solution, n represents the amount of substance, v represents the volume of alkaline solution, m_NH is the mass of NH, m_W is the mass of water, M_NH represents the molar mass of NH, and ρ_W refers to the density of water.

Results and Discussion

Effect of Ground Granulated Blast Furnace Slag to Fly Ash Ratio in Raw Material

The UCS values of one-part GGBFS and FA-based geopolymer-stabilized soft soil with different ratios of GGBFS to FA in raw materials are reported in Figure 5. It is clearly shown that the strength of geopolymer-stabilized soft soil increased with an increase in curing time. Therefore, it can be expected that geopolymers can play a role in improving the strength of soft soil and prove the feasibility that the current one-part geopolymer binder can be used to stabilize the soft soil.

FIGURE 5

FIGURE 5. UCS results of the one-part GGBFS-FA–based geopolymer-stabilized soil with different ratios of GGBFS to FA in the aluminosilicate raw material.

For the mixing proportions with 100% GGBFS in the precursor, the UCS values of the stabilized soil were increased for the varied molalities of NH solution. When the FA content was less than 10%, the UCS values of one-part geopolymer-stabilized soil increased with an increase in the FA content; while for the FA content being more than 10%, further increasing FA content would decrease the UCS values of the stabilized soft soil. This means that the highest UCS values of the one-part geopolymer-stabilized soil were achieved when the FA content was about 10% in raw materials. Excessive amount of FA had a negative impact on the strength development of the stabilized soil.

This phenomenon might be explained as follows. The silicon-rich and calcium-rich components in the GGBFS released a large amount of silicate and calcium ions under the action of NH activator, and then these ions would react with each other to form the calcium silicate hydrates (C-S-H), which were used to connect the soil particles and enhance the UCS values of the stabilized soil. When the FA content was less than 10%, a little FA was partially involved in the hydration reaction. Since the FA used in the current study was defined as the low calcium material, the glassy phases (i.e., calcium-rich phase) in the GGBFS were first dissociated to calcium-rich components (Ca²⁺) under the attack of NH solution. Then, Ca²⁺ would react with the active components of SiO₂ and Al₂O₃ in the FA to form a large amount of hydrated products of C-S-H, C-A-S-H, and C-A-H gels. With an increase in curing time, such hydration products overlapped each other, thereby increasing the strength of the one-part geopolymer-stabilized soft soil. Another aspect was that due to the spherical shape of FA, the FA played a role in rolling and lubricating in the binder-slurry, which would improve the fluidity of the binder-slurry, and made the binder-slurry spread more uniformly in the soft clay. This phenomenon indicated that the implementation of FA in raw materials performed the retardation of the initial setting time of binder-slurry. However, when the FA content in the precursor was beyond the certain amount, the silica–oxygen and aluminum–oxygen bonds in FA were rapidly broken and polycondensated to a three-dimensional aluminosilicate network structure of N-A-S-H, one kind of geopolymer in the low calcium system (Davidovits, 1989; Palomoa et al., 1999), under the activation of NH solution. It was found that the molecular structure of such an aluminosilicate gel was stable and cannot react with other active components in raw materials with an increase in curing time. Hence, the soil particle cannot be connected by such an aluminosilicate gel, resulting in the low UCS value of the stabilized soil. It can explain why the optimum ratio of GGBFS to FA in raw materials was 90% GGBFS and 10% FA.

Effect of Solid NH Content and Water–Binder Ratio

Figure 6A reports the UCS values of the one-part geopolymer-stabilized soil with 100% GGBFS in raw materials under varied molalities of NH solution. From the figure, it was clearly shown that when the molarity of NH solution was between 4.64 and 5.64 mol/L, the UCS values of stabilized soil reached a higher value of 1.4 MPa at 14 days’ curing time compared to that of the molarity of NH solution that is higher than 5.64 mol/L or lower than 4.64 mol/L. This indicated that the higher or lower molarity of NH solution would not improve the mechanical property of soft clay significantly. This might be possible that the higher molarity of NH solution would cause the rapid reaction process in the geopolymer paste, resulting in shortening of initial setting time. During the preparation of the sample, it was observed that the geopolymer binder-slurry became a clump rapidly before mixing with soil, which might be the reason that geopolymer-stabilized soil with 100% GGBFS under the higher molarity of NH solution presented the low compressive strength. At the same time, the lower molarity of NH solution would not effectively attack silicon-rich and calcium-rich components in the GGBFS, causing the low UCS values of the stabilized soil. Hence, for the one-part geopolymer-stabilized soil with the 100% GGBFS in raw materials, the optimum molarity of NH solution was found to be in the range of 4.64 mol/L– 5.64 mol/L.

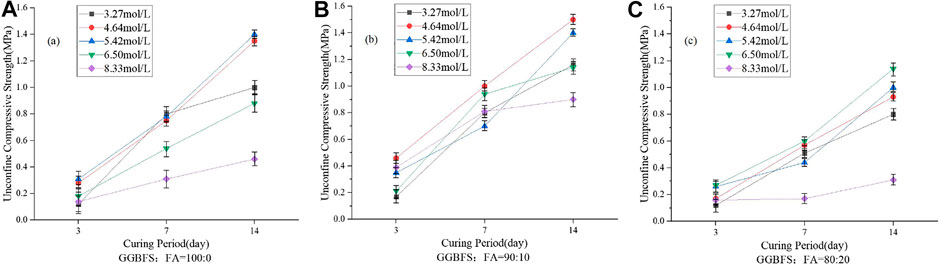

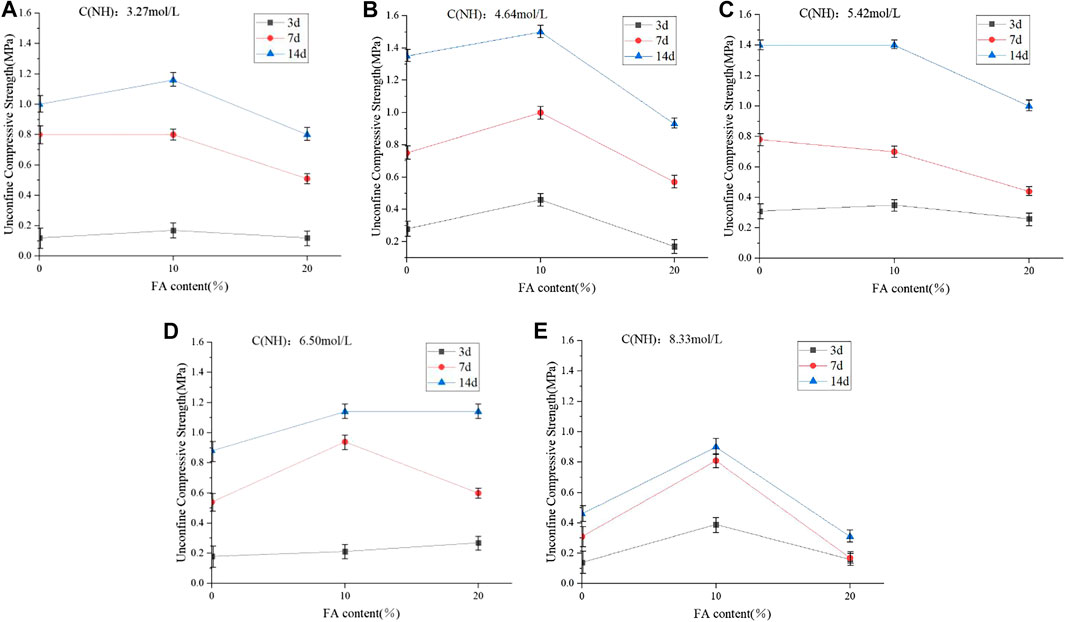

FIGURE 6

FIGURE 6. UCS of soil stabilized by geopolymers with different molar concentrations of NH solution.

Figure 6B,C reports the UCS values of the one-part geopolymer-stabilized soil with GGBFS/FA ratios of 90–10% and 80–20% in Al-Si raw materials under various molarities of NH solution, respectively. From Figure 6B, it was found that when the molarity of NH solution was 4.64 mol/L, the UCS values of the stabilized soil with 90% GGBFS and 10% FA achieved 1.5 MPa while for the stabilized soil with 80% GGBFS and 20% FA, the optimum molarity of NH solution was found to be 6.50 mol/L. This is possible that the FA was an inert material, which was hardly activated by the low concentration of the NH solution. It can be postulated that the lower concentration of NH solution cannot effectively attack the aluminosilicate in the GGBFS and FA from the hydration gels, causing less improvement of the UCS values of the stabilized soil, while the higher concentration of the NH solution would induce the rapid releasing of calcium and silica ions in GGBFS and FA materials and reduce the setting time of geopolymer paste. Hence, after the binder-slurry was added into the soil, the soil particle cannot be effectively connected by the hydration gels from one-part geopolymers.

Comparison with Cement-Stabilized Soft Clay

Figure 7 reports the UCS values for the OPC with a grade of 42.5 stabilized soil and one-part geopolymer-stabilized soil with 90% GGBFS and 10% FA at 4.64 mol/L NH solution. It was shown that at 7 days, the UCS values of the one-part geopolymer-stabilized soil and cement-stabilized soil were 1.0 and 0.8 MPa, respectively, while at 14 days, the compressive strength of geopolymer-stabilized soil was much higher than that of cement-stabilized soil, which indicated that the GGBFS-FA–based geopolymer prepared by the one-part method in the current study can be used as an alternative soil stabilizer. Compared to the source of cement, the source of the geopolymer was the by-products with lower cost. Thus, the one-part GGBFS-FA–based geopolymer proposed in this study can be widely applied in the practice of ground improvement.

FIGURE 7

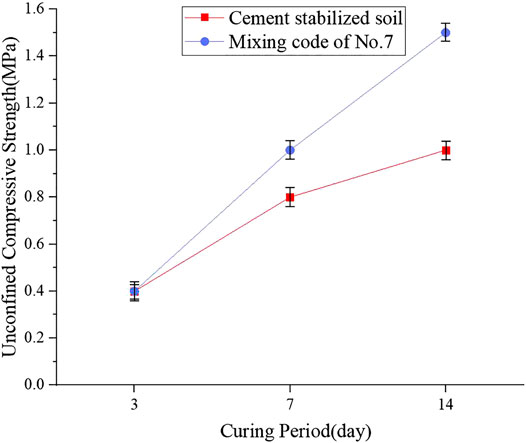

FIGURE 7. UCS of soil stabilized by cement and mix #7 geopolymers.

Scanning Electron Microscope Analysis

To study the microstructure of one-part geopolymers, SEM was used. From the above UCS values, it was observed that the one-part GGBFS-FA–based geopolymer-stabilized soft clay for each GGBFS/FA ratio had their corresponding optimum mixing proportion, that is, 1) for GGBFS: FA = 100:0, NH activator-to-raw material ratio = 0.15, water-to-binder ratio = 0.6, and molarity of NH solution = 5.42 mol/L; 2) GGBFS: FA = 90:10, NH activator-to-raw material ratio = 0.15, water-to-binder ratio = 0.7, and molarity of NH solution = 4.64 mol/L; and 3) GGBFS: FA = 80:20, NH activator-to-raw material ratio = 0.15, water-to-binder ratio = 0.5, and molarity of NH solution = 6.50 mol/L. In order to further investigate the factors of GGBFS/FA ratio and molarities of NH solution on the development of the microstructure in geopolymer-stabilized soft clay at different curing times, the SEM image of soil samples with the above three mix proportions would be presented.

The morphology of hydration products in the one-part geopolymer-stabilized soft clay with 100% GGBFS to 0% FA at 5.42 mol/L NH solution is shown in Figure 8. It can be seen that there were amorphous calcium silicate (C-S-H) gels in the stabilized soil, indicating that the early strength development of the stabilized soft clay was mainly due to the C-S-H gels. The C-S-H gel existed mainly in the form of network structure. At a curing time of 3 days, the stabilized soil samples produced few C-S-H gels. The microstructure of the sample was found to be loose. With an increase in curing time, more C-S-H gels were produced, and hence, the soil particles were tightly wrapped. At a curing time of 14 days, the hydration gel products were connected to each other, making the microstructure of the samples dense. Hence, the compressive strength of the stabilized soils increased significantly.

FIGURE 8

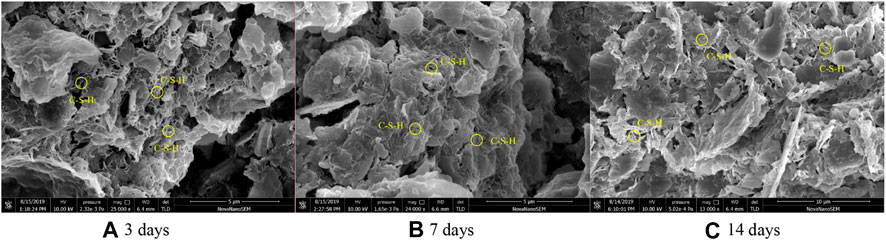

FIGURE 8. SEM image of the one-part geopolymer-stabilized soft clay with 100% GGBFS and 0% FA at 5.42 mol/L NH solution: (A) 3 d; (B) 7 d; (C) 14 d.

The SEM image of hydration products in the one-part geopolymer-stabilized soft clay with 90% GGBFS and 10% FA at 4.64 mol/L NH solution is shown in Figure 9. It was observed that at 3 days, the stabilized soil sample produced few C-S-H gels, inducing the loose state in the microstructure of the soil sample. At the same time, C-A-H and C-A-S-H gels were found in the formation of fibrous shape, confirming that the FA was involved in the reaction process. For the curing times of 7 and 14 days, the C-S-H and C-A-H gels overlapped and were found to form high compactness in the microstructure of the soil samples. It can be concluded that the implementation of FA in raw materials would react to produce hydrated gels to enhance the UCS values of the one-part geopolymer-stabilized soil.

FIGURE 9

FIGURE 9. SEM image of the one-part geopolymer-stabilized soft clay with 90% GGBFS and 10% FA at 4.64 mol/L NH solution: (A) 3 d; (B) 7 d; (C) 14 d.

From Figure 10, the morphology of hydration products in the one-part geopolymer-stabilized soft clay with 80% GGBFS and 20% FA at 6.50 mol/L NH solution is reported. It was observed that some C-S-H gels were produced and overlapped with each other with an increase in curing times. However, some N-A-S-H gels with the formation of bulk (the chemical property of this material was analyzed by EDS in the following part) were observed at the early age of 3 days, which indicated the FA was involved in the geopolymerization process, in which the silica–oxygen and aluminum–oxygen bonds in FA were rapidly broken and polycondensated to an amorphous three-dimensional aluminosilicate structure with the formation of the tetrahedron [SiO₄] and [AlO₄] (N-A-S-H). From the SEM image, some white dots were observed and determined to be unreacted FA materials (confirmed by the EDS results in the following part). It is clearly shown that even at the curing time of 14 days, many bulk parts and FA materials were observed and the microstructure of the soil sample was loose. This confirmed that FA was involved in the synthesis process of geopolymer to generate the N-A-S-H material, which cannot connect the soil particles effectively. The excessive amount of FA in raw materials cannot improve the strength of the stabilized soft clay significantly.

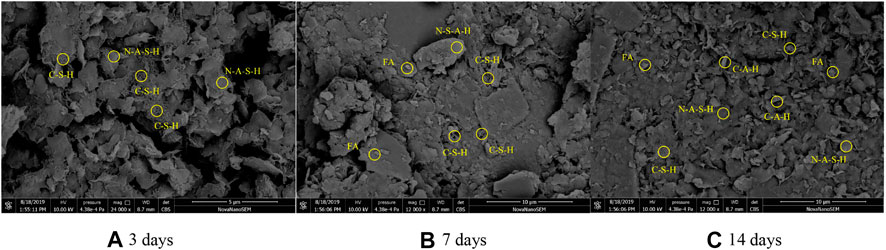

FIGURE 10

FIGURE 10. SEM image of the one-part geopolymer-stabilized soft clay with 80% GGBFS and 20% FA at 6.50 mol/L NH solution: (A) 3 d; (B) 7 d; (C) 14 d.

Energy-Dispersive X-Ray Spectrometer Analysis

Since the SEM image reported the morphology of hydration products in one-part geopolymer-stabilized soft clay, the EDS test was further conducted to analyze the chemical composition of the hydration products.

Figure 11 gives the EDS analysis of the selected areas within the one-part geopolymer-stabilized soft clay with 90% GGBFS and 10% FA at 4.64 mol/L NH solution. The elemental composition of the selected areas is summarized in Table 4. The main elemental components of the cementitious material were composed of Ca, Si, and Al, in which the atomic percentage of Ca, Si, and Al was found to be 8.64, 16.81, and 5.62, respectively. It can be concluded that this kind of cementitious material is C-S-H gel. From the SEM image (Figure 9), it can be observed that the cementitious material was abundant in GGBFS and FA-based geopolymer-stabilized soil, which is the main reason for the strength improvement of the one-part GGBFS and FA-based geopolymer-stabilized soil.

FIGURE 11

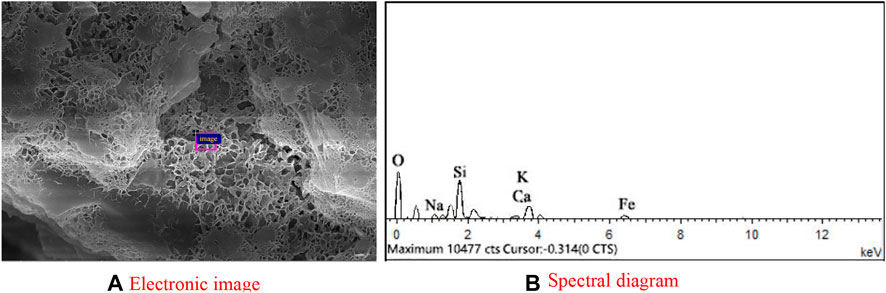

FIGURE 11. EDS of C-S-H from the one-part geopolymer-stabilized soil sample with 90% GGBFS and 10% FA at 4.64 mol/L NH solution: (A) Electronic image; (B) Spectral diagram.

TABLE 4

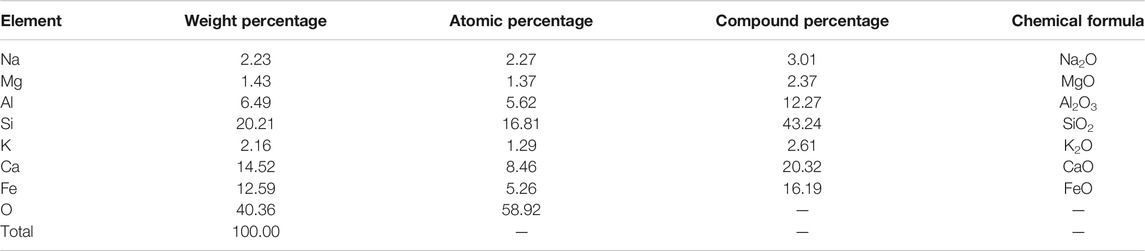

TABLE 4. Elemental composition for selected areas in the one-part geopolymer-stabilized soil sample with 90% GGBFS and 10% FA at 4.64 mol/L NH solution for C-S-H.

Figure 12 gives the EDS analysis of the selected areas within the one-part geopolymer-stabilized soft clay with 90% GGBFS and 10% FA at 4.64 mol/L NH solution. The elemental composition of the selected areas is summarized in Table 5. Another major cementitious material existed in GGBFS and FA-based geopolymer-stabilized soil. The main elemental components of the cementitious material were composed of Ca, Si, and Al, in which the atomic percentage of Ca, Si, and Al was found to be 16.64, 10.10, and 11.81, respectively. These results demonstrated qualitative evidence for the formation of C-A-H or C-A-S-H gels in the soil samples. Hence, it can be concluded that such hydrated products were served to enhance the early UCS values of the one-part GGBFS and FA-based geopolymer-stabilized soil.

FIGURE 12

FIGURE 12. EDS of C-A-H or C-A-S-H from the one-part geopolymer-stabilized soil sample with 90% GGBFS and 10% FA at 4.64 mol/L NH solution: (A) Electronic image; (B) Spectral diagram.

TABLE 5

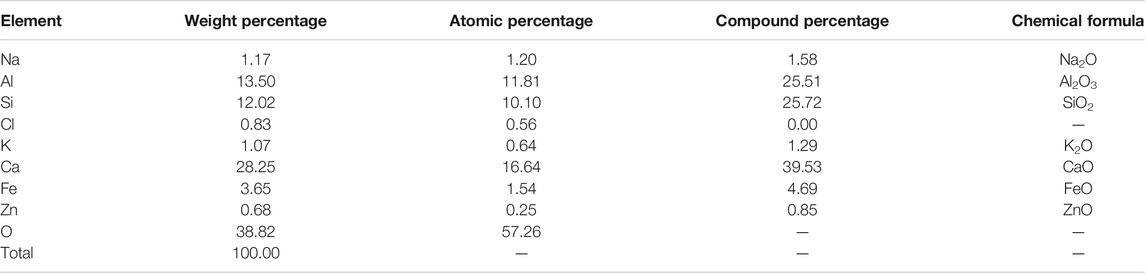

TABLE 5. Elemental composition for selected areas in the one-part geopolymer-stabilized soil sample with 90% GGBFS and 10% FA at 4.64 mol/L NH solution for C-A-H or C-A-S-H.

Figure 13 gives the EDS analysis of the selected areas within the geopolymer-stabilized soft clay with 80% GGBFS and 20% FA at 6.50 mol/L NH solution after a curing time of 14 days Table 6 reports the chemical composition of the selected areas. It should be noticed that the morphology of hydration products in the selected area had the bulk shape. From the figure, it is observed that the main components in the selected area were Na, Al, and Si with atomic percentages of 4.49, 7.72, and 18.44%, respectively. This result indicated that under the action of NH activator with the high concentration, the silicon atom reacted with aluminum in the Al-Si raw material, that is, the process of polycondensation occurred for the silicon and the aluminum element, and the released silicon-rich and aluminum-rich atoms reacted with water to form the geopolymer. However, such a product cannot connect the soil particles effectively and only served to fill the porosity of the soil, thus making little contribution to enhance the UCS values of the soil sample. Hence, it was confirmed that the excessive amount of FA would not significantly improve the strength of one-part geopolymer-stabilized soft clay.

FIGURE 13

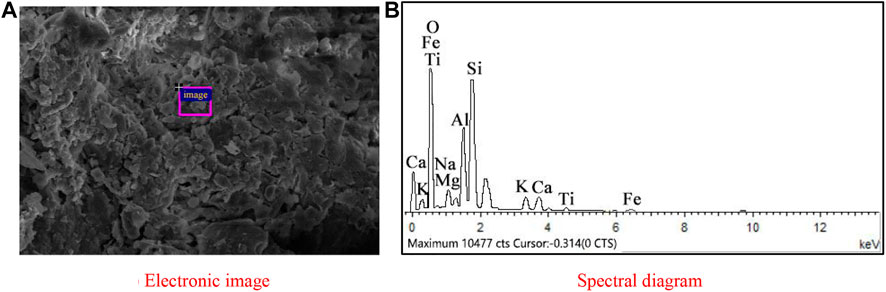

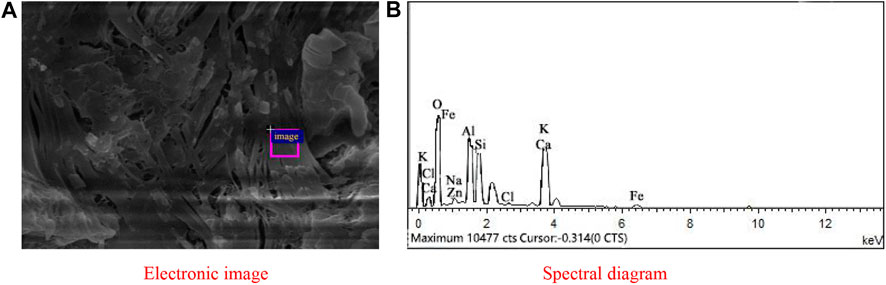

FIGURE 13. EDS of N-A-S-H from stabilized soft clay with 80% GGBFS and 20% FA at 6.50 mol/L NH solution: (A) Electronic image; (B) Spectral diagram.

TABLE 6

TABLE 6. Elemental composition for selected areas in the one-part geopolymer-stabilized soil sample with 80% GGBFS and 20% FA at 6.50 mol/L NH solution for N-A-S-H.

Based on the SEM results, it was found that when the FA content in the Al-Si raw material was 10%, there were few spherical particles, while when the FA content in the Al-Si raw material reached 20%, a large number of spherical particles were found, as shown in Figure 10. Hence, the EDS analysis was conducted on this kind of spherical particle to obtain its elemental component, which is reported in Figure 14 and Table 7. From the table, it is found that the atomic percentage of Si and Al was 18.62 and 6.82, respectively, which confirmed that FA partially involved in the geopolymer-stabilized soil. On the other hand, it can also prove that after certain amount of FA contents, further increasing amount of FA cannot help to increase the strength of geopolymer-stabilized soft soil.

FIGURE 14

FIGURE 14. EDS of FA from the selected area in the sample with 80% GGBFS and 20% FA at 6.50 mol/L NH solution: (A) Electronic image; (B) Spectral diagram.

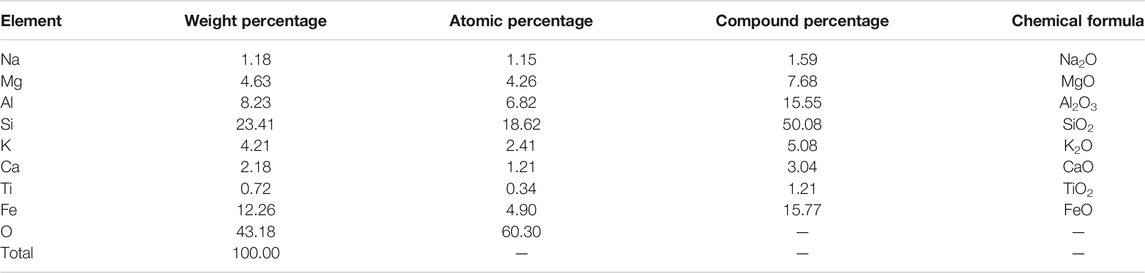

TABLE 7

TABLE 7. Elemental composition for selected areas in the one-part geopolymer-stabilized soil sample with 80% GGBFS and 20% FA at 6.50 mol/L NH solution for FA.

X-Ray Diffraction Analysis

The XRD pattern of the one-part GGBFS-FA–based geopolymer-stabilized soft clay for 14 days curing time is given in Figures 15–17 in order to study the difference in each phase. It can be observed from the XRD pattern (Figure 2) of GGBFS, there was an amorphous phase in the raw material of GGBFS, while the XRD pattern (Figure 3) reported that there was a large amount of crystal material, i.e., quartz, silicone, mullite, and magnetite in the FA raw material. Under the action of alkaline activators, there was still a lot of quartz phase in the sample, implying that with an increase in FA content, the peak value of the main quartz phase increased continuously, as shown in Figures 15–17. Since the peak value represented the quality of crystal crystallization, it can then be concluded that the FA might not react completely in the stabilized soil. Combined with the UCS results of the one-part GGBFS-FA–based geopolymer-stabilized soft clay, it is shown that further increasing FA content would decrease the UCS of the stabilized soft soil. Hence, it can be explained that the FA was not the main component to produce the gels in the reaction process of GGBFS-FA–based geopolymer. On the contrary, it can indirectly demonstrate that GGBFS was the main component to produce the gels in the reaction process of GGBFS-FA–based geopolymer and then enhance the compressive strength of the stabilized soft clay, which was consistent with that observed in SEM results.

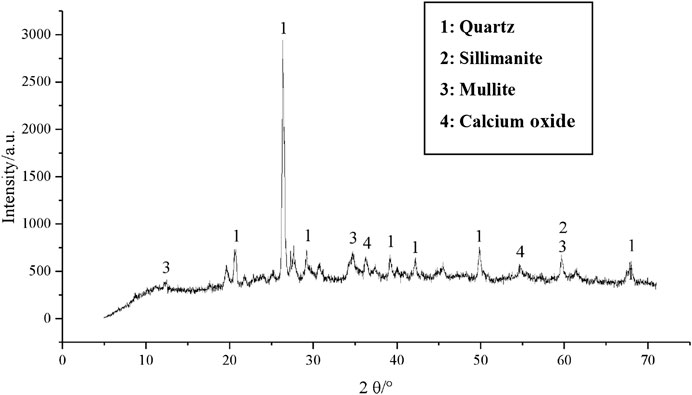

FIGURE 15

FIGURE 15. XRD pattern of the one-part geopolymer-stabilized soft clay with 100% GGBFS and 0% FA at 5.42 mol/L NH solution for 14 days.

FIGURE 16

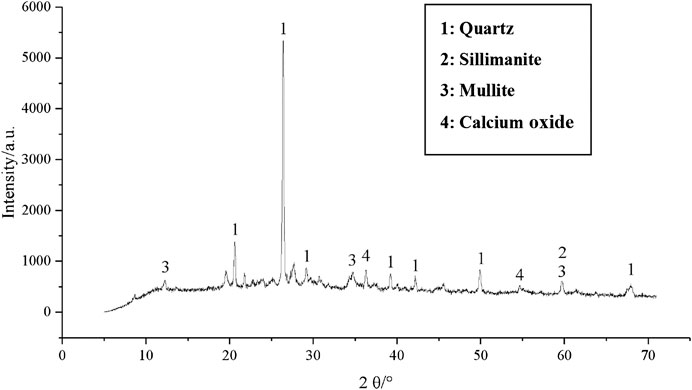

FIGURE 16. XRD pattern of the one-part geopolymer-stabilized soft clay with 90% GGBFS and 10% FA at 4.64 mol/L NH solution for 14 days.

FIGURE 17

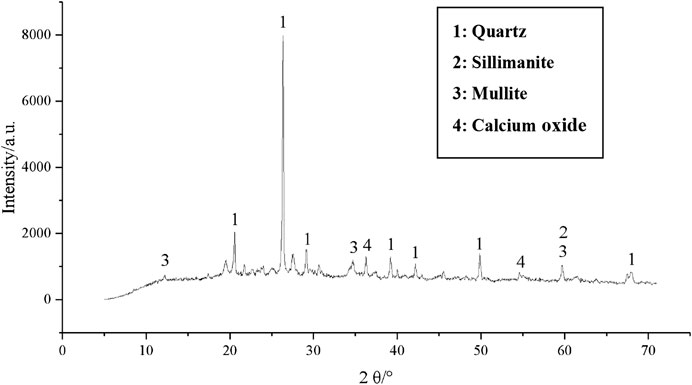

FIGURE 17. XRD pattern of the one-part geopolymer-stabilized soft clay with 80% GGBFS and 20% FA at 6.50 mol/L NH solution for 14 days.

Conclusion

This paper studied the early strength development of the one-part GGBFS-FA–based geopolymer-stabilized soft clay. The effects of the GGBFS/FA ratio in the precursor, the ratio of NH activator to precursor, and the water–binder ratio on the strength development and microstructure of stabilized soft clay were investigated via the UCS, SEM, XRD, and EDS test. The following conclusions can be drawn:

(1) In the one-part GGBFS-FA–based geopolymer-stabilized soft clay, the main hydration phase was the amorphous C-S-H gel, which can be effectively activated by the solid NH in one-part geopolymers. The reactive minor phases in one-part geopolymers consisted of C-A-H and C-A-S-H gels, which were the reaction products from the FA in raw materials. The occurrence of the C-S-H, C-A-H, or C-A-S-H gel would overlap each other with an increase in the curing time and connect the soil particle to achieve high compactness in the microstructure of stabilized soil.

(2) During the hydration process, one function of the FA was used as a lubricant and water reducer, increasing the fluidity and uniformity of the binder-slurry, another function was providing the active SiO₂ and Al₂O₃ components for the hydration reaction. In this paper, the best mixing proportion of the one-part GGBFS and FA-based geopolymer-stabilized soil was found to be 90% GGBFS and 10% FA in raw materials, solid NH activator-to-raw material ratio of 0.15, and water–binder ratio of 0.7, in which the UCS values reached 1.5 MPa at 14 days’ curing time.

(3) When the content of the FA in raw materials exceeded certain amount, increasing the FA content would perform negative impact on the early UCS values of the stabilized soil. The main reason was that the Si-O-Si and Al-O-Al bonds in the FA material were broken and rapidly polycondensated to form an amorphous aluminosilicate material (N-A-S-H). Such a reacted structure was very stable and cannot induce a secondary reaction between the soil particles, and it only served to fill the porosity in the soil. At the same time, the content of solid NH activator and water–binder ratio would determine the concentration of the NH solution, which influenced the reaction rate in the one-part geopolymer paste. For the one-part geopolymer-stabilized soil with different GGBFS/FA ratios, the optimum molarity of the NH solution varied to achieve the better UCS values of the stabilized soil.

(4) This paper adopted one-part technology to prepare the GGBFS-FA–based geopolymer soil stabilizer. Based on the UCS values of the stabilized soil, it was found that the UCS values of the one-part geopolymer-stabilized soil were much higher than those of cement-stabilized soil at the curing period of 14 days. This confirmed the feasibility that the one-part GGBFS and FA-based geopolymer can be used as an alternative binder to OPC in the practice of ground improvement.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

The XZ made contributions to the experimental work and language writings. The JW has proposed the idea and innovation points of the present work.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

Grateful acknowledgment is made to the National Natural Science Foundation (no. 52078288) to support this project. The assistance of Mr. Xiao Xin from the Yancheng Institute of Technology for conducting the SEM and EDS analysis is appreciated.
