The Effect of Asymmetry on Strain Distribution, Microstructure and Texture of Multilayer Aluminum Composites Formed by Roll-Bonding

AA1050/AA7050 multilayered composite sheets with a proportion of 1:1 were produced by Accumulative Roll Bonding (ARB) and Asymmetric Accumulative Roll-Bonding (AARB), using up to 8 cycles and intermediate annealing treatments at 500°C. The main purpose was to produce one composite sheet with high strength and moderate ductility, taking advantage of the mechanical properties of these aluminum alloys. Microstructural features were investigated in order to evaluate the potential to achieve a refined microstructure and the development of structural patterns. The strain distributions as a function of friction and asymmetry were simulated by finite element analysis. Texture was evaluated by X-ray diffraction and electron backscatter diffraction. A continuous layer pattern was obtained by ARB, up to 6 cycles but after 8 cycles shear bands fragmented the harder layers. In the early AARB cycles, the bending and necking of the AA7050 layers yielded a wavy-pattern. The shear strain in the AARB process has a strong influence on achieving a wavy-pattern, more than the flow stress differences of the alloys in the composite. Shear texture increased with the degree of the layers’ discontinuity. Different sources of shear contributed to the formation of microstructural patterns: the shear due to asymmetry, the frictional shear at roll-sheet interface and at the central layer interface and the shear at the layers’ interface. In addition, the ARB process achieved a better interfacial adhesion at the middle interface and higher strength and elongation than the AARB process.

Introduction

Severe Plastic Deformation (SPD) techniques have attracted growing interest because they can induce an intense grain refinement. Among SPD techniques, Accumulative Roll-Bonding (ARB) is suitable to produce flat products, including multilayered composite sheets, while taking advantage of the industrial rolling plants (Tsuji et al., 2003; Li et al., 2008; Ruppert et al., 2013). In addition, ARB can successfully produce structures with sub-micrometric or nanometric grain sizes, thus increasing strength, hardness, formability, fatigue resistance and other properties (Jamaati and Toroghinejad, 2011; Su et al., 2013; Fattah-Alhosseini et al., 2017; Rahmatabadi et al., 2017).

A critical step in the ARB process is to achieve a strong interface. To improve the diffusion-assisted bonding, the breakdown of thin oxide films at the sheet’s surfaces is important, which can be made by compression and/or shear (Li et al., 2008; Jamaati and Toroghinejad, 2011). The shear strain might be introduced into the roll-bonding using the asymmetric rolls, then the process is called Asymmetric Accumulative Roll-Bonding (AARB). The AARB is able to produce ultrafine-grained structures, and thus enhance mechanical response, as reported in earlier works (Mi et al., 2011; Wang et al., 2012; Ng et al., 2013; Wierzba et al., 2015; de Godoi et al., 2020; Magalhães et al., 2020b). However, it remains unclear if the AARB really helps to achieve a stronger interface for Al-based multilayered composites. Only a few investigations have been performed using other dissimilar systems processed by both ARB and AARB (Ng et al., 2013; Wierzba et al., 2015; Mendes et al., 2017; Magalhães et al., 2020a) but no study has demonstrated if the interfacial integrity and tensile properties were improved.

Sometimes, during the roll-bonding of dissimilar alloys, plastic instabilities take place due to different flow stresses and distinct macrostructural configurations can be developed. A multilayered composite with a flat-pattern structure is achieved when the harder layer preserves its continuity (Anne et al., 2017). In contrast, a wavy-pattern structure with fragments of the harder phase embedded into the soft matrix is formed if the harder layers neck and rupture during the roll-bonding (Rahmatabadi et al., 2018; Wang et al., 2018). These pattern configurations play an important role in the mechanical behavior, due to limiting the damage initiation in the composite during the deformation (Kulagin et al., 2019). Therefore, the investigation of the influence of the roll-bonding technique on the pattern development is important to control the manufacturing process. So far, very little attention has been paid to the role of macrostructural configurations produced by roll-bonding processes in an Al-based multilayered composite sheet and their effects on the strain distribution, texture and tensile behavior.

Concerning the mechanical behavior, the development of metallic composites with bimodal grain size distribution has emerged as an alternative application of SPD techniques to enhance the strength-ductility pair (Valiev, 2004; Wang and Ma, 2004; Kumar et al., 2016). In this case, the bimodal grain structures are composed by both submicrometric and/or nanometric grains and coarser grains: the former confer strength, and the latter assist the strain-hardening capacity (Zhao et al., 2006; Höppel et al., 2010; Huang et al., 2015; Samaee et al., 2016). Thus, Naseri’s group (Naseri et al., 2016) states that a bimodal grain structure in an AA2024 alloy can be achieved combining prior roll-bonded sheets with annealed strips via ARB, which resulted in a total elongation of ∼10%. In another investigation, Ebrahimi and co-authors (Ebrahimi et al., 2018) produced via ARB at 400 °C sheets of AA1050/Al–12Zn–3Mg–2.5Cu that achieved an ultimate tensile strength of 434 MPa with 23% total elongation.

In the present work, the AA7050 alloy was used as a hard phase and combined with AA1050 as a ductile matrix in a composite sheet. The AA7050 is a high-performance alloy due to remarkable amounts of precipitates, and then presents low tendency to recrystallization and grain growth, even in the mechanical processing at high temperature (>400 °C) (Rometsch et al., 2014). In contrast, the commercially pure aluminum, namely AA1050, has excellent ductility and low strength. The dissimilar properties of these materials could produce a multilayer composite with technological applications, in which the harder phase would present a finer grain size, while the softer matrix would present coarse grains. Two rolling configurations (ARB and AARB) were applied in order to produce different macrostructural configurations and to elucidate the effect of shear strain in the pattern formation, texture and tensile properties.

Materials and Methods

Commercial AA1050 (0.185% Fe, 0.081% Si and Al balance) and AA7050 (6.46% Zn, 2.39% Mg, 3.49% Cu and Al balance) aluminum alloys were used in this work. In order to characterize the mechanical behavior of the two alloys at the processing temperature, isothermal hot compression tests using cylinder samples with 6 mm of diameter and 8 mm of height were carried out on samples of AA1050 and AA7050 alloy in annealed and overaged states, respectively. The specimens were heated with a heating rate of 10°C s⁻¹ and held for 5 min at the deformation temperature prior to compression tests. The isothermal tests were performed at room temperature, 300, 400, and 500°C. All samples were tested in an Instron 5500 machine under an initial strain rate of 1.0 × 10⁻³ s⁻¹ up to a height reduction of 50%, which corresponds to ∼0.69 of true plastic strain.

Plates of AA1050 Al alloy with a thickness of 1 mm were annealed at 500°C for 10 min. The AA7050 Al alloy in an overaged state (T7451) was rolled at 400°C to a thickness of 2 mm, producing a recovered and overaged microstructure. This initial rolling was performed in a conventional mill for both alloys.

The initial bonding set was produced positioning one AA7050 sheet with 50 × 70 × 2 mm between two AA1050 sheets with 50 × 70 × 1 mm, maintaining a volume proportion of 1:1. The ARB processing was performed in a conventional mill operating at 61 rpm. The AARB deformation cycles were performed in an asymmetric rolling mill with the roll diameter ratio of 1:1.5, operating at 23 rpm. The roll’s surfaces were grooved in order to achieve a high friction coefficient and no lubricant was applied. Before the roll-bonding, the sheets were wire-brushed to increase the roughness followed by ultrasonic degreasing in ethanol. The initial stacks were preheated for 5 min at 500°C. For both routes a thickness reduction of 50% in a single pass was applied. The mills were kept at room temperature and the rolling was performed within a temperature gradient. Immediately after rolling, the sheets were water quenched. The roll-bonded sheet was cut in half, wire-brushed, cleaned, stacked again to produce a new stack, and pre-heated at 500 °C (intermediate annealing step) and then this processing sequence was repeated up to 8 cycles (8X).

The crystallographic texture of the sheets was determined through X-ray diffraction on a Philips X’Pert MPD diffractometer using Co-K_α radiation with the Schulz method, at the LNNano Synchrotron National Laboratory in Campinas—SP, Brazil. The pole figures of all samples were measured at 1/4 and 3/4 of the sheet thickness counting from the upper surface. At the State University of Ponta Grossa (UEPG), the mesotexture was measured by means of EBSD using a TESCAN-FEG MIRA 3 microscope, equipped with an Oxford Instrument EBSD detector and operated at 20 kV. EBSD data were collected with a step size in the range of 0.2 μm taken on the RD-ND plane. All the sample surfaces were electropolished using a solution with 160 mL distilled water, 800 mL ethanol and 60 mL perchloric acid at ∼10°C for 20 s with a voltage of 25 V. The evaluation of the texture and mesotexture obtained by X-ray diffraction and EBSD was analyzed using the ATEX software (Beausir and Fundenberger, 2017).

The finite element simulation (FES) was performed using the software package DEFORM 3D™. The same geometrical parameters of the experimental rolling mills were applied. The initial dimensions of the sets were 20 × 35 mm with a total thickness of 4 mm; a symmetry restriction in the middle RD-ND (rolling direction–normal direction) plane was imposed. The thickness was subdivided into eight hexahedral elements for both AR and AARB simulations. Sheets were considered as being elastoplastic and the rolls perfectly rigid bodies. A triaxial deformation model was applied and the material behavior was described by the interpolation of stress–strain curves from the software databank, which were in agreement with experimental data. A shear friction coefficient m of 0.9 was applied at the rough roll-sheet interface for AARB and an m of 0.45 was applied to simulate a polished surface in the ARB process. Between the layer interface a sticking condition was applied and the shear friction coefficient at the central interface was assumed to be 0.9.

Results

The stress–strain curves from the compression experiment were fitted using the Johnson–Cook (JC) model of plastic flow:

$\sigma =\left(A+B{\epsilon }^n\right)\left(1+Cln\frac{\dot{\epsilon }}{{\dot{\epsilon }}_0}\right)\left(1-T^{\ast m}\right)$

where A, B and C are material constants, n is the hardening exponent, $\dot{\epsilon }$ the strain rate, $\dot{{\epsilon }_0}$ the strain rate of reference (0.001 s⁻¹) and m the softening exponent due to temperature increase. T* is given by:

$T^{\ast }=\frac{T-T_r}{T_m-T_r}$

where T is the working temperature, T_r the room temperature and T_m the melting temperature. The calculated parameters for the AA1050 and AA7050 alloys are given in Table 1. Figure 1 shows the true stress-true strain experimental curves at 500°C, the fitted curves using the JC model and the expected curves for a strain rate of 20 s⁻¹, which is the actual strain rate of the rolling process. Using the data from the compression experiments, the JC fit and data from the literature (Abo-Elkhier, 2004; Chen et al., 2016), good estimates for the saturation stress during the rolling process for the AA1050 and the AA7050 aluminum alloys were 10 and 14 MPa, respectively. This small difference was observed because at 500°C most solutes that harden the AA7050 alloy by precipitation are in solid solution.

TABLE 1

TABLE 1. Constants used in the JC equation.

FIGURE 1

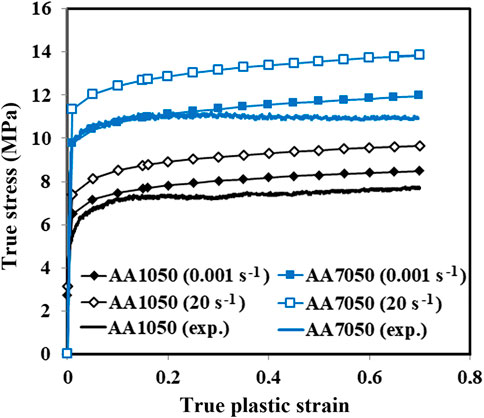

FIGURE 1. Experimental and calculated flow stress curves (JC) for the AA1050 and AA7050 alloys at 500°C for the strain rates of 0.001 and 20 s⁻¹.

The equivalent von Mises strain (ε_ARB) for a single ARB pass is given by:

${\epsilon }_{ARB}=\frac{2}{\sqrt{3}}ln\left(\frac{h_i}{h_f}\right)$

where h_i and h_f are, respectively, the initial (4 mm) and final (2 mm) sheet thicknesses, and thus a single ARB cycle provides a total of ε_ARB = 0.8.

The equivalent von Mises strain (ε_AARB) in one AARB cycle (Sidor et al., 2008) was expressed by:

${\epsilon }_{AARB}=\frac{\sqrt{2}}{3}{\left\{6{\left[ln\left(1-\frac{\left(h_i-h_f\right)}{h_i}\right)\right]}^2+\frac{6}{{\left(h_i+h_f\right)}^2}\times {\left[R_{1}co{s}^{-1}\left(\frac{2R_1-\left(h_i-h_f\right)}{2R_1}\right)-R_{2}co{s}^{-1}\left(\frac{2R_2-\left(h_i-h_f\right)}{2R_2}\right)\right]}^2\right\}}^{1/2}$

where R₁ and R₂ are the radius of the upper and bottom rolls. For the mill used in the present work, R₁ = 66.0 mm and R₂ = 44.0 mm for all cycles. Each AARB cycle resulted in a total equivalent von Mises strain of 0.9 (12.5% higher than ARB).

Thus, both roll-bonding techniques applied enough strain to achieve the saturation stress and enable recrystallization and/or recovery of the microstructure. Intermediate annealing also achieved a steady state flow. Therefore, the process as applied in this work should not produce accumulative strains as in room temperature roll-bonding.

Figure 2 shows the obtained macrostructures after four, six and eight cycles obtained with backscattered electron contrast. The bright layers are the AA7050 alloy and dark layers the AA1050 alloy. The average thickness values and their mean standard deviation are presented below the macrostructures. They were measured using at least 150 layers in five fields at the same magnification, and the thicknesses were taken in different points in the layers, including the necking regions. It can be observed that the AARB samples presented shear banding since the early cycles, which promoted necking and fracture of the AA7050 layers and yielded a wavy-pattern. For ARB, the presence of shear banding was evident only after 8 cycles. In addition, thickness gradients developed after successive stacking, because compression was higher close to the rolls for both processes. The average layer thickness also presented higher deviation for the AARB variant, as shown in Figure 2.

FIGURE 2

FIGURE 2. ARB and AARB macrostructures after four, six and eight cycles with their respective average thickness of individual layers. The bright layers are the AA7050 alloy and dark layers the AA1050 alloy.

The difference of flow stress and hardening behavior of the layers is one of the possible causes for the localized deformation and partitioning of the AA7050 layers that yield to the wavy-pattern (Yazar et al., 2005; Reihanian and Naseri, 2016). However, only differences in flow stress at 500°C are not able to explain the development of the wavy-pattern.

Figure 3 shows the results from the EBSD mapping after 8 bonding cycles. The element mapping in Figure 3A is presented to facilitate the identification of the individual layers. The amount of dislocation arrangements with misorientation smaller than five degrees in the AA7050 alloy was higher than in the AA1050 alloy (see Figure 3B), indicating that the diffusion of alloying elements interferes in the dislocation glide at this temperature and it was associated with the dynamic strain aging (DSA) commonly observed in the AA7050 alloy at high temperatures that limited the recovery process. The AA1050 layers show partial recrystallization and a higher density of high angle grain boundaries (HAGBs). The orientation maps (Figure 3C) show a coarse-grained structure for the AA7050 alloy and a partially recrystallized microstructure for the AA1050 alloy. The AA7050 layers present a high density of secondary phase particles as shown in Figure 3D, which dissolve partially at the intermediate annealing and re-precipitate during cooling after rolling. The element mapping and the TEM (see Figure 3D) shows that interdiffusion of the alloying elements was not enough to cause precipitation in the AA1050 layers.

FIGURE 3

FIGURE 3. Results from the EBSD and TEM analysis of the samples after 8 cycles: (A) composition maps obtained by EDS, ZnL_α (darker layers are AA1050 and brighter layers are AA7050), (B) boundary misorientation maps, (C) orientation maps; and (D) TEM at the layers interface.

Another hypothesis to the difference in microstructural pattern is the different intensity of shear strain imposed in the two experimental configurations. The finite element simulation of the first bonding cycle was performed to clarify this aspect. Figure 4 shows the strain profiles along the sheet thickness for three stacking configurations using the symmetric and asymmetric mills: a single sheet, two sheets of the same material, and three sheets with two different materials.

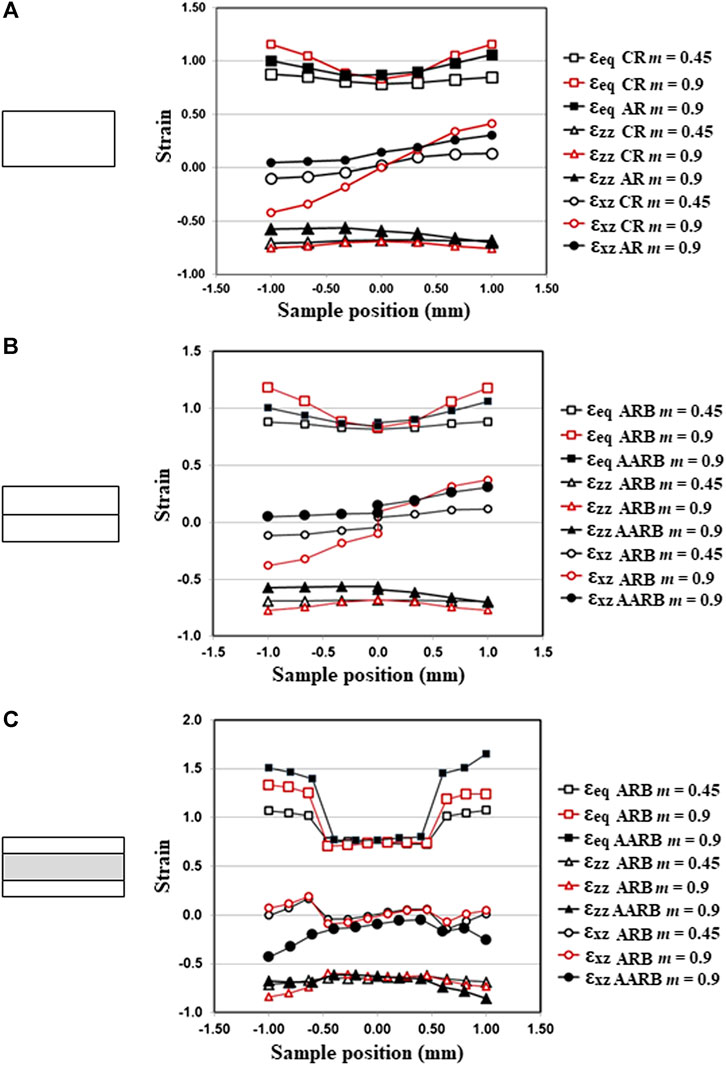

FIGURE 4

FIGURE 4. Strain components: equivalent strain (ε_eq), compressive component (ε_zz) and shear component (ε_xz). Influence of the friction coefficient at the roll-sheet interface m = 0.9 or m = 0.45, sticking condition m = 0.9 at the layers interface and T = 500 °C. (A) A single layer of AA1050 or AA7050, (B) two layers of the same material (AA1050 or AA7050), and (C) three layers in the sequence AA1050/AA7050/AA1050.

Figure 4A compares the influence of the roll-sheet friction for a single phase (AA1050 alloy). At a thickness reduction of 50%, the major strain component was compression. The shear strain was related to the frictional forces at the roll-sheet interface and the maximal intensity was located at these interfaces. In the symmetric case, the shear assumed maximal intensity close to the rolls and its signal inverts from positive values at the upper surface to negative values at the bottom surface; in the sample center the shear was null. If the friction was increased, the shear gradient increased. When the asymmetry was introduced, the gradient was shifted to the positive sign, and the intensity of shear at the sample center was not null. It was evident from the comparison between symmetric and asymmetric conditions with variable friction coefficients that this last parameter had greater influence over the shear imposed in the process. For the experimental configuration, the AARB was performed in a high friction regime whereas the ARB in the low friction regime.

Figure 4B presented the bonding of two layers of the same composition (AA1050 or AA7050). The profile of the compression component was very similar to the one obtained rolling a single sheet, but the shear component presented a discontinuity at the boundary, which indicated that an additional shear gradient was created at the bonding interface. Moreover, the net shear at the interface for ARB was null, whereas for AARB a positive shear was created at the interface.

Finally, Figure 4C shows the three-layer configuration used in the first bonding cycle: AA1050/AA7050/AA1050. In this case, the friction coefficient at the layer interface was 0.9; the ARB was treated as a low friction case and the AARB as high friction. The central layer accumulates half the strain as the softer layers in the case of high friction. For low friction these differences decreased. The compression components were very similar for the two variations. The major differences were in the shear components. With low friction, the main variation was found at the layer interface, but it concentrated in the AA1050 layer. For AARB, a shear gradient was also formed in the central layer and both roll-sheet interfaces had shear of the same sign.

For the last simulation experiment, it was observed that a strain gradient along the rolling direction was also present. Figure 5 shows maps of the variation of compression and shear components for ARB (Figure 5A) and AARB (Figure 5B). The wavy-pattern was associated with this strain gradient: the heterogeneous strain distribution was caused by the formation of macroscopic shear bands, and the stronger the shear across the AA7050 layers, the more intense the thickness variation. Figure 5 also shows how the strain intensity mismatch due to interfacial friction and strain hardening created the shear gradients at the interfaces of the layers that will nucleate the shear bands in subsequent cycles.

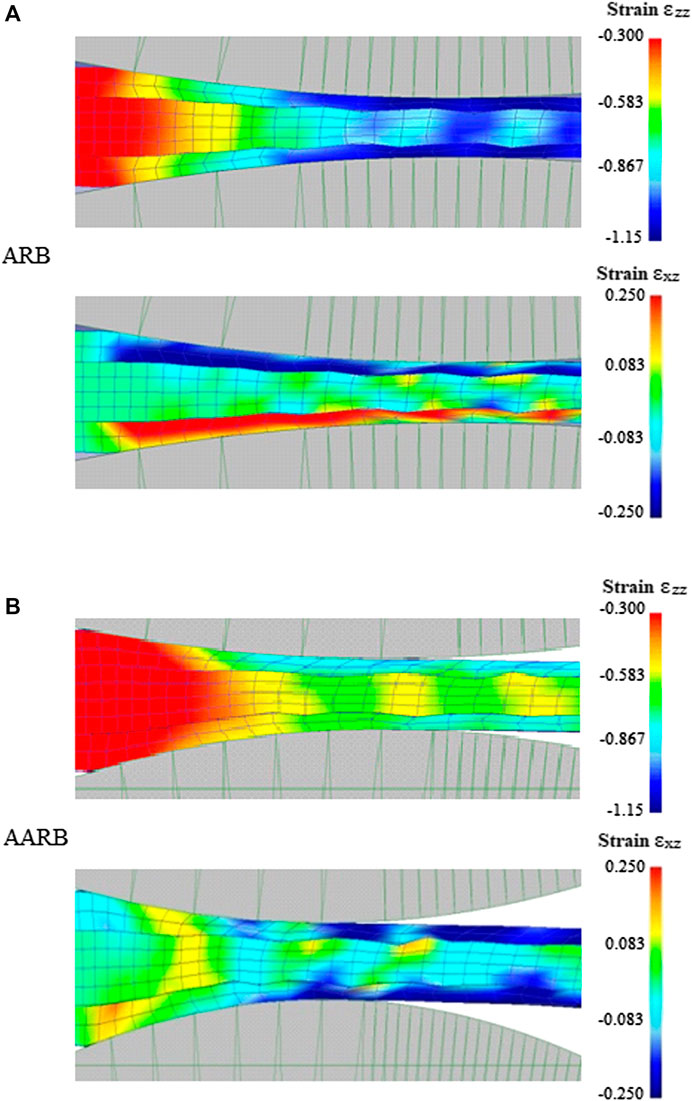

FIGURE 5

FIGURE 5. Strain maps simulated for the initial set of AA1050/AA7050/AA1050 layers showing compression (ε_zz) and shear (ε_xz) components in (A) ARB and (B) AARB.

The microstructural feature that is most sensitive to the strain distribution is the crystallographic texture. Therefore, the texture measurements of the experimental samples show to which extent the simulations may be used to interpret the bonding process. Figure 6 shows the {111} pole figures for a thickness reduction of 50% of AA1050 alloy in conventional rolling (CR) and AR, at room temperature, as a reference and experimental evidence of the difference between the two processes. The expected rolling texture for CR (containing Bs {011}<211>, Cu {112}<111> and S {123}<634> components) was obtained. The AR presents a mixed character with a rotation around the transverse axis yields the B {111}<110>, Bb {111}<112> and the RC {100}<110> components, but it also contains compression components. Table 2 summarizes the typical texture components and in Figure 6 maps of the components location in the pole figures complete this information.

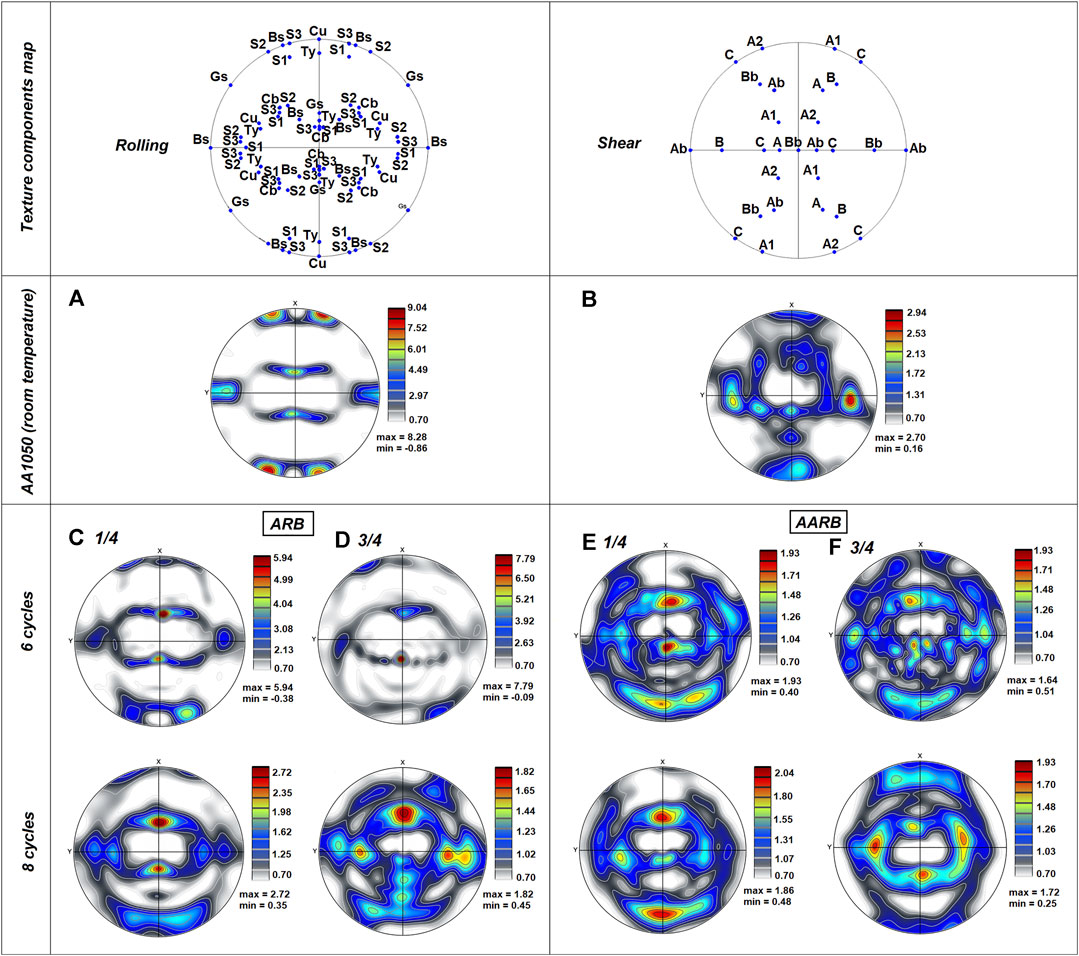

FIGURE 6

FIGURE 6. Pole figures {111} for a thickness reduction of 50% in CR (A) and AR (B), and the texture at 1/4 (C and E) and 3/4 (D and F) of the sample thickness for 6 and 8 cycles of ARB and AARB, respectively. The typical rolling and shear texture components map are shown.

TABLE 2

TABLE 2. Main ideal orientations along the simple shear and typical rolling orientations given by the Miller indices {hkl}<uvw>.

Because the simulation indicated that the middle interface may generate a discontinuity of shear transmission, for 6 and 8 cycles of ARB and AARB the texture was measured at 1/4 and 3/4 of the sample thickness. A characteristic was the reduction of the texture intensity as the shear and rigid body rotation were introduced due to friction and roll’s asymmetry. For the bonded samples up to 6 cycles, the ARB showed a predominance of rolling components and in AARB the shear components predominated. For 8 ARB cycles, the shear components were also present due to the formation of the macroscopic shear bands.

Figure 7 presents a comparison with the total sum of the texture intensities of shear and rolling components. The components intensity was obtained based on integration of the component’s profiles. Rolling components predominated in the symmetric process but their intensity decreased with the number of bonding cycles. In the asymmetric process for a thickness reduction of 50%, a considerable reduction of the texture intensity was achieved, but the predominant components were still rolling. As the cycles increased the intensity of the rolling components decreased for both processes.

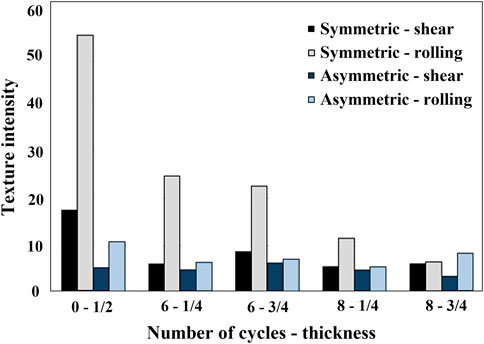

FIGURE 7

FIGURE 7. Sum of texture intensities from rolling and shear components after: symmetric and asymmetric rolling (0 cycles), ARB and AARB (6 and 8 cycles).

The composite sheets were tested in tension at room temperature and the fractured surfaces were analyzed. Figure 8 shows the fracture surfaces at lower magnification to show the delamination at the middle layer (AA1050/AA1050 interface). Debonding at the middle interface and at poorly bonded spots was a main failure mechanism. In general, for ARB specimens the last interface was stronger in comparison with AARB specimens.

FIGURE 8

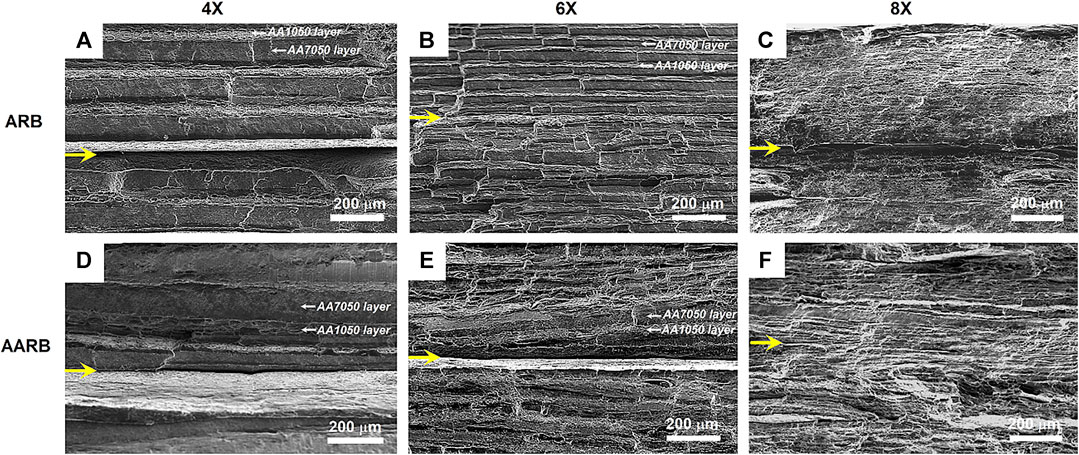

FIGURE 8. SEM images of fracture’s surface at lower magnification after the tensile tests of the ARB (A–C) and AARB samples (D–F) for 4, 6, and 8 bonding cycles. The yellow arrows indicate last interface between two AA1050 layers.

The actual efficiency of the bonding process affected the composite ductility and it was exposed when the tensile stress-strain curves were compared in Figure 9. It was evident that the ARB process achieved a better interfacial adhesion at the middle interface than the AARB process. Moreover, for the ARB samples the uniform elongation was three times larger than for the AARB samples. The work-hardening rate $\left(\raisebox{1ex}{$d\sigma $}\!\left/ \!\raisebox{-1ex}{$d\epsilon $}\right.=\theta \right)$ plots are presented in Figures 9B,C. The ARB samples presented necking and a linear behavior in stage III. The bonding failure took place before necking for the AARB samples and early failure due to debonding was evident in the case of sample 4X AARB cyles (black arrows in Figure 9C). For the samples of 8 cycles, a change in the work-hardening rate was observed at the beginning of the plastic flow (indicated by blue arrows). Table 3 summarizes the main tensile properties and KM parameters for specimens of ARB and AARB.

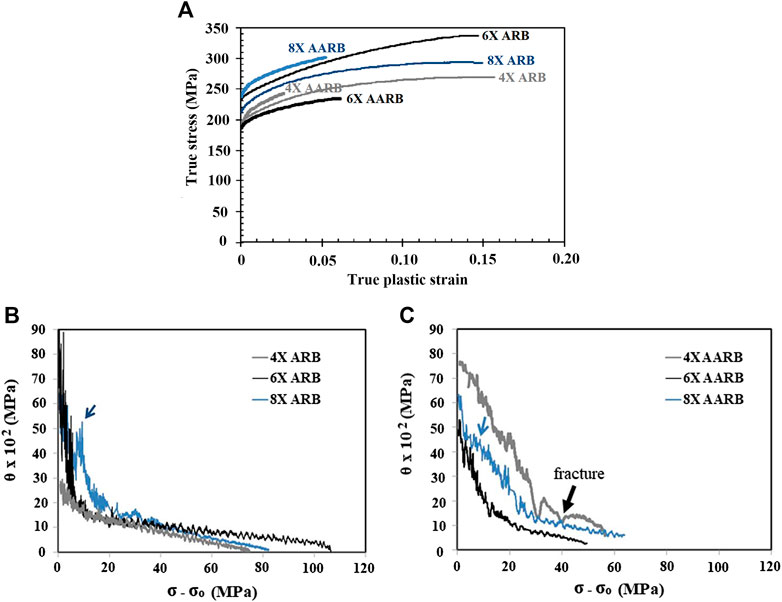

FIGURE 9

FIGURE 9. (A) Tensile true stress–plastic strain curves for the samples processed 4, 6, and 8 cycles of ARB and AARB. Work hardening rate (dσ/dε = θ) versus flow stress for the (B) ARB and (c) AARB samples. Blue arrows in (B) and (C) indicate change in work-hardening rate in samples 8X ARB and 8X AARB, and black arrow in (C) indicates partial debonding in sample 4X AARB.

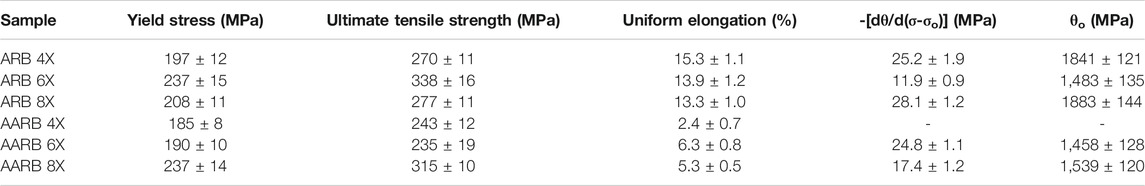

TABLE 3

TABLE 3. Main tensile properties and KM parameters.

In addition, in order to clarify the fracture mechanism and to understand the differences on the tensile behavior, SEM fracture images at higher magnification are showed in Figure 10. It can be seen that for 4 and 6 cycles, the two alloys have different rupture modes. The AA1050 layers presented ductile fracture with dimples and the AA7050 cleavage, which means a more fragile behavior. In addition, some debonding between AA1050 and AA7050 layers can be observed. For 8 cycles of both roll-bonding processes, the fracture of the individual layers was not apparent due to the thickness reduction, since layers are less than 7 μm thick. Delamination and cracks between AA1050 and AA7050 layers were observed for both processes.

FIGURE 10

FIGURE 10. SEM images of fracture’s surface at high magnification after the tensile tests of the ARB (A–C) and AARB samples (D–F) for 4, 6, and 8 roll-bonding cycles. The yellow arrows indicate layers’ delamination.

Discussion

The bonding experiments in this work were performed above the solvus temperature of the AA7050 alloy, which shows a remarkable amount of soluble strengthening precipitates (S, T, η). These can be dissolved, coarsened and/or precipitated during the thermo-mechanical cycles, as detailed in an previous groups’ work (Magalhães et al., 2020a). The final grain structure in this layer was affected by the dynamic strain aging shown in the compression experiment (see Figure 1) and precipitation during the cooling stage yielding a recovered structure with precipitates (see Figure 3D). On the other hand, the AA1050 contains a minor amount of dispersoids (∼0.3 vol% of Al(Si,Fe) insoluble particles), which were not affected by the thermo-mechanical cycles. Thus, it was expected that the AA1050 experienced dynamic recovery and recrystallization phenomena, characteristic of its high stacking fault energy (SFE). This yielded an equiaxed and fine-grained structure due to continuous dynamic recrystallization (cDRX). A more complete study of the precipitation and interdiffusion experiments was published in (Magalhães et al., 2020b). The final microstructure after 8 cycles summarized in Figure 3 showed that at 500°C, a bimodal microstructure constituted of fine grain strengthening in the AA1050 layers and precipitate strengthening in the AA7050 layers was obtained.

The use of a high friction (AARB) and a low friction (ARB) setup led to different microstructural configurations (Figure 2): wavy and fragmented or straight layers. In the wavy-pattern structure, a composite sheet was formed by a microstructure consisting of soft layers as a matrix and harder layers as a reinforcement phase.

During the ARB of the dissimilar aluminum alloys, as pointed out by (Quadir et al., 2009); shear banding originated from the flow instability that appears in single-phase alloys at the onset of necking during the tensile test. In their work, no shear bands were formed in the solutionized Al-Sc/Al multilayered ARB, when the yield stress ratio of the two layers was of about 1.5. However, as this ratio increased over 2 after precipitation hardening, ARB resulted in a wavy-pattern. The present ARB results were also comparable to the ones published by (Mo et al., 2019b) in AA1100/AA7075 system roll-bonded at 460°C. The layers from hot ARB were straight, but when the bonded material was cold rolled, a wavy-pattern was produced. These examples show how the different work hardening behavior in solutionized/hot rolling and precipitated/cold rolling state may lead to the harder layer fragmentation. The estimated flow stresses at 500°C for the processing strain rate (Figure 1) show that a strain hardening ratio of about 1.5 and a hardening exponent ratio of 2 (Table 1) was not a sufficient condition for fragmentation.

Therefore, the wavy-pattern in this work was not caused by the difference in hardening behavior but by shear stress. The macrostructural analysis showed a small variation of the layer thicknesses in ARB, a slight formation of shear band after 6 ARB cycles, and a strong variation of the layer thicknesses plus the formation of macroscopic shear bands in AARB.

There are several possible sources of localized shear strain in the multilayer composite roll-bonding: (1) the shear strain induced by the rolls’ asymmetry; (2) the shear due to interfacial friction between the rolls and sheet surface; (3) the shear due to friction at the bonding interface; and (4) the shear due to different flow behavior of the two alloys.

It is difficult to separate the first two contributions because the friction force at the roll/sheet interface is responsible for the strains and speed achieved at the surfaces. From the literature on the study of asymmetric rolling (AR), it is known that the friction at the roll-sheet interface is the major contributor to the shear gradient between the top and bottom rolls. It may produce shear deformation both in conventional rolling (CR) and AR conditions and has a much stronger effect than the asymmetry (Jin and Lloyd, 2010). The difference is that AR yields a fairly uniform shear through the thickness whereas for CR, shear is concentrated in the layers close to the surface, while compression strains dominate in the center plane (Jin and Lloyd, 2007). Moreover, the increase of shear at the sheet center increased with the increment of friction (Gao et al., 2002). For ARB, the studies carried out by (Mo et al., 2019a; Li et al., 2018) showed that when ARB was applied with high friction, a wavy-pattern was also generated in hot deformation and that this was followed by an increase of shear components across the sample thickness.

The simulation results for low friction coefficient showed a small waviness of the AA1050/AA7050 interface (see Figure 5), which indicated that this instability exists, but has low intensity. When a set consisting of hard and soft alternating layers is processed by conventional rolling, a strain incompatibility is created at the interfaces. References (Wang et al., 2018; Yu et al., 2013) reported similar strain distributions as the ones presented in the simulations in this study for ARB. During rolling, the same magnitude of load is introduced to both layers separated by an interface. Because the AA1050 alloy flows to a larger strain than the AA7050 alloy, the soft layer pulls the harder layer, resulting in an in-plane shear force at the interface. This extra shear induces rigid body rotation and reorientation components that contribute to the decrease of texture index and increment of shear character measured after six and eight cycles in the ARB experiment.

The wavy-pattern macrostructure is yielded by macroscopic shear bands (MSBs). The appearance of MSBs, as shown in Figure 2, occurred between 6 and 8 ARB cycles and are already present after 4 AARB cycles in AARB.

For high SFE metals in conventional rolling, MSBs are not a common deformation mechanism because the high recovery rate promotes a more homogeneous strain distribution, whereas in intermediate-to-low SFE the instability is caused by planar obstacles to homogeneous dislocation glide (Kong and Miszczyk, 2015). At 500°C, with alloy elements in solid solution there are fewer obstacles to the dislocation glide and although the compression experiment showed that DSA is active in the AA7050 alloy, its influence diminishes at high strain rates.

In the absence of an external shear stress (ARB), the sources of shear were the friction at the bonding interface and the slight difference of flow stress between the two alloys. Up to 6 cycles, each layer deformed individually, and the continuity was maintained. The MSBs were generated when the AA7050 layers were thin enough (8 cycles) to work microstructurally as glide obstacles.

In the case of high friction coefficient (AARB), the shear bands were generated by the external shear stress. A previous AARB experiment with the AA1050 aluminum (de Godoi et al., 2020) showed that this process induces macroscopic shear bands due to the plastic flow, even in this high SFE material.

The MSBs present a strong tendency to grain subdivision and strain-induced re-orientation (Kong and Miszczyk, 2015). The crystal lattice rotates in such a way that one of the {111} slip planes became nearly parallel to the direction of maximum shear. A natural consequence of this rotation is the formation of specific MSBs texture which facilitates slip propagation across grain boundaries along the shear direction without any visible variation in the slip direction. In the ARB work of (Quadir et al., 2009) the shear band regions presented rotations around the transverse direction of all rolling texture components from 10° to 20° and the main result was the RC {001}<110> orientation, resulting from the rotation around TD of the Cu {112}<111> and Ty {4 4 11}<11 11 8> textures. In the present work, the predominant effect was the reduction of texture intensity.

The present results also showed that both processes have sources of shear stress and yield low texture intensity and a mixture of shear and rolling components. The discussion above dealt with the process variables at the processing temperature, which resulted in either a continuous (ARB) or discontinuous (AARB) spatial distribution of the layers. At room temperature, besides the spatial distribution, the layers’ hardness was affected by grain refinement in the AA1050 layers and by precipitates in the AA7050 layers.

An important variable in the bonding process is the adhesion at the central interface. The fracture analysis of the tensile tests showed that this surface was weaker in the AARB case. This result is in agreement with the work of (Yu et al., 2014); which tested different rolling asymmetry ratios to improve an ARB bond between AA1050 and AA6061 sheets. They concluded that there was an optimal asymmetry ratio, between 1.2 and 1.3 that increased the equivalent strain and improved the adhesion at the middle interface, while an asymmetry higher than 1.4 would deteriorate the initial bond. The asymmetry in the present study was 1.5. The simulation results in Figure 4B also showed that the friction coefficient may also be used to induce shear at this interface, therefore the external friction affects the adhesion at the middle interface.

The AA7050 layers are the strengthening phase in this multilayered composite and the work hardening curves showed that the hardening behavior was controlled by this macrostructural constituent. Necking and fragmentation of this layer reduces the ductility because stress concentrates at these points, and is in accordance with other results in the literature (Govindaraj et al., 2013; Chen et al., 2014; Chen and Chen, 2015).

More specifically, (Chen et al., 2014) studied the same class of alloys used in this work, and observed that yield strength, tensile strength, and elongation decreased with the increase of variation of interface shape when the number of layers was kept constant. When the scale was reduced, in other words, decreasing the layer thickness below 6 µm (Chen and Chen, 2015), the different layers interacted with the dislocation glide process and an increase in yield stress and elongation was observed. This is similar to the case of 8 cycles in both processes in present work. Concerning to the ductility differences in Figures 9B,C, it can be observed that the uniform elongation was nearly three times larger for ARB than for the AARB samples. There are two factors contributing to this behavior. The first is associated to a better interfacial adhesion at the interfaces achieved during ARB that results in less delaminated layers, as shown in Figures 8 and 10. The second is the thickness and shape of the AA7050 layers, that act as load bearing constituent, controlling the fracture. The wavy-pattern achieved in the AARB produced layers necked in several regions, in which the strain concentrates during tensile tests. The consequence is that the fracture occurs earlier in the AA7050 layers of the composite sheets produced by AARB, in comparison with ARB sheets that maintain straight layers up to 6 cycles.

Since AA7050 layers control the mechanical response, it is worth noting that the final microstructure after ARB or AARB are different in these layers. As shown in Figure 3D, a precipitate coarsening takes place in the AA7050 layers of the AARB sheets mainly at the grain boundaries, while for sheets processed by ARB, it can be observed a fine precipitate dispersion that contributed to the strength.

In Figures 9B,C, the work-hardening rate changed due to two main factors: the storage of geometrically necessary dislocations, and the obstacles represented by dense regions of non-shearable precipitates, since AA7050 layers containing a high density of overaged particles (S, T, η) (Dumont et al., 2003). For 4X and 6X sheets, for both ARB and AARB, the KM plots presents a linear slope at the stage III, characteristic of the process dominated by dislocation glide and recovery. In contrast, 8X sheets presented a non-linear behavior indicated by the abrupt change in the work-hardening rate (see blue arrows in Figures 9B,C), which is associated to the presence of non-shearable particles. The main consequence is an accumulation of Orowan loops around these precipitates causing the activation of bypassing mechanisms for dislocation movement (Fribourg et al., 2011).

In summary, the present results showed that the external friction and asymmetry of the fabrication process had a strong influence on the macrostructural pattern and in the final mechanical response of multilayered composite sheets. Thus, the ARB was able to produce multilayered composite sheets of AA1050/AA7050 with enhanced strength and elongation, in comparison with AARB route.

Conclusion

In this work was investigate the influence of external shear and friction on the macrostructural pattern formation and final tensile properties during accumulative roll-bonding of two dissimilar aluminum alloys. The results may be summarized as follows:

i) From numerical simulations of high friction and high roll asymmetry (AARB), it was observed that the central layer accumulates half the strain than the softer layers, which resulted in a shear gradient at the central layer and both roll-sheet interfaces, yielding a wavy-pattern configuration due to the formation of macroscopic shear bands. For the low friction and symmetric rolling (ARB), the main variation of shear strain was found at the layer interface, but it concentrated in the AA1050 layer, which resulted in a straight-pattern up to 6 cycles. After 8 ARB cycles, some macroscopic shear bands were observed.

ii) For AARB sheets it was observed a reduction of the texture intensity, since the shear and rigid body rotation were introduced due to friction and roll’s asymmetry.

iii) ARB sheets showed a predominance of rolling components up to 6 cycles. After 8 ARB cycles, the shear components were also present due to the formation of the macroscopic shear bands. The texture intensity decreased with the increment of bonding cycles.

iv) After roll-bonding at 500°C, a macrostructure of wavy-pattern was achieved for AARB sheets, while a straight-pattern with some macroscopic shear bands was observed for ARB sheets. At microstructure level, a bimodal structure was achieved in both roll-bonding processes, constituted of equiaxed structure in the AA1050 layers and fine-grained and precipitate strengthening in the AA7050 layers.

v) The ARB sheets presented higher strength and ductility in comparison to the AARB sheets. The interfacial adhesion for ARB sheets was stronger that AARB, which contributed to the ductility. In addition, AA7050 layers act as load bearing constituent, thus the fragmentation and necking during AARB resulted in earlier fracture and lower ductility. These findings indicate that ARB is suitable to produce AA1050/AA7050 multilayer composite sheets with a great combination of strength and ductility.
