Phase Stability and Deformation Behavior of TiZrHfNbO High-Entropy Alloys

Strengthened by Oxygen doping, the single-phase body-center-cubic (BCC) TiZrHfNbO refractory high-entropy alloys (HEAs) become strong and ductile. However, phase stability at intermediate temperature and the effects of Oxygen addition on the deformation behavior during tensile tests need to be well understood. In the present work, the phase decomposition of (TiZrHfNb)_100-xO_x HEAs with Oxygen doping in the range of x = 0, 0.5, 1, 1.5, 2 was examined at 873 K. The formation of hexagonal-close-packed (HCP) solid-solution precipitates in submicron size, enriched with Hf, Zr and O elements, were investigated by a combination of X-ray diffraction, transmission electron microscopy and atom probe tomography. Tensile tests of alloys annealed at both 1273 and 873 K were conducted. It was found that doping Oxygen increased the yield strength and maintained ductility for alloys annealed at 1273 K, while formation of HCP precipitates after annealed at 873 K deteriorates the plasticity significantly. To unveil the deformation behaviors, in situ synchrotron X-ray diffraction experiments were applied in the current research. The single-crystal elastic constants and shear elastic anisotropy of HEAs with and without Oxygen doping were calculated and found similar to those of “Gum Metal” Ti alloy. Yet current HEAs possess higher BCC phase stability than “Gum Metal”, and no stress-induced phase transformation was detected during deformation.

Introduction

High-entropy alloys (HEAs), consisting of multi-principle elements with equi-atomic or near equi-atomic ratio, have been attracting remarkable attention since the new concept of composition design was proposed (Yeh et al., 2004). Many HEAs have been found to have single solid solution phase in as-cast state or after annealing at high temperatures due to the contribution of high configurational entropy to the Gibbs energy. Of the HEAs developed to date, refractory HEAs are of special significance due to their outstanding mechanical properties at high temperatures and promising application potential in thermally-harsh environments, such as aerospace and petrochemical industries (Senkov et al., 2012; Senkov et al., 2013; Zhang et al., 2014; Pogrebnjak et al., 2015; Senkov and Semiatin, 2015; Miracle and Senkov, 2017; Vrtnik et al., 2017). However, the brittleness and poor malleability at ambient temperature are the key factors that hinder their industrial applications. To solve this issue, appropriate composition design and alloying, e.g., TiZrHfNb (Wu et al., 2014) and AlTiZrHfNb HEAs (Wu et al., 2018), could be promising approaches for real-world applications, considering these alloys exhibited great tensile ductility at ambient temperature.

For the applications of these alloys at high temperatures, maintaining the high phase stability in a wide temperature range during a long-term service is crucial. Recently, the phase stability of most studied HEA, CoCrFeMnNi, was challenged (Otto et al., 2016; Pickering et al., 2016). It has been found that after long-term annealing at 973 K, two different precipitates enriched in Cr formed on the grain boundaries. Many works have been done on the phase stabilities of another exemplar refractory HEA, HfNbTaTiZr, at intermediate temperatures of 773–1273 K (Senkov et al., 2012; Senkov and Semiatin, 2015; Schuh et al., 2018; Senkov et al., 2018; Stepanov et al., 2018). Recent investigations by Chen et al. (2019) demonstrated that the HfNbTaTiZr refractory HEA decomposed into three phases, the body-centered-cubic (BCC) matrix, BCC precipitates enriched in Ta-Nb, and hexagonal-close-pack (HCP) precipitates enriched in Zr-Hf when annealed at 973 K even after a short-term annealing of 2.5 h.

In our previous works, we found that TiZrHfNb HEAs exhibit large plasticity and fine phase stability at intermediate temperature range, and could be promising refractory HEAs (Wu et al., 2014; Wu et al., 2018). However, the strength of quaternary TiZrHfNb HEAs is not outstanding. Interstitial solid solution strengthening was proved efficient in both traditional alloys and HEAs (Wei et al., 2011; Wu et al., 2015; Min et al., 2017). In this work, the effects of interstitial Oxygen element on the strengthening and toughening in O-doping TiZrHfNb HEAs is explored. Furthermore, the phase stability of these alloys at intermediate temperature and its effect on the tensile properties will also be investigated.

Materials and Methods

Ingots of nominal composition TiZrHfNb undoped, or doped with varieties of oxygen contents (0.5%, 1.0%, 1.5%, and 2.0% in atomic fraction, also simply denoted by O-0, O-0.5, O-1.0, O-1.5, and O-2.0, respectively), were prepared from pure metals (purity higher than 99.99%) and ZrO₂ (99.9%) via arc-melting in a Ti-gettered argon atmosphere. The ingots were flipped and re-melted at least six times for the purpose of ensuring compositional homogeneity. And during the melting process electromagnetic stirring was conducted. Alloys bars with a dimension of 10 × 10 × 50 mm³ was cast using a water-cooled copper mold. The as-cast bars were then cold-rolled into plates with thickness of 2 mm. For following heat treatments, the cold-rolled plates were encapsulated in evacuated argon-backfilled quartz ampoules. Two different heat treatment procedures were conducted for the cold-rolled plates. One heat treatment was solid-solution treated at 1273 K for 0.5 h (depicted as SST for simplicity), and the other process was solid-solution treated at 1273 K for 0.5 h, followed by aging at 873 K for 100 h (depicted as STA for simplicity). Both two procedures were ended by water quenching.

Phase identifications were conducted by X-ray diffraction (XRD) using Cu K_α radiation (D8 Advance, Bruker). The morphology and microstructure were characterized by a Zeiss Supra55 scanning electron microscopy (SEM), equipped with an energy dispersive spectrometer (EDS), and a FEI Tecnai G² F20 transmission electron microscopy (TEM). Samples for SEM were mechanically grounded to 2000-grit SiC paper and, subsequently electrochemical polished for the final surface clarification using a solution of 5% perchloric acid +35% ethylene glycol monobutyl ether +60% methanol (vol%) with a direct voltage of 25 V at a temperature around 245 K. The TEM samples were prepared by ion milling after mechanical grounded down to ∼40 μm of thickness. Further in-depth microstructure investigations were made by three dimensional atom probe tomography (3D-APT) using the AMECA LEAP 4000X HR. A ZEISS AURIGA Dual Beam (FIB/SEM) workstation was used to perform site-specific lift-outs of specimen and annular milling to fabricate the needle-shaped APT specimens following the procedures described in Ref. (Miller et al., 2005). The APT experiments were performed with a 50 pJ laser energy, a repetition rate of 250 kHz, and a specimen temperature of 50 K. The 3D volumes were reconstructed and analyzed using IVAS 3.6.12 software (CAMECA Instruments). Tensile tests were carried out on a CMT4105 universal electronic tensile testing machine with a nominal strain rate of 1 × 10⁻³ s⁻¹ at room temperature. The dog bone-shaped samples had a gauge length of 15 mm, a width of 3 mm and a thickness of about 1.5 mm. The samples were cut using electric discharging machining, along the rolling direction (RD).

The in situ synchrotron X-ray diffraction experiments were conducted on the 11-ID-C beamline at the Advanced Photon Source, Argonne National Laboratory, USA. The size of the X-ray beam was 0.5 × 0.5 mm² with an energy of 110 keV, and the loading frame controlled by displacement was applied in situ to the tensile samples during the tensile experiments. The diffraction patterns were collected by a two-dimensional (2D) GE detector of 2048 × 2048 pixels with a spatial resolution of 200 mm (pixel size). The loading direction (LD, φ = 90°) is parallel to the rolling direction (RD). The obtained 2D diffraction images were processed by Fit2D software. One-dimensional (1D) diffraction profiles were obtained by integrating along the specific azimuth angles over a range of ±5° in the 2D diffraction patterns. The calculated lattice strain indicated the change in the interplanar spacing (d-spacing) with respect to the initial state, i.e., ε_hkl = (d_hkl-d₀)/d₀, where d₀ and d_hkl correspond to the interplanar spacings for different (hkl) crystalline planes without and with an external stress, respectively.

Results and Discussion

Phase Stability

Figure 1 shows the XRD patterns of SST and STA alloy. Apparently, only one phase with BCC structure was formed in all the SST alloys. Addition of 2.0% Oxygen increased the lattice constant of O-0 from ∼0.3529 to ∼0.3542 nm. However, a secondary phase with HCP structure emerged in all the O-doped alloys after STA process. And the intensities of the HCP peaks increased with increment of O concentration, indicating increase of the volumes of HCP phase. The lattice parameters of the HCP phase are a ∼0.3195 nm and c ∼ 0.5072 nm, while the BCC matrix of STA O-2.0 have a lattice parameter of ∼0.3426 nm, which is apparently smaller than that of SST O-2.0. The decrease of matrix phase lattice constant implies the segregation of elements with large atomic radii (Hf and Zr in this work) into the precipitate phase, and this will be confirmed in the following sections.

FIGURE 1

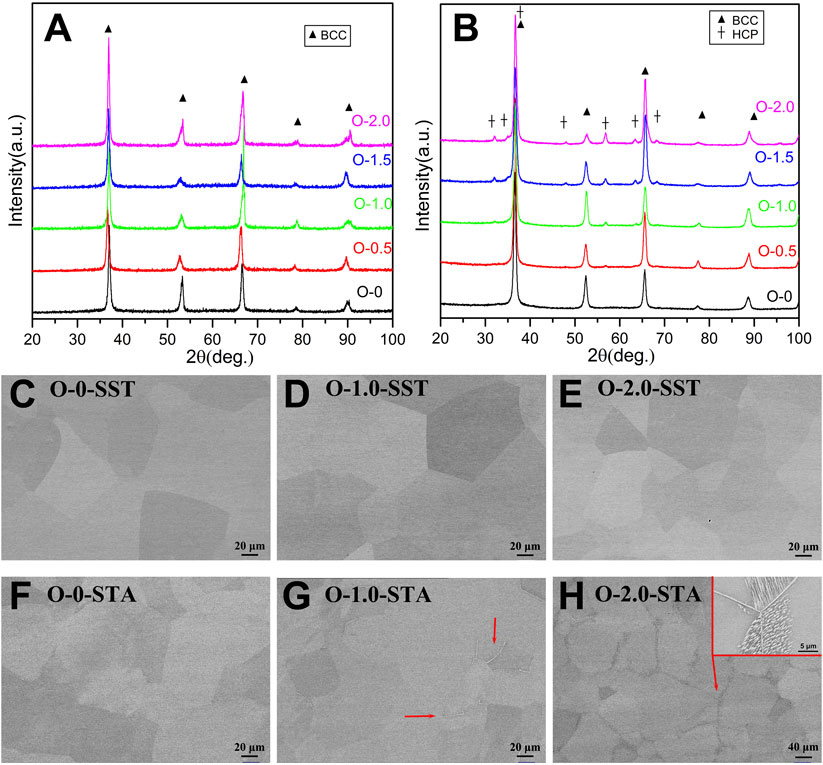

FIGURE 1. X-ray diffraction patterns for TiZrHfNbO HEAs with different O concentrations in (A) SST and (B) STA states; Representative back scattering SEM images for SST and STA specimens with different O contents, (C) O-0-SST, (D) O-1.0-SST, (E) O-2.0-SST, (F) O-0-STA, (G) O-1.0-STA and (H) O-2.0-STA.

The microstructures of O-0, O-1.0 and O-2.0 HEAs underwent SST and STA processes were shown in lower part of Figure 1. After heat treated at 1273 K, all the SST samples show a typical recrystallization microstructure with equiaxed grains, and no secondary phases formed. As for the STA samples, O-0 still formed single phase microstructure. However, a secondary phase, which appeared in bright contrast, emerged at part of grain boundaries in O-1.0. As for O-2.0, almost all the grain boundaries were covered with this secondary phase, and needle-shaped and dot-shaped precipitates started to develop in the grain interiors.

Figure 2 shows the bright-field (BF) TEM images of SST and STA O-2.0 samples. No precipitate was observed in the SST sample, and the corresponding selected area electron diffraction (SAED) pattern confirmed the BCC structure of the matrix. Needle-shaped precipitates along grain boundary were observed in the STA O-2.0 sample. The SAED patterns obtained from the area marked by red circle in Figure 2B confirmed the BCC matrix and the HCP precipitates. The crystallographic orientation relationship between this HCP phase and the BCC matrix is revealed as ${\left\{1\overline{1} 1\right\}}_{\text{HCP}}// {\left\{1\overline{1} 0\right\}}_{\text{BCC}}$ and${\left[011\right]}_{\text{HCP}}// {\left[111\right]}_{\text{BCC}}$, which is different from the case of annealed HfNbTaTiZr (Chen et al., 2019).

FIGURE 2

FIGURE 2. Bright-field TEM images of (A) O-2.0-SST and (B) O-2.0-STA. The insets are selected area electron diffraction (SAED) patterns corresponding to the areas marked by red circles.

To understand the formation mechanism of HCP phase, the elemental distributions, especially for O element, of the constituent phases in O-2.0 samples are analyzed by 3D-APT method. The atom maps of SST O-2.0 displayed in Figure 3A show good homogeneity in elemental distribution. However, the atom maps of STA O-2.0 show clear boundary within the tip sample. The elemental-concentration profiles generated from the cylinder area across the phase boundary in Figure 3B is shown in Figure 3C. The composition of the precipitate was determined to be Hf_38.3Zr_44.2Ti_9.3Nb_0.4O_7.8, while that of the matrix was Hf_19.3Zr_17.2Ti_29.4Nb_33.0O_1.2. Apparently, the precipitate is enriched in Hf, Zr and O comparing with the nominal composition. As characterized by Lei et al. (2018), the addition of O results in the formation of so called “ordered oxygen complexes, OOCs”, which is (Ti, Zr)-rich, contain more than three at. % O with a volume of several nanometers and contribute to the good ductility in the as-cast O-2.0. It is rational to assume that the precipitates formed in current STA O-2.0 origins from these OOCs. Both the mixing enthalpies for Nb-Zr and Nb-Hf atomic pairs are 4 kJ/mol, while that for Nb-Ti pair is 2 kJ/mol (Takeuchi et al., 2005). From a thermodynamic point of view, at temperatures much lower than melting point, without the full utilization of mixing-entropy effect for enhancing the formation of solid solutions (873 K at present work), the free energy of the high-entropy solid solution raised significantly relative to competing low-entropy phases. Thus, there is a tendency for Zr and Hf to be repelled from the solid solution matrix. Yet, this tendency is relatively weak, and no phase separations occurred for undoped O-0. However, considering that the electronegativities of Zr (1.5) and Hf (1.4) are smaller than those of Ti (1.6) and Nb (1.7) (Gordy and Thomas, 1956), Zr and Hf are more attractive to Oxygen. This attraction effect would cause a strong tendency toward the Zr-Hf repelling. Hence, after exposure at 873 K for 100 h, the matrix of O-2.0 was decomposed into a Zr-Hf-O-rich precipitate owing to the attraction between Zr-Hf and Oxygen. As for the difference of element types comparing the OOCs with current precipitates, it might be attributed to the non-equilibrium rapid solidification during copper-mould casting. In the melt, the self-diffusion coefficient of atoms is usually inversely related to the atomic weight of elements, so (O, Ti, Zr) atoms might aggregate and form OOCs. Also, it is possible that the equilibrium state of OOCs is enriched in Ti and Zr, which needs further investigation in samples annealed at higher temperatures, such as SST alloys in the present work.

FIGURE 3

FIGURE 3. 3D-reconstruction images for (A) O-2.0-SST and (B) O-2.0-STA, (C) Chemical composition along the long axis of the cylinder area marked in (B).

Tensile Properties

Figure 4 shows tensile true stress-strain curves of the SST and STA alloys measured at room temperature. And it is illustrated that the yield strength (YS) increases significantly with increased Oxygen concentration both in SST and STA state. The YS of SST O-0 alloy is ∼610 MPa, while that of SST O-2.0 alloy is increased by 69%, reaching up to ∼1,032 MPa. The SST alloys almost maintained the homogeneous uniform elongations at ∼24% as the Oxygen concentration increased to 2%, although the addition of Oxygen firstly decreased the elongation slightly. Considering that OOCs play the critical roles in the toughening of the O-doped alloys, alloys with higher contents of Oxygen might form more OOCs and hence result in higher toughening effects. This might explain the slight increase of elongations with increment of Oxygen concentration. As shown in inset of Figure 4A, the addition of Oxygen increases the work hardening rate during plastic deformation, especially for the alloys with higher Oxygen contents. The strength and elongation of the undoped STA O-0 alloy are very close to those of the SST O-0 alloy. This is not surprising since they have the same microstructure and no precipitates formed after STA process. It is noticeable that the elongations of the STA O-2.0 alloy dropped to ∼16%, which is attributed to the precipitation of incoherent HCP phase along grain boundaries in these alloys. Moreover, the depletion of alloying elements in the BCC matrix caused by the precipitation also decreased the yield strengths of the STA alloys slightly. The above results show that after STA process, both strength and elongation were reduced in the O-doping alloys due to the transformation of OOCs into precipitates with HCP structure.

FIGURE 4

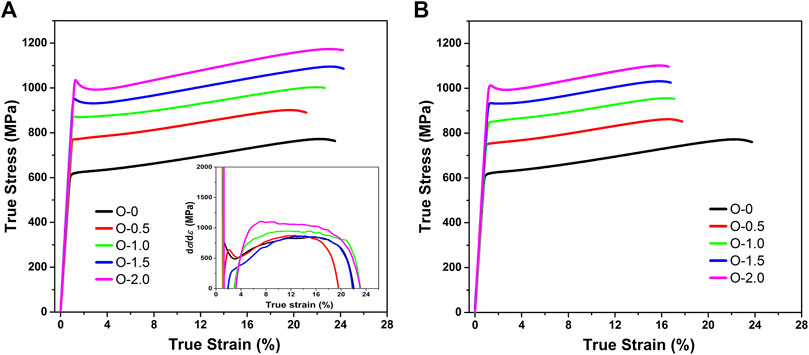

FIGURE 4. Tensile true stress-strain cures of TiZrHfNbO refractory HEAs underwent (A) SST and (B) STA heat treatments.

IN Situ Characterization of Deformation Behavior

To further investigate the effect of O-doping on the deformation behavior of HEAs, in situ synchrotron X-ray diffraction tensile experiments were conducted for SST O-0 and O-1.5 alloys. Figure 5 shows the evolution of diffraction patterns for SST O-0 and O-1.5 alloys during tensile deformation at room temperature. It can be clearly seen that no phase transformation occurred during the loading process for both alloys, indicating high structural stability for mechanical deformation. Figure 5C and 5D show the evolution of the lattice strains during elastic deformation for SST O-0 and O-1.5 alloys. It is illustrated that the lattice strain change is dependent on the grain orientations, indicating slight elastic anisotropy, which is common in BCC alloys. The {200} grains of O-0 exhibit the largest elastic strain along the loading direction, and the other grains detected exhibit similar elastic strains. As for O-1.5, the {110} grains exhibit the lowest elastic strain along the loading direction, and the other grains detected exhibit similar elastic strains. This trend indicates that addition of Oxygen alters the strength along specific crystal directions.

FIGURE 5

FIGURE 5. The 1-D synchrotron X-ray diffraction profiles of the SST samples in the loading direction under different loadings, (A) O-0 and (B) O-1.5. Evolution of lattice strain of (C) O-0 and (D) O-1.5 as a function of applied stress during tension.

To further unveil the elastic deformation behavior of current alloys, the well-known Kroner’s models for analyzing the diffraction elastic moduli are applied in the present work (Kröner, 1958; Gittus and Zarka, 1986; Wit, 1997; Gnäupel-Herold et al., 2010; Wu et al., 2014). By regressing the experimental data with Kroner’s self-consistent model, the single-crystal elastic constants of current HEAs were derived and listed in Table 1. As can be seen, addition of Oxygen increased all the single-crystal elastic constants and the shear anisotropy, A = 2C₄₄/(C₁₁-C₁₂). To compare with other alloys with BCC structure, pure Niobium (Bolef, 1961) and the “Gum Metal” (Ti–36Nb–2Ta–3Zr–0.3O (wt%))(Talling, 2008) was chosen. As shown in Table 1, the shear anisotropy value of O-0 is close to the “Gum Metal,” indicating that the elastic anisotropy behavior of current alloy is close to the corresponding BCC titanium alloy with similar constituent elements. Moreover, the (C₁₁- C₁₂) values of current HEAs are larger than that of “Gum Metal.” It is thought that higher (C₁₁- C₁₂) value implies higher stability of BCC phase (Ikehata, 2004). And it can be proved by the fact that no phase transformation occurred in current HEAs, while stress-induced phase transformation was involved in “Gum Metal” (Talling, 2008).

TABLE 1

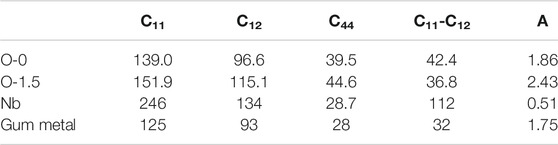

TABLE 1. Single-crystal elastic constants, (C₁₁-C₁₂) values and the anisotropy factor A = 2C₄₄/(C₁₁-C₁₂) of SST O-0 and O-1.5 in comparison with those of Nb and “Gum Metal”

Conclusions

In summary, phase stability of O-doping TiZrHfNbO HEAs were systematically investigated. Oxygen alloying in TiZrHfNb resulted in phase separation when annealed at 873 K for 100 h. A HCP phase with lattice constants of a ∼ 0.3195 nm and c ∼ 0.5072 nm was precipitated from the BCC matrix. The orientation relationship between the HCP phase and the BCC matrix was revealed as ${\left\{1\overline{1} 1\right\}}_{\text{HCP}}// {\left\{1\overline{1} 0\right\}}_{\text{BCC}}$ and${\left[011\right]}_{\text{HCP}}// {[1 1 1]}_{\text{BCC}}$. The HCP precipitates have been proved to be enriched with Zr, Hf and O elements. For the TiZrHfNbO HEAs in SST state, addition of Oxygen significantly increased the yield strengths, and the plasticity were successfully maintained. However, the formation of the HCP precipitates in the STA state slightly reduced the yield strengths and deteriorated the plasticity. Structural evolution of SST O-0 and O-1.5 during tensile loading has been clarified. Single-crystal elastic constants of both alloys were evaluated, and were found to be similar to that of “Gum Metal” Ti alloy. The (C₁₁- C₁₂) values of current HEAs are larger than that of “Gum Metal”, indicating higher stability, and no phase transformation occurred in both current HEAs.

Data Availability Statement

All datasets presented in this study are included in the article.

Author Contributions

YW performed the experiments. YW and XH supervised the project. YW, QW, TW, DL and YW analyzed the data. YW wrote the paper. All authors commented on the manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgements

The authors would like to gratefully acknowledge the financial support from The National Key Research and Development Program of China (2016YFB0701402 and 2016YFB0300502), National Natural Science Foundation of China (Nos. 51531001 and 51771020), and Fundamental Research Funds for the Central Universities (FRF-TP-19-037A1).
