With the rapid development of the city, all kinds of high-rise buildings, large shopping malls and entertainment places have been built one after another. There are some hidden dangers of fire accidents. Effective prevention and monitoring of fire is the focus of fire prevention and control field. As the information source of fire prevention and control, the preparation of fire detection sensor with high sensitivity and short response time is of great significance for fire prevention and monitoring. At present, the commonly used fire detection sensors mainly include CO sensor, temperature sensor and flame sensor. The sensors detect the characteristic parameters in the fire environment and converts non-electric signals such as gas, temperature, and flame light into electric signals to achieve the purpose of fire warning. With the development of material technology in recent years, especially the development of Carbon Nanotube (CNT) technology, a new fire detection sensor represented by CNT materials has emerged. In this paper, the research progress of CNTs in fire detection sensors is reviewed. The applications of CNTs in CO detection, flame light detection and temperature detection are discussed in detail. Finally, the development trend of fire detection sensors based on CNTs is proposed, and the development direction of fire detection sensors in the Internet of things is prospected.
Introduction
The Internet of things was first proposed by Kevin Ashton in 1999 (Cardenas et al., 2020), then it was widely used in various fields. The core of the Internet of things is sensor, which can detect the changes of various physical and chemical quantities in the environment, convert these changes into electrical signals, and transmit them to various platforms for information sharing through wireless transmission. The essential requirement of internet of things (IoT) is that sensors and devices can operate for a long time without excessive offset or degradation (Gaur et al., 2019). Therefore, the key factor to promote the development of IoT in the future is to develop low-power and low-cost electronic sensors (Marinov, 2015). Nowadays, a variety of sensors have been developed for the Internet of things, such as temperature sensor (Chad et al., 2013), gas sensor (Sharma et al., 2014; Ge et al., 2019), pressure sensor (Takei et al., 2014), photoelectric sensor, etc. Now, with the continuous development of the Internet of things, it has been widely used in medical, public utilities, manufacturing, transportation, safety prevention and other fields (Sundmaeker et al., 2010). Especially in the safety prevention, the monitoring of the Internet of things plays a crucial role in preventing accidents. In recent years, accidents occur frequently in various places, of which fire accident is one of the disasters with the highest frequency at present. Using the Internet of Things to monitor fires has become a hot spot. The main causes of fire can be divided into smoldering fire and open fire. For the fire caused by smoldering fire, the concentration of smoke and co increased significantly in the early stage, and decreased significantly in the later stage; when the fire was caused by open fire, the CO concentration increased significantly in the early stage, but the smoke concentration decreased significantly, and the flame produced light radiation, and the smoke concentration increased rapidly in the later stage (Ding et al., 2018). Gas is one of the early characteristics of fire. The main gases used to detect fire include CO, CO2, NOx, methane, H2, H2O, amine (−NH2) (Xue et al., 2005; Wasisto et al., 2014). When a fire occurs, the temperature rises significantly, and the change of temperature can be detected by temperature sensor; the photoelectric detection for fire warning generates radiation light through flame combustion, and the sensor responds to the detection of light to detect the fire (Kwangjae et al., 2017). At present, gas sensors, temperature sensors and flame sensors are widely used in fire early warning system (Bogue, 2013; Fonollosa et al., 2018).
With the development of science and technology, more and more researchers study the preparation materials of sensors. Carbon nanotubes (CNTs) are one of the most popular electronic materials, which can improve the accuracy and response speed of sensors, thus promoting the development of IoT sensors (Chen et al., 2016). In 1991, Iijima first discovered CNTs, and then began to carry out a large number of studies on this material around the world (Iijima, 1991). It was found that CNTs have good electrical, physical, chemical and mechanical properties, for example, CNTs have good chemical stability, high carrier mobility, flexibility, etc., which greatly improve the performance of the sensor (Barcarolle et al., 2013). CNTs are hollow structures composed of graphene sheets. According to the number of graphene layers, CNTs are divided into single-walled CNTs (SWCNTs) and multi-walled CNTs (MWCNTs). MWCNTs are formed by crimping graphene (Wang et al., 2018); according to the spiral shape of graphene sheets, CNTs can be divided into two types (asymmetric type) and chiral type (symmetric type) (Tang, 2019). CNTs can be synthesized by a variety of methods, such as arc discharge (Iijima, 1991), laser ablation (Guo et al., 1995), chemical vapor deposition (Jose-Yacaman et al., 1993). At present, arc discharge has become the most widely used synthesis technology, which can produce SWCNTs and MWCNTs at the same time. Chemical vapor deposition is a common method for commercial production of CNTs. Among the three common methods, laser ablation has the highest cost, arc discharge has the lowest benefit, and chemical vapor deposition is the most effective method for commercial production of CNTs. In addition to CNT materials, CNT composites have also become a research hotspot in sensor materials. The addition of metal oxides and polymers to CNT can change their structure and produce quantum tunneling effects, which improves the sensor materials. The electronic transportation capability of the sensor significantly improves the selectivity and sensitivity of the sensor.
This paper reviews the research progress of CNTs and their composites in three kinds of fire detection sensors: CO gas sensor, temperature sensor and flame sensor. It also introduces the improvement of the sensing characteristics of CNTs for fire detection sensors, which provides a favorable reference for the further application of CNTs in fire detection sensors.
CO Gas Sensor Based on Carbon Nanotubes
In the early stage of fire, the main products are the smoke from pyrolysis, including complete combustion products (such as CO2 and H2O) and incomplete combustion products, such as CO, gaseous and liquid hydrocarbons, carbon particles, alcohols, aldehydes, ketones, and other chemical substances. The main components of gas products are CO2, CO, and water vapor. Because the humidity of air has a great influence on the water vapor content, and the content of CO2 in the air is also high, they are generally not taken as the object of fire detection. Therefore, CO is regarded as the characteristic gas for early fire detection.
Gas Sensing Mechanism of Sensor
The traditional semiconductor CO sensor uses the principle of semiconductor conductivity change caused by the adsorption and desorption of gas molecules on the surface of semiconductor materials to detect the gas concentration. However, this kind of sensor has poor gas selectivity and poor stability, so more reliable materials are needed to prepare the sensor. It has been found that the gas sensing mechanism of SWCNTs is due to the formation of three carbon atoms on the surface of SWCNTs σ bond, one electron forms delocalized π bond between carbon and carbon. When detecting gas, the π electron cloud will change, which will lead to the change of sensor conductivity (Yuan et al., 2004). For MWCNTs, MWCNTs can form more winding structure, which makes the sensor have better conductivity (Sayago et al., 2008). The response of gas sensor based on CNTs to gas is greatly dependent on the effective active number of gas adsorbed on the sensor surface (Zhang et al., 2009). When the sensor detects the gas, the gas molecules will be adsorbed on the active sites on the surface of CNTs, and the space charge layer between the electrodes will form a new polarization (Snow, 2005). The sensor can detect the concentration change of the gas to be measured in the environment. However, due to the limitation of their own properties, the adsorption capacity of CNTs is very limited, limited to several strong reducing and oxidizing gases, such as O2, NO2, NH3, SO2, and so on. Many toxic gases and greenhouse gases cannot be adsorbed by intrinsic CNTs, such as CO and CO2. Therefore, in order to detect more kinds of gases, it is necessary to improve the functionalization of intrinsic CNTs. The main improvement methods include nonmetallic element doping, inorganic metal doping and metal oxide doping. In 2014, Mittal reviewed the interaction between CO and hydroxyl-modified CNTs. This is due to the formation of hydrogen bonds between CNTs and the hydroxyl groups of CO molecules. The schematic diagram is shown in Figure 1A (Mittal and Kumar, 2014).

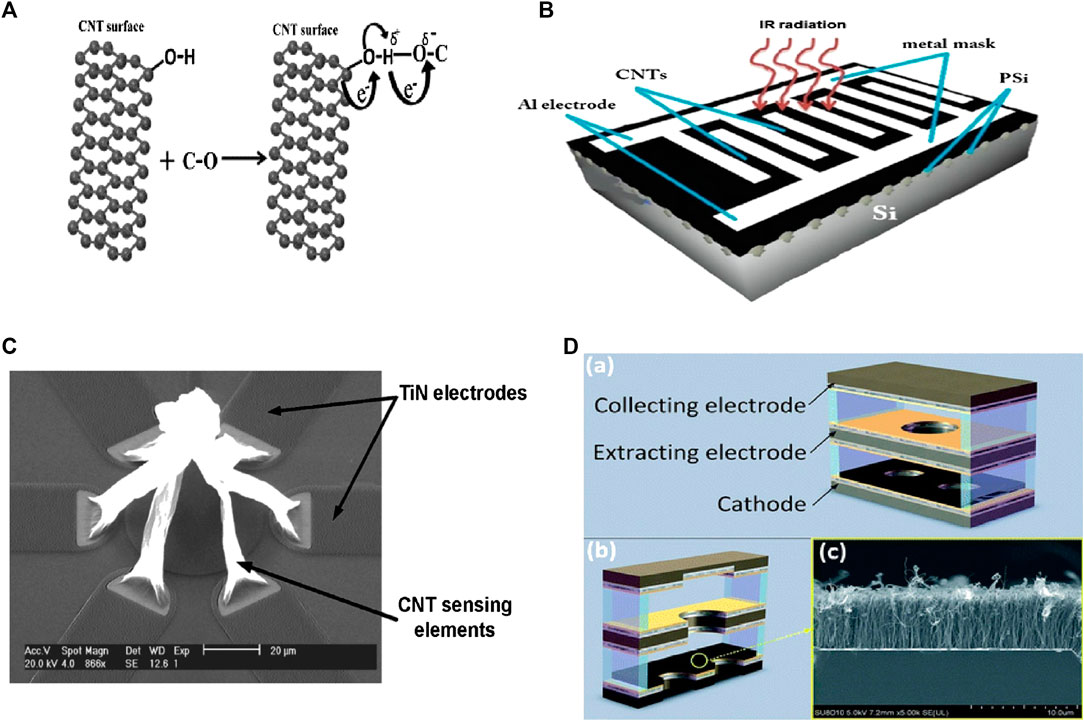

FIGURE 1. (A) Adsorption of CO gas molecule on the carbon nanotubes (CNTs) functionalized with hydroxyl group. (B) Schematic diagram of the CNTs infrared photoconductive detector. (C) SEM images of the CNT based temperature sensor. (D) (a) The triple-electrode CNT-based sensor, (b) sectional view of the sensor, and (c) FE-SEM image of CNT film. Published by the Royal Society of Chemistry.

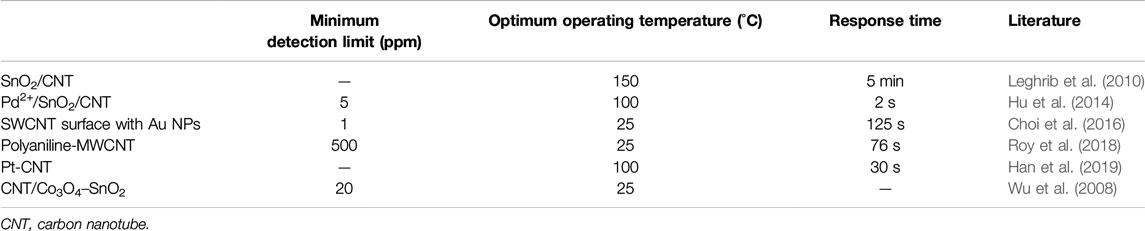

TABLE 1. Sensing properties of carbon nanotube complexes for CO.
Research Status of Carbon Nanotube Based CO Sensors
In 2000, Kong and others found that CNT has good sensing properties for gas, so there are more and more researches on CNTs and their composites in gas sensors (Kong et al., 2000). In 2008, Wu et al. added 0.1% CNTs to the Co3O4–SnO2 materials, which greatly improved the sensing characteristics of the sensor. The lowest detection limit for CO concentration was 20 ppm, the optimal working temperature was 25°C, the response value was 23 mV, and the relative signal-to-noise ratio was 2.3 (Wu et al., 2008). In 2009, Pearce prepared modified MWCNTs gas sensors by electrophoretic deposition, which improved the speed and reliability of fire gas detectors (Pearce, 2009). In 2010, Leghrib et al. synthesized SnO2/CNTs gas sensor by precipitation of SnO2 colloidal suspension in CNTs. The sensitivity of SnO2/CNTs gas sensor to CO was tested at 150°C. The results show that SnO2/CNTs composite has good sensitivity to 2 ppm CO at this temperature, and the response time is 5 min (Leghrib et al., 2010). In 2013, Iqbal et al. modified ultrasonic spray with Nano-structure ZnO by ultrasonic spray pyrolysis method, and conducted gas sensitivity test. The experimental results showed that the sensitivity of the composite to CO with volume fraction of 100 ppm at 250°C was 85%, the response time was 5 min, and the recovery time was 20 min (Iqbal et al., 2013). In 2014, Hu et al. prepared Pd2+ doped SnO2 nanoparticle coated CNTs by sol-gel method. The minimum detection limit of the sensor for CO is 5 ppm, the best working temperature is 100°C, and the response time is 2 s (Hu et al., 2014). In 2016, Choi et al. synthesized a network of Au nanoparticles functionalized SWCNT by impregnation method and self-agglomeration of Au film. The sensor made of this material has high sensitivity and selectivity to low ppm CO at room temperature, and the detection limit for CO is as low as 1 ppm, achieving good selectivity for 2 ppm CO for the first time (Choi et al., 2016). In 2018, Loghin et al. used a handwriting technique to create a gas sensor based on CNTs. The sensor has a sensitivity of 0.06% ppm for CO and a measurement range of 5–45 ppm (Loghin et al., 2018). In 2019, Kim et al. fabricated a Pt CNTs flake CO gas sensor by depositing Pt nanoparticles on CNTs. The maximum response time of the sensor is 30 s and it has good sensitivity to 80 ppm CO (Han et al., 2019). In 2018, Roy et al. synthesized polyaniline coated MWCNTs and spin coated them on the interdigital electrode of the sensor. The experimental study found that the sensor has good response and repeatability for 500–1,000 ppm CO at room temperature, with a response time of 76 s and a recovery time of 210 s (Roy et al., 2018). Table 1 is the sensing properties of carbon nanotube complexes for CO. CNTs gas sensors have attracted much attention due to their low operating temperature and minimum detection limit. Semiconductor CNTs gas sensors doped with oxides have the advantages of both oxide semiconductor gas sensors and CNTs gas sensors, and have the characteristics of high sensitivity, minimum detection limit and low working temperature (Zhang et al., 2013).
Flame Sensor Based on Carbon Nanotubes
In addition to gas and smoke, light will also be produced when the fire happens. The flame has both radiation characteristics and chromaticity characteristics. The flame can radiate in the three parts of the spectrum, namely, ultraviolet, infrared and visible light. Ten percentage of the flame radiates in the ultraviolet light region, and the remaining 90% of the flame radiates in the infrared and visible light regions (Shekhar et al., 2012; Liu Y. et al., 2017; Gaur et al., 2019), most visible light areas are red and yellow caused by carbon in fire, so infrared and ultraviolet light are generally detected. According to research, CNTs react to radiation, which means that this response can be used to detect various radiation sources, such as those from flames.
Sensing Mechanism of Flame Sensor
The basic light response mechanism of general photodetectors is to convert the absorbed photons into electrical signals. The light response mechanisms include photoelectric effect, photoconductivity effect, optical gating effect and thermometric effect (Liu P. et al., 2020). CNTs infrared photodetectors are developed on the basis of thermal effect and optical effect. The sensing principle based on thermal effect is that the temperature change caused by light irradiation produces electrical signals (resistance, current or voltage). For the principle of optical effect, excitons are generated through the photon absorption of CNTs, and the electron hole pairs are generated by excitons. It is released by dissociation, thus producing photocurrent or photovoltage in the device (Avouris et al., 2008). Figure 1B is the schematic diagram of the CNT infrared detector (Saleh and Wasan, 2015). When ultraviolet light appears, oxygen molecules on the surface of CNTs are desorbed by the energy of photoinduced plasma polaritons, resulting in a significant decrease in hole concentration, which correspondingly increases the resistance of CNTs. The change of resistance of CNTs under ultraviolet light makes them able to be used for ultraviolet light monitoring (Pyo et al., 2018).
Research Status of Flame Sensors Based on Carbon Nanotubes
When a fire occurs, the radiation light produced by flame combustion includes ultraviolet light and infrared light. The flame sensor responds to the flame light immediately to judge whether the fire occurs. CNTs are promising materials for the fabrication of high-performance nanooptoelectronic devices due to their unique one-dimensional structure. In 2012, Shao et al. developed a kind of ultraviolet electric detector. The sensor uses CNTs film as coating material. The response of the detector to light frequency of 14 Hz and wavelength of 365 nm is about 0.123 A/W (Shao et al., 2012). In 2020, Pathak et al. prepared a kind of nanocomposite material based on CNTs and zinc oxide for ultraviolet sensor. The sensitivity of the device to ultraviolet light at 365 nm is 0.011 A/W (Pathak et al., 2020). In 2012, Zeng et al. designed a high-performance infrared detector based on SWCNT array, and its responsivity was 9.87 × 10−5 A/W (Zeng et al., 2012). In 2013, Lu et al. self-assembled a heterojunction at the graphene/MWCNT interface. This nanocomposite material made the detection rate of the infrared detector as high as 1.5 × 107 cm Hz1/2 W−1 (Lu et al., 2013). In 2017, Huang et al. transferred the CNTs/SiO2 structure to the PMMA substrate and designed an infrared detector that has the advantages of fast response speed and high sensitivity (Huang et al., 2017). In 2018, Pavelyev et al. proposed an infrared radiation photodetector based on MWCNT grown on silicon substrate by chemical vapor deposition. The response speed and resistance recovery time of the detector are 3 min and have obvious hysteresis characteristics (Pavelyev et al., 2018). The traditional flame sensor mainly uses ultraviolet detection and ultraviolet/infrared joint detection. In 2014, Mohanty et al. prepared MWCNTs by chemical vapor deposition method, and designed a functional flame sensor. The response characteristics and sensitivity of the sensor in the transverse and longitudinal direction of the flame were experimentally studied. It has a good working range, and this kind of flame sensor can also be used. Estimation of working distance from flame (Mohanty and Misra, 2014).
Temperature Sensor Based on Carbon Nanotubes
Temperature is one of the most obvious characteristics of a fire. When a fire occurs, a lot of heat is generated by material combustion, which makes the surrounding temperature change. The temperature sensor responds to the change of the temperature in the environment immediately to achieve the purpose of fire warning. This section mainly summarizes the research status and sensing principle of temperature sensor based on CNTs.
Sensing Mechanism of Temperature Sensor
CNTs have the characteristics of low power consumption, high sensitivity, high stability, and wide operating temperature range, which can improve the performance of temperature sensors. The temperature measurement of the sensor is not directly expressed, but based on the characteristics of a series of physical phenomena, such as volume expansion, gas pressure change, magnetic susceptibility change, diode junction voltage and resistance exchange, thermocouple generation, and so on. CNTs based sensors use these physical phenomena to detect environmental temperature changes. For example, thermometers can be realized by measuring the thermal expansion of CNTs, because the height of one-dimensional column of continuous liquid in CNTs varies from 50 to 500°C. In addition, the temperature sensor based on CNTs can also measure the temperature of CNTs caused by thermal interaction. Temperature measurement is realized by changing the conductivity (Pan et al., 2017). Figure 1C shows the SEM image of a temperature sensor based on CNT (Monea et al., 2019).
Research Status of Temperature Sensors Based on Crabon Nanotubes
CNTs have become an important candidate material for temperature sensors because of their excellent electrical response to temperature changes. In 2011, Karimov et al. designed a thin-film temperature sensor. By depositing a layer of glue and CNTs powder on the paper substrate, the temperature measurement range of the sensor is 20–75°C, and its sensitivity reaches −0.24%/°C (Karimov et al., 2011). In 2013, Ali et al. synthesized the yttrium iron catalyst film on silicon substrate by wet chemical method, and prepared CNTs by chemical deposition method, and made it into a temperature sensor. Its temperature measurement range is 20–150°C, and the sensitivity is 4.21 × 10−4/°C (Ali and Hafez, 2013). In 2015, Karimov et al. proposed a temperature sensor based on VO2 (3-fL) and CNT composite film. The silver electrode was deposited on the glass substrate, and the VO2 (3-fL) and CNTs composite film materials were wrapped on the top of the silver electrode. The temperature measurement range of the sensor was 25–80°C, and the sensitivity was −(0.9–1.3)% (Karimov et al., 2015). In 2017, Pan et al. successfully developed an ionization temperature sensor based on CNTs. The sensor has a temperature range of 20–100°C and a sensitivity of 4 × 10−2 (Pan et al., 2017). In 2017, Song et al. used chemical vapor deposition method to grow vertically aligned CNT arrays on SiO2/Si substrates to prepare a temperature sensor with a temperature measurement range of 20–110°C and a sensitivity of 4.74 μA/°C (Song et al., 2017). The structure of the sensor is shown in Figure 1D. In the same year, Zuo et al. prepared a CNT-carbon fiber cement-based material, when 0.5% CNTs were added, the temperature measurement range was 30–60°C, and the sensitivity was 5.35 × 10−4/°C (Zuo et al., 2017). In 2018, Sarma et al. studied the method of preparing high-efficiency thin-film temperature sensor using layered MWCNT. He prepared a thin-film temperature sensor on Si substrate by chemical vapor deposition of CNTs film with Ni as catalyst. The temperature measurement range of the sensor was 22–200°C, and the sensitivity was 1.03 × 10−3/°C (Sarma and Lee, 2018).
Development Prospect of Carbon Nanotube Fire Detection Sensor
With the development of fire detection technology, novel sensing materials have always been an important research field of fire detection sensors, which have an extremely important impact on CO sensors, temperature sensors and flame sensors. The huge aspect ratio and specific surface area of CNTs make them become highly sensitive sensing material layer and efficient sensing channel, but the sensors based on CNTs are still in the primary stage, there are still some problems to be solved: 1) Further research on synthesis methods is needed to improve the uniformity of noble metals and semiconductor metal oxides on the wall of CNTs, so as to improve the response time and sensitivity of the sensor. 2) How to reduce the recovery time of the sensor to achieve the purpose of repeated use. 3) The sensing mechanism of the sensor is not clear, for example, whether the adsorption and desorption model of CO occurs on the surface of CNTs or metal oxides or on the interface between CNTs and metal oxides, so it is necessary to further study the sensor mechanism of the sensor. 4) Improving the sensor’s anti-interference ability is of great significance to the improvement of sensor performance. In order to solve these problems, we should optimize the preparation process in the future, make metal oxides and other dopants more evenly distributed on the wall of CNTs; clarify the sensing mechanism of the sensor, explore the electrochemical reaction between CO gas molecules and which dopants, and use these dopants as the recognition layer of CNTs, which can greatly improve the selectivity of the sensor. Appropriate addition of CNTs, for example, metal oxides, inorganic metals, non-metallic elements, etc., can reduce the recovery time of the sensor. In the future, CNTs can be covered with materials that do not interact with interference sources to reduce interference and enhance the stability of the sensor.
Conclusion
In this paper, the fire detection sensors based on CNTs are reviewed. Firstly, the important role of sensors in the Internet of things is briefly described. The basic structure and preparation methods of CNTs are introduced. The three most commonly used fire detection sensors (CO sensor, temperature sensor and flame sensor) in the fire monitoring system of the Internet of things are analyzed. The current researches of the three kinds of sensors based on CNTs and CNT composites is briefly reviewed. Finally, the problems such as the uniform distribution of dopants, the long recovery time and the unclear sensing mechanism of CNT sensors are prospected, improving the anti-interference ability of the sensor, which provide a favorable reference for the further application of CNTs fire detection sensors.
