A Remarkable Class of Nanocomposites: Aerogel Supported Bimetallic Nanoparticles

Aerogels are a unique class of materials due to their low density, high porosity, high surface area, and an open and interconnected pore structure. Aerogels can be organic, inorganic and hybrid with a plethora of surface chemistries. Aerogel-based products for thermal insulation are already in the market and many studies are being conducted in many laboratories around the world to develop aerogel-based products for other applications including catalysis, adsorption, separations, and drug delivery. On the other hand, bimetallic nanoparticles dispersed on high surface area carriers, which have superior properties compared to their monometallic counterparts, are used or are in development for a wide variety of applications in catalysis, optics, sensing, detection, and medicine. Investigations on using aerogels as high surface area carriers for dispersing bimetallic nanoparticles are leading to development of new composite materials with outstanding properties due to the remarkable properties of aerogels. The review focuses on the techniques to synthesize these materials, their properties, the techniques to tune their pore properties and surface chemistry and the applications of these materials.

Introduction

Aerogels

A wide variety of aerogels were first synthesized in 1931 (Kistler, 1931) by replacing the liquid part of a gel with air without collapsing the gel. Aerogels are generally considered as materials with low densities, high surface areas and high porosities. Since the development and commercialization of silica aerogel-based blankets for thermal insulation, the number of studies that are being conducted at many laboratories around the world on using aerogels for applications other than insulation is growing at an accelerating pace. Aerogels can be organic (e.g., starch aerogel, STA, alginate aerogel, ALA, resorcinol formaldehyde aerogel, RFA), or inorganic (e.g., silica aerogel, SA; alumina aerogel, AA; titania aerogel, TA) (Pierre and Pajonk, 2002). Carbon aerogels (CAs) is another class of aerogels obtained by pyrolysis of organic aerogels. Aerogels have particularly attractive properties as adsorbents, catalysts, and drug delivery devices. The properties of aerogels can further be enhanced by making composites of aerogels with other materials, such as polymers (Sanli and Erkey, 2013), fibers, and metallic nanoparticles (NPs) (Vallribera and Molins, 2008). Among these, a wide variety of aerogel supported monometallic NPs have been developed for various applications. For instance, Pt/CA (Barim et al., 2017), Pt/graphene aerogel (GA) (Sarac Oztuna et al., 2017), N-doped Co/CA and Fe/CA (Sarapuu et al., 2015) were synthesized and tested as electrocatalysts for oxygen reduction reaction (ORR). Cu/CA (Han et al., 2019) was utilized for CO₂ reduction reaction and Pt/CAs were investigated for proton exchange membrane fuel cell (Smirnova et al., 2005) and direct methanol fuel cell (DMFC) (Wei et al., 2009) applications. TiO₂/CA was investigated as a photoelectrocatalyst for wastewater treatment (Jin et al., 2011). Ni/CA and Fe/CA were used as ammonia adsorption catalysts for gas purification (Gómez-Cápiro et al., 2018). SnO₂/GA was used as a NO₂ gas sensor (Liu et al., 2014; Li et al., 2015). Ag-AgBr/TiO₂/GA was used for photocatalytic destruction of organic dyes and bacteria (Zhang et al., 2019). Recently, the emphasis has shifted to aerogel supported bimetallic NPs which have superior properties than their monometallic counterparts due to a wide variety of factors including tunable properties by varying composition of metals, higher thermal stability, enhanced metal-support interactions, higher resistance to poisoning and/or coke deposition, prevention of NP growth and higher catalytic activity and selectivity of supported bimetallic NPs compared to monometallic counterparts (Takanabe et al., 2005; Koh et al., 2007; Chen et al., 2010; Yu et al., 2015; Hossain et al., 2017; Zhou et al., 2017; Wang and Zhu, 2018).

This review gives an overview of the advantages and disadvantages of the techniques used to synthesize aerogel supported bimetallic NPs, the properties of these materials as well as their applications. Bimetallic NPs and supported bimetallic NPs, their formation and growth, and their importance in various applications are discussed in section Bimetallic Nanoparticles and Supported Bimetallic Nanoparticles. Advantages of aerogels as support materials are explained in section Advantages of Aerogel Supported Bimetallic Nanoparticles. Synthesis routes and material properties of aerogel supported bimetallic NPs are given in section Synthesis and Properties of Aerogel Supported Bimetallic Nanoparticles. Their applications in catalysis, optics and sensors are given in section Applications. The research needs for further development and commercialization of these materials are discussed in section Conclusions and Future Directions.

Bimetallic Nanoparticles and Supported Bimetallic Nanoparticles

Bimetallic NPs are composed of two different metals. Bimetallic NPs are of both academic and industrial interest as their properties are often different from either of the two pure NPs. Similar to bulk alloys, bimetallic NPs exhibit a very wide range of combinations and compositions. Bimetallic NPs (A_mB_n) can be generated with more or less controlled amount (m + n) and composition (m/n) with main mixing patterns given in Figure 1.

FIGURE 1

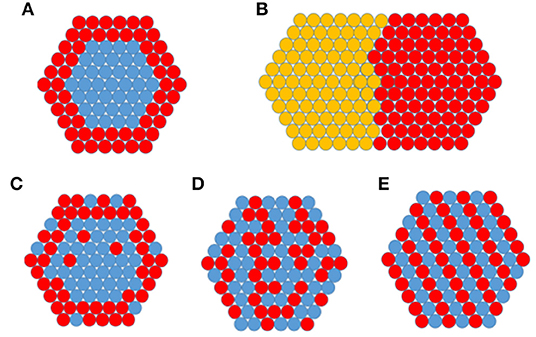

Figure 1. Schematic representation of the examples of some possible configurations for bimetallic NPs: (A) core-shell, (B) segregated/Janus particle, (C) surface segregated, (D) disordered alloy, (E) ordered alloy. The illustrations display cross sections of the NPs showing an hypothetical face-centered cubic (FCC) (111) plane.

The formation and growth of single component NPs usually consist of a number of steps including nucleation, diffusion and growth. All these steps are usually governed by kinetic phenomena (Mondloch et al., 2012). The degree of segregation/mixing and atomic ordering in A_mB_n bimetallic NPs depends on a variety of factors including relative strengths of A-A, B-B, and A-B bonds, relative surface energies of bulk A and B, relative atomic sizes, strength of binding to surface ligands (or surfactants) and specific electronic/magnetic effects (Ferrando et al., 2008). The structure of the NP and degree of A-B segregation may also depend on kinetics of nucleation and growth for which the method and conditions of NP generation (type of particle source, metal precursor (MP), support, surfactant, temperature, pressure, etc.) becomes important.

The knowledge on the phase behavior of the alloys is important. Although the phase diagrams of bulk alloy systems have been extensively reported, their extension to the nanometer sized regime is not trivial since the perturbations in both morphology and electron density due to finite sizes at nanoscale can give rise to non-bulk like properties (Oviedo and Leiva, 2013). For instance, pairs of elements, such as FeAg (Ferrando et al., 2008) or AuPt (Wanjala et al., 2010) have large miscibility gaps in bulk crystalline state but can mix as NPs. PtRu bimetallic NPs with 1.5 nm diameter and with a Pt:Ru ratio of 0.2 display an FCC closed-packed crystal structure whereas bulk alloy of the same species with the same composition exhibit a hexagonal-closed packed (HCP) structure (Michael S. Nashner et al., 1997). These observations point out that a divergence may exist between the structural properties predicted by the bulk phase diagrams and those displayed by metal NPs.

Supported NPs are NPs which are dispersed on the surface of highly porous substrates or films (Eppler et al., 1997). Because of their high surface energy and intrinsic instability, NPs tend to form agglomerates which diminish their desirable properties. Therefore, supports with high surface areas are often used to serve as carriers and stabilizers. Supports also prevent the oxidation of NPs to some extent. Thus, the intrinsic properties and morphologies of NPs are conserved depending on the support-metal interaction or support topology. Supported NPs are used in a number of technologically important areas, ranging from catalysis (e.g., catalytic converters in automobiles and electrochemical fuel cells) to optics, electronic, magnetic, and medical applications (Kitchin et al., 2004). In catalysis, supports have a crucial role in the transport of the reactants and products to and from the active sites (Antolini, 2009) and in some cases they may participate in the catalytic reactions as well (Vanrysselberghe and Froment, 1996; Deka et al., 2013).

In catalysis, supported bimetallic NPs are used to enhance the performance and for economic reasons (Sankar et al., 2012). The activity of bimetallic NPs depends on the metal concentration, morphology, and atomic ordering. In alloy NPs, the intrinsic catalytic activity adjustment originates from two cumulative phenomena called the ligand and the strain effect. The addition of another metal causing alteration in the electron density of the system (ligand effect) and the metal-metal bond length change (strain effect) may lead to improved catalytic activity (Kitchin et al., 2004; Bosco et al., 2009). The incorporation of a second metal into the structure may also prevent the poisoning of the catalyst and prolong its aging behavior (Winkler et al., 2010; Wiebenga et al., 2012). Since catalytic reactions occur only at catalytic sites residing on the surface of NPs, a significant proportion of the atoms are effectively wasted in the catalytic process. This is particularly important for expensive catalyst metals, such as Pd and Pt (Ghosh Chaudhuri and Paria, 2012). In order to reduce costs, there is, therefore, considerable interest in synthesizing A-B core-shell NP catalysts, where A is a relatively inexpensive metal (e.g., Co, Ni, Cu), which is (generally) less catalytically active residing at the core, and B is a more expensive, more catalytically active metal (typically Pd or Pt) residing at the shell. Synergetic electronic effects toward catalytic reactions can also be significant in alloy or core-shell NPs via the introduction of a change in the d-band center of the metal via the addition of second metal (Greeley and Nørskov, 2005; Koh and Strasser, 2007). Good examples of these phenomena are highest intrinsic activity of Pt₃Ni (Stamenkovic et al., 2007) and dealloyed PtCu₃ (Mani et al., 2008) as compared to pure Pt toward the ORR.

Bimetallic NPs, in particular, core-shell NPs, have very special optical properties that can be tuned with structural and compositional modification. The relative modification of core and shell radii produces spectral shifts in a wide range that is in some cases as important as the morphological changes in a single component NP along with some possible applications in Surface Enhanced Raman Spectroscopy (SERS) (Negre and Sánchez, 2013).

Advantages of Aerogel Supported Bimetallic Nanoparticles

Aerogels as supports have many advantages compared to conventional porous materials used as supports for bimetallic NPs. The pore size of aerogels can be adjusted by changing synthesis conditions (Pekala, 1989). Moreover, aerogels have also a very narrow pore size distribution. Both of these factors may enable better control over the rates of diffusion of reactants and products to and from catalytic sites consisting of bimetallic NPs leading to higher conversions or selectivities in a particular reactor. Moreover, combination of powerful sol-gel chemistry with new techniques, such as supercritical deposition to prepare supported bimetallic NPs are leading to development of aerogel supported materials with superior properties (Barim et al., 2018). Unlike conventional porous materials, aerogels can also be produced in any form, such as beads, cylinders and monoliths which may be advantageous for various applications, such as optofluidic microreactors (Özbakir et al., 2017). There are also aerogels which are organic-inorganic hybrids with very complex morphologies which may be beneficial in designing systems for a wide range of reasons, such as to reduce deactivation rates or improve stability of bimetallic NPs (Kanamori et al., 2007, 2008; Hayase et al., 2014).

Synthesis and Properties of Aerogel Supported Bimetallic Nanoparticles

Routes to synthesize aerogel supported bimetallic NP synthesis are similar to the ones for conventionally supported bimetallic NPs (Vallribera and Molins, 2008). They can either be formed by deposition of the MPs on the pre-synthesized aerogel support, or by synthesis of the aerogel support along with the deposition of metal NPs or MPs; followed by the conversion of MPs to NPs. The most commonly used methods include sol-gel method, liquid phase impregnation, supercritical deposition, microwave-assisted deposition and electroplating. Their advantages and disadvantages; along with literature examples are summarized in Table 1. The routes and properties of prepared nanocomposites are explained in detail in the following subsections.

TABLE 1

Table 1. Advantage and disadvantages of aerogel supported bimetallic nanoparticle synthesis methods.

Sol-Gel Route

Sol-gel method is a simple and widely used technique to prepare aerogel supported bimetallic NPs under mild experimental conditions (Liu et al., 2013, 2015; Herrmann et al., 2014; Rechberger and Niederberger, 2017; Wen and Eychmüller, 2017). The method is based on polymerization chemistry which enables evolution from a molecular state to a continuous network via hydrolysis and polycondensation reactions (Schubert, 1996). Different strategies to synthesize inorganic aerogel supported bimetallic NPs have been developed using the sol-gel route (Mörke et al., 1994; Vallribera and Molins, 2008; Corrias and Casula, 2011) which consist of following steps: hydrolysis, introduction of the metals as precursors or NPs, condensation/gelation, solvent exchange, drying and thermal or chemical treatment of gels in order to convert MPs to their metal forms. Depending on the addition step of the metal (before or after hydrolysis) or the form of metal introduced (either as NPs or as MPs), four different routes are possible as shown in Figure 2. In the first route (Route A in Figure 2), MP solutions are mixed with skeleton precursor solution prior to hydrolysis. Multicomponent sol then undergoes condensation/gelation. After gelation, MPs are trapped inside the gel (Mörke et al., 1994). Subsequently, solvent exchange and supercritical drying are applied. Afterwards, MPs are converted to bimetallic NPs via thermal treatment or reduction by hydrogen, depending on the precursor properties. Hydrogen treatment at high temperatures (e.g., 300-800°C) can be applied to transform the bimetallic NPs into alloy NPs (Heinrichs et al., 1997; Job et al., 2005; Lambert et al., 2005). Alternatively, MPs can be introduced to the sol after hydrolysis of skeleton precursor (Route B in Figure 2). Resulting multicomponent sol undergoes condensation/gelation reactions, solvent exchange, supercritical drying and conversion of MPs to bimetallic NPs, as in Route A.

FIGURE 2

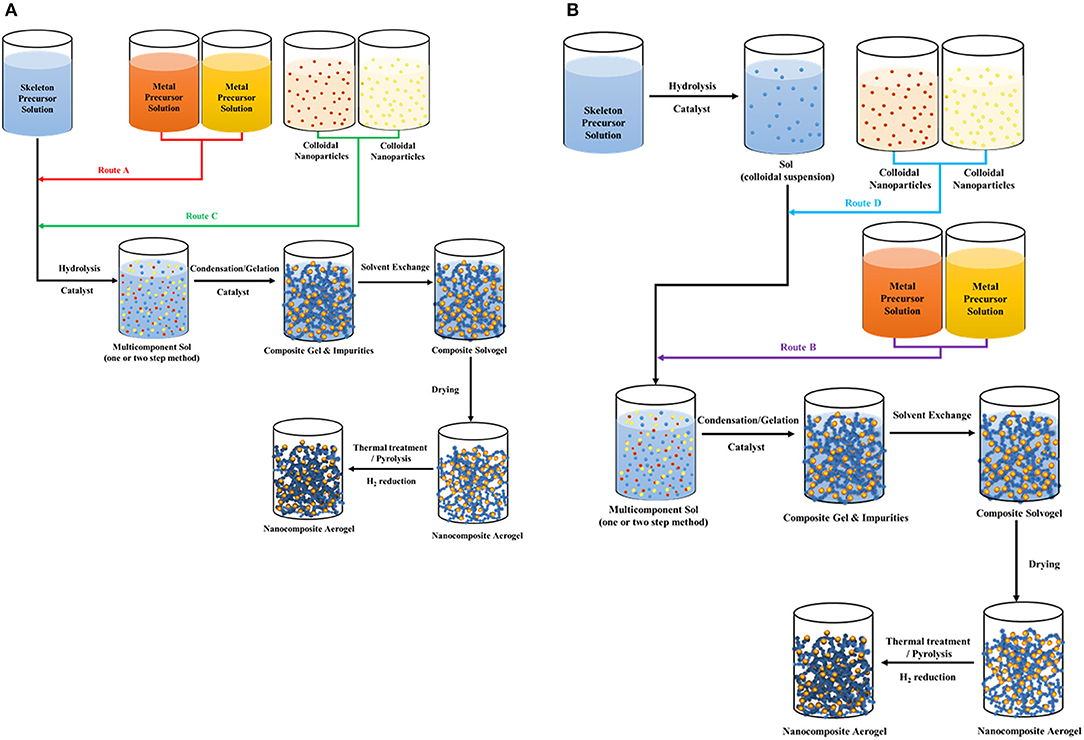

Figure 2. Schematic of preparation of aerogel supported bimetallic NPs via sol-gel method with the addition of MPs (Route A and B) or metal NPs (Route C and D) (A) before hydrolysis and (B) after hydrolysis.

Another technique of producing aerogel supported bimetallic NPs is the utilization pre-formed colloidal NPs, which are synthesized via reduction of MPs in a solution by the help of a reducing agent with or without stabilizing agents, depending on precursor and reducing agent properties (Reetz, 2007). Colloidal NPs can be introduced to the sol either before (Route C in Figure 2) or after (Route D in Figure 2) hydrolysis (Vallribera and Molins, 2008; Sadrieyeh and Malekfar, 2018a,b; Tesfaye et al., 2019). A similar procedure to Route C was reported by Da Silva et al. (2015) for Pt/rGO/TA (Pt multilayer reduced graphene oxide TA) synthesis. However, it has not yet been applied to aerogel supported bimetallic NPs to our knowledge. Since metals are already introduced as NPs in these routes, thermal treatment or chemical reduction is not necessary after drying step.

Among a broad range of inorganic aerogels, SA has been extensively investigated due to its well-developed sol-gel chemistry. PdAg/SA catalyst for selective dehydroclorination of 1,2-dichloroethane to ethylene was prepared via Route B using tetraethyl orthosilicate (TEOS), and palladium(II) acetyl acetonate and silver acetate, followed by supercritical drying, calcination and reduction with H₂ (Heinrichs et al., 1997). TEM images demonstrated that aerogels were decorated with small and large alloy NPs with diamaters ranging from 2 to 3 and 7 to 10 nm. Magnetic FeCo/SA was synthesized through Route A using TEOS, iron(III) nitrate and cobalt(II) nitrate, and an acid catalyst followed by high temperature supercritical drying and thermal treatment with H₂ at 800°C (Casula et al., 2002, 2003). The procedure resulted in formation of homogenously dispersed spherical FeCo alloy NPs with ~10 nm in size within the porous SA matrix with a high surface area of ~800 m²/g. The same group later demonstrated that urea-assisted co-gelation of silica and MPs led to fast gelation in preparation of FeCo/SA. The alloy NPs were 2-3 nm in size and homogeneously distributed in the pores of SA after a prolonged heat treatment (Casula et al., 2007; Casu et al., 2008). This route was then adapted for the synthesis of FeMo/SA (Marras et al., 2015). Fe and Mo NP sizes were in the range of 4-10 and 15 nm, respectively, however, alloy formation was not addressed.

AA was also used as a support for bimetallic NPs. FeCo/AA was prepared using Route B based on pre-hydrolysis of aluminum precursor, aluminum tri-sec-butoxide, subsequent co-gelation with iron(III) nitrate and cobalt(II) nitrate followed by high temperature supercritical drying and a reduction treatment (Corrias et al., 2004; Casula et al., 2005). Nanocomposites with overall alloy loading of 10 wt%, high surface area (300 m²/g) and low density (~0.03 g/cm³) were obtained. RuNi/AA was prepared via Route A, using aluminum isopropoxide as the skeleton precursor with nickel(II) nitrate and ruthenium(III) acetyl acetonate (Hossain et al., 2017). The gel was dried by supercritical drying, then calcined and heated under H₂ flow to promote the alloy formation in the alumina matrix. Average NP size was found to be 7.9 nm. BET surface area was 380 m²/g and pore volume was found to be 0.75 cm³/g. XRD and H₂-TPR results indicated the formation of RuNi alloy formation. Co/AA and CoNi/AA were synthesized via Route B, using aluminum nitrate as skeleton precursor, and cobalt(II) nitrate and nickel(II) nitrate as MPs. After gelation followed by supercritical ethanol drying at 260°C and 8.0 MPa, a composite powder was formed (Chen et al., 2010). Then, the sample was calcined at 650°C for 4 h in air. The average size of CoNi alloy NPs was 17 nm, while the average NP size of Co/AA was 25 nm. Also, the BET surface area of bimetallic aerogel (207.8 m²/g) was more than the monometallic Co/AA (170 m²/g).

AuAg/TAs were synthesized using Route D (Sadrieyeh and Malekfar, 2018a). The pre-synthesized Au and Ag NPs were added to a titania sol which was prepared with titanium isopropoxide. After gelation, solvent exchange, and supercritical drying steps, AuAg/TA was obtained. TEM results showed that uniform dispersion could not be obtained. Size of NPs varied between 6.5 and 7.5 nm.

CAs are mesoporous materials with enriched porosity and high specific surface areas, making them favorable for many practical applications (Thirumalraj et al., 2018; Tesfaye et al., 2019). They are generally produced by pyrolysis of organic aerogels. PdRu/CA was prepared via dropwise addition of palladium(II) chloride and ruthenium(III) chloride to phloroglucinol-formaldehyde (PhI-F) sol (Thirumalraj et al., 2018). Following gelation, curing, carbonization, and drying steps, PdRu alloy NPs with particle size ranging from 50 to 100 nm were homogeneously distributed on the surface of the CA matrix. Recently, CoNi/CA was prepared by first mixing sodium alginate solution with a salt solution to form granular hydrogel, followed by freeze-drying, annealing, and carbonization (Xie et al., 2019). NPs with diameters ranging from 10 to 20 nm were uniformly dispersed. CoNi alloy NPs with a core-shell hierarchical structure covered with graphitized carbon materials were observed in TEM images. NiCo/MWCNT (multiwalled carbon nanotube) was fabricated by a polyol reduction method starting with nickel(II) chloride and cobalt(II) chloride (Tesfaye et al., 2019). NiCo/MWCNT/PVAA (polyvinyl alcohol aerogel) was produced by mixing PVA solution with NiCo/MWCNT powder and freeze drying of the resulting hydrogels. Ni and Co NPs were uniformly distributed. When Co:Ni ratio was >0.25, agglomeration and growth of Co crystals started to occur. For smaller Co:Ni ratios, presence of Co decreased NP size. N and S doped PdNi/CA was prepared by adding raw cotton into palladium(II) chloride and nickel(II) acetate solution (Raj kumar et al., 2019). After hydrothermal treatment with thiourea, PdNi anchored carbon fiber hydrogels doped with N and S were obtained. XRD and SAED patterns confirmed that highly crystalline PdNi NPs were formed on N, S doped CA.

GAs are a class of carbon aerogels produced from layers of graphene. PtPd/GA on Ni foam (NF) were prepared using potassium hexachloroplatinate(IV) and potassium hexachloropalladate(IV) as MPs (Tsang and Leung, 2017, 2018; Tsang et al., 2017, 2019). MPs were added to a solution of graphene oxide (GO) dispersed in water and mixed. NF strip was added to the solution with ultrasonic treatment for 20 min and then kept at room temperature for 2 h. Vitamin C was added to the solution to form bimetallic NPs. PtPd/GH/NF (PtPd graphene hydrogel on NF) was obtained after thermal treatment at 60°C for 48 h. Afterwards, PtPd/GA/NF was obtained by freeze drying. TEM images showed that PtPd NPs had irregular shapes and were significantly larger than those in other studies involving GAs. The agglomeration of metal NPs was attributed to the absence of continuous stirring during formation of PtPd/GA network on NF. TEM, EDX and XRD analyses indicated PtPd alloy formation.

The presence of metallic precursors used in sol-gel route may cause undesirable pore properties since they may adversely affect the polymerization pathways (Bozbag and Erkey, 2015). Although it is a simple route and enables a good control of loading and composition, the aggregation and/or sedimentation of the pre-formed NPs may hinder the development of a homogenous dispersion in the gels. This can be overcome by functionalization of the surface of the NPs before gelation. Soft sonication may prevent sedimentation of the NPs during this stage (Hund et al., 2004; Vallribera and Molins, 2008).

Liquid Phase Impregnation

In liquid phase impregnation technique, a solution of MP is contacted with the support followed by filtering, drying and reduction steps. Wet impregnation and incipient wetness impregnation are two types of liquid impregnation based on the amount of solution used. If the volume of precursor solution used for impregnation is more than total pore volume of the support, the method is called wet impregnation. If the volume of the precursor solution is precisely equal to the pore volume of the support, then the technique is called incipient wetness, or dry impregnation method. Filtration step is not required for incipient wetness method. It is necessary to apply thermal treatment in a calcining and/or reducing environment in order to remove the anions (Pinna, 1998; Mehrabadi et al., 2017). In wet impregnation, the MP solution is contacted with support for a desired time and then the mixture is washed, filtered, and dried. MPs could potentially adsorb chemically and/or physically on the support. Physically adsorbed molecules may be removed during washing, filtration, and drying steps. Initial concentration of the precursor, temperature, pH of the solution, support pore volume and its surface chemistry are the important factors affecting the loading of the MPs on the support (Pinna, 1998). Surface oxygen containing groups, such as hydroxyl in inorganic oxide supports and surface oxygenated groups in carbonaceous supports determine the charge of support surface which play an important role in binding the oppositely charged MPs with surface ionic sites. The pH of aqueous solutions can change the surface charge of the supports since the surface oxygen containing groups react either with protons or hydroxyl groups in the solution. Therefore, pH and precursor concentration should be tuned accordingly.

Both wet and dry impregnation routes can be carried out via simultaneous or sequential impregnation of metals. In simultaneous impregnation, both MP solutions are mixed with support at the same time, followed by the subsequent steps of impregnation. In sequential impregnation, one of the MP solution is added to the support and treated as in the preparation of supported monometallic NPs. Subsequent to the preparation of supported monometallic NPs, the second MP solution is added to the prepared composite and then the subsequent steps of impregnation are applied.

PtNi/MWCNT-GA was prepared via simultaneous wet impregnation (Wang et al., 2017b). GO was synthesized via Hummer route. Two mixtures of the synthesized GO and MWCNT were prepared and sonicated. A precursor solution containing platinum(IV) chloride, nickel(II) chloride, sodium glutamate and 10 mL of EG solution containing 0.5 M NaOH was added to the GO and MWCNT suspension and stirred for 30 min. Then the mixture was maintained at 200°C for 10 h to form a cylindrical foam followed by washing, freeze drying and heat treatment at 450°C under N₂/H₂ gas mixture to obtain PtNi/MWCNT-GA. XRD of the prepared sample did not show any metallic Ni or Ni-oxide peaks indicating that Ni atoms were successfully incorporated into the Pt lattice as evident from the contraction in the lattice parameter obtained from XRD and TEM. Despite a substantially high PtNi metal loading of 80%, authors reported that PtNi NPs were distributed homogenously on the aerogel surface with an average PtNi NP size of 15 ± 1.0 nm showing that porous structure of the aerogel led to high metal dispersion at a very high metal content of 80 wt.% (Figure 3). Pt:Ni mole ratio was given as 1:1.05.

FIGURE 3

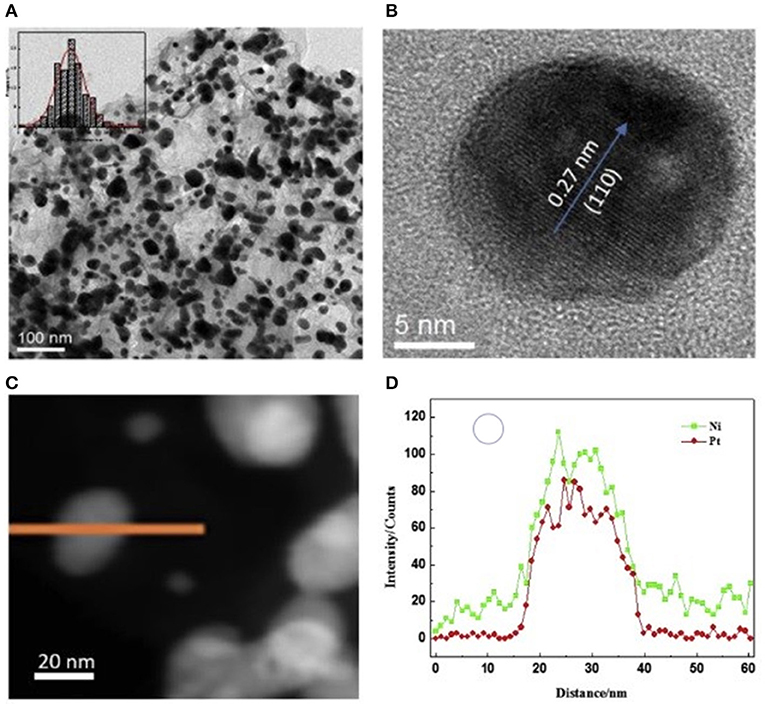

Figure 3. (A) TEM image, and the inset is the particle size distribution of PtNi NPs for PtNi/CA; (B) HRTEM image of a single PtNi NP; (C) EDS line scan of one PtNi NP and (D) Pt, Ni distribution. Reprinted from Wang et al. (2017b), ^©2017, with permission from Elsevier.

PtRu/CA was prepared via simultaneous wet impregnation (Du et al., 2007). CA was ultrasonically mixed with isopropanol and water for 1 h. Then, the resulting slurry was mixed with hexachloroplatinic acid and ruthenium(III) chloride. ${\text{NaBH}}_{\sout{4}}$ was used as the reducing agent Then, the catalysts were dried at 75°C in air. Total metal loading was 20 wt%. Prepared CA had a high surface area of 576 m²/g and a narrow pore size distribution with average pore size of 11.4 nm indicating a highly mesoporous structure. XRD showed that all plane angles were shifted to higher 2θ values showing that PtRu disordered alloy NPs were successfully formed on CA. TEM images showed that PtRu dispersion is better on CA when compared commercial PtRu catalyst on carbon black with slightly higher mean NP size (~3 nm). Better dispersion was attributed to higher surface area of CA than carbon black.

PtCu/SA was synthesized via sequential wet impregnation (Wang and Zhu, 2018). First, copper(II) nitrate was dissolved in water followed by dropwise addition of ammonia solution to adjust the pH. SA was then added and stirred for 4 h. The blue powder was collected by filtration and washing and then dried at 80°C. Then, the resulting powder was added to the hexachloroplatinic acid ethanol solution followed by stirring, filtering, and drying at 80°C for 12 h to remove the ethanol solvent. Final PtCu/SA was obtained after treatment at 300°C under H₂ flow. The XRD patterns of the PtCu/SA and Pt/SA showed that the peaks of Pt(200) and Pt(220) disappeared in PtCu/SA indicating that the incorporation of Cu to the crystal lattice of Pt. Moreover, the size of Pt particles was decreased, and the dispersion of Pt was improved. Particle size calculations based on the Scherrer equation revealed that the introduction of Cu decreased the Pt particle size from 21.5 nm in Pt/SA to 11.0 nm in PtCu/SA.

Liquid phase impregnation has some disadvantages. Evaporation of the solvent or reduction of inorganic precursors at high temperatures may lead to agglomeration of metal NPs on the support surface. It is difficult to control the size of metal NPs if the pore size distribution is broad. Furthermore, it is difficult to control NP size due to slow diffusion of ions through the liquid solvent. In addition, nanopores of the aerogels could collapse due to high surface tension of the liquid solvents, leading to a reduction in surface area and blockage of pores. As the liquid solvent is removed from the pores during the drying step, meniscus of retreating liquid creates locally strong forces which may lead to collapse of the pores (Bourikas et al., 2006; Erkey, 2009).

Supercritical Deposition

Supercritical deposition (SCD) is a powerful alternative technique for the preparation of supported metallic NPs which was first introduced in 1995 (Watkins and McCarthy, 1995). A supercritical fluid (SCF) is a fluid that has been heated and compressed above its critical temperature and pressure. Figure 4 shows three major steps of SCD which are dissolution of a MP in a SCF followed by adsorption of the precursor onto the surface of the support and conversion of the precursor to its metal form by various routes (Erkey, 2009; Bozbag et al., 2012; Türk and Erkey, 2018). Simultaneous (Cangül et al., 2009) deposition and sequential (Bayrakçeken et al., 2010) deposition are basically two approaches utilized for the synthesis of supported bimetallic NPs via SCD. In simultaneous SCD, two MPs are dissolved in SCF at the same time and then the subsequent steps of SCD are carried out whereas in sequential SCD, the single component SCD procedure is repeated twice.

FIGURE 4

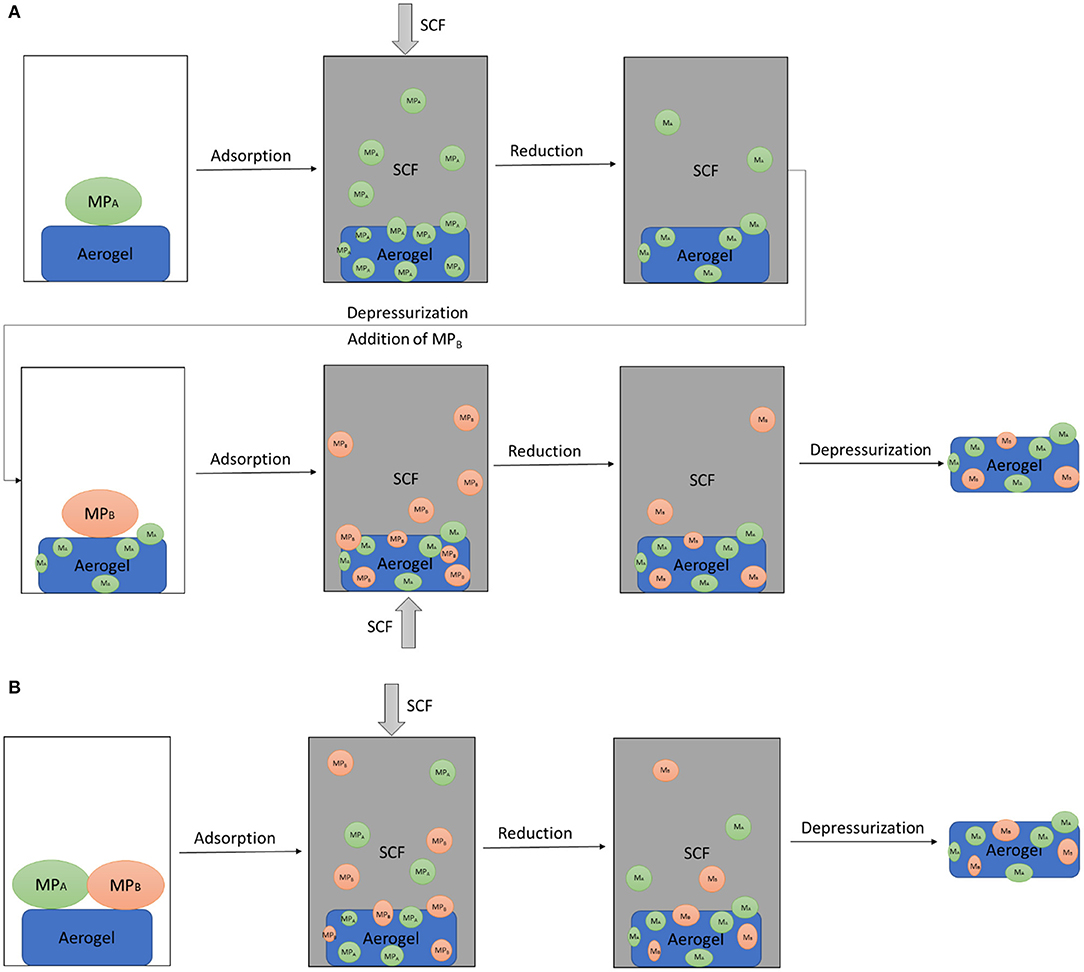

Figure 4. Sequential (A) and simultaneous (B) SCD with in-situ reduction. M, metal; MP, metal precursor, subscripts A and B denote two metals.

Due to gas-like diffusivity and viscosity, mass transfer rates in the presence of a SCF are fast. This enables fast rates of deposition, rapid penetration and wetting of pores as compared to liquid solvents (Zhang et al., 2008). A wide range of MPs can be dissolved in SCFs due to their liquid-like density (Erkey, 2009; Türk and Erkey, 2018). Using SCF as a solvent also prevents the pore collapse that may occur for nanostructured substrates, such as aerogels when organic solvents are used. Adjusting the thermophysical properties of SCFs like temperature and pressure, can be a very useful tool for the synthesis of supported NPs with remarkable control on loading, particle size and distribution. Furthermore, due to complete miscibility of SCFs with reactant gases, such as H₂ and O₂, high concentrations of the reactant gases can be obtained within SCF. This leads to high conversion rates of MPs to their metal forms, given that the reaction is not zeroth order with respect to the reactant gas. CO₂ has been the most commonly used SCF (scCO₂) since it is inexpensive, non-toxic, and non-flammable and has relatively easily accessible critical conditions Tc (31.1°C) and Pc (7.38 MPa).

The first study on the preparation of aerogel supported bimetallic NPs using SCD was reported by Erkey's group (Bozbag et al., 2013), who synthesized PtCu/CA using simultaneous SCD in scCO₂. In this study, the binary adsorption isotherms of MPs on CAs in a SCF medium were measured for the first time and modeled using the Ideal Adsorbed Solution Theory. The control over bimetallic NP properties, such as metal loading and metal composition was possible through the usage of the binary adsorption isotherms of the MPs. For the synthesis, bis (1,1,1,3,5,5,6,6,6-nonafluorohexane-2,4 diiminate) copper and dimethyl(1,5-cyclooctadiene)platinum(II) were dissolved in scCO₂ and adsorbed on the CAs. The adsorption equilibrium was reached in 4 h depending on the initial concentration of the MPs. Following the adsorption step, the adsorbed MPs on the CAs were thermally converted to their metal form under flowing N₂ at 400°C for 4 h. Prepared nanocomposite was characterized by TEM, XRD, and XPS. TEM images showed a homogeneous dispersion of NPs with a sharp particle size distribution. The size of the particles ranged from 2.9 to 7.2 nm. XRD patterns showed systematic shift in peaks indicating disordered FCC PtCu alloy phase as Cu content increased. XPS results revealed that PtCu NPs had Pt enriched shells.

PtFe/GA was successfully synthesized via simultaneous SCD (Zhou et al., 2017). XRD data showed PtFe/GA had FCC structure with all plane angles shifted to higher 2θ values indicative of alloy formation. Furthermore, there was a shift of 0.3 eV in the Pt 4f_5/2 peak in the Pt 4f XPS spectra for PtFe/GA compared to Pt/GA. TEM images showed that PtFe NPs were finely dispersed on GA with average NP 2.0 nm.

Recently, PtCu/CA was prepared via sequential SCD using scCO₂ followed by annealing (Barim et al., 2018). The effects of deposition order (either Pt or Cu first), Pt/Cu ratios, and annealing temperature on physical properties of the composite NPs were studied. Dimethyl(1,5-cyclooctadiene)platinum(II) and copper(II) trifluoroacetylacetonate precursors were adsorbed sequentially on the surface of CAs in presence of scCO₂ at 35°C and 10.7 MPa. In order to obtain the desired metal loading and composition, single metal adsorption isotherms for the MP-CA systems in scCO₂ were used. PtCu/CAs were annealed at different temperatures. XRD and TEM EDXS analyses showed that disordered PtCu alloy NPs were dispersed homogenously on the interior surface of CA. Alloyed fraction of total PtCu increased with increasing annealing temperature. Average PtCu alloy NP size increased from 1.8 to 4.5 nm with increasing annealing temperature.

SCD is an easily operated technique and has great potential to synthesize highly dispersed bimetallic NPs on aerogel supports without pH control of the solution. However, there are some disadvantages of this route. SCD requires SCF-soluble MPs which are more expensive compared to water-soluble counterparts. Low solubilities of some of the MPs in scCO₂ may lead to very long deposition times. The type of ligand and oxidation state of the metal of MPs were found to affect the solubility of the MPs in scCO₂ (Aschenbrenner et al., 2007). For complexes with the same ligand, as oxidation state of the metal atom increases, the MP becomes more soluble. Using ligands with higher solubility, such as fluorinated ligands or addition of a modifier may be beneficial to increase solubility of the precursors (Murphy and Erkey, 1997; Aggarwal et al., 2013).

Microwave-Assisted Deposition

Microwave assisted preparation of supported bimetallic NPs consists of preparation of a solution of the MP followed by the addition of the support to this solution. Subsequently, the solution is placed and heated in a microwave oven for a certain time at a desired microwave power and at practical microwave frequencies between 2.45 GHz and 900 MHz. Materials are then cooled down to room temperature, filtered, washed with deionized water and dried. Microwave technique enables the heating of materials or the reagent which possess adequate ratios of dielectric loss factor to dielectric constant via absorption of the microwave energy through molecular interaction with the electromagnetic field and then conversion to heat. During this process, MPs adsorb and convert to metal NPs on the support materials and the ligands should either desorb or be extracted with the washing step (Horikoshi and Serpone, 2016). PtCo/SA was prepared using the sequential approach where Co was first deposited using copper(II) nitrate via wet impregnation and ${\text{NaBH}}_{\sout{4}}$ as the reducing agent which was followed by the deposition of Pt via microwave assisted route using hexachloroplatinic acid in ethylene glycol (Yu et al., 2016). Catalysts had good dispersion and 3 nm of average NP size according to TEM data.

PtAu/CA was prepared by simultaneous deposition of hexachloroplatinic acid and gold(III) chloride into CAs via microwave-assisted polyol route (Zhu et al., 2012). The sample was dried in vacuum oven at 80°C for 12 h. N₂ physisorption analysis indicated that CA had high surface area (637 m²/g) and was mesoporous with an average pore diameter of 18.8 nm. XRD data showed shifts to lower 2θ degrees in all plane angles when compared to pure Pt. These shifts signify alloy formation between Pt and Au since lattice parameter of Au is higher than that of Pt. HRTEM images showed dispersed PtAu NPs on CA with little agglomeration and the average particle size was determined as 4.3 nm. Microwave assisted technique offers a relatively fast route for the preparation of supported bimetallic NPs. However, care must be taken to avoid hot spots that may form during microwave treatment that could potentially cause the agglomeration of NPs at certain regions of the support material.

Electroplating

Electroplating (electrodeposition) is usually performed to coat relatively flat surfaces with metal films for decorative purposes or to avoid metal corrosion. Technique is carried out in an electrolytic cell where a negative charge is applied on a support to be coated which is dipped to a solution containing positively charged metal cations which are then deposited onto the support due to applied potential difference (Rao and Trivedi, 2005). The electroplating approach was used to prepare FeCoP/GA (Zheng et al., 2016). Iron(II) sulfate, cobalt(II) sulfate, trisodium citrate, boric acid, sodium hypophosphite were dissolved in deionized water. The pH of the solution was adjusted to 5-6 using H₂SO₄. The temperature of the electrolyte was increased to 60°C. A GA with a height of about 5-10 mm was mounted on a titanium plate, which was used as a working electrode operating at a voltage of 1.0 V with respect to SCE. The samples were electroplated for 2-8 h. The resulting aerogel supported bimetallic NPs were amorphous according to XRD data and their sizes which varied between 30 and 100 nm depended on the plating time.

The electroplating technique offers a simple and conventional route to prepare metal/support composites that could be good candidates as electrocatalysts. However, the fact that the technique requires an electrode for the preparation of supported NPs makes it difficult to decorate the inorganic supports used in non-electrocatalytic applications with NPs.

Applications

Catalysis

Fuel cells are devices that convert chemical energy of a fuel, such as hydrogen and methanol into electricity by employing redox couple reactions occurring on an electrocatalyst surface. Since they are not heat engines, they are not bound by the Carnot cycle efficiency which makes them highly promising energy converters. Electrolyzers, on the other hand, utilizes electricity to convert water to hydrogen and oxygen on an electrocatalyst surface. Electrolyzers produce extremely pure hydrogen without any harmful emission making them suitable for use with hydrogen fuel cells to obtain a sustainable energy cycle (Zhang et al., 2016). Moreover, the energy obtained from renewable energy resources, such as sun, wind, and hydrothermal, can be stored in the chemical bonds of hydrogen through electrolyzers. Currently, hydrogen is mostly obtained by steam reforming of methane resulting in carbon dioxide emissions. Although, fuel cell and electrolyzers are quite advantageous from an environmental standpoint, the problems of durability, stability, poisoning and high cost of the noble metal based electrocatalysts have hindered their widespread utilization. Furthermore, electrolyzer technology requires the development of electrocatalysts with lower overpotential toward overall water splitting in order to reduce the energy consumption (Walter et al., 2010). Therefore, many research efforts are directed to improve electrocatalysts.

CAs are promising materials as electrocatalyst support in various electrochemical applications, such as fuel cells and electrolyzers due to their high electrical conductivity (Pekala, 1989; Maldonado-Hódar et al., 2000; Smirnova et al., 2005; Barim et al., 2017; Cai and Eychmüller, 2018). Recently, GA has emerged as a new class of electrically conductive, porous electrocatalyst support obtained via mild hydrothermal treatment of GO dispersions followed by supercritical or freeze-drying (Sarac Oztuna et al., 2017; Cai and Eychmüller, 2018). Importance of support material to obtain high performance electrocatalyst cannot be overstated since support significantly affects the parameters that are directly related to electrocatalytic activity, such as metal NP size and NP morphology. Supported metal NPs on CA, GA and their composites have been investigated for fuel cell and electrolyzer applications (Cai and Eychmüller, 2018).

The first study involving CA supported bimetallic NPs was conducted by utilizing PtRu/CA as electrocatalyst for DMFCs (Du et al., 2007). Results were compared with the commercial PtRu/C electrocatalyst. Commercial electrocatalyst showed the lowest onset potential toward methanol oxidation due to smaller PtRu NP size. Furthermore, increasing Ru content increased the onset potential and authors attributed it to the requirement of three neighboring Pt atoms for the adsorption and dehydrogenation of methanol which is the rate determining step in methanol oxidation. The maximum power density obtained from PtRu/CA and PtRu/C was similar although the metal content of PtRu/C was 1.5 times higher than that of PtCu/CA.

PtAu/CA was synthesized via microwave-assisted polyol method with the objective to improve the methanol tolerance of DMFC electrocatalysts (Zhu et al., 2012). High ratio of the oxidation current peak to reduction current peak (I_f/I_b) indicated a good methanol tolerance and PtAu/CA exhibited a higher I_f/I_b ratio than Pt/CA demonstrating the better performance of bimetallic systems. The authors also attributed this to the highly graphitized and mesoporous structure of CA that enhanced the electrical conductivity and mass transport, however, comparison to conventional supports, such as carbon blacks were not given.

The electrocatalytic activity of PtNi/CA was also investigated (Wang et al., 2017b) after theoretical calculations that indicated that PtNi₃ system gave the highest electrocatalytic performance toward ORR (Greeley and Nørskov, 2005). Prepared electrocatalyst showed 1.4 times higher mass activity at 0.9 V (vs. reversible hydrogen electrode, RHE) than commercial Pt/C. Furthermore, after accelerated stress tests, PtNi/CA electrocatalyst showed a 29% decrease in mass activity (35.7-25.3 mA/mgPt) whereas commercial Pt/C electrocatalyst exhibited a 52% decrease (25.2-12.1 mA/mgPt) indicating that highly porous structure of CA combined with the PtNi NPs resulted in highly durable and active ORR electrocatalysts. The methanol oxidation performance was also investigated in methanol added 0.5 M HClO₄ electrolyte. PtNi/CA gave slightly higher overpotential in the presence of methanol when compared to pure electrolyte, however, methanol tolerance was found to be higher than Pt/C.

PtFe/GA was synthesized and compared with Pt/GA (Zhou et al., 2017). Electrocatalysts were dealloyed electrochemically through continuous cycling to leach out Fe. New active sites were created with dealloying which was evident from the higher electrohemical surface area (ESA) of PtFe/GA (78 m²/g) than commercial Pt/C (69 m²/g). ORR curves of the dealloyed electrocatalyst shifted to higher potential when compared to commercial Pt/C. Furthermore, mass and specific activity of the dealloyed PtFe/GA were much higher than commercial Pt/C and also higher than the target set by U.S. Department of Energy, showing that highly active ORR electrocatalysts could be prepared by dealloying. Authors also compared Pt/GA and commercial Pt/C to investigate the effect of GA. Pt/GA showed 19 mV shift in the ORR curves to higher potential indicating that highly porous structure of GA resulted in maximized electrocatalyst surface area and enhanced mass transfer. The high activity of PtFe/GA can be attributed to the synergistic effects of GA support and alloying.

PtCu/CA also showed improved electrocatalytic activity toward ORR (Koh et al., 2008); therefore, ORR performance of PtCu/CA prepared via sequential SCD was investigated (Barim et al., 2018). Prior to electrochemical activity tests, electrocatalysts were dealloyed by continuous cycling in which ORR inactive excess Cu was selectively leached out of the PtCu NPs (Koh and Strasser, 2007; Dutta et al., 2010). Deposition order significantly affected the electrochemical performance as first Cu deposited samples showed no activity toward ORR due to Cu-enrichment on the surface of the PtCu alloy NPs upon dealloying which resulted in unfavorable NP morphology. Optimum annealing temperature was determined as 800°C. Furthermore, electrocatalytic activity increased with increasing Pt:Cu mole ratio from 1:1 to 1:3 consistent with the earlier reports on similar systems (Koh et al., 2008). Electrocatalytic activities of the PtCu/CA samples were also compared with commercial Pt/C and higher ESA and mass activity (at 0.85 V vs. normal hydrogen electrode, NHE) were obtained with the dealloyed PtCu/CA prepared with a Pt:Cu mole ratio of 1:3 and annealed at 800°C (Barim et al., 2018).

For PEM fuel cells, electrode fabrication process involves applying an ink solution prepared by sonicating a solution of electrocatalyst and a binder to the surface of the carbon paper or the membrane. Subsequently, the membrane is sandwiched between two layers of carbon paper using a hot press to form a membrane electrode assembly (MEA). Utilizing binders may block the active sites and processes, such as sonication and hot pressing can destroy the structure of the electrocatalyst both of which lead to a decrease in electrocatalytic activity. PdPt/GA on NF was used as binder free anodes for direct glucose fuel cells (DGFCs) and direct ethanol fuel cells (DEFCs) (Tsang and Leung, 2017, 2018; Tsang et al., 2017, 2019). Authors suggested that the preparation of the electrocatalyst directly on the conductive and macroporous NF might eliminate the aforementioned problems. Fuel cell testing was also done using DGFC (batch) and DEFC (continuous) where PtPd/GA/NF was employed in the anode and Pt/C was employed in the cathode and results were compared with the monometallic counterparts. At a Pd:Pt ratio close to 1:1, PtPd/GA/NF exhibited higher maximum power density than the monometallic Pt/GA/NF and Pd/GA/NF for both reactions showing the synergistic effects of Pt and Pd leading to higher electrochemical performance. Binder (Nafion®) added PdPt/GA/NF electrode was also tested and resulted in a significantly lower maximum power density than that of binder-free electrode in both cases confirming the blockage of active sites via addition of binder. Supported Pd electrocatalysts also suffered from rapid degradation and poisoning (Li et al., 2016). N and S doped PdNi/CA NPs confined in carbon nanotubes (CNT) were tested for ethylene glycol oxidation by cyclic voltammetry (CV) in alkaline electrolyte and in a microfluidic direct ethylene glycol fuel cell (Raj kumar et al., 2019). Authors reported that CNT growth increased the flexibility of CA and the carbon shell around the PdNi NPs prevented agglomeration, delamination, and dissolution, hence increasing the stability. Prepared electrocatalyst exhibited superior electrochemical performance toward ethylene glycol oxidation than the monometallic Pd/CA and also Pt/C. Authors attributed the superior performance of PdNi/NSCNT/CA to the combined effects of PtNi and porous structure of CA that facilitated maximum utilization of fuel, enhanced the mass transport of fuel and ions and prevented the fuel crossover.

Non-PGM bimetallic systems were also investigated as electrocatalysts. The electrochemical activity of NiCo/MWCNTA (MWCNT aerogel supported NiCo) toward urea oxidation reaction was studied (Tesfaye et al., 2019). NiCo/MWCNTA showed a 50 mV decrease in onset potential for urea oxidation when compared to Ni/MWCNTA which was attributed to enhanced specific area and structural defects created with the addition of Co which evidently promoted the electron transfer by allowing Ni to reach a higher oxidation state. Authors also compared the performance of MWCNTA to conventional MWCNT powder and MWCNTA showed significantly lower onset potential indicating that high surface area and hierarchical pore structure of MWCNTA enhanced the mass transport which enhanced the electrochemical performance.

Recently, aerogel supported bimetallic NPs were also investigated as electrocatalysts for electrolyzers (Gu et al., 2018; Zhang et al., 2018). Currently used electrocatalysts are active for either oxygen evolution reaction (OER) or hydrogen evolution reaction (HER) and thus research efforts are directed to develop highly active and inexpensive bifunctional electrocatalysts for overall water splitting (Wang et al., 2017a; Zhang et al., 2017; Pan et al., 2018). CoFe/GAs which were N, S- and N-doped under different annealing conditions (N₂ or NH₃) were synthesized (Zhang et al., 2018). SEM images showed that the porous structure of rGO aerogel allowed high dispersion of CoFe NPs on the rGO sheets. Confinement within the graphene sheets prevented the dissolution and agglomeration of NPs by increasing the interfacial contact. Based on TEM and SEM images authors concluded that the annealing gas had no effect on the average CoFe NP size and the composition. However, it affected the morphology and the electrocatalytic activity of the resultant CoFe NPs. Annealing under N₂ atmosphere led to highly crystalline N, S-doped NPs CoFe₂O₄/GA which had low onset potential for OER whereas annealing under NH₃ led to amorphous N doped CoFe/GA NPs which had low onset potential for HER. N-doped NiFe/GA NPs with Ni:Fe mole ratio of 3:1 annealed under NH₃ environment were investigated for OER and HER (Gu et al., 2018). Prepared electrocatalyst showed high electrochemical activity toward OER and HER with good stability over 100 h in alkaline media. DFT calculations revealed the combined effects of Ni, Fe, and N enhanced the electrical conductivity and promoted electron transfer from metal NPs to rGO which in turn increased the activity and tuned the electronic distribution of metal nitrides on the surface.

There are numerous catalytic applications of aerogel supported bimetallic NPs other than electrochemistry. CO₂ reforming of methane for hydrogen production has been investigated due to the demand for safer, cleaner, and more economical energy sources. Reforming of methane can be done by dry methane reforming, steam methane reforming and methane oxidative CO₂ (Oxy-CO₂) reforming (Jang et al., 2019). Ni-based and Co-based catalysts are preferred over their noble metal counterparts for reforming reactions due to their lower price and wide availability, yet they suffer greatly from catalyst deactivation as a result of either coke formation or sintering of active metals. Nevertheless, CoNi bimetallic catalysts on various supports have been shown to yield higher or similar activities and longer stability for methane reforming compared to their monometallic counterparts (Takanabe et al., 2005; Koh et al., 2007; Chen et al., 2010), indicating that there is a synergistic effect between Co and Ni. Catalytic activity and stability of CoNi/AA catalysts, with 20% metal loading and Co:Ni ratio of 9, were investigated for methane oxy-CO₂ reforming (Chen et al., 2010, 2011a, 2014). CoNi/AA performed better than Co/AA at various reactant gas ratios in a fixed bed reactor (Chen et al., 2010). XRD analysis on spent Co/AA showed that Co oxidized to less active Co₃O₄ during the reaction. XRD of fresh and spent CoNi/AA indicated the formation of CoNi metal alloy, and prevention of Co oxidation by the presence of Ni. Formation of metal alloy prevented metal sintering during reaction, which was also supported by H₂-TPR of calcined CoNi/AA. Suppression of Co oxidation and prevention of agglomerate formation by CoNi/AA was claimed to create a synergistic effect toward methane oxy-CO₂ reforming activity. In the same study, fixed bed reactor, conventional fluidized bed reactor, and magnetic assisted fluidized bed reactor (MAFB) were compared for methane oxy-CO₂ reforming activity of CoNi/AA catalyst. Due to enhanced gas-solid contact efficiency and longer residence time within the bed, MAFB was found to be the best performing reactor for this reaction. Among different ratios of Co:Ni of CoNi/AA catalyst (Co_xNi_y/AA, x and y being indicators of metal loading of Co and Ni, respectively where x, y = 0, 3, 5, 7, 10 wt% and x + y = 10), Co₅Ni₅/AA and Co₃Ni₇/AA were found to be the best performing catalysts in a fixed bed reactor (Chen et al., 2011a). TEM images showed that Co₅Ni₅/AA and Co₃Ni₇/AA catalysts had the smallest NP sizes after reduction. Since methane reforming is a structure sensitive reaction where defect sites, edges and kinks of metal NPs can be the active sites, catalysts with smaller particle sizes, where more metal-support interfacial structures occur, can result in higher activities. Afterwards, carbon deposition behavior was studied with different types of reactors. Again, MAFB was found to be the most suitable for methane oxy-CO₂ reforming reaction as the least catalyst deactivation occurred in this reactor (Chen et al., 2014).

Supercritical water gasification (SCWG) of biomass is an emerging technology for hydrogen production. In this process, biomass is hydrothermally converted to gaseous products at conditions above the critical point of water. Conventionally, SCWG is conducted using activated carbon, ZrO₂, Ru, Ni, NaOH, K₂CO₃, KOH, and Na₂CO₃ catalysts (Susanti et al., 2014). Among these, Ni-based catalysts are favorable because of their low price and availability; however, they suffer from coke deposition at high temperature applications. Addition of a noble metal as promoter has been shown to increase activity and selectivity toward hydrogen and decrease coke deposition (Mukainakano et al., 2007). Ru is known to prevent coke deposition and yield high activity and selectivity for SCWG. Therefore, Ru was incorporated as the promoter of Ni-based catalyst for SCWG of glucose (Hossain et al., 2017). Several RuNi/AA were compared with Ni/AA, Ni/Al₂O₃, and RuNi/Al₂O₃ xerogel (RuNi/AX) in terms of catalytic activity toward SCWG of glucose. H₂-TPR results showed that RuNi/AA had stronger metal-support interaction than RuNi/AX due to the presence of NiRu alloy. RuNi/AA gave the highest activity in tests carried out in a batch reactor. Spent catalysts were analyzed by XRD for deposited coke. Graphitic carbon peak was not observed in RuNi/AA and RuNi/AX after SCWG at 500°C. Formation of RuNi alloy, having strong metal-support interaction and high dispersion resulted in higher activity, selectivity, and effective prevention of coke deposition by RuNi/AA for SCWG of glucose.

Another route for hydrogen production is dehydrogenation of chemical hydrates. Ammonia borane (AB) is a suitable candidate for hydrogen production due to its high hydrogen content, stability, and solubility in water at room temperature. Noble metals, such as Pt, Ru, and Pd as well as non-noble metals, such as Co, Ni, Cu, and also their bimetallic combinations have been used for dehydrogenation of aqueous ammonia borane. In general, bimetallic catalysts were shown to exhibit higher H₂ yield. Aerogel supported Co-based catalysts were also shown to be catalytically more active than Co/MCM-41 due to higher dispersion of metals on aerogel support (Yu et al., 2015). To investigate the synergy between Co and Pt, PtCo/SA was compared with monometallic Pt/SA and Co/SA in terms of physical properties, activity, and stability (Yu et al., 2016). Six different bimetallic catalysts were prepared by varying the molar ratio of Pt:Co while keeping the loading amount of Co constant. Among bimetallic catalysts, the shortest time for complete hydrolysis was obtained with PtCo/SA having molar ratio of Pt:Co = 0.27:0.73, and which had highly dispersed small NPs without agglomeration. Reaction rates were found to be in the following order: Co/SA < Pt/SA < PtCo/SA. Turnover frequency of PtCo/SA was found to be 123.1 mol H₂/min. mol metal, which was higher than several previously reported multimetallic catalysts (Yu et al., 2016). This result was attributed to the synergy between closely contacted Pt and Co and/or formation of PtCo alloys.

Production of fine chemicals, polymers, perfumes, agrochemicals, and pharmaceuticals involves selective catalytic hydrogenation of unsaturated aldehydes. Selective cinnamaldehyde (CAL) hydrogenation to yield cinnamyl alcohol (COL) is facilitated by Pt-based catalysts. Some studies showed that introduction of a second metal may increase selectivity toward COL production (Vu et al., 2006; Guo et al., 2010). Pt/SA and PtCu/SA were synthesized and their activity toward selective hydrogenation of CAL were compared (Wang and Zhu, 2018). TOF of Pt/SA for COL production increased 10-fold when Cu was added. This increase was attributed to the increased fraction of Pt⁰ on the surface of PtCu/SA due to increased electron transfer between Pt and Cu.

It is known that addition of transition metals, such as Co, Ni, and Cr or base metals, such as Na and K greatly enhances the activity of Pt toward oxidation reactions (Liu et al., 2012). The activities of Pt/SA and PtCo/SA toward CO preferential oxidation were compared with commercial Pt/Al₂O₃ (Choi et al., 2008). Pt/SA was prepared by solvent exchange of wet gels with ethanol solution of hexachloroplatinic acid. Cobalt(II) nitrate was added either in series by the same method (PtCo/SA), or by impregnation (Co/Pt/SA). Activity tests were conducted within a temperature range of 25-300°C. Overall, catalytic activities were in the order of Co/Pt/SA ≈ PtCo/SA >> Pt/SA > commercial Pt/Al₂O₃. Light-off temperature for bimetallic catalysts were around 70°C while it was around 170°C for Pt/SA and commercial Pt/Al₂O₃.

Fischer-Tropsch (FT) synthesis can be used for the production of transportation fuels from H₂ and CO obtained from renewable sources. The reaction yields paraffins, olefins, and alcohols; ranging from C₁ to C₄₀ hydrocarbons (Mahmoudi et al., 2018). Mostly used metal catalysts include Fe, Co, Ru, and Ni. Bimetallic FeCo catalysts, either in oxide form or as a FeCo alloy, were shown to improve product quality and selectivity, compared to monometallic analogs (Duvenhage and Coville, 2005). 5 and 10 wt% FeCo/SA were prepared for FT reaction (Loche et al., 2012). FeCo alloy formation was observed by X-ray absorption spectroscopy (XAS) after reduction with H₂ at 800°C. FeCo/SA became catalytically active after alloy formation and it yielded more than 20% CO conversion at 180°C. In general, 5 wt% catalyst showed lower conversion than 10 wt% catalyst while both were stable during runs which lasted from 72 to 96 h. Although different supports or monometallic counterparts of these catalysts were not studied in this research, comparison with literature (Bali et al., 2009) revealed that alloy FeCo/SA was active at lower temperatures compared to Fe aerogels and Fe xerogels; and did not need a promoter, such as potassium.

MWCNTs can be produced by catalytic chemical vapor deposition (CCVD) where hydrocarbons or alcohol gases are catalytically decomposed on a supported metal NPs to form CNTs. FeMo/SA was investigated for MWCNT production via CCVD (Marras et al., 2015). Three FeMo/SA catalysts were prepared with Fe:Mo weight ratio being 5:1, 3:1, or 0.7:1. All three catalyst were found to be effective for MWCNT production. The highest CNT yield was obtained at 800°C.

Optics

Noble metal bimetallic NPs, such as AgAu and AgCu exhibit enhanced surface plasmon resonance (SPR) with visible light at well-defined frequencies and when hosted in a dielectric matrix, they can give rise to enhanced optical effects in SERS which makes them ideal substrates in detection of chemical and biological species (Ferrando et al., 2008; Bigall et al., 2009; Chen et al., 2011b; Cortie and McDonagh, 2011; Fan et al., 2013; López Lozano et al., 2013; Tang et al., 2014; Wen and Eychmüller, 2017). The incident light interacts with the structural units of the aerogels in sub-optical wavelengths and generates intense local electromagnetic field at the so-called “hotspots” between NPs leading to signal enhancement. The recent studies revealed great potential of bimetallic aerogels for use as highly sensitive SERS platforms to detect environmental and biological target molecules of trace concentrations (Bigall et al., 2009; Wen and Eychmüller, 2017). The use of AuAg NPs in sensing platforms is gaining considerable attention due to their high extinction coefficients and unique size dependent optical properties (Liu et al., 2011; Patra and Gopinath, 2016). AuAg alloy NPs and self-supported AuAg bimetallic alloy aerogel monoliths were tested for SERS performance (Gao et al., 2016). The nanocomposites exhibited a remarkable sensing capability down to 1 nM with enhanced signal intensities that were 42 times than those obtained from the AuAg alloy NPs. The improvement in the SERS performance of the aerogels is attributed to their highly porous mesoporous three-dimensional structures with irregularities and surface roughness at the nanoscale, which can possibly form large number of hot spots. Unique features of aerogel structures were found to enhance the SERS signals (Sadrieyeh and Malekfar, 2018a). AgAu/TA nanocomposites with spherical NPs having estimated average size lower than 10 nm were used as the SERS substrates for the detection of a probe molecule, crystal violate. The highly porous nanocomposite networks enabled the probe to diffuse into the aerogel network with efficient interaction with the metal NPs, which resulted in detection of crystal violate in concentrations as low as 10⁻¹⁰ M.

Aerogels comprising of SPR-active NPs have been also gaining increasing attention to fabricate plasmonic photocatalysts with excellent light absorption and superior photocatalytic performances in various environmental and energy conversion applications. These materials are composed typically of noble-metal NPs and semiconductor photocatalysts supported in an aerogel matrix, which enable to spatially separate and electrochemically connect plasmonic sensitizers to metal NP co-catalyst (Rosseler et al., 2010; DeSario et al., 2017; Sadrieyeh and Malekfar, 2018a,b). Visible-light absorption is enhanced in these aerogel-based plasmonic photocatalysts through SPR and generates reactive electron-hole pairs to drive visible-light photochemistry and solar fuels chemistry (Rosseler et al., 2010; Lou et al., 2014; Patra and Gopinath, 2016; DeSario et al., 2017). AuAg/TA with enhanced photocatalytic activities were developed (Sadrieyeh and Malekfar, 2018b). Working principle of the photocatalyst AuAg/TA was illustrated in Figure 5A. The photocatalytic activities of the AgAu/TA were investigated through the degradation rate of a model compound, salicylic acid, under a solar simulator. It was demonstrated that photocatalytic activities of the nanocomposites were higher than pure TA regardless of the NP type, size and even the synthesis method (Figure 5B). TEM and FESEM images in Figure 5C along with nitrogen sorption experiments showed that the NPs were spherical with an average particle size between 6.5 and 7.5 nm, and they were embedded into interconnected porous network of TA. The metallic NPs enabled the absorption of longer wavelengths of solar spectra toward the visible.

FIGURE 5

Figure 5. (A) Schematic of plasmonic AuAg/TA, (B) photocatalytic performances of different AuAg/TA and pure TA, and (C) FESEM and TEM images of AuAg/TA. Reprinted from Sadrieyeh and Malekfar (2018b), ^©2018, with permission from Elsevier.

The approach of coupling plasmonic metallic nanostructures in the porous network has the potential to impact a number of optical technologies including but not limited to solar energy harvesting, and photocatalysis. Owing to their unique physical and chemical properties including high electrical conductivity with effective surface area and mechanical strength, CAs have been particularly attractive in optoelectronic device applications, such as perovskite solar cells. A recent study demonstrated that core-shell hierarchical structured CoNi/CA with uniformly dispersed CoNi alloy particles with a particle diameter of 10-20 nm in the porous carbon medium could be successfully integrated in the solar cell assembly between the carbon electrode and the perovskite layer, thereby effectively improving the interface quality between the perovskite layer and the electrode and hole transporting ability (Xie et al., 2019). The number of optical and photonic applications of aerogels is expected to increase in the coming years, as the relationship between the nanostructure of aerogels and their optical properties is better understood. In addition, increasing market availability of different aerogels makes these materials attractive for the development of nanophotonic devices and ultra-lightweight plasmonic biosensors applications on a commercial scale.

Sensorics

Catalytic gas sensors are used for early leak detection of gases, such as hydrogen and hydrocarbons by a catalytic combustion reaction. Combustible gas sensors detect the temperature change caused by selective catalytic surface reaction between the target gas and oxidant. Aerogel supported metal nanocomposites can be used as the catalyst for this purpose. GA and boron nitride aerogel (BA) supported platinum or palladium NPs were used as the catalyst in a microheater-based combustible gas sensors (Harley-Trochimczyk et al., 2015). Hydrogen and propane could be detected with remarkable selectivity, faster response and recovery time when compared with commercial detectors (Harley-Trochimczyk et al., 2016). The promising performance of these type of sensors has attracted researchers' interests on the development of aerogel supported bimetallic catalysts toward sensing of chemical and biochemical materials.

Recently, PdRu/CA was studied as a catalyst for electrochemical detection of a food dye, sunset yellow (SY) (Thirumalraj et al., 2018). Figure 6 summarizes the preparation of PdRu/CA catalyst via sol-gel route and usage of this catalyst in detection of SY. The electrochemical performances of the modified screen printed carbon electrode (SPCE) for detection of SY were evaluated by CV in [Fe(CN)₆]³⁻/⁴⁻ electrolyte system. PdRu/CA-modified SPCE exhibited a more intense oxidation peak current and smaller peak to peak separation value, ΔE_p, indicating a higher conductivity and increased electrocatalytic activity of the electrode compared to other modified electrodes, especially Pd/CA catalyst. Furthermore, various concentrations of SY (0.02-130.14 μM) were correlated with intensity of oxidation peak current by a linear equation. Incorporation of Ru as the secondary metal provided synergy between bimetallic PdRu NPs and the porous CA support which improved the electron transfer process during electrooxidation of SY. There are very few studies on aerogel supported bimetallic sensors, however they have a great potential for detection of chemical and biochemical compounds.

FIGURE 6

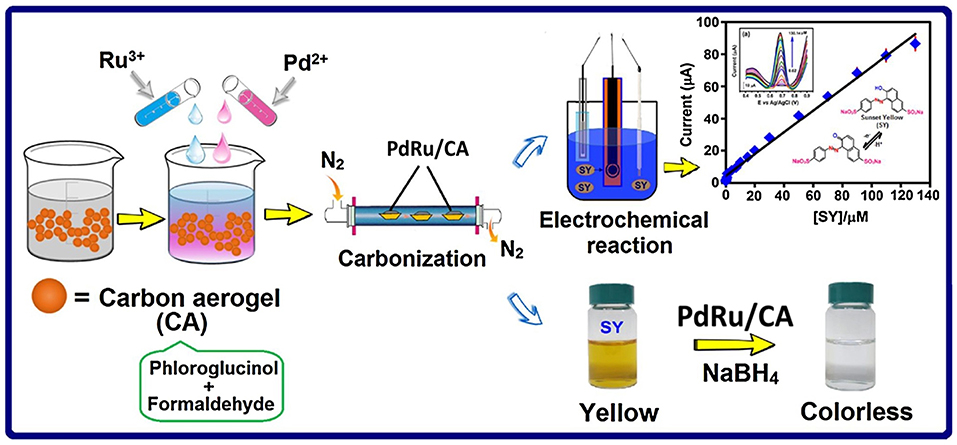

Figure 6. Preparation and application of the PdRu/CA nanocomposite toward sensitive electrochemical detection of SY. Reprinted from Thirumalraj et al. (2018), ^©2017, with permission from Elsevier.

Conclusions and Future Directions

The aerogel market is growing at an accelerated pace and is expected to reach 1.27 billion USD in 2026¹. The market price of a wide variety of aerogels is also decreasing due to the advancements in aerogel production technologies. For example, improvements in our understanding of the supercritical drying process is leading to reductions in operating pressures and drying times which are reducing the capital and operational costs of aerogel production (Özbakir and Erkey, 2015; Sahin et al., 2017, 2019). Using aerogels instead of conventional porous materials as supports for bimetallic NPs is becoming more attractive due to their open and interconnected pore structure, high porosity, high surface area and easily tunable properties. Therefore, aerogel supported bimetallic NPs can be considered as an emerging class of nanocomposites with superior properties with potential applications in optics, catalysis, adsorption, and medicine. Despite their potential, only a very small fraction of possible kinds and compositions of metallic NPs on aerogel supports have been synthesized and studied until now. Further studies on synthesis with different bimetallic NPs and different kinds of aerogels are definitely needed. There is a very limited number of studies which compare the performance of non-aerogel supported and aerogel supported bimetallic NPs. It is well known that support type can alter textural properties and performance of a nanocomposite as a result of different metal-support interactions, porosity of the support, thermal and chemical stability. Studies are needed on comparison of aerogel supported and non-aerogel supported bimetallic NPs in order to fully reveal the potential of combining superior properties of aerogels as support and bimetallic NPs.

Newer techniques, such as SCD and pulsed laser deposition have potential to produce materials that cannot be produced with conventional techniques. Understanding the factors controlling the morphology, size, and composition of these bimetallic NPs on the interior surface of aerogel supports is necessary so that these can be tuned to desired levels for a specific application. In the case of SCD, it is important to understand the adsorption kinetics of MPs in order to control NP size and metal loading (Bozbag et al., 2013). Binary adsorption kinetics may differ from single component kinetics (Bozbag et al., 2011). Investigation of binary adsorption isotherms may be very beneficial for further development of preparation of aerogel supported bimetallic NPs via SCD.

Studies on the effects of the surface chemistry and morphology of the aerogels on the formation and growth of nanoalloy particles would be especially welcome. Along this line, coupling in-situ characterization studies with computational atomic scale modeling should be extremely beneficial and accelerate the development of these materials for commercial applications. Surface modification of aerogels can enhance their properties, such as surface charge, surface energy, roughness, hydrophilicity, reactivity, electronic, magnetic, and mechanical properties (Sanli and Erkey, 2015). Using surface-modified aerogels as supports for bimetallic NPs can enhance the performance and even broaden the application range of this emerging class of nanocomposites.

Although aerogels have been shown to be good support materials for catalysis and sensorics applications, it is important to note that they may suffer from pore collapse when the aerogel is contacted with a liquid phase, or when temperature and pressure changes result in condensation of vapor phase within the pores of aerogels or increased surface tension. This can be overcome by using aerogels having higher density. While denser aerogels have smaller porosity, their network strength is higher which may prevent pore collapse (Deshpande et al., 1992).

The newly developing electrochemical energy conversion systems, such as alkaline fuel cells, water, and CO₂ electrolyzers and lithium ion batteries will definitely benefit from the superior properties of CA or GA supported bimetallic NPs. SA supported bimetallic NPs with high transparency could also have potential applications in photovoltaics or in photoelectrochemical processes.

Combining the optical and electronic properties of bimetallic NPs supported on aerogels could lead to the development of smarter materials in a variety of areas ranging from electronics to textiles. The need for the versatility of textural properties such the combination of micro and mesostructured support materials is accelerating for many areas including industrial catalysis. Aerogel supported bimetallic NPs and their composites with microporous materials such the MOFs (Ulker et al., 2013; Inonu et al., 2018) could bring many advantages, such as selectivity control for such processes. No studies on using carbohydrate aerogels as supports for bimetallic NPs have been reported so far. Their cheap price and interesting properties should lead to development of exciting nanostructured materials for a wide variety of applications in sensing and medicine (Ganesan et al., 2018; Wang et al., 2019). Organic-inorganic hybrid aerogels have been gaining attention due to their enhanced thermal and mechanical properties (Pirzada et al., 2019). Combining unique characteristics of organic and inorganic aerogels, hybrid aerogels can be used in extended fields of application. They have already been used as superinsulators, electrodes, and absorbents to separate oil-water mixtures (Kanamori, 2016), they can also be used as support materials for NPs. There is a limited number of studies on aerogel supported trimetallic NPs. Incorporation of a third metal can further enhance the performance of the nanocomposites in electrocatalysis (Kolla and Smirnova, 2015; Zhou et al., 2017). This knowledge can be applied to other applications as well.

We expect that our review on aerogel supported bimetallic NPs will pave the way for both experimental and theoretical researchers to broaden the applications of these nanocomposites and to incorporate with novel technologies for the invention of nanocomposites with even more improved properties in the future.
