Synergetic of Pt Nanoparticles and H-ZSM-5 Zeolites for Efficient CO2 Activation: Role of Interfacial Sites in High Activity

Catalytic systems prepared by controlled processes play an important role in the utilization of CO₂ via catalytic hydrogenation to produce useful C1 chemicals (such as CO, CH₄, and CH₃OH), which will be vital for forthcoming applications in energy conversion and storage. Size-controlled Pt nanoparticles were prepared by a polyol method and deposited on H-ZSM-5 (SiO₂/Al₂O₃ = 30, 80, and 280) zeolite supports. The prepared catalysts were tested for the CO₂ hydrogenation in the temperature range of T = 473–873 K and ambient pressure, with CO₂/H₂ = 1:4. Size-controlled Pt nanoparticles boosted the catalytic activity of the pure H-ZSM-5 zeolites resulted in ~16 times higher CO₂ consumption rate. The activity were ~4 times higher and CH₄ selectivity at 873 K was ~12 times higher over 0.5% Pt/H-ZSM-5 (SiO₂/Al₂O₃ = 30) compared to 0.5% Pt/H-ZSM-5 (SiO₂/Al₂O₃ = 280). In-situ DRIFTS studies assuming the presence of a surface complex in which the CO is perturbed by hydrogen and adsorbes via C-end on Pt but the oxygen tilts to the protons of the zeolite support.

Introduction

In recent decades, the industrialization and population growth have resulted in record high atmospheric concentration of greenhouse gases threatening the development of our economy and society (Mikkelsen et al., 2010; International Energy Outlook 2013, 2013). At the same time, the dispute between the increasing energy requirement and declining non-renewable fossil fuel resources could cause a foreseeable crisis to mankind. Carbon dioxide (CO₂) is the second most abundant greenhouse gas after water vapor. The utilization of CO₂ as a C1 building block is an outstanding approach toward decreasing the global CO₂ emissions and additionally initiates a new sustainable direction for producing beneficial feedstock chemicals and fuels (Aresta et al., 2016; Robert, 2016; Wang et al., 2016; Li et al., 2017). CO₂ is a thermodynamically stable molecule where the activation of CO₂ requires significant Gibbs energy input (Δ${\text{G}}_{298.15}^{○}$ = −394.4 kJ·mol⁻¹). In the presence of H₂, the catalytic hydrogenation of CO₂ is a thermodynamically favorable reaction. However, the most important nature of the proposed catalyst for CO₂ conversion is that it should lower the activation energy barriers in the various reactions of CO₂ with H₂. The key reactions along with their enthalpy and Gibbs energy values are listed below.

$\begin{array}{l}\text{Reverse water gas shift reaction }(\text{RWGS}):\\ {CO}_2+H_2\to CO+H_{2}O\\ \Delta H_{298K}=41.2kJ\times mo{l}^{-1};\Delta G_{298K}=28.6kJ\times mo{l}^{-1}& (1)\end{array}$

$\begin{array}{l}{\text{CO}}_2\text{methanation}:\\ {CO}_2+4H_2\to C{H}_4+2H_{2}O\\ \Delta H_{298K}=-252.9kJ\times mo{l}^{-1};\Delta G_{298K}=-113.5kJ\times mo{l}^{-1}& (2)\end{array}$

$\begin{array}{l}\text{Methanol formation}:\\ {CO}_2+3H_2\to C{H}_{3}OH+H_{2}O\\ \Delta H_{298K}=-49.5kJ\times mo{l}^{-1};\Delta G_{298K}=3.8kJ\times mo{l}^{-1}& (3)\end{array}$

The catalytic hydrogenation of CO₂ to CO, known as the RWGS reaction (Equation 1), is one of the promising ways to convert CO₂, whereas economize on the utilization of hydrogen compared with other CO₂ hydrogenation reactions (Danjun et al., 2011). In addition to that, the production of CO via RWGS reaction might be the best replacement technique to conventional coal gasification technology, which will become a basis for the future green coal chemistry industry. Particularly, methanation of CO₂ (Equation 2) is also one of the most significant reactions, this reaction can transform the exhausted CO₂ into methane (CH₄), where the formed methane can be recycled for the synthesis of fuel or chemicals (Sakakura et al., 2007; Olah et al., 2009).

Typically, ZSM-5 are used as sorbents and catalyst due to their unique channel structure, thermal stability, acidity, and shape-selective property (Falamaki et al., 1997; Kumar et al., 2002; Cheng et al., 2005; Ismail et al., 2006). Furthermore, the boosting effect of the size-controlled Pt nanoparticles (NPs) on the hydrogenation reaction of CO₂ was extensively studied and was attributed to the active cooperation of the metallic Pt and oxide support (Sápi et al., 2018). In this work, our purpose is to prove that the anchoring of Pt NPs on different ZSM-5 zeolite supports is a favorable heterogeneous hybrid catalyst for the hydrogenation of CO₂ into valuable products.

In their early work, Roman-Martinez and co-workers studied the structure sensitivity of Pt-based catalysts for the hydrogenation of CO₂ (Román-Martínez et al., 1996). Recently, Shyam et al. studied the effect of Pt interaction over different oxide (e.g., SiO₂, TiO₂, etc.) supports (Kattel et al., 2016). It was found that the formation of CO is preferred to that of HCOO⁻ ion, both kinetically and thermodynamically, indicating that methane can preferably be formed on the Pt-based catalysts. Therefore, when Pt NPs are packed on the zeolite support for hydrogenation of CO₂, the distribution of products is significantly affected due to the long contact time of reactant gases over the catalyst as well as the special pore structure of the zeolites. Particularly, the methanation process of CO₂ (CO₂ → CO → CH₄) involves the formation of CO as an intermediate and CH₄ as the final product. For this reason, constructions of such composites with Pt NPs would be advantageous to find the correlation between CO/CH₄ selectivity and structure sensitivity of the catalyst (Takeguchi et al., 2000; An et al., 2008). Zhan and Zeng also studied a novel sandwich type ZIF-67@Pt@mSiO₂ nanocube catalyst in CO₂ hydrogenation reaction (Zhan and Zeng, 2017). It was reported that CO₂ hydrogenation on Na-modified, Fe-based Fischer-Tropsch catalyst (Wei et al., 2017) and In₂O₃ catalyst (Gao et al., 2017) combined with H-ZSM-5 exhibited excellent selectivity in gasoline, and a CeO₂-Pt@mSiO₂-Co tandem catalyst with two metal-oxide interfaces converted CO₂ to C2–C4 hydrocarbons with 60% selectivity (Xie et al., 2017). Very recently, Zheng et al. developed a highly active catalyst that is a monodispersed spherical Zr-based metal-organic framework catalyst, Pt/Au@Pd@UIO-66, comprising an Au@Pd core-shell encapsulated in a UIO-66 center for the hydrogenation of CO₂ (Zheng et al., 2017).

In this study, 4.5 nm controlled-size Pt nanoparticles were anchored onto the surface of H-ZSM-5 zeolites with different Si/Al ratio and were tested in CO₂ hydrogenation reaction at 723–873 K. Size-controlled Pt nanoparticles boosted the catalytic activity of the pure H-ZSM-5 zeolites resulted in ~16 times higher CO₂ consumption rate. The activity was ~4 times higher and CH₄ selectivity at 873 K was ~12 times higher over 0.5% Pt/H-ZSM-5 (SiO₂/Al₂O₃ = 30) compared to 0.5% Pt/H-ZSM-5 (SiO₂/Al₂O₃ = 280). In-situ DRIFTS studies assuming the presence of a surface complex in which the CO is perturbed by hydrogen and adsorbes via C-end on Pt but the oxygen tilts to the protons of the zeolite support.

Experimental Section

Synthesis of the H-ZSM-5 Based Catalysts for CO₂ Hydrogenation Reactions

Synthesis of the H-ZSM-5 Zeolites

All NH₃-ZSM-5 zeolites were purchased from Alfa Aeasar. NH₃-ZSM-5-30 zeolite has a SiO₂:Al₂O₃ molar ratio of 30:1, NH₃-ZSM-5-80 zeolite has a SiO₂:Al₂O₃ molar ratio of 80:1 and NH₃-ZSM-5-280 zeolite has a SiO₂:Al₂O₃ molar ratio of 280:1. All the zeolites were calcined in air at ambient pressure and a temperature of 973 K for 5 h before the investigation and heterogeneous catalytic tests to stabilize the protonated ZSM-5 form. We use the notation H-ZSM-5-30, H-ZSM-5-80, H-ZSM-5-280, respectively, to specify the various calcined zeolites according to their composition.

Synthesis of 4.4 ± 0.6 nm Platinum Nanoparticles

The following method was used for the preparation of 4.4 nm Pt nanoparticles. 41 mg H₂PtCl₄ and 20 mg polyvinylpyrrolidone (PVP, MW = 40.000) were dissolved in 5 ml ethylene-glycol and sonicated for 30 min to get a homogeneous solution. The solution was evacuated and purged with atmospheric pressure argon gas. After three purging cycles, the flask was immersed into an oil bath heated to 473 K under vigorous stirring of the reaction mixture as well as the oil bath. After 120 min of reaction, the flask was cooled down to room temperature. The suspension was precipitated by adding acetone to the mixture. After precipitation, the particles were washed by centrifugation with hexane and re-dispersing in ethanol.

Synthesis of 0.5% Pt-H-ZSM-5 Catalysts

To fabricate the supported catalysts, the proper amount of ethanol suspension of Pt nanoparticles with known Pt concentration (measured with ICP-MS) and the H-ZSM-5 zeolite with different Si/Al ratio after calcination at 973 K were mixed together in ethanol and sonicated in an ultrasonic bath (40 kHz, 80 W) for 3 h. The supported nanoparticles were collected by centrifugation. The products were washed with ethanol three times and subsequently dried at 353 K overnight. H-ZSM-5-30, H-ZSM-5-80, and H-ZSM-5-280 zeolites loaded with Pt nanoparticles are labeled as Pt-H-ZSM-5-30, Pt-H-ZSM-5-80, and Pt-H-ZSM-5-280 according to their SiO₂/Al₂O₃ composition ratio.

Characterization of the ZSM-5 Supports and Pt-H-ZSM-5 Catalysts

The morphology of the support, as well as the dispersion of the Pt nanoparticles over the zeolite supports, was investigated by Transmission Electron Microscopy (TEM, FEI TECNAI G220 X-TWIN operated at 200 kV).

The crystal structure of the NH₃-ZSM-5, as well as the H-ZSM-5, were examined by X-ray Diffraction [XRD, Rigaku MiniFlex II Desktop Diffractometer operated with a Cu Kα source (λ = 0.1542 nm) at 30 kV and 15 mA].

The surface properties, specific surface area, and pore size distributions were investigated using a Quantachrome NOVA 3000e gas sorption instrument by N₂ adsorption at liquid N₂ temperature. The temperature-programmed desorption (TPD) was carried out in a BELCAT-A apparatus using a reactor (quartz tube with 9 mm outer diameter) that was externally heated. Before the measurements, the catalyst samples were treated in oxygen at 1,073 K for 30 min. Thereafter, the sample was cooled in flowing Ar to room temperature and equilibrated for 15 min. The oxidized sample was flushed with Ar containing 10% H₂, and the reactor was heated linearly at a rate of 20 K·min⁻¹ up to 1,373 K. The H₂ consumption was detected by a thermal conductivity detector (TCD). The powders were first out-gassed at 473 K to ensure a clean surface.

Inductively coupled plasma (ICP) mass spectrometry was used for the determination of the metal content in each sample synthesized. The measurements were performed with an “Agilent 7700x” type ICP-MS spectrometer. The sample was previously dissolved in an acidic mixture of HNO₃ and HCl.

In-situ infrared spectroscopy measurements were carried out with an “Agilent Cary-670” FTIR spectrometer equipped with “Harrick Praying Mantis” diffuse reflectance attachment. The sample holder had two BaF₂ windows in the infrared path. The spectrometer was purged with dry nitrogen. The spectrum of the pretreated catalyst was used as a background. At room temperature, a CO₂:H₂ molar ratio of 1:4 was introduced into the DRIFTS cell. The tubes were externally heated to avoid condensation. The catalyst was heated under the reaction feed linearly from room temperature to 773 K, with a heating rate of 20 K·min⁻¹ and IR spectra were collected at 50 K intervals. All spectra were recorded between 4,000 and 900 cm⁻¹ at a resolution of 2 cm⁻¹. Typically, 32 scans were registered. Due to the short optical path within the DRIFTS cell, the contribution of the reactant gases was negligible, and from the gas phase products, only the most intense features were observable.

CO₂ Hydrogenation Reaction in the Flow Mode

The hydrogenation of CO₂ was conducted in a fixed-bed down tubular quartz flow reactor at atmospheric pressure. The reactor system was equipped with a programmable temperature controller. A mixture of CO₂/H₂ with a ratio of 1:4 used as the feed. Typically, the catalytic activity tests were carried out using 0.2 g of grinded pelletized catalyst (typically round-shaped pellet with 13 mm diameter and 1–3 mm thickness are pressed under 10 bar, than mortared into 1 um pieces) which was suspended between two quartz wool plugs in the reactor with an inner diameter of 15 mm and the remaining vacant space was filled with quartz beads. Firstly, the catalyst was pretreated with O₂ at 50 mL·min⁻¹ at 573 K for 30 min, followed by in-situ reduction at the above temperature using H₂ flow for 30 min. Then the reactor was cooled down to 473 K and the reaction was tested in the temperature range of 473–873 K under a mixture of CO₂/H₂ with a ratio of 1:4 and a flow rate of 50 ml/min. The catalyst was heated with 20 K/min upto 873 K than for time-on-stream reaction the temperature was held for another 6 h. Outlet gases were fed into a gas chromatograph (GC 4890D, Agilent) equipped with PORAPAK QS+ S column and the products were analyzed by TCD and FID (Supelco EQUITY−1). Argon was utilized as a carrier gas for the gas chromatograph and hydrogen and synthetic air were used for FID. CO₂ conversion (X_CO2) and product selectivity (S_prod) toward to CO and CH₄ and C₂H₄ are defined as follows:

$\begin{array}{ll}{X}_{C{O}_2}=\frac{n{X}_{C{O}_2},in-n{X}_{C{O}_2},out}{n{X}_{C{O}_2},in}& (4)\end{array}$

$\begin{array}{ll}{S}_{prod}=\frac{n_{prod,out}\times N_C}{n{X}_{C{O}_2},in-n{X}_{C{O}_2},out}& (5)\end{array}$

Results and Discussion

Structural and Textual Properties

In our characterization experiments, the Brunauer-Emmett-Teller (BET) gas adsorption method was used for the determination of surface area of the catalysts. Results for the BET surface area (S_BET), and total pore volume (V_t) are summarized in Table 1. The BET surface area of H-ZSM-5 zeolites, is insensitive to the Si:Al ratio (330.4–360.3 m²·g⁻¹). However, the pore volume was ~2 times higher in the case of H-ZSM-5-30 zeolite compared to the other counterparts with higher Si/Al ratio.

TABLE 1

Table 1. Parameters based on the N₂ adsorption measurements of the pure H-ZSM-5 zeolites with different SiO₂:Al₂O₃ ratio.

Nitrogen adsorption-desorption isotherms of H-ZSM-5 zeolites are presented in Figure 1. The hysteresis loop confirms the type-IV behavior (type H2 according to IUPAC classification) (Sing, 1985), which is related to capillary condensation taking place in the mesopores and also 3D interconnectivity of the pores. In the case of H-ZSM-5-30, the largest hysteresis loop was observed at high pressure which is attributed to the large internal void.

FIGURE 1

Figure 1. N₂ adsorption-desorption isotherm plot of the pure H-ZSM-5 zeolites. (A) H-ZSM-5-30; (B) H-ZSM-5-80, (C) H-ZSM-5-280.

Typically, the catalytic hydrogenation of CO₂ depends upon the surface distribution of the acidic-basic sites of the materials. The Brønsted acidic sites can be essential for the activity in the field of catalysis (Zhao et al., 1993) and most of these sites exist within the pore structure of the catalyst.

In the case of the H-ZSM-5 zeolites, the total and Brønsted acidity of the catalysts were measured by TPD of ammonia and the resulted graphs are shown in Figure 2A. Table 2 represents the obtained values of the week and strong acidic sites (from Figure 2A) and basic sites (from Figure 2B). Two distinct NH₃ or NH⁴⁺ desorption peaks are observed in all H-ZSM-5 supports. The peaks at 454-481 K and 653-670 K corresponding to weak (physisorbed NH₃) and strongly-bonded Brønsted acid sites, respectively. In the case of the zeolites with lower Si/Al ratio, a higher amount of acidic sites were obtained. Costa et. al. already reported on the acidity of ZSM-5 zeolites, that the acidity depends on the Si/Al ratio and the number of the total acidic sites decreased with the increasing Si/Al ratio (Costa et al., 2000). The ammonium desorption peak temperature increases as the Si/Al ratio decreases. In the case of the weak acidic sites, the ammonia desorption takes place at 454, 476, and 481 K for H-ZSM-5-280, H-ZSM-5-80, and H-ZSM-5-30, respectively. A similar trend was observed in the case of the strong acidic sites (H-ZSM-5-280: 653 K, H-ZSM-5-80: 678 K, H-ZSM-5-30: 670 K), however, the strength of the acidic sites for H-ZSM-5-80 and H-ZSM-5-30 are close to each other.

FIGURE 2

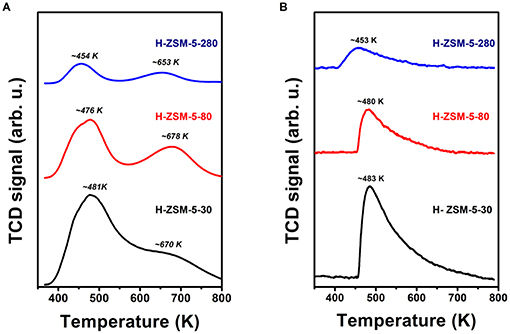

Figure 2. Temperature programmed desorption (TPD) of the H-ZSM-5 catalysts; (A) TPD of ammonia, (B) TPD of CO₂.

TABLE 2

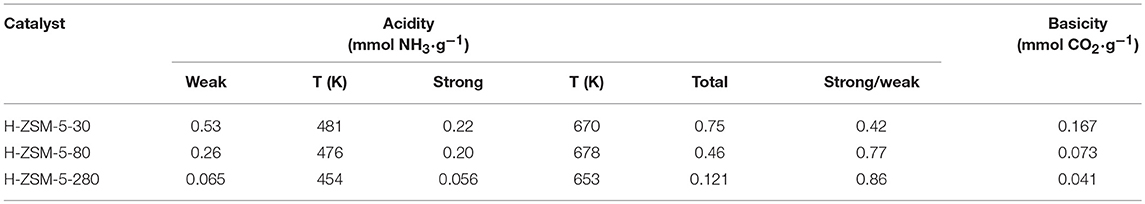

Table 2. Acidity and basicity of NH₃-ZSM-5 catalysts.

Thus, increasing the Si/Al ratio the peak corresponding to the weak acidic sites was shifted to lower temperatures, indicating the decreasing strength of such acidic sites. The highest total amount of acid sites was obtained over the H-ZSM-5-30 zeolite (0.75 mmol NH₃·g⁻¹) (Kim et al., 2011) due to the lowest Si/Al ratio and the lowest total number of acidic sites was observed for H-ZSM-5-280 (0.12 mmol NH₃·g⁻¹) due to the high Si/Al ratio. On the other hand, the ratio of the strong/weak acidic sites is the lowest in the case of the H-ZSM-5-30 zeolite. In summary, in the case of the H-ZSM-5-30 support, NH₃-TPD study showed that the acidic site concentration of the zeolite surface, as well as the strength of the sites was the highest, while the distribution of the weak and strong sites showed the lowest ratio of strong/weak sites.

Figure 2B represents the TPD-CO₂ profiles for the various H-ZSM-5 supports. The CO₂ adsorption capacity was the highest for H-ZSM-5-30 and the lowest for H-ZSM-5-280 with the value of 0.167 mmol CO₂·g⁻¹ and 0.041 mmol CO₂·g⁻¹, respectively. Also, the CO₂ desorption temperature is the highest for H-ZSM-5-30. From these results, we can conclude that H-ZSM-5-30 has the strongest basic sites as well as the highest surface concentration of them compared to other H-ZSM-5 zeolites.

N₂, NH₃, and CO₂ adsorption/desorption studies are bringing the following conclusions useful for our system as well as catalytic behavior. The Pt NP dispersion on the surface of the H-ZSM-5 supports may depend on the acidic strength of the support: the more acidic is the surface, the less sintering during the reaction maybe expected. However, earlier studies showed that Pt nanoparticles with >5 nm sizes are not showing any sintering under similar reaction conditions (Sápi et al., 2018). It is worth mentioning that the lack of the Brønsted acidic sites over the zeolite supports, the Pt NPs are not stable and consequently might be leading to the formation of their agglomeration over the support. Therefore, high acidic and also more basic zeolites (here: NH₃-ZSM-5-30) may offer higher stability for Pt species as well as different interfacial metal–support interactions (O'Malley et al., 2015). The above trend should be described through the following way; the Pt atom coordinated with a Brønsted proton and with a nearby bridging framework oxygen in the ZSM-5 support. These metal-support interacted sites are good for adsorption of CO₂ and may also offer CO₂ activation leads to higher catalytic activity as well as selectivity toward the desired products.

X-ray diffraction (XRD) patterns of the pure supports are displayed in Figure 3. Almost all NH₃-ZSM-5 samples are exhibited the similar diffraction patterns at 2θ angles of 7.9°, 8.8°, 23.1°, and 23.7°, which represent the (011), (020), (051), and (033) planes, respectively (Bin et al., 2014), characteristic for ZSM-5 type zeolites. The insignificant differences between NH₃-ZSM-5-30 and H-ZSM-5-30 samples show that the heat treatment of the samples at 973 K has no effect on the structure of zeolites. On the other hand, we can conclude that the structure of ZSM-5 remains intact at all Si/Al ratio.

FIGURE 3

Figure 3. XRD patterns of the NH₃-ZSM-5 catalysts.

Figure 4 shows the TEM images of the Pt-NH₃-ZSM-5 catalysts presented in this study. It is important to say that the polyol based method of Pt nanoparticle synthesis resulted incontrolled-size nanoparticles with a narrow size distribution centered at 4.4 ± 0.6 nm, where the particles have a spherical shape.

FIGURE 4

Figure 4. TEM images of H-ZSM-5 zeolite supported 4.4 nm Pt nanoparticles.

The Pt nanoparticles were uniformly dispersed on the H-ZSM-5 zeolites in all three Si/Al ratio cases. The microporous nature and the surface acidity of the ZSM-5 support helps the adsorption of Pt nanoparticles, which in turn improves the interaction between the Pt nanoparticles and the H-ZSM-5 zeolites which also resulted in the development of isolated and well-dispersed Pt nanoparticles on the surface.

Catalytic Hydrogenation of CO₂

H-ZSM-5 catalysts with different Si/Al ratios (30, 80, and 280) as well as their counterparts loaded with 0.5% of 4.4 nm Pt nanoparticles were tested in CO₂ hydrogenation reaction in a flow reactor in the temperature range of 473–873 K at ambient pressure. Before the catalytic tests, the catalysts were pretreated in O₂ at 573 K followed by H₂ reduction at the same temperature.

Initially, Pt-free H-ZSM-5 supports were tested where we found that the catalysts have slight activity at 723–873 K where the main products were CO, CH₄ as well as C₂H₄ (Figure 5). Zeolite with the highest aluminum content (H-ZSM-5-30) showed the highest catalytic activity compared to H-ZSM-5-80 and H-ZSM-5-280 at 723 K. In the case of the H-ZSM-5-80, the lowest catalytic activity was observed. In the case of H-ZSM-5-280, the highest catalytic activity (120 nmol·g⁻¹·s⁻¹) was observed at 873 K, which was ~2 times higher compared to the activity of H-ZSM-5-30 and that of H-ZSM-5-80. The catalytic activity was 5 times higher in the case of H-ZSM-5-280 at 873 K compared to the activity at 723 K. While catalytic activity was increased in the case of the H-ZSM-5-30 at higher temperature, the increment was not as significant. These unusual phenomena maybe attributed to the investigation at the low conversion regime, as well as the special influence of the different ratio of the weak and strong acidic sites as well as the basic sites developed by NH₃-TPD and CO₂-TPD under these low activity range.

FIGURE 5

Figure 5. CO₂ consumption rate and distribution of products at 723 and 873 K over Pt-free, H-ZSM-5 zeolites. (A) CO₂ consumption rate at 723 K, (B) Selectivity at 723 K (C) CO₂ consumption rate at 873 K, (D) Selectivity at 873 K.

In the case of the Pt-free zeolites, CO, CH₄, and C₂H₄ were formed at 723 K, while only CO and CH₄ was observed at 873 K. H-ZSM-5-280 showed the highest selectivity toward CH₄ (80%) at 723 K compared to H-ZSM-5-30 (2%) and H-ZSM-5-80 (62%). H-ZSM-5-30 produced 100% while there was no CO in the case of H-ZSM-5-80 and H-ZSM-5-280. A significant amount of C₂H₄ was formed in the case of H-ZSM-5-80 (36%) and H-ZSM-5-280 (22%).

At 873 K, CO was the main product in case of the testing of all Pt-free zeolites. While the formation of CH₄ is insignificant, it was observed that H-ZSM-5-80 showed the highest CH₄ selectivity (0.7%) compared to H-ZSM-5-30 (0.25%) and H-ZSM-5-280 (0.2%). It is interesting to note, that H-ZSM-5-80 showed the lowest activity compared to the zeolites with lower or higher Al/Si ratio. As TPD results showed, the concentration and strength of the different acidic and basic sites are crucial for the catalytic activity we believe that in this case, a special synergetic of the ratio, concentration and strength of the active sites needed for high activity.

4.4 nm Pt nanoparticles anchored to the surface of the different H-ZSM-5 catalysts were also tested in CO₂ hydrogenation reactions (Figure 6). H-ZSM-5-30 were able to consume CO₂ with a rate of 410 and 580 mmol·g⁻¹·s⁻¹ at temperatures of 723 and 873 K, respectively. The consumption rate of CO₂ was enormously increased after the addition of Pt nanoparticles (i.e., Pt-H-ZSM-5-30 performed with a CO₂ consumption rate of 1,630 and 8,130 mmol·g⁻¹·s⁻¹ at 723 K and 873 K, respectively). Pt supported on zeolites with lower Si/Al ratio showed higher activity. In the case of Pt-H-ZSM-5-30, the catalytic activity (1,630 mmol·g⁻¹·s⁻¹) was 3 times as well as 4 times higher compared to the activity of Pt-H-ZSM-5-80 (530 mmol·g⁻¹·s⁻¹) and Pt-H-ZSM-5-280 (460 mmol·g⁻¹·s⁻¹), respectively at 723 K. The same trend was observed in the case of activity at 873 K.

FIGURE 6

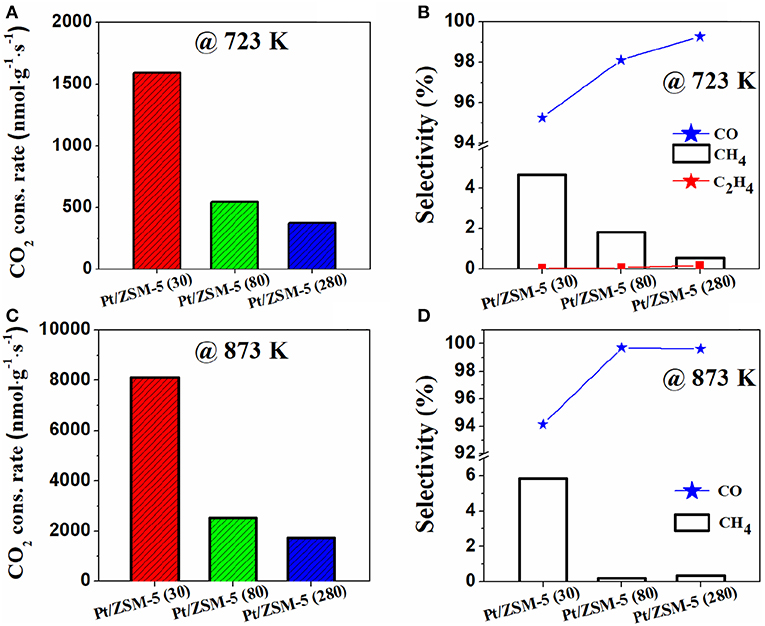

Figure 6. CO₂ consumption rate and distribution of products at 723 and 873 K over 0.5% Pt supported on H-ZSM-5 catalysts. (A) CO₂ consumption rate at 723 K, (B) Selectivity at 723 K (C) CO₂ consumption rate at 873 K, (D) Selectivity at 873 K.

For the Pt-H-ZSM-5 catalysts CO and CH₄ was the main product, where a small amount of C₂H₄ was formed only at 723 K. All the Pt-loaded catalysts were more selective to CO than CH₄ at 723 K as well as 873 K. The CH₄ selectivity is low, however, the Pt-H-ZSM-5-30 catalysts show 3-10 times higher methane selectivity compared to the catalysts based on zeolites with higher Si:Al ratio. At 873 K, in the case of the Pt-H-ZSM-5-30 catalyst, the methane selectivity is 20 times higher compared to the Pt-free, H-ZSM-5-30 zeolites.

After we tested the samples upto 873 K, the catalysts were monitored at the same temperature for another 6 h. During the time-on-stream measurements no significant deactivation was observed.

Anchoring of Pt NPs over the H-ZSM-5 zeolites directed to the synthesis of a more active catalyst, where the pores of the zeolite support are appropriate to adsorb the reactant molecules (CO₂ and H₂). Presumably, the Pt NPs are located on the surface as well as in the channels of the zeolites support and the upcoming CO₂ can be captured inside the cage. Then the concentration of CO₂ is much higher near the Pt NP. It is worth mentioning that with increasing the reaction temperature, the methane (hydrocarbon) selectivity decreased and the CO selectivity increased. Therefore, we deliberate that the relatively lower temperature is suitable for obtaining a high yield of methane. The superior performance of Pt-H-ZSM-5-30 can be attributed to its highest Brønsted acidity but also to the formation of homogeneously dispersed Pt NPs over the zeolite support. The resultant composite catalysts are highly active in gas-phase CO₂ hydrogenation, in which the reaction pathway involves (i) a Pt site that might be involved in the formation of CO from CO₂ through the reverse water gas shift reaction and, subsequently, (ii) methanation and or hydrogenation of CO catalyzed by the nearby Brønsted acidic sites. This can be explained by the following way; the edges and corners of the Pt nanoparticles are active sites and kinetically preferred to stimulate the hydrogenation of the CO₂ reaction. The adsorption of CO₂ over the Pt NPs (binding energy = −0.23 eV) is the rate-determining step for the overall conversion of CO₂ to CO, CH₄, CH₃OH, and C₂H₄. For a deeper understanding of the mechanisms, high activity and behavior of the catalysts in-situ DRIFTS studies were performed and discussed in the following section.

In-situ DRIFTS Studies of the Catalysts Under Reaction Conditions

For heterogeneous catalytic reactions, the exploration of surface species formed during the catalytic processes plays a decisive role in understanding the reaction mechanism. Toward this goal, DRIFT spectra were monitored at increasing reaction temperatures, in the presence of the reactant mixture/products. The detailed infrared studies were performed on H-ZSM-5-30 for reference state, as well as on Pt-H-ZSM-5-30 and Pt-H-ZSM-5-280 catalysts under reaction conditions (4:1 H₂:CO₂ ratio at 323–773 K) using FTIR spectrometer equipped with diffuse reflectance attachment (Figures 7, 8).

FIGURE 7

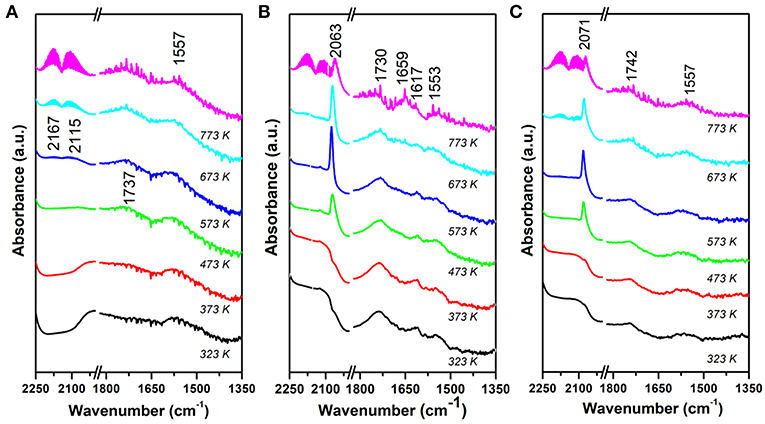

Figure 7. DRIFTS spectra of H-ZSM-5-30 (A), Pt-H-ZSM-5-30 (B), and Pt-H-ZSM-5-280 (C) under reaction conditions (CO₂:H₂ = 1:4) at 323–773 K.

FIGURE 8

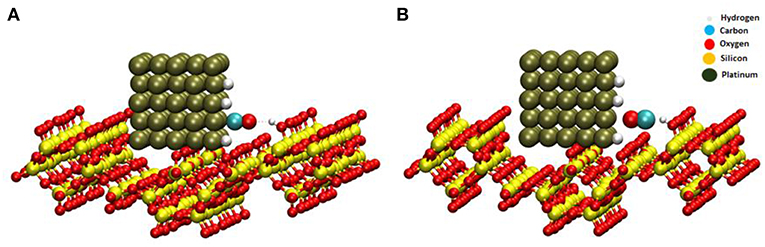

Figure 8. CO adsporbs on the Pt NP via the C end (A), and CO adsorbs to Pt NP via the O end (B).

The evaluation of the low wavenumber (1,300–2,000 cm⁻¹) region is difficult, as the zeolites itself has weak absorptions at the region as well as a sharp absorption edge at ~1,300 cm⁻¹. Although these features should be accounted for by the background spectrum, they might also change as a function of temperature and thus disturb our spectra. Above the frame vibrations of zeolites we obtained relatively weak bands at 1,557 cm⁻¹ already at 323 K in the case of H-ZSM-5-20 (Figure 7A). These bands can be attributed to the formation of formate ion (HCOO⁻) from the CO₂ + H₂ reaction mixture, and these are assigned to ν_a(OCO) and ν_s(OCO) vibrations, respectively (Liao et al., 2001; Raskó et al., 2004). When the reaction temperature is increased to 573 K, a new weak peak developed at 1,737 cm⁻¹ which can be tentatively assigned to aldehyde like CO stretch (Novák et al., 2002; Sápi et al., 2018). These bands were present up to 873 K, from 673 K peaks for gas phase CO (2,115 and 2,167 cm⁻¹) and methane (3,013 cm⁻¹) showed up (not shown here). It is interesting that when the acidity is decreased by the increasing Si/Al ratio, the formaldehyde-like CO (formyl) decreases, on the surface of Pt-H-ZSM-5-280.

It is very likely, in line with the literature data obtained on different catalysts (Wang et al., 2015; Sápi et al., 2018; László et al., 2019) that the activation of CO₂ on zeolites does not occur basically via direct dissociation to adsorbed CO and O; rather it proceeds through a carboxylate or bicarbonate intermediate, which reacts with adsorbed hydrogen species and formate is produced (Wang et al., 2015; Sápi et al., 2018). The formate intermediate may transform to the formaldehyde form at higher temperatures if a significant number of protons are available:

$\begin{array}{ll}{\text{CO}}_{2(\text{a})}^{\text{*}}+{\text{H}}_{(\text{a})}({\text{OH}}_{(\text{a})})\to ({\text{HCO}}_3^{-})\to {\text{HCOO}}_{(\text{a})}+{\text{O}}_{(\text{a})}& (1)\end{array}$

$\begin{array}{llll}\text{HCO}{\text{O}}_{(\text{a})}& +& {\text{H}}_{(\text{a})}\to {\text{H}}_2\text{C}{\text{O}}_{(\text{a})}& (2)\end{array}$

On the other hand, the formate may decompose to methane (Román-Martínez et al., 1996) or CO as was observed on NiO (Sápi et al., 2018), and at higher temperatures, the formaldehyde may transform to gas phase CO on TiO₂ (Raskó et al., 2004):

$\begin{array}{ll}{\text{H}}_2{\text{CO}}_{(\text{a})}\to {\text{CO}}_{(\text{g})}+{2\text{H}}_{(\text{a})}& (3)\end{array}$

On Pt free zeolites the reaction partway strongly depends on acidity and, in harmony with this, on the Si/Al ratio. On less acidity sample this kind of formaldehyde form was not observed on IR spectra. According to catalytic measurements on pure zeolite CO formation was the significant reaction pathway. We may suppose that the CO formation occurs via decomposition of formate:

$\begin{array}{ll}{\text{HCOO}}_{(\text{a})}\to {\text{CO}}_{(\text{a})}+{\text{OH}}_{(\text{a}}& (4)\end{array}$

At the high Si/Al ratio with less acidic character, the formate may partially decompose via C-O bond breaking and the CH fragments hydrogenate to methane according to RWGS reaction (Wang et al., 2014)

$\begin{array}{ll}\text{HCO}{\text{O}}_{(\text{a})}\to {\text{H}}_2\text{CO}{\text{H}}_{(\text{a})}\to {\text{H}}_2{\text{C}}_{(\text{a})}+\text{O}{\text{H}}_{(\text{a})}& (5)\end{array}$

$\begin{array}{ll}{\text{H}}_2{\text{C}}_{(\text{a})}+2{\text{H}}_{(\text{a})}\to \text{C}{\text{H}}_{4(\text{g})}& (6)\end{array}$

Ethylene formation was also detected on zeolites with less acidic character (Figure 5B). It means that a certain fragment of CH_2(a) recombines, and ethylene is formed in a fast coupling reaction step: (Kiricsi et al., 1999)

$\begin{array}{ll}{\text{H}}_2{\text{C}}_{(\text{a})}+{\text{CH}}_{2(\text{a})}\to {\text{C}}_2{\text{H}}_{4(\text{g})}& (7)\end{array}$

Adsorbed ethylene or ethylidine were not detected in DRIFTS during the reaction, it means that the ethylene forms in the surface reaction rate determine step.

Pt-H-ZSM-5-30 and Pt-H-ZSM-5-280 catalysts contain more absorption bands during the reaction (Figures 7B,C). Peaks for bidentate formate also appeared at 1,553 cm⁻¹, but unfortunately, the symmetric component probably overlaps with the Si-O stretching band. At low-temperature regime (323–573 K) a peak was detected at 1,617 cm⁻¹ wich is attributed to monodentate formate (Wang et al., 2015) on Pt-H-ZSM-5-30. This peak may have a bicarbonate component which is the precursor for formate formation (Wang et al., 2015). Formate species is generally accepted as a key intermediate in CO₂ hydrogenation in literature among others on Pt/NiO (Sápi et al., 2018), Pd/Al₂O₃ (Erdöhelyi et al., 1986; Wang et al., 2015), Rh/Al₂O₃ (Solymosi et al., 1980), and Rh/TiO₂. (Novák et al., 2002). We believe that in our case the bidentate form appears on the H-ZSM-5 and monodentate formate on the Pt sites which play also significant role in CO₂ + H₂ reaction. As we demonstrated in Figure 6B, the formation of methane drastically increased on Pt containing Pt-H-ZSM-5-30. The methane formation proceeds very probably through formate pathway (Román-Martínez et al., 1996; Wang et al., 2015; Sápi et al., 2018), preferentially on Pt sites:

$\begin{array}{ll}{\text{HCOO}}_{(\text{a})}+{\text{H}}_{(\text{a})}\to {\text{HCOOH}}_{(\text{a})}{}^{*}& (8)\end{array}$

$\begin{array}{ll}{\text{HCOOH}}^{*}+{\text{H}}_{(\text{a})}\to {\text{H}}_2{\text{COOH}}_{(\text{a})}{}^{*}& (9)\end{array}$

$\begin{array}{ll}{\text{H}}_2{\text{COOH}}_{(\text{a})}{}^{*}\to {\text{H}}_{\text{n}}{\text{CO}}_{(\text{a})}{}^{*}+{\text{OH}}_{(\text{a})}& (10)\end{array}$

The H_n${\text{CO}}_{(\text{a})}^{*}$ (n = 1, 2) intermediates may stabilize on the surface either as adsorbed formaldehyde and decomposes to CO (Equation 3) or decomposes to CH₂ via C-O rupture as it described in Equations 5,6 and finally CH₄ was produced. Carbonyl hydrites, H_n${\text{CO}}_{(\text{a})}^{*}$ (n = 1, 2) or with other words hydrogen perturbed adsorbed CO is frequently supposed in CO₂ hydrogenation reactions (Solymosi et al., 1981; Henderson and Worley, 1985; Fisher and Bell, 1996; Wang et al., 2015). This band is usually detected at 1,825–1,840 cm⁻¹. In this structure, it is suggested that CO bonds linearly to noble metal perturbed by hydrogen (Henderson and Worley, 1985; Fisher and Bell, 1996). The frequency shift (~200 cm⁻¹) comparing to simple linearly bond CO (2,070 cm⁻¹) indicates a weakening in C-O bond. The support for hydrogen-assisted dissociation of CO comes from the observation of methane formation at temperatures lower than those required for dissociation in the absence of hydrogen (Sachtler and Ichikawa, 1986). BOC-MP calculation has also shown that the dissociation of H_nCO, where n = 1, 2, or 3, is energetically more favorable than the direct dissociation of CO on Pd or Pt (Shustorovich and Bell, 1988). We did not detect this wavenumber but we observed further frequency shift in C-O bond (1,730 cm⁻¹) even at 323 K (Figure 7B), which indicates a further weakening in C-O bond.

The peak at 1,730 cm⁻¹ position may attributable to adsorbed formyl or formaldehyde (CH₂CO) as it was observed on Pt free H-ZSM-5-30 at high temperatures (Figure 7A). However, we think that H_n${\text{CO}}_{(\text{a})}^{*}$ intermediate could also exist at this wavenumber on Pt-H-ZSM-5-30 from 323 K (Figure 7B). For identification of this species, we should mention that band around 1,750 cm⁻¹ was observed upon CO adsorption on Co₃O₄(111) film [and at somewhat lower wavenumber on MgO(100) and Fe₃O₄(111)]. The band was attributed to a weakly bound bidentate carbonate which is formed at defect site (Ferstl et al., 2015). However, in our case, this band was not observed during adsorption of CO₂ without hydrogen. We suggest that the CO in this form exists in a surface complex in which the CO is perturbed by hydrogen and adsorbes via C-end on Pt but the oxygen tilts to the proton in zeolites. The other scenario is also imaginable; namely the H_n${\text{CO}}_{(\text{a})}^{*}$ bond to zeolite frame and the oxygen tilts to Pt site or hydrogen located on Pt at the interface. These two scenarios are shown in Figure 8. Recently, 1,720 cm⁻¹ infrared band was observed during the interaction of CO₂ with H₂ on Rh/Al₂O₃. This band was attributed to bridge bonded CO species positioned between Rh and Al atoms from the support. In our study, in the case of the Pt-H-ZSM-5-30, the peak area of the 1,737 cm⁻¹ band decreases (Figure 9A) while CH_x and CH₃ species were developed with increasing temperature as well as >600 K gas phase methane was detected (Figure 9C). However, in the case of Pt-free H-ZSM-5-30, no CO or CH_x was detected only the presence of CH4 at elevated temperature (Figure 9B). This phenomena maybe attributed to the fact that, the inclined H-CO species is forming methane at the Pt/H-ZSM-5 interface, however, in the case of the Pt-free catalyst the formate route is favorable.

FIGURE 9

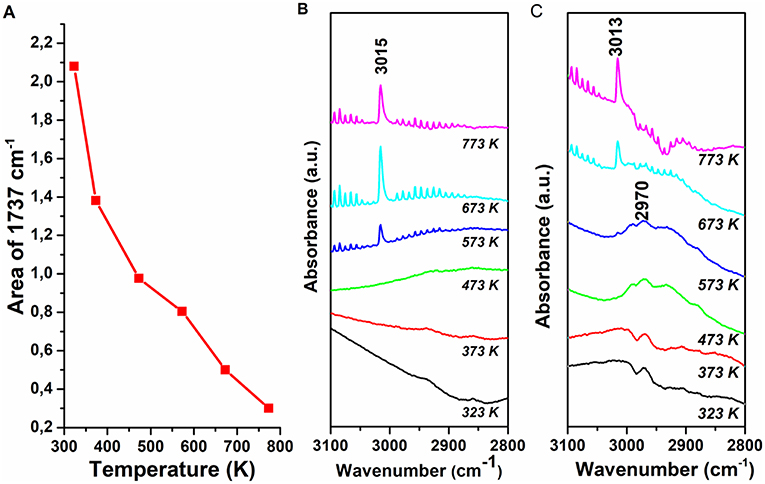

Figure 9. Peak area of the 1,737 cm⁻¹ peak region as a function of temperature (A), DRIFTS spectra of H-ZSM-5-30 in CH region (B), DRIFTS spectra of Pt-H-ZSM-5-30 in CH region during reaction condition (C).

The inclined, bent configuration plausibly significantly weakens the C-O bond (shifted further to lower wavenumbers) and it could easily break. Low wave number CO (1,770 cm⁻¹) was detected under the reaction of CO₂ + H₂ on Rh supported on titanates (Tóth et al., 2012). In addition, this unusually low wave number was also observed in CO adsorption on Mn, La, Ce, Fe promoted Rh/SiO₂ (Ichikawa and Fukushima, 1985; Stevenson et al., 1990; Chuang et al., 2005). It was suggested that the oxygen on CO inclined to promoter cations, and enhanced the rupture of C-O bond. On Pt-containing most acidic ZSM-5 we suggest the following further steps in CO₂ hydrogenation (methane formation) where plenty of adsorbed hydrogen is available:

$\begin{array}{ll}{\text{H}}_{\text{n}}{(\text{CO})}_{(\text{a})}{\text{H}}_{(\text{a})}\to \text{C}{\text{H}}_{\text{n}(\text{a})}+\text{O}{\text{H}}_{(\text{a})}& (11)\end{array}$

$\begin{array}{ll}\text{O}{\text{H}}_{(\text{a})}+{\text{H}}_{(\text{a})}\to {\text{H}}_2{\text{O}}_{(\text{g})}& (12)\end{array}$

On Pt-containing zeolites ethylene formation was not observed (Figure 6B), which means that the formed CH species does not recombine but reacts with hydrogen forming methane or further dehydrogenates where carbon is formed causing the deactivation of the catalysts:

$\begin{array}{ll}\text{C}{\text{H}}_{\text{n}(\text{a})}+{\text{H}}_{(\text{a})}\to \text{C}{\text{H}}_{4(\text{g})}& (13)\end{array}$

$\begin{array}{ll}\text{C}{\text{H}}_{\text{n}(\text{a})}\to {\text{C}}_{(\text{a})}+\text{n}{\text{H}}_{(\text{a})}& (14)\end{array}$

The inclined CO has different structure and stability than that of the linearly adsorbed CO on Pt sites, which appeared at 2,070 cm⁻¹ (Figures 7B,C) from 573 K. It forms in formate decomposition or in reaction with hydrogen besides formaldehyde/formyl decomposition:

$\begin{array}{ll}{\text{HCOO}}_{(\text{a})}+{\text{H}}_{\text{a})}\to {\text{CO}}_{(\text{a})}+{\text{H}}_2\text{O}& (15)\end{array}$

The other possible scenario is that CO₂ activated and forms adsorbed CO on Pt sites even at 300 K. This activation process proceeds via formation of negatively charged CO₂ radical and it converts to CO with the help of activated hydrogen (Solymosi et al., 1981; Fisher and Bell, 1996).

The formed adsorbed CO starts to desorb above 600 K. The observed CO position is almost agreed with those detected on Pt-H-ZSM-5 (Rivallan et al., 2010) previously. In that study two bands appeared; one is at 2,095 cm⁻¹, the other is at 2,080–2,050 cm⁻¹. This later peak is ascribed to smaller Pt particles for which CO adsorbs abundantly on less coordinated Pt atoms. The peak at ~1,730 cm⁻¹ (formaldehyde and hydrogen perturbed inclined CO) is present up to 700–800 K. Above 773 K bands appeared at 1,659 cm⁻¹ probably due to carbonate which comes from the decomposition of formate and formaldehyde.

Conclusion

In summary, we synthesized 4.4 nm Pt nanoparticles with narrow size distribution and these Pt NPs were successfully anchored onto the surfaces of H-ZSM-5 (Si/Al = 30, 80, and 280) supports. The final composite catalysts are firstly explored for the hydrogenation CO₂ at 723 and 873 K temperatures and atmospheric pressure. The characterization results revealed that Pt NPs diffused H-ZSM-5 catalysts have been conceded for its unique property which makes potential candidates for catalytic hydrogenation of CO₂. Comparison with bare H-ZSM-5 catalysts the Pt NP modified composites showed superior catalytic activity. The lower Si/Al ratio composite was showing the highest catalytic activity. The reasons for this high activity as well as CH4 selectivity of 0.5% Pt-H-ZSM-5-30 could be explained by the presence of the CO in a surface complex in which the CO is perturbed by hydrogen and adsorbes via C-end on Pt but the oxygen tilts to proton in zeolites The other scenario is also imaginable; namely the H_n${\text{CO}}_{(\text{a})}^{*}$ bond to zeolite frame and the oxygen tilts to Pt site or hydrogen located on Pt at the interface, where this inclined, bent configuration plausibly significantly weakens the C-O bond being responsible for the high activity and selectivity of methane.

Author Contributions

AS, UK, and GH: preparation evaluation article adjustment, catalysis, BET, XRD. KÁ, JK, and IS: DRIFTS studies and mechanism. BN: calculations. TV, JG-P: TEM. ÁK and ZK: support.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

UK thank to the University of Szeged, Hungary, for the financial support. This paper was supported by the Hungarian Research Development and Innovation Office through grants NKFIH OTKA PD 120877 of AS. ÁK, GH, and ZK is grateful for the fund of NKFIH (OTKA) K112531 & NN110676, PD 115769, and K120115, respectively. This collaborative research was partially supported by the Széchenyi 2020 program in the framework of GINOP-2.3.2-15-2016-00013 Intelligent materials based on functional surfaces—from syntheses to applications project. The Ministry of Human Capacities through the EFOP-3.6.1-16-2016-00014 and 20391-3/2018/FEKUSTRAT project is also acknowledged.
