Selective Detection of Acetone Vapor Using Hydrophobized Pillared Carbon Thin Films

Pillared carbon thin films were prepared from the thermal reduction of graphite oxide silylated with octyltrichlorosilane and then dimethyldichlorosilane. The interlayer spacing of the resulting pillared carbon thin film was 1.29 nm, and it contained hydrophobic Si–CH₃ groups, excluding Si–OH ones. The resistance of it increased during the exposure to acetone vapor, while it was unchanged when it was exposed to the water vapor. Moreover, in the presence of water vapor, the resistance changed in a similar manner.

Introduction

Recently, the development of portable breath monitoring sensor becomes highly important in the healthcare field. Exhaled breath contains various molecules that hold great promise for monitoring health. For example, the amount of exhaled acetone increases when we get diabetes. Various gas sensors are so far proposed for selective detection of acetone. Selectivity toward acetone detection have been achieved by using (002) facet of WO₃ (Ji et al., 2014), multiwalled carbon nanotube coated with SnO₂ (Aroutiounian et al., 2015), non-stationarity temperature regime (Shaposhnik et al., 2014), zeolite concentrator (Yamada et al., 2015), etc. However, in case of the use of semiconductors, such as WO₃ and SnO₂, high temperature is needed for detection and, therefore, heating system should be installed in the sensor.

On the other hand, we have recently reported the preparation of pillared carbon thin films, showing size selective gas detection properties at room temperature (Matsuo et al., 2012, 2014). Pillared carbon is consisting of graphene layers connected with silsesquioxane type pillars. It shows size selective intercalation of organic molecules, depending on the size of the space available between adjacent pillars and graphene layers (Matsuo and Konishi, 2011, 2012; Matsuo et al., 2012, 2014). However, to detect acetone molecules in exhaled breath, selective detection of it in the presence of water molecules should be needed. However, the strategy of size selective detection can not be applied for this purpose because the molecular size of the acetone is larger than that of water. In this study, therefore, to achieve the selectivity for the detection of acetone in the presence of water, we tried to prepare pillared carbon thin films containing hydrophobic pillars by using graphite oxide silylated with dimethyldichlorosilane as a precursor.

Materials and Methods

Preparation of pillared carbon thin films with hydrophobic pillars was performed in a similar manner as reported in our previous studies (Matsuo et al., 2012, 2014). Graphite oxide was prepared from natural graphite powder (average diameter of 5 µm) in a fuming nitric acid using potassium chlorate, based on the Brodie’s method (Brodie, 1859). The composition of the resulting GO was C₈H_2.9O_4.9. GO (100 mg) was mixed with n-butylamine [C₄H₉NH₂, hereafter abbreviated as C₄, 1.78 mL; 32 mol per GO unit (C₈H_2.9O_4.9)] as an exfoliating reagent in a sealed glass vial under an Ar atmosphere, and the resulting solution was sonicated for 15 min (VELVO-CLEAR, VS-150; 50 kHz, 150 W), then heated at 60°C for 1 h. Dry toluene (5 mL, water content <30ppm) was added to this solution. Silylating reagent (octyltrichlorosilane, C₈H₁₇SiCl₃: hereafter C₈Si, 1.70 mL) was added to the resulting solution and then allowed to stand for 1 day at 60°C. After centrifugation, the precipitate was washed with dry toluene, ethanol, and finally acetone. The obtained silylated GO sample is denoted as C₈SiGO. n-Hexadecylamine was added to the C₈SiGO in the presence of a small amount of hexane and ground in a pestle until it evaporated. The mixture was heated at 60°C overnight. It was then dispersed in cyclohexane/chloroform (1:1 by volume) and then cast on a glass or Si plate. The resulting thin films of C₈SiGO were then silylated with dimethyldichlorosilane [abbreviated as (C₁)₂Si]. The C₈SiGO thin films were placed in a vial containing toluene (4 mL) and (C₁)₂Si (0.4 mL) were added, and then allowed to stand at 60°C for 1 day. For comparison, C₈SiGO thin films were also silylated with 3-aminoproopyltirethoxysialne (APS, 0.25 mL) or methyltrichlorosilane (C₁Si, 0.2 mL) for 6 or 24 h. The resulting samples are denoted as C₈SiGO-(C₁)₂Si, C₈SiGO-APS, and C₈SiGO-C₁Si, respectively. They are then heated under vacuum at 500°C for 5 h. The obtained samples were analyzed by X-ray diffraction (Rigaku Rint-2100 or Bruker D2Phaser, CuKα) and IR (Nicolet iS50). The IR spectra were obtained for the samples prepared on Si substrates. SEM observation was performed by using JEOL JSM-6010PLUS/LV.

Figure 1A shows the apparatus for gas sensing tests of pillared carbon thin films (Matsuo et al., 2012, 2014), together with the pillared carbon sample with copper plates as electrical terminals (Figure 1B) and the SEM image of a typical pillared carbon film (Figure 1C). Some wrinkles are observed on the surface of the film; however, it was rather smooth and grain boundaries were not well visible. After evacuating the container (9 L), appropriate amounts of liquid water, acetone, or the mixture of them were injected to it, and they are evaporated. The current was recorded during the application of constant voltage of 1.9 V to the film sample when it was exposed to water, acetone or the mixture of them. After the pillared carbon film samples were exposed to each vapor for the measurement of electrical response, the container was evacuated for 30 min to remove the adsorbed molecules. The concentrations of water or acetone vapors were 1,000 ppm, and in case of the mixture of acetone and water, both of them were 1,000 ppm.

FIGURE 1

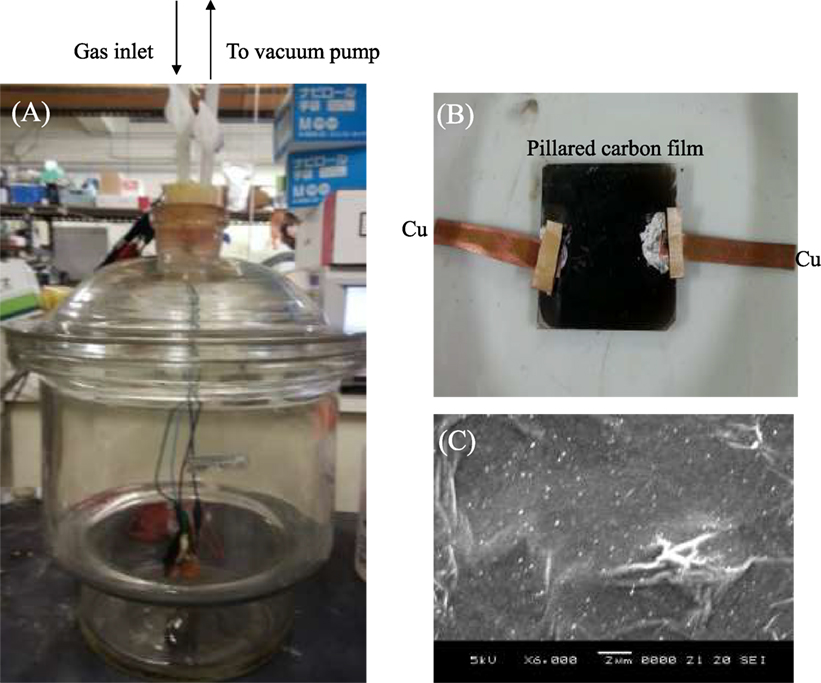

Figure 1. The photographs of (A) the chamber used for gas sensing experiment and (B) pillared carbon thin film, together with (C) SEM image of it.

Results and Discussion

Figure 2 shows the X-ray diffraction patterns of C₈SiGO film, and those silylated with (C₁)₂Si, C₁Si, and APS. The diffraction peak of C₈SiGO film observed at 2θ = 5.24° (d = 1.69 nm) shifted to lower angles of 2θ = 3.79 (d = 2.33 nm), 3.73 (d = 2.37 nm), and 3.22° (d = 2.66 nm) when it was silylated with (C₁)₂Si, C₁Si, and APS, respectively, which means that the C₈SiGO film was successfully silylated. Figure 3 shows the X-ray diffraction patterns of the above silylated C₈SiGO films after heat treated at 500°C. In case of C₈SiGO-C₁Si and C₈SiGO-(C₁)₂Si, the diffraction peaks at lower angles disappeared and those at 2θ = 13.73 (d = 0.65 nm) and 10.85° (d = 0.82 nm) were observed, respectively and no peak appeared around 2θ = 25° due to residual carbon (not shown). This means that pillared carbon was successfully prepared. Since the (002) lines are most strongly observed for the other pillared carbons, these are also indexed as (002) lines, and the interlayer spacings of 1.39 and 1.63 nm are obtained. On the other hand, two diffraction peaks at 2θ = 5.55 (d = 1.592 nm) and 11.04° (d = 8.01 nm) were observed for C₈SiGO-APS. These can be indexed as (001) and (002) lines, therefore, the interlayer spacing is calculated to be 1.60 nm.

FIGURE 2

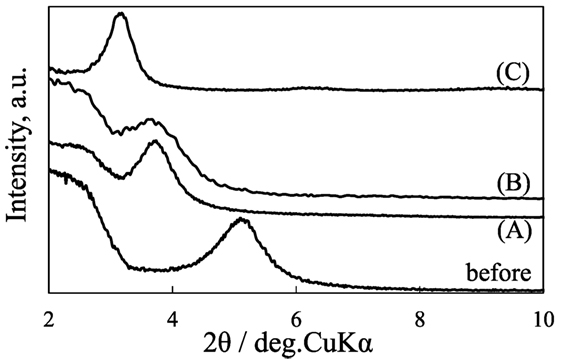

Figure 2. X-ray diffraction patterns of C₈SiGO before and after silylated with (A) (C₁)₂Si, (B) C₁Si, and (C) APS.

FIGURE 3

Figure 3. X-ray diffraction patterns of pillared carbons obtained from (A) C₈SiGO-(C₁)₂Si, (B) C₈SiGO-C₁Si, and (C) C₈SiGO-APS.

Figure 4 shows the IR spectra of the pillared carbon thin films. The absorption peaks at 1,050 and 1,150 cm⁻¹ were commonly observed, which are ascribed to the Si–O–Si symmetric and asymmetric stretching vibrations in pillars, respectively. The peaks at 950 and 1,270 cm⁻¹ due to Si–OH and Si–CH₃ were observed for the pillared carbon obtained from C₈SiGO-C₁Si film silylated with, however, only the former or the latter was observed for those from APS- or C₈SiGO-(C₁)₂Si, respectively. This indicates that the most hydrophobic pillared carbon was obtained when it is prepared from C₈SiGO-(C₁)₂Si.

FIGURE 4

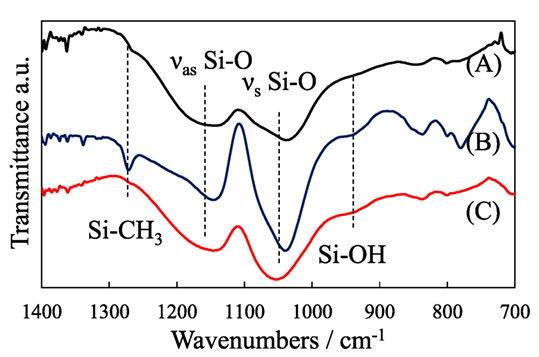

Figure 4. IR spectra of pillared carbons obtained from (A) C₈SiGO-(C₁)₂Si, (B) C₈SiGO-C₁Si, and (C) C₈SiGO-APS.

Figure 5 shows the variation of R/R₀ values of the pillared carbon thin film during exposure to water vapor. It increased for the pillared carbon of obtained from C₈SiGO-C₁Si and C₈SiGO-APS in a similar manner and reached almost constant values after 600 and 1,500 s, respectively. As previously reported, the resistance of pillared carbon increases upon electron donating molecules (Matsuo et al., 2012, 2014); therefore, this result indicates that water molecules were adsorbed on these pillared carbons. On the other hand, the R/R₀ value was almost constant for pillared carbon from C₈SiGO-(C₁)₂Si as expected from the hydrophobic nature of this sample. The small change in the R/R₀ values may be ascribed to the surface morphology of the present samples as shown in Figure 1C. Few grain boundaries existing on the surface of the film made it difficult for gaseous molecules to enter the interlayer space of the pillared carbon.

FIGURE 5

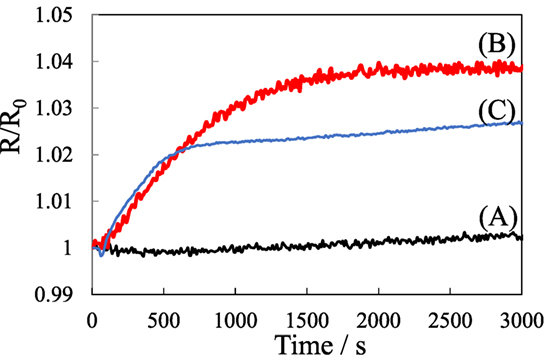

Figure 5. Electrical response of pillared carbons obtained from (A) C₈SiGO-(C₁)₂Si, (B) C₈SiGO-C₁Si, and (C) C₈SiGO-APS during exposure to water vapor.

Figure 6 shows the variation of R/R₀ values of the pillared carbon thin film during exposure to acetone, and the mixture of water and acetone vapors. Upon the exposure to acetone, it gradually increased, which means that acetone molecules are successfully detected, though the change in the R/R₀ value was very small. Moreover, even in the presence of water vapor, the R/R₀ values changed in an almost similar manner. This clearly shows that selective detection of acetone molecules was achieved.

FIGURE 6

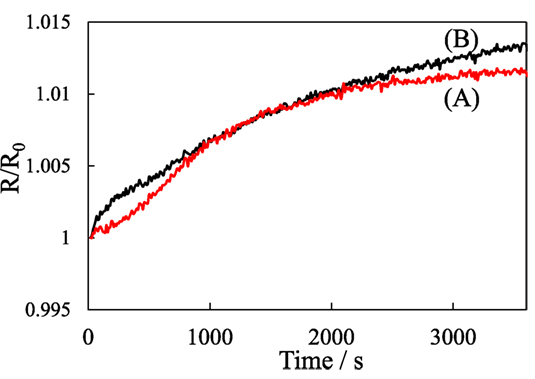

Figure 6. Electrical response of pillared carbon obtained from C₈SiGO-(C₁)₂Si, during exposure to the vapors of (A) acetone and (B) the mixture of water and acetone.

Figure 7 shows the X-ray diffraction patterns of pillared carbon from (C₁)₂Si-C₈SiGO before and after immersion in acetone and water. Here, the measurement was performed before the liquid on the sample completely evaporated. The diffraction peak observed for the pristine pillared carbon at 2θ = 13.73° was observed at almost the same position even after immersion in water. On the other hand, this peak disappeared when the pillared carbon was immersed in acetone and a very broad peak appeared around 2θ = 8° (d = 1.1 nm). These results suggest that acetone molecules entered the interlayer space of pillared carbon; however, smaller water molecules were intercalated into the interlayer space of pillared carbon. The hydrophobic nature of the pillars in the pillared carbon obtained from and C₈SiGO-(C₁)₂Si as expected from the IR spectrum prevented the water molecules from intercalation. On the other hand, the methyl groups in acetone can interact with those in pillars to enter the interlayer space of pillared carbon. In such a case, carbonyl groups in them interact with carbon layers to achieve charge transfer and the resistance of the film can change. This leads to the selective detection of acetone molecules.

FIGURE 7

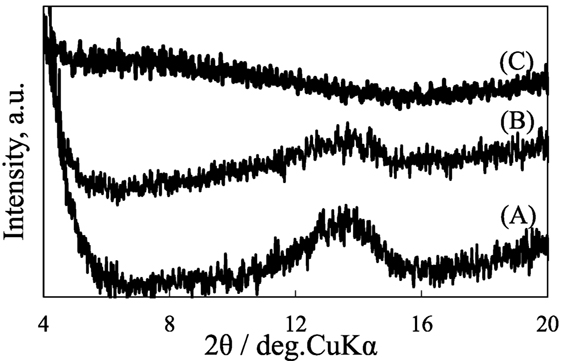

Figure 7. X-ray diffraction patterns of pillared carbons obtained from C₈SiGO-(C₁)₂Si (A) before, and after immersion in (B) water and (C) acetone.

In conclusion, pillared carbon thin film was successfully obtained from the thermal reduction of graphite oxide silylated with octyltrichlorosilane and then dimethyldichlorosilane. The pillars of the resulting pillared carbon were hydrophobic and prevented the intercalation of smaller water molecules. By using this pillared carbon thin film, the selective detection of acetone was achieved in the presence of water vapor. The sensitivity and response time of this film are still very low; however, they would be improved by reducing the size of graphene sheets, optimizing the structure of sensor, etc.
