Quantum dot-doped glasses and fibers: fabrication and optical properties

Quantum dot (QD)-doped glasses have been the hotspot for their excellent electronic and optical properties. Owing to its tunable and broadband near-infrared (NIR) emission by controlling the size and distribution of QDs, QD-doped glasses and fibers are potentially applied in photoelectric devices. In this review, we mainly introduce the preparation, tunable emission, and multi-wavelength optical amplification of QD-doped glasses. Due to their excellent optical performances, the fabrication of QD-doped glass fibers is also presented, containing the successful fabrication of QD-doped glass fibers with tunable NIR emission. Furthermore, the achievements and existing problems about QD-doped glasses and fibers are also proposed with several prospects. These QD-doped glasses and fibers show promising applications as the gain medium of NIR broadband fiber amplifiers and tunable fiber lasers.

Introduction

Quantum dots (QDs) with excellent electronic and optical properties have received significant development in the last decade. The quantum size effect allows QDs to exhibit great characteristic in optical and physical chemistry, and thus providing potential applications in diverse areas including lasers, saturable absorbers, bio-labels, light-emitting diodes (LED), and so forth (Guerreiro et al., 1997; Wise, 2000; Hines and Scholes, 2003; Hoogland et al., 2006; Pang et al., 2010; Salavati-Niasari et al., 2010; Sohila et al., 2011; Zhonghai et al., 2011).

Quantum dots are also known as semiconductor crystallites with a radius approximate equal to or less than their Bohr radii to constrain their carriers in three dimensions. Therefore, compared to bulk crystallite, QDs possess some unique quantum effects such as quantum confinement effect, size effect, surface effect, macroscopical quantum tunnel effect, splitting up the electronic structure of QDs from a continuous level into several separations (as shown in Figure 1). As a result, QDs are in a transition phase between particle and crystal that are completely different in bulk materials. For example, QDs will emit photonics at different wavelengths by tuning their size after activated. In other words, it can easily tune their energy band gap to control the absorption and photoluminescence (PL), as shown in Figure 2. Compared with the inherent and non-adjustable emissions of most rare earth RE ions, QDs can achieve tunable broadband emission in various regions, which can be used as the gain medium of broadband fiber amplifiers and tunable fiber lasers.

FIGURE 1

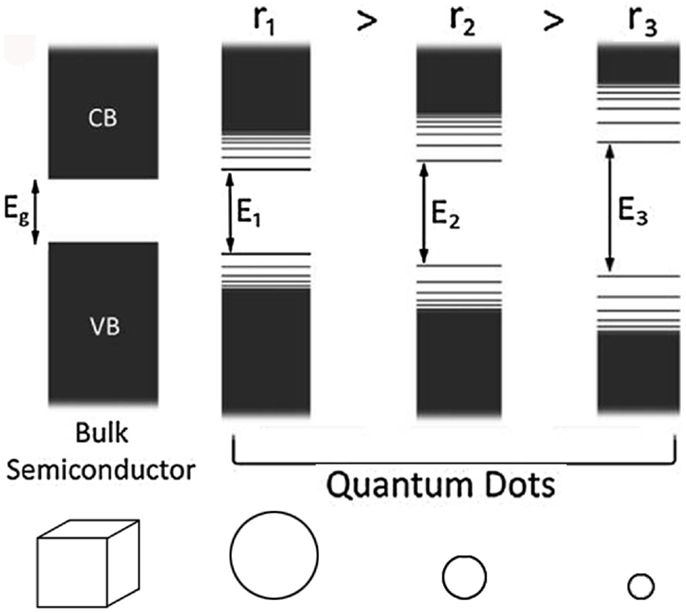

Figure 1. Schematic levels of semiconductor crystallites with different dimensions. (A) Three-dimensional structure, (B) two-dimensional structure, (C) one-dimensional structure, (D) zero-dimensional structure.

FIGURE 2

Figure 2. Influence from the size of materials to its band gap.

Quantum dots are based on the elements of group II–VI, III–V, IV–VI in the Periodic table. It is helpful to classify their structures into core (CdS and CdSe, PbS, PbSe), core/shell (CdS/ZnSe, CdSe/CdS), and core/shell/shell (CdSe/CdS/ZnS, CdTe/CdS/ZnS) in terms of their composites (Kunets et al., 2004; Jacob et al., 2005; Thantu, 2005). QDs drew much attention for its unique optical feature in the earliest researches, resulting in intensive researches on photoelectric field (Jain and Lind, 1983). In 1980s, scientists focused more on mutual properties of QDs, such as quantum effect (Takagahara, 1987; Brus, 1991) and non-linear optics (Miller et al., 1988; Beenakker, 1991). QDs then showed great potential as fluorescent probes applying to biomedical field in the later development (Derfus et al., 2004; Kim et al., 2004; Michalet et al., 2005).

Combining the tunable optical properties of QDs with glass which is excellent transparent and easy-drawing, the QDs-doped glass and fiber have become popular in research (Feng et al., 2008). Besides, QDs-doped glasses are chemical and thermal stable with short response time as well as large three-order non-linear polarizability which is suggested to apply in optical communication. To fulfill the need of optical communication capacity, QDs-doped glass is most likely to become a glass fiber amplifier with a wider broadband, a higher amplification, and a lower noise. One QDs-doped glass amplifier can replace several existed amplifiers because of its tunable broadband PL and amplification. In addition, QDs-doped glasses are much likely to realize application in passive Q-switching and mode locking elements, including mode locking devices for Kerr-lens mode-locked solid-state lasers (Malyarevich et al., 2000; Heck et al., 2007; Kuntz et al., 2007). Furthermore, QDs-doped glasses are great generators for short pulses activated by lasers operating in spectral ranges 0.7–0.9, 1.06–1.08, and 1.2–1.3 μm and so forth (Melekhin et al., 2008). These potential and underway applications show a bright future of QDs-doped glass and fibers.

QD-Doped Glasses

Fabrication

Various approaches have been developed to fabricate QDs-doped glasses including co-melting, sol-gel, ion-implantation, and so forth.

Glass melt-quenching method

Mixing and melting the composites of QDs precursor with the glass batch together, then a glass without QDs will be obtained. By certain process of nucleating, QDs will subsequently grow inside the glass. Borrelli and Smith used this method to fabricate QDs-doped glass as early as 1994 (Borrelli and Smith, 1994). Silva et al. successfully doped S into SiO₂-Na₂CO₃-Al₂O₃-PbO₂-B₂O₃-based glass to grew PbS QDs after certain thermal treatment (Silva et al., 2003, 2006a). The absorption and PL spectra of PbS QD-doped glass heat-treated for 3 and 5 h are shown in Figure 3, respectively (Silva et al., 2003). It is clear that a red-shift occurred when the QD-doped glass was heat-treated for a longer period, which indicates that the size of QDs grows larger.

FIGURE 3

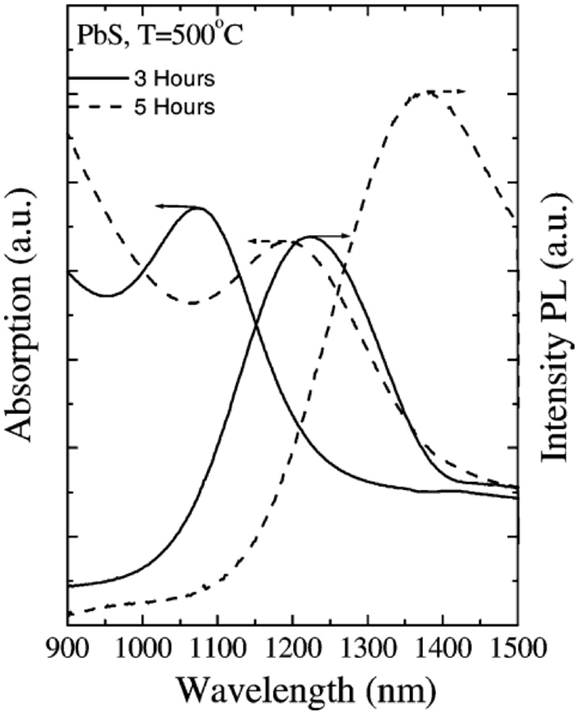

Figure 3. Absorption and PL spectra of PbS QD-doped glass heat-treated for 3 and 5 h (Silva et al., 2003).

In our group, we used SiO₂-B₂O₃-K₂O-BaO-ZnO glass system as matrix to mix with 1–1.5 mol% PbS for the formation of PbS QDs (P1, P1.5). In contrast, another system using ZnS-PbO to indirectly produce PbS as the starting materials (Z2; Guoping et al., 2011). The as-prepared glasses were subsequently heat-treated at several temperatures to precipitate PbS QDs. Figure 4 shows the transmission electron microscope (TEM) images and size distribution of PbS QDs in representative P1 and Z2 glass samples, which suggest that using ZnS-PbO to replace PbS as precursor of PbS QDs, the size distribution of PbS QDs in glasses becomes more uniform.

FIGURE 4

Figure 4. TEM image of (A) P1 glasses and (B) Z2 glasses heat-treated at 580^oC for 24 h. The insert of (A) shows the HR-TEM image of a single PbS QD. (C,D) Show the size distribution of PbS QDs in P1 and Z2 glasses corresponding to TEM image (A,B), respectively (Guoping et al., 2014).

In Figure 5, broadband near-infrared (NIR) absorption and emission peaks are observed in the spectra, which is due to the recombination of electron and hole pairs created by the excitation source. With the enhanced heat-treatment temperature, PbS QDs grow larger, which will result in the red-shift of PL emission band. The size distribution of PbS QDs in glasses also becomes wider.

FIGURE 5

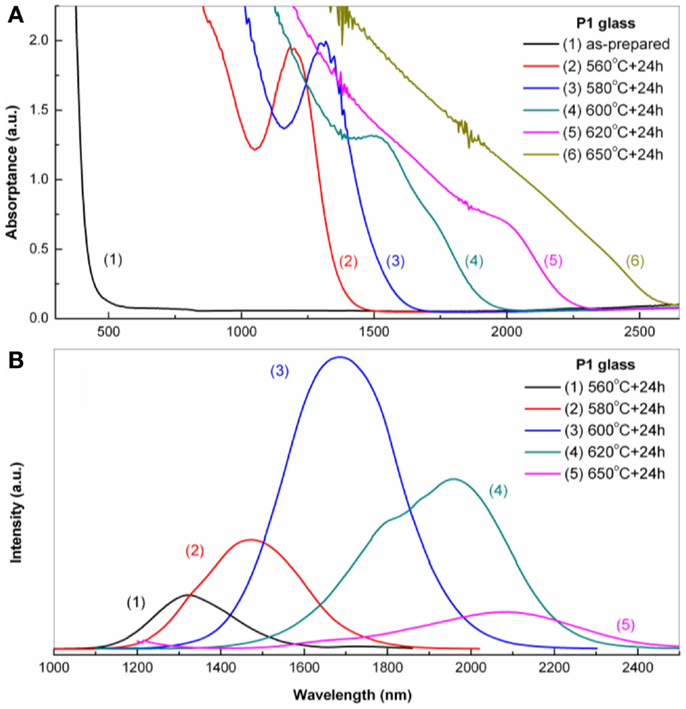

Figure 5. (A) Absorption and (B) PL spectra of P1 glass heated at different temperature for 24 h (Guoping et al., 2011; Huang et al., in press).

Although the method is convenient to prepare QDs-doped glasses, it requires particular high temperature to melt raw materials. Several other groups also developed other low temperature routines to fabricate QD-doped glasses. Several glass systems like tellurite and phosphate glasses are developed to lower the melting temperature, but they usually have a lower mechanical property than silica glasses (Kolobkova et al., 2002; Savitski et al., 2002; Jacob et al., 2005).

Sol-gel method

Colloidal QDs systems including CdS, ZnS, PbS, and ZnO, have been successfully reported in many previous investigations (Bahnemann et al., 1984; Henglein, 1988; Kormann et al., 1988). Since Rajh et al. utilized a sol-gel method to incorporate QDs in transparent silicate glasses conveniently at low temperature (Rajh et al., 1988), sol-gel method is now considered as a reliable way to produce QD-doped glass (Planelles-Arago et al., 2008; Mashford et al., 2011). Planelles-Aragó’s group reported highly transparent and colorless silica embedded with Eu³⁺-doped ZnS QDs (Planelles-Arago et al., 2008). In their works, the solution of zinc nitrate and europium nitrate were first dissolved in DMSO [dimethyl sulfoxide, (CH₃)₂SO] and then stirring for 30 min. The resulting solution subsequently added to the mixture of TEOS [tetraethoxysilane, Si(OC₂H₅)₄], DMSO, and water. After stirring and oven dry, the transparent and colorless xerogels were fired in a furnace at 500°C, and finally formed a QD-doped glass. The TEM images in Figure 6 show that typical spherical ZnS QDs were embedded in the amorphous silica medium. Emission spectra in Figure 7 illustrate a broad blue emission of ZnS QDs and red ⁵D₀ → ⁷F₂ transition (615 nm) emission of Eu³⁺ ions, respectively. Both the TEM and emission results confirmed that QDs were successfully doped into the glass matrix by sol-gel method.

FIGURE 6

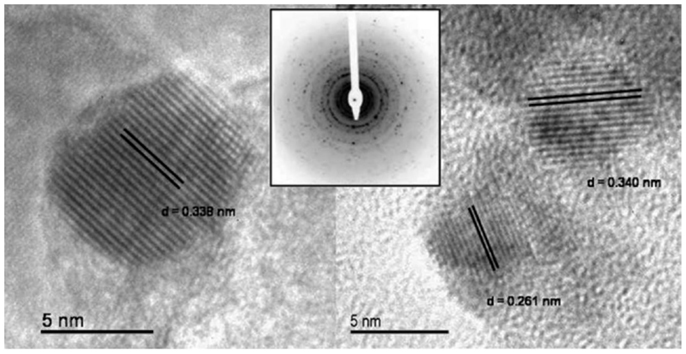

Figure 6. High resolution-transmission electron microscopy (HR-TEM) micrographs and selected area electron diffraction (SAED) patterns (insert) of Eu³⁺-doped ZnS (EZS) sample after firing at 500^oC (Planelles-Arago et al., 2008).

FIGURE 7

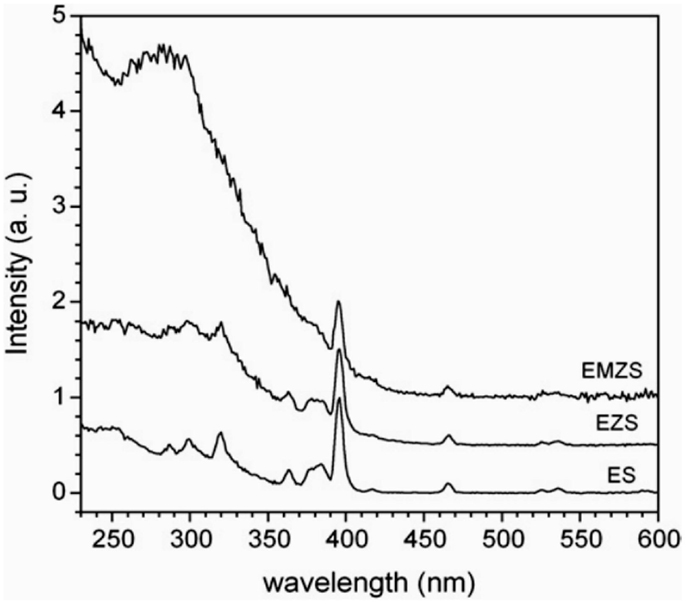

Figure 7. Emission spectra of Eu³⁺-doped (EZS) and Eu³⁺, Mn²⁺-co-doped (EZMS) ZnS-SiO₂ samples annealed at 500^oC upon excitation at 280 nm. Eu³⁺-doped SiO₂ (ES) and ZnS-SiO₂ (ZS) have been included as references (Planelles-Arago et al., 2008).

Compared to melt-quenching, the sol-gel route is helpful to lower the melting temperature and disperse the precursors homogeneous easily. However, fabrication in large bulk material is still a challenge because the residual stress is hard to eliminate. Therefore, the sol-gel method is only suitable for QDs-doped thin films. In addition, the difficult removal of organic ligands introduced by synthesis procedure and the restricted silica glass matrix may limit the development of sol-gel route.

Ion-implantation method

Ions accelerated by electric field are injected into surface of the material. Ions implanted will react with the material, creating defect or forming composite. This method was originally used for semiconductor doping, then developed into a wider range of applications in the preparation of integrated circuits and modification of metals. Shortly after, there were numerous researches about the effects of implantation on silica matrix (Primak and Kampwith, 1968; Arnold, 1973; EerNisse, 1974). Glasses implanted with various ions were begun to study afterward (Arnold, 1975; Mattern et al., 1976). Ion-implantation is mainly used to nanocomposites like metallic nanocrystals, semiconductor nanocrystals, and ferromagnetic nanoparticles (Meldrum et al., 2001). After decades of investigation, ion-implantation still draws high attention (Lee et al., 2005; Carder et al., 2013). In the work conducted by Carder’s et al., slides of SiO₂ was used as a substrates, which were ion-implanted with Pb (29 keV) and Se (25 keV) ions under vacuum at 5 × 10⁻⁸ mbar (Carder et al., 2013). The samples were then transferred to an electron beam annealing (EBA) system and maintained at a temperature around 760–915°C.

The TEM images confirm that PbSe QDs have been successfully implanted into the silica matrix (Figures 8A,B), and there are a band of nanoclusters at about 50–70 nm beneath the surface (Figure 8A). Figure 9 shows the PL spectra of samples applied to different annealing process, indicating that QDs embedded inside the glass can be further tuned by EBA temperature.

FIGURE 8

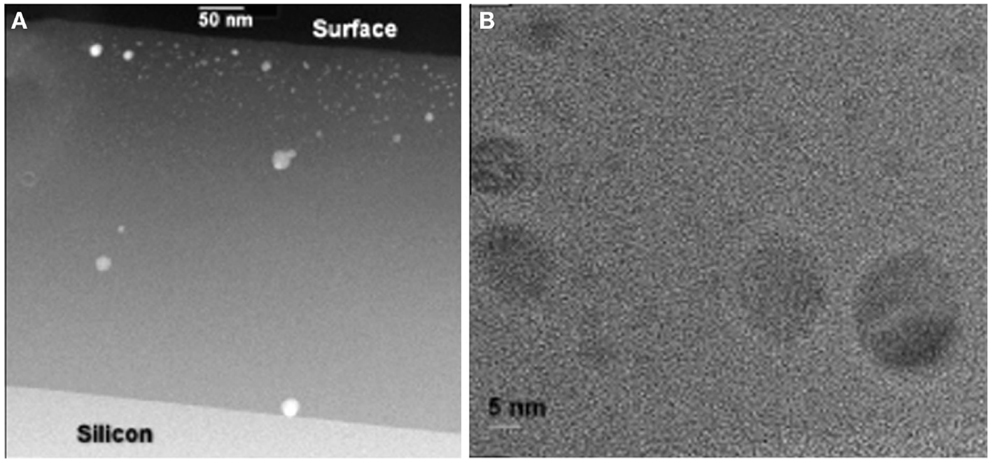

Figure 8. (A) High-angle annular dark field and scanning transmission electron microscopy (HAADF-STEM) cross-sectional image of the Pb+Se implanted and annealed sample. (B) Cross-sectional TEM image of a number of PbSe clusters in the near-surface region (Carder et al., 2013).

FIGURE 9

Figure 9. Normalized low temperature (4 K) PL spectra from samples electron beam annealed at 760, 800, and 850°C, respectively (Carder et al., 2013).

Although ion-implantation can induce the formation of tunable QDs beneath the surface of glass matrix, the ions implanted are limited around the surface, and barely reach the inner part. Therefore, it is a challenge to produce scaling QDs-doped bulk glasses.

Sol-gel route is the most convenient protocol to synthesis QDs with excellent performance. However, for further application, QDs must be incorporated into various bulk matrixes. Ion-implantation is able to synthesize all kinds of QDs-doped glasses, the shallow implantation depth of QDs beneath the matrix surface limits its further applications. In spite of high temperature and relatively complex procedure, melting-quenching is a high prior to synthesize a QDs-doped glass due to the controllable size and distribution of QDs in various glass matrixes.

There are also some other methods like atomic layer epitaxy (ALE; Mukai et al., 1997), molecular beam epitaxy (MBE; Grundmann et al., 1995; Mirin et al., 1995), metal-organic chemical vapor deposition (MOCVD; Heinrichsdorff et al., 1997; Tan et al., 2005), and aqueous synthesis (Rogach et al., 2007), which are relatively complex and less used. Therefore, they are not discussed in detail here.

Optical Properties

Tunable optical properties

Since the quantum confinement of QDs first observed by Efros and Ekimov (Efros and Efros, 1982; Ekimov et al., 1985), Brus modeled the excited electronic state theoretically in order to understand the redox potential that depends upon size (Brus, 1984). Later on, Henglein et al. successfully synthesized QDs with different sizes (Weller et al., 1984; Spanhel et al., 1987), which create a precedent in the research field.

Energy spectrum of electrons in a bulk material is almost continuous, therefore, electrons in fact is free (Figure 1A). However, when the material gets smaller, electrons will generally be restricted and exhibit a discrete energy spectrum in macro (Figures 1B–D). Especially when a particle’s size tend to the Bohr radii of the bound state of an electron and a hole, the movement of electrons is strongly confined, lending to a unique tunable optical property to QDs.

Due to the quantum confinement effect, the band gap of electrons depends upon their sizes. In other words, QDs get smaller, their band gaps become wider. It offers a convenient way to tune the QDs absorption and PL wavelength by controlling their size.

Work of Murray et al. can show what above more directly: they synthesize CdE (E = S, Se, Te) from ~12 to ~115 Å in diameter by sol-gel method (Murray et al., 1993). The series spans a range of sizes from nearly molecular species to bulk lattice. An obvious red-shift can be observed in Figure 10 with the size of CdSe QDs getting larger, which matches well with the theory mentioned above. As Figure 11 illustrated, transition energy of CdSe crystallites as a function of size is compared with the prediction of the effective mass approximation. Experiment and theory fit well when the size of QDs is larger enough, but it does not in the case of small size because of the non-parabolicity of the bands at higher wave vectors and the finite potential barrier at the surface of the particles.

FIGURE 10

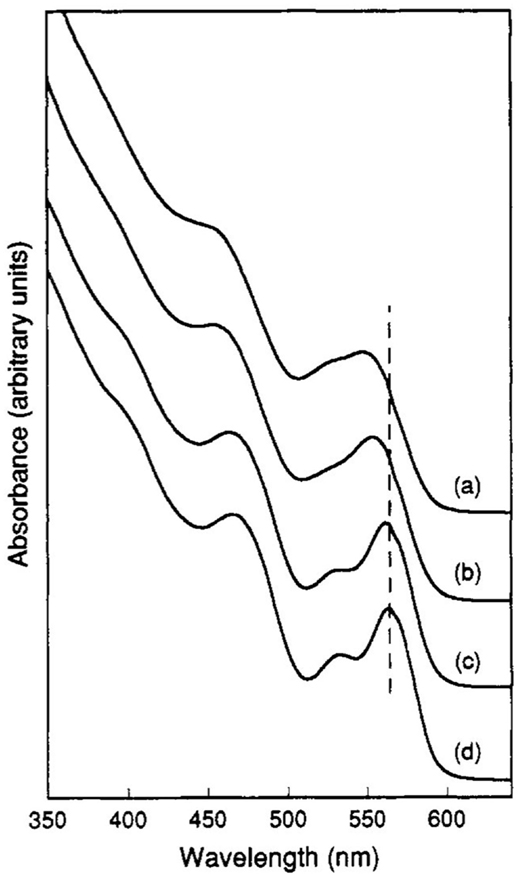

Figure 10. Room temperature optical absorption spectra of CdSe nanocrystallites dispersed in hexane and ranging in size from ~12 to ~115 Å (Murray et al., 1993).

FIGURE 11

Figure 11. Transition energy of CdSe crystallites as a function of size (diamonds) compared with the prediction of the effective mass approximation (solid line; Murray et al., 1993).

During the last decade, synthesis of QDs have been improved and further expanded to control the QDs’ morphology and structure (Peng et al., 1998; Manna et al., 2000; Peng and Peng, 2001a). Figure 12 shows the influences of CdSe QDs’ shape and structure on their optical properties: (1) A wider splitting between absorbing and emitting states was shown in rods than that in dots (Figures 12A,B); (2) quantum yields rises at first and goes down latter with the increasing thickness of a shell (CdS or ZnS) grown on the CdSe core (Figure 12C); (3) polarization anisotropy can be observed from quantum rod while QD cannot (Figure 12D).

FIGURE 12

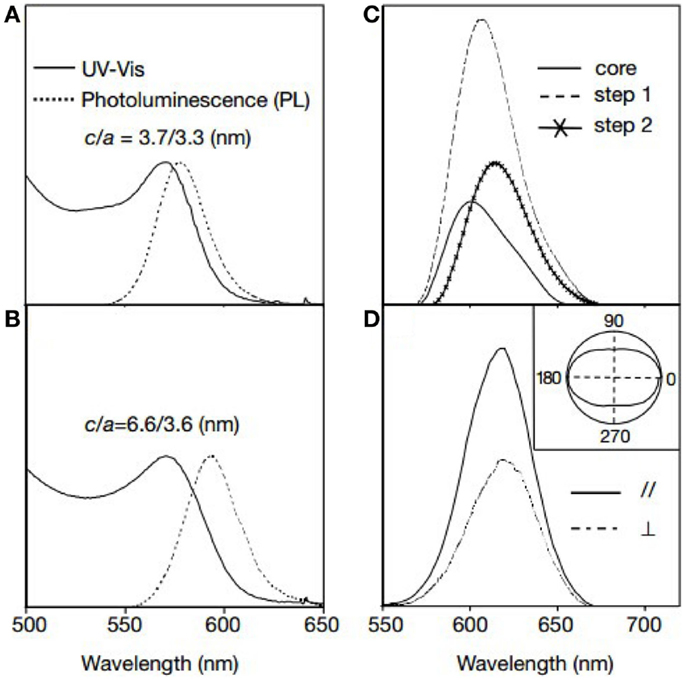

Figure 12. Influences of shape on the optical properties of CdSe QDs. (A) Ultraviolet-visible (UV-Vis) and photoluminescence (PL) spectra of CdSe QDs. (B) UV-Vis and PL spectra of CdSe QDs. (C) PL spectra of core/shell QDs with different shell thickness. (D) Polarization resolved PL spectra of CdSe QDs (Xiaogang et al., 2000).

All examples above only focused on the tunable optical properties of QDs themselves. However, for better application, controlling QDs in glasses is more important. Heo and his coworkers have successfully controlled the size of PbS QDs using rare earth ions and Ag⁺ ions (Heo and Liu, 2007; Chao and Jong, 2014; Xu and Heo, 2014). Take RE ion for example: the size of QDs decreased with RE ion concentration increases under the same heat-treatment conditions and thereby provided another pathway for the controlled formation of QDs (Chao and Jong, 2014). Their group also synthesized glasses doped with different percents of Nd₂O₃, and their absorption and PL spectra are shown in Figure 13. The peak wavelength of the first absorption bands shifted from 1415 to 1274 nm as Nd₂O₃ content increased from 0 to 0.6 mol% under the same heat-treatment (Figure 13A). Emission peak wavelength of the PL bands also shifted from 1516 to 1370 nm at the same time (Figure 13B).

FIGURE 13

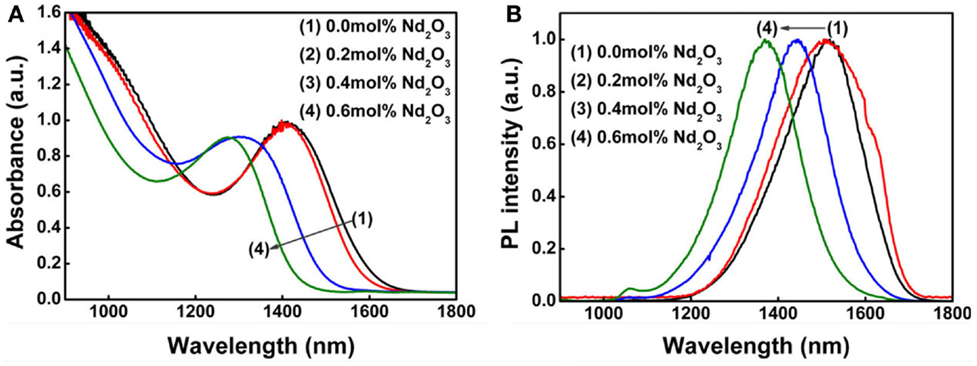

Figure 13. (A) Absorption and (B) PL spectra of Nd₂O₃ QD-doped glasses heat-treated at 500°C for 25 h (Chao and Jong, 2014).

In addition to the quantum confinement, some external field factors, such as temperature, pump intensity, can also influence QDs’ optical properties (Olkhovets et al., 1998; Schaller et al., 2003). Olkhovets et al. observed that the temperature coefficients of electron-hole pair energies (dE/dT) in PbS and PbSe QDs depend strongly on their size (Olkhovets et al., 1998), resulting in the special electronic and vibrational properties in QDs (Wise, 2000). The experimental data are shown in Figure 14. It is clear induced that the absorption spectra of smaller QDs are almost independent of temperature while the larger ones strongly depend on the ambient temperature.

FIGURE 14

Figure 14. Absorption spectra of 8.5 nm (A) and 4.5 nm (B) PbS QDs recorded at 12, 100, 200, and 300 K (Olkhovets et al., 1998).

Schaller and his coworkers also demonstrated that the amplified spontaneous emission (ASE) from PbSe QDs with emission energies tunable in the NIR (Schaller et al., 2003). They synthesized PbSe QDs by sol-gel method to ensure a good surface passivation and high filling factor. An emission band at 1555 nm is observed when the pump intensity increased (Figure 15), showing that PbSe QDs have a strong dependence on the pump intensity.

FIGURE 15

Figure 15. Development of a spectrally narrowed ASE band at 1555 nm is observed as a function of pump power for PbSe QDs. Comparison of normalized emission spectra produced using low (blue) and high (red) pump intensities (inset), which are dominated by spontaneous PL and ASE, respectively, shows the ASE as a spectrally narrowed, red-shifted band (Schaller et al., 2003).

By achieving tunable optical properties, people can obtain QDs in glass with multi-wavelength NIR emission. And it is the first step to obtain tunable NIR fiber amplifiers and lasers. In the next section, we will discuss about the optical amplification of QDs-doped glasses. Combing their tunable NIR emission with the optical amplification, the NIR broad amplifiers and tunable lasers will have a bright future.

Optical amplification

Since the CdSe QDs were first demonstrated to be available in the visible optical amplification (Klimov et al., 2000), nowadays, the wavelength of optical amplification have explored from visible to infrared. For infrared broadband PL semiconductor QDs, the research system is mainly about PbS, InAs, PbSe, HgTe, and so forth (Steiner et al., 2004; O’Connor et al., 2005; Sukhovatkin et al., 2005). Among them, PbS QDs with a large Bohr exciton radii (~18 μm) and a moderate band gap at near/mid-infrared wavelength have gained great attention as NIR broadband amplified medium (Sargent, 2005; Heo and Liu, 2007; Chao et al., 2008).

In fact, PbS QDs were precipitated in glasses and a gain of 80⁻¹ cm at 1300 nm was obtained at room temperature (Wundke et al., 1999). For further research, Huang et al. reported the tunable absorption and PL of PbS QDs in the glasses precipitated through thermal treatment (Huang et al., 2008). As shown in Figure 16, optical amplification at 1300 nm is observed, and the ASE spectrum is also measured to confirm the optical gain from PbS QDs.

FIGURE 16

Figure 16. Relation between the change in optical signal I/I₀ and the launched pumped power. I and I₀ are the signal intensity with and without 980-nm excitation displayed by digital oscilloscope. The bottom right of the inset shows the schematic diagram. The top left corner of the inset shows an oscilloscope image of the optical signal change at 1300 nm pumped with 980-nm laser diode (the power is 1.4 W; Huang et al., 2008).

Recently our group first demonstrated that PbS QDs-doped glasses exhibit two optical amplifications at the traditional ~1330 and ~1550 nm optical communication windows, which is helpful to expand the applications of QDs in optical communication (Guoping et al., 2011). In order to further evaluate the potential of PbS QDs-doped glass applied in a broadband fiber amplifier, it is necessary to investigate the broadband optical amplification at several optical communication windows. We successfully obtained the optical amplification at both 1330 and 1550 nm simultaneously in single PbS QDs-doped glass (as shown in Figure 17) by tuning the QDs’ size, distribution, and PL properties (Guoping et al., 2014). Our studies have confirmed that PbS QDs-doped glasses are promising to be applied as the gain medium of broadband fiber amplifiers and tunable fiber laser at optical communication windows.

FIGURE 17

Figure 17. Optical gains (I/I₀) at 1330 nm (red) and 1550 nm (blue) of PbS QD-doped glass heated at 550°C for 24 h, which are collected as a function of pumping power (Guoping et al., 2014).

Our studies also demonstrated that utilizing ZnS + PbO instead of PbS as the precursor of QDs can effectively inhibit sulfur volatilization during glass melting, leading to the uniform and controllable growth of PbS QDs in glass matrix. From the optical gain spectra in Figure 18, it can be deduced that using ZnS + PbO as precursor in PbS QD-doped glasses, the optical gain and its slope value (optical gain vs. pumping power) improve substantially (Huang et al., in press).

FIGURE 18

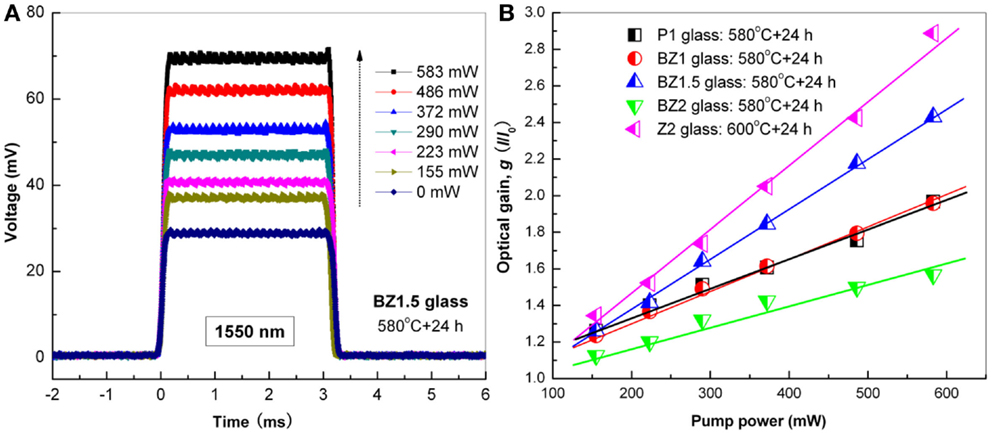

Figure 18. (A) The amplified signals at 1550 nm of PbS QD-doped glass heated at 580°C for 24 h. (B) Optical gain (I/I₀) at 1550 nm of PbS QDs-doped glasses collected as a function of pumping power (Huang et al., in press).

Herein, QD-embedded glass with multi-wavelength optical amplification is promising as the gain medium of broadband fiber amplifiers and tunable fiber lasers.

QD-Doped Glass Fiber

Based on the excellent broadband optical tunability of QD-doped glasses, it is necessary to draw them into fibers. In the following section, we will discuss the fabrication and optical properties of QD-doped glass fibers.

Quantum dots will show a secondary growth during the fiber-drawing process, therefore low temperature is necessary to fabricate QDs-doped glass fiber. A uniform QDs solution was filled into a hollow optical fiber from front to back, after which by curing, the QD-doped fiber was successfully produced. Hreibi et al. reported the fabrication and characterization of a PbSe QDs liquid-core fiber (Hreibi et al., 2010). The PbSe QDs were synthesized based on the literature method (Yu et al., 2004). The liquid-core optical fiber was made by a pure silicate capillary waveguide with an outer 120 μm and a core 17-μm diameter. A 20-cm-long piece of fiber was immersed in the liquid medium containing PbSe QDs dispersed in toluene after 10 min to completely fulfill the core by capillary attraction (see Figure 19). Upon pumping by a 532-nm-CW laser, a good ASE was efficiently transmitted with a peak centered at 1290 nm (see Figure 20).

FIGURE 19

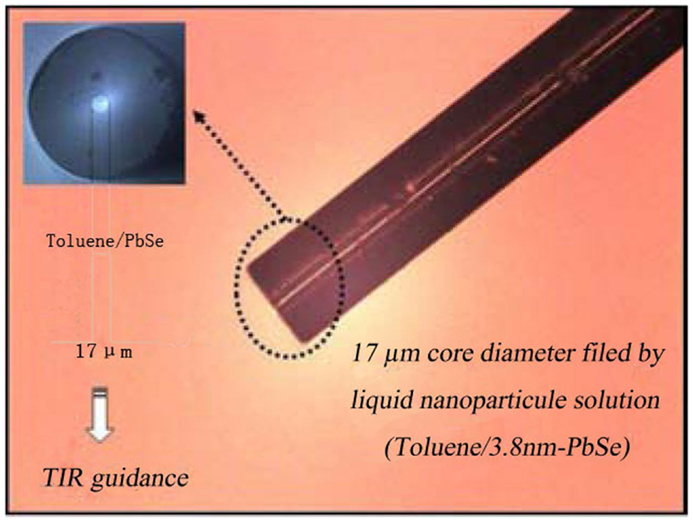

Figure 19. Longitudinal view of a 17-μm core diameter of a silica capillary filled by liquid nanoparticles solution (Hreibi et al., 2010).

FIGURE 20

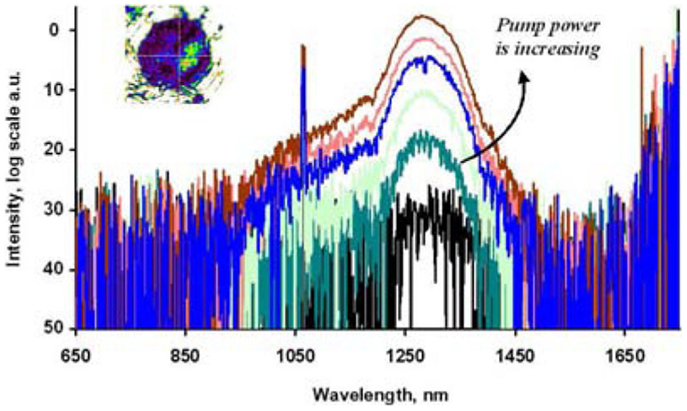

Figure 20. Evolution of the spectra recorded at the output of the PbSe QDs liquid-core fiber for varying input power. Inset: near field pattern recorded at the output of the fiber (Hreibi et al., 2010).

Cheng et al. reported a PbSe QD-doped fiber laser (QDFL) with a ring resonator using colloidal PbSe QDs as gain media in the background of UV curing adhesive (Cheng et al., 2013). Firstly, the UV curable adhesive solution containing the QDs with required concentrations were prepared. The resulting solution was then filled into a hollow fiber (50/125 μm, core/cladding) at difference pressure. Subsequently, the PbSe QD-doped fiber was irradiated under a UV lamp for ~15 min for curing the UV adhesive in fiber. The available QD-doped fiber with a tail was finally prepared. Upon 980-nm pump, a clear exciting threshold was recorded, and continuous yet stable laser oscillation at 1550 nm was observed for the first time. From the results in Figure 21, it can be known that when the pumping power is up to a certain level, the output power appears and linearly increases with the pumping power. These works could be a first step toward the development of a new family of fiber amplifiers and lasers.

FIGURE 21

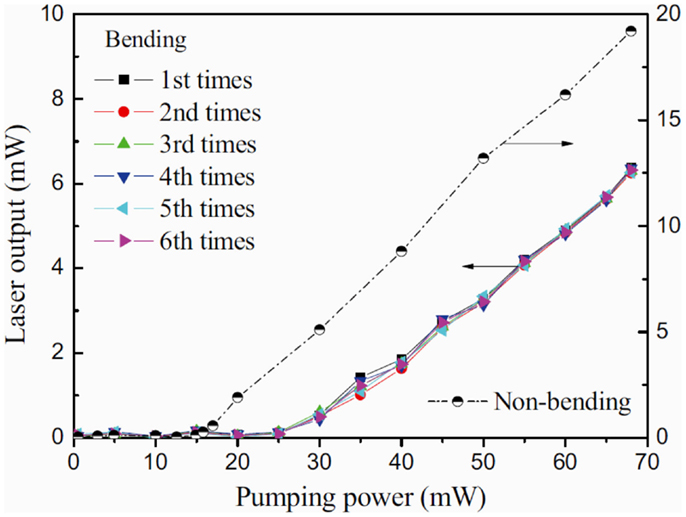

Figure 21. Variation of the laser output with the pumping power inputted into the PbSe QD-doped fiber (Cheng et al., 2013).

Using the above QDs filling hollow glass fiber method to prepare QD-doped glass fiber, the fiber core substrate material should have specific requirements for their refractive index, transmission wave band, gel curing rate, and characteristic temperature. The above process is too complicated and difficult for large-scale promotion to use. Furthermore, the core substrate material is usually photocurable adhesive, which is easy to decompose under laser pump and output. It results in the poor photostability of the above QD-doped glass fiber. Therefore, directly drawing fiber preform is an alternative way to controllable fabricate QDs-doped glass fiber.

Fabrication of solid core fibers containing PbS QDs was attempted using the conventional fiber-drawing technology by Liu et al. (Chao and Jong, 2013). PbS QD-doped glass preform with a diameter of 1 cm and length of 10 cm was prepared by melt-quenching method (Figure 22A). When heated up to 800°C for the fiber-drawing, the glass rod turned into black indicating that PbS QDs were formed during fiber-drawing process (Kellermann et al., 2001). The TEM image of the fiber showed the isolated small PbS QDs have a diameter of 4–6 nm. However, most of the PbS nanocrystals were in the size of 30–60 nm (Figures 22B,C). Therefore, it is difficult to obtain intense NIR tunable emission.

FIGURE 22

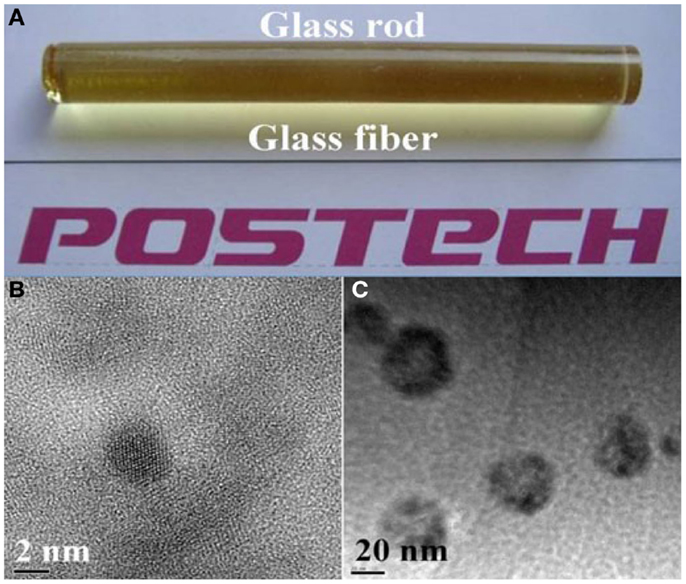

Figure 22. Digital photographs of (A) the as-prepared glass preform and the obtained fiber. (B,C) TEM images of PbS nanocrystals formed during fiber-drawing process (Bhardwaj et al., 2012).

Recently, our group also prepared the bulk PbS QD-doped glass preform, and drawn the QD-doped glass fiber by the fast drawing technique. This method successfully prepared a brown, transparent, chunk glass preform (Figure 23A). However, due to the uncontrollable secondary growth during fiber-drawing process, the glass fiber turned into black and light tight (Figure 23B). Most of the PbS nanocrystals grew larger than their exciton Bohr radius. Therefore, only weak NIR emission was detected in the PbS QD-doped glass fiber prepared by the above fiber-drawing. Based on the above results, a new modified fiber-drawing technique should be developed to prepare high-quality QDs-doped glass fibers.

FIGURE 23

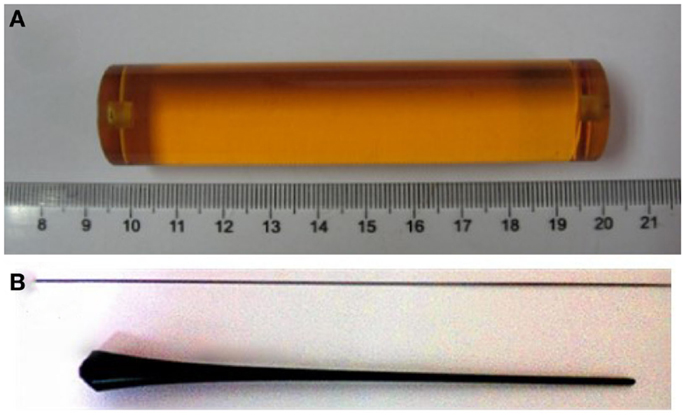

Figure 23. (A) Digital photograph of optical fiber preform for the drawing of PbS QD-doped glass fiber. (B) Digital photograph of glass preform tail after fiber-drawing process.

To obtain intense NIR emission from PbS QD-doped glass fibers, we recently tried to prepare the bare glass fiber directly by melt-extraction method. After the glass melting process, the melt will be directly drawn into glass fiber at high temperature. After heat-treatment, glass fiber with controllable QDs will be obtained. Recently, our group prepared PbS QD-doped glass fiber directly by the melt-extraction method combined with moderate heat-treatment schedule. The size and distribution of PbS QDs in fiber can be controlled by glass composition and heat-treatment schedule. Figure 24A illustrated the digital photographs of PbS QDs-doped glass fiber before and after heat-treatment at different schedules. The color of PbS QDs-doped glass fiber deepens when the heat-treatment temperature rises due to the controllable formation of PbS QDs in fiber after heat-treatment. From Figure 24B, it can be deduced that intense tunable NIR emissions were obtained in the above PbS QDs-doped glass fiber prepared by the melt-extraction method.

FIGURE 24

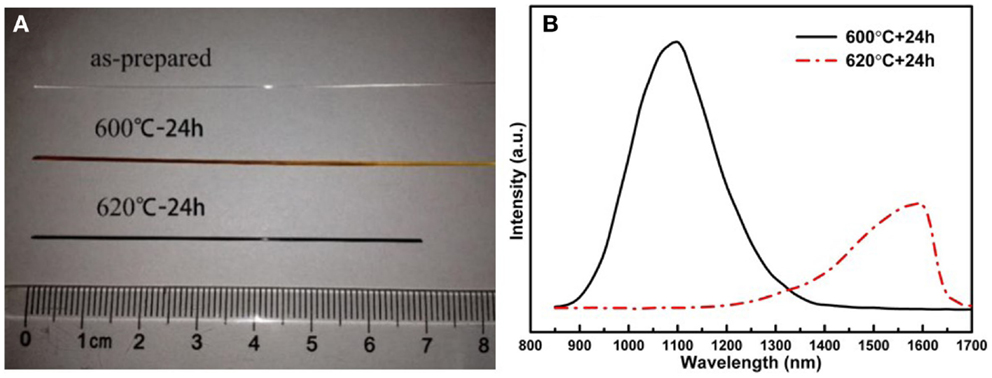

Figure 24. (A) Digital photographs of PbS QD-doped glass fiber before and after heat-treatment at 600 and 620°C for 24 h. (B) PL spectra of PbS QD-doped glass fiber after heat-treatment at different schedules.

Herein, liquid-core fiber is the most convenient protocol to synthesis QDs with excellent performance. However, for further application, QDs must be incorporated into various bulk matrixes and the fiber core substrate materials have a lot of restrictions. Directly drawing fiber preform is a simple way to controllably fabricate QD-doped glass fiber, but secondary growth of QD is difficult to control. Melt-extraction method is prior to synthesize a QD-doped fiber due to the controllable size and distribution of QDs in various glass matrixes, which probably need a further in-depth research in the future. The above results illustrated that the feasibility to prepare the QD-doped glass fiber from bulk PbS QD-doped glass. And in our next step, we will develop several new types of fiber-drawing techniques to prepare all-solid-state QDs-doped glass fiber with whole core/cladding structure.

Conclusion and Prospects

Achievement

Both absorption and PL of lead chalcogenide QDs can be tuned within the NIR wavelength range, covering the most important second and third optical communication windows (Chao and Jong, 2013). And the fluorescence peak positions can be controlled by the size and distribution of the QDs (Liu et al., 2009).

Our recent studies have confirmed the optical amplification at ~1330 and ~1550 nm windows of PbS QDs-doped glasses (Guoping et al., 2011). By tuning the QDs size, distribution, and PL properties, optical amplification was achieved at both 1330 and 1550 nm windows simultaneously in single PbS QD-doped glass, which is vital for their potential application as tunable broadband optical amplifiers and lasers (Chao et al., 2008).

Surplus high-speed optical switch, optical storage, optical computing devices, frequency multiplier can be prepared with semiconductor QD-doped glass, which have large third-order non-linear polarizability and quick response time, and can be used for the determination of molecular non-linear electric polarization.

To apply QDs-doped glass as the gain medium of fiber amplifier and laser device, a lot of studies about QD-doped optical fiber have been reported. Cheng and Zhang proposed a theoretical PbSe fiber amplifier with bandwidth about 50 nm, by solving light-propagation equations and rate equations (Cheng and Zhang, 2007). Furthermore, they proposed a multi-QD co-doped fiber amplifier, which has an ultra-broad bandwidth over 120 nm (Cheng, 2008). Jiang et al. reported a numerical model of a QD-doped fiber amplifier by a two-level model (Chun, 2009). From the simulated results, we know that the QD-doped fiber had ultra-broad gain spectra in the range 1200–1620 nm upon 1200-nm pump. Cheng et al. reported PbSe QDFL with a ring resonator using colloidal PbSe QDs as gain media in the background of UV curing adhesive (Cheng et al., 2013). Upon 980-nm pumping, a clear exciting threshold was recorded, and continuous yet stable laser oscillation at 1550 nm was observed for the first time. The results above all showed that the QDs-doped optical fiber have a vital promising application as the gain medium of NIR broadband fiber amplifiers and tunable fiber lasers.

Existing Problems and Prospects

The overlap of QDs absorption peak and PL peak (small stokes shift)

When a system (molecule or atom) absorbs a photon, it gains energy and activates into an excited state. One way for the system to relax is to emit a photon, thus releasing its energy (another way would be the transformation of heat energy). When the emitted photon has less energy than the absorbed photon, this energy difference is the Stokes shift (Figure 25). With the decreasing of Stokes shift, the overlap of absorption and fluorescence spectrum increases, leading to the self-absorption which reduces the fluorescence efficiency. In general, a big Stokes shift is desirable to elevate emission efficiency within the interesting waveband (Cheng et al., 2011). Blue- or red-shift will occur by changing the size and distribution of QDs, with which the Stokes shift can be adjusted (Silva et al., 2006b). As the size of QDs increases, the Stokes shift will decrease (Cheng et al., 2011). This phenomenon was also reported in literature (Silva et al., 2003), which can be explained by the Kubo theory (Yu and Peng, 2002). The level spacing as a function of particle diameter can be expressed as follows (Kubo, 1962):

$\mathrm{\delta }=\frac{4{\mathrm{E}}_F}{3N}\propto V^{-1}$

where δ is the level spacing, N is the total number of conduction electrons of a nanoparticle, V is the volume of a nanoparticle, and E_F is the Fermi level.

FIGURE 25

Figure 25. The absorption and PL spectra of QDs, which illustrated a Stokes shift (Guo et al., 2012).

Through the above analysis, it can be deduced that the key to solve the problem of overlapping is to control the size and distribution of QDs. One can improve synthetic method of QDs, continuously explore new synthetic techniques to realize the controllable growth of QDs. By this, people can control the size and distribution of QD as required. In recent years, organic synthesis have been improved, and successfully prepared various bivariate and multivariate semiconductor QDs (such as: CdSe, PbS, InP, ZnSe, ZnxCd_1-xSe, CdTe_xSe_1-x, and so forth), realizing the controllable synthesis in size, morphology, composition, and properties of QD basically (Murray et al., 1993; Peng and Peng, 2001b; Yu and Peng, 2002).

Besides temperature, new fields including femtosecond laser, electrochemical synthesis, and magnetic field induction may also be utilized to tuning the distribution and growth of QDs in glass substrate. Stone et al. pointed out that the ferroelectric single crystal LaBGeO₅ can controllably grow directly in 25La₂O₅-25B₂O₃-50GeO₂ (mole percentage) glass by femtosecond laser irradiation (Stone et al., 2009). Later, Fan et al. also use femtosecond laser to control the micron-region formation of PbS QDs inside the glass. These fully prove that ultrafast laser radiation is one of the most effective ways to induce the controllable QDs formation in glass matrix (Fan et al., 2012). Now many scholars focus on finding out the effective laser radiation parameters to control crystallization behavior.

In summary, the size and distribution of the QDs can be designed to get the requiring Stokes shift, thereby weakening the overlap and self-absorption to further improve the QDs’ quantum yield.

Under the laser irradiation, photodarkening may be occurred in QDs-doped glass. The excessive ions (such as Pb and S elements for PbS QDs) in glass matrix will be deposited in the generated QDs during or after the process of laser irradiation, thus increasing the size of QDs, and weakening quantum confinement effect

The key to solve this problem is to control the size of QDs, and they will not grow up in the role of light (Lagatsky et al., 2004). As is mentioned above, QD-doped glass and fiber can be prepared by composite approach of the QD nanocrystals with glass. Based on this method, QDs nanocrystals can be further cladding, their surface were passivation. And then they were compounded with glass, no any excessive ions (such as Pb and S elements for PbS QDs) existed in glass matrix. This makes the resistance of QDs growth much bigger, harder to grow when influenced by external field conditions.

A stable and widely covered way is growing inorganic material shell on the surface of QDs, forming core/shell structure. Inorganic material shell with the same clan system can grow on the surface of QD’s nuclear epitaxial, it will be more insulation than semiconductor, effectively protect the carrier at the inside of the light. Among them, the ZnS shell can coat in the nuclear of CdSe (both are II–VI), which is the most common core/shell structure. The research about them is the thorough currently, and they have been widely used in various applications such as subsequent biological, photoelectric fields (Colvin et al., 1994; Bruchez et al., 1998).

Secondary growth of QDs during the optical fiber-drawing process

When drawing PbS QD-doped optical fiber from the preform, due to the excessive Pb and S elements in glass matrix, the secondary growth of QDs will occur via ion-migration mechanism under the driving force for the rise of temperature, so that the size of QDs is hard to control. Therefore, confinement effect is difficult to play since QDs easily grow larger than the exciton Bohr radius.

As is mentioned above, we can obtain fiber by melt-extraction method, and its advantage is easy to control the size of QD. But it is only used to prepare bare fiber. To obtain optical fiber that can be used for practical application, we must modify its fiber-drawing process, making direct access to prepare whole QD-doped glass fiber containing outer cladding layer.

Based on the successful fabrication of luminescent PbS QD-doped bare fibers by melt-extraction method mentioned above, a traditional type of fiber-drawing technology - double crucible method is expected to directly fabricate optical fiber containing outer cladding layer from glass melt. Sanghera et al. have fabricated single mode optical fibers using the double crucible technique, and that double crucible process enables adjustment of the core/clad diameter ratio during fiber drawing by independent pressure control above each melt (Sanghera et al., 2008). The mechanical property of glass fibers fabricated by double crucible process is better (Dianov et al., 1990). These all confirmed the feasibility of double crucible technique. After drawing by double crucible process, and then heat-treatment, moderate size of QDs can be obtained in fiber by controlling the heat-treatment schedule.

By composite approach of the QDs and glass, it is also expected to prepare QD-doped glass and fiber. The QDs should be controllably synthesized firstly, and then composited with the substrate glass together through co-melting technique (Chai et al., 2012), which can be further drawn into optical fiber by controlling the reasonable temperature and melting state. During the composite approach, there are no residual Pb and S elements in PbS QD-doped glass, and the QDs can only grow through the Oswald ripening process. Since the resistance of QDs growth via Oswald ripening process is much bigger than the above ion-migration force of secondary growth, it is much more difficult for the secondary growth of QDs by composite approach during the fiber-drawing process. In our previous work, we have successfully synthesized YAG nanocrystals, and making them recombined with substrate tellurate glass by novel co-melting technology. Intense 2.7 μm emission was obtained in the YAG:Er³⁺,Tm³⁺ nanocrystals-tellurate glass composites (Chai et al., 2012). Those works have opened a bright future work to fabricate high-quality QDs-doped glass fibers and devices.
