Dissolved rare earth elements in the Northwest Pacific: Sources, water mass tracing, and cross‐shelf fluxes

Cao, Axiang; Zhang, Jing; Zhang, Honghai; Chen, Zhaohui; Cui, Guanghao; Liu, Zhensong; Li, Yanbin; Liu, Qian

doi:10.3389/fmars.2023.1135113

ORIGINAL RESEARCH article

Front. Mar. Sci., 16 March 2023

Sec. Marine Biogeochemistry

Volume 10 - 2023 | https://doi.org/10.3389/fmars.2023.1135113

This article is part of the Research Topic Biogeochemical Processes of Micro/Trace Elements and Their Impacts on Marine Ecosystems View all 14 articles

Dissolved rare earth elements in the Northwest Pacific: Sources, water mass tracing, and cross‐shelf fluxes

Axiang Cao^1,2

Jing Zhang^1,3,4*

Honghai Zhang^1,2

Zhaohui Chen⁵

Guanghao Cui^1,2

Zhensong Liu^1,2

Yanbin Li¹

Qian Liu^1*

¹Frontiers Science Center for Deep Ocean Multispheres and Earth System, and Key Laboratory of Marine Chemistry Theory and Technology, Ministry of Education, Ocean University of China, Qingdao, China
²College of Chemistry and Chemical Engineering, Ocean University of China, Qingdao, China
³Faculty of Science, Academic Assembly, University of Toyama, Toyama, Japan
⁴Laboratory for Marine Ecology and Environmental Science, Qingdao National Laboratory for Marine Science and Technology, Qingdao, China
⁵Frontier Science Center for Deep Ocean Multispheres and Earth System, and Physical Oceanography Laboratory, Ocean University of China, Qingdao, China

In the Northwest Pacific, a key area for understanding the sources and transport of materials in the ocean, knowledge of the sources, transport, and biogeochemical cycling of trace elements is limited. Trace elements such as the rare earth elements (REEs) can trace the sources and transport of water masses. Here we present dissolved REE concentrations along a longitudinal transect (150 ^oE) from 13°N to 40°N in the Northwest Pacific (≤2000 m). We divided the transect into two subregions: a mixed water region (MWR; 37~40 °N, where the Oyashio and Kuroshio currents mix) and a subtropical region (13~34 °N). In the MWR, REEs were strongly positively correlated with apparent oxygen utilization in subsurface water (depth > the chlorophyll maximum layer, potential density <26.6 kg/m³), with about a 4-fold higher slope (0.15±0.06) than in the subtropical region in subsurface and intermediate waters (0.04±0.003, potential density <27.5 kg/m³). This suggests that REEs are released by organic matter remineralization at a higher efficiency in the MWR vs. in the subtropical region, which can be explained by different water masses and plankton community structures. In addition, we observed a lithogenic input signal of REEs from the Aleutian Islands based on the high La/Yb ratio (>0.35). This ratio was controlled by lateral transport and showed a good agreement with salinity, indicating that it is a useful tracer of low salinity water originating from the subarctic region. Furthermore, we estimated the cross-shelf fluxes of Nd in the Northwest Pacific. The estimated Nd fluxes from the Sea of Okhotsk, the Sea of Japan, the East China Sea, and the South China Sea into the Northwest Pacific were 29~32 t/y, 159~302 t/y, 142~616 t/y, and -298~34 t/y, respectively. This study highlights the importance of considering the cross-shelf REE fluxes in the Northwest Pacific when constructing the oceanic REE budgets.

1 Introduction

The Northwest Pacific, which mainly includes the Northwest Pacific subarctic region and the Northwest Pacific subtropical region, is adjacent to a large area of marginal seas and is a key area that receives trace element inputs from terrigenous sources (Nishioka et al., 2013 ; Kim et al., 2017; Yang et al., 2018; Morton et al., 2019). The Kuroshio (including Kuroshio Extension) and Oyashio are the two most important surface currents in the Northwest Pacific. They carry large quantities of trace elements (Fe/Mn/Cd/Zn, etc.) from the marginal seas (Sea of Okhotsk and East China Sea, etc.) and islands (Kuril and Aleutian Islands, etc.) into the Northwest Pacific (Nishioka et al., 2013 ; Kim et al., 2017; Yang et al., 2018; Morton et al., 2019). Rare earth elements (REEs, the lanthanide family) are important marine process tracers with coherent chemical properties and similar chemical behaviors (Elderfield, 1988). They are commonly used to trace lithogenic input sources and water mixing , which are in turn very important for understanding the behavior of trace elements in the oceans (Zhang et al., 2008; Zheng et al., 2016; Behrens et al., 2018a; Garcia-Solsona et al., 2020; Behrens et al., 2020). For instance, La/Yb ratios (the ratio of La to Yb after normalization) reflected the recent dissolution of lithogenic material from the Kerguelen and/or Heard islands in the Southern Ocean (Zhang et al., 2008). The REE anomaly (the anomaly refers to the deviation of the measured value of one element to the value predicted from two adjacent elements after normalization) in the Northwest Pacific was used to trace inputs from the Philippine Islands (Behrens et al., 2018a). In addition, heavy rare earth elements (HREEs; Gd, Td, Dy, Ho, Er, Tm, Yb, Lu), which generally behave conservatively, have been utilized to identify water mass mixing (Zhang et al., 2018; Garcia-Solsona et al., 2020; Liu et al., 2022).

The concentrations of REEs in the ocean generally increase with depth, which can be explained by the scavenging of REEs at the surface and the release of REEs by remineralization at depth (Elderfield and Greaves, 1982; de Baar et al., 1985; Elderfield, 1988; Bertram and Elderfield, 1993). Numerous studies have investigated the effect of organic matter remineralization on REEs using the relationship between REEs and apparent oxygen utilization (AOU; a reliable measure of remineralization) (e.g., Stichel et al., 2015; Lambelet et al., 2016; Behrens et al., 2018b; Seo and Kim, 2020). For example, in the eastern Atlantic, organic matter remineralization releases more Nd than in the western Atlantic (Stichel et al., 2015; Lambelet et al., 2016). However, at present, REE data is sparse in the Northwest Pacific (Piepgras and Jacobsen, 1992; Alibo and Nozaki, 1999; Behrens et al., 2018a), and thus our knowledge of the regional differences in the effects of remineralization on REEs is limited.

The mass balance of dissolved REEs in the oceans is not well constrained (Tachikawa et al., 2003; Johannesson and Burdige, 2007). Marginal seas may be a major source of material to the open oceans, and typically have high concentrations of REEs due to excessive inputs from the atmosphere, rivers, groundwater, and land-sea boundary exchanges (Amakawa et al., 2004a; Amakawa et al., 2004b; Hatta and Zhang, 2006; Wu et al., 2015; Zhang et al., 2018). The Northwest Pacific Ocean interacts with a large continental shelf area (~6×10⁶ km²), which accounts for about 20 % of the total area of global marginal seas. Therefore, marginal seas may play a key role in the supply and mass balance of REEs throughout the Pacific. However, quantitative evaluations of cross-shelf fluxes of REEs from marginal seas to the open ocean are lacking. The influence of marginal seas on oceanic REE budgets is still poorly understood.

To better understand the influencing factors and sources of REEs in the Northwest Pacific, we measured the dissolved REEs in seawater above 2000 m in the region from 13°N to 40°N along a 150°E longitudinal transect. We found regional differences in the release of REEs by organic matter remineralization. In addition, we identified the sources of REEs and suggest that REE ratios can be good tracers of water masses originating from the subarctic region. Furthermore, we estimated the cross-shelf fluxes of REEs between the marginal seas and the Northwest Pacific. Our results indicate that the marginal seas have a very important role in the REE budgets of the Northwest Pacific.

2 Materials and methods

2.1 Study area

The Northwest Pacific, from the subarctic to the subtropical region, interacts with the Sea of Okhotsk, Sea of Japan, East China Sea, South China Sea, and the Bering Sea.

The Kuroshio Current and Oyashio Current are the most important currents in the Northwest Pacific (Figure 1). The Kuroshio originates from the western boundary current to the east of the Philippine Islands, and is characterized by high temperature, high salinity oligotrophic water (Nitani, 1972). It flows northward along Taiwan Island, passes through the East China Sea continental shelf, then flows into the Pacific Ocean through the Tokara Strait, and turns eastward at about 35°N. The Oyashio is formed by mixing of the East Kamchatka Current and Okhotsk water, which is characterized by low temperature and low salinity water, rich in oxygen and nutrients (Rogachev et al., 2000). As the Oyashio front intrudes southward, it interacts with warm and saline Kuroshio waters to form North Pacific Intermediate Water (NPIW). This region is defined as the Mixed Water Region (MWR) (stations P1-1~P1-4; Talley et al., 1995; Yasuda et al., 1996; Yasuda, 2004; Qiu and Chen, 2011; Hu et al., 2015).

FIGURE 1

Figure 1 Map of stations sampled during the transect P1 cruise (blue dots) in the northwest Pacific, and generalized circulation patterns in the region. Solid arrows represent flow patterns of major surface currents (the North Equatorial Current, the Kuroshio Current, the Oyashio Current, the East Kamchatka Current). The map was created using Ocean Data View (ODV) software (Schlitzer, 2015).

At stations P1-7~P1-28 (Figure 1), North Pacific Tropical Water (NPTW) is the dominant North Pacific subsurface water mass, and is characterized by a salinity maximum (S>34.60, Suga et al., 2000). NPIW is formed in the MWR and flows cyclonically in the North Pacific. It is usually defined by a potential density of 26.6-27.5 kg/m³ and features a vertical salinity minimum in the subtropical Pacific (Yasuda et al., 2001; Nishioka et al., 2007; Kim et al., 2017).

2.2 Sample collection and ancillary data

Seawater samples shallower than 2000 m were collected along a longitudinal transect P1 (13°N ~ 40°N, 150°E) during a cruise on the R/V Dongfanghong 3 (October 31st – December 1st, 2019) in the Northwest Pacific. The stations are shown in Figure 1. Stations P1-1~P1-4 are located in the MWR and stations P1-7~P1-28 are located in the subtropical region.

Seawater was sampled from 12 L Niskin-X bottles and filtered immediately through 0.45 μm membrane filters (polyether sulfone) into pre-cleaned low-density polyethylene (LDPE) bottles (500 mL). The filtering process was conducted in a clean bench onboard. Samples were then acidified to pH≤ 2 using 6 M ultra-pure hydrochloric acid (Optima grade, Fisher Chemical), and stored in double bags.

Water temperature and salinity profiles were measured using conductivity-temperature-depth sensors (CTD, Sea-Bird 911 plus). The dissolved oxygen (DO) concentration was determined via Winkler titration (Bryan et al., 1976). AOU was calculated by the equation below,

\begin{array}{l} A O U = D O^{s} - D O & (1) \end{array}

where, DO^s and DO represent the saturated oxygen concentration at the given pressure/depth and the observed oxygen concentration, respectively. Chlorophyll was measured using a HITACHI F-4700 fluorometer (Parsons et al., 1984; Li et al., 2022). Nitrate and nitrite concentrations were measured using an autoanalyzer (Seal analytical AA3) (Li et al., 2022).

2.3 Rare earth element analysis

Seawater samples were pre-concentrated with NOBIAS PA1 resin in a Class 1000 clean room and the REE concentrations were determined by inductively coupled plasma mass spectrometry (ICP-MS; Takata et al., 2009; Persson et al., 2011; Hatje et al., 2014; Liu et al., 2022). The results were corrected using a Lu (lutecium) internal standard. The recoveries of the internal standard were greater than 90%. The concentration of REEs in blank samples was within 3% of that measured in surface seawater, which usually has the lowest concentration in the ocean. Relative standard deviations (RSDs) of REEs were determined on replicate measurements of surface (n=4) and 4000 m deep (n=11) seawater, which were both less than 5%. The sample measurement errors are reported in Supplementary Table S1.

The Ce anomaly (Ce/Ce^*) was calculated as (Zhang and Nozaki, 1998; Lacan and Jeandel, 2001):

\begin{array}{l} C e / C e^{*} = 2 \times {(C e)}_{N} / ({(L a)}_{N} + {(P r)}_{N}) & (2) \end{array}

where (Ce)_N , (La)_N,and (Pr)_N represent the Post Archean Australian Shale (PAAS) (Taylor and McLennan, 1985) normalized Ce, La, and Pr, respectively. The RSD of Ce/Ce^* in Pacific deep water (4000 m, n=11) is 3.5%. By convention, an anomaly value >1 (or <1) is referred to as a positive (or negative) anomaly.

The La/Yb ratio was calculated as (Zhang et al., 2008):

\begin{array}{l} L a / Y b = {(L a)}_{N} / {(Y b)}_{N} & (3) \end{array}

where (Yb)_N represents the PAAS normalized Yb. The RSD of the La/Yb ratio in Pacific deep water is 2.4% (4000 m, n=11).

The location of station P1-15 (26°N, 150°E) in this study is close to station TPS 24 271-1 (24.29°N, 150.45°E) from previous trans-Pacific sections (Piepgras and Jacobsen, 1992). The REE concentrations were comparable between the two stations (1000 m and 2000 m) with RSDs <10 % except for Ce (Supplementary Table S2). Considering that Ce is susceptible to contamination and has a relationship with latitude (see section 4.2), the Ce concentration RSDs of 18 % and 19 % are acceptable. The intercalibration reported here basically follows GEOTRACES protocols (https://geotracesold.sedoo.fr/Cookbook.pdf).

2.4 Isopycnal mixing model

To evaluate the quasi-conservative behavior of REEs from NPIW (26.6~27.5 kg/m³) in the MWR (stations P1-1~P1-4), we used a mixing model to determine the Oyashio and Kuroshio mixing ratios at three isopycnal surfaces: 26.6, 27.0 and, 27.5 kg/m³ (Du et al., 2013; Wu et al., 2015; Li et al., 2021). The equations are as follows:

\begin{array}{l} f_{O C} + f_{K C} = 1 & (4) \end{array}

\begin{array}{l} f_{O C} \times θ_{O C} + f_{K C} \times θ_{K C} = θ_{M} & (5) \end{array}

\begin{array}{l} f_{O C} \times S_{O C} + f_{K C} \times S_{K C} = S_{M} & (6) \end{array}

\begin{array}{l} Δ N d = N d_{M} - f_{O C} \times N d_{O C} - f_{K C} \times N d_{K C} & (7) \end{array}

where, f_OC and f_KC represent the fractions of the Oyashio and the Kuroshio waters, respectively, and the θ_OC (θ_KC), S_OC(S_KC),and Nd_OC(Nd_KC) terms are the potential temperatures (θ), salinities, and Nd concentrations of Oyashio (Kuroshio) end-members, respectively. We selected stations located in regions before the end-member currents enter the MWR since water mass properties may change after formation during transport to the study area. End-member characteristics of the Oyashio and the Kuroshio and their uncertainties are listed in Table 1. The subscript “_M” represents measured values. Calculated results were fitted by least-squares optimization. Non-conservative Nd (ΔNd) is defined as the difference between the observed concentrations and calculated values due to water mass mixing; ΔNd values greater than 0 or less than 0 represent additions or removals from our defined endmember region to the study region, respectively.

TABLE 1

Table 1 End-member characteristics of the Oyashio and the Kuroshio currents and their uncertainties.

3 Results

3.1 Hydrographic setting

The potential temperature-salinity diagram (Figure 2) shows a potential temperature range from 1.7 to 29.5°C. At low latitudes, the surface water (≤5 m) has higher potential temperatures than that at high latitudes (Figure 3A). Potential temperature in surface water at stations P1-1~P1-4 (MWR, 37°N-40°N) ranges from 14.5 to 22.3°C. At stations P1-7~P1-28 (subtropical region, 13°N-34°N), the potential temperature in surface water ranges from 22.3 to 29.4°C. Vertically, the potential temperature decreases rapidly to <5°C from the surface to 1000 m and then remains constant below 1000 m (Figure 3A).

FIGURE 2

Figure 2 Potential temperature (°C)-salinity diagram with potential density (kg/m³) contours as solid grey lines. The general location of major currents (Oyashio and Kuroshio) and water masses (NPTW: North Pacific Tropical Water, NPIW: North Pacific Intermediate Water) are marked based on their hydrographic properties. Colored symbols represent the Nd concentration (pmol/kg) of individual water samples. The shallow water (<100 m) in MWR was marked by a dotted ellipse.

FIGURE 3

Figure 3 Distributions of (A) potential temperature (°C), (B) salinity with potential density contours in white, (C) DO (μmol/kg), (D) Nd (pmol/kg), (E) Yb (pmol/kg), and (F) Ce (pmol/kg) along the P1 transect.

Salinity ranges from 33.39 to 35.12. In the upper water column (≤300 m), stations P1-1 ~P1-4 have low salinities, 33.39 to 34.55, which is mainly influenced by the Oyashio. In contrast, the other stations have high salinities (34.12 to 35.12), where the NPTW forms (Figure 3B). Below 300 m, the salinities at stations P1-1 and P1-2 gradually increase with depth. However, the salinities of the other stations reach their minimum values (<34.3) between 300 m and 1000 m, which indicates the core area of NPIW (26.6-27.5 kg/m³, Figures 3B, 4A). The salinities at all stations are constant at 34.20-34.63 in deeper water (1000 m-2000 m).

FIGURE 4

Figure 4 Vertical profiles of (A) Salinity, (B) Nd (pmol/kg), and (C) Yb (pmol/kg) with error bars from all stations.

3.2 REEs concentrations

Detailed REE concentration data is shown in Supplementary Table S1. Similar distributions were observed for Nd and the sum of LREEs (Light rare earth elements ; La , Ce, Pr, Nd, Sm, and Eu; except for Ce, which has significant redox-related behavior that other LREEs do not; R²=0.98), and Yb and the sum of HREEs (R²=0.98) (Supplementary Figures S1,S2), Therefore, we use Nd as a representative element for LREEs and Yb as a representative element for the HREEs (e.g., Zheng et al., 2016; de Baar et al., 2018) in this study.

The concentrations of Nd and Yb for all stations along the P1 transect are shown in Figures 3D, E. Concentrations of Nd and Yb ranged from 2.62 ~ 26.66 pmol/kg and 0.83 ~ 10.02 pmol/kg, respectively. In general, REE concentrations in the MWR were higher than those in the subtropical region. In the MWR (37-40°N, stations P1-1~P1-4), the water samples from less than 300 m depth (<26.6 kg/m³) were characterized by high REE concentrations (Nd=13.02±2.91 pmol/kg, Yb=3.60±1.03 pmol/kg), which may indicate significant influence by the Oyashio with low salinity and high REEs. Below 300 m, the REEs increased with depth (Figures 3D, E, 4B, C ). At 2000 m, the concentrations of Nd and Yb were 22.70±5.39 pmol/kg and 9.68±2.91 pmol/kg, respectively. In the subtropical region (13-34°N, stations P1-7~P1-28), the lowest REEs concentrations were found in surface and subsurface water (≤105 m, Nd=4.45±1.20 pmol/kg, Yb=1.18±0.26 pmol/kg), which may be due to particle scavenging (Stichel et al., 2015; Fröllje et al., 2016). Below 105 m, the REE concentrations increased with depth (Figures 3D, E, 4B, C). At 2000 m, the concentrations of Nd and Yb reached up to 21.44±2.92 pmol/kg and 9.04±0.68 pmol/kg, respectively.

Due to its significant redox behavior, Ce concentration distributions differed from other REEs (Figure 3F). The highest Ce concentration (6.29±1.94 pmol/kg) was found at a water depth less than 300 m in the MWR. The lowest Ce concentration was found in water samples from 500 m to 2000 m depths at stations P1-19~P1-28 (1.77±0.22 pmol/kg). Overall, at the same depth, Ce concentrations were higher at high latitudes than at low latitudes (except for ~1500 m at stations P1-7~P1-9). At ~1500 m of stations P1-7~P1-9, Ce concentrations (5.49 ±1.12 pmol/kg, Figure 3F) were slightly higher than the surrounding seawater and the oxygen was the lowest (46.69±1.50 µmol/kg, Figure 3C) as well.

4 Discussion

4.1 Processes controlling the vertical distributions of REEs: remineralization

REE concentrations were strongly positively correlated with AOU below the depth of the chlorophyll maximum (DCM) layer (Figure 5A, the DCM in each station is shown in Supplementary Table S1), suggesting that the remineralization of sinking organic matter contributes to the increase of REEs (except for Ce). This is consistent with findings in the central and intermediate waters of the West Pacific by Behrens et al, (2018a, b). To systematically understand the influence of remineralization on REEs, we summarize the relationship between Nd and AOU in the subsurface and intermediate water (σ_θ< 27.5 kg/m³, depth >DCM), where the remineralization processes are usually pronounced, based on our observations and data from the literature (Behrens et al., 2018a; Behrens et al., 2018b). The results show that Nd increased rapidly as AOU increased in subsurface water (σ_θ< 26.6 kg/m³, depth >DCM) with the relationship yielding about a 4-fold higher slope (0.15±0.06) in the MWR (stations P1-1~P1-4, 37~40°N) vs. south of the MWR (0.04±0.003) (-15~34°N; Figure 5A ). However, Nd remained almost constant with increasing AOU in the intermediate water (26.6-27.5 kg/m³) of the MWR (stations P1-1~P1-4, 37~40°N; Figure 5A). Therefore, in the MWR remineralization processes mainly influenced the REEs in subsurface water, rather than in intermediate water. This may indicate the rapid decomposition of organic matter in the subsurface water, with few organic particles sinking to intermediate water depths in the MWR. Similarly, Nd is positively correlated with nitrate + nitrite in subsurface and intermediate water (σ_θ<27.5 kg/m³, depth >DCM) to the south of the MWR as well as in subsurface water (σ_θ< 26.6 kg/m³, depth >DCM) of the MWR (Figure 5B). This also suggests that the remineralization of sinking organic particles plays a critical role in the production of REEs. We also estimated the addition or removal of Nd in the intermediate water of the MWR (stations P1-1~P1-4, 26.6~27.5 kg/m³) by using the isopycnal mixing model (section 2.4). The results show that, at 26.6 kg/m³, the proportion of Nd added to the observed Nd (ΔNd/Nd) was 21±16%. At 27.5 kg/m³, there was almost no addition or removal of Nd (ΔNd/Nd=-6±12%), which is consistent with the above conclusion that remineralization contributes negligible Nd to the intermediate water of the MWR. Overall, our results suggest that the influence of remineralization on REEs varies regionally.

FIGURE 5

Figure 5 (A) Nd (pmol/kg) vs. AOU (µmol/kg) from P1 transect (triangles) and Behrens et al. (2018a,b) (crosses) within subsurface and intermediate water (Depth >DCM and σ_θ< 27.5 kg/m³); (B) Nd (pmol/kg) vs. Nitrate +Nitrite (µmol/kg) from P1 transect (triangles). The colored symbols represent data from water less dense than 26.6 kg/m³ in the MWR (stations P1-1~P1-4, 37~40°N). The linear regressions and corresponding equations are shown for water samples with densities less than 26.6 kg/m³ in the MWR (blue line) and south of the MWR (gray line).

Remineralization processes are related to the ambient environmental context, such as microbial community structure, nutrient supply and exogenous labile organic matter inputs (Church et al., 2000; Carlson et al., 2004; Mills et al., 2008; Carlson et al., 2009; Li et al., 2021). In the MWR, the intrusion front of the Oyashio mainly exists at σ_θ < 26.7 kg/m³ (Zhu et al., 2019), which is almost consistent with the depth (σ_θ < 26.6 kg/m³) where REEs appear to be significantly released by remineralization. The intrusion of the Oyashio into the Kuroshio, with distinct environmental contexts (e.g., temperature, salinity, nutrient supply, and organic matter inputs), may enhance the remineralization in the MWR subsurface water (<26.6 kg/m³). Enhanced remineralization due to strong mixing is also found in the Luzon Strait near the Kuroshio intrusion (Li et al., 2021). In addition, the regional differences in remineralization might be associated with the plankton community structure. For instance, in the MWR, the phytoplankton are dominated by haptophytes, while in the oligotrophic subtropical region, dinoflagellates are dominant (Suzuki et al., 1997; Lin et al., 2020; Wang et al., 2021; Wang et al., 2022). We suggest that organic detritus from different organisms may have distinct ratios of consumed oxygen and released REEs during the remineralization process. This supposition requires more evidence, such as the ratio of REE concentrations to organic matter in haptophytes vs dinoflagellates. Thus, the water masses mixing and/or the plankton community structure could be responsible for the regional differences of the influence of remineralization on REEs.

Overall, our results emphasize regional differences in the release efficiency of REEs by remineralization. For other trace elements, like iron, the efficiency of organic remineralization is speculated to be one of the reasons for the difference in dissolved iron concentrations between the western and eastern subarctic Pacific (Nishioka et al., 2013). Our results may provide evidence for regional differences in trace elements caused by organic matter remineralization.

4.2 Shelf inputs and lateral transport of REEs

Figure 6 shows the distribution of LREEs (La, Ce, Pr) and La/Yb ratios in surface water (<10 m) in the Northwest Pacific. REE (La, Ce, Pr) concentrations near the margin are higher than those farther away. We suggest that the high REEs in the surface water of the MWR and Oyashio likely originate from the Kuril Islands (Morton et al., 2019). In addition, high La/Yb ratios (>0.35) (Figures 6E and 7A) were observed in northern stations (stations TPS 47 39-1 and SEEDS-II; Piepgras and Jacobsen, 1992; Hara et al., 2009), which reflects the effect of lithogenic material dissolution (Zhang et al., 2008; Pearce et al., 2013). The La/Yb ratio could be the Aleutian Islands signal caught up in the East Kamchatka Current since the elevated La/Yb ratios (0.51±0.51, Supplementary Figure S3A) have been observed in the Aleutian Islands. Furthermore, the high Nd isotopic composition (-2.2 at station CM-S-3 and -2.0 at station TPS 47 39-1) of surface water in the Oyashio also verifies the input of REEs from islands (the Kuril and Aleutian Islands), as volcanic islands usually have more radiogenic Nd (Piepgras and Jacobsen, 1988; Amakawa et al., 2004a, Amakawa et al., 2004b; Fuhr et al., 2021). Therefore, islands are important lithogenic sources of REEs to surface waters of the Northwest Pacific subarctic region and the MWR.

FIGURE 6

Figure 6 Maps showing surface sampling stations. Color bar represents (A) Salinity, (B) La (pmol/kg), (C) Ce (pmol/kg), (D) Pr (pmol/kg), (E) La/Yb and (F) Ce/Ce^* (data from this study, Piepgras and Jacobsen (1992); Hara et al. (2009); Behrens et al. (2018a), and Morton et al. (2019)) in surface water (<10 m). The north-south transect is marked with arrows on the map.

FIGURE 7

Figure 7 (A) Distributions of La/Yb with salinity contours in white along the south-north transect shown on the map in Figure 6, and (B) plots of La/Yb versus salinity (data from this study, Piepgras and Jacobsen (1992), and Hara et al. (2009)). La/Yb is significantly negatively correlated with salinity (R²=0.63, P<0.01).

In addition, the Sea of Okhotsk is an important source of materials to the Oyashio and NPIW in the Northwest Pacific, such as Fe (Nishioka et al., 2013), Zn (Kim et al., 2017), Cd (Yang et al., 2018) and anthropogenic CO₂ (Yasuda, 2004). Based on the fact that the Sea of Okhotsk receives a large number of trace elements from rivers and sediments, we believe that Okhotsk seawater may also be an important source of REEs to the Oyashio (Shulkin and Bogdanova, 2003; Nishioka et al., 2007; Nishioka et al., 2013; Nishioka et al., 2014; Kim et al., 2015).

As discussed above, the REEs in the Oyashio Current are sourced from the islands and the Sea of Okhotsk and then supplied to the NPIW in the subtropical region. In the study area, REE concentrations (except for Ce) are mainly influenced by remineralization processes during NPIW transport (see above section 4.1), and their concentration changes vertically, increasing with depth (Figures 3D, E, 4B, C). However, unlike other trivalent REEs, dissolved Ce is easily removed by particles in seawater. This is because Ce (III) is easily oxidized to the tetravalent state (Ce(IV)) in seawater and subsequently precipitated as CeO₂ or Ce(OH)₄, resulting in the depletion of dissolved Ce and negative Ce anomalies in seawater (Alibo and Nozaki, 1999; Tazoe et al., 2011). Following Morton et al. (2019), in the subarctic region, the Ce concentration was high but Ce/Ce^* showed an extremely negative anomaly (<0.2) in surface water (Figures 6C, F), which suggests Ce inputs from the shelf as well as preferential removal of Ce relative to La and Pr by Mn-oxides (Morton et al., 2019). In this study area (transect P1), Ce concentrations were higher at high latitudes than at low latitudes (except for ~1500 m depth at stations P1-7 ~P1-9, Figures 3F): that is, the Ce concentration decreased with distance from the shelf, due to the rapid oxidation and removal of Ce from seawater. At ~1500 m depth at stations P1-7~P1-9, Ce concentrations were slightly higher than in the surrounding seawater (Figure 3F), and the oxygen concentration was the lowest (Figure 3C). This might be explained by fewer oxide particles in the water column or the effect of lateral transport from a low oxygen region, and needs further research. In addition, a strong particulate negative Ce anomaly was observed in the subarctic region (station 2, 155°E, 44°N) by Morton et al. (2019), which may rule out the possibility of supply from an atmospheric source because aerosols generally have no Ce negative anomaly (Morton et al., 2019).

The Oyashio Current acquires the imprints of high La/Yb ratios from the islands through the East Kamchatka Current. As shown in Figure 7A, the highest La/Yb ratios (>0.35) were observed at stations TPS 47 39-1 (Piepgras and Jacobsen, 1992) and SEEDS-II (Hara et al., 2009) (< 100 m) in the East Kamchatka Current. In the low salinity water (<34.25, mainly the Oyashio and NPIW), the high value signature is gradually diluted as the water mass flows southward. It should be noted that because of the lack of REE data in the Sea of Okhotsk, we cannot determine whether the water masses from the Sea of Okhotsk also provided elevated La/Yb ratios to the Oyashio and NPIW. At all stations (≤2000 m), La/Yb is significantly negatively correlated with salinity (R²=0.63, P<0.01) (Figure 7B). This indicates that the La/Yb ratios are mainly affected by water mass mixing even though it is generally accepted that the particulate process should cause a fractionation of LREEs and HREEs due to their different particle adsorption affinities (Byrne and Kim, 1990; Sholkovitz et al., 1994). Similarly, the Oyashio may also have acquired the signals of Pr/Yb and Nd/Yb ratios from nearby islands (Aleutian and Kamchatka Islands; Figures 8A, B). The islands’ Pr/Yb and Nd/Yb signals are more significant than the La/Yb signal (Supplementary Figures S3B, C). NPIW has shown elevated ratios of Pr/Yb and Nd/Yb (Figures 8C, D); however, there is no correlation between Pr/Yb (or Nd/Yb) and salinity (R² values were 0.06 and 0.01, respectively). This indicates that La/Yb more faithfully retains the original signature of an end-member than Pr/Yb and Nd/Yb in seawater. This may be related to the fact that La is the only lanthanide element that lacks a 4f electron, resulting in a solution stability that differs from other LREEs in seawater. Otherwise, in seawater, the longer residence time of La compared to other LREEs (Li, 1991; Alibo and Nozaki, 1999; Nozaki, 2001) might also contribute to the water masses tracing values of La/Yb. In summary, the La/Yb ratio provides a useful proxy for studying the flow paths of the Oyashio and NPIW in the North Pacific, and the NPIW is critical for transporting substances that affect marine ecosystems and climate, such as Fe and CO₂ (Yasuda, 2004; Nishioka et al., 2007; Nishioka et al., 2013; Nishioka et al., 2014; Nishioka and Obata, 2017).

FIGURE 8

Figure 8 Distributions of (A) Pr/Yb ratio and (B) Nd/Yb ratio in the surface water (<10 m). Vertical distributions of (C) Pr/Yb ratio and (D) Nd/Yb ratio with salinity contours in white along the south-north transect (data from this study, Piepgras and Jacobsen (1992); Hara et al. (2009), and Behrens et al. (2018a)).

REEs ratios have also been used for tracing Southern Ocean water masses (Zhang and Nozaki, 1996; Osborne et al., 2015; Behrens et al., 2018a). For instance, the Ho/Dy ratio may be used to differentiate intermediate/deep water in the Southwest Pacific from Antarctic Bottom Water (Zhang and Nozaki, 1996). The low Dy/Er and high HREE/LREE ratios formed in the East Pacific Rise hydrothermal plume trace the Upper Circumpolar Deep Water (Osborne et al., 2015; Behrens et al., 2018a). These examples indicate that the ratios of REEs in the oceans are valuable water mass tracers and should be widely focused on in future studies.

Taken together, lithogenic material input from islands (including the Kuril Islands and the Aleutian Islands) and the Sea of Okhotsk are the important sources of REEs and other trace elements (Fe, Zn, Cd, etc.) to the Oyashio current. It is also an important source for NPIW due to the supply of Oyashio water. The La/Yb ratio is mainly affected by water mass mixing and therefore is a very good tool for tracing the Oyashio and NPIW.

4.3 Estimating cross-shelf Nd fluxes

The marginal seas (including the Sea of Okhotsk, Sea of Japan, East China Sea, South China Sea, and the Bering Sea) may be important REE sources to the Northwest Pacific. We estimated the net Nd fluxes $(F_{N d}^{n e t})$ between the marginal seas and Northwest Pacific based on the following equation:

\begin{array}{l} F_{N d}^{n e t} = F_{w}^{i n f l o w} \times N d^{m} - F_{w}^{o u t f l o w} \times N d^{p} & (8) \end{array}

Where, $F_{w}^{i n f l o w}$ (or $F_{w}^{o u t f o l w}$ ) represents the water flux from the marginal sea to the Northwest Pacific (or from the Northwest Pacific to the marginal sea). Nd ^m (or Nd ^p) represents the end-member values of Nd concentration in the marginal seas (or the Northwest Pacific). The water fluxes and Nd concentrations are shown in Table 2. The net Nd flux from the Bering Sea was not estimated due to a lack of REE data.

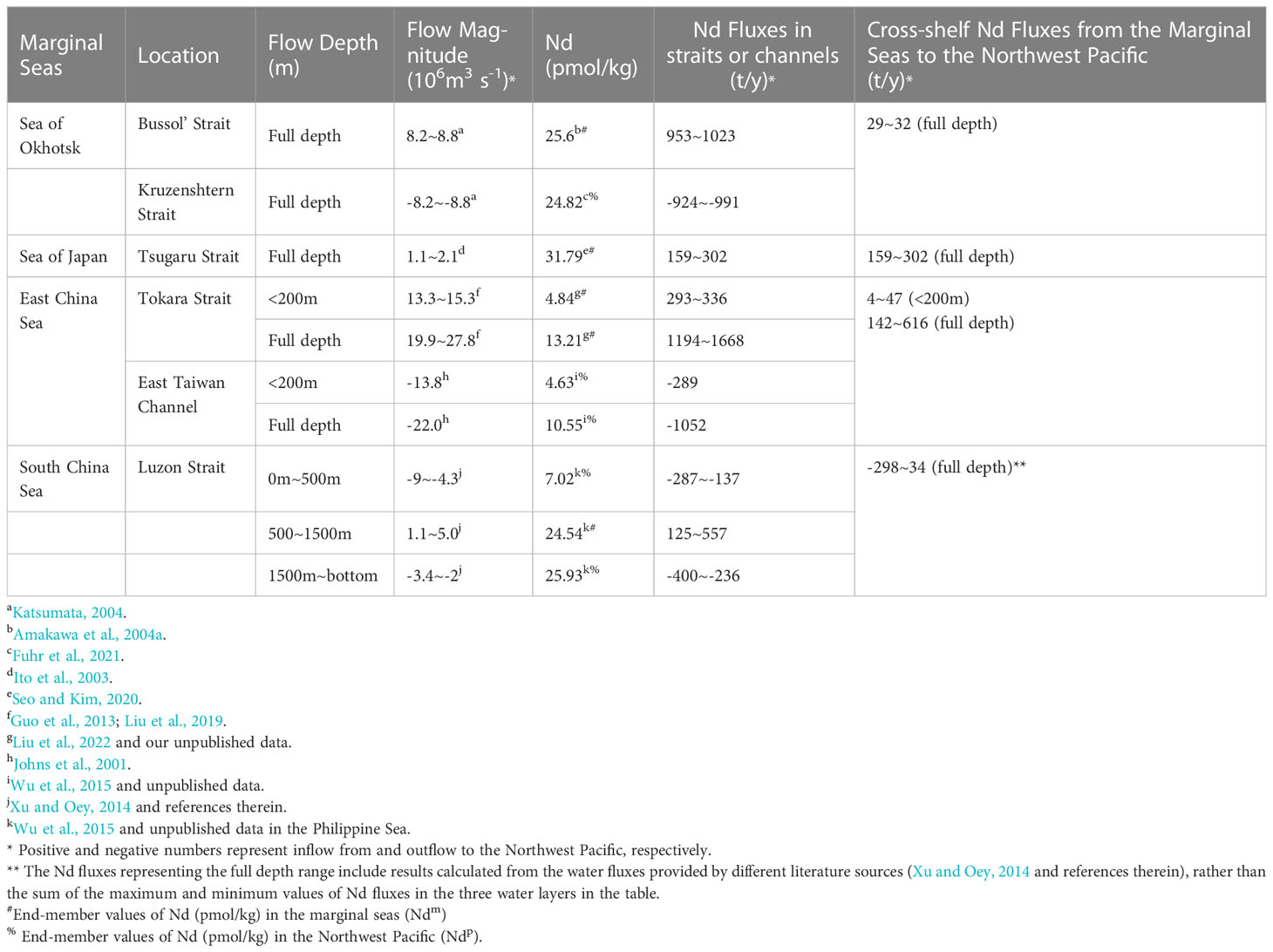

TABLE 2

Table 2 Estimates of the cross-shelf Nd fluxes from marginal seas.

A portion of the East Kamchatka Current flows into the Sea of Okhotsk through the Northern Kuril Islands Strait (mainly in the Kruzenshtern Strait) and then flows out to the Pacific Ocean through the South Kuril Islands Strait (mainly through the Bussol’ Strait, water depth ~2300 m) (Figure 1; Hill et al., 2003; Shu et al., 2021). Because the water flow flux into the Sea of Okhotsk through the Kruzenshtern Strait is thought to be nearly equal to the outflow flux from the Bussol’ Strait (Ohshima et al., 2010), we assume that both the inflow and outflow water fluxes are 8.2~8.8 Sv (Katsumata, 2004) (excluding the water exchange caused by tidal processes). Due to the lack of a vertical profile of REEs in the Sea of Okhotsk, the Nd concentration of Okhotsk surface water (Amakawa et al., 2004a) was used to represent the average Nd concentration of the full water column. The net input flux of Nd from the Sea of Okhotsk to the Pacific Ocean was estimated to be 29~32 tNd/y (Table 2 and Figure 9), which is comparable to the input from the Yangtze and Korean rivers combined (20~24 and 7 tNd/y, respectively; Behrens et al., 2018b; Che et al., 2022).

FIGURE 9

Figure 9 The cross-shelf Nd fluxes (tNd/y) from marginal seas to the Northwest Pacific. Negative values represent input from the Northwest Pacific to the marginal seas.

The Tsugaru Strait is the only pathway directly connecting the Sea of Japan and the North Pacific, at a depth of <200 m (Figure 1; Ito et al., 2003). The Tsugaru Warm Current originates from the Sea of Japan and flows into the North Pacific through the Tsugaru Strait with a water flux of 1.1~2.1Sv (Ito et al., 2003). Using above water flux and the weighted average value of Nd in the Sea of Japan (<200 m, Seo and Kim, 2020), we calculated the net Nd input flux to be 159~302 tNd/y (Table 2 and Figure 9). This Nd input flux from the Sea of Japan is of the same order of magnitude as the atmospheric and riverine contributions of Nd to the global oceans (400-630 tNd/y and 260-660 tNd/y, respectively ; Greaves et al., 1994; Tachikawa et al., 2003; Arsouze et al., 2009), which are considered important sources of REEs in the oceans (Lacan and Jeandel, 2001; Flierdt et al., 2004; Arsouze et al., 2009).

In the East China Sea, the channels in the Ryukyu Island chain are important links to the Northwest Pacific. The East Taiwan Channel and the Tokara Strait are the main pathways connecting the East China Sea and the Northwest Pacific (Johns et al., 2001; Isobe et al., 2002; Teague et al., 2002; Takikawa et al., 2005; Isobe, 2008). Therefore, we only focus on the fluxes across these two straits. The results show that the net Nd flux from the East China Sea is 142~616 tNd/y, which is relatively large and similar to or greater than the input from the Sea of Japan (159~302 tNd/y, Table 2 and Figure 9). On the other hand, the net Nd input to the Pacific Ocean from the East China Sea shelf at depths of <250 m was estimated to be 113 t/y using Nd isotopes and a box model (Lacan and Jeandel, 2005), which is higher than our result for depths of <200 m (4~47 tNd/y, Table 2). This indicates that our result might be an underestimate, probably due to the fact that we selected a lower average Nd endmember concentration in the Northwest Pacific for our estimation than that used by Lacan and Jeandel (2005).

The water exchange between the Northwest Pacific and the South China Sea occurs mainly through the Luzon Strait. In the Luzon Strait, the surface and deep waters flow from the Pacific to the South China Sea. At intermediate depths, the flow direction is reversed (Chao et al., 1996; Gan et al., 2006; Qu et al., 2006). The Nd fluxes between the Northwest Pacific and the South China Sea at different water layer depths are shown in Table 2. The calculated Nd fluxes for 0-500 m, 500-1500 m, and 1500 m-bottom are -287~-137, 125~557, and -400~-236 t/y (negative values represent input from the Northwest Pacific to the South China Sea), respectively. The net Nd input fluxes for the full water column are -298~34 t/y (Table 2 and Figure 9). This indicates that the South China Sea is a sink of Nd from the Northwest Pacific at 0-500 m and 1500 m-bottom, and a source of Nd in the 500-1500 m water layer. Overall, the South China Sea may be either a net source or a net sink of Nd to the Northwest Pacific depending on the selection of the endmembers in the present estimation. For instance, when the estimated water fluxes at 0-500 m, 500-1500 m, and 1500m-bottom are -9.0, 5.0, and -2.0 Sv, respectively (Tian et al., 2006), the South China Sea is a source of REEs to the Northwest Pacific with net Nd flux of 34 t/y. When the water fluxes in 0-500 m, 500-1500 m, and 1500 m-bottom are estimated to be -5.1, 2.8, and -3.8 Sv, respectively (Xu and Oey, 2014), the South China Sea is a sink of REEs in the Northwest Pacific with net Nd flux of -298 t/y. It should be noted that there are large uncertainties in the estimated net fluxes of Nd. In particular, the complex water structure (Chen and Wang, 1998; Wang et al., 2010; Zhang et al., 2015) and seasonal variations of water exchange in the Luzon Strait (Xu and Oey, 2014 and references therein) lead to a wide range of water fluxes (Table 2). In addition, there may be seasonal variations in Nd concentrations, which introduce uncertainties in Nd net flux estimates.

In summary, the Sea of Okhotsk, the Sea of Japan and the East China Sea are Nd sources to the Northwest Pacific, with a relatively low net flux of Nd from the Sea of Okhotsk (29~32 t/y) but high fluxes from the Sea of Japan (159~302 t/y) and the East China Sea (142~616 t/y). In contrast, the Nd exchange flux between the South China Sea and the Pacific is subject to water exchange occurring at different water layer depths in the Luzon Strait. The South China Sea is a sink of Nd from the Northwest Pacific at the water layers of 0-500 m (-287~-137 t/y) and 1500m-bottom (-400~-236 t/y), and a source of Nd at 500-1500 m (125~557 t/y), with a net Nd flux range of -298~34 t/y.

5 Conclusions

To study the sources, transport, and biogeochemical cycling of REEs in the Northwest Pacific, we measured dissolved REE concentrations along the P1 transect at 150°E (≤ 2000 m) from 13°N to 40°N. The main findings are as follows:

(1) There are regional differences in the release of REEs by organic matter remineralization. The larger release efficiency of REEs in the MWR (σ_θ<26.6 kg/m ³, depth > DCM) compared with that in the subtropical region (σ_θ<27.5 kg/m³, depth > DCM) might be related to stronger water mass mixing and the plankton community structure.

(2) Based on our REE data and previously published trace element data, we suggest that islands in the subarctic region (including the Kuril Islands and Aleutian Islands) and the Sea of Okhotsk are important REE sources to the Northwest Pacific. The La/Yb ratio is a signal of lithogenic dissolution from the Aleutian Islands and can be used as a water mass tracer for the Oyashio Current and NPIW.

(3) The marginal seas usually receive large amounts of REEs, and typically have higher REE concentrations than the open ocean. The estimated net Nd fluxes from the Sea of Okhotsk, Sea of Japan, East China Sea, and the South China Sea were 29~32 t/y, 159~302 t/y, 142~616 t/y, and -298~34 t/y, respectively. Our estimates indicate that the Nd exchange fluxes between the marginal seas and the Northwest Pacific are not negligible.

Overall, our systematic analysis of the source, transport, and biogeochemical cycling of dissolved REEs in the Northwest Pacific provides useful proxy information for tracing regional water masses and estimating cross-shelf REE fluxes. However, the influences of particulate processes (such as the remineralization of organic matter) on REE ratio (e.g., La/Yb) distributions in seawater need further study.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Author contributions

AC: Conceptualization, Investigation, Formal Analysis, Data curation, Writing - original draft. JZ: Conceptualization, Writing-review & editing, Supervision, Project administration. HZ: Data Curation. ZC: Investigation, Data Curation. GC: Formal Analysis, Visualization. ZL: Formal Analysis. YL: Writing – review & editing. QL: Conceptualization, Writing – review & editing, Supervision, Project administration. All authors contributed to the article and approved the submitted version.

Funding

This research was supported by the National Natural Science Foundation of China (Grant 41890801), Fundamental Research Funds for the Central Universities (Grant 202072001), JSPS KAKENHI (Grants JP20H04319, JP22H05206), and Laoshan Laboratory Special Fund of Shandong Province (Grant 2022QNLM010103-1).

Acknowledgments

We thank the captain and crew of the R/V Dongfanghong 3 for their help with sampling. We further thank Wenkai Guan for assisting in the sample collection. Special thanks to Dr. Huijun He for his important guidance during the data analysis. We would like to thank Dr. Richard Smith and Dr. Stella Woodard at Global Aquatic Research LLC for English language editing. We are grateful to Frontiers Science Center for Deep Ocean Multispheres and Earth System, Ocean University of China for providing frozen warehouse space for nutrient sample storage.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2023.1135113/full#supplementary-material

Supplementary Figure 1 | Distributions of (A) the sum of LREEs (pmol/kg) and (B) the sum of HREEs (pmol/kg) along the P1 transect.

Supplementary Figure 2 | Vertical profiles of (A) the sum of LREEs (pmol/kg) and (B) the sum of HREEs (pmol/kg) with error bars from all stations.

Supplementary Figure 3 | The ratios of (A) La/Yb, (B) Pr/Yb, and (C) Nd/Yb in rocks from the Aleutian Islands, the Kuril Islands, and Kamchatka Peninsula, including average values and their uncertainties (EarthChem- Access Geochemical Data)
