Particle trajectory of nonlinear progressive flexural-gravity waves in Lagrangian coordinates

In this paper, we study the particle dynamics of nonlinear flexural-gravity waves propagating in a finite water depth, which is the interaction between ice sheets and water flows. The nonlinear deformation of a floating elastic sheet is modeled by the Cosserat shell theory. The theoretical analysis is performed by a uniform asymptotic perturbation expansion. A third-order explicit parametric solution of particle trajectories in Lagrangian coordinates is presented. Taking the time average of particle motion, the mass transport velocity and the Lagrangian surface setup are also derived. Numerical simulations are computed. The influences of flexural rigidity on the water particle orbits and the mass transport velocity of nonlinear flexural-gravity waves are first discussed.

Introduction

The study of the flexural-gravity wave problem has important contributions to floating ice sheet, climate change, and engineering applications such as manmade floating structures in polar oceans. Such hydroelastic waves have been measured in many cold regions of the Arctic (Squire and Moore, 1980; Wadhams and Holt, 1991; Squire et al., 1995). A variety of linear and nonlinear elastic sheet models are used according to the proposed linear equation (Greenhill, 1886), the Kirchhoff–Love plate theory or Cosserat theory (Toland, 2007). Previously, the linear and nonlinear theoretical solutions as well as numerical simulations were developed to study the propagation of flexural-gravity waves and were compared with field investigations (Greenhill, 1916; Forbes, 1986; Marko, 2003; Vanden-Broeck and Părău, 2011; Gao et al., 2016; Gao et al., 2019). Toland (2008) further proved the existence of progressive flexural-gravity waves using a Lagrangian method.

There are fewer studies of the particle trajectories beneath the flexural-gravity waves. It is important to understand the transport mechanism of nonlinear water waves. Linearized solution patterns of flexural-gravity waves with uniform current have been presented in Ref (Bhattacharjee and Sahoo, 2007).. Wang et al. (Wang et al., 2020) calculated particle paths numerically for the fully nonlinear equations of flexural-gravity waves with constant vorticity. They studied the fluid particle motion based on integrating the water particle velocity derived by the Eulerian coordinates. This method was often used to trace the particle path and the steady streaming velocity on water waves (Stokes, 1847; Longuet-Higgins, 1953). However, the above studies cannot show some important properties of particle dynamics such as the Lagrangian wave period, a Lagrangian setup that is different from the wave properties in the Eulerian frameworks (Longuet-Higgins, 1986; Ng, 2004).

The first linear Lagrangian exact solution describing a flow of non-constant vorticity in water of infinite depth was presented by Gerstner (1802). Using a rigorous mathematical analysis, Constantin (2006) showed that the exact solution by Gerstner is dynamically possible. He then successfully extended Gerstner’s solution to the problem of edge and geophysical waves (Constantin, 2012a; Constantin, 2013). Chen and Hsu (2009) provided a method of modified Euler–Lagrange transformation to obtain the third-order approximation for the particle motion in nonlinear Stokes waves. Some asymptotic solutions for the nonlinear progressive or short-crested waves in the Lagrangian approach have been developed (Pierson, 1962; Buldakov et al., 2006; Clamond, 2007; Hsu et al., 2010; Chen et al., 2010; Chen and Chen, 2014). More recently, analytical solutions that provide a detailed mechanism of the water particle orbits for water waves were presented in Refs (Constantin and Villari, 2008; Constantin and Escher, 2011; Constantin, 2012b). These works proved that there exist open orbits in two-dimensional nonlinear irrotational and inviscid flows.

The focus of this work is to describe the particle dynamics in flexural-gravity waves in Lagrangian coordinates. To our knowledge, it has not been studied yet. We introduce the equations of motion together with their boundary conditions in Section 2. A Lindstedt–Poincare perturbation method used to obtain a third-order asymptotic parametric solution for the particle trajectories in the Lagrangian framework will be discussed in Section 3. In Section 4, we will analyze the particle trajectory, drift velocity, and Lagrangian surface setup of flexural-gravity waves under the influences of ice sheet thickness, water depth, and wave steepness. Finally, in Section 5, we give a short conclusion.

Formulations

We consider a two-dimensional irrotational, inviscid, and incompressible fluid for the steady finite-amplitude progressive flexural-gravity waves. The water depth h is finite with an impermeable bottom. The Cartesian coordinates are introduced where the x-axis is taken at the undisturbed ice sheet, and y is the upward positive vertical axis. The wave is periodic with the wave number k = 2π / L and wave frequency σ_w = 2π / T_w . Following Toland (Toland, 2007; Toland, 2008) and Wang et al. (2020), the nonlinear Cosserat model of hyperelastic sheets is used to express the deformation of floating ice sheets, which is assumed as

$\begin{array}{ll}p=D·({\partial }_{ss}\kappa +\frac{1}{2}{\kappa }^3)& \text{(2.1)}\end{array}$

where p is the pressure across the elastic sheet, $D=\frac{E·d^3}{12*(1-{\nu }^2)}$ is the flexural rigidity, E is Young’s modulus, ν is Poisson’s ratio, d is the thickness of the ice sheet, κ is the curvature of the sheet, and s is the arc length. Since the thickness of the elastic sheet is small compared with the wavelength of the flexural wave, the sheet density is neglected in this paper.

In the Lagrangian coordinates, the mathematical description of fluid particle motion (x(a,b,t), y(a,b,t)) is expressed in two horizontal and vertical variables a and b labeling individual fluid particles at time t = 0, where the vertical label b = 0 corresponding to the free surface η and b = -h is on the impermeable sea bottom. For an incompressible and inviscid fluid, the continuity equation that sets the invariant condition on the total volume variation of a water particle in the Lagrangian framework is

$\begin{array}{ll}{x}_a{y}_b-x_b{y}_a=1& \text{(2.2)}\end{array}$

Taking the partial differentiating Eq. (2.3) with respect to t yields

$\begin{array}{ll}{x}_{at}{x}_b-x_{bt}{x}_a+y_{at}{y}_b-y_{bt}{y}_a=0& \text{(2.3)}\end{array}$

and the irrotational flow conditions are (Chen et al., 2010; Chen and Chen, 2014)

$\begin{array}{ll}\begin{array}{cc}{\varphi }_a=x_t{x}_a+y_t{y}_a,& {\varphi }_b=x_t{x}_b+y_t{y}_b\end{array}& \text{(2.4)}\end{array}$

The Bernoulli equation (Chen et al., 2010; Chen and Chen, 2014) including the term of flexural rigidity of the elastic ice sheet in the Lagrangian description can be written as

$\begin{array}{ll}\frac{p}{\rho }=-{\varphi }_t-gy+\frac{1}{2}\left(x_t^2+y_t^2\right)-\frac{1}{2}\frac{D}{\rho }[\frac{{\kappa }_{aa}}{J}+{(\frac{{\kappa }_a}{J})}_a+{\kappa }^3]& \text{(2.5)}\end{array}$

where $J=x_a^2+y_a^2$ and κ = (x_ay_aa − x_aay_a)/J^3/2 .

The boundary conditions of zero pressure at the upper boundary and zero vertical velocity at the rigid and impermeable sea bed for water particles are

$\begin{array}{ll}\begin{array}{cc}p=0,& b=0,\end{array}& \text{(2.6)}\end{array}$

$\begin{array}{ll}\begin{array}{cc}v=y_t=0,& b=-h,\end{array}& \text{(2.7)}\end{array}$

where the subscripts a, b, and t denote partial differentiation with respect to the specified variable; g is the constant gravitational acceleration; and ϕ (a, b, t) is a Lagrangian velocity potential function introduced by (2.4). Therefore, the governing equations and boundary conditions of two-dimensional irrotational progressive flexural-gravity water waves in the Lagrangian coordinates are established, which consist of the continuity equations (2.2) and (2.3), vorticity conservation equation (2.4), energy equation (2.5), dynamic boundary condition (2.6) under the sheet, and condition (2.8) at the bottom.

Asymptotic solutions

We used the Lindstedt–Poincare technique to solve the nonlinear boundary value equations (2.2)–(2.5) with boundary conditions (2.6) and (2.7) in the Lagrangian coordinates. Following Chen and Hsu (Chen et al., 2010) and Chen and Chen (2014), the solutions of the particle displacements x and y, the potential function ϕ , and the pressure p are sought in the power series as

$\begin{array}{ll}x(a,b,t)=a+ϵ(f_1+{f^{\prime }}_1)+{ϵ}^2(f_2+{f^{\prime }}_2)+{ϵ}^3(f_3+{f^{\prime }}_3)+\cdots ,& \text{(3.1)}\end{array}$

$\begin{array}{ll}y(a,b,t)=b+ϵ(g_1+{g^{\prime }}_1)+{ϵ}^2(g_2+{g^{\prime }}_2)+{ϵ}^3(g_3+{g^{\prime }}_3)+\cdots ,& \text{(3.2)}\end{array}$

$\begin{array}{ll}\varphi (a,b,t)=ϵ({\varphi }_1+{{\varphi }^{\prime }}_1)+{ϵ}^2({\varphi }_2+{{\varphi }^{\prime }}_2)+{ϵ}^3({\varphi }_3+{{\varphi }^{\prime }}_3)+\cdots ,& \text{(3.3)}\end{array}$

$\begin{array}{ll}p(a,b,t)=-\rho gb+ϵp_1+{ϵ}^2{p}_2+{ϵ}^3{p}_3+\cdots ,& \text{(3.4)}\end{array}$

$\begin{array}{ll}\sigma (b)=2\pi /T_L={\sigma }_0+ϵ{\sigma }_1+{ϵ}^2{\sigma }_2+\cdots ,& \text{(3.5)}\end{array}$

where ϵ is an ordering parameter that is used to identify the order of the perturbation expansion. In these expressions, f_n, g_n, ϕ_n , and p_n are the nth-order periodic harmonic function solutions. $f_{\prime }^n$ and ${\varphi }_{\prime }^n$ are the non-periodic functions that are a function of time t. $g_{\prime }^n$ is related to the Lagrangian wave mean level and is a function of the vertical label b. σ = 2π / T_L is the Lagrangian angular frequency of a particle reappearing at the same elevation where T_L is the particle motion period. Substituting the power series functions (3.1)–(3.5) into (2.3)–(2.8), and equating the equal order terms of ϵ up to the third order, we obtain a recursive series of nonhomogeneous linear partial differential equations that can be solved successively.

First-order solution

At the first order ϵ , the governing equations (2.3)–(2.6) yield

$\begin{array}{ll}{f}_{1a}+{f^{\prime }}_{1a}+g_{1b}+{g^{\prime }}_{1b}+{\sigma }_{ob}(g_{1\sigma t}+{g^{\prime }}_{1{\sigma }_{o}t})t=0& \text{(3.6a)}\end{array}$

$\begin{array}{ll}{\sigma }_o(f_{1b\sigma t}+{f^{\prime }}_{1b{\sigma }_{o}t}-g_{1a\sigma t}-{g^{\prime }}_{1a{\sigma }_{o}t})+{\sigma }_{ob}(f_{1\sigma t}+{f^{\prime }}_{1{\sigma }_{o}t})+{\sigma }_o\{{\sigma }_{ob}[f_{1{(\sigma t)}^2}+{f^{\prime }}_{1{({\sigma }_{o}t)}^2}]\}t=0& \text{(3.6b)}\end{array}$

$\begin{array}{ll}{\varphi }_{1a}+{{\varphi }^{\prime }}_{1a}={\sigma }_o(f_{1\sigma t}+{f^{\prime }}_{1{\sigma }_{o}t})& \text{(3.6c)}\end{array}$

$\begin{array}{ll}{\varphi }_{1b}+{{\varphi }^{\prime }}_{1b}+{\sigma }_{ob}({\varphi }_{1\sigma t}+{{\varphi }^{\prime }}_{1{\sigma }_{o}t})t={\sigma }_o(g_{1\sigma t}+{g^{\prime }}_{1{\sigma }_{o}t})& \text{(3.6d)}\end{array}$

$\begin{array}{ll}\frac{p_1}{\rho }=-{\sigma }_o({\varphi }_{1\sigma t}+{{\varphi }^{\prime }}_{1{\sigma }_{o}t})-g(g_1+{g^{\prime }}_1)-\frac{D}{\rho }(g_{1aaaa}+{g^{\prime }}_{1aaaa})& \text{(3.6e)}\end{array}$

Also, the dynamic free surface boundary condition and the bottom boundary condition give

$\begin{array}{ll}{p}_1=0\text{\hspace{0.17em}on\hspace{0.17em}}b=0& \text{(3.6f)}\end{array}$

$\begin{array}{ll}{g}_{1\sigma t}+g\prime 1{\sigma }_{0}t=0\text{\hspace{0.17em}on\hspace{0.17em}}b=-h& \text{(3.6g)}\end{array}$

From the continuity equation (3.6a) and the bottom boundary condition (3.6g), the first-order periodic solution can be obtained by the separation of variables. From (3.6b) to (3.6d) and avoiding the secular terms, the first-order analytical solution can be easily written in the form

$\begin{array}{ll}{f}_1=-A\frac{\cosh k(b+h)}{\cosh kh}\sin (ka-\sigma t),f_1^{\prime }=0& \text{(3.7)}\end{array}$

$\begin{array}{ll}{g}_1=A\frac{\sinh k(b+h)}{\cosh kh}\cos (ka-\sigma t),{g^{\prime }}_1=0& \text{(3.8)}\end{array}$

$\begin{array}{ll}{\varphi }_1=A\frac{{\sigma }_0}{k}\frac{\cosh k(b+h)}{\cosh kh}\sin (ka-\sigma t)& \text{(3.9)}\end{array}$

where the parameter A represents the linear amplitude. Substituting (3.7)–(3.9) into (3.6e), we can get the wavenumber k satisfying the linear dispersion equation at the leading order

$\begin{array}{ll}{\sigma }_0^2=gk(1+\frac{D{k}^4}{\rho g})\tanh kh& \text{(3.10)}\end{array}$

The linear dispersion relation in the Lagrangian coordinates is the same as that of the leading-order progressive flexural-gravity wave in the Eulerian approach (Wang et al., 2020). By setting b = 0 in (3.8), we can get the first-order free surface function in the Lagrangian coordinates.

Second-order solution

At the second order ϵ² , we have the following set of governing equations:

$\begin{array}{ll}{f}_{2a}+{f^{\prime }}_{2a}+g_{2b}+{g^{\prime }}_{2b}+f_{1a}{g}_{1b}-f_{1b}{g}_{1a}+{\sigma }_{1b}{g}_{1\sigma t}t=0& \text{(3.11a)}\end{array}$

$\begin{array}{ll}{\sigma }_o(f_{2b\sigma t}+{f^{\prime }}_{2b{\sigma }_{o}t}-g_{2a\sigma t}-{g^{\prime }}_{2a{\sigma }_{o}t})+{\sigma }_1{(f_{1b}-g_{1a})}_{\sigma t}+{\sigma }_{1b}{f}_{1\sigma t}+{\sigma }_o(f_{1a}{f}_{1b\sigma t}-f_{1a\sigma t}{f}_{1b}+g_{1a}{g}_{1b\sigma t}-g_{1b}{g}_{1a\sigma t})+{\sigma }_o{\sigma }_{1b}{f}_{1{(\sigma t)}^2}t=0& \text{(3.11b)}\end{array}$

$\begin{array}{ll}{\varphi }_{2a}+{{\varphi }^{\prime }}_{2a}={\sigma }_o(f_{2\sigma t}+f_{2{\sigma }_{o}t}^{\text{'}})+{\sigma }_1{f}_{1\sigma t}+{\sigma }_o(f_{1a}{f}_{1\sigma t}+g_{1a}{g}_{1\sigma t})& \text{(3.11c)}\end{array}$

$\begin{array}{ll}{\varphi }_{2b}+{{\varphi }^{\prime }}_{2b}={\sigma }_o(g_{2\sigma t}+{g^{\prime }}_{2{\sigma }_{o}t})+{\sigma }_1{g}_{1\sigma t}+{\sigma }_o(f_{1b}{f}_{1\sigma t}+g_{1b}{g}_{1\sigma t})-{\sigma }_{1b}t{\varphi }_{1\sigma t}& \text{(3.11d)}\end{array}$

$\begin{array}{ll}\frac{p_2}{\rho }=-[{\sigma }_o({\varphi }_{2\sigma t}+{{\varphi }^{\prime }}_{2{\sigma }_{o}t})+g(g_2+{g^{\prime }}_2)]-{\sigma }_1{\varphi }_{1\sigma t}+\frac{1}{2}{\sigma }_o^2(f_{1\sigma t}^2+g_{1\sigma t}^2)-\frac{D}{\rho }\{(g_{2aaaa}+{g^{\prime }}_{2aaaa})-5(f_{1aaa}+{f^{\prime }}_{1aaa})(g_{1aa}+{g^{\prime }}_{1aa})-4(f_{1aa}+{f^{\prime }}_{1aa})(g_{1aaa}+{g^{\prime }}_{1aaa})-(f_{1aaaa}+{f^{\prime }}_{1aaaa})(g_{1a}+{g^{\prime }}_{1a})-2(f_{1a}+{f^{\prime }}_{1a})(g_{1aaaa}+{g^{\prime }}_{1aaaa})\}& \text{(3.11e)}\end{array}$

and the boundary conditions are

$\begin{array}{ll}{p}_2=0\text{\hspace{0.17em}at\hspace{0.17em}}b=0& \text{(3.11f)}\end{array}$

$\begin{array}{ll}{g}_{2\sigma t}+g_{\prime }^{2{\sigma }_{0}t}=0\text{\hspace{0.17em}on\hspace{0.17em}}b=-h& \text{(3.11g)}\end{array}$

eliminating the secular term yields σ_1b = 0 and, hence, σ₁ = w₁ = constant . Solving for the other modes that satisfy the mass conservation equation (3.11a)–(3.11b) and the bottom boundary condition (3.11g), the second-order parametric equations of water particle trajectory can be expressed as periodic harmonic functions f₂ and g₂ in the horizontal and vertical coordinates

$\begin{array}{ll}{f}_2=-{\beta }_2\frac{\cosh 2k(b+h)}{{\cosh }^{2}kh}\sin 2(ka-\sigma t)+\frac{1}{4}{A}^{2}k\frac{1}{{\cosh }^{2}kh}\sin 2(ka-\sigma t)-{\lambda }_2\frac{\cosh k(b+h)}{\cosh kh}\sin (ka-\sigma t)& \text{(3.12)}\end{array}$

$\begin{array}{ll}{g}_2={\beta }_2\frac{\sinh 2k(b+h)}{{\cosh }^{2}kh}\cos 2(ka-\sigma t)+{\lambda }_2\frac{\sinh k(b+h)}{\cosh kh}\cos (ka-\sigma t)& \text{(3.13)}\end{array}$

and non-periodic function $f_{\prime }^2$ and $g_{\prime }^2$

$\begin{array}{ll}{f}_{\prime }^2=\frac{1}{2}{A}^{2}k\frac{\cosh 2k(b+h)}{{\cosh }^{2}kh}{\sigma }_{0}t& \text{(3.14)}\end{array}$

$\begin{array}{ll}{g^{\prime }}_2=\frac{1}{4}{A}^{2}k\frac{\sinh 2k(b+h)}{{\cosh }^{2}kh}& \text{(3.15)}\end{array}$

Inserting the first-order solutions into the irrotational conditions (3.11c) and (3.11d) and eliminating the secular term, we can get αw₁ + σ₀β₂₁₁₁ = 0 . By integrating over the Lagrangian variables a or b to (3.11c) and (3.11d), the second-order Lagrangian velocity potential ϕ₂ is obtained as

$\begin{array}{ll}{\varphi }_2=\frac{{\sigma }_o}{k}{\beta }_2\frac{\cosh 2k(b+h)}{{\cosh }^{2}kh}\sin 2(ka-\sigma t)-\frac{1}{2}{A}^2{\sigma }_o\frac{\sin 2(ka-\sigma t)}{{\cosh }^{2}kh}& \text{(3.16)}\end{array}$

Substituting (3.16) and the first-order solution into the Bernoulli equation (3.11e) and applying (3.11f), we find the coefficients as

$\begin{array}{ll}{w}_1={\lambda }_2=0& \text{(3.17)}\end{array}$

$\begin{array}{ll}{{\varphi }^{\prime }}_2={D^{\prime }}_2({\sigma }_{0}t)=[\frac{1}{4}{A}^2{\sigma }_0^2({\tanh }^{2}kh-1)-\frac{1}{2}\frac{D}{\rho }{k}^5{A}^2\tanh kh]·t& \text{(3.18)}\end{array}$

$\begin{array}{ll}{\beta }_2=\frac{3k{A}^2}{2{\sigma }_0^2\cosh 2kh-k(g+16\frac{D}{\rho }{k}^4)\sinh 2kh}[\frac{1}{4}{\sigma }_0^2+\frac{D}{\rho }{k}^5\sinh 2kh]& \text{(3.19)}\end{array}$

From the obtained asymptotic solution at the second-order approximation, the perturbation scheme is valid except for the singularity condition that the denominator β₂ is zero. The second-order approximation is found to break down at and near the critical value, where this singularity condition occurs. It was first pointed out by Wilton (1915) for capillary waves.

Third-order solution

The continuity, irrotational, and energy equations up to order ϵ³ are as follows:

$\begin{array}{ll}{f}_{3a}+{f^{\prime }}_{3a}+g_{3b}+{g^{\prime }}_{3b}+f_{1a}{g}_{2b}+f_{2a}{g}_{1b}-f_{1b}{g}_{2a}-f_{2b}{g}_{1a}+{\sigma }_{2b}{g}_{1\sigma t}t=0& \text{(3.27a)}\end{array}$

$\begin{array}{ll}{\sigma }_o(f_{3b\sigma t}+{f^{\prime }}_{3b{\sigma }_{o}t}-g_{3a\sigma t}-{g^{\prime }}_{3a{\sigma }_{o}t})+{\sigma }_2(f_{1b\sigma t}-g_{1a\sigma t})+{\sigma }_{2b}{f}_{1\sigma t}+{\sigma }_o{\sigma }_{2b}{f}_{1{(\sigma t)}^2}t+{\sigma }_o[f_{1a}{f}_{2b\sigma t}+f_{2a}{f}_{1b\sigma t}-f_{2a\sigma t}{f}_{1b}-f_{1a\sigma t}{f}_{2b}+g_{1a}{g}_{2b\sigma t}+g_{2a}{g}_{1b\sigma t}-g_{1b}{g}_{2a\sigma t}-g_{2b}{g}_{1a\sigma t}]=0& \text{(3.27b)}\end{array}$

$\begin{array}{ll}{\varphi }_{3a}+{{\varphi }^{\prime }}_{3a}={\sigma }_o(f_{3\sigma t}+{f^{\prime }}_{3{\sigma }_{o}t})+{\sigma }_2{f}_{1\sigma t}+{\sigma }_o[f_{1\sigma t}{f}_{2a}+f_{2\sigma t}{f}_{1a}+g_{1\sigma t}{g}_{2a}+g_{2\sigma t}{g}_{1a}]& \text{(3.27c)}\end{array}$

$\begin{array}{ll}{\varphi }_{3b}+{{\varphi }^{\prime }}_{3b}={\sigma }_o(g_{3\sigma t}+{g^{\prime }}_{3{\sigma }_{o}t})+{\sigma }_2{g}_{1\sigma t}+{\sigma }_o[f_{1\sigma t}{f}_{2b}+f_{2\sigma t}{f}_{1b}+g_{1\sigma t}{g}_{2b}+g_{2\sigma t}{g}_{1b}]-{\sigma }_{2b}t{\varphi }_{1\sigma t}& \text{(3.27d)}\end{array}$

$\begin{array}{ll}\frac{p_3}{\rho }=-[{\sigma }_o({\varphi }_{3\sigma t}+{{\varphi }^{\prime }}_{3{\sigma }_{o}t})+g(g_3+{g^{\prime }}_3)]-{\sigma }_2{\varphi }_{1\sigma t}+{\sigma }_o^2[f_{1\sigma t}{f}_{2\sigma t}+g_{1\sigma t}{g}_{2\sigma t}]-\frac{D}{\rho }{[(g_{3aa}+{g^{\prime }}_{3aa})-2f_{1a}{g}_{2aa}-2f_{2a}{g}_{1aa}-f_{2aa}{g}_{1a}-f_{1aa}{g}_{2a}+3f_{1a}^2{g}_{1aa}+3f_{1aa}{f}_{1a}{g}_{1a}-\frac{3}{2}{g}_{1aa}{g}_{1a}^2]}_{aa}& \text{(3.27e)}\end{array}$

and the boundary conditions are

$\begin{array}{ll}{p}_3=0\text{\hspace{0.17em}>at\hspace{0.17em}}b=0& \text{(3.27f)}\end{array}$

$\begin{array}{ll}{g}_{3\sigma t}={g^{\prime }}_{3{\sigma }_{0}t}=0\text{\hspace{0.17em}on\hspace{0.17em}}b=-h& \text{(3.27g)}\end{array}$

On substituting the first- and second-order solutions into (3.27a–e), the third-order analytical solutions of the particle trajectory and potential function can be assumed to have the following forms:

$\begin{array}{ll}{f}_3=[-{\beta }_3\frac{\cosh 3k(b+h)}{{\cosh }^{3}kh}+\frac{1}{6}Ak(5{\beta }_2-\frac{1}{2}{A}^{2}k)\frac{\cosh k(b+h)}{{\cosh }^{3}kh}]\sin 3(ka-\sigma t)-[\frac{1}{2}Ak(5{\beta }_2+A^{2}k)\frac{\cosh 3k(b+h)}{{\cosh }^{3}kh}+{\lambda }_3\frac{\cosh k(b+h)}{{\cosh }^{3}kh}]\sin (ka-\sigma t)& \text{(3.28)}\end{array}$

$\begin{array}{ll}{g}_3=[{\beta }_3\frac{\sinh 3k(b+h)}{{\cosh }^{3}kh}-\frac{1}{2}Ak{\beta }_2\frac{\sinh k(b+h)}{{\cosh }^{3}kh}]\cos 3(ka-\sigma t)+[\frac{1}{2}Ak(3{\beta }_2+\frac{1}{2}{A}^{2}k)\frac{\sinh 3k(b+h)}{{\cosh }^{3}kh}+{\lambda }_3\frac{\sinh k(b+h)}{{\cosh }^{3}kh}]\cos (ka-\sigma t)& \text{(3.29)}\end{array}$

$\begin{array}{ll}{\varphi }_3=\frac{{\sigma }_0}{k}{\beta }_3\frac{\cosh 3k(b+h)}{{\cosh }^{3}kh}\sin 3(ka-\sigma t)+\frac{1}{2}A{\sigma }_0{\beta }_2\frac{\cosh 3k(b+h)}{{\cosh }^{3}kh}\sin (ka-\sigma t)-\frac{1}{2}A(3{\beta }_2-\frac{1}{2}{A}^{2}k){\sigma }_0\frac{\cosh k(b+h)}{{\cosh }^{3}kh}\sin 3(ka-\sigma t)& \text{(3.30)}\end{array}$

Using the dynamic boundary condition (3.27f) and neglecting the secular terms that grow with time, we can obtain the second-order correction of the Lagrangian wave frequency, which is

$\begin{array}{ll}{\sigma }_2=-\frac{1}{2}{A}^2{k}^3{\sigma }_0\frac{\cosh 2k(b+h)}{{\cosh }^{2}kh}-\frac{{\sigma }_0}{A}(1-{\tanh }^{2}kh){\lambda }_3& \text{(3.31)}\end{array}$

and two unknown coefficients β₃ and γ₃ , which are

$\begin{array}{ll}{\beta }_3=\frac{1}{3{\sigma }_0^2\cosh 3kh-(gk+81\frac{D{k}^5}{\rho })\sinh 3kd}\times \{\frac{1}{2}{\sigma }_0^{2}Ak(7{\beta }_2-A^{2}k)\cosh kh-\frac{1}{2}gA{k}^2{\beta }_2\sinh kh+\frac{D}{\rho }k[(\frac{167}{2}{k}^{5}A{\beta }_2-\frac{3}{32}{k}^6{A}^3)\sinh 3kh-(57k^{5}A{\beta }_2+\frac{433}{32}{k}^6{\alpha }^3)\sinh kh]\}& \text{(3.32)}\end{array}$

$\begin{array}{ll}{\lambda }_3=\frac{1}{{\sigma }_0^2\cosh kh+(gk+\frac{D{k}^5}{\rho })\sinh kh}\times \{\frac{3}{2}{\sigma }_0^{2}Ak{\beta }_2\cosh 3kh-\frac{1}{2}g{k}^{2}A(3{\beta }_2+\frac{1}{2}{A}^{2}k)\sinh 3kh-\frac{1}{4}{\sigma }_0^2{A}^3{k}^2\cosh kh-\frac{Dk}{\rho }[(\frac{273}{32}{k}^6{A}^3\sinh 3kh-(\frac{3}{2}{k}^{5}A{\beta }_2-\frac{333}{32}{k}^6{A}^3)\sinh kh]\}& \text{(3.33)}\end{array}$

The second-order correction term that only appears in the odd order asymptotic solution is different from the second-order wave frequency in the Eulerian coordinates obtained in Refs (Greenhill, 1886; Wang et al., 2020).. In Equation (3.31), the first term varies exponentially with the vertical particle label b and relative water depth, and the second term is the second-order Stokes wave frequency. Equations (3.28)–(3.33) are exactly the same as those of Chen et al. (2010) as flexural rigidity is neglected. The third-order approximation is found to break down as the denominator of β₃ is zero.

Dinvay et al. (2019) discussed the dispersion relation for moving loads on ice sheets. In Figure 1, the variation of flexural-gravity wavenumber k with the Lagrangian wave frequency from the nonlinear dispersion relation (3.31) for different values of ice sheet thickness d is presented. It is shown that for constant ice sheet thickness, the wavenumber increases with a decreasing Lagrangian wave period. Furthermore, the wavenumber decreases with an increasing thickness of ice sheet.

FIGURE 1

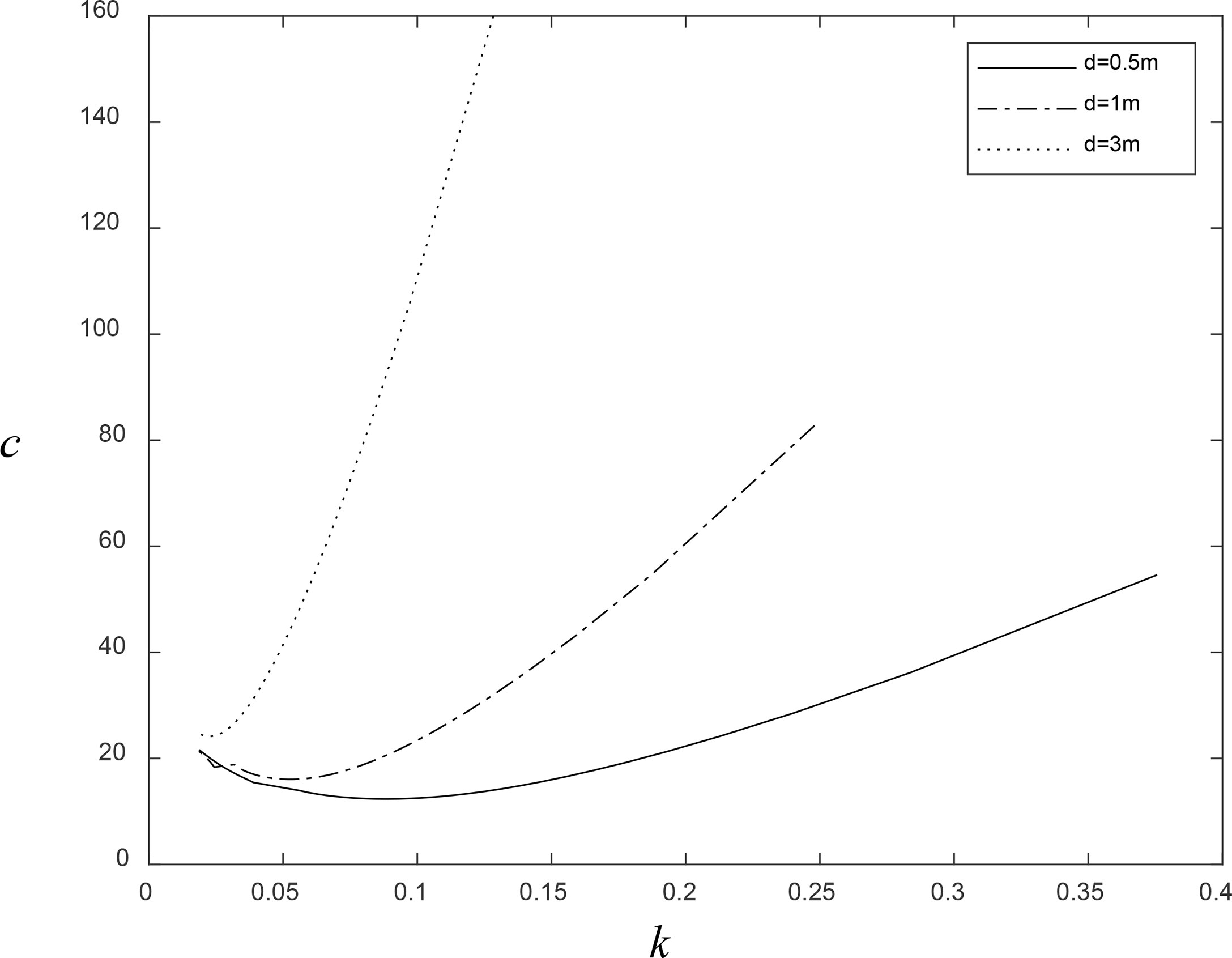

Figure 1 Nonlinear dispersion curve under various thicknesses of the ice sheet d = 0.5, 1, 3 m for water depth h = 100 m.

Computational results and discussion

The trajectory of water particles

The trajectories of particles can be directly derived from third-order parametric equations in the Lagrangian coordinates. In Figures 2A–D, the particle trajectories for progressive flexural-gravity waves are plotted at five vertical levels for two Lagrangian wave frequencies under various water depths and vertical levels b for the ice sheet thickness d = 1 m and wave period T_w = 10 s. It can be seen that the horizontal and vertical displacements of water particle trajectory are larger with the shallower water depth. The vertical excursion is larger than the horizontal counterpart for the particle orbit near the free surface for the shallow water depth. The particle trajectories show an open and spiraling curve in the direction of the wave propagation.

FIGURE 2

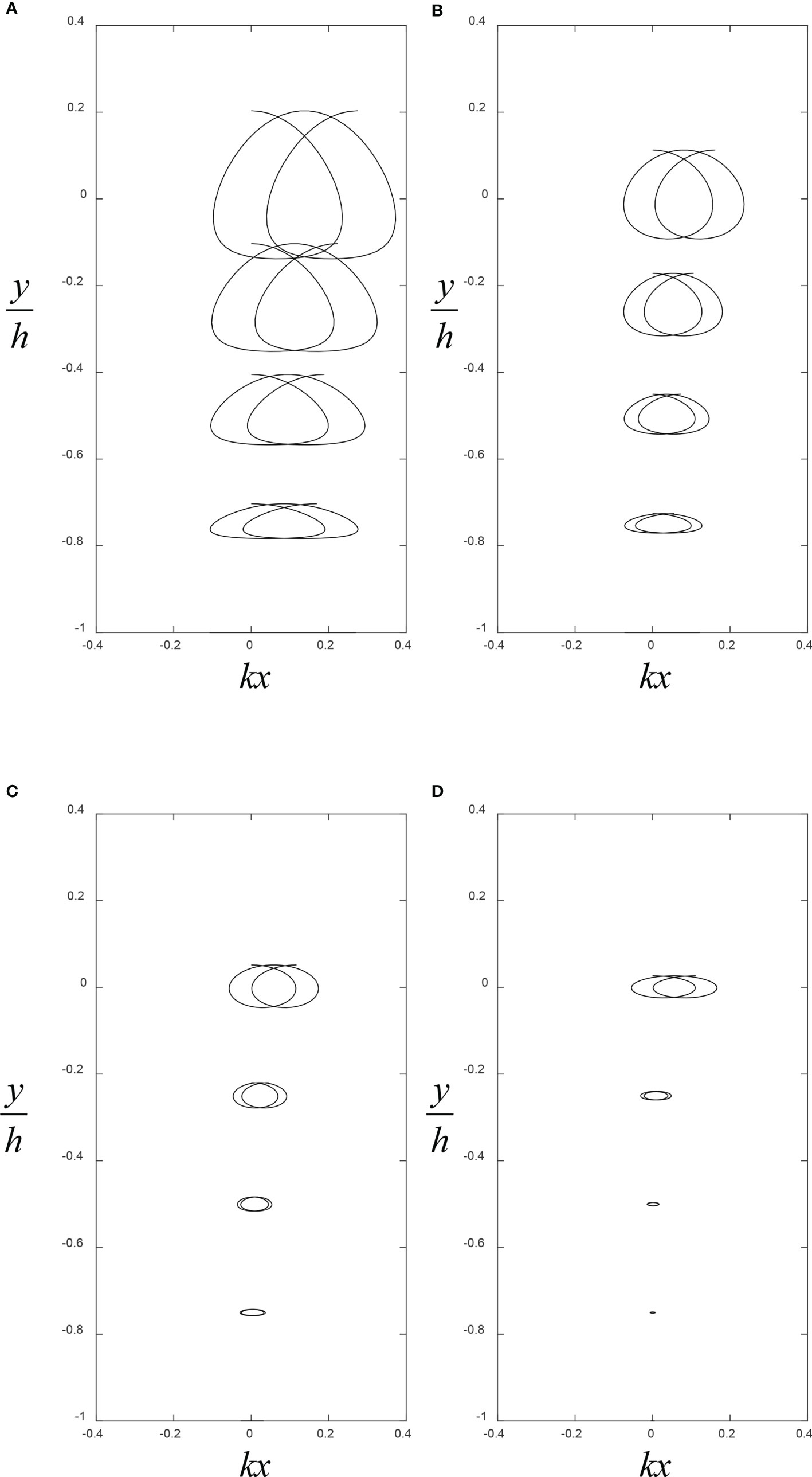

Figure 2 (A–D) The variation of third-order water particle trajectories at different vertical labels b for the thickness of the ice sheet d = 1 m under various water depths h = 10, 20, 50, 100 m.

In Figures 3A–D, the particle trajectories for nonlinear flexural-gravity waves in water depth h (=50 m) are plotted for various ice sheet thicknesses (d = 0,0.5,1,3 m) and vertical positions b. Figures 3A–D show the larger displacement amplitude of particle trajectories for the larger thickness (d = 3 m) of the ice sheet than the pure progressive gravity wave with d = 0. Increasing the thickness of the ice sheet is to increase the horizontal and vertical excursions traveled by water particles due to increasing the drift velocity. Overall, an increase in the thickness of the ice sheet and the material rigidity tends to increase the particle that moves along the orbit.

FIGURE 3

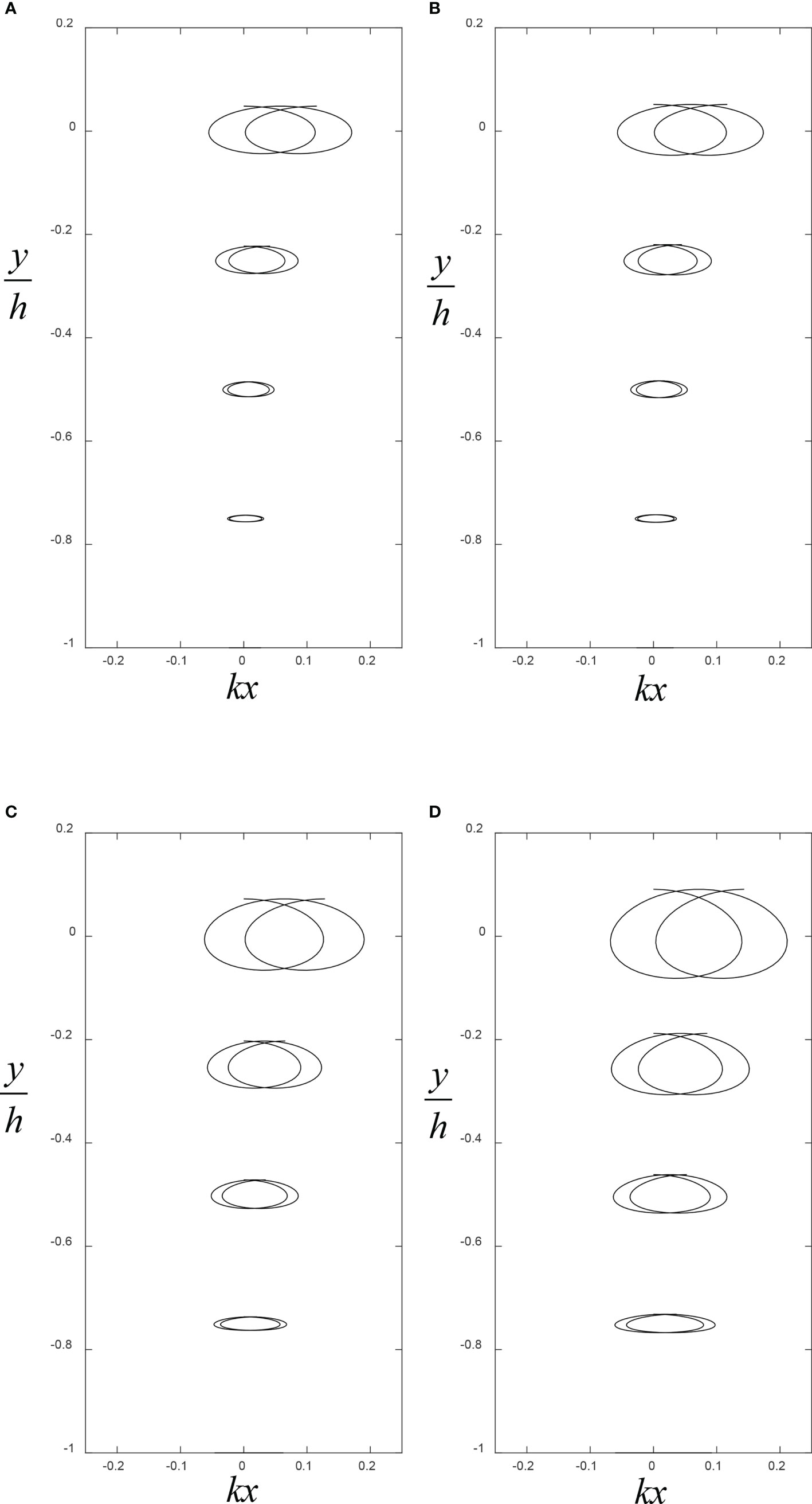

Figure 3 (A–D) The variation of third-order water particle trajectories at different vertical labels b for water depth h = 50 m under various thicknesses of the ice sheet d = 0, 0.5, 1, 3 m.

The drift velocity

In Section 3.2, we found that the mass transport velocity and the Lagrangian wave setup could be derived by taking the time average over one Lagrangian wave period to the horizontal and vertical parametric equations of the water particle that appears in the even order of our analytical solution. Taking the time average of the third-order approximation solution, the drift velocity and Lagrangian mean wave level $\overline{\eta }(b)$ over the whole range of depths can be obtained as follows:

$\begin{array}{ll}\frac{k}{{\sigma }_0}{\overline{x}}_t=\frac{k}{{\sigma }_0}\frac{1}{T_L}{\displaystyle {\int }_0^{T_L}{\displaystyle \sum _{n=1}^3{ϵ}^n{f^{\prime }}_{nt}}\text{d}t}=\frac{1}{4}(2+\frac{w_2}{{\sigma }_0})A^2{k}^2\frac{\cosh 2k(b+h)}{{\cosh }^{2}kh}& \text{(4.1)}\end{array}$

Figure 4 shows the second-order drift velocity versus the water depth and vertical label b for the ice sheet thickness d = 1 m and the wave steepness kA = 0.03π . Figure 5 shows the variation of the mass transport velocity against various ice sheet thicknesses and the vertical label b for the water depth h = 50 m and the wave steepness kA = 0.03π . From Figures 4 and 5, we can find that the mass transport velocity decays with dimensionless vertical depth for all thicknesses of the ice sheet. In Figure 5, the case d = 0 shows that the mass transport velocity is the same as that of Chen et al. (2010).

FIGURE 4

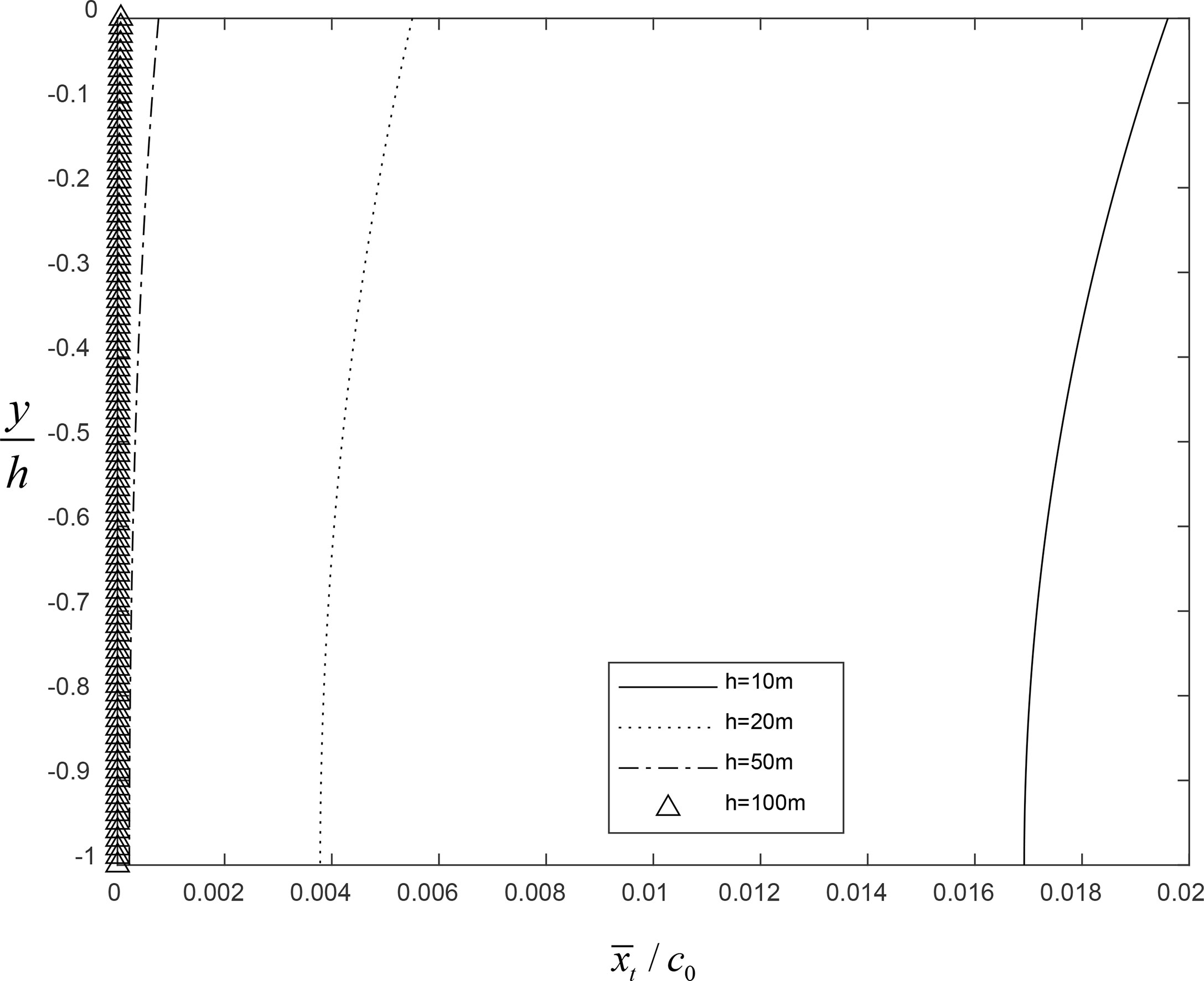

Figure 4 Dimensionless mass transport velocity versus vertical labels b for the thickness of the ice sheet d = 1 m under various water depths h = 10, 20, 50, 100 m.

FIGURE 5

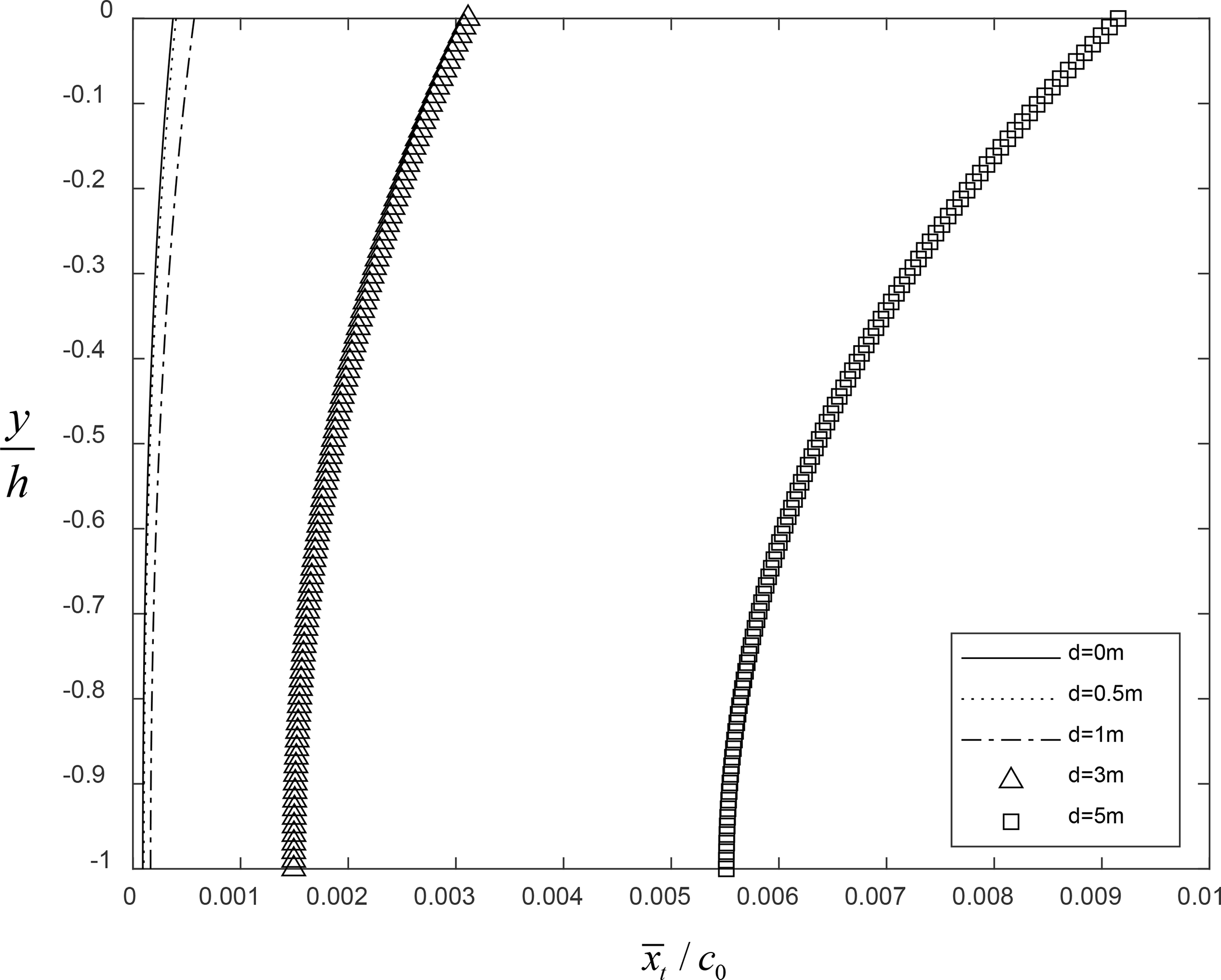

Figure 5 Dimensionless mass transport velocity versus vertical labels b for water depth h = 50 m under various thicknesses of the ice sheet d = 0, 0.5, 1, 3, 5 m.

Conclusions

We extended the work of Chen et al. (2010) to include the elastic sheet effect to derive the third-order analytical parametric solution for nonlinear progressive flexural-gravity water waves in Lagrangian coordinates. The particle trajectories could directly be determined by the third-order Lagrangian approximation. Through the numerical simulations, the effect of the rigidity of the ice sheet on the particle dynamics of the nonlinear flexural-gravity waves was discussed. The properties of particle motion for the flexural-gravity waves are similar to the gravity-capillary waves (Hsu et al., 2016).
