ORIGINAL RESEARCH article

Front. Mar. Sci., 02 September 2022
Sec. Marine Evolutionary Biology, Biogeography and Species Diversity

Deeper diversity exploration: New Typhlotanaidae (Crustacea: Tanaidacea) from the Kuril-Kamchatka Trench area

  • 1Department of Invertebrate Zoology and Hydrobiology, Faculty of Biology and Environmental Protection, University of Lodz, Łódź, Poland
  • 2Cavanilles Institute of Biodiversity and Evolutionary Biology, University of Valencia, Paterna, Spain
  • 3Department of Life Sciences, The Natural History Museum, London, United Kingdom

Typhlotanaidae Sieg, 1984, is one of the most diverse Tanaidacea families from deep-sea waters. Its diversity is underestimated, and evolutionary relationships within the family remain mostly unknown. Deep-sea typhlotanaids collected from 23 sites across the Kuril-Kamchatka Trench and nearby waters were studied using an integrative taxonomy approach, combining morphological and genetic data (i.e., the mitochondrial subunit I of the cytochrome oxidase (COI) and the 18S rDNA nuclear gene). One new species of Typhlamia and two new species belonging to two new genera are described, significantly increasing the known diversity of typhlotanaids from the NW Pacific. The molecular phylogeny obtained, despite being preliminary results, was congruent with morphological data and supports the monophyly of different groups such as the ‘short-bodied’ forms (represented by Ty. cornutus and Ty. eximius) or the ‘collar’ forms (e.g., Ty. variabilis and Torquella). Molecular data confirm the non-monophyly of Typhlotanais species. Finally, the new typhlotanaid taxa seem to have distinct bathymetric distribution and ecological requirements, but further data on environmental factors and species abundances are still needed.

Introduction

Northwestern Pacific abyssal domains are productive, nutrient-rich marine bottoms with a unique fauna (Brandt et al., 2015; Saeedi and Brandt, 2020; Stępień et al., 2022). Complex topography and a convoluted oceanic current system, together with the intricate history of surrounding seas, have shaped their marine biodiversity, expressed in the astonishing richness and zoogeography pattern of multiple benthic groups (Grebmeier et al., 2006; Renema et al., 2008; Leprieur et al., 2016; Kaiser et al., 2018; Bober et al., 2019; Saeedi et al., 2019; Jażdżewska et al., 2021a, 2021b). The series of R/V Vitjaz historic expeditions triggered the study of NW Pacific deep-sea macrofaunal communities (Sirenko, 2013; Brandt et al., 2015), but results of the recent investigations suggest that Peracarida taxa previously considered rare and unique may be in fact frequent and abundant on bathyal and abyssal ecosystems (Larsen and Shimomura, 2007; Brandt et al., 2010; Golovan et al., 2013; Malyutina et al., 2015; Jażdżewska and Mamos, 2019; Saeedi et al., 2019; Jażdżewska et al., 2021a).

Although Tanaidacea are an essential element of these deep-sea peracarid assemblages (Golovan et al., 2013; Brandt et al., 2015; McCallum et al., 2015; Poore et al., 2015), not much is known about their spatial distribution and bathymetric preferences (Brandt et al., 2013; Di Franco et al., 2021). Limited swimming abilities and lack of planktonic larval stages (Highsmith, 1985; Hassack and Holdich, 1987; Larsen, 2005) make them ideal model organisms for understanding dispersal and population connectivity (Błażewicz-Paszkowycz et al., 2014; Hilário et al., 2015). Indeed, recent studies have shown that topographic structures (e.g., sea mountains, fractures, or trenches) correlate with population connectivity on some tanaid genera (Jakiel et al., 2018; Jakiel et al., 2019; Jakiel et al., 2020), but this issue is still far from fully resolved.

Typhlotanaidae Sieg, 1984, is one of the most frequent and diverse Tanaidacea families in deep-sea waters, currently including 117 species classified into 13 genera (Błażewicz-Paszkowycz et al., 2012; Segadilha & Serejo, 2022). Most typhlotanaids are characterized by the presence of their clinging apparatus on pereopods 4–6, which facilitates individuals to move inside their tubular houses. The lack of this specialized set of hooks, tubercles, thorns, or spines in the last three pairs of the pereopods of some genera suggests the family to be polyphyletic (Błażewicz-Paszkowycz, 2007a). Typhlotanaidae are also characterized by their strong sexual dimorphism (Sieg, 1986; Błażewicz-Paszkowycz et al., 2014). Typhlotanaid females live in self-constructed tubes (Johnson and Attramadal, 1982), but sexually mature ‘swimming’ males show a hydrodynamic appearance with short pereonites and well-developed pleopods (Sieg, 1984; Błażewicz-Paszkowycz et al., 2014). Despite that males of deep-sea Paratanaoidea have never been observed in their natural environment, their body habitus, lack of clinging apparatus, reduced mouthparts, and numerous aesthetascs on the antennules suggest they are short-lived efficient swimmers (Błażewicz-Paszkowycz et al., 2014). Extreme sexual dimorphism prevents the morphological assignment of typhlotanaid males to a particular species, and this can only be solved with certainty through DNA analyses (Błażewicz-Paszkowycz et al., 2014).

Błażewicz-Paszkowycz (2007a) proposed affinities among all known typhlotanaid taxa based on morphological traits (see her Key for Typhlotanaidae genera and morpho-groups; Błażewicz-Paszkowycz, 2007a), but evolutionary relationships among genera or species remain unknown. Up to six ‘species groups’ were defined by Błażewicz-Paszkowycz (2007a) within Typhlotanais sensu lato, including taxa with different morphologies (short or long bodies, pereonites of different shapes, presence/absence of prickly tubercles on carpus, etc.). Nevertheless, morphological studies of this family are particularly difficult, and several taxa remain unassigned to a species group and relationships among groups still remain unsolved. Genetic data for the Typhlotanaidae family are scarce in public databases though, with less than 30 sequences currently available in GenBank (accessed on 17 June 2022) and half of those belonging to just a couple of species (i.e., Typhlotanais variabilis and Pulcherella pulcher). There is a need for further genetic studies to clarify relationships between genera and to test the validity of previous hypotheses, based on morphological data only.

The main objective of this study is to improve our knowledge on deep-sea Typhlotanaidae diversity from the NW Pacific, currently represented by seven genera (Table 1). New species collected from the Kuril-Kamchatka Trench area during the KuramBio and KuramBio II German–Russian expeditions are described and compared with taxa previously reported from the area. An integrative approach, combining molecular and morphological data, is used to identify affinities among typhlotanaid taxa and, whenever possible, link male and female forms of the same species. A preliminary phylogenetic tree is obtained, and relationships among different groups is discussed based on the congruency of molecular and morphological evidence. Finally, an updated identification key for Typhlotanaidae genera and species present in the NW Pacific is provided.

TABLE 1
www.frontiersin.org

Table 1 Typhlotanaidae species reported from the northern Pacific Ocean deep sea, including dubious identifications for taxa originally described from NE Atlantic waters.

Materials and methods

Sampling

A total of 294 typhlotanaid specimens were collected in the Kuril-Kamchatka Trench area (Brandt et al., 2013; Brandt et al., 2016). Sampling was conducted from July to September 2012 and from August to September 2016 during the two German–Russian expeditions KuramBio and KuramBio II (Kuril-Kamchatka Biodiversity Studies), respectively, aboard RV Sonne (cruises: SO 223, SO 250) (Brandt et al., 2013; Brandt et al., 2016). Samples were obtained using an epibenthic sledge and Agassiz trawl between 4,830 and 5,643m depth, and stations are presented in Table 2 and Figure 1. Each sample was elutriated and sieved through a 300-µm mesh with cold seawater and fixed in precooled 96% ethanol (Riehl et al., 2014). Samples were frozen and kept at −20°C until further processing.

TABLE 2
www.frontiersin.org

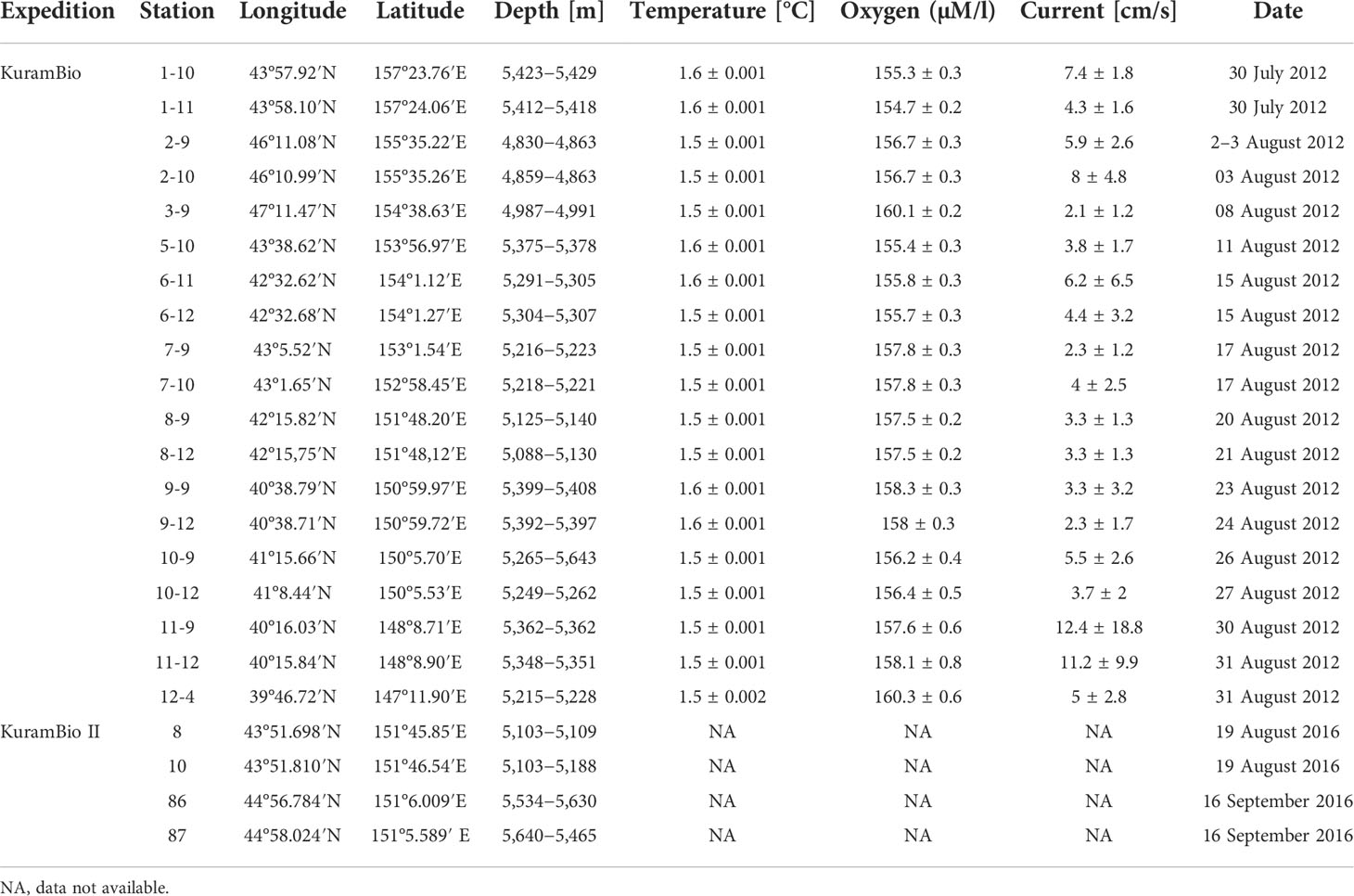

Table 2 Stations where Typhlotanaidae were found during the KuramBio and KuramBio II expedition.

FIGURE 1
www.frontiersin.org

Figure 1 Distribution of Typhlamia genesis n. sp. (gray), Baratheonus roberti n. sp. (blue), and Starkus sirene n. sp. (orange) across stations from KuramBio and KuramBio II (in bold). Pie charts represent the relative frequency of each species and their size indicates the sample size per station.

Environmental data and chemical composition for the sediment of each station were obtained from previous KuramBio reports (Brandt and Malyutina, 2015; Sattarova and Artemova, 2015; Brandt et al., 2016; Kolesnik et al., 2019). Abiotic parameters obtained during the KuramBio and II expeditions were extracted from the original reports and include temperature (°C), bottom current (cm/s), and oxygen concentration (mM/L). Chemical parameters analyzed include organic carbon and several microelements (Si, Al, Fe, Mn, Ca, K, Mg, Ti, Li, Ba, Co, Cu, Cs, Ni, Mo, Pb, Rb, Th, U, Sr, Zn) (Brandt et al., 2013; Sattarova and Artemova, 2015). Species abundance estimates were correlated with each variable using the Spearman non-parametric correlation test as implemented in Mathematica v.12.1 (Wolfram Research Inc, 2020). Cumulative curves of abundance increase with depth were built using the FoldList function in Mathematica v.12.1 (Wolfram Research Inc, 2020). The factor analysis was carried out in R Studio version 4.0.4, following the instructions at https://www.geo.fu-berlin.de/en/v/soga/Geodata-analysis/factor-analysis/A-simple-example-of-FA/index.html.

Morphological analyses

Initial species identification based on morphological observations was carried out with a dissecting microscope (Nikon Eclipse 50i). Selected individuals were dissected with chemically sharpened tungsten needles, and dissected cephalothorax, pereon, and pleon appendages were mounted on slides using glycerin. Morphological drawings were prepared using a light microscope equipped with a camera lucida. Digital drawings were completed using a graphic tablet following Coleman (2003); Frutos, 2022. Total body length (TBL) was measured along the central axis of symmetry from the frontal margin to the telson’s end; body width (BW) was measured perpendicular to the symmetry axis at the widest point along the central axis. The width and length of carapace, pereonites, pleonites, and pleotelson were measured on whole specimens. The measurements were made with a camera connected to the microscope (Nikon Eclipse Ci-L) and the NIS-Elements View software (www.nikoninstruments.com). Specimen morphology might be slightly distorted due to sampling and ethanol fixation, but it is assumed here that this does not affect the ratios (L:W) of individual appendages or the morphological traits described (number and types of setae/spines).

Unspecified setae in taxonomic descriptions will refer to simple setae by default. Besides simple setae (= without ornamentation), four other types were recognized: (1) serrated—with serration or denticulation, (2) plumose—with delicate setulae tufts distributed along the central axis, (3) penicillate—with a distal tuft of setules and supracuticular articulation, and (4) rod—distally inflated and with a pore (Thomas, 1970; Garm, 2004). Chemosensory setae, which are truncated and have a hollow located distally or subdistally (rod), are highlighted in the figures with an asterisk (*). According to Segadilha et al. (2018), the cusps on the edge of the maxilliped endites in Typhlotanaidae are always articulated structures (contrary to Bird and Larsen, 2009) and often have a distal pore, which might suggest a chemosensory function (Obenchain and Galun, 1982). The ‘comb-like’ scales present on antennules, antennae, and chelipeds are homologous to the so-called microtrichia from previous Tanaidacea studies (Bird, 2004; Błażewicz-Paszkowycz, 2007a). The term ‘clinging apparatus’ (= prickly tubercles) refers to a system of various hooks, tubercles, thorns, and spines, located on the carpus of pereopods 4–6 (Błażewicz-Paszkowycz, 2007a; Gellert et al., 2022). The distal part of the cheliped basis, extending backward, is referred to here as ‘cheliped lobe’ (Larsen, 2005). The term ‘collar’ is used to refer to the pereonite-1 shape, with a deeply concave anterior edge and lateral corners extended forward. The ‘collar’ form relates to representatives of the genus Torquella and Ty. variabis. Błażewicz-Paszkowycz (2007a) proposed a classification of typhlotanaids into two forms—‘short-bodied’ (body <6.0 L:W) and ‘long–bodied’ (body ≥8.0 L:W) (see Błażewicz-Paszkowycz, 2007a Key for Typhlotanaidae genera and morpho-groups).

Specimens are assigned to the following developmental stages: juvenile, neuter, adult male, and female. Brooding females are defined by the presence of a marsupium with fully developed oostegites. Males are dimorphic and come in two forms: preparatory (juvenile) and swimming male (adult). The neuter is the post-manca stage, which cannot be classified as male or female. Juveniles comprise manca-2 stages, with undeveloped pereonite-6 and lacking pereopod-6, and manca-3 stages, with developed pereonite-6 but undeveloped pereopod-6, and often absent or reduced pleopods. Abbreviations have been used to distinguish between genera: Ta. = Targaryenella, Tq. = Torquella, Tm. = Typhlamia, Ty. = Typhlotanais, and To. = Typhlotanoides. The type material for the species described here is deposited in Museum der Natur Hamburg, Germany (ZMHK), and ICUL/ITan numbers correspond to unique identifiers from the Invertebrates Collection held at the University of Lodz, Poland.

DNA analyses

Given the poor condition of several specimens, a final set of 157 individuals were used for molecular study and morphological descriptions. Extraction of DNA from morphologically identified female and unidentified male specimens was performed using the Chelex (InstaGene Matrix, Bio-Rad) method as in Jakiel et al. (2020). Specimen vouchers were recovered after extraction whenever possible. The standard DNA barcoding mitochondrial cytochrome oxidase I (COI) region and the nuclear 18S rRNA region were PCR amplified using the primer pairs polyLCO/polyHCO (5′-GAT TAT WTT CAA CAA ATC ARA AAG ATA TTG G-3′ and 5′-TAM ACT TTC WGG GTG ACC AAA RAA TCA-3′) (Carr et al., 2011) and 18S 4F/2R (5′-CCA AGG AAG RCA GCA GGC ACG-3′ and 5′-GAG TCC CGT GTT GAG TCA ATT AAG C-3′) (Pitz and Sierwald, 2010). The reaction protocol for COI consisted of an initial denaturation at 95°C for 3 min, 34× reaction cycles of 95°C for 30 s, 48°C for 30 s, and 72°C for 45 s, and a final extension at 72°C for 5 min, and for 18S rRNA an initial extension at 95°C for 2 min, 35× reaction cycles of 95°C for 1 min, 53.6°C for 45 s, and 72°C for 3 min, and a final extension at 72°C for 10 min. For molecular phylogeny, after Sanger sequencing (Macrogen, Netherlands, Amsterdam), consensus sequences were built using Geneious v9.1.3 (www.geneious.com) and compared with the GenBank database using BLAST (Altschul et al., 1990) to discard contamination from non-arthropod sources. Besides typhlotanaids, the closest BLAST hits obtained from GenBank consisted of sequences belonging to the families Akanthophoreidae and Paranarthrurellidae, and those were chosen as outgroups.

Our newly obtained sequences and the closest BLAST hits obtained from GenBank were aligned using MAFFT and the L-INSi alignment option (Katoh and Standley, 2013). To improve reliability, we extracted conserved (ungapped) blocks of sequences from the alignment using the Gblocks server with default settings (Castresana, 2000; Talavera and Castresana, 2007; Palero et al., 2008). Nucleotide substitution model selection was performed according to the BIC criterion for each gene partition as implemented in MEGA X (Kumar et al., 2018). The concatenated alignment and selected evolutionary models were used to estimate genetic distances and the corresponding Maximum Likelihood phylogenetic tree in MEGA. Initial trees for the heuristic search were obtained automatically by applying the neighbor-joining algorithm to a matrix of pairwise distances estimated using the maximum composite likelihood (MCL) approach, then selecting the topology with a superior log-likelihood value. Nodal support was assessed using 500 bootstrap replicates.

High-resolution imaging

Scanning electron microscopy (SEM) was used to illustrate tiny cuticular structures such as ‘scales’ (Garm, 2004) and a clinging apparatus. SEM imaging was performed using a Phenom ProX scanning electron microscope at the Department of Invertebrate Zoology and Hydrobiology, University of Lodz, Poland, using an air-dryer without a sputter metallic layer (Rewicz et al., 2017).

Confocal laser scanning microscopy (CLSM) images were obtained using an LSM 780 (Zeiss) microscope equipped with a Plan Apochromat 63×/1.4 objective and the InTune tuneable excitation laser system (set to excitation wavelength 555 nm). Specimens were stained for 24 h with an equal-volume mixture of saturated water solutions of Congo Red and acid fuchsin. Before dissection and mounting in 100% glycerol, stained animals were washed thoroughly with 50% aqueous glycerol solution. Fluorescence was registered in a single emission channel (561–695 nm). Images were recorded as Z-stacks with 12.6-ms pixel dwell and two-times line averaging with an optical cross section of 0.5 mm. Collected data were pseudo-colored in gold and reconstructed into a 3D image stack by maximum intensity projection using ZEN software (Zeiss, Germany).

Results

Taxonomy

Family Typhlotanaidae Sieg, 1984

Diagnosis (after Bird and Larsen, 2009)

Eyes or eyelobes lacking. Antennule with three articles. Antenna with six articles. Mandible molar broad, margin nodulose. Maxilliped endite distal margin with two non-articulated processes or cusps. Cheliped basis attached with small sclerite, partly covered by edge of carapace. Marsupium with four pairs of oostegites. Pereopods 1–3 with coxa. Pereopods 4–6 without coxa; carpus with clinging apparatus (=prickly tubercles) with spiniform processes and/or hooks; propodus with one (pereopods 4–5) or three (pereopod-6) dorsodistal setae; dactylus and unguis claw-like. Uropod rami with one or two articles.

Genera included

Antiplotanais Bamber, 2008; Aremus Segadilha et al., 2018; Larsenotanais Błażewicz-Paszkowycz, 2007a; Meromonakantha Sieg, 1986; Obesutanais Larsen, Błażewicz-Paszkowycz and Cunha, 2006; Paratyphlotanais Kudinova-Pasternak and Pasternak, 1978; Peraeospinosus Sieg, 1986; Pulcherella Błażewicz-Paszkowycz, 2007a; Targaryenella Błażewicz and Segadilha, 2019; Torquella Błażewicz-Paszkowycz, 2007a; Typhlamia Błażewicz-Paszkowycz, 2007a; Typhlotanais Sars, 1882; Typhlotanoides Sieg, 1983; Baratheonus n. gen., and Starkus n. gen.

Genus Typhlamia Błażewicz-Paszkowycz, 2007

Diagnosis (*amended from Błażewicz-Paszkowycz, 2007a)

Body elongate, about 8.0 L:W. Carapace about as wide as long, tapering proximally, margins gently rounded. Pereonite margins rounded. Antennule twice as long as carapace; article-1 >6.0 L:W (occasionally with suture in the middle of article); article-3 slender and elongated, about 10 L:W, with distal setae as long as the whole appendage. Maxilliped basis with seta reaching beyond endites. Cheliped basis ventrally separated from pereonite-1 by a gap: merus and carpus ventral setae long (longer than merus distal margin). Pereopods 1–3 coxa without spur; pereopod-1 carpus with long dorsodistal seta; pereopods 4–6 carpus with two rounded/blunt cusps instead of prickly tubercles; unguis tip bifid. Pleopod rami with a gap between most proximal seta and other setae. Uropod long and slender (endopod about 10 L:W); endopod with two articles of subequal length; exopod with one article subequal to endopod proximal article.

Type species

Typhlamia bella Błażewicz-Paszkowycz, 2007a, by designation.

Species included

Typhlamia bella Błażewicz-Paszkowycz, 2007a; Tm. mucronata (Hansen, 1913); Tm. sandersi (Kudinova-Pasternak, 1985) sensu Błażewicz-Paszkowycz, 2007a; Typhlamia genesis n. sp.

Remarks

Typhlamia was erected by Błażewicz-Paszkowycz (2007a) to accommodate two species with elongated body, rounded pereonite margins, remarkably extended antennule article-3 (about 10 L:W), long seta on maxilliped basis and pereopod carpus, and unarticled uropodal exopod. Tm. mucronata was redescribed by Błażewicz-Paszkowycz (2007a) based on historical material from HMS Ingolf cruise Hansen’s collection (syntypes: CRU 3916, CRU 7423, CRU 3885), held in the Natural History Museum of Copenhagen (ZMUC). The genus includes Tm. bella from Antarctic waters (Błażewicz-Paszkowycz, 2007a) and Tm. sandersi mentioned and drawn by Kudinova-Pasternak (1985): 52, 53) is considered doubtful and represents new genus (Gellert et al., in press). Morphological differences between those species and the new Typhlamia species from NW Pacific are highlighted in Appendix 1.

Typhlamia genesis n. sp.

LSID urn: lsid:zoobank.org:act:3D658815-3C53-464A-BD22-C4E89B894FFB

(Figures 24)

FIGURE 2
www.frontiersin.org

Figure 2 Typhlamia genesis n. sp., neuter: (A) Body, dorsal view (ZMHK-62919); (B) Body, lateral view (ZMHK-62941). (C) CLSM images (ZMHK-62918): Tm. genesis pereopods 4–6 carpi with two cusps. Scale: A–B = 1 mm, C = 0.5 mm.

FIGURE 3
www.frontiersin.org

Figure 3 Typhlamia genesis n. sp., neuter (ZMHK-62922), (A) Antennule; (B) Antenna; (C) Labrum; (D) Left mandible; (E) Right mandible; (F) Labium; (G) Maxillule; (H) Maxilla; (I) Maxilliped. Scale: A–I = 0.1 mm.

FIGURE 4
www.frontiersin.org

Figure 4 Typhlamia genesis n. sp., neuter: (A) Cheliped (ZMHK-62939); (B) Pereopod-1 (ZMHK-62939); (C) Pereopod-2 (ZMHK-62939); (D) Pereopod-3 (ZMHK-62939); (E) Pereopod-4 (ZMHK-62922); (F) Pereopod-5 (ZMHK-62922); (G) Pereopod-6 (ZMHK-62922); (H) Pleopods (ZMHK-62922); (I) Uropods (ZMHK-62940). Scale: (A–I) = 0.1 mm.

Material examined

Holotype, St. 8, neuter 1.9 mm (ZMHK-62918).

Paratypes: St. 10-9, neuter 3.2 mm (ZMHK-62919, illustrated); St. 1-10, neuter 1.2 mm (ZMHK-62920); St. 6-12, three neuters: 3.0 mm (ZMHK-62921); specimen dissected on slides (ZMHK-62922); specimen broken (ZMHK-62923); St. 9-9, four neuters: 1.6 mm (ZMHK-62924), 1.7 mm (ZMHK-62925), 2.1 mm (ZMHK-62926), 2.4 mm (ZMHK-62927); St. 10-9, two damaged neuters (ZMHK-62928, ZMHK-62929); St. 9-12, two neuters: 2.5 mm (ZMHK-62930), broken specimen (ZMHK-62931); St. 10-12, four neuters: 1.5 mm (ZMHK-62932), 1.5 mm (ZMHK-62933), 1.9 mm (ZMHK-62934), one broken (ZMHK-62935); St. 12-4, two neuters broken (ZMHK-62936; ZMHK-62937); St. 8, two neuters: 2.4 mm (ZMHK-62938), broken individual dissected on slides (ZMHK-62939); St. 10, neuter 3.8 mm (ZMHK-62940, illustrated); St. 10, two neuters: 1.9 mm (ZMHK-62941, illustrated), broken specimen (ZMHK-62941); St. 86, neuter broken (ZMHK-62942); St. 86, neuter 1.9 mm (ZMHK-62943, broken); St. 86, manca-3 2.2 mm (ZMHK-62944); St. 87, neuter broken (ZMHK-62945).

Other material examined

St. 9-9, two broken specimens (ICUL7960*; ICUL4271*); St. 10-9, neuter 3.1 mm (ICUL7916*); St. 9-12, two neuters 3.1 mm (ICUL4273*); 3.25 mm (ICUL4278*); St. 10-12, neuter (ICUL7915*); St. 9-9, neuter (ICUL7956*); St. 11-9, neuter (ICUL7968*); St. 6-12, neuter (ICUL7914*).

*Individual not recovered after DNA extraction.

Diagnosis

Pereopod-1 propodus with ventrodistal seta. Pereopod-2 merus with ventrodistal seta. Pereopod-2 carpus with two long setae. Pereopods 4–6 ischium with two setae. Uropod exopod subequal to endopod proximal article.

Etymology

The generic name Typhlamia is linked with the record ‘The Lamia’ from the album The Lamb Lies Down on Broadway from the music band Genesis. Name of species after the Genesis music band.

Description of neuter

TBL 3.0 mm. Paratype. Body (Figures 2A−C) slender, 7.5 L:W. Cephalothorax with short and rounded rostrum, 1.0 L:W, 1.2× pereonite-1, naked; eyes absent. Pereonites 1–6: 0.8, 1.0, 0.9, 1.0, 0.8, and 0.7 L:W, respectively. Pereonite-1 trapezoidal, 0.6× pereonite-2; pereonite-2 hexagonal, 1.2× pereonite-3; pereonite-3 hexagonal, 0.9× pereonite-4; pereonite-4 trapezoidal, 1.3× pereonite-5; pereonite-5 trapezoidal, 1.1× pereonite-6; pereonite-6 trapezoidal. Pleon 0.2× TBL; pleonites 1–5: all the same size—0.2 L: W. Pleotelson 2.1× pereonite-6.

Antennule (Figure 3A) 1.9× cephalothorax; article-1 5.5 L:W, 0.5× antennule total length, with five (two penicillate medial) setae, two (one penicillate distal) setae, and with some scales proximally; article-2, 4.8 L:W, 0.3× article-1, with two distal setae; article-3, 16 L:W, 2.0× article-2, with one penicillate and six long distal setae.

Antenna (Figure 3B) of six articles; article-1 fused with body; article-2, 1.3 L:W, with short seta; article-3, 1.3 L:W, 0.7× article-2, with short ventral seta; article-4, 6.7 L:W, 4.0× article-3, with six (three penicillate distal setae) setae; article-5, 7.3 L:W, 0.6× article-4, with long seta; article-6 1.5 L:W, with five long distal setae.

Mouthparts. Labrum (Figure 3C) hood-shaped, distally naked. Mandible (Figures 3D, E) molar broad, edges with rounded tubercles; left mandible (Figure 3D) incisor with three lobes, lacinia mobilis well developed, with single lobe; right mandible (Figure 3E) incisor with three lobes without lacinia mobilis. Labium (Figure 3F) distal part finely setose. Maxillule (Figure 3G) endite with eight terminal spines, two innermost spines shorter than the others. Maxilla (Figure 3H) semi-triangular. Maxilliped (Figure 3I) basis with long, finely serrated seta reaching behind endites; endites unfused, with two small cusps, one seta, and scales on outer margin; palp with four articles: article-1 naked; article-2 wedge, with three serrated inner setae and scales on outer margin (outer seta not seen); article-3 with four serrated inner setae and scales on outer margin; article-4 with six serrated inner distal and outer setae. Epignath not observed.

Cheliped (Figure 4A) basis slender, naked, 2.1 L:W, lobe separated by a gap from pereonite-1; merus subtriangular, with long ventral seta; carpus 4.1 L:W, with two long ventral setae, dorsal margin with distal chemosensory seta and proximal setae; chela subequal to carpus, 4.8 L:W; palm 0.7× fixed finger, with two rod setae near dactylus insertion (inner and outer surface); fixed finger with two long ventral setae; cutting edge with three setae and three weak, blunt cusps distally; dactylus with short dorsoproximal seta.

Pereopod-1 (Figure 4B) walking type, overall 26 L:W; coxa with seta; basis 8.6 L:W with subproximal short seta; ischium with ventral seta; merus 3.5 L:W with ventrodistal seta; carpus 3.6 L:W, 1.1× merus, with five (one chemosensory distal) setae; propodus 6.3 L:W, 1.3× carpus, with one dorsodistal and one ventrodistal setae; dactylus 0.7× unguis, with subproximal seta; dactylus and unguis together 0.9× propodus; unguis simple.

Pereopod-2 (Figure 4C) walking type; coxa with seta; basis naked; ischium with ventral seta; merus 2.4 L:W, with ventrodistal seta; carpus 3.2 L:W, 1.3× merus, with two distal spines, two long (longer than half of propodus) and one short setae; propodus 4.7 L:W, 1.4× merus and carpus combined, with two dorsodistal setae (one long) and ventrodistal spine; dactylus 0.9× unguis; dactylus and unguis together 0.4× propodus; unguis simple.

Pereopod-3 (Figure 4D) walking type, overall 14 L:W; coxa with seta; basis 6.4 L:W, with subproximal dorsal seta; ischium with ventral seta; merus 2.4 L:W, with ventrodistal seta; carpus 3.6 L:W, 1.5× merus, with spine, two short and two long setae distally; propodus 5.6 L:W, 1.2× carpus, with dorsodistal seta, ventrodistal spine and numerous scales; dactylus 0.9× unguis; dactylus and unguis together 0.4× propodus; unguis simple.

Pereopod-4 (Figure 4E) clinging type, overall 12 L:W; coxa absent; basis slender, 4.2 L:W, naked; ischium with two ventral setae; merus 3.4 L:W, with spine and seta ventrodistally; carpus 4.2 L:W, 1.2× merus, with two cusps (Figure 2C), two spines and dorsal seta distally; propodus 7.7 L:W, with numerous scales, two dorsodistal seta and ventrodistal spines; dactylus 2.5× unguis, both combined 0.6× propodus; unguis bifurcated.

Pereopod-5 (Figure 4F) as pereopod-4, but basis with two penicillate setae.

Pereopod-6 (Figure 4G) as pereopod-4, but basis with two setae (middorsal and midventral), propodus with three dorsodistal setae.

Pleopods (Figure 4H) basal article naked; exopod with 13 plumose setae on outer margin and one on inner margin; endopod with 21 plumose setae on outer margin.

Uropod (Figure 4I) basal article 1.5 L:W, naked; endopod two-articled, proximal article 0.7× distal article, naked; distal article with penicillate medial and five long terminal setae; exopod one-articled, subequal to endopod article-1, with one medial, one long and one robust terminal setae.

Distribution

Typhlamia genesis n. sp. is known from seven locations off Kuril-Kamchatka Trench in a depth range of 5103–5643 m (Figure 1).

Remarks

Typhlamia genesis n. sp. is the first Typhlamia species discovered in Pacific. It is distinguished from other members of the genus by the presence of only one seta on merus of pereopods 1–3, while the other species have two setae. Distinguishing features of Typhlamia species are summarized in Appendix 1.

Key for identification of Typhlamia females

1. Uropod exopod longer than endopod proximal article ...........................................Tm. mucronata (Hansen, 1913) (N Atlantic; 1618–1847 m)

- Uropod exopod subequal to endopod proximal article.......2

2. Pereopod-1 propodus with two dorsodistal setae

    ......................Tm. sandersi (Kudinova-Pasternak, 1985) (Mid-Atlantic Ridge; 3080–3140 m)

- Pereopod-1 propodus with one dorsodistal seta...................3

3. Pereopod-2 merus with one seta......... Typhlamia genesis n. sp. (NW Pacific; 5215–5643 m)

- Pereopod-2 merus with two setae of unequal length

............................Tm. bella Błażewicz-Paszkowycz, 2007a (W Antarctic; 4385–4392 m)

Genus Baratheonus n. gen.

LSID urn:lsid:zoobank.org:act:776C32D6-4005-4889-AAC6-88BF891DE4CF

Diagnosis

Body elongated (~9.0 L:W). Pereonites with straight margins; pereonite-1 short; pereonites 1–3 smooth (without corrugation or grooves), lateral margins parallel. Pleotelson apex without spines. Antennule, antennae, and cheliped without scale ornamentation. Antennule article-3 regular length (4.0 L:W). Antenna article-2 long (2.5 L:W), without apophyses. Cheliped basal lobe separated from pereonite-1 by a gap. Pereopods 1–3 coxa without spurs; basis without spines; ischium with short seta; propodus with numerous ventral setae. Pereopods 2–3 carpus with four distal setae, propodus with two long ventrodistal setae. Pereopods 4–6 carpus with large prickly tubercles (longer than half of the carpus length), not surrounded by a row of blunt spines; propodus long (6.0 L:W), with dorsodistal short seta (< half of dactylus length); dactylus 3.0× unguis; unguis simple. Uropodal endopod and exopod one-articled; exopod 0.7× endopod.

Type species

Baratheonus roberti, by monotypy.

Gender. Masculine.

Etymology. Named after the Baratheon family from George R.R. Martin's novel Game of Thrones.

Remarks

Baratheonus n. gen. with body 9.0 L:W represents ‘long-bodied’ forms of typhlotanaids. The prickly tubercles on carpus of pereopods 4–6 (=clinging apparatus) allow to immediately distinguish it from other typhlotanaids lacking clinging apparatus, e.g., Meromonakantha, Paratyphlotanais, Obesutanais, Aremus, and Targaryenella (Błażewicz-Paszkowycz, 2007a; Segadilha et al., 2019). Parallel margins in smooth pereonites distinguish Baratheonus n. gen. from genera with rounded pereonite margins (i.e., Torquella, Peraeospinosus, and Pulcherella) and from the ‘plicatus’ group (with corrugated pereonites). One-articled uropodal exopod of Baratheonus n. gen. is the character shared with several typlotanaids like (1) ‘greenwichensis’ group (Typhlotanais ischnochela Segadilha and Serejo, 2022, Typhlotanais greenwichensis Shiino, 1970, Typhlotanais messinensis G.O. Sars, 1882, Typhlotanais herthio Błażewicz-Paszkowycz & Bamber, 2012), (2) the ‘trispinosus’ group (Typhlotanais trispinosus Hansen, 1913, Typhlotanais tenuicornis Sars, 1882, Typhlotanais spatulasetosus Larsen, 2012, Typhlotanais spinibasis Segadilha and Serejo, 2022), and (3) ten unclassified Typhlotanais species (Typhlotanais assimilis Sars, 1882, Typhlotanais aequiremis (Lilljeborg, 1864), Typhlotanais kussakini Kudinova-Pasternak, 1970, Typhlotanais guca Błażewicz-Paszkowycz, Bamber and Cunha, 2011, Typhlotanais inaequipes Hansen, 1913, Typhlotanais longiseta Segadilha and Serejo, 2022, Typhlotanais proctagon Tattersall, 1904, Typhlotanais profundus Hansen, 1913, Typhlotanais plebejus Hansen, 1913, and Typhlotanais williamsae Dojiri and Sieg, 1997). Distinguishing Barathreonus n. gen. from the ‘greenwichensis’ group and ‘trispinosus’ group is a straightforward procedure, as the new genus lacks the coxal spur on pereopods 1–3 (present in ‘greenwichensis’ groups) but also lacks the spines on members 2 and 3 of the antenna (present in ‘trispinosus’). Furthermore, the large prickly tubercles and simple unguis in pereopods 4–6 separate Baratheonus n. gen. from Ty. aequiremis, which has relatively small tubercles and bifurcated unguis (Błażewicz-Paszkowycz 2007; Figures 15E, F). The long articles in pereopods 4–6, with very short propodal dorsodistal seta, separates Barathreonus n. gen. from Ty. kussakini and Ty. williamsae. Finally, Baratheonus n. gen. has short pereonite-1 (longer in Ty. williamsae and Ty. kussakini) and unarticulated uropodal rami (two-articled endopod in Ty. williamsae). Baratheonus n. gen. and Typhlotanais longiseta Segadilha and Serejo, 2022, have several ventral setae on pereopods 2–3 (also on pereopod-1 in Baratheonus n. gen.). A one-articled uropodal exopod and endopod in Baratheonus n. gen. distinguishes it from Typhlotanais andradeorum Segadilha and Serejo, 2022, which has two-articled uropodal exopod and endopod. Typhlotanais assimilis, Ty. inaequipes, Ty. longiseta, Ty. profundus, and Ty. plebejus have two-articled endopod and one-articled exopod. Additionally, Baratheonus n. gen. cheliped lobe is separated by a gap from pereonite-1, which Ty. longiseta does not have. Baratheonus n. gen. has pereopods 2–3 merus with two and three setae, respectively, contrarily to Ty. guca and Ty. proctagon, which have a large ventrodistal spine.

Baratheonus roberti n. sp.

LSID urn:lsid:zoobank.org:act:8DFB8FBC-A4F8-4E7A-BEF3-0A7C639027F4

(Figures 67)

Material examined

Holotype, St. 12-4, neuter 1.9 mm (ZMHK-62891, illustrated).

Paratypes, St. 1-11, neuter broken (ZMHK-62892); St. 2-10, five neuters: one 0.7 mm (ZMHK-62893), one 2.0 mm (ZMHK-62894), one individual dissected on slides (ZMHK-62895, broken and illustrated), two individuals broken (ZMHK-62896; ZMHK-62897); St. 6-12, two neuters dissected on slides (ZMHK-62898), individual broken (ZMHK-62899); St. 5-10, neuter 1.2 mm (ZMHK-62900); St. 7-10, neuter broken (ZMHK-62901); St. 8-9, two neuters 1.7 mm (ZMHK-62902; ZMHK-62909); St. 9-12, neuter broken (ZMHK-62904); St. 10-12, three neuters broken (ZMHK-62905; ZMHK-62906; ZMHK-62907); St. 12-4, neuter 1.3 mm dissected on slides (ZMHK-62908), neuter 1.4 mm (ZMHK-62909), two individuals broken (ZMHK-62910; ZMHK-62911; dissected on slides), five individuals broken (ZMHK-62912; ZMHK-62913; ZMHK-62914; ZMHK-62915; ZMHK-62916), female with oostegites 1.8 mm (ZMHK-62917).

Other examined material

St. 2-10, neuter 0.2 mm (ICUL7923*), individual broken (ICUL7937*); St. 3-9, neuter broken (ICUL7979*); St. 6-12, neuter 1.7 mm (ICUL4284*); St. 5-10, neuter 1.3 mm (ICUL4163*); St. 6-11, neuter broken (ICUL7936*); St. 9-12, neuter 1.3 mm (ICUL7935*); St. 10-12, neuter 1.3 mm (ICUL7928*); St. 11-12, neuter 1.3 mm (ICUL7981*); St. 12-4, three neuters (ICUL4285*, ICUL4288*, ICUL4290*); St. 12-4, neuter (ICUL7934*); St. 2-10, neuter (ICUL4200*); St. 9-12, neuter (ICUL4193*); St. 12-4 neuter (ICUL7970*).

*Individual not recovered after DNA extraction.

Diagnosis

As for the genus (by monotypy).

Etymology. Species named after the character from the novel by George R.R. Martin’s novel Game of Thrones—Robert Baratheon, the Lord of the Seven Kingdoms of Westeros and the head of House Baratheon of King’s Landing.

Description of neuter, length 0.9 mm. Body (Figures 5A, B) slender, 8.1 L:W. Cephalothorax rectangular, with the short and pointy rostrum, 1.4 L:W, 4.6× pereonite-1, naked; eyes absent. Pereonites 1–6: 0.3, 0.9, 1.0, 0.9, 1.0, and 0.6 L:W, respectively. Pereonite-1 rectangular, shortest, 0.4× pereonites-2; pereonite-2 square, as pereonite-3; pereonite-3 square, 1.1× pereonite-4; pereonite-4 square, the same length as pereonite-5; pereonite-5 square, 1.7× pereonite-6; pereonite-6 rectangular. Pleon 0.3× TBL. Pleonites 1–5: the same size—0.4 L:W. Pleotelson 4.6× pereonite-6.

FIGURE 5
www.frontiersin.org

Figure 5 Baratheonus roberti n. sp., neuter: (A) Body, dorsal view (ZMHK-62895); (B) Body, lateral view (ZMHK-62891); (C) Carapace ventral side (ZMHK-62891); (D) Antennule (ZMHK-62898); (E) Antenna (ZMHK-62898); (F) Left mandible (ZMHK-62908); (G) Right mandible (ZMHK-62908); (H) Labium (ZMHK-62908); (I) Maxillule (ZMHK-62908); (J) Palp (ZMHK-62908); (K) Maxilliped (ZMHK-62908). Scale of body: (A, B) = 1 mm, (D–K) = 0.1mm.

Antennule (Figure 5D) 0.7× cephalothorax; article-1, 0.6× of antennule total length, 2.5 L:W, with five penicillate medial setae, one chemosensory and two distal setae; article-2, 1.4 L:W, 0.3× article-1, with one penicillate and two distal setae; article-3, 4.0 L:W, 2.0× article-2, with two short, three chemosensory setae distally (truncated with a hollow) and four long setae distally.

Antenna (Figure 5E) of six articles; article-1 short fused with body, naked; article-2 long, 2.5 L:W, with distal seta; article-3, 1.3 L:W, 0.5× article-2, with scales; article-4, 4.4 L:W, 3.1× article-3, with two long distal setae (as long as article-5); article-5, 6.0 L:W, 0.6× article-4, with long distal seta; article-6 minute, with one short, three chemosensory, and three setae distally.

Mouthparts. Labrum (Figure 5C) rounded, distal surface setose. Left mandible (Figure 5F) incisor broken, lacinia mobilis well developed, with single lobe; right mandible (Figure 5G) incisor with eight lobes without lacinia mobilis. Labium (Figure 5H) with inner lobe distally setose and with scales along margin on the outer lobe. Maxillule (Figure 5I) endite with eight terminal spines (one short) and scales on outer margin; palp (Figure 5J) with two terminal setae. Maxilliped (Figure 5K) endites unfused, with two cusps, distolateral seta, and several scales on outer margin; palp with four articles: article-1 naked; article-2 elongate, with three serrated inner setae and scales on outer margin (outer seta not seen); article-3 with four serrated inner setae; article-4 with five serrated inner setae and one (broken) subdistal outer seta. Epignath not observed.

Cheliped Figures 5C, 6A) basis 1.7 L:W, with long chemosensory proximal seta; lobe separated by a gap from pereonite-1; merus wedge, with ventral chemosensory seta; carpus 2.6 L:W, with two long medial (one chemosensory) and one short subdistal setae ventrally, and with one distal chemosensory and one proximal dorsal setae; chela 0.9× carpus, 3.1 L:W; palm 1.7× fixed finger, with two setae near dactylus insertion (one on inner surface); fixed finger with two long ventral setae; cutting edge poorly calcified, only gently undulated, with three setae.

FIGURE 6
www.frontiersin.org

Figure 6 Baratheonus roberti n. sp., neuter: (A) Cheliped (ZMHK-62898); (B) Pereopod-1 (ZMHK-62899); (C) Pereopod-2 (ZMHK-62899); (D) Pereopod-3 (ZMHK-62899); (E) Pereopod-4 (ZMHK-62898); (F) Pereopod-5 (ZMHK-62898 and CLSM image showing the large prickly tubercles (clinging apparatus) (ZMHK-62898); (G) Pereopod-6 (ZMHK-62899); (H) Pleopods (ZMHK-62908); (I) Uropods (ZMHK-62908). Scale: (A–I) = 0.1 mm.

Pereopod-1 (Figure 6B) walking type, overall 11 L:W, slender; coxa with long seta, basis 4.1 L:W, naked; ischium with ventral seta; merus 2.2 L:W, with one chemosensory and one penicillate dorsodistal setae; carpus 2.3 L:W, 1.1× merus, with four distal setae; propodus 4.0 L:W, 1.3× carpus, with six short setae on ventral margin, one middorsal short seta, and two ventrodistal setae; dactylus 0.5× unguis, with subproximal seta; dactylus and unguis together 0.5× propodus; unguis simple.

Pereopod-2 (Figure 6C) walking type, overall 8.0 L:W; coxa with seta; basis 4.4 L:W, with one dorsal and one ventral chemosensory seta; ischium with ventral seta; merus 1.5 L:W, with two ventrodistal setae; carpus 2.2 L:W, 1.3× merus, with four distal setae (two chemosensory); propodus 3.0 L:W, 0.6× merus and carpus combined, with five short proximal and two subproximal dorsal setae, seven long ventral setae, and two long (longer than unguis) chemosensory ventrodistal setae; dactylus 0.6× unguis, with subproximal seta; dactylus and unguis together 0.5× propodus; unguis simple.

Pereopod-3 (Figure 6D) walking type, overall 10 L:W; coxa with seta; basis 4.3 L:W, naked; ischium with ventral seta; merus 1.8 L:W, with three chemosensory ventrodistal setae; carpus 2.2 L:W, 0.8× merus, with one chemosensory and three setae distally; propodus 3.4 L:W, with three ventroproximal setae and two long (longer than unguis) chemosensory ventrodistal setae, the distal margin with dorsal prolongation and setules; dactylus 0.4× unguis, with subproximal seta; dactylus and unguis together 0.5× propodus; unguis simple.

Pereopod-4 (Figure 6E) clinging type, overall 9.0 L:W; coxa absent; basis robust 2.4 L:W, with penicillate ventral seta; ischium with two ventral setae; merus 1.7 L:W, with two ventrodistal spines; carpus 1.8 L:W, with large prickly tubercles, distal spiniform apophysis, and chemosensory dorsodistal seta; propodus 5.8 L:W, with three short medial setae and dorsodistal seta (< 0.5× dactylus); dactylus 2.6× unguis, both combined 0.9× propodus; unguis simple.

Pereopod-5 (Figure 6F) as pereopod-4, but basis with two penicillate setae; merus with distal seta; propodus without medial setae.

Pereopod-6 (Figure 6G) as pereopod-4, but basis with two penicillate setae and propodus with three dorsodistal setae.

Pleopod (Figure 6H) basal article naked; exopod with 14 plumose setae on outer margin and one inner seta; endopod with 11 plumose setae on outer margin, gap between most proximal and other setae.

Uropod (Figure 6I) basal article 1.9 L:W; both rami one-articled; exopod 0.6× endopod, with one strong and one small terminal setae; endopod 7.5 L:W, with three medial setae (two penicillate setae) and three terminal setae.

Distribution

Baratheonus roberti n. sp. is known from 12 locations off the Kuril-Kamchatka Trench in a depth range of 4859–5418 m (Figure 1).

Genus Starkus n. gen.

LSID urn:lsid:zoobank.org:act:B996EAF7-20D3-4E0D-A1CD-48D4DAAC3ADD

Diagnosis

Antennule article-3 long (6.0 L:W), with terminal spur. Carapace narrow, longer than wide. Pereonite-1 shorter than the others, pereonites 2–6 wider than long or square, lateral margins parallel. Cheliped basal lobe separated from pereonite-1 by a gap. Antennule, antennae, and cheliped often with ‘scales’. Pereopod-1 articles with setae only; pereopods 2–3 carpus and propodus with ventrodistal spines; pereopods 4–6 carpus with large, rounded area covered by minute spines (prickly tubercles), dactylus and unguis combined almost as long as propodus, unguis simple. Pleopod rami with proximal seta separated from a gap of the other. Uropod exopod and endopod two-articled.

Type species:

Starkus mixtus (Hansen, 1913).

Gender: Masculine.

Etymology. The genus name is given after the Stark family from George R.R. Martin’s novel Game of Thrones.

Species included: Starkus mimosis (Błażewicz-Paszkowycz, 2007a); S. mixtus (Hansen, 1913); S. simplex (Kudinova-Pasternak, 1984); Starkus sirene n. sp.

Remarks

Starkus n. gen. is a genus that can be distinguished from other Typhlotanaidae by its two-articled uropod rami and very simple body habitus defined by straight and nearly parallel pereonite lateral margins in dorsal view. Based on just these two characteristics, Starkus n. gen. distinguishes itself from members of the ‘plicatus’ and ‘trispinosus’ groups, Ty. aequiremis, Ty. finmarchicus, and Ty. kussakini, all of which have one-articulated exopod and endopod. Seven other typhlotanaid species with parallel pereonite lateral margins (e.g., Ty. assimilis, Ty. guca, Ty. inaequipes, Ty. proctagon, Ty. profundus, Ty. plebejus, and Ty. williamsae) have one-articulated uropodal exopod and therefore could not be included in the new genus. Furthermore, Starkus n. gen. lacks the strong distal spines on pleotelson present in members of the ‘spinicauda’ group (Typhlotanais spinicauda Hansen, 1913, Typhlotanais squamiger Błażewicz-Paszkowycz, 2007a, Typhlotanais priscilae Segadilha & Serejo, 2022) and has pereopods 4–6 unguis simple (bifurcated in Typhlotanais kyphosis). Relatively robust cheliped (2.4 L:W) allows distinguishing Starkus n. gen. from Typhlotanais longicephala, with a much slender cheliped (4.0 L:W). Finally, Baratheonus n. gen. resembles Starkus n. gen. by the straight pereonite margins, slender chelipeds with basis separated by a gap from pereonite-1, relatively large prickly tubercles on the carpus of pereopods 4–6, and dorsodistal setae on pereopods 4–6 propodus. However, Starkus n. gen. has spines on pereopods 2–3 carpus and propodus, while Baratheonus n. gen. has setae, and biarticulated uropodal rami which are unarticulated in Baratheonus n. gen.

Parallel pereonites, biarticled uropods with exopod slightly longer than endopod, and antennule article-1 and cheliped covered with numerous ‘scales’ suggest that Typhlotanais simplex might belong to Starkus n. gen. Paratypes of this species are probably lost, but the holotype is kept at the Zoological Museum of Moscow (Mc1007). Unlike the other species currently classified to Starkus n. gen., S. mimosis has prominent spurs on pereopods 1–3 coxa (as found in Antiplotanais, the ‘greenwichensis’ group and Typhlotanais compactus) and gently rounded pereonites (straight in other Starkus n. gen.).

Starkus sirene n. sp.

LSID urn:lsid:zoobank.org:act:982AB998-BA7D-41A9-940B-191555576A7B

(Figures 711)

FIGURE 7
www.frontiersin.org

Figure 7 Starkus sirene n. sp., neuter: (A) Body, lateral view (ZMHK-62865); (B) Body, dorsal view (ZMHK-62875); (C) Carapace ventral side (ZMHK-62875); swimming male: (D) Body, dorsal view (ZMHK-62890). Scale of body: (A–D) = 1 mm.

FIGURE 8
www.frontiersin.org

Figure 8 Starkus sirene n. sp., neuter: (A) Antennule (ZMHK-62883) and SEM image showing its ‘scales’ (ZMHK-62875); (B) Antenna (ZMHK-62864); (C) Labrum (ZMHK-62864); (D) Left mandible (ZMHK-62864); (E) Right mandible (ZMHK-62864); (F) Maxillule (ZMHK-62864); (G) Palp (ZMHK-62864); (H) Labium (ZMHK-62864); (I) Maxilliped (ZMHK-62864); (J) Epignath (ZMHK-62864); (K) Uropods (ZMHK-62864). Scale: (A–K) = 0.1 mm.

FIGURE 9
www.frontiersin.org

Figure 9 Starkus sirene n. sp., neuter: (A) Cheliped (ZMHK-62865) and SEM image showing ‘scales’ (ZMHK-62851); (B) Pereopod-1 (ZMHK-62883); (C) Pereopod-2 (ZMHK-62883); (D) Pereopod-3 (ZMHK-62883); (E) Pereopod-4 (ZMHK-62883); (F) Pereopod-5 (ZMHK-62851); (G) Pereopod-6 (ZMHK-62865) and SEM image showing prickly tubercles (clinging apparatus) (ZMHK-62851); (H) Pleopods. Scale: (A–H) = 0.1 mm.

FIGURE 10
www.frontiersin.org

Figure 10 Starkus sirene n. sp., swimming male (ZMHK-62890): (A) Antennule; (B) Antenna; (C) Maxilliped; (D) Labrum; (E) Uropods. Scale: (A–E) = 0.1 mm.

FIGURE 11
www.frontiersin.org

Figure 11 Starkus sirene n. sp., swimming male (ZMHK-62890): (A) Cheliped; (B) Pereopod-1; (C) Pereopod-2; (D) Pereopod-3; (E) Pereopod-4; (F) Pereopod-5; (G) Pereopod-6; (H) Pleopods. Scale: (A–H) = 0.1 mm.

Material examined

Holotype, St. 9-12, neuter (2.0 mm, ZMHK-62843, illustrated). Paratypes. St. 12-4, neuter 1.4 mm (ZMHK-62844); St. 2-10, two neuters: 1.1 mm (ZMHK-62845), individual broken (ZMHK-62846); St. 7-9, two neuters: 1.3 mm (ZMHK-62847), 1.7 mm (ZMHK-62848); St. 7-10, neuter broken (ZMHK-62849); St. 10-9, two neuters: 1.5 mm (ZMHK-62850), individual broken (ZMHK-62851, dissected on slides), manca-3, 0.3 mm (ZMHK-62852); St. 11-9, five neuters, 0.8 mm (ZMHK-62853), 0.8 mm (ZMHK-62854), three individuals broken (ZMHK-62855; ZMHK-62856; ZMHK-62857); St. 12-4, 18 neuters: 0.5 mm (ZMHK-62858), 0.6 mm (ZMHK-62859); 0.9 mm (ZMHK-62860), 1.2 mm (ZMHK-62861); 1.3 mm (ZMHK-62862); 1.4 mm (ZMHK-62863); 1.4 mm, (ZMHK-62864, dissected on slides); 1.43 mm (ZMHK-62865, dissected on slides); 1.6 mm (ZMHK-62866, in tube); 1.7 mm (ZMHK-62867); five individuals broken (ZMHK-62868; ZMHK-62869; ZMHK-62870; ZMHK-62871; ZMHK-62872); St. 9-12, neuter 1.5 mm (ZMHK-62873); St. 8-12, neuter 1.7 mm (ZMHK-62874); St. 9-12, three neuters: 1.4 mm, 1.7 mm, 1.8 mm (ZMHK-62875); St. 2-10, neuter 1.6 mm (ZMHK-62876); St. 2-10, neuter 1.1 mm (ZMHK-62877); St. 1-11, four neuters: 1.3 mm, 1.4 mm, 1.7 mm and 2.3 mm (ZMHK-62878); St. 10-9, neuter 2.3 mm (ZMHK-62879); St. 8-9, neuter 1.2 mm (ZMHK-62880); St. 2-9, two neuters: 1.1 mm and 1.2 mm (ZMHK-62881); St. 3-9, neuter 1.2 mm (ZMHK-62882); St. 3-9, five neuters: 1.5 mm, 1.7 mm, 1.8 mm, 2.2 mm, 2.5 mm and one dissected on slides (ZMHK-62883); St. 8-12, manca-3 1.7 mm (ZMHK-62884); St. 2-9, three neuters (ZMHK-62885, one broken and two in tube); St. 8-9, neuter 1.7 mm (ZMHK-62886); St. 9-9, three neuters: 1.6 mm, 1.8 mm, one broken (ZMHK-62887); St. 2-9, four neuters: 1.5 mm, 1.7 mm, 1.9 mm and 2.1 mm (ZMHK-62888). St. 2-10, adult (swimming) male 1.19 mm (broken, ZMHK-62890).

Adult (swimming) male. St. 2-9, 1.42 mm dissected on the slides (ZMHK-62890).

Other material examined

St. 9-9, neuter broken (ICUL7938*); St. 11-12, neuter broken (ICUL7943*); St. 12-4, neuter 0.8 mm (ICUL7909*).

*Individual not recovered after DNA extraction.

Diagnosis

Neuter: Body long (~7.0 L:W). Carapace 1.4 L:W. Pereonites straight in dorsal view. Antennule, antennae, and cheliped with ornamentation (‘scales’). Cheliped carpus 2.6 L:W, propodus 0.9× carpus. Cheliped basis length 0.8× cheliped carpus. Pereopods 1–3 coxa without spur; pereopod-2 merus with long seta; pereopods 2–3 propodus with strong seta; pereopods 4–6 merus ornamentation with two unequal spines. uropod exopod articles subequal.

Adult male (swimming). Pleon elongate, 0.4× TBL, with caudal process, pointed, without terminal spine. Antennule seven-articled, article-1 1.8 L:W; article-7 4.8 L:W, 0.7 article-6; cheliped carpus 2.7 L:W, chela 1.5× carpus; pereopod-4 dactylus and unguis together longer than propodus; pereopod-6 propodus with the row of scales along the article; uropod endopod two-articled, proximal article 0.9× distal article, exopod one-articled, 0.7× endopod proximal article.

Etymology

From the Latin siren means a mythological being, her scaly tail, referring to ‘scales’ on the antennule, the antenna, and the cheliped.

Description

of neuter, length 1.5 mm. Body (Figures 7A, B) slender, 6.8 L:W. Cephalothorax with the short and pointy rostrum, 1.4 L:W, 3.1× pereonite-1, naked. Eyes absent. Pereonites margins straight and parallel, pereonites 1−6: 0.5, 0.8, 0.9, 0.9, 0.8, and 0.8 L:W, respectively; pereonite-1 trapezoidal, 0.7× pereonite-2; pereonite-2 trapezoidal, 0.9× pereonite-3; pereonites 3–4 square, all the same size; pereonite-5 square, 1.2× pereonite-6; pereonite-6 square. Pleon 0.2× TBL, with five subequal pleonites. Pleonites 1−5 the same size 0.3 L:W. Pleotelson 2.6× pereonite-6.

Antennule (Figure 8A) slightly shorter than cephalothorax, with ‘scales’; article-1 0.6× antennule length, 4.0 L:W, with one chemosensory, three (two penicillate medial) setae, and two penicillate distal setae; article-2 1.3 L:W, 0.2× article-1, with two (one penicillate distal) setae; article-3 7.1 L:W, 2.8× article-2, with terminal spur, one penicillate and one distal setae (other setae broken).

Antenna (Figure 8B) of six articles; all articles with ‘scales’; article-1 broken; article-2 2.0 L:W, with long dorsodistal seta; article-3 1.1 L:W, 0.8× article-2, with dorsodistal seta; article-4 4.8 L:W, 3.0× article-3, with two fine medial setae and one long and two penicillate distal setae; article-5 3.6 L:W, 0.5× article-4, with long penicillate distal seta; article-6 minute, with four long distal setae.

Mouthparts. Labrum (Figure 8C) rounded, distal surface setose. Mandible Figures 8D, E) molar broad, edges with prominent tubercles and spines; left mandible (Figure 8D) incisor (shape of one blunt tooth), lacinia mobilis well developed, with one lobe; right mandible (Figure 8E) incisor distal margin with two blunt teeth, without lacinia mobilis. Maxillule (Figure 8F) endite with at least seven terminal spines and scales on outer margin; palp (Figure 8G) with two distal setae. Labium (Figure 8H) distal margin finely setose; outer lobe membranous. Maxilliped (Figure 8I) basis 1.9 L:W; endites unfused, with two cusps and distal seta; palp with four articles; article-1 naked; article-2 wedge with three serrated inner setae and small outer seta; article-3 with four serrated inner setae; article-4 with six inner setae. Epignath (Figure 8J) curved, simple distally.

Cheliped (Figures 7C, 9A) separated by a gap from pereonite-1, with ‘scales’; basis 1.7 L:W, with dorsal seta; merus subtriangular, with ventral seta; carpus 2.4 L:W, with two ventral setae, and one dorsoproximal and one dorsodistal chemosensory setae; chela 0.9× carpus, 3.6 L:W; palm as long as a fixed finger, with seta near dactylus insertion (on the inner surface); fixed finger with two long rod ventral setae; cutting edge with three rod setae and two weak, blunt cusps distally.

Pereopod-1 (Figure 9B) walking type, overall 18 L:W; coxa with seta; basis 6.0 L:W, with two (one penicillate dorsoproximal) setae; ischium with ventral seta; merus 2.9 L:W, with ventrodistal seta; carpus 3.2 L:W, with three distal setae; propodus 4.9 L:W with one chemosensory and two serrated dorsodistal setae, and ventral subdistal spine; dactylus 0.7× unguis, dactylus and unguis combined 0.8× propodus; unguis simple.

Pereopod-2 (Figure 9C) walking type, overall 15 L:W; coxa with seta; basis 6.7 L:W, with two (one penicillate dorsoproximal) setae; ischium with ventral seta; merus 1.8 L:W, with ventrodistal seta and distal numerous microtrichia; carpus 2.0 L:W, 0.8× merus, with one chemosensory and two short distal setae, and medial spine; propodus 4.1 L:W, with ventrodistal spine, one chemosensory and one dorsodistal setae; dactylus 0.8× unguis, both combined 0.5× propodus; unguis simple.

Pereopod-3 (Figure 9D) walking type, overall 14 L:W; coxa with seta; basis 5.3 L:W, naked; ischium with ventral seta; merus 1.7 L:W, with scales and ventrodistal seta; carpus 2.0 L:W, 1.3× merus, with scales on ventral margin, three distal setae and ventrodistal spine; propodus 4.3 L:W, with scales, one chemosensory and one dorsodistal setae and ventrodistal spine; dactylus 0.9× unguis, with proximal seta (longer than unguis); both combined 0.3× propodus; unguis simple.

Pereopod-4 (Figure 9E) clinging type; coxa and basis broken during dissection; ischium with ventral seta; merus 2.5 L:W, with scales and two unequal ventrodistal spines; carpus 2.0 L:W, with large, rounded area covered by minute spines (prickly tubercles) and dorsodistal chemosensory seta; propodus 5.7 L:W, with row of scales, one penicillate dorsal, one minute distal setae and two ventrodistal spines; dactylus 5.3× unguis, both combined 0.8× propodus; unguis simple.

Pereopod-5 (Figure 9F) as pereopod-4, but overall 8.4 L:W; coxa absent; basis 4.3 L:W, naked; propodus distal seta as long as dactylus.

Pereopod-6 (Figure 9G) as pereopod-4, but propodus with three dorsodistal setae reaching half of dactylus; dactylus and unguis about as long as propodus.

Pleopods (Figure 9H) basal article naked; exopod with six plumose setae on outer margin; endopod with ten plumose setae on outer margin; gap between proximal seta and the other setae.

Uropod (Figure 8K) both rami two-articled; exopod 0.8× endopod, proximal article 2.9 L:W, distal article 3.6 L:W with one strong and one setae; endopod proximal article 4.3 L:W, with two penicillate setae, distal article 3.5 L:W, with three long terminal setae (one broken).

Description of adult male, length 1.42 mm. Body (Figure 7D) slender, 5.3 L:W. Cephalothorax 1.1 L:W, 5.0× pereonite-1, naked. Eyes absent. Pereonites 1−6 oval-shaped: 0.2, 0.3, 0.3, 0.3, 0.4, and 0.4 L:W, respectively. Pereonite-1 0.7× pereonite-2; pereonite-2 0.9× pereonite-3; pereonite-3 1.2× pereonite-4; pereonite-4 0.8× pereonite-5; pereonite-5 as long as pereonite-6. Pleon elongate, 0.4× BL, with five subequal pleonites. Pleonites 1−5: 0.3, 0.3, 0.3, 0.3, and 0.5 L:W. Pleotelson pointed 5.4× pereonite-6.

Antennule (Figure 10A) 1.6× cephalothorax, seven-articled, article-1 0.3× antennule length, 1.8 L:W, with three penicillate and two ventrodistal setae; article-2 0.9 L:W; 0.5× article-1, with three distal setae; article-3 1.0 L:W; 0.6× article-2, with two dorsodistal setae; article-4 0.8 L:W, 0.4× article-3, with numerous aesthetascs distally; article-5 1.2 L:W, 1.3× article-4, with numerous aesthetascs distally; article-6 3.9 L:W, 2.3× article-5, with numerous aesthetascs distally; article-7 4.8 L:W, 0.7× article-6, with long and four short setae distally.

Antenna (Figure 10B) of seven articles; article-1 lost during dissection; article-2 1.5 L:W, with long dorsodistal seta; article-3 1.5 L:W, 0.8× article-2, with long dorsodistal seta; article-4 2.6 L:W; 1.2× article-3, with penicillate distal seta; article-5 5.5 L:W, 1.8× article-3, with two penicillate medial, one penicillate and three distal (two long and one short) setae; article-6 7.0 L:W, as long as article-4, with two long distal setae; article-7, 1.5 L:W with three long distal setae.

Mouthparts. Labrum (Figure 10C) simple, rounded, naked corners. Mandible, maxillule, and maxilla not recovered during dissection. Maxilliped (Figure 10D) basis fused. Endites reduced, simple, and rounded; palp article-1 naked, article-2 with two inner setae; article-3 with two long and one short inner setae; article-4 relatively slender, with five long distal setae.

Cheliped (Figure 11A) basis 1.2 L:W, distally rounded, attached to carapace by semi-oval sclerite; merus wedge, with ventral seta (broken); carpus twice as long as wide, with two midventral setae, one short and one chemosensory setae on dorsal margin; chela 1.3× carpus, 2.7 L:W; palm 1.5 L:W with row of 15 spines on the inner surface near dactylus insertion; dactylus with sharp terminal spine and with two minute spines on cutting edge; fixed finger cutting edge serrated, with three setae; distal spine robust, pointed 4.0 L:W.

Pereopod-1 (Figure 11B) walking type; basis 6.0 L:W, naked; ischium with ventral seta; merus 3.2 L:W, with ventrodistal seta; carpus 5.0 L:W, 1.3× merus, with one dorsodistal and one ventrodistal (broken) setae; propodus 9.0 L:W, with ventrodistal seta; dactylus and unguis broken.

Pereopod-2 (Figure 11C) walking type; basis 5.8 L:W, naked; ischium with ventral seta; merus 2.7 L:W, with two short ventrodistal setae; carpus 3.8 L:W, 1.3× merus, with long dorsodistal and two ventrodistal setae; propodus 6.3 L:W, with short, dorsodistal and short ventrodistal setae; dactylus and unguis broken.

Pereopod-3 (Figure 11D) similar to pereopod-2, but carpus and propodus with numerous scales.

Pereopod-4 (Figure 11E) overall 17 L:W; coxa absent; basis 7.3 L:W, naked; ischium with two ventral setae (long and short); merus 3.4 L:W, with two ventral setae; carpus 3.3 L:W, three distal setae; propodus 6.3 L:W, with three (one dorsodistal and two ventrodistal) setae with numerous scales; dactylus 1.5× unguis, both combined 1.5× propodus.

Pereopod-5 (Figure 11F) coxa absent; basis 5.2 L:W, with three (one penicillate dorsoproximal and one penicillate ventral) setae; ischium with two ventral setae (long and short); merus 3.3 L:W, with two ventrodistal setae; carpus 4.6 L:W, with three distal setae; propodus 7.0 L:W, with numerous scales; dactylus and unguis broken.

Pereopod-6 (Figure 11G) as pereopod-5, but basis naked.

Pleopods (Figure 11H) basal article naked; exopod with seven plumose setae on outer margin and one on inner margin; endopod with seven plumose setae on outer margin.

Uropod (Figure 10E) basal article as long as wide; exopod one-articled, 0.3× endopod length, with medial seta, one robust and one small distal setae; endopod proximal article 3.2 L:W, with six penicillate medial and two penicillate distal setae; distal article as long as proximal, with medial seta (broken), tipped by two setae (broken) and two setae distally.

Distribution

Starkus sirene n. sp. is known from nine locations off the Kuril-Kamchatka Trench in a depth range of 4859–5643 m (Figure 1).

Remarks

The adult male Starkus sirene n. sp. has a swimming habitus that is morphologically so different from the female that without the use of molecular methods, species identification of these males would not be possible.

The distribution of threw scales allow to distinguish the Starkus species. In Starkus sirene n. sp., the scales cover the antennules, antennae, and cheliped, whereas in S. mixtus those structures are present only at article 1 (Appendix 2). Both taxa can be distinguished by the setation of pereopod-2 merus (one seta in Starkus sirene n. sp. and two setae in S. mixtus). Finally, uropod exopod articles are subequal in Starkus sirene n. sp., but article-1 is longer than article-2 in S. mixtus. Apart from the characteristic scales of Starkus. sirene n. sp., which are absent in S. mimosis and S. simplex, Starkus sirene n. sp. has pereopod-2 merus with distal seta, S. mimosis has two short setae, and S. simplex has three distal setae there.

Key for identification of Starkus females

1. Pereopods 1–3 coxa with spur...............................................

.......................S. mimosis (Błażewicz-Paszkowycz, 2007a)

(W Antarctic, 2659–4655 m)-Without spur .......................................................................2

2. Cheliped basis length 0.8× cheliped carpus........................

..............................................................Starkus sirene n. sp. (Kuril-Kamchatka, 4859−5643 m)

   -Cheliped basis length 0.6× cheliped carpus.................3

3. Antennule article-1 ornamentation: two groups of simple setae and pinnate medial setae and distally and ‘scales’

   ....................................................S. mixtus (Hansen, 1913)

(N Atlantic, 906–2626 m)- Antennule article-1 ornamentation: inner penicillate seta at mid-length and simple and pinnate setae distally distally

   ............................S. simplex (Kudinova-Pasternak, 1984)

(N Pacific, 455–1356 m)

DNA analyses

A total of six different COI haplotypes and nine 18S haplotypes were newly obtained from the University of Lodz Tanaidacea collection (GenBank accession numbers: ON310832–ON310845 for COI and ON255540–ON255555 for 18S rDNA; see Table 3). The COI sequence alignment included a total of 615 bp, and the BIC method selected the Hasegawa–Kishino–Yano (HKY) DNA substitution model with a gamma parameter (G = 0.86) and with a proportion of invariant sites (I = 0.22). The 18S rDNA alignment included 1,033 bp, and the BIC method selected the Kimura 2 parameter (K2P) DNA substitution model with gamma parameter (G = 0.36) and with a proportion of invariant sites (I = 0.42). Single gene trees were congruent, and the Maximum Likelihood tree with the highest log-likelihood (Ln = -5183.89) obtained after both alignments were concatenated is shown in Figure 12. Several well-supported monophyletic clades were recovered, such as the so-called ‘short-bodied’ forms (i.e., Typhlotanais cornutus G.O. Sars, 1879, grouping with Typhlotanais eximius Hansen, 1913) and a clade including representatives of the ‘collar’ forms (e.g., Typhlotanais variabilis Hansen, 1913, and Torquella cf. grandis). Consequently, our preliminary molecular phylogeny suggests the polyphyly of the genus Typhlotanais, with ‘collar’ species forming a monophyletic clade together with Torquella. Typhlamia and Pulcherella formed a well-supported monophyletic clade, while Starkus sirene n. sp. and S. mixtus clustered with a putative Typhlotanais finmarchicus sequence obtained from GenBank (MN337129.1). The clade grouping all ‘long-bodied’ forms of Typhlotanaidae (except Baratheonus n. gen.) presents marginal bootstrap support (70%), and it is characterized by including species with a third seta on the cheliped carpus ventral margin.

TABLE 3
www.frontiersin.org

Table 3 Voucher codes for the museum specimens and GenBank accession numbers for the COI and 18S rDNA sequences used to build the molecular tree.

FIGURE 12
www.frontiersin.org

Figure 12 Maximum likelihood evolutionary tree of Typhlotanaidae species inferred from the COI and 18S concatenated alignment. Only statistically significant bootstrap values (>70%) are shown.

The typhlotanaid lineages analyzed seem to have evolved independently long ago, and pairwise COI genetic distances between groups ranged up to 0.552 (Table 4). The largest genetic divergences were observed when comparing Pulcherella pulcher (Hansen, 1913) with Starkus sirene n. sp. (p-dist = 0.341 ± 0.021; K2P = 0.463 ± 0.039) or Ty. variabilis (p-dist = 0.340 ± 0.018; K2P = 0.458 ± 0.037). For comparison, smallest genetic distances were found between Torquella cf. grandis and Ty. variabilis (p-dist = 0.270 ± 0.018; K2P = 0.339 ± 0.027) or Ty. cornutus and Ty. eximius (p-dist = 0.277 ± 0.020; K2P = 0.355 ± 0.033). As with the Maximum Likelihood tree, genetic distances suggest that Typhlotanais is not monophyletic, and several species currently classified to this genus may represent distinct genera.

TABLE 4
www.frontiersin.org

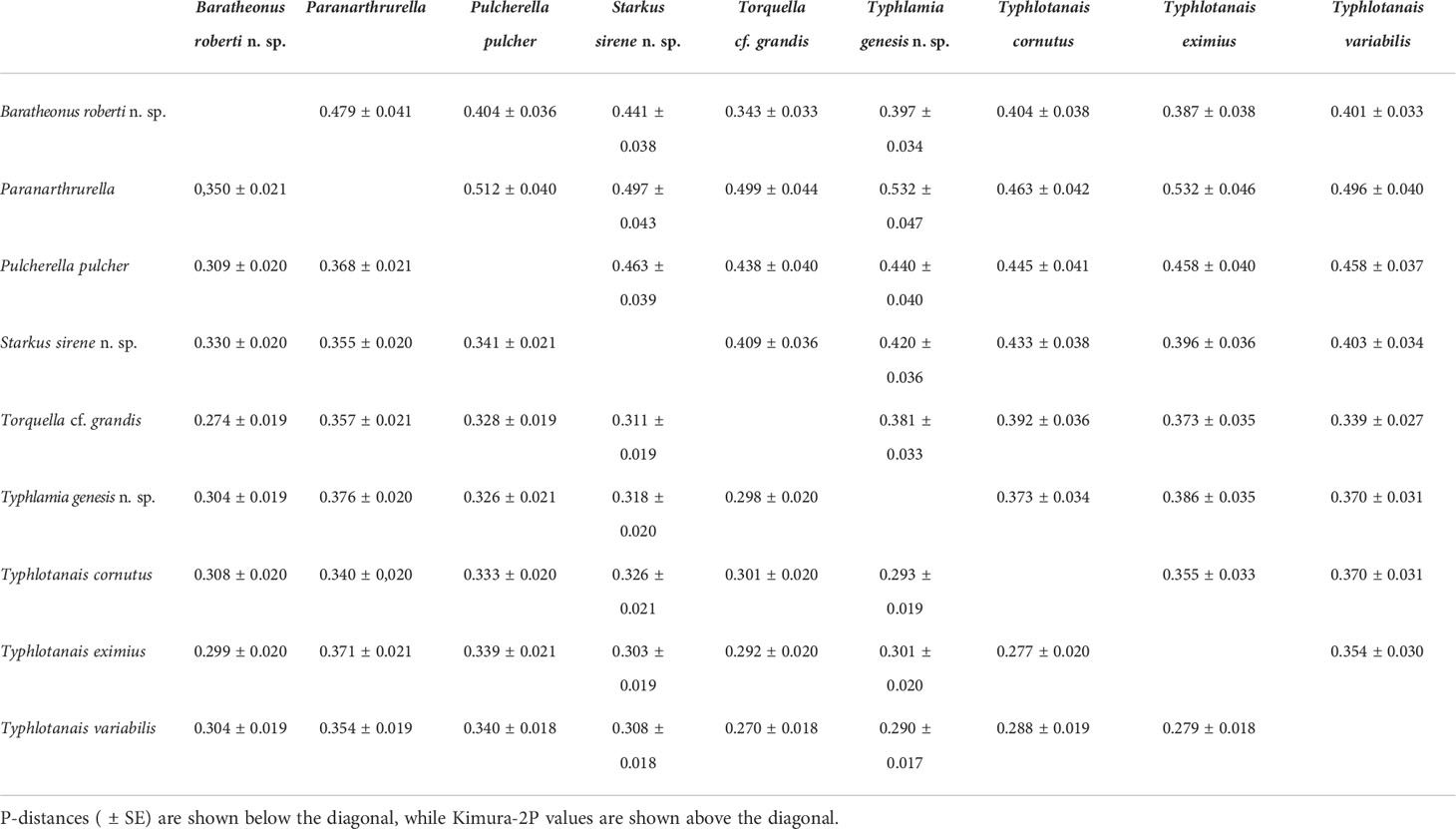

Table 4 Genetic distances among Typhlotanaidae COI sequences.

Environmental correlation analyses

Abundance and diversity of the Typhlotanaidae collection were largest at the southernmost station (i.e., St. 12-4; see Table 2 and Figure 1). Four other stations (St. 9-9, 9-12, 10-9, and 10-12), which cluster together in an abyssal plain area surrounded by a seamount ridge, included 67.5% of all Typhlamia genesis n. sp. individuals. The Cumulative Relative Frequency and the factor analysis show that the relative number of Typhlamia genesis n. sp. individuals increased with depths below 5,200 m, as opposed to Baratheonus roberti n. sp. and Starkus sirene n. sp. which apparently prefer shallower waters (>60% of the specimens recovered for those two species were found above 5,200-m depth; Figure 13). Although Baratheonus roberti n. sp. and Starkus sirene n. sp. have a similar depth distribution, environmental requirements among them seem to differ. While Baratheonus roberti n. sp. was found in areas with larger variation in dissolved oxygen and comparatively strong bottom currents, Starkus sirene n. sp. appears usually at stations with lower oxygen concentration and slower bottom currents (Table 2). Non-parametric correlation shows that Typhlamia genesis n. sp. abundance is lowest in stations with higher amounts of silica (–0.546), calcium (–0.583), and strontium (–0.568), whereas it is most abundant in areas rich in manganese (0.602) and potassium (0.606) (Appendix 3). Starkus sirene n. sp. is abundant in places rich in organic carbon (0.456), and Baratheonus roberti n. sp. shows no significant correlation (positive or negative) with the environmental variables recorded. The taxa studied here seem to have distinct ecological requirements, but data on environmental factors and species abundances are still lacking and more research is needed to confirm the results obtained here.

FIGURE 13
www.frontiersin.org

Figure 13 Depth distribution of Baratheonus roberti n. sp., Starkus sirene n. sp., and Typhlamia genesis n. sp. Cumulative frequency over the total number of individuals collected per species is shown, sorting stations by depth range as shown in Table 2.

Discussion

The first molecular phylogeny of Typhlotanaidae is presented including descriptions of three new species and genera. The genetic clusters obtained, despite that one mitochondrial gene and one nuclear genes should be considered as preliminary results. It is congruent with morphological data (e.g., ‘short-bodied’ forms such as Typhlotanais cornutus and Typhlotanais eximius grouping together) and confirm the non-monophyly of Typhlotanais, as previously suggested by Błażewicz-Paszkowycz (2007a). Molecular results also support the monophyly of the so-called ‘collar’ form species, grouping taxa with a unique pereonite-1 shape. An integrative taxonomy approach, combining molecular and morphological evidence, allowed us to erect the new genus Baratheonus for a ‘long-bodied’ form with a particularly large and unique clinging apparatus and Starkus n. gen. for the former ‘mixtus’ morpho-group (Błażewicz-Paszkowycz, 2007a). A detailed morphological analysis has revealed the heterogeneity of the so-called clinging apparatus of typhlotanaids, a complex system of hooks, tubercles, thorns, and spines, located on the carpi of pereopods 4–6 (see also Błażewicz-Paszkowycz, 2007a). Future evolutionary studies should include high-resolution images in a wider range of typhlotanaid genera.

The use of molecular data allowed us to identify the male of Starkus sirene n. sp., confirming the strong sexual dimorphism of Paratanaoidea (Sieg, 1986; Błażewicz-Paszkowycz et al., 2014) and providing further details on typhlotanaid male morphology. Significant differences on the development and structure of antennules and chelipeds among males and females of Starkus n. gen. are also found in other typhlotanaid genera for which males have been identified so far using genetic data (Pulcherella, Torquella, and Typhlotanais) (Błażewicz-Paszkowycz et al., 2014). Interestingly, male morphology is also congruent with the new preliminary phylogeny, with males of the so-called ‘collar’ forms (i.e., Torquella cf. grandis and Typhlotanais sp. A) showing similar, slightly pointed, pleotelson where other long-bodied genera (e.g., Pulcherella and Starkus n. gen.) present a strong projection (Błażewicz-Paszkowycz et al., 2014). The fact that Starkus sirene n. sp. females occurred throughout the study area while male specimens were only found at the northernmost stations might suggest that typhlotanaid sex ratios vary across the species distribution. Although recent studies point toward ecological differences between sexes as the main cause behind sex ratio bias in crustaceans (Ewers-Saucedo, 2019), further geographic and taxonomical samplings are needed before claiming this is also the case for deep-sea Typhlotanaidae.

Despite extensive sampling at the Sea of Japan (Kudinova-Pasternak, 1984; Błażewicz-Paszkowycz et al., 2013), Okhotsk Sea (Stępień et al., 2019), and the Kuril-Kamchatka Trench (Kudinova-Pasternak, 1966, 1970; Bamber, 2007; Bird, 2007; Błażewicz-Paszkowycz, 2007b; Larsen and Shimomura, 2007; McLelland, 2007), NW Pacific deep-sea Typhlotanaidae were represented by just 15 species belonging to seven genera up to date. The KuramBio collection expands our current knowledge on the diversity and distribution of typhlotanaids present in the NW Pacific, significantly increasing the number of deep-sea species (by 42%) and genera (by 40%). Typhlotanaidae occur in a wide bathymetric range, but most of them are found well beyond the Carbonate Compensation Depth (CCD), about 4,500 m in the Pacific (Morse and Mackenzie, 1990; Pälike et al., 2012). Despite that sediments below CCD are putatively free of calcium carbonate (Archer, 1996), many factors could be at play during biocalcification (Clark, 2020) and large and well-calcified tanaid genera Gigantapseudes Kudinova-Pasternak, 1978 and Neotanais Beddard, 1886, have been reported from the deepest oceanic trenches (Wolff, 1956; Messing, 1976; Gamo, 1984). More research is needed to better understand the mechanisms used by crustaceans to compensate the lack of calcium carbonate, and typhlotanaids are ideal candidates that seem to be particularly adapted to cope with the extreme conditions of abyssal and deeper (hadal) zones. The preliminary phylogeny and new morphological evidence presented here will facilitate future studies through a better understanding of the diversity of deep-sea typhlotanaids.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author contributions

MB planned the research and obtained funding for the project. MG and MB studied and described the morphology of the KuramBio typhlotanaid specimens, and carried out molecular laboratory work. FP completed the phylogenetic analyses. All authors contributed to the article and approved the submitted version.

Funding

The authors are most thankful to three anonymous reviewers, which significantly improved the manuscript. This study was funded by the Polish National Science grants UMO-2016/13/B/NZ8/02495 and 2021/41/N/NZ8/02039 and Grant Competition of The University of Lodz 4/DGB/IDUB/2022. FP acknowledges the project “CIDEGENT/2019/028 - BIOdiversity PAtterns of Crustacea from Karstic Systems (BIOPACKS): molecular, morphological, and functional adaptations” funded by the Conselleria d’Innovació, Universitats, Ciència i Societat Digital.

Acknowledgments

Many thanks are given to Maciej Studzian (University of Lodz) for help with carrying out the confocal microscopy imaging. We would also like to thank Agnieszka Rewicz (University of Lodz) for her help in showing and teaching the use of the scanning electron microscope. Thanks are due to the reviewers for significantly improving this manuscript through their comments.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2022.927181/full#supplementary-material

References

Altschul S. F., Gish W., Miller W., Myers E., Lipman D. J. (1990). Basic local alignment search tool. J. Mol. Biol. 215, 403–410. doi: 10.1016/S0022-2836(05)80360-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Archer D. E. (1996). An atlas of the distribution of calcium carbonate in sediments of the deep sea. Glob. Biochem. Cycles. 10, 159–174. doi: 10.1029/95GB03016

CrossRef Full Text | Google Scholar

Bamber R. N. (2007). Suborders Apseudomorpha Sieg, 1980 and Neotanaidomorpha Sieg, 1980. Zootaxa 1599, 13–40. doi; 10.11646/zootaxa.1599.1.3

CrossRef Full Text | Google Scholar

Bamber R. N. (2008). Tanaidaceans (Crustacea: Peracarida: Tanaidacea) from Moreton Bay, Queensland. Memoirs of the Queensland Museum 1599, 13–40. doi; 10.11646/zootaxa.1599.1.3

CrossRef Full Text | Google Scholar

Beddard M. A. (1886). Report on the Isopoda collected by H.M.S. Challenger during the years 1873-1876. Second Part. Report on the Scientific Results of the voyage of H.M.S: Challenger during the Years 1873–76. Zoology 17, 109–159. doi; 10.5962/bhl.title.6513

CrossRef Full Text | Google Scholar

Bird G. J. (2004). The Tanaidacea (Crustacea, Peracarida) of the North-east Atlantic: The shelf and bathyal Paratyphlotanais of the ‘Atlantic margin’. J. Nat. Hist. 54 (1), 143–1359.

Google Scholar

Bird G. J. (2007). Families Anarthruridae Lang, 1971, Colletteidae Larsen & Wilson, 2002, and Leptognathiidae Sieg, 1976. Eds. Larsen K., Shimomura M. Tanaidacea (Crustacea: Peracarida) From Japan III. The Deep Trenches: The Kurile-Kamchatka Trench and Japan Trench. Zootaxa 1599, 61–85. doi: 10.11646/zootaxa.1599.1.5

CrossRef Full Text | Google Scholar

Bird G. J., Larsen K. (2009). Tanaidacean phylogeny – the second step: the basal paratanaoidean families (Crustacea: Malacostraca). Arthropod. Syst. Phylogeny. 67, 137–158.

Google Scholar

Błażewicz M., Jóźwiak P., Jennings R.M., Studzian M., Frutos I. (2019). Integrative systematics and ecology of a new deep-sea family of tanaidacean crustaceans. Scientific Reports 9, 1–70. doi: 10.1038/s41598-019-53446-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Błażewicz-Paszkowycz M. (2007a). A revision of the family Typhlotanaidae Sieg, 1984 (Crustacea: Tanaidacea) with the remarks on the Nototanaidae Sieg, 1976. Zootaxa 1598, 1–141. doi: 10.11646/zootaxa.1598.1.1

CrossRef Full Text | Google Scholar

Błażewicz-Paszkowycz M. (2007b). Family Nototanaidae Sieg, 1976. and Typhlotanaidae Sieg, 1984. Eds. Larsen K., Shimomura M.. Tanaidacea (Crustacea: Peracarida) From Japan III. The Deep Trenches: The Kurile-Kamchatka Trench and Japan Trench. Zootaxa 1599, 101–120. doi: 10.5281/zenodo.178686

CrossRef Full Text | Google Scholar

Błażewicz-Paszkowycz M., Bamber R. N., Anderson G. (2012). Diversity of Tanaidacea (Crustacea: Peracarida) in the world’s Oceans – How far have we come? PLoS One 7, 1–11. doi: 10.1371/journal.pone.0033068

CrossRef Full Text | Google Scholar

Błażewicz-Paszkowycz M., Bamber R.N., Cunha M.R. (2011). New tanaidomorph Tanaidacea (Crustacea: Peracarida) from submarine mud-volcanoes in the Gulf of Cadiz (North-east Atlantic). Zootaxa 2769, 1–53.

Google Scholar

Błażewicz-Paszkowycz M., Bamber R. N., Jóźwiak P. (2013). Tanaidaceans (Crustacea: Peracarida) from the SoJaBio joint expedition in slope and deeper waters in the Sea of Japan. Deep. Res. Part II. Top. Stud. Oceanogr. 86–87, 181–213. doi: 10.1016/j.dsr2.2012.08.006

CrossRef Full Text | Google Scholar

Błażewicz-Paszkowycz M., Jennings R. M., Jeskulke K., Brix S. (2014). Discovery of swimming males of Paratanaoidea (Tanaidacea). Polish. Polar. Res. 35, 415–453. doi: 10.2478/popore-2014-0022

CrossRef Full Text | Google Scholar

Bober J., Brandt A., Frutos I., Schwentner M. (2019). Diversity and distribution of Ischnomesidae (Crustacea: Isopoda: Asellota) along the Kuril-Kamchatka Trench – A genetic perspective. Prog. Oceanogr. 178, 1–12. doi: 10.1016/j.pocean.2019.102174

CrossRef Full Text | Google Scholar

Brandt A., Elsner N. O., Malyutina M. V., Brenke N., Golovan O. A., Lavrenteva A. V., et al. (2015). Abyssal macrofauna of the Kuril-Kamchatka Trench area (Northwest Pacific) collected by means of a camera-epibenthic sledge. Deep. Res. Part II. Top. Stud. Oceanogr. 111, 175–187. doi: 10.1016/j.dsr2.2014.11.002

CrossRef Full Text | Google Scholar

Brandt A., Elsner N. O., Malyutina M. V., Golovan O. A. (2010). The Russian-German deep-sea expedition (SoJaBio) to the Sea of Japan on board of the R/V Akademik Lavrentyev. 1–52. doi: 10.13140/RG.2.1.1818.2809

CrossRef Full Text | Google Scholar

Brandt A., Malyutina M. V. (2015). The German-Russian deep-sea expedition KuramBio (Kurile Kamchatka Biodiversity Studies) on board of the RV Sonne in 2012 following the footsteps of the legendary expeditions with RV Vityaz. Deep. Res. Part II. Top. Stud. Oceanogr. 111, 1–9. doi: 10.1016/j.dsr2.2014.11.001

CrossRef Full Text | Google Scholar

Brandt A., Malyutina M. V., Alalykina I. L., Brenke N., Chernyshev A. V., Elsner N. O., et al. (2013). The German-Russian deep-sea expedition KuramBio(Kurile-Kamchatka Biodiversity Study) to the Kurile-Kamchatka Trench and abyssalplain on board of the R/V Sonne, 223rd Expedition (July 21th – September 7th 2012). Cruise. Rep. POS. 456. Kiel. – 2. Reykjavik. 20.07. – 04.08.2013. 456, 1–100. doi: 10.13140/RG.2.2.17251.76322

CrossRef Full Text | Google Scholar

Brandt A., Martínez Arbizu P., Malyutina M. V., Alalykina I. L., Bober J., et al. (2016). RV Sonne SO-250 Cruise Report (Kuril Kamchatka Biodiversity Studies).

Google Scholar

Carr L. A., Boyer K. E., Brooks A. J. (2011). Spatial patterns of epifaunal communities in San Francisco bay eelgrass (Zostera marina) beds. Mar. Ecol. 32, 88–103. doi: 10.1111/j.1439-0485.2010.00411.x

CrossRef Full Text | Google Scholar

Castresana J. (2000). Selection of conserved blocks from multiple alignments for their use in phylogenetic analysis. Mol. Biol. Evol. 17, 540–552. doi: 10.1093/oxfordjournals.molbev.a026334

PubMed Abstract | CrossRef Full Text | Google Scholar

Clark M. S. (2020). Molecular mechanisms of biomineralization in marine invertebrates. J. Exp. Biol. 223, 88–103. doi: 10.1242/jeb.206961

CrossRef Full Text | Google Scholar

Coleman C. O. (2003). “Digital inking”: How to make perfect line drawings on computers. Org. Divers. Evol. 3, 303–304. doi: 10.1078/1439-6092-00081

CrossRef Full Text | Google Scholar

Dojiri M., Sieg J. (1997). Taxonomic atlas of the soft-bottom benthic fauna of the Santa Maria Basin and Western Santa Barbara Channel. pp. 181–268

Google Scholar

Di Franco D., Linse K., Griffiths H. J., Brandt A. (2021). Drivers of abundance and spatial distribution in Southern Ocean peracarid Crustacea. Ecol. Indic. 128, 1–9. doi: 10.1016/j.ecolind.2021.107832

PubMed Abstract | CrossRef Full Text | Google Scholar

Ewers-Saucedo C. (2019). Evaluating reasons for biased sex ratios in Crustacea. Invertebr. Reprod. Dev. 63, 222–230. doi: 10.1080/07924259.2019.1588792

CrossRef Full Text | Google Scholar

Frutos I., Kaiser S., Pułaski Ł., Studzian M., Błażewicz M. (2022). Challenges and advances in the taxonomy of deep-sea Peracarida: From traditional to modern methods. Front. Mar. Sci. 9 799191. doi: 10.3389/fmars.2022.799191

CrossRef Full Text | Google Scholar

Gamo S. (1984). A new remarkably giant tanaid Gigantapseudes maximus sp. nov. (Crustacea) from the abyssal depths far off southeast of Mindanao, the Philippines. Sci. Rep. Yokohama. Natl. Univ. Sect. II. Biol. Geol. 31, 1–12.

Google Scholar

Garm A. (2004). Revising the definition of the crustacean seta and setal classification systems based on examinations of the mouthpart setae of seven species of decapods. Zool. J. Linn. Soc 142, 233–252. doi: 10.1111/j.1096-3642.2004.00132.x

CrossRef Full Text | Google Scholar

Gellert M., Bird G. J., Stępień A., Studzian M. (2022). A hidden diversity in the Atlantic and the SE Pacific: Hamatipedidae n. fam. (Crustacea: Tanaidacea). Front. Mar. Sci. 8. doi: 10.3389/fmars.2021.773437

PubMed Abstract | CrossRef Full Text | Google Scholar

Gellert M., Palero F., Błażewicz M. (in press) Mislabeling and nomenclatorial confusion of Typhlotanais sandersi Kudinova-Pasternak, 1985 (Crustacea: Tanaidacea) and establishment of a new genus. PeerJ.

Google Scholar

Golovan O. A., Błażewicz-Paszkowycz M., Brandt A., Budnikova L. L., Elsner N. O., Ivin V. V., et al. (2013). Diversity and distribution of peracarid crustaceans (Malacostraca) from the continental slope and the deep-sea basin of the Sea of Japan. Deep. Res. Part II. Top. Stud. Oceanogr., 86, 66–78. doi: 10.1016/j.dsr2.2012.08.002

CrossRef Full Text | Google Scholar

Grebmeier J. M., Cooper L. W., Feder H. M., Sirenko B. I. (2006). Ecosystem dynamics of the Pacific-influenced Northern Bering and Chukchi Seas in the Amerasian Arctic. Prog. Oceanogr. 71, 331–361. doi: 10.1016/j.pocean.2006.10.001

CrossRef Full Text | Google Scholar

Hansen H. J. (1913). Crustacea Malacostraca. II. IV. The order Tanaidacea. Danish. Ingolf-Expedition. 3, 1–145.

Google Scholar

Hassack E., Holdich D. M. (1987). The tubicolous habit amongst the Tanaidacea (Crustacea, Peracarida) with particular reference to deep-sea species. Zool. Scr. 16, 223–233. doi: 10.1111/j.1463-6409.1987.tb00069.x

CrossRef Full Text | Google Scholar

Highsmith R. C. (1985). Floating and algal rafting as potential dispersal mechanisms in brooding invertebrates. Mar. Ecol. Prog. Ser. 180, 235–251. doi: 10.3354/meps025169

CrossRef Full Text | Google Scholar

Hilário A., Metaxas A., Gaudron S. M., Howell K. L., Mercier A., Mestre N., et al. (2015). Estimating dispersal distance in the deep sea: Challenges and applications to marine reserves. Front. Mar. Sci. 2. doi: 10.3389/fmars.2015.00006

CrossRef Full Text | Google Scholar

Jażdżewska A. M., Brandt A., Martínez Arbizu P., Vink A. (2021a). Exploring the diversity of the deep sea–four new species of the amphipod genus Oedicerina described using morphological and molecular methods. Zool. J. Linn. Soc 194, 1–45. doi: 10.1093/zoolinnean/zlab032

CrossRef Full Text | Google Scholar

Jażdżewska A. M., Horton T., Hendrycks E., Mamos T., Driskell A. C., Brix S., et al. (2021b). Pandora’s box in the deep sea – intraspecific diversity patterns and distribution of two congeneric scavenging amphipods. Front. Mar. Sci. 8. doi: 10.3389/fmars.2021.750180

PubMed Abstract | CrossRef Full Text | Google Scholar

Jażdżewska A. M., Mamos T. (2019). High species richness of Northwest Pacific deep-sea amphipods revealed through DNA barcoding. Prog. Oceanogr. 178, 1–15. doi: 10.1016/j.pocean.2019.102184

CrossRef Full Text | Google Scholar

Jakiel A., Palero F., Błażewicz M (2019). Deep Ocean seascape and Pseudotanaidae (Crustacea: Tanaidacea) diversity at the Clarion-Clipperton Fracture Zone. Sci. Rep. 9, 1–49. doi: 10.1038/s41598-019-51434-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Jakiel A., Palero F., Błażewicz M. (2020). Secrets from the deep: Pseudotanaidae (Crustacea: Tanaidacea) diversity from the Kuril–Kamchatka Trench. Prog. Oceanogr. 183, 1–20. doi: 10.1016/j.pocean.2020.102288

CrossRef Full Text | Google Scholar

Jakiel A., Stępień A., Błażewicz M. (2018). A tip of the iceberg—Pseudotanaidae (Tanaidacea) diversity in the North Atlantic. Mar. Biodivers. 48, 859–895. doi: 10.1007/s12526-018-0881-x

CrossRef Full Text | Google Scholar

Johnson S. B., Attramadal Y. G. (1982). A functional-morphological model of Tanais cavolinii Milne-Edwards (Crustacea, Tanaidacea) adapted to a tubicolous life-strategy. Sarsia 67, 29–42. doi: 10.1080/00364827.1982.10421329

CrossRef Full Text | Google Scholar

Kaiser S., Brix S., Kihara T. C., Janssen A., Jennings R. M. (2018). Integrative species delimitation in the deep-sea genus Thaumastosoma Hessler, 1970 (Isopoda, Asellota, Nannoniscidae) reveals a new genus and species from the Atlantic and central Pacific abyss. Deep. Res. Part II. Top. Stud. Oceanogr. 148, 151–179. doi: 10.1016/j.dsr2.2017.05.006

CrossRef Full Text | Google Scholar

Katoh K., Standley D. M. (2013). MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 30, 772–780. doi: 10.1093/molbev/mst010

PubMed Abstract | CrossRef Full Text | Google Scholar

Kolesnik A. N., Kolesnik O. N., Sattarova V. V., Karabtsov A. A., Yaroshchuk E. I. (2019). Color and chemical composition of bottom sediments from the Kuril Basin (Sea of Okhotsk) and the Kuril–Kamchatka Trench area (Northwest Pacific). Prog. Oceanogr. 178, 1–13. doi: 10.1016/j.pocean.2019.102197

CrossRef Full Text | Google Scholar

Kudinova-Pasternak R. K. (1966). Tanaidacea (Crustacea) of the Pacific ultra-abyssals. Crustaceana 45, 518–534.

Google Scholar

Kudinova-Pasternak R. K. (1970). Tanaidacea of the Kurile-Kamchatka Trench. Akad. Nauk. SSSR. 86, 341–380.

Google Scholar

Kudinova-Pasternak R. K. (1973). Tanaidacea (Crustacea, Malacostraca) collected on the R/V Vitjas in regions of the Aleutian Trench and Alaska. Trudy Instituta Okeanologii, Akademiya Nauk 9, 141–168.

Google Scholar

Kudinova-Pasternak R. K. (1876). Additional notes on the fauna of Tanaidacea (Crustacea, Malacostraca) of the deepwater trench). Trudy Instituta Okeanologii Akademiya Nauk SSSR 99, 11–125.

Google Scholar

Kudinova-Pasternak R. K., Pasternak F. A. (1978). Deep-sea Tanaidacea, Caribbean Sea, Peuerto Rico Trench. Trudy Instituta Okeanologii, Akademiya Nauk SSSR 113, 178–197.

Google Scholar

Kudinova-Pasternak R. K. (1984). Tanaidacea (Crustacea, Malacostraca) Japonskogo Morja. Zool. Zhurnal. 53, 828–837.

Google Scholar

Kudinova-Pasternak R. K. (1985). Tanaidacea (Crustacea, Malacostraca) collected on the summit and at foot of Great-Meteor Seamoun. Zool. Zhurnal. 120, 52–64.

Google Scholar

Kumar S., Stecher G., Li M., Knyaz C., Tamura K. (2018). MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 35, 1547–1549. doi: 10.1093/molbev/msy096

PubMed Abstract | CrossRef Full Text | Google Scholar

Larsen K., Błażewicz-Paszkowycz M., Cunha M. R. (2006). Tanaidacean (Crustacea: Peracarida) fauna from chemically reduced habitats - The Lucky Strike hydrothermal vent system, Mid-Atlantic Ridge Zootaxa 36 (1187), 1–36.

Google Scholar

Larsen K. (2005). Deep-sea Tanaidacea (Peracarida) from the Gulf of Nexico. Crustaceana monographs (Leiden: Brill), 1–390.

Google Scholar

Larsen K., Shimomura M. (2007). Tanaidacea (Crustacea: Peracarida) from Japan III. The deep trenches: the Kurile-Kamchatka Trench and Japan Trench. Eds. Larsen K., Shimomura M.. Tanaidacea (Crustacea: Peracarida) From Japan III. The Deep Trenches: The Kurile-Kamchatka Trench and Japan Trench. Zootaxa 1599, 5–12.

Google Scholar

Leprieur F., Descombes P., Gaboriau T., Cowman P. F., Parravicini V., Kulbicki M., et al. (2016). Plate tectonics drive tropical reef biodiversity dynamics. Nat. Commun. 7, 1–8. doi: 10.1038/ncomms11461

CrossRef Full Text | Google Scholar

Lilljeborg W. (1864). Bidrag til kännedommen om de inom Sverige och Norrige förekommande Crustaceer af Isopodernas underordning och Tanaidernas familj. Inbjudningsskrift till Åhörande af de Offentliga Föreläsninge 1865, 1–31.

Google Scholar

Malyutina M. V., Brandt A., Ivin V. V. (2015). The Russian-German deepsea expedition SokhoBio (Sea of Okhotsk Biodiversity Studies) to the Burile Basin of the Sea of Okhotsk on board of the R/V Akademik M.A. Lavrentyev 71st Cruise, July 6th - August 6th (The Cruise Report), 1–52.

Google Scholar

McCallum A. W., Woolley S. N. C. C., Błażewicz-Paszkowycz M., Browne J., Gerken S., Kloser R., et al. (2015). Productivity enhances benthic species richness along an oligotrophic Indian Ocean continental margin. Glob. Ecol. Biogeogr. 24, 462–471. doi: 10.1111/geb.12255

CrossRef Full Text | Google Scholar

McLelland J. A. (2007). “Family Pseudotanaidae Sieg, 1976,” Eds. Larsen K., Shimomura M. Tanaidacea (Crustacea: Peracarida) From Japan III. The Deep Trenches: The Kurile-Kamchatka Trench and Japan Trench. Zootaxa 1599, 87–99. doi: 10.11646/zootaxa.1599.1.5

CrossRef Full Text | Google Scholar

Messing C. G. (1976). Neotanais persephone, a new species of hadal tanaiadacean (Crustacea: Peracarida). Bull. Mar. Sci. 27, 511–519.

Google Scholar

Morse J. W., Mackenzie F. T. (1990). Geochemistry of sedimentary carbonates (Amsterdam: Elsevier), 1–707.

Google Scholar

Palero F., Guerao G., Abelló P. (2008). Morphology of the final stage phyllosoma larva of Scyllarus pygmaeus (Crustacea: Decapoda: Scyllaridae), identified by DNA analysis. J. Plankton. Res. 30, 483–488. doi: 10.1093/plankt/fbn012

CrossRef Full Text | Google Scholar

Pälike H., Lyle M. W., Nishi H., Raffi I., Ridgwell A., Gamage K., et al. (2012). A Cenozoic record of the equatorial Pacific carbonate compensation depth. Nature 488, 609–614. doi: 10.1038/nature11360

PubMed Abstract | CrossRef Full Text | Google Scholar

Pitz K. M., Sierwald P. (2010). Phylogeny of the millipede order Spirobolida (Arthropoda: Diplopoda: Helminthomorpha). Cladistics 26, 497–525. doi: 10.1111/j.1096-0031.2009.00303.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Poore G. C. B., Avery L., Błażewicz-Paszkowycz M., Browne J., Bruce N. L., Gerken S., et al. (2015). Invertebrate diversity of the unexplored marine western margin of Australia: Taxonomy and implications for global biodiversity. Mar. Biodivers. 45, 271–286. doi: 10.1007/s12526-014-0255-y

CrossRef Full Text | Google Scholar

Renema W., Bellwood D. R., Braga J. C., Bromfield K., Hall R., Johnson K. G., et al. (2008). Hopping hotspots: Global shifts in marine biodiversity. Science 321, 654–657. doi: 10.1126/science.1155674

PubMed Abstract | CrossRef Full Text | Google Scholar

Rewicz A., Bomanowska A., Magda J., Rewicz T. (2017). Morphological variability of Consolida regalis seeds of south-eastern and central Europe. Syst. Biodivers. 15, 25–34. doi: 10.1080/14772000.2016.1216017

CrossRef Full Text | Google Scholar

Riehl T., Brenke N., Brix S., Driskell A. C., Kaiser S., Brandt A. (2014). Field and laboratory methods for DNA studies on deep-sea isopod crustaceans. Polish. Polar. Res. 35, 203–224. doi: 10.2478/popore-2014-0018

CrossRef Full Text | Google Scholar

Sars G. O. (1882). Revision af gruppen: Isopoda Chelifera med charakteristik af nye herhen hørende arter og slægter. Archiv for Mathematik Og Naturvidenskab 7, 1–54. http://biostor.org/reference/129114

Google Scholar

Saeedi H., Brandt A. (2020). Foreword, in Biogeographic atlas of the deep NW Pacific Fauna. Eds. Saeedi H., Brandt A. (Sofia: Pensoft Publishers), 9–22. doi: 10.3897/ab.e51315

CrossRef Full Text | Google Scholar

Saeedi H., Costello M. J., Warren D., Brandt A. (2019). Latitudinal and bathymetrical species richness patterns in the NW Pacific and adjacent Arctic Ocean. Sci. Rep. 9, 1–10. doi: 10.1038/s41598-019-45813-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Sattarova V. V., Artemova A. V. (2015). Geochemical and micropaleontological character of deep-sea sediments from the Northwestern Pacific near the Kuril–Kamchatka Trench. Deep. Res. Part II. Top. Stud. Oceanogr. 111, 10–18. doi: 10.1016/j.dsr2.2014.10.030

CrossRef Full Text | Google Scholar

Segadilha J. L., Gellert M., Błażewicz M. (2018). A new genus of Tanaidacea (Peracarida, Typhlotanaidae) from the Atlantic slope. Mar. Biodivers. 48, 915–925. doi: 10.1007/s12526-018-0856-y

CrossRef Full Text | Google Scholar

Segadilha J. L., Serejo C. S., Błażewicz M. (2019). New species of Typhlotanaidae (Crustacea, Tanaidacea) from the Brazilian coast: genera Hamatipeda, Meromonakantha and Paratyphlotanais, with description of Targaryenella gen. nov. Zootaxa. 4661, 309–342. doi: 10.11646/zootaxa.4661.2.4

CrossRef Full Text | Google Scholar

Segadilha J. L., Serejo C. S. (2022). New insights gained from museum collections: new deep-sea species of Typhlotanais (Tanaidacea, Typhlotanaidae) from Brazil. European. Journal of Taxonomy 820(1), 1–54. doi: 10.5852/ejt.2022.820.1791

CrossRef Full Text | Google Scholar

Sieg J. (1983). Tanaidomorpha (Crustacea: Tanaidacea) from the Ross Sea, Antarctica. Journal of the Royal Society of New Zealand 13 (4), 395–418.

Google Scholar

Sieg J. (1984). Neuere Erkenntnisse zum natürlichen System der Tanaidacea. Zoologica 136, 100–132.

Google Scholar

Sieg J. (1986). Tanaidacea (Crustacea) von der Antarktic and Subantarktis. II. Tanaidacea gesammelt von Dr. J. W. Wägele während der Deutschen Antarktis Espedition 1983. Mitteilungen aus dem Zool. Museum Univ. Kiel II, 1–80.

Google Scholar

Sirenko B. I. (2013). Check-list of species of free-living invertebrates of the Russian Far Eastern Seas. Class Ophiuroidea. Russ. Acad. Sci. Zool. Institute. St. Petersburg. Russ. 75–83, 1–258.

Google Scholar

Stępień A., Jóźwiak P., Jakiel A., Pełczyńska A., Błażewicz M. (2022). Diversity of Pacific Agathotanais (Peracarida : Tanaidacea). Front. Mar. Sci. 8, 741536. doi: 10.3389/fmars.2021.741536.

CrossRef Full Text | Google Scholar

Stępień A., Pabis K., Błażewicz M. (2019). Tanaidacean faunas of the Sea of Okhotsk and northern slope of the Kuril-Kamchatka Trench. Prog. Oceanogr. 178, 1–11. doi: 10.1016/j.pocean.2019.102196

CrossRef Full Text | Google Scholar

Talavera G., Castresana J. (2007). Improvement of phylogenies after removing divergent and ambiguously aligned blocks from protein sequence alignments. Syst. Biol. 56, 564–577. doi: 10.1080/10635150701472164

PubMed Abstract | CrossRef Full Text | Google Scholar

Tattersall (1904). Some new and rare Isopoda taken in the British area. Report of the Seventy-Fourth Meeting of the British Association for the Advancement of Science 1904, 601–602.

Google Scholar

Thomas W. J. (1970). The setae of Austropotamobius pallipes (Crustacea: Astacidae). J. Zool. 161, 91–142. doi: 10.1111/j.1469-7998.1970.tb02899.x

CrossRef Full Text | Google Scholar

Wolff T. (1956). Crustacea Tanaidacea from depths exceeding 6000 metres. Deep. Sea. Res. Oceanogr. 17, 983–1003. doi: 10.1016/0011-7471(70)90049-5

CrossRef Full Text | Google Scholar

Wolfram Research Inc (2020). Mathematica Edition: Version 12.1.

Google Scholar

Keywords: Peracarida, deep sea, integrative taxonomy, Tanaidomorpha, DNA barcoding

Citation: Gellert M, Palero F and Błażewicz M (2022) Deeper diversity exploration: New Typhlotanaidae (Crustacea: Tanaidacea) from the Kuril-Kamchatka Trench area. Front. Mar. Sci. 9:927181. doi: 10.3389/fmars.2022.927181

Received: 23 April 2022; Accepted: 18 July 2022;
Published: 02 September 2022.

Edited by:

Christian Marcelo Ibáñez, Andres Bello University, Chile

Reviewed by:

Catarina Araújo-Silva, Federal University of Pernambuco, Brazil
Juliana Lopes Segadilha, Federal University of Rio de Janeiro, Brazil

Copyright © 2022 Gellert, Palero and Błażewicz. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Ferran Palero, Ferran.Palero@uv.es

These authors have contributed equally to this work

ORCID: Marta Gellert, orcid.org/0000-0002-2466-2864
Ferran Palero, orcid.org/0000-0002-0343-8329
Magdalena Błażewicz, orcid.org/0000-0002-4753-3424

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
