ClimateFish: A Collaborative Database to Track the Abundance of Selected Coastal Fish Species as Candidate Indicators of Climate Change in the Mediterranean Sea

Background

Under the effects of global warming, many animals and plants are undergoing rapid distribution shifts. These changes can be particularly rapid in marine fishes, and many species have responded markedly to recent increases in sea temperature. ClimateFish is an open-access database, which collates abundance data for 7 Mediterranean indigenous and 8 non-indigenous fishes, proposed as candidate indicators of climate change. These species have been selected by a network of Mediterranean scientists based on their wide distribution, responsiveness to temperature conditions and easy identification. Data are periodically collected according to a standard visual census protocol in four different depth layers. At present, the database collates data on a total number of 101'771 observed individuals belonging to the 15 target species. Counts were realized along 3142 transects carried out in 7 Mediterranean countries between 2009 and 2021. This database, associated with climate data, offers new opportunities to investigate spatiotemporal effects of climate change and to test the effectiveness of each selected indicator. Data are available at https://doi.org/10.17882/86784.

The Mediterranean Sea is warming faster than any other marine region in the world (Pastor et al., 2020; Pisano et al., 2020), with increasingly drastic consequences on marine ecosystems (Albano et al., 2021; Garrabou et al., 2021) and on the services they provide to our societies. These changes can be particularly rapid in fish species, which are globally responding with marked shifts in latitude or depth or both (Perry et al., 2005; Chaikin et al., 2022). Climate change is indeed driving species ranges toward the poles and increasing the risks of extinction when dispersal capabilities are limited, such as in the semi-enclosed Mediterranean basin (Ben Rais Lasram et al., 2010). During the last decades, several warm water species have expanded their geographical distribution and increased their abundance in the Mediterranean Sea. This phenomenon, often indicated as “meridionalization” - i.e., meridional, or southern, species moving northward - (Bianchi and Morri, 1993; Riera et al., 1995) involves several warm-adapted coastal fishes (Azzurro, 2008; Azzurro et al., 2019), such as Sparisoma cretense (Ventura et al., 2019), and Thalassoma pavo (Vacchi et al., 2001), that have been recorded northward with respect to their original geographical distribution. Other visible changes are related to non-indigenous fishes of tropical origin, which are predicted to become increasingly successful and widely distributed under warming conditions (D’Amen and Azzurro, 2020; Golani et al., 2021). This phenomenon is often cited under the name of “tropicalization” (Bianchi and Morri, 2003).

At the same time, cold adapted and temperate native species, such as Sarpa salpa are rapidly losing their preferred climatic habitats and shrinking their distribution and abundance (Marras et al., 2015). Documenting climate-related changes is a key task to support current adaptation policies (O’Regan et al., 2021) and to evaluate the impact of such policies toward international biodiversity goals. However, in marine ecosystems, this goal is often challenged by the complexity of ecological transformation along with the pragmatic challenge of performing large scale studies with limited financial resources (Tiralongo et al., 2020). This stimulates efforts to identify and test essential biodiversity components and appropriate indicators (Jetz et al., 2019) to enable effective biodiversity monitoring, under a common and unified framework. Thus, the aim of this database is to collate information on a selected number of coastal fish species, which could serve as effective indicators of climate change effects in the Mediterranean Sea.

Methods

Data gathering for this database began in 2009, within a network of Mediterranean scientists engaged in the monitoring of meridionalization and tropicalization dynamics (sensu Bianchi and Morri, 1993; > Bianchi and Morri, 2003; Riera et al., 1995; Azzurro et al., 2008). This international team, organised within the CIESM Programme ‘Tropical Signals’ https://www.ciesm.org/marine/programs/tropicalization.htm (Azzurro et al., 2011), originally aimed to track and evaluate the biotic responses to climate change in the Mediterranean Sea using reliable and representative biological macro-descriptors. To achieve this goal, a simplified visual census protocol was conceived to be applied over large temporal and geographical scales and across the different Mediterranean countries.

The protocol, later described in Garrabou et al. (2018), is currently available from the MPA Engage website https://mpa-engage.interreg-med.eu. Its sampling units are linear transects of 5 minutes, approximatively corresponding to a surface of 5x50m, to be performed over rocky bottoms with a moderate slope. It is suggested to identify at least three permanent monitoring locations (separated by a minimum distance of 0.5 km) nested in each study area. Four depth ranges can be considered: 1-3 m, 5-10 m, 11-20 m, 21-30 m. At each location and for each depth layer, each diver is invited to perform 4 consecutive replicate transects.

The protocol focuses on a group of target species chosen on the basis of their responsiveness to temperature conditions, widespread distribution and easy identification. These criteria were discussed within a large network of Mediterranean scientists. We originally included shallow and easy to recognize indigenous species, widely distributed along the Mediterranean coasts and characterized by a different thermal affinity: Epinephelus marginatus, Thalassoma pavo, Sparisoma cretense - warm affinity species with documented northward expansions (CIESM, 2008; Milazzo et al., 2016); Coris julis and Sarpa salpa - temperate species, for which there is evidence of shrinking of their preferred habitat (Milazzo et al., 2016). We also included the native Serranus scriba and S. cabrilla, because of their ecological similarity and taxonomic relatedness, associated with a different thermal affinity (Froese & Pauly, 2002). Later on, and thanks to the feedback received from several Marine Protected Areas that implemented the protocol within the framework of the EU funded projects, MPA-ADAPT https://mpa-adapt.interreg-med.eu, and MPA Engage https://mpa-engage.interreg-med.eu, we included eight Lessepsian fishes (which entered the Mediterranean through the Suez Canal) namely: Fistularia commersonii, Siganus luridus, Siganus rivulatus, Pterois miles, Stephanolopis diaspros, Parupeneus forskali, Pempheris rhomboidea and Torquigener flavimaculosus. Considering the trend of an increase of these species in the Mediterranean Sea (Golani et al., 2021) and their climate affinity (D’Amen and Azzurro, 2020), more data on these tropical invaders are expected to come in the future implementation of the study, especially in the eastern sectors of the Mediterranean.

Data gathering was carried by technical personnel of Marine Protected Areas (MPA staff), individual researchers and research groups. The process followed a precise workflow, which started with the training on monitoring protocols, developed in periodical training sessions funded by several national and international projects and based on a series of training tools, now freely available from the project website https://mpa-engage.interreg-med.eu.

Data collected by trained scientific divers were gathered through individual excel files and underwent four different quality checks before reaching the final database (Figure 1). A first control was requested to the data providers before data submission. Then, a restricted team of researchers checked the occurrence of species and their numerical counts to spot possible errors or misidentifications and contacted the data provider in case of doubts, inconsistencies, empty cells or missing data (e.g. coordinates, date etc.). A third control was performed on the assembled database, outliers were manually removed and data formatted. Finally, the data were manually examined again after the technical validation process for quality to detect any remaining errors, such as inconsistencies in geolocation.

FIGURE 1

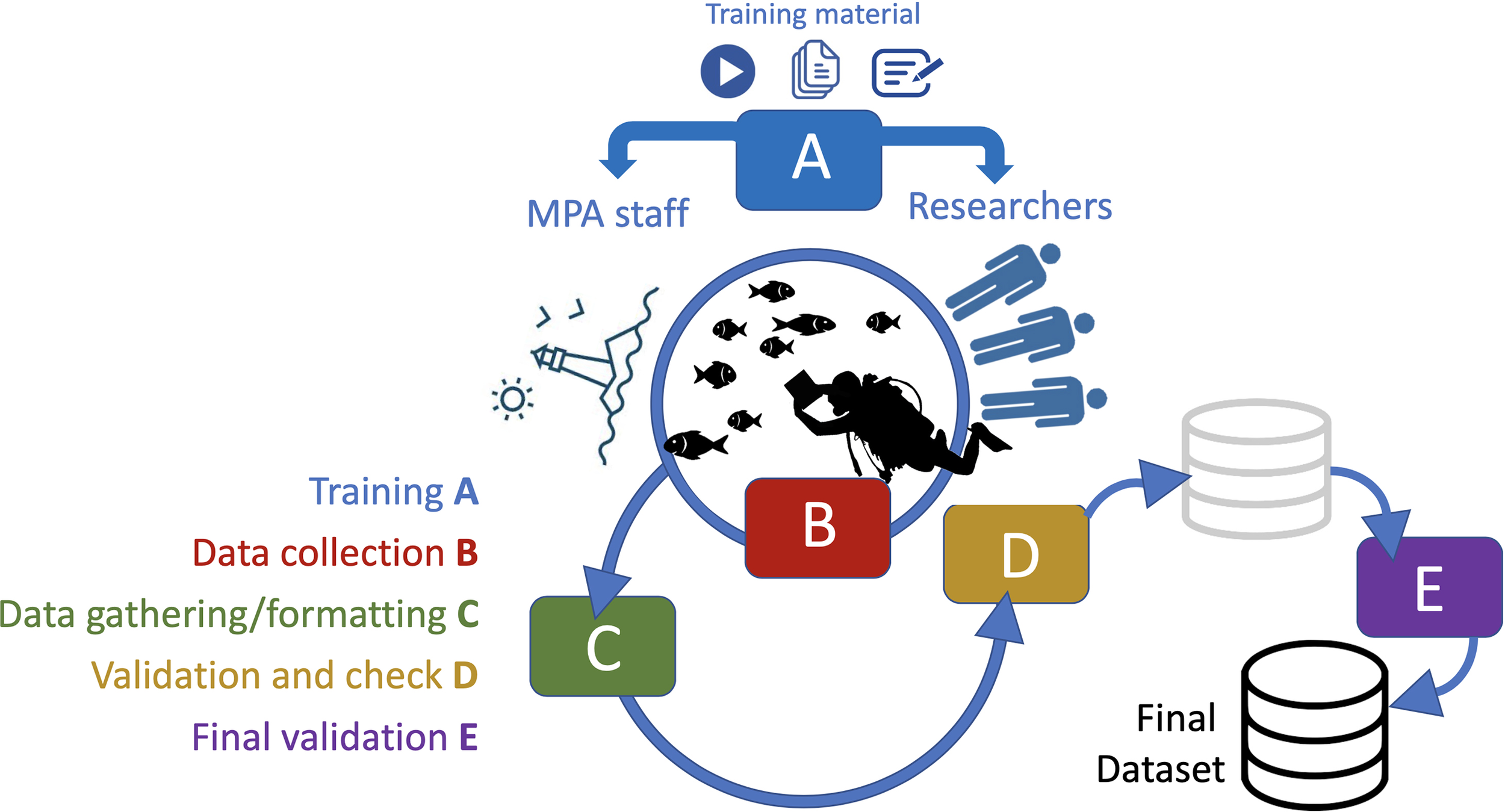

Figure 1 ClimateFish workflow. Visual representation of the data curation, formatting, technical validation, and quality control process of the database: (A) Training sessions/materials were delivered to both MPA staff and collaborating researchers; (B) Data were collected by trained scientists and technicians, according to the protocol described in Garrabou et al. (2018) and checked before submission; (D) Formatted data were then examined for possible errors and underwent the technical validation process. The data providers were contacted in case of doubts or errors; (C) Data were gathered and formatted to meet Darwin Core archive standards (https://www.tdwg.org/standards/dwc/) and reports which did not meet inclusion criteria were removed (see Technical Validation section); (E) After the technical validation process, data were manually examined to detect any remaining error. The final database was published at the end of this repeated validation and quality check process and is freely accessible at: https://doi.org/10.17882/86784.

The ClimateFish database is composed by 25 fields that include a unique record identification number (record ID), three fields for the date of the census (year, month, day), two fields for the geographical coordinates (decimal latitude and longitude), one field for the country where the record occurred, one for the depth at which the census was carried out, one field that indicates the replicate transect at each census event, the source and finally 15 fields for the scientific name of fish species.

The ClimateFish Database

The ClimateFish database currently consists of 3142 underwater observations, where fish counts were performed along standard visual census transects of 5 minutes at a standard speed of 10m/min (corresponding to an approximate area of 5 x 50 m). The geographical distribution of these surveys is illustrated in Figure 1 and it covers a time period of 13 years. Censuses were carried out for 9 consecutive years in the three locations Cirkewa, Dwejra and Gnejna in Malta, and in the three locations Ciovo Jug, Ciovo Punta, and Marjan in Split (Croatia); for 9 non-consecutive years in the three locations Faraglioni, Mannarazza, and Pozzolana in Linosa (Pelagie islands, Sicily, Italy); for 6 years in the locations Les Cliques, Punta Tees Frares, and Sarnella, at Cap de Creus (Spain); 5 years at Capu di Fora, La Vardiola, and Punta Arasu in SE Corse; and for a fewer number of years in the several Mediterranean locations, as reported in Figure 1. The majority (44.68%) of the transects were carried out at the depth layer of 1-3 m, followed by the depths 5-10 m depth (20.31%), 11-20 m depth (18.56%), and 21-30 m depth (16.45%) (Figure 2).

FIGURE 2

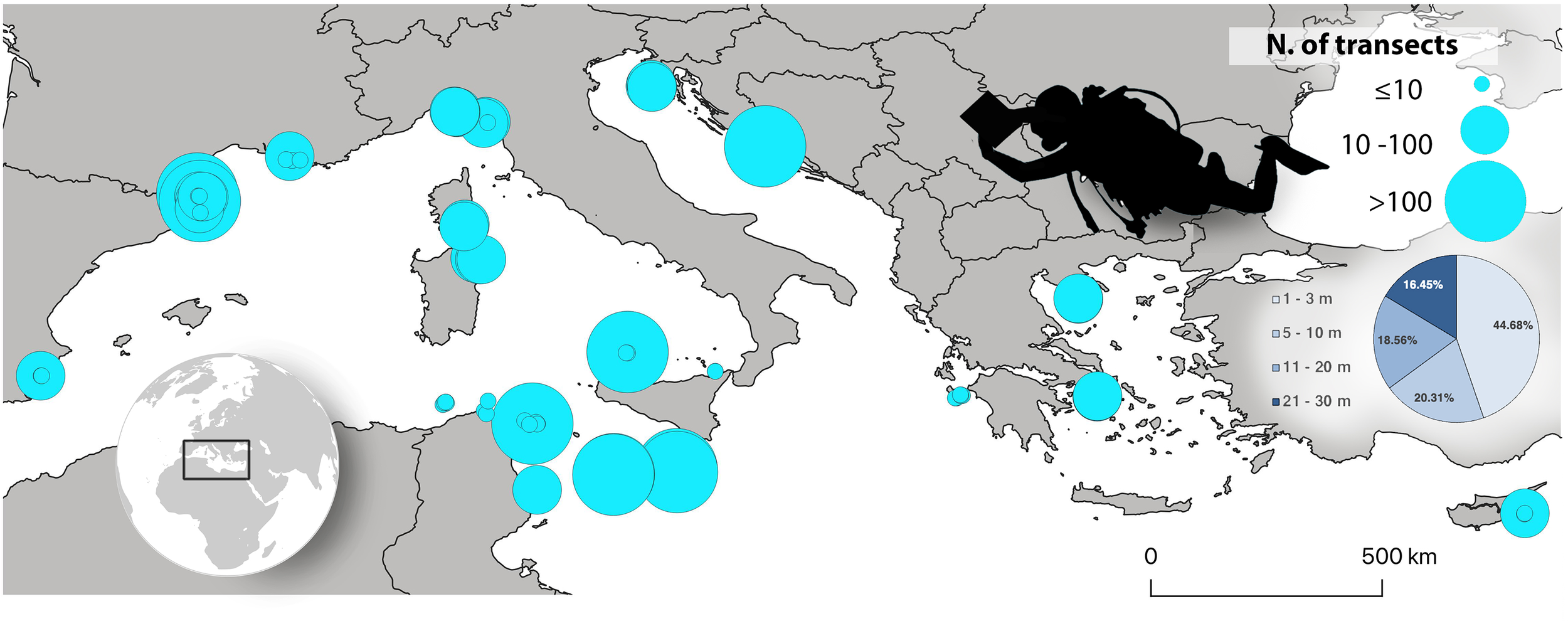

Figure 2 ClimateFish study areas. The total number of transects carried out in each permanent location is illustrated by the size of the circles. The percentage distribution of the number of transects per depth is indicated.

Overall, 101’771 individuals belonging to the 15 target species were counted. The most represented species were S. salpa (38’201), C. julis (26’620), and T. pavo (12’718) (Figure 2). The database also contains observations on 8 non indigenous species (NIS). These species, mostly distributed in the eastern sectors of the Mediterranean, are currently underrepresented in the database, but counts of NIS are expected to grow along with the future implementation of the ClimateFish protocol in the eastern sector of the Mediterranean.

Reference to Digital Repository of the Database

The final database is available, under CC-BY license (v. 4.0), on the SEANOE data repository as a.csv file. https://doi.org/10.17882/86784

Usage Notes

The ClimateFish database includes spatio-temporal information on the abundance of 15 coastal fishes, proposed as candidate indicators of climate change in the Mediterranean Sea. This information could be coupled with temperature data to better understand how the abundance and distribution of these species is linked to climate change. This would allow testing the effectiveness of selected taxa to track the variation of temperature and other geophysical, biotic and climate layers, which can be easily downloaded from public sources such as the open-access BIO-ORACLE database https://www.bio-oracle.org. Other potential applications of the ClimateFish data include setting a baseline against which to evaluate future changes. The resulting outputs could have several benefits for single MPAs, with possible integrations at the level of both IMAP (UNEP/MAP, 2006) and MSFD (MSFD; Directive 2008/56/EC) (EC 2008), since these initiatives do not specifically consider climate change impacts. Finally, ClimateFish should be considered as a living database, which will keep being updated in the future, also with the support of the T-Mednet platform https://t-mednet.org, which is devoted to track climate change effects in the Mediterranean Sea. T-Mednet is currently being implemented to return the information to users, in the form of simple and interactive data visualization and exploration. We also foresee possible integrations with data provided by trained recreational divers under the framework of existing citizen science initiatives. These data are currently not included in the ‘ClimateFish’ database but are presently stored on the online platform www.observadoresdelmar.es under the homonym project ‘ClimateFish’ that includes training materials and tools for data reporting. We believe that this beneficial partnership between research bodies and MPA managers, with the potential inclusion of the recreational diving industry, could increase our potential for integrated monitoring and conservation planning and contribute to set an effective strategy to monitor climate related impacts in the Mediterranean region.

Data Availability Statement

The datasets presented in this study can be found on online repositories. The names of the repository/repositories and accession number(s) can be found below: https://doi.org/10.17882/86784.

Author Contributions

EA conceived the monitoring protocol and FP, JS, JG, PM, PJS participated in the design of it; AB, AF, AMil, AP, AR, BW, CD, EA, FP, GM, JB, JG, LM, MD, M-FC, MH, PM, PJS, and VC organized or coordinated filed work; AG, AI-M, AMil, BD, BW, CA, CD, CLP, DV, EA, EF, FC, FP, GD, GF, GS, IC, JB, JG, LF, LM, LS, MC, M-FC, MP, MS, NS, PM, PP, RG, RM, and TG carried out field work; EA and TB did data management and wrote the first version of the paper with the support of AMin, MD’A, and TF. All authors approved the submitted manuscript.

Funding

The Mediterranean ClimateFish initiative was initially conceived by the international basin wide monitoring program CIESM Tropical Signals (funded by the Albert II of Monaco Foundation) and subsequently supported by the Interreg Med Programme (Projects: MPA-ADAPT, grant number 1MED15_3.2_M2_337 and MPA Engage, grant number 5MED18_3.2_M23_007), 85% co funded by the European Regional Development Fund.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
