Recent Advances in Photocatalytic Removal of Microplastics: Mechanisms, Kinetic Degradation, and Reactor Design

Plastic products are used in almost all aspects of our daily life. Due to their low cost, portability, durability, and resistance to degradation, these products are affecting the health of the environment and biota on a global scale. Thus, the removal and mineralization of microplastics is an important challenge in the 21st century. Advanced oxidation processes (AOPs) have recently been identified as a viable treatment technique for tackling recalcitrant organic molecules and polymers. However, information on kinetic degradation mechanisms and photocatalytic reactor design is insufficient. This review discusses the fundamentals of photocatalysis and photo-Fenton processes in addition to the photocatalytic degradation mechanisms. We also introduce different characterization techniques of the major microplastic pollutants such as PE, PP, PVC, PS, PMMA, and PA66. In addition, a detailed overview of the major existing photocatalytic plants and the scaling-up methods of photoreactors are discussed.

1 Introduction

It is rare to experience similar growth in production and usage as the plastics industry has done in the span of 60 years, plasticizing the modern world, and justifiably dubbing the 20th and 21st centuries the “Plastics Age” (Porta, 2021).

By the middle of the 19th century, and in the wake of industrialized goods production, inventors were attempting to tackle a new economic problem, resulting from the increasing scarcity of natural-derived materials. It was then that the first synthetic polymer was produced by John Wesley Hyatt around 1869 from the treatment of cellulose polymer and camphor (Evode et al., 2021). As research progressed, the dawn of the 20th century witnessed the production of the “Bakelite”, the first synthetic plastic, by Leo Hendrik Baekeland in 1907 (Geyer et al., 2017). Owing to its remarkable versatility and utility, plastics went into large-scale production to accompany the technological revolution that followed the beginning of the so‐called post‐World War II in what was known as the “Great Acceleration of population, industry and resource utilization” (Porta, 2021). Today, plastics and plastic-based materials are produced in millions of tons at a rate exceeding two hundred million tons per annum (Nabi et al., 2021). Plastic fabrication is expected to increase twofold in the next 20 years if current trends continue (Lebreton and Andrady, 2019).

However, plastics, the wonder material of the 1960s, became a victim of its own success. As a result of the huge production and inefficient waste management practices, plastic debris has progressively invaded the environment from the poles to the equator, and from the depths of the oceans to the tops of mountains, jeopardizing the aquatic and terrestrial ecosystem (Browne et al., 2010). As of 2015, it is appraised that only about 9% of the 6,300 Mt of produced plastic litter was recycled, 12% was incinerated, and 79% was dumped in landfills or the natural environment (Geyer et al., 2017). Over 5 trillion pieces of plastic, weighing over 260,000 tons, are now hovering over the ocean’s surface (Eriksen et al., 2014). If current production and waste management trends continue, by 2050, plastics are anticipated to account for up to 54 wt% of all discharged anthropogenic leftover into the environment, with 12,000 Mt ending up in landfills or aquatic media (Geyer et al., 2017; Cao et al., 2021). Plastics are a versatile material made up of long-chain synthetic polymers with tenacious characteristics, mainly processed from petroleum-based products, and consuming approximately 1.6 billion L of oil annually (Knoblauch et al., 2018). Recent studies estimated that plastic production would require in the next 30 years roughly 20% of petroleum products consumed globally and would account for 15% of the annual carbon emissions (Lebreton and Andrady, 2019).

Plastics pollutants are broadly defined into five categories depending on their dimensions: megaplastics (over 1 m), macroplastics (below 1 m), mesoplastics (below 2.5 cm), microplastics (MPs) (below 5 mm), and nanoplastics (under 1 µm) (Thompson et al., 2004; Wright et al., 2013; Law and Thompson, 2014; Wang et al., 2017). Within this scope and since 2004, the term “microplastics” has been popularly adopted by scientists and environmentalists (Hartmann et al., 2019). More recently, MPs are termed as “synthetic solid plastic particle or polymeric matrix with regular or irregular shapes and a size ranging from 1 μm to 5 mm” (Frias and Nash, 2019).

Following their unabated discharge, MPs have been found in seawater, coasts (Zhou et al., 2016), estuarine sediments (Qiu et al., 2015), rivers (Sanchez et al., 2014), lakes (Wang et al., 2017), soils (Zhou et al., 2019), and air (Abbasi et al., 2018), among others, outnumbering the large portion of plastic debris (Hale et al., 2020). Moreover, these small invaders are of great environmental concern, especially due to their size; it is accessible to a wide range of organisms, starting from the smallest species such as zooplankton to the bigger ones, with potential physical and toxicological issues (Law and Thompson, 2014; Hodson et al., 2017; He et al., 2018).

Due to their small size, ingested MPs can circulate throughout the food web up to the food chains of human consumers (Revel et al., 2018). According to reports, a human being could consume between 39,000 and 52,000 MPs per year through food and beverages, while 4,000 MPs to 90,000 MPs could be added annually if tap and bottled water are respectively consumed (Cox et al., 2019). Recent studies suggest that MPs of micrometer size or smaller could adversely affect human health (Rist et al., 2018; Chen et al., 2020).

Conventional wastewater treatment plants (WWTPs) were found to be ineffective when it comes to MPs removal. These MPs are barely detectable on the macroscopic scale, and can easily escape capture by WWTPs ultimately ending up in the aquatic environment (Murphy et al., 2016; Lasee et al., 2017). Following the water treatment via WWTPs and drinkable water treatment plants (DWTPs), a ~70% removal efficiency of microfibers (MPFs) was only achieved, with treated wastewater containing up to ~347 of undetected MPFs/L (Sol et al., 2021). Furthermore, studies about WWTPs from different locations revealed an abundance of MPs in the treated water between 5.00 × 10⁵ and 1.39 × 10¹⁰ particles on a daily basis (Liu et al., 2021).

The failure of conventional WWTPs to effectively remove MPs explains the carried-out efforts by scientists and engineers to develop suitable innovative technologies capable of treating these particles and neutralizing their harmful effects. In this regard, technologies for removing MPs, including physical, chemical, and biological treatments, were developed (Mumford et al., 2012; Talvitie et al., 2017; Ziajahromi et al., 2017; Sun et al., 2019). However, these methods show some main drawbacks (see Figure 1), such as the further required treatment of resulting sludge (Kim et al., 2022), production of secondary MPs, and non-reusability, making them unattractive to be employed for tackling the MPs in the environment (Dey et al., 2021).

FIGURE 1

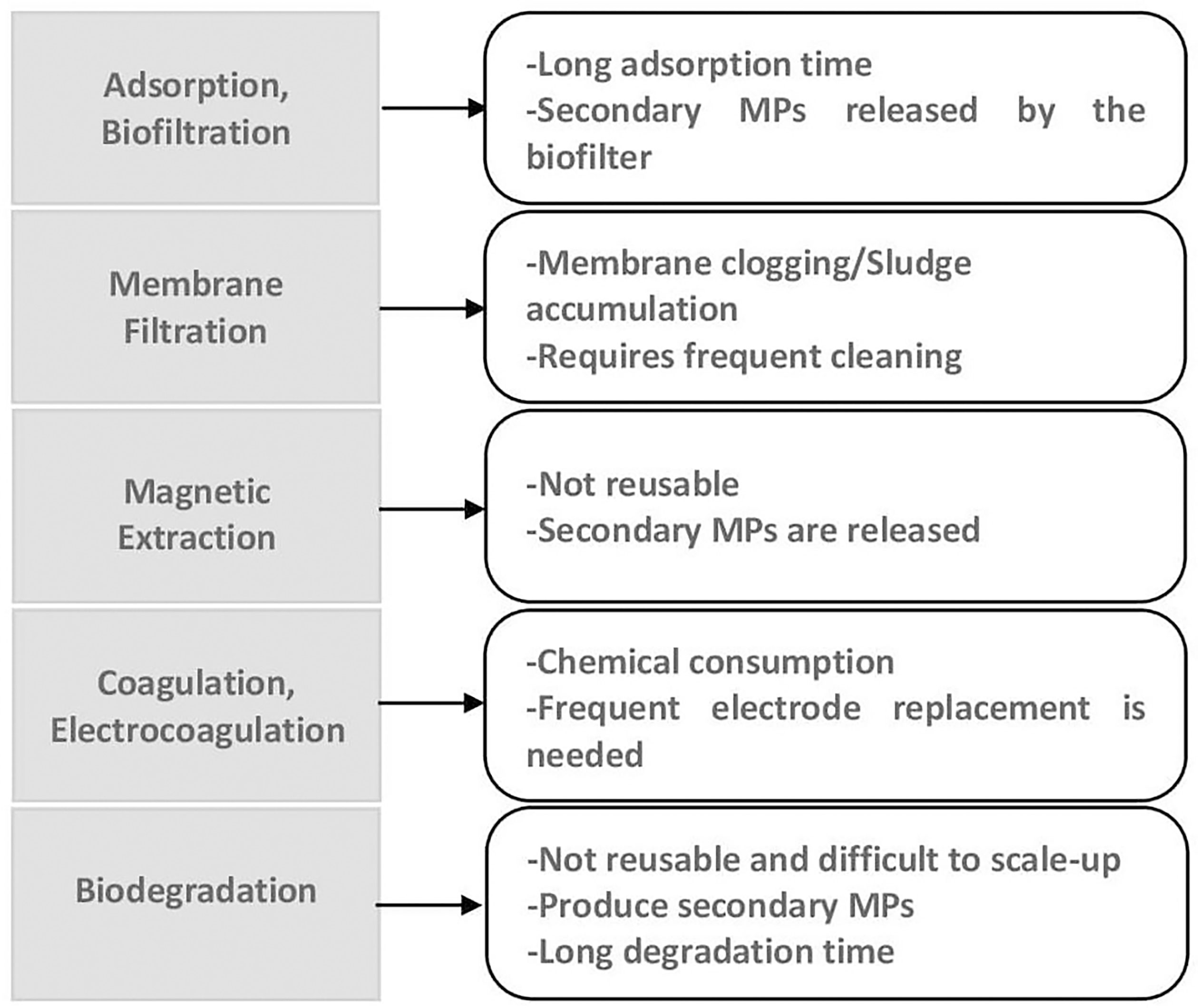

Figure 1 Drawbacks of some of the MPs removal technologies.

In order to overcome these restraints, it was vital to search for more advanced and efficient technologies.

In this view, advanced oxidation processes (AOPs) are considered environmental-friendly methods and were proposed as tertiary treatment for different types of wastewater effluents owing to their versatility and ability to remove non-biodegradable and chemically stable pollutants (Konstas and Konstantinou, 2019; Zhang et al., 2019; Antonopoulou et al., 2021). The principle of AOPs is based on physicochemical transformations that result in molecular disintegration, simplification of the chemical structure, and finally mineralization. Such processes involve the formation of highly reactive radical species involving the hydroxyl (HO^•), superoxide $\left({\text{O}}_2^{·-}\right)$, hydroperoxyl $\left({\text{HO}}_2^{·}\right)$, alkoxyl (RO^•), sulfate $\left({\text{SO}}_4^{·-}\right)$ and chlorine (Cl^•) radicals (Vione et al., 2014; Potakis et al., 2017; Alfaifi et al., 2018). A general classification of the AOPs is shown in Figure 2.

FIGURE 2

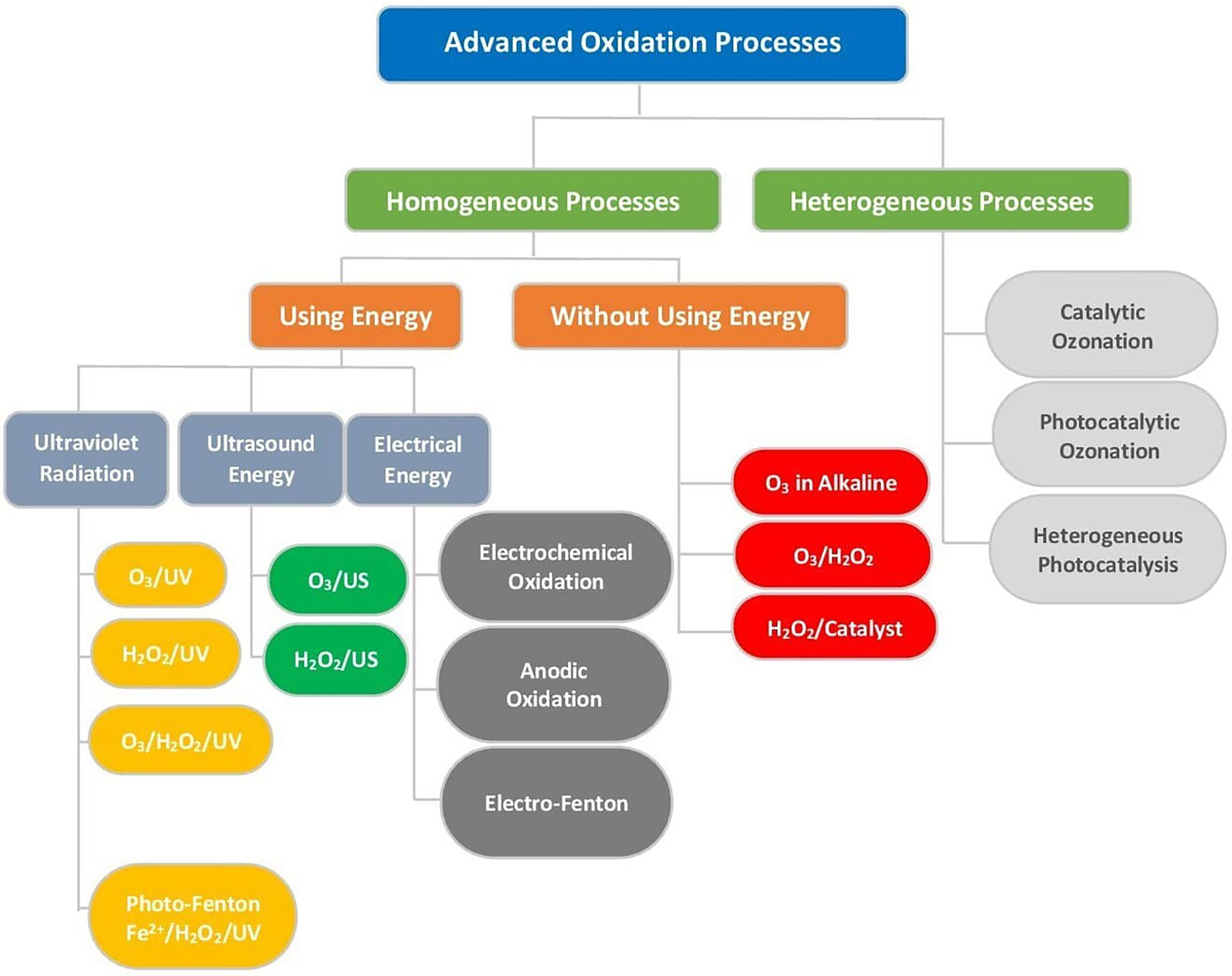

Figure 2 Homogeneous and Heterogeneous Advanced Oxidation Processes.

Among AOPs, photocatalysis and Fenton processes show a relatively high degradation rate and efficiency, making them a promising alternative for degrading various recalcitrants like MPs (Mokhbi et al., 2019; Kim et al., 2022). Yet, the employment of these techniques at an industrial scale remains very challenging due to the interference of several parameters that could affect the degradation process such as (i) the type and size of MPs, (ii) the light source and its intensity, in addition to (iii) the design of the photoreactor. Therefore, this work reviews, in an extensive manner, recent advances in photocatalysis technology, mechanism, and kinetics of MPs photodegradation, as well as the upscaling of photocatalytic reactors.

2 Recent Advances in Photocatalysis Technology

2.1 Fundamentals of Photocatalysis

This technology could fall into two primary subgroups: homogeneous and heterogeneous photocatalytic systems. Homogeneous systems are broadly employed due to their high reaction rate, short process time, and high accessibility, yet they present some critical drawbacks such as high cost, cumbersome extraction, complicated recycling procedures, and reactor corrosion (Ali et al., 2014; Cui et al., 2018). Moreover, implementing process-engineering strategies in photocatalytic processes favors heterogeneous photocatalysis due to the higher stability and ease of recovering heterogeneous photocatalysts.

Generally, photocatalysts are semiconductor (SC) materials that are photoactive. When an SC is irradiated by a light source of photonic energy (hv) larger than that of its bandgap (E_bg), an excited electron shifts from the valence band (VB) to the vacant conduction band (CB), and an electron (e⁻)–hole (h⁺) pair is created (Zhang et al., 2018). Consequently, the nature of the light source critically affects the concentration of (e⁻)–(h⁺) pairs and therefore the effectiveness of the system. Regardless of the type of pollutants, molecules, or MPs particles, the principle of photocatalytic degradation is quite similar and mainly grounded on the oxidation by ROS to transform the toxic product into less harmful components (Kim et al., 2022). The steps of such a mechanism are explained in Figure 3. As seen, while a part of the photo-generated electron–holes (1) recombine within 10 to 100 ns through radiative (photoluminescence) or non-radiative (energy release) processes (5), the rest generate a charge carrier capable of spatially separating on the catalytic surface (2) (Alfaifi et al., 2018; Hoffmann et al., 1995 Habib et al., 2020; Danish et al., 2021).

FIGURE 3

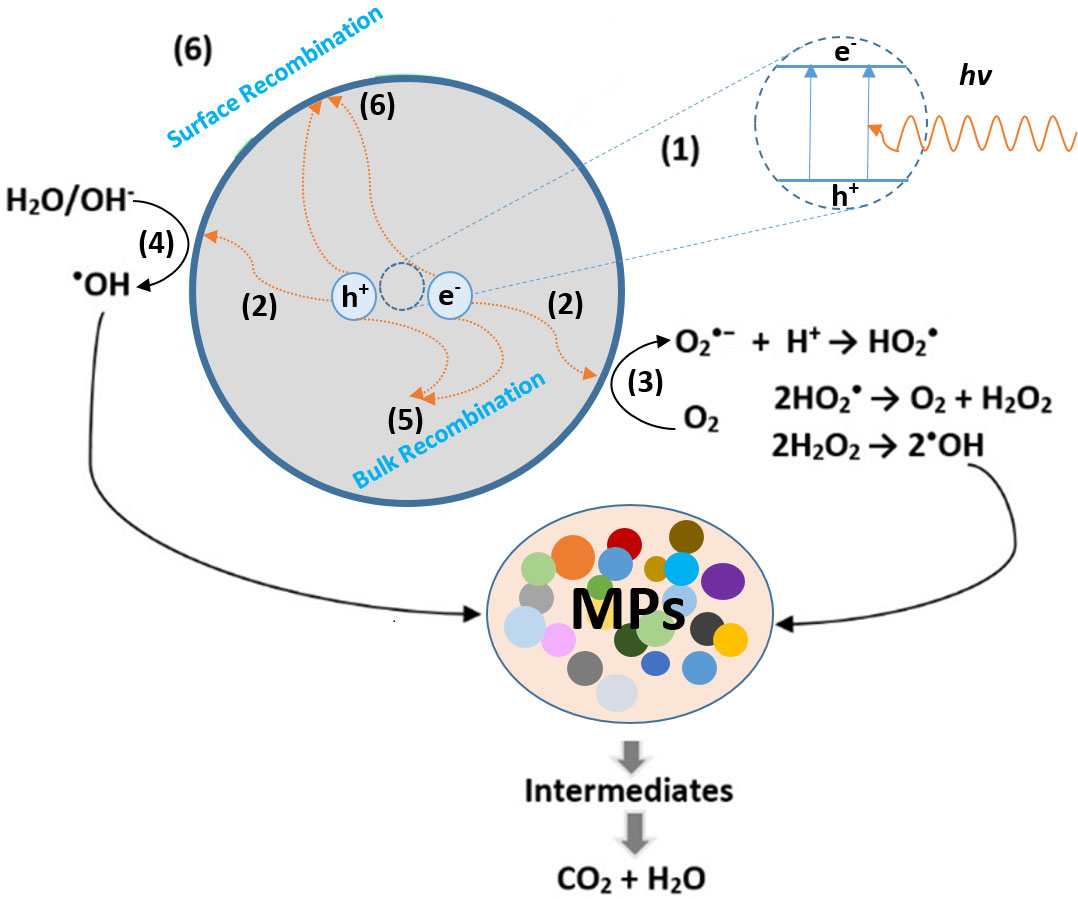

Figure 3 Photocatalytic degradation steps of microplastics at the surface of the semiconductor under light irradiation: (1) (e−) – (h+) seperation, (2) Diffusion of the charge carriers on the surface of the photocatalyst, (3),(4) light-driven catalytic oxidation and reduction takes place on the active sites of the catalyst, (5) (e⁻) – (h⁺) recombination inside the catalyst, (6) (e⁻) – (h⁺) recombination at the catalyst surface.

Upon reaching the surface, these electron–hole pairs could either recombine again (6) or undergo electronic transfers with the localized states of the adsorbed molecules (3),(4). In this regard, the protons’ reduction [E_NHE (H⁺/H₂) = 0.0 eV] and water oxidation [E_NHE (O₂/H₂O) = 1.23 eV] are the main reference energy levels that acquire a particular relevance concerning most SCs (as seen in Figure S1) (Tong et al., 2012).

Generally, metal oxide SCs have their valence bands with the main contribution from oxygen 2p orbitals, at 1–3 eV below the O₂/H₂O redox couple, while transition metal oxides with conduction bands mainly constituted by d orbitals of the metal have the position of their s orbital close to, or below the H₂O reduction potential (Coronado, 2013). Thus, in aqueous media, a photo-activated SC enables the generation of reactive oxygen species (ROS) such as hydroxyl radical (^•OH) and superoxide radical $\left({\text{O}}_2^{·-}\right)$, which exhibit strong oxidation of organic matters, leading to the total mineralization of recalcitrant organic particles into less harmful products such as H₂O and CO₂ (Ganguly et al., 2019; Habib et al., 2020; Saravanan et al., 2020).

SC photocatalysts can be classified into three main categories: single, double (binary), and three (ternary) components (Figure 4). The usage of classical single components shows certain limits related to the large amount of electron–hole recombination, low absorption of the visible region, and poor conduction of the charge carrier (Pawar and Lee, 2015). Although binary and ternary photocatalysts have been showing a better performance compared to the single components, they present many downsides when used alone (Xu et al., 2019).

FIGURE 4

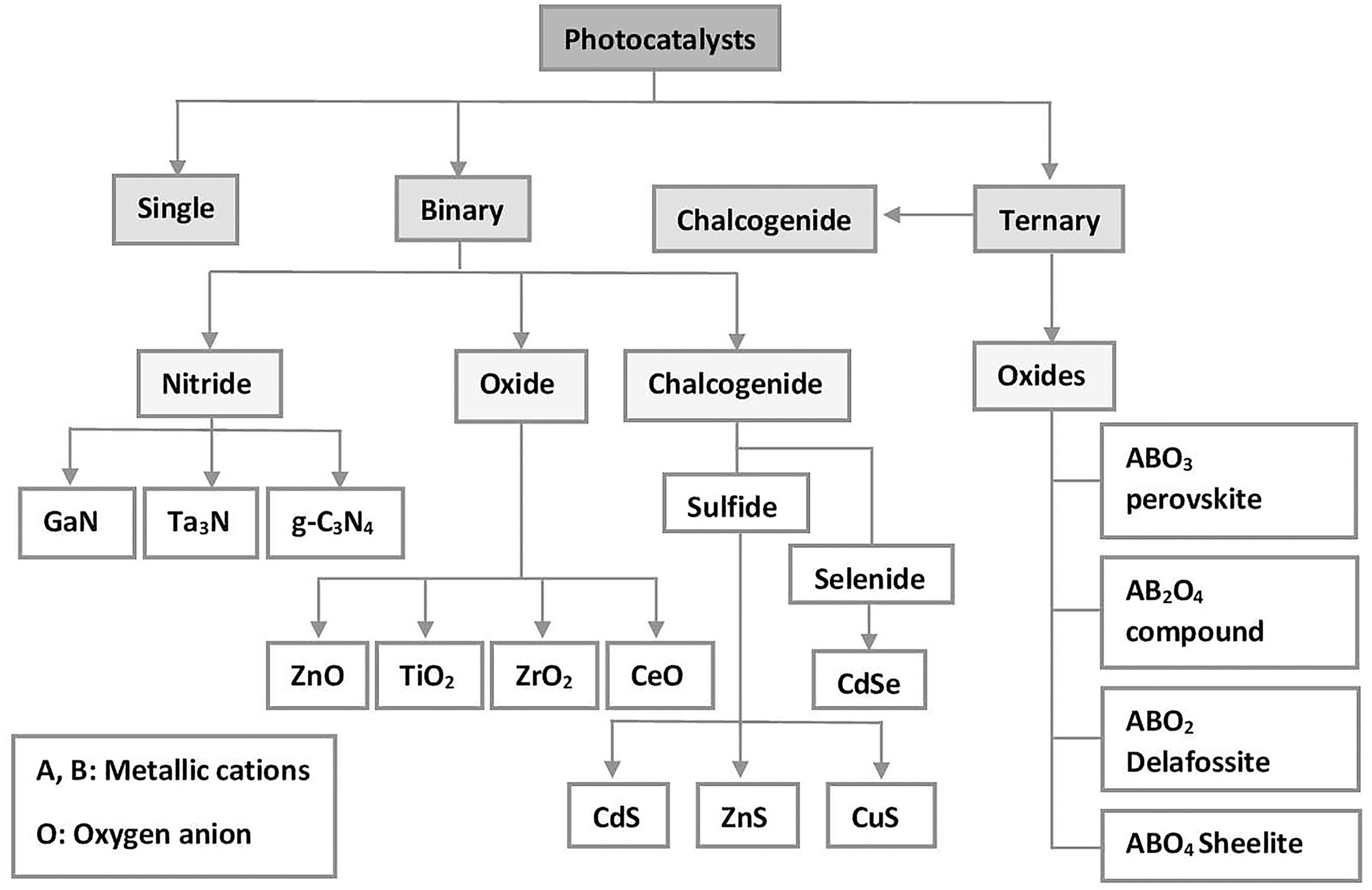

Figure 4 Flow chart of some binary and ternary semiconductor photocatalysts.

For instance, SCs with sulfides or nitrides (binary SC) possess a narrow bandgap but are unstable in the aqueous medium (Mishra and Chun, 2015). Moreover, using metal oxides in their pure form presents limited adsorption capacity, lower recovery, reusability, and higher recombination rates (Mohamed et al., 2020). For example, TiO₂-based SCs have been studied, and widely used for photocatalytic applications, yet, they present poor quantum yield due to the fast recombination rate of photogenerated electron–hole pairs, poor and selective adsorption, and short-lived photo-generated carriers (Adekoya et al., 2017; Lum et al., 2019). Another broadly used metal oxide, zinc oxide (ZnO), is prone to be soluble in both alkaline and acidic medium (Saravanan et al., 2020). In addition, certain ternary SCs have an enough narrow E_bg that renders them active under visible light, yet they do not possess appropriate band edge potentials to perform diverse reactions (Xu et al., 2019). For this reason, optimum formulations of performant photocatalytic systems can be achieved by either coupling large bandgap binary/ternary SCs with narrower bandgap binary/ternary ones, or coupling modified/unmodified SCs into nanocomposites, or even by adopting the two-step photoexcitation system known as Z-scheme (1st, 2nd, and 3rd generations) (Yadav et al., 2018; Xu et al., 2019; Chung et al., 2019).

3 Photo-Fenton Process

Fenton oxidation processes, another classic category of AOPs, is one of the most popular and interesting techniques due to its satisfying depuration ability (at room temperature and barometric pressure), a broad spectrum of applications, interference resiliency, procedure simplicity, and quick degradation/mineralization of recalcitrant organics (Hamd and Dutta, 2020). The process was first brought to light by Fenton et al. in 1894 (Fenton, 1894) in its basic form, consisting of the catalytic reaction of H₂O₂ with iron ions (Fe²⁺) and producing hydroxyl radical (^•OH), the second-highest oxidized species with a potential E°C(OH/H₂O) = +2.8 Vs NHE as shown in (Rn. 1).

$\begin{array}{ll}{\text{Fe}}^{2+}+{\text{H}}_2{\text{O}}_2\to {\text{Fe}}^{3+}+{\text{OH}}^{-}{+}^{•}\text{OH}& \text{(Rn. 1)}\end{array}$

However, besides the oxidation of Fe²⁺ to Fe³⁺, the technique requires the generation of the Fe²⁺ species throughout its reduction to Fe³⁺ to generate ^•OH (Rn. 2). With the rate of the reduction reaction ~6,000 times lower than that of the oxidation, the efficiency of the oxidation/reduction cycle of Fe(III)/Fe(II) is dramatically hindered and leads to the accumulation of Fe³⁺ in the solution (Song et al., 2006; Martínez-Huitle et al., 2015).

$\begin{array}{ll}{\text{Fe}}^{3+}+{\text{H}}_2{\text{O}}_2\to {\text{Fe}}^{2+}+{\text{H}}^{+}+{\text{HO}}_2^{•}& \text{(Rn. 2)}\end{array}$

Facing the fact that Fe³⁺ begins to precipitate at >pH = 3 to form the so-called iron sludge (oxyhydroxide) (Xue et al., 2018), which is considered a heavy pollutant, and leads to severe losses of ferric ions in the medium, homogenous Fenton is recommended to be performed in strong acidic medium (Hamd and Dutta, 2020)..

To overcome this inconvenience and to expand the application pH of the technology, various approaches have been adopted such as coupling homogeneous Fenton with UV-vis/solar irradiation, using chelating agents (CAs), or employing heterogeneous Fenton systems (Hamd and Dutta, 2020).

3.1 Coupling of Homogeneous Fenton Process With Light (Photo-Fenton)

The generation of stable hydroxo-iron(III) complexes such as [Fe(OOH)]²⁺ and [Fe(OH)]²⁺ by the interaction of Fe³⁺ ions with H₂O₂ and OH⁻ results in a poor regeneration of iron(III) ions (Rn. 3,4) (Ahmed et al., 2011):

$\begin{array}{ll}{\text{Fe}}^{3+}+{\text{H}}_2{\text{O}}_2\leftrightarrows {[\text{Fe}\left(\text{OOH}\right)]}^{2+}+{\text{H}}^{+}& \text{(Rn. 3)}\end{array}$

$\begin{array}{ll}{\text{Fe}}^{3+}+{\text{OH}}^{-}\leftrightarrows {[\text{Fe}\left(\text{OH}\right)]}^{2+}& \text{(Rn. 4)}\end{array}$

Herein, this rate could be increased by the introduction of a UV-vis (<580 nm) irradiation source, thus reducing sludge formation and maintaining the oxidation/reduction cycle in a step that produces greater amounts of ^•OH radicals (Rn. 5) (Babuponnusami and Muthukumar, 2014; Lee et al., 2014).

$\begin{array}{ll}\begin{array}{cc}{\left[\text{Fe}\left(\text{OH}\right)\right]}^{2+}+hv\to {\text{Fe}}^{2+}{+}^{•}{\text{O}}_2\text{H}& \lambda <580\text{ nm}\end{array}& \text{(Rn. 5)}\end{array}$

Nevertheless, several key parameters have to be considered including (i) the initial concentration of recalcitrant molecules, (ii) the initial concentration of Fenton reagents, (iii) the operating temperature, and, most critically, (iv) the pH (Hamd and Dutta, 2020). For instance, at pH > 3.5, various aspects are noticed:

-^•OH radicals generation by the decomposition of H₂O₂ is hindered due to the deficiency of H⁺ (Walling et al. 1975). (2019).

- H₂O₂ decomposition to water and oxygen is accelerated at pH > 5 (Meeker and United States Patent Office, 1963).

- ^•OH radicals’ oxidation potential is shrunken as pH values increase (E°C = 2.8–1.95 V at pH 0–14) (Samet et al., 2009).

- Production of ferric oxyhydroxide (FeOOH) at pH > 4 decreases the degradation rate (Tang and Huang, 1996).

- The increased stability of H₂O₂ owing to the generation of ,${\text{H}}_3{\text{O}}_2^{+}$ blocks the formation of ^•OH radicals.

3.1.1 Role of Chelating Agents in Homogeneous Photo-Fenton Processes in Preventing Sludge Formation

To extend the working pH of homogeneous photo-Fenton processes, organic/inorganic ligands known as CAs, e.g., EDTA (ethylenediaminetetraacetic acid), EDDS (ethylenediamine-N,N’-disuccinic acid), oxalate, NTA (nitrilotriacetic acid), CMCD (carboxymethyl β-cyclodextrin), tartrate, citrate, and succinate, are used (Luna et al., 2012). Moreover, various advantages were proved to come along with the usage of CAs, including:

- Increase quantum yield of ^•OH radicals.

- Improving Fe³⁺ reduction to Fe²⁺, resulting in additional ^•OH radicals, as shown in the case of oxalate ion (Rn. 6, 7):

$\begin{array}{ll}{\text{Fe}}^{\text{III}}{\left({\text{C}}_2{\text{O}}_4\right)}_2^{-}+hv\to {\text{ Fe}}^{\text{II}}\left({\text{C}}_2{\text{O}}_4\right)+{\text{C}}_2{\text{O}}_4^{•-}\left(200\text{ nm }\le \lambda \le 280\text{ nm}\right)& \text{(Rn. 6)}\end{array}$

$\begin{array}{ll}{\text{Fe}}^{\text{II}}{\left({\text{C}}_2{\text{O}}_4\right)}_2+{\text{H}}_2{\text{O}}_2\to {\text{ Fe}}^{\text{III}}{\left({\text{C}}_2{\text{O}}_4\right)}^{+}{+}^{•}\text{OH}+{\text{OH}}^{+}& \text{(Rn. 7)}\end{array}$

More interestingly, the usage of CAs such as EDTA is broadly recommended in the heterogeneous photo-Fenton process (detailed in the next section). Adsorption of EDTA on magnetite, for example, could promote Fe₃O₄ dissolution, resulting in an improved catalytic reaction (He et al., 2015). Nevertheless, the high concentration of some of the CAs should be controlled because they may be strongly competing with H₂O₂ species for the boundless active catalytic sites (Huang et al., 2013).

3.2 Heterogeneous Photo-Fenton Processes

The advantage of the heterogeneous photo-Fenton processes relies upon extending the medium pH towards more practical ranges because catalytic reactions take place at the active region on the solid catalyst’s surface, therefore reducing the leaching of iron ions, decreasing the production of the iron sludge, and permitting the reusability of the catalyst (Liu et al., 2017; Hamd and Dutta, 2020).

Basically, two main interfacial mechanisms were proposed based on the two-stage degradation kinetic process (Figure S2) (He et al., 2015; Hamd and Dutta, 2020):

- Slow induction period mainly consisting of heterogeneous reactions and surface iron leaching (homogeneous reactions).

- Leaching of surface iron (homogeneous reactions), accompanied by quick induction time on the catalyst surface for heterogeneous catalytic reactions.

In heterogeneous Fenton systems, hydroxyl radical ^•OH (the main oxidant species) is commonly produced either from heterogeneous catalytic reactions between the surficial Fe^II (≡Fe^II) and H₂O₂ (Rn. 8) (Lin and Gurol, 1998) or from the outer-sphere reaction of uncomplexed Fe²⁺ ions with H₂O₂ (Rn. 10) (Remucal and Sedlak, 2011):

$\begin{array}{ll}\equiv {\text{Fe}}^{\text{II}}+{\text{H}}_2{\text{O}}_2\to \equiv {\text{Fe}}^{\text{III}}-\text{OH}{+}^{•}\text{OH}& \text{(Rn. 8)}\end{array}$

As for other oxidants such as hydroperoxyl radical $\left({\text{HO}}_2^{·}\right)$ and superoxide anion $\left({\text{O}}_2^{·-}\right)$, they are produced by reactions involving surface-complexed Fe^III (≡Fe^III − OH) and H₂O₂, ^•OH and H₂O₂, in addition to reactions involving carbon-centered R^• and oxygen (Rn. 9-11) (Santos-Juanes et al., 2011; He et al., 2015).

$\begin{array}{ll}\equiv {\text{Fe}}^{\text{III}}-\text{OH}+{\text{H}}_2{\text{O}}_2\to \equiv {\text{Fe}}^{\text{II}}-\text{OH}+{\text{H}}_2\text{O}+{\text{HO}}_2^{•}& \text{(Rn. 9)}\end{array}$

$\begin{array}{ll}{\text{HO}}^{•}+{\text{H}}_2{\text{O}}_2\to {\text{HO}}_2^{•}/{\text{O}}_2^{•-}+{\text{H}}_2\text{O}& \text{(Rn. 10)}\end{array}$

$\begin{array}{ll}{\text{R}}^{•}+{\text{O}}_2\to \text{R}(-{\text{H}}^{+})+{\text{HO}}_2^{•}& \text{(Rn. 11)}\end{array}$

Owing to the proportionality of the catalytic decomposition rate of hydrogen peroxide to its own concentration and the surface area of the goethite as well (Huang et al., 2001; Kwan and Voelker, 2003), the proposed mechanism of H₂O₂ decomposition by Lin and Gurol seems to be the most reasonable (Rn. 12-18) (Lin and Gurol, 1998):

$\begin{array}{ll}\equiv {\text{Fe}}^{\text{III}}-\text{OH}+{\text{H}}_2{\text{O}}_2\leftrightarrows \left({\text{H}}_2{\text{O}}_2\right)\text{s}& \text{(Rn. 12)}\end{array}$

$\begin{array}{ll}\left({\text{H}}_2{\text{O}}_2\right)\text{s}\leftrightarrows (\equiv {\text{Fe}}^{\text{II}•}{\text{O}}_2\text{H})+{\text{H}}_2\text{O}& \text{(Rn. 13)}\end{array}$

$\begin{array}{ll}(\equiv {\text{Fe}}^{\text{II}•}{\text{O}}_2\text{H})\to \equiv {\text{Fe}}^{\text{II}}+{\text{HO}}_2^{•}& \text{(Rn. 14)}\end{array}$

$\begin{array}{ll}{\text{HO}}_2^{•}\leftrightarrows {\text{H}}^{+}+{\text{O}}_2^{•-}\text{ pKa}=4.85\pm 0.1& \text{(Rn. 15)}\end{array}$

$\begin{array}{ll}\equiv {\text{Fe}}^{\text{III}}-\text{OH}+{\text{HO}}_2^{•}/{\text{O}}_2^{•-}\to \equiv {\text{Fe}}^{\text{II}}+{\text{H}}_2\text{O}/{\text{OH}}^{-}+{\text{O}}_2& \text{(Rn. 16)}\end{array}$

$\begin{array}{ll}{}^{•}\text{OH }{}^{+}{\equiv }^{{\text{Fe}}^{\text{II}}}\to {}^{\equiv }{\text{Fe}}^{\text{III}-}\text{OH}& \text{(Rn. 17)}\end{array}$

$\begin{array}{ll}{}^{•}{\text{OH}}^{+}{\left({\text{H}}_2{\text{O}}_2\right)}^{\text{s}}\to {}^{\equiv }{\text{Fe}}^{\text{III}-}{\text{OH}}^{+}{\text{HO}}_2^{•+}{\text{H}}_2^{ \text{O}}& \text{(Rn. 18)}\end{array}$

Besides these reactions, coupling the system with solar irradiation, photocatalysis could occur owing to the narrow bandgaps (2.0–2.3 eV) of iron oxide (Gulshan et al., 2010). The introduction of sunlight to heterogeneous photo-Fenton processes was found to be beneficial compared to UV light sources due to the noticeable decrease in operating expenses and the photolysis of ferric complexes, which takes place at wavelengths of approximately 600 nm and provides the catalytic medium with a higher number of ^•OH radicals (Hamd and Dutta, 2020).

4 Application of AOPs for Degradation of Microplastics

Among the AOP techniques, heterogeneous photocatalysis and photo-Fenton process proved to be an efficient means for the removal of MPs present in water. Photocatalytic water treatment has already reached the stage of the industrial pilot. Although the efficacy of the photocatalytic process has been well established in families of very different organic compounds such as dyes (Guillard et al., 2003; Saggioro et al., 2015; Berkani et al., 2020), pesticides (Herrmann and Guillard, 2000; Kaur and Kaur, 2021), saturated/unsaturated hydrocarbons (Herrmann, 1999; Ul haq et al., 2020), and phenols (Liao et al., 2009; Wang et al., 2009; Mozia et al., 2012; Mohamed et al., 2020), the application of photocatalysis for the treatment of micro- and nano-plastics has been attempted for just a few years. For instance, Tian et al. (2019) conducted a photocatalytic degradation of polystyrene (PS) nanoplastics in water and air mediums under a 254-nm irradiation source utilizing (Hartmann et al., 2019) C radioisotope tracer technology (Tian et al., 2019). PS nanoplastics mineralized more readily in water (17.1 ± 0.55%) than in air (6.17 ± 0.1%), proving the importance of the aqueous medium in improving the photo-transformation of the PS nanoplastics. Recently, Nabi et al. (2020) carried out a photocatalytic degradation of PS microspheres in addition to polyethylene (PE), over TiO₂ nanoparticle films under an ultraviolet irradiation source (Nabi et al., 2020). After 12 h, a TiO₂ nanoparticle film produced with Triton X-100 demonstrated near-complete mineralization (98.40%) of 400-nm PS and a significant photodegradation rate of PE after 36 h, resulting in CO₂.

Li et al. (2020) used a polypyrrole/TiO₂ (PPy/TiO₂) nanocomposite as a photocatalyst to degrade PE plastic under sunlight irradiation (Li et al., 2020). The photocatalyst was synthesized using sol-gel and emulsion polymerization processes. They discovered that exposing PE plastic to solar radiation for 240 h lowered its weight by 35.4% and 54.4% of Mw, respectively. The degradation of PE was attributed to the strong existing interaction between the interface of PE and PPy/TiO₂ photocatalyst as demonstrated by FTIR spectroscopic studies. Ariza-Tarazona et al. (2019) used N-TiO₂ exposed to visible light to photocatalyze the breakdown of genuine samples of HDPE MPs isolated from a commercial facial cleanser (Ariza-Tarazona et al., 2019). The photocatalyst showed a high capacity for mass loss of HDPE MPs in both solid and aqueous environments. It was also demonstrated that the ambient conditions, interactions between pollutants and photocatalyst, and the catalytic surface area should all be properly established or tailored to avoid photocatalyst deactivation. Lee et al. (2020) carried out a photocatalytic degradation of polyamides microfibers PA66 over different TiO₂ doses (Lee et al., 2020). With the employment of 100 mg of TiO₂/L, the degradation efficiency reached its optimum under UVC irradiation, and PA66 microfibers lost 97% of their mass (in 48 h). These photocatalytic conditions produced a modest level of by-products (less than 10 mg/L COD). As a result, photocatalysis using TiO₂ and UVC could be a viable option for treating microfibers in WWTPs. Furthermore, we have recently published in Dutta’s group two interesting papers about the photocatalytic degradation of PE films and PP beads in water flow. In the first work, Tofa et al. (2019) used visible-light-triggered heterogeneous zinc oxide photocatalysts to successfully degrade a 1 cm × 1 cm low-density polyethylene (LDPE) film (Tofa et al., 2019).. The carbonyl index of residues increased by 30%, as did the brittleness, which was accompanied by a high number of wrinkles, cracks, and cavities on the surface. The oxidation degree turned out to be directly proportional to the catalytic surface area. In another work, Uheida et al. (2020) suggested a unique MPs removal approach that uses coated glass fiber substrates with ZnO photocatalyst to trap low-density polypropylene (PP) (Uheida et al., 2020). Irradiating PP MPs for 2 weeks with visible light resulted in a 65% reduction in mean particle volume. GC/MS was used to identify the primary photodegradation by-products, which were determined to be predominantly harmless compounds. Finally, Colburn et al. (2020) suggested a new idea for MPs removal by introducing beforehand a 2 wt% catalyst anatase TiO₂ to the HDPE or LDPE films during their synthesis (Colburn et al., 2020). Photo degradation under ambient conditions and solar irradiations could be a scalable and cost-effective defense strategy against plastic litter. A summary of some appealing works published in the last two decades is chronologically presented in Table 1.

TABLE 1

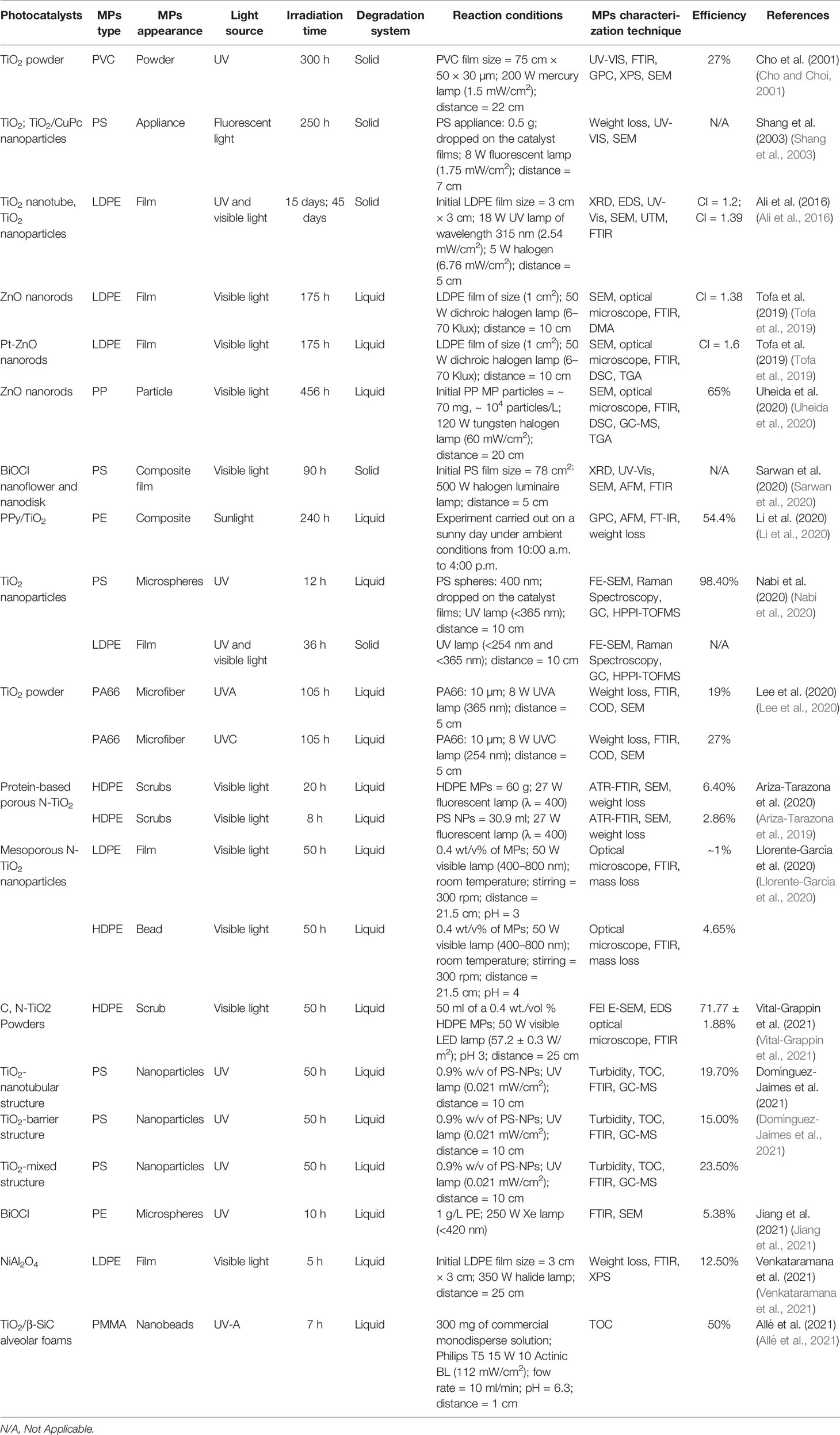

Table 1 Main studies of MPs’ photocatalysis.

On the other hand, Fenton’s reagent method also has a very positive influence on the treatment process, especially for non-degradable organic pollutants. Fenton’s reagent removes or degrades a wide variety of contaminants in an aqueous solution either alone or in combination with other processes. Fenton process was successfully used in textile (Arslan-Alaton et al., 2007; Liu et al., 2007; Nadeem et al., 2020), pharmaceutical (Martínez et al., 2003; Molina et al., 2020), dyeing (Gulkaya et al., 2006; Wang, 2008; Salgado et al., 2020), olive oil mills (Rivas et al., 2001; Beltrán-Heredia et al., 2001; RuÃz-Delgado et al., 2020), oil (Sivagami et al., 2019; Gamaralalage et al., 2019), and cosmetics industries (Bautista et al., 2007; De Andrade et al., 2020), as well as in the reduction of polynuclear aromatic hydrocarbons (Beltrán et al., 1998; Singa et al., 2021), the treatment of brines (Rivas et al., 2003), the degradation of phenol and bisphenols (Carriazo et al., 2005; Zulfiqar et al., 2021), the treatment of effluent from herbicides and pesticides production industry (Sangami and Manu, 2017; Zhao and Zhang, 2021), the treatment of landfill leachates (Tejera et al., 2021; Filho et al., 2021), the degradation of recalcitrant oil spill components anthracene and pyrene (Sekar and DiChristina, 2017; RuÃz-Delgado et al., 2020), the inactivation of Escherichia coli K12 (Rivas et al., 2001), the treatment of recalcitrant industrial wastewater (Cai et al., 2021), and the treatment of high-molecular-weight melanoidin molecules (Raji et al., 2021). More details about Fenton technology for the treatment of recalcitrant organic molecules in several industries can be checked out in our recently published book chapter (Hamd and Dutta, 2020).

In addition, the Fenton process was also used for tackling MPs: After 6 h of potentiostatic electrolysis at −0.7 V vs. Ag/AgCl at 100°C, Miao et al. (2020) demonstrated that an EF-like technique based on TiO₂/C cathode was successfully used to degrade PVC MPs with 56 wt% elimination and 75% dechlorination efficiency (Miao et al., 2020). As a result, this method offers a viable and environmentally benign strategy for the degradation of PVC MPs, with the potential to be extended to additional chlorinated species of plastics such as 2,4-dichlorophenol, PE, PP, and PS. Moreover, Liu et al. (2019) showed a significant fragmentation of PS and PE MPs during the oxidation processes by K₂S₂O₈ and after Fenton treatment (Liu et al., 2019). After 30 days of heat-activated K₂S₂O₈ treatment, the sizes of almost all MPs were decreased from 40–50 μm to <30 μm and 80.1% and 97.4% of PS and PE were below 20 μm, respectively. The fragmentation processes and the degradation rates seemed to differ between PS and PE probably due to the differences in the molecular structure and tensile strength between the two polymers.

Based on the above, heterogeneous photocatalysis was successfully coupled with physical or chemical processes altering the degradation kinetics and/or overall efficiency to promote the global performance of the technology. For instance, when combining heterogeneous photocatalysis with biological treatment, membrane reactor, membrane photoreactor, or physical adsorption, the photocatalytic mechanisms are not affected but the efficiency of the overall process is improved. When heterogeneous photocatalysis is coupled with ultrasonic irradiation, ozonation, electrochemical treatment, or photo-Fenton reaction, the photocatalytic mechanisms are in this case modified, thus improving the efficiency of the process (Augugliaro et al., 2006). Therefore, various researchers have combined the Fenton reactions with photocatalysis to create a novel wastewater treatment approach. Utilizing this strategy, a win–win situation could be attained. This will not only extend the lifetime of produced charge carriers, yet it will also accelerate the Fe³⁺/Fe²⁺ cycle, resulting in increased mineralization of pollutants and a reduction in iron sludge. As an example, Figure 5 depicts a hypothesized CdS/CNT-TiO₂ process for photo-Fenton degradation of methylene blue when exposed to visible light. As seen, the photo-induced electron $\left({\text{e}}_{\text{cb}}^{-}\right)$ generated on TiO₂’s surface can be scavenged by O₂, while the photo-induced hole $\left({\text{h}}_{\text{vb}}^{+}\right)$ reacts with OH⁻ or H₂O. In addition, the adsorbed Fe³⁺ on TiO₂’s surface can be reduced by the transfer of electrons, accelerating the Fe³⁺/Fe²⁺ cycle and impeding the electron–hole recombination. Lastly, the electron transfer between the excited state of the photosensitizer (MB^*) and Fe³⁺ leads to the regeneration of Fe²⁺ ions and therefore increases the kinetic rate of the degradation process (Kim and Kan, 2015).

FIGURE 5

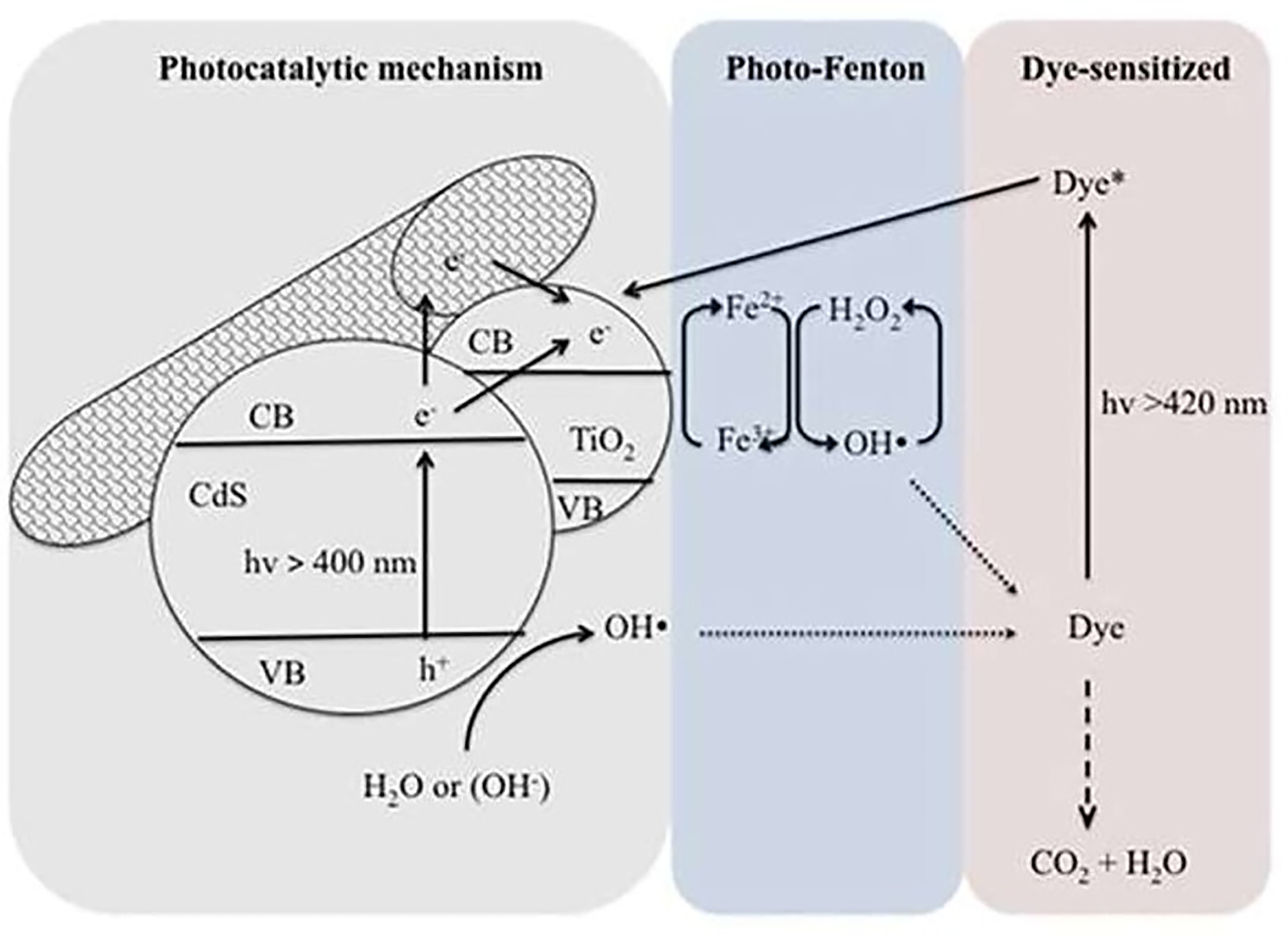

Figure 5 Proposed mechanism of CdS/CNT-TiO₂/photo-Fenton degradation of methylene blue under visible light irradiation. Reproduced with permission (Kim and Kan, 2015).

5 Photocatalytic Mechanism of Microplastics Degradation

The solid-state photocatalytic degradation of polymer started back in 1970, yet the investigations on the removal of MPs in an aqueous environment have recently started and the mechanism is not fully known (Padervand et al., 2020; Xu et al., 2021).

Light absorption, electron–hole separation, and the generation of highly ROS such as ${\text{O}}_2^{·-}{/}^{·}\text{OH}/{\text{HO}}_2^{·}$ are the three main stages in a photocatalysis process. These radicals start the degradation process within the polymeric chain when exposed to light and humidity. The fundamental photocatalytic degradation mechanism of plastic can be classified into four steps: initiation, propagation, branching, and termination (Rabek Jan, 2012).

The initiation step is caused either by the abstraction of hydrogen or by the session of the C–C bond at the impure centers, generating alkyl radicals of MPs. The presence of photocatalyst increases the generation of alkyl radicals using active species. Peroxy-radicals and hydroperoxides are formed during chain propagation. Further oxidation stimulates chain branching and scission with the generation of low-molecular-weight oxygenated compounds like hydroxyl, peroxide, and carbonyl groups leading to micro-cracks within the polymeric surface (Cho and Choi, 2001; Shang et al., 2003; Zhao et al., 2007; Yousif and Haddad, 2013; Ali et al., 2016; Tofa et al., 2019; Miao et al., 2020). The general mechanism of photo-oxidative degradation reactions of MPs is shown in Table 2 below, reproduced with permission from (Singh and Sharma, 2008; Tofa, 2018).

TABLE 2

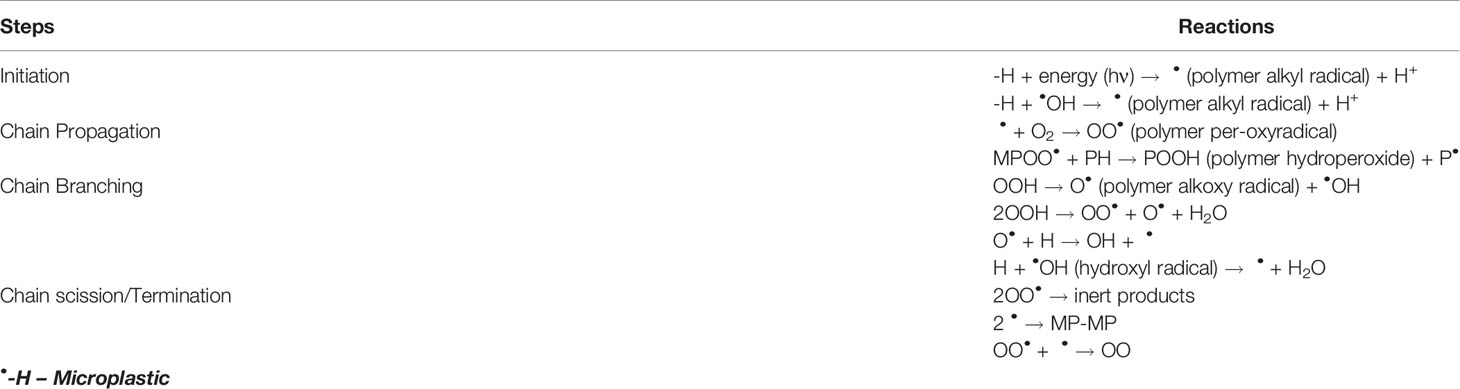

Table 2 The general mechanism of photocatalytic degradation of MPs.

Tofa et al. (2019) (Tofa et al., 2019), Sarwan et al. (2020) (Sarwan et al., 2020), and Cho et al. (2001) (Cho and Choi, 2001) proposed photocatalytic degradation mechanisms of LDPE, PVC, and PS, respectively. LDPE film was exposed to visible light irradiation for 175 h using ZnO and Pt-ZnO as catalysts in the study of Tofa et al. (2019) (Tofa et al., 2019). They observed that alkoxy radicals are the key interim species that produced carboxylic groups like aldehydes, ester, ketones, and carboxylic acids in the photo-oxidation process and found ketone as the key species that undergoes further oxidation and results in complete mineralization, similar to solid-phase LDPE degradation using TiO₂ conducted by Ali et al. (2016) (Ali et al., 2016). The proposed degradation mechanism is adapted with permission from Tofa et al. (2019), and shown in Figure S3A.

The degradation mechanism in Figure S3B of solid-phase PVC was proposed by Cho et al. (2001) (Cho and Choi, 2001). Distinctive wrinkles and cavities occurred on the surface of PVC after 100 h of irradiation using TiO₂ under UV light. It was clear from the weight loss study that photocatalytic degradation was much faster than photolytic degradation. Miao et al. (2020) reported identical reactions when experimented on a liquid-phase condition of PVC (Miao et al., 2020).

Sarwan et al. (2020) conducted photocatalysis of PS film under visible light using Bismuth oxychloride (BiOCl) nanoflower and nanodisk for 90 h in a liquid phase and a mechanism in Figure 6 was proposed (Sarwan et al., 2020). Similar research but in a solid phase was conducted by Shang et al. (2003) on PS plastic under the sunlight with the formation of a small number of by-products. The solid-phase photocatalytic oxidation of PS plastic film was conducted using TiO₂ and TiO₂/CuPc (copper phthalocyanine) powder for 250 h (Shang et al., 2003). They revealed that the degradation kinetics depended on the number of ROS generation.

FIGURE 6

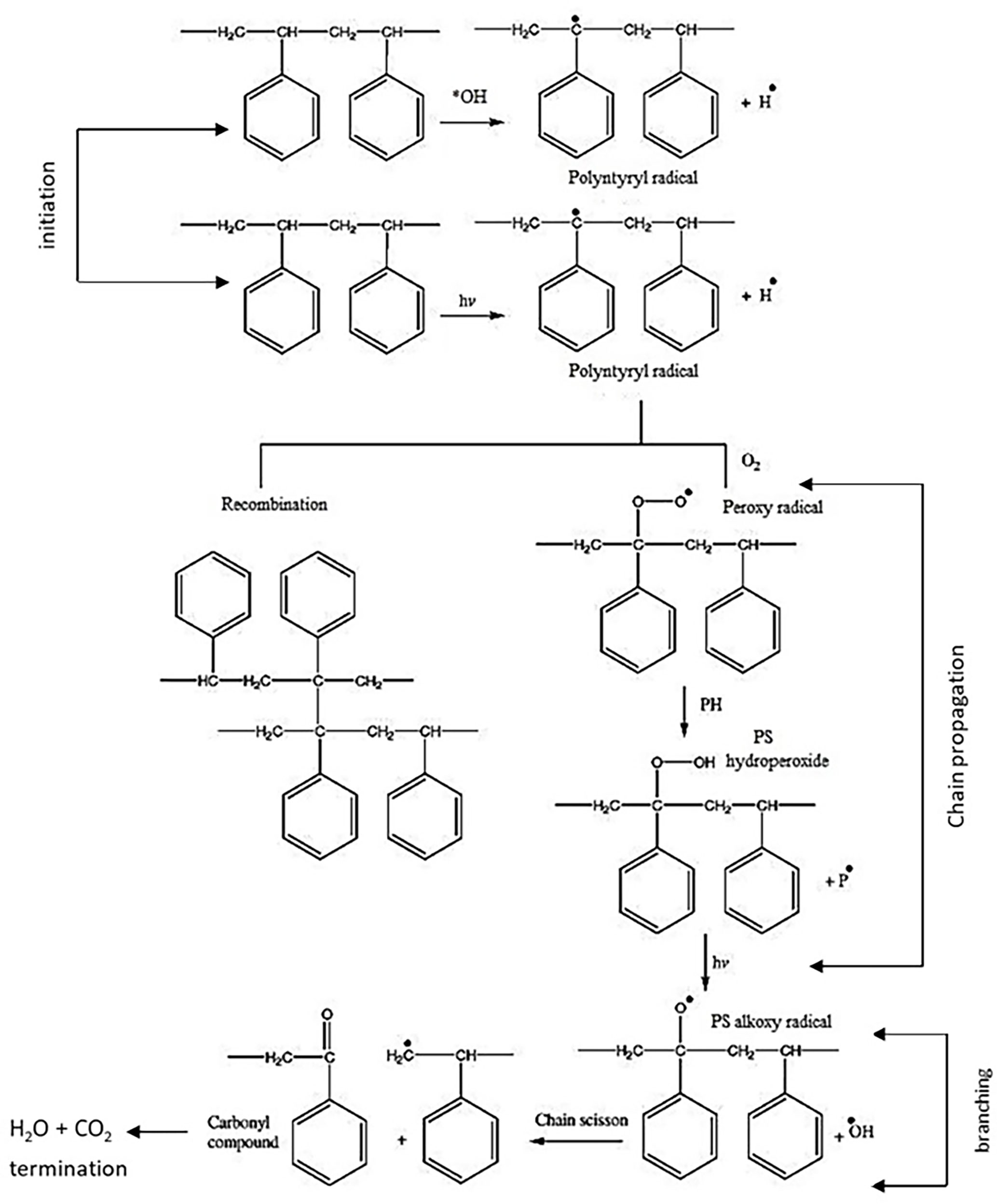

Figure 6 The photocatalytic degradation mechanism of PS film. Reproduced with permission (Yousif and Haddad, 2013).

As discussed above, the photocatalytic degradation of MPs either in the solid phase or in the liquid phase is in good agreement with the basic principles: initiation, chain propagation, branching cross-linking, and session.

6 Characterization Techniques of Microplastics

Various characterization techniques are available for observing the degradability of MPs, which can be broadly classified into elemental, morphological, thermal, mechanical, and chemical analyses (Kumar et al., 2009). Table 3 illustrates the most often accessible options and their applications.

TABLE 3

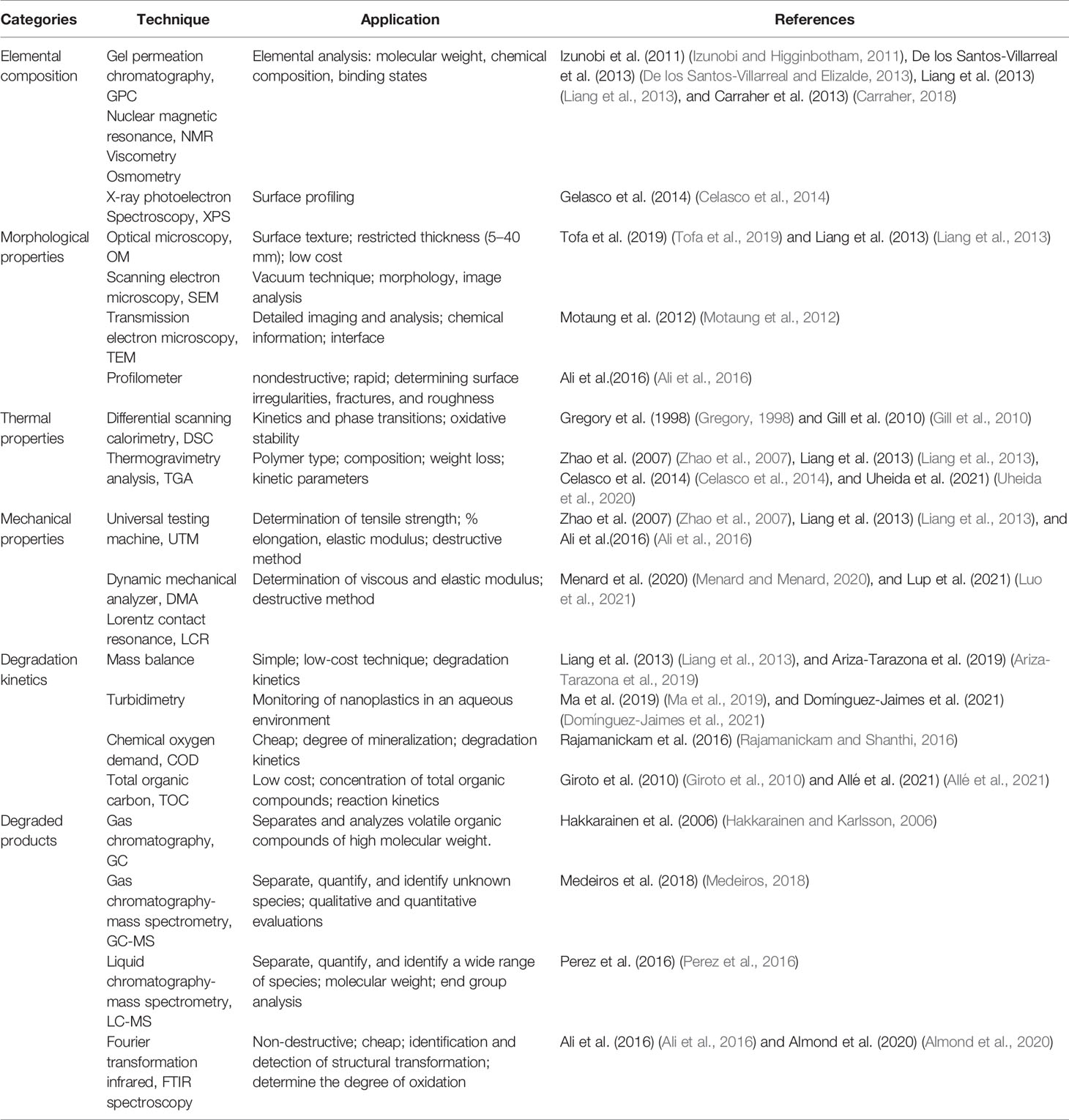

Table 3 General techniques for characterization of MPs.

6.1 Elemental Composition

Elemental composition is an analytic tool for identifying the composition of copolymers, plastic blends, and molecular weight. Each plastic material has a characteristic molecular weight, chemical composition, and binding state that may alter after photocatalytic degradation.

Many studies have determined molecular weight through tools like gel permeation chromatography (GPC), nuclear magnetic resonance (NMR), viscosimetry, and osmometry, which have limited application to only soluble plastics. GPC, also known as size exclusion chromatography, is a fast, efficient, and most commonly used technique that measures a wide range of molecular weight and polydispersity index (De los Santos-Villarreal and Elizalde, 2013). Liang et al. (2013) conducted a high-temperature GPC analysis to determine the fluctuations in the molecular weight of the LDPE film before and after UV irradiation in which the temperature of the GPC injector, column, and the detector was kept at 150°C (Liang et al., 2013). 1,2,4-trichlorobenzene was employed in the mobile phase with an elution rate of 1.00 ml/min. The photo-irradiation of LDPE composites decreased the molecular weight to smaller values due to the production of low-molecular-weight compounds.

NMR spectroscopy is comparatively expensive but accurate, providing information (both qualitative and quantitative) on molecular structure, molecular weights, molecular weight distribution, chain orientation, and molecular motion of any unknown MP that is incomparable to other methods (De los Santos-Villarreal and Elizalde, 2013; Carraher, 2018). In a work carried out by Izunobi and Higginbotham et al. (2011), R-methoxy-ω-aminopolyethylene glycol and R-methoxy-polyethylene glycol-block-poly-ϵ-(benzyloxycarbonyl)-L-lysine were dissolved in N-deuterated dimethyl sulfoxide (DMSO-d6); the solution was observed on a spectrometer (499.8 MHz) at 60°C to obtain NMR spectra (Izunobi and Higginbotham, 2011). They mentioned the inability of determining weight-average molecular weight (M_w) unlike the GPC method; therefore, its potential in molecular weight determination is not appreciated.

In contrast, osmometry and viscosimetry are relatively cheaper, less efficient, and suitable for MPs having high- and low-molecular-weight determination, respectively (De los Santos-Villarreal and Elizalde, 2013; Carraher, 2018).

Tools like x-ray photoelectron spectroscopy (XPS) has a broad application in detecting relative composition, depth profiling, and chemical state from the surface of MPs. Such a system is expensive, requires high vacuum conditions, and provides only surface information. Yet, XPS provides straightforward and non-destructive surface characterization information of chemical bonding, and the total elemental composition of any MP. Each element demonstrates characteristic peaks and relative abundance when exposed to x-rays (Andrade, 1985). Celasco et al. (2014) used XPS for measuring surface texture and copolymer thickness in polyethylene glycol (PEG) nanocapsules prepared by solvent displacement method (Celasco et al., 2014). Miao et al. (2020) analyzed the elemental composition of PVC MPs before and after electrocatalytic oxidation using high-resolution XPS (Miao et al., 2020). The PVC surface morphology transformed significantly as identified by the change in the number of C, O, and Cl atoms.

6.2 Surface Morphology

The photodegradation of MPs generally starts at the external bulk surface and gradually goes deep (Tofa et al., 2019). Therefore, it is of immense importance to investigate the surface condition to understand the effects of degradation on the mechanical and physical properties of MPs. There are numerous techniques and tools for a surface analysis whose usability depends on different purposes. Here, we discuss a few conventional optical techniques and their serviceability in characterizing synthetic plastic materials.

A simple optical microscope has been a common technique to study the surface topography of a bulk structure in a reflected light mode. Tofa et al. (2019) (Tofa et al., 2019), Llorente-García et al. (2020) (Llorente-García et al., 2020), Uheida et al. (2020) (Uheida et al., 2020), and Vital-Grappin et al. (2021) (Vital-Grappin et al., 2021) used optical microscopes to observe the surface texture after the exposure. An optical microscope has underlying limitations of high magnification and restricted sample thickness between 5 and 40 mm. Digital imaging with scanning electron microscopy (SEM), transmission electron microscopy (TEM), and scanning probe microscopies are often used for image analysis and image processing (Galloway et al., 2002; Bonnet, 2004).

SEM offers both higher focus and larger depth of field and is a widely applicable technique for determining surface morphology, texture, and composition. A focused beam containing electrons is exerted to reach nano-scale imaging. MPs’ surfaces must be coated with conductive materials to obtain any acceptable image (Carraher, 2018). SEM has been used to determine wrinkles, cracks, and cavities of varying sizes on commercial grade LDPE films as a result of photo-oxidation (Tofa et al., 2019). Liang et al. (2013) used SEM to display surface morphology and the chalking phenomenon of LDPE composite films after UV irradiation for 230 h (Liang et al., 2013). The image analysis found 1- to 2-µm-wide and 0.5- to 1-mm-deep cavities all over the LDPE/TiO₂ and LDPE/MPS-TiO₂ film surfaces.

Another useful, versatile, and high-resolution microscopy technique for different imaging competencies is TEM. It enables observing detailed structural information at an atomic level; magnifications may reach up to one million under good conditions. Images are usually detailed, offer bright field and dark field, and can capture chemical information of the sample. The imaging and the analytical capabilities improve when coupled with a spectrometer (Burge et al., 1982; Bonnet, 2004; Carraher, 2018). In a study by Motaung et al. (2012), TEM was used for imaging the TiO₂-polymethylmethacrylate (TiO_2-PMMA) nanocomposites (Motaung et al., 2012).

6.3 Thermal Properties

Common instrumentation for monitoring thermal properties includes thermo-gravimetric analysis (TGA) and differential scanning calorimetry (DSC). DSC is a commonly used thermal analysis that is applied to determine the melting point, heat of fusion, crystallinity percentage, crystallization kinetics, phase transitions, and oxidative stability. The heat absorbed or radiated by any MP as a function of temperature against time is measured with DSC (Gill et al., 2010). The thermal analysis provides phase transition information, e.g., melting and glass-to-rubber transition to the crystalline and amorphous phases, respectively (Aguilar-Vega, 2013). Uheida et al. (2020) carried out DSC measurements on visible light-exposed PP MPs irradiated at different lengths to investigate the change in the crystallization behavior (Uheida et al., 2020). They observed a shift in the melting point to lower temperatures due to the degradation of the polymeric chain.

While DSC measures the heat quantity, TGA measures the rate of change of weight as a function of temperature in a controlled environment. It has a wide application in determining the thermal and oxidative stabilities, and in the identification and composition of plastic material. Many studies have used TGA to confirm the change in the thermal properties and determined kinetic parameters after photocatalytic degradation of MPs by monitoring the weight loss (Liang et al., 2013; Uheida et al., 2020; Zhao and Zhang, 2021).

6.4 Mechanical Properties

Tensile tests are used to determine nominal tensile strength, elongation, and elastic modulus (Aguilar-Vega, 2013). Usually, tensile testing, a destructive method, is conducted following ASTM 882-85, the universal testing machine (UTM). Analysis of several studies shows that photocatalytic degradation has an adverse effect on the tensile strength of films. The samples become brittle and fragile. Also, percent elongation decreases as carbonyl group formation increases (Zhao et al., 2007; Liang et al., 2013; Ali et al., 2016).

A dynamic mechanical analyzer (DMA) is extensively used for measuring viscoelastic properties of MPs at a molecular level where a minor deformation is applied to a given sample. This permits the materials to undergo cyclic loading, which causes both elastic and viscous deformation. The amorphous and crystalline parts of the material cause elastic component deformation, while the viscous part is induced by the movement of polymer segments (Menard and Menard, 2020). In the work of Tofa et al. (2019) photo-irradiated LDPE films were exposed to a DMA that resulted in the strain as a function of temperature at a frequency of 1 Hz (Tofa et al., 2019). The result elucidated the loss of elasticity after photocatalytic activities due to chain scission of LDPE films.

Recently, Luo et al. (2021) used a Lorentz contact resonance (LCR) technique for determining the viscoelastic properties of nanoscale TiO₂-coated MPs by measuring the contact stiffness between the AFM probes and MPs (Luo et al., 2021). It provides a high-resolution map of different phases on extremely thin films. A greater frequency was associated with a stiffer MPs material, while a lower frequency was associated with a smoother material. The MPs became stiffer with increasing irradiation, forming wrinkles, cracks, and fragmentation.

6.5 Kinetic Degradation of Microplastics

The determination of kinetics is of immense importance to understanding the degradation mechanism and predicting the stability and life span. Here, we discuss a few simple techniques for determining the degradation kinetics of MPs.

The utilization of weighing balance is a simple, low-cost technique to study weight loss during photocatalytic degradation (Liang et al., 2013; Ali et al., 2016; Ariza-Tarazona et al., 2019). For Lee et al. (2020), weight loss was determined to evaluate the photocatalytic degradation kinetics of the PA66 microfibers using different doses of TiO₂ and by changing UV wavelength (Lee et al., 2020). It was elucidated that the shorter UV wavelengths were more efficient in damaging PA66 microfibers in comparison with the longer ones. They discovered that the initial kinetic rate is precisely proportional to the catalyst dose.

Turbidity is a measure of the degree of losing transparency due to the presence of suspended particulates in the water. A turbidimeter, a cheap, widely used tool for monitoring drinking water quality, measures this haziness in water (Gregory, 1998). Ma et al. (2019) used a turbidimeter to observe the elimination of PE using coagulant AlCl₃.6H₂O and FeCl₃.6H₂O at different doses. Under low pH, a 5 mM dose AlCl₃.6H₂O ensured higher removal efficiency of PE particles (Ma et al., 2019). A pseudo-first-order kinetics of PS after in an aqueous environment was calculated using turbidity data (Domínguez-Jaimes et al., 2021).

Chemical oxygen demand (COD) in addition to total organic carbon (TOC) could be employed to evaluate the mineralization of MPs. COD is a measure of the requirement of oxygen for the oxidation of both organic and inorganic matters present in water, by a strong chemical oxidant. COD can evaluate the degree of mineralization that had generated during the photocatalytic process of MPs (Rajamanickam and Shanthi, 2016; Lee et al., 2020). On the other side, TOC has been in practice for exploring the concentration of total organic compounds (TOCs) in aqueous solution before and after photooxidative degradation (Giroto et al., 2010). For instance, polymethylmethacrylate and PS nanobead solutions were degraded using UV irradiation of TiO₂/β−SiC alveolar foams, wherein reaction kinetics and TOC value were found to increase with the shorter wavelength. The TOC value ensures the breakdown of PS MP in suspension (Allé et al., 2021). Another research group used a TOC analyzer to investigate the degree of mineralization of PVC as a function of temperature using an electro-Fenton technology. Under the electrocatalysis process combined with high temperature (100°C), TOC can greatly increase. They also suggested that TOC values can be relied on reflecting the decomposition of PVC MPs (Miao et al., 2020).

6.6 Characterization Techniques for Produced By-Products

GC, GC-MS, and FTIR are the most commonly used tools for assessing MP degradation and by-products. The chromatograph is a destructive technique. In contrast, FTIR is a non-invasive method to identify and characterize transformation in chemical structure.

GC is the most popular analytical tool for monitoring by-products after degradation. GC is not suitable for the analysis of organic compounds having high molecular weight or low vaporization temperatures (Hakkarainen and Karlsson, 2006). Zhao et al. (2007) utilized GC to determine the concentration of CO₂ and volatile organics generated during photocatalytic degradation of PE under solar and UV light. They proposed that CO₂ is the key element produced from the photocatalytic degradation of PE plastic (Zhao et al., 2007). Other volatile organics like methane, ethene, ethane, propane, acetaldehyde, formaldehyde, and acetone were also detected, albeit of a lesser amount. GC was also used to study the photocatalytic degradation of PS plastic exposed to fluorescent light, and generation of volatile organic compounds followed by CO₂ evolution was confirmed (Shang et al., 2003).

Polymer degradation constituents have been investigated by many scientists using GC-MS (Barlow et al., 1961). It permits both qualitative and quantitative evaluations (Medeiros, 2018). GC-MS analyzed obtained by-products from photocatalytic degradation of PP MPs over ZnO nanorods. It has been found that ethynyloxy/acetyl radicals, hydroxypropyl, butyraldehyde, acetone, propenal, and the pentyl group are the most abundant degraded by-products (Uheida et al., 2020). During the investigation of degraded species after oxidation of PVC MPs via an electro-Fenton system, short-chained organics like alkenes, alcohols, monocarboxylic acids, dicarboxylic acids, and esters were detected (Miao et al., 2020).

LC-MS is a highly sensitive tool, mostly suitable for MP identification, sensing lower volatile compounds of high polarity, determining molecular weight, and conducting end group analysis of polymers. Sample preparation is comparatively easy, and it has the ability to recognize and measure a wider range of compounds (Perez et al., 2016). Tapia et al. (2019) recently used LC-MS and developed a method for identifying the degradation compounds of a cross-linked polyester for biomedical relevance (Tapia et al., 2019). They used both LC-MS and LC-MS/MS for characterizing structural isomers and their corresponding structures.

ATR-FTIR spectroscopy is a widely used non-destructive technology for measuring infrared spectra for a variety of materials, especially for indicating the structural transformation in MP structure after degradation. This is an inexpensive, sensitive, and time-saving analytical method that provides an indirect result of the extent of oxidation of polymeric materials. The functional group within polymeric compounds vibrates at its own characteristic frequency due to the absorption of IR light. FTIR spectroscopy is applicable for the identification and detection of structural transformation in plastic materials (Tofa et al., 2019; Almond et al., 2020). Numerous studies on chemical transformation within polymeric chains using FTIR have been reported (Cho and Choi, 2001; Shang et al., 2003; Tofa et al., 2019).

7 Scaling-Up of the Photocatalytic Reactors

While the coupling of AOP technologies is very beneficial to increasing the photocatalytic activity of the process, the performance of photoreactors remains dependent on several factors such as (i) the operational mode; (ii) the several phases that exist in the reactor; (iii) the hydrodynamics; and (iv) the reacting mixture’s composition and operating conditions. Because photocatalytic oxidation reactions are caused by absorbed photons with adequate energy values by the SC particles, the photoreactor and radiation sources are the most important components of a photocatalytic/Fenton process (Sacco et al., 2020).

Dedicated photocatalytic reactors for water treatment can fall into two categories: (1) reactors with photocatalyst deployed as suspended particles requiring a supplementary downstream separation unit for photocatalyst recovery, and (2) reactors with a supported photocatalyst, which allows continuous operation (Pozzo et al., 2000; Chong et al., 2010). Although both configurations can be used to treat wastewater streams, when designing field-scale photoreactors, several parameters must be considered, including pollutant concentration (COD initial load), flow type and rates, light intensity, solar irradiation area, dissolved oxygen concentration in water in a state of equilibrium with the atmospheric air (Gutierrez-Mata et al., 2017), and the electrical energy per order EE/O (given in kWh in European countries) necessary to eliminate a contaminant by one order of magnitude (90%) in 1 m³ of polluted water (Bolton et al., 2001; Vaiano et al., 2019). The composition and concentration of real wastewater effluents, as well as fluctuations in the photonic solar flux throughout the degradation process, make field-scale reactors a highly difficult challenge (Gutierrez-Mata et al., 2017). Due to the difficulties in controlling all the parameters cited above, for the scale-up of a photoreactor, often mathematical models are prepared including several sub-models (Cassano et al., 1995; Fagan et al., 2016) such as the radiation emission model, the radiation absorption-scattering model, the kinetic model, and the fluid-dynamic model (Cassano and Alfano, 2000). Such interconnected sub-models produce a complicated scheme of integral–differential equations that necessitate numerical solutions (Alvarado-Rolon et al., 2018). The local volumetric rate energy absorption (LVREA), which is termed as the energy attributable to the absorbed photons/(time and volume) inside the photoreactor, is a function of the photocatalytic reaction rate. This energy (LVREA) is highly reliant on the analytical solution of the radiation transfer equation (RTE), which is linked to the categories of lights and reactor geometry (Satuf et al., 2007).

Numerical computing approaches such as the statistical Monte Carlo method (MC) or analytical simplified methods such as the two-flux model (TFM) and the six-flux model (SFM) can also be used (Kim and Kan, 2015). MC, however, needs large computational processors, and TFM and SFM are limited to flat slab geometries (Li Puma, 2005; Moreira et al., 2010). CFD models were developed for scaling-up of dedicated photoreactors for wastewater treatment taking into account model pollutants, such as oxalic acid (Denny et al., 2009), phenol (Jamali et al., 2013), poly(vinyl alcohol) (Ghafoori et al., 2014), tributyl phosphate (TBP), tri (2-chloroethyl) phosphate (TCEP) (Moghaddami and Raisee, 2012), rhodamine B (Kumar and Bansal, 2013), methylene blue (Vaiano et al., 2015a), and emerging contaminants such as atrazine (Bagheri and Mohseni, 2015).

8 Selection of Reactor Design for Up-Scaling

Before deciding to scale up a photoreactor, the performance of each configuration should be first established. As a result, photoreactor energy efficiency is measured by the quantum yield, which is the ratio of reaction rate over the light absorption rate (Kim and Kan, 2015). The quantum yield is then transformed into a photochemical thermodynamic efficiency factor, which is denoted by (Serrano and De Lasa, 1997):

$\begin{array}{ll}\eta =\frac{Q_{used}}{Q_{absorbed}}=\frac{r_{OH \times \text{Δ}{H}_{OH }\times W}}{Q_{absorbed}}& (1)\end{array}$

Where r_OH is the rate of OH radical formation (mol/g of catalyst), ΔH_OH is the enthalpy of OH radical formation (J/mol), and W is the mass of catalyst (g). The energy efficiency factors cannot be employed for the specified reactor performance comparison because the treated volume and reactor footprint parameters are not integrated into the above equation (Gaya and Abdullah, 2008). Consequently, figures of merit in terms of collector area per mass (A_CM), which is the required collector area required to degrade 1 kg of pollutant in 1 h following a solar radiation of 1000 W/m² intensity, and collector area per order (A_CO), which is the required collector area to reduce the pollutant concentration in 1 m³ by one order of magnitude (Bolton et al., 2001), were suggested for comparison of advanced oxidation technology (AOT) reactors of various configurations, as shown in the following equation (Bandala and Estrada, 2007; Rao et al., 2012):

$\begin{array}{ll}{A}_{CM}=\frac{A_r\times {\overline{E}}_s\times t\times 1000}{M\times V_t\times E_s^0\times t_0\left(C_i-C_f\right)}& (2)\end{array}$

$\begin{array}{ll}{A}_{CO}=\frac{A_r\times {\overline{E}}_s\times t}{V_t\times E_s^0\times t_0\times log\frac{C_i}{C_f}}& (3)\end{array}$

where A_CM and A_CO are in m²/kg and m²/m³ order, respectively, A_r is the actual reactor area (m²), t and t₀ are irradiance and reference time (h), ${\overline{E}}_s$ and $E_s^0$ are the average solar irradiance and reference solar irradiance (W/m²), V_t is the treated volume (L), M is the molar mass (g/mol), and C_i and C_f are the initial and final pollutant molar concentrations, respectively. Therefore, the geometry of photocatalytic reactors would be preferably selected in such a way that the emitted irradiations are collected in maximum values.

9 Photocatalytic Reactor: Configuration and Commercialization

Photochemical systems in addition to reactors have adopted conventional solar thermal collector designs, including parabolic troughs and non-concentrating collectors because the required hardware for solar photocatalysis is quite comparable to that required for thermal applications (Goswami, 1997). However, it should be noted that contrary to solar thermal processes, solar photochemical processes utilize solely high energy with short-wavelength photons. For instance, a TiO₂ photocatalyst operates under UV or near-UV sunlight (300 to 400 nm), and a photo-Fenton heterogeneous photocatalyst operates within sunlight wavelength radiation below 580 nm.

The prime benefits and shortcomings of concentrating and non-concentrating collectors for solar photocatalytic applications are as listed in Table 4 (Malato et al., 2007).

TABLE 4

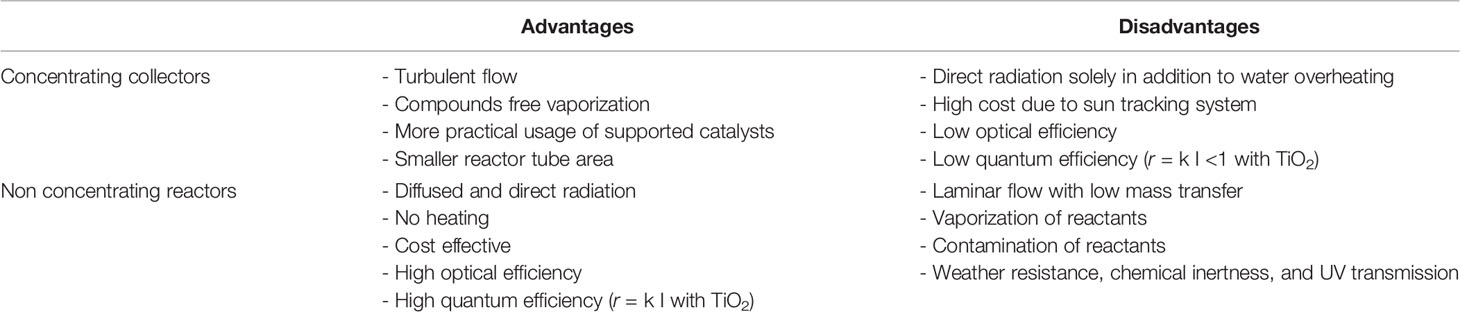

Table 4 Comparisons between parabolic and non-concentrating solar photoreactors.

Quantitative comparisons of photoreactor designs are quite challenging due to the broad diversity of photoreactor designs, operating conditions, photocatalyst design and preparation, changes in solar intensity, and kinds of pollutants. As a result, the comparisons are primarily qualitative and centered on the practical aspects of each design (Braham and Harris, 2009).

9.1 Parabolic Trough Reactors

A parabolic trough reactor (PTR) focuses solar energy on a transparent tube located along the parabolic focal line and whereby the reactant fluid flows using a long, reflective parabolic surface (see Figure 7). Concentration factors of 5 to 30 suns are commonly utilized for photocatalytic applications, while a concentration factor of 70 suns has been observed utilizing a parabolic dish reflector (Alfano et al., 2000; Malato et al., 2002; Oyama et al., 2004).

FIGURE 7

Figure 7 Parabolic troughs reactor types with (A) single and (B) double axis solar tracking. Reproduced with permission (Malato et al., 2007).

Increasing the intensity of the incoming light allows the use of a reduced quantity of photocatalyst leading to a reduction of the operating costs, as well as simplified catalyst separation and recycling (Goswami et al., 2004). This also enables the use of a smaller diameter absorber tube, allowing for higher operational pressures, which is beneficial in industrial-scale plants where hundreds of meters of absorber tubing and associated components can result in considerable pressure losses (Alfano et al., 2000).

PTR configuration was applied in Sandia National Laboratory, New Mexico (SNL) for the treatment of 1,100 L of polluted water by salicylic acid using TiO₂ slurry. The employed PTR was 218 m long and 2.1 m wide, with a 38-mm-diameter borosilicate glass pipe. With a total aperture size of 465 m² and a concentrating ratio of 50, the device was able to achieve 96% degradation in just 40 min. The same system was used for treating other molecules such as trichloroethylene, tetrachloroethylene, chloroform, trichloroethane, carbon tetrachloride, and methylene chloride (Prairie et al., 1991). CIEMAT71, a Spanish corporation, and an American partnership consisting of the National Renewable Energy Laboratory (NREL), Lawrence Livermore National Laboratory (LLNL), and Sandia National Laboratories (SNL) built similar systems (Mehos et al., 1992). The CIEMAT development consisted of 12 “Helioman” units that were placed in sequence at the Plataforma Solar de Almeria (PSA) in Spain. Four parabolic trough aluminized reflectors with an overall collection area of 29.2 m² and two-axis tracking constituted each Helioman. The concentration factor of this configuration is approximately 6 suns, and the photonic efficiency (expressed as moles of degraded contaminant per incident mole of photons inside the reactor) was registered as ∼1% (Malato et al., 2002). This PTR configuration turned out to be efficient for the photocatalytic degradation of pentachlorophenol (Minero et al., 1993), oxalic acid (Bandala et al., 2004), and 2,4-chlorophenol (Malato et al., 1997) contaminants in water. In addition, for the treatment of trichloroethylene by a suspended photocatalyst supplied at 0.8 g/L, the NREL consortium used single-axis tracking PTRs stacked in series over two drive trains with a collection area of 78 m² each and a concentration factor of ∼20 suns (Mehos et al., 1992). A significant decrease in trichloroethylene concentration in contaminated groundwater beneath the level considered drinkable (from 106 ppb to <0.5 ppb) was observed in this installation.

However, there are various drawbacks associated with the use of PTR reactors. PTR can only collect and benefit from direct sunlight, which reduces the overall quantity of collectible solar radiation and makes the use of a solar tracking system inevitable, making their use quite expensive and inefficient on cloudy days. Overheating of the reaction solution is another key flaw of PTR (Blanco-Galvez et al., 2007). While heating the reaction fluid is normally good for enhancing the reaction rate (Falconer and Magrini-Bair, 1998), it may become unpleasant at higher concentration factors because of the possible formation of unwanted products through direct photolysis. Overheating can also lead to leaks and corrosion (Adesina, 2004), and can affect treatment efficiency. Moreover, an increase in the temperature leads to a decrease in the solubility of oxygen in the water and therefore bubble generation. Because O₂ is required for reaction completion (Prairie et al., 1991), the endless contribution of oxygen to the reaction or addition of scavengers such as hydrogen peroxide/sodium persulfate becomes essential for the process (Minero et al., 1993), which will complicate the water purification procedure and deteriorate its practicality. Because of the elevated operation cost related to water cooling, the existence of moving parts, and solar tracking devices, PTRs are not generally considered for scaling-up and commercialization.

Finally, the National Solar Thermal Test Facility at Sandia Laboratories in Albuquerque, New Mexico (USA) constructed the first outdoor engineering-scale reactor in 1989 (Figure 7, left), and the PSA in 1990 designed and built the very first PTC engineering scaled-up solar photochemical facility designated for the detoxification of water in Europe (Figure 7, right) (Minero et al., 1993; Malato et al., 2007).

9.2 Compound Parabolic Concentrator

The reflector geometry in CPC grants reflection of indirect light onto the absorber tube surface leading to an increase in the total quantity of photons and allowing the photoreactor to operate on overcast days when direct beams are unavailable (Bockelmann et al., 1995). As a result, by employing a CPC setup, many of the issues related to PTR could be avoided. Therefore, according to the following equation, the concentration factor and the acceptance angle of a CPC are directly associated:

$\begin{array}{ll}{C}_{CPC}=\frac{1}{\text{sin}{\theta }_a}=\frac{a}{2\pi r}& (4)\end{array}$

where C_CPC is the concentration factor, θ_a is the acceptance half-angle, α is the width of the reflector aperture, and r is the radius of the absorber tube. As a result, a CPC with a concentration factor equal to 1 sun (no concentration) will possess an acceptance half-angle equal to ~90°C, which means that all received light beams by the aperture (direct and diffuse) would be reflected in the absorber tube. The enhancement in the CPC performance over that of the PTRs was shown to range between 30% and 200% (Parra et al., 2001; McLoughlin et al., 2004a) owing to the ability of CPCs to harvest diffused beams and to usethem more efficiently (as a consequence of homogeneously illuminating the absorber tube) (McLoughlin et al., 2004b; Malato et al., 2007). Likewise, no sun tracking technology is required, decreasing the system’s complexity and cost dramatically.

However, CPC reactors use a greater quantity of catalyst and wide absorber tubes compared to PTRs, making it necessary to work at low operating pressures (Fernández et al., 2005; Tanveer and Tezcanli Guyer, 2013). A schematic illustration and photo of a compound parabolic collector (CPC) are shown in Figure 8 (Fendrich et al., 2018).

FIGURE 8

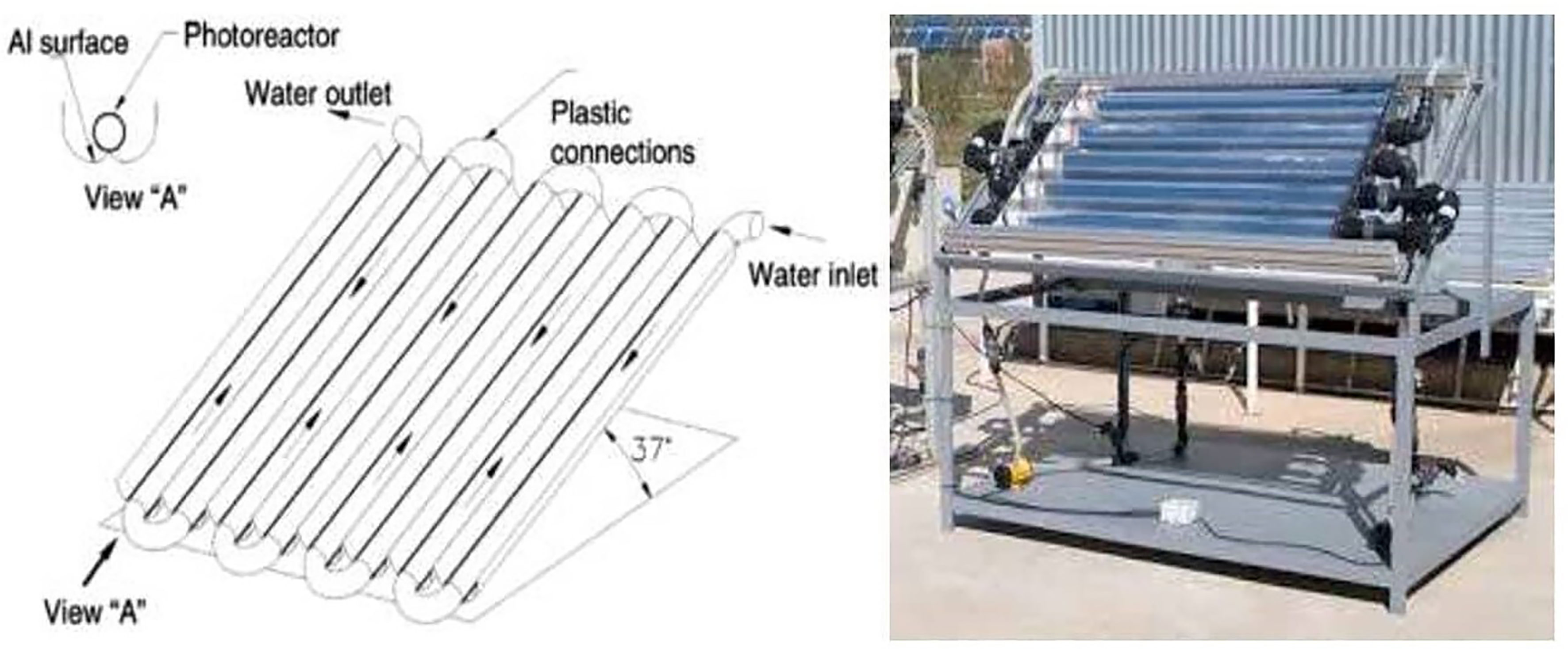

Figure 8 Schematic drawing and picture of a compound parabolic collector (CPC). Reproduced with permission (Fendrich et al., 2018).

The CPC design was employed in several pilot-scale assemblies. The PSA in Spain built a modular array of six CPC modules for the degradation of dichlorophenol solutions with a maximum concentration of 200 mg/L. Not more than 100 min was enough to remove the pollutant when using an overall collection area equal to 8.9 m (2216). Such CPC configurations were effectively employed for the degradation of a wide spectrum of water contaminants, such as bacteria (Fernández et al., 2005) pharmaceuticals (Augugliaro et al., 2005), municipal wastewater (Kositzi et al., 2004), pesticides (Oller et al., 2006), and other resistant compounds (Sarria et al., 2004).

A non-concentrating CPC design using suspended photocatalytic technology was also developed in the European “Solardetox” project for the treatment of commercial wastewater by building a modular system having each module made up of 16 parallel, 1.5-m tubes backed by CPC reflectors (Blanco et al., 1999; Malato et al., 2002). A full-size demo plant was built in HIDROCEN, Madrid (Blanco-Galvez et al., 2007). In a recirculating batch mode, the facility is completely automated and capable of treating 1,000 L of persistent non-biodegradable chlorinated industrial water pollutants. The plant has an overall aperture area of 100 m² and is made up of two rows of 21 CPC collectors connected in series (each one is 1.5 m × 1.5 m and contains 16 parallel glass tubes with an inner diameter of 29.2 mm) (Blanco et al., 1999). Similar collectors were utilized for treating paper mill effluents in Brazil and Germany (Machado et al., 2003; Sattler et al., 2004; Eduardo da Hora Machado et al., 2004) and paper mill effluents (Amat et al., 2005), surfactants (Amat et al., 2004), and textile dyes (Prieto et al., 2005) in Spain.

A new CPC-based plant was constructed in 2004 to treat pesticides remaining in water after the recycling of plastics. Recycling of plastic containers was followed by industrial cleansing of the shredded plastic, resulting in water polluted with very harmful persistent chemicals (pesticides). In a batch process, this photo-Fenton-based treatment was able to mineralize up to 80% of the TOC in the washing water (Fallmann et al., 1999; Sagawe et al., 2001; Rossetti et al., 2004). Photocatalysis mineralizes approximately 95% of the pollutants, while the activated carbon filter eliminates the remaining 5%. The plant includes four parallel rows consisting of 14 photocatalytic reactor modules built with 20 tubes/module, 2.7 m²/module, and installed on a 37°C inclined platform, based on CPC solar collectors (local latitude). The overall collector surface area is 150 m², and the combined volume of the photoreactor is 1,061 L (Blanco-Galvez et al., 2007).

In 2006, a new initiative was taken by effectively treating saline industrial wastewater with approximately 0.6 g/L of non-biodegradable α-methylphenylglycine (MPG) and 0.4–0.6 g/L TOC utilizing a combination of solar photo-Fenton and aerobic biological processes. It was made up of a solar CPCs photo-Fenton reactor (100 m²) and an aerobic biological treatment plant with a 1-m³ capacity fixed biomass activated sludge reactor. The combined system reached approximately 95% mineralization, wherein the photo-Fenton pre-treatment degraded 50% of the initial TOC, and the aerobic biological treatment eliminated 45% (Malato et al., 2007).

Zapata et al. (2010) established an approach for the development of a large-scale combination of solar photo-Fenton and aerobic biological systems for the remediation of commercially available pesticides using CPC reactors (Zapata et al., 2010). The industrial plant was made of a scaled-up biological treatment plant mainly consisting of two 1,230-L IBRs, a total collector with a 150-m² surface, and an overall photoreactor volume of 1,060 L. The combined industrial-scale system (photo-Fenton/bio) has an efficiency of 84%, with 35% belonging to the photo-Fenton treatment and 49% related to the biological process.

Solwater is an alternative project that disinfected bacterially contaminated water using CPC photoreactor technology with a supported photocatalyst and photosensitive dyes. This project is funded by the European Union and conducted in South America. Following 3 months of deployment, the removal efficiency was diminished due to the deposition of calcium carbonate over the photocatalyst and the photosensitizer (Navntoft et al., 2007). This decrease in TiO₂ efficiency was similarly observed when CPC packed with supported TiO₂ on glass beads was employed for remediating of resulting BTEX spiked molecules from secondary wastewater treatment (Miranda-García et al., 2001). Extending the efficiency of the reactor was achieved by using a filter of ~0.35 μm, and an anionic and cationic ion-exchange resin as a pretreating stage. Catalyst fouling problem was also seen in tubular type reactors packed with supported TiO₂ on silica spheres for urban wastewater treatment. Following a single month of treatment, iron sludge fouled the catalyst and dramatically reduced its efficiency (Nakano et al., 2004).

A CPC pilot-scale packed bed reactor made up of 5 Pyrex tubes (1.9 m length and 22.2 mm outer diameter) joined successively was employed for handling 21 L of triclosan solution over supported TiO₂ on volcanic mesoporous stones (Martínez et al., 2014). Finally, Silva et al. propose and tested a new approach for the remediation of landfill leachates following an aerobic treatment on a pilot scale (Silva et al., 2017). This approach consists of an aerobic activated sludge biological pre-oxidation (ASBO), coagulation, and sedimentation steps, and photo-oxidation through a CPC (10 modules, 20.8 m²) photo-Fenton (PF) reactor. The optimal option for treating 100 m³/day of leachate with a COD value less than 150 ppm and 1,000 mg O₂/L was a blend of solar and artificial radiation, considering the energetic needs across the year.

Finally, a variation of CPC called tubular reactor with an aperture and gross areas of 10 m² and 37.2 m² was respectively installed in a field test facility at Tyndall Air Force Base, Florida to tackle spiked water with BTEX in a recirculating batch mode (Vargas and Núñez, 2010). A total of 530 L of sieved groundwater was recycled with TiO₂ slurry and 100 mg/L of H₂O₂. The removal of 75% of BTEX was achieved after 3 h. Recently, Vargas et al. (2010), reported a tubular pilot plant (TPP) using slurry TiO₂ for the treatment of 15 L of contaminated water with industrial oil hydrocarbons (Vargas and Núñez, 2010). Dibenzothiophene (DBT) and naphthalene (NP) attained ~90% mineralization in 60 min when all pH values were tested; meanwhile, p-nitrophenol (PNP) reached ~40% in 180 min when pH = 6 and 10 were employed using slurry TiO₂.

Although CPC suffers from optical losses and tube aging (Malato et al., 2002; De Lasa et al., 2005), reactor clogging, catalyst fouling, the need for oxygen injection, and high pumping costs, it is still a fitting technology for pilot-scale and larger-scale operations. Extensive testing of photocatalysis and solar thermal engineering led to tremendous knowledge and understanding in the design and operation of photocatalytic systems incorporating CPC photoreactors, resulting in an attainable design and scaling-up of a plant based on such technology.

9.3 Inclined Plate Collectors

Inclined plate collectors (IPC) are flattened or curved panels that maintain a thin (about 1 mm) laminar flow of wastewater (normally 0.15–1.0 L/min). It offers the advantage of ensuring great mass transfer across various segments of the reactor throughout the large surface supporting the photocatalyst, in a structure known as a “thin-film fixed bed reactor” (TFFBR) (Ollis and Turchi, 1990; Fendrich et al., 2018). This configuration allows the non-concentrated photons to first travel throughout the reactant fluid before attaining the photocatalyst. Therefore, water overheating heating is not an issue (Tian et al., 2017). IPCs are perceived to be highly well suited to small-scale applications with limited amounts of fluid to be treated (Zhang et al., 2018). A schematic illustration of an IPC is shown in Figure 9 (Fendrich et al., 2018).

FIGURE 9

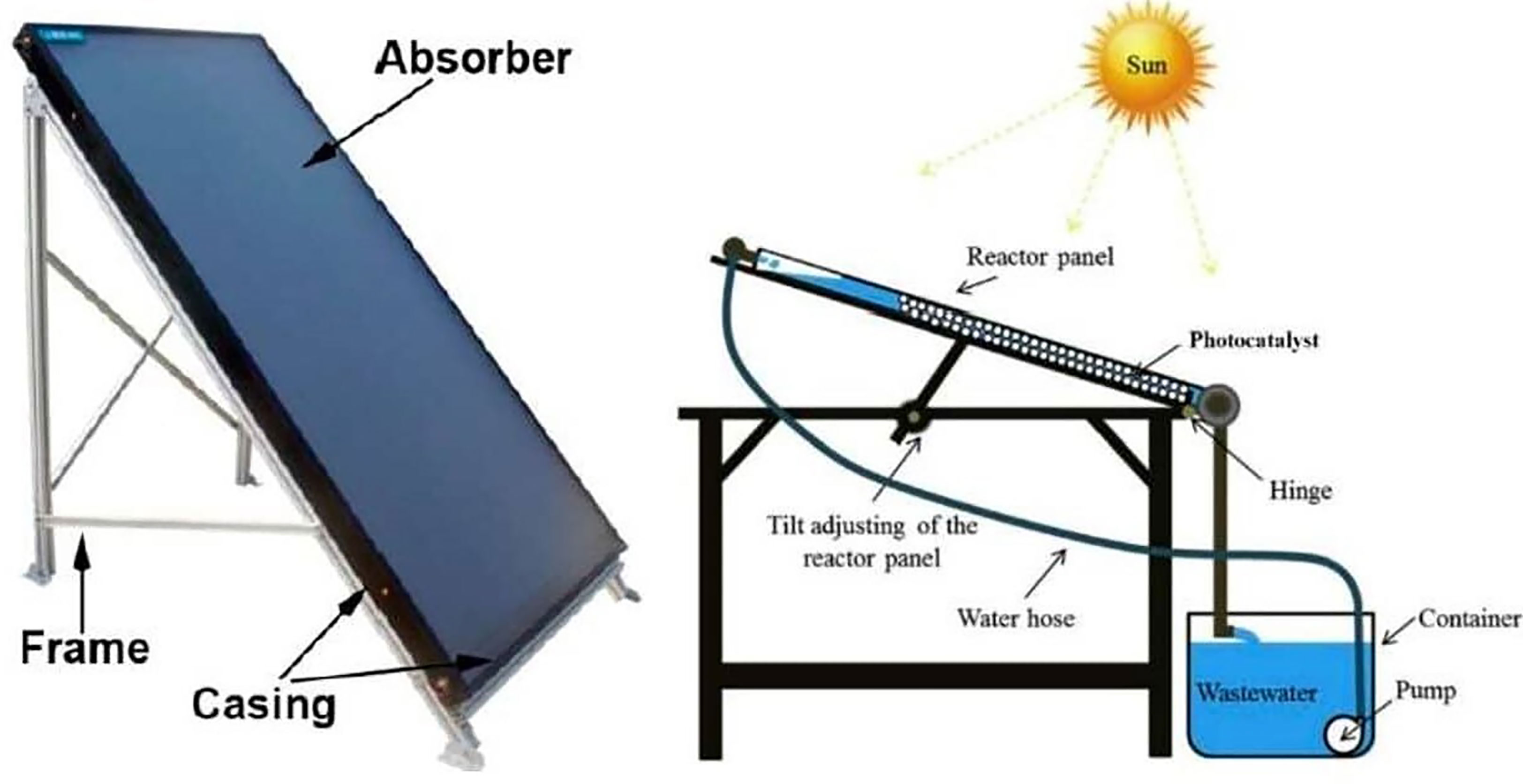

Figure 9 Examples of inclined plate collectors prototype using TiO₂ nanoparticles coated on transparent beads for the remediation of methylene blue under solar illumination. Reproduced with permission (Fendrich et al., 2018).

Furthermore, the IPC may be closed or kept exposed to the atmosphere. When closed (flat plate reactor), they require purging with O₂ or supplying with oxidants, in addition to glazing. When exposed to the atmosphere (failing film reactor), purging reaction solution with air and oxygen becomes unnecessary, as further increased efficiency is realized by excluding reactor covering from absorbing light beams, and therefore eradicating the likely formation of a photocatalyst opaque film on the inner surface (Braham and Harris, 2009). However, during severe gusts, falling film reactors suffer from a loss of homogeneity and dryness of the catalysts (Bockelmann et al., 1995; Gernjak et al., 2004).

A TFFBR pilot plant was installed in a textile factory in Menzel Temime, Tunisia for the treatment of two commercial textile azo dyes using supported TiO₂ in a recirculating batch configuration. The pilot plant was composed of 2 reactors, each having a total illuminated area of 50 m² capable to treat a volume of 730 L. Seventy percent of degradation was attained in 8 h with an initial TOC in the water of 44.8 mg/L (Zayani et al., 2009).

9.4 Double-Skin Sheet Reactor

Originally reported by van Well et al. (1997), the engineering of a double-skin sheet reactor (DSSR) is straightforward (Van Well et al., 1997). DSSR is a non-concentrating reactor composed of commercial Plexiglas (transmission of light above 320 nm) double-skin sheet. It benefits from the employment of direct/diffuse radiation, as well as the maintenance of a turbulent flow regime that bypasses mass transfer boundaries between the photocatalyst and pollutants. However, it may be solely utilized in a low-throughput slurry mode, and it has low optical efficiency and bubble entrapment (De Lasa et al., 2005). Moreover, being a closed reactor, it needs purging of reaction solution with O₂ or supplementing with additional oxidants (Bahnemann, 1999), which makes them unsuitable for commercialization. It was demonstrated that the present photocatalytic process using DSSR is inapt for tackling a large volume of effluent water. For instance, the projected areas necessary to decrease TOCs to 5% out of their initial concentration in 100 m³/day of effluents were extremely large and unviable, spanning from 5,350 m² for lubricating oil effluent to a huge 106,100 m² for chlorinated organics effluent (Gulyas et al., 2005).

Nonetheless, a pilot plant composed of 12 DSSRs (2.45 m × 0.94 m) working in a recirculating batch mode with an overall surface area of 27.6 m² and loaded with 5 g/L of TiO2 was installed in 1998 at the Volkswagen plant in Wolfsburg to handle 500 L/day of treated wastewater via biological approaches. The reduction of TOC reached 40% after 5.5 h beneath UV-solar irradiation (13.3 W/m²) (Dillert et al., 1999).

9.5 Step Photoreactor

The cascade falling film principle is used in the step photoreactor to ensure adequate sunlight exposure and oxygenation of the effluent to be treated. The STEP solar reactor (Figure 10) is composed of a rectangular (2 m × 0.5 m = 1 m²) 70-mm-high stainless-steel staircase vessel with 21 steps (Malato et al., 2007). To prevent water evaporation, it has a Pyrex glass (UV-transparent) lid. For the degradation of 4-chlorophenol, formetanate, and dyes, such reactors are set on a stationary rack inclined at 37°C, Almeria’s latitude. The photocatalyst-support sheet was 1.36 m² in size. Twenty-five liters of DI water with the specified organic compounds was cycled in the dark at 7.5 L min⁻¹ at the start of the experiment. For the entire degradation of 4-chlorophenol and formetanate, the STEP solar reactor was shown to be as competent as the CPC. In STEP reactor trials, however, both dyes took more time to be treated. The reactor was used to treat 25 L of water in a recirculating batch configuration. This setup was utilized to treat 25 L of an aqueous pesticide mixture with an initial TOC concentration of 8 mg/L in a recirculating batch mode. Exposed to a UV-A intensity of 30 W/m², 80% degradation was obtained in 4.5 h (Chan et al., 2001). However, owing to high capital costs caused primarily by the cover material, in addition to film problems, the need for reaction solution purging with O₂ or oxidant supplementation, and regular cleaning requirements, the STEP reactor became problematic for scale-up and commercialization. An example of a STEP reactor constructed at the PSA is shown in Figure 10. The major types of pilot-scale photoreactors are listed in Table 5.

FIGURE 10

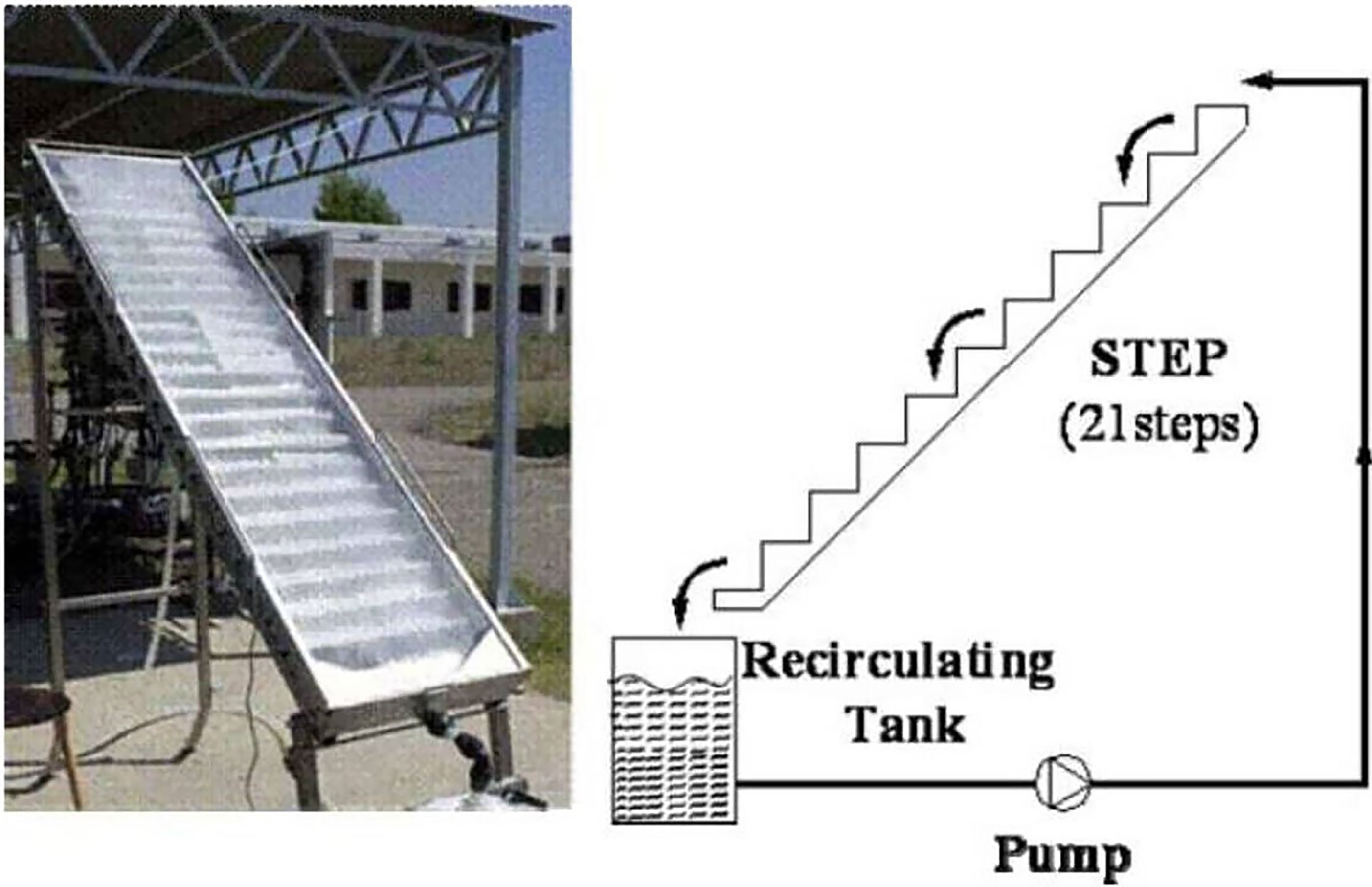

Figure 10 Non-concentrating STEP solar collector tested at Platforma Solar de Almeria (SPAIN). Reproduced with permission (Malato et al., 2007).

TABLE 5

Table 5 Major types of pilot-scale photoreactors.

To our knowledge, a pilot-scale photocatalytic reactor for the degradation of MPs does not exist yet. However, we took a big step in this framework during the CLAIM H2020 EU project where we successfully implemented a lab-scale photocatalytic reactor for the degradation of invisible MPs such as PP, PE, PVC, and nylon. For instance, 2 weeks of visible light irradiation of PP MPs resulted in a 65% decrease in average particle volume. The successful outcomes of the experimental work prove the efficiency of the designed reactors and suggest their prospects for employment in scaled-up water and wastewater treatment.

Finally, it should be noted that other reactor designs are proposed in the literature to treat wastewater but are not attractive for scale-up and commercialization due to the above-mentioned disadvantages: the use of the laminar flow regime, the need to purge with oxygen or to supply oxidants, the requirement of additional support for glazing, high cost, low optical efficiency, the need for a tracking sunlight system, mechanical aspects, and climatic conditions. These reactors include the slurry bubble column reactor (used to treat nitrobenzene, chlorobenzene, and phenol) (Kamble et al., 2004), the flat plate column reactor (used for tackling aqueous solution of methylene blue) (Vaiano et al., 2015b), the pebble bed photoreactor (used for tackling water containing dye molecules) (Rao et al., 2012), the flat-packed bed reactor (used for the remediation of DI water inoculated with Escherichia coli) (Hanaor and Sorrell, 2014), the optical fiber photoreactors (used to treat 4-chlorophenol) (Peill and Hoffmann, 1997), and the fountain/water bell photocatalytic reactor and the rotating disk reactor (Braham and Harris, 2009).

10 Conclusions

This review examined the applications of AOPs, more specifically photocatalysis and Fenton processes, coupled with other techniques for the treatment of recalcitrant organic molecules and MPs. The efficiency of these technologies is mainly related to the generation of ROS such as OH^•, ${\text{HO}}_2^{·}$, and ${\text{O}}_2^{·-}$, inducing the degradation of the polymeric chains in MPs. TiO₂ and ZnO in the form of nanoparticles, nanotubes, and nanorods are by far the most widely used photocatalysts for the degradation of the major types of MPs such as PE, PP, PVC, nylons, and others in the form of nanocomposites, films, or powders. The general mechanism of photocatalytic degradation of MPs involves the following steps: initiation, chain propagation, chain branching, chain scission, and termination. Characterization techniques like mass balance, turbidimetry, COD, and TOC are widely used to determine the rate of the photocatalytic reaction. The physicochemical, thermal, and mechanical properties of MPs are usually obtained through a large number of methods such as GPC, NMR, XPS (elemental composition), SEM, TEM (morphology), DSC, TGA (thermal), UTM, and DMA (mechanical). Regarding the characterization of by-products, classic techniques like GC-MS, LC-MS, and FTIR are extensively reported. Until now, there are no notable studies on the use of photocatalytic reactors at the scale of a pilot plant for the degradation of MPs, and it was very important to review the scaling-up methods applied to some commercial photocatalytic reactors employed for tackling various organic molecules. To control the parameters affecting the performances of photocatalytic reactors on the industrial scale, the use of complex mathematical and numerical methods is often necessary. Among the described designs, CPC techniques are now best fitted for a pilot-scale setup and beyond. The design and scale-up of a photocatalytic plant for MPs degradation based on CPC are reasonably feasible due to the extensive knowledge and expertise in the development and implementation of photocatalytic-based CPCs in both photocatalysis and solar thermal engineering.

Finally, it has to be noted that the decision of applying AOP technologies at an industrial scale for MPs degradation is intimately related to the degradation rate of pollutants. More specifically, the plant’s capital cost is proportionally affected by the degradation kinetics of the process (i.e., photo-Fenton and photocatalysis) and by the consumption of chemicals and materials (hydrogen peroxide and photocatalysts), which, in turn, are strongly reliant on the concentration and type of pollutants (Comninellis et al., 2008).

Author Contributions

WH: Conceptualization, Methodology, Investigation, and Writing—original draft. ED: Writing—review and editing. TT: Writing—review and editing. JD: Conceptualization, Methodology, and Writing—review and editing. All authors contributed to the article and approved the submitted version.

Funding

This work has been supported by CLAIM Project: H2020-BG-2016–2017 [grant number 774586], “Cleaning Litter by developing and Applying Innovative Methods in European seas”.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2022.885614/full#supplementary-material

References

Abbasi S., Sarafraz-Yazdi A., Amiri A., Ghaemi F. (2018). Development of Novel Magnetic Solid-Phase Extraction Sorbent Based on Fe3O4/Carbon Nanosphere/Polypyrrole Composite and Their Application to the Enrichment of Polycyclic Aromatic Hydrocarbons From Water Samples Prior to GC–FID Analysis. J. Iran. Chem. Soc. 15 (1), 153–161. doi: 10.1007/s13738-017-1218-6

CrossRef Full Text | Google Scholar

Adekoya D.O., Tahir M., Amin N.A.S. (2017). G-C3N4/(Cu/TiO2) Nanocomposite for Enhanced Photoreduction of CO2 to CH3OH and HCOOH Under UV/visible Light. J. CO2 Utiliz. 18, 261–274. doi: 10.1016/j.jcou.2017.02.004

CrossRef Full Text | Google Scholar

Adesina A. A. (2004). Industrial Exploitation of Photocatalysis: Progress, Perspectives and Prospects. Catalys. Survey. Asia. 8 (4), 265–273. doi: 10.1007/s10563-004-9117-0

CrossRef Full Text | Google Scholar

Aguilar-Vega M. (2013). “Structure and Mechanical Properties of Polymers,” in Handbook of Polymer Synthesis, Characterization, and Processing. Eds. Saldívar-Guerra E., Vivaldo-Lima E. (Hoboken, NJ, USA: John Wiley & Sons, Inc), 425–434. doi: 10.1002/9781118480793.ch21

CrossRef Full Text | Google Scholar

Ahmed B., Limem E., Abdel-Wahab A., Nasr B. (2011). Photo-Fenton Treatment of Actual Agro-Industrial Wastewaters. Ind. Eng. Chem. Res. 50 (11), 6673–6680. doi: 10.1021/ie200266d

CrossRef Full Text | Google Scholar

Alfaifi B., Ullah H., Alfaifi S., Tahir A., Mallick T. (2018). Photoelectrochemical Solar Water Splitting: From Basic Principles to Advanced Devices. Veruscri. Funct. Nanomater. 2 (12), BDJOC3. doi: 10.22261/FNAN.BDJOC3

CrossRef Full Text | Google Scholar

Alfano O. M., Bahnemann D., Cassano A. E., Dillert R., Goslich R. (2000). Photocatalysis in Water Environments Using Artificial and Solar Light. Catalys. Today 58 (2-3), 199–230. doi: 10.1016/s0920-5861(00)00252-2

CrossRef Full Text | Google Scholar

Ali S. S., Qazi I. A., Arshad M., Khan Z., Voice T. C., Mehmood C. (2016). Photocatalytic Degradation of Low Density Polyethylene (LDPE) Films Using Titania Nanotubes. Environ. Nanotechnol. Monit. Manage. 5, 44–53. doi: 10.1016/j.enmm.2016.01.001

CrossRef Full Text | Google Scholar

Ali M.E., Rahman M.M., Sarkar S.M., Hamid S.B.A. (2014). Heterogeneous Metal Catalysts for Oxidation Reactions. J. Nanomater. 2014, ID 192038. doi: 10.1155/2014/192038

CrossRef Full Text | Google Scholar

Allé P. H., Garcia-Muñoz P., Adouby K., Keller N., Robert D. (2021). Efficient Photocatalytic Mineralization of Polymethylmethacrylate and Polystyrene Nanoplastics by Tio2/β-SiC Alveolar Foams. Environ. Chem. Lett. 19 (2), 1803–1808. doi: 10.1007/s10311-020-01099-2

CrossRef Full Text | Google Scholar

Almond J., Sugumaar P., Wenzel M. N., Hill G., Wallis C. (2020). Determination of the Carbonyl Index of Polyethylene and Polypropylene Using Specified Area Under Band Methodology With ATR-FTIR Spectroscopy. e-Polymers. 20 (1), 369–381. doi: 10.1515/epoly-2020-0041

CrossRef Full Text | Google Scholar

Alvarado-Rolon O., Natividad R., Romero R., Hurtado L., Ramírez-Serrano A. (2018). Modelling and Simulation of the Radiant Field in an Annular Heterogeneous Photoreactor Using a Four-Flux Model. Int. J. Photoener. 1678385, 1–16. doi: 10.1155/2018/1678385

CrossRef Full Text | Google Scholar

Amat A. M., Arques A., López F., Miranda M. A. (2005). Solar Photo-Catalysis to Remove Paper Mill Wastewater Pollutants. Solar. Energy 79 (4), 393–401. doi: 10.1016/j.solener.2005.02.021

CrossRef Full Text | Google Scholar

Amat A. M., Arques A., Miranda M. A., Seguıí S. (2004). Photo-Fenton Reaction for the Abatement of Commercial Surfactants in a Solar Pilot Plant. Solar. Energy 77 (5), 559–566. doi: 10.1016/j.solener.2004.03.028

CrossRef Full Text | Google Scholar

Andrade J. D. (1985). Surface and Interfacial Aspects of Biomedical Polymers: Volume 1 Surface Chemistry and Physics (Boston, MA: Springer US).

Google Scholar

Antonopoulou M., Kosma C., Albanis T., Konstantinou L. (2021). An Overview of Homogeneous and Heterogeneous Photocatalysis Applications for the Removal of Pharmaceutical Compounds From Real or Synthetic Hospital Wastewaters Under Lab or Pilot Scale. Sci. Total. Environ. 765, 144163. doi: 10.1016/j.scitotenv.2020.144163

PubMed Abstract | CrossRef Full Text | Google Scholar

Ariza-Tarazona M. C., Villarreal-Chiu J. F., Barbieri V., Siligardi C., Cedillo-González E. I. (2019). New Strategy for Microplastic Degradation: Green Photocatalysis Using a Protein-Based Porous N-TiO2 Semiconductor. Ceram. Int. 45 (7), 9618–9624. doi: 10.1016/j.ceramint.2018.10.208

CrossRef Full Text | Google Scholar

Arslan-Alaton I., Kabdaşlı I., Teksoy S. (2007). Effect of Fenton's Treatment on the Biodegradability of Chromium-Complex Azo Dyes. Water Sci. Technol. 55 (12), 107–112. doi: 10.2166/wst.2007.388

PubMed Abstract | CrossRef Full Text | Google Scholar

Augugliaro V., García-López E., Loddo V., Malato-Rodríguez S., Maldonado I., Marcì G., et al. (2005). Degradation of Lincomycin in Aqueous Medium: Coupling of Solar Photocatalysis and Membrane Separation. Solar. Energy 79 (4), 402–408. doi: 10.1016/j.solener.2005.02.020

CrossRef Full Text | Google Scholar

Augugliaro V., Litter M., Palmisano L., Soria J. (2006). The Combination of Heterogeneous Photocatalysis With Chemical and Physical Operations: A Tool for Improving the Photoprocess Performance. J. Photochem. Photobiol. C.: Photochem. Rev. 7 (4), 127–144. doi: 10.1016/j.jphotochemrev.2006.12.001

CrossRef Full Text | Google Scholar

Babuponnusami A., Muthukumar K. (2014). A Review on Fenton and Improvements to the Fenton Process for Wastewater Treatment. J. Environ. Chem. Eng. 2 (1), 557–572. doi: 10.1016/j.jece.2013.10.011

CrossRef Full Text | Google Scholar

Bagheri M., Mohseni M. (2015). A Study of Enhanced Performance of VUV/UV Process for the Degradation of Micropollutants From Contaminated Water. J. Hazard. Mater. 294, 1–8. doi: 10.1016/j.jhazmat.2015.03.036

PubMed Abstract | CrossRef Full Text | Google Scholar

Bahnemann D. (1999). “Photocatalytic Detoxification of Polluted Waters,” in The Handbook of Environmental Chemistry (Reactions and Processes), vol. 2 . Ed. Boule P. (Berlin, Heidelberg: Springer). doi: 10.1007/978-3-540-69044-3_11

CrossRef Full Text | Google Scholar

Bandala E. R., Arancibia-Bulnes C. A., Orozco S. L., Estrada C. A. (2004). Solar Photoreactors Comparison Based on Oxalic Acid Photocatalytic Degradation. Solar. Energy 77 (5), 503–512. doi: 10.1016/j.solener.2004.03.021

CrossRef Full Text | Google Scholar

Bandala E. R., Estrada C. (2007). Comparison of Solar Collection Geometries for Application to Photocatalytic Degradation of Organic Contaminants. J. Solar. Energy Eng. 129 (1), 22–26. doi: 10.1115/1.2390986

CrossRef Full Text | Google Scholar

Barlow A., Lehrle R. S., Robb J. C. (1961). Direct Examination of Polymer Degradation by Gas Chromatography: I. Appl. To. Polym. Anal. Char. Polym. 2, 27–40. doi: 10.1016/0032-3861(61)90005-2

CrossRef Full Text | Google Scholar

Bautista P., Mohedano A. F., Gilarranz M. A., Casas J. A., Rodriguez J. J. (2007). Application of Fenton Oxidation to Cosmetic Wastewaters Treatment. J. Hazard. Mater. 143 (1-2), 128–134. doi: 10.1016/j.jhazmat.2006.09.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Beltrán F. J., González M., Ribas F. J., Alvarez P. (1998). Fenton Reagent Advanced Oxidation of Polynuclear Aromatic Hydrocarbons in Water. Water, Air, & Soil Pollution 105, 3-4, 685–700. doi: 10.1023/a:1005048206991

CrossRef Full Text | Google Scholar

Beltrán-Heredia J., Torregrosa J., García J., Dominguez J. R., Tierno J. C. (2001). Degradation of Olive Mill Wastewater by the Combination of Fenton's Reagent and Ozonation Processes With an Aerobic Biological Treatment. Water Sci. Technol. 44 (5), 103–108. doi: 10.2166/wst.2001.0262

PubMed Abstract | CrossRef Full Text | Google Scholar

Berkani M., Bouchareb M. K., Bouhelassa M., Kadmi Y. (2020). Photocatalytic Degradation of Industrial Dye in Semi-Pilot Scale Prototype Solar Photoreactor: Optimization and Modeling Using ANN and RSM Based on Box-Wilson Approach. Top. Catalys. 63, 964–975. doi: 10.1007/s11244-020-01320-0

CrossRef Full Text | Google Scholar

Blanco-Galvez J., Fernaíndez-Ibaínãez P., Malato-Rodriíguez S. (2007). Solar Photocatalytic Detoxification and Disinfection of Water: Recent Overview. Solar. Energy Eng. 129 (1), 4–15. doi: 10.1115/1.2390948

CrossRef Full Text | Google Scholar

Blanco J., Malato S., Fernández P., Vidal A., Morales A., Trincado P., et al. (1999). Compound Parabolic Concentrator Technology Development to Commercial Solar Detoxification Applications. Solar. Energy 67 (4-6), 317–330. doi: 10.1016/s0038-092x(00)00078-5

CrossRef Full Text | Google Scholar

Bockelmann D., Weichgrebe D., Goslich R., Bahnemann D. (1995). Concentrating Versus non-Concentrating Reactors for Solar Water Detoxification. Solar. Energy Mater. Solar. Cells 38 (1-4), 441–451. doi: 10.1016/0927-0248(95)00005-4

CrossRef Full Text | Google Scholar

Bolton J. R., Bircher K. G., Tumas W., Tolman C. A. (2001). Figures-Of-Merit for the Technical Development and Application of Advanced Oxidation Technologies for Both Electric- and Solar-Driven Systems (IUPAC Technical Report). Pure. Appl. Chem. 73 (4), 627–637. doi: 10.1351/pac200173040627

CrossRef Full Text | Google Scholar

Bonnet N. (2004). Some Trends in Microscope Image Processing. Micron 35 (8), 635–653. doi: 10.1016/j.micron.2004.04.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Braham R. J., Harris A. T. (2009). Review of Major Design and Scale-Up Considerations for Solar Photocatalytic Reactors. Ind. Eng. Chem. Res. 48 (19), 8890–8905. doi: 10.1021/ie900859z

CrossRef Full Text | Google Scholar

Browne M.A., Galloway T.S., Thompson R.C. (2010). Spatial Patterns of Plastic Debris Along Estuarine Shorelines. Environ. Sci. Technol. 44 (9), 3404–3409. doi: 10.1021/es903784e

PubMed Abstract | CrossRef Full Text | Google Scholar

Burge R. E., Browne M. T., Charalambous P., Clark A., Wu J. K. (1982). Multiple Signals in STEM. J. Microscop. 127 (1), 47–60. doi: 10.1111/j.1365-2818.1982.tb00396.x

CrossRef Full Text | Google Scholar

Cai Q. Q., Lee B. C. Y., Ong S. L., Hu J. Y. (2021). Fluidized-Bed Fenton Technologies for Recalcitrant Industrial Wastewater Treatment-Recent Advances, Challenges and Perspective. Water Res. 190, 116692. doi: 10.1016/j.watres.2020.116692

PubMed Abstract | CrossRef Full Text | Google Scholar

Cao Y., Zhao M., Ma X., Song Y., Zuo S., Li H., et al. (2021). Critical Review on the Interactions of Microplastics With Heavy Metals: Mechanism and Their Combined Effect on Organisms and Humans. Sci. Total. Environ. 788, 147620. doi: 10.1016/j.scitotenv.2021.147620

PubMed Abstract | CrossRef Full Text | Google Scholar

Carraher C. E. (2018). Carraher’s Polymer Chemistry. Tenth edition (Boca Raton: CRC Press, Taylor & Francis Group).

Google Scholar

Carriazo J., Guélou E., Barrault J., Tatibouët J. M., Molina R., Moreno S. (2005). Catalytic Wet Peroxide Oxidation of Phenol by Pillared Clays Containing Al–Ce–Fe. Water Res. 39 (16), 3891–3899. doi: 10.1016/j.watres.2005.06.034

PubMed Abstract | CrossRef Full Text | Google Scholar

Cassano A. E., Alfano O. M. (2000). Reaction Engineering of Suspended Solid Heterogeneous Photocatalytic Reactors. Catalys. Today 58 (2-3), 167–197. doi: 10.1016/s0920-5861(00)00251-0

CrossRef Full Text | Google Scholar

Cassano A. E., Martin C. A., Brandi R. J., Alfano O. M. (1995). Photoreactor Analysis and Design: Fundamentals and Applications. Ind. Eng. Chem. Res. 34 (7), 2155–2201. doi: 10.1021/ie00046a001

CrossRef Full Text | Google Scholar

Celasco E., Valente I., Marchisio D. L., Barresi A. A. (2014). Dynamic Light Scattering and X-Ray Photoelectron Spectroscopy Characterization of PEGylated Polymer Nanocarriers: Internal Structure and Surface Properties. Langmuir 30 (28), 8326–8335. doi: 10.1021/la501198v

PubMed Abstract | CrossRef Full Text | Google Scholar

Chan A. H., Porter J. F., Barford J. P., Chan C. K. (2001). Photocatalytic Thin Film Cascade Reactor for Treatment of Organic Compounds in Wastewater. Water Sci. Technol. 44 (5), 187–195. doi: 10.2166/wst.2001.0283

CrossRef Full Text | Google Scholar

Chen G., Feng Q., Wang J. (2020). Mini-Review of Microplastics in the Atmosphere and Their Risks to Humans. Sci. Total. Environ. 703, 135504. doi: 10.1016/j.scitotenv.2019.135504

PubMed Abstract | CrossRef Full Text | Google Scholar

Cho S., Choi W. (2001). Solid-Phase Photocatalytic Degradation of PVC–TiO2 Polymer Composites. J. Photochem. Photobiol. A.: Chem. 143 (2–3), 221–228. doi: 10.1016/S1010-6030(01)00499-3

CrossRef Full Text | Google Scholar

Chong M. N., Jin B., Chow C. W. K., Saint C. (2010). Recent Developments in Photocatalytic Water Treatment Technology: A Review. Water Res. 44 (10), 0–3027. doi: 10.1016/j.watres.2010.02.039

CrossRef Full Text | Google Scholar

Chung Y.-H., Han K., Lin C.-Y., O’Neill D., Mul G., Mei B., et al. (2019). Photocatalytic Hydrogen Production by Photo-Reforming of Methanol With One-Pot Synthesized Pt-Containing TiO2 Photocatalysts. Catal. Today 356, 95–100. doi: 10.1016/j.cattod.2019.07.042

CrossRef Full Text | Google Scholar

Colburn T. W., Toops T. J., Wereszczak A. A. (2020). Industrial Scalable Additives for Enhanced Decomposition of Plastic Waste Through Photocatalysis. Acad. J. Polymer Sci., 4(2) 555633. doi: 10.19080/AJOP.2020.04.555633. United States.

CrossRef Full Text | Google Scholar

Comninellis C., Kapalka A., Malato S., Parsons S. A., Poulios I., Mantzavinos D. (2008). Advanced Oxidation Processes for Water Treatment: Advances and Trends for R&D. J. Chem. Technol. Biotechnol. 83 (6), 769–776. doi: 10.1002/jctb.1873

CrossRef Full Text | Google Scholar

Coronado J. (2013). “Chapter 2 Photons, Electrons and Holes: Fundamentals of Photocatalysis With Semiconductor,” in Design of Advanced Photocatalytic Materials for Energy and Environmental Applications London. Eds. Coronado J., Fresno F., Hernández-Alonso M. D., Portela R. (London:Springer-Verlag), 5–34. ISBN 978-1-4471-5061-9. doi: 10.1007/978-1-4471-5061-9

CrossRef Full Text | Google Scholar

Cox K.D., Covernton G.A., Davies H.L., Dower J.F., Juanes F., Dudas S.E. (2019). Human Consumption of Microplastics. Environ. Sci. Technol. 53 (12), 7068–7074. doi: 10.1021/acs.est.9b01517

PubMed Abstract | CrossRef Full Text | Google Scholar

Cui X., Li W., Ryabchuk P., Junge K., Beller M. (2018). Bridging Homogeneous and Heterogeneous Catalysis by Heterogeneous Single-Metal-Site Catalysts. Nat. Catalys. 1 (6), 385–397. doi: 10.1038/s41929-018-0090-9

CrossRef Full Text | Google Scholar

Danish M. S. S., Estrella L. L., Alemaida I. M. A., Lisin A., Moiseev N., Ahmadi M., et al. (2021). Photocatalytic Applications of Metal Oxides for Sustainable Environmental Remediation. Metals 11 (1), 80. doi: 10.3390/met11010080

CrossRef Full Text | Google Scholar

De Andrade P. M., Dufrayer C. R., Ionashiro E. Y., De Brito N. N. (2020). The Use of Metallurgical Waste for Heterogeneous Photo Fenton-Like Treatment of Cosmetic Effluent. J. Environ. Chem. Eng. 8 (5), 104148. doi: 10.1016/j.jece.2020.104148

CrossRef Full Text | Google Scholar

De Lasa H., Serrano B., Salaices M. (2005). “Chapter 2: Novel Photocatalytic Reactors for Water and Air Treatment,” in Photocatalytic Reaction Engineering (Boston, MA: Springer), 17–47. doi: 10.1007/0-387-27591-6_2

CrossRef Full Text | Google Scholar

De los Santos-Villarreal G., Elizalde L. E. (2013). “Polymer Spectroscopy and Compositional Analysis,” in In Handbook of Polymer Synthesis, Characterization, and Processing. Eds. Saldívar-Guerra E., Vivaldo-Lima E. (Hoboken, NJ, USA: John Wiley & Sons, Inc), 335–354. doi: 10.1002/9781118480793.ch16

CrossRef Full Text | Google Scholar

Denny F., Scott J., Pareek V., Ding Peng G., Amal R. (2009). CFD Modelling for a TiO2-Coated Glass-Bead Photoreactor Irradiated by Optical Fibers: Photocatalytic Degradation of Oxalic Acid. Chem. Eng. Sci. 64 (8), 1695–1706. doi: 10.1016/j.ces.2008.12.021

CrossRef Full Text | Google Scholar

Dey T.K., Uddin M.E., Jamal M. (2021). Detection and Removal of Microplastics in Wastewater: Evolution and Impact. Environ. Sci. pollut. Res. 28 (14), 16925–16947. doi: 10.1007/s11356-021-12943-5

CrossRef Full Text | Google Scholar

Dillert R., Cassano A. E., Goslich R., Bahnemann D. (1999). Large Scale Studies in Solar Catalytic Wastewater Treatment. Catalys. Today 54, 267–282. doi: 10.1016/S0920-5861(99)00188-1

CrossRef Full Text | Google Scholar

Domínguez-Jaimes L. P., Cedillo-González E. I., Luévano-Hipólito E., Acuña-Bedoya J. D., Hernández-López J. M. (2021). Degradation of Primary Nanoplastics by Photocatalysis Using Different Anodized TiO2 Structures. J. Hazard. Mater. 413, 125452. doi: 10.1016/j.jhazmat.2021.125452

PubMed Abstract | CrossRef Full Text | Google Scholar

Eduardo da Hora Machado A., Padovani Xavier T., Rodrigues de Souza D., Antonio de Miranda J., Thomas Fleury Mendonça Duarte E., Ruggiero R., et al. (2004). Solar Photo-Fenton Treatment of Chip Board Production Waste Water. Solar. Energy 77 (5), 583–589. doi: 10.1016/j.solener.2004.03.024

CrossRef Full Text | Google Scholar

Eriksen M., Lebreton L.C.M., Carson H.S., Thiel M., Moore C.J., Borerro J.C., et al. (2014). Plastic Pollution in the World’s Oceans: More Than 5 Trillion Plastic Pieces Weighing Over 250,000 Tons Afloat at Sea. PLoS One 9 (12), e111913. doi: 10.1371/journal.pone.0111913

PubMed Abstract | CrossRef Full Text | Google Scholar

Evode N., Qamar S.A., Bilal M., Barceló D., Iqbal H.M.N. (2021). Plastic Waste and Its Management Strategies for Environmental Sustainability. Case Stud. Chem. Environ. Eng. 4, 100142. doi: 10.1016/j.cscee.2021.100142

CrossRef Full Text | Google Scholar

Fagan R., McCormack D. E., Dionysiou D. D., Pillai S. C. A. (2016). Review of Solar and Visible Light Active TiO2 Photocatalysis for Treating Bacteria, Cyanotoxins and Contaminants of Emerging Concern. Mater. Sci. Semiconduct. Process. 42 (1), 2–14. doi: 10.1016/j.mssp.2015.07.052

CrossRef Full Text | Google Scholar

Falconer J. L., Magrini-Bair K. A. (1998). Photocatalytic and Thermal Catalytic Oxidation of Acetaldehyde on Pt/Tio2. J. Catalys. 179 (1), 171–178. doi: 10.1006/jcat.1998.2215

CrossRef Full Text | Google Scholar

Fallmann H., Krutzler T., Bauer R., Malato S., Blanco J. (1999). Applicability of the Photo-Fenton Method for Treating Water Containing Pesticides. Catalys. Today 54 (2-3), 309–319. doi: 10.1016/s0920-5861(99)00192-3

CrossRef Full Text | Google Scholar

Fendrich M., Quaranta A., Orlandi M., Bettonte M., Miotello A. (2018). Solar Concentration for Wastewaters Remediation: A Review of Materials and Technologies. Appl. Sci. 9 (1), 118. doi: 10.3390/app9010118

CrossRef Full Text | Google Scholar

Fenton H.J.H. (1894). LXXIII.—Oxidation of Tartaric Acid in Presence of Iron. J. Chem. Soc. 65, 899–910. doi: 10.1039/ct8946500899

CrossRef Full Text | Google Scholar

Fernández P., Blanco J., Sichel C., Malato S. (2005). Water Disinfection by Solar Photocatalysis Using Compound Parabolic Collectors. Catalys. Today 101 (3-4), 345–352. doi: 10.1016/j.cattod.2005.03.062

CrossRef Full Text | Google Scholar

Filho H. J. I., Siqueira A. F., Alcântara M. A. K., Aguiar L. G., Da Rós P. C. M., Napoleão D.A.d. S., et al. (2021). Solar Photo-Fenton Oxidation of Mature Landfill Leachate: Empirical Model and Chemical Inferences. Environ. Technol. 7 (1), 015519. doi: 10.1080/09593330.2021.1909656

CrossRef Full Text | Google Scholar

Frias J.P.G.L., Nash R. (2019). Microplastics: Finding a Consensus on the Definition. Mar. pollut. Bull. 138, 145–147. doi: 10.1016/j.marpolbul.2018.11.022

PubMed Abstract | CrossRef Full Text | Google Scholar

Galloway J. A., Montminy M. D., Macosko C. W. (2002). Image Analysis for Interfacial Area and Cocontinuity Detection in Polymer Blends. Polymer 43 (17), 4715–4722. doi: 10.1016/S0032-3861(02)00282-3

CrossRef Full Text | Google Scholar

Gamaralalage D., Sawai O., Nunoura T. (2019). Degradation Behavior of Palm Oil Mill Effluent in Fenton Oxidation. J. Hazard. Mater. 364, 791–799. doi: 10.1016/j.jhazmat.2018.07.023

PubMed Abstract | CrossRef Full Text | Google Scholar

Ganguly P., Panneri S., Hareesh U. S., Breen A., Pillai S.C. (2019). “Chapter 23 - Recent Advances in Photocatalytic Detoxification of Water. In Micro and Nano Technologies,” in Nanoscale Materials in Water Purification Elsevier. Eds. Thomas S., Pasquini D., Leu S.-Y., Gopakumar D. A. (Elsevier), 653–688. doi: 10.1016/B978-0-12-813926-4.00029-X

CrossRef Full Text | Google Scholar

Gaya U. I., Abdullah A. H. (2008). Heterogeneous Photocatalytic Degradation of Organic Contaminants Over Titanium Dioxide: A Review of Fundamentals, Progress and Problems. J. Photochem. Photobiol. C.: Photochem. Rev. 9 (1), 1–12. doi: 10.1016/j.jphotochemrev.2007.12.003

CrossRef Full Text | Google Scholar

Gernjak W., Maldonado M. I., Malato S., Cáceres J., Krutzler T., Glaser A., et al. (2004). Pilot-Plant Treatment of Olive Mill Wastewater (OMW) by Solar TiO2 Photocatalysis and Solar Photo-Fenton. Solar. Energy 77 (5), 567–572. doi: 10.1016/j.solener.2004.03.030

CrossRef Full Text | Google Scholar

Geyer R., Jambeck J.R., Law K.L. (2017). Production, Use, and Fate of All Plastics Ever Made. Sci. Adv. 3 (7), e1700782. doi: 10.1126/sciadv.1700782

PubMed Abstract | CrossRef Full Text | Google Scholar

Ghafoori S., Mehrvar M., Chan P. K. (2014). Photoreactor Scale-Up for Degradation of Aqueous Poly(Vinyl Alcohol) Using UV/H2O2 Process. Chem. Eng. J. 245, 133–142. doi: 10.1016/j.cej.2014.01.055

CrossRef Full Text | Google Scholar

Gill P., Moghadam T. T., Ranjbar B. (2010). Differential Scanning Calorimetry Techniques: Applications in Biology and Nanoscience. J. Biomolecul. Technique. 21 (4), 167–193.

Google Scholar

Giroto J. A., Teixeira A. C. S. C., Nascimento C. A. O., Guardani R. (2010). Degradation of Poly(Ethylene Glycol) in Aqueous Solution by Photo-Fenton and H 2 O 2 /UV Processes. Ind. Eng. Chem. Res. 49 (7), 3200–3206. doi: 10.1021/ie9015792

CrossRef Full Text | Google Scholar

Goswami D. Y. (1997). A Review of Engineering Developments of Aqueous Phase Solar Photocatalytic Detoxification and Disinfection Processes. J. Solar. Energy Eng. 119 (2), 101–107. doi: 10.1115/1.2887886

CrossRef Full Text | Google Scholar

Goswami D. Y., Vijayaraghavan S., Lu S., Tamm G. (2004). New and Emerging Developments in Solar Energy. Solar. Energy 76 (1-3), 33–43. doi: 10.1016/s0038-092x(03)00103-8

CrossRef Full Text | Google Scholar

Gregory J. (1998). Turbidity and Beyond. Filtrat. Separat. 35 (1), 63–67. doi: 10.1016/S0015-1882(97)83117-5

CrossRef Full Text | Google Scholar

Guillard C., Lachheb H., Houas A., Ksibi M., Elaloui E., Herrmann J.-M. (2003). Influence of Chemical Structure of Dyes, of pH and of Inorganic Salts on Their Photocatalytic Degradation by TiO2 Comparison of the Efficiency of Powder and Supported Tio2. J. Photochem. Photobiol. A.: Chem. 158 (1), 27–36. doi: 10.1016/s1010-6030(03)00016-9

CrossRef Full Text | Google Scholar

Gulkaya İ, Surucu G. A., Dilek F. B. (2006). Importance of H2O2/Fe2+ Ratio in Fenton's Treatment of a Carpet Dyeing Wastewater. J. Hazard. Mater. 136 (3), 763–769. doi: 10.1016/j.jhazmat.2006.01.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Gulshan F., Yanagida S., Kameshima Y., Isobe T., Nakajima A., Okada K. (2010). Various Factors Affecting Photodecomposition of Methylene Blue by Iron-Oxides in an Oxalate Solution. Water Res. 44 (9), 2876–22884. doi: 10.1016/j.watres.2010.01.040

PubMed Abstract | CrossRef Full Text | Google Scholar

Gulyas H., Jain H. B., Susanto A. L., Malekpur M., Harasiuk K., Krawczyk I., et al. (2005). Solar Photocatalytic Oxidation of Pretreated Wastewaters: Laboratory Scale Generation Of Design Data for Technical-Scale Double-Skin Sheet Reactors. Envi. Technol. 26 (5), 501–514. doi: 10.1080/09593332608618540

CrossRef Full Text | Google Scholar

Gutierrez-Mata A. G., Velazquez-Martínez S., Álvarez-Gallegos A., Ahmadi M., Hernández-Pérez JoséA., Ghanbari F., et al. (2017). Recent Overview of Solar Photocatalysis and Solar Photo-Fenton Processes for Wastewater Treatment. Int. J. Photoener. 8528063, 1–27. doi: 10.1155/2017/8528063

CrossRef Full Text | Google Scholar

Habib I.Y., Burhan J., Jaladi F., Lim C.M., Usman A., Kumara N. T. R. N., et al. (2020). Effect of Cr Doping in CeO2 Nanostructures on Photocatalysis and H2O2 Assisted Methylene Blue Dye Degradation. Catalys. Today 375, 506-513. doi: 10.1016/j.cattod.2020.04.008. ISSN 0920-5861.

CrossRef Full Text | Google Scholar

Hakkarainen M., Karlsson S. (2006). “Gas Chromatography in Analysis of Polymers and Rubbers,” in Encyclopedia of Analytical Chemistry. Ed. Meyers R. A. (Chichester, UK: John Wiley & Sons, Ltd), a2010. doi: 10.1002/9780470027318.a2010

CrossRef Full Text | Google Scholar

Hale R.C., Seeley M.E., La Guardia M.J., Mai L., Zeng E.Y.A. (2020). Global Perspective on Microplastics. J. Geophys. Res.: Ocean. 125 (1), e2018JC014719. doi: 10.1029/2018JC014719

CrossRef Full Text | Google Scholar

Hamd W.S., Dutta J. (2020). “Chapter 11 - Heterogeneous Photo-Fenton Reaction and its Enhancement Upon Addition of Chelating Agents,” in Nanomaterials for the Detection and Removal of Wastewater Pollutants, A Volume in Micro and Nano Technologies. Eds. Bonelli B., Freyria F. S., Rossetti I., Sethi R. (Amsterdam Oxford Cambridge, MA: Elsevier), 303–330. ISBN 9780128184899. doi: 10.1016/B978-0-12-818489-9.00011-6

CrossRef Full Text | Google Scholar

Hanaor D. A. H., Sorrell C. C. (2014). Sand Supported Mixed-Phase TiO2 Photocatalysts for Water Decontamination Applications: Sand Supported Mixed-Phase TiO2 Photocatalysts. Adv. Eng. Mater. 16 (2), 248–254. doi: 10.1002/adem.201300259

CrossRef Full Text | Google Scholar

Hartmann N.B., Hüffer T., Thompson R.C., Hassellöv M., Verschoor A., Daugaard A.E., et al. (2019). Are We Speaking the Same Language? Recommendations for a Definition and Categorization Framework for Plastic Debris. Environ. Sci. Technol. 53 (3), 1039–1047. doi: 10.1021/acs.est.8b05297

PubMed Abstract | CrossRef Full Text | Google Scholar

He D., Luo Y., Lu S., Liu M., Song Y., Lei L. (2018). Microplastics in Soils: Analytical Methods, Pollution Characteristics and Ecological Risks. TrAC. Trends Anal. Chem. 109, 163–172. doi: 10.1016/j.trac.2018.10.006

CrossRef Full Text | Google Scholar

Herrmann J.-M. (1999). Heterogeneous Photocatalysis: Fundamentals and Applications to the Removal of Various Types of Aqueous Pollutants. Catalys. Today 53 (1), 115–129. doi: 10.1016/s0920-5861(99)00107-8

CrossRef Full Text | Google Scholar

Herrmann J.-M., Guillard C. (2000). Photocatalytic Degradation of Pesticides in Agricultural Used Waters. Compt. Rendus. l’Académie. Des. Sci. - Ser. IIC. – Chem. 3 (6), 417–422. doi: 10.1016/S1387-1609(00)01137-3

CrossRef Full Text | Google Scholar

He J., Yang X., Men B., Wang D. (2015). Interfacial Mechanisms of Heterogeneous Fenton Reactions Catalyzed by Iron-Based Materials: A Review. J. Environ. Sci. 39, 97–109. doi: 10.1016/j.jes.2015.12.003

CrossRef Full Text | Google Scholar

He J., Yang X., Men B., Yu L., Wang D. (2015). EDTA Enhanced Heterogeneous Fenton Oxidation of Dimethyl Phthalate Catalyzed by Fe3O4: Kinetics and Interface Mechanism. J. Mol. Catalys. A.: Chem. 408, 179–188. doi: 10.1016/j.molcata.2015.07.030

CrossRef Full Text | Google Scholar

Hodson M.E., Duffus-Hodson C.A., Clark A., Prendergast-Miller M.T., Thorpe K.L. (2017). Plastic Bag Derived-Microplastics as a Vector for Metal Exposure in Terrestrial Invertebrates. Environ. Sci. Technol. 51 (8), 4714–4721. doi: 10.1021/acs.est.7b00635

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoffmann M.R., Martin S.T., Choi W. (1995). Environmental Applications of Semiconductor Photocatalysis. Chem. Rev. 95 (1), 69–96. doi: 10.1021/cr00033a004

CrossRef Full Text | Google Scholar

Huang W., Brigante M., Wu F., Hanna K., Mailhot G. (2013). Effect of Ethylenediamine-N,N′-Disuccinic Acid on Fenton and Photo-Fenton Processes Using Goethite as an Iron Source: Optimization of Parameters for Bisphenol A Degradation. Environ. Sci. pollut. Res. 20 (1), 39–50. doi: 10.1007/s11356-012-1042-6

CrossRef Full Text | Google Scholar

Huang H.-H., Lu M.-C., Chen J.-N. (2001). Catalytic Decomposition of Hydrogen Peroxide and 2-Chlorophenol With Iron Oxides. Water Res. 35 (9), 2291–2299. doi: 10.1016/s0043-1354(00)00496-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Izunobi J. U., Higginbotham C. L. (2011). Polymer Molecular Weight Analysis by 1H NMR Spectroscopy. J. Chem. Educ. 88 (8), 1098–1104. doi: 10.1021/ed100461v

CrossRef Full Text | Google Scholar

Jamali A., Vanraes R., Hanselaer P., Van Gerven T. (2013). A Batch LED Reactor for the Photocatalytic Degradation of Phenol. Chem. Eng. Process.: Process. 71, 43–50. doi: 10.1016/j.cep.2013.03.010

CrossRef Full Text | Google Scholar

Jiang R., Lu G., Yan Z., Liu J., Wu D., Wang Y. (2021). Microplastic Degradation by Hydroxy-Rich Bismuth Oxychloride. J. Hazard. Mater. 405, 124247. doi: 10.1016/j.jhazmat.2020.124247

PubMed Abstract | CrossRef Full Text | Google Scholar

Kamble S. P., Sawant S. B., Pangarkar V. G. (2004). Novel Solar-Based Photocatalytic Reactor for Degradation of Refractory Pollutants. AIChE. J. 50 (7), 1647–1650. doi: 10.1002/aic.10125

CrossRef Full Text | Google Scholar

Kaur R., Kaur H. (2021). Solar Driven Photocatalysis - an Efficient Method for Removal of Pesticides From Water and Wastewater. Biointerfac. Res. Appl. Chem. 11 (12), 9071–9084. doi: 10.33263/BRIAC112.90719084

CrossRef Full Text | Google Scholar

Kim J. R., Kan E. (2015). Heterogeneous Photo-Fenton Oxidation of Methylene Blue Using CdS-Carbon Nanotube/TiO2 Under Visible Light. J. Ind. Eng. Chem. 21, 644–652. doi: 10.1016/j.jiec.2014.03.032

CrossRef Full Text | Google Scholar

Kim S., Sin A., Nam H., Park Y., Lee H., Han C. (2022). Advanced Oxidation Processes for Microplastics Degradation: A Recent Trend. Chem. Eng. J. Adv. 9, 100213. doi: 10.1016/j.ceja.2021.100213

CrossRef Full Text | Google Scholar

Knoblauch D., Mederake L., Stein U. (2018). Developing Countries in the Lead—What Drives the Diffusion of Plastic Bag Policies? Sustainability 10 (6), 1994. doi: 10.3390/su10061994

CrossRef Full Text | Google Scholar

Konstas K., Konstantinou A. (2019). Photocatalytic Treatment of Pharmaceuticals in Real Hospital Wastewaters for Effluent Quality Amelioration. Water 11 (10), 2165. doi: 10.3390/w11102165

CrossRef Full Text | Google Scholar

Kositzi M., Poulios I., Malato S., Caceres J., Campos A. (2004). Solar Photocatalytic Treatment of Synthetic Municipal Wastewater. Water Res. 38 (5), 1147–1154. doi: 10.1016/j.watres.2003.11.024

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumar J., Bansal A. (2013). Photocatalytic Degradation in Annular Reactor: Modelization and Optimization Using Computational Fluid Dynamics (CFD) and Response Surface Methodology (RSM). J. Environ. Chem. Eng. 1 (3), 398–405. doi: 10.1016/j.jece.2013.06.002

CrossRef Full Text | Google Scholar

Kumar A. P., Depan D., Singh Tomer N., Singh R. P. (2009). Nanoscale Particles for Polymer Degradation and Stabilization—Trends and Future Perspectives. Prog. Polym. Sci. 34 (6), 479–515. doi: 10.1016/j.progpolymsci.2009.01.002

CrossRef Full Text | Google Scholar

Kwan W. P., Voelker B. M. (2003). Rates of Hydroxyl Radical Generation and Organic Compound Oxidation in Mineral-Catalyzed Fenton-Like Systems. Environ. Sci. Technol. 37 (6), 1150–1158. doi: 10.1021/es020874g

PubMed Abstract | CrossRef Full Text | Google Scholar

Lasee S., Mauricio J., Thompson W.A., Karnjanapiboonwong A., Kasumba J., Subbiah S., et al. (2017). Microplastics in a Freshwater Environment Receiving Treated Wastewater Effluent: Microplastics in Urban Surface Water. Integrat. Environ. Assess. Manage. 13 (3), 528–532. doi: 10.1002/ieam.1915

CrossRef Full Text | Google Scholar

Law K.L., Thompson R.C. (2014). Microplastics in the Seas. Science 345 (6193), 144–145. doi: 10.1126/science.1254065

PubMed Abstract | CrossRef Full Text | Google Scholar

Lebreton L., Andrady A. (2019). Future Scenarios of Global Plastic Waste Generation and Disposal. Palgrave. Commun. 5 (1), 6. doi: 10.1057/s41599-018-0212-7

CrossRef Full Text | Google Scholar

Lee J.-M., Busquets R., Choi I.-C., Lee S.-H., Kim J.-K., Campos L. C. (2020). Photocatalytic Degradation of Polyamide 66; Evaluating the Feasibility of Photocatalysis as a Microfibre-Targeting Technology. Water 12, 3551. doi: 10.3390/w12123551

CrossRef Full Text | Google Scholar

Lee H.-J., Lee H., Lee C. (2014). Degradation of Diclofenac and Carbamazepine by the Copper(II)-Catalyzed Dark and Photo-Assisted Fenton-Like Systems. Chem. Eng. J. 245, 258–264. doi: 10.1016/j.cej.2014.02.037

CrossRef Full Text | Google Scholar

Liang W., Luo Y., Song S., Dong X., Yu X. (2013). High Photocatalytic Degradation Activity of Polyethylene Containing Polyacrylamide Grafted Tio2. Polym. Degrad. Stab. 98 (9), 1754–1761. doi: 10.1016/j.polymdegradstab.2013.05.027

CrossRef Full Text | Google Scholar

Liao Q., Sun J., Gao L. (2009). Degradation of Phenol by Heterogeneous Fenton Reaction Using Multi-Walled Carbon Nanotube Supported Fe2O3 Catalysts. Colloid. Surf. A.: Physicochem. Eng. Aspect. 345 (1-3), 95–100. doi: 10.1016/j.colsurfa.2009.04.037

CrossRef Full Text | Google Scholar

Lin S.-S., Gurol M. D. (1998). Catalytic Decomposition of Hydrogen Peroxide on Iron Oxide: Kinetics, Mechanism, and Implications. Environ. Sci. Technol. 32 (10), 1417–1423. doi: 10.1021/es970648k

CrossRef Full Text | Google Scholar

Li Puma G. (2005). Dimensionless Analysis of Photocatalytic Reactors Using Suspended Solid Photocatalysts. Inst. Chem. Engi. 83 (7), 820–826. doi: 10.1205/cherd.04336

CrossRef Full Text | Google Scholar

Liu R., Chiu H. M., Shiau C.-S., Yeh R. Y.-L., Hung Y.-T. (2007). Degradation and Sludge Production of Textile Dyes by Fenton and Photo-Fenton Processes. Dyes. Pigment. 73 (1), 1–6. doi: 10.1016/j.dyepig.2005.10.002

CrossRef Full Text | Google Scholar

Liu Y., Jin W., Zhao Y., Zhang G., Zhang W. (2017). Enhanced Catalytic Degradation of Methylene Blue by α-Fe2O3/graphene Oxide via Heterogeneous Photo-Fenton Reactions. Appl. Catalys. B.: Environ. 206, 642–652. doi: 10.1016/j.apcatb.2017.01.075

CrossRef Full Text | Google Scholar

Liu P., Qian L., Wang H., Zhan X., Lu K., Gu C., et al. (2019). New Insights Into Aging Behavior of Microplastics Accelerated by Advanced Oxidation Processes. Environ. Sci. Technol. 53 (7), 3579–3588. doi: 10.1021/acs.est.9b00493

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu W., Zhang J., Liu H., Guo X., Zhang X., Yao X., et al. (2021). Review of the Removal of Microplastics in Global Wastewater Treatment Plants: Characteristics and Mechanisms. Environ. Int. 146, 106277. doi: 10.1016/j.envint.2020.106277

PubMed Abstract | CrossRef Full Text | Google Scholar

Li S., Xu S., He L., Xu F., Wang Y., Zhang L. (2020). Photocatalytic Degradation of Polyethylene Plastic With Polypyrrole/TiO2 Nanocomposite as Photocatalyst. Polymer-Plast. Technol. Eng. 49 (4), 400–406. doi: 10.1080/03602550903532166

CrossRef Full Text | Google Scholar

Llorente-García B. E., Hernández-López J. M., Zaldívar-Cadena A. A., Siligardi C., Cedillo-González E. I. (2020). First Insights Into Photocatalytic Degradation of HDPE and LDPE Microplastics by a Mesoporous N–TiO2 Coating: Effect of Size and Shape of Microplastics. Coatings. 10 (7), 658. doi: 10.3390/coatings10070658

CrossRef Full Text | Google Scholar

Lum P.T., Foo K.Y., Zakaria N.A., Palaniandy P. (2019). Ash Based Nanocomposites for Photocatalytic Degradation of Textile Dye Pollutants: A Review. Mater. Chem. Phys. 241, 122405. doi: 10.1016/j.matchemphys.2019.122405

CrossRef Full Text | Google Scholar

Luna A. J., Chiavone-Filho O., Machulek A., de Moraes J. E. F., Nascimento C. A. O. (2012). Photo-Fenton Oxidation of Phenol and Organochlorides (2,4-DCP and 2,4-D) in Aqueous Alkaline Medium With High Chloride Concentration. J. Environ. Manage. 111, 10–17. doi: 10.1016/j.jenvman.2012.06.014

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo H., Xiang Y., Li Y., Zhao Y., Pan X. (2021). Photocatalytic Aging Process of Nano-TiO2 Coated Polypropylene Microplastics: Combining Atomic Force Microscopy and Infrared Spectroscopy (AFM-IR) for Nanoscale Chemical Characterization. J. Hazard. Mater. 404, 124159. doi: 10.1016/j.jhazmat.2020.124159

PubMed Abstract | CrossRef Full Text | Google Scholar

Machado A. E. H., De Miranda J. A., De Freitas R. F., Duarte E. T. F. M., Ferreira L. F., Albuquerque Y. D. T., et al. (2003). Destruction of the Organic Matter Present in Effluent From a Cellulose and Paper Industry Using Photocatalysis. J. Photochem. Photobiol. A.: Chem. 155 (1-3), 231–241. doi: 10.1016/s1010-6030(02)00393-3

CrossRef Full Text | Google Scholar

Malato S., Blanco J., Alarcón D. C., Maldonado M. I., Fernández-Ibáñez P., Gernjak W. (2007). Photocatalytic Decontamination and Disinfection of Water With Solar Collectors. Catalys. Today 122 (1-2), 137–149. doi: 10.1016/j.cattod.2007.01.034

CrossRef Full Text | Google Scholar

Malato S., Blanco J., Richter C., Curcó D., Gimenez J. (1997). Low-Concentrating CPC Collectors for Photocatalytic Water Detoxification: Comparison With a Medium Concentrating Solar Collector. Water Sci. Technol. 35 (4), 157–164. doi: 10.1016/s0273-1223(97)00021-8

CrossRef Full Text | Google Scholar

Malato S., Blanco J., Vidal A., Fernández P., Cáceres J., Trincado P., et al. (2002). New Large Solar Photocatalytic Plant: Set-Up and Preliminary Results. Chemosphere 47 (3), 235–240. doi: 10.1016/s0045-6535(01)00220-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Martínez N. S. S., Fernández J. F., Segura X. F., Ferrer A. S. (2003). Pre-Oxidation of an Extremely Polluted Industrial Wastewater by the Fenton’s Reagent. J. Hazard. Mater. 101 (3), 315–322. doi: 10.1016/s0304-3894(03)00207-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Martínez-Huitle C. A., Rodrigo M. A., Sirés I., Scialdone O. (2015). Single and Coupled Electrochemical Processes and Reactors for the Abatement of Organic Water Pollutants: A Critical Review. Chem. Rev. 115 (24), 13362–13407. doi: 10.1021/acs.chemrev.5b00361

PubMed Abstract | CrossRef Full Text | Google Scholar

Martínez S., Morales-Mejía J. C., Hernández P. P., Santiago L., Almanza R. (2014). Solar Photocatalytic Oxidation of Triclosan With TiO2 Immobilized on Volcanic Porous Stones on a CPC Pilot Scale Reactor. Energy Proc. 57, 3014–3020. doi: 10.1016/j.egypro.2014.10.337

CrossRef Full Text | Google Scholar

Ma B., Xue W., Hu C., Liu H., Qu J., Li L. (2019). Characteristics of Microplastic Removal via Coagulation and Ultrafiltration During Drinking Water Treatment. Chem. Eng. J. 359, 159–167. doi: 10.1016/j.cej.2018.11.155

CrossRef Full Text | Google Scholar

McLoughlin O. A., Kehoe S. C., McGuigan K. G., Duffy E. F., Al Touati F., Gernjak W., et al. (2004a). Solar Disinfection of Contaminated Water: A Comparison of Three Small-Scale Reactors. Solar. Energy 77 (5), 657–664. doi: 10.1016/j.solener.2004.07.004

CrossRef Full Text | Google Scholar

McLoughlin O. A., Kehoe S. C., McGuigan K. G., Duffy E. F., Al Touati F., Gernjak W., et al. (2004b). Solar Disinfection of Contaminated Water: A Comparison of Three Small-Scale Reactors. Solar. Energy 77 (5), 657–664. doi: 10.1016/j.solener.2004.07.004

CrossRef Full Text | Google Scholar

Medeiros P. M. (2018). “Gas Chromatography–Mass Spectrometry (GC–MS),” in Encyclopedia of Geochemistry. Ed. White W. M. (Cham: Springer International Publishing), 530–535. Encyclopedia of Earth Sciences Series. doi: 10.1007/978-3-319-39312-4_159

CrossRef Full Text | Google Scholar

Meeker R. E., United States Patent Office (1963). Stabilization of Hydrogen Peroxide (US). (Patent number: US3208825A).

Google Scholar

Mehos M., Turchi C., Pacheco J., Boegel A. J., Merrill T., Stanley R. (1992). Pilot-Scale Study of the Solar Detoxification of VOC-Contaminated Groundwater (United States: U.S. Department of Energy Office of Scientific and Technical Information). Available at: https://www.osti.gov/biblio/7102976-pilot-scale-study-solar-detoxification-voc-contaminated-groundwater.

Google Scholar

Menard K. P., Menard N. R. (2020). Dynamic Mechanical Analysis. 3rd ed (Boca Raton: CRC Press). doi: 10.1201/9780429190308

CrossRef Full Text | Google Scholar

Miao F., Liu Y., Gao M., Yu X., Xiao P., Wang M., et al. (2020). Degradation of Polyvinyl Chloride Microplastics via an Electro-Fenton-Like System With a TiO2/graphite Cathode. J. Hazard. Mater. 399, 123023. doi: 10.1016/j.jhazmat.2020.123023

PubMed Abstract | CrossRef Full Text | Google Scholar

Minero C., Pelizzetti E., Malato S., Blanco J. (1993). Large Solar Plant Photocatalytic Water Decontamination: Degradation of Pentachlorophenol. Chemosphere 26 (12), 0–2119. doi: 10.1016/0045-6535(93)90337-5

CrossRef Full Text | Google Scholar

Miranda-García N., Suárez S., Sánchez B., Coronado J. M., Malato S., Maldonado M. I. (2001). Photocatalytic Degradation of Emerging Contaminants in Municipal Wastewater Treatment Plant Effluents Using Immobilized TiO2 in a Solar Pilot Plant. Appl. Catalys. B.: Environ. 103 (3-4), 294–301. doi: 10.1016/j.apcatb.2011.01.030

CrossRef Full Text | Google Scholar

Mishra M., Chun D.-M. (2015). α-Fe2O3 as a Photocatalytic Material: A Review. Appl. Catalys. A. 498, 126–141. doi: 10.1016/j.apcata.2015.03.023

CrossRef Full Text | Google Scholar

Moghaddami M., Raisee M. (2012). Performance and Energy Consumption Analysis of UV-H2O2 Photoreactors Using Computational Fluid Dynamics. Int. J. Environ. Sci. Dev. 3 (4), 387–392. doi: 10.7763/IJESD.2012.V3.253

CrossRef Full Text | Google Scholar

Mohamed A.S., AbuKhadra M.R., Abdallah E.A., El-Sherbeeny A.M., Mahmoud R.K. (2020). The Photocatalytic Performance of Silica Fume Based Co3O4/MCM-41 Green Nanocomposite for Instantaneous Degradation of Omethoate Pesticide Under Visible Light. J. Photochem. Photobiol. A. 392, 112434. doi: 10.1016/j.jphotochem.2020.112434

CrossRef Full Text | Google Scholar

Mohamed A., Yousef S., Nasser W. S., Osman T. A., Knebel A., Valadez Sánchez E. P., et al. (2020). Rapid Photocatalytic Degradation of Phenol From Water Using Composite Nanofibers Under UV. Environ. Sci. Eur. 32, 160. doi: 10.1186/s12302-020-00436-0

CrossRef Full Text | Google Scholar

Mokhbi Y., Korichi M., Akchiche Z. (2019). Combined Photocatalytic and Fenton Oxidation for Oily Wastewater Treatment. Appl. Water Sci. 9 (2), 35–44. doi: 10.1007/s13201-019-0916-x

CrossRef Full Text | Google Scholar

Molina C. B., Sanz-Santos E., Boukhemkhem A., Bedia J., Belver C., Rodriguez J. (2020). Removal of Emerging Pollutants in Aqueous Phase by Heterogeneous Fenton and Photo-Fenton With Fe2O3- TiO2-Clay Heterostructures. Environ. Sci. pollut. Res. 27, 38434–38445. doi: 10.1007/s11356-020-09236-8

CrossRef Full Text | Google Scholar

Moreira J., Serrano B., Ortiz A., De Lasa H. (2010). Evaluation of Photon Absorption in an Aqueous TiO2 Slurry Reactor Using Monte Carlo Simulations and Macroscopic Balance. Ind. Eng. Chem. Res. 49 (21), 10524–10534. doi: 10.1021/ie100374f

CrossRef Full Text | Google Scholar

Motaung T. E., Luyt A. S., Bondioli F., Messori M., Saladino M. L., Spinella A., et al. (2012). PMMA–Titania Nanocomposites: Properties and Thermal Degradation Behaviour. Polym. Degrad. Stab. 97 (8), 1325–1333. doi: 10.1016/j.polymdegradstab.2012.05.022

CrossRef Full Text | Google Scholar

Mozia S., Brożek P., Przepiórski J., Tryba B., Morawski A. W. (2012). Immobilized TiO2 for Phenol Degradation in a Pilot-Scale Photocatalytic Reactor. J. Nanomater. 2012, 1–10. doi: 10.1155/2012/949764

CrossRef Full Text | Google Scholar

Mumford A.C., Barringer J.L., Benzel W.M., Reilly P.A., Young L.Y. (2012). Microbial Transformations of Arsenic: Mobilization From Glauconitic Sediments to Water. Water Res. 46 (9), 2859–2868. doi: 10.1016/j.watres.2012.02.044

PubMed Abstract | CrossRef Full Text | Google Scholar

Murphy F., Ewins C., Carbonnier F., Quinn B. (2016). Wastewater Treatment Works (WwTW) as a Source of Microplastics in the Aquatic Environment. Environ. Sci. Technol. 50 (11), 5800–5808. doi: 10.1021/acs.est.5b05416

PubMed Abstract | CrossRef Full Text | Google Scholar

Nabi I., Bacha A.-U.-R, Ahmad F., Zhang L. (2021). Application of Titanium Dioxide for the Photocatalytic Degradation of Macro- and Micro-Plastics: A Review. J. Environ. Chem. Eng. 9 (5), 105964. doi: 10.1016/j.jece.2021.105964

CrossRef Full Text | Google Scholar

Nabi I., Bacha A.-U.-R, Li K., Cheng H., Wang T., Liu Y., et al. (2020). Complete Photocatalytic Mineralization of Microplastic on TiO2 Nanoparticle Film. iScience. 23 (7), 101326. doi: 10.1016/j.isci.2020.101326

PubMed Abstract | CrossRef Full Text | Google Scholar

Nadeem N., Zahid M., Tabasum A., Mansha A., Jilani A., Bhatti I. A., et al. (2020). Degradation of Reactive Dye Using Heterogeneous Photo-Fenton Catalysts: ZnFe2O4 and GO-ZnFe2O4 Composite. Mater. Res. Exp. 7 (1), 015519. doi: 10.1088/2053-1591/ab66ee

CrossRef Full Text | Google Scholar

Nakano K., Obuchi E., Takagi S., Yamamoto R., Tanizaki T., Taketomi M., et al. (2004). Photocatalytic Treatment of Water Containing Dinitrophenol and City Water Over Tio2/Sio2. Separat. Purifi. Technol. 34 (1-3), 67–72. doi: 10.1016/s1383-5866(03)00176-x

CrossRef Full Text | Google Scholar

Navntoft C., Araujo P., Litter M. I., Apella M. C., Fernández D., Puchulu M. E., et al. (2007). Field Tests of the Solar Water Detoxification SOLWATER Reactor in Los Pereyra, Tucumán, Argentina. J. Solar. Energy Eng. 129 (1), 127–134. doi: 10.1115/1.2391318

CrossRef Full Text | Google Scholar

Oller I., Gernjak W., Maldonado M. I., Pérez-Estrada L. A., Sánchez-Pérez J. A., Malato S. (2006). Solar Photocatalytic Degradation of Some Hazardous Water-Soluble Pesticides at Pilot-Plant Scale. J. Hazard. Mater. 138 (3), 507–517. doi: 10.1016/j.jhazmat.2006.05.075

PubMed Abstract | CrossRef Full Text | Google Scholar

Ollis D. F., Turchi C. (1990). Heterogeneous Photocatalysis for Water Purification: Contaminant Mineralization Kinetics and Elementary Reactor Analysis. Envi. Prog. 9 (4), 229–234. doi: 10.1002/ep.670090417

CrossRef Full Text | Google Scholar

Oyama T., Aoshima A., Horikoshi S., Hidaka S., Zhao J., Serpone N. (2004). Solar Photocatalysis, Photodegradation of a Commercial Detergent in Aqueous TiO2 Dispersions Under Sunlight Irradiation. Solar. Energy 77 (5), 525–532. doi: 10.1016/j.solener.2004.04.020

CrossRef Full Text | Google Scholar

Padervand M., Lichtfouse E., Robert D., Wang C. (2020). Removal of Microplastics From the Environment. A Review. Environ. Chem. Lett. 18 (3), 807–828. doi: 10.1007/s10311-020-00983-1

CrossRef Full Text | Google Scholar

Parra S., Malato S., Blanco J., Péringer P., Pulgari C. (2001). Concentrating Versus Non-Concentrating Reactors for Solar Photocatalytic Degradation of P-Nitrotoluene-O-Sulfonic Acid. Water Sci. Technol. 44 (5), 219–227. doi: 10.2166/wst.2001.0290

PubMed Abstract | CrossRef Full Text | Google Scholar

Pawar R. C., Lee C. S. (2015). “Heterogeneous Photocatalysts Based on Organic/Inorganic Semiconductor,” in Heterogeneous Nanocomposite-Photocatalysis for Water Purification (Elsevier: Elsevier), 43–96. doi: 10.1016/B978-0-323-39310-2.00003-5

CrossRef Full Text | Google Scholar

Peill N. J., Hoffmann M. R. (1997). Solar-Powered Photocatalytic Fiber-Optic Cable Reactor for Waste Stream Remediation. J. Solar. Energy Eng. 119 (3), 229–236. doi: 10.1115/1.2888024

CrossRef Full Text | Google Scholar

Perez E. R., Knapp J. A., Horn C. K., Stillman S. L., Evans J. E., Arfsten D. P. (2016). Comparison of LC–MS-MS and GC–MS Analysis of Benzodiazepine Compounds Included in the Drug Demand Reduction Urinalysis Program. J. Anal. Toxicol. 40 (3), 201–207. doi: 10.1093/jat/bkv140

PubMed Abstract | CrossRef Full Text | Google Scholar

Porta R. (2021). Anthropocene, the Plastic Age and Future Perspectives. FEBS Open Bio 11 (4), 948–953. doi: 10.1002/2211-5463.13122

PubMed Abstract | CrossRef Full Text | Google Scholar

Potakis N., Frontistis Z., Antonopoulou M., Konstantinou I., Mantzavinos D. (2017). Oxidation of Bisphenol A in Water by Heat-Activated Persulfate. J. Environ. Manage. 195 (2), 125–132. doi: 10.1016/j.jenvman.2016.05.045

PubMed Abstract | CrossRef Full Text | Google Scholar

Pozzo R. L., Giombi J. L., Baltanás M. A., Cassano A. E. (2000). The Performance in a Fluidized Bed Reactor of Photocatalysts Immobilized Onto Inert Supports. Catalys. Today 62 (2-3), 175–187. doi: 10.1016/s0920-5861(00)00419-3

CrossRef Full Text | Google Scholar

Prairie M. R., Pacheco J., Evans L. R. (1991). Solar Detoxification of Water Containing Chlorinated Solvents and Heavy Metals via TiO2 Photocatalysis (United States). Available at: https://www.osti.gov/biblio/5858147-solar-detoxification-water-containing-chlorinated-solvents-heavy-metals-via-tio-sub-photocatalysis.

Google Scholar

Prieto O., Fermoso J., Nuñez Y., Del Valle J. L., Irusta R. (2005). Decolouration of Textile Dyes in Wastewaters by Photocatalysis With Tio2. Solar. Energy 79 (4), 376–383. doi: 10.1016/j.solener.2005.02.023

CrossRef Full Text | Google Scholar

Qiu Q., Peng J., Yu X., Chen F., Wang J., Dong F. (2015). Occurrence of Microplastics in the Coastal Marine Environment: First Observation on Sediment of China. Mar. pollut. Bull. 98 (1–2), 274–280. doi: 10.1016/j.marpolbul.2015.07.028

PubMed Abstract | CrossRef Full Text | Google Scholar

Rabek Jan F. (2012). Polymer Photodegradation: Mechanisms and Experimental Methods (Dordrecht: Springer Netherlands).

Google Scholar

Rajamanickam D., Shanthi M. (2016). Photocatalytic Degradation of an Organic Pollutant by Zinc Oxide – Solar Process. Arab. J. Chem. 9, S1858–S1868. doi: 10.1016/j.arabjc.2012.05.006

CrossRef Full Text | Google Scholar

Raji M., Mirbagheri S. A., Ye F., Dutta J. (2021). Nano Zero-Valent Iron on Activated Carbon Cloth Support as Fenton-Like Catalyst for Efficient Color and COD Removal From Melanoidin Wastewater. Chemosphere 263, 127945. doi: 10.1016/j.chemosphere.2020.127945

PubMed Abstract | CrossRef Full Text | Google Scholar

Rao N. N., Chaturvedi V., Li Puma G. (2012). Novel Pebble Bed Photocatalytic Reactor for Solar Treatment of Textile Wastewater. Chem. Eng. J. 184, 90–97. doi: 10.1016/j.cej.2012.01.004

CrossRef Full Text | Google Scholar

Remucal C. K., Sedlak D. L. (2011). “The Role of Iron Coordination in the Production of Reactive Oxidants From Ferrous Iron Oxidation by Oxygen and Hydrogen Peroxide,” in In ACS Symposium Series, vol. 1071 . Eds. Tratnyek P. G., Grundl T. J., Haderlein S. B. (Washington, DC: American Chemical Society), 177–197. doi: 10.1021/bk-2011-1071.ch009

CrossRef Full Text | Google Scholar

Revel M., Châtel A., Mouneyrac C. (2018). Micro(Nano)Plastics: A Threat to Human Health? Curr. Opin. Environ. Sci. Health 1, 17–23. doi: 10.1016/j.coesh.2017.10.003

CrossRef Full Text | Google Scholar

Rist S., Carney Almroth B., Hartmann N.B., Karlsson T.M.A. (2018). Critical Perspective on Early Communications Concerning Human Health Aspects of Microplastics. Sci. Total. Environ. 626, 720–726. doi: 10.1016/j.scitotenv.2018.01.092

PubMed Abstract | CrossRef Full Text | Google Scholar

Rivas F. J., Beltrán F. J., Gimeno O., Alvarez P. (2003). Treatment of Brines by Combined Fenton’s Reagent–Aerobic Biodegradation: II. Process Modelling. J. Hazardous Mat. 96, 2-3, 259–276. doi: 10.1016/s0304-3894(02)00216-9

CrossRef Full Text | Google Scholar

Rivas F. J., Beltrán F. J., Gimeno O., Frades J. (2001). Treatment of Olive Oil Mill Wastewater by Fenton's Reagent. J. Agric. Food Chem. 49 (4), 1873–1880. doi: 10.1021/jf001223b

PubMed Abstract | CrossRef Full Text | Google Scholar

Rossetti G. H., Albizzati E. D., Alfano O. M. (2004). Modeling of a Flat-Plate Solar Reactor. Degradation of Formic Acid by the Photo-Fenton Reaction. Solar. Energy 77 (5), 461–470. doi: 10.1016/j.solener.2004.04.019

CrossRef Full Text | Google Scholar

RuÃz-Delgado A., Roccamante M. A., Malato S., Agüera A., Oller I. (2020). Olive Mill Wastewater Reuse to Enable Solar Photo-Fenton-Like Processes for the Elimination of Priority Substances in Municipal Wastewater Treatment Plant Effluents. Environ. Sci. pollut. Res. 27, 38148–38154. doi: 10.1007/s11356-020-09721-0

CrossRef Full Text | Google Scholar

Sacco O., Vaiano V., Sannino D. (2020). Main Parameters Influencing the Design of Photocatalytic Reactors for Wastewater Treatment: A Mini Review. J. Chem. Technol. Biotechnol. 95 (10), 2608–2618. doi: 10.1002/jctb.6488

CrossRef Full Text | Google Scholar

Sagawe G., Lehnard A., Lübber M., Bahnemann D. (2001). The Insulated Solar Fenton Hybrid Process: Fundamental Investigations. HCA. 84 (12), 3742–3759. doi: 10.1002/1522-2675(20011219)84:12<3742::aid-hlca3742>3.0.co;2-q

CrossRef Full Text | Google Scholar

Saggioro E. M., Oliveira A. S., Buss D. F., Magalhães D. de P., Pavesi T., Jimenéz M., et al. (2015). Photo-Decolorization and Ecotoxicological Effects of Solar Compound Parabolic Collector Pilot Plant and Artificial Light Photocatalysis of Indigo Carmine Dye. Dyes. Pigment. 113, 571–580. doi: 10.1016/j.dyepig.2014.09.029

CrossRef Full Text | Google Scholar

Salgado P., Frontela J. L., Vidal G. (2020). Optimization of Fenton Technology for Recalcitrant Compounds and Bacteria Inactivation. Catalysts 10 (12), 1483. doi: 10.3390/catal10121483

CrossRef Full Text | Google Scholar

Samet Y., Ayadi M., Abdelhedi R. (2009). Degradation of 4-Chloroguaiacol by Dark Fenton and Solar Photo-Fenton Advanced Oxidation Processes. Water Environ. Res. 81 (12), 2389–2397. doi: 10.2175/106143009x425997

PubMed Abstract | CrossRef Full Text | Google Scholar

Sanchez W., Bender C., Porcher J.-M. (2014). Wild Gudgeons (Gobio Gobio) From French Rivers Are Contaminated by Microplastics: Preliminary Study and First Evidence. Environ. Res. 128, 98–100. doi: 10.1016/j.envres.2013.11.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Sangami S., Manu B. (2017). Optimization of Fenton’s Oxidation of Herbicide Dicamba in Water Using Response Surface Methodology. Appl. Water Sci. 7, 4269–4280. doi: 10.1007/s13201-017-0559-8

CrossRef Full Text | Google Scholar

Santos-Juanes L., Sánchez J. L. G., López J. L. C., Oller I., Malato S., Sánchez Pérez J. A. (2011). Dissolved Oxygen Concentration: A Key Parameter in Monitoring the Photo-Fenton Process. Appl. Catalys. B.: Environ. 104 (3–4), 316–323. doi: 10.1016/j.apcatb.2011.03.013

CrossRef Full Text | Google Scholar

Saravanan A., Kumar P.S., Vo D.-V. N., Yaashikaa P.R., Karishma S., Jeevanantham S., et al. (2020). Photocatalysis for Removal of Environmental Pollutants and Fuel Production: A Review. Environ. Chem. Lett 19(1), 441-463. doi: 10.1007/s10311-020-01077-8. IF 5.922.

CrossRef Full Text | Google Scholar

Sarria V., Péringer P., Cáceres J., Blanco J., Malato S., Pulgarin C. (2004). Solar Degradation of 5-Amino-6-Methyl-2-Benzimidazolone by TiO2 and Iron(III) Catalyst With H2O2 and O2 as Electron Acceptors. Energy 29 (5-6), 853–860. doi: 10.1016/s0360-5442(03)00190-7

CrossRef Full Text | Google Scholar

Sarwan B., Acharya A. D., Kaur S., Pare B. (2020). Visible Light Photocatalytic Deterioration of Polystyrene Plastic Using Supported BiOCl Nanoflower and Nanodisk. Eur. Polym. J. 134, 109793. doi: 10.1016/j.eurpolymj.2020.109793

CrossRef Full Text | Google Scholar

Sattler C., De Oliveira L., Tzschirner M., Machado A. E. H. (2004). Solar Photocatalytic Water Detoxification of Paper Mill Effluents. Energy 29 (5-6), 835–843. doi: 10.1016/s0360-5442(03)00189-0

CrossRef Full Text | Google Scholar

Satuf M. L., Brandi R. J., Cassano A. E., Alfano O. M. (2007). Scaling-Up of Slurry Reactors for the Photocatalytic Degradation of 4-Chlorophenol. Catalys. Today 129 (1–2), 110–117. doi: 10.1016/j.cattod.2007.06.056

CrossRef Full Text | Google Scholar

Sekar R., DiChristina T. J. (2017). Degradation of the Recalcitrant Oil Spill Components Anthracene and Pyrene by a Microbially Driven Fenton Reaction. FEMS Microbiol. Lett. 364 (21), fnx203 . doi: 10.1093/femsle/fnx203

CrossRef Full Text | Google Scholar

Serrano B., De Lasa H. (1997). Photocatalytic Degradation of Water Organic Pollutants. Kinetic Modeling and Energy Efficiency. Ind. Eng. Chem. Res. 36 (11), 4705–4711. doi. 10.1021/ie970104r

CrossRef Full Text | Google Scholar

Shang J., Chai M., Zhu Y. (2003). Photocatalytic Degradation of Polystyrene Plastic Under Fluorescent Light. Environ. Sci. Technol. 37 (19), 4494–4499. doi: 10.1021/es0209464

PubMed Abstract | CrossRef Full Text | Google Scholar

Silva T. F. C. V., Soares P. A., Manenti D. R., Fonseca A., Saraiva I., Boaventura R. A. R., et al. (2017). An Innovative Multistage Treatment System for Sanitary Landfill Leachate Depuration: Studies at Pilot-Scale. Sci. Total. Environ. 576, 99–117. doi: 10.1016/j.scitotenv.2016.10.058

PubMed Abstract | CrossRef Full Text | Google Scholar

Singa P. K., Isa M. H., Lim J.-W., Ho Y.-C., Krishnan S. (2021). Photo-Fenton Process for Removal of Polycyclic Aromatic Hydrocarbons From Hazardous Waste Landfill Leachate. Int. J. Environ. Sci. Technol. 18 (11), 3515–3526. doi: 10.1007/s13762-020-03010-6

CrossRef Full Text | Google Scholar

Singh B., Sharma N. (2008). Mechanistic Implications of Plastic Degradation. Polym. Degrad. Stab. 93 (3), 561–584. doi: 10.1016/j.polymdegradstab.2007.11.008

CrossRef Full Text | Google Scholar

Sivagami K., Anand D., Divyapriya G., Nambi I. (2019). Treatment of Petroleum Oil Spill Sludge Using the Combined Ultrasound and Fenton Oxidation Process. Ultrasonic. Sonochem. 51, 340–349. doi: 10.1016/j.ultsonch.2018.09.007

CrossRef Full Text | Google Scholar

Sol D., Laca A., Laca A., Díaz M. (2021). Microplastics in Wastewater and Drinking Water Treatment Plants: Occurrence and Removal of Microfibres. Appl. Sci. 11 (21), 10109. doi: 10.3390/app112110109

CrossRef Full Text | Google Scholar

Song W., Cheng M., Ma J., Ma W., Chen C., Zhao J. (2006). Decomposition of Hydrogen Peroxide Driven by Photochemical Cycling of Iron Species in Clay. Environ. Sci. Technol. 40 (15), 4782–4787. doi: 10.1021/es060624q

PubMed Abstract | CrossRef Full Text | Google Scholar

Sun J., Dai X., Wang Q., van Loosdrecht M.C.M., Ni B.-J. (2019). Microplastics in Wastewater Treatment Plants: Detection, Occurrence and Removal. Water Res. 152, 21–37. doi: 10.1016/j.watres.2018.12.050

PubMed Abstract | CrossRef Full Text | Google Scholar

Talvitie J., Mikola A., Koistinen A., Setälä O. (2017). Solutions to Microplastic Pollution – Removal of Microplastics From Wastewater Effluent With Advanced Wastewater Treatment Technologies. Water Res. 123, 401–407. doi: 10.1016/j.watres.2017.07.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Tang W. Z., Huang C. P. (1996). 2,4-Dichlorophenol Oxidation Kinetics by Fenton's Reagent. Environ. Technol. 17 (12), 1371–1378. doi: 10.1080/09593330.1996.9618465

CrossRef Full Text | Google Scholar

Tanveer M., Tezcanli Guyer G. (2013). Solar Assisted Photo Degradation of Wastewater by Compound Parabolic Collectors: Review of Design and Operational Parameters. Renewable Sustain. Energy Rev. 24, 534–543. doi: 10.1016/j.rser.2013.03.053

CrossRef Full Text | Google Scholar

Tapia J. B., Haines J., Yapor J. P., Reynolds M. M. (2019). Identification of the Degradation Products of a Crosslinked Polyester Using LC-Ms. Polym. Degrad. Stab. 168, 108948. doi: 10.1016/j.polymdegradstab.2019.108948

CrossRef Full Text | Google Scholar

Tejera J., Hermosilla D., Gascó A., Miranda R., Alonso V., Negro C., et al. (2021). Treatment of Mature Landfill Leachate by Electrocoagulation Followed by Fenton or UVA-LED Photo-Fenton Processes. J. Tai. Insti. Chem. Engi. 119, 33–44. doi: 10.1016/j.jtice.2021.02.018

CrossRef Full Text | Google Scholar

Thompson R.C., Olsen Y., Mitchell R.P., Davis A., Rowland S.J., John A.W.G., et al. (2004). Lost at Sea: Where Is All the Plastic? Science 304 (5672), 838–838. doi: 10.1126/science.1094559

PubMed Abstract | CrossRef Full Text | Google Scholar

Tian L., Chen Q., Jiang W., Wang L., Xie H., Kalogerakis N., et al. (2019). A Carbon-14 Radiotracer-Based Study on the Phototransformation of Polystyrene Nanoplastics in Water Versus in Air. Environ. Sci.: Nano. 6 (9), 2907–2917. doi: 10.1039/C9EN00662A

CrossRef Full Text | Google Scholar

Tian Z., Perers B., Furbo S., Fan J. (2017). Annual Measured and Simulated Thermal Performance Analysis of a Hybrid Solar District Heating Plant With Flat Plate Collectors and Parabolic Trough Collectors in Series. Appl. Energy 205, 417–427. doi: 10.1016/j.apenergy.2017.07.139

CrossRef Full Text | Google Scholar

Tofa T. S. (2018). Degradation of Microplastic Residuals in Water by Visible Light Photocatalysis. Thesis, Number: 18493, Series: TRITA-ABE-MBT (Sweden: KTH, Sustainable development, Environmental science and Engineering). Available at: http://www.diva-portal.org/smash/get/diva2:1266570/FULLTEXT01.pdf.

Google Scholar

Tofa T. S., Kunjali K. L., Paul S., Kunjali K. L., Dutta J. (2019). Visible Light Photocatalytic Degradation of Microplastic Residues With Zinc Oxide Nanorods. Environ. Chem. Lett. 17, 1341–1346. doi: 10.1007/s10311-019-00859-z

CrossRef Full Text | Google Scholar

Tofa T. S., Ye F., Kunjali K. L., Dutta J. (2019). Enhanced Visible Light Photodegradation of Microplastic Fragments With Plasmonic Platinum/Zinc Oxide Nanorod Photocatalysts. Catalysts. 9 (10), 819. doi: 10.3390/catal9100819

CrossRef Full Text | Google Scholar

Tong H., Ouyang S., Bi Y., Umezawa N., Oshikiri M., Ye J. (2012). Nano-Photocatalytic Materials: Possibilities and Challenges. Adv. Mater. 24 (2), 229–251. doi: 10.1002/adma.201102752

PubMed Abstract | CrossRef Full Text | Google Scholar

Uheida A., Mejía H. G., Abdel-Rehim M., Hamd W., Dutta J. (2020). Visible Light Photocatalytic Degradation of Polypropylene Microplastics in a Continuous Water Flow System. J. Hazard. Mater. 406, 124299. doi: 10.1016/j.jhazmat.2020.124299

PubMed Abstract | CrossRef Full Text | Google Scholar

Ul haq I., Ahmad W., Ahmad I., Yaseen M. (2020). Photocatalytic Oxidative Degradation of Hydrocarbon Pollutants in Refinery Wastewater Using TiO2 as Catalyst. Water Environ. Res. 92 (12), 2086–2094. doi: 10.1002/wer.1370

PubMed Abstract | CrossRef Full Text | Google Scholar

Vaiano V., Sacco O., Pisano D., Sannino D., Ciambelli P. (2015a). From the Design to the Development of a Continuous Fixed Bed Photoreactor for Photocatalytic Degradation of Organic Pollutants in Wastewater. Chem. Eng. Sci. 137, 152–160. doi: 10.1016/j.ces.2015.06.023

CrossRef Full Text | Google Scholar

Vaiano V., Sacco O., Pisano D., Sannino D., Ciambelli P. (2015b). From the Design to the Development of a Continuous Fixed Bed Photoreactor for Photocatalytic Degradation of Organic Pollutants in Wastewater. Chem. Eng. Sci. 137, 152–160. doi: 10.1016/j.ces.2015.06.023

CrossRef Full Text | Google Scholar

Vaiano V., Sacco O., Sannino D. (2019). Electric Energy Saving in Photocatalytic Removal of Crystal Violet Dye Through the Simultaneous Use of Long-Persistent Blue Phosphors, Nitrogen-Doped TiO2 and UV-Light Emitting Diodes. J. Clean. Product. 210, 1015–1021. doi: 10.1016/j.jclepro.2018.11.017

CrossRef Full Text | Google Scholar

Van Well M., Dillert R. H. G., Bahnemann D. W., Benz V. W., Mueller M. A. A. (1997). Novel Nonconcentrating Reactor for Solar Water Detoxification. J. Solar. Energy Eng. 119, 114–119. doi: 10.1115/1.2887888

CrossRef Full Text | Google Scholar

Vargas V., Núñez O. (2010). Photocatalytic Degradation of Oil Industry Hydrocarbons Models at Laboratory and at Pilot-Plant Scale. Solar. Energy 84 (2), 345–351. doi: 10.1016/j.solener.2009.12.005

CrossRef Full Text | Google Scholar

Venkataramana C., Botsa S. M., Shyamala P., Muralikrishna R. (2021). Photocatalytic Degradation of Polyethylene Plastics by NiAl2O4 Spinels-Synthesis and Characterization. Chemosphere 265, 129021. doi: 10.1016/j.chemosphere.2020.129021

PubMed Abstract | CrossRef Full Text | Google Scholar

Vione D., Minella M., Maurino V., Minero C. (2014). Indirect Photochemistry in Sunlit Surface Waters: Photoinduced Production of Reactive Transient Species. Chem. - A. Eur. J. 20 (34), 10590–10606. doi: 10.1002/chem.2014004

CrossRef Full Text | Google Scholar

Vital-Grappin A. D., Ariza-Tarazona M. C., Luna-Hernández V. M., Villarreal-Chiu J. F., Hernández-López J. M., Siligardi C., et al. (2021). The Role of the Reactive Species Involved in the Photocatalytic Degradation of HDPE Microplastics Using C,N- TiO2 Powders. Polymers 13 (7), 999. doi: 10.3390/polym13070999

PubMed Abstract | CrossRef Full Text | Google Scholar

Walling C. (1975). Fenton’s Reagent Revisited. Acc. Chem. Res. 84, 125–131. doi: 10.1021/ar50088a003

CrossRef Full Text | Google Scholar

Wang S. (2008). A Comparative Study of Fenton and Fenton-Like Reaction Kinetics in Decolourisation of Wastewater. Dyes. Pigment. 76 (3), 714–720. doi: 10.1016/j.dyepig.2007.01.012

CrossRef Full Text | Google Scholar

Wang W., Ndungu A.W., Li Z., Wang J. (2017). Microplastics Pollution in Inland Freshwaters of China: A Case Study in Urban Surface Waters of Wuhan, China. Sci. Total. Environ. 575, 1369–1374. doi: 10.1016/j.scitotenv.2016.09.213

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang H., Wang H.-L., Jiang W.-F., Li Z.-Q. (2009). Photocatalytic Degradation of 2,4-Dinitrophenol (DNP) by Multi-Walled Carbon Nanotubes (MWCNTs)/ TiO2 Composite in Aqueous Solution Under Solar Irradiation. Water Res. 43 (1), 204–210. doi: 10.1016/j.watres.2008.10.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Wright S.L., Thompson R.C., Galloway T.S. (2013). The Physical Impacts of Microplastics on Marine Organisms: A Review. Environ. pollut. 178, 483–492. doi: 10.1016/j.envpol.2013.02.031

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu C., Anusuyadevi P. R., Aymonier C., Luque R., Marre S. (2019). Nanostructured Materials for Photocatalysis. Chem. Soc. Rev. 48 (14), 3868–3902. doi: 10.1039/C9CS00102F

PubMed Abstract | CrossRef Full Text | Google Scholar

Xue W., Peng Z., Huang D., Zeng G., Wan J., Xu R., et al. (2018). Nanoremediation of Cadmium Contaminated River Sediments: Microbial Response and Organic Carbon Changes. J. Hazard. Mater. 359, 290–299. doi: 10.1016/j.jhazmat.2018.07.062

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu Q., Huang Q.-S., Luo T.-Y., Wu R.-L., Wei W., Ni B.-J. (2021). Coagulation Removal and Photocatalytic Degradation of Microplastics in Urban Waters. Chem. Eng. J. 416, 129123. doi: 10.1016/j.cej.2021.129123

CrossRef Full Text | Google Scholar

Yadav R., Amoli V., Singh J., Tripathi M.K., Bhanja P., Bhaumik A., et al. (2018). Plasmonic Gold Deposited on Mesoporous TixSi1–xO2 With Isolated Silica in Lattice: An Excellent Photocatalyst for Photocatalytic Conversion of CO2 Into Methanol Under Visible Light Irradiation. J. CO2 Utiliz. 27, 11–21. doi: 10.1016/j.jcou.2018.06.016

CrossRef Full Text | Google Scholar

Yousif E., Haddad R. (2013). Photodegradation and Photostabilization of Polymers, Especially Polystyrene: Review. SpringerPlus 2 (1), 398. doi: 10.1186/2193-1801-2-398

PubMed Abstract | CrossRef Full Text | Google Scholar

Zapata A., Malato S., Sánchez-Pérez J. A., Oller I., Maldonado M. I. (2010). Scale-Up Strategy for a Combined Solar Photo-Fenton/biological System for Remediation of Pesticide-Contaminated Water. Catalys. Today 151 (1-2), 100–106. doi: 10.1016/j.cattod.2010.01.034

CrossRef Full Text | Google Scholar

Zayani G., Bousselmi L., Mhenni F., Ghrabi A. (2009). Solar Photocatalytic Degradation of Commercial Textile Azo Dyes: Performance of Pilot Plant Scale Thin Film Fixed-Bed Reactor. Desalination 246 (1-3), 344–352. doi: 10.1016/j.desal.2008.03.059

CrossRef Full Text | Google Scholar

Zhang M.-h., Dong H., Zhao L., Wang D.-X., Meng D. (2019). A Review on Fenton Process for Organic Wastewater Treatment Based on Optimization Perspective. Sci. Total. Environ. 670, 110–121. doi: 10.1016/j.scitotenv.2019.03.180

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang Y., Sivakumar M., Yang S., Enever K., Ramezanianpour M. (2018). Application of Solar Energy in Water Treatment Processes: A Review. Desalination 428, 116–145. doi: 10.1016/j.desal.2017.11.020

CrossRef Full Text | Google Scholar

Zhang J., Tian B., Wang L., Xing M., Lei J. (2018). Photocatalysis: Fundamentals, Materials and Applications (Singapor: Springer Verlag). ISBN: 9789811321122,9811321124.

Google Scholar

Zhao X. u, Li Z., Chen Y., Shi L., Zhu Y. (2007). Solid-Phase Photocatalytic Degradation of Polyethylene Plastic Under UV and Solar Light Irradiation. J. Mol. Catalys. A.: Chem. 268 (1–2), 101–106. doi: 10.1016/j.molcata.2006.12.012

CrossRef Full Text | Google Scholar

Zhao H., Zhang Q. (2021). Performance of Electro-Fenton Process Coupling With Microbial Fuel Cell for Simultaneous Removal of Herbicide Mesotrione. Bioresourc. Technol. 319, 124244. doi: 10.1016/j.biortech.2020.124244

CrossRef Full Text | Google Scholar

Zhou Y., Liu X., Wang J. (2019). Characterization of Microplastics and the Association of Heavy Metals With Microplastics in Suburban Soil of Central China. Sci. Total. Environ. 694, 133798. doi: 10.1016/j.scitotenv.2019.133798

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhou Q., Zhang H., Zhou Y., Li Y., Xue Y., Fu C., et al. (2016). Separation of Microplastics From a Coastal Soil and Their Surface Microscopic Features. Chin. Sci. Bull. 61 (14), 1604–1611. doi: 10.1360/N972015-01098

CrossRef Full Text | Google Scholar

Ziajahromi S., Neale P.A., Rintoul L., Leusch F.D.L. (2017). Wastewater Treatment Plants as a Pathway for Microplastics: Development of a New Approach to Sample Wastewater-Based Microplastics. Water Res. 112, 93–99. doi: 10.1016/j.watres.2017.01.042

PubMed Abstract | CrossRef Full Text | Google Scholar

Zulfiqar M., Sufian S., Rabat N. E., Mansor N. (2021). Development of Photo-Fenton Oxidation as Green Strategy for Phenol Degradation Enhancement via DMF-Controlled TiO2 Nanotubes Under Various Oxidizing Agents. J. Environ. Chem. Eng. 9 (1), 104933. doi: 10.1016/j.jece.2020.104933

CrossRef Full Text | Google Scholar
