Vertical Profiles of 226Ra and 228Ra Activity Concentrations in the Western Subarctic Gyre of the Pacific Ocean

The vertical activity concentration distributions of the radium isotopes, ²²⁶Ra and ²²⁸Ra, which are useful as radiotracers, were obtained for the first time in the western Subarctic Pacific Gyre (WSAG). It was possible to detect short-lived ²²⁸Ra present from the surface to 400 m depth by analyzing large seawater samples. Low ²²⁸Ra and high ²²⁶Ra activity concentrations in the surface layer in the WSAG were strongly influenced by upwelled deeper water with nutrients. The activity concentration distribution of ²²⁶Ra especially was in good agreement with the silicate concentration distribution, which was consistent with previous reported findings. These distributions were uniform from the surface to 100 m of the dichothermal layer due to vertical mixing in winter. ²²⁸Ra activity concentration decreased with water depth below the pycnocline and reached the undetectable level at 600 m which was within the oxygen minimum layer. Estimations of vertical fluxes of ²²⁸Ra and nitrate according to ²²⁸Ra decay indicated that the vertical transport by eddy diffusion was a minor process for the ²²⁸Ra and nitrate fluxes, and lateral transport mainly affected ²²⁸Ra in the intermediate warm water, that is, the mesothermal layer below the main pycnocline. Vertical mixing or submarine underground water and lateral transport to the WSAG could yield this ²²⁸Ra in the intermediate depth.

Introduction

Radium-228 (²²⁸Ra, half-life, 5.75 yr) is a naturally occurring radionuclide produced by the decay of ²³²Th, which is abundant in sediments and soils, and it is provided from rivers and sediments to seawater of the continental shelf (Moore, 1969; Nozaki et al., 1998). The activity concentration of ²²⁸Ra in surface seawater decreases as it is transported from the coast to the open ocean because of radioactive decay and eddy diffusion (Moore, 1972; Ku et al., 1995; Nozaki and Yamamoto, 2001). From a vertical profile of ²²⁸Ra, Moore (1972) estimated the rates of mixing across the thermocline, which brings nutrients from deeper layers to the euphotic zone. Coupled vertical profiles of ²²⁸Ra and nutrients should provide an estimate of vertical flux of nutrients in the upper ocean. ²²⁸Ra has also been used as a tracer in studies on seawater mixing in coastal areas and above seafloors (Moore et al., 1986; Rutgers van der Loeff et al., 1995; Rutgers van der Loeff et al., 2003; Kadko and Muench, 2005; Nakano-Ohta and Sato, 2006; Kawakami and Kusakabe, 2008; Inoue et al., 2012; Inoue et al., 2016; Inoue et al., 2020), studies on the transport of particulate matter in the water column (Legeleux and Reyss, 1996; van Beek et al., 2007), and studies on the vertical flux of nutrients in the upper oceans (Ku et al., 1995; Nozaki and Yamamoto, 2001; Cai et al., 2002).

Ra-226 (half-life, 1600 yr) is also a naturally occurring radionuclide and it is produced from ²³⁰Th enriched in bottom sediments. The ²²⁶Ra activity concentration gradient from the coast to the ocean is lower than that of ²²⁸Ra due to the longer half-life of ²²⁶Ra. Recently, ²²⁶Ra and ²²⁸Ra along with the short-lived Ra isotopes ²³³Ra and ²³⁴Ra have been used for estimation of flux of submarine groundwater discharge (Kwon et al., 2014; Le Gland et al., 2017; Cho et al., 2018). Together with the distributions of nutrients and dissolved oxygen, these tracers have provided unique means to estimate the rates of metabolism in biogeochemical cycling.

The western subarctic Pacific Gyre (WSAG) is well known as a high nutrient, low chlorophyll area (HNLC), in which nutrients remain undepleted in surface waters throughout the year. In this area, phytoplankton growth is limited by iron (Fe) availability (Tsuda et al., 2003; Boyd et al., 2004), and the area has been reported to have the largest biological CO₂ drawdown among all the world’s oceans (Takahashi et al., 2002). The high productivity of the region’s ecosystem and fisheries (Sakurai, 2007) must be sustained by supplies of both Fe and nutrients entering the euphotic zone. The sub-surface pycnocline divides nutrient-poor surface mixed layers and nutrient-rich lower layers in the open ocean (Longhurst, 2007). The water exchange between these layers is regulated by the vertical eddy diffusivity that causes upward nutrient transport. Recent work (Nishioka et al., 2020) based on the combination of a comprehensive Fe observation dataset and vertical eddy diffusivity obtained by physical observations has implied that the formation of a high nutrient intermediate water pool, which is strongly influenced by lateral water transport from marginal seas (the Bering and Okhotsk Seas) and the existence of a nutrient return path from the intermediate water at potential density (σ_θ) of 26.8-27.2 to the surface due to strong mixing around the Kuril and Aleutian Island chains are important for understanding how HNLC water is formed in the North Pacific. The horizontal distribution indicated by isopycnal analysis clearly presented evidence that the high, dissolved Fe source in the intermediate waters in the western subarctic Pacific is the marginal seas (Nishioka et al., 2020). Dissolved Fe concentration in the North Pacific Intermediate Water (NPIW) is high across a wide area in the western subarctic Pacific, particularly along the northern part of the WSAG including the areas southeast of the Kamchatka Peninsula, the western Bering Sea basin, and around the eastern Aleutian Islands. These findings suggest that clarifying the formation and pathways of NPIW is essential for a better understanding of the mechanisms of biological production in the WSAG.

Around the WSAG, the shelf sediments in marginal seas, such as the East China Sea, Sea of Japan and Okhotsk Sea are known to play an important role in supplying Ra isotopes as well as nutrients (Kawakami and Kusakabe, 2008; Inoue et al., 2016). Then, Ra isotopes are supplied from the marginal seas, and they are laterally transported toward it. This signature and temporal change by radioactive decay can be used as a chronological tracer during advective transportation. The ²²⁶Ra and ²²⁸Ra activity concentrations in the Okhotsk Sea and around the Kuril Islands reported in the literature (Kawakami and Kusakabe, 2008; Inoue et al., 2016) were relatively high, indicating the possible influence of the continent and the continental shelf. However, ²²⁸Ra data were too limited to debate the contribution of lateral transportation from the margin. Especially, information on ²²⁸Ra activity concentrations in subsurface waters is not available in the WSAG, although such information could be key to resolving geochemical cycles for the lithogenic elements. In this study, we determined vertical profiles at Station K2 in the WSAG for concentrations of the natural radionuclides, ²²⁶Ra and ²²⁸Ra.

Experimental

Seawater samples were collected using acid-cleaned 12 L NISKIN-X samplers with external springs mounted on a CTD-CMS at Station K2 (47°00’N, 165°00’E; Figure 1A) during a research cruise of the TS Oshoro-Maru from 19 May to 15 July 2016. Samples of 200 L were collected for ²²⁶Ra and ²²⁸Ra analyses at 10, 49, 99, 199, 397, and 594 m depths on 25-28 June.

FIGURE 1

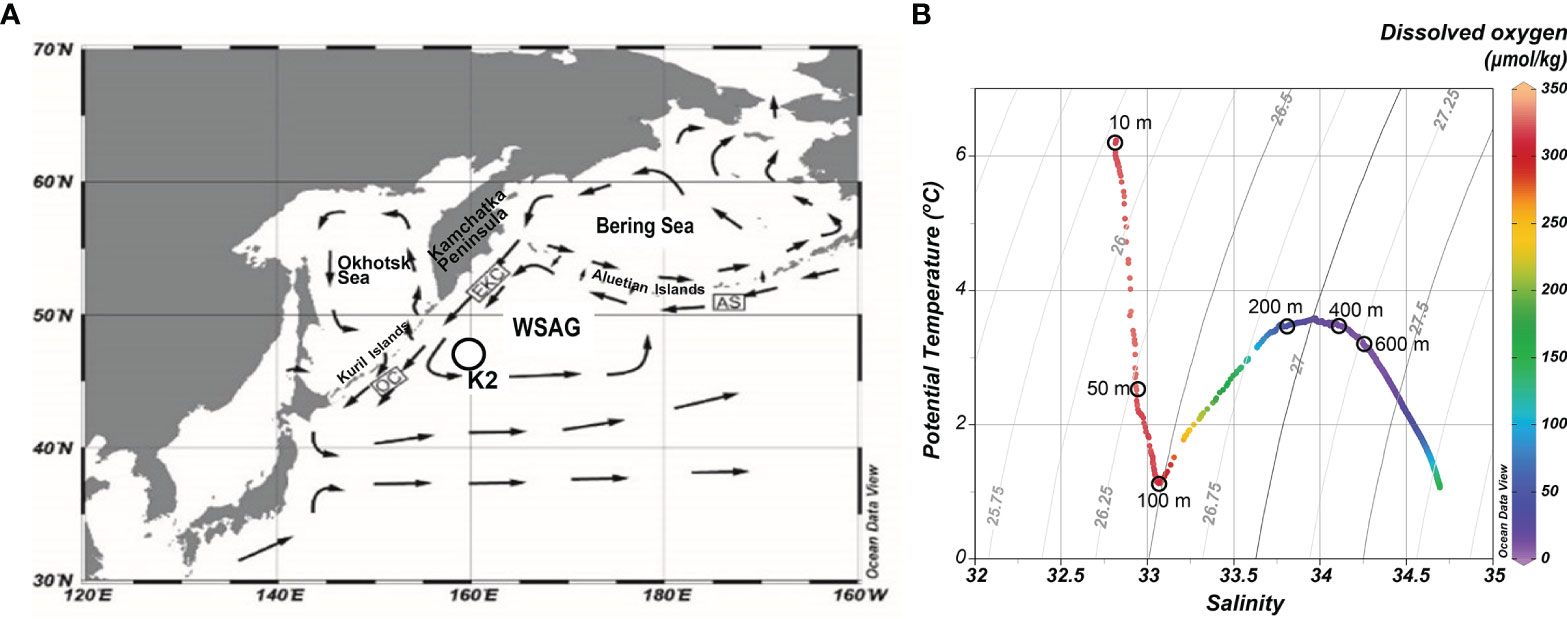

Figure 1 (A) Location of Station K2 in the western Subarctic Gyre (WSAG). The surface current system in the western North Pacific, the Bering Sea and the Okhotsk Sea is also displayed and it includes the East Kamchatka Current (EKC), Oyashio Current (OC), Alaskan Stream (AS). (B) Potential temperature-salinity diagram for K2 with oxygen concentration. Open circles shows sampling depths for Ra samples.

The detailed procedures for ²²⁶Ra and ²²⁸Ra analyses can be found elsewhere (Nakano et al., 2008). In brief, a seawater sample was acidified by adding 1.8 L of 61% HNO₃. Then, 0.48 g of a minimally Ra-contaminated Ba carrier solution with Fe carrier (3 g of Fe) was added. After stirring for 15 min, 600 mL of 5% Na₂SO₄ solution was also added. 1.5 L of aqueous ammonium was gradually added to get a pH from 6 to 8. Ra isotopes were precipitated together with BaSO₄ and Fe(OH)₃ precipitates. The solution was allowed to stand for 24 h so that all particles sank to the bottom of the container. The precipitates were siphoned from the container and the supernatant was discarded by decantation. The yield of Ra isotopes was 82-96%, determined by gravimetric BaSO₄ yield.

Low-background gamma-spectrometry was performed on BaSO₄ fractions using Ge-detectors at the Ogoya Underground Laboratory, Japan (Hamajima and Komura, 2004). ²²⁶Ra (²¹⁴Pb; 295 and 352 keV) activity concentrations were calibrated using a mock-up sample prepared from a BaSO₄-Fe(OH)₃ mixture, a uranium standard issued from the New Brunswick Laboratory, USA (NBL-42-1) and KCl, while ²²⁸Ra (²²⁸Ac; 338 and 911 keV) activity concentrations were based on a detection efficiency curve obtained from the mock-up sample. For each seawater sample, counting was typically performed over 3-7 d for ²²⁶Ra and ²²⁸Ra. Under the present analytical conditions, the lowest amounts of ²²⁸Ra that can be determined in the seawater sample were ~4 mBq for 2-3 counting days, which yields a minimum detectable activity concentration of ~0.02 Bq m^-3 for ²²⁸Ra using a 200 L seawater sample (Nakano et al., 2008). The concentrations of all radionuclides measured were decay-corrected based on the sampling date (Hamajima and Komura, 2004).

Nutrient (nitrate-plus-nitrite, phosphate, and silicate) concentrations were also analyzed in seawater samples collected from Station K2. Nutrient concentrations were measured using a BRAN-LUEBBE autoanalyzer (TRACCS 800) and a BL-Tec autoanalyzer (QuAAtro) (Gordon et al., 1992). Most of the nutrient measurements in this study were quality controlled using KANSO reference materials (KANSO Company).

Salinity and temperature were measured using a CTD sensor, and dissolved oxygen concentrations were measured using an oxygen sensor. The dissolved oxygen concentrations were also measured on board the ship by the Winkler titration method, and the dissolved oxygen concentrations obtained by the sensor (SBE 43 Dissolved Oxygen Sensor, Sea-Bird Scientific) were calibrated using those determined by the Winkler method (Carpenter, 1965). The eddy diffusivity K_z value was measured using a free-fall vertical microstructure profiler (VMP500 Rockland Scientific International Co.).

Results and Discussion

Hydrography

The elevated temperatures above the 50 m depth enhanced seasonal stratification in summer in the WSAG (Figure 2A). A subsurface temperature minimum (1.14°C) existed around the 100 m depth for which potential density was around 26.5 (Figure 1B); this was consistent with previous studies (e.g. Ueno and Yasuda, 2000). The mixed layer reaches more deeply in winter and it is overlaid by warmer and fresher water in summer (Yasuda, 1997). Low temperature water (<1.5°C) at σ_θ=26.5 was distributed along the East Kamchatka Current (EKC) from the western Bering Sea. Depths at σ_θ=26.5 in the western Bering Sea and near the Bering Strait (around 50 - 70 m) were shallower than those in the WSAG. The vertical distribution of dissolved oxygen concentrations (Figure 2D) was almost constant from the surface to the depth of the temperature minimum. Macronutrients were at relatively high concentrations. The concentrations of silicate and nitrate were 1.4 μmol kg^–1, 18 μmol kg^–1, respectively, in surface water (Figures 2E, F). From these values, we thought it was likely that biological activity was controlled by another parameter, such as iron, in this HNLC area as has been reported in the literature (Nishioka et al., 2013; Nishioka et al., 2020).

FIGURE 2

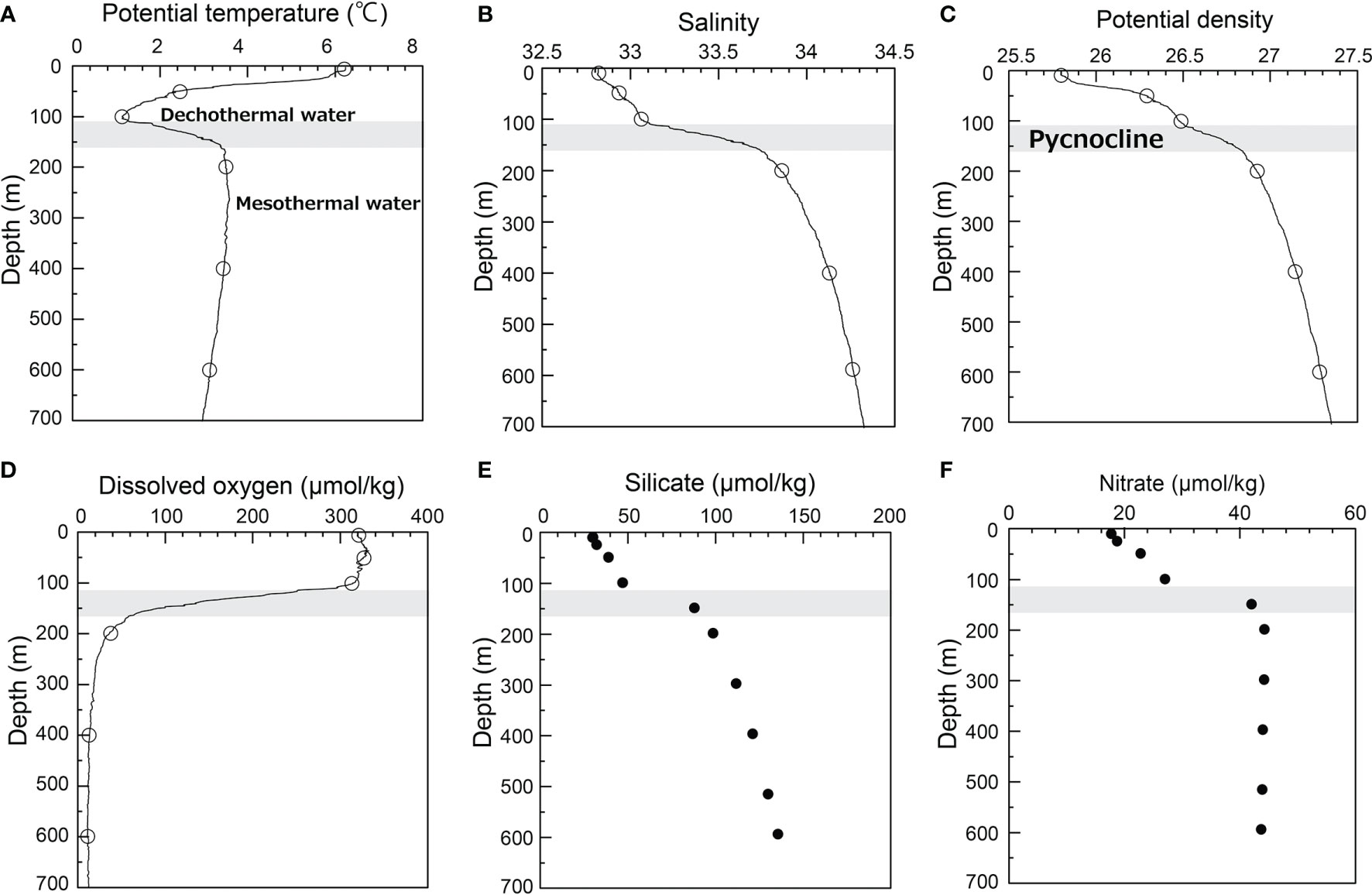

Figure 2 Vertical profiles at Station K2 in the WSAG for: (A) potential temperature, (B) salinity and (C) potential density. Vertical profiles of concentrations at K2 for (D) dissolved oxygen and nutrients, (E) silicate and (F) nitrate. The gray band indicates the pycnocline overlying the mesothermal layer.

The halocline increasing in salinity from 33.1 to 33.7 (Figure 2B) yielded the elevation of potential density, pycnocline (σ_θ=26.5 – 26.8, Figure 2C) between 110 m and 160 m depth. In addition, this yielded a rapid increase of macronutrients by limitation of the vertical transportation. Potential temperature increased with depth and an intermediate maximum potential temperature of 3.57°C was observed at 250 m depth (σ_θ=26.99), which generated a temperature inversion structure. The shallower temperature minimum layer and deeper temperature maximum layer called dichothermal and mesothermal waters, respectively, exist in the WSAG (Ueno and Yasuda, 2000; Ueno and Yasuda, 2005). All macronutrients rapidly increased with the decrease in dissolved oxygen concentration. Ueno and Yasuda (2000; 2005) also reported the dissolved oxygen concentration minimum was at 600 m. The present measurements showed the oxygen minimum layer (15.8-20.8 μmol kg^-1, σ_θ=27.1-27.5 at 350–1000 m depth) was deeper than the temperature maximum.

Low-oxygen and high-silicate and high-nitrate water exist in the WSAG and Bering Gyre at the potential densities of 26.9 and 27.15, corresponding to 199 m and 397 m depths at Station K2, respectively (Figure S1). At shallower depths than σ_θ=26.9, dissolved oxygen-rich water was observed along the EKC. Low dissolved oxygen water (<60 μmol/kg) at the potential density of 27.15, derived from the western Bering Sea, is found in the WSAG. Contrastingly, west of 155°E in the Oyashio Region and the Okhotsk Sea, high-dissolved oxygen water (>100 μmol/kg) is found. The Okhotsk Sea Intermediate Water (OSIW), characterized by relatively high-dissolved oxygen and dissolved Fe-rich water, flows out to the Pacific through the Kuril Straits, which has a strong influence on the extension region through the Oyashio Current. It propagates along the 26.8 σ_θ isopycnal surface to the western North Pacific (mainly west of 155°E). The hydrography at Station K2 we observed in this study indicated that the influence from the OSIW was minor. Station K2 was located at the rim of the anti-clockwise gyre system (Figure 1A). The relatively lower salinity water signature (>33.8) at the potential density of 26.9 σ_θ can be traced back to the EKC along the Kamchatka Peninsula and the western Bering Gyre.

Surface Ra Isotopes

Radium-226 activity concentrations were almost constant across the seasonal thermocline but slightly decreased with depth from the surface to 99 m, ranging from 1.9 to 2.2 Bq m^-3 (Table 1; Figure 3A), which corresponded to the depth above the pycnocline. Previous studies have reported surface distributions of ²²⁶Ra activity concentrations in the western North Pacific involving the Kuroshio Extension area and the Okhotsk Sea (Nozaki et al., 1990; Kawakami and Kusakabe, 2008; Inoue et al., 2016; Figure S1), excluding the area in this study. Surface ²²⁶Ra activity concentration range was reported to be from 1.4 Bq m^-3 to 2.3 Bq m^-3 in the WSAG, and the present study was consistent with that. The presently obtained high ²²⁶Ra activity concentrations were comparable to those reported in the Bering Sea (1.3-2.5 Bq m^-3; Nozaki et al., 1990; Li et al., 2017; Inoue et al., 2020). Low ²²⁶Ra activity concentrations (0.6-1.2 Bq m^-3) have been observed in a coastal area along the Kamchatka Peninsula, which reflected freshwater input from the land (Inoue et al., 2016). On the other hand, ²²⁶Ra activity concentrations in the Kuroshio Current (1.0-1.4 Bq m^-3) and Kuroshio Extension (1.1-1.5 Bq m^-3) areas (Yamada and Nozaki, 1986; Nozaki et al., 1990; Kawakami and Kusakabe, 2008) were found to be lower than those of the subarctic region. ²²⁶Ra activity concentrations in the Alaskan Gyre (1.4-1.9 Bq m^-3, Nozaki et al., 1990) were also lower than those of the WSAG and the Bering Sea.

TABLE 1

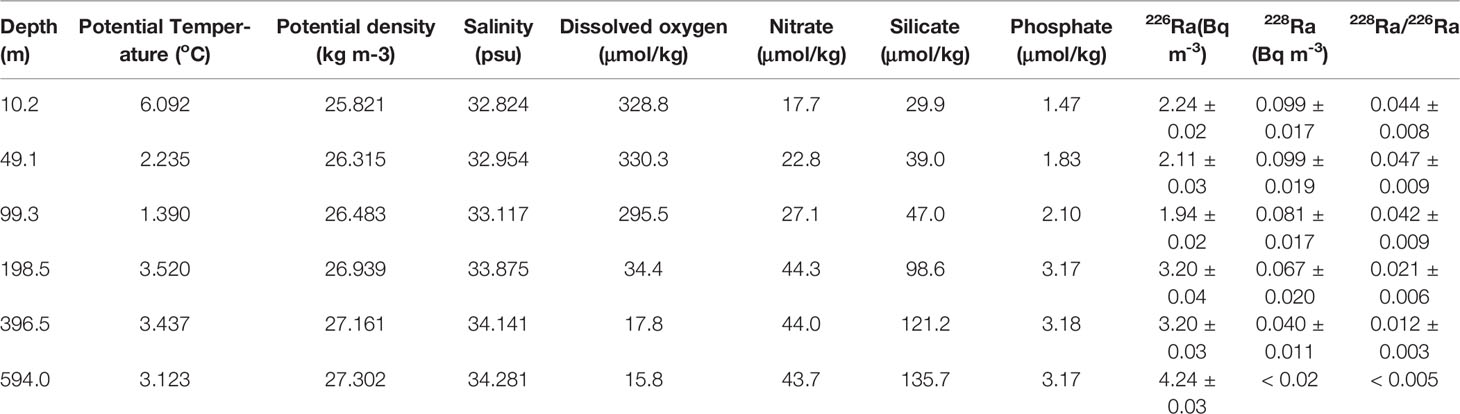

Table 1 Activity concentrations of ²²⁶Ra and ²²⁸Ra and their ratios at station K2 in the western subarctic pacific gyre.

FIGURE 3

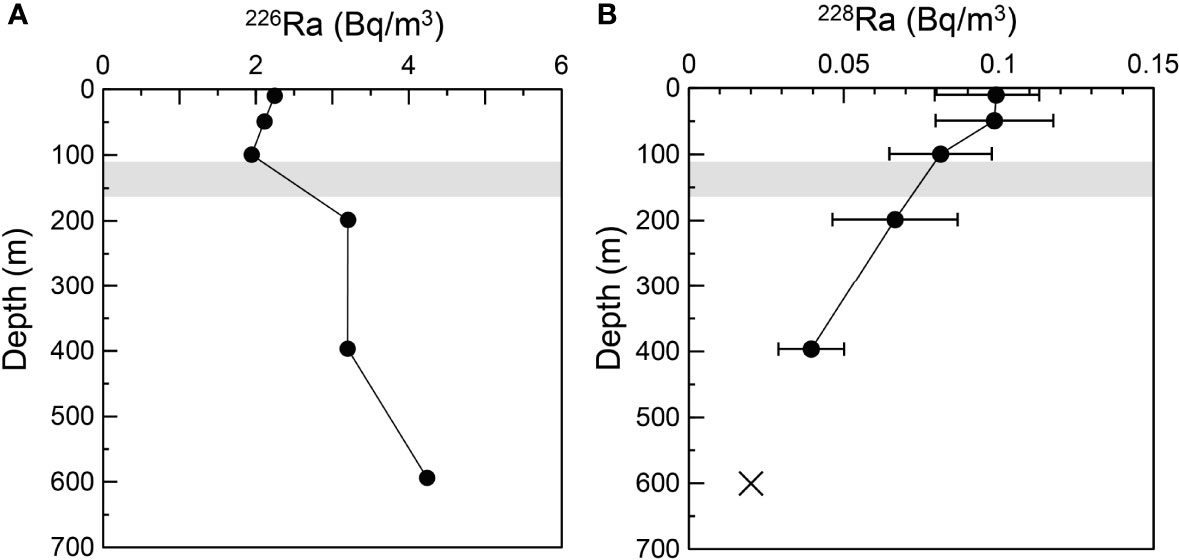

Figure 3 Vertical profiles at Station K2 in the WSAG for (A) ²²⁶Ra and (B) ²²⁸Ra activity concentrations. The letter x indicates the minimum detectable ²²⁸Ra activity concentration (0.02 Bq m^-3) in this study.

The ²²⁶Ra distribution trend resembled those of silicate and nitrate, which indicated ²²⁶Ra was supplied from subsurface water by vertical transport processes. A high ²²⁶Ra activity concentration (2.3 Bq m^-3) in the surface was also observed in the Okhotsk Sea and Oyashio Current area (Inoue et al., 2016). Broecker et al. (1976) and Nozaki et al. (1990) showed ²²⁶Ra in surface waters linearly correlated with dissolved silicate. Both these groups also reported that like silicate, surface ²²⁶Ra was derived from the deeper layer. Nozaki et al. (1990) noted that ²²⁶Ra in surface waters linearly correlated with dissolved silicate concentration with a best fit line of [²²⁶Ra (Bq m^-3)] = 1.3 + 0.021 [SiO₂ (μmol kg^-1)] for the North Pacific. Our ²²⁶Ra activity concentration at 10 m agreed with the calculated ²²⁶Ra activity concentration based on the silicate concentration. In addition, deeper water to 600 m also followed this best fit relationship, which indicated that both ²²⁶Ra and silicate were supplied from subsurface and deeper water in the WSAG. The dataset of ²²⁶Ra and silicate concentrations in the Okhotsk Sea is limited in the Kuril Basin (Inoue et al., 2016), but there is a difference between ²²⁶Ra and silicate concentrations in the Okhotsk Sea as can be seen in Figure S2. High ²²⁶Ra activity concentration in the Kuril basin in the Okhotsk Sea was reported with lower concentrations of macronutrients than those in the WSAG, which reflected ²²⁶Ra released from the shelf sediments in the Okhotsk Sea (Kawakami and Kusakabe, 2008).

We found ²²⁸Ra activity concentrations in the mixed layer were 0.099 ± 0.017 Bq m^-3 at 10 m depth and 0.099 ± 0.019 Bq m^-3 at 49 m depth (Figure 3B). ²²⁸Ra activity concentration (0.081 ± 0.017) at 99 m above the pycnocline was slightly lower than that of the upper layer. Nozaki et al. (1990) suggested that the effect of radioactive decay of ²²⁸Ra in the surface layer was much smaller than the effect of lateral transportation and mixing due to the rapid surface velocity. The surface distribution in the North Pacific seemingly reflected spatial variabilities of the ²²⁸Ra source (Figure S1). Low ²²⁸Ra activity concentrations were reported in the WSAG (0.1 Bq m^-3; this study and Inoue et al., 2016) and the Bering Sea Gyre (0.04 - 0.09 Bq m^-3; Nozaki et al., 1990; Li et al., 2017; Inoue et al., 2020). Hydrographic data (Figure 1) indicated that the Okhotsk Sea water did not influence our observation at Station K2 in the WSAG and EKC dominated the surface layer. There are high ²²⁸Ra source regions in the Okhotsk Sea (0.49 – 0.98 Bq m^-3; Kawakami and Kusakabe, 2008; Inoue et al., 2016), Sea of Japan (1.5-2.2 Bq m^-3; Inoue et al., 2012) and shelf and shelf slope in the Bering Sea (0.3-0.9 Bq m^-3, Li et al., 2017; Inoue et al., 2020). ²²⁸Ra is supplied from sediments in the continental shelf, which differs from ²²⁶Ra supplied from sub-surface and deep water in the WSAG. Contrary to ²²⁶Ra, ²²⁸Ra, a short half-life radionuclide, is depleted in the deeper layers by radioactive decay. ²²⁸Ra activity concentration in the Sea of Japan is higher than those in the Kuril Basin in the Okhotsk Sea. Surface water from the Sea of Japan passes through the Tsugaru Strait and has an impact on surface ²²⁸Ra in the Kuroshio-Oyashio Transition Zone (0.25 to 1.51 Bq m^-3). Therefore, the relative contribution of ²²⁸Ra from the margins is larger than that of ²²⁶Ra in the WSAG.

Vertical Profiles of Ra Isotopes

The dataset of ²²⁶Ra and ²²⁸Ra vertical profiles we obtained in this study is the first reported for the WSAG. ²²⁶Ra activity concentrations in the dichothermal water at 100 m below the seasonal thermocline were consistent with those in surface water (Figure 3A). Below the pycnocline, ²²⁶Ra activity concentrations between 110 and 160 m increased with depth. ²²⁶Ra activity concentrations were constant (3.2 Bq m^-3) at 199 m and 397 m depths, then increased to 4.2 Bq m^-3 at 594 m. We observed that ²²⁶Ra in deeper waters from 199 m to 594 m also followed the linear relationship with silicate concentrations as seen in the surface layer. This feature was consistent with our understanding that ²²⁶Ra was vertically supplied from a deeper layer in a high latitude area, such as the WSAG.

Radium-228 activity concentrations gradually decreased with depth from 0.08 Bq m^-3 at 10 m to 0.04 ± 0.01 Bq m^-3 at 399 m. ²²⁸Ra activity concentrations was less than the detectable level (<0.02 Bq m^-3) at 594 m depth. The vertical distribution of ²²⁸Ra activity concentrations was in contrast to that of ²²⁶Ra activity concentrations due to radioactive decay in the deeper layer. In addition, ²²⁸Ra activity concentrations below the pycnocline were much lower compared with ²²⁸Ra activity concentrations obtained in marginal seas such as the southwest Okhotsk Sea (0.3-0.4 Bq m^-3; Inoue et al., 2012) and the Sea of Japan (0.1-0.2 Bq m^-3; Okubo, 1980). We concluded that both Ra isotopes and their activity ratios are good tracers to identify the source of intermediate water in the WSAG. We also note that detectable ²²⁸Ra exists below the pycnocline, nevertheless vertical stratification is obvious in the WSAG due to low salinity in the mixed layer. Since ²²⁸Ra decreases by radioactive decay with a half-life of 5.8 yr, the ²²⁸Ra activity concentration and ²²⁸Ra/²²⁶Ra activity ratio can be used as a transient tracer for horizontal transport when underlying waters are isolated from the surface layer and a new supply is lacking.

Our ²²⁸Ra measurements were limited to water layers above 600 m and sparse due to the need for time-consuming large-volume water sampling during a short cruise. However, ultra-low background gamma-ray detection is possible for a low minimum detectable activity. To calculate the inventory of ²²⁸Ra in the water column, we interpolated ²²⁸Ra activity concentrations with depth between the surface to 397 m. ²²⁸Ra activity concentrations below 397 m depth were extrapolated using the relationship from 199 to 397 m depths. ²²⁸Ra activity concentrations were assumed to decrease with depth and reach zero around 700 m depth. Calculated ²²⁸Ra activity concentration at 600 m depth was 0.01 Bq m^-3, which was lower than the detectable ²²⁸Ra activity concentration (0.02 Bq m^-3).

Vertical Flux Estimation of ²²⁸Ra

We examined the inventory of ²²⁸Ra between depth z₁ and z₂ in the water column as:

$\begin{array}{ll}{}^{228}R{a}_{inventory, z1-Z2}={\displaystyle {\int }_{z1}^{Z2}}{}^{228}Ra\left(z\right)dz.& (1)\end{array}$

Calculated ²²⁸Ra inventories are shown in Table 2. ²²⁸Ra inventories below the depth z₁ to bottom are also shown. ²²⁸Ra inventories in the mixed layer (0 to 50 m) and dichothermal layer (50 to 110 m) was 5.0 Bq m^-2 and 5.3 Bq m^-1, respectively. On the other hand, ²²⁸Ra inventories in the mesothermal layer underlying the pycnocline (below 160 m depth) was 19.4 Bq m^-2, which was comparable to the inventory in the surface layer.

TABLE 2

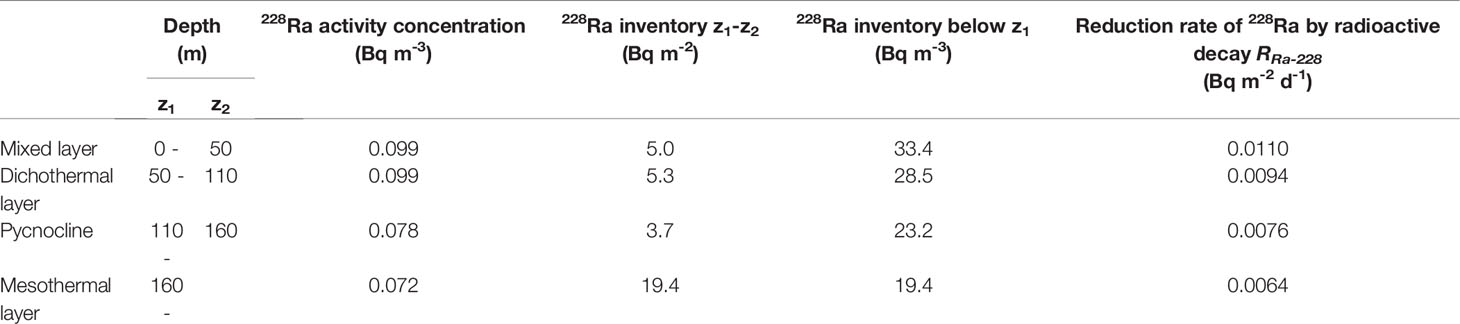

Table 2 ²²⁸Ra inventory reduction rate by radioactive decay.

Here, if we assumed the steady state, supply of ²²⁸Ra (F_Ra-228) should be balanced with the reduction rate of ²²⁸Ra inventory by radioactive decay as the following equation.

$\begin{array}{ll}{R}_{Ra-228}={\lambda }_{{}^{228}Ra}\times {}^{228}R{a}_{inventory, below z}& (2)\end{array}$

Here, ^λ228Ra is decay constant of ²²⁸Ra (3.82 × 10^–9 s^–1).

Ku et al. (1995) and Nozaki and Yamamoto (2001) reported that ²²⁸Ra in the mixed layer was transported downwardly by vertical eddy diffusion (one-dimensional model) and its inventory was decreased by radioactive decay. We did not consider other possible processes, such as lateral advection, biological uptake and regeneration processes, in accordance with previous studies (Ku et al., 1995; Nozaki and Yamamoto, 2001).

In addition, ²²⁸Ra below the pycnocline could be supplied only from the upper water by vertical eddy diffusion. We calculated the vertical eddy diffusive flux of ²²⁸Ra (F_Ra-228) across the depth horizon z as the product of vertical eddy diffusivity K_z (m² s^–1) obtained from turbulence observation using microstructure profiler and vertical gradient of ²²⁸Ra activity concentration, (∂ ²²⁸Ra / ∂z) in the depth profile (Table 3).

TABLE 3

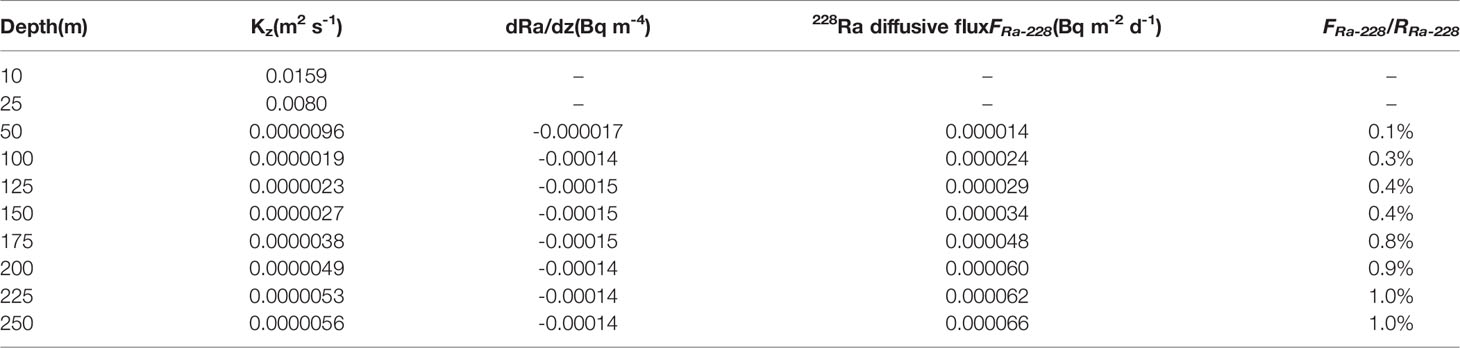

Table 3 Comparison between ²²⁸Ra diffusive flux and reduction rate by radioactive decay.

$\begin{array}{ll}{F}_{Ra-228}=-K_z\times {\left(\frac{\partial {}^{228}Ra}{\partial z}\right)}_z& (3)\end{array}$

The ²²⁸Ra activity concentrations were uniform in the mixed layer (0-50 m) and no vertical concentration gradient could be distinguished. On the other hand, the vertical eddy diffusive flux of ²²⁸Ra entraining in the deeper layer and crossing over the pycnocline was ranged from 0.000029 Bq m^-2 d^-1 (125 m) to 0.000034 Bq m^-2 d^-1 (150 m). It was two orders of magnitude smaller (0.4%) than the reduction rate of ²²⁸Ra inventory in the water column even if a large uncertainty of vertical gradients of ²²⁸Ra activity concentration derived from ²²⁸Ra analysis was considered. Assuming the steady state, the imbalance between the fluxes strongly suggested that ²²⁸Ra below the mixed layer was supplied by lateral advection.

According to Ku et al. (1995), nitrate flux between 100 m and 200 m was estimated as 3-10 mmol m^-2 d^-1 by using vertical profiles of ²²⁸Ra and nitrate, and the ²²⁸Ra-based diffusive nitrate flux in this study was in the same range. Previously, Nozaki and Yamamoto (2001) also calculated nitrate fluxes in the eastern Indian Ocean, and pointed out the lateral transport of ²²⁸Ra might elevate activity concentrations of ²²⁸Ra in intermediate water, resulting in overestimation of the fluxes. Here, we considered this was the case in the WSAG. The nitrate flux range based on the ²²⁸Ra profile was two to four orders of magnitude greater than the reported values in the subarctic Pacific (0.03-0.7 mmol m^-2 d^-1; Nishioka et al., 2020). This discrepancy implied ²²⁸Ra below the pycnocline in the WSAG was supplied from lateral advection. Nishioka et al. (2020) reported that the nitrate fluxes were largest in the Kuril Straits (~100 mmol m^-2 d^-1) and second largest along the Aleutian Islands (~10 mmol m^-2 d^-1), which was caused only by enhanced turbulent diapycnal mixing near the marginal area (Itoh et al., 2010; Itoh et al., 2011; Yagi and Yasuda, 2012). It is important to study the ²²⁸Ra source and its supply process to mesothermal water in the intermediate depth for better understanding of biogeochemical cycles of nutrients in the WSAG. Low-oxygen and high-silicate and high-nitrate water are found in the WSAG and Bering Gyre at the isopycnal surfaces of 26.9 and 27.15, corresponding to 199 m and 397 m depths at Station K2, respectively (Figure S2). We could trace the relatively lower salinity water signature (>33.8) at σ_θ = 26.9 back to the EKC along the Kamchatka Peninsula and the western Bering Gyre.

Higher ²²⁸Ra/²²⁶Ra ratios were reported near the Kamchatka Peninsula in the WSAG and in the Bering Gyre. The highest ratio (0.15) was reported for the continental shelf area in the Bering Sea (Li et al., 2017; Inoue et al., 2020). Assuming simple mixing between surface water in the continental shelf in the Bering Sea (²²⁸Ra/²²⁶Ra =0.15, salinity = 32.8; Inoue et al., 2020) and intermediate water at the oxygen minimum layer (²²⁸Ra/²²⁶Ra =0, salinity = 34.3) without radioactive decay, the calculated ²²⁸Ra/²²⁶Ra in the mesothermal layer exceeded the observed values (Figure 4). If the surface water in the continental shelf was penetrated within 2 years for salinity and 7 years for silicate, the calculated ratios were close to the observed values. To investigate the lateral transport process of Ra isotopes in the WSAG, we need more information on the possible ²²⁸Ra sources near the Kamchatka Peninsula and the Bering Gyre.

FIGURE 4

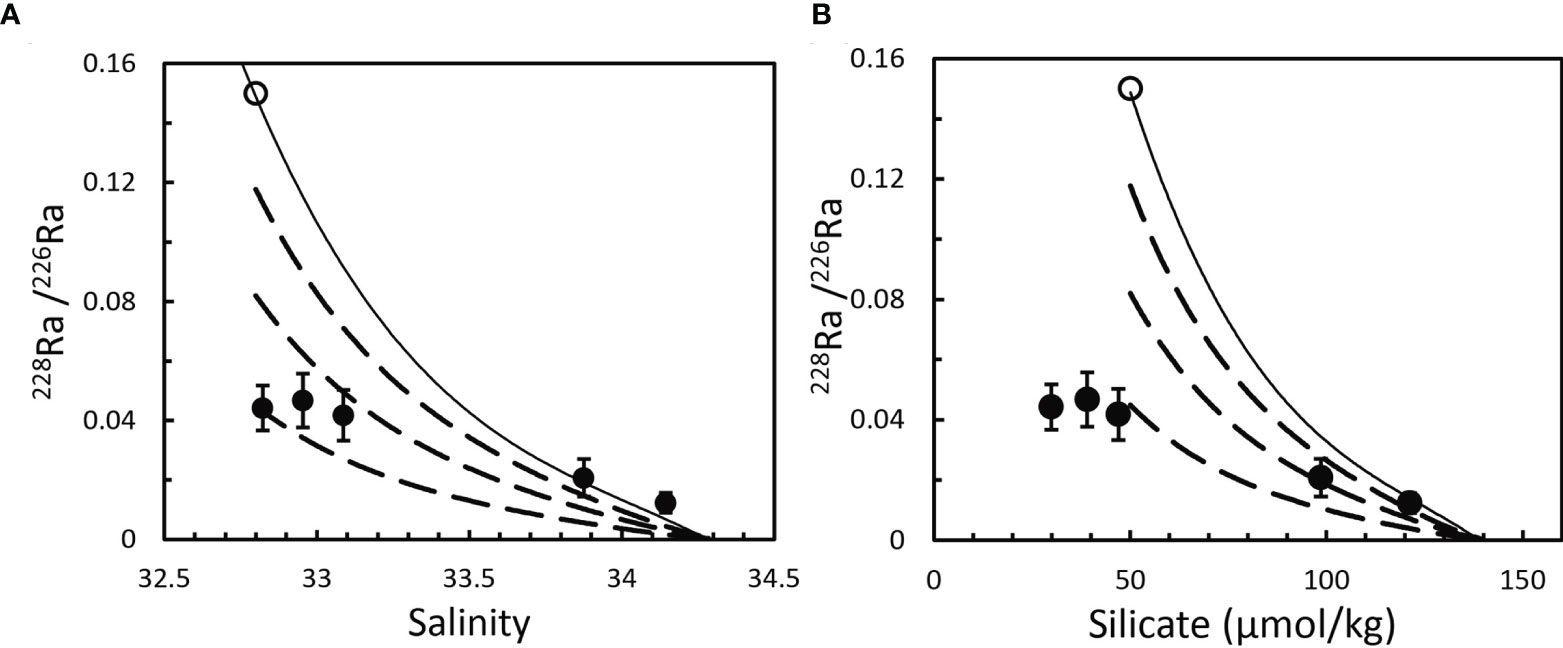

Figure 4 Relationships of ²²⁸Ra/²²⁶Ra activity ratio with (A) salinity and (B) silicate concentration. Open circles indicate previously observed data in the continental shelf in the Bering Sea (Inoue et al., 2020). The solid lines are the mixing curves between the oxygen minimum layer and surface water in the continental shelf in the Bering Sea. The dashed lines are considered to represent ²²⁸Ra depletion by radioactive decay at elapsed times of 2, 5, and 10 yr before mixing.

Conclusion

The vertical distributions of the Ra isotopes, ²²⁶Ra and ²²⁸Ra, were determined for the first time from large-volume seawater sampling done at Station K2 in the western Subarctic Pacific Gyre (WSAG).

1. The ²²⁸Ra activity concentrations in the surface layer were controlled by the mixture of the low-²²⁸Ra activity concentration EKC water and the high-²²⁸Ra activity concentration surface water in the ​​Okhotsk Sea, and the ²²⁸Ra activity concentrations were highly correlated with salinity in the WSAG.

2. The vertical distributions of ²²⁶Ra and ²²⁸Ra activity concentrations were uniform from the surface to the dichothermal layer of 100 m depth due to vertical mixing in winter.

3. ²²⁸Ra activity concentrations decreased with water depth below the main pycnocline. The vertical transport by eddy diffusion was concluded to be a minor process for the ²²⁸Ra flux, and the horizontal transport possibly supplied ²²⁸Ra in the intermediate mesothermal water (200-400 m depths) in the open ocean in the WSAG.

4. Observed ²²⁸Ra activity concentrations in the mesothermal layer implied that water with a relatively high ²²⁸Ra/²²⁶Ra activity ratio, which can be found in the EKC, was supplied to the interior of the WSAG and laterally advected.
