Peritrich ciliates are a species-rich group of sessile unicellular eukaryotes, which can be found in various aquatic habitats from all over the world. It is well accepted that there are still many ciliates to be uncovered. During a survey on ciliate biodiversity in the coastal waters of China, three solitary peritrich species were identified as members of the genus Pseudovorticella Foissner & Schiffmann, 1975, including two new species and a rare one. Pseudovorticella zhejiangensis sp. n. differs from its congeners mainly by having a conical-shaped zooid, conspicuous pellicular blisters, one ventral and one dorsal contractile vacuoles, and an infundibular polykinety 3 with three rows of nearly equal length but different beginning positions. Pseudovorticella dalianensis sp. n. can be defined mainly by an obovoid-shaped zooid, one ventral contractile vacuole, and a three-rowed infundibular polykinety 3 with the middle row being the longest. The rare species, Pseudovorticella verrucosa (Dons, 1915) Sun et al., 2009, was redescribed. The small subunit (SSU) rDNA sequences of these three species were sequenced for the first time, the phylogeny of Pseudovorticella species was analyzed, and the results verified the non-monophyly of this genus. This study demonstrates that the morphologic and gene barcoding data are the optimum combination to disclose the biodiversity of ciliates.
Introduction
Sessile peritrich ciliates comprise over 800 species and can be commonly found in a wide variety of aquatic habitats including marine, freshwater, and brackish waters (Jankowski, 1985; Song, 1991; Foissner et al., 1992; Berger and Foissner, 2003; Sun et al., 2016; Wu et al., 2020; Wu et al., 2021). These ciliates are highly sensitive to environmental changes, thus are frequently used as bioindicators for water quality assessment (Xu et al., 2014) and the assessment of sludge activity in wastewater treatment plants (Foissner, 2016). However, it has long been recognized that many peritrich species are often difficult to identify, especially for two species-rich genera, Pseudovorticella Foissner & Schiffmann, 1975 and Vorticella Linnaeus, 1767 (Ji et al., 2004; Sun et al., 2013). The species of the two genera are difficult to distinguish only by living morphology. The only difference is that Pseudovorticella has a reticulate silverline system while Vorticella has a transverse pattern (Foissner and Schiffmann, 1975).
Up to date, over 60 Pseudovorticella species have been identified (Zhang et al., 2019), most of which were transferred from Vorticella (Foissner and Schiffmann, 1975; Foissner and Schiffmann, 1979; Leitner and Foissner, 1997; Sun et al., 2009; Ji et al., 2011; Gómez et al., 2018; Hu et al., 2019). The lack of silver staining information, especially the pattern of the silverline system of many Vorticella species, still questions their generic assignments and, thus, gives rise to the challenge in the identification of Pseudovorticella ciliates (Noland and Finley, 1931; Warren, 1986; Warren, 1987; Sun et al., 2013; Liang et al., 2019). Molecular studies based on gene sequence data can serve as a supplementary tool to species identification and can help reveal the phylogenetic relationships among peritrich ciliates (Clamp, 2006; Zhan et al., 2009; Chen et al., 2010; Foissner et al., 2010; Ji et al., 2011; Gao et al., 2016; Sun et al., 2016). However, so far, there are only about 34 available small subunit (SSU) rDNA sequences of Pseudovorticella isolates in the public databases, covering 11 known species. Therefore, both the species diversity and the genetic variation of this genus have not yet been well revealed (Sun et al., 2013; Jiang et al., 2019).
As a contribution to the species diversity of Pseudovorticella, two new species and one known species were isolated during a survey on ciliate diversity in the coastal waters of China. They were studied in detail using state-of-the-art taxonomic methods of ciliates. The morphological information including live morphology, ciliature patterns, and silverline systems was documented. In addition, the SSU rDNA sequences were also provided and used to conduct phylogenetic analyses.
Materials and methods
Sample collection and cultivation
Pseudovorticella zhejiangensis sp. n. was collected on 11 March 2017 from a coastal pond in Taizhou, Zhejiang Province, China (28°14′18.80′′N, 121°14′16.33′′E). Pseudovorticella dalianensis sp. n. was collected on 21 July 2017 from a coastal water in Dalian, Liaoning Province, China (38°52′2.92′′N, 121°33′56.06′′E). Pseudovorticella verrucosa (Dons, 1915) Sun et al., 2009 was collected on 16 December 2009 from the Clear Water Bay, Hong Kong, China (22°16′53.54′′N, 114°19′4.51′′E). After collection, samples were transferred into Petri dishes and cultivated at room temperature (20°C–25°C) for several days; rice grains were added to enrich bacteria as a food source for ciliates.
Live observation and silver staining
During the lab cultivation, living cells were observed using bright field and differential interference contrast microscopy (Nikon 80i, Tokyo, Japan). The ciliature pattern and nuclear apparatus were revealed by the protargol staining method following Wilbert (1975). The Chatton–Lwoff silver nitrate staining method according to Song and Wilbert (1995) was conducted to show the silverline system. Drawings of live specimens were based on in-vivo observations and photomicrographs at ×100–1,000 magnifications, and those of stained specimens were performed with the aid of a camera lucida at a magnification of ×1,000. Morphometric measurement of the stained specimens was conducted at a magnification of ×1,000. Systematics and terminology were mainly according to Warren (1987) and Lynn (2008).
DNA extraction and SSU rDNA sequencing
For each species, about 10 individuals were transferred from the Petri dishes to watch glass plates, washed carefully three times, and filtered (through 0.2-µm membranes) in site water. Then, a single individual was harvested and placed in a 1.5-ml centrifuge tube prior to DNA extraction. Several backups were made for each species. Genomic DNA was extracted using RED Extract-N-Amp Tissue PCR Kit (Sigma, USA) following the default procedure. The SSU rDNA sequence was amplified by PCR, using the universal eukaryotic forward primer EukA (5′-AACCTGGTTGATCCTGCCAGT-3′) and reverse primer EukB (5′-TGATCCTTCTGCAGGTTCACCTAC-3′) (Medlin et al., 1988). The PCR setting parameters were as follows: an initial denaturation at 98°C for 3 min, 35 cycles for amplification (15 s at 98°C, 15 s at 54°C, and 90 s at 72°C), and a final extension at 72°C for 10 min. The PCR products were checked and sent for sequencing. The SSU rDNA was sequenced by Shanghai Majorbio Bio-Pharm Technology Co., Ltd. (Guangzhou branch), and near full-length sequences of the three species were obtained.
Phylogenetic analyses
Including the three newly obtained sequences, 75 SSU rDNA sequences (NCBI accession numbers shown in Figure 7) were used for phylogenetic analyses. Sequences were aligned using the in-built ClustalW function in BioEdit 7.2.5 (Hall, 1999), then further modified by the truncation of both ends and the removal of ambiguous positions. The length of the final aligned matrix was 1,462 bp. This matrix was used to construct phylogenetic trees (Supplementary Materials S1, S2). Two hymenostomes, Tetrahymena corlissi (U17356) and Glaucoma chattoni (X56533), served as outgroup taxa.
Three algorithms were employed to construct the phylogenetic trees. A maximum likelihood (ML) analysis was run using the RAxML-HPC2 v. 8.2.12 package (Stamatakis, 2014) on the CIPRES website (Miller et al., 2010) with the GTRGAMMA + I nucleotide substitution model (Irwin and Lynn, 2015); 1,000 bootstrap replicates were conducted (Supplementary Material S3). Another ML analysis was run using IQ-TREE multicore version 1.6.12 (Minh et al., 2020) (Supplementary Material S4). The model TIM2+F+R5 was chosen as the best-fit model according to the Bayesian information criterion (BIC) by the in-built ModelFinder program (Supplementary Material S5). Statistical support was computed using 1,000 ultrafast bootstrap replicates (Hoang et al., 2018). A Bayesian inference (BI) analysis was run using MrBayes on the XSEDE 3.2.7a package (Ronquist and Huelsenbeck, 2003) on the CIPRES website (Supplementary Materials S6, S7). The best-fit model TIM2+I+G was determined according to BIC, using the jModeltest 2.1.10 package (Darriba et al., 2012) on the CIPRES website (Supplementary Material S8). The model parameters were added to the command blocks for the construction of BI trees (Supplementary Material S2). The Markov chain Monte Carlo simulations were run for four million generations. The sample frequency was every 100th generation, and the first one million simulations were discarded as burn-in. The average standard deviation of split frequencies was 0.005859 (<0.01).
The pairwise genetic distances among 25 Pseudovorticella SSU rDNA sequences were calculated with MEGA7.
Nomenclatural note
This work was registered in ZooBank under the following accession number: urn:lsid:zoobank.org:pub:78C7FC86-C1FF-4666-86B2-A764ADAA8F14.
Results
Taxonomy and morphological descriptions
Order Sessilida Kahl, 1933
Family Vorticellidae Ehrenberg, 1838
Genus Pseudovorticella Foissner & Schiffmann, 1975
Pseudovorticella zhejiangensis sp. n.
Diagnosis. Zooid shape conical to elongated conical, about 50–70 × 45–70 µm in vivo. Macronucleus J-shaped. Two contractile vacuoles, one ventral and the other dorsal. Pellicle with pellicular blisters. Infundibular polykinety 3 with three rows of nearly equal length, the beginning position of the inner row different from that of the outer two rows. 31–38 and 9–17 transverse silverlines above and below the aboral trochal band, respectively.
Type locality. A coastal pond in Taizhou, Zhejiang Province, China (28°14′18.80′′N, 121°14′16.33′′E). Water temperature was 18°C, salinity was 15‰, and pH was 7.
Type materials. A permanent slide (registration number: JMM-2017031101) with protargol-impregnated specimens of which the holotype was circled in black and a slide (registration number: JMM-2017031102) with silver nitrate-stained specimens as paratype were deposited in the Laboratory of Protozoology, Ocean University of China, Qingdao, China.
Etymology. The group name zhejiangensis refers to the location, Zhejiang Province, China, where the type was found.
ZooBank accession number of the new species. urn:lsid:zoobank.org:act:715CCF74-9457-4F33-ABEF-19213CC252B6
Morphological description (Figures 1, 2 and Table 1). Zooid 50–70 × 45–70 µm in vivo (Table 1), conical to elongated conical shaped, widest part at peristome (Figures 1A, E, 2A, I). Peristomial lip single-layered, about 5 µm thick. Peristomial disc flat, moderately elevated from the peristomial lip in fully extended cells (Figures 1A, 2B). Pellicle smooth at low magnifications, while irregularly shaped blisters and striations observed under magnifications of ×400 to ×1,000 (Figures 1A, B, 2C, D).

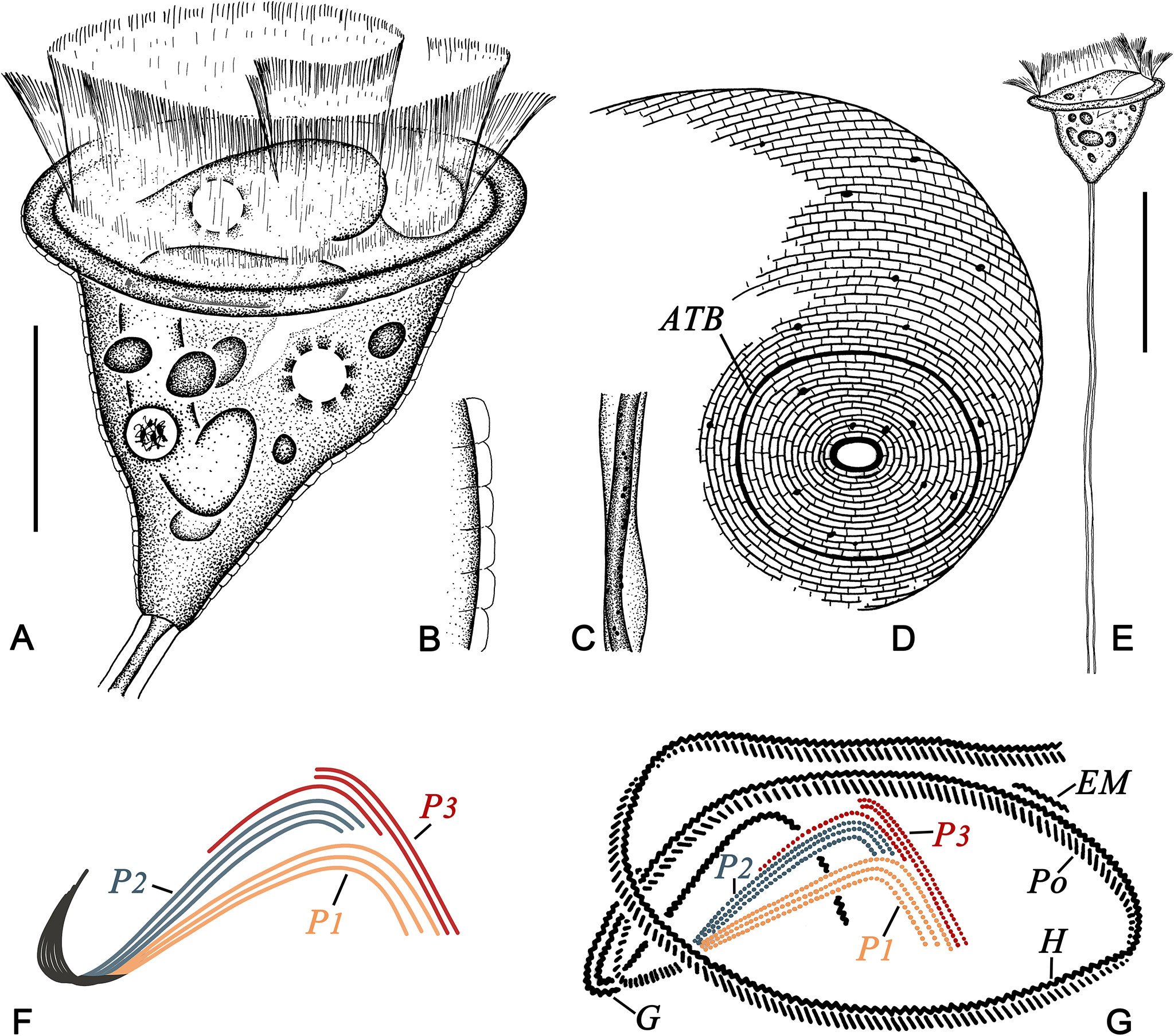

Figure 1 Pseudovorticella zhejiangensis sp. n. from life (A–C, E), after silver nitrate staining (D), and after protargol staining (F, G). (A) Typical shape of the zooid. (B) Pellicular blisters. (C) Details of the stalk and spasmoneme. (D) Silverline system, showing the posterior part of the zooid. (E) An individual with stalk and zooid. (F) Arrangement pattern of the three infundibular polykineties. (G) Oral ciliature. ATB, aboral trochal band; EM, epistomial membrane; G, germinal kinety; H, haplokinety; Po, polykinety; P1–3, infundibular polykinety 1–3. Scale bars: 30 μm (A) and 60 μm (E).
Figure 2 Photomicrographs of Pseudovorticella zhejiangensis sp. n. in vivo (A–I), after protargol staining (J) and after silver nitrate staining (K). (A, I) Typical complete individuals. (B) Zooid in typical shape. (C) Pellicular blisters (arrow). (D) Pellicular striations (arrow). (E) Macronucleus (arrows). (F) Arrows indicate the two contractile vacuoles, one dorsal and another ventral. (G) Details of the stalk and spasmoneme; arrow points to granules. (H) Helically contracted stalk. (J) Infundibular part of the oral ciliature, showing the three polykineties. (K) Overview of the silverline system. Abbreviations: P1–3, infundibular polykinety 1–3. Scale bars: 60 μm (A) and 30 μm (B).
Table 1 Morphometric data of Pseudovorticella zhejiangensis sp. n., Pseudovorticella dalianensis sp. n., and Pseudovorticella verrucosa.
Cytoplasm dark to grayish, usually filled with small food vacuoles (1–2 µm across) and dark green algae-like particles (1–2 µm across) (Figure 2B). Two contractile vacuoles, each 4–8 µm in diameter; one located near the ventral wall of the infundibulum under the peristomial lip, the other dorsally located; contracting non-simultaneously with an interval of 1–1.5 min (Figures 1A, 2E). Macronucleus J-shaped (Figures 1A, 2F). Micronucleus not observed.
Stalk 217–345 µm in length in vivo, 5–8 µm in diameter, helically contractile; with no bacteria nor algae attached (Figures 1C, E, 2A, G, H). Stalk spasmoneme 2–3 µm across, distinctly helical, with black granules sparsely distributed on the surface (Figures 1C, 2G, H). Telotroch present.
Haplokinety and polykinety circles extending about 1.25 turns around the peristomial disc and another turn after entering the infundibulum (Figure 1G). Polykinety posteriorly separated into three infundibular polykineties (P1, P2, and P3) at the lower half of the infundibulum (Figure 1G). Each infundibular polykinety consisting of three rows (Figures 1G, 2J). P2 terminating at the confluence of P1 and P3. Three rows of P3 nearly equal in length; inner row beginning at the middle of the upper part of P2 and terminating at the same level as P2; outer two rows parallel, anterior parts separated from the inner row and terminating at the same level as P1 (Figures 1F, G, 2J). Germinal kinety located at the upper half of the infundibulum and parallel to haplokinety. Epistomial membrane located within the opening of the infundibulum (Figure 1G). Aboral trochal band composed of a row of kinetosomes encircling a cell at the posterior one-fifth of the body (Figure 1D).
Silverline system reticulate, with evenly spaced transverse lines (Figures 1D, 2K); 31–38 silverlines between the peristome and the trochal band, and 9–17 silverlines between the trochal band and the scopula (Table 1).
Pseudovorticella dalianensis sp. n.
Diagnosis. Zooid obovoid-shaped, about 50–60 × 30–35 µm in vivo. Macronucleus J-shaped. One ventral contractile vacuole. Infundibular polykinety 3 with three rows, inner and outer rows shorter than the middle row and terminating near the end of P2; while the middle row terminating at the same level as P1; inner row clearly separated from the outer two rows and close to polykinety 2. 31–44 and 9–13 transverse silverlines above and below the aboral trochal band, respectively.
Type locality. Coastal marine water in Dalian, Liaoning Province, China (38°52′2.92′′N, 121°33′56.06′′E). Water temperature was 27°C, salinity was 30‰, and pH was 6.
Type materials. A permanent slide (registration number: JMM-2017072101) with protargol-impregnated specimens of which the holotype was circled in black and a slide (registration number: JMM-2017072102) with silver nitrate-stained specimens as paratype were deposited in the Laboratory of Protozoology, Ocean University of China, Qingdao, China.
Etymology. The group name dalianensis refers to the location, Dalian, where the type was found.
ZooBank accession number of the new species. Urn:lsid:zoobank.org:act:2EFAAB58-BDFE-4F9E-9A0B-2B9CFB36B9D9
Morphological description (Figures 3, 4 and Table 1). Zooid obovoid-shaped, 50–60 × 30–35 µm in vivo (Table 1). Single-layered peristomial lip about 5 µm thick, inconspicuously everted with uneven margin. Peristomial disc slightly elevated from the peristomial lip in fully extended cells (Figures 3A, 4B). Striations detectable under high magnifications of ×400 to ×1,000 (Figure 4H).

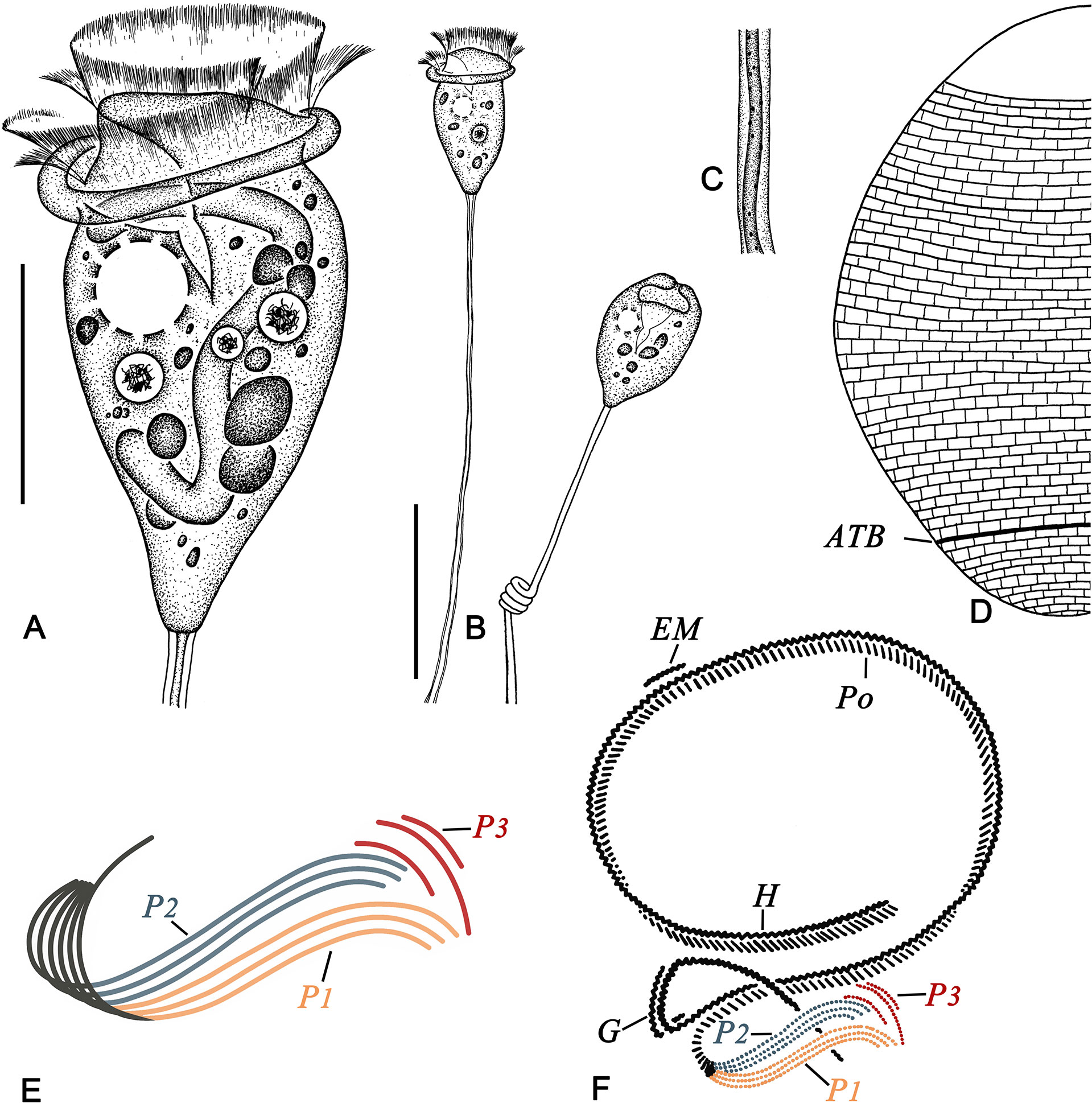

Figure 3 Pseudovorticella dalianensis sp. n. from life (A–C), after silver nitrate staining (D) and after protargol staining (E, F). (A) Typical shape of the zooid. (B) Complete individuals with stalk and zooid. (C) Details of the stalk and spasmoneme. (D) Silverline system. (E) Arrangement of the three infundibular polykineties. (F) Oral ciliature. ATB, aboral trochal band; EM, epistomial membrane; G, germinal kinety; H, haplokinety; Po, polykinety; P1–3, infundibular polykinety 1–3. Scale bars: 30 μm (A) and 60 μm (B).
Figure 4 Photomicrographs of Pseudovorticella dalianensis sp. n. in vivo (A–D, F–H), after protargol staining (E, I) and after silver nitrate staining (J). (A) A typical complete individual. (B) A typical zooid. (C) Arrow marks a contractile vacuole. (D) Arrows point to a macronucleus. (E) Overview of the ciliature; arrow marks the aboral trochal band. (F) Details of the stalk and spasmoneme; arrow indicates granules. (G) Helically contracted stalk. (H) Pellicular striations. (I) Arrangement of infundibular polykineties. (J) Overview of the silverline system. P1–3, infundibular polykinety 1–3. Scale bars: 60 μm (A) and 30 μm (B–E).
Cytoplasm dark to grayish, usually containing a few unequal-sized food vacuoles (5–8 µm in diameter) and dark green algae-like particles (3–5 µm in diameter) (Figures 3A, 4B). Single contractile vacuole about 10 µm in diameter, located near the ventral wall of the infundibulum (Figures 3A, 4C). Macronucleus J-shaped (Figures 3A, 4D). Micronucleus not observed.
Stalk 145–190 µm in length in vivo, about 3 µm in diameter, helically contractile; with no bacteria nor algae attached (Figures 3B, 4A, F, G). Stalk spasmoneme distinctly helical, 1–2 µm across, with granules sparsely distributed on the surface (Figures 3C, 4F). Telotroch not detected.
Haplokinety and polykinety extending about 1.25 turns around the peristomial disc and another turn after entering the infundibulum (Figures 3F, 4E). Polykinety posteriorly separated into three infundibular polykineties (P1, P2, and P3) at the lower half of the infundibulum (Figures 3F, 4E, I). Each infundibular polykinety consisting of three rows (Figures 3F, 4I). The middle row of P3 and P1 converged and synchronously terminating at the end of the infundibulum. P2 terminating at the confluence of P1 and P3. In P3, the inner and outer rows shorter than the middle row, and both terminating near the end of P2, while the middle row terminating at the same level as P1; inner row clearly separated from the outer two rows and close to P2 (Figures 3E, F, 4I). Germinal kinety located at the upper half of the infundibulum and parallel to haplokinety. Epistomial membrane positioned near the opening of the infundibulum (Figure 3F). Aboral trochal band composed of a row of kinetosomes encircling a cell at the posterior one-fifth of the body (Figures 3D, 4E).
Silverline system reticulate, with evenly spaced transverse lines (Figures 3D, 4J). 31–44 and 9–13 transverse silverlines above and below the aboral trochal band, respectively.
Pseudovorticella verrucosa (Dons, 1915) Sun et al., 2009
Improved diagnosis. Zooid inverted triangular-shaped, about 30–50 × 30–65 µm in vivo. Macronucleus J-shaped. Single contractile vacuole ventrally located. Pellicle with pellicular blisters and highly developed pellicular granules. Infundibular polykinety 3 with three rows, the inner row shorter than the outer two which are of equal length. 22–39 and 13–21 transverse silverlines above and below the aboral trochal band, respectively.
Deposition of voucher materials. A protargol-impregnated slide (registration number: SZ-2009-1216-02-1) and a silver nitrate-stained slide (registration number: SZ-2009-1216-02-03) with voucher specimens were deposited in the Laboratory of Protozoology, Ocean University of China, Qingdao, China.
Morphological description (Figures 5, 6 and Table 1). Zooid inverted triangular-shaped, widest part at the peristome; cells size 30–50 × 50–65 µm in vivo (Table 1). Single-layered peristomial lip, about 4 µm thick, distinctly everted. Peristomial disc flat, slightly elevated above the peristomial lip in fully extended cells (Figures 5A, 6B). Pellicle with conspicuous blisters (about 2 μm thick) and sparsely distributed granules (1–3 μm diameter) (Figures 5A, D, 6E, G).

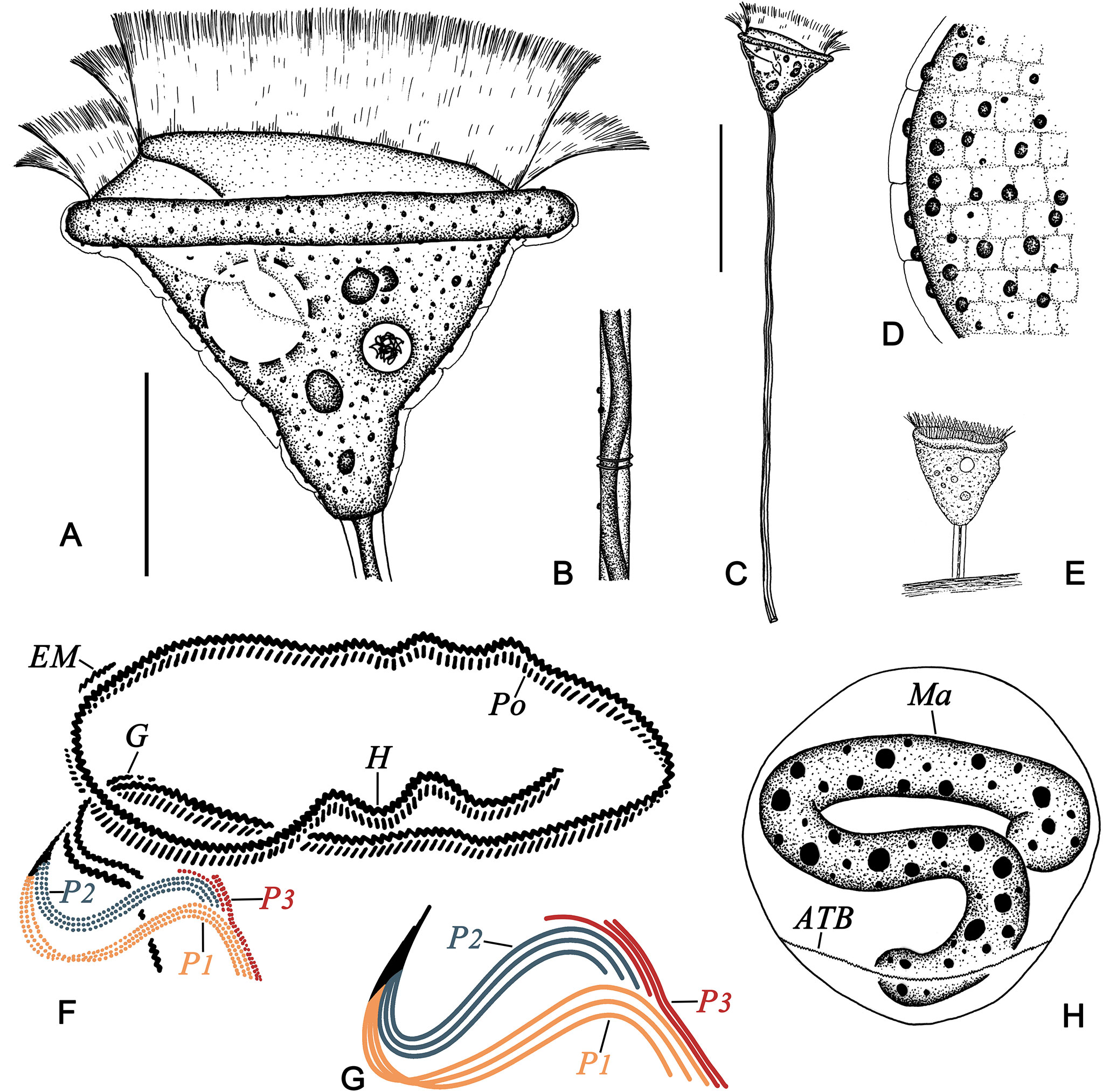

Figure 5 Pseudovorticella verrucosa from life (A–E) and after protargol staining (F–H). (A) Typical shape of the zooid. (B) Details of the stalk and spasmoneme. (C) A complete individual with stalk and zooid. (D) Details of the pellicle. (E) The original illustration from Dons (1915). (F) Oral ciliature. (G) Arrangement of the three infundibular polykineties. (H) The macronucleus. ATB, aboral trochal band; EM, epistomial membrane; G, germinal kinety; H, haplokinety; Ma, macronucleus; Po, polykinety; P1–3, infundibular polykinety 1–3. Scale bars: 20 μm (A) and 70 μm (C).
Figure 6 Photomicrographs of Pseudovorticella verrucosa in vivo (A–C, E–G), after protargol staining (H–K) and after silver nitrate staining (L). (A) A typical complete individual. (B) Zooid in typical shape. (C) Details of the stalk and spasmoneme. (D) Helically contracted stalk. (E) Pellicular granules (arrows). (F) Arrow marks the contractile vacuole. (G) Pellicular blisters (arrow). (H–I) Arrows point to the macronucleus. (J) Overview of the ciliature; arrow marks the aboral trochal band. (K) Infundibular part of the oral ciliature, showing the three polykineties. (L) Partial silverline system. P1–3, infundibular polykinety 1–3. Scale bars: 70 μm (A), 30 μm (B, E), and 10 μm (D).
Cytoplasm grayish, usually containing several food vacuoles (3–5 µm across) (Figure 6B). One contractile vacuole situated near the ventral wall of the infundibulum, about 10 µm in diameter (Figures 5A, 6F). Macronucleus J-shaped; its upper arm horizontally oriented, surrounding the infundibulum almost completely; posterior portion extending to the posterior end of zooid (Figures 5H, 6H, I). Micronucleus not observed.
Stalk 300–400 µm in length in vivo, about 5 µm in diameter, helically contractile; occasionally with attachments on the surface (Figures 5C, 6A, C, D). Stalk spasmoneme about 3 µm across, distinctly helical, without granules on the surface (Figures 5B, 6C). Telotroch not observed.
Haplokinety and polykinety circles extending about 1.25 turns around the peristomial disc and another turn after entering the infundibulum (Figure 5F, 6J). Polykinety posteriorly separated into three infundibular polykineties (P1, P2, and P3) at the lower half of the infundibulum (Figure 5F). Each infundibular polykinety consisting of three rows (Figures 5F, G). P2 terminating at the confluence of P1 and the outer rows of P3. In P3, the inner row shorter than the outer two rows and terminating at the same level as P2; the outer two rows parallel and equal in length, both beginning at the middle of the inner row; the outer two rows converged adstomally at the end of infundibulum, and terminating synchronously with P1 (Figures 5G, 6K). Germinal kinety located at the upper half of the infundibulum and parallel to haplokinety. Epistomial membrane located within the opening of the infundibulum (Figure 5G). The aboral trochal band composed of a row of kinetosomes encircling a cell at the posterior one-fourth of the body (Figures 5H, 6J).
Silverline system reticulate, with evenly spaced transverse lines (Figure 6L). 22–39 silverlines between the peristome and the trochal band, and 13–20 silverlines between the trochal band and the scopula (Table 1).
Phylogenetic analyses based on SSU rDNA sequences
The newly sequenced SSU rDNA of the three Pseudovorticella species in the present work, P. zhejiangensis sp. n., P. dalianensis sp. n., and P. verrucosa, have been deposited in the GenBank database with the accession numbers of OP216729 (partial length, 1,686 bp), OP216730 (partial length, 1,689 bp), and OP216731 (partial length, 1,600 bp), respectively. The GC contents of P. zhejiangensis sp. n., P. dalianensis sp. n., and P. verrucosa are 42.82%, 43.81%, and 43.87%, respectively.
The topologies of the phylogenetic trees constructed with RAxML, IQ-Tree, and MrBayes were highly identical; therefore, they were incorporated into one based on the topology of the RAxML tree (Figure 7). In the phylogenetic tree, the genus Pseudovorticella is non-monophyletic. Two distinct clades (marked as groups A and B) comprising the species of Pseudovorticella and Epicarchesium are identified. Group A contains P. monilata, E. pectinatum, and seven unclassified Pseudovorticella sequences, while group B contains all the remaining sequences of the genera Pseudovorticella and Epicarchesium, forming a sister cluster to one clade of Vorticella species. In group B, P. zhejiangensis sp. n. is clustered with two undefined isolates, Pseudovorticella sp.2 PERI98 (MW046187) and Pseudovorticella sp.2 PERI99 (MW046188) with full support values. Pseudovorticella dalianensis sp. n. is sister to Pseudovorticella sp. Dazhou bridge (KU363283) with full support values. They further cluster with Epicarchesium corlissi with high support values (99% in RAxML, 100% in IQ-Tree, and 1.00 in BI). Pseudovorticella verrucosa is sister to the clade of P. sinensis (DQ845295) and P. parakenti (MH537102) with support of 0.98 in BI (Figure 7).

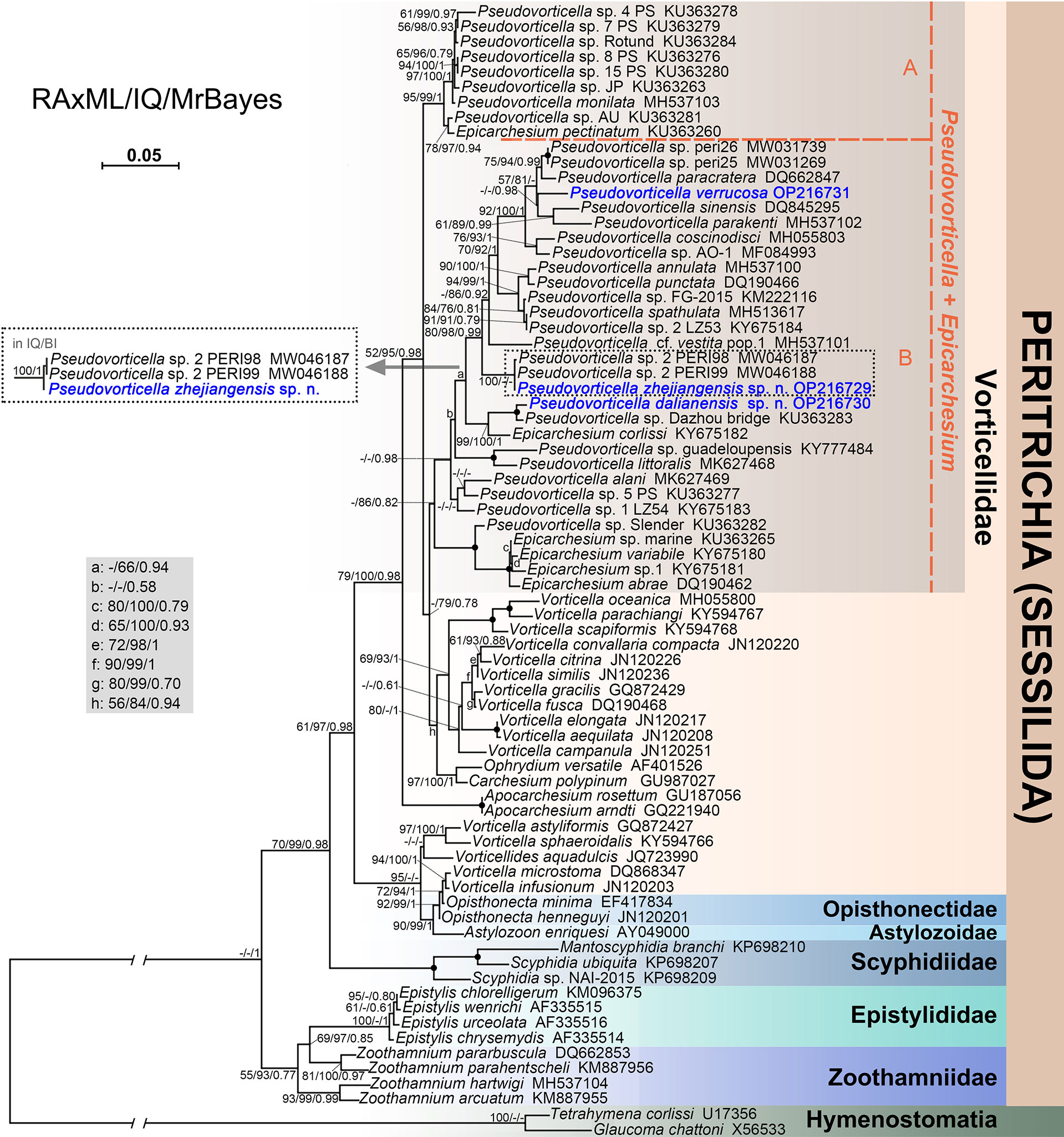

Figure 7 Phylogenetic tree of peritrich ciliates based on SSU rDNA sequences. Newly sequenced species are highlighted in blue. Numbers at the nodes represent support values in the following order: RAxML bootstrap values/IQ-Tree ultrafast bootstrap values/Bayesian inference (BI) posterior probabilities. “–” represent values below 50% or 0.50. Solid dots at the branching point indicate full support from all algorithms (100%/100%/1.00). The scale bar indicates five substitutions per 100 nucleotide positions.
The genetic distances were calculated with MEGA7 among 25 Pseudovorticella sequences in group B (Table 2). The results showed that genetic distances differ from 0% to 7.01% between P. zhejiangensis sp. n. and other sequences, from 0.69% to 6.60% between P. dalianensis sp. n. and others, and from 1.71% to 6.74% between P. verrucosa and others. The sequence of P. zhejiangensis sp. n. is identical to Pseudovorticella sp.2 PERI99 (MW046188) and has only a generic distance of 0.07% to Pseudovorticella sp.2 PERI98 (MW046187). The sequences of P. dalianensis sp. n. and Pseudovorticella sp. Dazhou bridge (KU363283) share a generic distance of 0.69%. The sequence with the closest generic distance (1.71%) to P. verrucosa is P. paracratera (DQ662847).

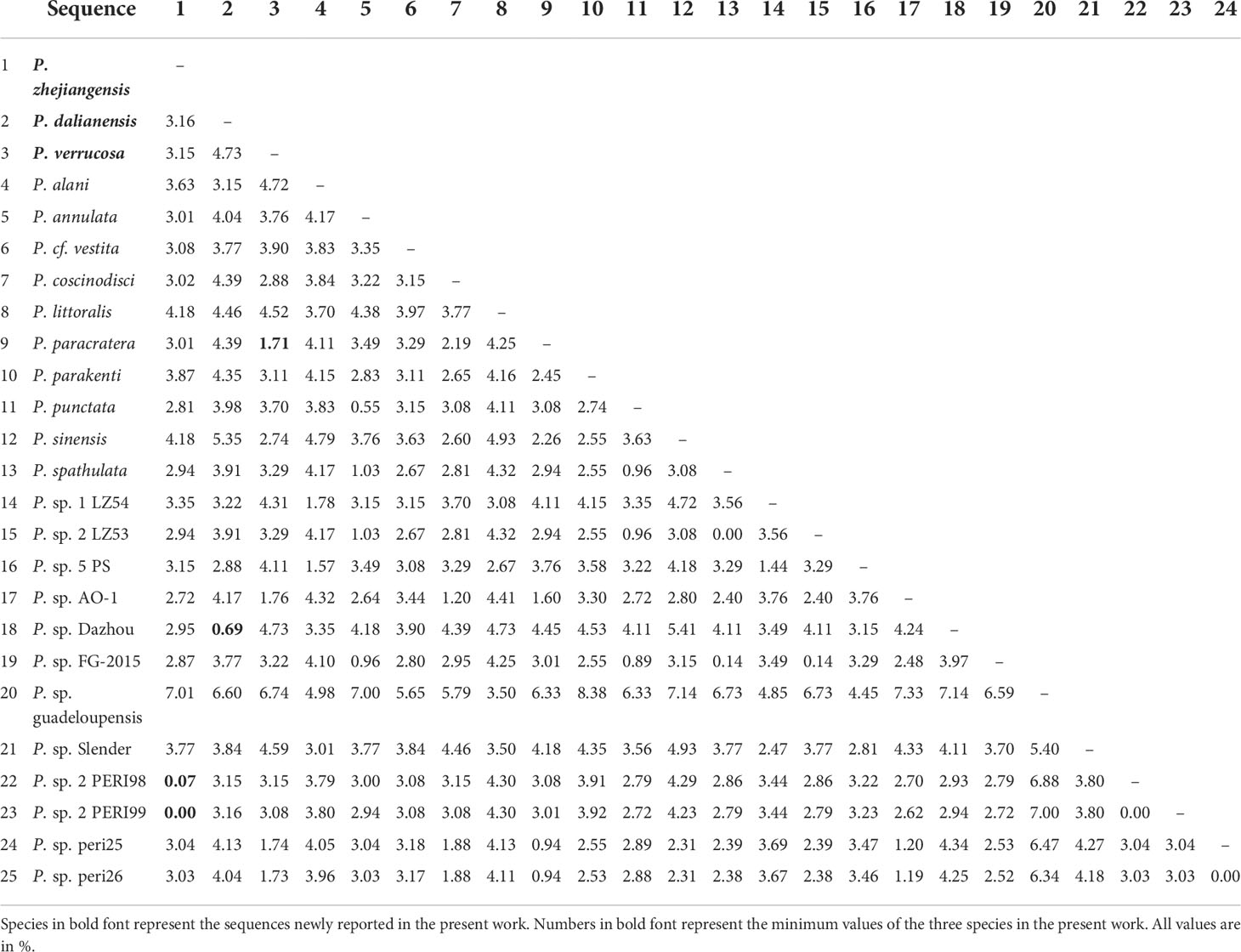

Table 2 Genetic distances among SSU rDNA sequences of Pseudovorticella species in group B in the phylogenetic tree.
Discussion
Brief review of the genus Pseudovorticella
Pseudovorticella Foissner & Schiffmann, 1975 is closely related to Vorticella Linnaeus, 1767, both of which are characterized by a solitary zooid borne upon a contractile stalk (Foissner and Schiffmann, 1975). The only difference between them is that the genus Pseudovorticella possesses a reticulate (vs. transverse) silverline system. The main distinguishing characters for Pseudovorticella species include 1) the shape and size of zooid, 2) the number and location of contractile vacuole(s), 3) the shape and position of macronucleus, 4) the appearance of oral morphology in vivo, 5) the pattern of oral ciliature, and 6) habitat (Warren, 1987; Song and Wilbert, 1989; Ji et al., 2003; Sun et al., 2009). The three species in the present work are compared below with their closely related species or populations.
Comparison of Pseudovorticella zhejiangensis sp. n. with related species
Pseudovorticella zhejiangensis sp. n. can be easily distinguished from most of its congeners by the number and location of contractile vacuoles (two with one ventral and one dorsal). However, four Pseudovorticella congeners, P. jiangi Sun et al., 2006, P. jaerae (Precht, 1935) Sun et al., 2009, P. jankowskii Sun et al., 2009, and P. bidulphiae (Stiller, 1939) Ji et al., 2009, and one Vorticella species, V. picta Ehrenberg, 1838, need to be compared with the new species owing to their similarity in gross morphology or the presence of pellicular blisters (Table 3).

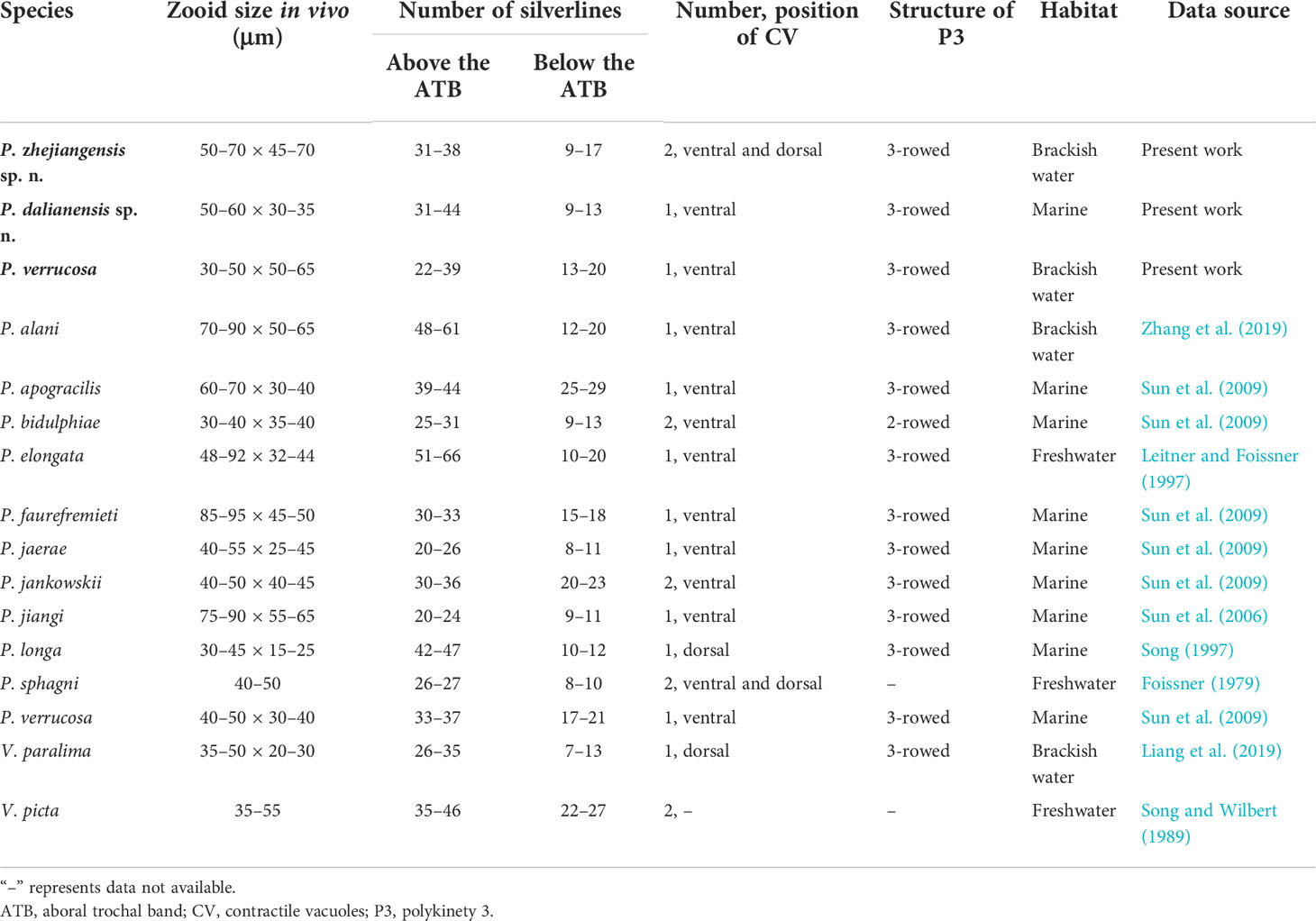

Table 3 Morphological comparison of Pseudovorticella zhejiangensis sp. n., Pseudovorticella dalianensis sp. n., and Pseudovorticella verrucosa with their closely related taxa.
Pseudovorticella jiangi and P. jaerae are similar to P. zhejiangensis sp. n. by several morphological characters (Table 3). However, P. jiangi differs from the new species by its larger zooid size in vivo (75–90 × 55–65 vs. 50–70 × 45–70 µm) and fewer silverlines above the aboral trochal band (20–24 vs. 31–38). Pseudovorticella jaerae has a slightly smaller body size (40–55 × 25–45 µm vs. 50–70 × 45–70 µm) and also fewer silverlines above the aboral trochal band (20–26 vs. 31–38) than P. zhejiangensis sp. n. More importantly, both of the two known species have only one contractile vacuole (vs. two in the new species) (Precht, 1935; Sun et al., 2006; Sun et al., 2009).
Pseudovorticella jankowskii was reported to have two contractile vacuoles located near the ventral wall of the infundibulum, but it was shown as one ventral and one dorsal in its illustration (Sun et al., 2009). For this discrepancy, further study is needed. Nevertheless, apart from this character, it can be distinguished from the new species a slightly smaller body size in vivo (40–50 × 40–45 vs. 50–70 × 45–70 µm) and more silverlines below the aboral trochal band (20–23 vs. 9–17) (Sun et al., 2009).
Pseudovorticella bidulphiae has similar numbers of contractile vacuoles and silverlines with the new species (Table 3). However, P. bidulphiae can be separated from the new species by its smaller body size (30–40 × 35–40 vs. 50–70 × 45–70 µm), the absence of pellicular blisters (vs. presence), and a different structure of P3 (two-rowed vs. three-rowed) (Sun et al., 2009; Ji et al., 2011).
Pseudovorticella zhejiangensis sp. n. also resembles Vorticella picta in body shape and the number of contractile vacuoles. However, these two species can be clearly separated because the latter has a transverse silverline pattern (vs. reticulate), which is a key generic difference. In addition, V. picta was isolated from freshwater habitat (vs. brackish water) (Table 3) (Song and Wilbert, 1989).
Comparison of Pseudovorticella dalianensis sp. n. with related species
Pseudovorticella dalianensis sp. n. is characterized mainly by its distinctive arrangement of the rows in P3, i.e., the middle row is the longest. Five Pseudovorticella species, P. longa Song, 1997, P. alani Zhang et al., 2019, P. elongata (Fromentel, 1876) Leitner and Foissner, 1997, P. sphagni Foissner & Schiffmann, 1975, and P. apogracilis Sun et al., 2009, and a Vorticella species, V. paralima Liang et al., 2019, resemble the new species, and thus should be compared with the latter in detail (Table 3).
Pseudovorticella longa is highly similar to P. dalianensis sp. n. in terms of body shape, appearance of the peristomial lip, and the numbers of silverlines. However, the former can be separated from the latter by its smaller body size in vivo (30–45 × 15–25 vs. 50–60 × 30–35 µm) and the position of the contractile vacuole (dorsal vs. ventral). More importantly, the outer row is the longest in P. longa, which differs from that of P. dalianensis sp. n. (the middle row is the longest) (Song, 1997).
Pseudovorticella alani is distinctly larger in vivo (70–90 × 50–65 vs. 50–60 × 30–35 µm) than the new species, and it has more silverlines both above (48–61 vs. 31–44) and below the trochal band (12–20 vs. 9–13). Additionally, P. alani possesses a different pattern of P3 from that of P. dalianensis sp. n. (outer two rows about equal in length and longer than the inner row vs. the middle row is the longest) (Zhang et al., 2019).
Considering the body shape and size in vivo, further comparisons should be made with Pseudovorticella elongata, P. sphagni, and P. apogracilis. Pseudovorticella elongata has conspicuously more silverlines above the aboral trochal band (51–66 vs. 31–44 in the new species) and a different habitat (freshwater vs. marine) (Leitner and Foissner, 1997). Pseudovorticella sphagni has fewer silverlines above the aboral trochal band (26–27 vs. 31–44), a freshwater habitat (vs. marine), and two contractile vacuoles (vs. only one in P. dalianensis sp. n.) (Foissner, 1979). Pseudovorticella apogracilis has a slightly larger body size in vivo (60–70 vs. 50–60 µm) and more silverlines below the aboral trochal band (25–29 vs. 9–13) than P. dalianensis sp. n. (Sun et al., 2009).
Pseudovorticella dalianensis sp. n. has a strong resemblance to Vorticella paralima in body shape, number of silverlines, and the arrangement of P3 (Table 3). However, in addition to the typical reticulate silverline pattern (vs. transverse in V. paralima), a slightly larger body size in vivo (50–60 × 30–35 vs. 35–50 × 20–30 µm) and a ventral (vs. dorsal) located contractile vacuole can clearly distinguish the new species from V. paralima (Liang et al., 2019).
Comparison of Pseudovorticella verrucosa (Dons, 1915) Sun et al., 2009 with related populations and species
Pseudovorticella verrucosa (Dons, 1915) Sun et al., 2009 was first isolated from the surface of a hydra (Laomedea sp.) and reported under the basionym Vorticella verrucosa Dons, 1915 (Dons, 1915). After nearly one century, this rare species was redescribed by Sun et al. (2009) with its silverline system disclosed. The reticulate silverlines indicated that they should be a member of the genus Pseudovorticella. According to the brief original description, its typical morphological characters include a bell-shaped zooid with the length of about 60 µm, one contractile vacuole, and many conspicuous pellicular granules. Our population matches with these features very well. However, according to the original description, this species has a very short stalk (about 40 µm long when fully stretched, shorter than the zooid) (Figure 5E). Meanwhile, our form has a stalk about five times the length of the zooid. In addition, our isolate is slightly smaller than the original population (30–50 µm in length vs. ca. 60 µm). However, the length of stalk is usually considered as a character varying between populations. Thus, our isolate should be identified as a population of P. verrucosa.
Our isolate corresponds very well with the population reported by Sun et al. (2009), which includes 1) the inverted triangular-shaped zooid, 2) a J-shaped macronucleus, 3) conspicuous pellicular blisters, 4) highly developed pellicular granules, 5) a single contractile vacuole, 6) the number of transverse silverlines, 7) the arrangement of P3, and 8) the length of the stalk (i.e., about four to five times the length of the zooid). The only morphological difference between these two populations is the width of zooid in which our isolate is slightly wider (50–65 vs. 30–40 µm) (Sun et al., 2009) (Table 3).
Only a few Pseudovorticella species have both pellicular blisters and pellicular granules. Given these features, only two species, P. faurefremieti Sun et al., 2007 and P. jiangi Sun et al., 2006, need to be compared with P. verrucosa (Table 3). Pseudovorticella faurefremieti differs from P. verrucosa by its elongate-shaped zooid (vs. inverted triangular-shaped) and a larger size in vivo (85–95 × 45–50 vs. 30–50 × 50–65 µm) (Sun et al., 2007). Pseudovorticella jiangi can be distinguished from P. verrucosa by a larger size in vivo (75–90 × 55–65 vs. 30–50 × 50–65 µm) and fewer silverlines below the aboral trochal band (9–11 vs. 13–20) (Sun et al., 2006).
Considering the zooid shape and pellicle blisters, P. jankowskii Sun et al., 2009 and P. jaerae (Precht, 1935) Sun et al., 2009 should be compared with P. verrucosa (Table 3). Pseudovorticella jankowskii can be clearly separated from P. verrucosa by having two contractile vacuoles (vs. one) and the absence of pellicular granules (vs. presence) (Sun et al., 2009). Pseudovorticella jaerae has a smooth pellicle without pellicular granules, which is one of the characteristics that can be distinguished from P. verrucosa. The additional differences between P. jaerae and P. verrucosa are zooid size in vivo (40–55 × 25–45 vs. 30–50 × 50–65 µm) and the number of silverlines below the aboral trochal band (8–11 vs. 13–20) (Precht, 1935; Sun et al., 2009).
Phylogenetic analyses of the genus Pseudovorticella
Up to date, there have been only 11 Pseudovorticella SSU rDNA sequences having taxonomic entries to the species level and about 23 other sequences not identified according to species (Sun et al., 2016; Zhang et al., 2019). We update the dataset with further three SSU rDNA sequences in the present study. The phylogenetic analyses inferred from more sequences are congruent with previous studies and confirm the non-monophyly of Pseudovorticella (Sun et al., 2016; Jiang et al., 2019; Zhang et al., 2019). One strong supporting evidence is that species of the genus Epicarchesium Jankowski, 1985 are aggregated with Pseudovorticella species (Li et al., 2008; Ji et al., 2015; Gómez et al., 2018), indicating their close relationship. Another piece of evidence is the robust relationship between Pseudovorticella and Vorticella species. In particular, group B comprising Pseudovorticella and Epicarchesium species is sister to one clade of Vorticella, which is consistent with the results reported by Sun et al. (2016).
The phylogenetic positions confirm the generic assignment of the three Pseudovorticella species. Pseudovorticella zhejiangensis sp. n. and P. verrucosa possess conspicuous pellicular blisters. They are clustered in group B containing Pseudovorticella cf. vestita pop.1 and P. sinensis, both having pellicular blisters (Ji et al., 2003; Jiang et al., 2019). However, most of the species in this clade, i.e., P. paracratera, P. parakenti, P. coscinodisci, P. annulate, P. punctate, and P. spathulate, do not possess pellicular blisters. Thus, it appears that the presence of pellicular blisters does not contain a phylogenetic signal among Pseudovorticella species.
By sequence comparison, the sequence of Pseudovorticella zhejiangensis sp. n. is identical to Pseudovorticella sp.2 PERI99 (MW046188) and has only a generic distance of 0.07% to Pseudovorticella sp.2 PERI98 (MW046187), and together with the close relationships to P. zhejiangensis sp. n. in the phylogenetic trees, these two unidentified sequences may represent populations of P. zhejiangensis sp. n.
Data availability statement
The data presented in the study are deposited in the NCBI repository with accession numbers OP216729, OP216730, and OP216731.
