Distribution and Abundances of Planktic Foraminifera and Shelled Pteropods During the Polar Night in the Sea-Ice Covered Northern Barents Sea

$\r\nKatarzyna Zamelczyk,*$ Katarzyna Zamelczyk^1,2*

Griselda Anglada-Ortiz⁵

Helene Hodal Lødemel³

¹Norwegian Polar Institute, Fram Centre, Tromsø, Norway
²Department of Geosciences, UiT – The Arctic University of Norway, Tromsø, Norway
³Institute of Marine Research, Fram Centre, Tromsø, Norway
⁴MARUM – Center for Marine Environmental Sciences, University of Bremen, Bremen, Germany
⁵CAGE - Centre for Arctic Gas Hydrate, Environment and Climate, Department of Geosciences, UiT - The Arctic University of Norway, Tromsø, Norway

Planktic foraminfera and shelled pteropods are important calcifying groups of zooplankton in all oceans. Their calcium carbonate shells are sensitive to changes in ocean carbonate chemistry predisposing them as an important indicator of ocean acidification. Moreover, planktic foraminfera and shelled pteropods contribute significantly to food webs and vertical flux of calcium carbonate in polar pelagic ecosystems. Here we provide, for the first time, information on the under-ice planktic foraminifera and shelled pteropod abundance, species composition and vertical distribution along a transect (82°–76°N) covering the Nansen Basin and the northern Barents Sea during the polar night in December 2019. The two groups of calcifiers were examined in different environments in the context of water masses, sea ice cover, and ocean chemistry (nutrients and carbonate system). The average abundance of planktic foraminifera under the sea-ice was low with the highest average abundance (2 ind. m^–3) close to the sea-ice margin. The maximum abundances of planktic foraminifera were concentrated at 20–50 m depth (4 and 7 ind. m^–3) in the Nansen Basin and at 80–100 m depth (13 ind. m^–3) close to the sea-ice margin. The highest average abundance (13 ind. m^–3) and the maximum abundance of pteropods (40 ind. m^–3) were found in the surface Polar Water at 0–20 m depth with very low temperatures (–1.9 to –1°C), low salinity (<34.4) and relatively low aragonite saturation of 1.43–1.68. The lowest aragonite saturation (<1.3) was observed in the bottom water in the northern Barents Sea. The species distribution of these calcifiers reflected the water mass distribution with subpolar species at locations and depths influenced by warm and saline Atlantic Water, and polar species in very cold and less saline Polar Water. The population of planktic foraminifera was represented by adults and juveniles of the polar species Neogloboquadrina pachyderma and the subpolar species Turborotalita quinqueloba. The dominating polar pteropod species Limacina helicina was represented by the juvenile and veliger stages. This winter study offers a unique contribution to our understanding of the inter-seasonal variability of planktic foraminfera and shelled pteropods abundance, distribution and population size structure in the Arctic Ocean.

Introduction

Planktic foraminifera and shelled pteropods are groups of calcifying organisms that are ubiquitous in pelagic marine ecosystems (e.g., Beaugrand et al., 2009; Schiebel and Hemleben, 2017). These organisms are major pelagic producers of calcite and aragonite (most common forms of marine CaCO₃), respectively, and alongside coccolithophores play an important role in the ocean biogeochemical cycles and the organic and inorganic carbonate flux to the ocean floor (Milliman, 1993; Buitenhuis et al., 1996, 2019; Schiebel, 2002; Berelson et al., 2007). Planktic foraminifera provide 32–80% of the total calcite flux to the global deep ocean (Schiebel, 2002), whereas pteropods being more regionally and temporally variable, provide aragonite that may constitute up to ∼12% of the total carbonate flux globally (Berner and Honjo, 1981). In the polar areas, pteropods can provide > 50% of the carbonate flux to the interior of the ocean through the production of fecal pellets, mucous flocs and rapid post mortem settling of aragonite shells (Howard et al., 2011).

At polar latitudes the planktic foraminifera Neogloboquadrina pachyderma (Ehrenberg, 1861), Turborotalita quinqueloba (Natland, 1938) and pteropods Limacina helicina (Phipps, 1774), Limacina retroversa (Fleming, 1823) dominate their respective communities. Neogloboquadrina pachyderma and L. helicina are polar species recorded mainly in Polar waters, whereas L. retroversa and T. quinqueloba are considered to be subpolar species (Bathmann et al., 1991; Volkmann, 2000). The vertical and temporal distributions of planktic foraminifera and pteropods in spring and summer are suggested to be mainly determined by sea surface temperature and/or primary production in the surface waters (Bednaršek et al., 2012a; Schiebel and Hemleben, 2017). Regionally, these organisms constitute a significant part of total zooplankton biomass representing important grazers of primary producers and important prey for zooplanktivores (Lalli and Gilmer, 1989).

In recent years, planktic foraminifera and shelled pteropods have received widespread attention due to sensitivity to their CaCO₃ shells to ocean acidification (OA) (e.g., Comeau et al., 2009; Moy et al., 2009; Lischka et al., 2011; Lischka and Riebesell, 2012; Manno et al., 2012a, b, 2017; Bednaršek et al., 2014b, 2017, 2019; Bednaršek and Ohman, 2015). Responses of shelled pteropods (aragonite shell) to OA are documented as a declined growth rate and calcification of shell (Comeau et al., 2009, 2010; Lischka et al., 2011; Lischka and Riebesell, 2012; Bednaršek et al., 2014b) and the responses of planktic foraminifera (calcitic shell) to OA are still inconclusive (Kroeker et al., 2010; Manno et al., 2012a).

Despite their importance in the carbonate cycle, the impact of the carbonate chemistry variability on planktic foraminifera and shelled pteropod abundance and distribution is limited. It has been suggested that the mortality of pteropods increase as the seawater partial pressure of carbon dioxide (CO₂) increases, hence increasing the dissolution potential of CaCO₃, but the results of the few available experimental studies are uncertain and contradictory (Lischka et al., 2011; Comeau et al., 2012; Lischka and Riebesell, 2012). Until now, there is no clear evidence of a relationship between the carbonate chemistry variables and the abundance and distribution of these planktic calcifiers in the natural environment.

During the Arctic winter, the ocean’s carbonate chemistry shifts toward the highest pCO₂, lowest pH and saturation states for CaCO₃ (Ω) due to increased CO₂ solubility during cooling, increased CO₂ from respiration of organic matter, and intensification of wind-induced vertical mixing of high-CO₂ subsurface water (e.g., Fransson et al., 2017). All these processes cause decreases in the calcite (Ω_Ca) and aragonite saturation (Ω_Ar) states (e.g., Chierici et al., 2011; Shadwick et al., 2011; Fransson et al., 2017). Moreover, the progressing oceanic uptake of atmospheric CO₂ will reduce the carbonate ion concentration thereby shifting the marine CO₂ system toward increased concentrations of bicarbonate ions. This reduces both the ocean’s buffering capacity for further CO₂ uptake and the degree of CaCO₃ saturation, simultaneously increasing the solubility of CaCO₃ minerals (Zeebe and Wolf-Gladrow, 2001 and references therein).

It is still under debate if Arctic pteropods, such as Limacina helicina, slow down their metabolism and growth during wintertime or continue the metabolic activity (Lischka and Riebesell, 2012; Berge et al., 2020; Thibodeau et al., 2020). Furthermore, a recent study from the west Antarctic Peninsula has shown evidence that Limacina helicina antarctica shells actively grow during the ice-covered winter season with continued growth into the summer (Thibodeau et al., 2020). The overwintering strategy is suggested to exert a domineering impact on the ability of pteropods to counteract changes in their environment. Polar and subpolar pteropods and planktic foraminifera species are mainly feeding on available particulate matter, with a diet of phytoplankton in spring and summer and degraded organic material in late autumn and winter (Gannefors et al., 2005; Schiebel and Hemleben, 2017). The ability to feed on dead organic matter probably allows them to increase their survival potential in winter.

Knowledge regarding planktic foraminifera during the polar night is poor, apart from a few studies in the Southern Ocean documenting the ability of N. pachyderma to overwinter in brine channels in pack and fast ice (Dieckmann et al., 1991; Spindler, 1996). In the Barents Sea, studies of planktic foraminifera and pteropods including abundances, vertical and temporal distribution and the overall importance of these species in the marine ecosystems are scarce and restricted to a few studies from the southern and central parts (Kacprzak et al., 2017; Pasternak et al., 2017; Meilland et al., 2020; Ofstad et al., 2020). Moreover, all the studies focus on data obtained from spring to autumn. Until now, no winter data on the abundance and depth distribution of planktic foraminifera and shelled pteropods in the seasonally sea-ice covered northern Barents Sea exist.

The aim of this study is to provide new information linking under-ice planktic foraminifera and pteropods abundances, their species and size distributions to water depth and contrasting water masses during the Arctic winter. We examine the range of environmental variables and explore possible environmental preferences of these small calcifying zooplankton species along a north-south transect in the northern Barents Sea and the Nansen Basin. The results are discussed in the context of sea-ice cover, water masses, food limitation, nutrients, pH, Ω_Ca and Ω_Ar. Additionally, we discuss the potential contribution of these calcifiers to the organic and inorganic carbon flux during the polar night.

Study Area

The general oceanic circulation pattern in the Barents Sea is shown in Figure 1A. The relatively warm and saline Atlantic Water (AW) enters the Barents Sea mainly from the southwest at the Barents Sea Opening, where the West Spitsbergen Current (WSC) bifurcates into two main branches (Loeng, 1991). As the WSC flows northward through the eastern Fram Strait entering the Arctic Ocean, a fraction of the AW follows the Eurasian continental margin into the central Arctic Ocean, where the AW enters the Barents Sea from northwest as a subsurface inflow (e.g., Mosby, 1938; Lind and Ingvaldsen, 2012; Figures 1A,B). The warm and saline AW and the cold Polar Water (PW) are separated by the Polar Front characterized by strong temperature and salinity gradients and differences in seasonal sea-ice cover.

FIGURE 1

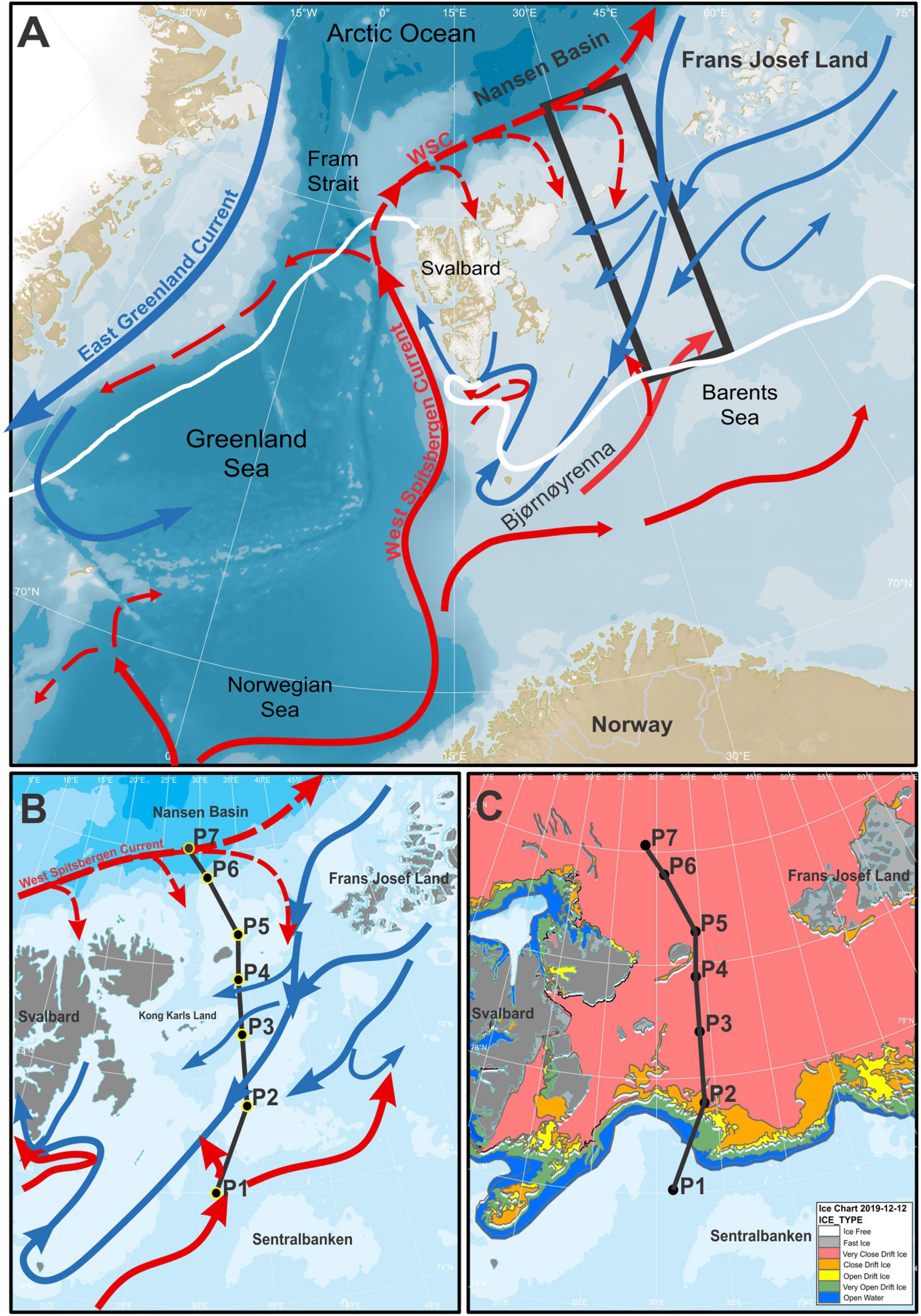

Figure 1. (A) Schematic map of the main current systems in the Nordic Seas and the Barents Sea. The study area is indicated by a black rectangle. The Polar Front is indicated by a white line. Solid and dashed red/blue lines show surface and subsurface ocean currents, respectively. (B) Oceanic currents in the study area and (C) sea-ice extension, sea-ice type of the last day of sampling (12^th December 2019). The transect of sampled stations is shown as black line. The sea ice map was generated using GSHHG (Global Self-consistent, Hierarchical, High-resolution Geography Database) data from the Norwegian Meteorological Institute and ice data were provided by the Norwegian Ice Service (MET Norway).

In the northern Barents Sea, the PW isolates the sea-ice cover from the subsurface AW. Along the way, the AW is gradually mixed with PW creating a modified AW (mAW) (Pfirman et al., 1994). The PW consist of the remnants of the mixed water formed by cooling and brine rejection in winter (Rudels et al., 1996). The main supply of freshwater for the winter mixed water in the northern Barents Sea is sea-ice import from the Nansen Basin and adjacent Kara Sea in addition to precipitation (Rudels et al., 2004). The Barents Sea Deep Water (BSDW) is formed locally through ice freezing and thermohaline convective processes as well as the modification of AW through atmospheric cooling (e.g., Lien and Trofimov, 2013).

The seasonal variability of the marine CO₂ system and nutrients in the Barents Sea follows the physical and biological processes (Reigstad et al., 2002). The nutrient uptake is initiated by the spring bloom, which continues to late summer, leading to nitrate depletion and low CO₂ levels (high Ω and pH) in the surface waters due to photosynthetic activity by phytoplankton. By fall, the nutrient and CO₂ values increases due to the mixing of nutrient and CO₂ rich sub-surface waters to the surface water. Biological processes (photosynthesis and respiration) are postulated to explain much of the observed seasonal changes of the carbonate/CO₂ system in the Arctic Ocean as well as on the air-sea CO₂ exchange (Chierici et al., 2011; Tynan et al., 2016; Fransson et al., 2017).

The sea-ice conditions in the Barents Sea show a high seasonal and inter-annual variability (e.g., Deser et al., 2000; Vinje, 2001; Shapiro et al., 2003; Divine and Dick, 2006). Generally, the ice conditions are influenced by Atlantic and Polar Water masses, the import of sea-ice from the north and by atmospheric conditions. Usually, sea-ice coverage is at a minimum in September, whereas maximum sea-ice cover typically occurs in April (Norwegian Meteorological Institute, 2020). During our winter sampling, the sea-ice concentration decreased from north (∼110 cm) to south (∼20 cm) and only the southernmost station was ice-free (Figure 1C).

Materials and Methods

The research was conducted in the northern Barents Sea between 82°3′50′ N, 28°30′6′ E and 76°0′ N, 31°13′8′ E in December 2019 aboard the Norwegian icebreaking R/V Kronprins Haakon within the Nansen Legacy project (Figure 1).

Water column temperature and salinity profiles (Figure 2) were obtained with a conductivity-temperature-depth (CTD) sensor system Sea-Bird SBE 911 + mounted on a General Oceanic rosette sampler equipped with 24 Niskin bottles used for seawater sampling of chemical variables in the water column.

FIGURE 2

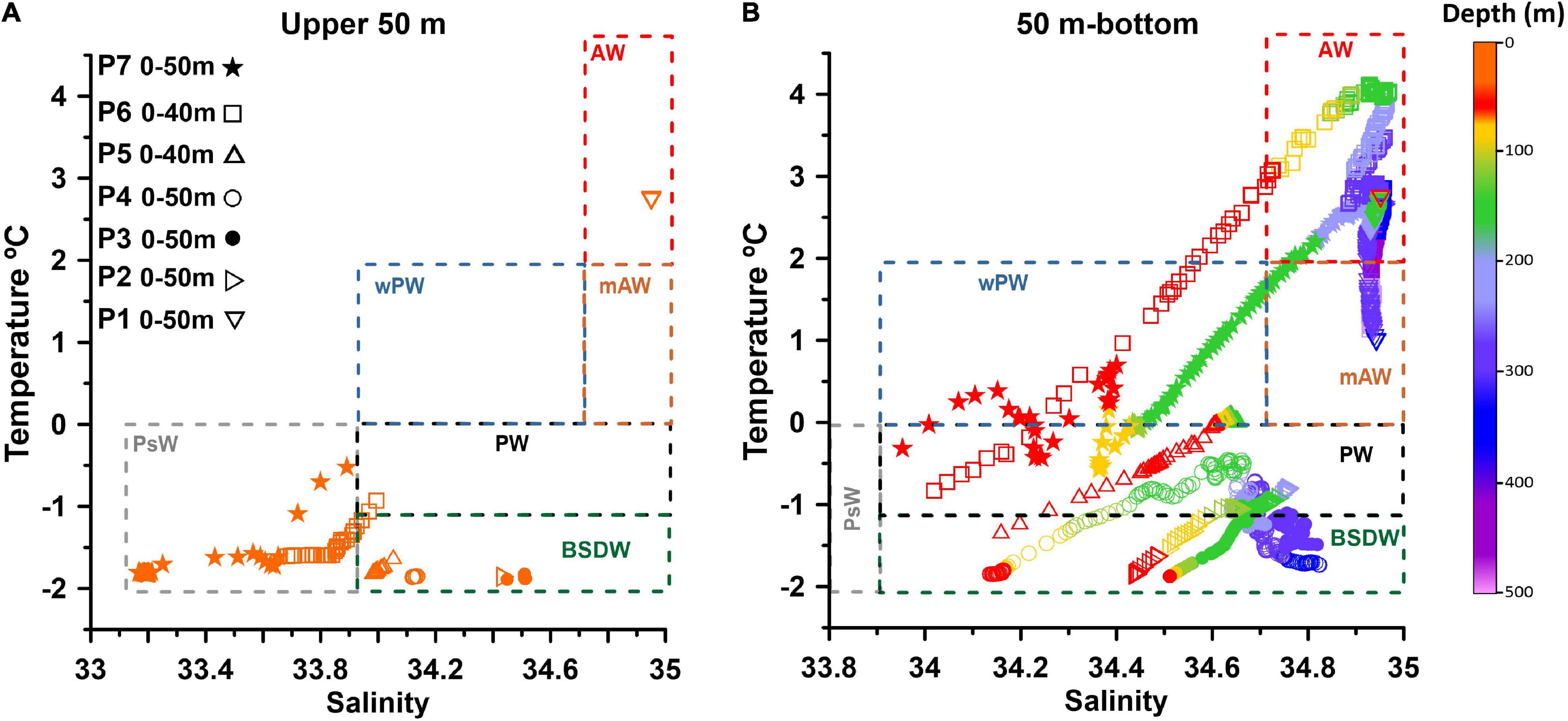

Figure 2. The temperature-salinity characteristics of water masses based on the CTD profiles at (A) 0–50 m water depth and (B) from 50 m water depth to near-bottom in December 2019 at each station (symbol-coded). PsW- Polar surface Water, PW- Polar Water; wPW- warm Polar Water, AW- Atlantic Water, mAW- modified AW, BSDW- Barents Sea Deep Water (Sundfjord et al., 2020 with a slight modification). The data for deeper stations P7 and P6 (Table 1) are shown only for the upper 300 m of the water column.

Seawater samples for the macronutrients nitrate [NO₃^–], phosphate [PO₄^3–], and silicic acid [Si(OH)₄] were drawn from the Niskin bottles into 20 mL vials, preserved with chloroform and stored at 4°C. Analysis were carried out using a Flow Solution IV analyzer from O.I. Analytical, United States, following Grasshof et al. (2009) at the Institute of Marine Research, Bergen, Norway. The analyzer was calibrated using reference seawater from Ocean Scientific International Ltd., United Kingdom. The detection limits were 0.04 mmol m^–3 for [NO₃^–] and 0.06 mmol m^–3 for [PO₄^3–].

Seawater samples for total dissolved inorganic carbon (DIC) and pH were collected following standard procedures outlined in Dickson et al. (2007) and subsequently analyzed within approximately 24-hrs at a temperature around 25°C. pH was measured on the total hydrogen scale (pHT) using spectrophotometric determination according to Clayton and Byrne (1993) and the indicator dye, meta-cresol purple. The perturbation of the sample pH due to the dye addition was corrected according to Chierici et al. (1999). The precision was generally better than 0.001 units as determined from the average standard deviation for triplicate measurements. DIC was determined using a coulometric titration with a Versatile Instrument for the Determination of Titration Alkalinity (VINDTA 3D, Marianda, Germany). The procedure is described in Dickson et al. (2007). Routine analyses of Certified Reference Materials (CRM, provided by A. G. Dickson, Scripps Institution of Oceanography, United States) ensured the accuracy and precision of the DIC measurements. The average standard deviation from triplicate CRM analyses was within ± 2 μmol kg^–1.

The in situ pH and CaCO₃ saturation states of aragonite (Ω_Ar) and calcite (Ω_Ca) were calculated from pairs of DIC and measured pH, together with the temperature, salinity, pressure, Si(OH)₄] and [PO₄^3–] using the chemical speciation model CO2SYS (Pierrot et al., 2006). The carbonic acid dissociation constants of Mehrbach et al. (1973) as refitted by Dickson and Millero (1987) were used in combination with the bisulfate dissociation constant from Dickson (1990), and the total boron concentration of Lee et al. (2010). The aragonite and calcite stoichiometric solubility constants of Mucci (1983) were used with the pressure corrections of Millero (1979) and the calcium concentration and salinity ratio of Riley and Tongudai (1967).

Planktic foraminifera and shelled pteropods were collected at seven stations (P7 to P1) along a north-south transect (Figures 1B,C and Table 1) using a stratified plankton tow (MultiNet Hydro-Bios type Midi, opening of 0.25 m²) equipped with five net bags with 63 μm mesh gauze. Sampling was performed at each station immediately after or before the CTD cast. One vertical haul sampled five depth intervals (Table 1) from the back of the ship except for station P7 and P1, where the sampling was performed via the moonpool inside the research vessel. Depth intervals 0–20, 20–50 m were sampled at each station. Deeper depth intervals were determined by the bathymetry at each station, with last depth interval close to the sea floor except for station P7 (3,517 m water depth), where only the upper 300 m were sampled (Table 1). Samples at station P6, P4 and P2 were analyzed immediately after recovery on board and samples at station P7, P5, P3 and P1 were frozen at –80°C until processing on land, at the NPI/IMR Fram Center laboratory, Tromsø, Norway. The content of each cod-end was concentrated on a cascade of 500, 250, 100 and 63 μm meshed sieves and segregated with stream of sea water into size ranges: > 500, 500–250, 250–100, 100–63 μm. All planktic foraminifera and pteropods were counted for each size range separately, and, if applicable, identified to species level under a microscope [Leica M60 (on board); Leica M80 (on land)] equipped with transmitted light bases (Supplementary Table 1). In addition, the diameter of pteropods > 500 μm was measured (Supplementary Table 2 and Supplementary Figure 1). The majority of taxa was identified to species level morphologically. However, individuals in the smallest size ranges could not be assigned to species as they lacked the morphological features characteristic for specific species. This ambiguity occurred mainly for planktic foraminifera in size range 100–63 μm and for pteropods in size range 250–63 μm that subsequently were termed as planktic foraminifera juveniles and small-sized Limacina (ssL), respectively. Planktic foraminifera species in range size 250–100 μm are considered as adults (Brummer et al., 1986; Caromel et al., 2016). Pteropods in size ranges > 500, 500–250, 250–100 μm were classified according to Lalli and Gilmer (1989) with slight modifications. Life stages in our study are defined as follows: adults (>4,000 μm for L. helicina and > 1,000 μm for L. retroversa), juveniles (for L. helicina 4,000–500 μm and for L. retroversa 1,000–500 μm), early juveniles-late veligers (500–250 μm), veligers (250–100 μm) and early veligers (100–63 μm). Following the size metric of pteropods generally used in the literature the size of L. helicina, L. retroversa and ssL will be reported in millimeters (mm) hereafter.

TABLE 1

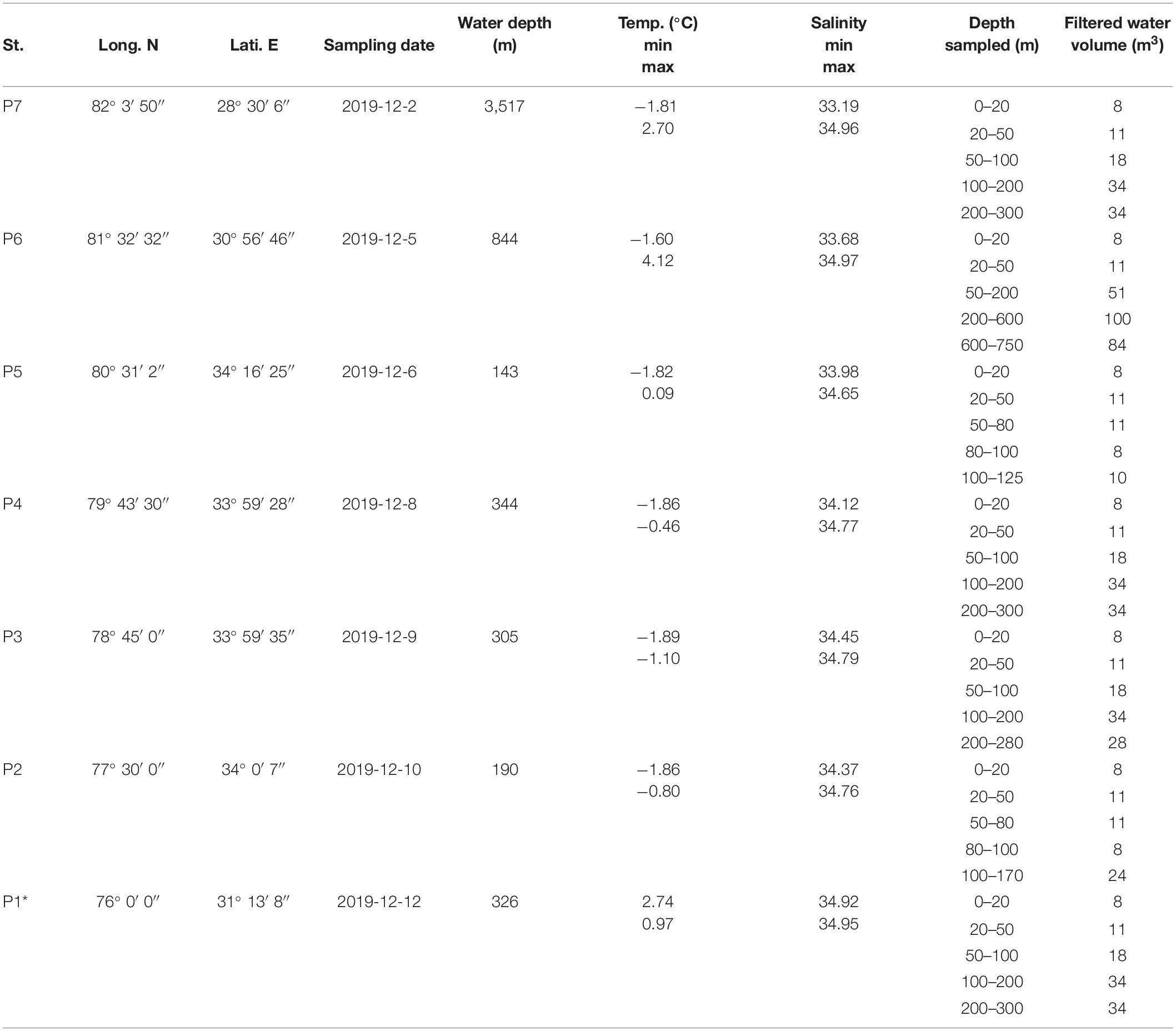

Table 1. Sampling locations, temperature and salinity ranges and tow information at each (P) station. Asterisk (*) indicates ice-free station.

Living (cytoplasm bearing) and dead (empty shells) pteropods and foraminifera were distinguished via the presence or absence of cytoplasm/soft body visible through the shell, respectively. Shells with degraded remnants of soft tissues were considered as dead and only shells with a clearly visible soft body were counted as living. As the net was trawled vertically, samples volumes (m³) were calculated from the net mouth area and deployed depth range (m). Results are given in absolute abundances in number of individuals per cubic meter of filtered water (ind. m^–3).

Results

Physical and Chemical Characteristics of the Water Masses

Water mass identifications are based on the temperature-salinity characteristics measured in December 2019 (Figures 2A,B). The water mass definitions follow Sundfjord et al. (2020) with a slight modification. At each station covered by sea-ice (P7–P2, Figure 1C) a cold (near or at freezing temperatures), relatively fresh and homogenous under-ice Polar surface Water (PsW) layer was observed (Figures 2A, 3B, 4B). The depth of the PsW layer varied between 10 and 60 m. Warm and saline AW was found below the PsW at station P7, P6 and at the station P1. Below the AW layer, a mAW and warm Polar Water (wPW) was identified (Figures 2, 3B, 4B). The core of Atlantic water (identified by the subsurface temperature maximum) was observed at P7 at ∼210 m and at P6 at ∼138 m water depths. At station P5, below the surface layer, colder and less saline PW was found (Figures 2, 3B, 4B). At stations P4, P3 and P2, below the very cold (<–0.4°C) and relatively low salinity PsW (34.12–34.76), cold and more saline PW was recorded. At greater depths, vertical temperature (T < –1.1°C) and salinity (> 34.5) gradients indicate the occurrence of BSDW at these stations (Figures 2, 3B, 4B). The surface water (upper ∼100 m) of the sea-ice free station P1 was occupied by warm (2.71–3.63°C) and saline (34.95–34.79) AW. Below 100 m depth, cooler and less saline mAW with temperature < 2°C and average salinity of 34.94 were found (Figures 2, 3B, 4B).

FIGURE 3

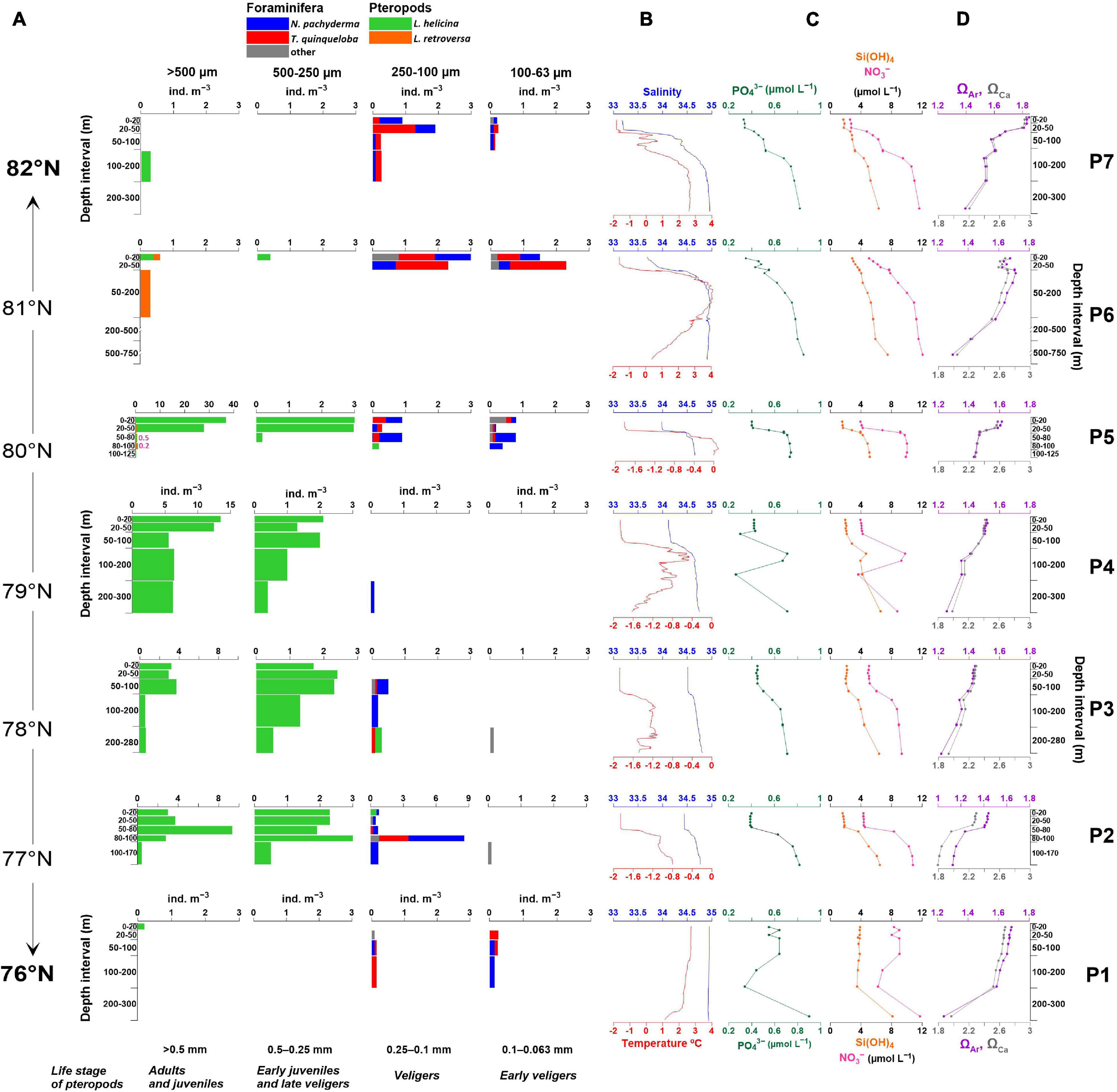

Figure 3. (A) Absolute abundances (ind. m^–3) and size distribution of living planktic foraminifera and pteropods species plotted against sampled depth intervals. Numbers in pink at station P5 indicate abundances of Clione limacine. (B) temperature and salinity (from 10 m water depth), (C) inorganic nutrients concentrations (PO₄^3–, Si(OH)₄, NO₃^–), (D) aragonite (Ω_Ar) and calcite (Ω_Ca) saturation state at each station. Note different x-axis for the abundance in size range 250–100 μm at station P2 and for size range > 500 μm at stations P2-P5. Temperature, salinity, nutrients, Ω_Ar and Ω_Ca at station P7 are shown for the upper 300 m of the water column.

FIGURE 4

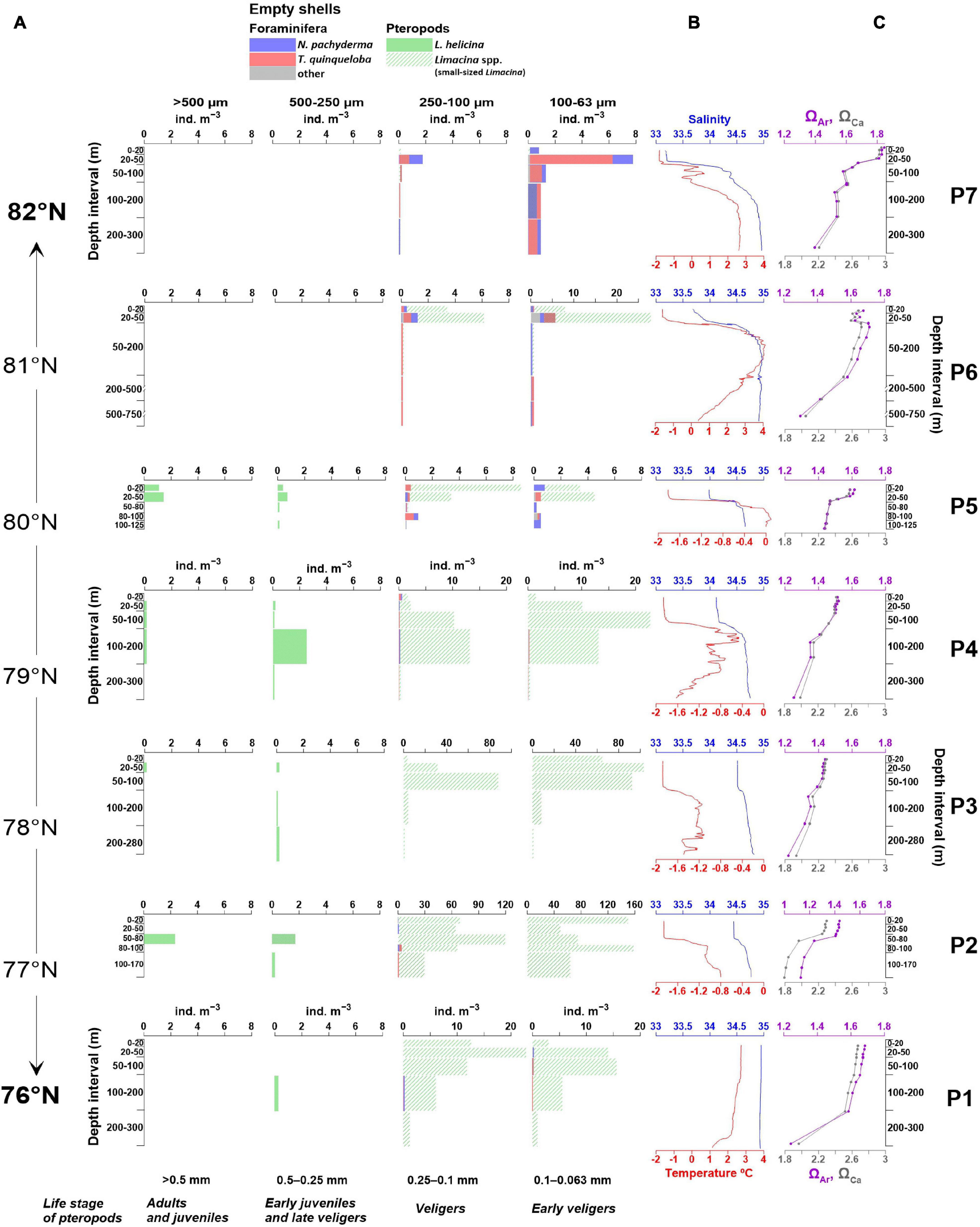

Figure 4. (A) Absolute abundances (ind. m^–3) and size distribution of dead planktic foraminifera and pteropods species (B) temperature and salinity (from 10 m water depth) and (C) aragonite (Ω_Ar) and calcite (Ω_Ca) saturation state at each station plotted against sampled depth intervals. Note different x-axis for the abundance in size ranges 250–100 μm and 100–63 μm. Temperature, salinity, Ω_Ar and Ω_Ca at station P7 are shown for the upper 300 m of the water column.

The distribution of carbonate chemistry variables varies both between the stations along the transect and within the vertical gradient of the water columns (Table 2 and Figures 3D, 4C). The Ω values decreased from the surface to the bottom waters. Both Ω_Ar and Ω_Ca were oversaturated (Ω > 1) throughout the entire water column at all stations (Figures 3D, 4C). The maximum values (Ω_Ar = 1.85 and Ω_Ca = 2.95) were recorded in the surface water at the northernmost station P7 and the minimum values (Ω_Ar = 1.13 and Ω_Ca = 1.79) at station P2 close to the sea floor at ∼180 m water depth (Table 2 and Figures 3D, 4C). The maximum pH of 8.25 was recorded at the surface at station P7 and the minimum pH of 7.99 at the bottom at station P2 (Table 2).

TABLE 2

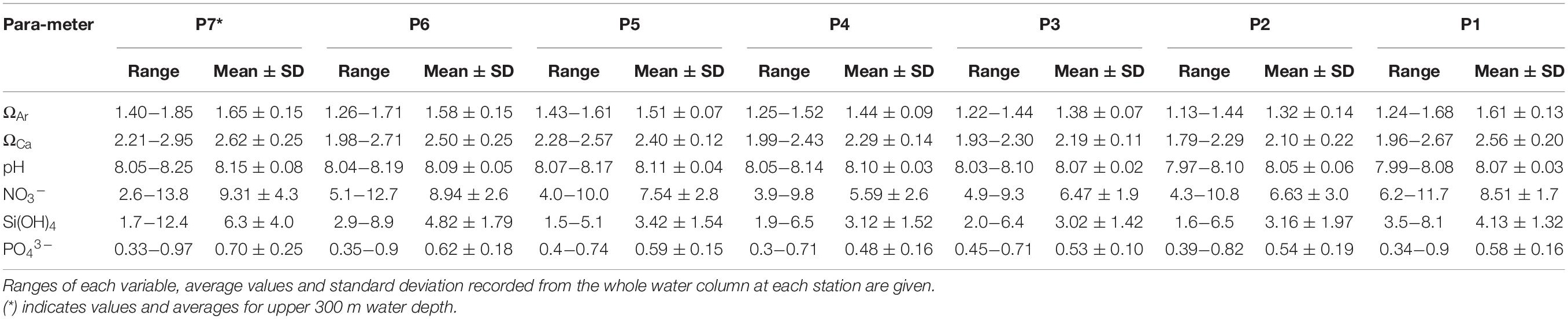

Table 2. Carbonate chemistry, degree of CaCO₃ saturation (Ω_Ar, Ω_Ca) and pH, inorganic nutrient concentrations (μmol L^–1) in the water column.

The highest concentrations of all nutrients were recorded below 100 m at stations P6 and P2 (Table 2 and Figure 3C). Maximum concentrations of the different nutrients were ∼11 μmol L^–1 for [NO₃^–], 6.5 μmol L^–1 for [Si(OH)₄] and ∼0.8 μmol L^–1 for [PO₄^3–]. The lowest concentrations were observed in the surface water at station P7 with 2.6 μmol L^–1 of [NO₃^–], 1.7 μmol L^–1 of [Si(OH)₄] and 0.3 μmol L^–1 of [PO₄^3–] (Table 2 and Figure 3C). The low concentrations of nutrients and Ω ware mainly found in the PW (stations P4, P3, P2) and the relatively high nutrients and Ω concentrations are observed in the AW mass and its admixture.

Abundance and Species Distribution of Living Planktic Foraminifera and Pteropods

Living planktic foraminifera integrated for the upper 200 m of the water column was generally very low with highest abundance of 2.3 ind. m^–3 recorded at station P2 where water depth was 170 m (Figure 5). At the northernmost stations, planktic foraminifera were found in the upper 50 m of the water column with abundances reaching up to 2.6 ind. m^–3 at station P7 and 6.8 ind. m^–3 at station P6. At P5, the distribution was rather uniform within the upper 100 m of the water column. At station P2, the highest abundance of planktic foraminifera of 2.3 ind. m^–3 occurred in the deeper between 50 and 170 m water depth (Figure 3A). The polar species N. pachyderma dominated at all stations except for station P6 and P1 where the subpolar species T. quinqueloba dominated (Figure 5).

FIGURE 5

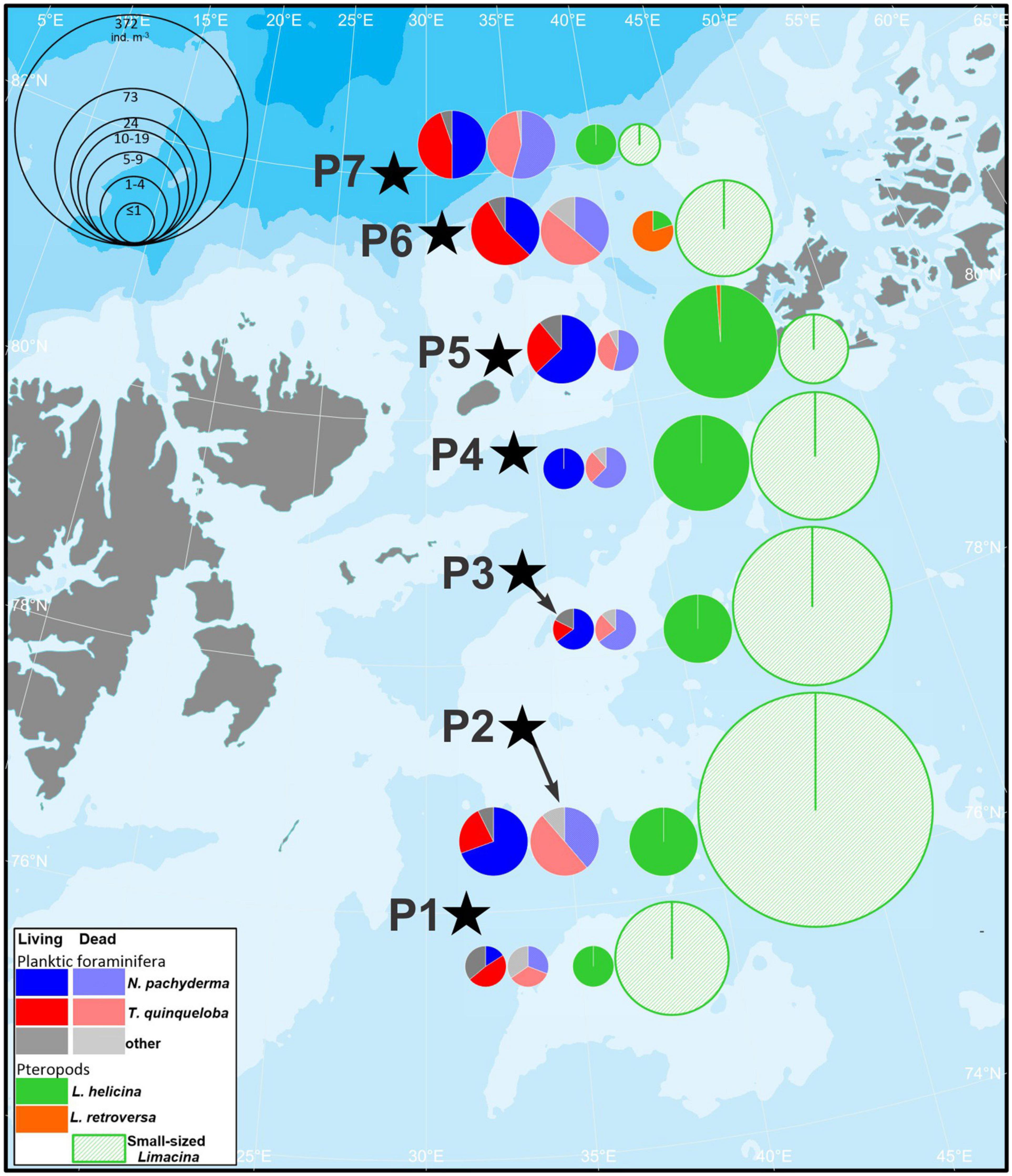

Figure 5. Distribution of living and dead species of planktic foraminiferal and pteropods along the north-south transect in the northern Barents Sea. All data are presented for the upper 200 m water depth except for station P2 and P5 where the water depth is 170 m and 125 m, respectively. Species are color-coded and indicated in the legend. Total abundance (ind. m^–3) of living (real colors) and dead (dimmed colors) planktic foraminifera and pteropods are indicated by the size of the pie charts with a legend in the left corner. Sampling locations are indicated by black stars. Small-sized Limacina includes empty shells of Limacina spp. in size fraction 250–63 μm not identifiable to species level.

Highest average abundance of pteropods was observed at station P5 (12.5 ind. m^–3) where the abundance was estimated for the upper 125 m water depth and P4 (8.5 ind. m^–3) where the abundance was estimated for the 0–200 m interval of the water column (Figure 5). Pteropods were absent or close to absent at AW influenced stations such as stations P7 and P1 (Supplementary Table 1). The polar species L. helicina dominated at all stations (100%) except for station P6 and P5 where the subpolar species L. retroversa was still low (0.3 ind. m^–3 and 0.2 ind. m^–3) but constituted 80 and 1.2% of the total pteropod relative abundance, respectively (Figure 5). At station P5, the majority of L. helicina were distributed in the upper 50 m of the water column and at stations P4 and P3 the depth distribution of this species was rather uniform, coinciding with the distribution of the PW (Figures 3A,B). At station P2, most of this species occurred below 50 m water depth (Figure 3A). While living ssL (0.25–0.063 mm) were scarce, early juveniles-late veligers of L. helicina (0.5–0.25 mm) accounted for > 35% of the total abundance at all stations of occurrence (Figure 3A). Vertical distribution of juveniles of L. retroversa (>0.5 mm) at station P6 and P5 was also limited to upper 50 m water depth. Adults of L. retroversa (> 1 mm) were found at stations P6 and P5 in the upper 20 m of the water column and at the 50–100 m water depth interval. Clione limacina that is known as the predator of L. helicina (Lalli, 1970; Conover and Lalli, 1974; Norekian and Satterlie, 1996; Böer et al., 2005) was recorded only at station P5 (0.13 ind. m^–3) at 20–50 and 80–100 m water depth with abundances of 0.5 ind. m^–3 and 0.2 ind. m^–3, respectively (Figure 3A).

Abundance and Species Distribution of Dead Planktic Foraminifera and Pteropods

The concentration of dead planktic foraminifera (empty shells) in the upper 200 m water depth varied between 0.4 ind. m^–3 (stations P1, P3) and 3.7 ind. m^–3 (station P7) (Figure 5).

The concentration of dead pteropods varied between 0.1 ind. m^–3 (within 0–200 m) at station P7 and 372 ind. m^–3 at station P2 (within 0–170 m) (Figure 5). Between 95% and 98% of dead pteropods accounted for the ssL in size range 0.25–0.1 mm and 0.1–0.063 mm, respectively (Figure 4A). Dead specimens in size fraction > 0.25 mm were represented only by the L. helicina species (Figure 5).

Discussion

Oceanic Factors Influencing Abundances of Living Planktic Foraminifera, Shelled Pteropods and Concentration of Their Empty Shells

Advection and mixing by ocean currents are the primary physical forcing experienced by marine organisms and therefore of a great concern in plankton studies. The contribution of transported zooplankton to the Arctic Ocean has not yet been adequately quantified and is hence poorly defined (Wassmann et al., 2015). Although, shelled pteropods are active swimmers and planktic foraminifera are able to regulate their buoyancy via cellular components and thus inhabit certain depths (Marszalek, 1982; Schiebel and Hemleben, 2017), their abundances can be influenced by the direction and intensity of ocean currents. Lateral advection may transport shells of planktic foraminifera over distances of > 25 km for N. pachyderma and > 50 km for T. quinqueloba (Von Gyldenfeldt et al., 2000). Transport of shells can also be strengthened by water stratification that increases resident time at the shear boundary between water masses (Kuhnt et al., 2013). As the northern Barents Sea has a complex hydrography (Figure 1), the extension of lateral advection of planktic foraminifera and shelled pteropods is poorly constrained. However, considering potential lateral advection of planktic foraminiferal shells, Pados and Spielhagen (2014) observed, that in an equally dynamic area such as the deep Fram Strait, the distribution pattern discerned by plankton tows was clearly reflected on the sediment surface strongly suggesting that the effect of ocean currents on planktic foraminifera is negligible. As the veligers of shelled pteropods are only slightly smaller and comparable in size to planktic foraminifera, the assumption can be valid for the ssL too. In addition, the wind-driven ocean circulation, mixing and the resulting strengthening of surface currents, that could potentially facilitate the transport of small planktic foraminifera and pteropods shells, is significantly subdued due to the presence the sea-ice cover during our sampling time. Moreover, the velocities of ocean currents in the Barents Sea are very low, with bottom currents ranging between 2 and 3 cm s^–1 (e.g., Kushnir et al., 2007) and surface currents oscillating around an average of 1.8 cm s^–1 (Abrahamsen et al., 2006). Therefore, the lateral transport of planktic foraminifera and pteropods, although possible, can be considered as insignificant. This is evident in the species composition of pteropods along the transect, except for the northern station P5, where the mean currents velocities are reported to be higher up to 10 cm s^–1 (Lind and Ingvaldsen, 2012). The presence of the few subpolar pteropod L. retroversa and the slightly higher temperature at station P5, compared to stations P4–P2 located within the PW regime, suggest that the lateral southward transport of this species by the admixture of AW masses from station P6, where the highest abundance of L. retroversa was recorded, is very likely (Supplementary Table 1 and Figures 3A,B, 5).

In case of dead shells, in addition to physical environmental factors that in the study area during our sampling time likely are inconsequential, the sinking speed of empty dead shells may be decisive for their residence time in the surface water. The sinking speeds of planktic foraminifera shells are governed by shell weight, volume and presence or absence of spines. The sinking speed of the spinose species, e.g., T. quinqueloba is approximately threefold slower than those of the non-spinose species (Caromel et al., 2014). Based on data from plankton tows most planktic foraminifera > 150 μm sink at speeds of 13.3–53 m h^–1 (Takahashi and Bé, 1984). Similarly to planktic foraminifera, the sinking behavior of shelled pteropods is also strongly correlated to their shell morphology and size, with the tiny coiled shell pteropods sinking the slowest, the large globular shelled pteropods sinking the fastest, and the medium-sized elongated shell pteropods sinking at intermediate speeds (Walker et al., 2021). The sinking velocity of empty pteropod shells was approximated between 36 and 50 m h^–1 (Lalli and Gilmer, 1989) and the sinking speed for L. helicina was estimated to 18–162 m h^–1 (Chang and Yen, 2012). The rather fast sinking velocities of empty shells of planktic foraminifera and pteropods imply a short retention time in the surface waters and quick settlement upon death. Considering the distances between and water depths at our stations, the average sinking speed for L. helicina of 90 m h^–1 (Chang and Yen, 2012) and the average current speed of 65 m h^–1 (Abrahamsen et al., 2006), it is unlikely that the empty shells has been transported by currents at station P4–P1. Moreover, most of the dead shells found in our samples, still contained fragments of the soft tissue that was visible through the transparent shells. The presence of the incompletely degraded remnants of organic matter in the shells indicate that the organisms likely recently died and thus represent a population that lived and/or survived under-ice conditions until the sampling time in the area.

Living Planktic Foraminifera

Only one study on living planktic foraminifera from the central-northern Barents Sea area has been undertaken (Ofstad et al., 2020) and knowledge regarding the seasonal distribution of planktic foraminifera in the polar regions is still scarce. Until now, no data of under-ice planktic foraminifera fauna from the Arctic winter are available. In the northern Barents Sea, the average abundance of under-ice planktic foraminifera were low and occurred mainly in the upper 50 m of the water column (P7—P5, Figure 3A). In April (2016) in the year-round ice-free Bjørnøyrenna area, ∼235 km south of our southernmost station (P1), the average concentration of planktic foraminifera ranged from 0 to 6 ind. m^–3 (Ofstad et al., 2020). Moreover, abundances of <10 ind. m^–3 have been reported at Bjørnøyrenna Trough in summer (Meilland et al., 2020). The similarly low abundances recorded in winter (December), spring and summer suggest that sea-ice cover and low temperatures do not significantly influence the abundance of planktic foraminifera. This coincides with recent results from the south-west Barents Sea showing that in shallow waters the commonly attributed environmental parameters such as temperature and salinity have limited influence on the abundance of planktic foraminifera (Schiebel and Hemleben, 2017; Meilland et al., 2020). Shallow depths may impede the production of planktic foraminifera (Schmuker, 2000), which therefore likely and partially can explain the observed low abundance in the shallow Barents Sea.

The under-ice species composition recorded along the transect shows that T. quinqueloba constitutes from 18 to 67% of the total planktic foraminiferal fauna (Figures 3A, 5). Given previous studies that consider N. pachyderma as the dominant species in polar regions, making up more than 90% of the total planktic foraminiferal assemblages (Kucera et al., 2005; Pados and Spielhagen, 2014), the relatively high proportion of T. quinqueloba in the high north is somewhat surprising. In addition, T. quinqueloba is found alive in water masses with temperatures below 0°C suggesting a potential adaptation of this subpolar foraminifera to the conditions in the area (Figures 3A, 5). However, for a true species shift to occur, the organism must be able to reproduce in the new environment. Despite the occurrence of juveniles (100–63 μm) in the area (Figure 3A), in situ reproduction cannot be proven with our data. Moreover, the relatively high numbers of dead juveniles (0.2–7.5 ind. m^–3, Figure 4A), compared to living juveniles (0.1–2.3 ind. m^–3, Figure 3A), suggest a noteworthy mortality at stations P7–P5. This implies that these organisms can survive rather than adapt to the under-ice conditions. The survival and future presence of subpolar planktic foraminifera in the under-ice waters in winter can be associated with the ability of these organisms to feed on a wide variety of food including dead organic matter (Schiebel and Hemleben, 2017) that may be stored in young sea-ice (Gradinger and Ikävalko, 1998; Krembs et al., 2002) and upon melting released to the under-ice water. In winter, sea-ice may serve as a storage of dead organic matter from the previous productive season.

Living Shelled Pteropods

The concentrations of under-ice abundance of living pteropods (0.1–12.5 ind. m^–3, Figure 5) in our study in the northern Barents Sea in winter are relatively comparable to under-ice concentrations of 0.4–179 ind. m^–3 observed at 0 and 5 m water depth in late winter upon return of daylight (March) in Storfjorden (Werner, 2005). Surprisingly, they are also similar to concentrations recorded in spring (0–5 ind. m^–3 in April) and in summer (0–47 ind. m^–3 in June) reported for 0–300 m water depth in central Barents Sea (Bjørnøyrenna) (Ofstad et al., 2020). During the peak reproduction time in August-September the average abundance of pteropods in the upper ∼300 m varied between 3 and 851 ind. m^–3 north of Svalbard (Daase and Eiane, 2007) and between 13 and 52 ind. m^–3 at the average depth of 122 m in the central and southern parts of the western Barents Sea (Kacprzak et al., 2017). The abundances of pteropods over the Barents Sea-Svalbard area may also reflect the patchiness of their occurrence, as they locally are able to form dense aggregations in the water column (Percy and Fife, 1985).

In our study, the dominant polar species L. helicina was confined to the cold PW supporting previous results that indicate a connection between pteropod abundances and certain water mass properties in the western Barents Sea (Kacprzak et al., 2017). The highest abundance of 65.2 ind. m^–3 was observed at 0–50 m water depth at station P5 in very cold water masses with temperatures of –1.8 to –1°C (Figures 3A,B). The high abundances of L. helicina followed the distribution of the very cold water at station P4 that extended to the sea bed from 50 m water depth (Figures 3A,B).

The relation of pteropods to certain water masses in winter is also observed, alike planktic foraminifera (see above), in the species composition of pteropods. The highest percentage of the subpolar pteropod L. retroversa (80%, 0.9 ind. m^–3) was found in AW masses with the warmest temperatures of 3.0–4.1°C and the highest recorded salinity of 34.9 at station P6 (Figures 3A,B, 5). These warm temperatures agree with the optimal temperature tolerance of 2.0–16°C previously reported for L. retroversa (van Der Spoel, 1967, 1976). The water temperature in which L. helicina was found, ranges between –2°C and 0°C and it is lower than the previously assessed temperature tolerance of –0.4°C and +4.0°C (van Der Spoel, 1967, 1976). This may suggest that L. helicina, as the subpolar planktic foraminiferal species T. quinqueloba, adapted to and/or survived the very low temperatures in situ under the sea-ice cover in the northern Barents Sea. The life cycle of planktic foraminifera in high latitudes in winter is still unknown and the overwintering strategy of pteropods is still under debate (Lischka and Riebesell, 2012; Berge et al., 2020; Thibodeau et al., 2020). Independent from, whether pteropods live in a stage of reduced metabolism (Lischka and Riebesell, 2012) or the overwintering strategy is no change in metabolism with a continued active growth (Berge et al., 2020; Thibodeau et al., 2020), they are able to adapt to and survive harsh conditions of the under-ice waters.

Relationship of Living Pteropods With Environmental Parameters

The surface waters of the Arctic Ocean with low temperatures and naturally low Ω_Ar (Chierici and Fransson, 2009) are expected to become locally undersaturated with respect to aragonite within a decade (Steinacher et al., 2009). Yet, undersaturated waters have been found already in summer 2005 on freshwater influenced Arctic shelves (Chierici and Fransson, 2009). Although the Ω_Ar, Ω_Ca and pH were low in the water column along the transect in the northern Barents Sea, the Ω_Ar and Ω_Ca values did not attain undersaturation with values < 1 (Table 2 and Figure 3D). However, Ω_Ar of 1.23–1.13 recorded at station P2 already between 90 and ∼180 m water depth and < 1.3 in the deepest water masses at stations P1, P3 and P4 are very low in comparison with other winter-spring data available in literature for the Barents Sea region (Chierici et al., 2019; Ofstad et al., 2020; Table 2 and Figure 3D). Moreover, these Ω_Ar values (<1.4) are reported to be critical for L. helicina shell formation (Bednaršek and Ohman, 2015; Bednaršek et al., 2019). The Ω_Ar values recorded at station P2 fall < 1.2, which is a threshold under which shell calcification of this species can be greatly reduced (Bednaršek et al., 2017). Although it has been suggested that L. helicina can precipitate aragonite at Ω_Ar < 1 (at temperature ∼4°C), the shell dissolution is reported to continue (Comeau et al., 2010). In a future climate change with more meltwater and continued anthropogenic CO₂ uptake resulting in decreased Ω_Ar values, it is likely that L. helicina in the northern Barents Sea will experience larger stress and will require more energy to avoid shell dissolution and continue shell growth. This could compromise the fitness (Fabry et al., 2008), threaten their survival (Comeau et al., 2011; Bednaršek et al., 2012a; Maas et al., 2012) and possibly influence the abundances and distribution of these planktic calcifiers. Moreover, environmental parameters in the northern Barents Sea, show strong covariance between the ocean carbonate chemistry, temperature, salinity and nutrients within each station (Figures 3B–D). Therefore, a single environmental parameter cannot be selected as main variable influencing abundances and distribution of these planktic calcifiers. In addition to food availability, the ocean variables could independently or simultaneously intensify or counterbalance the environmental impact on the abundance and distribution of planktic foraminifera and shelled pteropods in our study.

Population Size Structure and Life Cycle

Because of the relatively small size of planktic foraminifera and the difficulties to maintain live specimens in laboratory cultures during complete a life cycle (Murray, 1991), estimates of foraminiferal longevity and life cycles are still debated (Nigam et al., 2003). The life span estimates are very variable ranging from a few days to almost 8 months (e.g., Caron and Swanberg, 1990; Spindler, 1996; Nigam et al., 2003). Primary production and food availability have been suggested to define the suitable conditions for growth and reproduction of planktic foraminifera (Kretschmer et al., 2016). When sufficient food is accessible, planktic foraminifera can attain maturity by quickly adding the last few chambers and undergo gametogenesis. The relatively high under-ice abundances of living juveniles (0.1–0.063 mm) observed in the northern Barents Sea during winter may represent a population of overwintering juveniles spawned just before the sea-ice thickened that survived under the sea-ice by feeding on marine snow (Figure 3A).

Pteropods were represented by L. helicina juveniles (>0.5 mm) and late veligers (0.5–0.25 mm) and by the male form of L. retroversa (> 1 mm, Lalli and Gilmer, 1989; Supplementary Table 2). The size structure alongside the abundance of pteropods is commonly used to estimate the rate of growth and determine their life cycle. There is an increasing number of studies discussing the life cycle of pteropods, among which the life cycle of L. helicina is of special interest (e.g., Gannefors et al., 2005; Hunt et al., 2010; Wang et al., 2017). Due to environmental conditions, especially primary productivity (Seibel and Dierssen, 2003) and seawater temperature (Seibel et al., 2007, 2012; Lischka et al., 2011), wide regional variations in the life cycle model for L. helicina have been presented.

In Kongsfjorden (Svalbard) (Gannefors et al., 2005) and in the north Pacific (Wang et al., 2017) spawning of L. helicina took place in spring and autumn. The longevity in these areas was proposed to be 1 year (Gannefors et al., 2005). In the high Arctic Ocean, Kobayashi (1974) observed a prolonged spawning period between later winter and late autumn and suggested a longevity of 1.5–2 years. In addition, two contrasting life cycles are presented for L. helicina in the Southern Ocean where both a 1-year (Hunt et al., 2008) and a 3-year longevity (Bednaršek et al., 2012a) has been proposed.

The abundance and size range of L. helicina found in December in the northern Barents Sea suggest that the juveniles (4.0–0.5 mm) of this species likely represent the population that was spawned in late autumn. This coincides with studies from the Arctic Ocean and Svalbard fjords that suggest a breeding period of L. helicina during autumn (Kobayashi, 1974; Gannefors et al., 2005). Recently, an active grow of Limacina helicina antarctica has been reported throughout the winter season in the Southern Ocean (Thibodeau et al., 2020). Therefore, it is possible that the occurrence of living juveniles in December may indicate that a growth of the overwintering L. helicina (veligers into juveniles) occurred despite of the lack of daylight (hence limited primary production), the increase and thickening of sea-ice cover and declining food quality during early winter months (October to December). The ongoing growth during winter months can probably be linked to the ability of veligers of L. helicina to feed on poor nutritional choices, which, during winter, can be limited to degraded organic material (Kobayashi, 1974; Gannefors et al., 2005), as is also suggested for planktic foraminifera (see above). In addition, juveniles of L. helicina can accumulate lipids and utilize them in winter (Gannefors et al., 2005; Boissonnot et al., 2019).

Furthermore, the absence of living young veligers in the size range 0.25–0.1 mm and 0.1–0.063 mm in December indicates either that no spawning occurred in early winter (October-December) or that the veligers of L. helicina did not survive the early stage of their development (Figure 3A).

The highest abundance of juvenile L. helicina was observed at 0–20 m (37 ind. m^–3) and at 20–50 m (28 ind. m^–3) water depth at station P5 (Figures 3A,B). The occurrence in surface waters is in agreement with studies from the central Arctic, Svalbard fjords and Barents Sea where migration of juveniles and veligers of L. helicna was observed in the top 75 m (Kobayashi, 1974; Gannefors et al., 2005; Falk-Petersen et al., 2008; Ofstad et al., 2020). We speculate that locally occurring enhanced food availability such as sea-ice-associated microalgae aggregates and/or release of degraded organic material originating from summer and autumn blooms, possibly caused the high concentration in the upper water column at this station.

Overall, the abundances of two groups of pelagic calcifiers, their population size structure and species distribution appear to be the result of a complex interplay of ecological factors and roles in the marine food web. For instance, L. helicina, like other pteropods (and unlike planktic foraminifera), has the ability to actively migrate in the water column and our data represent a snapshot-type observation that cannot provide a comprehensive picture of the dynamics of planktic foraminifera and pteropods nor the environmental factors controlling their populations. In addition, comparisons of pteropod abundances to other studies can bear discrepancies that often can be attributed to use of different plankton net mesh sizes (e.g., Kacprzak et al., 2017 - > 500 μm; Gannefors et al., 2005 - > 180 and > 1,000 μm; Daase and Eiane, 2007 - > 180 μm). Pteropod abundance reported with mesh size greater than those of our study, the study from central Barents Sea (> 0.63 μm) (Ofstad et al., 2020) and from Storfjorden (> 0.50 μm, Werner, 2005) is, therefore, incomplete or represent a different plankton community. Moreover, a repeated sampling strategy covering full annual cycles would be crucial for studying long-term trends in the occurrence, abundance and population structure of planktic foraminifera and shelled pteropods to improve our understanding and prediction of their sensitivities to ocean changes.

Biological Carbon Flux and Empty Shells

Planktic foraminifera and pteropods are involved in numerous pathways of carbon export from the surface (where they live) to the ocean floor (where they settle after death). They contribute to carbon export primarily via their shells as an inorganic carbon flux (Heinze et al., 1991) and their soft-tissue/cytoplasm as an organic carbon flux (Volk and Hoffert, 1985). The two carbon exports mechanisms contribute to the biological carbon pump that draws down atmospheric CO₂ through production of organic matter and subsequently sequesters the particulate organic carbon exported to the deep ocean (Volk and Hoffert, 1985). Planktic foraminifera and shelled pteropods also contribute to the carbonate counter pump that counteracts the biological carbon pump by increasing surface ocean CO₂ through calcification and precipitation of calcite and aragonite shells and the resulting export of particulate inorganic carbon out of the surface layer. The balance between the biological carbon pump and the carbonate counter pump regulates the efficiency of deep ocean CO₂ sequestration and, as a consequence, affects the concentrations of CO₂ in the surface ocean and influences air-sea CO₂ exchange.

Contrary to pteropods, organic carbon flux of soft tissue (i.e., cytoplasm) of planktic foraminiferal has so far been assumed to be very low (e.g., Watanabe et al., 2014; Meilland et al., 2018), as sedimentation of planktic foraminifera occurs primarily as empty shells with little to no remaining cytoplasm. In the case of pteropods, the contribution to the carbon flux can additionally occur via production of fecal pellets or fast sinking colloids that are formed while feeding via mucous webs that trap fine particles and small fecal pellets (Howard et al., 2011).

The biogeochemical importance of calcite and aragonite production by planktic foraminifera and pteropods, respectively, and their importance for carbon flux has been discussed on global and regional scales in a great number of studies (e.g., Milliman, 1993; Schiebel, 2002; Tyrrell, 2008; Bednaršek et al., 2012a; Schiebel and Hemleben, 2017; Manno et al., 2018; Meilland et al., 2018; Buitenhuis et al., 2019). Most of these studies based the assessment of organic and inorganic carbon flux on the quantification of living assemblages, whereas the concentration and quantification of empty shells of planktic foraminifera and pteropods and thus the potential significance for especially the inorganic carbon flux record, have gone often unreported.

In the northern Barents Sea, the concentrations of empty shells exceeded the concentration of living individuals, or in case of planktic foraminifera, are close to equal at each station except for station P5 (Figure 5). Given the low absolute abundances of planktic foraminifera in our study (Figure 5), in this chapter we focus mainly on empty shells of pteropods. At the southernmost station (P1) no living pteropods were observed and the concentration of empty shells of 19 ind. m^–3 was recorded. North of the Polar Front, at station P2 and P3 the concentration of empty shells was almost 93-fold and 19-fold higher, respectively, than the concentration of living pteropods showing a density of 372 ind. m^–3 and 73 ind. m^–3, respectively (Figure 5). Although, the largest portion of the empty shells of pteropods were recorded in the smallest size range of 0.25–0.063 mm, the concentration is rather significant.

The causes of mortality of natural plankton populations are extremely difficult to determine, particularly, in high latitudes characterized by an extreme seasonality in incoming sunlight and the presence of sea-ice. Therefore, the causes of the mortality of pteropods in our study could not be determined with a certainty. Thus, we speculate and discuss environmental conditions recorded during the sampling campaign that could have potentially and additionally influence the mortality of pteropods along the transect.

There is a clear pattern within the distribution of dead shells with highest concentrations at stations (P5–P2) influenced by the PW masses (Figures 4A,B). At station P3 and P2, where the PW masses dominate, the lowest temperatures (–1.87), Ω_Ar (1.13–1.44) and pH (7.97–8.10) were recorded (Table 1 and Figures 4B,C). Although, the link between low Ω_Ar and pH, and low temperatures conditions-driven mortality in pteropods has not been directly confirmed in nature (Gazeau et al., 2013; Bednaršek et al., 2014a; Niemi et al., 2021), our data suggest that the low values of these environmental variables may have contributed to an increased mortality of veligers at our stations. Temperature is recognized to have a strong influence on the shell building capacity of calcifying organisms and larval forms of molluscs have been shown to be particularly sensitive to changes in carbonate chemistry (Gazeau et al., 2013). Moreover, early stages of L. helicina in the PW during winter were found to be less able to counteract changes in their environment (Lischka et al., 2011; Lischka and Riebesell, 2012). Therefore, the combination of low temperatures, relatively low Ω_Ar with potentially limited food availability during winter, could have added to the adverse conditions impairing the survival capability of the larvae forms leading to increased mortality of ssL. However, more studies are needed to further examine the effects and disentangle the relative contribution of these important environmental variables for shelled pteropods.

Another explanation to the occurrence of empty shells of ssL could be as a result from predation activity by gymnosomatous (non-shelled) pteropods such as Clione limacina that is a highly specialized predator adapted to feed on soft body of L. helicina (Lalli, 1970; Conover and Lalli, 1974; Norekian and Satterlie, 1996; Böer et al., 2005). However, the low abundance of C. limacina found at station P5 and the absence of C. limacina at the remaining stations (Figure 3A) cannot account for the high concentrations of empty shells of ssL e.g., at stations P2 and P3. However, as C. limacina can use fast swimming behavior for hunting, we cannot rule out, that higher abundance of this species after exhausting the consumption potential at these stations left for other grazing areas leaving the slower sinking empty shells behind. Moreover, the low abundance of C. limacina could also, at least partially, result from the avoidance of the net by this species. Net avoidance by larger and more efficiently swimming zooplankton that sense the pressure wave in front of a small mesh net and therefore can dodge it, is a known phenomenon that to a large extend can be avoided by an adequate towing speed. The towing speed recommended for vertical samples with a small mesh net (63 μm), used in our study, is 0.5–1 m per second. This rater slow towing speed minimizes the extent of extrusion of small-sized foraminifera and pteropods, but may increase the likelihood of avoidance by the bigger and faster swimming C. limacina.

Independent from the reason of the occurrence of the high concentration of empty shells of pteropods (or planktic foraminifera) their high concentration likely represents a substantial part of the inorganic carbonate flux to the ocean floor. This is in agreement with the findings of Manno et al. (2018) that showed that the contribution of pteropods to the carbonate counter pump depends on whether shells were empty or included soft tissue. The dominance of empty shells in the total pteropod abundance (up to 85%) in the sediment traps resulted in the contribution to the carbonate counter pump that was more than two times higher than when shells with soft tissue predominated. This strongly underlines the importance of examination of empty shells in biological carbon flux studies.

Conclusion

To our knowledge, this is the first study of the under-ice abundance and diversity of planktic foraminifera and shelled pteropods in the Barents Sea during dark winter to date. This is also the first presentation of carbonate and nutrient data from the northern Barents Sea in December.

The abundances of living planktic foraminifera followed a distribution similar to open ocean with maximum abundances recorded in surface waters at 0–50 m depth (2.6 ind. m^–3 at station P7 and 5.8 ind. m^–3 at station P6). However, the average abundance of living planktic foraminifera was generally very low for the upper 200 m water depth and never exceeded 2 ind. m^–3 which was the maximum value recorded close to the Polar Front. The concentration of living specimens was only higher in station P5.

Similarly, to planktic foraminifera, the highest abundance of living pteropods was found in the surface water at 0–50 m depth (32 ind. m^–3 at station P5). The average abundances of pteropods recorded in the upper 200 m water depth in December were comparable to abundances found in Barents Sea in spring and summer. Abundances of living pteropods were, however, markedly lower than the abundances of empty shells of pteropods that ranged between 6 ind. m^–3 (P5) and 372 ind. m^–3 (P2) in the northern Barents Sea. The high abundance of empty shells can represent a substantial part of the inorganic carbonate flux to the deep ocean in this area.

The polar pteropod species Limacina helicina and the polar planktic foraminifera species Neogloboquadrina pachyderma dominated the living pteropods and foraminifera assemblages, respectively. The high proportion of the subpolar foraminiferal species Turborotalita quinqueloba (45–67%) at stations in the south (P1) and in the Nansen Basin (P7 and P6) was probably linked to the presence of AW advected by the WSC. This could also explain the presence of Limacina retroversa at stations P6 and P5 where Atlantic water dominated. This confirms recent studies that refer to a poleward expansion of subpolar plankton communities to stronger and warmer Atlantic water currents entering the Arctic Ocean (Dalpadado et al., 2020). In a changing climate, this implies a high latitude shift toward more subpolar species. However, our study confirms the division in different regimes, between warm water subpolar species and the cold water polar species.

Limacina helicina was represented mainly by the juvenile form that showed a preference toward PW with temperatures < –0.4°C. Moreover, this species was found in water masses with the lowest Ω_Ar. Limacina helicina was represented mainly by juveniles that most likely spawned in late autumn/early winter. Its occurrence may suggest that a slow growth of the overwintering Limacina helicina veligers into juveniles occurred which agrees with recent studies that evidenced an active growing of Limacina helicina antarctica during winter in Antarctica.

Our study provides a limited “snapshot-type” observation in winter that cannot provide the full picture of the dynamics of two groups of pelagic calcifiers nor the environmental factors controlling their populations. It, however, highlights that a repeated sampling strategy covering full annual cycles would be crucial for studying long-term trends in the occurrence, abundance and population structure of planktic foraminifera and shelled pteropods to improve our understanding and prediction of their sensitivities to ocean changes.
