Integrated Modeling to Evaluate Climate Change Impacts on Coupled Social-Ecological Systems in Alaska

$\r\nAnne Babcock Hollowed*$ Anne Babcock Hollowed^1*

Kirstin Kari Holsman¹

Alan C. Haynie¹

Albert J. Hermann^2,3

Andre E. Punt⁴

Kerim Aydin¹

James N. Ianelli¹

Stephen Kasperski¹

Wei Cheng^2,3

Amanda Faig^2,4

Kelly A. Kearney^1,2

Jonathan C. P. Reum^1,5

Paul Spencer¹

Ingrid Spies¹

William Stockhausen¹

Cody S. Szuwalski¹

George A. Whitehouse^2,4

Thomas K. Wilderbuer¹

¹Alaska Fisheries Science Center, National Marine Fisheries Service, National Oceanic and Atmospheric Administration, Seattle, WA, United States
²Joint Institute for the Study of the Atmosphere and Ocean, University of Washington, Seattle, WA, United States
³Pacific Marine Environmental Laboratory, Oceans and Atmospheric Research, National Oceanic and Atmospheric Administration, Seattle, WA, United States
⁴School of Aquatic and Fishery Science, College of the Environment, University of Washington, Seattle, WA, United States
⁵Centre for Marine Socioecology, Institute for Marine and Antarctic Studies, College of Sciences and Engineering, University of Tasmania, Hobart, TAS, Australia

The Alaska Climate Integrated Modeling (ACLIM) project represents a comprehensive, multi-year, interdisciplinary effort to characterize and project climate-driven changes to the eastern Bering Sea (EBS) ecosystem, from physics to fishing communities. Results from the ACLIM project are being used to understand how different regional fisheries management approaches can help promote adaptation to climate-driven changes to sustain fish and shellfish populations and to inform managers and fishery dependent communities of the risks associated with different future climate scenarios. The project relies on iterative communications and outreaches with managers and fishery-dependent communities that have informed the selection of fishing scenarios. This iterative approach ensures that the research team focuses on policy relevant scenarios that explore realistic adaptation options for managers and communities. Within each iterative cycle, the interdisciplinary research team continues to improve: methods for downscaling climate models, climate-enhanced biological models, socio-economic modeling, and management strategy evaluation (MSE) within a common analytical framework. The evolving nature of the ACLIM framework ensures improved understanding of system responses and feedbacks are considered within the projections and that the fishing scenarios continue to reflect the management objectives of the regional fisheries management bodies. The multi-model approach used for projection of biological responses, facilitates the quantification of the relative contributions of climate forcing scenario, fishing scenario, parameter, and structural uncertainty with and between models. Ensemble means and variance within and between models inform risk assessments under different future scenarios. The first phase of projections of climate conditions to the end of the 21st century is complete, including projections of catch for core species under baseline (status quo) fishing conditions and two alternative fishing scenarios are discussed. The ACLIM modeling framework serves as a guide for multidisciplinary integrated climate impact and adaptation decision making in other large marine ecosystems.

Introduction

Significant increases in sea surface temperature (SST) over the next century are projected for most ocean systems (IPCC, 2014, 2018). Global warming is expected to have strong impacts on ocean temperature and ocean productivity in high latitude systems (Arrigo and Van Dijken, 2015; Smith et al., 2019). However, the effect of warming climate conditions on marine ecosystems and species are expected to be system- and species-dependent, and the footprint of environmental change may exhibit considerable variation across space and time (Poloczanska et al., 2013; Cheung et al., 2016; Spencer et al., 2019). High latitude marine ecosystems such as the Bering Sea are expected to experience large deviations from historical ocean conditions (Hermann et al., 2019; Spencer et al., 2019). Indeed, increased ocean temperature has already impacted the Bering Sea marine ecosystem through shifts in trophic demand and overwinter survival (Heintz et al., 2013), species interactions (Spencer et al., 2016), shifting spatial distributions (Barbeaux and Hollowed, 2018; Stevenson and Lauth, 2019; Thorson, 2019), and overall system productivity (IPCC, 2014; Hermann et al., 2019). Bering Sea ecosystems are also threatened by the effects of ocean acidification on valuable crab stocks and important pelagic prey species (Comeau et al., 2010; Long et al., in press).

In anticipation of these changes, the US National Marine Fisheries Service (NMFS) established a Climate Science Strategy (NCSS) that called for scientists from each management region to conduct research to understand, prepare for, and respond to, climate impacts on the distribution and abundance of managed species and the ecosystems in which they reside (Buser et al., 2016). In response to this national call to action, an interdisciplinary team of researchers was formed in 2015 to develop the Alaska Climate Integrated Modeling (ACLIM) projec¹. The goals of ACLIM were to:

• Identify key risks to eastern Bering Sea (EBS) fisheries, and the region’s marine social-ecological system associated with various future levels of climate-driven change.

• Evaluate climate-resilient adaptation pathways and identify and avoid maladaptive approaches (sensu Wise et al., 2014).

• Identify sources of uncertainty in risk and projected changes in order to inform future research and monitoring to improve projections and advice.

We addressed these goals by: (1) applying a multi-model approach (sensu Kaplan et al., 2019; Lotze et al., 2019) to project the distribution and abundance of commercially important fish and fisheries in the EBS under various climate change and fishing scenarios (Figure 1); (2) evaluating the economic and biological performance of the fishing scenarios for consideration by the North Pacific Fishery Management Council (NPFMC), the federal fisheries management body for the region (sensu Holsman et al., 2019); and (3) decomposing uncertainty in future climate projections according to structural, scenario, and parameter uncertainty sources (Cheung et al., 2016; Payne et al., 2016; Reum et al., in press).

FIGURE 1

Figure 1. Illustration of the elements of ACLIM’s integrated modeling enterprise for evaluating climate change impacts on socio-ecological systems in Alaska.

This paper describes the ACLIM research framework, its approach to quantifying uncertainty and multi-model inference, and the program’s approach to interfacing science with regional fishery management councils. This paper is designed to provide an overview of the research framework. For in-depth details of each modeling approach, the reader is directed to relevant publications.

History

The ACLIM Team selected the EBS as a case study for the development and implementation of a regional climate impact, assessment, and management planning enterprise. The EBS supports abundant fish and shellfish resources that are of considerable economic and social value to the region, the United States, and the world. For example, the estimated 2017 first-wholesale value for commercial harvest of all species (crab, groundfish, clams, scallops, salmon, halibut) in the United States shelf and slope regions of the EBS was $2.68 billion (Fissel et al., 2019). In addition, the major physical and biogeochemical processes governing ecosystem production have been studied for at least 40 years, providing opportunities for formulation and parameterization of the responses of marine species to changes in atmospheric, oceanographic, and biogeochemical drivers (Sigler et al., 2016b; Stabeno et al., 2016). An Ecosystem Approach to Fisheries Management (EAFM, Dolan et al., 2015) is used in the region (Stram and Evans, 2009) and managers and stakeholders are actively seeking improved climate- and ecosystem-based information for decision making.

Key features of the EBS include: seasonal ice cover, distinct biophysical domains driven by surface forcing and tidal mixing, ice associated algal and phytoplankton blooms, and fall phytoplankton blooms (Hunt et al., 2011; Stabeno et al., 2012, 2017; Wang et al., 2012; Baker and Hollowed, 2014; Cheng et al., 2015; Hermann et al., 2019). The role of temperature and sea ice on the seasonal availability of high energy content planktonic prey (large zooplankton) has been shown to be associated with overwintering survival of walleye pollock (Gadus chalcogrammus) and Pacific cod (Gadus macrocephalus), two abundant and economically important species (Heintz et al., 2013; Duffy-Anderson et al., 2017). Laboratory studies have quantified key bioenergetic responses for commercially important groundfish and the impacts of ocean acidification on key developmental processes of commercially important crab stocks (Long et al., 2013, 2019).

The origins of the ACLIM project can be traced back to a long legacy of interdisciplinary research programs. Early versions of the current high spatial and temporal resolution oceanographic model [a Regional Ocean Modeling System (ROMS) model with 10 km horizontal resolution for the Bering Sea, Bering10K] were developed as part of the US GLOBEC Northeast Pacific program, a partnership between the National Science Foundation (NSF) and the National Oceanic and Atmospheric Administration (NOAA) (Curchitser et al., 2005). Early food web models were developed as part of the Southeast Bering Sea Carrying Capacity research program, a partnership between the Coastal Ocean Program, the Pacific Marine Environmental Laboratory, and the NMFS (Aydin et al., 2007). Development of climate-enhanced single-species projection models (CE-SSM, Ianelli et al., 2016) and fully coupled end-to-end ecosystem models (Hermann et al., 2013, 2016; Ortiz et al., 2016), and fisher’s choice models (Haynie and Pfeiffer, 2013) were all developed as part of the Bering Sea Project (BSP); a partnership between the NSF, the North Pacific Research Board (NPRB), and the NOAA (Wiese et al., 2012). The Climate-Enhanced Age-based model with Temperature-specific Trophic Linkages and Energetics (CEATTLE, Holsman et al., 2016) was funded directly by NMFS research initiatives focused on the development of integrated ecosystem assessments and stock assessment improvement. This legacy of collaborative research led to a mechanistic understanding of key biophysical linkages governing fish production (Sigler et al., 2016a) and completed model performance verification studies that served as the foundation for the ACLIM project. Briefly, the ACLIM framework generates dynamically coupled, regionally downscaled projections of the oceanography and biogeochemistry of the EBS ecosystem derived from earth system models (ESMs) driven under contrasting future emission scenarios [representative concentration pathways (RCPs)] (Table 1). Recognizing that there are strengths and weaknesses to every modeling approach (e.g., Hollowed et al., 2013), investigators proposed a multi-model inter-comparison approach (Stock et al., 2011; Stouffer et al., 2017). Projected ocean and biogeochemical conditions are directly or indirectly utilized to project the future of marine species and fisheries in the region (Figure 1 and Table 1) using a suite of population dynamics models with various levels of complexity (Figure 2 and Table 2).

TABLE 1

Table 1. Summary of global or earth system models and scenarios used in ACLIM and Bering Sea Project (BSP) experiments.

FIGURE 2

Figure 2. Illustration of the multiple models and climate and fishing scenarios used in the ACLIM project.

TABLE 2

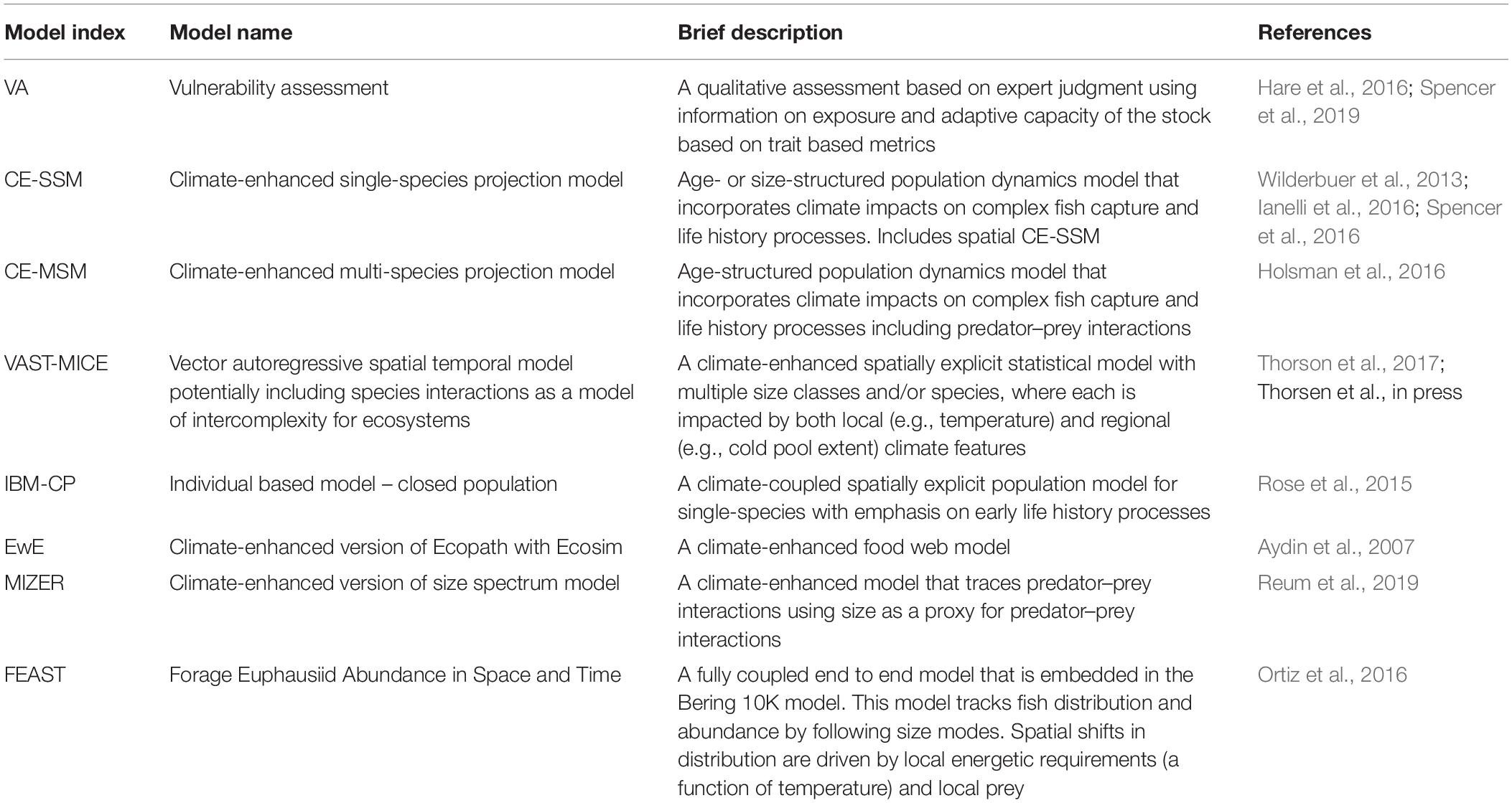

Table 2. ACLIM model classification, descriptions, and key references.

Using the multi-model approach, projections of fish and shellfish distribution and abundance are assessed for the current (2006–2020), mid-century (2030–2050), and end-of-century (2080–2100) time periods under suites of potentially viable fishing scenarios and management strategies that are vetted through the NPFMC. Projected stock conditions (e.g., size-at-age, abundance, reproductive potential, reproductive success, and distribution) for six core species (walleye pollock; Pacific cod; yellowfin sole, Limanda aspera; northern rock sole, Lepidopsetta polyxystra; arrowtooth flounder, Atheresthes stomias; and snow crab, Chionoecetes opilio) are compared to assess the performance of current and alternative fishing scenarios with respect to the ecosystem, social and economic goals of the NPFMC. Projections of key ecosystem status indicators (e.g., species diversity, mean trophic level of the catch) are derived from ecosystem models and are evaluated under current and alternative fishing scenarios. In this context, fishing scenarios include both the suite of constraints imposed by a given fisheries management strategy and external processes influencing fishing behavior [e.g., allocation of total allowable catch (TAC) between fishing sectors, fuel costs, world markets] (Groeneveld et al., 2018; Fulton et al., 2019). The implications of shifting spatial distributions of commercial species on the coupled social-ecological system are assessed using spatially explicit models (Table 2). Collectively, these projections provide the scientific information needed to identify thresholds for management action and viable adaptation strategies. For example, many regions monitor proxies for reproductive potential (i.e., spawning stock biomass) and establish biological reference points for reductions in fishing mortality or the development of rebuilding plans. Examination of the performance of current and alternative fishing scenarios and management strategies helps to identify climate-ready harvest control rules that are robust to changing climate, and to inform the public and management of trade-offs associated with different options for the management of marine resources under a changing climate.

The origins of the EAFM approach used in the region and the keen interest of managers and stakeholders in improved climate- and ecosystem-based information for decision making can be traced to the iterative communication between scientists, managers, and stakeholders. The NPFMC was one of the first Councils in the United States to adopt an ecosystem considerations report (Livingston et al., 2001). This report has evolved over the years and is now considered an integral part of the NPFMC’s annual assessment reviews (Zador et al., 2017) and in 2018, the NPFMC adopted a Fishery Ecosystem Plan for the Bering Sea². The shared recognition of the scientific and management community of the potential risks of changing climate conditions on sustainable fishery management in the region underscored the need for a climate module within the FEP which would serve as a strategic planning tool for the NPFMC. The ACLIM modeling framework is designed to fill this strategic need.

Climate Model Structural Uncertainty and Emission Scenarios

Projections are completed in phases that are tied to the availability of updated ESM projections and funding. Phase 1 is nearing completion. Phase 1 utilized output from six ESMs developed for the IPCC fourth or fifth Assessment Reports (based on output from the third or fifth Coupled Model Intercomparison Project, “CMIP3” or “CMIP5”) (Table 1). In this phase, the ACLIM framework was developed and tested, providing multi-model projections of the impacts on fish, invertebrates, and fisheries under status quo and two fishing scenarios. In phase 2, the entire suite of biological models (Table 2) will be updated with ESM output developed for the IPCC Sixth Assessment Report (i.e., CMIP6) and evaluated under an expanded suite of fishing scenarios that will include alternative management strategies. Comparison of results from phase 1 and 2 will allow analysts to explore how improvements in ESMs affect projected impacts on fish and fisheries. This paper focuses on phase 1 of the project.

Structural differences among global climate models and uncertainty regarding emission scenarios were addressed in phase 1 of the ACLIM project by comparing outcomes based on multiple climate models under several emission scenarios (Van Vuuren et al., 2011; Van Vuuren and Carter, 2014; Table 1). In this phase, output from six global climate models (three from CMIP3 and three from CMIP5) were selected from the full suite of global climate models considered by IPCC (Table 1). The CMIP3 suite was selected during the BSP to span a broad range of potential sea ice dynamics (Hermann et al., 2016). Selected models from the CMIP5 suite included: the Geophysical Fluid Dynamics Laboratory (GFDL) – ESM 2M (ESM2M) (Dunne et al., 2012); the National Center for Atmospheric Research (NCAR) Community Earth Systems Model (CESM) (Kay et al., 2015); and the MIROC ESM (Watanabe et al., 2011) (Table 1). These three models were selected because they projected a broad range of global patterns for precipitation and SST, and provided contrasting views of future ocean conditions in the EBS. Output from these models under two RCPs (4.5 and 8.5; Van Vuuren et al., 2011; Van Vuuren and Carter, 2014) were used to drive the Bering10K regional model. RCP 8.5 and 4.5 represent a high-emission business-as-usual scenario and an intermediate scenario, respectively.

Climate Projection Downscaling

Previous analysis of the skill of global scale ESMs over the historical period revealed that these coarse resolution models are unable to adequately resolve the seasonal spatial patterns of sea ice extent and bottom water temperatures that are key structural features of the EBS shelf (Vancoppenolle et al., 2013). Additionally, model intercomparisons of 21 global biogeochemical models’ abilities to reproduce observed net primary productivity in the Arctic Ocean revealed several limitations that varied by region (Lee et al., 2016). Many of these deficiencies related to mixed layer depth and sea ice concentration in the simulations.

To address these potential deficiencies, the ACLIM framework deploys the Bering10K ROMS model (Hermann et al., 2016, 2019) to dynamically downscale CMIP5 projection simulations for the Bering Sea region. In this framework, the ROMS ocean model is forced at the surface by heat fluxes, freshwater fluxes, and wind stress values derived from prescribed atmospheric states based on the global model projections and modeled surface temperature (SST), and at the lateral boundaries by temperature, salinity, and current speeds from the ocean component of the global model projections. In two simulations, nitrate and ammonium values from the biogeochemical component of the ocean model in the global projections were also used in the lateral boundary condition variables; in these instances, simulations were run under projected nutrient boundary conditions and alternatively with World Ocean Atlas-derived climatological nutrient boundary conditions to contrast the relative impact of temporal trends in projected nutrients. This downscaling framework allows for approximately a 100-fold increase in the number of horizontal grid points compared to that of the global models (Figure 3). The Bering10K model also includes its own sea ice and biogeochemical models through which the climate model forcing data influence the local dynamics. When forced in hindcast mode with surface and lateral boundary conditions from the data-assimilating Climate Forecast System Reanalysis (CFSR), the Bering10K model has demonstrated significantly improved representation of features such as advection pathways, mixed layer depth, sea ice extent, and the strength and interannual variability of the Bering Sea cold pool compared to that seen in CFSR itself (Hermann et al., 2016; Kearney et al., in press).

FIGURE 3

Figure 3. Geometry of the ROMS domain. The model domain grid is laid along the bathymetry with the native 10-km resolution of the ROMS grid. Real coastlines are in light blue with the ROMS land mask in a darker blue. The EBS sampling polygon is shown in green, along with the locations used for survey-replication sampling (colors indicate the day of year associated with each sampling location; the color-bar further shows the season subdivisions used for seasonal indices). The zoomed-in grid in the lower right shows the orientation of the grid as well as the location of rho-, u-, and v-points.

Since phytoplankton and zooplankton are responding to both physics and nutrients, the Bering10K ocean model is coupled to a biogeochemical model (BESTNPZ) that simulates lower trophic level dynamics for the Bering Sea (Gibson and Spitz, 2011; Kearney et al., in press). Within the ACLIM framework, the use of this single biogeochemical model to derive biological indices for all the downscaled climate simulations is the one place where neither structural nor parameter uncertainty is addressed via an ensemble approach. During development of the ACLIM modeling framework, the merits of including multi-model- or parameter-varying ensembles of biogeochemical models were discussed but ultimately not included due to the need to limit the permutations assessed in the project. Therefore, for phase 1, the only uncertainty related to lower trophic dynamics that is quantified is that relating to projected trends in nutrient boundary conditions.

Relevant biogeochemical and physical properties (Tables 3–5) were projected for the period 2006–2100 for scenarios based on CMIP5 models. Since CMIP3 did not cover the entire time period 2006–2100, we used CMIP3 for those periods to the extent possible (2003–2040). In addition, a hindcast simulation spanning the period of 1970–2018, forced by a combination of version 2 forcing for Coordinated Ocean-Ice Reference Experiment, i.e., COREII (Large and Yeager, 2009) (1970–1994), the CFSR (Saha et al., 2010) (1995–March 2011), and the Climate Forecast System Operational Analysis, i.e., CFSv2-OA (April 2011–Sep 2018) was performed for use in calibrating the various upper trophic level models for past decades. Comparison of these hindcasts using different ESM boundary conditions revealed potential temperature biases. Several methods have been used to address systematic biases in global model temperatures relative to current observed temperatures (Piani et al., 2010). In comparative studies, bias can be accounted for by evaluating relative changes in mean state between time periods (Hermann et al., 2019). However, when animals respond to environmental thresholds, relative environmental changes may not be adequate when downscaled variables are used to drive responses of secondary producers and higher trophic levels (Small et al., 2015; see section “Bias Corrections for Biological Responses”). To address this issue, projections with and without bias corrections are compared.

TABLE 3

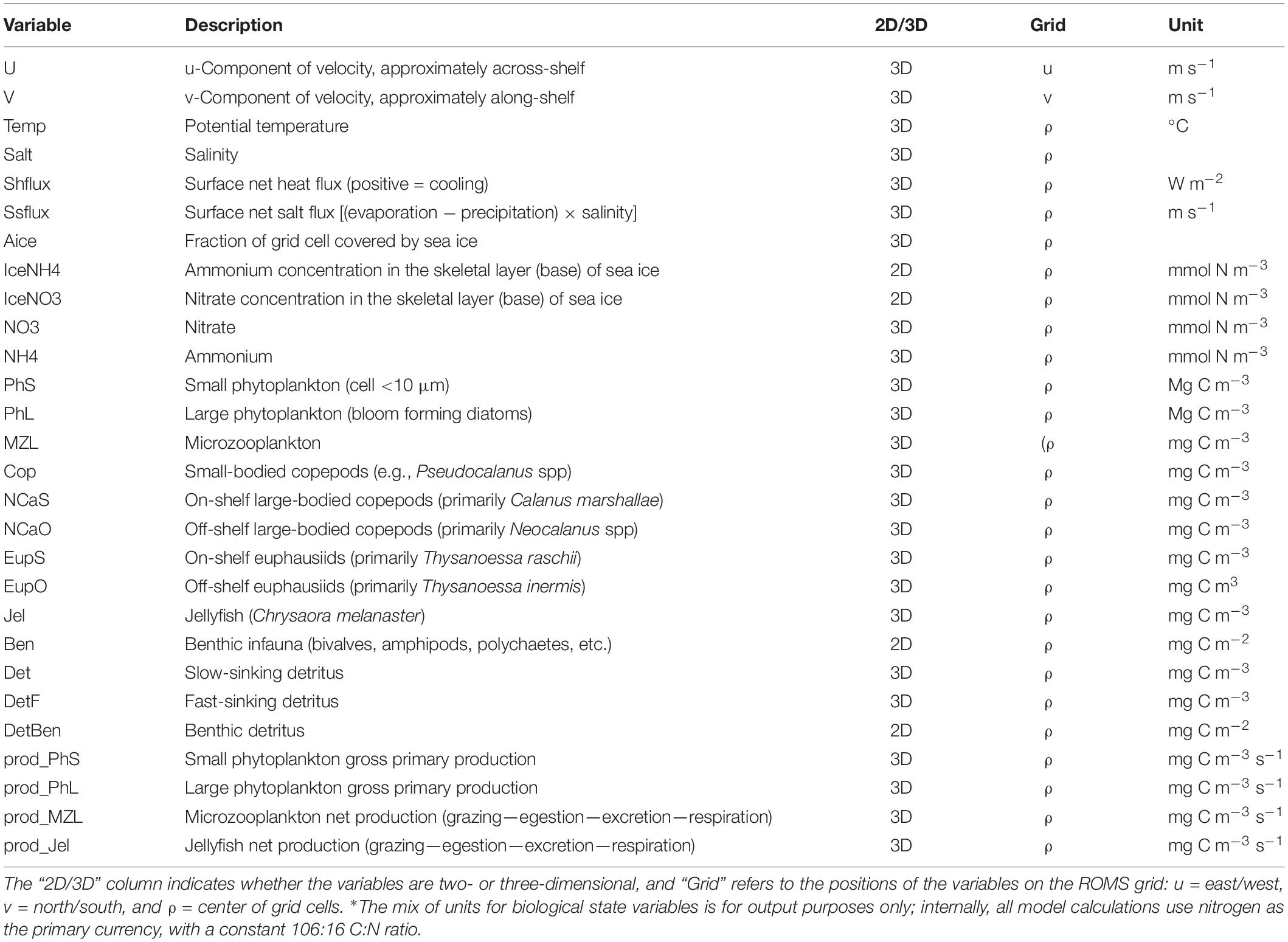

Table 3. Fish- and fisheries-relevant output variables from the Bering10K-BESTNPZ model^∗.

TABLE 4

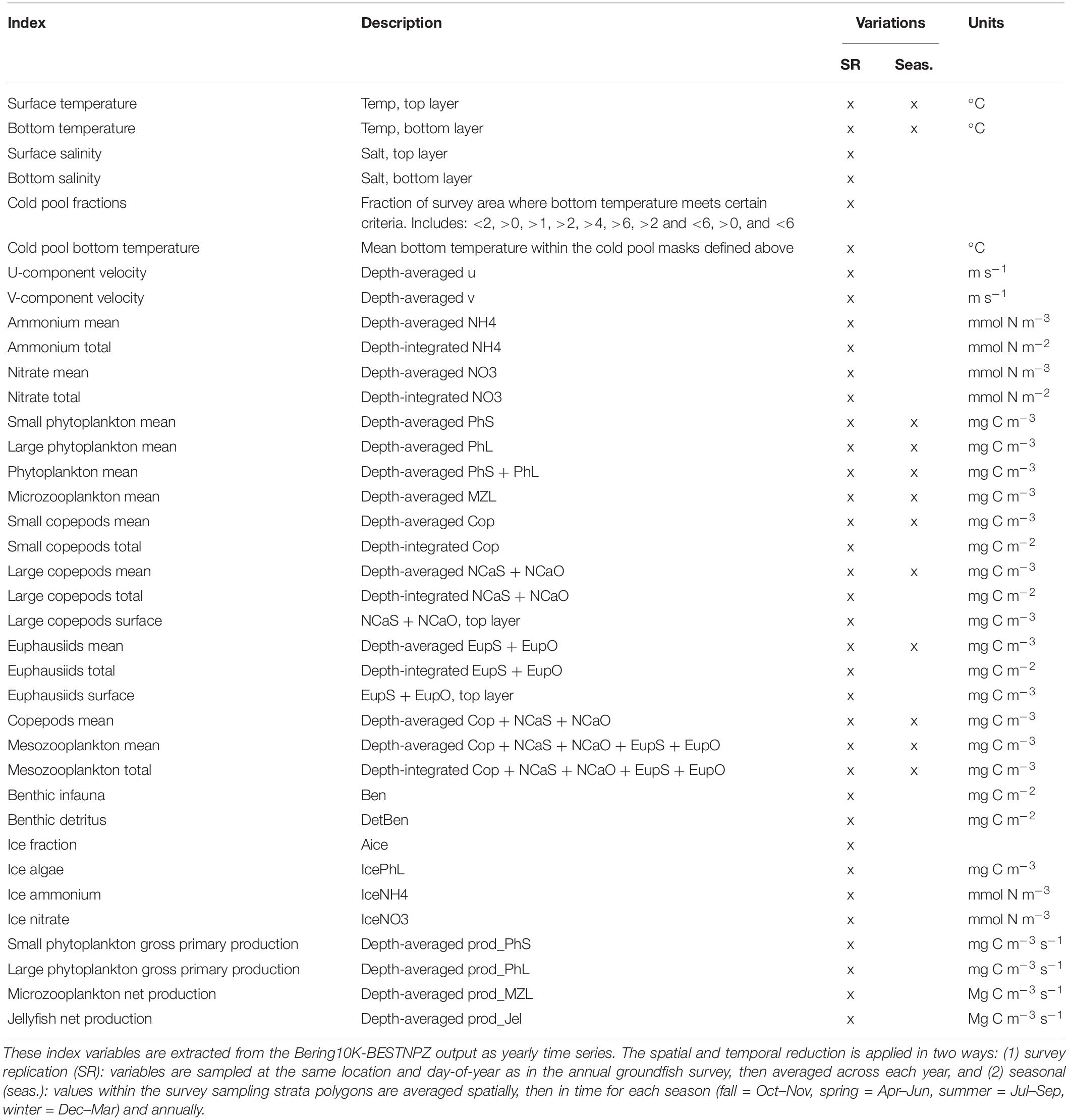

Table 4. Eastern Bering Shelf-derived indices.

Explorations of the Potential Role of Biological Complexity

The ACLIM framework employs a multi-model approach for projection of biological responses to explore the trade-offs between computational speed and ecosystem realism inherent in the selection of higher trophic level models (Hollowed et al., 2013). When models of varying complexity are considered jointly (some with high spatial resolution and species interactions and others with well-defined distributions for key parameters), multi-model projections can provide a more complete suite of future projections for evaluating climate change impacts on ecosystems and resource-dependent human communities (Plagányi et al., 2011; Tittensor et al., 2018). Within the ACLIM framework the suite of models range from minimally realistic single-species climate-enhanced stock projection models (CE-SSM) that are capable of detailed treatment of process error and measurement error, to whole ecosystem models that track potential structural changes within the ecosystem that may emerge from complex ecosystem interactions (Figure 2 and Tables 2, 5; Plagányi et al., 2011; Stock et al., 2011). The diverse multi-model projection suite provides a reasonable range of representative futures (with sufficient contrast in climate scenarios) that can be used to evaluate short- and long-term implications of management actions under future climate change.

The ACLIM framework leveraged eight types of stock or ecosystem projection models (Table 2):

• Trait-based vulnerability analyses (Hare et al., 2016; Spencer et al., 2019). The VA model utilizes expert judgment to assess sensitivity, exposure and vulnerability to climate change and does not project the specific outputs shown in Table 5.

• Climate-enhanced single species stock projection models (Wilderbuer et al., 2013; Ianelli et al., 2016; Spencer et al., 2016);

• Climate-enhanced multi-species stock projection models (Holsman et al., 2016);

• Individual-based models (sensu Rose et al., 2015);

• Foodweb models using Ecopath with Ecosim (Aydin et al., 2007);

• Multi-species size-spectrum models based on the R package “MIZER” (Scott et al., 2014; Reum et al., 2019);

• End-to-end model [Forage Euphausiid Abundance in Space and Time (FEAST)] (Ortiz et al., 2016);

• VAST-MICE: Spatiotemporal models of intermediate complexity for ecosystems (MICE) using the vector autoregressive spatiotemporal (VAST) package (Thorson et al., 2019).

TABLE 5

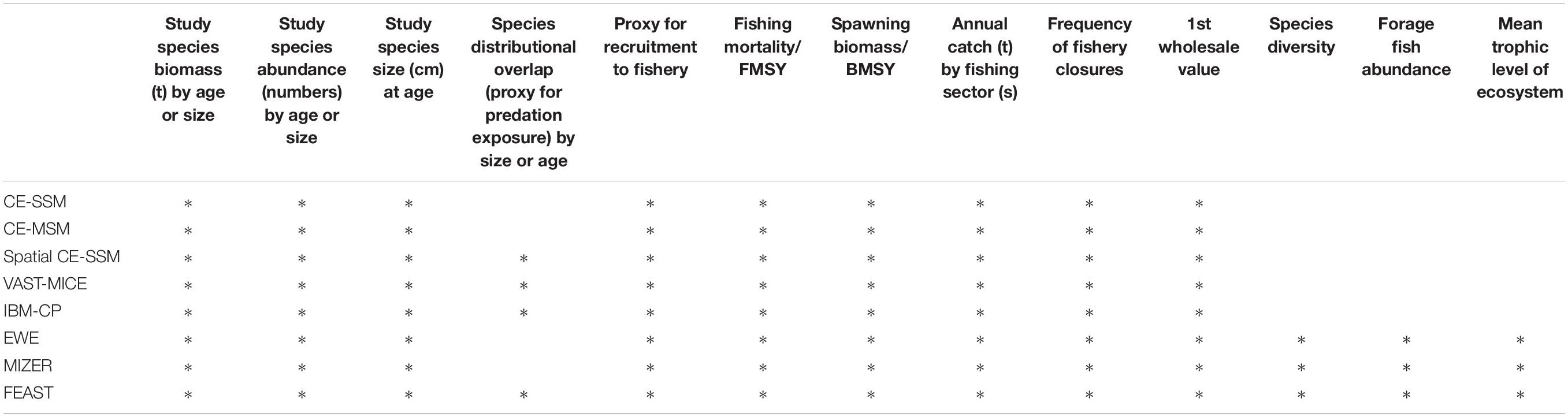

Table 5. Selected outputs produced by ACLIM biological models.

The ACLIM framework enables analysts to evaluate the contributions of different sources uncertainty. The inclusion of MICE assessment (Plagányi et al., 2014) in the ACLIM framework provides opportunities to explore the contribution of process error and scenario uncertainty in single- and multi-species projections. Two MICE models in particular are included in ACLIM; the CEATTLE model (Holsman et al., 2016), and a CE-version of the spatiotemporal models of intermediate complexity for ecosystems (i.e., “MICE-in-space” model; Thorson et al., 2019). These models can be run relatively quickly, allowing sensitivity testing of the implications of uncertainty in climate linkages to: predator–prey overlap (and hence mortality rates); prey switching, prey availability, and metabolic rates (growth and maturation rates); and reproductive success (via the spawner–recruit relationships). Of these processes, the linkages between climate variability and future fish production are the most influential in terms of projected stock status and the most challenging to parameterize correctly (Szuwalski et al., 2015) because the processes governing climate impacts on fish and crabs are temporally varying and stage-specific (Bailey, 2000). The inclusion of food web, size spectrum, and end-to-end models provides an opportunity to evaluate the relative contributions of structural uncertainty, species interactions, fishing, and ecosystem changes to future states of nature.

Techniques for assessing the predictive skill of ecosystem models are emerging and they reveal a modest ability to reconstruct observed dynamics in stock status (Olsen et al., 2016). FEAST is a spatially explicit end-to-end ecosystem model that tracks core species in space and time (Table 2). Movements are determined from an evaluation of the relative quality of the current location with respect to foraging needs (demands on metabolic rate and prey availability) to adjacent cells within the ROMS Bering 10K grid (Figure 3). In long-term projections, small errors can accumulate in a spatial model of this complexity (Punt et al., 2016b). To address this issue, FEAST can be nudged by initiating the model using the projected environmental conditions at mid-century (2030–2050) and end of century (2080–2100) and seeding the starting abundance of core species using output from simpler single- or multi-species climate enhanced models (Table 1).

Bias Corrections for Biological Responses

A critical element of the ACLIM framework is the demonstration that the modeling suite used for projections is skillful in reconstructing observed population dynamics of core species and catch. To confirm this skill, it was necessary to demonstrate that when driven by hindcasts of observed oceanographic and biogeochemical conditions, the projected higher trophic level and fishing responses were consistent with observed historical interannual fluctuations. Functional forms and parameters used in the ACLIM were derived from a combination of retrospective studies external to the model (e.g., laboratory studies of metabolic rate or consumption, Holsman et al., 2016), retrospective data analysis based on observed data (e.g., climate envelope studies, Spencer et al., 2016), or retrospective analysis based on output from previous Bering10K hindcasts (e.g., spawner–recruitment relationships). In the case of CE-SSMs and the CE-MSM, environmentally linked age- or size- based statistical assessment models were used to derive functional forms and base parameters (see Holsman et al., 2016; Ianelli et al., 2016; Spencer et al., 2016 for examples). For all models, once parameterized, we drove our hindcast period (2006–2017) with reanalysis-based (e.g., Saha et al., 2010) and data-assimilating input products, which successfully tied our hindcast simulation time series to their real-world counterpart datasets. These hindcasts incorporate observed variations due to radiative forcing changes from natural and anthropogenic sources and internal natural variability.

When incorporating downscaled physical and biogeochemical indices (Tables 3–5) into hindcast-trained models, it was necessary to account for both systematic biases in each global model as well as mismatch at any given time due to internal variability of each model compared to the hindcast period. While we have identified methods to address the former, the latter is left unaddressed during phase 1 of the ACLIM simulations. The existing simulations include only a single decade of overlap (2006–2017) between the hindcast and projection simulations. This time period is not long enough to separate model bias from decadal variability due to internal oscillations such as ENSO or the PDO. For the phase 2 of ACLIM simulations, we will extend the downscaled climate model projections to include several decades from the historical period (i.e., 1970-present). This will allow for the diagnosis of model biases vs. the hindcast and observations, and allow for smoother forcing of the upper trophic level models as they cross the hindcast-to-projection threshold. Given the lack of a sufficient overlap period for phase 1 calculations, we assumed that the mean and variance during the reference overlap period are representative for both the hindcast and projections under present-day radiative conditions, and that conditions during the reference period are not anomalous.

Bias corrections must be considered carefully when projected environmental data are used to drive biological responses. Global climate model ensemble projections routinely apply additive bias correction (e.g., the “delta method”; Ho et al., 2012; Hawkins et al., 2013). The procedure adjusts projections based on mean differences between the hindcast and projection variable in a period of overlap. However, the procedure is not straightforward to apply to biological projections such as biomass densities that are bounded by zero because the resulting values can take negative values. Instead, a proportional correction can be applied. As with the additive correction method, the biomass density projection is re-centered based on the mean difference between the projection and hindcast overlap period, but the proportional change observed in the uncorrected projection (that is, variable level relative to the mean value from the overlap) is carried through to the re-centered projection (Buser et al., 2009; Haerter et al., 2011; Reum et al., in press).

Fishing Scenarios and Management Strategies

There are myriad pathways through which climate change can impact marine industries (Allison and Bassett, 2015). Bounding the range of possible management futures within the context of global shared socio-economic pathways is challenging and requires strong communication between management and modeling teams (O’neill et al., 2014; Groeneveld et al., 2018). In phase 1, a narrow suite of fishing scenarios was selected which represented two variations in TAC allocations across fishing sectors within the existing constraints of the NPFMC’s existing EAFM management strategy. These fishing scenarios reflected two alternatives to status quo that have a significant impact on stakeholders (Ono et al., 2017).

The NPFMC’s EAFM in the EBS employs a complex suite of management measures that are designed to sustain fisheries using science-based precautionary harvest control rules that are designed to sustain the reproductive potential of the stocks, preserve essential fish habitats, maintain a sustainable forage base for fish and other top trophic level consumers, and preserve ecosystem structure by limiting the overall removal of groundfish from the ecosystem (Stram and Evans, 2009; Hollowed et al., 2011). Under the US guidelines for the Magnuson Stevens Fishery Management Act, the TAC must be less than or equal to the Acceptable Biological Catch (ABC) and the combined TACs for federal groundfish fisheries in the Bering Sea Aleutian Island (BSAI) region cannot exceed the 2 million t system level cap. Groundfish fisheries are constrained by bycatch [Prohibited Species Caps (PSC)] that limit on non-groundfish species targeted by other commercial, recreational, and subsistence harvester (Pacific halibut, Hippoglossus stenolepis; Pacific herring, Clupea pallassi, salmon, and crab). The management system also includes catch share provisions and sector limitations designed to ensure that: a diverse suite of fishing sectors and communities have access; gear conflicts are avoided; and prey for protected species (such as marine mammals) is protected (Stram and Evans, 2009; Abbott and Haynie, 2012; Reimer and Haynie, 2018; Kroetz et al., 2019). In 2018, the NPFMC adopted a Fisheries Ecosystem Plan for the Bering Sea that specifically calls for the exploration of climate impacts on EBS fisheries (NPFMC, 2018). These features of the management system needed to be adequately represented in the suite of models employed by the ACLIM project.

In phase 1, all fishing scenarios employed the NPFMC’s EBFM Management Strategy with respect to estimation of biological reference points, prevention of overfishing, and prohibitions on fishing forage fish. The fishing scenarios explored four alternatives of the groundfish TAC across fishing sectors under the 2 million t cap: (a) no fishing; (b) the status quo; (c) a 2 million t cap which allows for the expansion of flatfish fisheries (10% increase in the total cap allocation to different flatfish species under the overall system level cap); and (d) a shift in the groundfish TAC allocation across species such that potential pollock and/or cod TAC at high stock sizes could expand despite its impact on fishing opportunities for non-pollock and cod groundfish fishers under the cap (10% increase in the allocation of gadids under the cap). This suite of alternative management strategies allows the NPFMC to explore trade-offs between harvesting more pollock and cod or more flatfish.

Stakeholder engagement is a critical element of successful management strategy evaluations (MSEs; Colenbrander and Sowman, 2015; Jones et al., 2016; Punt et al., 2016a). The selection of the initial suite of fishery scenarios that only modified allocations of groundfish TAC across species and fishing sectors had the benefit of being easily understood by managers and stakeholders. This provided an excellent opportunity to introduce the utility of the ACLIM framework for management planning in a public forum through multiple workshops. A benefit of the workshops was the two-way communication between stakeholders, managers, and the scientific community. The current scenarios are also valuable as they provide insight to managers of the trade-offs of sustained increases in allocation to one group of species. As of this submission, the first phase of projections of climate conditions to the end of the 21st century are complete for CE-SSM, CE-MSM, EwE, and MIZER models, including projections of catch for core species under no fishing, baseline (status quo) fishing conditions, and two alternative fishing scenarios. Projections based on FEAST and IBM models are in preparation. FEAST runs will not include the fisher response capability. Incorporating fisher’s responses within the spatial–temporal ecosystem model would require fleet/sector level data and predictions that was beyond what could be done in phase 1. In phase 2, scenarios generated from the multi-model framework will be expanded to explore fishing scenarios where the performance of alternative climate-informed fishery management strategies will be tested to identify and avoid maladaptive pathways (Wise et al., 2014) and explore climate resilient options (Holsman et al., 2019; Karp et al., 2019). This is challenging given the broad suite of potential fishery management strategies that could be considered by the modeling team (Fulton et al., 2019) and possible shifts in societal choices regarding marine resources (Groeneveld et al., 2018). An integrated approach of vetting strategies with the public based on results from climate-enhanced single- and multi-species models will help to narrow the suite of candidate fishery management approaches applied to the fully integrated spatial–temporal ecosystem model (FEAST). Broader suites of fishery management strategies and parameter settings can be explored across other biological models.

Fishery-Dependent Community Impacts Assessments

Several models have been developed to assess the economic impacts of changing groundfish distributions and abundance. Climate envelope assessments coupled with spatial impacts on vital rates have been used to assess climate impacts on regional (Le Bris et al., 2018) and global (Cheung et al., 2019) fisheries. Models have been used to assess climate change impacts on regional economies (Seung et al., 2015; Seung and Ianelli, 2016) and global supplies of fish on fishery dependent communities (Merino et al., 2012). Evaluation of community impacts and adaptation options examine multiple pathways through which changes in the quantity, location, and value of harvest translate into regional economic impacts on communities (Seung and Miller, 2018).

In phase 2, shifting species ranges can impact fisheries in multiple ways (Pinsky et al., 2018). Fisher responses can be directly included in FEAST. Alternatively, expected shifts in the spatial distribution of fish and shellfish can be predicted from spatiotemporal models informed by size-specific and non-local responses to climate projections (Thorson et al., 2017; Thorson, 2019) and implications for shifting distribution on core parameters in single- or multi-species models can be modeled as a function of projected environmental conditions (Spencer et al., 2016). For example, the CEATTLE multi-species model uses a climate-specific overlap index (Carroll et al., in revision) for predator and prey species to inform annually varying predation mortality. In phase 2 of ACLIM, the Spatial Economics Toolbox for Fisheries (FishSET) could be linked with the spatiotemporal model to project variables that influence fishers’ choices regarding where and when to fish (Haynie and Pfeiffer, 2012).

Data Synthesis and Inference

The outcomes of projections derived from the ACLIM framework can be synthesized using techniques commonly used in the stock assessment community. Multi-model inference can be used for several purposes, including evaluating the extent to which general conclusions regarding management actions are robust to structural assumptions (e.g., Murawski et al., 2010; Payne et al., 2016; Kaplan et al., 2019), using simple models (such as CE-SSM and CEATTLE, MICE-in-space, and perhaps even EwE) to identify the most consequential uncertainty which can then be used to prioritize sensitivity runs for more complex models such as FEAST, and improve stability in management advice (Stewart and Hicks, 2018). Structural uncertainty is a source of uncertainty that is usually hard to qualify but can be amongst the largest sources of uncertainty when providing management advice (Hill et al., 2007). Consequently, structural uncertainty has become a major focus for MSEs (Punt et al., 2016a).

Given the multiple sources of potential uncertainty in climate impact assessments, multi-model ensembles within and across models of different complexity are of interest. Ensemble modeling approaches will be applied to synthesize the information to derive overall system level trends (Ianelli et al., 2016; Rosenberg et al., 2018; Lotze et al., 2019). Selection of models used to derive ensemble estimates may be informed by an analysis of among model correlations (Stewart and Hicks, 2018). Current decisions relevant to formulating the ensemble include selection criteria for model inclusion in the ensemble (e.g., Butterworth et al., 1996) and weighting criteria for the models included in the ensemble (Anderson et al., 2017) among others. In applications for stock assessments, the results from each model could be weighted by its fit to the available data using a Bayesian approach (e.g., Butterworth et al., 1996; Hill et al., 2007) to create probability distributions for model outputs. Model selection and weighting for ecological projections is more challenging due to the lack of observations for tuning. Our approach has been to tailor ensemble syntheses within each application and question, and different approaches are illustrated in recent publications (e.g., Hermann et al., 2019; Kearney et al., in press; Reum et al., in press). Another key outcome of this analysis will be an evaluation of which parameters and processes within the linked model most determine uncertainty; such parameters and processes could be the target of future research (see Reum et al., in press); such parameters and processes could be the target of future research.

The performance of each “climate scenario/biological model/fishing scenario” combination relative to the goals of EAFM can be evaluated using indicators of social, industry, and ecosystem status (Long et al., 2015; Levin et al., 2018). Evaluation of the performance of fishing scenarios from the multi-model suite in the ACLIM project will involve two approaches. Initially, output from each “climate scenario/biological model/fishing scenario” combination will be evaluated relative to an agreed upon suite of standard indicators previously selected by the NPFMC and its advisory bodies (Zador et al., 2017; Fissel et al., 2019; Table 6). Output from vulnerability assessments, whole ecosystem models, and FEAST can be used to calculate ecosystem and socio-economic indicators (Table 6). Subsequently, indicators derived from ensemble of “climate scenario/biological model/fishing scenario” combinations will be evaluated. This two-step process will enable analysts to contrast the synthesized projection relative to the range of possible outcomes from models of different complexity.

TABLE 6

Table 6. Suite of candidate performance indicators for ACLIM.

Initial Results

The results of the first phase of the ACLIM suite revealed substantial differences in projected spatially averaged air temperature in the Bering Sea based on the GFDL and the MIROC ESM with projected air temperatures differing by approximately 5°C at end of century (see Figure 2 in Hermann et al., 2019). This result illustrates the importance of considering the ensemble projections. Under RCP 8.5, Bering Sea shelf average mean bottom temperatures may warm by as much as 5°C by 2100, with associated loss of large zooplankton (Figure 4), whereas, under the lower emission scenario, bottom temperatures will warm by approximately 2.5°C (Figure 4).

FIGURE 4

Figure 4. Ensemble projections of bottom temperature, surface temperature, and large zooplankton based on Representative Concentration Pathway 4.5 and 8.5 using the MIROC and GFDL models. Large Zooplankton = Large Copepods mean + Euphausiids mean (see Table 4).

Results from a sub-set of the full ACLIM multi-model suite illustrate the utility of applying the ACLIM framework. Comparison of projections of future status of walleye pollock and Pacific cod from three different modeling approaches under the status quo fishing scenario under RCP 8.5 using the size spectral model (Reum et al., in press), the CE-MSM projection model (CEATTLE), and the vulnerability assessment (Spencer et al., 2019) provide an interesting contrast and exemplify the importance of the multi-model approach employed by the ACLIM team. Projections from the size spectral model that incorporated bioenergetics and predator–prey interactions indicated that future status of walleye pollock will decline, while results were more modest and mixed for Pacific cod (see Figure 4 in Reum et al., in press). The CE-MSM model incorporated temperature effects on growth and recruitment of walleye pollock and Pacific cod. This model projected warm ocean conditions will negatively impact both stocks through impacts on survival to age-1. In contrast, Spencer et al. (2019) utilized a trait based approach and expert judgment of 34 experts to assess the vulnerability of walleye pollock and Pacific cod to changing climate. Their results indicate that walleye pollock and Pacific cod exhibit numerous traits that would allow these populations to adapt to a changing climate (e.g., broad spatial distribution, mixed prey, large populations, relatively high rate of production). This preliminary comparison illustrates the importance of contrasting outcomes using a multi-model approach.

Summary

Alaska Climate Integrated Modeling is a novel multidisciplinary modeling study designed to quantify the impacts of climate change on Bering Sea species and fisheries. The management strategies used to project future capture of marine species, processing, and distribution represent a realistic suite of future options. The evaluation of alternative management strategies allows analysts to assess the performance under a range of climate change scenarios. The ACLIM framework is designed to quantify the contributions of climate forcing scenario, model parameter, and management uncertainty in projected impact assessments.

The operationalized framework developed through ACLIM aligns global projections of climate impacts on the physical biogeochemical environment with assessments of the impacts of these changes on ecosystems and humans. Ideally, the ACLIM framework would be re-employed in parallel with new climate assessments to provide climate ready fisheries management advice that enables resiliency to a rapidly changing climate. During each climate assessment cycle, the generalized ACLIM approach will involve three steps for rapidly generating updated climate change assessments for the Bering Sea following: (1) release of new IPCC emission projections of global climate models will be downloaded and interpolated to generate boundary conditions for the high resolution regional ocean model (Bering 10K or its successor); (2) identify novel management challenges that require climate-specific MSEs. In each of these cases (or both combined) a new climate assessment will be initiated; and (3) with input from stakeholders and fisheries management councils, various harvest and management strategies will be used to iteratively develop and refine MSEs. This will enhance the global assessment of climate impacts on the world’s oceans as well as regional management actions to ensure climate resilience for the Bering Sea ecosystem and the fishing industry it supports.

Identifying harvest strategies that perform well under non-stationary environmental conditions is a challenging (Szuwalski and Hollowed, 2016). Recent studies indicate that ecosystem dynamics can substantially influence optimal harvest strategies in multi-species fisheries (Kasperski, 2015) and impact the cost of harvesting commercial species (Haynie and Pfeiffer, 2013), thus climate-driven changes to predation and production could alter future optimal harvest strategies. The proposed iterative ACLIM framework conducted on a ∼5 year cycle is modeled after the annual stock assessment cycle in the region; the approach should ensure that fisheries management decisions account for climate-driven changes to fish production and distribution and that climate-ready fisheries management in the region reflects the most recent global climate and carbon emission projections and best available ecosystem and socioeconomic science.

The ACLIM modeling framework is designed to inform the NPFMC of the performance of current and alternative management approaches in a changing climate. The scenarios will help to identify and test climate-resilient management options (Holsman et al., 2019). The Climate Action Module within the Bering Sea FEP provides a vehicle for communicating results to managers, stakeholders and the public. The scope of the framework serves to integrate the socio-ecological research community providing a forum for improving and adapting the framework. The near future projections (2030–2050) provide useful information regarding how changing climate will affect peoples’ livelihoods, longer term projections inform the public of what is at risk in the region.

Five key messages have emerged from first phase of ACLIM. Structural uncertainty in ESMs used as boundary conditions for the ROMs model is a key consideration in the assessment of climate impacts on marine resources. Comparison of projected change based on boundary conditions from different earth systems models differs strongly with differences being comparable in scale to differences stemming from different RCPs in a single model. Structural uncertainty in ecosystem complexity should be considered in regional impact assessments. Results from a subset of models from phase 1 of ACLIM revealed alternative response pathways for walleye pollock and Pacific cod. Ensuring the conservation measures currently in place in an existing EAFM system was critical to managers and stakeholders because these measures do preserve resources into the future. Aligning fishing scenarios with the evolving EAFM approach of the NPFMC requires strong community engagement.

Data Availability Statement

The datasets generated for this study are available on request to the corresponding author.

Author Contributions

ABH was the lead author and a principal investigator for the project. KH was a principal investigator for the project and was also responsible for the CE-MSMs. ACH was a principal investigator for the project and was also responsible for fishing scenarios and economic modeling. AJH was a principal investigator for the project and was also responsible for downscaling ESM models using ROMS. AP was the co-investigator responsible for CE-SSM, and CE-MSM models and management strategy evaluations. KA was the co-investigator responsible for FEAST model. JI was the co-investigator responsible for CE-SSM models of pollock. SK was the co-investigator responsible for community impact assessment and economic modeling. WC was the co-investigator responsible for ESM model selection and climate downscaling. AF was post-doc responsible for the development of function to estimate catch estimates under status quo and alternative fishing scenarios. KK was a research scientist responsible for nutrient phytoplankton zooplankton model. JR was post-doc responsible for size spectral model. PS was the co-investigator responsible for spatial CE-SSM for pollock that includes predator overlap impact. IS was the co-investigator responsible for CE-SSM models for flatfish. WS was the co-investigator responsible for IBM for snow crab. CS was the co-investigator responsible for spatial CE-SSM for snow crab. GW was a graduate student responsible for CE food-web model. TW was the co-investigator responsible for CE-SSM models for flatfish.

Funding

Multiple NOAA National Marine Fisheries programs provided support for ACLIM including Fisheries and the Environment (FATE), Stock Assessment Analytical Methods (SAAM) Science and Technology North Pacific Climate Regimes and Ecosystem Productivity, the Integrated Ecosystem Assessment Program (IEA), the Economics and Human Dimensions Program, NOAA’s Research Transition Acceleration Program (RTAP), the Alaska Fisheries Science Center (ASFC), the Office of Oceanic and Atmospheric Research (OAR), and the National Marine Fisheries Service (NMFS). Additionally, the International Council for the Exploration of the Sea (ICES) and the North Pacific Marine Science Organization (PICES) provided support for Strategic Initiative for the Study of Climate Impacts on Marine Ecosystems (SI-CCME) and the Strategic Initiative on the Human Dimension (SIHD) workshops, which facilitated development of the ideas presented in this manuscript. This publication is partially funded by the Joint Institute for the Study of the Atmosphere and Ocean (JISAO) under NOAA Cooperative Agreement NA15OAR4320063, Contribution No. 2019–1043. This is IEA publication number 2019_9.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The handling Editor declared a past co-authorship with one of the authors KH.

Acknowledgments

We thank James Thorson and Martin Dorn for their helpful comments and suggestions that improved the manuscript. We also thank the journal reviewers for their helpful comments and suggestions. We thank Christine Stawitz for her contributions to the snow crab IBM. The scientific views, opinions, and conclusions expressed herein are solely those of the authors and do not represent the views, opinions, or conclusions of NOAA, the Department of Commerce, ICES, or PICES.
