Old Tools, New Ways of Using Them: Harnessing Expert Opinions to Plan for Surprise in Marine Socio-Ecological Systems

Gladstone-Gallagher, Rebecca V.; Hope, Julie A.; Bulmer, Richard H.; Clark, Dana E.; Stephenson, Fabrice; Mangan, Stephanie; Rullens, Vera; Siwicka, Ewa; Thomas, Samuel F.; Pilditch, Conrad A.; Savage, Candida; Thrush, Simon F.

doi:10.3389/fmars.2019.00696

PERSPECTIVE article

Front. Mar. Sci., 14 November 2019

Sec. Marine Affairs and Policy

Volume 6 - 2019 | https://doi.org/10.3389/fmars.2019.00696

Old Tools, New Ways of Using Them: Harnessing Expert Opinions to Plan for Surprise in Marine Socio-Ecological Systems

$\r\nRebecca V. Gladstone-Gallagher,*$ Rebecca V. Gladstone-Gallagher^1,2*

Dana E. Clark^2,4

Candida Savage^5,6

¹Institute of Marine Science, The University of Auckland, Auckland, New Zealand
²School of Science, University of Waikato, Hamilton, New Zealand
³National Institute of Water and Atmospheric Research, Hamilton, New Zealand
⁴Cawthron Institute, Nelson, New Zealand
⁵Department of Marine Science, University of Otago, Dunedin, New Zealand
⁶Department of Biological Sciences, Faculty of Science, Marine Research (Ma-Re) Institute, University of Cape Town, Cape Town, South Africa

With globally accelerating rates of environmental disturbance, coastal marine ecosystems are increasingly prone to non-linear regime shifts that result in a loss of ecosystem function and services. A lack of early-detection methods, and an over reliance on limits-based approaches means that these tipping points manifest as surprises. Consequently, marine ecosystems are notoriously difficult to manage, and scientists, managers, and policy makers are paralyzed in a spiral of ecosystem degradation. This paralysis is caused by the inherent need to quantify the risk and uncertainty that surrounds every decision. While progress toward forecasting tipping points is ongoing and important, an interim approach is desperately needed to enable scientists to make recommendations that are credible and defensible in the face of deep uncertainty. We discuss how current tools for developing risk assessments and scenario planning, coupled with expert opinions, can be adapted to bridge gaps in quantitative data, enabling scientists and managers to prepare for many plausible futures. We argue that these tools are currently underutilized in a marine cumulative effects context but offer a way to inform decisions in the interim while predictive models and early warning signals remain imperfect. This approach will require redefining the way we think about managing for ecological surprise to include actions that not only limit drivers of tipping points but increase socio-ecological resilience to yield satisfactory outcomes under multiple possible futures that are inherently uncertain.

Introduction

Global change is having unprecedented impacts on marine ecosystems and human well-being (Vitousek et al., 1997; Costanza et al., 2014; Rocha et al., 2015). The cumulative effects of multiple drivers of change can cause non-linear shifts in ecosystem functions and services, known as tipping points or regime shifts (see Appendix for glossary). Tipping points can have catastrophic consequences for human well-being when ecosystem services associated with people’s livelihoods are lost (e.g., Newfoundland cod collapse, or degradation of water quality in Chesapeake Bay; Steele et al., 1992; Boesch et al., 2001; Rocha et al., 2015; Selkoe et al., 2015; Hicks et al., 2016). Coastal ecosystems are among the most heavily impacted and are particularly prone to tipping points due to the complex interaction of intrinsic and extrinsic drivers and processes. These interactions result in hysteresis, where feedbacks between intrinsic ecosystem components limit recovery even when extrinsic drivers are removed (e.g., eutrophication-induced bottom water anoxia results in nutrient release from the sediments that continues to fuel algal blooms after external nutrient loading is reduced) (Boesch et al., 2001; Nyström et al., 2012). Intensifying human pressures increase the number and strength of extrinsic drivers on marine ecosystems (IPBES, 2018) and are likely to raise the frequency of tipping points (Drijfhout et al., 2015; Rocha et al., 2015). These tipping points manifest as surprises because seemingly small drivers of change can cumulatively cause large effects. Further, a lack of proven ecological detection methods (de Young et al., 2008; Thrush et al., 2009; Dakos et al., 2015; Scheffer et al., 2015; Burthe et al., 2016) and an over-reliance on limits-based management (Charles, 1997; Thrush et al., 2016) has impeded the ability to make decisions that prevent tipping points.

Broad-scale limits-based management (e.g., limits on nutrient loading) is not fit-for-purpose, because stressor thresholds are context-sensitive (e.g., response to eutrophication depends on multiple site-specific and temporally varying biophysical factors; Anderson et al., 2015). Furthermore, there can be an implicit assumption in how the monitored variable (an ecosystem indicator) will track linearly or otherwise toward a threshold providing an opportunity for intervention. However, this assumption often does not consider that change can happen fast and without warning and a crossed threshold may be difficult to re-cross (Thrush and Dayton, 2010; but see Foley et al., 2015). Our understanding of marine ecosystem interactions from empirical data (experimental and observational) is often incomplete, context-, and scale-dependent (Thrush et al., 2009; Snelgrove et al., 2014). To date, analysis of marine time series data has been unsuccessful in identifying generalizable early warning signals to forecast tipping points, and theory of early warning from “critical slowing down” and “flickering” have rarely been demonstrated empirically (Dakos et al., 2015; Burthe et al., 2016; Hewitt and Thrush, 2019). While continued development of methods and data collection for forecasting tipping points is important, it is critical that scientists and decision-makers are not paralyzed by the deep uncertainty that surrounds this problem.

We must bridge the gap between limited empirical data at the correct spatial and temporal resolution, models and effective decision-making to maintain the biodiversity, ecosystem functions, and provision of services on which humanity relies (Knight et al., 2008; Carpenter et al., 2009; Figure 1). This requires consideration of the socio-ecological implications of a tipping point and the feedbacks that can lock a system into an alternative state (Scheffer et al., 2001; Folke et al., 2004; Nyström et al., 2012; Rocha et al., 2018). There are various modeling approaches that can bridge data gaps, combining qualitative and quantitative data through expert elicitation (Canavese et al., 2014). Integrating expert opinions with empirical data allows data collected at a local scale to inform and address problems at the ecosystem scale. We argue that models aimed at supporting decisions need to be linked to management action via an iterative framework that incorporates society (including culture), ecology, and deep uncertainty. The first step is to combine ecological realities, societal values, and possible actions to identify options that will increase ecosystem resilience.

FIGURE 1

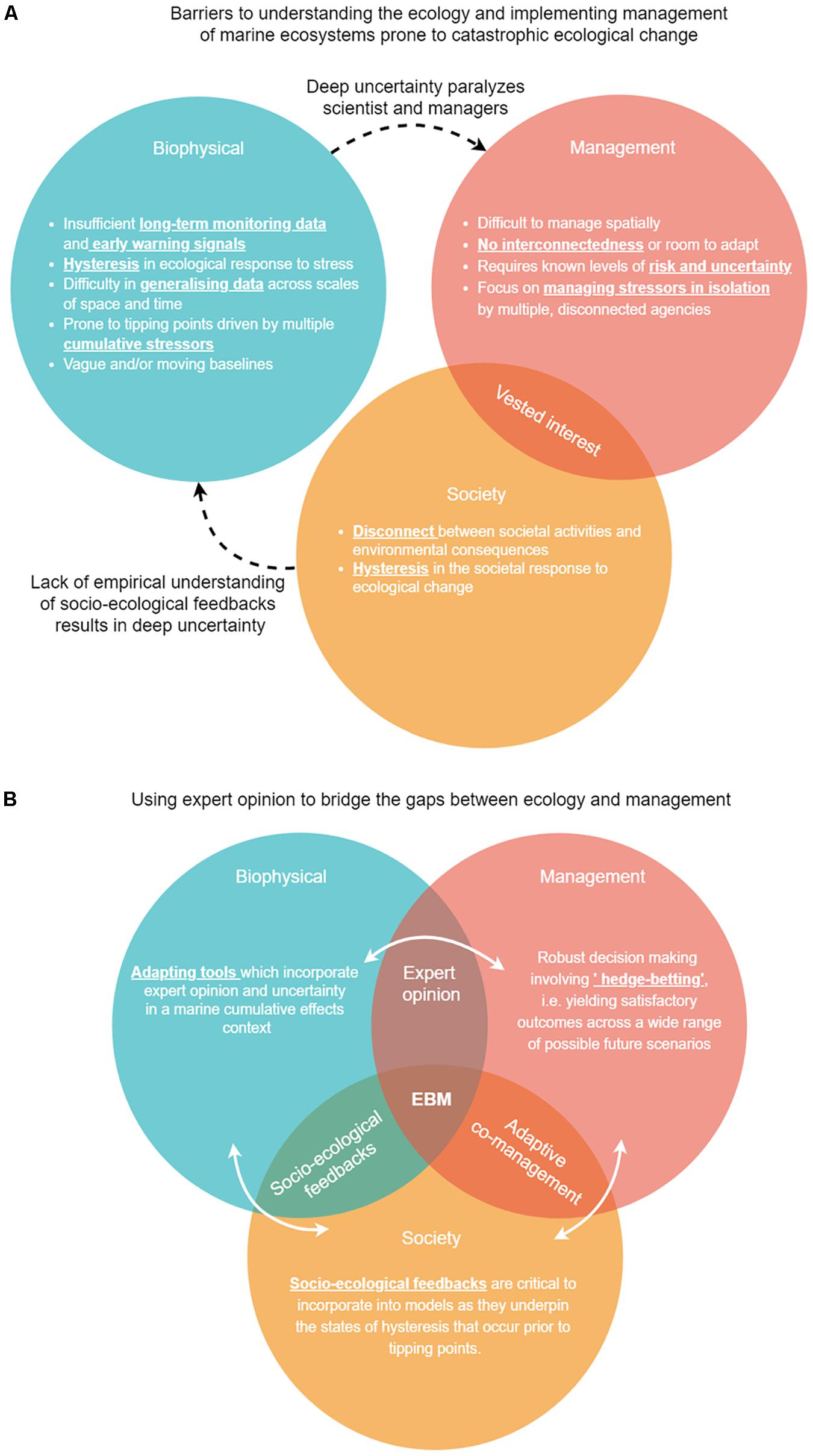

Figure 1. Graphical summary of (A) the current limitations to understanding and managing marine ecosystems in the context of surprise change arising from cumulative effects, and (B) the suggested solutions that use expert opinions to bridge the gaps between ecological knowledge, management, and society to consider multiple plausible futures in robust decision making.

FIGURE 2

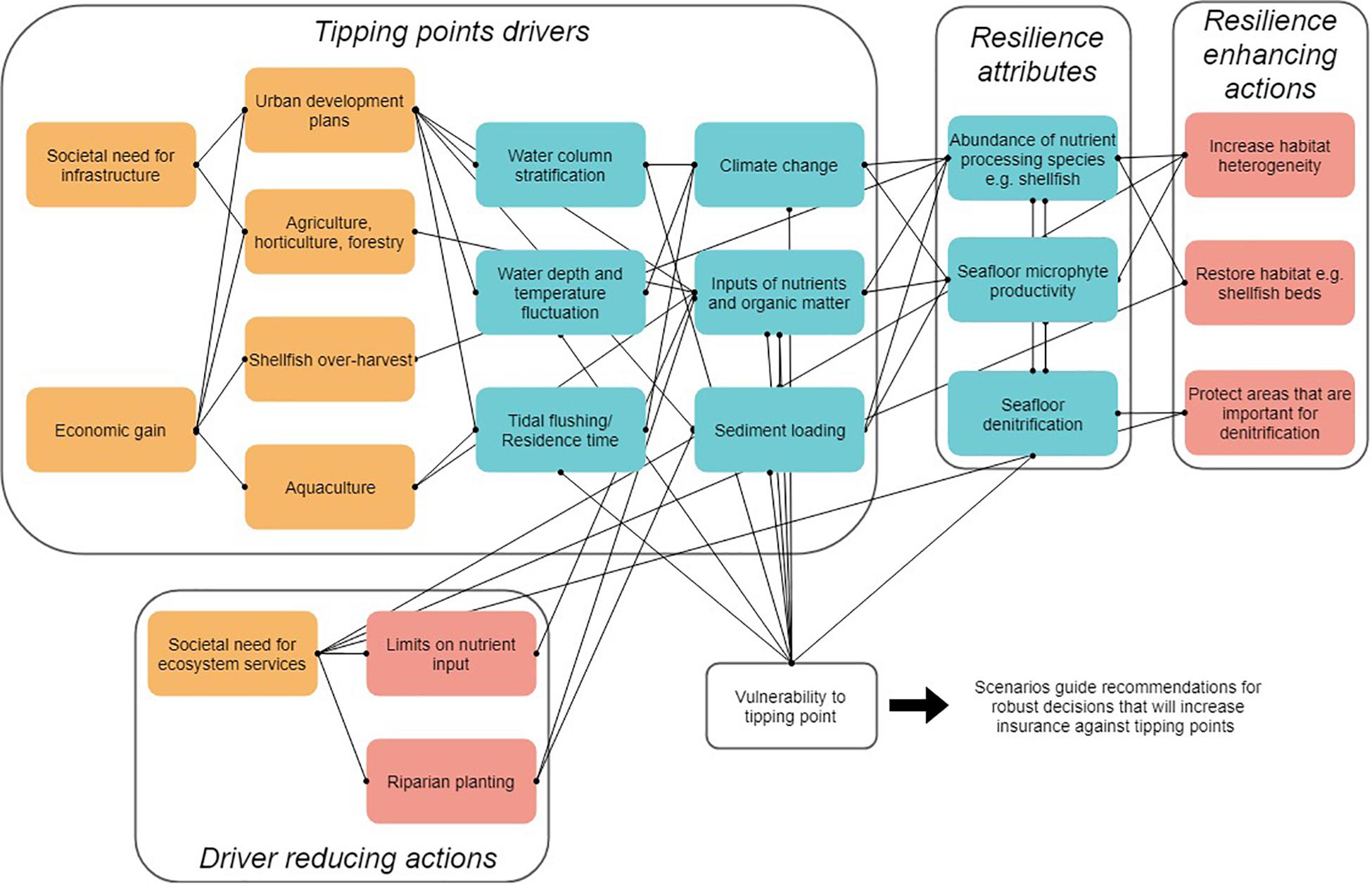

Figure 2. Coastal eutrophication – a simplified model linking biophysical ecosystem properties (blue), social drivers (orange), and management actions (pink). The hypothetical model shows how the different spheres in Figure 1 can be linked together to determine vulnerability of a coastal area to tipping points induced by nutrient enrichment.

Expert opinion models have been applied in marine spatial management, risk and impact assessment, and fisheries assessment, identifying the most likely outcomes through quantifying a probabilistic risk of human activities (e.g., Bayesian Networks and fuzzy set models; Silvert, 2000; Marcot et al., 2001; Wooldridge and Done, 2004; Cheung et al., 2005; Stelzenmüller et al., 2010, 2011; Landuyt et al., 2013; Ban et al., 2014; Jones and Cheung, 2018). In this context, uncertainty is partitioned into sectors (e.g., single species distribution or single-stressor impacts). However, in the context of tipping points where complex interactions introduce deep uncertainty, a more holistic approach is required. We need an approach that is not limited to cause-and-effect relationships, known probabilities, and quantifiable levels of uncertainty, but rather one that considers the possibility of different socio-ecological changes in the context of multiple plausible futures. Our key point is that models incorporating expert opinions are currently underutilized in a holistic marine cumulative effects’ context, but they offer a practical way forward to bridge gaps in quantitative data, enabling scientists and managers to consider and prepare for many possible futures (Figure 1). Here, we discuss the methodological and ideological considerations for using expert opinions in models of decision scenarios that can feed into a broader ecosystem-based management (EBM) framework with a key focus of building resilience; a framework that is now considered necessary to avoid further loss of societally valuable ecosystem services (IPBES, 2018).

Modeling With Expert Opinions in the Context of Cumulative Effects

In classical decision theory, it is assumed that probabilities can be assigned to the occurrence of events, where a model decision is portrayed as “clear-cut,” true or false. This theory has limited application in tipping points, as it requires specification of all potential future states and their probabilities of occurrence, which are often unknown when dealing with multiple drivers of change (Polasky et al., 2011). In this context, it is more appropriate to qualitatively assign variables to linguistic categories using expert opinions (e.g., “low,” “moderate,” “high”), accompanied by a qualitative level of confidence (e.g., a “low” increase in a stressor will be “most likely” to have a “low impact” on biodiversity) (Liu et al., 2015). This qualitative use of expert opinions allows progress to be made in identifying the likelihood of various outcomes even when uncertainty is deep (see below). There are several modeling approaches that integrate expert opinions with empirical data to investigate multiple ecosystem interactions: mental models (Moon et al., 2019), fuzzy set-theory models (Jarre et al., 2008; Zadeh, 2008), Bayesian networks (Uusitalo, 2007; Uusitalo et al., 2016), structural equation models (Hox and Bechger, 2009; Foley et al., 2015), agent-based models (Grimm et al., 2005), artificial neural networks (Lek and Guégan, 1999), or combinations of the above (Liu et al., 2015). In the context of tipping points, they must be designed acknowledging both socio-ecological feedbacks and importantly, deep uncertainty (Figure 1). Of course, expert opinion has caveats that need to be acknowledged and built into models, which include: (1) level of experience and confidence of experts; (2) representation of diverse world views; (3) shifting baselines in expert opinion over time; and (4) personal biases (Uusitalo, 2007; Kuhnert et al., 2010; Krueger et al., 2012).

Recognizing and Dealing With Uncertainty

Uncertainty can be classified into five levels along a spectrum from complete certainty to total ignorance (see Appendix; as described by Walker et al., 2013). The expert models we suggest can easily cope with intermediate uncertainty (levels 1–3) by exploring drivers and their interactions through sensitivity analysis and scenario planning (Mahmoud et al., 2009; Carpenter et al., 2015; Booth et al., 2016). While identifying all possible interactions may seem intractable, expert opinions offer a way of restricting combinations, and in the case of intermediate uncertainty, experts can often rank the likelihood of occurrence for several possible consequences (e.g., Teck et al., 2010). Sensitivity analysis identifies and quantifies which parts of a model contribute to uncertainty (e.g., Wooldridge and Done, 2004), pinpointing areas that need further expert elicitation and/or research (Saltelli et al., 2007). Scenario planning allows ecologists and managers to work coherently to iterate between stressor inputs and ecosystem outcomes (Bennett et al., 2003; Mahmoud et al., 2009; Carpenter et al., 2015; Booth et al., 2016). We can visualize this as dialing up or dialing back extrinsic drivers and observing the outcome on ecosystem function and the loss of intrinsic feedbacks and interactions within a network, advancing knowledge of early warning signals (Thrush and Dayton, 2010; Thrush et al., 2014; Foley et al., 2015); and providing insight into the combination and level of stressors that increase the vulnerability to tipping points.

Besides addressing intermediate uncertainty, decisions that manage for abrupt change need to consider deeper levels of uncertainty (levels 4–5; Walker et al., 2013). Deep uncertainty includes “black swan” events, which are events that lie outside the realm of regular expectations, carry extreme impacts, and are only identifiable on a retrospective basis (Taleb, 2007). Examples of this include the unexpected collapse of the Newfoundland cod fishery (and food web) and the multiple regime shifts in Chesapeake Bay, which were driven by feedbacks between human behavior, decisions, and multiple biophysical interactions (Steele et al., 1992; Milich, 1999; Hicks et al., 2016). In such contexts, experts need to collectively identify as many interacting factors as possible, and then qualitatively assign levels of vulnerability associated with these interactions (Box 1). Approaching uncertainty from an exploratory perspective rather than focusing on predicted outcomes helps stakeholders expand the range of futures they will consider; as there is no necessity for assignment of probability, one only need to accept the possibility that a scenario could occur (Marchau et al., 2019).

Box 1. Developing decision options for managing coastal ecosystems in the face of tipping points.

Five starting points:

1. Tipping points drivers – Use expert opinions to identify place-specific social and biophysical variables that make a particular area prone to a tipping point.

2. Resilience attributes – Identify social and biophysical variables that contribute to making the area of interest resilient to change.

3. Resilience enhancing actions – List actions that would enhance the resilience attributes.

4. Build place-specific models (e.g., Bayesian networks) that include tipping points drivers + resilience attributes + resilience enhancing actions + driver reducing actions (and their interactions) to explore vulnerability to a tipping point.

5. Use modeled scenarios to inform recommendations for robust actions that are likely to future proof the ecosystem to further cumulative changes (and tipping points). These modeled scenarios will provide information to participatory processes in a broader EBM framework where trade-offs on the recommended decisions (or lack of) can be explored.

Coastal eutrophication – an example:

Coastal eutrophication is a global driver of abrupt change in coastal areas (e.g., Chesapeake Bay, Baltic Sea; Zimmerman and Canuel, 2000; Boesch et al., 2001; Nyström et al., 2012; Tomczak et al., 2013; Carstensen et al., 2014). Often risk assessments and management decisions emphasize the cause and effect relationship between increases in the delivery of nutrients (the driver) and the (known) response of the ecosystem, without considering interactions between stressors (e.g., Wulff et al., 2007; Wulff et al., 2013; Plew et al., 2018). Despite knowledge of the non-linear dynamics of cumulative effects (Thrush and Dayton, 2010), ecosystems are still managed by this simple cause and effect framework, where management is solely focused on nutrients at the “source” and setting limits based on perceived thresholds. In some contexts, these limits may prevent eutrophication-induced tipping points, but in other contexts the coastal ecosystem flips into an alternative state (e.g., hypoxia, prevalent algal blooms, low biodiversity, and ecosystem service delivery), which can occur even when rational management decisions are made (e.g., lake ecosystems; Peterson et al., 2003).

Here, we use coastal eutrophication to show how the five-step program can be used to explore decisions that insure ecosystems against future cumulative effects and tipping points. In our hypothetical model structure, expert opinions would identify important drivers and actions (step 1–3) and define relationships between the nodes (step 4) (ideally direction, magnitude, and likelihood; Figure 2). Tipping points drivers are biophysical (blue) and social (orange) properties of a system that make it prone to tipping points. Many of the tipping points drivers are linked (directly or indirectly) to the resilience attributes and the driver reducing actions. The resilience attributes are the biophysical (blue) properties of the ecosystem that make it resilient to increased nutrient loading. The driver reducing actions are based on social need for ecosystem services (orange) and are actions (pink) that respond to this need by reducing the stressor (e.g., nutrient loading). Unfortunately, these driver reducing actions are not enough in isolation because other stressors (e.g., sediment loading, shellfish overharvesting) diminish the resilience attributes and exacerbate the tipping points drivers. Thus, models must also include resilience enhancing actions, which are management actions (pink) that improve resilience and insure against future cumulative effects (e.g., resulting from climate change). In this example, the driver reducing actions and resilience enhancing actions would be altered in different scenarios to assess the magnitude of the benefits of an action for reducing vulnerability to tipping points (step 5). The magnitude of benefit can be used to assess trade-offs between actions and their benefits, including costs (often difficult to monetize) associated with the gain or loss of various human values. This analysis should include the cost of inaction. Outcomes of scenarios can inform and provide the basis for various decision options (e.g., NEST model to explore decision options for restoration in the Baltic Sea; Wulff et al., 2013, 2014), but importantly these scenarios must inform resilience-enhancing decisions, as these are the decisions that will be important in the context of deep uncertainty and move beyond business as usual. Models focused on combining the social, biophysical, and management spheres (Figure 1 in the main text) are needed because of interactions between drivers and responses that make tipping points a multi-dimensional and multi-faceted problem.

Tipping points are deeply uncertain and must be managed on the basis that surprise can happen. However, decision-making in marine management still tends to focus on optimal policies, which aim to achieve the best possible outcome under a restricted set of criteria and assumptions (e.g., threshold assumptions). These criteria and assumptions are usually based on incomplete knowledge of the current state of a system (introducing deep uncertainty); therefore, the model that informed the policy is unlikely to reflect reality and the desired outcome is unlikely to be achieved. As with many fisheries, the Newfoundland cod fishery was managed to maximize yield assuming an equilibrium population state, but in reality, socio-ecological systems show an element of chaos and unpredictability in population and community fluctuations (Milich, 1999). Further, Chesapeake Bay nutrient management initially focused on point sources of pollution in isolation of other stressors (e.g., sediments and oyster overharvest) (Boesch et al., 2001; Hicks et al., 2016). Such limits-based management (e.g., on fishing intensity or nutrient input) is an example of an optimal policy that is typically designed to optimize exploitation within thresholds that protect some component(s) of the ecosystem. This assumes (1) thresholds remain the same under all conditions and (2) recovery of the managed ecosystem component does not involve hysteresis or is influenced by interacting stressors; assumptions that are often false (Crain et al., 2008; Darling and Côté, 2008). In addition to false assumptions, resource managers often fail to integrate ecological and economic models appropriately due to difficulty in assigning “values” to ecological functions and services, meaning that an optimal outcome is unlikely to capture the complexities of natural systems. Thus, policies that are considered or seen as optimal can result in regime shifts. When uncertainty is deep and “values” are subjective, approaches that seek robust and flexible policies (Marchau et al., 2019) are more appropriate than strategies defined under a narrow set of criteria and potentially incorrect assumptions.

Progress has been made to address decisions notwithstanding deep uncertainty, with research recommending: (1) policies that are robust across different scenarios (e.g., robust decision-making, info-gap decision theory) and (2) adaptive pathways where plans adapt as the system changes (Marchau et al., 2019). Robust policies are designed to yield “satisfactory” outcomes across a wide range of futures, and do not always maximize the immediate output or a perceived “value” like those of optimal policies (Rosenhead et al., 1972). While optimal policies put all our eggs in one basket, robust policies hedge our bets and seek a level of insurance against unknown future events. A robust policy or collection of decisions in the context of tipping points management may involve identifying not only drivers of change, but also actions that could change how an ecosystem responds to those drivers [i.e., resilience-enhancing actions; e.g., restoration of key habitats/species (Box 1), or fishing at levels where recruitment is likely to be successful under changing environmental conditions]. Tipping points are irreducibly uncertain, thus we cannot focus on predicting occurrence, but instead we should focus on identifying a desired future ecosystem state and developing robust plans to navigate toward that future (Walker et al., 2013; Le Heron et al., 2016). The incorporation of expert opinions into decision support models enables current quantitative and qualitative information to be used in an iterative process exploring future narratives, while eliminating need for probabilities, absolute numbers, and thresholds.

Linking Multiple Knowledge Systems to Decision Making

The effects of social feedbacks on ecosystem function are often ignored when modeling cumulative effects and abrupt change. Hysteresis (or lags in recovery) from intrinsic ecological feedbacks can be exacerbated in socio-ecological systems because of inertia in human reactions to ecological change (Sugiarto et al., 2015; Yletyinen et al., 2019), and mismatches between time scales of social and ecological change (e.g., Baltic Sea ecosystem response lags behind eutrophication management action; Nyström et al., 2012; Varjopuro et al., 2014). Managers are driven by the societal consequences of change in an ecosystem, yet the feedbacks among ecosystem components are often forgotten. Despite research on socio-ecological feedbacks and hysteresis (Carpenter et al., 2006; Yletyinen et al., 2019), most current management practices aimed at reducing environmental degradation of marine ecosystems have kept disciplines and knowledge systems separate (Folke, 2006). For example, Newfoundland fishery scientists deemed traditional ecological knowledge from the fishing community to be too inaccurate for assessing the state of the marine environment, a mistake that contributed to a socio-ecological collapse (Milich, 1999). Lessons from past tipping points tell us it is critical that decision scenarios are informed by the socio-ecological system as a whole, incorporating feedbacks and multiple knowledge systems from the various societal players (e.g., government, indigenous people, stakeholders, and community organizations). Socio-ecological interactions are embedded in a broader global socio-economic context which adds further complexity that needs to be considered (although out of the scope of this perspective see Österblom et al., 2017).

The social consequence of change will be context dependent. For a governing body with a mandate to protect the marine environment (e.g., UN Sustainable Development Goal #14 life below water), the priority should be to protect and maintain ecosystem function and services. Ensuring these mandates are prescribed is a critical part of EBM. Assessing “risk” involves both the probability of occurrence but also the severity/consequence of the event should it occur (Cormier et al., 2013; Selkoe et al., 2015). Since the occurrence of tipping points cannot be predicted, the assessment of “risk” should identify the societal and ecological harm it would cause. If the harm is high, but the probability of occurrence is deeply uncertain, then robust decisions that increase resilience are a way forward (Selkoe et al., 2015). Expert opinions from multiple fields and knowledge systems to build mind models (Folke, 2006; Moon et al., 2019) are a powerful way to identify the vulnerability of a marine area to tipping points and can inform participatory processes (an essential part of EBM) of resilience-enhancing actions that can reduce this vulnerability.

Models including expert opinions feed into an EBM framework allowing incorporation of multiple knowledge systems (Leslie and McLeod, 2007; Stephenson et al., 2018) so that interactive and cumulative impacts of multiple activities can be evaluated, even in the presence of uncertainty. This will require recognition and prioritization of trade-offs between different human values (Lester et al., 2013). In marine socio-ecological systems ecological functions such as nutrient cycling and primary production are commonly traded-off against more tangible ecosystem services such as food provisioning. However, such tradeoffs are unreasonable as the supply of these goods to society is underpinned by multiple, interacting processes, functions, and supporting services (Snelgrove et al., 2014). The loss of one ecosystem function may be accompanied by loss of multiple ecosystem services. Decision-making that incorporates the consequences of both ecological and social systems, as well as the intrinsic feedbacks are therefore essential for identifying trade-offs in possible future states when there is deep uncertainty. All this is critical if we are to move toward the EBM approaches required to maintain the function and services of marine ecosystems that contribute to humanity’s well-being (IPBES, 2018).

Given the burgeoning extrinsic forces pushing marine ecosystems into alternative states, we must find ways to inform effective decision making that not only focus on limiting drivers of change, but also building resilience. We argue that we must use the resources available today to provide practical recommendations for the management of marine ecosystems that are increasingly prone to tipping points. We already have the knowledge and tools, it is now a matter of applying these in the context of environmental surprise (associated with changes to intrinsic interaction networks). From an ideological perspective, this means redefining the way we think about managing socio-ecological systems for tipping points to include “surprise” and multiple possible futures that may be somewhat uncertain and may not have appropriately scaled data. This approach might be initially unpalatable to those who seek to make recommendations based on probabilities of occurrence and known levels of risk and uncertainty. However, the current expectation that we can assign a quantitative level of certainty to our actions and decisions is paralyzing us within a spiral of accelerating degradation to our marine environments. Holistic models driven by expert elicitation are currently underutilized in marine socio-ecological system management, but they offer an opportunity for generating practical and productive information to the wicked ecological tipping point problem (we offer five starting points in Box 1).

Data Availability Statement

No datasets were generated or analyzed for this study.

Author Contributions

RG-G, JH, RB, DC, and FS wrote the first draft of the manuscript. All authors contributed to the discussions which lead to the development of the ideas in the manuscript, to the review of the literature that is cited in the manuscript, and to the subsequent revisions, and read and approved the manuscript for publication.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

The New Zealand National Science Challenge Sustainable Seas, Tipping Points project funded a 3-day workshop in June 2017 that started the development of the ideas and recommendations in this manuscript. The Tipping Points project also funded RG-G, RB, FS, CP, CS, and SiT during the writing of the manuscript. RG-G was also supported by a New Zealand Rutherford Foundation Postdoctoral Fellowship from Government funding, administered by the Royal Society Te Apārangi, and the Walter and Andrée de Nottbeck Foundation.

Acknowledgments

We thank the two reviewers who provided constructive feedback that improved the manuscript.
