Assessment of the Deep Sea Wreck USS Independence

As part of ongoing efforts to better understand the nature of shipwrecks in National Marine Sanctuaries which may pose some level of pollution risk, and in this case, to definitively locate what is likely the only shipwreck in a sanctuary involved in both nuclear testing and nuclear waste disposal, NOAA's Office of National Marine Sanctuaries collaborated with NOAA's Office of Ocean Exploration and The Boeing Company, which provided their autonomous underwater vehicle, Echo Ranger, to conduct the first deep-water archeological survey of the scuttled aircraft carrier USS Independence in the waters of Monterey Bay National Marine Sanctuary (MBNMS) in March 2015. The presence of the deep-sea scuttled “radioactive” aircraft carrier USS Independence off the California coast has been the source of consistent media speculation and public concern for decades. The survey confirmed that a sonar target charted at the location was Independence, and provided details on the condition of the wreck, and revealed no detectable levels of radioactivity. At the same time, new information from declassified government reports provided more detail on Independence's use as a naval test craft for radiological decontamination as well as its use as a repository for radioactive materials at the time of its scuttling in 1951. While further surveys may reveal more, physical assessment and focused archival work has demonstrated that the level of concern and speculation of “danger” from either a radioactive or oil pollution threat posed may be exaggerated.

Introduction

USS Independence in World War II

Independence was the first vessel of a new class of light aircraft carrier, (Lambert, 2015: 16, 136–137). Laid down in May 1941, Independence was launched on February 12, 1942, and commissioned on January 14, 1943 (Figure 1). The ship served with distinction throughout the Pacific War (Lambert, 2015:868). While serving in postwar “Magic Carpet” service ferrying troops back to the United States, on January 22, 1946 Independence received new orders re-tasking her for use as a target vessel in upcoming tests of the atomic bomb at Bikini Atoll in the Marshall Islands in July 1946 (Lambert, 2015: 760).

FIGURE 1

Figure 1. USS Independence in harbor, c. 1943 (U.S. National Archives).

Two detonations of a Mk III “Fat Man” implosion-type plutonium core weapon, one air dropped, the other fired from a sealed underwater chamber, took place on July 1 and July 25. Independence was one of two carriers, the other being the veteran USS Saratoga (CV 3), used as targets in the test as well as a platform for test instruments, animals and equipment, which in the case of the two carriers included aircraft. Test equipment placed onboard Independence included items from the Army Ground Group (Signal Corps), the Chemical Group, and the Bureau of Aeronautics Group (Bureau of Ships, 1946).

Independence was moored 1950 feet (594 m) from the “zero point” of the Able test detonation of July 1, 1946. The bomb delivered a 19.1 kiloton blast (Shurcliff, 1946, 1947: 12.4). Extensive damage to the vessel was reported, and shipboard fires, some resulting from explosions of ordnance left on board, burned for a day (Berkhouse et al., 1984: 339). Moored in a new position 4170 feet (1.3 km) from the second test on July 25, 1946, Independence was irradiated by the subsurface 20.3 kiloton detonation (Shurcliff, 1946, 1947: 21.1). Both blasts doomed Independence, effectively “wrecking” the ship as reported by the media (Figures 2, 3).

FIGURE 2

Figure 2. Inspection teams and media approach Independence after Test Able, July 1, 1946 (U.S. National Archives).

FIGURE 3

Figure 3. Test Baker, Bikini, July 25, 1946 (U.S. National Archives).

Naval personnel reboarded Independence for brief periods after the Able tests to conduct assessments, repair some damage, reposition the ship, and install new test equipment and test animals, but could not be boarded after Baker due to radiation levels (Berkhouse et al., 1984: 340). It was not reboarded until August 18, 1946. “A few spaces were tolerable and capable of maintaining life—the only damage was the high radioactivity evident on all spaces exposed to weather” (Berkhouse et al., 1984:340–341). The carrier was decommissioned at Kwajalein on August 28 (Lambert, 2015 : 783).

USS Independence as a Cold War Laboratory and Training Facility

In the aftermath of Operation Crossroads, the United States Navy sent thirteen of the surviving target ships to either Pearl Harbor or the West Coast “for further study of damage and for development of radiological decontamination and safety techniques…” (as cited in Delgado et al., 1991: 31). Independence left Kwajalein under tow May 15, 1947, and arrived at Hunter's Point Naval Shipyard in San Francisco, on June 16, 1947 (Figures 4, 5; Delgado, 2016a).

FIGURE 4

Figure 4. Damage to USS Independence, documented after Operation Crossroads (U.S. National Archives).

FIGURE 5

Figure 5. The ex-USS Independence on San Francisco Bay, prior to being towed out for sinking (San Francisco Maritime National Historical Park).

After arriving at the shipyard, Independence served as the platform for the U.S. Navy's radiological decontamination school, later called the Naval Radiological Defense Laboratory until December 1950. Surface readings of radiation on arrival in San Francisco had declined to 0.060 REM per 24 h. That reading (60 millirem) is now obsolete, but an average mammogram is calculated to be 30 millirem, according to the Environmental Protection agency (http://www.epa.gov/radiation/understand/perspective.html). The Navy had previously decided to remove Independence's power plant, clearing out the engine and fire (boiler) rooms. A survey of the spaces found that they met “the requirements for final radiological clearance” and workers were allowed access to start work in January 1949. Once cleared, this space inside the hull was designated as a depository for “radioactive waste.” Confirming this information was critical to understanding whether the ship could still also retain fuel oil and bunkers.

Radioactive waste placed in the ship included “samples collected from Crossroads target vessels” such as “every type of material found on the target vessels” ranging in size “from five to six foot sections of six inch salt water pipe to small bottles of scale, etc.” They were placed on Independence “for ultimate sinking with that vessel because of lack of adequate storage facilities” (Bird, 1950a,b). Navy ships towed Independence to sea on January 25, 1951, and on January 26, detonated charges to sink the ship (Figure 6) (ComWestSeaFron, 1951; Delgado, 2016b). The probable wreck site of Independence was located in 1990 at a depth of ~900 m by the U.S. Geological Survey while mapping the Gulf of the Farallones National Marine Sanctuary, but the identity of the target was not confirmed (Chin and Ota, 2001).

FIGURE 6

Figure 6. Independence sinking (U.S. National Archives).

Methods

Echo Ranger Survey Operations

The Independence project in March 2014 utilized the 67′ research vessel Fulmar to carry the Boeing team and to escort the Echo Ranger AUV on overnight operations to the Independence site in the Monterey Bay National Marine Sanctuary (Figure 7). The Independence project was executed under a Cooperative Research and Development Agreement (CRADA) between NOAA Office of Oceanic and Atmospheric Research and the Boeing Company signed in 2013. The CRADA allows Boeing and NOAA to cooperate on technology demonstrations that address NOAA mission capabilities. It effectively provides NOAA with access to advanced undersea technologies like Echo Ranger and allows Boeing the opportunity to learn about NOAA missions and how to better address their technology requirements or offer better solutions (Delgado et al., 2016).

FIGURE 7

Figure 7. Location of the wreck and survey area off the central California coast of the United States (NOAA/Robert Schwemmer).

The Boeing Echo Ranger is a large diameter unmanned underwater vehicle (UUV). UUVs are often referred to as autonomous underwater vehicles or AUVs and in this paper “AUV” will be used. Echo Ranger is rectangular in form with a height and width of 4.2 ft (1.3 m) and length of 18.5 feet (5.6 m) (Figure 8). It weighs 10,500 lbs. (4545 kg) and can reach a depth of 10,000 ft (3000 m). While endurance is variable depending on payload and speed, the AUV's longest mission on this project lasted ~32 h. Its form, size and weight make it a very stable platform when submerged, ideal for conducting high resolution acoustic surveys. For navigation Echo Ranger carries an inertial navigation unit (INU) aided by a Doppler velocity log (DVL) and depth sensor. Ultra-short baseline (USBL) and long baseline line (LBL) transponders can be incorporated but were not on this mission. GPS fixes are also possible to correct drift in the navigation. An acoustic modem allows communication of health and status updates to engineers on the boat during the mission.

FIGURE 8

Figure 8. The NOAA vessel Fulmar towing Echo Ranger out of harbor to commence survey operations. (NOAA/Robert Schwemmer).

For the Independence Project, Echo Ranger was equipped with Coda Octopus Echoscope^© sonar. The Echoscope^© is a volumetric sonar producing over 16,000 sonar beams per ping at a ping rate of up to 12 times per second. Coda Octopus provided a dual frequency Echoscope^© (375 and 610 kHz) which Boeing integrated into Echo Ranger at the front of the vehicle on the forward lower edge. The placement, at roughly a 45 degree angle, aimed the instrument looking forward and down.

The NOAA-Boeing mission accomplished the primary objective of verifying the location of Independence and confirmed its identification and orientation by imaging the entire flight deck and upper features of the wreck, but the sonar picked up very little of the sea floor or the side profile view of the ship.

The Echo Ranger was analyzed on the return to the surface with a handheld Polimaster PM1610B dosimeter to pick up ionizing radiation after the dive by the participants from UC Berkeley which found normal background measures of 0.09 μSv. As water is an excellent radiation shield, it only extends several inches from contaminated materials, and the AUV stayed at least 100 feet from the wreck during the survey.

Results and Observations

Independence sits on a slope oriented with the bow pointed north at 340 degrees. It rests upright on the keel with a slight list to starboard. The hull measures 622 ft (189.58 m) in overall length and averages 76 ft (23.16 m) wide across the intact portions of the flight deck. The maximum width is 94 ft (28.65 m) measured across the flight deck and superstructure. The most prominent feature is the long and narrow flight deck with openings for the fore and aft aircraft elevators. Intact sections exhibit a series of horizontal lines indicating underlying structural elements. The amidships area is pierced by a number of openings with both irregular and straight edges that are also visible in historic photos taken during and just prior to scuttling. They are square and rectangular in shape exposing the hanger deck below. Some of these openings are discernable in the sonar images and are now part of larger holes in the deck amidships likely caused by collapse as the hull deteriorates. In addition, the sonar shows a gap in the hull just aft of the forward elevator and island which is where an expansion joint is located. Forward of the expansion joint the flight deck is intact while considerable collapse is evident aft of that point (Figure 9). Additional artifacts from Operation Crossroads may have also been left on and remain with Independence. For example, Independence left Kwajalein for the United States with “two-thirds of the unfuzed normal bomb allowance” on board (Berkhouse et al., 1984: 125). Unless a detailed survey and visual documentation takes place on the exterior and interior of the wreck, the archeological survival of this type of artifact can only be surmised (Delgado et al., 2016).

FIGURE 9

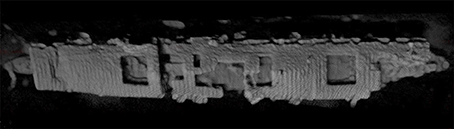

Figure 9. Initial Sonar image of Independence (Boeing/NOAA).

Discussion

The importance of Independence resides not only in the context and social conditions leading to her construction and conversion, but extends to changing use and method of disposal, and how we view the wreck today and how we now view pollution threats in our oceans. Independence was deemed no longer useful to society more than 50 years ago, and sunk in 828.75 meters of water “beyond reach.” The sinking of Independence was not an isolated event; most Crossroads target ships were sunk, with 85 going to the bottom between 1946 and 1948, and Independence, the last to be go in 1951, making a total of 86 of the 95 target vessels that were scuttled within the waters of the United States and the Republic of the Marshall Islands (Delgado et al., 1991; Delgado, 2016a: 173-174). This “out of sight out of mind” solution has proven to be a time limited option for hydrocarbon related threats.

The public perception of the sinking of these craft was that their “radiologically unsafe” status alone had sent them to the bottom. A 1949 article by columnist Drew Pearson in the Washington Post termed the scuttlings as a “major naval disaster” brought about by the radiation “from only two bombs” (Washington Post, February 18, 1949). The target ships left afloat after the tests were, as historian Paul Boyer notes, deemed a “pariah fleet of ghostly radioactive ships,” and that perception of the 1940s and 1950s remains in the public mind to this day (Boyer, 1985:92). Most media articles about the 2015 Independence project referenced the ship's atomic history, with some terming it “radioactive.”

Confirming that this wreck is the Independence, and an initial assessment showing that the wreck is intact, and does not contain a fuel or bunker related pollution threats provides a foundation for NOAA's Office of National Marine Sanctuaries to plan for further work to assess issues such as on board munitions, exposed or potentially accessible nuclear waste, and any residual radiation (which is unlikely) in the ship's hull and structure. The half-life of radioactive materials such as the cesium 137 and strontium 90 is about 30 years (Gale and Lax, 2013: 72–73). After 30 years, half the istotopes responsible for the initial contamination are transmuted into other non-radioactive isotopes. As it has been over 60 years since the Independence has been scuttled that means that less than a quarter of the radioactive isotopes remain (Greene, 2015).

Given the ongoing decline in ambient radiation in the ship as part of the natural decay of isotopes and radioisotopes (the alternate forms of elements with different atomic weights), the question is likely not what levels (if any) Independence has, but rather what are the levels, or if there are measurable levels from the material stowed deep inside the hulk in its engineering spaces and in concrete-filled 55-gallon steel drums. Given the seeming inaccessibility of those artifacts, that question may never be answered. This may make it challenging to ever change the public perception of wreck as a hazard.

However, previously inaccessible archival information examined as part of the project provided more specific information on the steps taken to prepare Independence as a receptacle for “nuclear waste” while also to some extent qualifying what that “waste” was as well as how it was prepared for permanent stowage in the sunken ship. That process also did not entail simply throwing waste into a compartment and then shooting at the hulk until it sank. Deep inside in the ship, the compartment built to contain the heavy engineering plant was cleared, and this was where waste barrels into which concrete was poured as a shield, were stowed. Archives and anecdotes alone do not make for a solid assessment, only empirical facts gathered by survey and physical inspection. Plans are being prepared for a detailed ROV inspection of the wreck in 2016. This detailed characterization and photographic survey, will include penetration of accessible interior spaces, and attempts to measure ambient radiation if it can be detected. This type of effort is key when dealing with any wreck thought to be a hazard whether from oil, munitions or radioactive wastes, and in the case of Independence, an essential next step.
