- 1Medical School of Chinese PLA, Beijing, China
- 2Department of Neurosurgery, The First Medical Centre, Chinese PLA General Hospital, Beijing, China
- 3Department of Neurosurgery, The Fifth Medical Centre, Chinese PLA General Hospital, Beijing, China
- 4Department of Radiation Oncology, Senior Department of Oncology, The Fifth Medical Center of PLA General Hospital, Beijing, China
- 5Department of Occupational Diseases, Xi’an Central Hospital, Xi’an, Shanxi, China
- 6Department of Neurosurgery, The Eighth Medical Centre, Chinese PLA General Hospital, Beijing, China
Background: Systemic Lupus Erythematosus (SLE) is acknowledged for its significant influence on systemic health. This study sought to explore potential crosstalk genes, pathways, and immune cells in the relationship between SLE and moyamoya disease (MMD).
Methods: We obtained data on SLE and MMD from the Gene Expression Omnibus (GEO) database. Differential expression analysis and weighted gene co-expression network analysis (WGCNA) were conducted to identify common genes. Subsequently, Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses were performed on these shared genes. Hub genes were further selected through the least absolute shrinkage and selection operator (LASSO) regression, and a receiver operating characteristic (ROC) curve was generated based on the results of this selection. Finally, single-sample Gene Set Enrichment Analysis (ssGSEA) was utilized to assess the infiltration levels of 28 immune cells in the expression profile and their association with the identified hub genes.
Results: By intersecting the important module genes from WGCNA with the DEGs, the study highlighted CAMP, CFD, MYO1F, CTSS, DEFA3, NLRP12, MAN2B1, NMI, QPCT, KCNJ2, JAML, MPZL3, NDC80, FRAT2, THEMIS2, CCL4, FCER1A, EVI2B, CD74, HLA-DRB5, TOR4A, GAPT, CXCR1, LAG3, CD68, NCKAP1L, TMEM33, and S100P as key crosstalk genes linking SLE and MMD. GO analysis indicated that these shared genes were predominantly enriched in immune system process and immune response. LASSO analysis identified MPZL3 as the optimal shared diagnostic biomarkers for both SLE and MMD. Additionally, the analysis of immune cell infiltration revealed the significant involvement of activation of T and monocytes cells in the pathogenesis of SLE and MMD.
Conclusion: This study is pioneering in its use of bioinformatics tools to explore the close genetic relationship between MMD and SLE. The genes CAMP, CFD, MYO1F, CTSS, DEFA3, NLRP12, MAN2B1, NMI, QPCT, KCNJ2, JAML, MPZL3, NDC80, FRAT2, THEMIS2, CCL4, FCER1A, EVI2B, CD74, HLA-DRB5, TOR4A, GAPT, CXCR1, LAG3, CD68, NCKAP1L, TMEM33, and S100P have been identified as key crosstalk genes that connect MMD and SLE. Activation of T and monocytes cells-mediated immune responses are proposed to play a significant role in the association between MMD and SLE.
Introduction
Moyamoya disease is a progressive cerebrovascular disorder characterized by chronic blockage of the major arteries in the brain, leading to the development of a network of tiny blood vessels that attempt to compensate for the reduced blood flow. It is a rare condition affecting about 1 in 1,000,000 individuals, marked by ischemic events and a myriad of neurological symptoms, such as strokes and transient ischemic attacks (1). While the precise etiology of moyamoya disease remains unknown, a combination of genetic and environmental factors is believed to contribute to its onset and progression (2). While the exact pathogenesis of MMD is still under investigation, emerging evidence suggests that immune mechanisms play a pivotal role in its development and progression (3). This includes the involvement of inflammatory cytokines, autoimmune reactions, as well as genetic predispositions that may influence immunopathological responses (4). Abnormal immunological activity, such as the presence of circulating autoantibodies and elevated levels of pro-inflammatory cytokines, has been documented and correlated with disease activity in Moyamoya patients (5).
Systemic Lupus Erythematosus (SLE) is a highly prevalent autoimmune disease with a significant impact on patient morbidity and mortality (6). The etiology of SLE is multifaceted, with genetic, environmental, hormonal, and immunological factors contributing to its complex pathogenesis (7). Notably, infections have been posited to play a crucial role in the development and exacerbation of SLE (8). Epidemiologically, it is observed that infections can precipitate the onset of SLE and exacerbate its symptoms, particularly those infections that stimulate a robust immune response. SLE is considered to be associated with aberrations in immune regulation that lead to autoantibody production and the formation of immune complexes (9), which can be further stimulated by interactions with pathogens. Various viral and bacterial antigens have been implicated in the disease process, though the precise mechanisms remain to be fully elucidated (10, 11). Among the infectious agents, the Epstein-Barr virus (EBV) has received attention due to its ubiquitous nature and its ability to establish life-long latent infections, which may contribute to the chronic stimulation of the immune system in SLE patients (12). Furthermore, the hygiene hypothesis suggests a link between increased hygiene and autoimmune disease prevalence, potentially implicating the role of commensal microbes and the immune system’s development and regulation (13). The relationship between infections, immunity, and SLE supports the notion that managing chronic infections could be beneficial for patients with SLE. Indeed, targeted immunosuppressive therapies such as glucocorticoids and immunomodulators are central to SLE treatment regimens (14). These treatments aim to dampen the overactive immune response and reduce the formation of damaging immune complexes associated with SLE pathology.
Many case reports have examined the association of MMD with SLE (15–17), and MMD is more common in women (18), which is consistent with SLE (19). However, the exact crosstalk genes have not been elucidated yet. Therefore, there is a need for additional research to better understand the connection between MMD and SLE, particularly at the cellular and molecular levels. Given the advancements in microarray and high-throughput sequencing technologies, bioinformatics tools are increasingly being utilized to investigate the interplay between various diseases. In this study, we utilized bioinformatics techniques to identify potential shared genes between MMD and SLE and to assess how these genes interact with immune cells that infiltrate the affected tissues. This approach aims to deepen our understanding of the underlying pathophysiological mechanisms that could link MMD and SLE.
Materials and methods
Data download and processing

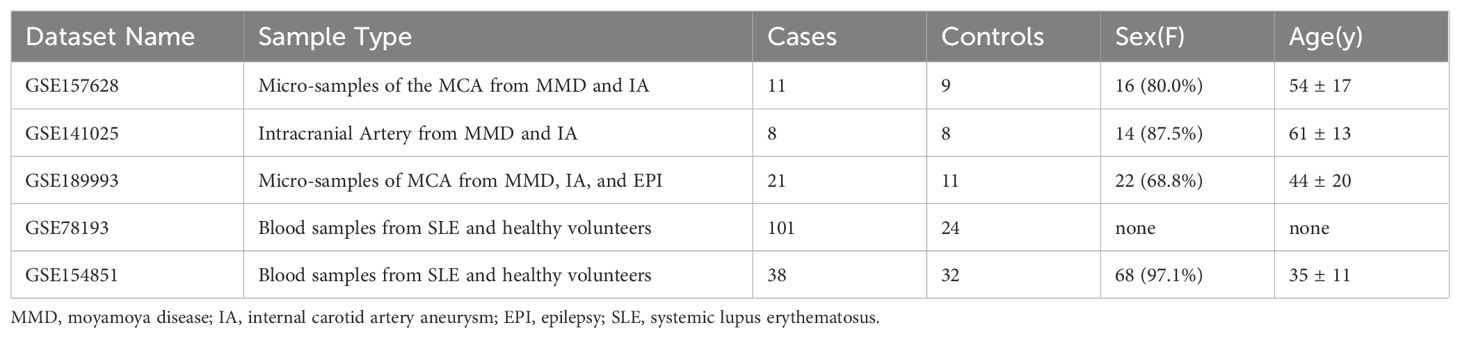

Gene expression profiles specific to MMD and SLE were procured from the Gene Expression Omnibus (GEO) repository. Detailed information about the datasets is available online at the GEO website: https://www.ncbi.nlm.nih.gov/geo/. The datasets were obtained in the MINiML format. Utilizing the GPL16699 platform, the GSE157628 and GSE141025 dataset consists of 36 subjects, with 19 classified as “diseased” and 17 as “control”. To assess diagnostic efficiency, we downloaded the GSE189993 dataset based on GPL16699 consists of 36 subjects, with 21 classified as “diseased” and 11 as “control”.
Gene expression datasets exploring SLE (GSE78193) employed the GPL6480 and GPL6848 platform and encompassed 125 samples, including 101 from SLE patients and 24 from healthy individuals serving as controls. In addition to this dataset, GSE154851 was acquired—utilizing the GPL16699 platform—it comprised 38 SLE patient samples alongside 32 control samples, facilitating the evaluation of diagnostic accuracy. The detailed information regarding the datasets included in this study is available in Table 1.
Data normalization is a crucial step to ensure the comparability and reliability of data by removing biases and inconsistencies between samples. In this study, we employed various normalization techniques to standardize the data. We applied Z-score normalization, where each feature’s values were transformed by subtracting the mean and dividing by the standard deviation. This transformation resulted in a standard normal distribution of the data, reducing the impact of outliers and ensuring uniform scaling across features. To address potential batch effects in our dataset, we implemented Uniform Manifold Approximation and Projection (UMAP) as a batch correction method. Data normalization and batch effect processing in this study are detailed in Supplementary Figure S1.
Detection of differentially expressed genes
Differential expression analysis is a critical aspect of our study, aimed at identifying genes that are differentially expressed between two or more groups of samples. To perform this analysis, we used the Linear Models for Microarray Data (LIMMA) package (version 3.32.4) within the R software. The approach taken using LIMMA is designed to model the expression data efficiently, taking into account the various sources of biological and technical variability. The “LIMMA” R package was employed to identify DEGs in the GSE157628, GSE141025, and GSE78193 datasets. DEGs were determined in GSE157628, GSE141025, and GSE78193 with an adjusted P value < 0.05 and |log FC| ≥ 1.0. Using the ‘ComplexHeatmap’ package, we created a differential gene clustering heatmap. The heatmap reflects the standardized expression data (z-scores) for the DEGs across all samples to provide a visual representation of expression patterns and potential clustering. In addition, we constructed volcano plots for each dataset using the ‘ggplot2’ package. The volcano plots graphically display the -log10(p-value) against the log2 fold change of all tested genes to highlight those that are significantly differentially expressed (DEGs are highlighted according to the criteria mentioned above).
Construction of WGCNA networks and identification of modules
Weighted Gene Co-expression Network Analysis (WGCNA) serves as a computational approach for the characterization of genomic interconnections within diverse biological samples. This methodology aggregates genes based on congruent expression profiles and evaluates the relationship between gene clusters, known as modules, and particular attributes or phenotypic characteristics (20). The co-expression network was constructed using the WGCNA package in R. Genes that demonstrated statistical significance with an adjusted P value < 0.05 were selected for inclusion in the network analysis. The process began with hierarchical clustering, utilizing the “Hclust” function native to R, to detect and exclude potential outliers. Following this, the ‘pickSoftThreshold’ function was employed to determine an optimal soft-thresholding power (β), ensuring the network adhered to a scale-free topology. Using the chosen β, the ‘adjacency’ function transformed the expression similarity matrix into an adjacency matrix. Lastly, this adjacency matrix was further refined into a topological overlap matrix (TOM) using the relevant WGCNA function, thereby reducing noise and false linkages to bolster the network’s robustness. Subsequently, modules were identified using hierarchical clustering alongside the dynamic tree cut algorithm. To explore the relationship between these modules and the clinical characteristics of patients, Pearson correlation analysis was conducted, with a significance threshold set at a P value < 0.05.
Identification of shared genes and pathway enrichment
An integrated evaluation was conducted using WGCNA and DEGs to identify core common genes. The overlap among these genes was visually represented through Venn diagrams to identify key genes for further investigation of their functional roles. Subsequently, these genes underwent thorough functional enrichment analysis. The enrichment analysis, focusing on Gene Ontology (GO) terms and pathways from the Kyoto Encyclopedia of Genes and Genomes (KEGG), utilized the “enrichplot” and “ggplot2” visualization tools in the R. To ensure the reliability of the identified relationships, a significance threshold of P < 0.05 was meticulously established.
Feature selection using the least absolute shrinkage and selection operator
The Lasso technique, often employed in regression analysis, utilizes an ℓ1 norm regularization to promote sparsity in the solution, effectively leading to models with fewer parameters. This method not only helps in feature selection but also improves model interpretability by reducing the complexity of the model (21). A 10-fold cross-validation strategy was utilized to evaluate gene selection performance across diverse data subsets, further elucidating the generalizability of the Lasso model and the robustness of the selected genes. LASSO regression processing and drawing were conducted using Hiplot (https://hiplot.com.cn) (22). This platform facilitated the analysis and interpretation of the results obtained from the Lasso model, including the visualization of selected genes and their respective coefficients. we executed LASSO regression to ascertain the most robust predictive variables for MMD and SLE from the previously mentioned set of DEGs and the intersection of WGCNA findings. Additionally, bootstrapping was conducted with 1,000 resamples to assess the stability of the identified genes. This non-parametric technique enabled an evaluation of model accuracy through resampling from the original dataset with replacement and re-computation of the Lasso model for each bootstrap iteration.
Expression levels of potential biomarkers and their diagnostic value
Violin plots, generated through the ggplot2 package in R, were utilized to analyze the expression patterns of key genes with a significance level established at P < 0.05. Further, the proficiency of proposed biomarkers across the datasets (GSE157628, GSE141025, GSE189993, GSE78193, and GSE154851) was assessed through the calculation of the area under the receiver operating characteristic (ROC) curve, using the pROC package in R.
Single-sample gene set enrichment analysis
The “GSVA” R package was utilized to conduct ssGSEA for analyzing the infiltration of 28 immune cells in diseased and normal samples. Spearman’s rank correlation tests were used to examine the relationship between core genes and the levels of infiltrating immune cells, with p values calculated (P < 0.05).
Results
Identification of DEGs
In the GSE157628 and GSE141025 dataset for MMD, 364 DEGs were detected, comprising 94 upregulated and 270 downregulated genes. In contrast, the GSE78193 dataset for SLE revealed 11,189 DEGs, with 7,812 upregulated and 3,377 downregulated genes. Heatmaps (Figures 1A, B) illustrated DEGs for both diseases, while volcano plots (Figures 1C, D) displayed the expression patterns of the DEGs.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g001.jpg)
Figure 1. Identification of differentially expressed genes. (A) A heatmap of DEGs in GSE157628 and GSE141025. (B) A heatmap of DEGs in GSE78193. (C) A volcano plot of DEGs in GSE157628 and GSE141025. (D) A volcano plot of DEGs in GSE78193. MMD: Moyamoya disease; SLE: Systemic lupus erythematosus; HC: Healthy control.
Construction of WGCNA networks and identification of modules
To ensure a scale-free network structure, we determined the scale-free fit index and mean connectivity. A power of β = 8 was selected for soft thresholding in GSE157628 and GSE141025, while a power of β = 26 was utilized for GSE78193. In the co-expression network analysis, 6 modules were identified in the MMD samples, and 9 modules in the SLE samples (Figures 2A, B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g002.jpg)
Figure 2. Co-expression analysis for differentially expressed genes. (A) Sample cluster dendrogram and trait heatmap in GSE157628 and GSE141025. (B) Sample cluster dendrogram and trait heatmap in GSE78193. (C) Heatmap of the module-trait relationships in GSE157628 and GSE141025. (D) Heatmap of the module-trait relationships in GSE78193. MMD: Moyamoya disease; SLE: Systemic lupus erythematosus; HC: Healthy control.
For the investigation of genes associated with disease, we examined the relationship between modules and clinical phenotypes. In the MMD dataset (GSE157628 and GSE141025), The green module exhibited the strongest positive correlation (r = 0.35, P = 0.003), while no significant difference was observed for the strongest negative correlation. In contrast, for SLE (GSE78193), the black module demonstrated the strongest positive correlation (r = 0.99, P < 0.001), and the midnightblue module had the strongest negative correlation (r = -0.99, P < 0.001) (Figures 2C, D).
Identification of shared genes, pathway enrichment, and protein-protein interaction networks
Ninety-four overlapping DEGs were identified between MMD and SLE (Figure 3A). A Venn diagram was used to illustrate the overlap between the hub modules of MMD and SLE, resulting in the identification of 570 intersection genes (Figure 3B). Twenty-eight core genes (CAMP, CFD, MYO1F, CTSS, DEFA3, NLRP12, MAN2B1, NMI, QPCT, KCNJ2, JAML, MPZL3, NDC80, FRAT2, THEMIS2, CCL4, FCER1A, EVI2B, CD74, HLA-DRB5, TOR4A, GAPT, CXCR1, LAG3, CD68, NCKAP1L, TMEM33, and S100P) were identified as overlapping between the genes identified through WGCNA and DEGs. These genes may represent potential crosstalk genes between the two diseases (Figure 3C).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g003.jpg)
Figure 3. Identification of the shared genes. (A) Venn diagram showing an overlap of 94 DEGs between MMD and SLE. (B) Venn diagram shows that 570 genes overlap in the MMD and SLE modules. (C) Networks venn diagram showing that 28 core genes were crossed and overlapped between the genes screened by WGCNA and DEGs. MMD: Moyamoya disease; SLE: Systemic lupus erythematosus; DEG: Differentially expressed gene; WGCNA: Weighted gene co-expression network analysis.
GO and KEGG enrichment analyses were conducted on the 28 genes mentioned above in order to investigate common regulatory pathways. The GO analysis revealed that these shared genes may be associated with immune system process, immune response, neutrophil chemotaxis, regulation of immune system process, and granulocyte chemotaxis (Figure 4A). On the other hand, the KEGG analysis indicated that these genes might primarily participate in Staphylococcus aureus infection, tuberculosis, lysosome, antigen processing and presentation, NOD-like receptor signaling pathway, viral protein interaction with cytokine and cytokine receptor, and asthma (Figure 4B). Finally, we employed extensive PPI network analyses using STRING databases to investigate and visualize the direct and indirect interactions of the proteins encoded by the identified genes. The more connected a protein is within the network, the more likely it is to contribute to pathway crosstalk (Figure 4C).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g004.jpg)
Figure 4. Functional enrichment analyses of the shared genes. (A) GO analysis of the shared genes. (B) KEGG pathway enrichment analysis of the shared genes. (C) protein-protein interaction (PPI) networks of the shared genes.
Selection of potential shared diagnostic genes using LASSO regression
A LASSO regression was applied to pinpoint shared diagnostic biomarkers. Bootstrapping, conducted with 1,000 resamples, yielded a concordance index (c-index) of 1.000 for SLE patients and c-index of 0.868 for MMD patients. In dataset GSE157628 and GSE141025, this method revealed 14 of the 28 principal intersecting genes at an optimal lambda of 0.011 (Figures 5A, B). In a similar analysis of dataset GSE78193, LASSO regression pinpointed 5 out of the 28 key intersecting genes, again at optimal lambda = 0.137 (Figures 5C, D). Ultimately, a single gene, MPZL3, emerged as the most promising shared diagnostic indicator for MMD and SLE, as illustrated in Figure 5E. Bootstrapping, conducted with 1,000 resamples, yielded a concordance index (c-index) of 1.000 for SLE patients and c-index of 0.878 for MMD patients.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g005.jpg)
Figure 5. Discovering potential diagnostic genes shared across conditions using the LASSO regression. (A) Implementation of tenfold cross-validation for optimal tuning parameter selection, identified through log(lambda), within the GSE157628 and GSE141025 dataset. (B) A similar tenfold cross-validation method applied to the GSE157628 and GSE141025 dataset to determine the best log(lambda) value. (C) The breakdown of LASSO coefficients for the genes linked to diagnostics in the GSE78193 dataset. (D) LASSO coefficients for genes with diagnostic relevance within the GSE78193 dataset. (E) A Venn diagram illustrating shared optimal diagnostic biomarkers.
Expression levels of candidate biomarkers and their diagnostic value
Figures 6A, C, E, G present the upregulation of MPZL3 in both MMD and SLE, indicating their potential as biomarkers. Sensitivity and specificity assessments reveal their diagnostic potential in GSE157628 and GSE141025 datasets (Figure 6C), where MPZL3 achieved an AUC of 0.734, implying substantial discriminative power. In dataset GSE78193 (Figure 6B), MPZL3 exhibited considerable diagnostic capacity for SLE (AUC = 1.000) (Figure 6F). External validation was also conducted using datasets GSE189993 for MMD (AUC = 0.762) and GSE154851 for SLE (AUC = 0.942) (Figures 6D, H), where both biomarkers demonstrated strong predictive capabilities.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g006.jpg)
Figure 6. Expression pattern validation and diagnostic value. (A) Expression of MPZL3 in GSE157628 and GSE141025. (B) ROC curve of the shared diagnostic genes in GSE157628 and GSE141025. (C) Expression of MPZL3 in GSE189993. (D) ROC curve of the shared diagnostic genes in GSE189993. (E) Expression of MPZL3 in GSE78193. (F) ROC curve of the shared diagnostic genes in GSE78193. (G) Expression of MPZL3 in GSE154851. (H) ROC curve of the shared diagnostic genes in GSE154851. MMD: Moyamoya disease; SLE: Systemic lupus erythematosus; HC: Healthy control.
Correlation between candidate biomarkers and infiltration of immune cells
We conducted a detailed analysis of immune cell infiltration in various samples. A total of 28 immune cell types were identified in the GSE157628 and GSE141025 dataset, visualized through heatmap and box plots (Figures 7A, B). The distribution of these 28 immune cells in the GSE78193 sample is illustrated in Figures 8A, B. Our findings revealed a significant increase in the infiltration of activated CD4 T cell, immature B cell, macrophages, and mast cell in both MMD and SLE. Furthermore, our correlation analysis between immune cells and candidate biomarkers indicated a positive association between activated CD4 T cell, immature B cell, macrophages, and mast cell with MPZL3 in both MMD and SLE (Figures 7C, 8C).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g007.jpg)
Figure 7. Evaluation of immune cell infiltration in relation to MMD. Heatmap (A) and box plot (B) illustrating the distribution of 28 immune cell types in the GSE157628 and GSE141025 sample. (C) Correlation between diagnostic genes and immune cell infiltration. MMD: Moyamoya disease; HC: Healthy control.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1456392/fimmu-15-1456392-HTML/image_m/fimmu-15-1456392-g008.jpg)
Figure 8. Evaluation of immune cell infiltration in relation to SLE. Heatmap (A) and box plot (B) illustrating the distribution of 28 immune cell types in the GSE78193 sample. (C) Correlation between diagnostic genes and immune cell infiltration. SLE: Systemic lupus erythematosus; HC: Healthy control.
Discussion
This study integrated transcriptomes of MMD and SLE, using WGCNA for the first time to investigate their shared mechanisms, uncovering potential crosstalk genes, common pathways, and associated immune cells. By intersecting DEGs with WGCNA module genes, we identified CAMP, CFD, MYO1F, CTSS, DEFA3, NLRP12, MAN2B1, NMI, QPCT, KCNJ2, JAML, MPZL3, NDC80, FRAT2, THEMIS2, CCL4, FCER1A, EVI2B, CD74, HLA-DRB5, TOR4A, GAPT, CXCR1, LAG3, CD68, NCKAP1L, TMEM33, and S100P as key crosstalk genes between MMD and SLE, potentially linked to immunity and inflammation regulatory activity. MPZL3 were found to be valuable diagnostic markers. Immune infiltration analyses highlighted the significant roles of activated CD4 T cell, immature B cell, macrophages, and mast cell in the pathogenesis of both MMD and SLE.
The precise pathogenesis of MMD and SLE remains unclear; however, numerous studies have indicated that these conditions are associated with genetic factors, infections, and immune dysregulation (23, 24). This study findings provides further evidence that core crosstalk genes in MMD and SLE are associated with immune system process and immune response. The immune system process and immune response play a fundamental role in the progression and pathology of various diseases. While the exact role of the immune system in MMD remains to be fully elucidated, certain infection and autoimmune diseases have been implicated in its progression. Several studies in cohorts of MMD patients have proposed autoimmune disorders and infections as potential environmental factors that could trigger the disease. In 1980, there were already reports of 75 cases of MMD linked to leptospiral cerebral arteritis (25). In addition to infections, Graves’ disease, a prevalent autoimmune condition leading to hyperthyroidism, has been associated with MMD. Research on 170 patients with MMD, of which 25 had Graves’ disease, revealed that individuals with both conditions experienced accelerated disease advancement in MMD compared to those without Graves’ disease, resulting in a notably increased risk of stroke (26). In addition, SLE is an autoimmune disorder impacting multiple organ systems and is managed through immunomodulation and immunosuppression. Patients with SLE possess a fundamentally compromised immune system, heightened by disease activity, rendering them susceptible to infections. Immunosuppressive therapy amplifies the risk of infections, making infectious diseases a primary reason for hospitalization and mortality among SLE patients (27). Therefore, immune system process and immune response induced by infection and autoimmune diseases could potentially serve as a key factor in the shared pathophysiology of both conditions.
This study preliminarily explored the potential immune relationship between MMD and SLE, revealing significant differences in the immune patterns of the MMD and SLE groups compared to the control group. Activated CD4 T cell, immature B cell, macrophages cells showed a more significant increase in both MMD and SLE samples.
The association between T cells and MMD was initially identified in 1993, revealing that the thickened vascular intima in MMD consists primarily of smooth muscle cells and a fraction of macrophages and T cells (28). Furthermore, Leihua Weng and colleagues conducted a clinical study indicating notably elevated percentages of circulating Treg and Th17 cells in MMD patients compared to controls. Their research also highlights the significant involvement of TGF-β in the advancement of MMD (29). These findings align with the results from our ssGSEA analysis. Immunohistochemical analysis revealed B cells were infrequently observed in the patients (28). Remarkably, we observed a notable rise in immature B cell in MMD. In addition, collaboration between activated naïve B cells and CD4+ T cells facilitated SLE development by enhancing the differentiation of pathogenic T cells (Th2 and Th17) as well as the production of autoantibodies (30). Recent clinical studies have shown a positive association between the quantity of monocytes expressing M1 macrophage-like markers (CD163-CD14+) in the peripheral blood of children with lupus and the severity of childhood-onset SLE (31). Similarly, agents promoting M1 macrophage polarization may worsen inflammatory disorders like lupus (32). Thus, it is speculated that SLE could aggravate the onset and advancement of MMD through the activation of T and monocytes cells.
To mitigate the risk of overfitting and to enhance the reliability of performance metrics, it is crucial to incorporate a substantial number of samples in clinical biomarker identification studies (33). In our research, we included 19 MMD samples from the GSE157628 and GSE141025 dataset and 101 SLE samples from the GSE78193 dataset. The effectiveness of a biomarker can be measured using the area which ranges from 0 to 1 (34). A higher AUC value signifies a more accurate diagnostic test. In our analysis, ROC assessment revealed that the biomarker MPZL3 had an AUC of 0.734 for MMD prediction and 1.000 for SLE prediction. Consequently, our findings suggest that both MPZL3 demonstrate strong predictive capabilities for MMD and SLE.
As a significant gene facilitating the interaction between MMD and SLE, MPZL3 is a nuclear-encoded protein that is predominantly localized in the mitochondria. It possesses an immunoglobulin-like V-type structure and plays a crucial role in regulating epithelial cell differentiation, lipid metabolism, reactive oxygen species (ROS) generation, glycemic control, and energy expenditure (35). MPZL3 contains an immunoglobulin domain and functions as a cell adhesion molecule, regulating the recruitment of immune cells during inflammation. MPZL3 may play a role in the inflammatory response to dietary fat intake (36). A positive correlation was identified between the infiltration of CD8+ T cells, CD4+ T immune cells, B cells, and other immune cells, and the expression of MPZL3 in breast invasive carcinoma (BRCA) (37). Elevated levels of MPZL3 expression have been associated with the activation of immune cell signaling pathways. Previous research has suggested that MPZL3 expression in immune cells such as dendritic cells, CD4, and CD8 central memory and effector T cells supports its potential role in immunity. Moreover, mutations in the conserved V-type domain of MPZL3 can impact immune function, potentially leading to immunodeficiencies (38). MPZL3 and FDXR collaborate to elevate ROS levels, promoting epidermal differentiation. The differentiation induced by ROS is contingent upon MPZL3 enhancing FDXR enzymatic activity. The generation of ROS by the mitochondrial proteins MPZL3 and FDXR is crucial for driving epidermal differentiation (39). In summary, there is a potential involvement of inflammation and immunity mediated by MPZL3 in the interplay between MMD and SLE; however, additional data is required to confirm this association. This will emphasize the shared immune-level pathophysiology and could be vital in comprehending the link between MMD and SLE.
Our study exhibits multiple strengths. Initially, we employed a comprehensive and intricate bioinformatics analysis as a novel approach to explore the association between the two diseases. The utilization of the LASSO regression algorithm facilitated the identification of potential shared diagnostic genes. Validation using external datasets enhanced the accuracy of our predictions. However, there are some limitations in our research. Our findings were based on distinct patient cohorts and lacked validation within the same individuals. Establishing a model that combines MMD and SLE is essential to confirm the potential relationship between these conditions in future studies. Additionally, this study did not consider data on age, gender, medication, and patient comorbidities, which could impact the reliability of the current results. Finally, our study was not experimentally validated due to the absence of dependable cell and animal models.
Conclusion
This study is pioneering in its use of bioinformatics tools to explore the close genetic relationship between MMD and SLE. The genes CAMP, CFD, MYO1F, CTSS, DEFA3, NLRP12, MAN2B1, NMI, QPCT, KCNJ2, JAML, MPZL3, NDC80, FRAT2, THEMIS2, CCL4, FCER1A, EVI2B, CD74, HLA-DRB5, TOR4A, GAPT, CXCR1, LAG3, CD68, NCKAP1L, TMEM33, and S100P have been identified as key crosstalk genes that connect MMD and SLE. Activation of T and monocytes cells-mediated immune responses are proposed to play a significant role in the association between MMD and SLE.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Author contributions
QG: Conceptualization, Formal analysis, Methodology, Writing – original draft, Writing – review & editing. Y-NF: Data curation, Writing – review & editing. MX: Data curation, Writing – review & editing. Q-NW: Data curation, Methodology, Writing – review & editing. JL: Data curation, Methodology, Writing – review & editing. SL: Data curation, Methodology, Writing – review & editing. XW: Data curation, Methodology, Writing – review & editing. DY: Data curation, Methodology, Writing – review & editing. Z-XZ: Data curation, Methodology, Writing – review & editing. GG: Data curation, Methodology, Writing – review & editing. QZ: Data curation, Methodology, Writing – review & editing. F-BH: Data curation, Methodology, Writing – review & editing. JF: Data curation, Methodology, Writing – review & editing. R-MY: Data curation, Methodology, Writing – review & editing. MW: Data curation, Methodology, Writing – review & editing. HF: Data curation, Methodology, Writing – review & editing. XB: Conceptualization, Supervision, Writing – review & editing. LD: Conceptualization, Supervision, Writing – review & editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. National Natural Science Foundation of China, Grant/Award Numbers: 82171280, 82201451.
Acknowledgments
The authors express their sincere appreciation to all researchers for sharing and publishing the data.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2024.1456392/full#supplementary-material
References
1. Suzuki J, Takaku A. Cerebrovascular “moyamoya” disease. Disease showing abnormal net-like vessels in base of brain. Arch Neurol. (1969) 20:288–99. doi: 10.1001/archneur.1969.00480090076012
2. Liu W, Morito D, Takashima S, Mineharu Y, Kobayashi H, Hitomi T, et al. Identification of RNF213 as a susceptibility gene for moyamoya disease and its possible role in vascular development. PloS One. (2011) 6:e22542. doi: 10.1371/journal.pone.0022542
3. Lin R, Xie Z, Zhang J, Xu H, Su H, Tan X, et al. Clinical and immunopathological features of Moyamoya disease. PloS One. (2012) 7:e36386. doi: 10.1371/journal.pone.0036386
4. Guidelines for diagnosis and treatment of moyamoya disease (spontaneous occlusion of the circle of Willis). Neurol Med Chir (Tokyo). (2012) 52:245–66. doi: 10.2176/nmc.52.245
5. Sigdel TK, Shoemaker LD, Chen R, Li L, Butte AJ, Sarwal MM, et al. Immune response profiling identifies autoantibodies specific to Moyamoya patients. Orphanet J Rare Dis. (2013) 8:45. doi: 10.1186/1750-1172-8-45
6. Rees F, Doherty M, Grainge MJ, Lanyon P, Zhang W. The worldwide incidence and prevalence of systemic lupus erythematosus: a systematic review of epidemiological studies. Rheumatol (Oxford). (2017) 56:1945–61. doi: 10.1093/rheumatology/kex260
7. Tsokos GC. Systemic lupus erythematosus. N Engl J Med. (2011) 365:2110–21. doi: 10.1056/NEJMra1100359
8. James JA, Kaufman KM, Farris AD, Taylor-Albert E, Lehman TJ, Harley JB. An increased prevalence of Epstein-Barr virus infection in young patients suggests a possible etiology for systemic lupus erythematosus. J Clin Invest. (1997) 100:3019–26. doi: 10.1172/JCI119856
9. Crow MK. Collaboration, genetic associations, and lupus erythematosus. N Engl J Med. (2008) 358:956–61. doi: 10.1056/NEJMe0800096
10. Perl A, Fernandez DR, Telarico T, Doherty E, Francis L, Phillips PE. T-cell and B-cell signaling biomarkers and treatment targets in lupus. Curr Opin Rheumatol. (2009) 21:454–64. doi: 10.1097/BOR.0b013e32832e977c
11. Kivity S, Agmon-Levin N, Blank M, Shoenfeld Y. Infections and autoimmunity–friends or foes? Trends Immunol. (2009) 30:409–14. doi: 10.1016/j.it.2009.05.005
12. Lossius A, Johansen JN, Torkildsen Ø, Vartdal F, Holmøy T. Epstein-Barr virus in systemic lupus erythematosus, rheumatoid arthritis and multiple sclerosis—association and causation. Viruses. (2012) 4:3701–30. doi: 10.3390/v4123701
13. Okada H, Kuhn C, Feillet H, Bach JF. The ‘hygiene hypothesis’ for autoimmune and allergic diseases: an update. Clin Exp Immunol. (2010) 160:1–9. doi: 10.1111/j.1365-2249.2010.04139.x
14. de Jesus GR, Mendoza-Pinto C, de Jesus NR, Dos Santos FC, Klumb EM, Carrasco MG, et al. Understanding and managing pregnancy in patients with lupus. Autoimmune Dis. (2015) 2015:943490. doi: 10.1155/2015/943490
15. Matsuki Y, Kawakami M, Ishizuka T, Kawaguchi Y, Hidaka T, Suzuki K, et al. SLE and Sjögren’s syndrome associated with unilateral moyamoya vessels in cerebral arteries. Scand J Rheumatol. (1997) 26:392–4. doi: 10.3109/03009749709065707
16. Fujiwara S, Miyazono M, Tsuda H, Fukui M. Intraventricular hemorrhage and cerebral ischemic attacks in the presence of lupus anticoagulant mimicking moyamoya disease. J Neurosurg Sci. (1993) 37:161–4.
17. El Ramahi KM, Al Rayes HM. Systemic lupus erythematosus associated with moyamoya syndrome. Lupus. (2000) 9:632–6. doi: 10.1191/096120300678828686
18. Fukui M. Guidelines for the diagnosis and treatment of spontaneous occlusion of the circle of Willis (‘moyamoya’ disease). Research Committee on Spontaneous Occlusion of the Circle of Willis (Moyamoya Disease) of the Ministry of Health and Welfare, Japan. Clin Neurol Neurosurg. (1997) 99 Suppl 2:S238–40. doi: 10.1016/S0303-8467(97)00082-6
19. Zhu Z, Liang Z, Liany H, Yang C, Wen L, Lin Z, et al. Discovery of a novel genetic susceptibility locus on X chromosome for systemic lupus erythematosus. Arthritis Res Ther. (2015) 17:349. doi: 10.1186/s13075-015-0857-1
20. Langfelder P, Horvath S. WGCNA: an R package for weighted correlation network analysis. BMC Bioinf. (2008) 9:559. doi: 10.1186/1471-2105-9-559
21. Daneshvar A, Mousa G. Regression shrinkage and selection via least quantile shrinkage and selection operator. PloS One. (2023) 18:e0266267. doi: 10.1371/journal.pone.0266267
22. Li J, Miao B, Wang S, Dong W, Xu H, Si C, et al. Hiplot: a comprehensive and easy-to-use web service for boosting publication-ready biomedical data visualization. Brief Bioinform. (2022) 23(4):bbac261. doi: 10.1093/bib/bbac261
23. Kiriakidou M, Ching CL. Systemic lupus erythematosus. Ann Intern Med. (2020) 172:Itc81–itc96. doi: 10.7326/AITC202006020
24. Asselman C, Hemelsoet D, Eggermont D, Dermaut B, Impens F. Moyamoya disease emerging as an immune-related angiopathy. Trends Mol Med. (2022) 28:939–50. doi: 10.1016/j.molmed.2022.08.009
25. Liu XM, Ruan XZ, Cai Z, Yu BR, He SP, Gong YH. Moyamoya disease caused by leptospiral cerebral arteritis. Chin Med J (Engl). (1980) 93:599–604.
26. Chen JB, Lei D, He M, Sun H, Liu Y, Zhang H, et al. Clinical features and disease progression in moyamoya disease patients with Graves disease. J Neurosurg. (2015) 123:848–55. doi: 10.3171/2014.10.JNS141140
27. Barber MRW, Clarke AE. Systemic lupus erythematosus and risk of infection. Expert Rev Clin Immunol. (2020) 16:527–38. doi: 10.1080/1744666X.2020.1763793
28. Masuda J, Ogata J, Yutani C. Smooth muscle cell proliferation and localization of macrophages and T cells in the occlusive intracranial major arteries in moyamoya disease. Stroke. (1993) 24:1960–7. doi: 10.1161/01.STR.24.12.1960
29. Weng L, Cao X, Han L, Zhao H, Qiu S, Yan Y, et al. Association of increased Treg and Th17 with pathogenesis of moyamoya disease. Sci Rep. (2017) 7:3071. doi: 10.1038/s41598-017-03278-8
30. Wangriatisak K, Kochayoo P, Thawornpan P, Leepiyasakulchai C, Suangtamai T, Ngamjanyaporn P, et al. CD4(+) T-cell cooperation promoted pathogenic function of activated naïve B cells of patients with SLE. Lupus Sci Med. (2022) 9(1):e000739. doi: 10.1136/lupus-2022-000739
31. Ahamada MM, Jia Y, Wu X. Macrophage polarization and plasticity in systemic lupus erythematosus. Front Immunol. (2021) 12:734008. doi: 10.3389/fimmu.2021.734008
32. Burbano C, Villar-Vesga J, Vásquez G, Muñoz-Vahos C, Rojas M, Castaño D. Proinflammatory differentiation of macrophages through microparticles that form immune complexes leads to T- and B-cell activation in systemic autoimmune diseases. Front Immunol. (2019) 10:2058. doi: 10.3389/fimmu.2019.02058
33. Hernández B, Parnell A, Pennington SR. Why have so few proteomic biomarkers “survived” validation? (Sample size and independent validation considerations). Proteomics. (2014) 14:1587–92. doi: 10.1002/pmic.201300377
34. Mandrekar JN. Receiver operating characteristic curve in diagnostic test assessment. J Thorac Oncol. (2010) 5:1315–6. doi: 10.1097/JTO.0b013e3181ec173d
35. Wikramanayake TC, Nicu C, Chéret J, Czyzyk TA, Paus R. Mitochondrially localized MPZL3 emerges as a signaling hub of mammalian physiology. Bioessays. (2021) 43:e2100126. doi: 10.1002/bies.202100126
36. Nappo F, Esposito K, Cioffi M, Giugliano G, Molinari AM, Paolisso G, et al. Postprandial endothelial activation in healthy subjects and in type 2 diabetic patients: role of fat and carbohydrate meals. J Am Coll Cardiol. (2002) 39:1145–50. doi: 10.1016/S0735-1097(02)01741-2
37. Huang R, Li L, Wang Z, Shen K. A systemic pan-cancer analysis of MPZL3 as a potential prognostic biomarker and its correlation with immune infiltration and drug sensitivity in breast cancer. Front Oncol. (2022) 12:901728. doi: 10.3389/fonc.2022.901728
38. Stern YE, Al-Ghabkari A, Monast A, Fiset B, Aboualizadeh F, Yao Z, et al. Met-HER3 crosstalk supports proliferation via MPZL3 in MET-amplified cancer cells. Cell Mol Life Sci. (2022) 79:178. doi: 10.1007/s00018-022-04149-w
Keywords: systemic lupus erythematosus, moyamoya disease, transcriptomic analysis, crosstalk genes, immune infiltration
