The single-cell transcriptome of mTECs and CD4+ thymocytes under adhesion revealed heterogeneity of mTECs and a network controlled by Aire and lncRNAs

To further understand the impact of deficiency of the autoimmune regulator (Aire) gene during the adhesion of medullary thymic epithelial cells (mTECs) to thymocytes, we sequenced single-cell libraries (scRNA-seq) obtained from Aire wild-type (WT) (Aire^wt/wt) or Aire-deficient (Aire^wt/mut) mTECs cocultured with WT single-positive (SP) CD4⁺ thymocytes. Although the libraries differed in their mRNA and long noncoding RNA (lncRNA) profiles, indicating that mTECs were heterogeneous in terms of their transcriptome, UMAP clustering revealed that both mTEC lines expressed their specific markers, i.e., Epcam, Itgb4, Itga6, and Casp3 in resting mTECs and Ccna2, Pbk, and Birc5 in proliferative mTECs. Both cocultured SP CD4⁺ thymocytes remained in a homogeneous cluster expressing the Il7r and Ccr7 markers. Comparisons of the two types of cocultures revealed the differential expression of mRNAs that encode transcription factors (Zfpm2, Satb1, and Lef1), cell adhesion genes (Itgb1) in mTECs, and Themis in thymocytes, which is associated with the regulation of positive and negative selection. At the single-cell sequencing resolution, we observed that Aire acts on both Aire WT and Aire-deficient mTECs as an upstream controller of mRNAs, which encode transcription factors or adhesion proteins that, in turn, are posttranscriptionally controlled by lncRNAs, for example, Neat1, Malat1, Pvt1, and Dancr among others. Under Aire deficiency, mTECs dysregulate the expression of MHC-II, CD80, and CD326 (EPCAM) protein markers as well as metabolism and cell cycle-related mRNAs, which delay the cell cycle progression. Moreover, when adhered to mTECs, WT SP CD4⁺ or CD8⁺ thymocytes modulate the expression of cell activation proteins, including CD28 and CD152/CTLA4, and the expression of cellular metabolism mRNAs. These findings indicate a complex mechanism through which an imbalance in Aire expression can affect mTECs and thymocytes during adhesion.

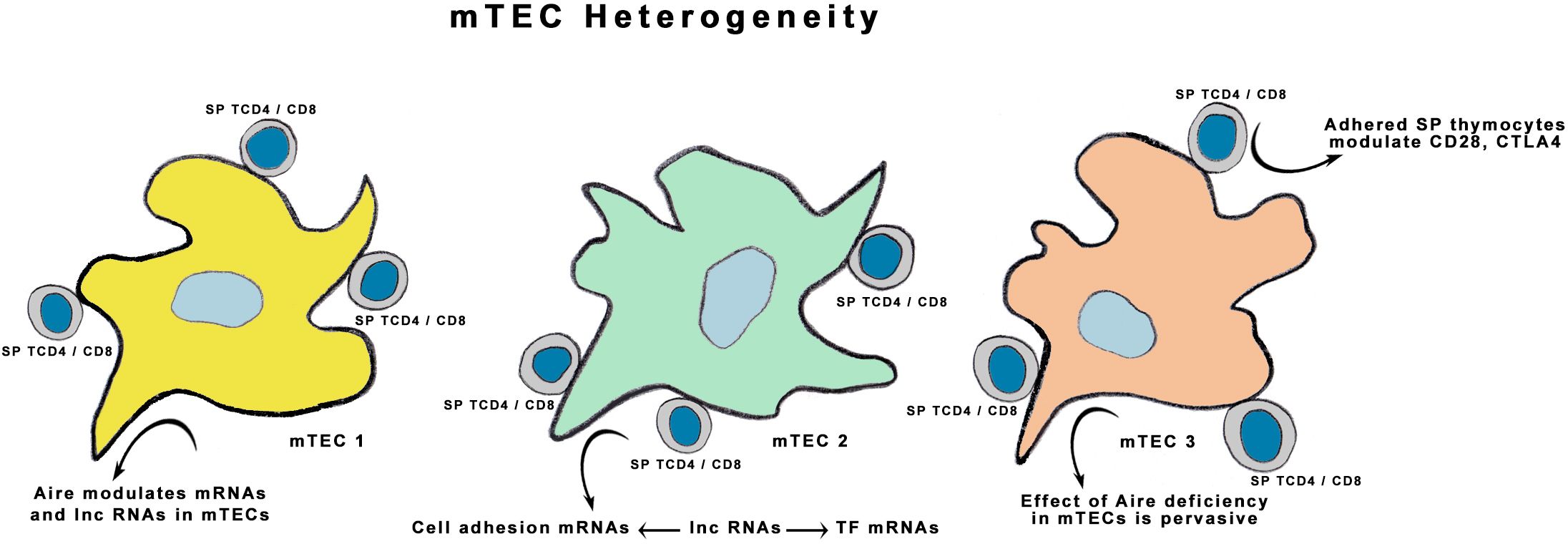

GRAPHICAL ABSTRACT

Graphical Abstract.

Introduction

Adhesion between medullary thymic epithelial cells (mTECs) and thymocytes is a crucial step for single-positive (SP) CD4⁺ or CD8⁺ thymocytes recognize self-antigen peptides presented by mTECs through MHC-II molecules. In parallel, thymocyte clones that express TCRα/β with high affinity/avidity for self-antigens are eliminated by apoptosis (1–5). These processes are known as thymic crosstalk and negative selection of autoreactive thymocytes, which represent the basis of central immune tolerance induction (6–8).

mTECs are peculiar cells, as they express approximately 80% of their functional genome in terms of mRNAs, maintaining their morpho functional identity, which is important for thymocyte attraction and adhesion (9–11). The autoimmune regulator (Aire) gene encodes the AIRE protein, a transcriptional autoantigen controller that primarily controls mTEC transcription. Within the thymus, it is exclusively expressed in the medulla by mTECs (12–14). A second transcriptional regulator in mTECs that functions as a classical transcription factor is the FEZ family zinc finger 2 (Fezf2) gene (15, 16). Although the AIRE and FEZF2 proteins act differently on chromatin, their final effects seem to be synergistic since they control transcription in mTECs.

AIRE pushes RNA polymerase II (RNA Pol II) anchored to the chromatin of mTECs, continuing the transcription elongation phase (17). This process permits RNA Pol II to transcribe mRNAs, miRNAs, and long noncoding RNAs (lncRNAs) (18, 19). The lncRNAs were chosen for the study due to previous observations from our group showing that Aire controls this RNA species in mTECs (18). The lncRNAs are transcribed by the RNA Pol II, but unlike mRNAs, they do not serve as templates for protein synthesis. Their function is associated with the control of gene expression at different levels, such as its association with chromatin for transcription controlling, lncRNA-mRNA interaction for mRNA translation controlling, and the lncRNA-protein interaction. Therefore, lncRNAs can interact with all types of informational molecules in mammalian cells whose function is associated with the control of gene expression flow, chromatin remodeling, and epigenetic regulation (20, 21). In turn, the lncRNAs are capable of mutual interactions and could result in posttranscriptional control of mTEC gene expression.

These processes result in the thymic medullary expression of virtually all self-antigens, representing all tissue and organ antigens; this process is termed promiscuous gene expression (PGE) (11, 13, 14, 22, 23). However, PGE in mTECs is stochastic; each cell expresses a small group of autoantigens that characterize a given organ (23–25). Therefore, self-representation in the thymus must be interpreted as a whole mTEC population process; i.e., the body’s self-representation is made by the whole set of mTECs, which guarantees immunological tolerance (26, 27).

Our group has been working on the influence of Aire or noncoding RNAs on cell adhesion-related mRNAs and the mTEC–thymocyte adhesion process (18, 28, 29). We showed that Aire controls the expression of proteins involved in cell-cell adhesion and that when Aire is deficient, mTECs disturb their adhesion to thymocytes. We also observed that Aire controls i) the expression of miRNAs in mTECs (30–32), ii) the expression of lncRNAs modulated by Aire when mTECs adhere to thymocytes (18), iii) the expression of specific miRNAs controlling mTEC–thymocyte adhesion (28), and iv) the ability of miR-155 to control Aire (33).

In this study, we hypothesize that Aire deficiency in mTECs is pervasive. In addition to affecting the mTECs’ transcriptome, which affects their heterogeneity, the thymocytes that adhere to these cells could also present disturbances in their transcriptional expression.

Using single-cell RNA-seq, a suitable method for dissecting cell heterogeneity (34), we have uncovered a novel aspect of Aire deficiency. Results show that Aire deficiency not only modifies the mTEC clusters but also triggers a unique transcriptional response in SP CD4⁺ thymocytes upon their interaction with these cells. This response is mediated by intricate interactions between lncRNAs and mRNAs encoding transcription factors or adhesion molecules.

Materials and methods

Mice

The wild-type (WT) C57BL/6J Mus musculus mice were obtained from Jackson Laboratory (https://www.jax.org/) and bred and maintained at the Central Animal Facility, University of São Paulo, Ribeirão Preto Campus, SP, Brazil, under specific-pathogen-free conditions in 0.45-μm air-filtered ventilated racks at a constant temperature of approximately 22°C under 12-h dark/light cycles and receiving water and food ad libitum. The animals were killed by CO₂ aspiration in an acrylic chamber. The thymus gland was removed by thoracic surgery, and single-positive (SP) CD4⁺ or CD8⁺ thymocytes were separated through flow cytometry cell sorting using specific antibodies as described below. This work was approved by the Ethics Committee for Animal Research, Ribeirão Preto Medical School, University of São Paulo (CEUA approval # 003/2017-1).

Flow cytometry

For flow cytometry analysis and sorting, we used a BD FACS Calibur apparatus (Beckton Dickinson Biosciences, Franklin Lakes, NJ) and the following antibodies: APC-Cy7 rat anti-mouse CD8a (Cat # 557654, BD Pharmingen, Franklin Lakes, NJ), PE-labeled rat IgG2b, k anti-mouse CD4 antibody (BioLegend, San Diego, CA, Cat # 100512), APC rat anti-mouse CD326 (Epcam) (Cat # 118214, BioLegend), FITC-labeled rat anti-mouse I-A/I-E (MHC-II) (Cat # 553623, Becton Dickinson), and PE-Cy7anti-mouse CD80 monoclonal antibody (Cat # 12-0801-82, Invitrogen, Waltham, MA). For data analysis, we used the bundled BD FACSDiva software (https://www.bdbiosciences.com/en-us/products/software/instrument-software/bd-facsdiva-software).

Cells and cocultures

We employed the murine (M. musculus) Aire WT mTEC 3.10 line (EpCAM⁺, Ly51^-, UEA1⁺), as previously described (35, 36). These cells express the Aire, Ccl21, and Sap1 mRNAs (19) and the AIRE protein (18, 33). Moreover, we previously showed via immunofluorescence that the WT mTEC 3.10 line expresses Aire mRNA and the AIRE protein, which is localized in the cell nucleus (37, 38). According to an mTEC phenotypic classification proposed (39), the mTEC 3.10 cell line is compatible with the mTEC^low differentiation stage.

In addition, we used a CRISPR-Cas9-generated heterozygous Aire mutant (Aire^wt/mut), here termed Aire-deficient, which was derived from the WT mTEC 3.10 cell line and is known as the mTEC CS8D6 clone (40) This clone is a carrier of an indel NHEJ-derived mutation (del 3554G) in the Aire exon 6, which encodes the SAND domain of the AIRE protein. The FASTA sequence of part of the Aire exon 6 gene, which encodes the SAND domain harboring the del 3554G mutation, is available at the GenBank NCBI (https://www.ncbi.nlm.nih.gov/nucleotide/) under accession number PP034558.

For mTEC–thymocyte cocultures, we followed a protocol as previously described (18) with modifications. In brief, the mTECs were cultured in RPMI 1640 medium containing 10% inactivated fetal bovine serum and antibiotics at 37°C in a 5% CO₂ atmosphere. Semiconfluent cultures were detached from their culture flasks by conventional trypsin/EDTA treatment, washed once with sterile PBS at room temperature, resuspended in RPMI 1640 medium, and seeded in new culture flasks (2 × 10⁶ cells per 75 cm² Corning^® cell culture flasks).

For this study, Aire WT or Aire-deficient mTECs were cocultured with thymocytes, as follows: The WT SP CD4⁺ or CD8⁺ thymocytes were added to mTECs at a ratio of 5:1 (thymocyte:mTEC) and cocultured in RPMI medium containing 10% inactivated fetal bovine serum and antibiotics at 37°C in a 5% CO₂ atmosphere for 36 hours. Next, the nonadherent thymocytes were carefully removed from cultures by washing with PBS at 37°C and discarded. The culture flasks were washed more vigorously with PBS at 4°C to remove the adherent thymocytes, which were kept for counting.

The mTEC cells were detached from their culture flasks by conventional trypsin/EDTA treatment and resuspended in PBS for counting. Cell counts for either thymocytes or mTECs were performed on a Cellometer Auto T4 Cell Viability Counter (Nexcelon Bioscience, Lawrence, MA, USA). However, estimating the individual adhesion strength of each mTEC-thymocyte pair is impossible, as is determining whether this effected the transcriptional response of these cells. However, our methodology ensures that CD4+ T cells not adhering to mTECs were not collected since they were removed through washing with PBS, thereby focusing our analysis on the relevant interacting cells. While there may be differences in binding affinities, these variations were consistent across all samples. Thus, maintaining uniform experimental conditions mitigated any impact on our study from differing affinities.

After incubation, the cocultures with SP CD4⁺ thymocytes were subjected to single-cell library preparation as described below. Only cocultures with SP CD4⁺ thymocytes were used to prepare single-cell libraries. The cocultures with SP CD8⁺ thymocytes were used for cell surface markers quantifying mTECs.

Western blotting for the AIRE protein

Western blotting of the AIRE protein was performed according to a protocol adjusted in our laboratory as previously described (38), except that in this study, we changed the anti-AIRE primary and secondary antibodies.

The Aire WT or Aire-deficient mTECs were lysed using RIPA lysis and extraction buffer (Cat # 89900, Thermo-Fisher) supplemented with a complete protease inhibitor cocktail (Cat # 539134, Calbiochem, Billerica, MA). The supernatant from a 10,000x g centrifugation at 4°C for 10 minutes was collected, and cell lysates were heated at 95°C for 5 minutes in 2 x SDS-Laemmli buffer (Cat # 161073, Bio-Rad). Aliquots containing 50 μg total protein were resolved on 10% SDS-PAGE, and bands were electro-transferred onto a PVDF membrane (Cat # 162-0177, Immun-Blot PVDF membrane, Bio-Rad) using a Bio-Rad Mini Trans-Blot transfer system, following the manufacturer’s protocol. The transferred membranes were blocked with 5% low-fat milk in PBS with 0.1% Tween 20 (TBS-T) for 1 hour, washed twice in PBS, and then incubated overnight at 4°C with rabbit anti-mouse AIRE polyclonal primary antibody (Cat # orb228738, Biorbyt, Durham, NC). After washing with TBS-T, the blots were incubated for 1 hour with goat anti-rabbit HRP-conjugated secondary IgG (Cat # 31460, Thermo-Fisher). Immunoreactive bands were visualized using a chemiluminescent substrate (Cat # WBLUF0500, Immobilon^® Forte, Millipore), and protein bands were detected using the ImageQuant™ LAS 500 system (GE Life Sciences, Piscataway, NJ, USA). After washing to remove the primary and secondary antibodies, the membrane was incubated with an anti-GAPDH rabbit primary antibody (Cat # 2118, Cell Signaling Technology, Beverly, MA), following incubation with a peroxidase-conjugated anti-rabbit antibody. The membrane was developed as described above.

Cell cycle analysis

The cell cycle progression of mTECs was evaluated by using the conventional propidium iodide protocol (Cat # BMS 500PI, Thermo Fisher, Waltham, MA) and analyzed in a FACS Calibur apparatus in the PE channel as previously described (29). Briefly, the samples were resuspended in 200 μL of the propidium iodide (5 μg/mL) solution and maintained for 30 min at 37°C. At least three independent experiments were analyzed.

Single-cell library preparation and RNA sequencing

The preparation of single-cell libraries was performed according to the 10X Genomics (https://www.10xgenomics.com/) protocol (https://assets.ctfassets.net/an68im79xiti/1eX2FPdpeCgnCJtw4fj9Hx/7cb84edaa9eca04b607f9193162994de/CG000204_ChromiumNextGEMSingleCell3_v3.1_Rev_D.pdf) with Chromium Next GEM single cell 3´ technology, paired, library and gel bead kit v3.1 (PN-1000128) and a Chromium instrument (10X Genomics, Pleasanton, CA). In brief, the single cells were isolated and lysed, and the mRNAs were purified and primed with a poly(T) primer for reverse transcription. Unreactive primers were removed by exonuclease I digestion. Poly(A) tails were added to the first-strand cDNA at the 3’ end and annealed to poly(T) primers for second-strand cDNA generation. The cDNAs were PCR-amplified, sheared, and prepared into a sequencing library.

The library from the coculture of Aire-deficient mTECs with WT SP CD4⁺ thymocytes yielded 8,391 cells and a mean of 30,641 reads per cell. The library from the coculture of Aire WT mTECs with WT SP CD4⁺ thymocytes yielded 1,991 cells and a mean of 106,003 reads per cell. For the comparisons between the two libraries, the duplets were identified and removed, and the values were normalized using the SCTransform function within the Seurat package (https://satijalab.org/seurat/).

Libraries were prepared from cocultures of Aire-deficient cells (Aire^wt/mut, clone CS8D6) (40) with WT SP CD4⁺ thymocytes (one library) or Aire WT (Aire^wt/wt) mTEC 3.10 cells with WT SP CD4⁺ thymocytes (one library). The SP CD4⁺ thymocytes were separated by flow cytometry from the thymus of one four-week-old female WT C57BL/6J mouse using a BD FACS Calibur and a primary FITC-conjugated rat anti-mouse CD4 antibody (Cat # 269349; Abcam, Waltham, MA) according to a previously described protocol (41, 42). The viability of the cocultured cells was checked with an automated Cellometer Auto T4 Cell Counter (Viability Counter Nexcelom Bioscience, Lawrence, MA), whose cocultures presented 94.2% viability (Aire WT mTEC 3.10 cells cocultured with WT SP CD4⁺ thymocytes) and 98.4% viability (Aire-deficient mTECs cocultured with WT SP CD4⁺ thymocytes) just before being used to prepare the libraries.

Total RNA samples were prepared using the mirVana kit (Ambion, Grand Island, NY) following the manufacturer’s instructions. The integrity and quality of the RNAs and the respective cDNA libraries were assessed using microfluidic electrophoresis on an Agilent Bioanalyzer (Model 2100) with an RNA nano chip 6000 or a DNA LabChip (Agilent, Santa Clara, CA). Only phenol- and protein-free samples with an RNA integrity number (RIN) ≥ 9.0 were used. The RNAs of the two libraries were sequenced on a flow-cell SP 150PE NovaSeq 6000 platform (Illumina, San Diego, CA) (paired and coverage of approximately 200 million reads per sample). The raw sequence reads are available at ncbi.nlm.nih.gov (BioProject PRJNA1001046).

Bioinformatics analysis of single-cell RNA-seq data

The demultiplexing of the raw data reads was performed using the demultiplexing program (https://demultiplex.readthedocs.io/en/latest/). For the analysis and exploration of the scRNA-seq data, the Seurat v2.3.4 package was used (https://satijalab.org/seurat/articles/install.html) (43–45) in the R environment (https://www.r-project.org/). We used the Seurat FindAllMarkers function (https://satijalab.org/seurat/) to identify the DE mRNAs between clusters (log fold change threshold = 0.25). This package carries out quality control of cells and mRNAs, identification of the most variable mRNAs, and cell clustering. We use the Seurat package that contains the SCTransform tool for normalization based on negative binomial regression models and calculation of Pearson residuals, which takes into account scale factors (number of cells/depth) in addition to other variables techniques such as, for example, the percentage of mitochondria (percent.mt) and the difference between the observed vs expected counts by the adjusted model. Moreover, the datasets were normalized independently, and an adjustment was made to the reading depth separately, allowing the data to be compared even though they were of different sizes. The selection of marker mRNAs and cell type identification were based on the literature (44, 45). With respect to quality, only mRNAs expressed in at least three cells and cells with at least 200 expressed mRNAs and the presence of up to 10% mitochondrial DNA were considered for analysis. Clustering was performed considering 30 PCs (Seurat standard) with a resolution of 0.1.

Functional enrichment analysis of the mRNA transcripts was carried out with the Gene Ontology Panther tool (https://www.pantherdb.org/). The differentially expressed (DE) lncRNAs identified in this study that were already enriched and validated by other studies were identified via the LncTAR 2.0 platform (https://lnctard.bio-database.com/). The posttranscriptional interaction networks between lncRNAs, adhesion molecules, and transcription factor mRNAs associated with the respective biological functions were drawn using the Cytoscape version 3.10.1 tool (https://cytoscape.org/). The input-validated lncRNAs and mRNAs data were merged to reconstruct the interaction networks. The resulting networks allow one to identify the interactions between these types of RNAs, their biological functions, and the cells involved.

Results

Single-cell RNA-seq analysis of Aire wild-type mTEC 3.10 cells and wild-type single-positive CD4⁺ thymocytes under adhesion conditions

The UMAPs allowed us to investigate the clusters of Aire wild-type (WT) mTEC 3.10 cells and WT single-positive (SP) CD4⁺ thymocytes under coculture. Four groups of cells were identified according to the expression of specific transcriptional markers on TECs (mTECs, TEC I, and TEC II) or CD4⁺ T cells (Figure 1A). To identify mTECs, the expression of the classic marker mRNAs Epcam, Itgb4, Itgb6, and Casp3 (Sca1) was evaluated (Figure 1; Supplementary Figure 1). The marker mRNAs Ccna2, Pbk, and Birc5 characterize proliferative TECs, in addition to two other clusters that characterize the TEC I and TEC II groups (Supplementary Figure 2). Naïve CD4⁺ T cells were identified; these cells remained in a cluster expressing the respective mRNAs that encode Il7r or Ccr7 (Figure 1). The mRNAs with high DE values are highlighted and shown in the heatmap (top mRNAs). The transcription of mRNAs with more significant variability is highlighted in the heat map and volcano plot (variable mRNAs) (Supplementary Figures 3, 4).

Figure 1

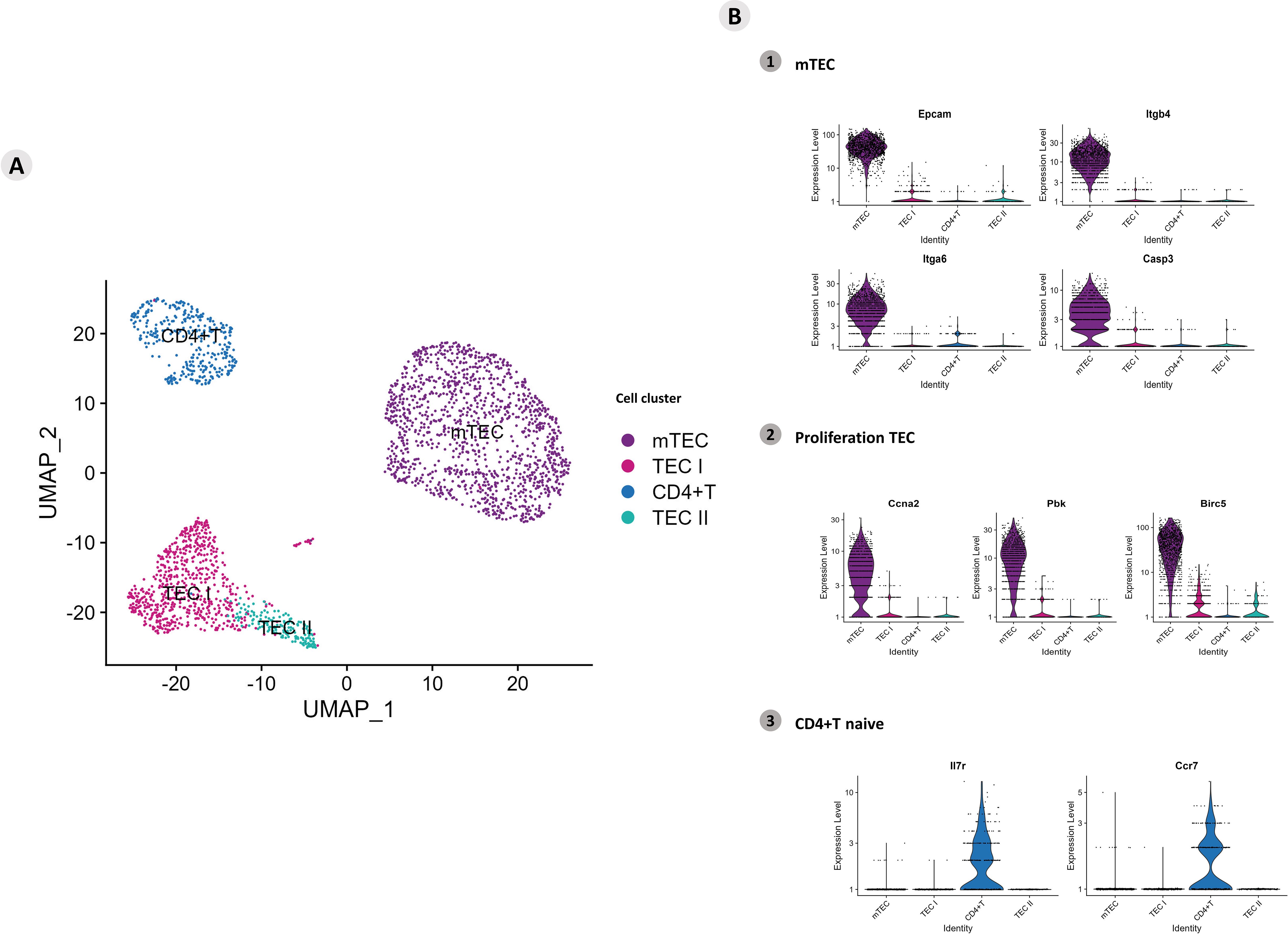

Figure 1. Single-cell mRNA transcriptional analysis of Aire wild-type medullary thymic epithelial cells cocultured with wild-type naïve CD4⁺ thymocytes. (A) UMAP clustering of TECs (TEC I, TEC II, mTECs, and wild-type CD4⁺ thymocytes) based on their transcriptional profiles. (B) mTECs were identified based on their expression of Epcam, Itgb4, Itgb6 and Casp3 mRNA markers (B1), proliferative TECs based on Ccna2, Pbk and Birc5 expression (B2), and naïve CD4⁺ thymocytes based on Ilr7 and Ccr7 expression (B3).

The functional enrichment allowed us to understand the biological function of mRNA transcripts with high differential expression. As expected, annotations revealed several biological processes, among which we highlighted the transcriptional regulation process (Zfpm2, Satb1, and Lef1), cell adhesion (Itgb1), the immune system (Themis) and cellular metabolism processes as growth factor gene transcripts (Areg and ATP catalysts as Lars2) (Supplementary Figure 5).

Functional enrichment of all DE gene transcripts (p > 0.05) allowed the identification of mRNAs that encode transcription factors or adhesion molecules. A total of 5,675 genes were enriched according to the Panther algorithm (https://www.pantherdb.org/), and gene transcripts involved in biological and protein class processes were obtained (Figure 2A). A heatmap was constructed to visualize the differential expression of the mRNAs that encode adhesion molecules or transcription factor categories (Supplementary Figure 6). A dot-plot was drawn for the percentage of gene transcripts expressed in the cells of each cluster (Figure 2B).

Figure 2

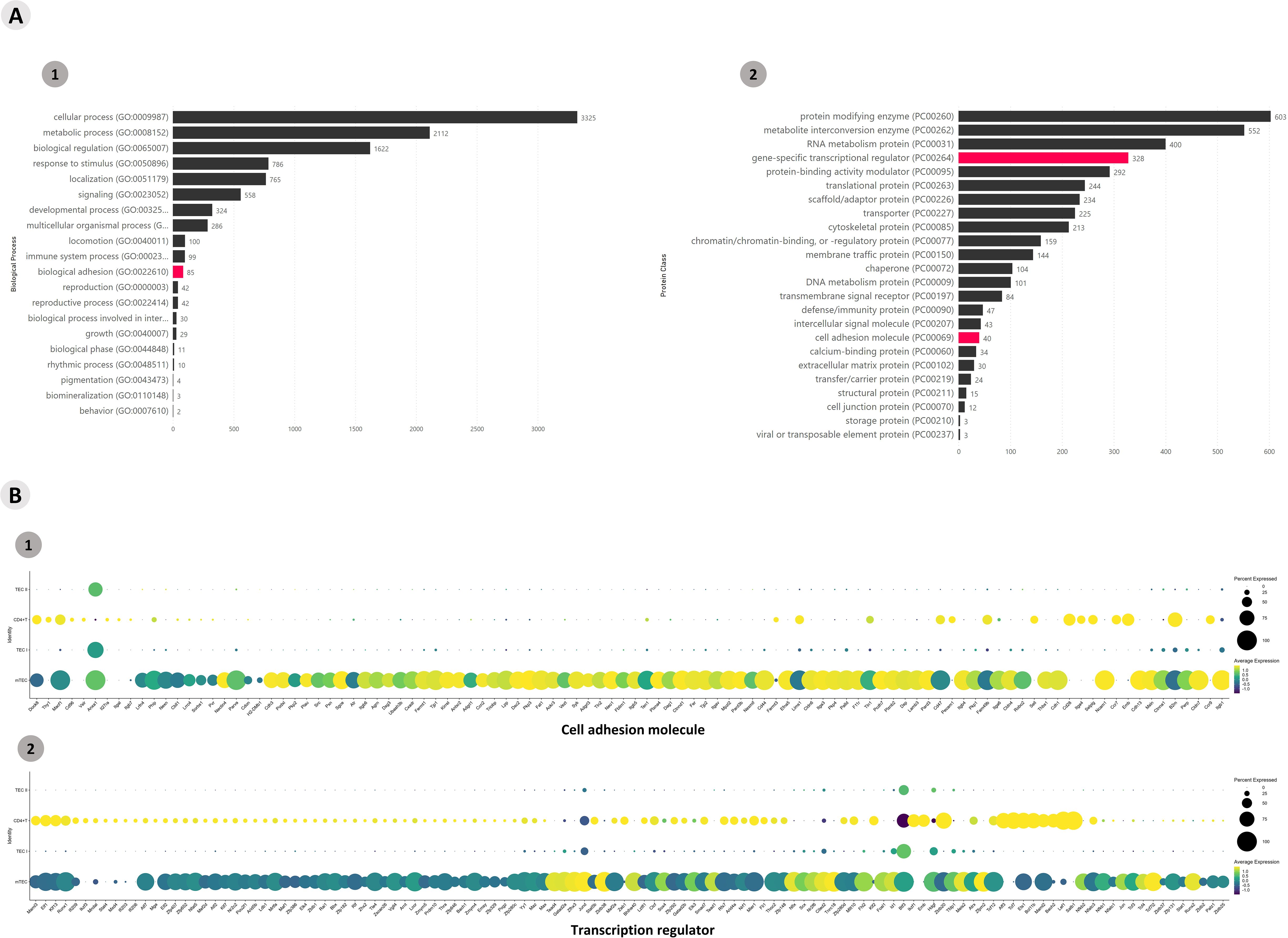

Figure 2. Transcriptional profiling of all mRNAs expressed among the Aire wild-type medullary thymic epithelial cells or wild-type naïve CD4⁺ thymocyte clusters when cocultured. (A) The functional annotation enrichment of all differentially expressed mRNAs enabled the identification of cell adhesion and transcriptional regulator mRNAs (A1-2); (B) Percent expressed and average expression of cell adhesion mRNAs or transcription regulator mRNAs among cell clusters.

The differential expression of lncRNAs was also identified, and it was possible to analyze their expression profile (Supplementary Figure 7). The profiles of lncRNA-type markers in the mTEC, TEC I, and TEC II clusters and in the CD4⁺ T cells are shown using violin plots (Figure 3A). The DE lncRNAs from this study that were already enriched and validated by other studies were identified on the LncTAR 2.0 platform (https://lnctard.bio-database.com/). The validated lncRNAs are highlighted in terms of expression level, and the percentage of lncRNAs expressed in each cluster was drawn separately in a dot-plot graph (Figure 3B).

Figure 3

Figure 3. Transcriptional profiling of lncRNAs among the different Aire wild-type medullary thymic epithelial cells or wild-type naïve CD4⁺ thymocyte clusters. (A) Violin plots of percentage expression of lncRNAs (A); identification of individual lncRNAs that are expressed by specific cell types; average expression of lncRNAs among the different medullary thymic epithelial cells or wild type naïve CD4⁺ thymocytes (B).

The information on those mRNAs that encode adhesion molecules or transcription factors and the previously validated lncRNAs enabled the construction of a posttranscriptional interaction network (Figure 4).

Figure 4

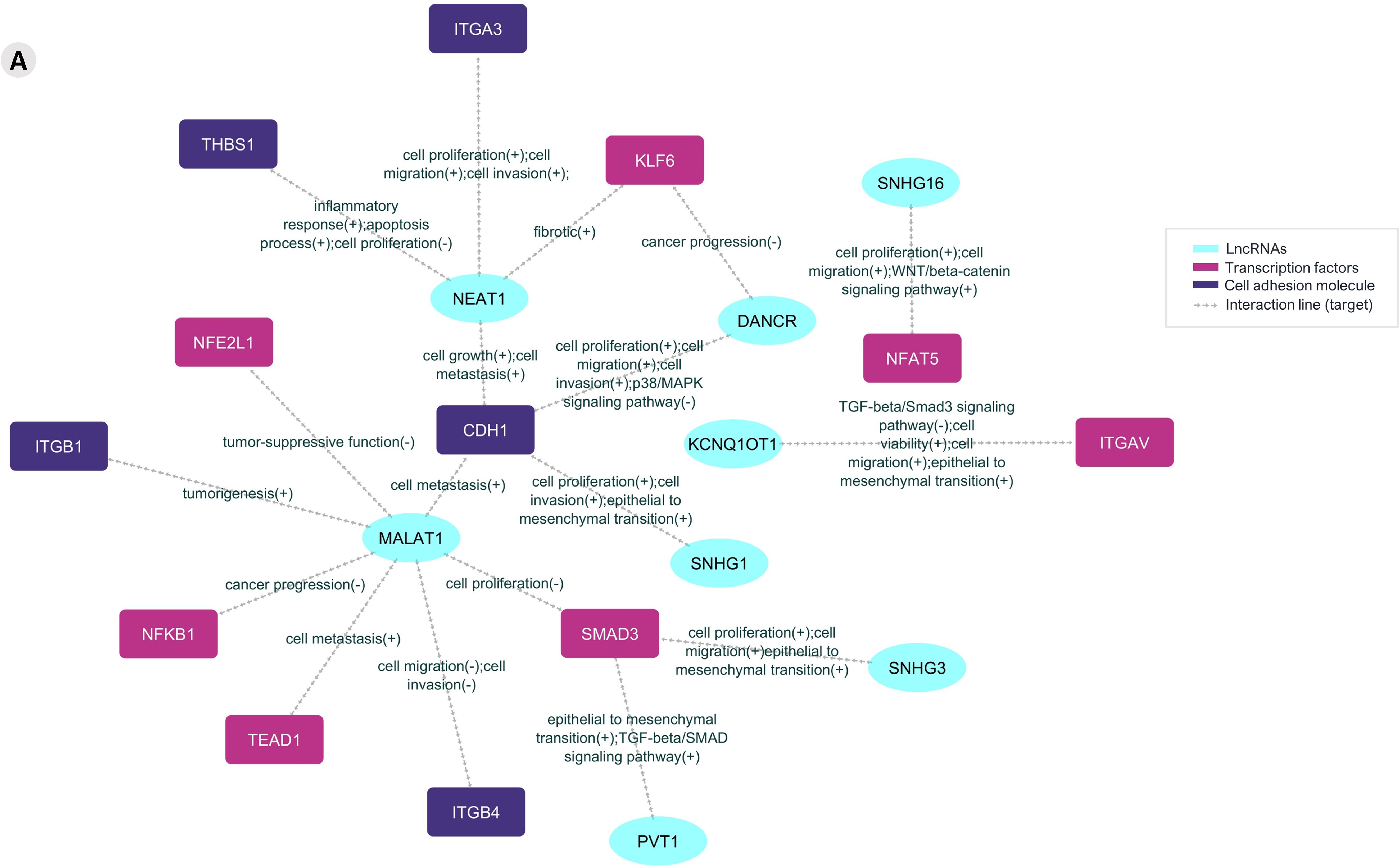

Figure 4. The prediction lncRNA-mRNA posttranscriptional interaction network from Aire wild-type mTECs and wild-type CD4⁺ thymocytes. The differentially expressed and previously validated lncRNAs observed among the Aire WT medullary thymic epithelial cell clusters or CD4⁺ thymocytes can establish interactions with target mRNAs that encode adhesion molecules or transcriptional regulators.

AIRE protein expression

Compared to the Aire WT mTEC 3.10, the Aire-deficient (Aire ^wt/mut, clone CS8D6 harboring del 3554G) expressed lower amounts of the ~57 kDa AIRE protein. The remaining amount of AIRE observed in the Aire-deficient cells may be due to the expression of the WT allele (Supplementary Figure 8).

Single-cell RNA-seq analysis of Aire-deficient clone and wild-type CD4⁺ thymocytes after adhesion

It was possible to identify lncRNAs, their target mRNA transcripts, and their respective biological processes. This information created an interaction network between lncRNAs and the respective mRNAs that encode adhesion molecules or transcription factors associated with biological function (Figure 5).

Figure 5

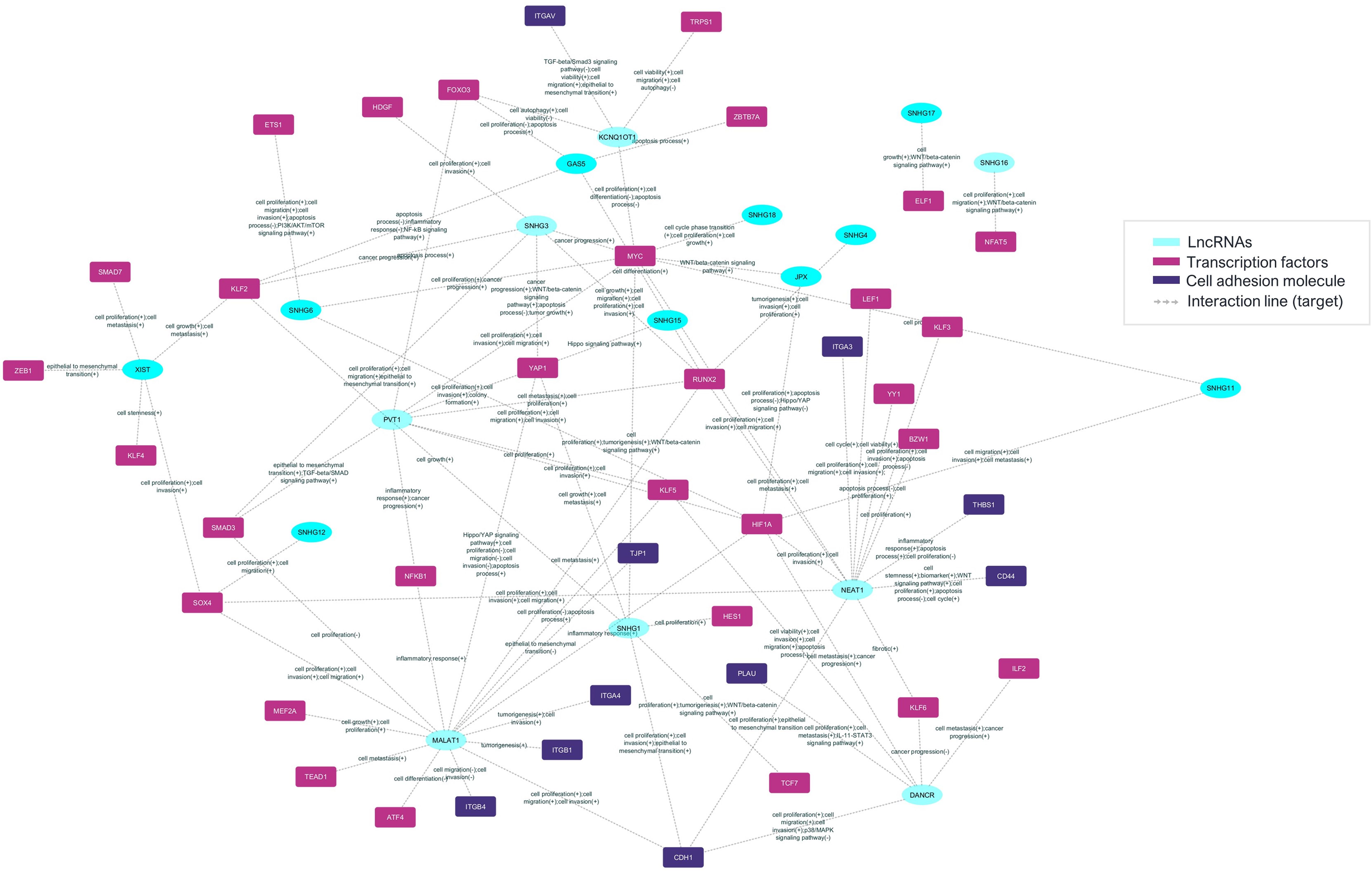

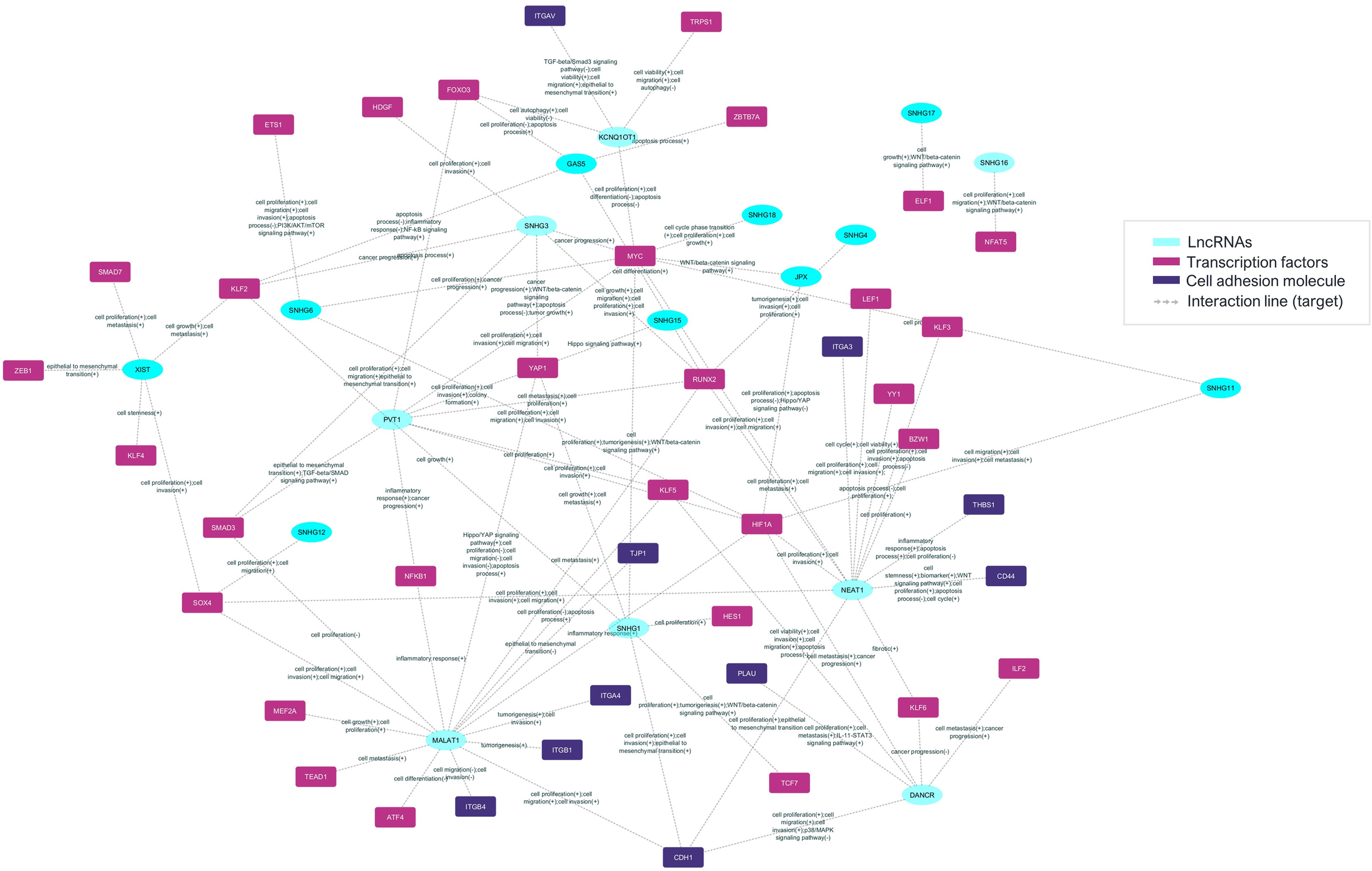

Figure 5. The prediction of the lncRNA-mRNA posttranscriptional interaction network between mRNAs and lncRNAs in Aire-deficient medullary thymic epithelial cells and wild-type CD4⁺ thymocytes. The differentially expressed and previously validated lncRNAs observed among the Aire mutant medullary thymic epithelial cell clusters or wild-type CD4⁺ thymocytes can establish interactions with target mRNAs that encode adhesion molecules or transcriptional regulators.

We subsequently investigated the integrated modulation profile of mRNA and lncRNA expression in Aire-deficient mTECs and WT SP CD4⁺ thymocytes. The datasets were integrated, and cellular clusters were identified using the primary markers of mTECs and CD4⁺ thymocytes (Figure 6).

Figure 6

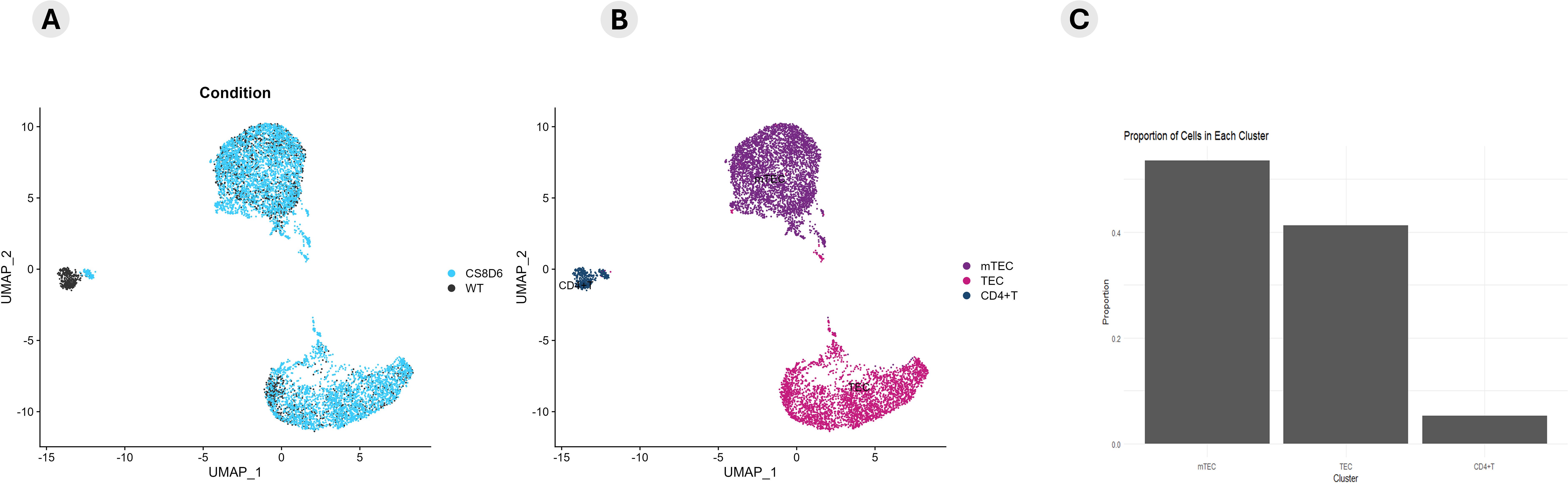

Figure 6. Integrative coexpression analysis. The datasets from Aire wild-type cells, Aire-deficient medullary thymic epithelial cells, and wild-type CD4⁺ thymocytes were integrated to determine how their transcriptional modulation could distinguish between Aire wild-type and Aire-deficient TECs (A) or between TECs, mTECs and wild-type CD4⁺ thymocytes (B). A proportion plot of cells in each cluster (C) of the UMAP (B) was generated. The identification of cell clusters was performed according to the expression of specific mRNA markers (Epcam, Ccna2, and Birc5 for TECs or mTECs) or (Ilr7 and Ccr7 for CD4⁺ thymocytes) (B, C). The expression profiles of enriched mRNAs that encode cell adhesion molecules or transcriptional regulators are shown in the dot-plot graph (D1-2).

The expression profiles of the enriched mRNAs, such as those encoding adhesion molecules or transcription factors, are shown in the dot-plot graphs (Figure 6). The expression levels are comparative and are represented individually for each cluster; the conditions are given on a scale between the minimum and maximum expression and the percentage of expression of these mRNAs in each cell.

The clusters of mTECs were identified according to the transcription of the markers (Epcam, Itgb4, Itgb6, and Casp3/Sca1) for mTECs and (Ccna2, Pbk and Birc5) for proliferative TECs the expression of single-positive CD4⁺ thymocyte-specific markers (IL7r and Ccr7) (Figure 7; Supplementary Figure 9).

Figure 7

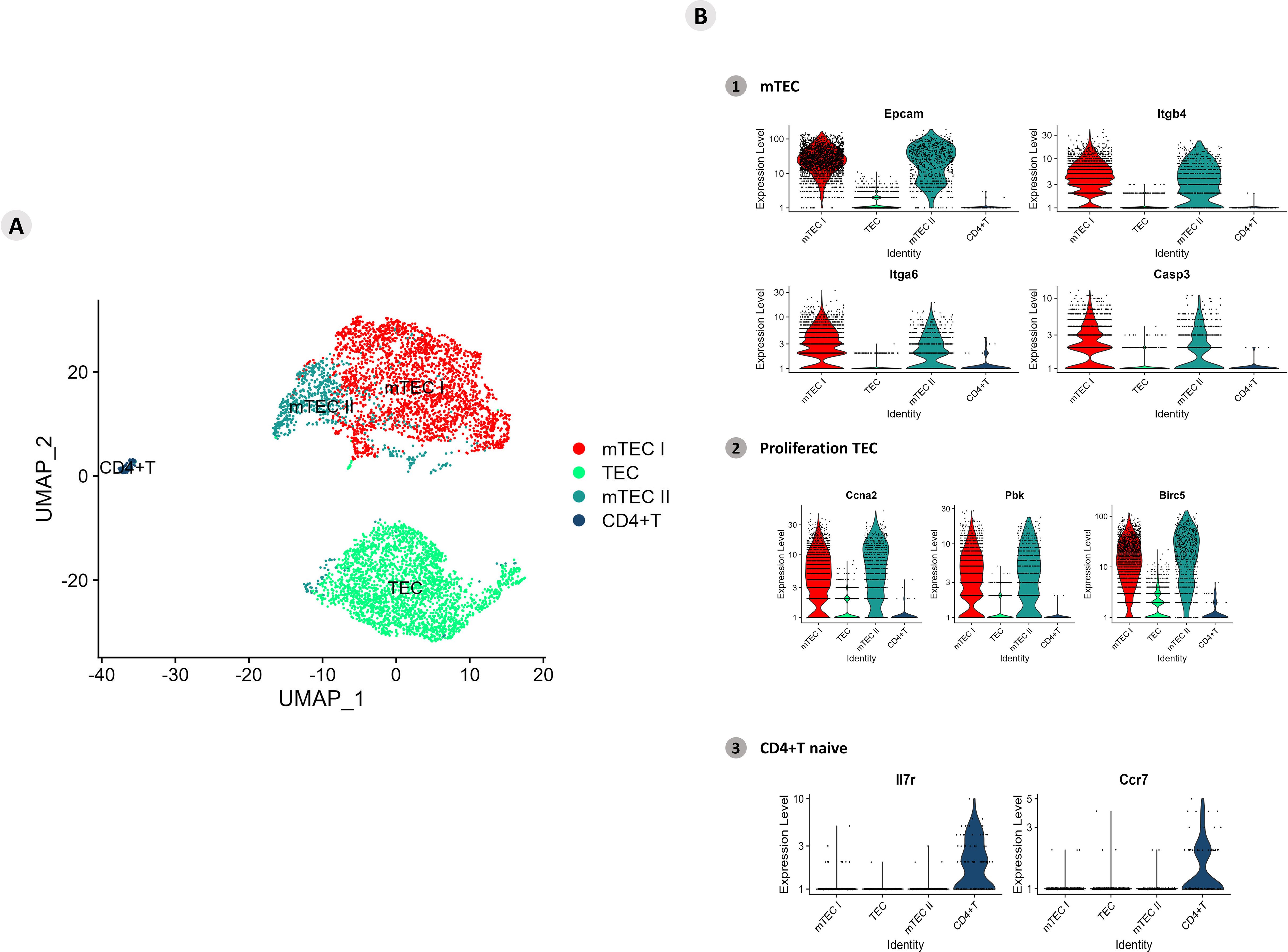

Figure 7. Single-cell mRNA transcriptional analysis of Aire-deficient medullary thymic epithelial cells cocultured with wild-type CD4⁺ thymocytes. (A) UMAP clustering of TECs (TEC, mTEC I, mTEC II, and CD4⁺ thymocytes) based on their transcriptional profiles. (B) mTECs were identified based on their expression of Epcam, Itgb4, Itgb6 and Casp3 mRNA markers (B1), proliferative TECs based on Ccna2, Pbk and Birc5 expression (B2), and naïve CD4⁺ thymocytes based on Ilr7 and Ccr7 expression (B3).

The transcription of marker mRNAs (Ccna2, Pbk, and Birc5) that identify proliferative mTECs was tested, and the results revealed a unique cluster of these cell types (Figure 7; Supplementary Figure 10). The transcription of the Il7r and Ccr7 markers revealed a homogeneous cluster characteristic of naïve CD4⁺ thymocytes (Figure 7; Supplementary Figure 11).

The mRNA transcripts with high differential expression are highlighted and shown in the heatmap (top mRNAs). The mRNA transcripts with the most significant variability are highlighted in the heat map and volcano plot (variable mRNAs) (Supplementary Figures 12, 13). The functional annotation revealed several biological processes, among which transcriptional regulation, cell adhesion, the immune system, and other cellular metabolism processes were highlighted (Supplementary Figure 14).

Functional enrichment of all DE mRNA transcripts (p > 0.05) was performed with the (The Gene Ontology Resource, https://www.geneontology.org/) and mRNAs that encode transcription factors or adhesion molecules were identified and selected. A total of 3,538 genes were enriched in the Panther, and gene transcripts involved in “biological process” and “protein class” processes were obtained (Figure 8; Supplementary Figure 15). The Aire WT and Aire-deficient (CS8D6) datasets were integrated to combine shared statistically significant mRNA expression values characterizing different cell types. The identification of DE lncRNAs allowed us to assess the individual expression level of each lncRNA.

Figure 8

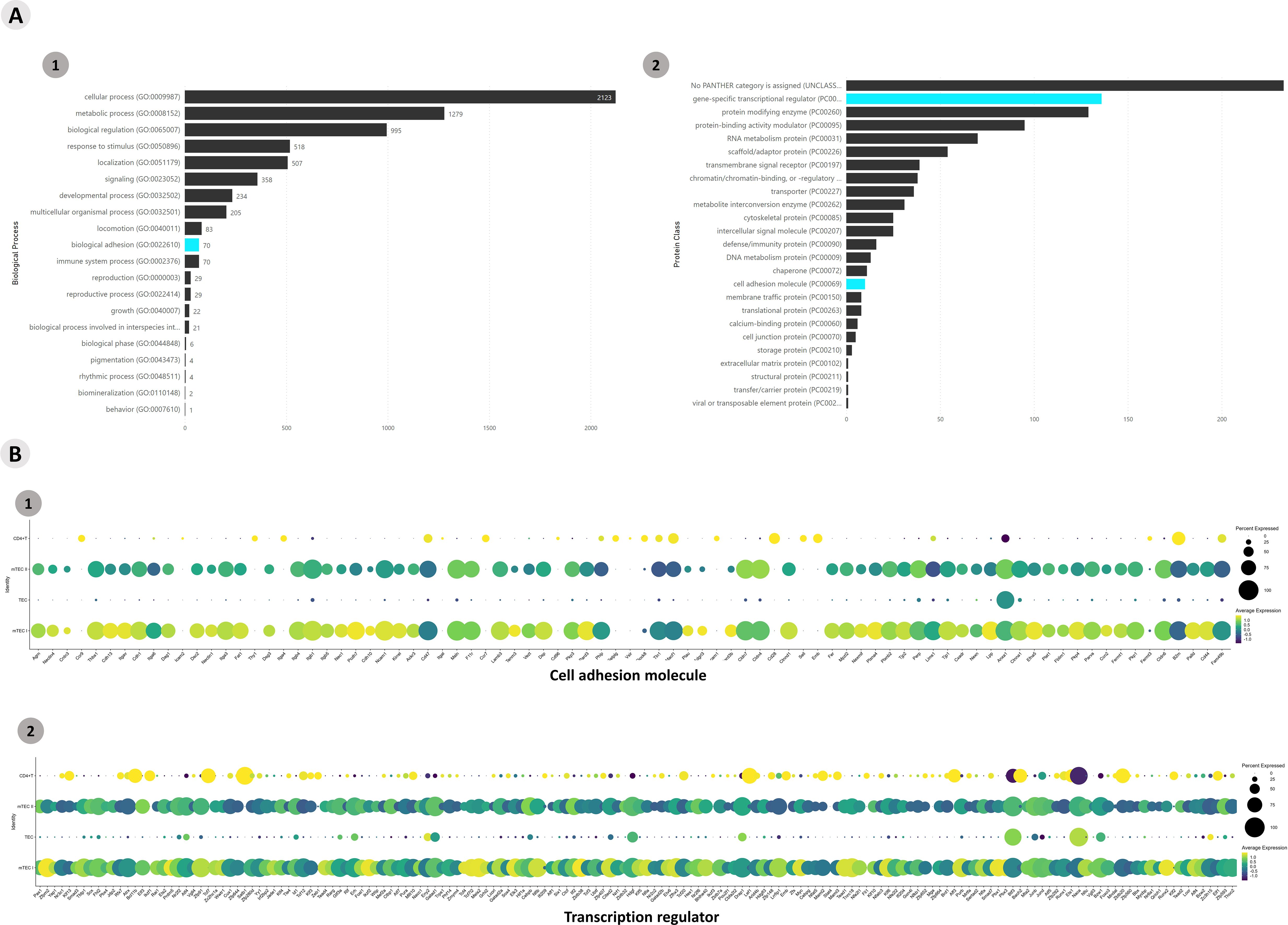

Figure 8. Transcriptional profiling of all mRNAs expressed among the different Aire-deficient medullary thymic epithelial cells or wild-type CD4⁺ thymocyte clusters when cocultured. (A) The functional annotation enrichment of all differentially expressed mRNAs enabled the identification of cell adhesion and transcriptional regulator mRNAs (A1-2); Percent expressed and average expression of cell adhesion mRNAs (B1) or transcription regulator mRNAs among cell clusters (B2).

The profiles of lncRNA-type markers in mTEC I, mTEC II, and WT single-positive CD4⁺ thymocyte populations and TEC clusters are shown with violin plots (Figure 9A). These lncRNAs are highlighted in terms of their expression levels, and the percentages of lncRNAs expressed in each cluster are shown separately in the dot-plot graphs (Figure 9B). The TEC, mTEC I, mTEC II, and SP CD4⁺ thymocyte clusters expressed the previously validated (LncTAR 2.0 platform) lncRNAs, Neat1, Snhg16, Dancr, Kcnq1ot1, Malat1, Snhg1, Snhg3, and Pvt1.

Figure 9

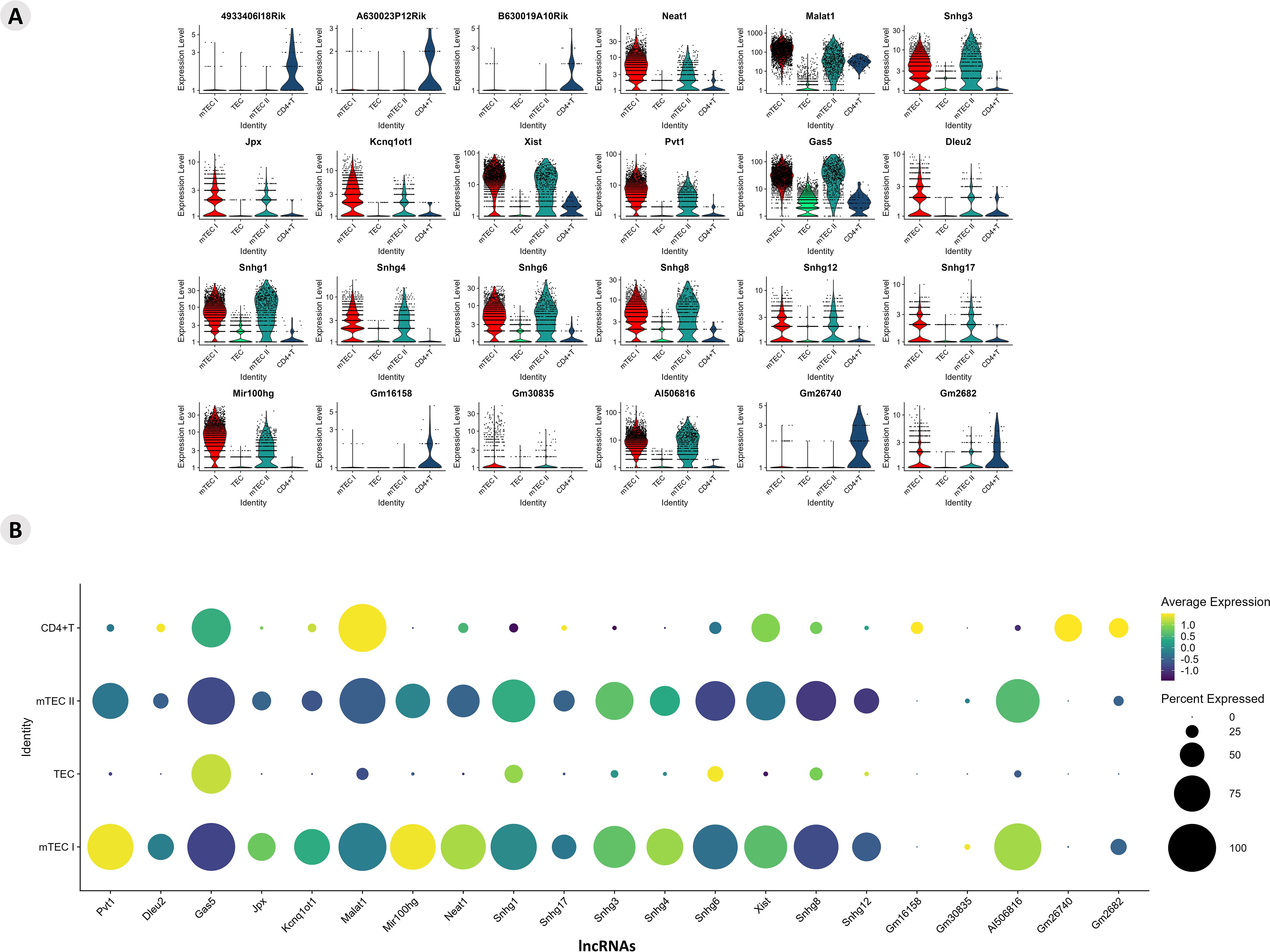

Figure 9. Transcriptional profiling of lncRNAs among the different Aire-deficient medullary thymic epithelial cells or wild-type CD4⁺ thymocyte clusters when cocultured. (A) Percentage expression and average expression of lncRNAs (A); identification of individual lncRNAs that are expressed by specific cell types (B); average expression of lncRNAs among the different medullary thymic epithelial cells or wild type naïve CD4⁺ thymocytes.

Results suggest that these lncRNAs might be influenced by Aire in mTECs since its expression is differential when comparing Aire WT versus Aire-deficient cells. In addition, the lncRNA-mRNA interaction networks allowed us to observe that these lncRNAs exert posttranscriptional control on the following transcription factor mRNAs Klf6, Nfe2l1, Nfat5, Itgav, Nfkb1, Smadd3 and Tead1 and the adhesion molecule mRNAs Itga3, Thbs1, Itgb1, Cdh1 and Itgb4 (Figures 4, 5).

Integrative coexpression analysis

Using integrative analysis, we also identified the expression profiles of the lncRNAs (Figure 10). The expression levels are comparative and are represented individually for each cell type; the conditions are given on a scale between the minimum and maximum expression and the percentage of expression of these lncRNAs in each cell.

Figure 10

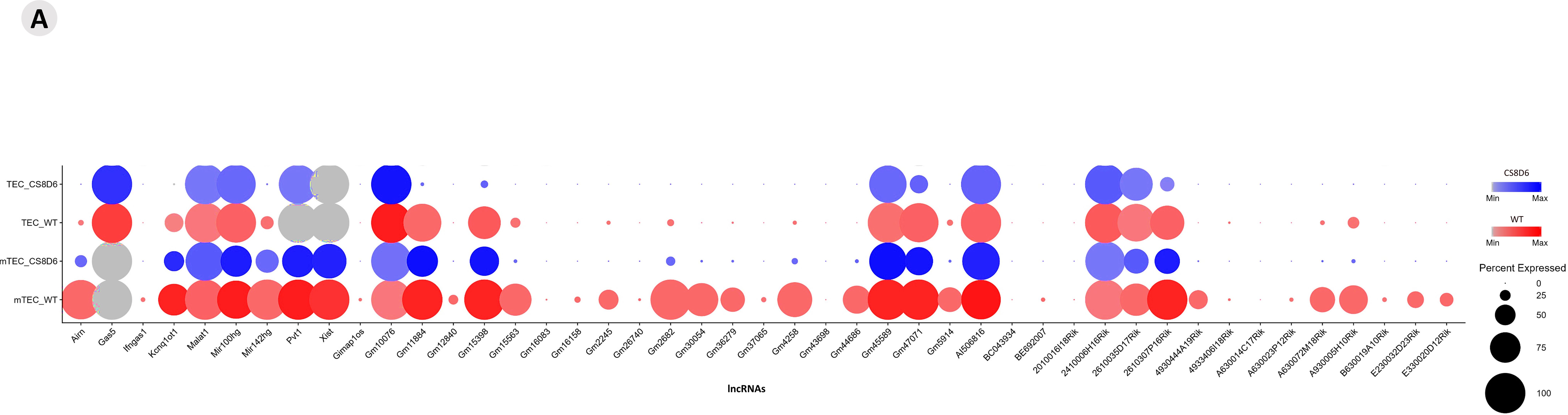

Figure 10. Integrated analysis of lncRNA expression among the cell types. The comparative expression levels of each lncRNA are individually represented for each group or condition (Aire WT or Aire-deficient), and the relative percentage of each TEC type is shown.

The expression profiling also revealed the modulation of genes involved in the mitotic cell cycle, the Tgf beta, Il-6, Wnt, apoptotic, and Notch signaling pathways. Given this, we asked whether Aire could influence mTEC growth and the cell cycle. Aire deficiency impaired the growth of the CS8D6 mutant clone, which remained in the G0/G1 cell cycle phase more than its Aire WT counterpart did (Figure 11).

Figure 11

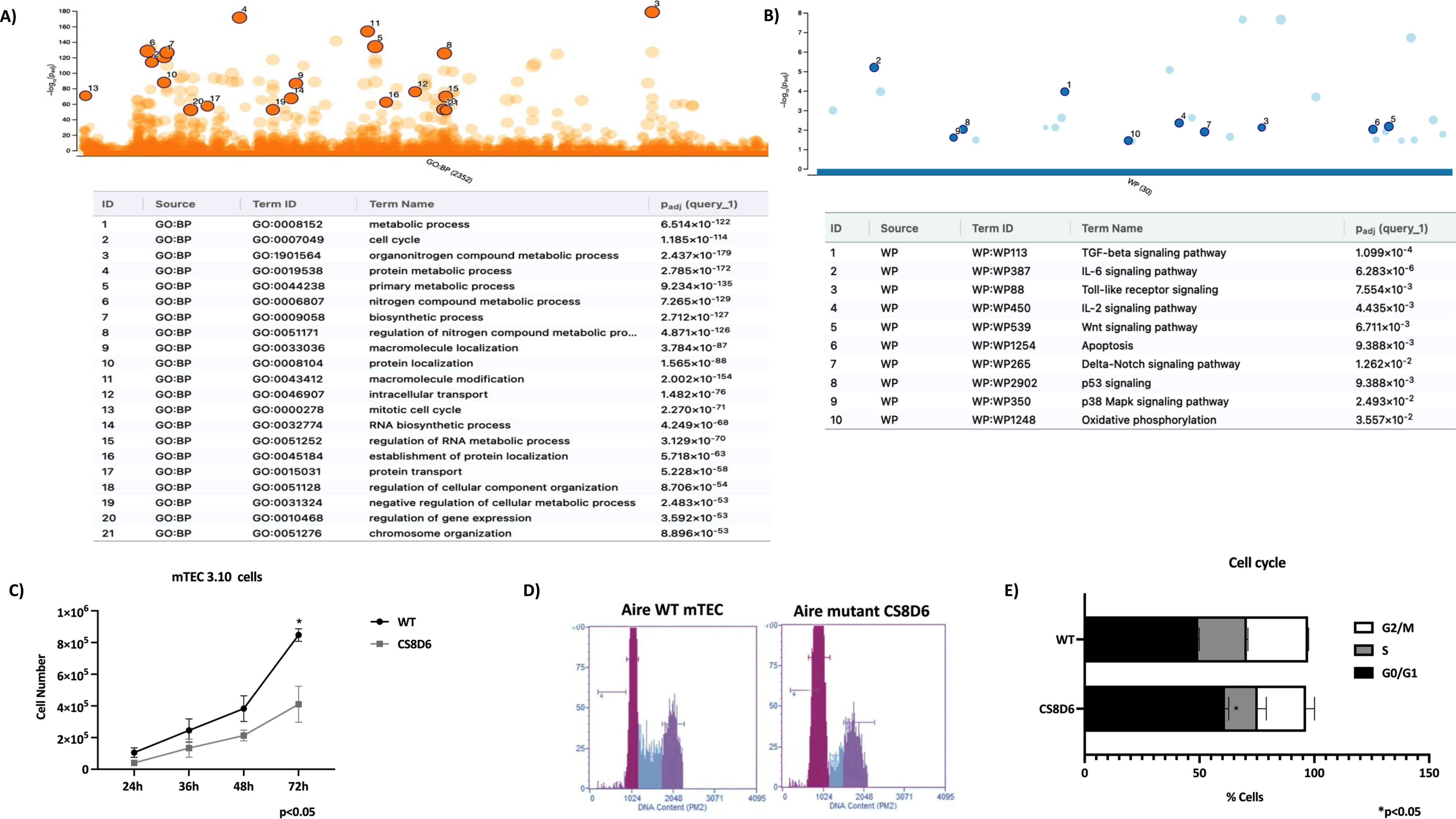

Figure 11. Cell cycle analysis of Aire wild-type and Aire-deficient mTECs. Manhattan plots showing the biological pathways associated with Aire wild-type and Aire-deficient mTECs, including the mitotic cell cycle, Tgf beta, IL-6, Wnt, apoptosis, and Notch signaling pathways (A, B). Growth and cell cycle analysis comparing Aire wild-type mTECs with Aire-deficient mTECs; percentage of mTECs in the different phases of the cell cycle (C-E). Data are presented as mean ± s.d. (replicates n = 3). The differences were evaluated using Student t test (p values are indicated for each comparison when pertinent).

We subsequently investigated whether Aire deficiency in mTECs could affect the expression of molecules associated with T-cell activation in adhered thymocytes. Wild-type CD4⁺ thymocytes that adhered to Aire-deficient mTECs downregulated CD152 (CTLA4) and upregulated CD28 (Figure 12).

Figure 12

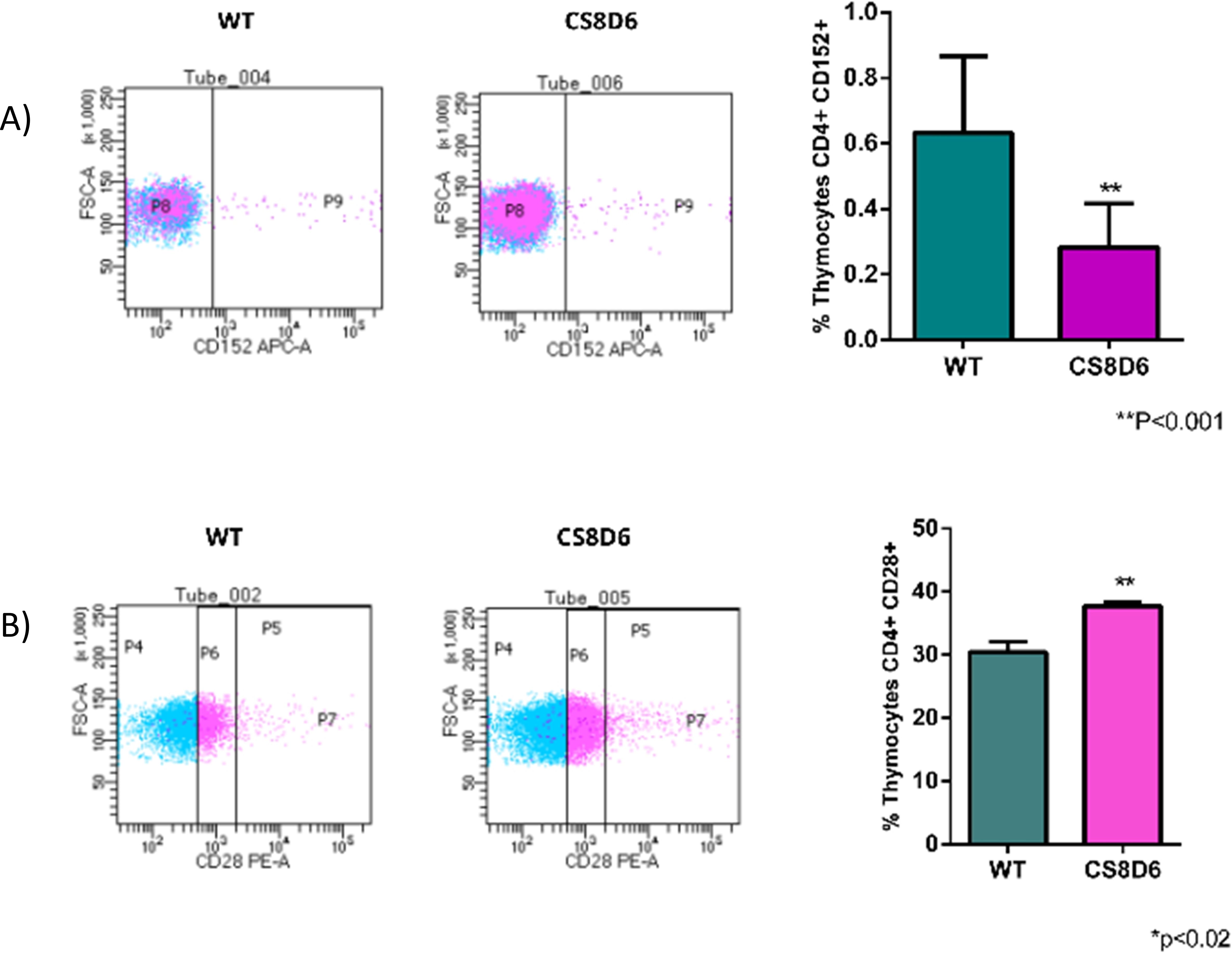

Figure 12. Expression levels of surface proteins in wild-type CD4⁺ thymocytes cocultured with wild-type or Aire-deficient mTECs. The expression of CD152 (A) or CD28 (B). Data are presented as mean ± s.d. (replicates n = 3). The differences were evaluated using Student t test (p values are indicated for each comparison when pertinent). (**) = statistical significance.

Additionally, CD326 (EPCAM) protein expression slightly increased in Aire-deficient mTECs when they adhered to SP CD4⁺ cells and decreased when they adhered to CD8⁺ thymocytes, and the number of double-positive CD80⁺/MHC-II⁺ mTECs slightly increased when they adhered to SP CD4⁺ cells and decreased when they adhered to CD8⁺ thymocytes (Figure 13).

Figure 13

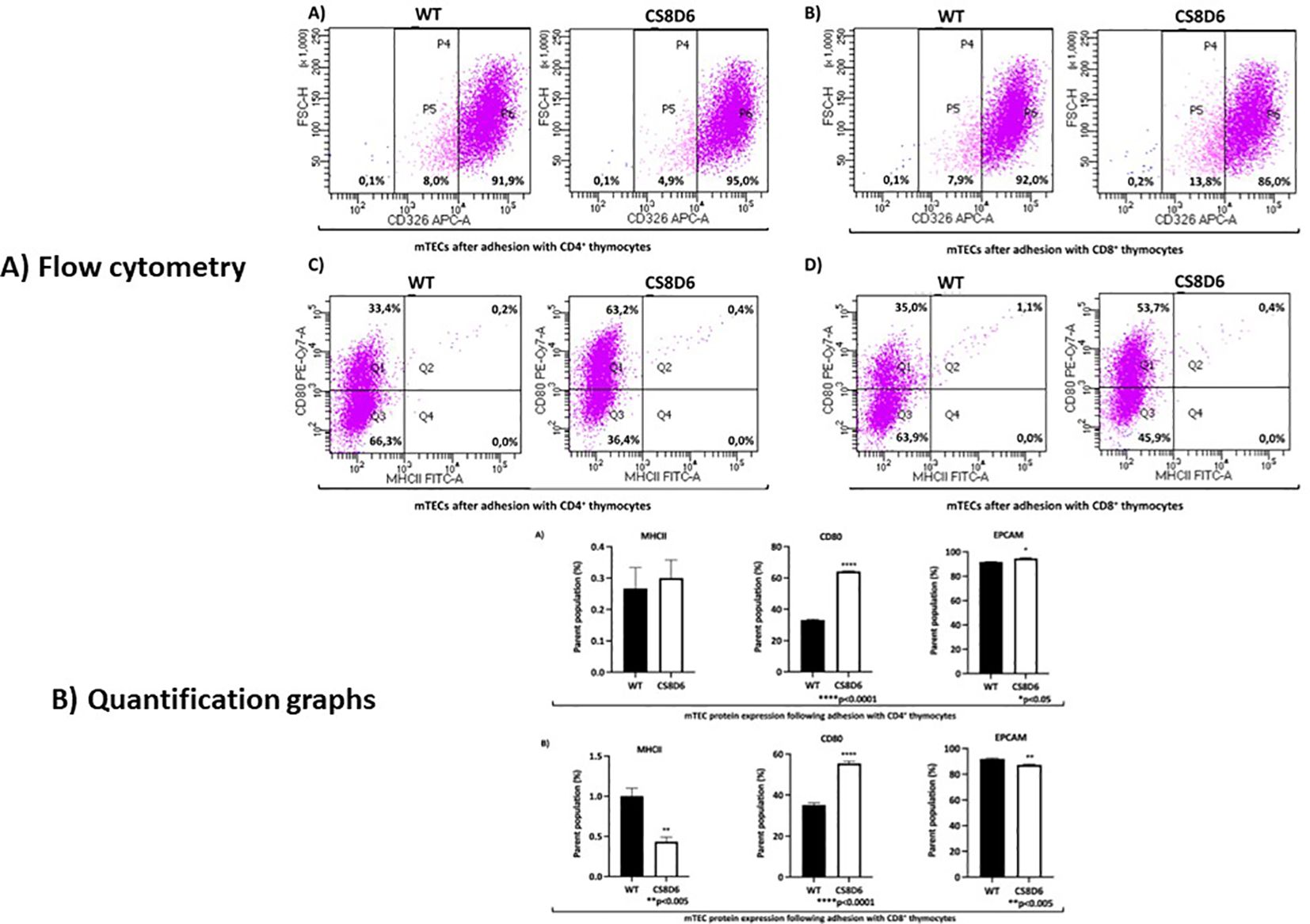

Figure 13. The expression levels of surface proteins in Aire wild-type or Aire-deficient mTECs cocultured with wild-type CD8⁺ or CD4⁺ thymocytes. CD326 (EPCAM) expression increased when mTECs were cocultured with CD4⁺ cells and decreased when mTECs were cocultured with CD8⁺ thymocytes (A, B). The percentage of double-positive CD80⁺/MHC-II⁺ mTECs increased when they adhered to CD4⁺ cells and decreased when they adhered to CD8⁺ thymocytes (C, D). Data are presented as mean ± s.d. (replicates n = 3). The differences were evaluated using Student t test (p values are indicated for each comparison when pertinent). (*), (**), (***) = statistical significance.

Discussion

In this study, we explored the upstream effect of the autoimmune regulator (Aire) gene on the transcriptional and posttranscriptional control exerted by long noncoding RNAs (lncRNAs) when medullary thymic epithelial cells (mTECs) and wild-type (WT) single-positive (SP) CD4⁺ thymocytes were cocultured. We showed that the mRNAs controlled by Aire in mTECs, including those that encode transcription factors, such as Klf6, Nfe2l1, Nfat5, Itgav, Nfkb1, Smadd3, and Tead1, or cell adhesion molecules, for example, Epcam, Itga3, Thbs1, Itgb1, Cdh1 and Itgb4, are regulated by lncRNAs, such as Neat1, Snhg16, Dancr, Kcnq1ot1, Malat1, Snhg1, Snhg3 and Pvt1. Single-cell transcriptome analysis of Aire WT or Aire-deficient mTECs cocultured with WT SP CD4⁺ thymocytes followed by interaction network analysis revealed the intricate posttranscriptional control exerted by lncRNAs, which are controlled by Aire and the cell adhesion process.

Thymic crosstalk must occur for autoreactive thymocytes to undergo negative selection (3, 8, 46). mTEC–thymocyte adhesion is crucial in this process, as mTECs present peripheral tissue autoantigens (PTAs) to SP CD4⁺ or CD8⁺ thymocytes, and thymocyte clones expressing TCRα/β that avidly recognize PTAs may be eliminated by apoptosis. The Aire gene controls PTA and adhesion molecules in mTECs; Aire and cell adhesion may act in combination since Aire can control adhesion, and adhesion regulates Aire (18, 31).

Our group has studied the effect of the Aire gene on the expression of mRNAs that encode PTAs or cell adhesion molecules and noncoding RNAs (miRNAs or lncRNAs) in mTECs (18, 28, 31). Using an anti-Aire small interfering RNA (siRNA), we observed that decreasing Aire expression could affect the transcriptome and biological function of mTECs (19). Therefore, we gathered evidence that a decrease in Aire expression, but not its complete abrogation, is enough to disarrange the mTEC transcriptome.

This finding is in line with the findings of APS-1 syndrome patients who are heterozygous for AIRE gene mutations in the AIRE protein SAND domain, which are dominant mutations (47–50); that is, many APS-1 patients only have one WT AIRE allele; therefore, the expression of the normal version of the AIRE gene is reduced but not absent.

Accordingly, in this study, we chose to use a heterozygous clone of mTEC cells in which one of the Aire alleles was knocked out through the CRISPR-Cas9 system (Aire-deficient, clone CS8D6 Aire ^wt/mut) (40) as a model system to assess the effect of partial Aire abrogation on the transcriptome of these cells. Moreover, we used the single-cell RNA-seq method followed by detailed data analysis, which revealed that the cultured mTEC 3.10 cell line is composed of individual groups of TECs that differ in their transcriptional profile, including resting and proliferative mTECs that express the mRNA markers Ccna2, Pbk, and Birc5.

In a previous study, our group reported that Aire could control lncRNAs in mTECs (18). However, information on whether these RNA species participate in the gene expression control of mTECs is still lacking. Considering that i) among the mechanisms of control involving lncRNAs, the probability of mRNA-lncRNA posttranscriptional interactions occurring is high (51), ii) transcription factors represent one of the most essential classes of transcriptional controllers in mammalian cells and can be controlled through networking with other molecules (52), and iii) cell adhesion molecules are crucial for thymic crosstalk (8), we investigated whether lncRNAs may control the mRNAs that encode transcription factors or cell adhesion molecules in mTECs. Indeed, we established for the first time posttranscriptional interaction networks involving mRNAs encoding transcription factors or adhesion molecules with lncRNAs. Therefore, we assessed the different groups of mTECs that adhere to thymocytes based on transcriptome expression and control, which are initially generated by Aire, a transcriptional modulator; subsequently, by classical transcription factors; and finally, by lncRNAs.

To further understand the intricate interactions among these RNA species, we initially used single-cell RNA-seq analyses. Accordingly, Aire WT mTECs (mTEC 3.10) that adhere to WT SP CD4⁺ thymocytes exhibit three clusters according to their transcriptional profile: the TEC I, TEC II, and mTEC clusters. The mTEC cluster comprises the majority of the cell line and expresses the classical Epcam, Itgb4, Itga6, and Casp3 transcriptional gene markers. In addition, the expression of Ccna2, Pbk, and Birc5 suggested that this cluster is composed of proliferative mTECs. Otherwise, the cluster of WT SP CD4⁺ thymocytes remained homogeneous and expressed the Il7r and Ccr7 transcriptional gene markers, indicative of their naïve phenotype.

Given that i) the cell-cell adhesion process activates the expression of a broad set of mRNAs in mammalian cells (52, 53) and ii) mTEC cell adhesion regulates mRNAs that encode transcription factors and lncRNAs (18), we investigated the broad range of adhesion molecules and transcription factor mRNAs that were modulated in WT and Aire-deficient mTECs and their posttranscriptional interactions with lncRNAs.

It is conceivable that during the adhesion process of mTECs with thymocytes, there are differences between mTEC-thymocyte pairs in terms of adhesion strength between cells. If this occurs, it should cause differences in the transcriptional responses of the cells involved. Given our experiment’s complexity, we did not address this plausible issue in this work, but this limitation does not invalidate the results obtained.

Clustering of Aire-deficient mTECs cultured with WT SP CD4⁺ thymocytes was performed and plotted on a UMAP plot. Three clusters were identified for the TECs (TECs, mTEC I, and mTEC II), which differed from the clusters formed with Aire WT mTECs. Although they are distinct clusters, mTEC I and mTEC II cells expressed Epcam, Itgb4, Itga6, and Casp3, as well as the proliferation-related genes Ccna2, Pbk, and Birc5, suggesting that proliferative mTECs form these clusters. The TEC cluster comprised an important fraction of the Aire-deficient clone and differed from the WT according to the lack of expression of mTECs and proliferation markers. Like what was observed in the WT coculture, the SP CD4⁺ thymocyte cluster remained homogeneous; however, the expression of the naïve Ilr7 and Ccr7 transcriptional markers was discrete.

The single-cell analysis in this study allowed us to show how heterogeneous an mTEC population is in terms of its transcriptome. The mTECs studied here, both Aire-WT and Aire-deficient, are genetic clones in concept, as they originate from the mitotic division of a single cell. However, analysis of the single-cell transcriptome showed that transcriptional gene expression in these cells was not uniform, which gave them distinct clusters, mTECs, TEC I and TEC II, whose transcriptional profiles are influenced by Aire. The differences in the transcriptomic profiles of mTECs should affect the representation of self-antigens by each of the clusters.

This study was performed only with mTEC cells in coculture with thymocytes. The rationale for this protocol is that mTECs are in constant contact with thymocytes in the thymus. However, this made it impossible to know whether the heterogeneity of mTECs is an intrinsic characteristic of these cells or whether this happens because of contact with thymocytes, which could be a limitation of the study. Anyway, coculture more closely reproduces the physiology of the thymus.

In addition, we observed that the TEC, mTEC I, mTEC II, and SP CD4⁺ thymocyte clusters expressed the transcription factor mRNAs Klf6, Nfe2l1, Nfat5, Itgav, Nfkb1, Smadd3 and Tead1 and the adhesion molecule mRNAs Itga3, Thbs1, Itgb1, Cdh1 and Itgb4, indicating that these mRNAs are coexpressed in TECs and thymocytes. Furthermore, we observed that various previously validated lncRNAs, Neat1, Snhg16, Dancr, Kcnq1ot1, Malat1, Snhg1, Snhg3, and Pvt1 (LncTAR 2.0 platform), are also under the influence of Aire and subsequently exert posttranscriptional control of the above mRNAs.

The post-transcriptional control of gene expression in mTEC cells has yet to be explored, but this type of control is no less critical. Instead, it represents the fine-tuning of gene expression (20). In previous work by our group (19), we observed that the downregulation of Aire in mTECs causes the expression of PTA mRNAs to be more regulated by miRNAs. The same type of control occurred in the present study, which involved the analysis of lncRNAs, transcription factor and cell adhesion mRNAs. Aire WT mTECs showed eight lncRNAs that exert control on seven transcription factor mRNAs and five cell adhesion molecule mRNAs. Aire-deficient mTECs (clone CS8D6) showed the participation of 18 lncRNAs that act on 30 transcription factor mRNAs and ten cell adhesion molecule mRNAs. Aire-deficient mTECs showed a more significant number of mRNA-lncRNA interactions. Since lncRNAs can exert negative control over mRNAs by blocking their translation into proteins (20), the result obtained in this study discovers a new mechanism for how Aire deficiency in mTECs can impact gene expression control, using lncRNAs as intermediaries.

The data were integrated and reanalyzed to verify how robust the datasets are and whether they could distinguish between Aire WT, Aire-deficient mutant mTECs, and WT SP CD4⁺ thymocytes. In terms of adhesion molecule mRNAs, we highlight Adgrl3, Fermt3, Itgb7, and Pard3b, which were preferentially expressed in Aire WT mTECs, and can therefore be considered markers that distinguish this type of cell. On the other hand, the expression of Anxa1, B2m, Ccn2, Cdh10, Cldn4, Itgb1, Msln, Ncam1, Plet1, Plxna4, Tenm3, and Thbs1 was shared by Aire WT mTECs, Aire-deficient mTECs, and WT SP CD4⁺ thymocytes before and after adhesion. Whether, on the one hand, these markers were not accurate enough to distinguish the different cell types, the results suggest that the proteins encoded by the mRNAs certainly play crucial roles in mTEC-thymocyte adhesion.

As for the mRNAs that encode transcriptional controllers, the majority of the repertoire set was shared among all types of cells analyzed, suggesting their crucial function, highlighting Junb, Pbx1, Runx1, Sox4, Tcf12, Tnrcc18, Zbtb20, Zfhx3 and Zfpm2. However, the mRNAs Aff3 and Ikzf3 were distinguishers of SP CD4⁺ thymocytes, and Ifi203 distinguished well from the population of Aire WT mTECs.

As for lncRNAs, we highlight lfngas1, Gimap1os, Gm15563, Gm26740, Bc044934, BE692007, A630023P12Rik and B630019s10Rik as distinguishers of SP CD4⁺ thymocytes due to their preferential expression in this cell type. Among the set of lncRNAs noted, Airn, Gas5, Malat1, Mir100hg, mir142hg, Pvt1, Xist, Gm10076, Gm11884, Gm45589, Gm47071, AI506816, 2410006H16Rik, 2610035D17Rik and 2610307P16Rik were coexpressed among Aire WT and Aire-deficient mTECs and SP CD4⁺ thymocytes, suggesting that they have an essential function in the different cell types analyzed. The lncRNAs Ifngas1, Gimap10s, BC043934, BE692007, A630014C17Rik, Gm16083 and Gm43698 were distinguishers of SP CD4⁺ thymocytes due to their preferential expression in this type of cell. These lncRNAs may be associated with the functional profile of naïve CD4⁺ thymocytes.

Therefore, we investigated the functional consequences of Aire gene deficiency on mTEC–thymocyte adhesion. By reanalyzing the transcription profiles of the mRNAs, we observed that the expression of those mRNAs that encode proteins involved in the cell cycle was altered. In this way, we tested the cell cycle distribution of mTECs and confirmed that this biological function is affected when Aire is downregulated. In vivo, cell cycle disturbance in mTECs certainly contributes to disruption of the thymic medulla, as observed in Aire-deficient mice (53, 54).

Aire deficiency in mTECs was shown to influence the expression of CD4⁺ thymocyte surface markers during mTEC–thymocyte adhesion. The surface proteins CD152 (CTLA4), which are implicated in cell signaling (55, 56), and CD28, which are involved in T-cell proliferation and survival, cytokine production, and T-helper type-2 development and compete with CTLA4 (57, 58), were disrupted.

Furthermore, the levels of CD326 (EPCAM), which is a crucial adhesion protein; CD80, which binds to CD28 or CD152 (CTLA-4) (59, 60) on thymocytes; and MHC-II, which presents self-antigens to thymocytes, were also modulated when mTECs adhered to SP CD4⁺ or CD8⁺ thymocytes.

Others have investigated the expression of CTLA-4 in mTECs, showing that this marker is influenced by Aire (61) or that in the absence of Aire, mTECs abnormally express CTLA-4 (62). In our study, we have demonstrated a new aspect of this relationship. We found that SP CD4⁺ or CD8⁺ thymocytes, when adhered to Aire-deficient mTECs, downregulate CTLA-4.

This finding not only adds to the existing body of knowledge but also underscores the broad functional impact of decreasing Aire on mTECs, which are crucial in central tolerance induction by mimicking the different tissues and organs of the body (63). In summary, our study highlights the importance of Aire that is expressed in mTECs in regulating CTLA-4 expression in adhered thymocytes.

Conclusion

The adhesion of mTECs to thymocytes triggers complex control of the expression of transcription factor mRNAs and downstream mRNAs involved in cell adhesion in both types of cells. Additionally, cell-cell adhesion favors the expression of lncRNAs that act as posttranscriptional controllers of mRNAs that encode transcription factors or adhesion molecules. The interaction networks involving mRNA and lncRNAs demonstrate the possibility that Aire deficiency increases the participation of lncRNAs that regulate mRNAs.

Single-cell RNA-seq analysis revealed the complexity of the transcriptional differences between mTECs and naïve SP CD4⁺ thymocytes, which are the basis of immunological tolerance. Aire deficiency in mTECs was shown to be pervasive, influencing the transcriptomes of mTECs and SP CD4⁺ adherent thymocytes.

Data availability statement

The data presented in the study are deposited in the NCBI BioProject repository, accession number PRJNA1001046.

Ethics statement

The animal study was approved by CEUA Ribeirão Preto School of Medicine. The study was conducted in accordance with the local legislation and institutional requirements.

Author contributions

CM: Conceptualization, Writing – original draft, Investigation, Methodology, Writing – review & editing. MD: Conceptualization, Investigation, Methodology, Writing – review & editing, Software, Writing – original draft. MM: Investigation, Methodology, Writing – review & editing, Validation. RM: Investigation, Methodology, Software, Writing – review & editing. PP: Methodology, Writing – review & editing. HG: Writing – review & editing, Software. HN: Software, Writing – review & editing. TC: Writing – review & editing, Methodology. ED: Writing – review & editing, Conceptualization, Supervision, Writing – original draft. GP: Conceptualization, Supervision, Writing – original draft, Funding acquisition, Project administration.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP, grant # 17/10780-4 to GAP and ED), FAPESP post-doctorate fellowship to CJM (# 21/02081-4), FAPESP doctorate fellowship to MCVM (# 20/09664-2), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq, grants # 311304/2021 to GP, and # 302060/2019-7 to ED), Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES, Finance Code 001) and FAPESP grant 18/14933-2 to HIK.

Acknowledgments

We thank Dr. Sabrina Baroni from the Laboratory of Translational Oncology, Blood Center of Ribeirão Preto, SP, Brazil, for preparing the single-cell libraries and Dr. Monica Varela from the Human Genome Study Center, University of São Paulo, São Paulo, Brazil for the single-cell RNA sequencing. We thank Janine B. Passos for drawing the graphical abstract.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2024.1376655/full#supplementary-material

Supplementary Figure 1 | UMAP clustering of Aire wild-type TECs based on their transcriptional profile of mRNAs markers Epcam, Itgb4, Itga6, and Casp3.

Supplementary Figure 2 | UMAP clustering of Aire wild-type proliferative TECs based on their transcriptional profile of mRNAs markers Ccna2, Pbk, and Birc5.

Supplementary Figure 3 | Heatmap of the expression profiles of the top mRNAs characterizing Aire wild-type mTECs, TEC1, TECII, and wild-type naïve CD4⁺ thymocytes.

Supplementary Figure 4 | Volcano plot of the 2,000 variable and 17,837 nonvariable mRNAs among Aire wild-type TECs, mTECs, and wild-type naïve CD4⁺ thymocytes.

Supplementary Figure 5 | Functional annotation of the differentially expressed mRNAs among clusters of Aire wild-type TECs, mTECs, and wild-type naïve CD4⁺ thymocytes.

Supplementary Figure 6 | Heatmaps of the expression profiles of cell adhesion and transcriptional regulator mRNAs among cell clusters of Aire wild-type TECs, mTECs, and wild-type naïve CD4⁺ thymocytes. The mRNAs highlighted in gray represent the mRNAs detected in the interaction network of Aire WT mTECs (see Figure 4).

Supplementary Figure 7 | Identification and percentage expression (A) and heatmap (B) of individual lncRNAs that are expressed by specific cell types of Aire wild-type TECs, mTECs, and wild-type naïve CD4⁺ thymocytes.

Supplementary Figure 8 | AIRE protein expression in mTECs. Western-blot of the AIRE protein comparing the WT mTEC 3.10 (WT) with Aire-deficient (CS8D6) mTECs. The Aire-deficient CS8D6 clone expressed lower amounts of the ~57 kDa AIRE protein. The remaining amount of AIRE observed in the Aire-deficient cells may be due to the expression of the Aire WT allele.

Supplementary Figure 9 | UMAP clustering of Aire deficient TECs based on their transcriptional profiles of mRNA markers Epcam, Itgb4, Itga6, and Casp3.

Supplementary Figure 10 | UMAP clustering of proliferative Aire deficient TECs based on their transcriptional profiles of mRNA markers Ccna2, Pkb, and Birc5.

Supplementary Figure 11 | UMAP clustering of naïve CD4⁺ thymocytes based on their transcriptional profiles of mRNA markers Ccr7 and Il7r.

Supplementary Figure 12 | Heatmap of the expression profile of Aire deficient TECs, TEC I, TEC II, and wild-type naïve CD4⁺ thymocytes.

Supplementary Figure 13 | Volcano plot of the 2,000 variable and 17,145 nonvariable mRNAs among Aire deficient TECs, TEC I, TEC II, and wild-type naïve CD4⁺ thymocytes.

Supplementary Figure 14 | Functional annotation of the differentially expressed mRNAs among cell clusters of TECs, TEC I, TEC II, and wild-type naïve CD4⁺ thymocytes.

Supplementary Figure 15 | Heatmaps of the expression profiles of cell adhesion and transcriptional regulators among cell clusters of Aire deficient TECs, TEC I, TEC II, and wild-type naïve CD4⁺ thymocytes. The mRNAs highlighted in gray represent the mRNAs detected in the interaction network of Aire-deficient mTECs (see Figure 5).
