Knowledge mapping and research trends of IL-33 from 2004 to 2022: a bibliometric analysis

Background: IL-33 has been studied widely but its comprehensive and systematic bibliometric analysis is yet available. The present study is to summarize the research progress of IL-33 through bibliometric analysis.

Methods: The publications related to IL-33 were identified and selected from the Web of Science Core Collection (WoSCC) database on 7 December 2022. The downloaded data was analyzed with bibliometric package in R software. CiteSpace and VOSviewer were used to conduct IL-33 bibliometric and knowledge mapping analysis.

Results: From 1 January 2004 to 7 December 2022, 4711 articles on IL-33 research published in 1009 academic journals by 24652 authors in 483 institutions from 89 countries were identified. The number of articles had grown steadily over this period. The United States of America(USA) and China are the major contributors in the field of research while University of Tokyo and University of Glasgow are the most active institutions. The most prolific journal is Frontiers in Immunology, while the Journal of Immunity is the top 1 co-cited journal. Andrew N. J. Mckenzie published the most significant number of articles and Jochen Schmitz was co-cited most. The major fields of these publications are immunology, cell biology, and biochemistry & molecular biology. After analysis, the high-frequency keywords of IL-33 research related to molecular biology (sST2, IL-1), immunological effects (type 2 immunity, Th2 cells), and diseases (asthma, cancer, cardiovascular diseases). Among these, the involvement of IL-33 in the regulation of type 2 inflammation has strong research potential and is a current research hotspot.

Conclusion: The present study quantifies and identifies the current research status and trends of IL-33 using bibliometric and knowledge mapping analysis. This study may offer the direction of IL-33-related research for scholars.

1 Introduction

IL-33 belongs to the IL-1 family and was once called NF-HEV and DVS 27. DVS-27 was found to be a canine protein encoded by an unknown mRNA in 1999 (1). In 2003, a human nuclear protein was found to be highly expressed in endothelial cells from lymphoid organs and associated with chromatin, which is strongly similar to DVS27 (2). In 2005, it was discovered that the human HF-HEV protein has a similar structure to the IL-1 family cytokines. According to these discoveries, the name IL-33 was then named (3). IL-33 is a tissue-derived nuclear cytokine that is highly expressed in the nuclei of numerous cell types, including endothelial, epithelial, and fibroblast-like cells (4). By attaching to a heterodimer made of its specific receptor ST2 and IL-1 receptor accessory protein (IL-1RAcP), IL-33 activates the NF-kB and MAPK cellular signaling pathways to activate cells (5).

It was demonstrated that IL-33 is an alarm signal generated in the extracellular space following cellular injury (4, 6, 7). The primary target cells for IL-33 are tissue-resident immune cells such as type 2 innate lymphocytes (ILC2) (8, 9). Once IL-33 stimulated ILC2 through ST2 receptor, they then secrete large amounts of Th2 cytokines, particularly IL-5 and IL-13 (10–12). ST2, the specific receptor for IL-33, is constitutively expressed on mast cells and Th2 immune cells and is involved in type 2 immune responses (13, 14). In addition, ST2 can be inducibly expressed on Th1 immune cells such as CD8⁺ T cells, NK cells, and NKT cells, and regulate type 1 immune responses in infections and chronic inflammation (15, 16). Moreover, previous studies have shown a direct association between IL-33 and inflammatory diseases such as asthma (17), inflammatory bowel disease(IBD) (18), chronic obstructive pulmonary disease(COPD) (19), myocardial infarction (20, 21) and atopic dermatitis (22). Also, IL-33, a pleiotropic cytokine, is closely associated with cancer such as colorectal cancer (23) and myeloproliferative neoplasms (24), which may be related to mast cells and tumor microenvironment(TME).

IL-33 is a rapidly growing and popular field of research, with the number of studies and articles related to IL-33 increasing over the last 20 years. IL-33 reviews have been published from various perspectives (25, 26). Nevertheless, there is currently no comprehensively integrated analysis of the authoritative authors and institutions, research progress and emerging trends related to IL-33.

Bibliometric analysis is the qualitative and quantitative analysis of literature studies using mathematical and statistical methods (27, 28). Bibliometrics can provide a comprehensive analysis of the countries, institutions, authors, and journals of the selected articles in terms of their contribution to this research field (29). In addition, it can assess the possible trends and emerging hotspots in this field (30). In the present study, we utilize CiteSpace and VOSviewer for bibliometric and visual analysis to construct a knowledge map of relevant scientific research, to sort out and analyze the development trends and emerging hotspots of IL-33 research, and to provide future research perspectives.

2 Materials and methods

2.1 Data collection

We collected data from Web of Science Core Collection (WoSSC) bibliographic collection, frequently used in bibliometrics, which is currently one of the biggest and most extensive electronic scientific literature database in the world (30). The Data were systematically retrieved between 1 January 2004 and 7 December 2022 and downloaded from the WoSCC database on 22 August 2022 to avoid bias. The following search formula utilized in this research was set as follows: (“IL-33” OR “IL33” OR “interleukin 33” OR “NF-HEV” OR “nuclear factor from high endothelial venules” OR “IL1F11” OR “interleukin-33” OR “c9orf26” OR “dvs27” OR “Nuclear Factor For High Endothelial Venules” OR “Interleukin-1 Family Member 11” OR “dvs27-Related Protein” OR “Interleukin-33” OR “DKFZp586H0523” OR “Chromosome 9 Open Reading Frame 26 (NF-HEV)” OR “Interleukin-1 Family, Member 11” OR “IL-1F11” OR “NFHEV” OR “NFEHEV”). The only available publication types were Article and Review, and the language was English only. Additionally, the research findings were documented with the content of “Full Record and Cited Reference” in the “Plain Text” format. Finally, 4711 original articles or reviews were included.

2.2 Data analysis

The downloaded files were imported into CiteSpace 6.1.R3, VOSviewer 1.6.18, and Microsoft Excel 2019 to conduct the bibliometric and knowledge mapping analysis. Before the keyword co-occurrence analysis, synonyms were merged into one word, nonsense words were deleted, and identical authors and institutions with different spellings were merged.

CiteSpace, developed by Prof. Chaomei Chen, is a universally used program based on JAVA for bibliometric and visual analysis (31). CiteSpace can uncover potential information in the vast literature through visualization, detecting national and institutional contributions and collaborations, disciplinary distribution, citation and co-citation counts, research hotspots, and more.

VOSviewer is another bibliometric analysis software developed by Nees Jan van Eck and Ludo Waltman for building and viewing bibliometric maps based on web data, from which key information from numerous publications can be exacted (32). It can be used to create visual network maps based on collaborative data or keyword maps based on co-occurrence data. VOSviewer’s main goal is to give users a thorough grasp of the dynamics and structure of scientific research.

3 Results

3.1 Annual publication growth trend

According to our research strategy, there are a total of 4,711 publications related to IL-33 obtained from the WoSCC database from 2004 to 2022. The annual publication number and citation number with IL-33 are shown in Figure 1. In 2004-2006, only 1-2 articles were published each year. However, from 2007 to 2022, the number of publications increased steadily, with a slight stagnation in 2014, and the correlation coefficient R² is 0.9603. Besides, the upward trend in publication citation frequency from 2004 to 2022 was also calculated (Figure 1). The steady increase in Np (number of publications) and Nc (number of citations) indicates that IL-33 continues to be attractive for more and more scholars to conduct research related to IL-33 and that this field needs more prospective studies in the future.

FIGURE 1

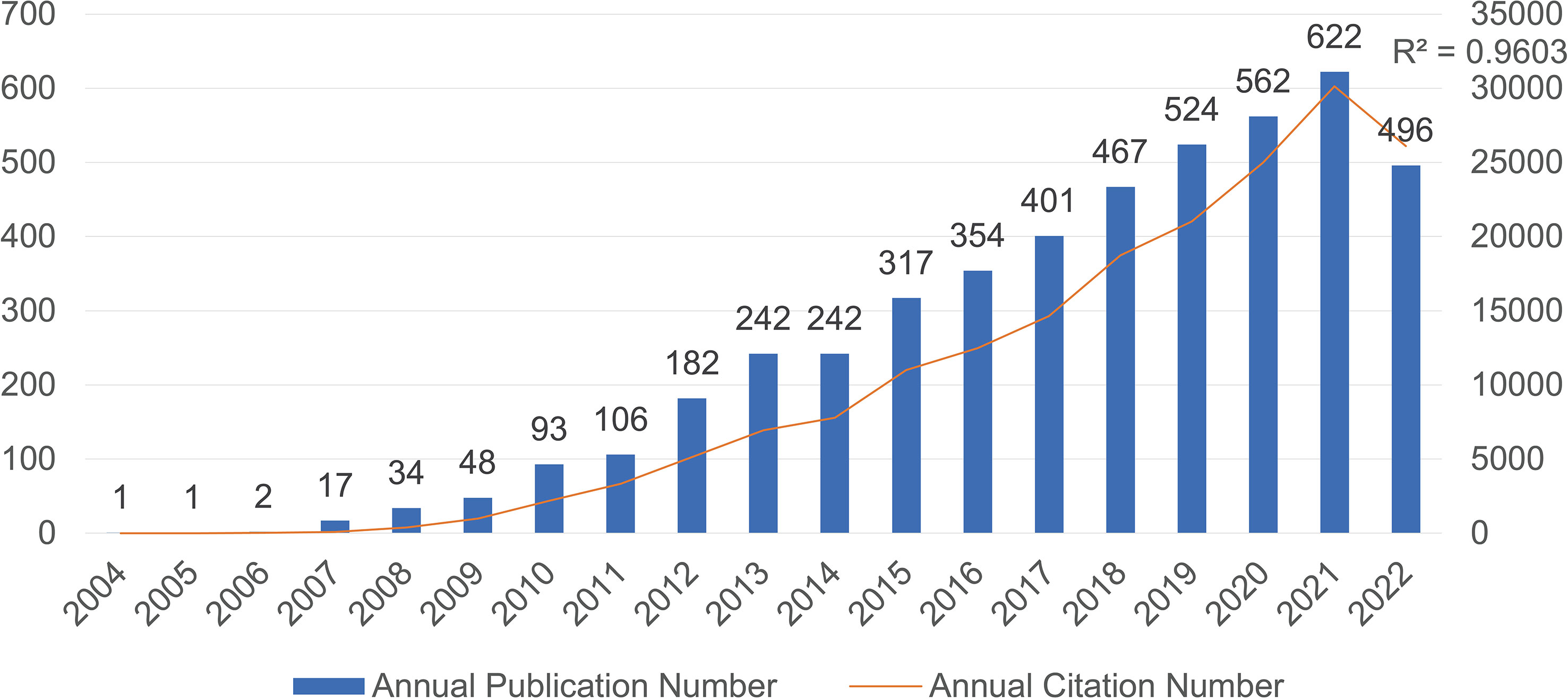

Figure 1 The number of annual publications and citations of IL-33 research from 2004 to 2022 has been steadily increasing.

3.2 Analysis of countries and institutions

A total of 89 countries and 483 institutions were involved in IL-33-related research. The top 10 most prolific countries in IL-33 publications based on Np and Nc were ranked (Table 1). The leading countries are the USA (1,354) and China (1,172), both exceeding 1,000 publications, followed by Japan (515) and all other countries with less than 500 publications.

TABLE 1

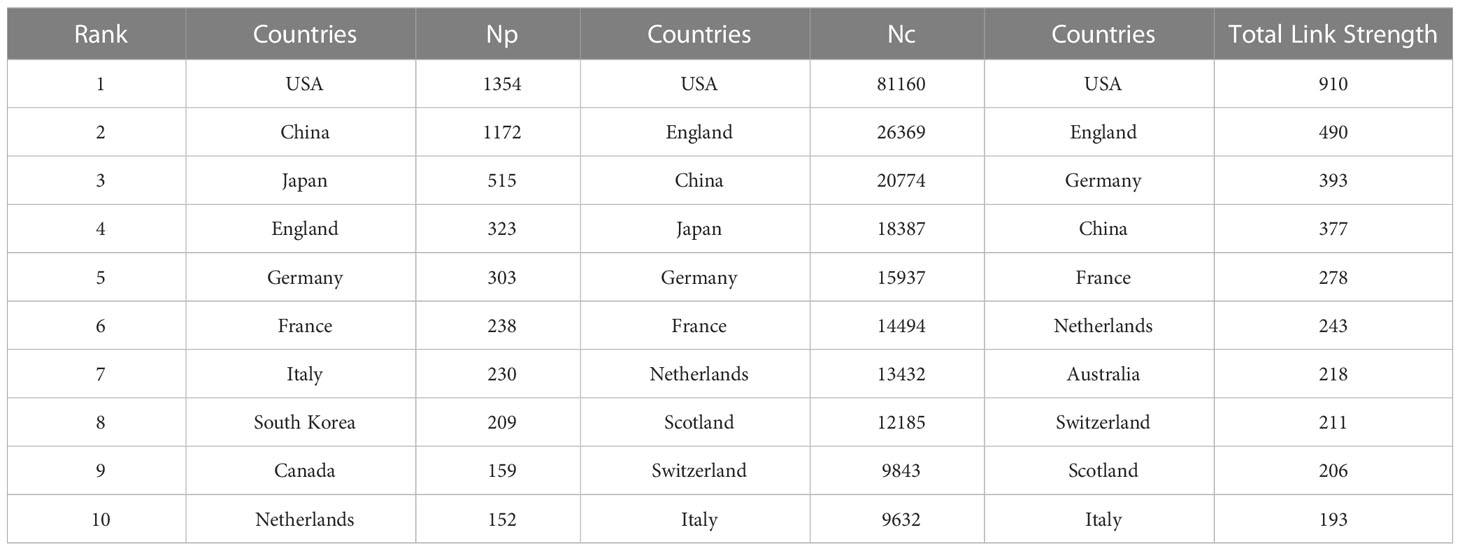

Table 1 The top 10 productive countries with publications concerning IL-33.

It is worth noting that while both China and the USA contribute nearly a quarter of the publications in the IL-33 field, the USA had a total of 811,160 citations, four times of China (26,369), indicating that the USA was the most influential country in this field in terms of both quantity and quality of articles so far. In addition, the close cooperation between the various countries is shown in Figures 2A, 2B. The purple-round nodes indicate high betweenness centrality (≥0.1). The top five countries with high centrality are the USA, England, France, Germany, and Serbia (Figure 2A). The country’s co-occurrence density is 0.11, showing active cooperation among them. The closest cooperation occurs between the USA and China, followed by the USA and Japan (Figure 2B).

FIGURE 2

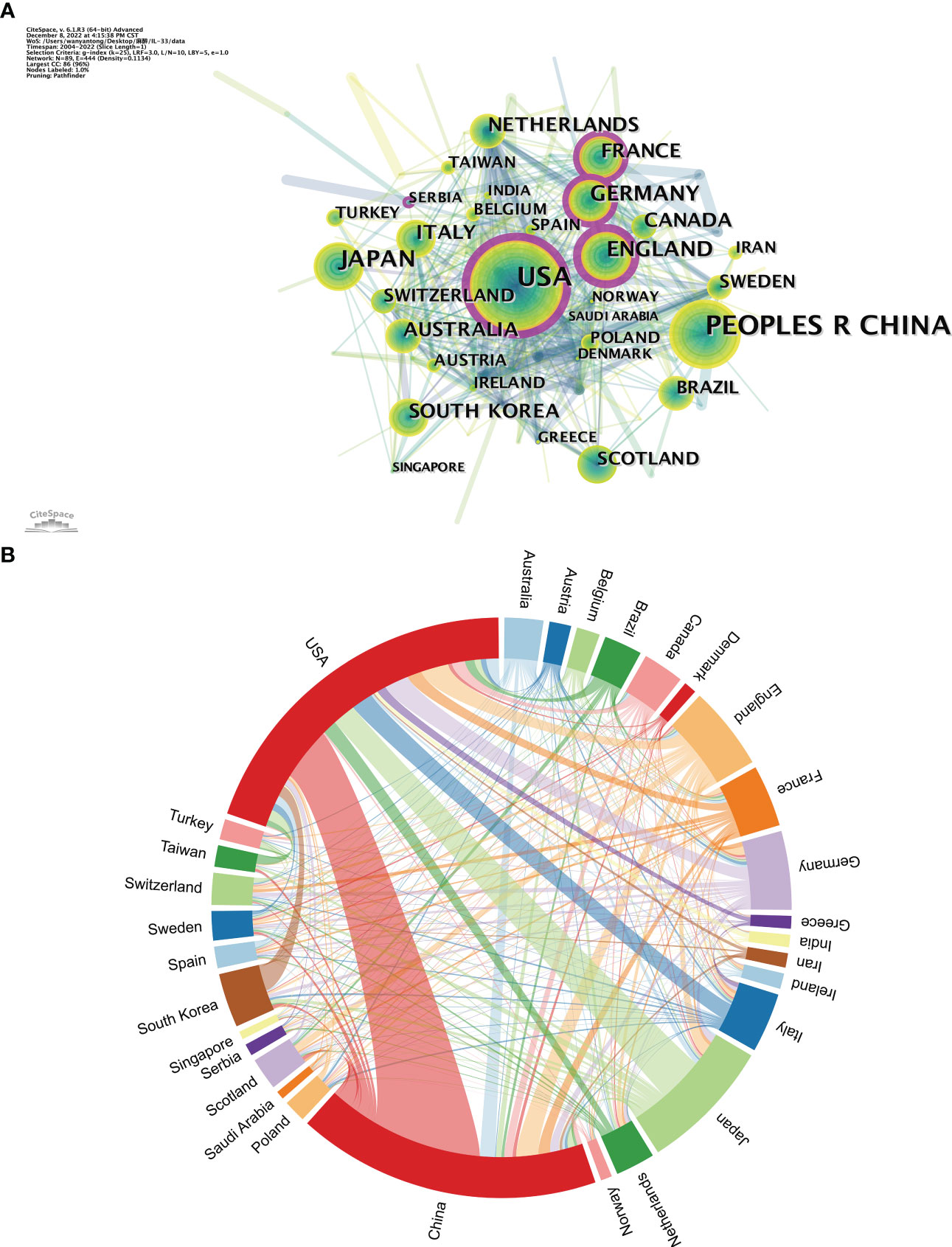

Figure 2 The analysis of countries related to IL-33. (A) The co-occurrence map of countries. The node size means the co-occurrence frequencies, while the linkages mean the co-occurrence relationships. Nodes with purple round mean high betweenness centrality (≥0.1). (B) The network map of cooperation between countries.

The top 10 science research institutions regarding the number of publications and frequency of citations were the University of Tokyo from Japan contributes the most publications (Np: 92), followed by Huazhong University of Science (Np: 84) from China and the University of Glasgow (Np: 81) from England (Table 2). Also, the University of Tokyo and the University of Glasgow were the top 10 institutions in terms of Nc, reflecting their scientific strength and importance. The intensive cooperation among institutions of the University of Glasgow, Brigham and Women’s Hospital, and Karolinska Institute had high centrality (Figure 3A), suggesting that these institutions were significant in the IL-33 research. Figure 3B depicts the proportion of institutional publications relative to complete publications during the last five years. The findings demonstrate a significant increase in the number of studies carried out during the previous 5 years by Harvard Medical School, Shanghai Jiao Tong University, Guangzhou Medical University, and other organizations. In comparison, the University of Glasgow, Medical Research Council, Center for Child Health & Development, Centre National De La Recherche Scientifique(CNRS), and other institutions have undertaken relatively few studies over the last 5 years.

TABLE 2

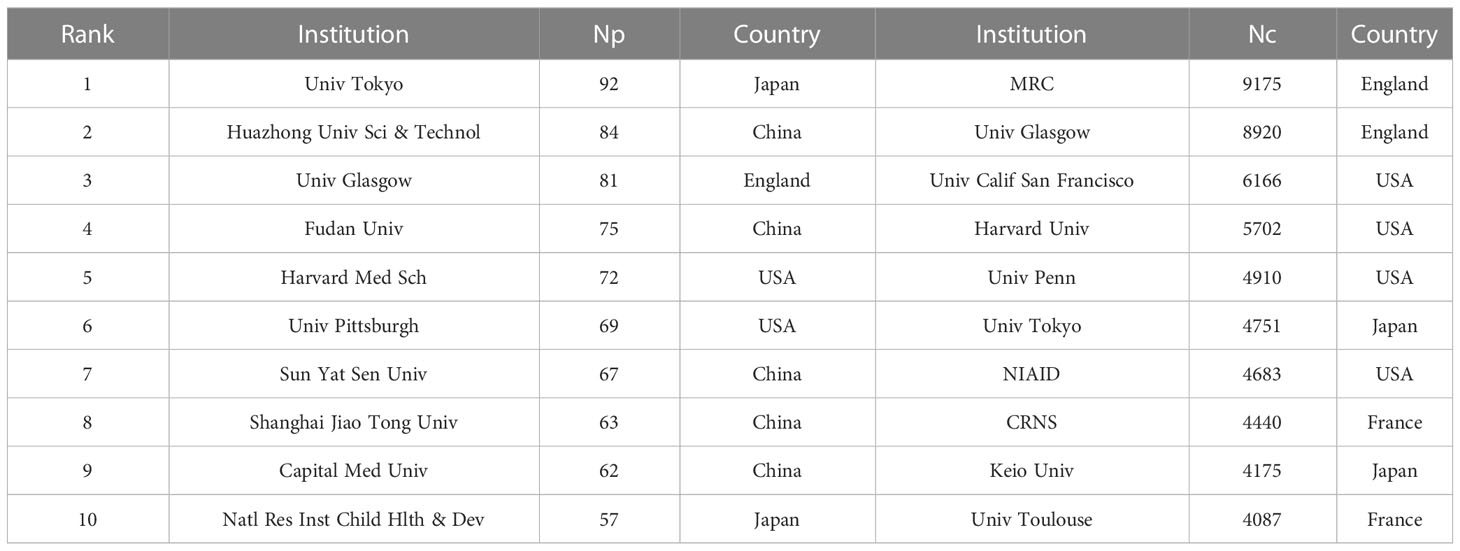

Table 2 The top 10 productive research institutions with publications concerning IL-33.

FIGURE 3

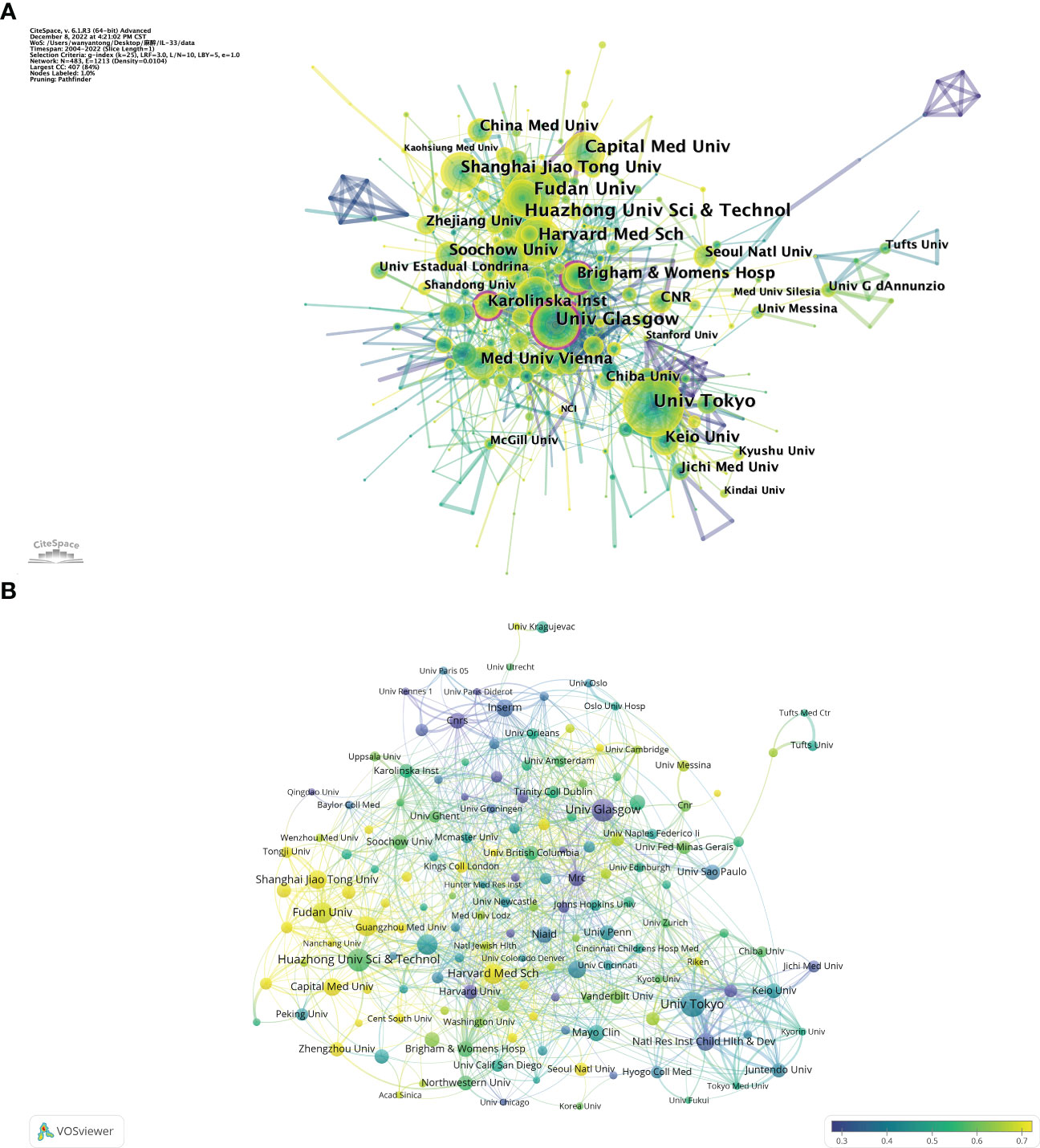

Figure 3 The analysis of research institutions related to IL-33. (A) The co-occurrence map of research institutions. The node size means the co-occurrence frequencies, while the linkages mean the co-occurrence relationships. Nodes with purple round mean high betweenness centrality (≥0.1). (B) The proportion of institutional publications to complete publications during the last five years. When the color bias is towards yellow, the ratio is larger; when the color bias is towards purple, the ratio is lower. VosViewer.

3.3 Analysis of journal

A visual analysis of published journals and co-cited journals to show active and influential journals about IL-33 was performed. We discovered that 4,711 IL-33-related publications were published in 1009 academic journals. Table 3 and Figure 4A show that the journal with the most publications is Frontier of Immunology (208, 4.42%), followed by Journal of Immunology (159, 3.38%), Journal of Allergy and Clinical Immunology (142, 3.01%) and PLOS ONE (115, 2.44%). Furthermore, five are in the Q1 JCR division, and seven have an impact factor (IF) of over 5 among the top 10 journals. Seven of the top ten co-cited academic journals have been cited over 5,000 times. The journals with the highest citations are the Journal of Immunology (15,704) and the Journal of Allergy and Clinical Immunology (12,281). Five of the top ten co-cited journals are in the Q1 JCR, and six have an impact factor of over 10.

TABLE 3

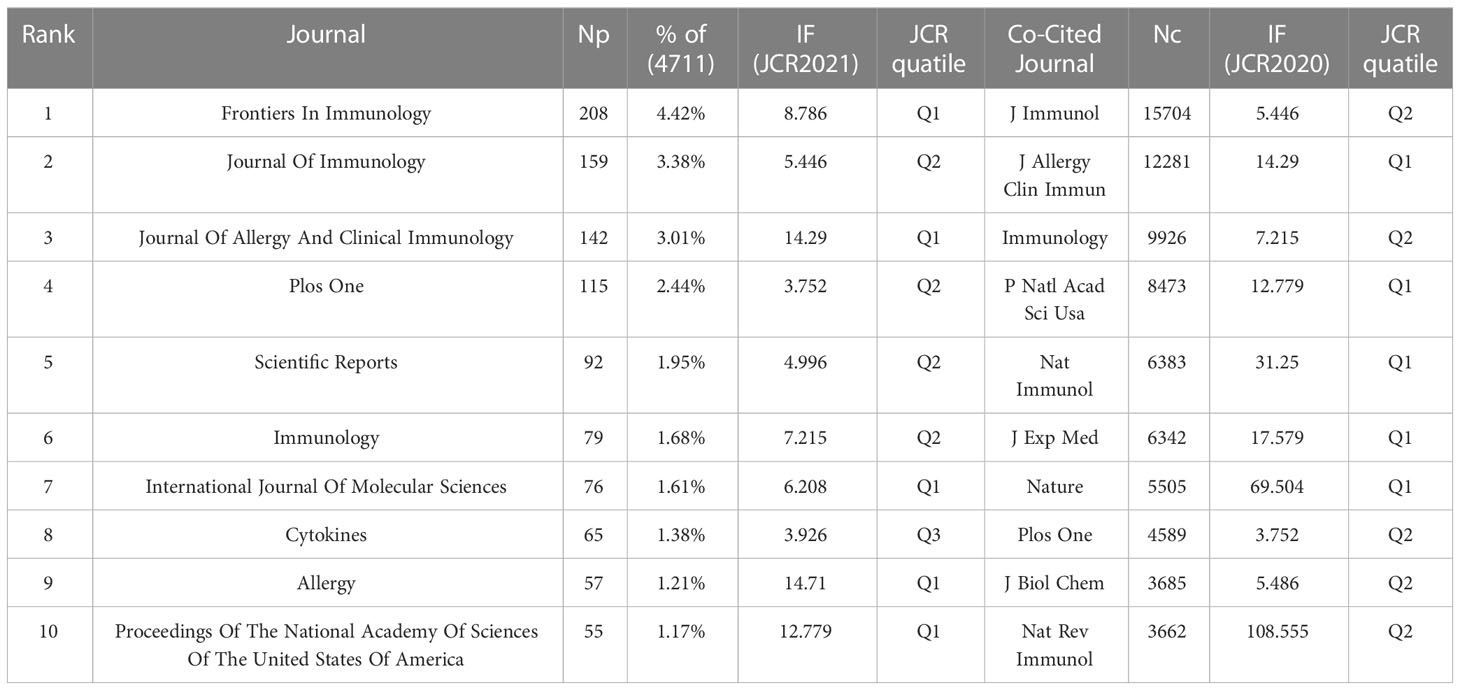

Table 3 The top 10 productive academic journals with publications concerning IL-33.

FIGURE 4

Figure 4 The analysis of academic journals related to IL-33. (A) Bradford’s Law according to the academic journals. (B) A dual-map overlay of the journals on IL-33 research. Clusters of citing journals are on the left, cited journals are on the right, and colored trails between them indicate the cited relationships.

Figure 4B is a dual-map overlay of journals, which can provide a more visual representation of the distribution of individual academic journals, the development of citation trajectories, and the change in research focus. Overall, Figure 4B shows that Molecular/Biology/Genetics journals, as well as Molecular/Biology/Immunology journals, frequently cite articles published in Molecular/Biology/Genetics journals.

3.4 Analysis of authors

A total of 24,652 authors participated in the research of IL-33. Table 4 shows the top 10 most prolific and the top 10 most cited authors in IL-33 study. We can see that Andrew N. J. McKenzie from Medical Research Council, England led with 58 articles and 10,769 citations, followed by Susumu Nakae from University of Tokyo, Japan, with 48 articles but ninth in citations (3,552).

TABLE 4

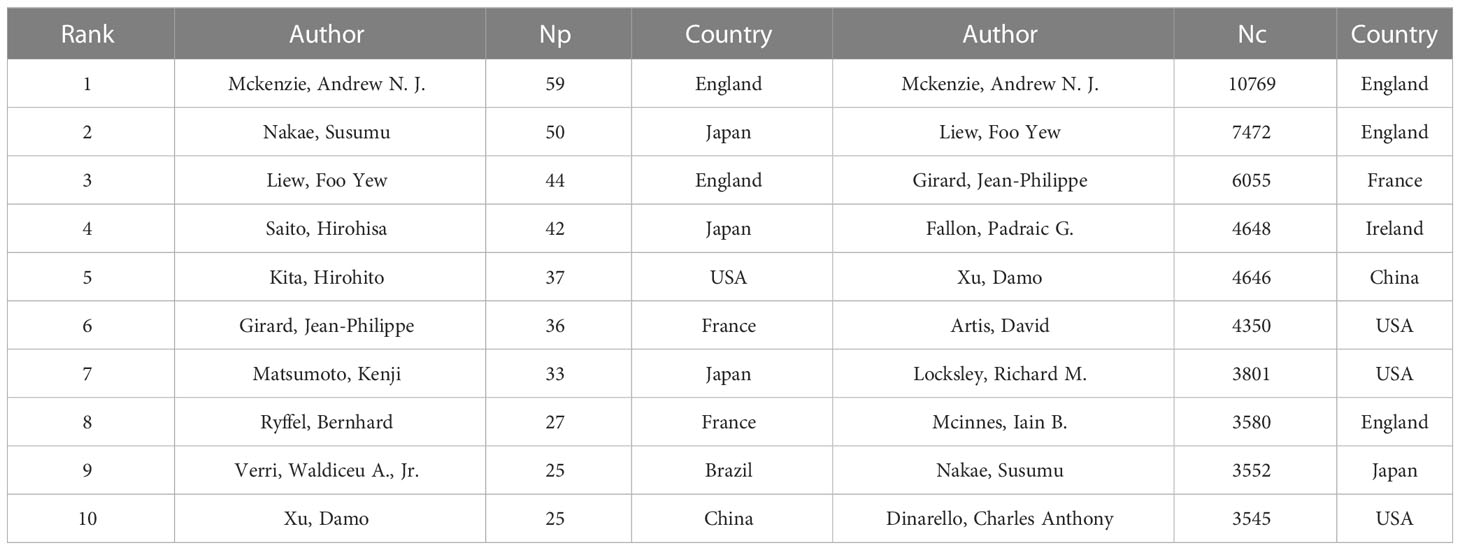

Table 4 The top 10 productive authors with publications and citation frequency concerning IL-33.

Figure 5A shows a cooperation network between authors, providing expert information for finding research partners. The 18 colors represent 18 clusters in Figure 5A. Andrew N. J. McKenzie and Foo Yew Liew are at the heart of the collaborative network. Authors collaborate actively in conducting the IL-33 study, especially among authors in the same cluster, e.g., Susumu Nakae and Hirohisa Saito. Close collaboration could also be observed between authors in different clusters, e.g., Andrew N. J. McKenzie and Foo Yew Liew.

FIGURE 5

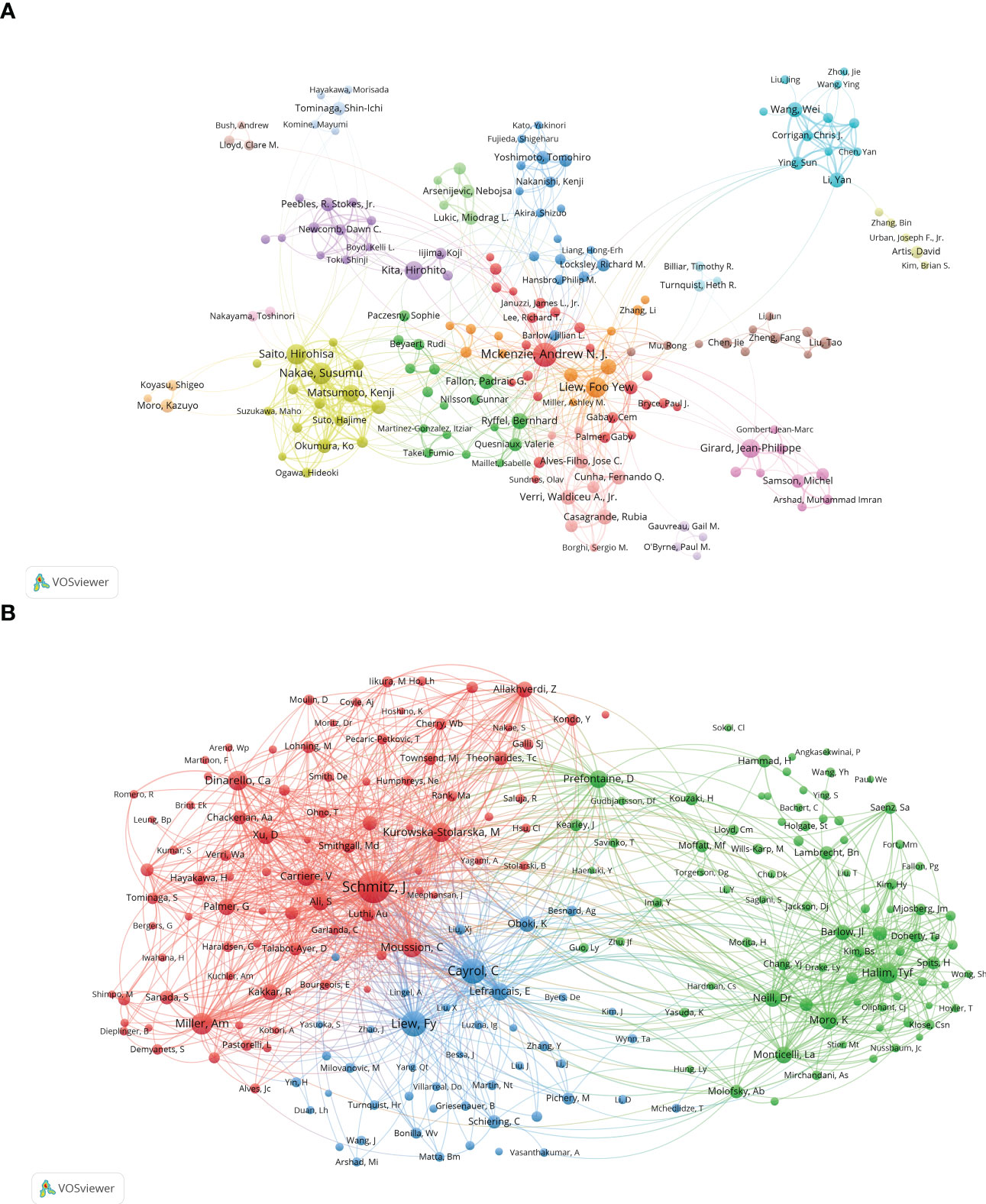

Figure 5 The analysis of authors related to IL-33. (A) The co-occurrence authors’ map of IL-33 research. The varied colored nodes reflect the authors in various clusters. The node size means the co-occurrence frequencies, while the linkages mean the co-occurrence relationships between authors. (B) The co-cited authors’ map of IL-33 research. The node size means the frequency of their occurrence. VosViewer.

The co-citation of authors refers to when different authors are cited by another articles at the same time, these authors form a co-citation relationship. When the number of co-citations is higher, their academic research is more similar, and the analysis reflects their research strength (Figure 5B). The authors were mainly divided into 3 clusters: Jochen Schmitz, Virginie Carriere, etc.(red); Foo Yew Liew, Corinne Cayrol, etc.(blue); Timotheus Y F Halim, Daniel R Neill, etc.(green).

3.5 Analysis of reference

Table 5 shows the top 15 most cited articles about IL-33, with the top 7 articles having more than 1000 citations. The article, which was most cited, was Jochen Schmitz’s “IL-33, an interleukin-1-like cytokine that signals via the IL-1 receptor-related protein ST2 and induces T helper type 2-associated cytokines”, published in Immunity in 2005 with 2628 citations. In this article, IL-33 was introduced firstly (3), which set the stage for subsequent research on IL-33. Daniel R Neill’s “Nuocytes represent a new innate effector leukocyte that mediates type-2 immunity” in Nature in 2010 with 1507 citations (11).

TABLE 5

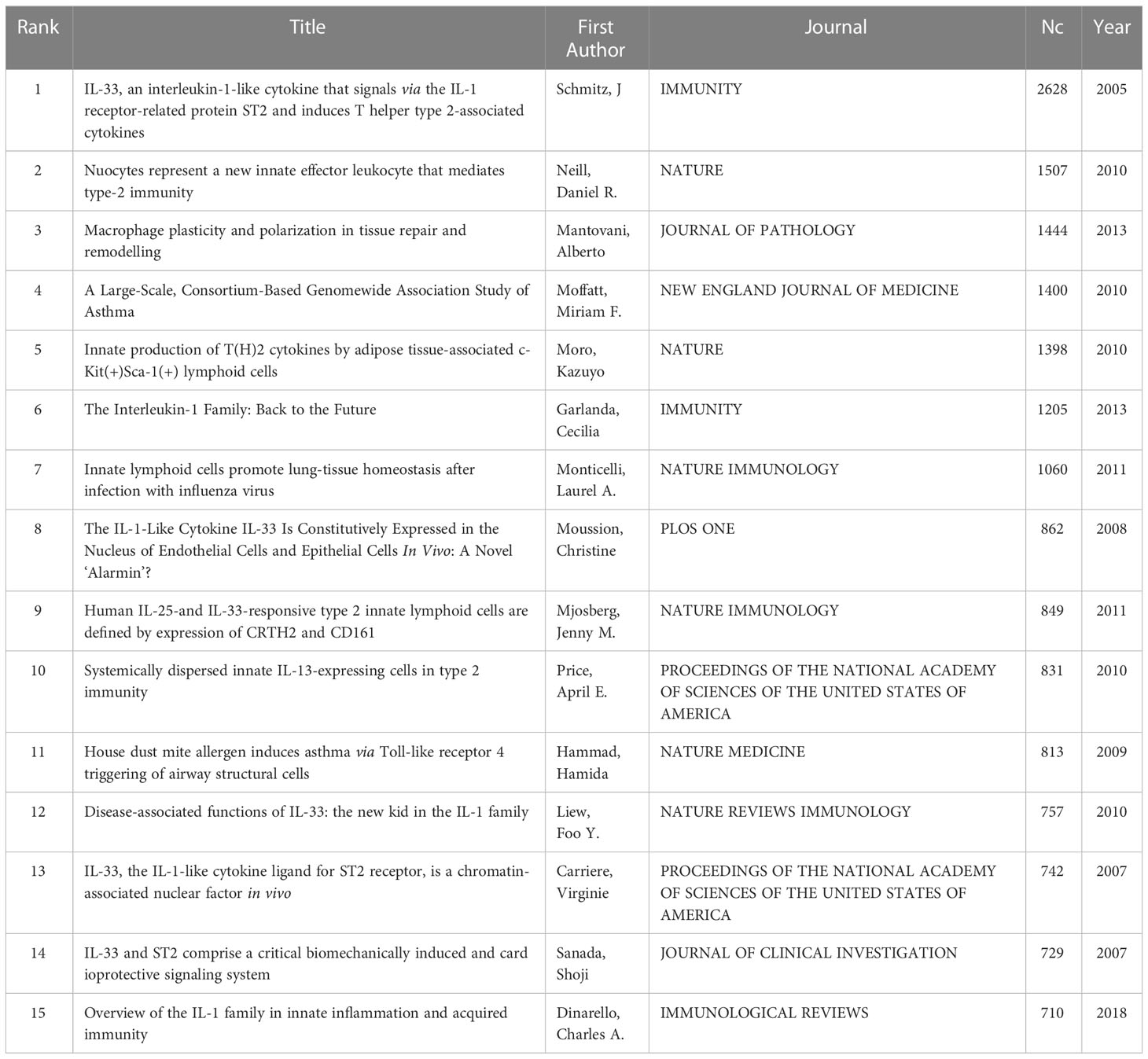

Table 5 The top 10 co-cited references concerning IL-33.

The knowledge structure of the research field can be objectively displayed using the co-citations cluster analysis. To further depict the groups of references that were co-cited, we created a network map (Figure 6A). “The Oxidation of the alarmin IL-33 regulates ST2-dependent inflammation” published by E Suzanne Cohen in 2015 and had a high centrality (33), which proposed a novel mechanism for regulating IL-33, namely oxidation-driven conformational changes, unlike the previous restriction of IL-33 activity through caspase (6, 34, 35) or soluble ST2 and IL1RAcP (20, 36). The degree of correlation between the articles, classified into 18 categories, serves as the foundation for cluster classification. The largest cluster is #0 ilc2. The earliest clusters to begin research were #18 animal models, #7 inflammasome, and #12 rheumatoid arthritis. Later research developed into #11 il-4r alpha/il-13r alpha 1, #10 heart failure, and #5 dc. #13 asthma is relatively closely linked to #15 t cells and #2 copd to #1 regulatory t cells. In recent years the closeness of the links between the study areas has decreased, with #4 dupilumab, #8 covid-19, #14 il-37, and #9 colorectal cancer becoming more independent clusters.

FIGURE 6

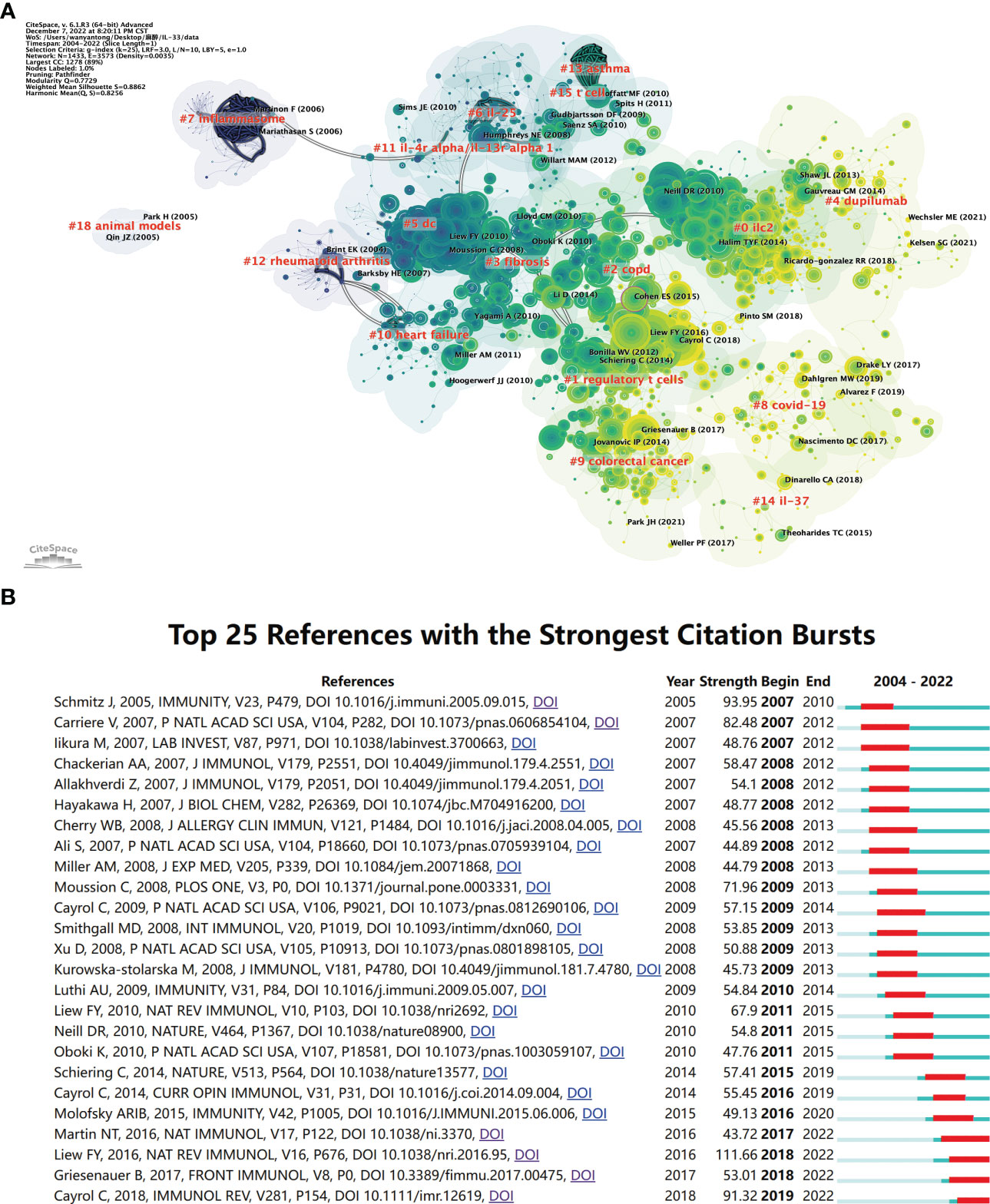

Figure 6 The analysis of references related to IL-33. (A) Clustering of references based on the similarity between references, including #0 ilc2, #1 regulatory t cells, #2 copd, #3 fibrosis, #4 dupilumab, #5 dc, #6 il-25, #7 inflammasome, and so on. (B) The top 25 references with strong citation bursts. A red bar means high citations in the corresponding year. CiteSpace.

References with citation bursts are those whose citations significantly and suddenly increase over a certain period. We listed the top 25 with the strongest citation bursts in Figure 6B. The earliest three citation burst began in 2007. The strongest burst (strength=111.66) occurred in a paper entitled “Interleukin-33 in health and disease” (26), published in Nature Reviews Immunology by Foo Yew Liew et al. in 2016, with citation burst from 2018 to the present. “IL-33, an interleukin-1-like cytokine that signals via the IL-1 receptor-related protein ST2 and induces T helper type 2-associated cytokines” by Jochen Schmitz, published in Immunity in 2005, also had a high burst (Strength=93.95) (3). According to the findings, 2018 had the highest citation bursts, followed by 2009, indicating that the high-burst articles in these two years lead to a research boom. Notably, four references are still in the burst.

3.6 Analysis of hotspots and frontiers

Our study includes 97 research areas related to IL-33 (Figure 7A), with current research focusing on immunological, biochemistry & molecular biology, and cell biology. It can be seen that IL-33 has been researched in broad directions, involving research in several fields.

FIGURE 7

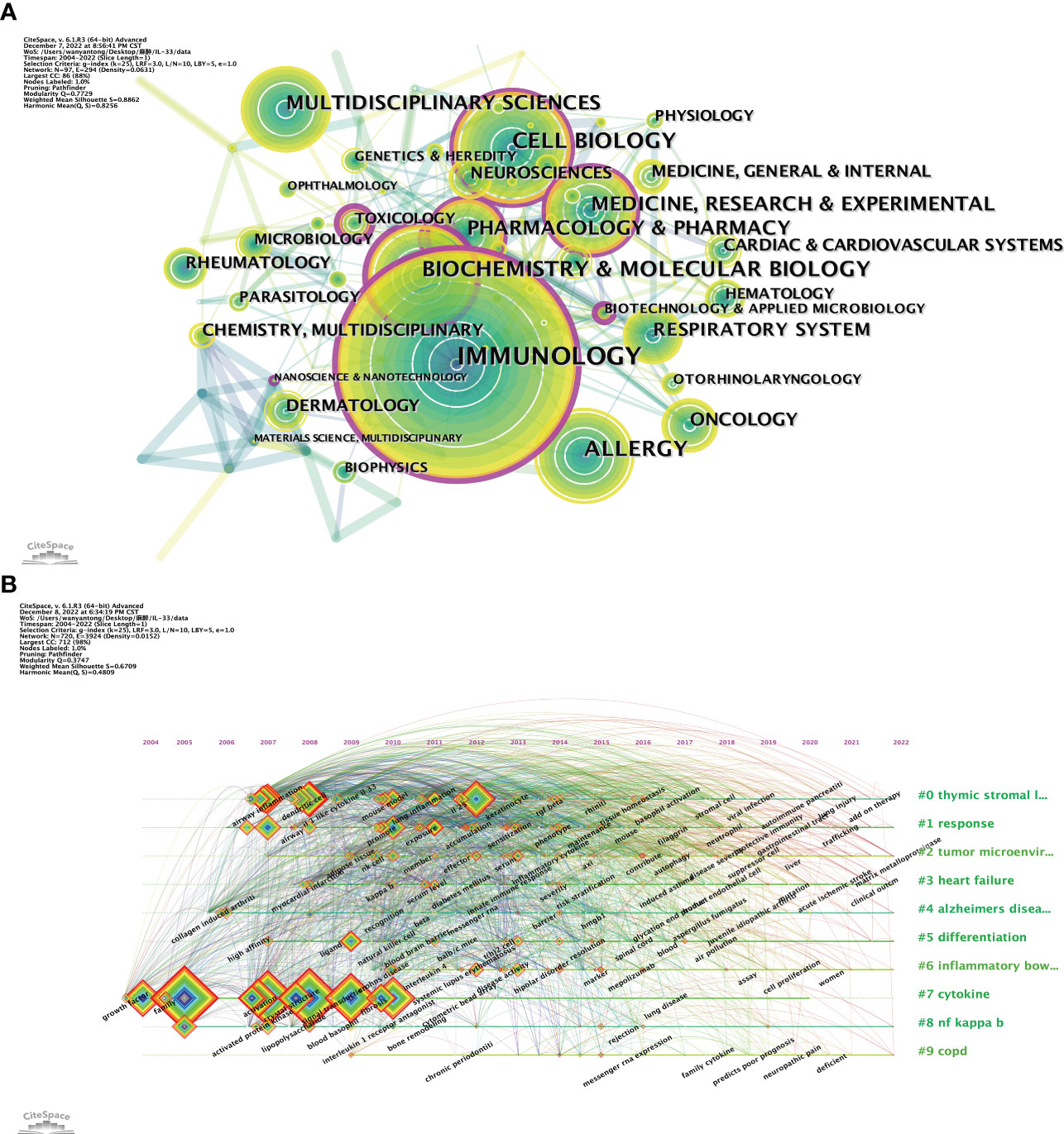

Figure 7 The analysis of research fields. (A) and keywords concerning IL-33 (B). (A) The co-occurrence map of research fields. (B) A timeline view of keywords. CiteSpace.

Usually, the keywords reflect the topic and research content of the articles. We can quickly comprehend the focus and trend of research in a particular field by analyzing the co-occurrence of keywords. We list the top 20 most common keyword about IL-33. In addition to IL-33, inflammation (560), asthma (479), cytokines (409), sST2 (381), ILCs (277), and allergic inflammation (248) are the keywords that appeared more than 200 times in the study and have more than 50 total link strength. These 20 keywords mainly focus on the biology and function in disease of IL-33.

The timeline viewer of keywords helps to analyze the evolution of these keywords in diverse clusters. In Figure 7B, we can visualize the progression of keywords in the IL-33 field and the keywords that are the research focus in each phase. Nine of the 10 clusters (except #8 cytokine) are still in progress. #0 thymic stromal lymphopoietin (TLPS) is the largest cluster, and the first keywords to appear in the field were airway inflammation, dendritic cell, and IL-1-like cytokine IL-33. At the same time, add-on therapy and lung injury are the latest research directions. #8 cytokine was the first cluster to be studied and the most cited outbreak, but it will no longer be a research priority after 2020. #6 IBD is the latest cluster, with the main keywords being systemic lupus erythematosus, disease activity, and bipolar disorder. The evolution of research keywords reflects the early nascent phase focused on studying IL-33 molecular biology and related mechanisms, and now focuses more on exploring the mechanisms of occurrence and applications in various diseases.

Figure 8A displays the annual popularity of the keyword related to IL-33 research from 2004 to 2022, which is measured as the ratio of the number of citations to the total citations in the same year. In recent years, keywords like COVID-19, group 2 innate lymphoid cells, type 2 immunity, and tumor microenvironment have had relatively significant annual popularity, indicating that these terms have become a burgeoning research hotspot. In contrast, keywords like basophil and allergy have recently had relatively low annual popularity. The popularity correlation of keywords is shown in Figure 8B. Keywords with high popularity in the same period are grouped together in a category and denoted by distinct colors. There are 8 clusters: the pink cluster (inflammation, cancer, myocardial infarct, etc.), purple cluster (IL-18, IL-1β, rheumatoid arthrit, etc.), orange cluster (airway inflammation, TNF-α, allergy, etc.), blank cluster (IL-13, pathogenesis, epithelial cells, etc.), blue cluster (COPD, severe asthma, rhinovirus, etc.), green cluster (biomarker, IGE, dendritic cells, etc.), yellow cluster (eosinophilia, IL-37, alarmin, etc.), and red cluster (prognosis, IL-25, basophil, etc.).These indicate that keywords in the same cluster are more important research hotspots during the same period.

FIGURE 8

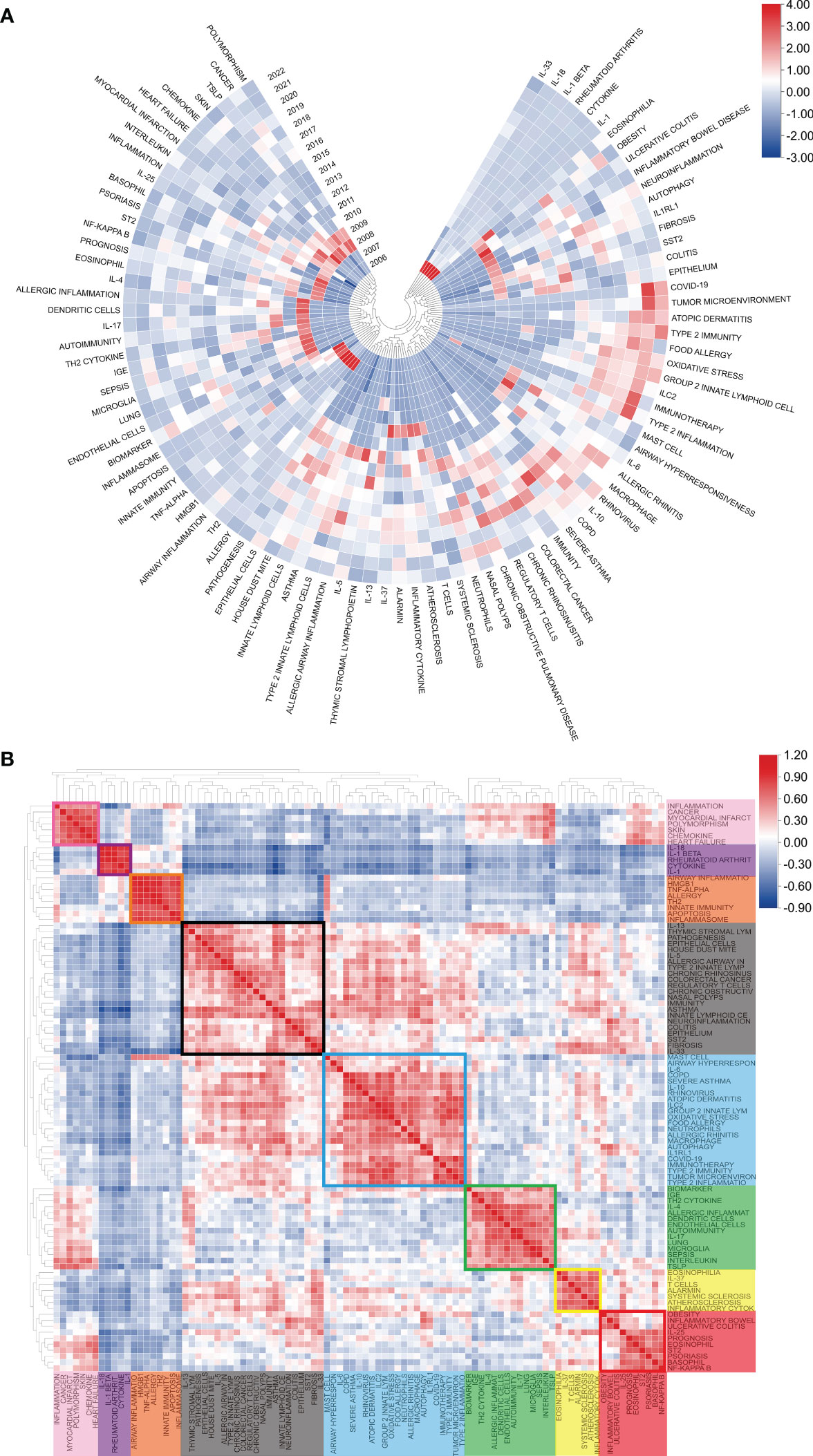

Figure 8 Heatmap analysis of IL-33 keywords. (A) The annual heatmap related to IL-33 research. The annual popularity of the keyword is measured as the ratio of the number of citations to the total citations in the same year. (B) Keyword relevance heatmap of IL-33. Keywords with high popularity in the same period are grouped together in a category and denoted by distinct colors.

Keywords with strong citation bursts are another critical indicator of hotspots and emerging trends in a research field. As shown in Figure 9, among the top 25 keywords with the strongest citation bursts, in vivo had the strongest burst (33.27), followed by receptor accessory protein (28.09), IL-1r (23.11), T1/ST2 (20.93), and human basophil (20.78). Of note, only Type 2 inflammation (9.14) is still in the burst.

FIGURE 9

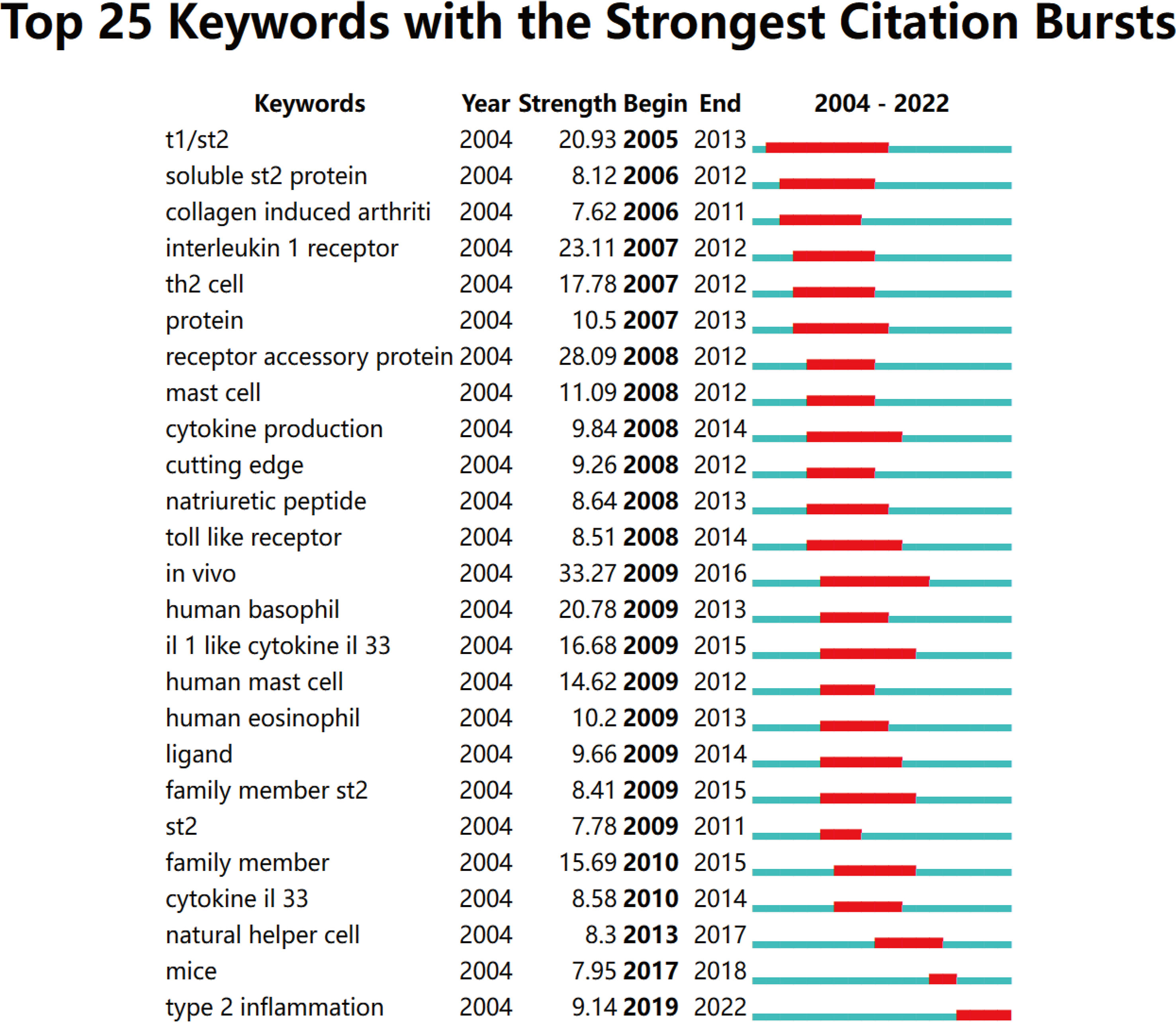

Figure 9 The top 25 keywords with the strongest citation bursts.

4 Discussion

4.1 General information

Based on the data from the WoSCC database at December 7, 2022, a total of 4711 articles on IL-33 research have been published in 1009 academic journals by 24652 authors from 483 institutions in 89 countries. Since IL-33 was first reported in 2005(Schmitz et al., 2005), research on IL-33 has begun. This field was still in its infancy in 2004-2006 and lacked a research base. Since 2007 publications related to IL-33 have been steadily and rapidly increasing, with six times the number of publications in 2021 compared to 2011. This means that IL-33 is one of the more popular research areas and has attracted a great deal of scholarly attention.

In the country visualization analysis, the USA and China are the most prolific countries in this area, which is closely linked to the support of local institutions, with 5 of the top 10 institutions also in China and 2 in the USA. The co-occurrence density of 0.11 for countries suggests that IL-33 research is more collaborative worldwide, which is beneficial for the long-term development of academic research. Meanwhile, countries with high-centrality nodes play a key bridging role in the global collaborative network in this field (31, 37), with the USA, in particular, being a central leader in IL-33 research. In addition, the three research institutions that show high centrality are Glasgow University from the UK, which is the most central, followed by Brigham and Women’s Hospital from the USA, indicating a dominant position in the global IL-33 research collaboration.

According to Table 3 and Figure 4A, Frontiers in Immunology published the most IL-33 researches, far more than any other journal but was not among the top 10 co-cited journals. The Journal of Immunology and the Journal of Allergy and Clinical Immunology are the top five most published and top five co-cited journals. These two academic journals have played a crucial role in IL-33 research. Seven of the top 10 prolific journals are among high IF journals. The co-cited journals are primarily high-impact journals, indicating the high value of IL-33 research in the global academic landscape. These popular journals are closely related to cell biology and immunology, which is rather similar to the analysis of the journal dual-map overlay. Most of the existing research is focused on basic research, but there has been a trend toward clinical aspects.

From the author’s perspective, Andrew N. J. McKenzie from Cambridge, UK, has published the most articles and citations on IL-33. Jochen Schmitz from the USA is ranked first among co-cited authors, showing his pre-eminence in the IL-33 research field. Also in the top 5 published and co-cited authors is Foo Yew Liew from the University of Glasgow, England, which explored IL-33 as a universal and important immunomodulator from multiple perspectives. He and his team have also proposed a relationship between IL-33 and diseases such as sepsis (38), oncological chemotherapy (39), Alzheimer’s disease (40), and cerebral malaria (41, 42), and suggest that IL-33 is a double-edged sword, the rational regulation of which may have considerable potential therapeutic effects.

According to Table 5, the 15 most cited references are mainly on immune mechanisms about IL-33, the IL-1 family, ILCs, asthma, and others, including four reviews. Of supreme centrality is E Suzanne Cohen, who proposed a mechanism for quick cessation of IL-33 action at its receptor ST2 by conceiving a switch controlled by oxidation and bridging of the free cysteines in IL-33. This article also suggested that cysteine oxidation could play a role in the regulation of many IL-1 family cytokines (33). References with citation bursts mean that the results of studies in this area have been cited often for a period of time. This suggests that the articles have received a lot of interest from the scientific community and may, in part, reflect dynamic shifts and hotspots in IL-33 research. The earliest burst began in 2007, with an article published in 2005, and the burst lasted for four years. It is obvious that four references’ burst is still ongoing, all of which are reviews. They provide a comprehensive and integrated discussion of various aspects of molecular biology, signaling, regulatory mechanisms, and their relationship to the disease of IL-33.

4.2 The hotspots and trends

One of the most important roles of bibliometrics is to process and analyze a large amount of data to provide researchers with information on research trends (43). The analysis of frequently recurring keywords might indicate changing trends and prominent subjects, which is important for understanding the evolution of this academic field (44). Before the specific analysis, let’s have a general idea about the evolution of the keywords of IL-33 during the period 2004-2022. As shown in Figure 8A, in the early stages of IL-33 research, the main focus was on the fundamental properties of IL-33 biology, and its role in apoptosis, innate immunity, inflammation, and allergic reactions was initially explored. In 2008, the highly significant ST2 (the receptor for IL-33) and its associated signaling became popular. IL-33 also began to be studied in the cardiovascular system and in autoimmune diseases. Subsequently, IL-33-induced activation of related cytokines (e.g., IL-4, IL-13) and their mechanisms of interaction have been extensively studied. The mechanism of IL-33 action on various types of cells (e.g., endothelial cells, macrophages) was also studied in depth. In 2015-2020, IL-33 is repeatedly mentioned and studied for its role in various diseases. In the last three years, type 2 inflammation and type 2 immunity have been the most popularly studied. There is also IL-33 immunotherapy and related tumor microenvironment. It is found that current IL-33 research focuses on immunology, molecular cell biology, and medical research. Meanwhile, the main keywords revolve around molecular biology, immune action and related diseases (Figure 7A).

4.2.1 Molecular biology of IL-33

Since IL-33 proposed in 2005, a more comprehensive understanding of the IL-33 gene was available (3). The IL-33 gene consists of eight exons (3). The promoter of the human IL-33 mRNA form is located upstream of the untranslated exon. It has an interferon-stimulated response element (ISRE) and IFN-γ activation site (GAS) (45). Asthma is one of the popular keywords for IL-33 (Table 6). It has been a popular research topic, while many of the single nucleotide polymorphisms (SNPs) in the human IL - 33 gene associated with asthma are located in promoters and introns-1 (46), and SNPs in IL-33 are often associated with increased asthma susceptibility (47, 48).

TABLE 6

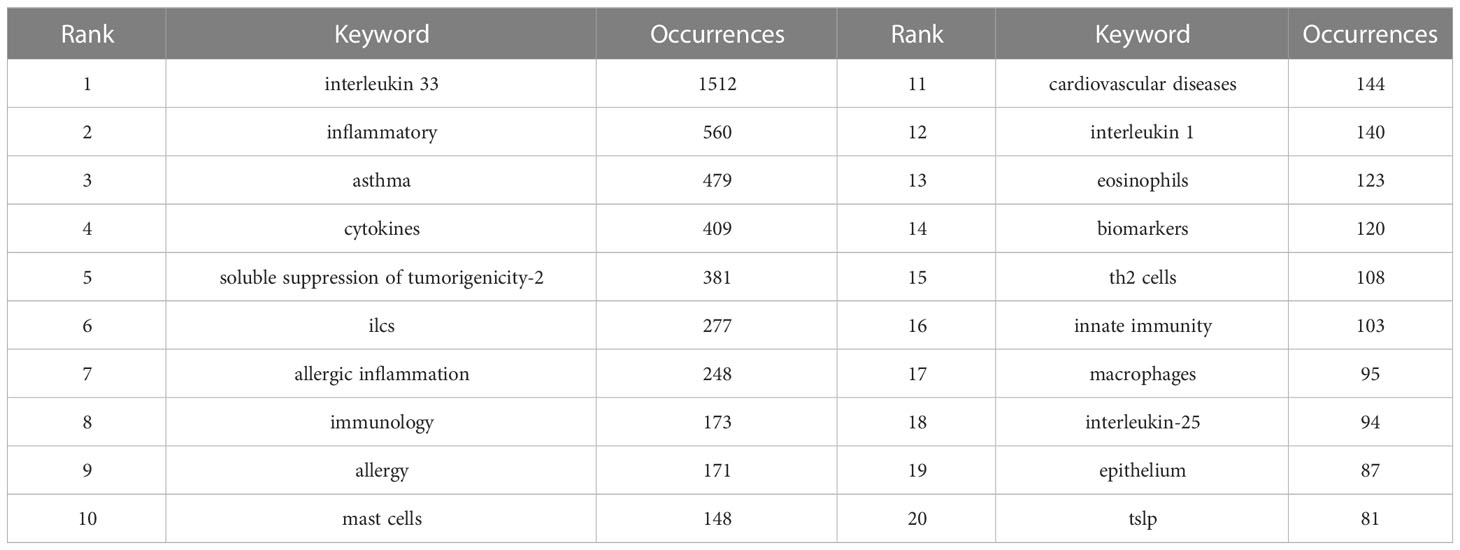

Table 6 The top 20 keywords in terms of frequency of occurrence concerning IL-33.

In this study, the keyword #7 cytokine cluster was highly prominent from 2004-2010, and most publications in the early nascent phase focused on the basic structure and mechanism of IL-33. IL-33 is a tissue-derived cytokine. It was found to be abundant in endothelial cells, tissue epithelial cells and stromal cells in 2008 (4). In the course of experimental studies, species-specific differences in IL-33 were found, with IL-33 being expressed by type II alveolar cells in mice (19, 49). Therefore, the results of mouse models cannot be directly extrapolated to target IL-33 in humans. Mélanie Pichery et al. also experimentally, IL-33 is a nuclear cytokine in vivo (50). Epithelial-derived IL-33 plays a key role in allergic inflammation and type 2 immunity. IL-33 can also be induced to be expressed and further increased in response to cellular stress or inflammation, such as in the intestinal epithelium of bone marrow transplant recipients with GVHD (51), asthma or COPD (17, 19). In addition, immune cells (e.g., macrophages, mast cells, DCs) have been widely studied in 2010 and are considered to be an important cellular source of IL-33 protein in vivo (52). However, previous studies claiming IL-33 expression in macrophages did not have proper controls (IL-33 KD/KO cells) (53).

The nuclear localization sequence of IL-33 N-terminal structural domain permits nuclear localization and chromatin binding, and the C-terminal region of the protein has a brief chromatin-binding sequence (3, 25). In 2018, Jared Travers proposed that chromatin binding is a post-translational mechanism that controls IL-33 release and ST2-mediated bioactivity, elaborating on the functional importance of IL-33 nuclear localization and chromatin binding (54). Meanwhile, evidence from many studies suggests that nuclear IL-33 can mediate gene regulation through multiple mechanisms and has transcriptional regulatory functions (55–57). At this time, we are still unsure of the exactly how IL-33 leaves the nucleus and travels outside the cell. Li-Yin Hung et al. proposed that cCDs release IL-33 through a specific plasma membrane conduit (58). Another recent clinical study showed that the truncated IL-33 isoform may be able to regulate secretion on the surface of small extracellular vesicles or exosomes (59). In 2005, IL-33 was considered an inactive cytokine prerequisite that required caspase-1/inflammasomes activation to be biologically active (3). However, it was later shown that IL-33 itself is biologically active and can induce ST2-dependent responses in target cells (34, 60). In 2007, apoptosis-related studies were carried out extensively. During apoptosis, cleavage of IL-33 protein by caspases leads to its inactivation (34). Protein degradation may be an important mechanism limiting the biological activity of IL-33 in vivo (61). Extracellular oxidation of the protein may also be important in terminating the biological activity of IL-33 (33).

The receptor for IL-33, ST2, was identified as an mRNA produced by fibroblasts back in 1989. sST2 is produced from a single mRNA by differential expression and alternative splicing of two distinct promoters (62, 63), and sST2 is also ranked in the top five keywords (Table 6). IL-33 signaling via ST2 has essential implications for the immune system, which also involves multifaceted regulation (25, 26). Tengfang Li et al. found that when stimulated on macrophages, TLR4 and ST2 exerted different effects on cellular metabolism (64).

4.2.2 The role of IL-33 in immunity

Immunity is the most intensive area of IL-33 research, and its various immunomodulatory mechanisms have remained a hot research topic until now. The effect of IL-33 on type 2 immunity has been the focus of research since 2007. IL-33, IL-25, and TSLP are the innate cytokines that initiate the type 2 response (65). IL-25 and TSLP can synergize with IL-33 to activate ILC2 (11, 66). In 2019, Madelene W Dahlgren identified a new feedback function for IL-33 following helminth infection. IL-33 and TSLP from fibroblast-like adventitial stromal cells(ASCs) are required for intrapulmonary accumulation of ILC2 and Th2 cells during helminth infection, and ILC2 promotes amplification of ASCs and production of IL-33 (67). Meanwhile, IL-33 increases the proliferation of CD8⁺ T cells as well as the production of the type 1 cytokine IFN-γ and TNF-α during infection (16). In 2015, Claudia Baumann proposed that induction of ST2 upregulation in response to Th1 after LCMV infection is dependent on STAT4 and the type 1-associated transcription factor T-BET (68). At the same time, a recent article proposed that during LCMV infection, FRC deficiency in IL-33 protein expression through an unknown mechanism is associated with the induction of ST2 expression and expansion in CD8⁺ T cells (69).

IL-33 enhances macrophage cytokines secretion and CXCR2 expression in fungal infections to drive neutrophil recruitment and bactericidal capacity (70). A study has confirmed that the balance between IL-33 and IL-1 signaling regulates the immune response during infection (71). IL-33 is released in sepsis to activate neutrophils and prevent bacterial growth while repairing tissue (72), but high IL-33 levels can lead to immunosuppression (73). High levels of IL-33 activate ILC2, which produces IL-4 and IL-13, and promote M2 macrophages polarization, hence increasing Treg cells proliferation (38). In sepsis, the induced production of IL-33 represents a trade-off between acute protection and distant immunosuppression.

4.2.3 IL-33 in various diseases

The association between IL-33 and various diseases has been a popular research area since its early days. Disease research has involved inflammatory diseases, tumors, infectious diseases, and central nervous system disorders. The following discussion will focus on inflammatory diseases and cancers.

Inflammatory diseases involve several organ systems, mainly the respiratory, cardiovascular, and gastrointestinal systems. #0 (thymic stromal lymphopoietin) in Figure 7B shows that airway inflammation has attracted scholarly attention since 2007 and has remained a popular research topic in recent years (Figure 8). IL-33 targets ILC2 and Th2 cells to produce type 2 cytokines and promote type 2 inflammation by activating basophils and mast cells (74–76). IL-33 expression is often upregulated in allergic and respiratory diseases such as asthma, chronic obstructive pulmonary disease, and allergic rhinitis. Another gene-related research presented that IL-33 is related to asthma and that both IL-33 and IL1RL1 are linked to disease susceptibility (77). Yi et al. have identified intelectin (ITLN) knockdown suppressed expression of IL-33, IL-25, and TSLP expression in asthma and atopic dermatitis models (78). IL-33 is associated with IL-9 signaling in mast cells (79). IL-9 is a downstream cytokine associated with the role of IL-33 in the asthmatic airways (80). A study on a mouse model of allergic conjunctivitis found that IL-33 activated CD4⁺ T cells produce IL-9 (81). Meanwhile, the activation of the IL-33/ST2-involving Th2/IL-31 immune response has an important role in allergic inflammation (82). In asthmatics, both Th1 and Th2 responses are associated with the expression of IL-31 and IL-33. The activation of Th2 cells is closely associated with the pathogenic effects of IL-33, ultimately leading to inflammation (82). Airway inflammation is often accompanied by airway remodeling (83). IL-33 also plays an essential role in the pathological process of airway remodeling (84).

In 2004, Masahisa Shimpo et al. suggested that sST2 concentration was linked to damaged left ventricular function and a poor prognosis (21). It was demonstrated that IL-33 could reduce hypertrophy and fibrosis in mouse ventricles, and infusion of sST2 could antagonize the antihypertrophic effect of IL-33 (20). Nonetheless, studies on the clinical application of the IL-33-ST2 remain at the stage of using sST2 as a prognostic marker for myocardial infarction.

Elevated IL-33 levels in IBD patients correlate with disease severity, and IL-33 may serve as a potential biomarker for IBD (85). A study found that IL-33 promoted Th2 and Treg cell responses to ameliorate colitis induced by trinitrobenzene sulfonic acid (TNBS) in mice in a Foxp3-dependent form (86). IL-33 was found to enhance the expansion of Foxp3⁺ Treg cells in the intestine via transforming growth factor-β (TGF-β), thereby suppressing the intestinal inflammatory response (87). IL-33 could also affect the activation of inflammatory response-associated macrophages through T-cell differentiation effects (88). In addition, IL-33 modulates the immune inflammatory reaction to the physical and biological barriers of the intestine (89). However, the impact of ST2-specific expression in the intestinal mucosa of IBD on IL-33 as well as on disease progression remains unclear.

According to Figures 7B, 8A, cancer is a relatively recent disease to be studied concerning IL-33 and has still been a buzzword. IL-33 is engaged in the initiation and progression of many cancers like lung cancer (90), gastric cancer (91), bile duct cancer (92), breast cancer (93), and multiple myeloma (94). Mast cells are activated by tumor-derived IL-33 through the recruitment of tumor-associated macrophages and their support of vascular networks to maintain tumor growth (95). The secretion of reparative growth factors, such as Areg, by IL-33-stimulated ST2⁺ Tregs increased metastatic mammary carcinoma in a mouse model (96). Also, IL-33 can restrict tumor growth and metastasis through eosinophils (97). Marek Wagner et al. found that tumor-derived lactate attenuates the function and survival of ILC2, thereby disrupting the IL-33/ILC2/eosinophil axis function (98). A research reported that infusion of IL-33 is effective in suppressing lung metastases from mammary carcinoma in mice, which may be related to the elevation of NK cells at TME (99). In contrast, it was previously reported that mice lacking ST2 inhibited breast cancer development by enhancing the cytotoxic activity of NK cells (100). This contradictory result deserves an in-depth study. The combination of IL-33 and immune checkpoint blockade(ICB) has a better anti-tumor effect (101). In recent years, many studies have reported that IL-33, eosinophils in TME can better perform the efficacy of anti-PD1/anti-CTLA-4 therapies (102, 103). Daniel O Villarreal et al. showed that IL-33 can be used as an immune adjuvant for cancer vaccination (101). Treatment with IL-33 also drives the cytotoxic activities of Tc9 cells induced by DCs thereby promoting the therapeutic efficiency of tumor vaccines based on DCs (104). Notably, IL-33 is a pleiotropic cytokine with both pro- and anti-tumor effects, and its rational use in cancer immunotherapy needs to be extensively studied.

4.3 Limitations

In this study, there are still some limitations. Firstly, all of the data were obtained from the WoSCC. Even though WoSCC contains the majority of the publications, some publications are likely not included into this analysis. Furthermore, the quality of the articles collected for this study varies, thereby undermining the credibility of the analysis. Finally, CiteSpace and VOSviewer themselves have inherent limitations. Terms extracted from literature titles, abstracts, and keywords may exhibit a high degree of variability during cluster analysis, and there is no guarantee that all terms with the same meaning will be combined when combining terms with the same meaning.

5 Conclusion

In summary, IL-33 research continues to develop steadily worldwide. The USA and China are prominent contributors to the IL-33 research field. Frontiers in Immunology and the Journal of Immunology are among the more influential journals in this field of research. Jochen Schmitz from the USA has made an outstanding contribution to IL-33 research. Immunology and molecular biology of IL-33 are currently hot research areas. Due to the dual role of IL-33, there is a current trend to investigate the immune mechanisms of IL-33 in various diseases, which may be a potential therapeutic target to be developed for disease treatments. Hence, this bibliometric analysis may provide an objective perspective on IL-33 and help scholars to track knowledge and research directions of IL-33.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding authors.

Author contributions

DL and JL concepted this study. JJ, YW, and QS designed this study. JJ and YW were involved in the data collection and analysis. YW normalized the pictures. JJ wrote the manuscript. DL, JL, JJ, YW, and QS revised and approved the final version of the manuscript. All authors contributed to the article and approved the submitted version.

Funding

Supported by Natural Science Foundation of Zhejiang Province LY21H150005 (DL), National Natural Science Foundation of China 81901989 (DL), 82272191 (QS), the Fundamental Research Funds for the Central Universities 226-2022-00060 (QS), Foundation for The Top-Notch Youth Talent Cultivation Project of Independent Design Project of National Clinical Research Center for Child Health Q21B0007 (DL), Special Fund for the Incubation of Young Clinical Scientist, The Children’s Hospital of Zhejiang University School of Medicine CHZJU2022YS002 (DL).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
