The newly emerged coronavirus (SARS-CoV-2) is virulent, contagious, and has rapidly gained many mutations, which makes it highly infectious and swiftly transmissible around the world. SARS-CoV-2 infects people of all ages and targets all body organs and their cellular compartments, starting from the respiratory system, where it shows many deleterious effects, to other tissues and organs. Systemic infection can lead to severe cases that require intensive intervention. Multiple approaches were elaborated, approved, and successfully used in the intervention of the SARS-CoV-2 infection. These approaches range from the utilization of single and/or mixed medications to specialized supportive devices. For critically ill COVID-19 patients with acute respiratory distress syndrome, both extracorporeal membrane oxygenation (ECMO) and hemadsorption are utilized in combination or individually to support and release the etiological factors responsible for the “cytokine storm” underlying this condition. The current report discusses hemadsorption devices that can be used as part of supportive treatment for the COVID-19-associated cytokine storm.
1 Introduction
The International Committee on Virus Taxonomy designated a novel virus Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-COV-2) in February 2020 (1, 2). According to data from the World Health Organization (WHO), there have been nearly 583 million confirmed cases of COVID-19, and 64.1 million deaths have been reported. Viruses, including SARS-CoV-2, are constantly mutating, and new variants that are more dangerous than the original virus may emerge. These variants are classified by the WHO based on their risk potential (3). Mutations and genetic recombinations lead to the emergence of new SARS-CoV-2 variants that are more transmissible and have high immune evasion characteristics (4–7). These new emerging variants further complicate the COVID-19 management (8). Recently, a new viral outbreak, monkey pox, has also been impacting different parts of the globe (9).
The occurrence of the so-called “cytokine storm (CS)” has been linked to COVID-19 sufferers’ death (10). Abnormal production of proinflammatory cytokines exacerbates acute respiratory distress syndrome (ARDS) and destroys a great deal of tissue, which may result in organ failure and death (10). Systemic inflammatory syndromes like CS and cytokine release syndrome can be fatal. They are distinguished by high levels of circulating cytokines and overactive immune cells, which can be caused by a number of therapies, pathogens, cancers, autoimmune diseases, and monogenic disorders (11–14). Although new and repurposed drugs are typically considered as pharmacologic interventions for the treatment of COVID-19, the utilization of the extracorporeal circuits as a means to decrease the concentration and control the circulating levels of the inflammatory mediators represents an important and promising approach (15–17). The idea of pathogenic immune activation and its therapeutic corollary, immunosuppression for infection therapy, is both troubling and transformative. As a result, understanding the start and signaling mechanisms of CS is therapeutically crucial in order to design more effective COVID-19 therapy options. We review the most recent discoveries in the immunopathological features of COVID-19, with an emphasis on CS, and the current research status of the many cytokines implicated. We have majorly focused on the cytokine storm blood filtering systems for COVID-19 management; the same can also be used for the efficient management of CS associated with any fatal systemic inflammatory syndromes.
2 Cytokine storm - fuelling deaths in COVID-19 patients
CS refers to the over releasing of cytokines into the blood quickly due to infection and other stimulants. Generally, understanding its pathophysiology is complicated, and the lack of regulatory control over pro-inflammatory cytokine production in local and systemic factors is ambiguous (18, 19). Some of the infected individuals witnessed considerable deterioration through the coronavirus disease (COVID-19), linked with cytokine dysregulation and overproduction (Figure 1). In response to SARS-CoV-2 infection, macrophages and dendritic cells initiate an early immunological response characterized by lymphocytosis and the production of cytokines. However, the inflammatory reaction leads to the elimination of lymphocytes that are attempting to combat SARS-CoV-2 infection. Lymphopenia develops, particularly in patients requiring ICU hospitalization due to the severity of their condition. Rapid dysregulation of cytokine production results in the destruction of healthy cells, primarily in the lungs but possibly also in the kidneys, heart, blood vessels, and brain. The cascade of damage caused by a cytokine storm starts with a breach in the lung’s epithelial barrier. The weakening of the epithelial barrier makes the lungs and other tissues susceptible to bacterial infection (20). Below, we discuss the physiopathology and treatment methods of the COVID-19 virus-induced inflammatory storm and illustrate some context for relevant treatment guidance.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1064459/fimmu-14-1064459-HTML-r1/image_m/fimmu-14-1064459-g001.jpg)

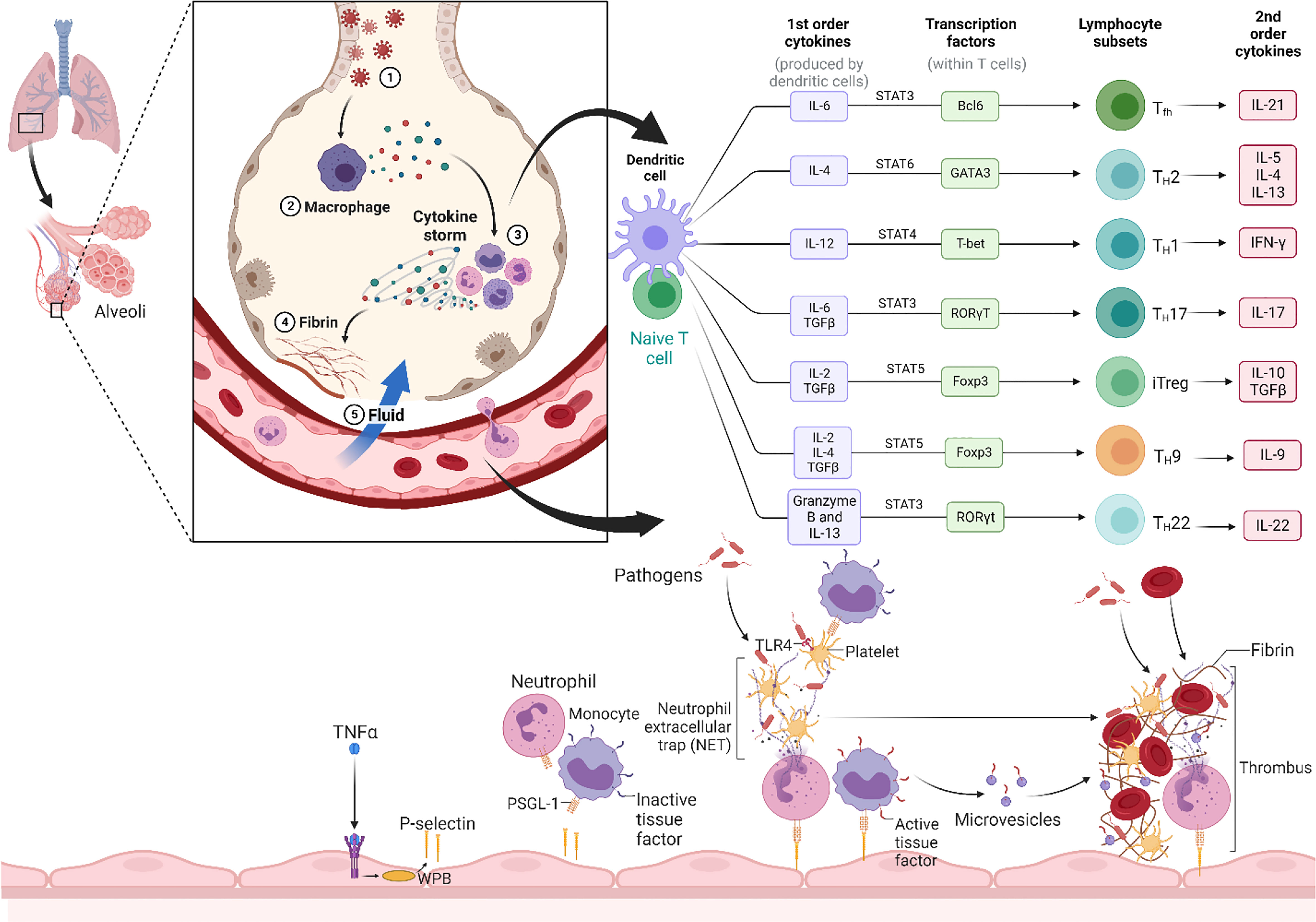

Figure 1 Overall mechanism of the cytokine storm. The cytokine storm is caused by SARS-CoV-2, which causes severe cytokine/chemokine reactions (Release of first order and second order cytokine like IL-1, IL-2, IL-4, IL-6, IL-7, IL-10, IL-12, IL-13, IL-17, M-CSF, G-CSF, GM-CSF, IP-10, IFN-γ, MCP-1, MIP 1-α, hepatocyte growth factor (HGF), TNF-α, and vascular endothelial growth factor (VEGF)) in certain people with the disease. Cytokine storm induces ARDS, also known as multiple-organ impairment that also leads to physiological deterioration and fatality. (Created with Biorender.com).
2.1 Cascade of events leading to the immune dysregulation
The mechanism of the physiopathology of human coronaviruses (H-CoVs) such as SARS-CoV, Middle East respiratory syndrome–related coronavirus (MERS-CoV), and SARS-CoV-2 is rarely apparent, and they have all been linked to a disordered and overactive immune system response, especially in cytokine production (21). Cytokines are glycoproteins released by different types of cells that regulate a wide range of biological processes in an active interplay of innate and adaptive immune responses and play a vital role in preventing and treating infections and chronic illnesses (22). During the SARS-CoV-2 infection, cytokines play a significant role in regulating and resolving coronavirus infections. Uncontrolled, exaggerated production of numerous cytokines could cause and/or participate in immunopathogenesis by triggering catastrophic outputs throughout the body. This not only frequently exacerbates collateral tissue damage but also prolongs the course of the disease and causes an exponential increase in mortality rates. This urges the medical and biomedical scientific communities to find proper medications to control and manage infection, which should lead to a reduction in deaths, specifically in the severely ill COVID-19 patients (21).
In many cases, COVID-19 patients may experience moderate symptoms such as fever, cough, and even a missing taste or smell. However, some infected people may encounter cytokine release syndrome (CRS) as a critical and adverse complication. CRS is a crucial factor for COVID-19 individuals with severe symptoms. Several studies have recommended that hyper inflammation be identified and treated to decrease the occurrence of death and accelerate recovery. CRS occurs either directly due to viral damage or indirectly as a result of an overactive immune system that causes immune cells like macrophages and neutrophils to infiltrate the tissue (23). This reaction is a defensive response to prevent virus propagation under the conditions of tightly controlled levels of the cytokines. Unfortunately, in some cases, when this defensive response goes out of control, it has the opposite effect (24), which is further controlled by other circumstances, such as comorbidities and various genetic and environmental factors (25).
ARDS appears to be a common clinical outcome not limited to the three coronavirus infections (SARS-CoV-2, MERS-CoV, and SARS-CoV), but being observed in many other infectious and noninfectious diseases. The respiratory failure caused by ARDS has been the leading cause of death in these infections (26). ARDS is a condition of acute respiratory failure defined by increasing arterial hypoxemia, dyspnea, and a substantial increase in breathing in infected individuals with lung problems. Endotracheal intubation and positive pressure ventilation are required for the majority of severely ill patients. Notably, many ARDS patients suffer from extra-pulmonary organ failures, such as cardiovascular failure needing vasopressor support, renal failure requiring dialysis, abnormal liver function, anemia, and thrombocytopenia (27).
CS is a particular term that indicates the intensity and potential power of super-inflammatory conditions to cause tissue damage mediated by the patient’s immune response. Cytokine storm syndromes (CSS) are a group of disorders that share a clinical pattern of hyperferritinemia, hyperinflammation, and multiorgan failure. They are caused by the overproduction of cytokines, which is typically self-perpetuating due to unrestricted and enhanced immune activation (28). In addition to viral, oncologic, genetic, rheumatic, and iatrogenic etiologies, the range of cytokine storm disorders also includes rheumatic and iatrogenic diseases. The CSS is a valuable term to provide a pattern of shared clinical considerations and immune-mediated pathophysiology components. The CSS can be beneficial in recognizing hyperinflammatory conditions, understanding the drivers of the inflammation, and determining therapeutic options (29). With initial cases demonstrating remarkable clinical improvements in individuals treated with the anti-interleukin (IL-6) biologic tocilizumab (the standard treatment for CRS), the idea of a CSS in severe COVID-19 became more visible (30, 31).
As COVID-19 spreads around the world, a series of uncontrolled cases of anti-cytokines (mostly anti-IL-6 and anti-IL-1) are promising and show clear benefits in large-scale controlled trials with corticosteroids. COVID-19 has shown a considerable increase in the levels of several cytokines and chemokines in clinical tests (32, 33). The cytokine storm that occurs after sepsis is a critical factor in the development of ARDS, which is characterized by high levels of proinflammatory cytokines like interferon (IFN)-α, IFN-γ, IL-1β, IL-33, IL-18, IL-12, IL-6, tumor necrosis factor (TNF)-α, and chemokines such as CCL2, CCL3, CCL5, CXCL8, CXCL9, and CXCL10. In SARS-CoV infections, they are also released by immunological cells. Patients with severe MERS-CoV disease had higher serum levels of IL-6, IFN-α, and CCL5, CXCL8, and CXCL-10 than those with mild to moderate infection (34, 35). The massive cytokine storm responses in SARS-CoV-2 infection, as in SARS-CoV and MERS-CoV infections, exert a massive attack on the body due to excessive immune activation, causing ARDS and multiorgan failure and eventually death in severely affected individuals (35).
Immune function declines with immunosenescence in elderly people and illustrates a high rate of mortality (36). These phenomena occur when the body experiences a decrease in the generation of CD3+ T cells, an inverted CD4 to CD8 (CD4/CD8) T cell ratio owing to the loss of CD8+ T cells (increased CD4/CD8 ratio), or an increase in regulatory T cells and a decrease in B lymphocytes (37–39). In general, it is hypothesized that immunosenescence causes an induced cytokine storm in COVID-19. The virus can infect T lymphocytes, which induce apoptosis. In addition, when viruses and bacteria induce an inflammatory response locally known as hypercytokinemia, acute-response cytokines such as TNF and IL-1β and chemotactic cytokines such as IL-6 and MCP-1 elevate and lead to damage to organ systems. These regulations of IL-6 and MCP-1 activate the Janus kinase signal transducer and activator of transcription (JAK-STAT) pathway, and as a result, the inflammatory process continues (40). However, a study claimed that CCL5 levels in the peripheral blood of severe COVID-19 patients were greater than IL-6 levels (41). Therefore, blocking the stream level of cytokine response processes, such as macrophage JAK-STAT signaling to decline IL-1 and IL-6 production, might be a viable treatment option for cytokine storm.
In another study, the amplified progression of COVID-19 to the cytokine storm is classified as time-dependent in three phases. As a first stage known as the initiation phase, which occurs in 0-4 days, the immune system releases chemokines such as CCL2, CCL3, CCL5, IP-10, and cytokine IL-1A. In the second stage (amplification phase), which happens in 5-14 days, IL-2, IL-6, IL-10, CCL2, and CCL3 as inflammatory mediators are activated (42). Finally, in the third stage (consumption phase), other cytokine storms can lead to death after 15 days. These three phases progress quickly, with a median duration from beginning to death of 16–18.5 days, and comorbidities like cardiovascular illness can further accelerate the progression (43, 44).
As a simple definition of the mechanism for COVID-19, when high levels of cytokines and chemokines are induced in the region of the respiratory cells, the blood coagulation process and severe disease pathology are accomplished, which means that immune cells and their inflammatory mediators may contribute to thrombotic risk due to the electrostatic interactions between the neutrophil extracellular traps (NET) histones and platelet phospholipids in the capillary beds and vein (44–46).
2.2 Multi-organ involvement
COVID-19 is no longer merely a pulmonary epithelial infection but a multi-system inflammatory illness that leads to end-organ failure (47), through cross-talk via soluble and particulate multifactorial agents. There are antiviral medicines on the market, such as Remdesivir, which are useful in certain circumstances and are superior to placebo in reducing the time to recovery in hospitalized individuals with COVID-19 and evidence of a lower respiratory tract infection, but they are not a definitive and appropriate treatment. Therefore, the focus should be given to alternative methods of reducing end-organ degeneration while perfecting pharmaceutical options. According to reports and studies in hospitalized patients, multiorgan ischemia begins with a high secretion of cytokines and culminates in the cardio-renal syndrome, which loses its integrity due to hypoperfusion of blood vessels (48, 49).
Cardioprotection is the process of reducing damage to the myocytes after a myocardial infarction and stopping the problem of reperfusion (50–52). Because the heart is vital for circulatory function and multiorgan perfusion, cardiac protection in COVID-19 may have a multi-system benefit. There is a considerable immunological response after ST-elevation myocardial infarction, which causes systemic inflammation. Similarly, following plaque rupture, proinflammatory cytokines, inflammasomes, and immune-mediated thrombosis are upregulated (53). In cardioprotective research, identifying the Reperfusion Injury Salvage Kinase (RISK) pathway is a key achievement (54). When it is activated early in ischemia, RISK identifies a collection of pro-survival protein kinases that operate to limit cell death by lowering mitochondrial transition pore opening (51). When a “multi-hit” method is used to protect organs against tissue hypoxia, the results are satisfying (55). Numerous mechanisms can be targeted in cardioprotective pharmacology to prevent cardiac cell death and dangerous inflammation (55, 56). RISK, Survivor Activating Factor Enhancement (SAFE), and Nitrous Oxide/Protein Kinase (NO/PKG) are examples of pro-survival pathways. Significantly, these pathways in COVID-19 patients allow for the most effective application of this treatment at the outset of moderate disease, before the cytokine storm develops (57).
2.3 Current management practice
COVID-19 can be treated with a number of approved medications that have been shown to work and are safe. Common knowledge or acceptance-based management techniques suggest that most of the care for COVID-19 patients should be supportive. Therapeutic methods that target the cytokine storm in the pathogenesis of severe COVID-19 pneumonia need special investigation. According to current World Health Organization (WHO) recommendations, supportive care, including a decline in fever, fatigue, and relieving pain, is current management practice. In moderate cases, patients require oxygen therapy, intravenous fluids, and antihypertensive drugs to raise blood pressure and optimize supportive care treatments (58). For moderate to severe cases, immunosuppressive drugs sometimes provide essential corticosteroids and empiric antibiotic administration as needed, which remains the most critical management strategy for pneumonia (36).
Corticosteroids are synthetic counterparts of the endogenous steroid hormones of the adrenal cortex. These synthetic substances exhibit glucocorticoid and mineralocorticoid characteristics (59). Since steroid hormones are essential in reducing inflammation in the human body, corticosteroids are a group of therapeutic hormones that are used to support the reduction of inflammation (60). It is worth noting that the use of glucocorticoids is controversial. They are also used in both the adrenal (physiological) and super physiological doses to replace many dermatological, ophthalmological, rheumatological, pulmonary, hematological, and gastrointestinal illnesses. Doctors at the forefront of the fight against coronavirus in China are less inclined to use steroid drugs. However, the use of steroid drugs in low doses is lifesaving in some patients (61). Immunomodulatory clinical practitioners extensively employed corticosteroids during the SARS pandemic (2002–2003), and based on the clinical feedback, they could lead to early favorable changes, such as drop-in pyrexia, resolution of radiographic lung infiltration, and oxygenation improvement (62, 63). Studies demonstrate that opposition to the corticosteroid therapy method is rising since it has no advantage for patient survival and may cause harm in infected patients with coronavirus and influenza illnesses. Corticosteroids are not advised for individuals with human coronavirus infections in general, though they may be used cautiously in critically ill patients (64).
2.4 Recent updates for management of cytokine storm
Besides the blood purification system, an artificial liver blood purification system was also utilized to eliminate or reduce the cytokine storm in COVID-19 patients (65). They compared the outcomes of the pre-artificial liver-blood purification system to the results of the post-artificial liver-blood purification system. The outcome suggested that an artificial liver-blood purification system can stop cytokine storms and instantly eradicate inflammatory mediators, as well as reduce the progress of COVID-19 disease. Thus, it can be suggested as a new potential treatment modality to govern COVID-19. There is currently no established therapy for the COVID-19 viral infection, which infects the lower airway directly and causes widespread infection by activating multiple cytokine mediators, resulting in acute respiratory distress syndrome. A clinical trial (pilot study) was started on April 17, 2020, on 40 COVID-19 patients suffering from ARDS. The study was designed to assess the safety as well as the efficacy of the cytokine adsorption device and cytokine filtration. The results suggested that cytokine filtration is an effective treatment, and further clinical trials are also emphasized for safety assessment (66). Meanwhile, in 2021, Avalon Inc. planned the first human clinical trial of the AVA-Trap blood filtration system to eradicate cytokine storms. AVA-Trap is comprised of two technologies: QTY code and S-layer. AVA-Trap technology utilizes cytokine receptor Fc-fusion proteins and antibody-like traps that attract cytokines released by the immune system. The Fc-fusion proteins act as a molecular sponge, soaking up unwarranted cytokines. When the patient’s blood is circulated through the AVA-Trap device, the cytokine receptor trap attaches an S-layer matrix to trap proteins or excessive cytokines. AVA-Trap, as an innovative diagnostic tool, has the unique property to trap selective molecules from the blood and separate cytokines from other types of available molecules in COVID-19 patients (67). In addition, S-layer technology is simultaneously used by Avalon Inc. as an intranasal spray vaccine for COVID-19. It can be provided as first-line protection as soon as the virus enters the body. The S-layer protein-based intranasal vaccine is under phase 3 clinical trial and has proven to decrease SARS-CoV-2 infection severity and also can reduce respiratory inflammation and organ damage. It is found to be an effective and advantageous technology for the protection of the immune system in COVID-19 patients. Avalon Inc. started clinical trials in the US and China in Q4 of 2020 and Q1 of 2021 with CB-MSC-1 (allogeneic mesenchymal stromal cells-derived from human cord blood) (68). CB-MSC-1 has exceptional anti-inflammatory and immunomodulatory actions, along with the capability to reduce T cell propagation and cytokine excretion and control the stability of antibody-based and cell-based immune reactions. CB-MSC-1 has been proven safe and effective in the pre-clinical study, and recently, Avalon Inc. declared its intention to initiate a human clinical study for COVID-19 patients with acute respiratory distress syndrome (67).
3 ‘Cytokine storm’ blood filtering system for COVID-19 management
A small glycoprotein system such as cytokinesis is generated by several types of cells throughout the body. The release of cytokines activates various functions such as cell proliferation, differentiation, paracrine, autocrine, or endocrine activity and also triggers immune and inflammatory functions (e.g., interferons, interleukins, chemokines, colony-stimulating factors (CSFs), and tumor necrosis factor (TNF) (69). “Cytokine storm” was designated as hypercytokinemia, which was elaborated in 1993 to represent graft-versus-host disease. Cytokine storm is also referred to as an enhanced response of the body’s immune system, which can be lethal due to infectious diseases. The word “cytokine” is derived from the Greek words “cyto” (cell) and “kinos” (movement) (42). When SARS-CoV-2 invades the lungs and activates the immune response, immune cells induce inflammation locally. A release of an extreme number of cytokines can activate more and more immune cells, which leads to hyperinflammation. This cell activation cascade can cause serious harm to the patient and even be fatal.
Cytokine storms are often a problem for COVID-19 and the flu, as well as for other lung diseases like SARS and MERS. Diseases that aren’t contagious, like multiple sclerosis and pancreatitis, can also cause these reactions (22). The symptom became more well recognized following the 2005 outbreak of the H5N1 influenza virus, often known as “bird flu,” when the mortality rate increased due to an out-of-control cytokine response (70, 71). These are major symptoms observed in COVID-19 patients and may describe the difference in symptom severity among patients. For example, younger people may show weaker symptoms due to having less developed immune systems and lower levels of cytokines (72).
In the course of the SARS epidemic (SARS-CoV), the term “cytokine storm” was also explained. Numerous early instances of COVID-19 revealed blood cytokine levels that exceeded the normal limits. IL-6 as a pro-inflammatory cytokine is a key facilitator for the acute inflammatory response as well as the suspected cytokine storm (73). At present, filtrating out of cytokines is another predicted approach to alleviating the devastating admission of patients to intensive care units. Furthermore, CytoSorb is a potentially suitable means to aid COVID-19 patients more efficiently and release them from the intensive care unit to improve the situation. Although CytoSorb is not able to eradicate the virus, it has been utilized in over 80,000 European practices as proper management for cytokine storms. It has been globally disseminated to more than 55 countries and helps doctors control the overpowering inflammation, gradually reverse the shocks, and increase breathing and other related functions of the heart, which are the main therapeutic measures of COVID-19 infection (74).
4 Blood filtration strategies for COVID-19 management
Many approaches have been elaborated to decrease the concentration and control the circulating levels of the inflammatory mediators. These mediators can be eliminated from plasma via the extracorporeal circuit, which can reduce the deleterious effects of such mediators. There are several hemadsorption extracorporeal methods that utilize CytoSorb cartilage and related high cut-off membranes. High volume fluid exchange reduces serum concentration while increasing lymphatic flow, resulting in a proportionate reduction of the concentration of the cytokines in the tissues (75). Since extracorporeal methods can reduce the concentration of certain cytokines in the blood, early blood filtering can potentially mitigate cytokine storms before irreversible damage occurs and thereby help to avoid clinical manifestations.
4.1 Cytoadsorbant® (CytoSorb)
CytoSorb, or cytosorbent, is a hemoadsorption column or complete blood filtration unit that comprises highly porous adsorbent polymer beads that are capable of eliminating inflammatory mediators from the blood (Figures 2A–C). The beads are composed of biocompatible polystyrene, divinylbenzene, and polyvinylpyrrolidone, which can adsorb numerous inflammatory mediators through size exclusion (< 55 kDa) as well as hydrophobic adsorption. The given filter provides a 45,000 m2 surface area for adsorption (79). The adsorption provided by this filter is non-selective and depends on concentration; therefore, at higher concentrations, substances are adsorbed at high rates. It is also able to eliminate low-molecular-weight substances such as albumin-coupled substances and pathogenic toxins, besides not being able to eradicate endotoxins. The report from the USFDA on April 15, 2020, approved emergency utilization of CytoSorbant as CytoSorb technology for COVID-19 patients, where the body’s hyper-vigilant immune system begins to attack its own cells (80). Numerous available pharmaceutical modalities are not completely able to eradicate the coronavirus. This blood filtration technology is capable of treating another type of immune system disease that can be a promising therapy for severe COVID-19 patients. COVID-19 is a life-threatening virus infection that overdrives the immune system, triggering inflammatory mediators like cytokines and producing even more cytokines (called a cytokine storm), further leading to worse viral pneumonia. The body’s inflammatory cascade also damages major organs such as the lungs, heart, and kidney (81). CytoSorb is a hemoadsorption column that is capable of eliminating inflammatory mediators from the blood. It comprises absorbent-coated beads (Figures 2A–C). The polyvinylpyrrolidone-coated absorbent beads can improve biocompatibility. Meanwhile, the CytoSorb column is also able to be configured as well as added to the extracorporeal circuit, pre-dialyzer, or post-dialyzer. As a blood purifying cartridge, it can decrease cytokine storm intensity and complications by physical binding and eliminating cytokines from blood, much like dialysis (76).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1064459/fimmu-14-1064459-HTML-r1/image_m/fimmu-14-1064459-g002.jpg)

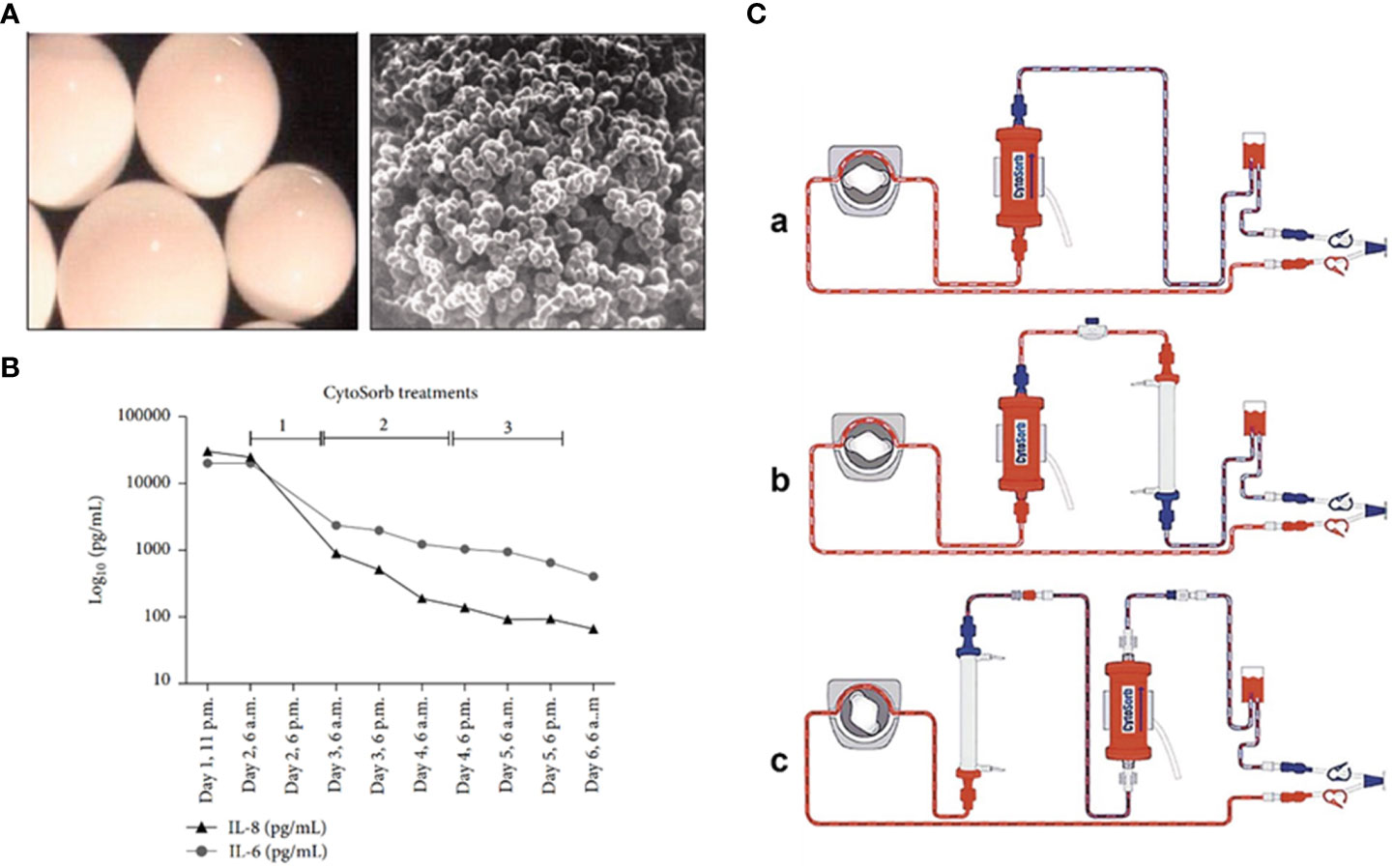

Figure 2 (A) Microscopic image for CytoSorb; (B) level of cytokines after incorporation of CytoSorb column; (C) formation of CytoSorb: (a) CytoSorb alone, (b) CytoSorb with pre dialyzer, (c) CytoSorb with post dialyzer. Reproduced with permission from (76–78).
Initially, septic shock patients developed multiple organ failure (MOF), which was associated with continuous veno-venous hemodiafiltration owing to acute kidney injury. At that time, the levels of IL-6 and IL-8 were dramatically raised beyond 5,000 pg/ml, and CytoSorb was inserted into the hemodiafiltration circuit. This filtration lasted for sixty hours, and the abundance of IL-6 and IL-8 decreased significantly (Figure 2C) (77). Secondly, the patient whose illness developed severely and who faced advanced respiratory damage during laparotomy was routinely kept on ventilation. Even after that, the condition of the patient worsened, and he also developed right ventricular failure; therefore, he had to switch to veno-arterial extracorporeal membrane oxygenation (ECMO). In addition, for patients with cardiopulmonary dysfunction who have failed traditional treatment, ECMO has proven to be a vital intervention. ECMO is often used in one of two modes: veno-venous (V-V) or veno-arterial (V-A). V-v ECMO is used in chronic lung impairment, with good outcomes in bridging to recovery and lung transplantation. Due to the rapid invasion of inflammatory mediators such as IL-6 and IL-8, the patient’s blood was filtered through the CytoSorb column with Continuous Renal Replacement Therapy (CRRT) and antibiotics. After 48 hours, the extent of IL-6 and IL-8 was reduced continuously, and eventually, the patient recovered (82).
CytoSorb, as a cytokine filter, is also issued in the European Union and utilized in over 80,000 conditions, such as sepsis, lung failure, extremely low blood pressure, or shock. More than 70 critically ill COVID-19 patients in Italy, China, Germany, and France have been treated with CytoSorb with positive results in terms of regulating the cytokine storm and improving lung function, which helps keep COVID-19 patients from requiring mechanical ventilation. The Italy Brescia Renal COVID Task Force made an official endorsement to explicitly utilize Cytosorb in severe COVID-19 patients with Stage 3 acute kidney injury (AKI) and patients getting CRRT (80, 83).
For instance, a patient suffering from COVID-19 (a 51-year-old male) with pulmonary inflammation and kidney malfunction was kept on CRRT, and the whole situation began to mimic a cytokine storm. Therefore, CytoSorb was applied to control the cytokine storm every 12 hours for the first 48 hours and then every 24 hours after that. Due to the damaged kidney condition, the patient received cytokine filter treatment along with CRRT. After three weeks, the IL-6 level was found to be stable, and hemodynamic stability was achieved. From this study, it can be concluded that CytoSorb is effective in reducing the severity of lung damage during a COVID-19 infection. Also, it was observed that early administration of blood filtration might significantly alleviate cytokine storms before possible irreversible damage occurs, hence allowing for a more effective therapy (Figure 3) (84).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1064459/fimmu-14-1064459-HTML-r1/image_m/fimmu-14-1064459-g003.jpg)
Figure 3 (A) Representation of the initial X-ray when the patient was admitted; (B) at day 6 of hospitalization representing severe and unremitting hypoxia and fever, with continued bilateral lung infiltration; (C) lung X-ray of cytokine filtration therapy at the first day demonstrating continuous infiltration with increased aeration with alleviated right lower lobe consolidation. Reproduced with permission from (80).
The cytokine filter therapy has shown a clear possible benefit, but further research is required to prove the effect and make sure that this treatment method can be used in the future. The medical practice also believes that cytokine filter therapy leads to averting imminent death because it prevents the severe inflammatory response (cytokine storm) and prolongs the patient’s life. Cytokine filter therapy also supports critically ill patients and is also able to stabilize blood components with oxygen supplies as well as inflammatory markers (85). Consequently, a request has been submitted to the USFDA by CytoSorbents Inc. for a CytoSorb blood purification device to be utilized for COVID-19 in emergency cases. Clinical reports were able to reveal its efficacy via the effective elimination of inflammatory mediators, and based on those reports, it was authorized by the USFDA for critically ill COVID-19 patients (86).
4.2 Auxiliary membranes
The oXiris filter exhibits exceptional coating compared to the AN69 hemodialysis filter to obtain cytokine filtration and remove endotoxins, as well as anti-thrombogenic properties. In 1969, the first AN69 filter was made out of an acrylonitrile co-polymer and sodium methallyl. A negatively charged sulfonate group embedded in the co-polymer also had the ability to absorb cytokines. The filter interacting with the blood results in bradykinin generation, resulting in an anaphylactic reaction, particularly in patients receiving angiotensin converting enzyme (ACE) inhibitor therapy. Polyethyleneimine (PEI) was applied to the AN69’s exterior in order to eliminate this issue. The AN69-PEI coating may enhance biocompatibility by limiting bradykinin production and heparin adsorption, therefore permitting priming of the filter with heparin prior to use to enhance thrombogenicity. In the first 24 hours, patients receiving CRRT exhibited a substantial reduction in overexpressed cytokines (Figure 4). Molecular weight cutoff membranes (20-50 kDa) are also able to remove inflammatory mediators from COVID-19 patients within 24-48 hours (88). Another type of oXiris membrane (AN69), which is a cast of polyethyleneimine and embedded with heparin, is also utilized to reduce inflammatory cytokines in septic shock patients. In the first 24 hours, it showed a significant decrease of overexpressed cytokines in CRRT-receiving patients (Figure 4). Baxter Healthcare Corp. requested that the USFDA issue emergency authorization for the use of the oXiris Set device with AN69 membrane microstructure for the treatment of COVID-19 patients (over eighteen years of age) who were admitted to the intensive care units (ICUs) (under Section 564(d) (1)). It can be useful for COVID-19 patients suffering from severe respiratory failure who need blood purification with the intention of reducing inflammatory cytokines. The oXiris set device was found effective and was also able to remove cytokines from blood (89, 90)
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1064459/fimmu-14-1064459-HTML-r1/image_m/fimmu-14-1064459-g004.jpg)
Figure 4 Inflammatory mediator levels before the beginning of treatment and throughout the filtration treatment via oXiris membrane: (A) TNF-α; (B) Interleukin-6 (IL-6); (C) Interleukin-8 (IL-8); (D) Interferon-γ. Reproduced with permission from (87).
In a swine model of acute kidney injury caused by lipopolysaccharide (LPS), CRRT with polysulfone membrane (PS-CVVH) was compared to CRRT with polymethylmethacrylate (PMMA) membrane (PMMA-CVVH) in terms of its ability to filter cytokines. Results suggested that PMMA-CVVH treatment significantly decreased LPS-binding protein levels in circulation compared to LPS levels, whereas there was no significant change observed between the PS-CVVH and LPS groups. Therefore, new PMMA with CVVH has a great impact on controlling systemic inflammatory syndrome as well as cytokine abundance (91). Another synthetic resin hemofilter (HA330) was used for cytokine regulation during cytokine storms. It was also investigated in acute pancreatic patients, and each cycle of filtration consisted of high-volume hemofiltration with hemoperfusion utilizing HA330. It was found that the combination approach for filtration was able to decrease inflammatory cytokines significantly (92).
ExThera Medical Corp. also requested USFDA approval for the emergency use of the Seraph 100 Microbind Affinity Blood Filter device and the extracorporeal blood purification (EBP) device for ICU-admitted COVID-19 patients to alleviate the cytokine storm. It was not completely approved initially via the USFDA, but based on the clinical data and its effectiveness as a blood filtration device to reduce numerous pathogens as well as inflammatory cytokines in COVID-19 patients, it was authorized to be utilized under Section 564(c) for emergency use only with suggested terms and conditions (87).
4.3 Coupled plasma filtration adsorption
Another type of extracorporeal filtration technique is coupled plasma filtration adsorption, utilized for plasma removal from blood, where the removed plasma passes through sorbent and then moves back into the blood. The sorbent was found to be non-specific for cells and also removed cytokines from the plasma. In a recent study where 35 patients with severe sepsis and acute kidney injury received coupled plasma filtration and adsorption with additional antimicrobials, after 10 hours of treatment for three days, a drastic reduction in IL-6, TNF-α, IL-8, and IL-10 was observed compared to the control patients (93). Overall, IL-6 is one of the substantial inflammatory factors involved in cytokine storms and mostly escalates vascular permeability and cardiac function. Therefore, recent studies and hospital practices mostly endorse the use of blood filtration devices along with current treatment modalities to decrease the number of ICU-admitted patients (94).
5 Concluding remarks
Although circulating SARS-CoV-2 infection has several dramatic economic impacts at the personal, community, country, and whole world levels, personal and population health remain the biggest concerns. It systematically tests our resilience at all these levels. The first six months of the COVID-19 pandemic resulted in 31.4 million confirmed SARS-CoV-2 infection cases and took over a million lives. We now have the means to reduce SARS-CoV-2 transmissibility and limit the COVID-19-related death rate. Among these measures are pharmaceutical interventions for controlling COVID-19 and managing its causative agent, as well as several COVID-19 vaccines. However, we continue to pay a high price, and several outstanding questions remain unanswered. One of these vital questions is how to control the cytokine storm induced by the SARS-CoV-2 infection. Although new and repurposed drugs are typically considered as pharmacologic interventions for the treatment of COVID-19, the utilization of the extracorporeal circuits as a means to decrease the concentration and control the circulating levels of the inflammatory mediators represents an important and promising approach. The corresponding devices can help eliminate the mediators from the plasma, thereby reducing their deleterious effects. In fact, extracorporeal hemadsorption devices (ECHAD), which are capable of filtering out the exacerbated mediators associated with COVID-19 pandemics, are included in general ICU clinical practice and undergo clinical trials. Although they had already demonstrated efficacy and safety, many questions were raised during their use in clinical practice and clinical trials. As the efficiency of these instruments depends on the filtration cut-offs, many COVID-19 medications used during the ECHAD-based procedures, as well as many important proteins, bioactive molecules, and even gases, are also filtered out. A large national cohort analysis of the 1,182 COVID-19 patients with ARDS who underwent ECMO therapy and the extracorporeal life support organization (ELSO) registry analysis of 1,032 patients who underwent ECMO for management of ARDS related to COVID-19, the mortality rates of such patients were found to be 45.9% and 39%, respectively (89). Although these numbers seem high, one should keep in mind that the patients undergoing ECMO therapy are those who have failed aggressive ventilatory support, thereby representing a sicker patient population when compared to the non-ECMO patients. The fact that ECMO therapy may save lives is further illustrated by the fact that the mortality rates for the 18–64-year-old COVID-19 patients with ARDS who were managed with and without ECMO therapy were comparable (44.6% vs. 37.9%, respectively) (90). Therefore, one cannot ignore the reasonable benefits of these technologies in the recovery of many severely ill COVID-19 patients (95). Taken together with the persistent challenge of the continuous COVID-19-associated loss of lives, the usefulness of the utilization of ECHAD alone or in combination with ECMO should be carefully evaluated in tightly controlled multicenter clinical trials.
