Abhinandan Chowdhury1,2
Christina N. Zdenek1Matthew R. Lewin3,4Rebecca Carter4
Tomaž Jagar5Erika Ostanek5
Hannah Harjen6
Matt Aldridge7Raul Soria8Grace Haw1
Bryan G. Fry1*- 1Venom Evolution Lab, School of Biological Science, University of Queensland, St. Lucia, QLD, Australia
- 2Department of Biochemistry & Microbiology, North South University, Dhaka, Bangladesh
- 3California Academy of Sciences, San Francisco, CA, United States
- 4Ophirex, Inc., Corte Madera, CA, United States
- 5Independent Researcher, Postojna, Slovenia
- 6Department of Companion Animal Clinical Sciences, Norwegian University of Life Sciences, Ås, Norway
- 7MicroPharm Limited, Newcastle Emlyn, United Kingdom
- 8Inosan Biopharma, Madrid, Spain
Palearctic vipers are medically significant snakes in the genera Daboia, Macrovipera, Montivipera, and Vipera which occur throughout Europe, Central Asia, Near and Middle East. While the ancestral condition is that of a small-bodied, lowland species, extensive diversification has occurred in body size, and niche specialization. Using 27 venom samples and a panel of in vitro coagulation assays, we evaluated the relative coagulotoxic potency of Palearctic viper venoms and compared their neutralization by three antivenoms (Insoserp Europe, VIPERFAV and ViperaTAb) and two metalloprotease inhibitors (prinomastat and DMPS). We show that variation in morphology parallels variation in the Factor X activating procoagulant toxicity, with the three convergent evolutions of larger body sizes (Daboia genus, Macrovipera genus, and Vipera ammodytes uniquely within the Vipera genus) were each accompanied by a significant increase in procoagulant potency. In contrast, the two convergent evolutions of high altitude specialization (the Montivipera genus and Vipera latastei uniquely within the Vipera genus) were each accompanied by a shift away from procoagulant action, with the Montivipera species being particularly potently anticoagulant. Inoserp Europe and VIPERFAV antivenoms were both effective against a broad range of Vipera species, with Inoserp able to neutralize additional species relative to VIPERFAV, reflective of its more complex antivenom immunization mixture. In contrast, ViperaTAb was extremely potent in neutralizing V. berus but, reflective of this being a monovalent antivenom, it was not effective against other Vipera species. The enzyme inhibitor prinomastat efficiently neutralized the metalloprotease-driven Factor X activation of the procoagulant venoms. In contrast, DMPS (2,3-dimercapto-1-propanesulfonic acid), which as been suggested as another potential treatment option in the absence of antivenom, DMPS failed against all venoms tested. Overall, our results highlight the evolutionary variations within Palearctic vipers and help to inform clinical management of viper envenomation.
Introduction
Snakebite affects millions of people annually, killing over 100,000 and leaving many more with severe permanent injuries (1–3). Snake venom affects all physiological pathways reachable by the bloodstream, with blood coagulation itself a particular target (4). Despite their clinical importance, research into coagulotoxins (toxins that disrupt blood coagulation) has lagged behind other toxin types due to inherent difficulties of working with two enzyme systems (blood and venom) concurrently.
While snakebite in Europe is much less common than in African or Asiatic counties, it is still a potentially deadly medical emergency (5, 6). Common symptoms of envenomations from these vipers include local effects at the bite site such as swelling (edema), necrosis, and compartment syndrome (sometimes requiring fasciotomy), and/or systemic effects such as blood disturbances (coagulotoxicity), neuromuscular paralysis, myotoxicity, and hypotension (7–13). Severe envenomations can lead to amputation and/or death (7–13).
The Palearctic region is dominated by a clade of viperid snakes that emerged 20 million years ago, consisting of the genera Daboia, Macrovipera, Montivipera, and Vipera (Figure 1), with (Daboia + Vipera) being sister to (Macrovipera + Montivipera) (14). The basal morphology of this clade is small and species occupy lowland areas in arid regions. On two convergent occasions, giganticism evolved, once in Daboia and again independently in Macrovipera. Within Vipera, V. ammodytes is notably larger than other Vipera species.
Figure 1 Phylogenetic relationships of Palearctic vipers (14). Green indicates species included in this study.
Daboia and Macrovipera are well-characterised as causing potent procoagulant toxicity by converting the zymogen Factor X into the activated enzyme form FXa, which in turn converts prothrombin into thrombin, with the endogenous thrombin converting fibrinogen into fibrin, ultimately resulting in the development of well-ordered fibrin clots (15). The toxin class responsible for the coagulopathy produced by these snakes is a derived type of snake venom metalloprotease (P-IIId SVMP) that is characterised by two lectin toxins covalently linked to each other to form a dimer, with this dimer in turn covalently linked to the metalloprotease enzyme (16–18). In prey animals, this results in subjugation by thromboembolic stroke-induction and cardiovascular collapse from pulmonary embolism, but in human patients, the dilution of venom into a much larger blood volume results in formation of microemboli. While individual microemboli are of no clinical consequence, a net incoagulable state with morbidity and mortality results from the consumption of clotting factors in the process of venom-induced consumption coagulopathy (19).
The genus Vipera is notable for being extremely widespread, radiating across Europe and Central Asia since its emergence 13 million years ago and having complex geographical histories (14, 20–22). Of particular clinical importance for human envenomings is coagulopathy (7–9, 12, 13). Documentation of Factor X activating P-IIId SVMP in at least one species (V. ammodytes) is consistent with its ability to produce severe coagulopathy (23). Sequence alignment shows that Vipera shares the characteristic cysteine used for the covalent linkage to the lectin dimer (Figure 2). The presence of FX activating P-IIId SVMP in V. ammodytes venom, like Daboia and Macrovipera venoms, combined with the observation of FX activation activity in V. aspis and V. berus venoms (24–26) and the documentation of congruent coagulopathy from V. berus envenomations (27) suggests that the presence of FX activating P-IIId SVMP is the basal state for the Daboia/ Macrovipera/ Montivipera/ Vipera clade.
Figure 2 Sequence alignment of representative Factor X activating P-IIId SVMP characteristic of the Palearctic viper clade. Highlighted is the diagnostic cysteine that forms the interchain disulfide bond to a covalently linked lectin dimer. Uniprot (Daboia and Macrovipera) and Genbank (Vipera) accession codes are given for each sequence.
The genus Montivipera, endemic to the Near and Middle East, is like Vipera in retaining the plesiomorphic small size but is notable for having uniquely specialized for montane habitats (28). The exception is M. xanthina which is derived relative to other species within this genus in being larger than the other species and radiating to occupy a lowland niche. Previous work has suggested that unlike the FX activating procoagulant basal state for the clade, this genus also has distinct anticoagulant venoms relative to the rest of the clade (29, 30) and induces systemic hemorrhage in victims rather than venom-induced consumptive coagulopathy (VICC) (31–34). The mechanism of action for this effect remains to be elucidated.
The divergence of venom documented for the Daboia/Macrovipera/Montivipera/Vipera clade indicates these snakes are an excellent model system to examine the influence of morphology and ecology on pathophysiological venom effects and how this influences clinical treatment options. Furthermore, the development of in vitro assays to replace in vivo assays to assess antivenom efficacy has been stated as one of the main issues to be addressed for the development and improvement of antivenoms (35). In this study, we tested a wide array of species (Figure 1), ascertained the relative effects upon blood clotting, whether this was mediated by Factor X activation, and the efficacy of three antivenoms and two repurposed enzyme inhibiting drugs. These results not only elucidated the evolutionary processes shaping venom diversification but also how this variation might influence the ability of therapeutics to neutralise pathophysiological effects.
Materials and Methods
Stocks Preparation
Venoms
All venom work was undertaken under the auspices of UQ IBSC approval #IBC134BSBS2015 and UQ NEWMA approval # 2021/AE000075. Pooled venoms (N = 3 captive adults unknown sex) which were immediately snap frozen in liquid nitrogen and kept at -80 until lypholisation and founder locality (if known) tested were: Daboia russelii (Pakistan), D. siamensis (Taiwan), Macrovipera lebetina turanica (Turkmenistan), M. schweizeri (Greece), Montivipera albizona, M. bulgardaghica, M. raddei, M. wagneri, and M. xanthina (Turkey), Vipera ammodytes (Krk Island, Croatia), V. ammodytes (Maribor, Slovenia), V. ammodytes (Ada Island, Montenegro), V. ammodytes (Lake Skadar, Montenegro), V. ammodytes (Slunj, Croatia), V. a. meridionalis (Greece), V. a. montandoni (Bulgaria), V. aspis aspis (France), V. aspis hugyi (Italy), V. berus (Norway), V. berus (Slovenia), V. berus (Snežnik Mountain, Slovenia), V. kaznakovi (Turkey), V. latastei latastei (Burgos, Spain), V. latastei gaditana (Spain), V. nikolskii (Russia), V. renardi (Russia), and V. transcaucasiana (Turkey). These lyophilized venoms were reconstituted to 1 mg/ml concentrated venom stock (concentration checked using 280 nm wavelength on a Thermo Fisher Scientific™ NanoDrop 2000 UV–Vis Spectrophotometer (Thermofisher, Sydney, Australia) following the manufacturer’s instructions 1 Abs = 1 mg/ml which is recommended when analyzing heterogenous solutions) by adding 50% glycerol and deionized water and stored at -20oC for further use.
Plasma
All plasma work was undertaken under the UQ IBSC approval #IBC134BSBS2015. Two bags of pooled 3.2 % citrated plasma (Label #A540020754341 & #A540020764777) were obtained from the Australian Red Cross (Research agreement #18-03QLD-09 and University of Queensland Human Ethics Committee Approval #2016000256). The two lots of plasma were pooled, aliquoted to 1 ml quantities, flash-frozen in liquid nitrogen, and stored at -80°C until required for testing. Aliquots were defrosted in at 37°C in a Thermo Haake ARCTIC water bath with a SC150-A40 circulator. Plasma aliquots were only used for up to an hour post-defrosting, after-which fresh aliquots were defrosted.
Fibrinogen
To ascertain the effect of venom on human fibrinogen clotting time, 100 mg of fibrinogen (Lot# SLBZ2294 Sigma Aldrich, St. Louis, Missouri, United States) was mixed with Owen Koller (OK) buffer (Stago catalogue #00360) to achieve a concentration of 4 mg/ml, then aliquoted to 1 ml quantities, flash-frozen, and stored at -80oC until further use. Defrosting steps and use were as per 2.1.2.
Antivenom (AV)
Antivenoms tested (and immunizing species for each antivenom) were as follows. Inoserp Europe (lot # 9IT03006), a 22.5 mg/ml F(ab′)2 antivenom made using an immunizing mixture consisting of Macrovipera lebetina cernovi, M. l. obtusa, M. l. turanica, M. schweizeri, Montivipera xanthina, Vipera ammodytes, V. aspis, V. berus, and V. latastei). MicroPharm VIPERFAV (lot #P4A281V), a 100 mg/ml F(ab′)2 antivenom made using an immunizing mixture consisting of Vipera ammodytes, V. aspis, V. berus). MicroPharm ViperaTAb (lot #VPT 002000), a 24.6 mg/ml Fab antivenom made using V. berus as the sole venom in the immunizing mixture. Both VIPERFAV and ViperaTAb came in a concentrate (1 X 4ml and 2 X 4ml vials respectively) solution, while Inoserp Europe was supplied in a lyophilized form, which was reconstituted with 10 ml of deionized water, according to company instructions. All antivenoms were centrifuged (RCF 14000) at 4°C for 10 min, followed by filtration of the supernatant (to remove insoluble material) using 0.45 μm Econofltr PES (Agilent Technologies, Beijing, China), aliquoted, and then stored at 4°C for future use. For tests (see 2.2.1.2), 5% AV solution was prepared by diluting with Owren Koller (OK) buffer (Stago catalogue #00360) for Inoserp, 4% for ViperaTAb, and 2% VIPERFAV. The percentages were calculated relative to the different antivenom treatment volume (10 ml, 8 ml, and 4 ml respectively) and thus the same proportion of each vial was used for the tests, thus allowing for a vial-to-vial comparison of efficacy. Therefore, calculating the ratios, the above-mentioned percentages were determined.
Enzyme Inhibitors
We set out to determine the efficacy of two small molecule inhibitors prinomastat hydrochloride ((S)-2,2-Dimethyl-4- ((p-(4-pyridyloxy) phenyl) sulfonyl) -3- thio- (catalogue# PZ0198) and DMPS 2,3-Dimercaptopropanesulfonic acid sodium salt monohydrate (catalogue # D8016) from Sigma-Aldrich. The powder was first dissolved in 10 % dimethyl sulfoxide (DMSO) and further diluted using deionized water to form 10 mM and 20mM stock solutions, respectively and stored at -80oC.
Assay Conditions
Effects Upon Clotting Times of Plasma and Fibrinogen
Coagulotoxicity Effects on Plasma and Fibrinogen
Determination of venom effects upon coagulation was done using the STA-R Max® (Stago, Asnières sur Seine, France) coagulation analyser and adapted from validated coagulation assay protocols (36–39). 1mg/ml venom stocks (50% glycerol/50% deionized water) were diluted to 100 μg/ml with OK Buffer (Stago catalogue #00360) to prepare the working stock, which was later loaded into the analyser for running 8-point concentration curves with serial dilutions of 1, 1/2, 1/5, 1/12.5, 1/30, 1/80, 1/160, and 1/400 (final reaction concentrations of venom). In an automated process, 50 µl venom stock (100 µg/ml starting concentration and serially diluted to form final reaction concentrations as noted above) were added to a cuvette, followed by the addition of 25 µl of OK buffer, 50 µL of 0.025 M calcium chloride (Stago catalogue # 00367), and 50 µl of phospholipid (Stago catalogue #00597), and then the mixture incubated for 2 minutes at 37°C. Subsequently 75μl of plasma or 75μl of 4 mg/ml fibrinogen was added after incubation, and clotting time was recorded immediately. To avoid abnormal results due to venom degradation, venom was changed after each set. As a positive control, coagulation activator kaolin (Stago C·K Prest standard kit, Stago catalogue #00597) was used to check for consistent plasma responses, and 25 µL of the thrombin (Stago catalogue #115081) as a positive control to check for consistent plasma responses. The negative control for both plasma and fibrinogen studies was 50% glycerol/deionized water that was diluted to the same amount as the venom 50% glycerol venom and positive control stocks (1% final concentration for venom, positive controls, and negative controls).
Vial to Vial Antivenom Efficacy and Enzyme-Inhibitor Efficacy
Efficacy of antivenoms or enzyme inhibitors in neutralizing toxic effects of venom upon blood clotting was tested by repeating the above mentioned 8-point concentration curves, but the 25 µl of OK buffer (added to the cuvette before incubation) was replaced with 25 µl of antivenom (final reaction concentration of Inoserp Europe 0.5%, ViperaTAb 0.4%, and VIPERFAV 0.2%. The differences in concentration were reflective of the different antivenom vial size (10 ml, 8 ml, and 4 ml respectively) and thus the same proportion of each vial was used for the tests, thus allowing for a vial-to-vial comparison of efficacy. Similarly, enzyme-inhibitors at 2 mM working stock for prinomastat and DMPS, (final reaction concentration of 0.2 mM) was tested against Daboia russelii (Pakistan), D. siamensis (Taiwan), Macrovipera lebetina turanica (Turkmenistan), M. schweizeri (Greece), V. ammodytes (Ada Island, Montenegro), V. aspis hugyi (Italy).
Thromboelastography
To evaluate the strength of the clot and total thrombus generated by the venoms in plasma, further investigation was carried out by using TEG5000 haemostasis analyzers (Haemonetics®, Haemonetics.com, catalogue # 07- 033). The assay included consecutive addition of 72 μl of 0.025M CaCl2, 72 μl phospholipid, 20 μl of the OK buffer, 7 μl of 1 mg/ml of venom, and 189 μl plasma to the reaction cup, followed by automated measurement. For spontaneous clotting of plasma (negative control), 7 μl 50% deionized water/glycerol was replaced with venom. Similarly, 7 μl of thrombin (Stago catalogue #115081 Liquid Fib) or 7 μl Factor Xa (Stago catalogue #253047 Liquid Anti-Xa) was replaced with venom, for two positive controls. Each reaction ran for 30 minutes.
Clotting Factor Activation Assays
Fluoroskan Ascent™ (Thermo Scientific, Vantaa, Finland) was employed to detect Factor X and prothrombin activation based on the results of the above methods (38, 39). Table 1 reagents were manually plated in 384-well plates (black, lot#1171125, Nunc™ Thermo Scientific, Rochester, NY, USA), followed by automated pipetting of 70 μl of buffer containing 5 mM CaCl2,150 mM NaCl, and 50 mM Tris-HCl (pH 7.3) and Fluorogenic Peptide Substrate, (ES011Boc-Val-Pro-Arg-AMC. Boc: t-Butyloxycarbonyl; 7-Amino-4-methylcoumarin; R & D systems, Cat# ES011, Minneapolis, Minnesota) in 500:1 ratio to start the reaction; with the plate warmed up at 37°C and shaken for 3 s before each measurement. The reaction was carried out 300 times at 390/460 nm (excitation/emission) and every 10 s the fluorescence generated by the cleavage of the substrate was measured by Ascent® Software v2.6 (Thermo Scientific, Vantaa, Finland). To obtain results, blank (background) values were subtracted from all other reactions, followed by subtraction of “venom without zymogen” values from “venom with zymogen” values (to nullify artificial increment of the fluorescence values caused some venoms which work directly on the substrate). Finally, the resultant values from the subtractions were normalized as a percentage relative to FXa or thrombin by organizing in Excel and then analysing in GraphPad PRISM 8.1.1 (GraphPad Prism Inc., La Jolla, CA, USA).

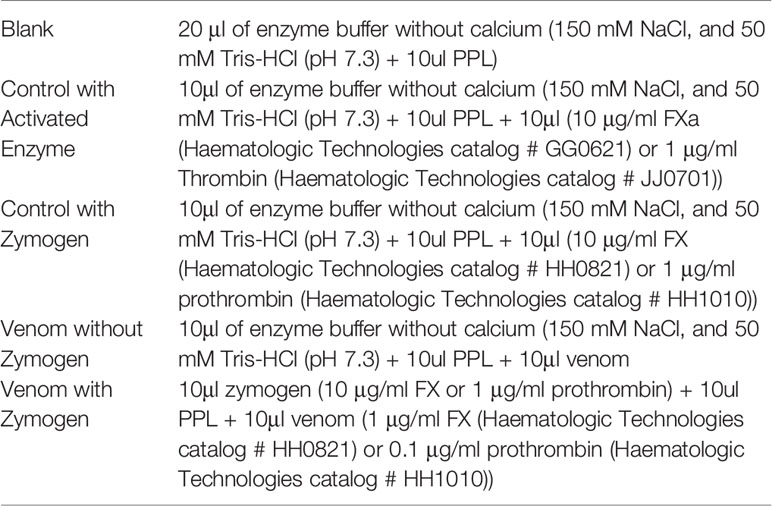

Table 1 Fluorescent substrate activation assay.
Clotting Factor Inhibition Assays
Samples were diluted at 1:10 with OK buffer. 50 μl of venom + 50 μl of CaCl2 (0.025M, Stago Cat#11851) + 50 μl of phospholipid solution (STA C.K. Prest standard kit, Stago Cat#12207, solubilized in 5 ml OK buffer) + 25 μl of clotting factor (thrombin, FIXa, FXa, FXIa, and FXIIa) were incubated for 120s at 37°C. Subsequently 75 μl of plasma was added, and clotting time was measured. OK buffer control was used as a negative control.
Statistical Analyses
All tests were run in triplicate. All data plotting and statistical analysis were done by using GraphPad PRISM 8.1.1 (GraphPad Prism Inc., La Jolla, CA, USA). Determination of the AV efficacy against venom, the area under the curve (AUC) for both venom and venom + antivenom was calculated using the software, followed by generation of X-fold magnitude of shift in Excel (formulae [(AUC of venom incubated with antivenom/AUC of venom) - 1]). The resulting values for X-fold magnitude of shift; if 0, indicated no neutralization (no change of clotting time curve), and if over 0, demonstrated venom neutralization (change in clotting time curve).
Results
Effects Upon Clotting Times of Plasma and Fibrinogen
Coagulotoxicity Effects
The Vipera venoms all displayed a clotting effect upon plasma, but with a wide range of values. The maximum velocity clotting times (in seconds) at the highest concentration (20 μg/ml) of (seconds +/- SD) (with smaller numbers indicating stronger effect) was: 15.4 +/- 0.9 V. ammodytes (Lake Skadar, Montenegro); 16.0 +/- 0.1 V. ammodytes (Ada Island, Montenegro); 18.4 +/- 1.9 V. ammodytes (Maribor, Slovenia); 20.4 +/- 0.5 V. ammodytes (Slunj, Croatia); 23.0+/- 0.6 V. ammodytes (Krk Island, Croatia); 23.9 +/- 0.1 V. berus (Slovenia); 23.9 +/- 0.1 V. berus (Snežnik Mountain, Slovenia); 26.7 +/- 0.3 V. latastei gaditana (Spain); 28.7 +/- 0.2 V. aspis hugyi (Italy); 30.3 +/- 0.4 V. a. meridionalis (Greece); 33.0 +/- 2.4 V. berus (Norway); 35.3 +/- 0.4 V. kaznakovi (Turkey); 44.1 +/- 0.4 V. renardi (Russia);66.2 +/- 3.4 V. a. montandoni (Bulgaria); 98.9 +/- 0.3 V. aspis aspis (France);107.8+/- 1.4 V. transcaucasiana (Turkey); 179.7 +/- 0.3 V. nikolskii (Russia); and 359.8 +/- 4.5 V. latastei latastei (Spain) (Figure 3). The plasma kaolin positive control was 51.0 +/- 0.34, while the negative control (spontaneous clotting) was 645.2 +/- 9.8

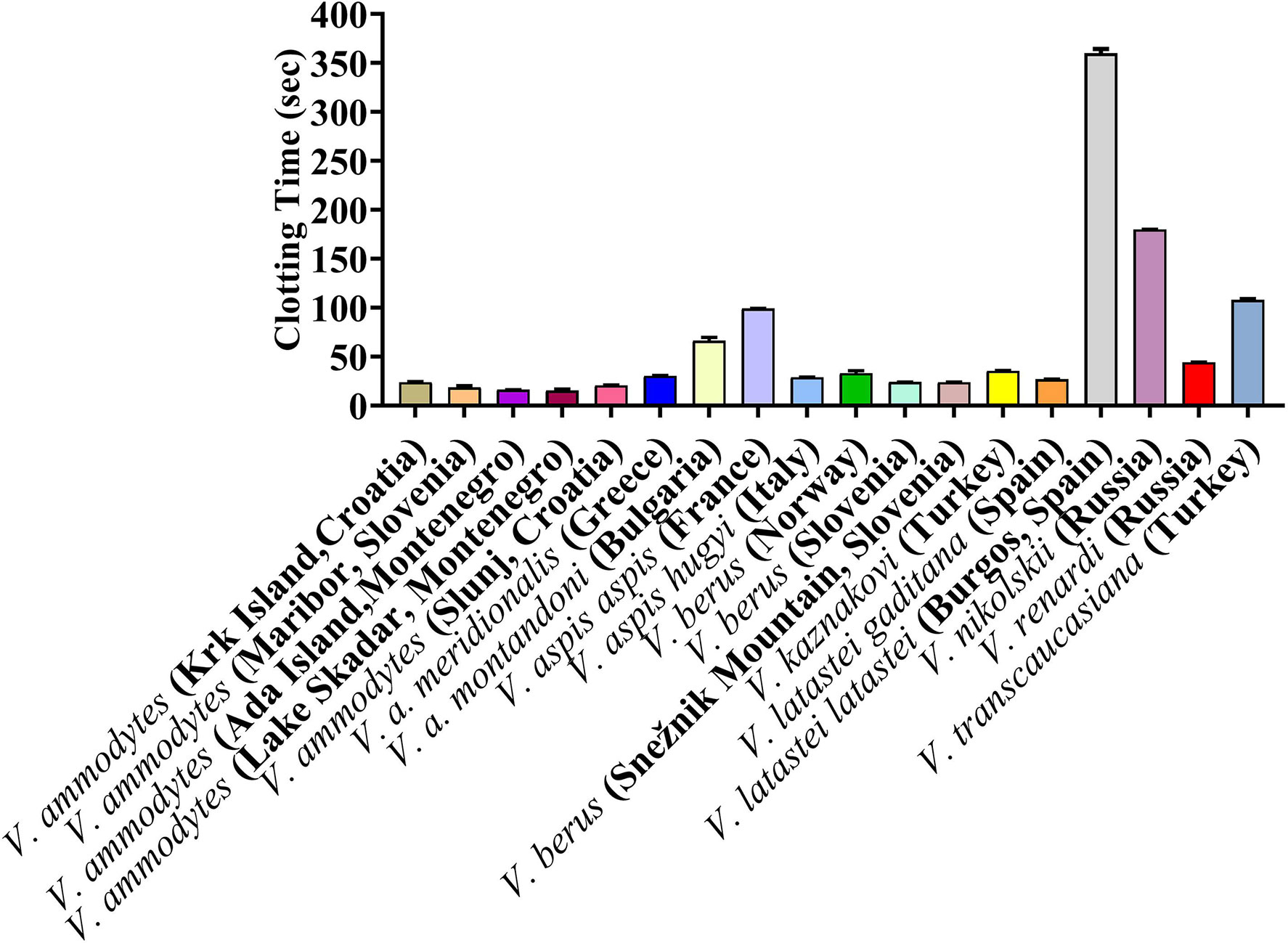

Figure 3 Clotting times on human plasma produced by Vipera venoms (20 µg/ml).
To check significant differences the values One Way ANOVA was carried out on the clotting times. There were no significant differences (p > 0.05 at 95.00 % confidence interval) between V. ammodytes (Krk Island, Croatia) versus (vs.), V. ammodytes (Slunj), Croatia) V. berus (Slovenia), V. berus (Snežnik Mountain, Slovenia) and V. latastei gaditana (Spain); V. ammodytes (Maribor, Slovenia) vs. V. ammodytes (Ada Island, Montenegro), V. ammodytes (Lake Skadar, Montenegro) and V. ammodytes (Slunj, Croatia); V. ammodytes (Ada Island, Montenegro) vs. V. ammodytes (Lake Skadar, Montenegro) and V. ammodytes (Slunj, Croatia); V. ammodytes (Slunj, Croatia) vs. V. berus (Slovenia), V. berus (Snežnik Mountain, Slovenia); V. a. meridionalis (Greece) vs. V. aspis hugyi (Italy), V. berus (Norway) and V. latastei gaditana (Spain); V. aspis hugyi (Italy) vs. V. berus (Slovenia), V. berus (Norway) and V. latastei gaditana (Spain); V. berus (Norway) vs. V. kaznakovi (Turkey); V. berus (Slovenia) vs. V. berus (Snežnik Mountain, Slovenia) and V. latastei gaditana (Spain); V. berus (Snežnik Mountain, Slovenia) vs. V. latastei gaditana (Spain), while there were significant difference between clotting times between all other vipers.
However, like shown previously for Daboia and Macrovipera venoms (38) none of the Vipera venoms clotted fibrinogen with the assay measurements reaching the machine maximum of 999 seconds. The clotting time for the thrombin positive control was (seconds +/- SD) 3.6 +/- 0.1 seconds. This suggested that the clotting action shown for plasma was due to the activation of a clotting factor, which was explored further (see 3.3 below).
In contrast, all Montivipera venoms demonstrated potent anticoagulant actions on plasma, with the test sets all reaching the machine maximum reading time of 999 seconds. This included the derived M. xanthina which has secondarily colonized a lowland habitat relative to the other species in this clade (40) and also evolved a larger body size. Despite these derivations, it retains the potent anticoagulant venom characteristic of the Montivipera genus.
Antivenom and Enzyme Inhibitor Efficacy
Inoserp and VIPERFAV were comparable against all V. ammodytes populations and V. a. meridionalis, while VIPERFAV was moderately less effective for other species, except for V. latastei gaditana against which it performed comparatively poorly (Figures 4 and 5). Interestingly, both Inoserp and VIPERFAV, which had V. ammodytes as their immunizing species, showed lower level potency against V. ammodytes species hailing from Montenegro compared to other V. ammodytes populations. Consistent with ViperaTAb having only V. berus as an immunizing species, it performed extremely well against V. berus but compared to the other two antivenoms, it performed poorly against the other species except for moderate levels of neutralization of V. renardi.
Figure 4 8-point concentration curves, x-axis showing concentrations of venom in μg/ml and y-axis showing clotting times in seconds of human plasma with venom and relative antivenom efficacy. For each species, linear graphs are presented on the left and logarithmic views on the right. Shown are: venom-induced clotting times (red curves); venom-induced clotting times after preincubation with Inoserp AV (final concentration 0.5%; spontaneous control- 420.2 +/27.7) (blue curves), ViperaTAb AV (final concentration 0.4%; spontaneous control- 478.4 +/33.3) (purple curves), or VIPERFAV AV (final concentration 0.2%; spontaneous control- 509.7 +/13.5) (green curves). Values are mean ± SD of N = 3 and shown as dots with error bars. Some error bars are too small to see.
Figure 5 X-fold magnitude of shift of plasma clotting time due to incubation of antivenoms indicated by: Inoserp in blue bars, ViperaTAb in purple bars; and VIPERFAV in green bars. X-fold magnitude of shift was calculated by the formula [(AUC of antivenom + venom/AUC of venom) -1]. A value of 0 indicates no shift (no neutralization by antivenom), while a value above 0 indicates neutralization by antivenom. Values are mean ± SD of N = 3.
While the antivenoms had variable differences, prinomastat highly neutralized not only Vipera representatives but also Daboia and Macrovipera (major metalloprotease dependent venoms) representatives at 0.2 mM concentration (Figure 6). In contrast, DMPS performed extremely poorly against all venoms (Figure 6).
Figure 6 (A) 8-point concentration curves, x-axis showing concentrations of venom in μg/ml and y-axis showing clotting times in seconds of human plasma with venom and relative inhibitor efficacy. For each species, linear graphs are presented on the left and logarithmic views on the right. Shown are venom-induced clotting times (red curves), effect of venoms after preincubation with prinomastat (final concentration 0.2 mM%; spontaneous control- 484.8 +/- 11.0) (blue curves), and effect of venoms after preincubation with DMPS (final concentration 0.2 mM %; spontaneous control- 425.8 +/3.3) (green curves). Values are mean ± SD of N = 3 and shown as dots with error bars. Some error bars are too small to see and the failure of DMPS to shift the curves results in an identical line to the red (venom only) curves. (B) Bar graphs of X-fold magnitude of shift of plasma clotting time due to induction of prinomastat. X-fold magnitude of shift was calculated by the formula [(AUC of inhibitor + venom/AUC of venom) -1]. A value of 0 is no shift (no neutralization by inhibitor), while a value above 0 indicates neutralization by inhibitor. Values are mean ± SD of N = 3.
Thromboelastography
Consistent with the activation of a clotting factor and the resulting generation of endogenous thrombin, all venoms produced strong, stable clots in the thromboelastography assays (Figure 7).
Figure 7 Overlaid thromboelastography traces of spontaneous clotting negative control (blue), Factor X and thrombin positive controls (green) and venom-induced clotting experimental condition (red). Parameters: SP = the split point (time till clot formation begins) (sec); R = time until detectable clot (2 mm +) is formed (sec); MA = maximum amplitude of clot (mm); MRTG = maximum rate of thrombus generation (dynes/cm2/s); TMRTG = time to maximum rate of thrombus generation (min); and TGG = total thrombus generated (dynes/cm2). Values are mean ± SD of N = 3.
Clotting Factor Zymogen Activation
All venoms displayed the ability to activate Factor X but only negligible activation of prothrombin (Figure 8). The relative potencies were congruent with the action of respective venoms on plasma (Figures 3 and 7). V. ammodytes (Ada Island, Montenegro), which was the fastest on plasma, showed the highest activation of FX. Conversely, V. renardi was the slowest on plasma and also activated FX the least.
Figure 8 Ability of venoms to activate Factor X (left) compared to prothrombin (right). Results are presented relative to the control of the same amount of the corresponding activated enzyme form (note difference in y-axis scales between the two graph sets). Data points are N = 3 mean ± SD.
Clotting Factor Inhibition
As the Montivipera venoms were shown to be potently anticoagulant, tests were undertaken to ascertain if the inhibition was due to the inhibition of thrombin, FIXa, FXa, FXIa, or FXIIa. Only FXa was shown to be inhibited, with all the species having this action at comparable potency (Figure 9).
Figure 9 Shift of clotting time relative to control due to inhibition of Factor Xa (no effect relative to control would be a value of 0). Data points are N = 3 mean ± SD.
Discussion
Our study set out to examine changes in venom biochemistry relative to two distinct types of derivation in this clade away from the diminutive, low-land niche occupying last common ancestor: that of the three convergent evolutions of giganticism (Daboia genus, Macrovipera genus, and Vipera ammodytes as the significantly largest member of the Vipera genus); and the occupation of the high-land niche by the Montivipera genus and Vipera latastei latastei as a unique high-land specialist within the Vipera genus.
Consistent with previous results demonstrating that Daboia and Macrovipera species have extremely potent procoagulant (Factor X activating) venoms (38), this study revealed that the largest Vipera species (V. ammodytes) was also the most potent Vipera in activating Factor X, with one population (Lake Skadar, Montenegro) even approaching that of Daboia and Montivipera speed of action. Consistent with the link between size and relative FX activation levels of the venoms, the more diminutive sister species V. transcaucasiana and all other smaller Vipera species were comparably less potent than V. ammodytes. This is in contrast to other snakes, such as the Bitis genus in which gigantism evolved on two separate occasions (41), neither of which were linked to notable changes in coagulotoxicity (42).
The strongest divergence in venom action was for the Montivipera species. The diversification into a unique high-altitude niche relative to the low-altitude last common ancestor of the Palearctic viper clade was accompanied by a change from the procoagulant ancestral trait to potent anticoagulant toxicity. Specifically, instead of activating Factor X into Factor Xa like the last common ancestor of the Palearctic viper clade, the venom of these snakes was shown in this study to inhibit Factor Xa. This radical change in venom biochemistry was retained in M. xanthina. This is significant as this species is nested deep within the Montivipera genus (Figure 1), and has secondarily evolved to occupy a low-land niche from within this montane specialist genus (40). However, the relatively recent shift from high-land to low-land niche has not yet been accompanied by a change in venom biochemistry. The relationship between a secondary losses of the ancestral procoagulant trait accompanying the specialization for a high-land niche was reinforced by the convergent action within V. latastei, which has two subspecies: the low-land V. latastei gaditana and the high-altitude (2,900 to 3,600 feet) subspecies V. latastei latastei. V. l. gaditana is like other Vipera in having a FX activating procoagulant venom, while V. latastei latastei has lost the procoagulant trait (21).
Antivenom neutralization patterns broadly followed the immunizing mixtures. Reflective of having V. berus in the immunizing mixture, ViperaTAb was strongly effective only against the V. berus venoms. The multi-species immunizing mixture of VIPERFAV (Vipera ammodytes, V. aspis, V. berus) was reflected in its multi-species neutralisation potential. Consistent with Inoserp Europe having a very complex immunizing mixture (the Vipera species V. ammodytes, V. aspis, V. berus, and V. latastei, in addition to the Macrovipera species M. lebetina cernovi, M. schweizeri, M. l. obtusa, M. l. turanica and the Montivipera species M. xanthina), it displayed the greatest paraspecificity. Consistent with the variation between species and populations within a species observed in this study, previous work using other methods to ascertain variations in other characteristics have similarly reported such variations (43–47). The discrepancy of antivenom neutralizing property on the venom of same species from different locations or within genus is evident in other studies, which is a major issue in antivenom production (42, 48–58).
The comparative testing of the enzyme inhibitors prinomastat and DMPS revealed highly contrasting differences in their specific abilities to neutralize the P-IIId SVMP responsible for FX activation by the venoms in this study. This is congruent with recent data published for FX activation of neonate Crotalus culminatus venom, which prinomastat neutralised but DMPS at the same concentration did not (59) and another report of DMPS requiring long incubation times to exert a discernable effect (60).
Additional important caveats are that this study only examined the neutralization capacity of antivenoms and enzyme-inhibitors using in vitro systems. Neutralization assays conducted in this study were under preincubation conditions and as such, demonstrated failure under such idealized conditions are strongly suggestive of failure under dynamic physiological conditions. Thus the limited taxonomical range of ViperaTAb antivenom in this study is strongly suggestive of limited taxonomical range when tested in vivo and real-world use, as is the failure of DMPS suggestive of in vivo and real-world failure. However, success under such in vitro conditions does not automatically translate into success in in vivo models or real-world clinical cases. Therefore additional studies must be undertaken using in vivo assays and then clinical studies before clinical recommendations can be made. Thus while the Inoserp and VIPERFAV antivenoms, and the enzyme-inhibitor prinomastat, are predicted by this study to have broad utility, this must be corroborated by in vivo and subsequent clinical studies.
Another important caveat is that this study focused solely upon the coagulotoxic effects of these venoms. Each of these snake venoms has clinically relevant profile extending beyond coagulopathy, such as neurotoxicity, another major lethal trait (61). In addition to P-IIId SVMP, these venoms contain myriad other toxins, including snake venom serine protease (SVSP), phospholipase A2 (PLA2), and L-Amino acid oxidase (LAAO) (62). In a study on V. berus venom, the complex presence of basic phospholipases, SVSPs, LAAO, SVMP, were responsible for hemotoxicity, myotoxicity, cytotoxicity and neurotoxicity (63). V. aspis shared similar toxins with V. berus along with PLA2 (ammodytoxin B-like PLA2: neurotoxic effect), SVMP inhibitor, SVMP, SVSP, and disintegrins; however, a higher presence of disintegrins were seen in V. aspis compared to V. berus (64, 65). In separate studies on V. kaznakovi and V. anatolica venom, an abundance of SVMP was evident. However, V. kaznakovi had a higher percentage of PLA2 and SVSP compared to V. anatolica (46, 66). V. nikolskii, V. orlovi, V. renardii, and V. kaznakovi were all reported to have greater PLA2 percentage compared to other toxins followed by SVMPs (67–69). Great diversity may exist within each of these toxin classes. For example, a SVSP isolated from V. ammodytes venom (VaaSP-VX) has been shown to activate Factor X (FX) and Factor V (FV) simultaneously, a function congruent with the metalloproteases in this study (although this toxin is in much lower levels in the venom than the metalloprotease), while another V. ammodytes SVSP (VaF1 toxin) has α-fibrinogenolytic activity (70, 71). Another V. ammodytes toxin, a myotoxic secreted PLA2 analogue ammodytin L (AtnL) was reported to cause irreversible atrioventricular (AV) blockade (72, 73). V. ammodytes meridionalis has been shown to share similar toxins as well as vipoxin (PLA2, postsynaptic neurotoxin) (74). The presence of additional toxin actions beyond those examined in this study is reflected in complex envenomation clinical profiles (61). Thus, more comprehensive in vitro assays and also in vivo studies must be conducted before clinical recommendations can be finalised regarding treatment options for particular species or populations within a species.
This work provides data useful for predicting potential clinical effects and contributing to the evidence-based design of clinical management strategies. As with Daboia and Macrovipera, an increase in Vipera species sizes was correlated with an increase in the FX activation potency, with the largest species (V. ammodytes) possessing the most potently procoagulant venom. Consistent with their multi-species immunizing mixture, both Inoserp Europe and VIPERFAV showed broad paraspecificity. In contrast, and consistent with V. berus as the sole immunizing venom, ViperaTAb strongly specific for V. berus. While the small molecule inhibitor prinomastat nullified the effects being tested in representative venoms, DMPS failed to do so at the same molar concentrations and experimental conditions, including incubation times. In contrast to the retention of the FX activating procoagulant trait in Vipera species, Montivipera venoms were shown to be unique for the clade, exhibiting anticoagulant activity through the inhibition of FXa, paralleling its specialization for a unique montane habitat. This trend has also been noted for the lowland V. l. gaditana, which retained the FX activating procoagulant trait, while the derived high-altitude subspecies V. l. latastei had a secondary reduction in FX potency. This study therefore underscores the importance of studying evolution in parallel to venom biochemistry in order to provide data essential for understanding potential clinical effects of particular species or populations, and the relative therapeutic options.
Future work should examine for prey specific effects to reconstruct the evolutionary shaping pressures by testing several hypotheses emerging from this work regarding the selection pressures exerted by prey type, prey retaliation potential, and prey escape potential, all of which have been shown to be major drivers of venom evolution (75–77). First is the hypothesis that as mammals are particularly sensitive to procoagulant toxins due to the high circulatory rates making them rapidly subjugated by stroke as a consequence of the large blood clots formed by the venoms, the evolution larger body size is linked to an increased proportion of mammalian prey in the diet (78). This is in turn linked to a second testable hypothesis, that the greater proportion of mammals in the diet, leads to an increased chance of prey retaliation and thus a selection pressure for the increased levels of stroke-inducing procoagulant toxins in order to rapidly subjugate such dangerous prey, as has been seen for mammal specialists such as Australian elapids in the Oxyuranus and Pseudonaja genera (37). A third testable hypothesis is that the specialization into a high-altitude shift is linked to either a shift in prey type towards amphibian or reptilian prey, thus providing the selection pressure for the down-regulation of the procoagulant venom phenotype and, in the case of Montivipera the evolution of the anticoagulant phenotype. A linked fourth testable hypothesis is that the relative prey escape potential is another significant variable driving venom evolution, whereby montane habitats occupied by Montivipera and V. l. latastei with abundant rock cracks result in higher chance of prey escaping into inaccessible areas, versus snakes living in lowland arid habitats which are able to scent track prey over considerable distances. Such variation in relationship to altitude and prey type and prey escape potential has been noted for the rattlesnake species Crotalus helleri (79). In addition, as all venom samples used in this study from adult specimens, future work should examine ontogenetic shifts to ascertain if juvenile snakes have differentially procoagulant venoms, which has been noted for other species (59, 78, 80, 81).
This work thus has a broad impact, contributing to the understanding of the lethal coagulopathy produced by some species, while also providing a starting point for diverse evolutionary studies. We hope these findings stimulate further research into the evolution of venom in this group of fascinating snakes.
Data Availability Statement
The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding author.
Ethics Statement
The studies involving human participants were reviewed and approved by UQ Human Ethics Committee Approval #2016000256 using pooled plasma from anonymous patients, supplied by the Australian Red Cross under Research Agreement #18-03QLD-0. Written informed consent for participation was not required for this study in accordance with the national legislation and the institutional requirements. The animal study was reviewed and approved by UQ NEWMA approval # 2021/AE000075.
Author Contributions
Study conception: BF. Study design AC, CZ, ML, RC, MA, and RS. Resources ML, RC, TJ, HH, MA, and RS. Conducting of experiments. AC, CZ, and BF. Data analysis. AC, CZ, and BF. Primary draft writing AC and BF. All authors contributed to the article and approved the submitted version.
Conflict of Interest
ML was employed by the company Ophirex, MA by Micropharm, and RS by Inosan Biopharma, all of which made products tested in this manuscript. However, the companies had no input in experimental design or reviewing of results before publication.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
BF was funded by Australian Research Council Discovery Project DP190100304 and AC was the recipient of a PhD Scholarship from the University of Queensland. ML and RC have shares and salary support from Ophirex, Inc., a Public Benefit Corporation and are funded in part by US Defense Health Agency contract W81XWH19C0082. We thank Ulrich Joger, Lorenzo Seneci, and Jory Thiel for their constructive comments on the manuscript.
