REVIEW article

Front. Immunol., 08 March 2021
Sec. Vaccines and Molecular Therapeutics
This article is part of the Research Topic Trained Immunity-based Vaccines View all 14 articles

Optimize Prime/Boost Vaccine Strategies: Trained Immunity as a New Player in the Game

\nJean-Louis Palgen,Jean-Louis Palgen1,2Yanis FeraounYanis Feraoun1Gaëlle Dzangu-TchoupouGaëlle Dzangué-Tchoupou1Candie JolyCandie Joly1Frdric MartinonFrédéric Martinon1Roger Le GrandRoger Le Grand1Anne-Sophie Beignon
Anne-Sophie Beignon1*
  • 1Center for Immunology of Viral, Auto-immune, Hematological and Bacterial Diseases (IMVA-HB/IDMIT), Université Paris-Saclay, INSERM, CEA, Fontenay-aux-Roses, France
  • 2School of Medical Sciences, Kirby Institute for Infection and Immunity, Cellular Genomics Futures Institute, University of New South Wales, Sydney, NSW, Australia

Most vaccines require multiple doses to induce long-lasting protective immunity in a high frequency of vaccines, and to ensure strong both individual and herd immunity. Repetitive immunogenic stimulations not only increase the intensity and durability of adaptive immunity, but also influence its quality. Several vaccine parameters are known to influence adaptive immune responses, including notably the number of immunizations, the delay between them, and the delivery sequence of different recombinant vaccine vectors. Furthermore, the initial effector innate immune response is key to activate and modulate B and T cell responses. Optimization of homologous and heterologous prime/boost vaccination strategies requires a thorough understanding of how vaccination history affects memory B and T cell characteristics. This requires deeper knowledge of how innate cells respond to multiple vaccine encounters. Here, we review how innate cells, more particularly those of the myeloid lineage, sense and respond differently to a 1st and a 2nd vaccine dose, both in an extrinsic and intrinsic manner. On one hand, the presence of primary specific antibodies and memory T cells, whose critical properties change with time after priming, provides a distinct environment for innate cells at the time of re-vaccination. On the other hand, innate cells themselves can exert enhanced intrinsic antimicrobial functions, long after initial stimulation, which is referred to as trained immunity. We discuss the potential of trained innate cells to be game-changers in prime/boost vaccine strategies. Their increased functionality in antigen uptake, antigen presentation, migration, and as cytokine producers, could indeed improve the restimulation of primary memory B and T cells and their differentiation into potent secondary memory cells in response to the boost. A better understanding of trained immunity mechanisms will be highly valuable for harnessing the full potential of trained innate cells, to optimize immunization strategies.

Introduction

The goal of vaccination is to elicit long-lasting immune memory, in order to mediate protection from infection, or at least to prevent disease in case of exposure to the pathogen. Multiple immunizations are required for most vaccine strategies, to induce efficient protection. However, there are a few exceptions that elicit life-long protective immunity after a single injection. These vaccines represent the Grail for vaccinologists. These include vaccines against yellow fever and smallpox, composed of the yellow fever 17D virus strain (YF17D) and vaccinia virus (VACV), respectively. Even though these are live-attenuated vaccines, what makes them so efficient remains to be completely understood. Mimicking their efficacy is a topic of intense research focus, with the aim to develop new efficient vaccines against other pathogens and diseases.

Repeat vaccinations can be necessary to increase the frequency of responders among vaccinees, and to ensure potent individual and herd immunity. It also enhances and modulates individual immune memory, which is the basis for prime/boost vaccine strategies (see Boxes 1, 2).

Box 1. First/second vaccine dose and prime/boost.

In the field, one may encounter the term “primary doses,” rather than “boosts,” particularly when the first vaccine injections are close in time to each other. The very first vaccine dose activates naïve T cells, which undergo proliferation, contraction and a differentiation program to develop into primary memory T cells. As soon as the second vaccine dose is administered, when the primary effector response has started to contract, it can actually be called a boost. It does not always mean that the prime was optimal, and the boost might in fact not only restimulate primary memory T cells, but also prime new naïve T cells, although primary memory T cells have an advantage to respond over naïve T cells.

Box 2. Homologous vs. heterologous prime/boost vaccine strategies.

Repeated administrations using the very same vaccine, which are called homologous prime/boost, have proven to be very effective for augmenting humoral responses (1, 2). However, they appeared to be relatively less efficient at enhancing cellular immunity, likely because prior immunity to the vaccine tends to impair robust Ag presentation and the generation of appropriate inflammatory signals for T cells. In contrast, in the 90s, in the context of the development of T cell-based vaccines (e.g., against malaria, Mycobacterium tuberculosis, and HIV/AIDS), one strategy to overcome this limitation has been the sequential administration of vaccines using different Ag delivery systems. This approach is called heterologous prime/boost. It has proven to be effective at generating high levels of memory T cells in preclinical studies and clinical trials. However it had never been licensed for humans until very recently with the Gam-COVID-Vac (Sputnik V) aginst COVID-19 (3). It combines recombinant live vectors (such as adenovirus (Ad)- or poxvirus-derived vectors), DNA or RNA vaccines, or adjuvanted subunit vaccines (4).

In addition to the vaccine variables well-known to modulate immunity, such as the nature of the vaccine or adjuvant, its dose and its route of injection for instance, other parameters need to be compared and optimized in the case of prime/boost vaccine strategies (5). They include the number of injections, the delay between them and the combination and order of vaccines for heterologous prime/boost. The exact molecular and cellular mechanisms implicated are not fully understood, preventing a full rationale for optimization of these parameters. Thus, they are defined empirically, and the best parameters out of those tested, neither the absolute nor the individual best parameters, are used.

Although the mechanisms of differentiation of primary and secondary B and T cells after prime and boost are getting better understood, several outstanding questions remain (6, 7). Less is known about the evolution of innate responses after a primary and secondary vaccine encounter, which has likely been overlooked. Classically, innate immunity provides a first line of defense against invading pathogens and shapes adaptive immunity, which takes more time to develop (810). However, innate responses can differ between prime and boost, because (1) specific antibodies (Abs), and memory T cells influence innate cells upon re-exposure, and (2) innate cells themselves can functionally and intrinsically differ. Most textbooks still describe similar innate responses after one or more stimulations, independently of the immunological history, because of the short life span of responding innate cells, and the lack of known immune memory in the innate compartment. However, recent insights have challenged this paradigm (1113). A better understanding of the principles of memory development, of B and T cells, without excluding innate cells, will certainly be important for optimization of prime/boost strategies and defining which vaccine is best to use first and second in a regime, and how long the delay should be between immunizations.

Innate Responses in the Presence of Specific Antibodies and Memory T Cells

The presence of specific primary Abs and memory T cells at the time of re-vaccination provides a distinct environment to innate cells, which modulates their responses.

Primary Antibodies

Ab concentration and many biophysical and functional features of Abs are determined by the type of vaccine and vaccine strategy used. Features include Ab affinity, isotypes and subclasses, glycosylation profile, and functions like neutralization, and others that depend on Fc-domain interactions with Fc receptors (FcR) (e.g., antibody-dependent cellular cytotoxicity or antibody dependent cellular phagocytosis). These properties also evolve with time and Ag restimulation.

At re-vaccination, innate cells do not sense immunogens of the vaccine as they did at the time of primary vaccination. At first exposure in a naïve host, the vaccine is “free” and detected solely via Pathogen-Associated Molecular Patterns (PAMPs) and Pattern Recognition Receptors (PRRs) expressed by innate cells. Upon re-exposure, vaccine immunogens form immune complexes with primary Abs. They are cleared by FcR-expressing phagocytic cells, they trigger inflammation and it results in the presentation of vaccine-derived epitopes by these innate cells (14, 15).

Consistently, a vaccine-like effect contributing to protection can be observed in the case of Ab-based immunotherapies against infectious diseases. For instance, in a model of retrovirus infection in mice, passive transfer of Abs resulted in long-term protection (16). It required not only Ab neutralizing- but also Fc-functionality, as neutralization alone failed to protect (17). Neutrophils were required. They mediated B cell help and tuned the humoral response (18). Such a vaccine-like effect of Ab infusion has also been observed in non-human primates, where neutralizing Abs induced strong polyfunctional CD4+ T cell response against SIV, mediated by Fc-activated dendritic cells (DCs) (19).

Primary Memory T Cells

Specific memory T cells respond with more strength, are more frequent and react faster, by requiring less activating signals, than their naïve precursor counterparts (2022). Like Ab responses, T cell responses are modulated by the number of antigen encounters (20), and also evolve over time. Immune memory differentiation is a continuum. Primary and secondary memory T cells, as well as early and late memory T cells differ in their frequency, functions (including proliferation, cytokine production and cytotoxicity), and distribution/recirculation. In particular, a subset of memory T cells, called resident memory T cells (TRM), populate barrier tissues (such as the mucosae and skin) and organs. They do not recirculate like other memory T cell subsets, such as central memory and effector memory T cells (23).

TRM are fostered in the tissue where vaccine is delivered, where they act as sentinels. They react more rapidly to secondary vaccine encounter, and participate in the very early local inflammation and modulation of innate cells. The cytokines they produce can catalyze recruitment, or differentially recruit, activate and license innate cells. For example during influenza infection, it was shown that CD4+ memory T cells, can increase the production of innate inflammatory cytokines by antigen-presenting cells (APCs) in the lung upon cell-to-cell contact and cognate antigen (Ag) recognition. This early augmented innate responsiveness likely participates in early control of viral replication (24). Similarly, after immunization with attenuated Listeria monocytogenes, recalled memory T cells rapidly activate innate cells, through an IFN-g/CLL3 dependent mechanism (25, 26). Furthermore, after cognate or even non-cognate recognition of Ag, TRM trigger an innate alarm, which dampens infection severity by recruiting neutrophils into the lungs (27), or by activating DC and NK cells in mucosae of the female reproductive tract (28).

Innate Cells Can Respond Intrinsically Better to Stimuli After Being Trained

In addition to the extrinsic effect provided by specific Abs and recalled memory T cell responses upon Ag re-exposure, innate cells can react differently to restimulation in an intrinsic manner, because of imprinting that might have occurred during a previous inflammatory/infection episode. Innate cells can display memory-like features, brought about by this so-called innate immune training (11).

Concept and Hallmarks of Trained Immunity

Trained immunity features and mechanisms differ from those of B and T cells memory by the involvement of metabolic and epigenetic reprogramming in innate cells. It provides homologous (29, 30) and more strikingly heterologous protection (i.e., against antigenically unrelated pathogens), mediated by trained innate cells that display enhanced innate effector response upon restimulation long after the initial stimulus of training. Trained cells remain present at least 3 months after being induced (31), while the non-specific effects (NSE) of live vaccines on all-cause morbidity and mortality, which is thought to be partly mediated by trained immunity in addition to bystander activation and cross-reactive TCR and Ab, last longer, for several years (32, 33). The mechanisms of trained immunity maintenance, and waning remain to be fully investigated (for open questions on trained immunity see Box 3).

Box 3. Outstanding questions on trained immunity based prime/boost vaccines.

• Which vaccines and adjuvants are capable of inducing trained immunity?

• Do they stimulate hematopoietic stem or progenitors cells, or a subset, directly or indirectly?

• Are there different mechanisms leading to different flavors of innate memory?

• How long does innate memory take to develop?

• How long does innate memory last?

• Do resting trained cells differ immunophenotypically from their naïve counterparts in addition to their epigenetic marks? Do they represent a distinct subset?

• What are the roles of effector and memory B and T cells, and Abs, in the induction and maintenance of innate memory?

• How to best harness trained immunity to optimize prime/boost vaccine strategies?

Trainable Cells

The first evidence of innate memory in the myeloid compartment was identified in monocytes/macrophages. Trained monocytes and macrophages were described essentially by their ability to more efficiently produce cytokines, especially IL-6 and TNF-a, upon exposure to unrelated stimuli (29, 3437). Other cells from the myeloid lineage, such as DCs (29, 38, 39) and even neutrophils (4043), despite their very short life span, were recently reported to display enhanced innate functions long after the initial stimulation. A burgeoning diversity of neutrophil phenotypes and functionalities are being uncovered, with their capacity to act as APCs a current focus of investigation (44). Innate lymphoid cells (45) and NK cells (4649) can also “remember” previous infection/inflammation. Ag-specific memory NK cell subsets have been described (5053). Finally, non-immune cells (such as fibroblast, epithelial stem cells, or interstitial stromal cells) can also be trained, and respond more strongly to tissue stress and damage for instance (54, 55).

Trained Immunity Mechanisms

Trained immunity entails the activation, followed by a long-lasting metabolic rewiring, epigenetic re-programming and changes in gene expression in differentiated myeloid cells, such as monocytes (31), and hematopoietic stem and progenitor cells (HSPCs) from the bone marrow (BM), as demonstrated in vivo using Bacillus Calmette-Guérin (BCG), the current live attenuated vaccine made of Mycobacterium bovis and used against Mycobacterium tuberculosis [both in mice (56) and in humans (57)], and with fungal cell wall component b-glucan (58). The transfer of BM cells from BCG- or b-glucan-trained mice into non-trained animals, led to acquisition of trained immunity features in the transplanted animals. Such an education of the progenitors resulted in a bias toward myelopoiesis and was inherited by the myeloid progeny, because epigenetic modifications of HSPCs were stable and durable throughout differentiation. This explains how innate memory can be long-lasting despite the short life of innate effector cells. Myelopoiesis includes several differentiation and maturation steps, which take time, from HSCs to common, and then more committed, myeloid progenitor cells, through to the terminal differentiation of myeloid cells, i.e., granulocytes, monocytes and DCs. Trained daughter innate myeloid cells remain resting when unchallenged and they display enhanced innate effector functions upon stimulation. Differences in the phenotype of resting trained cells and their naïve counterparts has not been explored thoroughly, with the exception of a few studies that demonstrated differential expression of key surface markers between resting trained vs. naïve innate cells (31, 41) (Box 3). In addition, LPS was recently reported to induce long-term cryptic epigenetic changes in bona fide hematopoietic stem cells, without modifying their count or gene expression (59). We have previously shown in macaques that the subcutaneous injection of attenuated vaccinia virus, Modified Vaccinia Ankara (MVA), elicited late phenotypic modifications in blood innate myeloid cells resulting in a “defense-ready” phenotype, which was reminiscent of innate training. Monocytes, but also DCs and neutrophils, expressed higher levels of several markers involved in signal transduction (CD45), Ag presentation (HLA-DR), sensing (CD14), binding of immune complexes (CD16, CD32) and complement (CD11b, CD11c), inflammation (IL-10, IP-10, IL-12, IL-8), or migration (CXCR4, CCR5) (41). Admittedly, it remains to be seen whether such phenotypic changes translate into functional innate memory, characterized by an enhanced responsiveness to heterologous stimulation in vivo. In any case, our work suggests that MVA imprints different sets of progenitor cells, including downstream of common myeloid progenitors (CMPs)/myeloid-committed granulocyte-monocyte common progenitors (GMPs), because most neutrophils, but only some monocytes and DCs, were modified (Figure 1). GMPs are actually heterogeneous, as committed progenitors within GMPs are now being identified and characterized, as well as their downstream precursors (6063). Thus, depending on the vaccine and the targeted HSPCs, different flavors of trained immunity are likely to be induced (Box 3).

FIGURE 1
www.frontiersin.org

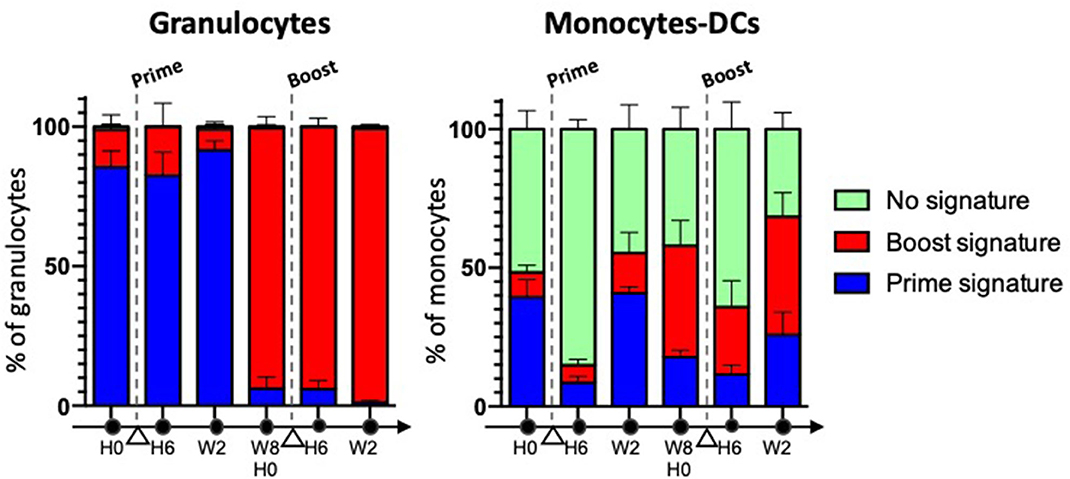

Figure 1. The phenotypic memory of myeloid cells is not restricted to monocytes, and can be more pronounced in granulocytes. Macaques (n = 5) were immunized twice, subcutaneously, 2 months apart with a recombinant attenuated vaccinia virus encoding HIV clade B Ags, rec MVA HIV-B (MVA is for Modified Vaccinia Ankara). Blood myeloid cell subsets were analyzed overtime using mass cytometry and a multi-step clustering analysis. They were classified as prime signature (blue), boost signature (red), or non-discriminant “no signature” (green), after a Linear Discriminant Analysis (LDA) performed after Least Absolute Shrinkage and Selection Operator (LASSO). Cell subsets responding to the 2nd immunization differed for the intensity of expression of several markers from those responding to the 1st immunization. They were present prior to vaccine boost, and were induced long after the 1st immunization. They were “better equipped to respond” to restimulation. Most neutrophils were modified, in contrast to some monocytes and DCs (41).

The development of trained immunity is associated with major HSPC and monocyte changes related to their glycolysis, tricarboxylic acid (TCA) cycle (also called citric acid cycle or Krebs cycle), glutaminolysis, cholesterol synthesis, and fatty acid synthesis, as shown with BCG and b-glucan. Several metabolites, at the intersection of metabolism and epigenetics, are enriched and play key roles in the development and/or persistence of trained immunity. These include fumarate, which accumulates after glutamine replenishment of the TCA, and mevalonate, a metabolite of the cholesterol biosynthesis pathway (36, 58, 64, 65).

Epigenetic reprogramming of HSPCs and monocytes is mediated by histone modifications and deposition of epigenetic marks, in particular H3K4me3 and H3K27Ac marks, on multiple specific targeted loci, i.e. at the promoters and associated enhancers of immune genes (such as PI3K/AKT and NF-kB pathways, as well as TNF-a and IL-6 promoter regions). Whether other epigenetic marks also participate to the regulation of trained immunity needs to be addressed. In addition to histone modification, a role of DNA methylation in the development of trained immunity has also been reported after BCG immunization (66). Some long non-coding RNAs, called immune priming lncRNAs, also play a key role. They are upregulated by the initial stimulus and they direct epigenetic remodeling enzymes proximal to immune genes, and thus target the deposition of epigenetic marks on specific gene promoters (67).

In addition to HSPCs and circulating myeloid cells, trained immunity can be induced locally, as demonstrated in the instance of alveolar macrophages after intranasal infection with non-replicative human serotype 5 adenovirus (Ad5), independently of monocytes and BM HSPCs (68). The training of these macrophages was dependent on IFN-g, produced by effector CD8+ T cells, and lasted up to 4 months. Increased glycolytic metabolism, modification of transcriptomic profile, and a heightened response to heterologous (bacterial) infection were observed. This work highlights the need to better understand the role of adaptive effector and memory T cells in the induction and maintenance of innate memory (Box 3).

Trained Immunity-Based Vaccines

Trained Immunity-Inducing Vaccines

In the last decade, trained immunity has been abundantly reported following BCG vaccination, in humans and mice, and after b-glucan injection in mice (29, 31, 34, 46, 56, 69, 70). Evidenced by epidemiological, pre-clinical and clinical vaccine studies, the occurrence of NSE and/or trained immunity have been witnessed after administration of live-attenuated vaccines other than BCG, including vaccines against smallpox (vaccinia virus), measles, polio (oral live vaccine, but not the inactivated vaccine), yellow fever, and the new live attenuated M. tuberculosis candidate vaccine (MTBVAC) (7176).

What about “non-live” vaccines (such as inactivated or subunit vaccines)? Trivalent influenza vaccination has been reported to elicit imprinting in monocytes and DCs for at least 6 months (77), while gamma-irradiated BCG induced trained monocytes in vitro, but failed to do so in vivo. In contrast, a long-lasting enhanced anti-inflammatory responsiveness was recently reported after exposure to helminth extracts (78) and a live attenuated anti-pertussis vaccine BPZE1 (79). Finally, diphtheria-tetanus-pertussis (DTP) vaccination, as opposed to BCG, was shown to enhance all-cause morbidity and mortality, more particularly in females (80). Which vaccines/adjuvants can induce trained immunity, and how, is currently one of the hottest topics in the field (Box 3). A better understanding of the mechanisms may make it possible in the future, to precisely target the trained immunity metabolic or epigenetic pathways, with pharmacological modulators, to program and tailor immune training, as recently discussed (81). The genetic depletion and pharmacological inhibition of SHIP-1 was shown for instance to improve the b-glucan mediated training of macrophages (82).

Most current licensed vaccines are administered through parenteral routes. They are highly effective for inducing systemic adaptive immune responses, but they are usually poor at eliciting local immunity. In contrast, mucosal vaccines can induce protective specific immunity at the mucosal front line, through which most pathogens enter the body, and to a lower extent systemically (83). Some vaccines, when delivered by mucosal but not parenteral route, have been shown to also induce trained immunity. A recombinant Ad5-based M. tuberculosis vaccine expressing the immunodominant M. tuberculosis Ag85A, delivered intranasally afforded protection from early stages of pulmonary M. tuberculosis infection; it failed to do so when injected intramuscularly. Protection was mediated by trained airway macrophages (both alveolar and interstitial), and independently of the recruitment of blood inflammatory monocytes in lungs (84). Respiratory-mucosal trained immunity-based vaccination may represent a powerful strategy against respiratory infections, such as M. tuberculosis and SARS-CoV-2/COVID-19 (85, 86).

BCG, which is injected intradermally in humans, was recently shown, in a prospective double-blind and randomized clinical trial, to protect the elderly from new infections, especially respiratory infections, and increase the responsiveness of their blood cells to unrelated stimuli (87). Several clinical trials to evaluate whether BCG could protect health workers from SARS-CoV2 infection and COVID-19 are ongoing (88). However, a very encouraging retrospective study comparing healthy volunteers vaccinated with BCG in the last 5 years or never before showed that BCG immunization seems to decrease the incidence of sickness (89). In addition, prior BCG vaccination of health workers was associated with a decrease of SARS-CoV2 seroconversion and of incidence of COVID-19 clinical symptoms. In contrast, the history of meningococcal, pneumococcal, or influenza vaccination did not protect against SARS-CoV-2 infection (90). It is of interest to determine whether BCG delivered to the pulmonary system (by endobronchial instillation) can outperform BCG delivered intradermally, in terms of both systemic and local innate training, as it does in terms of protection against M. tuberculosis in non-human primates (91).

The exact stimulus of trained immunity is a matter of great debate. Assuming that vaccine immunogen reaches the BM, HSPCs could be stimulated directly (by detecting vaccine-derived PAMPs), or they could be indirectly stimulated by sensing systemic inflammation signals, including growth factors and cytokines such as GM-CSG, M-CSG, G-CSF, IL-1b, IL-6 (Box 3). The route of administration appears to be a key parameter, and not only the nature of the vaccine itself. The vaccine injection site determines vaccine biodistribution, and which are the first immune and non-immune cells sensing the vaccine, and responding to it, and thus the early and transient inflammation. In mice, BCG injected intravenously persisted in BM monocytes (but not in HSPCs) for up to 7 months and trained immunity developed, whereas subcutaneous BCG injection did not lead to the presence of BCG in the BM and failed to elicit training. However, both routes of BCG injection also likely result in different early systemic inflammation. Additionally, early antibiotic treatment showed that the persistence of BCG in BM was actually not required to induce trained immunity, likely at least its initial presence. In non-human primates, BCG injected intravenously was not found in the BM 1 month later, and, as determined by the production of cytokines in response to heterologous stimulus by PBMCs, there was no evidence of immune training (92). In humans, the intradermal injection of BCG resulted in trained immunity, and no BCG was found in the BM after 90 days (57). In any case, if initial stimulus persists chronically in an anatomical or cellular reservoir, then long-term imprinting of innate cells might not be related to innate memory, but rather reflect a state of chronic stimulation as discussed recently (85). It is also interesting to note that different BCG strains were sub-cultured historically in different laboratories, yielding genetic diversity with differences in virulence, innate activation, immunogenicity and trained immunity-inducing capability (93).

Trained Immunity to Improve Prime/Boost Vaccines

Instead of inducing only classical Ag-specific Ab, B, and T cells, future vaccines could contribute further with induction of both innate and adaptive immune memory as recently highly debated (9496). Trained immunity-based vaccines could be developed to: (i) increase protection against the targeted infectious agent by relying on both arms of the immune system (innate and adaptive B and T cell responses), (ii) provide heterologous protection against unrelated pathogens, mediated by innate training. More particularly, future vaccines could prevent infection by emerging and old pathogens (such as HIV, RSV, HSV-1/2) for which there remains no potent vaccine. It would benefit more susceptible individuals, such as the newborns and pre-term infants (97), and elderly (87), or patients suffering from immunodeficiency (98). And (iii) pre-condition the innate immune system in order to increase or modulate immune responses after re-vaccination during prime/boost vaccine strategies, or after new unrelated vaccination with a sub-optimal vaccine, or in people less prone to efficiently respond to vaccines, like the elderly (Figure 2).

FIGURE 2
www.frontiersin.org

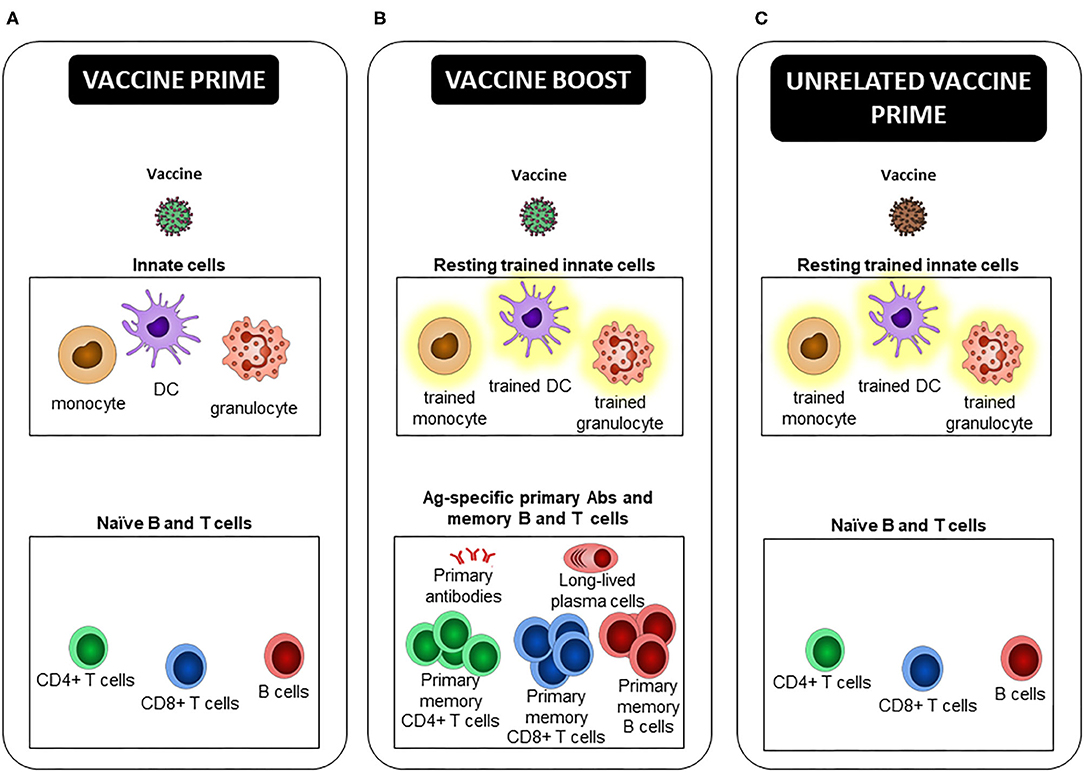

Figure 2. Trained innate immune cells, a new player in prime/boost vaccine strategies. (A) At the time of the primary injection, the early innate effector response participates to the activation of Ag specific naive B and T cells, leading to the generation of long-lived plasma cells, primary Abs and memory B and T cells, defined by an Ag-specific heightened effector response upon Ag re-encounter. (B) At the time of the vaccine boost, not only “free,” but also Ab-bound vaccine and Ag specific primary memory B and T cells, which are triggered by their cognate Ag recognition, activate innate cells. Depending on the type of vaccine, its route of administration, and the delay between immunizations, prime-induced resting trained innate cells can be present and respond better than “naive” ones to restimulation. These extrinsic, and possibly intrinsic, differences can lead to an innate effector response that differs between prime and boost, and differentially shapes the secondary effector and memory adaptive response. If and how primary Abs, and effector and memory B and T cells participate in the induction and maintenance of trained immunity is unclear. (C) In the case of a new unrelated vaccination as opposed to a homologous or heterologous boost, only potential trained HSPCs and innate cells induced by the first vaccine, as well as TRM activated after non-cognate Ag stimulation, may modulate the innate effector response and consequently the primary adaptive response to the second vaccine.

BCG has been shown to provide innate protection against pathogens and diseases not related to M. tuberculosis. It can also potentiate and modulate adaptive immune responses to heterologous pathogens and vaccines. For example, concentrations of specific Abs after routine infant immunization were higher in babies whose innate immune system was exposed to BCG at birth (99). Adults, who were immunized with BCG 2 weeks prior to flu vaccine, developed hemagglutination inhibiting Ab responses, faster and to a greater extent (100). Furthermore, prior immunization with BCG was associated with decreased live-attenuated YF17D vaccine viremia. The BCG-induced lower yellow fever vaccine Ag and PAMP doses had no impact on the yellow fever specific neutralizing Ab response though (69). Thus, suggesting an improved priming, or that YF17D vaccine replication is not a key determinant of the magnitude of the humoral response (likely above a certain concentration), as previously proposed (101).

To benefit from trained immunity in the case of re-vaccination or unrelated vaccination, it is yet to be determined which vaccines, recombinant vectors and adjuvants induce trained immunity, and if specific routes of administration are required. Furthermore, the optimal sequence of immunization needs to be defined, given that the long-term NSE induced by different vaccines can augment/inhibit each other, as demonstrated for BCG and tetanus-diphtheria-pertussis inactivated polio vaccine (Tdap) (102). Therefore, vaccine schedules may need to be adapted. The generation of resting trained innate cells, through the reprogrammation of their HSPCs, takes time. We previously demonstrated in MVA-primed/boosted monkeys that intensity and quality of secondary Ab response correlated with the abundance of trained cells in blood at the time of the 2nd vaccine dose. These cells were not present 2 weeks after the 1st vaccine dose, but were enriched 2 months after (103). Thus, delay between immunizations is another likely key parameter.

Conclusions

Innate memory is changing our view of vaccines and vaccine strategies. It is a challenging and new tool to improve vaccines. It might also contribute to the inter-individual variability of responses to vaccines, depending on the individual inflammation/infection history that needs to be taken into account to personalize vaccines. Innate training might represent the 6th revolution in vaccinology, next to other breakthroughs such as combination vaccines, new adjuvants, systems vaccinology, and vaccines against non-infectious diseases proposed by Stanley Plotkin (104).

Author Contributions

J-LP, YF, GD-T, and A-SB wrote the first draft of the manuscript. A-SB oversaw the sections. J-LP and YF designed the figures. CJ, FM, and RL edited the text. All authors discussed the relevant literature and composed the sections of the review article.

Funding

J-LP received a Ph.D scholarship from the University Paris Saclay. YF received a Ph.D scholarship from the Commissariat à l'Énergie Atomique et aux Énergies Alternatives. GD-T is the recipient of a post-doctoral fellowship from the Fondation pour la Recherche Médicale. We thank the French government's Investissements d'Avenir program ANR-10-LABX-77-01, which funded the Vaccine Research Institute (VRI, Créteil), ANR-11-INBS-0008, which funded the Infectious Disease Models and Innovative Therapies infrastructure (IDMIT, Fontenay-aux-Roses, France), and ANR-10-EQPX-02–01, which funded the FlowCyTech facility (IDMIT, Fontenay-aux-Roses, France).

Conflict of Interest

A-SB is the recipient of Sanofi Innovation Award (iAward program), Europe 2020, on Trained Immunity-Inducing Vaccines.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors thank David Pejoski (Department of Pathology and Immunology, Faculty of Medicine, University of Geneva, Geneva, Switzerland) for insightful discussions on prime/boost vaccine strategies, and Oscar Haigh (IMVA-HB/IDMIT, CEA, Fontenay-aux-Roses, France) for his critical reading of the manuscript.
