Ryo Inoue1,2*
Takamitsu Tsukahara1,3
Masako Nakatani1Mie Okutani1Ryoichiro Nishibayashi1Shohei Ogawa1Tomoko Harayama1
Takayuki Nagino1Hironori Hatanaka1Kikuto Fukuta4Gustavo A. Romero-Pérez3
Kazunari Ushida1Denise Kelly2
- 1Laboratory of Animal Science, Kyoto Prefectural University, Kyoto, Japan
- 2Gut Immunology Group, Rowett Institute of Nutrition and Health, University of Aberdeen, Aberdeen, UK
- 3Kyoto Institute of Nutrition and Pathology, Kyoto, Japan
- 4Technical Center, Toyohashi Feed Mills, Shinshiro, Japan
Transcriptome analyses were conducted on the ileal mucosa of 14- to 35-day-old piglets to investigate postnatal gut development during suckling and postweaning. The transcriptome profiles of 14-day-old suckling piglets showed a considerably higher number of differentially expressed genes than did those of 21-, 28-, and 35-day olds, indicating an intensive gut development during the first 14–21 postnatal days. In addition, the analysis of biological pathways indicated that Chemotaxis Leucocyte chemotaxis was the most significantly affected pathway in suckling piglets between 14 and 21 days of age. Weaning negatively affected pathways associated with acquired immunity, but positively affected those associated with innate immunity. Interestingly, pathway Chemotaxis Leucocyte chemotaxis was found positively affected when comparing 14- and 21-day-old suckling piglets, but negatively affected in 28-day-old piglets weaned at 21 days of age, when compared with 28-day-old suckling piglets. Genes CXCL13, SLA-DOA (MHC class II), ICAM1, VAV1, and VCAM1 were involved in the pathway Chemotaxis Leukocyte chemotaxis and they were found to significantly change between 14- and 21-day-old suckling piglets and between groups of suckling and weaned piglets. The expression of these genes significantly declined after weaning at 14, 21, and 28 days of age. This decline indicated that CXCL13, SLA-DOA, ICAM1, VAV1, and VCAM1 may be involved in the development of Peyer’s patches (PP) because lower gene expression clearly corresponded with smaller areas of PP in the ileal mucosa of piglets. Moreover, weaning piglets prior to a period of intensive gut development, i.e., 14 days of age, caused significant adverse effects on the size of PP, which were not reverted even 14 days postweaning.
Introduction
Development of the gut of growing piglets during early postnatal days is strongly associated with feeding efficiency and susceptibility to pathogens later in life. For example, a pig gut with a well-developed villous/crypt architecture has increased absorptive capacity that results in a higher feed conversion rate (1). In addition, maturation of the porcine mucosal immune system with functional lymphoid organs, including the aggregated lymphoid follicles, provides enhanced protection against pathogens (2, 3). For practical purposes, the aggregated lymphoid follicles are commonly referred to as Peyer’s patches (PP). PP are key components in intestinal immunity and, in human, as much as 46% of PP can be found in the distal 25 cm of ileum (4). Similar PP functions and distribution are likely found in pigs (5, 6). Hence, to maintain the health of growing pigs, it is necessary to ensure a sound development of the digestive–absorptive systems, as well as the mucosal immune structures of the gut such as ileal PP.
The gut of a piglet becomes structurally and functionally comparable with that of an adult at ~2 months of age (7, 8). Nonetheless, intensive development of many parameters associated with the digestive–absorptive and mucosal immune systems is observed during early postnatal life, as piglets still suckle. In the case of the digestive–absorptive system, at ~3 weeks of age lactase activity in the small intestine decreases in parallel with an increase in activity of maltase and sucrase (1, 9). With respect to the mucosal immune system, notable increases in the number of lymphocytes and enlargement of PP (10, 11), as well as marked structural development of the villous architecture (12) have been observed in the small intestinal lamina propria during the first 3 weeks of life.
Weaning, particularly early weaning, has a considerable impact on porcine gut development. For instance, weaning significantly increases maltase activity in the small intestine, while simultaneously decreasing lactase activity (13). Furthermore, after weaning, the variety and number of antigens stimulating the mucosal immune system of piglets increase, which contributes to bolster the immune level in the gut, e.g., deployment of more T cells and macrophages/granulocytes to the villous lamina propria (14). Moreover, decreases in villous height and increases in crypts depth have been reported by several studies, which clearly exemplify the marked effect of weaning on gut development (15–18).
Transcriptome analysis has been shown to be a useful tool for elucidating gene expression in intestinal tissues of pigs (19). For example, microarray analysis-based bioinformatics have identified in jejunal tissues of weaned piglets: (a) several biological pathways associated with the immune response such as Natural killer cell mediated cytotoxicity and Chemokine signaling pathway (20) and (b) immune response-related genes affected by foods components such as carbohydrates and fatty acids (21) and amino acids (22). Moreover, recent bioinformatics work has investigated differential gene expression in jejunal (19, 23) and ileal (23, 24) PP. These authors found differential transcriptomic profiles in intestinal tissues, as nutritional pathways were enriched in jejunal PP, whereas immune pathways were overexpressed in ileal PP. Nonetheless, little is known about the identity of biological pathways involved in the development of ileal PP and how enrichment of these pathways and expression of genes related to them affect the development of gut of healthy weaned piglets.
In the present study, first, we analyzed changes in the transcriptome of the ileal mucosa of suckling piglets during early postnatal life, to enhance our understanding of pig’s gut development. Second, we compared the transcriptome of the ileal mucosa of suckling piglets and piglets weaned 21 days after birth, but of same age at the time of comparison, to elucidate the effect of weaning on the developing gut. Third, we assessed the effect of weaning on immune parameters at various ages (14, 21, and 28 days old), with emphasis on biological pathways Chemotaxis Leukocyte chemotaxis and Immune response IFN alpha/beta signaling, because data suggested that these two pathways were significantly affected by weaning. Last, we evaluated the effect of weaning on ileal PP development, due to pathway Chemotaxis Leukocyte chemotaxis was seemingly involved in the development of ileal PP.
Materials and Methods
Animals
All piglets were crossbred (Landrace × Large white × Duroc) and bred at the Technical Center of the Toyohashi Feed Mills (Shinshiro, Aichi, Japan). For this work, piglets were obtained from different herds due to the number of animals available was limited. Thus, 30 and 12 piglets were obtained from litters of four and three different sows, respectively. Based on body conditions at the time of group allocation, all selected piglets were tentatively considered suitable for tissue sampling. The average body weight of piglets at farrowing is shown in Table 1. Piglets received a typical commercial diet for weanlings (JustOne Sprout; Toyohashi Feed Mills, Aichi, Japan). This study was carried out in accordance with guidelines for animal studies issued by the Experimental Animal Committee of Kyoto Prefectural University and its protocol approved by this Committee (Approval number: KPU240410).

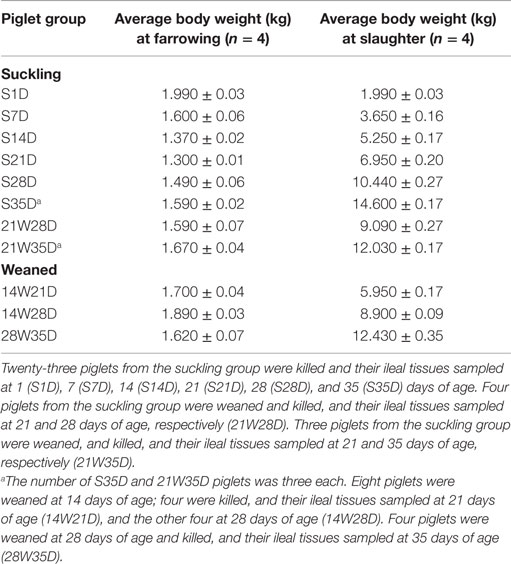

Table 1. Average body weight of piglets at farrowing and slaughter at different time points.
Differences in Ileal Transcriptome Between Suckling at Various Ages and Weaning
From a pool of 30 piglets, seven piglets were randomly separated and weaned at 21 days of age (weaned piglet group). Four and three weaned piglets were killed and their ileal tissues sampled 7 (21W28D) and 14 (21W35D) days postweaning, respectively. The remaining piglets stayed with their sows as intensive suckling piglets (sucking piglet group). To ensure that only maternal milk was consumed by the piglets, they were kept from accessing the sow’s diet. Four suckling piglets were killed and their ileal tissues sampled at 1 (S1D), 7 (S7D), 14 (S14D), 21 (S21D), and 28 (S28D) days of age, and the remaining three at 35 days of age (S35D). Only those piglets with acceptable body conditions according to age at slaughter time were finally chosen for sampling. The average body weight of piglets slaughtered at different time points is shown in Table 1. Ileal mucosal samples of all piglets except for those of S1D and S7D were used for microarray analysis.
Effect of Weaning and Postweaning at Different Ages
From a pool of 12 piglets, eight, and four piglets were separated from sows and weaned at 14 and 28 days of age, respectively. Four piglets weaned at 14 days of age were killed and their tissues sampled at 21 days of age (14W21D) and the remaining four at 28 days of age (14W28D). The piglets weaned at 28 days of age were killed and their tissues sampled at 35 days of age (28W35D). The average body weight of piglets slaughtered at different time points is shown in Table 1. Only those piglets with acceptable body conditions according to age at slaughter time were finally chosen for sampling. Total RNA from the ileal mucosal samples of all piglets was used for real-time PCR and PP histological analyses.
Tissue Sampling
Piglets were killed by exsanguination after anesthetizing them with an intraperitoneal injection of sodium pentobarbital (Somnopentyl; Kyoritsu, Tokyo, Japan). To remove the entire gut, a midline abdominal incision was cut through the skin; subsequently, the small intestine was excised from the gut. A portion consisting of 15% of the total length, measured from the ileoceacal valve, was collected and regarded as ileum (25, 26). The proximal and distal sections (2 cm long) of this segment were used for histological and gene expression analyses, respectively. Sections were slit lengthwise and washed with saline solution to remove the contents. The proximal section was fixed using a 10% phosphate-buffered formaldehyde solution (v/v). Next, the membrane overlying the ileum was gently scraped from the distal portion with a clean slide glass and immersed into RNAlater (Sigma, Tokyo, Japan). This tissue was regarded as the ileal mucosa, as previously reported (27, 28). Samples were kept at 4°C overnight and subsequently stored at −80°C until used for gene expression analysis.
Microarray Hybridization
Total RNA was extracted from ileal mucosal samples collected from S14D, S21D, S28D, S35D, 21W28D, and 21W35D piglets. Total RNA extraction and evaluation of RNA integrity were as described by Mulder et al. (29). Only RNA samples showing RNA integrity numbers (RIN) >8.0 were used for the microarray analyses. Biotin-labeled cRNA was synthesized from 100 ng of total RNA using the GeneChip 3′IVT Express kit (Affymetrix, Santa Clara, CA, USA), as per the manufacturer’s instructions. The quality of cRNA was determined using an Agilent 2100 Bioanalyzer (Agilent Technologies, Workingham, UK). Hybridization with the GeneChip Porcine Genome Array (Affymetrix), chip scanning, and image quality analysis were conducted as described elsewhere (29).
Real-Time PCR Analysis of Differentially Expressed Genes
The expression levels of genes selected on the basis of microarray analyses were further evaluated by real-time PCR. Total RNA was extracted from all samples as mentioned above, and complementary DNA was synthesized from each total RNA sample (500 ng), including those used for microarray analyses, using a RevaTra Ace qPCR RT kit (TOYOBO, Osaka, Japan), as per the manufacturer’s instructions. Real-time PCR was conducted using a LightCycler 480 instrument (Roche Applied Science, Tokyo, Japan). Specific primers and probe sets for each gene were designed with the online Universal ProbeLibrary Assay Design Center (Roche Applied Science). Sequences of the primers and probes used in the current study are shown in Table S1 in Supplementary Material. β-actin was used as the reference gene, and PCR conditions and analyses conducted for all genes were as described elsewhere (30).
Measurement of the Area of Ileal Peyer’s Patches
All fixed tissue samples were used. Tissues were further cross-sectioned with an approximate length of 10 mm. Sections were individually embedded in paraffin wax. Microsections of 4 μm thickness were prepared and stained with hematoxylin and eosin (H&E) for light microscopic examination. Individual areas of lymphoid follicles in all visible PP were measured using a light microscope (BX51, Olympus, Tokyo, Japan) equipped with a digital camera (DP25, Olympus) and image analysis software (DP2-BSW, Olympus). The PP area value for each tissue sample was calculated by adding the individual values of follicular areas in a cross-microsection. A follicular area in PP was determined based on a definition previously reported (10).
Data Analysis
To minimize technical variation between array chips, microarray data were normalized using the GeneChip Robust Multiarray Average (gcRMA) method and log-transformed with freely available R1 and Bioconductor2 software packages. Converted microarray data were statistically analyzed using CLC Main workbench software version 7.6.4 (Qiagen, Tokyo, Japan). Age related differences in the expression value of each gene probe in the suckling and weaned piglet groups were analyzed by one-way ANOVA. Differences between consecutive age groups of suckling piglets (S14D vs. S21D, S21D vs. S28D, and S28D vs. S35D) and between suckling and weaned piglet groups of same age were determined by Student’s t-test. A basic cut-off P < 0.05, and −2 ≤ fold change ≥ 2 was used to determine the differentially expressed genes. This was in concordance with a study of the Microarray Quality Control (MAQC) (31), which recommends the use of fold change ranking plus a non-stringent P cut-off as a baseline practice to generate more reproducible differentially expressed genes. However, for MetaCore analysis, false discovery rate was considered and thus, q-value (32) was calculated using the Bioconductor package qvalue. Genes at P < 0.05, −2 ≤ fold change ≥ 2 and having a q-value < 0.1 were imported into MetaCore analytical software (GeneGo, St. Joseph, MI, USA) to generate pathway maps, as carried out by Mulder et al. (29). Integrated pathway enrichment analysis was conducted using the knowledge-based canonical pathways and endogenous metabolic pathways.
Delta Ct value (ΔCt) was used for the statistical analysis of gene expression evaluated by real-time PCR. Differences between consecutive age groups of suckling piglets and between suckling and weaned piglet groups of same age were analyzed using the Student’s t-test. A P-value < 0.05 was considered statistically significant.
Differences in PP area between consecutive age groups of suckling piglets and between suckling and weaned piglet groups of same age were analyzed by Student’s t-test. A P value < 0.05 was considered statistically significant.
Results
Microarray
Raw and processed microarray data were submitted to the Gene Expression Omnibus (accession number GSE65008,3 available from October/01/2015).
Gene Expression at Different Ages in Suckling Piglets
The number of genes differentially expressed (t-test; P < 0.05) between S14D and S21D piglets was 2,124, half of which (high: 1,031; low: 1,093) were significantly higher in S21D piglets (Figure 1). In contrast, the number of genes differentially expressed between S21D and S28D and S28D and S35D piglets was only 60 (high: 13; low: 47) and 32 (high: 18; low: 14), respectively (Figure 1). The heat map shown in Figure 2 was generated based on differentially expressed gene probes in ileal tissues of suckling piglets (ANOVA; P < 0.05, −4 ≤ fold change ≥ 4). The heat map clearly shows that transcriptome profiles drastically changed from S14D to S21D piglets and older (Figure 2A).
Figure 1. Differentially expressed genes in piglets. Figure shows the number of genes differentially expressed (P < 0.05, −2 ≤ fold change ≥ 2) in suckling piglets killed and tissue sampled at 14 (S14D), 21 (S21D), 28 (S28D), and 35 (S35D) days of age, and piglets weaned at 21 days of age and killed and tissue sampled 7 (21W28D) and 14 (21W35D) days postweaning. Student’s t-test was carried out on the normalized and transformed microarray data and the number of significantly affected genes was calculated. HIGH and LOW denote the number of genes expressed significantly higher and lower, respectively, in piglets at the arrowhead (e.g., S21D) compared with piglets at the other end of the arrow (e.g., S14D). Comparisons between piglets identifying more than 1,000 differentially expressed genes are enclosed in dashed squares. Pathway analysis of the genes in the dashed squares is shown in Table 2.
Figure 2. Microarray-based heat map of differentially expressed gene probes in suckling (A) and weaned (B) piglets of same age. The heat map was produced by hierarchical clustering of the gene probe set data that met the following criteria: (A) ANOVA; P < 0.05, −4 ≤ fold change ≥ 4 and (B) ANOVA; P < 0.05, −3 ≤ fold change ≥ 3. The data of weaning age (S21D) was included to generate data from weaned and suckling piglets of same age.
Effect of Weaning on Gene Expression
Weaning piglets at 21 days of age markedly affected gene expression in ileal tissues. For example, the number of genes differentially expressed between S21D and 21W28D piglets was 1,131 (high: 603; low: 528), that is, more than 18 times than that between S21D and S28D piglets, and the number of genes differentially expressed between S28D and 21W28D was 1,308 (high: 663; low: 645), half of which (645 genes) showed a significant low expression at 21W28D (Figure 1). The heat map clearly shows that the transcriptome profiles between S28D and 21W28D piglets were different (Figure 2B). In addition, the number of genes differentially expressed between S35D and 21W35D piglets was almost sevenfold smaller than those expressed in 28-day old piglets (Figure 1).
Pathways Identified in Suckling Piglets
The top 10 biological pathways that significantly exerted effects on suckling piglets between 14 and 21 days of age are listed in Table 2. The most significantly enriched pathway based on the genes highly expressed in suckling piglets at 21 days of age (positively affected pathway) was Chemotaxis Leucocyte chemotaxis, with 13 genes from a total of 75 analyzed. Two pathways related to immunity were also positively between 14 and 21 days of age. Most enriched pathways corresponding to genes that had a significantly lower expression at 21 days of age (negatively affected pathway) were related to cystic fibrosis transmembrane conductance (CFTR) regulation and cell adhesion (Table 2). Although all differentially expressed genes (P < 0.05, −2 ≤ fold change ≥ 2) between 21 and 28 days of age, and between 28 and 35 days of age showed a q-value of more than 0.1, pathway analyses were performed using these gene sets for reference purposes. The results can be found in Table S2 in Supplementary Material.
Table 2. MetaCore pathway analysis of differentially expressed genes between ileal mucosal tissues of related piglet groups.
Effect of Weaning on Identified Pathways
The MetaCore enrichment analysis indicated that many pathways associated with immunity were affected by weaning. Pathways associated with acquired immunity was negatively affected in 21W28D piglets in comparison with S21D or S28D, whereas pathways associated with innate immunity seemed to be positively affected (Table 2). For example, when comparing S21D with 21W28D piglets, pathway Immune response Antigen presentation by MHC class I was found positively affected but pathway Immune response Antigen presentation by MHC class II was found negatively affected. Pathway Chemotaxis Leucocyte chemotaxis was found positively affected when comparing S14D with S21D, but enriched as negatively affected in 21W28D piglets when comparing suckling piglets of same age (S28D). At 28 and 35 days of age, pathway Immune response IFN alpha/beta signaling was found enriched as positively affected in weaned piglets when compared with suckling piglets (Table 2; Table S2 in Supplementary Material). As above, pathway analyses based on the differentially expressed genes between 21W28D and 21W35D, and between S35D and 21W35D were carried out for reference purposes, although the q-value for these genes was higher than 0.1 (Table S2 in Supplementary Material).
Real-Time PCR Analysis of Gene Expression in Suckling Piglets
Genes CXCL13, SLA-DOA (MHC class II), ICAM1, VAV1, and VCAM1 were selected as involved in the pathway Chemotaxis Leukocyte chemotaxis because their expression commonly changed between S14D and S21D and between S28D and 21W28D piglets in the microarray analyses. Real-time PCR analysis showed that the expression of SLA-DOA and VAV1 significantly elevated in suckling piglets from 1 to 7 days of age. Interestingly, from 14 to 21 days of age, all genes in suckling piglets showed a clear elevation of gene expression, of which the level difference was statistically significant (Figure 3; Table 3). Nonetheless, the expression of all genes started to decline markedly in piglets older than 28 days of age (P < 0.05 for SLA-DOA, ICAM1, and VAV1; Figures 3A–C).
Figure 3. Dynamics of gene expression and areas of Peyer’s patches during the experimental period. Symbols: solid line and open circles: suckling piglets; dotted line and solid triangles: piglets weaned at 14 days of age; solid line and open squares: piglets weaned at 21 days of age; gray line and solid rhombuses: piglets weaned at 28 days of age. Gene expression of (A) SLA-DOA, (B) ICAM1, and (C) VAV1 were analyzed using real-time PCR. The expression of each gene was normalized to that of β-actin. Data are presented as fold differences (mean ± SD) compared with the expression level of S1D. The sum of all visible follicular areas of Peyer’s patches was measured and regarded as (D) area of Peyer’s patches. Data are shown as mean ± SD. *P < 0.05 between ages, and ¶P < 0.05 between weaned and suckling piglets of same age.
Table 3. Real-time PCR analyses of selected genes in ileal mucosal tissues of suckling and weaned piglets.
Real-Time PCR Analysis of Gene Expression in Weaned Piglets
At day 7 postweaning, the expression of all genes involved in the pathway Chemotaxis Leukocyte chemotaxis was significantly lower in all weaned piglets when compared with that in suckling piglets of same age (Figure 3; Table 3). Furthermore, in piglets weaned at 14 days of age, an elevation in gene expression similar to that between S14D and S21D piglets was not observed and hence, gene expression was still significantly lower at 14 days postweaning when compared with that in 28-day-old suckling piglets (14W28D vs. S28D). However, differences in gene expression between weaned and suckling piglets were non-significant at 35 days of age due to the marked decline in gene expression in piglets older than 28 days of age mentioned above. The effect of weaning on the expression of genes ISG15, ISG54, IFI6, and USP18 involved in the pathway Immune response IFN alpha/beta signaling was differentially dependent on the weaning age. For example, the expression of ISG15 and USP18 was lower 14 days postweaning in piglets weaned at 14 days of age than in 28 days old suckling piglets (S28D). In contrast, the expression of all genes was markedly higher (P < 0.05) in 35 days old piglets that were weaned at 21 and 28 days of age than that of genes in 35-day-old suckling piglets (S35D).
Measurement of the Area of Ileal Peyer’s Patches
The dynamics of ileal PP areas during the experiment was similar to that of the expression of genes involved in the pathway Chemotaxis Leukocyte chemotaxis, particularly with SLA-DOA and VAV1 (Figures 3 and 4). For example, in suckling piglets, ileal PP areas significantly increased from 1 (Figure 4A) to 7 (Figure 4B) and from 14 (Figure 4C) to 21 (Figure 4D) days of age, the latter enlargement being approximately twofold. Except for piglets weaned at 28 days of age (Figure 4K), ileal PP areas were smaller in weaned piglets (Figures 4G–J) than those observed in suckling piglets (Figures 4C,D), being this difference more marked if comparison was made between piglets weaned at 14 days of age (Figure 4C vs. Figures 4G,H), in which PP area size remained essentially unchanged (Figure 3D).
Figure 4. Peyer’s patches in piglet ileal samples. Representative images of Peyer’s patches in ileal tissues of suckling piglets killed at (A) 1, (B) 7, (C) 14, (D) 21, (E) 28, and (F) 35 days of age are shown. In addition, the figure also shows representative images of Peyer’s patches in ileal tissues of piglets weaned and killed at (G) 14 and 21, (H) 14 and 28, (I) 21 and 28, (J) 21 and 35, and (K) 28 and 35 days of age, respectively. Photomicrographs (original magnification ×40; hematoxylin and eosin stain) were taken using a digital camera attached to a light microscope. Bars = 500 μm.
Discussion
The Affymetrix GeneChip Porcine Genome Array contains 24,123 probe sets and ~20,000 were annotated by (33), of which 11,265 represented unique genes. This powerful tool enabled us to analyze changes in transcriptome profiles and biological pathways in the porcine ileum that occurred during its development or the weaning process. In the present study, the microarray analyses were conducted on the ileal mucosa to comprehensively characterize changes in all cell lineages present in the gut rather than on a specific cell subset (29).
β-actin was the housekeeping gene used in the present work. Like many others, β-actin is expected to be expressed in all cells under normal conditions. However, the use of β-actin as reference gene has been lately questioned as it is argued that constant expression, rather than ubiquity, across tissues should be the decisive attribute when choosing a gene as internal control for experimental expression analysis (34, 35). Nonetheless, gene stability may depend on the type and region of tissues (36), and experiment conditions and species (37). Moreover, recent work (38, 39), including that on gene expression in pig tissues (36, 40), used β-actin as reference for measuring gene expression, with no reported problems. In addition, for further assurance, we evaluated GAPDH as an alternative reference gene and found a significant positive correlation (P < 0.01) with the expression level of ACTB. Based on all this, we considered β-actin a reliable reference gene.
A remarkable change in transcriptome profiles was observed when the analyses of tissues from 14- to 21-day-old suckling piglets were compared. A side-by-side comparison of profiles from S14D and S21D piglets showed that the number of genes differentially expressed was more than 10-fold higher than those found between S21D and S28D or between S28D and S35D piglets. This indicated that a drastic development of ileum took place within a week, between 14 and 21 days of age, but afterward it was only relatively modest. Moreover, MetaCore analyses revealed that in suckling piglets pathways associated with immunity were positively affected in the same period, which also suggests that development of the mucosal immune system also took place within this time.
Chemotaxis Leukocyte chemotaxis was the most significantly affected pathway, and putatively involved in immune cell deployment to the ileum. It is of interest that the same pathway and even the same genes were negatively affected by weaning. Real-time PCR analyses demonstrated that weaning significantly attenuated the gene expression involved in this pathway not only at 21 days of age but also at 14 and 28 days of age. In contrast, it was previously reported that a great number of immune cells are deployed to the lamina propria of the small intestine due to weaning (41). Therefore, we hypothesized that this pathway was very much involved in the development of PP. Our results confirmed that the dynamics of PP enlargement was very similar to that of genes involved in this pathway. PP areas significantly increased from day 14 to 21 in suckling piglets along with the expression of the genes involved in this pathway, but virtually ceased when the expression of these genes diminished at 35 days of age. In addition, differences in gene expression in tissues from weaned and suckling piglets of same age clearly coincided with size differences in PP areas.
ICAM1, VCAM1, and CXCL13 are involved in attraction/retention of hematopoietic cells in developing PP (42) and an increase in SLA-DOA may imply activation or proliferation of dendritic cells, as it has been previously suggested that dendritic cells from porcine PP highly expresses MHC class II (43). With regard to Vav-1, the involvement of this GTP exchange factor in the formation/development of PP has not yet been demonstrated. However, previous work reported that Vav-1 was critical for T cell development, and that deficiency in VAV1 resulted in reduced T cell population in lymph nodes (44). Thus, an increase in this gene may indicate T cell activation or an increase in the number of these cells in developing PP. The reason the low gene expression in 28W35D did not affect PP areas was presumably because gene expression had already peaked before weaning. By contrast, critical maldevelopment of PP observed in tissues of 14W21D piglets, which did not revert even after 14 days postweaning, was possibly due to piglets were weaned before gene expression peaked.
MetaCore analyses also showed that many pathways such as Immune response BCR pathway and Immune response PIP3 signaling in B lymphocytes associated with immunity, possibly humoral immunity, were negatively affected by weaning. This may be explained by the maldevelopment of PP because they play a critical role in humoral immunity, including production of antibodies (45). Indeed, it is quite possible that underdevelopment of PP observed after weaning resulted in lower expression of chemotactic genes such as CXCL13, which in turn caused a reduction of B cell homing and overall immune response (46). In contrast, type 1 IFN signaling pathway (Immune response IFN alpha/beta signaling pathway) seemed to be positively affected by weaning. Unexpectedly, real-time PCR analyses showed that the older the piglets were at weaning the larger the effect of weaning on the genes involved in this pathway. Type 1 IFNs have many biological properties (47); thus, the exact role of type 1 IFN signaling on gut development is still not clear. It has been demonstrated that ileum of conventionalized 14-day-old piglets showed activated IFN-γ and type 1 IFN signaling pathways in comparison with germ-free piglets of same age (26). Thus, it is likely that type 1 IFN signaling pathway was activated by the colonization of intestinal microbiota. In contrast, a counteracting inhibitory mechanism must have been activated to maintain intestinal homeostasis as suggested by Chowdhury et al. (26). Because of this inhibitory mechanism, type 1 IFN signaling pathway may be attenuated at an older age as shown by the decreased expression of all evaluated genes associated with this pathway. Among the four genes evaluated (ISG15, ISG54, IFI6, and USP18) that were induced by interferon-stimulated gene factor 3 (ISGF3) due to IFN-α stimulation, USP18 is known as a potent negative regulator of type 1 IFN signaling (48), and ISG15 is also suggested as a key negative regulator of the signaling in human by stabilizing USP18 (49). Thus, these two proteins may be involved in this inhibitory mechanism. Furthermore, type 1 IFN signaling pathway has been suggested as affected by the composition of the intestinal microbiota (29). Thus, it can tentatively be theorized that drastic changes in the microbiota composition caused by the lack of maternal milk, i.e., weaning, may have activated this pathway again.
In conclusion, the present study suggested that development of porcine ileum was not gradual but took place stepwise and proceeded intensively during a certain period (< 7 days). Indeed, according to real-time PCR analyses carried out in the present study and the dynamics of PP enlargement, intensive development may have occurred from the age of 1–7 days as well as from the age of 14–21 days. However, the time in which intensive development occurs could slightly change depending on the growing environment as it has a significant effect on the establishment of gut microbiota and overall gut development (29). The results of the present study clearly indicate that weaning before 21 days of age causes a critically adverse effect on gut development of piglets, leading to maldevelopment of PP that did not revert even after 14 days postweaning. The present work is the first to clearly show the effect of age at weaning on the development of PP, based on supporting expression patterns of genes perhaps involved in the process. This finding warrants further evaluation of the relationship between transcriptomic changes during weaning and gut microbiota and/or immune cell population. Future work using a combination of techniques such as laser capture micro dissection and DNA microarray analyses could be highly useful to reveal changes taking place in specific anatomical sites such as PP.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank Dr. Elaina Collie-Duguid and Diane Stewart at the Institute of Medical Sciences Microarray Core facility (University of Aberdeen) for Affymetrix microarray hybridization and chip processing. We also thank Messrs. Kenta Suzuki, Motohiro Nishikawa, and Shin-ichi Nakamura at the Kyoto Institute of Nutrition and Pathology for technical help in histological analysis. This work was supported by JSPS KAKENHI Grant Number 23688034, 23780269, and 22380146.
Supplementary Material
The Supplementary Material for this article can be found online at http://journal.frontiersin.org/article/10.3389/fimmu.2015.00630
Footnotes
References
1. Manners MJ. The development of digestive function in the pig. Proc Nutr Soc (1976) 35:49–55. doi:10.1079/PNS19760008
2. Bailey M. The mucosal immune system: recent developments and future directions in the pig. Dev Comp Immunol (2009) 33:375–83. doi:10.1016/j.dci.2008.07.003
3. Mair KH, Sedlak C, Käser T, Pasternak A, Levast B, Gerner W, et al. The porcine innate immune system: an update. Dev Comp Immunol (2014) 45:321–43. doi:10.1016/j.dci.2014.03.022
4. Van Kruiningen HJ, West AB, Freda BJ, Holmes KA. Distribution of Peyer’s patches in the Distal Ileum. Inflamm Bowel Dis (2002) 8:180–5. doi:10.1097/00054725-200205000-00004
5. Pabst R, Geist M, Rothkötter HJ, Fritz FJ. Postnatal development and lymphocyte production of jejunal and ileal Peyer’s patches in normal and gnotobiotic pigs. Immunology (1988) 64:539–44.
6. Sinkora M, Stepanova K, Butler JE, Francis D, Santiago-Mateo K, Potockova H, et al. Ileal Peyer’s patches are not necessary for systemic B cell development and maintenance and do not contribute significantly to the overall B cell pool in swine. J Immunol (2011) 187:5150–61. doi:10.4049/jimmunol.1101879
7. Bauer E, Williams BA, Smidt H, Verstegen MW, Mosenthin R. Influence of the gastrointestinal microbiota on development of the immune system in young animals. Curr Issues Intest Microbiol (2006) 7:35–52.
8. Manners MJ, Stevens JA. Changes from birth to maturity in the pattern of distribution of lactase and sucrase activity in the mucosa of the small intestine of pigs. Br J Nutr (1972) 28:113–27. doi:10.1079/BJN19720014
9. Hartma PA, Hays VW, Baker RO, Neagle LH, Catron DV. Digestive enzyme development in the young pig. J Anim Sci (1961) 20:114–23. doi:10.2134/jas1961.201114x
10. Makala LHC, Kamada T, Nishikawa Y, Nagasawa H, Igarashi I, Fujisaki K, et al. Ontogeny of pig discrete Peyer’s patches: distribution and morphometric analysis. Pathobiology (2000) 68:275–82. doi:10.1159/000055938
11. Rothkötter HJ, Ulbrich H, Pabst R. The postnatal development of gut lamina propria lymphocytes: number, proliferation, and T and B cell subsets in conventional and germ-free pigs. Pediatr Res (1991) 29:237–42. doi:10.1203/00006450-199103000-00004
12. Skrzypek T, Valverde Piedra JL, Skrzypek H, Woliński J, Kazimierczak W, Szymańczyk S, et al. Light and scanning electron microscopy evaluation of the postnatal small intestinal mucosa development in pigs. J Physiol Pharmacol (2005) 56:71–87.
13. Kelly D, Smyth JA, Mccracken KJ. Digestive development of the early-weaned pig. Br J Nutr (1991) 65:169–80. doi:10.1079/BJN19910078
14. Vega-López MA, Bailey M, Telemo E, Stokes CR. Effect of early weaning on the development of immune cells in the pig small intestine. Vet Immunol Immunopathol (1995) 44:319–27. doi:10.1016/0165-2427(94)05309-G
15. Hampson D. Alterations in piglet small intestinal structure at weaning. Res Vet Sci (1986) 40:32–40.
16. Marion J, Biernat M, Thomas F, Savary G, Le Breton Y, Zabielski R, et al. Small intestine growth and morphometry in piglets weaned at 7 days of age. Effects of level of energy intake. Reprod Nutr Dev (2002) 42:339–54. doi:10.1051/rnd:2002030
17. Tang M, Laarveld B, Van Kessel AG, Hamilton DL, Estrada A, Patience JF. Effect of segregated early weaning on postweaning small intestinal development in pigs. J Anim Sci (1999) 77:3191–200.
18. Van Beers-Schreurs HM, Nabuurs MJ, Vellenga L, Kalsbeek-van der Valk HJ, Wensing T, Breukink HJ. Weaning and the weanling diet influence the villous height and crypt depth in the small intestine of pigs and alter the concentrations of short-chain fatty acids in the large intestine and blood. J Nutr (1998) 128:947–53.
19. Machado J, Hyland K, Dvorak CT, Murtaugh M. Gene expression profiling of jejunal Peyer’s patches in juvenile and adult pigs. Mamm Genome (2005) 16:599–612. doi:10.1007/s00335-005-0008-0
20. Zhu LH, Xu JX, Zhu SW, Cai X, Yang SF, Chen XL, et al. Gene expression profiling analysis reveals weaning-induced cell cycle arrest and apoptosis in the small intestine of pigs. J Anim Sci (2014) 92:996–1006. doi:10.2527/jas.2013-7551
21. Bauer E, Metzler-Zebeli BU, Verstegen MWA, Mosenthin R. Intestinal gene expression in pigs: effects of reduced feed intake during weaning and potential impact of dietary components. Nutr Res Rev (2011) 24:155–75. doi:10.1017/S0954422411000047
22. Wang J, Chen L, Li P, Li X, Zhou H, Wang F, et al. Gene expression is altered in piglet small intestine by weaning and dietary glutamine supplementation. J Nutr (2008) 138:1025–32.
23. Levast B, De Monte M, Melo S, Chevaleyre C, Berri M, Salmon H, et al. Differences in transcriptomic profile and IgA repertoire between jejunal and ileal Peyer’s patches. Dev Comp Immunol (2010) 34:102–6. doi:10.1016/j.dci.2009.09.002
24. Mach N, Berri M, Esquerré D, Chevaleyre C, Lemonnier G, Billon Y, et al. Extensive expression differences along porcine small intestine evidenced by transcriptome sequencing. PLoS One (2014) 9:e88515. doi:10.1371/journal.pone.0088515
25. Clarke RM, Hardy RN. Histological changes in the small intestine of the young pig and their relation to macromolecular uptake. J Anat (1971) 108:63–77.
26. Chowdhury SR, King DE, Willing BP, Band MR, Beever JE, Lane AB, et al. Transcriptome profiling of the small intestinal epithelium in germfree versus conventional piglets. BMC Genomics (2007) 8:215. doi:10.1186/1471-2164-8-215
27. Song ZH, Xiao K, Ke YL, Jiao le F, Hu CH. Zinc oxide influences mitogen-actiated protein kinase and TGF-β signaling pathways, and enhances intestinal barrier integrity in weaned pigs. Innate Immun (2015) 21:341–8. doi:10.1177/1753425914536450
28. Wilberts BL, Arruda PH, Kinyon JM, Madson DM, Frana TS, Burrough ER. Comparison of sesion severity, distribution, and colonic mucin expression in pigs with acute swine dysentery following oral inoculation with “Brachyspira hampsonii” or Brachyspira hyodysenteriae. Vet Pathol (2014) 51:1096–108. doi:10.1177/0300985813516646
29. Mulder IE, Schmidt B, Stokes CR, Lewis M, Bailey M, Aminov RI, et al. Environmentally-acquired bacteria influence microbial diversity and natural innate immune responses at gut surfaces. BMC Biol (2009) 7:79. doi:10.1186/1741-7007-7-79
30. Yoshikawa T, Inoue R, Yoshida Y, Watanabe T, Bukawa W, Ushida K. Diverse immune responses to orally administered heat-killed cell preparation of Enterococcus faecalis strain EC-12 in murine immune tissues. Biosci Biotechnol Biochem (2009) 73:1439–42. doi:10.1271/bbb.90010
31. Shi L, Jones WD, Jensen RV, Harris SC, Perkins RG, Goodsaid FM, et al. The balance of reproducibility, sensitivity, and specificity of lists of differentially expressed genes in microarray studies. BMC Bioinformatics (2008) 9(Supple 9):S10. doi:10.1186/1471-2105-9-S9-S10
32. Storey JD. A direct approach to false discovery rates. J R Statist Soc B (2002) 64:479–98. doi:10.1111/1467-9868.00346
33. Tsai S, Cassady JP, Freking BA, Nonneman DJ, Rohrer GA, Piedrahita JA. Annotation of the Affymetrix1 porcine genome microarray. Anim Genet (2006) 37:423–4. doi:10.1111/j.1365-2052.2006.01460.x
34. Dupasquier S, Delmarcelle A-S, Marbaix E, Cosyns J-P, Courtoy PJ, Pierreux CE. Validation of housekeeping gene and impact on normalized gene expression in clear cell renal cell carcinoma: critical reassessment of YBX3/ZONAB/CSDA expression. BMC Mol Biol (2014) 15:9. doi:10.1186/1471-2199-15-9
35. Eisenberg E, Levanon EY. Human housekeeping genes, revisited. Trends Genet (2013) 29:569–74. doi:10.1016/j.tig.2013.05.010
36. Julian GS, De Oliveira RW, Perry JC, Tufik S, Chagas JR. Validation of housekeeping genes in the brains of rats submitted to chronic intermittent hypoxia, a sleep apnea model. PLoS One (2014) 9:e109902. doi:10.1371/journal.pone.0109902
37. Mo F, Zhao J, Liu N, Cao L-H, Jiang S-X. Validation of reference genes for RT-qPCR analysis of CYP4T expression in crucian carp. Genet Mol Biol (2014) 37:500–7. doi:10.1590/S1415-47572014000400005
38. Lackeyram D, Mine Y, Archbold T, Fan MZ. The small intestinal apical hydrolase activities are decreased in the piglet with bowel inflammation induced by dextran sodium sulfate. J Anim Sci (2012) 90:287–9. doi:10.2527/jas.54010
39. Matsumura R, Okamoto A, Node K, Akashi M. Compensation for intracellular environment in expression levels of mammalian circadian clock genes. Sci Rep (2014) 4:4032. doi:10.1038/srep04032
40. Petrov A, Beer M, Blome S. Development and validation of a harmonized TaqMan-based triplex real-time RT-PCR protocol for the quantitative detection of normalized gene expression profiles of seven porcine cytokines. PLoS One (2014) 9:e108910. doi:10.1371/journal.pone.0108910
41. Pié S, Lallès JP, Blazy F, Laffitte J, Sève B, Oswald IP. Weaning is associated with an upregulation of expression of inflammatory cytokines in the intestine of piglets. J Nutr (2004) 134:641–7.
42. van de Pavert SA, Mebius RE. New insights into the dvelopment of lymphoid tissues. Nat Rev Immunol (2010) 10:664–74. doi:10.1038/nri2832
43. Makala LH, Haverson K, Stokes CR, Bailey M, Bland PW. Isolation and characterisation of pig Peyer’s patch dendritic cells. Vet Immunol Immunopathol (1998) 61:67–81. doi:10.1016/S0165-2427(97)00125-6
44. Tedford K, Nitschke L, Girkontaite I, Charlesworth A, Chan G, Sakk V, et al. Compensation between Vav-1 and Vav-2 in B cell development and antigen repceptor signaling. Nat Immunol (2001) 2:548–55. doi:10.1038/88756
45. Fagarasan S, Honjo T. Intestinal IgA synthesis: regulation of front-line body defences. Nat Rev Immunol (2003) 3:63–72. doi:10.1038/nri982
46. Ansel KM, Harris RBS, Cyster JG. CXCL13 is required for B1 cell homing, natural antibody production, and body cavity immunity. Immunity (2002) 16:67–76. doi:10.1016/S1074-7613(01)00257-6
47. Theofilopoulos AN, Baccala R, Beutler B, Kono DH. Type I interferons (α/β) in immunity and autoimmunity. Annu Rev Immunol (2005) 23:307–35. doi:10.1146/annurev.immunol.23.021704.115843
48. Malakhova OA, Kim KI, Luo JK, Zou W, Kumar KG, Fuchs SY, et al. UBP43 is a novel regulator of interferon signaling independent of its ISG15 isopeptidase activity. EMBO J (2006) 25:2358–67. doi:10.1038/sj.emboj.7601149
Keywords: neonatal piglets, weaning, ileal mucosa, Peyer’s patches, DNA microarray, metacore pathway analysis, transcriptome
