- Department of Microbiology, Graduate School of Medicine, Kyoto University, Kyoto, Japan
Bacterial lipopolysaccharide (LPS), a cell wall component characteristic of Gram-negative bacteria, is a representative pathogen-associated molecular pattern that allows mammalian cells to recognize bacterial invasion and trigger innate immune responses. The polysaccharide moiety of LPS primary plays protective roles for bacteria such as prevention from complement attacks or camouflage with common host carbohydrate residues. The lipid moiety, termed lipid A, is recognized by the Toll-like receptor 4 (TLR4)/MD-2 complex, which transduces signals for activation of host innate immunity. The basic structure of lipid A is a glucosamine disaccharide substituted by phosphate groups and acyl groups. Lipid A with six acyl groups (hexa-acylated form) has been indicated to be a strong stimulator of the TLR4/MD-2 complex. This type of lipid A is conserved among a wide variety of Gram-negative bacteria, and those bacteria are easily recognized by host cells for activation of defensive innate immune responses. Modifications of the lipid A structure to less-acylated forms have been observed in some bacterial species, and those forms are poor stimulators of the TLR4/MD-2 complex. Such modifications are thought to facilitate bacterial evasion of host innate immunity, thereby enhancing pathogenicity. This hypothesis is supported by studies of Yersinia pestis LPS, which contains hexa-acylated lipid A when the bacterium grows at 27°C (the temperature of the vector flea), and shifts to contain less-acylated forms when grown at the human body temperature of 37°C. This alteration of lipid A forms following transmission of Y. pestis from fleas to humans contributes predominantly to the virulence of this bacterium over other virulence factors. A similar role for less-acylated lipid A forms has been indicated in some other bacterial species, such as Francisella tularensis, Helicobacter pylori, and Porphyromonas gingivalis, and further studies to explore this concept are expected.
Pattern Recognition of Microbial Components
The invasion of microorganisms into mammalian hosts is initially sensed by phagocytic cells through their receptors, known as pattern-recognition receptors (PRRs), to activate the innate immune response, which is the first line of host defense against pathogens. Each PRR can recognize a group of microbial components having a similar structural pattern, termed the pathogen-associated molecular pattern (PAMP), and a limited number of PRRs are enough for surveillance of almost all microbial pathogens. The toll-like receptor (TLR) family is a representative PRR family, and different members in this family react with specific PAMPs (Table 1). In Gram-negative bacteria, PAMPs such as flagellin, CpG-DNA, and lipopolysaccharide (LPS) are involved (Figure 1), although flagellin and CpG-DNA are not limited to Gram-negative bacteria. Flagellin is a protein contained in bacterial flagella observed mainly in motile bacteria independent of Gram-negative or -positive status. CpG-DNA is a term for unmethylated CpG dinucleotides in a particular base context that is abundant in bacterial genomic DNA, but rare in mammalian genomes, and is generally found in both Gram-negative and -positive bacteria. On the other hand, LPS is a cell wall component characteristic of Gram-negative bacteria (Figure 1), but not of Gram-positive bacteria, and is generally the most potent immunostimulant among bacterial cell wall components. For defense against Gram-negative infections in general, LPS is the most suitable target PAMP for mammalian host cells.

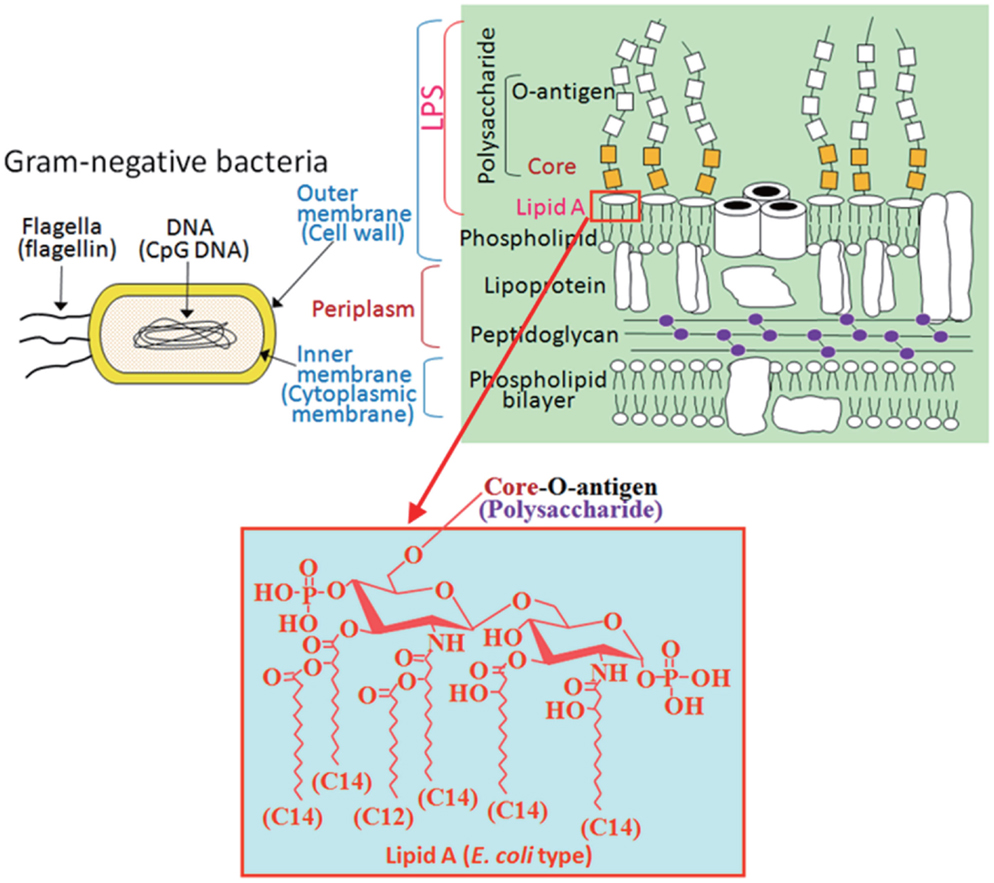

Figure 1. PAMPs included in Gram-negative bacteria. Flagellin and CpG-DNA recognized by TLP5 and TLR9, respectively, are found not only in Gram-negative bacteria but also in Gram-positive bacteria. On the other hand, LPS recognized by TLR4 is found only in Gram-negative bacteria as a cell wall component. A hydrophobic membrane anchor portion of LPS termed lipid A, but not the polysaccharide portion, is responsible for stimulation of TLR4 signaling. E. coli type hexa-acylated lipid A, relatively conserved among a wide variety of Gram-negative bacteria, is the most potent structure that activates the TLR4 pathway.

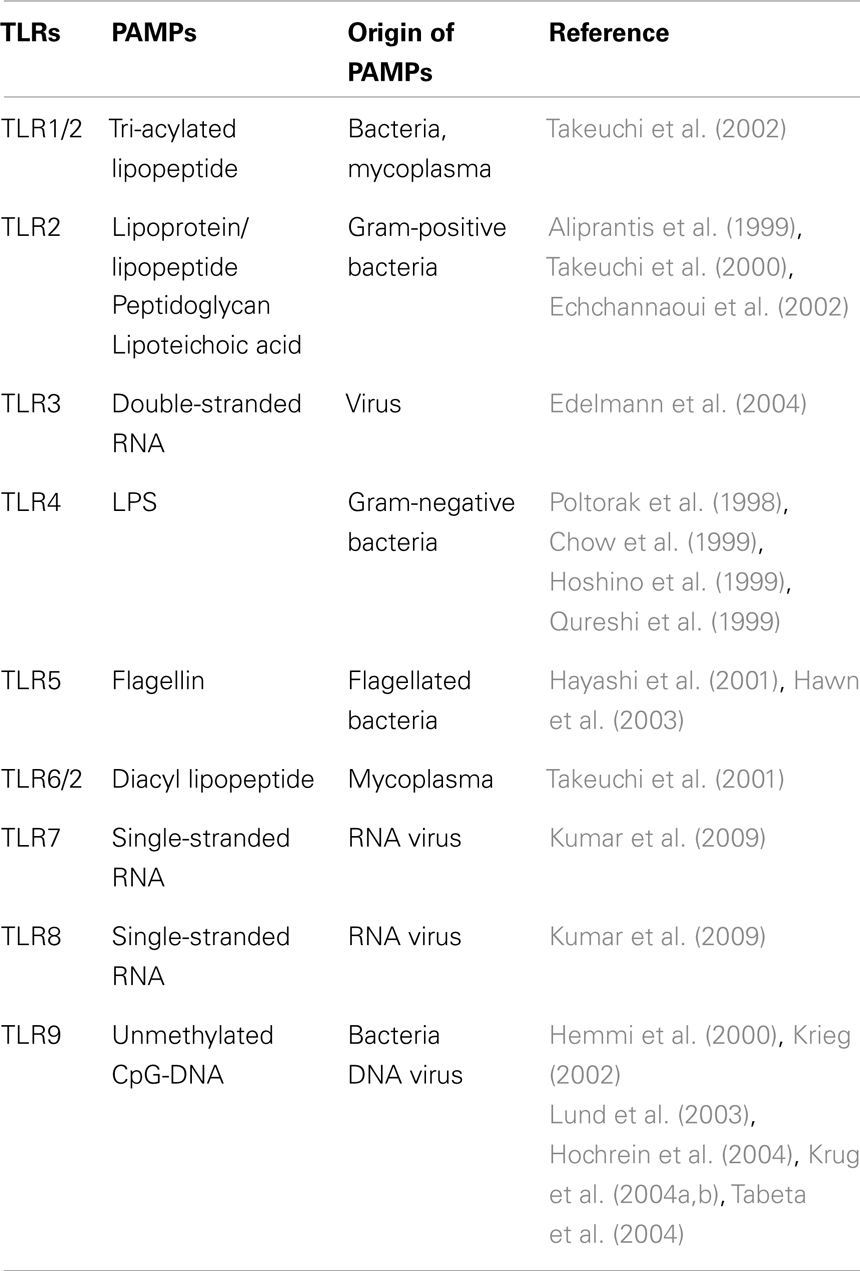

Table 1. PAMPs recognized by the toll-like receptors (TLRs).
Structure and Activity of LPS Constituents
Lipopolysaccharide consists of a hydrophobic membrane anchor portion known as lipid A and a non-repeating core oligosaccharide coupled to a distal polysaccharide (O-antigen) that extends from the bacterial surface (Raetz and Whitfield, 2002). Within this class of substances, there is an enormous multitude of natural structural variants that are primarily due to the extended diversity in chemical composition of the polysaccharide region (core and O-antigen), but also due to considerable variations in the fine structure of lipid A (Raetz and Whitfield, 2002). In LPS from most Gram-negative bacteria, the O-specific chain consists of up to 50 repeating oligosaccharide units formed of 2–8 monosaccharide components in a highly species- and strain-specific manner. In the vast majority of LPS structures, the O-specific chain is characterized by extremely high structural variability even within a given bacterial species, which constitutes the chemical basis for the serological classification of individual wild-type bacterial strains according to their O-antigenic determinants. Bacterial mutants having LPS without O-specific chains are able to grow and multiply in vitro, showing that the O-chain in principle is dispensable for bacterial viability. Based on characteristic colony morphology, distinct from the smooth (S)-form of wild-type enterobacterial species, these mutants have been termed as rough (R)-mutants leading to a corresponding general sub-classification into S- and R-form LPS. When LPS molecules extracted from any S-LPS-containing strain are separated by SDS-PAGE, there is extensive heterogeneity in the size of the molecules due to variations in the chain length of the O-polysaccharides. This is evident in the classical “ladder” pattern in SDS-PAGE, where each “rung” up the ladder represents a lipid A-core molecule substituted with an increment of one additional O-unit. The spacing between the rungs is determined by the size of the O-unit.
The primary role(s) of the O-polysaccharides appears to be protection for bacteria. In animal pathogens, O-polysaccharides may contribute to bacterial evasion of host immune responses, particularly the alternative complement cascade. Assembly of the membrane attack complex is affected by the chemistry of the O-polysaccharide, its chain length, and the relative amounts of long chain S-LPS (Rautemaa and Meri, 1999; Murray et al., 2006). In addition, LPS from some bacteria, such as Helicobacter pylori, Neisseria gonorrhoeae, N. meningitidis, and Haemophilus influenzae, have been found to contain O-antigen structures that closely resemble human glycosphingolipids due to the presence of common host carbohydrate residues such as N-acetylneuraminic acid or L-fucose (Moran et al., 1996). For example, H. pylori, a prevalent gastroduodenal pathogen of humans, produces LPS O-antigen units that can be uniquely decorated by the addition of fucose residues to generate Lewis antigens, carbohydrates that are also expressed by the gastric epithelium in humans. Lewis x (Lex) and Lewis y (Ley) are the dominant Lewis antigens in H. pylori LPS. Lex is synthesized by the addition of a fucose residue to N-acetyl-β-lactosamine (LacNAc) units in the O-antigen chains, and di-fucosylated Ley is synthesized by the addition of a second fucose residue to Lex. A typical H. pylori O-antigen chain is glycosylated with multiple internal Lex units and possesses either Lex or Ley at the terminal position. It has been observed that disease-associated isolates of H. pylori show a higher tendency to present LPS that are glycosylated with both Lex and Ley, while the LPS of isolates obtained from normal mucosa generally present either Lex or Ley exclusively, or neither (Skoglund et al., 2009). These structures highly decorated with Lewis antigens have been suggested to be important for gastric colonization, adhesion, and immune evasion through molecular mimicry where the Lewis antigens provide a “camouflage” for the bacteria in order to escape the host innate immune response (Moran, 2008).
The core oligosaccharide has much less structural variation compared to the hypervariable O-polysaccharides and has limited variation within a given bacterial genus. Neither the O-antigen nor the core oligosaccharide is required for the immunostimulatory activity of LPS, but rather the lipid A portion is responsible for the activity. A representative type of lipid A is seen in Escherichia coli, the structure of which is a β-1→6-linked glucosamine disaccharide phosphorylated at the 1 and 4′ positions and acylated with 6 acyl groups of 12–14 carbon chain lengths (Figures 1 and 2). This particular type of hexa-acylated lipid A elicits robust immunostimulatory activity.
Figure 2. Differential recognition of lipid A structures between human and mouse TLR4/MD-2 complexes. TLR4 is a type I transmembrane molecule, and MD-2 is an extracellular molecule that associates with the extracellular region of TLR4. Lipid A can bind to MD-2 but not to TLR4. Binding of lipid A to MD-2 induces dimerization of the TLR4/MD-2 complex for transduction of stimulatory signals into cells. Recognition of lipid A structures by mouse MD-2 and human MD-2 is different. For example, E. coli type hexa-acylated lipid A is recognized as a strong agonist by both mouse and human MD-2 that causes dimer formation. On the other hand, tetra-acylated lipid IVa can bind to both types of MD-2, but subsequent dimer formation is achieved only by the mouse system and not by the human system. Once this structure binds to human MD-2, dimer formation is suppressed, and as a result, this structure acts as an antagonist.
Although not secreted by bacterial cells, small amounts of the LPS are liberated into the medium under some circumstances such as during cell division. Larger amounts are released by bacteria killed by antibiotics, phagocytosis, the complement complex, or treatment with divalent cation chelators. In an infected host, small amounts of LPS can be protective by stimulating the immune system, while large amounts induce high fever and lead to septic shock and death by multiorgan failure and systemic inflammatory response. LPS liberated from bacteria associates with LPS binding protein (LBP), an acute phase protein present in the bloodstream (Schumann et al., 1990), and forms complexes consisting of LPS, LBP, and soluble CD14 (sCD14) (Tobias et al., 1995). CD14 is either present in circulation as a sCD14 or is expressed on the surface of phagocytes as a glycosylphosphatidylinositol (GPI)-anchored molecule (membrane CD14, mCD14) (Wright et al., 1990). LPS is delivered from the complexes to mCD14 on the cell surface and then transferred to MD-2 for LPS signaling. CD14 does not appear to be essential for LPS responses, but probably has a role in their amplification (Haziot et al., 1998).
Species Differences in Recognition of Lipid A Structures
Signals for the immunostimulatory activity are transduced into cells after interaction of LPS (lipid A moiety) with the TLR4/MD-2 receptor complex that is expressed on the surface membrane of mammalian cells (Miyake et al., 2000; Miyake, 2004) (Figure 2). TLR4 is a type I transmembrane molecule containing a large leucine-rich repeat in the extracellular region where the MD-2 molecule associates. The extracellular domain of TLR4 is not sufficient for LPS recognition, but MD-2 is essential for the recognition (Shimazu et al., 1999; Akashi et al., 2000; Schromm et al., 2001; Nagai et al., 2002). MD-2 is a ligand-binding component of the TLR4/MD-2 complex (Shimazu et al., 1999; Akashi et al., 2000; Schromm et al., 2001; Nagai et al., 2002), and acyl groups of lipid A are buried inside a unique hydrophobic cavity of MD-2 (Park et al., 2009). Binding of lipid A to MD-2 induces dimerization of TLR4/MD-2 by altering the conformation of the Phe126 surface of MD-2 and exposing otherwise hidden interaction sites for binding to the C-terminal domain of the second TLR4 molecule. It has been suggested that dimerization of the extracellular domains of TLR4 leads to proper orientation of the intracellular TIR domains, recruitment of adaptor proteins, and initiation of intracellular signaling (Jin and Lee, 2008) (Figure 2).
In naturally isolated lipid A preparations, heterogeneous lipidic materials and minor contaminants that may influence the activity are involved. To avoid such possible influences, chemically synthesized diverse lipid A structures are used for studies of structure-activity relationships, and the lipid A structure of the E. coli type (Figure 2) has been found to be the most potent immunostimulator (Galanos et al., 1985; Homma et al., 1985; Kotani et al., 1985). These studies indicate that the number and carbon chain length of acyl groups attached to the phosphorylated glucosamine backbone are critical for TLR4 activation, and that alteration of these factors can reduce the magnitude of the activation (Schromm et al., 2000; Kusumoto et al., 2003). Moreover, it has also been found that the response of human cells to such altered structures is stricter than that of mouse cells (Golenbock et al., 1991; Matsuura et al., 1999). For example, E. coli type hexa-acylated lipid A (synthetic compound 506) acts as a strong TLR4 agonist to both human and mouse macrophages, while tetra-acylated lipid IVa (synthetic compound 406) acts as an agonist to mouse macrophages, although the activity is weaker than that of compound 506, and as an antagonist (suppressor to agonist) to human macrophages (Figure 2). Lipid IVa is a structure identified as a biosynthetic precursor of lipid A. Lipid IVa binds to both mouse and human MD-2, whereas it induces dimerization of the mouse TLR4/MD-2 complex, but not of the human TLR4/MD-2 complex (Akashi et al., 2001; Saitoh et al., 2004). Some amino acid residues are not conserved between human and mouse TLR4/MD-2 molecules. These include amino acid residues of MD-2, like the hydrophobic residues (Leu125 and Pro127) in the Phe126 loop of mouse MD-2 (corresponding to human Lys125 and Ser127, respectively), and amino acids of TLR4, like Lys367 and Arg434 located near the dimerization interface of mouse TLR4 (corresponding to human Glu369 and Gln436, respectively), that are suggested to participate in the dimerization of mouse TLR4/MD-2 mediated by lipid IVa (Ohto et al., 2012).
Variation of Lipid A Structures
Among natural lipid A, the hexa-acylated E. coli type is relatively conserved in a wide variety of Gram-negative bacteria, although some bacterial species have different types of lipid A. Even in a single species of bacteria, some variants of lipid A frequently coexist and their structures are sometimes modified under different environmental conditions (Raetz and Whitfield, 2002). A variety of human pathogens, including Yersinia pestis and Francisella tularensis, have lipid A moieties that are poorly recognized by the human TLR4/MD-2 complex (Kawahara et al., 2002; Vinogradov et al., 2002; Phillips et al., 2004). These lipid A species typically consist of only four or five acyl groups, some of which are 16–18 carbons in length. It is known that LPS-hyporesponsive mice (C3H/HeJ), which have a dysfunctional mutant TLR4, are highly susceptible to infection with Gram-negative bacteria (O’Brien et al., 1982; Vogel et al., 1999). This implies that the potential for those pathogens to cause severe disease in humans is likely attributable to their weak lipid A activity for TLR4 signaling.
Virulence Factors in Relation to Y. Pestis Infection
Y. pestis is the causative agent of plague in humans and is primarily a rodent pathogen that is transmitted to humans through the bite of an infected flea (Perry and Fetherston, 1997). The temperature range for a flea residing in rodent burrows or mammalian hair is around 25°C, while the body temperature of rodents and humans is around 37°C. In the infection cycle of Y. pestis, this bacterium survives in two different temperature environments in which various bacterial cellular components are differently expressed (Brubaker, 1991; Straley and Perry, 1995; Anisimov et al., 2004). The production of several virulence factors, such as the fraction 1 antigen (Du et al., 2002), the pH 6 antigen (Huang and Lindler, 2004), Yop proteins (Viboud and Bliska, 2005), and the type III secretion system (Cornelis, 2002), are upregulated during growth of the bacterium at 37°C. In contrast, the production of murine toxin (Hinnebusch et al., 2002), which is required for the survival of the bacterium in the midgut of fleas, is synthesized at 27°C and is downregulated at 37°C. Structural changes of lipid A in the bacterium between those two different temperature ranges have also been found based on MALDI-TOF mass spectrometric analysis (Kawahara et al., 2002). The lipid A present in LPS of the bacterium is heterogeneous (from hexa- to tri-acylated types) when it is grown at 27°C, and shifts to the hypo-acylated types (tetra- and tri-acylated types) when it is grown at 37°C. LPS isolated from Y. pestis grown at 37°C has been revealed to exhibit much weaker stimulation activity of human macrophages for proinflammatory cytokine production than that from the bacterium grown at 27°C (Montminy et al., 2006; Matsuura et al., 2010). Such a shift of lipid A structures to hypo-acylated types probably weakens the bacterial ability to stimulate TLR4 signaling and facilitates bacterial evasion of host innate immunity, allowing free growth in the host and thereby enhancing bacterial virulence. This infection strategy of Y. pestis seems to play an important role, since the bacteria need to achieve remarkable multiplication rates after inoculation of only a few bacteria in the skin delivered by a flea bite to develop bubonic plague. A genetically modified strain of Y. pestis (KIM5-pLpxL strain) expressing a potent TLR4-activating hexa-acylated lipid A at 37°C has been prepared, and the strain is unable to cause systemic disease in wild-type mice, despite the presence of other well-established virulence factors (Montminy et al., 2006). In addition, the administration of TLR4 agonists has been demonstrated to augment host defense against lethally high doses of Y. pestis in a mouse pneumonic plague model (Airhart et al., 2008). These studies indicate that the ability to evade TLR4 activation by lipid A alteration is critical for Y. pestis virulence.
Role of Lipid A Alteration During Y. Pestis Infection
As mentioned above, the scheme summarized in Figure 2 was obtained from an analysis of the structure-activity relationship using chemically synthesized lipid A analogs. In studies of Y. pestis, LPS preparations isolated from bacteria grown at 27 or 37°C by the conventional phenol-water extraction method are used. Chemical analysis of these natural LPS preparations reveals that LPS at 27°C contains a mixture of lipid A from hexa- to tri-acylated types, and LPS at 37°C a mixture of only tetra- and tri-acylated types (Kawahara et al., 2002). The abilities of such LPS preparations to stimulate mouse and human macrophages have been investigated, and results clearly show that LPS at 27°C exhibits strong agonistic activity to both mouse and human macrophages, while LPS at 37°C exhibits agonistic activity to mouse macrophages (although weaker than that of LPS at 27°C), but antagonistic activity to human macrophages (Matsuura et al., 2010). These results indicate that LPS at 27°C and LPS at 37°C behave just like hexa-acylated lipid A and tetra-acylated lipid A as shown in Figure 2, respectively. It is believed that LPS is not easily released from bacterial cell walls without lysis or the destruction of bacterial cells, and the behavior of bacterium-bound LPS rather than bacterium-free LPS is considered to be more important for investigating the role of LPS during bacterial infections. To evaluate the role of bacterium-bound LPS, formalin-killed bacteria (FKB) have been prepared from Y. pestis grown at 27 or 37°C, and their ability to stimulate human macrophages has been examined (Matsuura et al., 2010). FKB grown at 27°C strongly stimulates human macrophages for proinflammatory cytokine production, similar to LPS at 27°C. This activity is substantially suppressed in the presence of an anti-TLR4 antibody, indicating that the LPS-TLR4 signaling pathway plays a dominant role in reacting to whole bacterial cells among the pathways mediated by various bacterial cell components. In contrast, FKB grown at 37°C shows no antagonistic activity, unlike LPS at 37°C, but instead exhibits weak agonistic activity that is probably dependent on bacterial components other than LPS. This suggests that for antagonistic activity, but not for agonistic activity, LPS is required to be free from bacterial cells. Taken together, the important role of lipid A alteration in the infection cycle of Y. pestis is understood as summarized in Figure 3. Y. pestis grown at 37°C has LPS-containing hypo-acylated lipid A species that act as partial agonists to mouse cells, but act as neither agonists nor antagonists to human cells. Upon infection with Y. pestis, the mouse innate immune system responds to some extent, but not so strongly as to completely eliminate the bacteria, leading to the prolonged presence of a moderate amount of bacteria. As a result, the mouse is a reservoir of Y. pestis. On the other hand, the human innate immune system cannot respond to the bacteria at all, even though TLR4 signaling is not suppressed. As a result, Y. pestis grows freely in the human body and induces severe diseases such as bubonic, septicemic, and pneumonic plague. Recently, transgenic mice expressing human rather than mouse TLR4/MD-2 have been generated to test whether the blunted recognition of hypo-acylated LPS by the human receptor complex dictates susceptibility to infection of Y. pestis (Hajjar et al., 2012). These “humanized” mice are indeed more sensitive to Y. pestis infection than wild-type mice, supporting the idea that evasion of recognition by TLR4/MD-2 promotes Y. pestis virulence in humans.

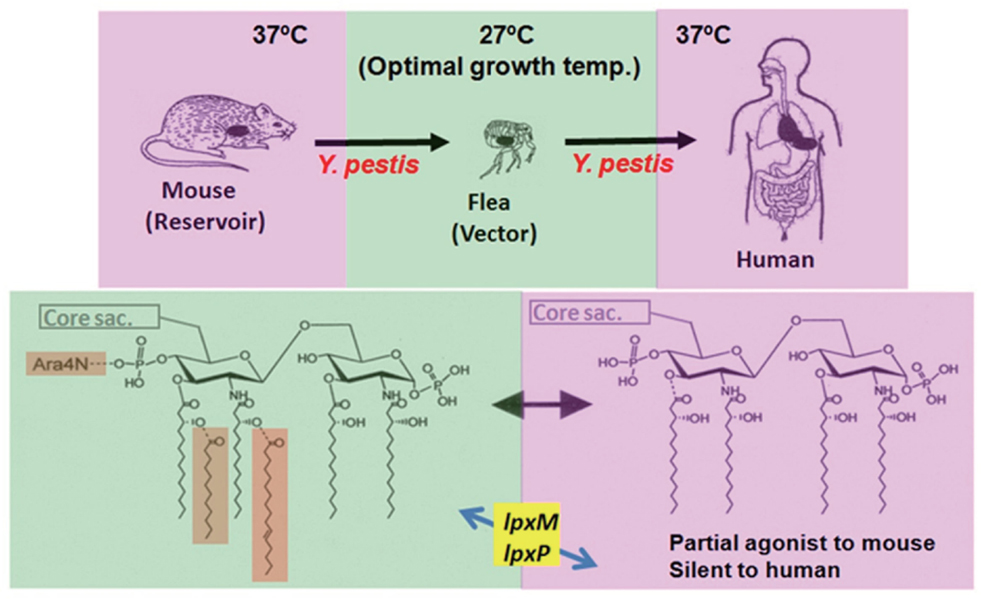

Figure 3. Infection cycle of Y. pestis and temperature-dependent alteration of its lipid A structures. Y. pestis, a causative agent of plague, grows in mice at 37°C by possessing a tetra-acylated type as its major lipid A species. This lipid A species acts as a partial agonist to mouse cells, and Y. pestis is recognized by the mouse innate immune system to some extent but not enough to eliminate it completely. As a result, moderate amounts of the bacteria can survive in mice for a prolonged period, and infected mice serve as a reservoir of Y. pestis. Through flea bites, this bacterium moves into fleas and grows actively at 27°C, its optimal growth temperature. At this temperature, expression of the late acyltransferase genes (lpxM and lpxP) is upregulated, and a hexa-acylated type becomes predominant among its lipid A species. Then, the bacterium moves into a human body through the bite of an infected flea and grows at 37°C. At this temperature, the expression of the late acyltransferase genes is downregulated, and the major lipid A species shift to the tetra-acylated type. Y. pestis containing such lipid A species is not sensed (is silent) by the human TLR4-mediated innate immune system, and the bacteria can grow freely and induce severe diseases.
Pathogenic Yersinia and Lipid A
The biosynthesis of lipid A and its modification has been intensively studied using E. coli (Raetz et al., 2007). The final steps of lipid A synthesis occur in the inner membrane, where two acyl groups are added to the tetra-acylated keto-deoxyoctulosonate (Kdo)-lipid IVa before the mature hexa-acylated lipid A is exported to the outer membrane. Kdo is a sugar component found in all known core oligosaccharide species of LPS. The late acyltransferases HtrB (LpxL) and MsbB (LpxM) consecutively add lauroyl (C12) and myristoyl (C14) groups to the tetra-acylated intermediate (Clementz et al., 1996, 1997; Somerville et al., 1996). In Y. pestis, homologs of the late acyltransferase genes, lpxP and lpxM, have been identified (Rebeil et al., 2006). LpxP acts instead of LpxL to add a palmitoleate (C16:1) to the 3-hydroxy myristoyl (3-OH C14) group substituting at the 2′ position of the glucosamine disaccharide backbone. Expression of these genes in Y. pestis has been revealed to be suppressed at 37°C while upregulated at 27°C (Figure 3). Through this study, the underlying mechanism for temperature-dependent alteration of the Y. pestis lipid A structure has been clarified. In addition to Y. pestis, two more important human pathogens are included in the genus Yersinia, Y. pseudotuberculosis, and Y. enterocolitica. These three species of bacteria have been cultured at 21 and 37°C to analyze the structural differences of the lipid A forms between them (Rebeil et al., 2004). After growth at 37°C, each of these species synthesizes LPS-containing mainly tetra-acylated forms of lipid A, and shifts to increased acylation of lipid A to hexa-acylated forms at 21°C, although some differences are seen in the number and type of acyl groups between each species. Moreover, LPS preparations from these species grown at 21°C have been confirmed to strongly stimulate human cells, while those at 37°C do not. In contrast to Y. pestis, which causes highly invasive and usually lethal infections, Y. pseudotuberculosis and Y. enterocolitica cause relatively mild food- and water-borne gastroenteritis; however, the temperature changes during their infection cycles from lower temperatures (external environment or flea) to higher temperatures (mammalian body) are similar. These results suggest that the production of a less immunostimulatory form of LPS upon entry into the mammalian host is a conserved pathogenesis mechanism in the genus Yersinia.
Bacteria with Less-Acylated Lipid A
Francisella tularensis, a causative agent of zoonotic tularemia, contains LPS with less-acylated lipid A. The major lipid A molecule in this bacterium is reported to be a monophosphoryl tetra-acylated lipid A with three 3-OH C18 acyl groups and one C16 acyl group (Vinogradov et al., 2002; Phillips et al., 2004). LPS isolated from this bacterium shows neither agonistic activity nor antagonistic activity to TLR4 signaling in either human or mouse cells (Hajjar et al., 2006). These so-called silent characteristics of F. tularensis LPS are thought to contribute to its capacity to evade mammalian immune defense mechanisms and to promote survival in an infected host (Sjostedt, 2006; Gallagher et al., 2007). The effect of the preventive administration of a synthetic TLR4 agonist on the protection of mice from experimental pneumonic tularemia has been demonstrated (Lembo et al., 2008). Considering this result, together with the protective effect of TLR4 agonists against lethal infection of Y. pestis in a mouse model (as mentioned above), prophylactic administration of TLR4 stimulating agents may be useful for the prevention of infectious diseases caused by pathogens that evade TLR4-mediated host innate immunity.
H. pylori produces LPS with unique structures, not only in its O-antigen region (as mentioned above) but also in its lipid A region. It is well known that H. pylori lipid A shows up to 1,000-fold weaker activity when stimulating TLR4 than does E. coli lipid A (Mandell et al., 2004). Therefore, it is thought that the LPS structure of H. pylori has evolved to aid the bacterium in evading the host innate immune system, thereby contributing to chronic infection. The major lipid A species in LPS of this bacterium is a tetra-acylated type; however, the process to produce this lipid A species is different from that of Y. pestis. In H. pylori, the hexa-acylated lipid A species is first synthesized, and then several modification enzymes, including a deacylase, function to produce the tetra-acylated lipid A species (Stead et al., 2008).
Porphyromonas gingivalis is considered to be an important agent in human periodontal diseases. The LPS of this bacterium contains highly variant lipid A species: in addition to di- and mono-phosphorylated and penta- and tetra-acylated species, non-phosphorylated species are also present (Rangarajan et al., 2008; Coats et al., 2009). It is believed that the LPS of this bacterium, which contains various lipid A species with weak agonistic and strong antagonistic activities to TLR4 signaling, is a critical virulence factor to evade the host innate defense system.
Contribution of Lipid A Alteration to Live Bacterial Reactions
Most of the above mentioned studies have investigated the activity of isolated LPS preparations having less-acylated lipid A species. However, the contribution of their activity to the direct interaction of live bacteria with host mammalian cells, especially with human cells, during infection has not been well studied. To address this issue, mutant strains of Salmonella enterica serovar typhimurium (S. typhimurium) having fewer lipid A acyl groups (penta- and/or tetra-acylated types) have been established. These mutants have been used to infect human cells to investigate their stimulatory activity (Matsuura et al., 2012). The stimulatory activity of live bacteria on human cells disappears suddenly when only one acyl group of lipid A is eliminated from that of the wild-type strain, from a hexa- to a penta-acylated lipid A type. The antagonistic activity on TLR4 signaling observed in less-acylated LPS disappears in the live bacterial reaction, as is the case with FKB of Y. pestis grown at 37°C, indicating that the antagonistic activity of LPS is unable to be displayed in whole cell reactions. This study demonstrated that the important role of less-acylated lipid A in live bacteria is to present a silent, but not antagonistic, state to TLR4 signaling.
Modified Lipid A in Clinical Isolates
It has been found that a surprisingly large fraction of meningococcal isolates have LPS with under-acylated (penta-acylated) lipid A as a result of a mutation of the lpxL gene (Fransen et al., 2009), which likely arises spontaneously in hosts. This finding revealed the important pathogenic role of lipid A modification in a particular infectious disease. Findings of similar LPS mutants among clinical isolates of other infectious diseases are expected, since such investigations have rarely been carried out before now.
Future Perspectives
Data are accumulating to support the idea that modification of lipid A structures to less-acylated species leads to bacterial evasion of host innate immunity. However, most of these studies have been carried out by using chemically synthesized compounds or isolated LPS preparations, but usually not with whole bacterial cells, especially live bacteria. The data indicating differential behavior of bacterium-bound LPS with less-acylated lipid A compared to bacterium-free LPS, and that show a dominant role of the LPS-TLR4 signaling pathway among the pathways mediated by various bacterial cell components, have been obtained from experiments using whole bacteria as described above. LPS-altering mutants can be associated with changes in other bacterial virulence determinants, and it is important to understand how these factors interact with each other to cause detrimental effects on the host in practical disease situations. Infection experiments using living bacteria will improve our understanding of the underlying mechanisms of how other factors associate with lipid A alterations in the induction of infectious diseases.
Species differences in the specificity of the interaction of TLR4/MD-2 with LPS prevent generalization to humans from mouse disease models, the most extensive sources of evidence to date. To overcome this problem, transgenic mice expressing human TLR4/MD-2 have been generated recently, as described above. Such humanized mice, not only for TLR4/MD-2 but also for other molecules that participate in infectious diseases, are potentially strong tools for practically analyzing the roles of lipid A alteration in human infectious diseases. For the development of protective and therapeutic agents against infectious diseases, humanized mice can also be used to test efficacy. In particular, when evaluating the safety of TLR4 agonistic agents, humanized mice may play an important role since humans are more sensitive to the endotoxic activity of LPS than are mice.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
This work was supported by JSPS KAKENNHI Grant Number 24590523.
References
Airhart, C. L., Rohde, H. N., Bohach, G. A., Hovde, C. J., Deobald, C. F., Lee, S. S., et al. (2008). Induction of innate immunity by lipid A mimetics increases survival from pneumonic plague. Microbiology 154, 2131–2138.
Akashi, S., Nagai, Y., Ogata, H., Oikawa, M., Fukase, K., Kusumoto, S., et al. (2001). Human MD-2 confers on mouse Toll-like receptor 4 species-specific lipopolysaccharide recognition. Int. Immunol. 13, 1595–1599.
Akashi, S., Shimazu, R., Ogata, H., Nagai, Y., Takeda, K., Kimoto, M., et al. (2000). Cutting edge: cell surface expression and lipopolysaccharide signaling via the toll-like receptor 4-MD-2 complex on mouse peritoneal macrophages. J. Immunol. 164, 3471–3475.
Aliprantis, A. O., Yang, R. B., Mark, M. R., Suggett, S., Devaux, B., Radolf, J. D., et al. (1999). Cell activation and apoptosis by bacterial lipoproteins through toll-like receptor-2. Science 285, 736–739.
Anisimov, A. P., Lindler, L. E., and Pier, G. B. (2004). Intraspecific diversity of Yersinia pestis. Clin. Microbiol. Rev. 17, 434–464.
Brubaker, R. R. (1991). Factors promoting acute and chronic diseases caused by yersiniae. Clin. Microbiol. Rev. 4, 309–324.
Chow, J. C., Young, D. W., Golenbock, D. T., Christ, W. J., and Gusovsky, F. (1999). Toll-like receptor-4 mediates lipopolysaccharide-induced signal transduction. J. Biol. Chem. 274, 10689–10692.
Clementz, T., Bednarski, J. J., and Raetz, C. R. (1996). Function of the htrB high temperature requirement gene of Escherichia coli in the acylation of lipid A: HtrB catalyzed incorporation of laurate. J. Biol. Chem. 271, 12095–12102.
Clementz, T., Zhou, Z., and Raetz, C. R. (1997). Function of the Escherichia coli msbB gene, a multicopy suppressor of htrB knockouts, in the acylation of lipid A. Acylation by MsbB follows laurate incorporation by HtrB. J. Biol. Chem. 272, 10353–10360.
Coats, S. R., Jones, J. W., Do, C. T., Braham, P. H., Bainbridge, B. W., To, T. T., et al. (2009). Human Toll-like receptor 4 responses to P. gingivalis are regulated by lipid A 1- and 4’-phosphatase activities. Cell. Microbiol. 11, 1587–1599.
Cornelis, G. R. (2002). The Yersinia Ysc-Yop ‘type III’ weaponry. Nat. Rev. Mol. Cell Biol. 3, 742–752.
Du, Y., Rosqvist, R., and Forsberg, A. (2002). Role of fraction 1 antigen of Yersinia pestis in inhibition of phagocytosis. Infect. Immun. 70, 1453–1460.
Echchannaoui, H., Frei, K., Schnell, C., Leib, S. L., Zimmerli, W., and Landmann, R. (2002). Toll-like receptor 2-deficient mice are highly susceptible to Streptococcus pneumoniae meningitis because of reduced bacterial clearing and enhanced inflammation. J. Infect. Dis. 186, 798–806.
Edelmann, K. H., Richardson-Burns, S., Alexopoulou, L., Tyler, K. L., Flavell, R. A., and Oldstone, M. B. (2004). Does Toll-like receptor 3 play a biological role in virus infections? Virology 322, 231–238.
Fransen, F., Heckenberg, S. G., Hamstra, H. J., Feller, M., Boog, C. J., van Putten, J. P., et al. (2009). Naturally occurring lipid A mutants in Neisseria meningitidis from patients with invasive meningococcal disease are associated with reduced coagulopathy. PLoS Pathog. 5:e1000396. doi:10.1371/journal.ppat.1000396
Galanos, C., Luderitz, O., Rietschel, E. T., Westphal, O., Brade, H., Brade, L., et al. (1985). Synthetic and natural Escherichia coli free lipid A express identical endotoxic activities. Eur. J. Biochem. 148, 1–5.
Gallagher, L. A., Ramage, E., Jacobs, M. A., Kaul, R., Brittnacher, M., and Manoil, C. (2007). A comprehensive transposon mutant library of Francisella novicida, a bioweapon surrogate. Proc. Natl. Acad. Sci. U.S.A. 104, 1009–1014.
Golenbock, D. T., Hampton, R. Y., Qureshi, N., Takayama, K., and Raetz, C. R. (1991). Lipid A-like molecules that antagonize the effects of endotoxins on human monocytes. J. Biol. Chem. 266, 19490–19498.
Hajjar, A. M., Ernst, R. K., Fortuno, E. S. III, Brasfield, A. S., Yam, C. S., Newlon, L. A., et al. (2012). Humanized TLR4/MD-2 mice reveal LPS recognition differentially impacts susceptibility to Yersinia pestis and Salmonella enterica. PLoS Pathog. 8:e1002963. doi:10.1371/journal.ppat.1002963
Hajjar, A. M., Harvey, M. D., Shaffer, S. A., Goodlett, D. R., Sjostedt, A., Edebro, H., et al. (2006). Lack of in vitro and in vivo recognition of Francisella tularensis subspecies lipopolysaccharide by Toll-like receptors. Infect. Immun. 74, 6730–6738.
Hawn, T. R., Verbon, A., Lettinga, K. D., Zhao, L. P., Li, S. S., Laws, R. J., et al. (2003). A common dominant TLR5 stop codon polymorphism abolishes flagellin signaling and is associated with susceptibility to legionnaires’ disease. J. Exp. Med. 198, 1563–1572.
Hayashi, F., Smith, K. D., Ozinsky, A., Hawn, T. R., Yi, E. C., Goodlett, D. R., et al. (2001). The innate immune response to bacterial flagellin is mediated by Toll-like receptor 5. Nature 410, 1099–1103.
Haziot, A., Lin, X. Y., Zhang, F., and Goyert, S. M. (1998). The induction of acute phase proteins by lipopolysaccharide uses a novel pathway that is CD14-independent. J. Immunol. 160, 2570–2572.
Hemmi, H., Takeuchi, O., Kawai, T., Kaisho, T., Sato, S., Sanjo, H., et al. (2000). A Toll-like receptor recognizes bacterial DNA. Nature 408, 740–745.
Hinnebusch, B. J., Rudolph, A. E., Cherepanov, P., Dixon, J. E., Schwan, T. G., and Forsberg, A. (2002). Role of Yersinia murine toxin in survival of Yersinia pestis in the midgut of the flea vector. Science 296, 733–735.
Hochrein, H., Schlatter, B., O’Keeffe, M., Wagner, C., Schmitz, F., Schiemann, M., et al. (2004). Herpes simplex virus type-1 induces IFN-alpha production via Toll-like receptor 9-dependent and -independent pathways. Proc. Natl. Acad. Sci. U.S.A. 101, 11416–11421.
Homma, J. Y., Matsuura, M., Kanegasaki, S., Kawakubo, Y., Kojima, Y., Shibukawa, N., et al. (1985). Structural requirements of lipid A responsible for the functions: a study with chemically synthesized lipid A and its analogues. J. Biochem. 98, 395–406.
Hoshino, K., Takeuchi, O., Kawai, T., Sanjo, H., Ogawa, T., Takeda, Y., et al. (1999). Cutting edge: toll-like receptor 4 (TLR4)-deficient mice are hyporesponsive to lipopolysaccharide: evidence for TLR4 as the Lps gene product. J. Immunol. 162, 3749–3752.
Huang, X. Z., and Lindler, L. E. (2004). The pH 6 antigen is an antiphagocytic factor produced by Yersinia pestis independent of Yersinia outer proteins and capsule antigen. Infect. Immun. 72, 7212–7219.
Jin, M. S., and Lee, J. O. (2008). Structures of the toll-like receptor family and its ligand complexes. Immunity 29, 182–191.
Kawahara, K., Tsukano, H., Watanabe, H., Lindner, B., and Matsuura, M. (2002). Modification of the structure and activity of lipid A in Yersinia pestis lipopolysaccharide by growth temperature. Infect. Immun. 70, 4092–4098.
Kotani, S., Takada, H., Tsujimoto, M., Ogawa, T., Takahashi, I., Ikeda, T., et al. (1985). Synthetic lipid A with endotoxic and related biological activities comparable to those of a natural lipid A from an Escherichia coli re-mutant. Infect. Immun. 49, 225–237.
Krieg, A. M. (2002). CpG motifs in bacterial DNA and their immune effects. Annu. Rev. Immunol. 20, 709–760.
Krug, A., French, A. R., Barchet, W., Fischer, J. A., Dzionek, A., Pingel, J. T., et al. (2004a). TLR9-dependent recognition of MCMV by IPC and DC generates coordinated cytokine responses that activate antiviral NK cell function. Immunity 21, 107–119.
Krug, A., Luker, G. D., Barchet, W., Leib, D. A., Akira, S., and Colonna, M. (2004b). Herpes simplex virus type 1 activates murine natural interferon-producing cells through toll-like receptor 9. Blood 103, 1433–1437.
Kumar, H., Kawai, T., and Akira, S. (2009). Toll-like receptors and innate immunity. Biochem. Biophys. Res. Commun. 388, 621–625.
Kusumoto, S., Fukase, K., Fukase, Y., Kataoka, M., Yoshizaki, H., Sato, K., et al. (2003). Structural basis for endotoxic and antagonistic activities: investigation with novel synthetic lipid A analogs. J. Endotoxin Res. 9, 361–366.
Lembo, A., Pelletier, M., Iyer, R., Timko, M., Dudda, J. C., West, T. E., et al. (2008). Administration of a synthetic TLR4 agonist protects mice from pneumonic tularemia. J. Immunol. 180, 7574–7581.
Lund, J., Sato, A., Akira, S., Medzhitov, R., and Iwasaki, A. (2003). Toll-like receptor 9-mediated recognition of Herpes simplex virus-2 by plasmacytoid dendritic cells. J. Exp. Med. 198, 513–520.
Mandell, L., Moran, A. P., Cocchiarella, A., Houghton, J., Taylor, N., Fox, J. G., et al. (2004). Intact Gram-negative Helicobacter pylori, Helicobacter felis, and Helicobacter hepaticus bacteria activate innate immunity via toll-like receptor 2 but not toll-like receptor 4. Infect. Immun. 72, 6446–6454.
Matsuura, M., Kawasaki, K., Kawahara, K., and Mitsuyama, M. (2012). Evasion of human innate immunity without antagonizing TLR4 by mutant Salmonella enterica serovar Typhimurium having penta-acylated lipid A. Innate Immun. 18, 764–773.
Matsuura, M., Kiso, M., and Hasegawa, A. (1999). Activity of monosaccharide lipid A analogues in human monocytic cells as agonists or antagonists of bacterial lipopolysaccharide. Infect. Immun. 67, 6286–6292.
Matsuura, M., Takahashi, H., Watanabe, H., Saito, S., and Kawahara, K. (2010). Immunomodulatory effects of Yersinia pestis lipopolysaccharides on human macrophages. Clin. Vaccine Immunol. 17, 49–55.
Miyake, K. (2004). Innate recognition of lipopolysaccharide by Toll-like receptor 4-MD-2. Trends Microbiol. 12, 186–192.
Miyake, K., Ogata, H., Nagai, Y., Akashi, S., and Kimoto, M. (2000). Innate recognition of lipopolysaccharide by Toll-like receptor 4/MD-2 and RP105/MD-1. J. Endotoxin Res. 6, 389–391.
Montminy, S. W., Khan, N., McGrath, S., Walkowicz, M. J., Sharp, F., Conlon, J. E., et al. (2006). Virulence factors of Yersinia pestis are overcome by a strong lipopolysaccharide response. Nat. Immunol. 7, 1066–1073.
Moran, A. P. (2008). Relevance of fucosylation and Lewis antigen expression in the bacterial gastroduodenal pathogen Helicobacter pylori. Carbohydr. Res. 343, 1952–1965.
Moran, A. P., Prendergast, M. M., and Appelmelk, B. J. (1996). Molecular mimicry of host structures by bacterial lipopolysaccharides and its contribution to disease. FEMS Immunol. Med. Microbiol. 16, 105–115.
Murray, G. L., Attridge, S. R., and Morona, R. (2006). Altering the length of the lipopolysaccharide O antigen has an impact on the interaction of Salmonella enterica serovar Typhimurium with macrophages and complement. J. Bacteriol. 188, 2735–2739.
Nagai, Y., Akashi, S., Nagafuku, M., Ogata, M., Iwakura, Y., Akira, S., et al. (2002). Essential role of MD-2 in LPS responsiveness and TLR4 distribution. Nat. Immunol. 3, 667–672.
O’Brien, A. D., Metcalf, E. S., and Rosenstreich, D. L. (1982). Defect in macrophage effector function confers Salmonella typhimurium susceptibility on C3H/HeJ mice. Cell. Immunol. 67, 325–333.
Ohto, U., Fukase, K., Miyake, K., and Shimizu, T. (2012). Structural basis of species-specific endotoxin sensing by innate immune receptor TLR4/MD-2. Proc. Natl. Acad. Sci. U.S.A. 109, 7421–7426.
Park, B. S., Song, D. H., Kim, H. M., Choi, B. S., Lee, H., and Lee, J. O. (2009). The structural basis of lipopolysaccharide recognition by the TLR4-MD-2 complex. Nature 458, 1191–1195.
Perry, R. D., and Fetherston, J. D. (1997). Yersinia pestis – etiologic agent of plague. Clin. Microbiol. Rev. 10, 35–66.
Phillips, N. J., Schilling, B., McLendon, M. K., Apicella, M. A., and Gibson, B. W. (2004). Novel modification of lipid A of Francisella tularensis. Infect. Immun. 72, 5340–5348.
Poltorak, A., He, X., Smirnova, I., Liu, M. Y., Van Huffel, C., Du, X., et al. (1998). Defective LPS signaling in C3H/HeJ and C57BL/10ScCr mice: mutations in Tlr4 gene. Science 282, 2085–2088.
Qureshi, S. T., Lariviere, L., Leveque, G., Clermont, S., Moore, K. J., Gros, P., et al. (1999). Endotoxin-tolerant mice have mutations in Toll-like receptor 4 (Tlr4). J. Exp. Med. 189, 615–625.
Raetz, C. R., Reynolds, C. M., Trent, M. S., and Bishop, R. E. (2007). Lipid A modification systems in Gram-negative bacteria. Annu. Rev. Biochem. 76, 295–329.
Raetz, C. R., and Whitfield, C. (2002). Lipopolysaccharide endotoxins. Annu. Rev. Biochem. 71, 635–700.
Rangarajan, M., Aduse-Opoku, J., Paramonov, N., Hashim, A., Bostanci, N., Fraser, O. P., et al. (2008). Identification of a second lipopolysaccharide in Porphyromonas gingivalis W50. J. Bacteriol. 190, 2920–2932.
Rautemaa, R., and Meri, S. (1999). Complement-resistance mechanisms of bacteria. Microbes Infect. 1, 785–794.
Rebeil, R., Ernst, R. K., Gowen, B. B., Miller, S. I., and Hinnebusch, B. J. (2004). Variation in lipid A structure in the pathogenic yersiniae. Mol. Microbiol. 52, 1363–1373.
Rebeil, R., Ernst, R. K., Jarrett, C. O., Adams, K. N., Miller, S. I., and Hinnebusch, B. J. (2006). Characterization of late acyltransferase genes of Yersinia pestis and their role in temperature-dependent lipid A variation. J. Bacteriol. 188, 1381–1388.
Saitoh, S., Akashi, S., Yamada, T., Tanimura, N., Kobayashi, M., Konno, K., et al. (2004). Lipid A antagonist, lipid IVa, is distinct from lipid A in interaction with Toll-like receptor 4 (TLR4)-MD-2 and ligand-induced TLR4 oligomerization. Int. Immunol. 16, 961–969.
Schromm, A. B., Brandenburg, K., Loppnow, H., Moran, A. P., Koch, M. H., Rietschel, E. T., et al. (2000). Biological activities of lipopolysaccharides are determined by the shape of their lipid A portion. Eur. J. Biochem. 267, 2008–2013.
Schromm, A. B., Lien, E., Henneke, P., Chow, J. C., Yoshimura, A., Heine, H., et al. (2001). Molecular genetic analysis of an endotoxin nonresponder mutant cell line: a point mutation in a conserved region of MD-2 abolishes endotoxin-induced signaling. J. Exp. Med. 194, 79–88.
Schumann, R. R., Leong, S. R., Flaggs, G. W., Gray, P. W., Wright, S. D., Mathison, J. C., et al. (1990). Structure and function of lipopolysaccharide binding protein. Science 249, 1429–1431.
Shimazu, R., Akashi, S., Ogata, H., Nagai, Y., Fukudome, K., Miyake, K., et al. (1999). MD-2, a molecule that confers lipopolysaccharide responsiveness on Toll-like receptor 4. J. Exp. Med. 189, 1777–1782.
Sjostedt, A. (2006). Intracellular survival mechanisms of Francisella tularensis, a stealth pathogen. Microbes Infect. 8, 561–567.
Skoglund, A., Backhed, H. K., Nilsson, C., Bjorkholm, B., Normark, S., and Engstrand, L. (2009). A changing gastric environment leads to adaptation of lipopolysaccharide variants in Helicobacter pylori populations during colonization. PLoS ONE 4:e5885. doi:10.1371/journal.pone.0005885
Somerville, J. E. Jr., Cassiano, L., Bainbridge, B., Cunningham, M. D., and Darveau, R. P. (1996). A novel Escherichia coli lipid A mutant that produces an antiinflammatory lipopolysaccharide. J. Clin. Invest. 97, 359–365.
Stead, C. M., Beasley, A., Cotter, R. J., and Trent, M. S. (2008). Deciphering the unusual acylation pattern of Helicobacter pylori lipid A. J. Bacteriol. 190, 7012–7021.
Straley, S. C., and Perry, R. D. (1995). Environmental modulation of gene expression and pathogenesis in Yersinia. Trends Microbiol. 3, 310–317.
Tabeta, K., Georgel, P., Janssen, E., Du, X., Hoebe, K., Crozat, K., et al. (2004). Toll-like receptors 9 and 3 as essential components of innate immune defense against mouse cytomegalovirus infection. Proc. Natl. Acad. Sci. U.S.A. 101, 3516–3521.
Takeuchi, O., Hoshino, K., and Akira, S. (2000). Cutting edge: TLR2-deficient and MyD88-deficient mice are highly susceptible to Staphylococcus aureus infection. J. Immunol. 165, 5392–5396.
Takeuchi, O., Kawai, T., Muhlradt, P. F., Morr, M., Radolf, J. D., Zychlinsky, A., et al. (2001). Discrimination of bacterial lipoproteins by Toll-like receptor 6. Int. Immunol. 13, 933–940.
Takeuchi, O., Sato, S., Horiuchi, T., Hoshino, K., Takeda, K., Dong, Z., et al. (2002). Cutting edge: role of Toll-like receptor 1 in mediating immune response to microbial lipoproteins. J. Immunol. 169, 10–14.
Tobias, P. S., Soldau, K., Gegner, J. A., Mintz, D., and Ulevitch, R. J. (1995). Lipopolysaccharide binding protein-mediated complexation of lipopolysaccharide with soluble CD14. J. Biol. Chem. 270, 10482–10488.
Viboud, G. I., and Bliska, J. B. (2005). Yersinia outer proteins: role in modulation of host cell signaling responses and pathogenesis. Annu. Rev. Microbiol. 59, 69–89.
Vinogradov, E., Perry, M. B., and Conlan, J. W. (2002). Structural analysis of Francisella tularensis lipopolysaccharide. Eur. J. Biochem. 269, 6112–6118.
Vogel, S. N., Johnson, D., Perera, P. Y., Medvedev, A., Lariviere, L., Qureshi, S. T., et al. (1999). Cutting edge: functional characterization of the effect of the C3H/HeJ defect in mice that lack an Lpsn gene: in vivo evidence for a dominant negative mutation. J. Immunol. 162, 5666–5670.
