Giuseppina Pilloni1
Marom Bikson2Bashar W. Badran3
Mark S. George3,4Steven A. Kautz4,5Alexandre Hideki Okano6,7Abrahão Fontes Baptista6,7,8Leigh E. Charvet1*- 1Department of Neurology, NYU Langone Health, New York, NY, United States
- 2Department of Biomedical Engineering, The City College of New York, New York, NY, United States
- 3Department of Psychiatry, Medical University of South Carolina, Charleston, SC, United States
- 4Ralph H Johnson Veterans Affairs Medical Center, Charleston, SC, United States
- 5Department of Health Sciences and Research, Medical University of South Carolina, Charleston, SC, United States
- 6Center for Mathematics, Computation and Cognition, Universidade Federal do ABC, São Bernardo do Campo, Brazil
- 7Brazilian Institute of Neuroscience and Neurothechnology 52 (BRAINN/CEPID53 FAPESP), University of Campinas, Campinas, Brazil
- 8Laboratory of Medical Investigation 54 (LIM-54), São Paulo University, São Paulo, Brazil
The coronavirus disease 19 (COVID-19) pandemic has resulted in the urgent need to develop and deploy treatment approaches that can minimize mortality and morbidity. As infection, resulting illness, and the often prolonged recovery period continue to be characterized, therapeutic roles for transcranial electrical stimulation (tES) have emerged as promising non-pharmacological interventions. tES techniques have established therapeutic potential for managing a range of conditions relevant to COVID-19 illness and recovery, and may further be relevant for the general management of increased mental health problems during this time. Furthermore, these tES techniques can be inexpensive, portable, and allow for trained self-administration. Here, we summarize the rationale for using tES techniques, specifically transcranial Direct Current Stimulation (tDCS), across the COVID-19 clinical course, and index ongoing efforts to evaluate the inclusion of tES optimal clinical care.
Introduction
Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is a highly infectious virus that has resulted in a global pandemic of coronavirus disease 19 (COVID-19). Over the course of the pandemic, understanding is evolving regarding the nature and course of COVID-19 (SARS-CoV-2) illness as well as its optimal management.
Neuromodulation, which spans a broad range of implanted and non-invasive modalities, may have a potential role in the treatment of COVID-19 related symptoms. This potential is theorized based on the known mechanisms of biological action, demonstrated benefits in non-COVID-19 patients for various known sequelae of COVID-19 illness and recovery (Lefaucheur et al., 2017; David et al., 2018; Ghosh, 2019; Razza et al., 2020), with initial reports of its application in COVID-19 patients (Azabou et al., 2020; Bonaz et al., 2020; Kaniusas et al., 2020; Shinjo et al., 2020; Zhang et al., 2020).
The majority of current investigational efforts for the use of non-invasive stimulation approaches in COVID-19 are focused on managing acute infection through the modification of immunological response and to restore respiratory function via vagus nerve stimulation (VNS; Staats et al., 2020). VNS techniques include invasive and non-invasive manual or electrical (transcutaneous) stimulation, with effects of therapeutic relevance to COVID-19 under clinical investigation (Staats et al., 2020).
This update provides a summary of current efforts in the evaluation and application of non-invasive brain stimulation (NIBS) techniques as interventions in the context of recovery from COVID-19, focusing on transcranial Electrical Stimulation (tES) approaches, and particularly transcranial Direct Current Stimulation (tDCS; Woods et al., 2016) as well as transcranial Alternating Current Stimulation (tACS; Antal et al., 2017). We also note related uses of Transcranial Magnetic Stimulation (TMS; Huang et al., 2009), informing tES applications. However, of amplified importance during the COVID-19 pandemic, tES has the advantage of remote treatment delivery that can be easily scaled (Bikson et al., 2020; Charvet et al., 2020).
tES/TMS techniques are designed to modulate the activity of intracranial brain structures and neural circuitry (Peterchev et al., 2012). These NIBS approaches induce different electric field patterns (Polanía et al., 2018), with tES less focalized and more limited in reaching deep brain structures (Miranda et al., 2013). While tES techniques sometimes involve stimulating ancillary peripheral or cranial nerves [e.g., Adair et al., 2020], this review is concerned only with direct non-invasive brain stimulation.
There are multiple pathways by which tES may address immediate and long-term COVID-19 morbidity, but subject to direct experimental testing in COVID-19 patients these links remain indirect. There is a bidirectional influence between the brain and immune response (Dantzer, 2018). Deep brainstem and forebrain regions mediate the immune response throughout the body and can be potential targets for non-invasive neuromodulatory approaches. While it is impractical to activate deep regions selectivity (e.g., without activating superficial cerebral cortex) using tES, deep brain regions can certainly be reached by the electrical current (Dasilva et al., 2012; Huang et al., 2017; Gomez-Tames et al., 2020; Huang and Zhao, 2020) as well as through axonal connections between cortical activated areas (Bestmann et al., 2005; Bestmann and Feredoes, 2013). The cortical regions conventionally targeted with tES, such as frontal (Iseger et al., 2020) and temporal regions (Montenegro et al., 2011), can be used to influence the systemic immune response and prevent neuroinflammation (Dantzer, 2018). Furthermore, tES may be investigated for application in the restoration of respiratory and musculoskeletal functions during recovery (Vandermeeren et al., 2010).
Transcranial Electrical Stimulation has the broad potential to manage COVID-19 infection, its complications and related symptoms through four pathways (Figure 1):

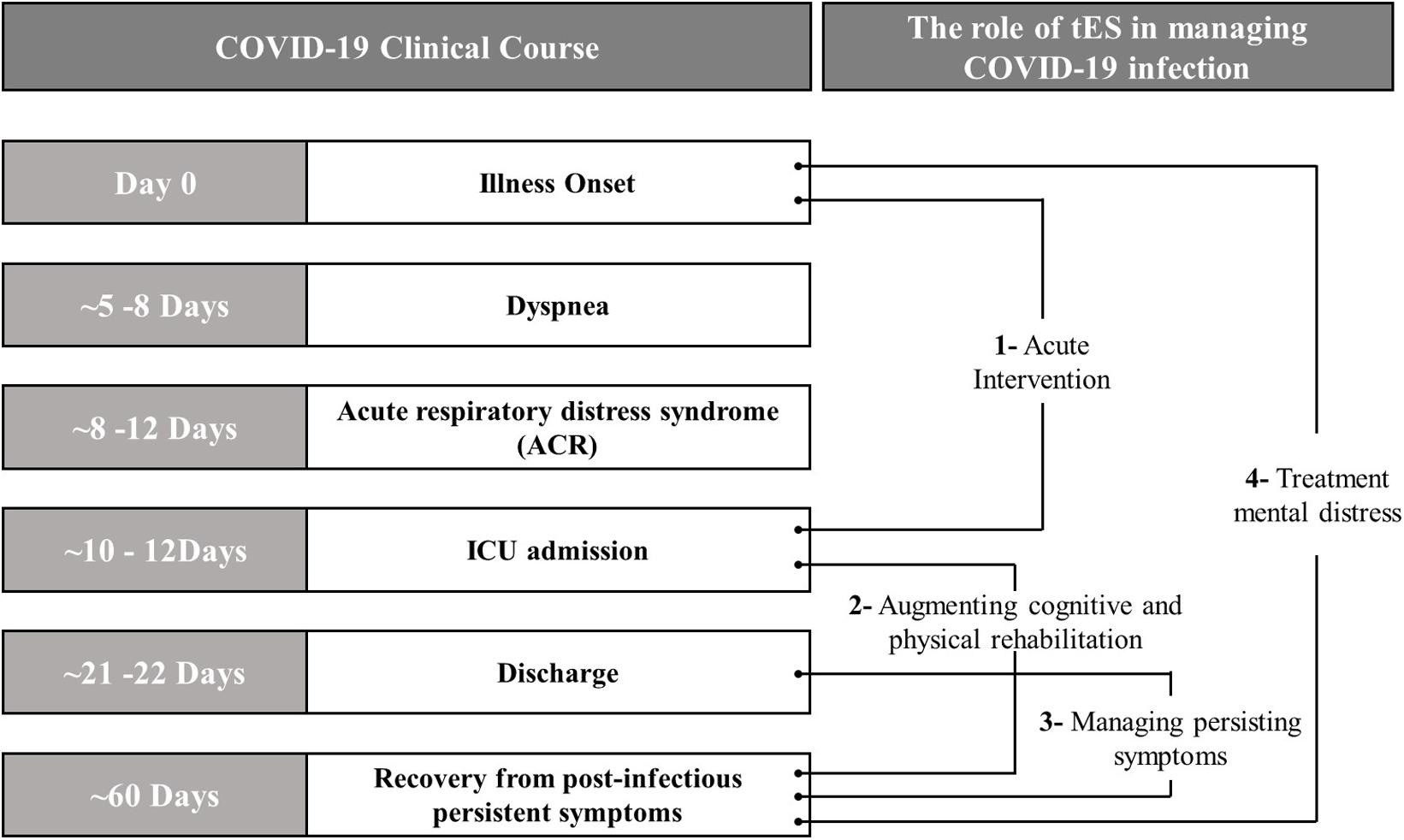

Figure 1. Possible application of tES techniques in the context of COVID-19 clinical course.
1. Acute intervention directly mitigating the infection through the stimulation of regions involved in the regulation of systemic anti-inflammatory responses and/or autonomic responses and prevention of neuroinflammation and recovery of respiration (Rueger et al., 2012; Azabou et al., 2020; Fudim et al., 2020);
2. Add-on treatment to augment cognitive and physical rehabilitation following critical illness (Simpson and Robinson, 2020), as well as treating acute psychological reactions (Holmes et al., 2020);
3. Managing persistent post-infectious symptoms such as fatigue and pain (Baptista et al., 2020);
4. Treatment of outbreak related mental distress including neurological and psychiatric disorders exacerbated by surrounding psychosocial stressors related to COVID-19 (Baptista et al., 2020; Castelo-Branco and Fregni, 2020).
Potential Role in Acute Infection and Illness
tES approaches are targeted to have direct effects on brain functions which can include modulating perfusion (Zheng et al., 2011; Stagg et al., 2013; Shin et al., 2020), clearance mechanisms (Cancel et al., 2018), and the immune response (Rabenstein et al., 2019). tES, from a theoretical perspective, may be applicable for preventing acute neuroinflammation or to directly address the neurological manifestations of COVID-19 infection.
In addition to the more widely characterized systemic pulmonary and cardiovascular effects (Asadi-Pooya and Simani, 2020), direct CNS involvement and neurologic outcomes from COVID-19 and its treatment are emerging as an important focus (Helms et al., 2020a). For example, in a large Spanish registry, 57% of hospitalized patients had at least one neurological symptom.
With acute infection, COVID-19 commonly presents with CNS symptoms such as headache, anosmia, ageusia, and dizziness (Romero-Sánchez et al., 2020; Zubair et al., 2020). It is possible that the virus is neurotropic (Asadi-Pooya and Simani, 2020). Neuroinvasion, particularly via brainstem involvement, may be directly linked to the respiratory failure syndrome (Li Y.-C. et al., 2020). A sham-controlled RCT (initiated in 2018, pre-COVID-19 pandemic) is testing the efficacy of tDCS over the primary cortical motor area on modulating the excitability of the respiratory neurological pathways for relieving dyspnea in patients admitted to mechanical ventilation in ICU (Azabou et al., 2020).
Additionally, the systemic inflammation in COVID-19 has led to neurologic outcomes including impaired consciousness, delirium, encephalopathy, psychosis, cerebrovascular events, seizure, Guillain-Barré syndrome, and optic neuritis (Helms et al., 2020b; Mao et al., 2020; Rogers et al., 2020; Varatharaj et al., 2020).
There is also a theoretical potential role for tDCS in the prevention and treatment of thrombosis through the modulation of the autonomic nervous system (Montenegro et al., 2011; Schestatsky et al., 2013; Okano et al., 2015). Those patients treated in the ICU have increased risk of microvascular thrombosis, venous thrombosis or arterial thrombosis associated with higher mortality (Fraissé et al., 2020) which demonstrates the significance of coagulation abnormalities in this population. Anticoagulant treatment of thrombosis with low molecular weight heparin tends to be associated with improved prognosis in extreme COVID-19 patients who meet sepsis-induced coagulopathy requirements or with significantly elevated D-dimer (Tang, 2020). Heparins are likely to be a potential approach in the care of COVID−19 patients as they combat hypoxia and generalized organ failure with coagulopathies and because they are likely to reduce cardiovascular arrhythmias and sudden deaths, both associated with COVID−19 itself and its pharmacology (Menezes-Rodrigues et al., 2020). Interestingly, increased sympathetic activity is related to the development of thrombosis (Brook and Julius, 2000), and sympathetic block was also suggested as a potential approach to treatment for thrombosis. Therefore, autonomic nervous modulation has been used as a complementary therapeutic strategy for thrombosis (Soni et al., 2012; Schestatsky et al., 2013; Taheri et al., 2019; Wang et al., 2019).
Role in Post-acute Recovery of Function
Neurological consequences often result from the management of severe COVID-19 illness, for instance following intubation (Guo et al., 2020; Helms et al., 2020a; Needham et al., 2020). COVID-19 infection can cause serious injury to cranial nerves and peripheral nerves (Fotuhi et al., 2020), resulting in muscle weakness, muscle injuries, facial paresis, sensory ataxia, flaccid diplegia, or tetraplegia (Gutiérrez-Ortiz et al., 2020; Toscano et al., 2020). Intubation during the acute phase of the disease may decrease neurological drive from the motor cortex to the diaphragm (Sharshar et al., 2004), and hamper extubation and recovery of normal respiration. Further, for patients living with neurological disorders, COVID-19 infection and its treatments may also exacerbate these preexisting conditions, for instance increasing disease activity symptom experience following acute systemic inflammation (Benussi et al., 2020).
There is a large and growing body of work demonstrating benefits of tES for neurorehabilitation (Brunoni et al., 2014; Cioato et al., 2016; Sasso et al., 2016; Aftanas et al., 2018; Leffa et al., 2018). In addition, tES applied as an add-on technique with cognitive or physical rehabilitation improve training outcomes, as widely demonstrated in a range of neurological conditions including post-stroke recovery (Babyar et al., 2016; Sebastian et al., 2016; Bornheim et al., 2020; Yan et al., 2020), multiple sclerosis (MS; Charvet et al., 2018; Pilloni et al., 2020), and Parkinson’s disease (Agarwal et al., 2018; Ganguly et al., 2020).
As results of the acute neurological events related to COVID-19 infection, functional outcomes of patients surviving an ICU admission report also a high prevalence of speech, language and cognitive-communication disorders (Avula et al., 2020). tDCS has been previously applied concurrently with speech therapy for language recovery in aphasia (Galletta et al., 2016; Fridriksson et al., 2018, 2019).
Role in Managing Persistent Post-infectious Symptoms – Pain and Fatigue
More than 87% of COVID-19 patients report at least one persisting symptom 60 days following initial recovery (Carfì et al., 2020), with the most frequent being fatigue, dyspnea and pain. tES treatments have been established as a treatment approach for reducing fatigue (Lefaucheur et al., 2017), for instance in athletes (Okano et al., 2015) and in neuroimmune conditions such as multiple sclerosis (Charvet et al., 2018) and post-polio syndrome (Acler et al., 2013), possibly due to the restoration of autonomic imbalance (Chaudhuri and Behan, 2004; Louati and Berenbaum, 2015; Okano et al., 2015). The efficacy of tES for pain management has also been well-characterized (David et al., 2018; Baptista et al., 2019), including specifically reducing musculoskeletal pain [e.g., in fibromyalgia and arthralgia (Castillo-Saavedra et al., 2016; Silva-Filho et al., 2018)]. tDCS can also reduce pain (Staud, 2008; Miglis, 2018) and is under investigation for treating dyspnea (see Table 1).
Table 1. Ongoing and completed research studies across the four intervention pathways.
Role in Managing Acute and Chronic Psychological Conditions and for Mental Health
Perhaps the most direct application of tES in the management of COVID-19 is for mental health. To date, the most extensive evidence for tES efficacy is in the management of neuropsychiatric conditions such as anxiety, PTSD, and depression (Razza et al., 2020). For those with acute infection, and particularly with history of hospitalization and ICU stay for critical illness, there can be a “post-intensive care syndrome” as a combination of acute psychological distress, such as post-traumatic stress disorder and features of acute anxiety and/or short- and long- depression (Rogers et al., 2020). To date, there has been a case report showing that tDCS over DLPFC can be a potential and adjuvant therapy for post-COVID-19 acute anxiety (Shinjo et al., 2020).
Further, there are increasing concerns about the mental health (e.g., anxiety, mood) consequence of COVID-19 pandemic, resulting from the illness (Nguyen et al., 2020), or more generally the stressors and society (medical care) disruptions associated with the COVID-19 pandemic (Li Z. et al., 2020). tES has established efficacy to treat mental illness (Kekic et al., 2016; Sagliano et al., 2019), with potential proposed applications in mitigating the mental health consequences related to COVID-19 (Bikson et al., 2020; Castelo-Branco and Fregni, 2020; Caulfield and George, 2020).
The COVID-19 pandemic and mitigation efforts have been associated with elevated distress in general, provoking a surge of addictive behaviors, new and relapse, including misuse or abuse of alcohol, and/or drugs (Dubey et al., 2020). Particularly those with substance use disorders present immune system, respiratory and pulmonary changes that may increase susceptibility to COVID-19 infection (Dubey et al., 2020). Among the resources available to assist individual in the recovery, tES and TMS have been used in a growing number of studies for its therapeutic potential in treating substance use disorder (e.g., nicotine, alcohol, and cocaine; Coles et al., 2018; Ekhtiari et al., 2019).
General population, health-care workers, as well as patients in post-acute recovery, report high rates of sleep disorders (e.g., acute insomnia) related mainly to changes in stress levels and anxiety (Huang and Zhao, 2020). In this context, recent studies investigated using tDCS to modulate top-down control of emotion regulation with positive mediating effect on sleep (Valle et al., 2009; Zhou et al., 2020).
Importantly, tDCS has been developed for home use, with remote supervision, providing an advantage for access to treatment (Charvet et al., 2020) and ensuring continuity in the treatment (Bikson et al., 2020). In addition to the portability for remote administration, tES techniques are considered safe and well-tolerated (Bikson et al., 2016; Chhabra et al., 2020). However, even as tDCS is considered to be safe, it remains investigational for many of the potential applications in COVID-19. Trials of tES in patients with acute and/or severe illness (Riggs et al., 2018), should consult relevant literature on tES trials including in those with conditions such as myocarditis or thrombotic stroke.
Table 1 summarizes some ongoing or recently completed efforts across the four intervention pathways described:
Conclusion
As with any medical intervention, the use of tES will depend on informed decision by the caregiver team applied at the appropriate stage relative to other treatments. Any use of tES is subject to regulatory factors and must be informed by, and responsive to, the current state of research. The COVID-19 pandemic has generated special urgency to discover and deploy new treatments. tES warrants investigation and has an extensive record of safety and tolerability across clinical studies completed to date. However, in the absence of any clinical studies in COVID-19 illness, its safety and tolerability in this specific patient population has yet to be established.
Ongoing research challenges in tES are comparable to those faced for other treatments (e.g., individual variability in response to pharmacotherapy), and these unknowns must be judicially balanced against the immediate clinical need for validated new treatments during the COVID-19 pandemic. It is not realistic for multi-center controlled pivotal trials of tES to be completed for COVID-19 applications within this urgent timeframe. However, as we review, the extensive referenceable clinical data in comparable conditions, a mechanistic basis, and emerging trials in COVID-19 subjects warrant consideration.
Author Contributions
All authors contributed to the content of this review, edited the manuscript, and approved the submission.
Funding
GP is supported by the Lourie Foundation, Inc. LC is supported by grants from the National Institutes of Health (R21NS101712-01), United States Department of Defense (W81XWH-17-1-0320), National Multiple Sclerosis Society (RG-1803-30492), and the Lourie Foundation, Inc. MB is supported by grants from the National Institutes of Health: R01NS101362, R01NS095123, R01NS112996, R01MH111896, and R01MH109289. SAK is supported by grants from the Department of Veterans Affairs (1IK6RX003075) and NIH (P2C HD086844, P20 GM109040, and U54 GM104941). AB is supported by CNPq/Brazil level 2 scholarships for productivity in science. AO and AB are supported by CEPID/BRAINN – The Brazilian Institute of Neuroscience and Neurotechnology (Process: 13/07559-3).
Conflict of Interest
The City University of New York holds patents on brain stimulation with MB as inventor. MB has equity in Soterix Medical Inc. MB consults, received grants, assigned inventions, and/or serves on the SAB of Boston Scientific, GlaxoSmithKline, Mecta, Halo Neuroscience, X. MG has no equity ownership in any device or pharmaceutical company. MG does occasionally consult with industry, although he has not accepted consulting fees from anyone who manufactures a TMS device, because of his role in NIH and DOD/VA studies evaluating this technology. His total industry related compensation per year is less than 10% of his total university salary. The Medical University of South Carolina holds patents on brain stimulation with BB as inventor. BB has equity in Bodhi NeuroTech, Inc.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
Acler, M., Bocci, T., Valenti, D., Turri, M., Priori, A., and Bertolasi, L. (2013). Transcranial direct current stimulation (tDCS) for sleep disturbances and fatigue in patients with post-polio syndrome. Restor. Neurol. Neurosci. 31, 661–668. doi: 10.3233/RNN-130321
Adair, D., Truong, D., Esmaeilpour, Z., Gebodh, N., Borges, H., Ho, L., et al. (2020). Electrical stimulation of cranial nerves in cognition and disease. Brain Stimul. 13, 717–750. doi: 10.1016/j.brs.2020.02.019
Aftanas, L. I., Gevorgyan, M. M., Zhanaeva, S. Y., Dzemidovich, S. S., Kulikova, K. I., Al’perina, E. L., et al. (2018). Therapeutic effects of repetitive transcranial magnetic stimulation (rTMS) on neuroinflammation and neuroplasticity in patients with Parkinson’s disease: a placebo-controlled study. Bull. Exp. Biol. Med. 165, 195–199. doi: 10.1007/s10517-018-4128-4
Agarwal, S., Pawlak, N., Cucca, A., Sharma, K., Dobbs, B., Shaw, M., et al. (2018). Remotely-supervised transcranial direct current stimulation paired with cognitive training in Parkinson’s disease: an open-label study. J. Clin. Neurosci. 57, 51–57. doi: 10.1016/j.jocn.2018.08.037
Antal, A., Alekseichuk, I., Bikson, M., Brockmöller, J., Brunoni, A. R., Chen, R., et al. (2017). Low intensity transcranial electric stimulation: safety, ethical, legal regulatory and application guidelines. Clin. Neurophysiol. 128, 1774–1809. doi: 10.1016/j.clinph.2017.06.001
Asadi-Pooya, A. A., and Simani, L. (2020). Central nervous system manifestations of COVID-19: a systematic review. J. Neurol. Sci. 413:116832. doi: 10.1016/j.jns.2020.116832
Avula, A., Nalleballe, K., Narula, N., Sapozhnikov, S., Dandu, V., Toom, S., et al. (2020). COVID-19 presenting as stroke. Brain Behav. Immun. 87, 115–119. doi: 10.1016/j.bbi.2020.04.077
Azabou, E., Bao, G., Heming, N., Bounab, R., Moine, P., Chevallier, S., et al. (2020). Randomized controlled study evaluating efficiency of low intensity transcranial direct current stimulation (tDCS) for dyspnea relief in mechanically ventilated COVID-19 patients in ICU: the tDCS-DYSP-COVID protocol. Front. Med. 7:372. doi: 10.3389/fmed.2020.00372
Babyar, S., Santos-Pontelli, T., Will-Lemos, T., Mazin, S., Bikson, M., Truong, D. Q., et al. (2016). Center of pressure speed changes with tDCS versus GVS in patients with lateropulsion after stroke. Brain Stimul. 9, 796–798. doi: 10.1016/j.brs.2016.06.053
Baptista, A. F., Fernandes, A. M. B. L., Sá, K. N., Okano, A. H., Brunoni, A. R., Lara-Solares, A., et al. (2019). Latin American and Caribbean consensus on noninvasive central nervous system neuromodulation for chronic pain management (LAC2-NIN-CP). Pain Rep. 4:e692. doi: 10.1097/PR9.0000000000000692
Baptista, A. F., Maciel, A., Okano, A. H., Moreira, A., Campos, A. C., Fernandes, A. M., et al. (2020). SARS-CoV-2 and the nervous system function: perspectives of neuromodulation for the management of disorders related to COVID-19. Front. Neurol. 11:1248.
Benussi, A., Pilotto, A., Premi, E., Libri, I., Giunta, M., Agosti, C., et al. (2020). Clinical characteristics and outcomes of inpatients with neurologic disease and COVID-19 in Brescia, Lombardy, Italy. Neurology 95, e910–e920. doi: 10.1212/WNL.0000000000009848
Bestmann, S., Baudewig, J., Siebner, H. R., Rothwell, J. C., and Frahm, J. (2005). BOLD MRI responses to repetitive TMS over human dorsal premotor cortex. Neuroimage 28, 22–29. doi: 10.1016/j.neuroimage.2005.05.027
Bestmann, S., and Feredoes, E. (2013). Combined neurostimulation and neuroimaging in cognitive neuroscience: past, present, and future. Ann. N. Y. Acad. Sci. 1296, 11–30. doi: 10.1111/nyas.12110
Bikson, M., Grossman, P., Thomas, C., Zannou, A. L., Jiang, J., Adnan, T., et al. (2016). Safety of transcranial direct current stimulation: evidence based update 2016. Brain Stimul. 9, 641–661. doi: 10.1016/j.brs.2016.06.004
Bikson, M., Hanlon, C. A., Woods, A. J., Gillick, B. T., Charvet, L., Lamm, C., et al. (2020). Guidelines for TMS/tES clinical services and research through the COVID-19 pandemic. Brain Stimul. 13, 1124–1149. doi: 10.1016/j.brs.2020.05.010
Bonaz, B., Sinniger, V., and Pellissier, S. (2020). Targeting the cholinergic anti-inflammatory pathway with vagus nerve stimulation in patients with COVID-19? Bioelectron. Med. 6:15. doi: 10.1186/s42234-020-00051-7
Bornheim, S., Thibaut, A., Beaudart, C., Maquet, P., Croisier, J.-L., and Kaux, J.-F. (2020). Evaluating the effects of tDCS in stroke patients using functional outcomes: a systematic review. Disabil. Rehabil. doi: 10.1080/09638288.2020.1759703 [Epub ahead of print].
Brook, R. D., and Julius, S. (2000). Autonomic imbalance, hypertension, and cardiovascular risk. Am. J. Hypertens. 13(6 Pt 2), 112S–122S. doi: 10.1016/s0895-7061(00)00228-4
Brunoni, A. R., Machado-Vieira, R., Zarate, C. A., Valiengo, L., Vieira, E. L., Benseñor, I. M., et al. (2014). Cytokines plasma levels during antidepressant treatment with sertraline and transcranial direct current stimulation (tDCS): results from a factorial, randomized, controlled trial. Psychopharmacology 231, 1315–1323. doi: 10.1007/s00213-013-3322-3
Cancel, L. M., Arias, K., Bikson, M., and Tarbell, J. M. (2018). Direct current stimulation of endothelial monolayers induces a transient and reversible increase in transport due to the electroosmotic effect. Sci. Rep. 8:9265. doi: 10.1038/s41598-018-27524-9
Carfì, A., Bernabei, R., Landi, F., and Gemelli Against COVID-19 Post-Acute Care Study Group (2020). Persistent symptoms in patients after acute COVID-19. JAMA 324, 603–605. doi: 10.1001/jama.2020.12603
Castelo-Branco, L., and Fregni, F. (2020). Home-based transcranial direct current stimulation (tDCS) to prevent and treat symptoms related to stress: a potential tool to remediate the behavioral consequences of the COVID-19 isolation measures? Front. Integr. Neurosci. 14:46. doi: 10.3389/fnint.2020.00046
Castillo-Saavedra, L., Gebodh, N., Bikson, M., Diaz-Cruz, C., Brandao, R., Coutinho, L., et al. (2016). Clinically effective treatment of fibromyalgia pain with high-definition transcranial direct current stimulation: phase II open-label dose optimization. J. Pain 17, 14–26. doi: 10.1016/j.jpain.2015.09.009
Caulfield, K. A., and George, M. S. (2020). Treating the mental health effects of COVID-19: the need for at-home neurotherapeutics is now. Brain Stimul. 13, 939–940. doi: 10.1016/j.brs.2020.04.005
Charvet, L. E., Dobbs, B., Shaw, M. T., Bikson, M., Datta, A., and Krupp, L. B. (2018). Remotely supervised transcranial direct current stimulation for the treatment of fatigue in multiple sclerosis: results from a randomized, sham-controlled trial. Mult. Scler. J. 24, 1760–1769. doi: 10.1177/1352458517732842
Charvet, L. E., Shaw, M. T., Bikson, M., Woods, A. J., and Knotkova, H. (2020). Supervised transcranial direct current stimulation (tDCS) at home: a guide for clinical research and practice. Brain Stimul. 13, 686–693. doi: 10.1016/j.brs.2020.02.011
Chaudhuri, A., and Behan, P. O. (2004). Fatigue in neurological disorders. Lancet 363, 978–988. doi: 10.1016/S0140-6736(04)15794-2
Chhabra, H., Bose, A., Shivakumar, V., Agarwal, S. M., Sreeraj, V. S., Shenoy, S., et al. (2020). Tolerance of transcranial direct current stimulation in psychiatric disorders: an analysis of 2000+ sessions. Psychiatry Res. 284:112744. doi: 10.1016/j.psychres.2020.112744
Cioato, S. G., Medeiros, L. F., Marques Filho, P. R., Vercelino, R., de Souza, A., Scarabelot, V. L., et al. (2016). Long-lasting effect of transcranial direct current stimulation in the reversal of hyperalgesia and cytokine alterations induced by the neuropathic pain model. Brain Stimul. 9, 209–217. doi: 10.1016/j.brs.2015.12.001
Coles, A. S., Kozak, K., and George, T. P. (2018). A review of brain stimulation methods to treat substance use disorders. Am. J. Addict. 27, 71–91. doi: 10.1111/ajad.12674
Dantzer, R. (2018). Neuroimmune interactions: from the brain to the immune system and vice versa. Physiol. Rev. 98, 477–504. doi: 10.1152/physrev.00039.2016
Dasilva, A. F., Mendonca, M. E., Zaghi, S., Lopes, M., Dossantos, M. F., Spierings, E. L., et al. (2012). TDCS-induced analgesia and electrical fields in pain-related neural networks in chronic migraine. Headache 52, 1283–1295. doi: 10.1111/j.1526-4610.2012.02141.x
David, M. C. M. M., de Moraes, A. A., da Costa, M. L., and Franco, C. I. F. (2018). Transcranial direct current stimulation in the modulation of neuropathic pain: a systematic review. Neurol. Res. 40, 555–563. doi: 10.1080/01616412.2018.1453190
Dubey, M. J., Ghosh, R., Chatterjee, S., Biswas, P., Chatterjee, S., and Dubey, S. (2020). COVID-19 and addiction. Diabetes Metab. Syndr. 14, 817–823. doi: 10.1016/j.dsx.2020.06.008
Ekhtiari, H., Tavakoli, H., Addolorato, G., Baeken, C., Bonci, A., Campanella, S., et al. (2019). Transcranial electrical and magnetic stimulation (tES and TMS) for addiction medicine: a consensus paper on the present state of the science and the road ahead. Neurosci. Biobehav. Rev. 104, 118–140. doi: 10.1016/j.neubiorev.2019.06.007
Fotuhi, M., Mian, A., Meysami, S., and Raji, C. A. (2020). Neurobiology of COVID-19. J. Alzheimers Dis. 76, 3–19. doi: 10.3233/JAD-200581
Fraissé, M., Logre, E., Pajot, O., Mentec, H., Plantefève, G., and Contou, D. (2020). Thrombotic and hemorrhagic events in critically ill COVID-19 patients: a French monocenter retrospective study. Crit. Care 24:275. doi: 10.1186/s13054-020-03025-y
Fridriksson, J., Basilakos, A., Stark, B. C., Rorden, C., Elm, J., Gottfried, M., et al. (2019). Transcranial direct current stimulation to treat aphasia: longitudinal analysis of a randomized controlled trial. Brain Stimul. 12, 190–191. doi: 10.1016/j.brs.2018.09.016
Fridriksson, J., Rorden, C., Elm, J., Sen, S., George, M. S., and Bonilha, L. (2018). Transcranial direct current stimulation vs sham stimulation to treat aphasia after stroke: a randomized clinical trial. JAMA Neurol. 75, 1470–1476. doi: 10.1001/jamaneurol.2018.2287
Fudim, M., Qadri, Y. J., Ghadimi, K., MacLeod, D. B., Molinger, J., Piccini, J. P., et al. (2020). Implications for neuromodulation therapy to control inflammation and related organ dysfunction in COVID-19. J. Cardiovasc. Trans. Res. doi: 10.1007/s12265-020-10031-6 [Epub ahead of print].
Galletta, E. E., Conner, P., Vogel-Eyny, A., and Marangolo, P. (2016). Use of tDCS in aphasia rehabilitation: a systematic review of the behavioral interventions implemented with noninvasive brain stimulation for language recovery. Am. J. Speech Lang. Pathol. 25, S854–S867. doi: 10.1044/2016_AJSLP-15-0133
Ganguly, J., Murgai, A., Sharma, S., Aur, D., and Jog, M. (2020). Non-invasive transcranial electrical stimulation in movement disorders. Front. Neurosci. 14:522. doi: 10.3389/fnins.2020.00522
Ghosh, S. (2019). Improvement of gait and balance by non-invasive brain stimulation: its use in rehabilitation. Expert Rev. Neurother. 19, 133–144. doi: 10.1080/14737175.2019.1564042
Gomez-Tames, J., Asai, A., and Hirata, A. (2020). Significant group-level hotspots found in deep brain regions during transcranial direct current stimulation (tDCS): a computational analysis of electric fields. Clin. Neurophysiol. 131, 755–765. doi: 10.1016/j.clinph.2019.11.018
Guo, Y.-R., Cao, Q.-D., Hong, Z.-S., Tan, Y.-Y., Chen, S.-D., Jin, H.-J., et al. (2020). The origin, transmission and clinical therapies on Coronavirus disease 2019 (COVID-19) outbreak—an update on the status. Military Med. Res. 7:11. doi: 10.1186/s40779-020-00240-0
Gutiérrez-Ortiz, C., Méndez, A., Rodrigo-Rey, S., San Pedro-Murillo, E., Bermejo-Guerrero, L., Gordo-Mañas, R., et al. (2020). Miller fisher syndrome and polyneuritis cranialis in COVID-19. Neurology 95:9619. doi: 10.1212/WNL.0000000000009619
Helms, J., Kremer, S., Merdji, H., Clere-Jehl, R., Schenck, M., Kummerlen, C., et al. (2020a). Neurologic features in severe SARS-CoV-2 infection. N. Engl. J. Med. 382, 2268–2270. doi: 10.1056/NEJMc2008597
Helms, J., Kremer, S., Merdji, H., Schenck, M., Severac, F., Clere-Jehl, R., et al. (2020b). Delirium and encephalopathy in severe COVID-19: a cohort analysis of ICU patients. Crit. Care 24:491. doi: 10.1186/s13054-020-03200-1
Holmes, E. A., O’Connor, R. C., Perry, V. H., Tracey, I., Wessely, S., Arseneault, L., et al. (2020). Multidisciplinary research priorities for the COVID-19 pandemic: a call for action for mental health science. Lancet Psychiatry 7, 547–560. doi: 10.1016/S2215-0366(20)30168-1
Huang, Y., Liu, A. A., Lafon, B., Friedman, D., Dayan, M., Wang, X., et al. (2017). Measurements and models of electric fields in the in vivo human brain during transcranial electric stimulation. eLife 6:e18834. doi: 10.7554/eLife.18834
Huang, Y., and Zhao, N. (2020). Generalized anxiety disorder, depressive symptoms and sleep quality during COVID-19 outbreak in China: a web-based cross-sectional survey. Psychiatry Res. 288:112954. doi: 10.1016/j.psychres.2020.112954
Huang, Y.-Z., Sommer, M., Thickbroom, G., Hamada, M., Pascual-Leonne, A., Paulus, W., et al. (2009). Consensus: new methodologies for brain stimulation. Brain Stimul. 2, 2–13. doi: 10.1016/j.brs.2008.09.007
Iseger, T. A., van Bueren, N. E. R., Kenemans, J. L., Gevirtz, R., and Arns, M. (2020). A frontal-vagal network theory for major depressive disorder: implications for optimizing neuromodulation techniques. Brain Stimul. 13, 1–9. doi: 10.1016/j.brs.2019.10.006
Kaniusas, E., Szeles, J. C., Kampusch, S., Alfageme-Lopez, N., Yucuma-Conde, D., Li, X., et al. (2020). Non-invasive auricular vagus nerve stimulation as a potential treatment for Covid19-originated acute respiratory distress syndrome. Front. Physiol. 11:890. doi: 10.3389/fphys.2020.00890
Kekic, M., Boysen, E., Campbell, I. C., and Schmidt, U. (2016). A systematic review of the clinical efficacy of transcranial direct current stimulation (tDCS) in psychiatric disorders. J. Psychiatr. Res. 74, 70–86. doi: 10.1016/j.jpsychires.2015.12.018
Lefaucheur, J.-P., Chalah, M. A., Mhalla, A., Palm, U., Ayache, S. S., and Mylius, V. (2017). The treatment of fatigue by non-invasive brain stimulation. Clin. Neurophysiol. 47, 173–184. doi: 10.1016/j.neucli.2017.03.003
Leffa, D. T., Bellaver, B., Salvi, A. A., de Oliveira, C., Caumo, W., Grevet, E. H., et al. (2018). Transcranial direct current stimulation improves long-term memory deficits in an animal model of attention-deficit/hyperactivity disorder and modulates oxidative and inflammatory parameters. Brain Stimul. 11, 743–751. doi: 10.1016/j.brs.2018.04.001
Li, Y.-C., Bai, W.-Z., and Hashikawa, T. (2020). The neuroinvasive potential of SARS-CoV2 may play a role in the respiratory failure of COVID-19 patients. J. Med. Virol. 92, 552–555. doi: 10.1002/jmv.25728
Li, Z., Ge, J., Yang, M., Feng, J., Qiao, M., Jiang, R., et al. (2020). Vicarious traumatization in the general public, members, and non-members of medical teams aiding in COVID-19 control. Brain Behav. Immun. 88, 916–919. doi: 10.1016/j.bbi.2020.03.007
Louati, K., and Berenbaum, F. (2015). Fatigue in chronic inflammation—a link to pain pathways. Arthritis Res. Ther. 17:254. doi: 10.1186/s13075-015-0784-1
Mao, L., Jin, H., Wang, M., Hu, Y., Chen, S., He, Q., et al. (2020). Neurologic manifestations of hospitalized patients with Coronavirus disease 2019 in Wuhan, China. JAMA Neurol. 77, 683–690. doi: 10.1001/jamaneurol.2020.1127
Menezes-Rodrigues, F. S., Padrão Tavares, J. G., Pires de Oliveira, M., Guzella de Carvalho, R., Ruggero Errante, P., Omar Taha, M., et al. (2020). Anticoagulant and antiarrhythmic effects of heparin in the treatment of COVID-19 patients. J. Thromb. Haemost. 18, 2073–2075. doi: 10.1111/jth.14902
Miglis, M. G. (2018). Migraine and autonomic dysfunction: which is the horse and which is the jockey? Curr. Pain Headache Rep. 2:19. doi: 10.1007/s11916-018-0671-y
Miranda, P. C., Mekonnen, A., Salvador, R., and Ruffini, G. (2013). The electric field in the cortex during transcranial current stimulation. Neuroimage 70, 48–58. doi: 10.1016/j.neuroimage.2012.12.034
Montenegro, R. A., Farinatti, P. D. T. V., Fontes, E. B., Soares, P. P. D. S., da Cunha, F. A., Gurgel, J. L., et al. (2011). Transcranial direct current stimulation influences the cardiac autonomic nervous control. Neurosci. Lett. 497, 32–36. doi: 10.1016/j.neulet.2011.04.019
Needham, E. J., Chou, S. H.-Y., Coles, A. J., and Menon, D. K. (2020). Neurological implications of COVID-19 infections. Neurocrit. Care 32, 667–671. doi: 10.1007/s12028-020-00978-4
Nguyen, H. C., Nguyen, M. H., Do, B. N., Tran, C. Q., Nguyen, T. T. P., Pham, K. M., et al. (2020). People with suspected COVID-19 symptoms were more likely depressed and had lower health-related quality of life: the potential benefit of health literacy. J. Clin. Med. 9:965. doi: 10.3390/jcm9040965
Okano, A. H., Fontes, E. B., Montenegro, R. A., Farinatti, P. D. T. V., Cyrino, E. S., Li, L. M., et al. (2015). Brain stimulation modulates the autonomic nervous system, rating of perceived exertion and performance during maximal exercise. Br. J. Sports Med. 49, 1213–1218. doi: 10.1136/bjsports-2012-091658
Peterchev, A. V., Wagner, T. A., Miranda, P. C., Nitsche, M. A., Paulus, W., Lisanby, S. H., et al. (2012). Fundamentals of transcranial electric and magnetic stimulation dose: definition, selection, and reporting practices. Brain Stimul. 5, 435–453. doi: 10.1016/j.brs.2011.10.001
Pilloni, G., Choi, C., Coghe, G., Cocco, E., Krupp, L. B., Pau, M., et al. (2020). Gait and functional mobility in multiple sclerosis: immediate effects of transcranial direct current stimulation (tDCS) paired with aerobic exercise. Front. Neurol. 11:310. doi: 10.3389/fneur.2020.00310
Polanía, R., Nitsche, M. A., and Ruff, C. C. (2018). Studying and modifying brain function with non-invasive brain stimulation. Nat. Neurosci. 21, 174–187. doi: 10.1038/s41593-017-0054-4
Rabenstein, M., Unverricht-Yeboah, M., Keuters, M. H., Pikhovych, A., Hucklenbroich, J., Vay, S. U., et al. (2019). Transcranial current stimulation alters the expression of immune-mediating genes. Front. Cell. Neurosci. 13:461. doi: 10.3389/fncel.2019.00461
Razza, L. B., Palumbo, P., Moffa, A. H., Carvalho, A. F., Solmi, M., Loo, C. K., et al. (2020). A systematic review and meta-analysis on the effects of transcranial direct current stimulation in depressive episodes. Depress. Anxiety 37, 594–608. doi: 10.1002/da.23004
Riggs, A., Patel, V., Paneri, B., Portenoy, R. K., Bikson, M., and Knotkova, H. (2018). At-home transcranial direct current stimulation (tDCS) with telehealth support for symptom control in chronically-ill patients with multiple symptoms. Front. Behav. Neurosci. 12:93. doi: 10.3389/fnbeh.2018.00093
Rogers, J. P., Chesney, E., Oliver, D., Pollak, T. A., McGuire, P., Fusar-Poli, P., et al. (2020). Psychiatric and neuropsychiatric presentations associated with severe Coronavirus infections: a systematic review and meta-analysis with comparison to the COVID-19 pandemic. Lancet Psychiatry 7, 611–627. doi: 10.1016/S2215-0366(20)30203-0
Romero-Sánchez, C. M., Díaz-Maroto, I., Fernández-Díaz, E., Sánchez-Larsen, Á., Layos-Romero, A., García-García, J., et al. (2020). Neurologic manifestations in hospitalized patients with COVID-19: the ALBACOVID registry. Neurology 95, e1060–e1070. doi: 10.1212/WNL.0000000000009937
Rueger, M. A., Keuters, M. H., Walberer, M., Braun, R., Klein, R., Sparing, R., et al. (2012). Multi-session transcranial direct current stimulation (tDCS) elicits inflammatory and regenerative processes in the rat brain. PLoS One 7:e43776. doi: 10.1371/journal.pone.0043776
Sagliano, L., Atripaldi, D., De Vita, D., D’Olimpio, F., and Trojano, L. (2019). Non-invasive brain stimulation in generalized anxiety disorder: a systematic review. Prog. Neuropsychopharmacol. Biol. Psychiatry 93, 31–38. doi: 10.1016/j.pnpbp.2019.03.002
Sasso, V., Bisicchia, E., Latini, L., Ghiglieri, V., Cacace, F., Carola, V., et al. (2016). Repetitive transcranial magnetic stimulation reduces remote apoptotic cell death and inflammation after focal brain injury. J. Neuroinflammation 13:150. doi: 10.1186/s12974-016-0616-5
Schestatsky, P., Simis, M., Freeman, R., Pascual-Leone, A., and Fregni, F. (2013). Non-invasive brain stimulation and the autonomic nervous system. Clin. Neurophysiol. 124, 1716–1728. doi: 10.1016/j.clinph.2013.03.020
Sebastian, R., Saxena, S., Tsapkini, K., Faria, A. V., Long, C., Wright, A., et al. (2016). Cerebellar tDCS: a novel approach to augment language treatment post-stroke. Front. Hum. Neurosci. 10:695. doi: 10.3389/fnhum.2016.00695
Sharshar, T., Ross, E. T., Hopkinson, N. S., Porcher, R., Nickol, A. H., Jonville, S., et al. (2004). Depression of diaphragm motor cortex excitability during mechanical ventilation. Appl. Physiol. 97, 3–10. doi: 10.1152/japplphysiol.01099.2003
Shin, D. W., Fan, J., Luu, E., Khalid, W., Xia, Y., Khadka, N., et al. (2020). In vivo modulation of the blood-brain barrier permeability by transcranial direct current stimulation (tDCS). Ann. Biomed. Eng. 48, 1256–1270. doi: 10.1007/s10439-020-02447-7
Shinjo, S. K., Brunoni, A. R., Okano, A. H., Tanaka, C., and Baptista, A. F. (2020). Transcranial direct current stimulation relieves the severe anxiety of a patient with COVID-19. Brain Stimul. 13, 1352–1353. doi: 10.1016/j.brs.2020.07.004
Silva-Filho, E., Okano, A. H., Morya, E., Albuquerque, J., Cacho, E., Unal, G., et al. (2018). Neuromodulation treats Chikungunya arthralgia: a randomized controlled trial. Sci. Rep. 8:16010. doi: 10.1038/s41598-018-34514-4
Simpson, R., and Robinson, L. (2020). Rehabilitation after critical illness in people with COVID-19 infection. Am. J. Phys. Med. Rehabil. 99, 470–474. doi: 10.1097/PHM.0000000000001443
Soni, K., Sawhney, C., Kaur, M., Ramchandani, S., and Singhal, M. (2012). Stellate ganglion block as a limb salvaging technique. Indian J. Anaesth. 56, 307–380. doi: 10.4103/0019-5049.98792
Staats, P., Giannakopoulos, G., Blake, J., Liebler, E., and Levy, R. M. (2020). The use of non-invasive vagus nerve stimulation to treat respiratory symptoms associated with COVID-19: a theoretical hypothesis and early clinical experience. Neuromodulation doi: 10.1111/ner.13172 [Epub ahead of print].
Stagg, C. J., Lin, R. L., Mezue, M., Segerdahl, A., Kong, Y., Xie, J., et al. (2013). Widespread modulation of cerebral perfusion induced during and after transcranial direct current stimulation applied to the left dorsolateral prefrontal cortex. J. Neurosci. 33, 11425–11431. doi: 10.1523/JNEUROSCI.3887-12.2013
Staud, R. (2008). Autonomic dysfunction in fibromyalgia syndrome: postural orthostatic tachycardia. Curr. Rheumatol. Rep. 10, 463–466. doi: 10.1007/s11926-008-0076-8
Taheri, M., Radfar, M., Tabasi, S., Alijanpour, E., and Jabbari, A. (2019). Stellate ganglion block as a complementary therapeutic modality for arterial thrombosis in upper limb of a neonate. Anaesth. Pain Intensive Care 23, 395–397. doi: 10.35975/apic.v23i4.1173
Tang, N. (2020). Response to “Lupus anticoagulant is frequent in patients with COVID-19”. J. Thromb. Haemost. 18, 2065–2066. doi: 10.1111/jth.14890
Toscano, G., Palmerini, F., Ravaglia, S., Ruiz, L., Invernizzi, P., Cuzzoni, M. G., et al. (2020). Guillain-barré syndrome associated with SARS-CoV-2. N. Engl. J. Med. 382, 2574–2576. doi: 10.1056/NEJMc2009191
Valle, A., Roizenblatt, S., Botte, S., Zaghi, S., Riberto, M., Tufik, S., et al. (2009). Efficacy of anodal transcranial direct current stimulation (tDCS) for the treatment of fibromyalgia: results of a randomized, sham-controlled longitudinal clinical trial. J. Pain Manag. 2, 353–361.
Vandermeeren, Y., Jamart, J., and Ossemann, M. (2010). Effect of tDCS with an extracephalic reference electrode on cardio-respiratory and autonomic functions. BMC Neurosci. 11:38. doi: 10.1186/1471-2202-11-38
Varatharaj, A., Thomas, N., Ellul, M. A., Davies, N. W. S., Pollak, T. A., Tenorio, E. L., et al. (2020). Neurological and neuropsychiatric complications of COVID-19 in 153 patients: a UK-wide surveillance study. Lancet Psychiatry 7, 875–882. doi: 10.1016/S2215-0366(20)30287-X
Wang, K., Zhang, J., Zhang, N., Shen, Y., Wang, L., Gu, R., et al. (2019). Combined primary PCI with multiple thrombus burden reduction therapy improved cardiac function in patients with acute anterior myocardial infarction. Int. Heart J. 60, 27–36. doi: 10.1536/ihj.18-064
Woods, A. J., Antal, A., Bikson, M., Boggio, P. S., Brunoni, A. R., Celnik, P., et al. (2016). A technical guide to tDCS, and related non-invasive brain stimulation tools. Clin. Neurophysiol. 127, 1031–1048. doi: 10.1016/j.clinph.2015.11.012
Yan, R.-B., Zhang, X.-L., Li, Y.-H., Hou, J.-M., Chen, H., and Liu, H.-L. (2020). Effect of transcranial direct-current stimulation on cognitive function in stroke patients: a systematic review and meta-analysis. PLoS One 15:e0233903. doi: 10.1371/journal.pone.0233903
Zhang, C., Zhu, K., Li, D., Voon, V., and Sun, B. (2020). Deep brain stimulation telemedicine for psychiatric patients during the COVID-19 pandemic. Brain Stimul. 13, 1263–1264. doi: 10.1016/j.brs.2020.06.011
Zheng, X., Alsop, D. C., and Schlaug, G. (2011). Effects of transcranial direct current stimulation (tDCS) on human regional cerebral blood flow. Neuroimage 58, 26–33. doi: 10.1016/j.neuroimage.2011.06.018
Zhou, Q., Yu, C., Yu, H., Zhang, Y., Liu, Z., Hu, Z., et al. (2020). The effects of repeated transcranial direct current stimulation on sleep quality and depression symptoms in patients with major depression and insomnia. Sleep Med. 70, 17–26. doi: 10.1016/j.sleep.2020.02.003
