Literature Review on the Effects of tDCS Coupled with Robotic Therapy in Post Stroke Upper Limb Rehabilitation

\r\nDavide Simonetti*Davide Simonetti1*Loredana ZolloLoredana Zollo1Stefano MilighettiStefano Milighetti2Sandra MiccinilliSandra Miccinilli2Marco BraviMarco Bravi2Federico RanieriFederico Ranieri3Giovanni MagroneGiovanni Magrone2Eugenio GuglielmelliEugenio Guglielmelli1Vincenzo Di LazzaroVincenzo Di Lazzaro3Silvia SterziSilvia Sterzi2
  • 1Research Unit of Biomedical Robotics and Biomicrosystems, Università Campus Bio-Medico di Roma, Rome, Italy
  • 2Unit of Physical and Rehabilitation Medicine, Università Campus Bio-Medico di Roma, Rome, Italy
  • 3Unit of Neurology, Neurophysiology and Neurobiology, Università Campus Bio-Medico di Roma, Rome, Italy

Today neurological diseases such as stroke represent one of the leading cause of long-term disability. Many research efforts have been focused on designing new and effective rehabilitation strategies. In particular, robotic treatment for upper limb stroke rehabilitation has received significant attention due to its ability to provide high-intensity and repetitive movement therapy with less effort than traditional methods. In addition, the development of non-invasive brain stimulation techniques such as transcranial Direct Current Stimulation (tDCS) has also demonstrated the capability of modulating brain excitability thus increasing motor performance. The combination of these two methods is expected to enhance functional and motor recovery after stroke; to this purpose, the current trends in this research field are presented and discussed through an in-depth analysis of the state-of-the-art. The heterogeneity and the restricted number of collected studies make difficult to perform a systematic review. However, the literature analysis of the published data seems to demonstrate that the association of tDCS with robotic training has the same clinical gain derived from robotic therapy alone. Future studies should investigate combined approach tailored to the individual patient's characteristics, critically evaluating the brain areas to be targeted and the induced functional changes.

Introduction

Stroke is one of the leading factors of morbidity and mortality worldwide (Warlow et al., 2001).

In Italy, stroke annual incidence varies between 175/100.000 and 360/100.000 in men and between 130/100.000 and 273/100.000 in women (Sacco et al., 2011). Further, still in Italy, a total of 196.000 individuals are affected by stroke each year, 80% are new episodes and 20% are relapses (Gensini, 2005).

Activities of daily living (ADLs) and human quality of life strongly depend on upper limb functioning (Franceschini et al., 2010). Therefore, one of the goals of post-stroke upper limb rehabilitation is to recover arm and hand functions, and enable the patients to perform ADLs independently.

It is shown in the literature that intensive as well as task-specific training can be very effective in upper limb rehabilitation treatments after stroke (Feys et al., 2004; Lo et al., 2010; Klamroth-Marganska et al., 2014); this training should be repetitive, challenging and functional for the patients. To this purpose, robotics represents a key enabling technology for addressing these requirements for a well-stratified group of stroke patients (i.e., moderate-to-severe subjects). Clinical studies, varying in design and methods, have examined the effect of robotic devices on upper-limb and lower-limb rehabilitation in a clinical setting (Prange et al., 2006; Brewer et al., 2007; Mehrholz et al., 2015). Moreover, in a multicenter randomized controlled trial on moderate-to-severe chronic stroke patients, robotic therapy resulted superior to usual care and not inferior to intensive conventional rehabilitation treatment in terms of recovery of upper limb motor function (Lo et al., 2010). In addition, using robotic devices allows delivering new therapy constraints to maximize the required movement pattern (Kwakkel et al., 2007). Therefore, it is possible to control task learning phase more easily with robots than with traditional therapeutic techniques, since robots allows patients to perform guided movements on predefined pathways and avoid possible uncontrolled movements (Kwakkel et al., 2007).

Despite the interesting advancements in this area, the type of therapy leading to optimal results remains controversial and elusive and patients are often left with considerable disability (Bastani and Jaberzadeh, 2012).

Recently, the application of non-invasive neuro-modulation strategies to counteract inter-hemispheric imbalance has been acquiring a growing interest in post-stroke rehabilitation (Duque et al., 2005; Hummel and Cohen, 2006; Bolognini et al., 2009; Kandel et al., 2012). The adjunct of non-invasive interventions, such as the electrical brain stimulation or magnetic brain stimulation (Di Lazzaro et al., 2016), might be used to speed-up and maximize the potential benefit of rehabilitation treatments. In particular, transcranial Direct Current Stimulation (tDCS) may play an important role in stroke recovery since its capability to modify cortical excitability and neural activity (Lefaucheur, 2016; Lefaucheur et al., 2017).

In fact, modulating the excitability of a targeted brain region non-invasively, can favor a normal balance in the interhemispheric interaction and, hence, facilitate the recovery of motor functions of the paretic limb (Kandel et al., 2012).

tDCS consists of applying low-intensity current (1–2 mA) between two or multiple small electrodes on the scalp (Dmochowski et al., 2011). Depending on the electrode polarity, an opposite polarization of brain tissues can be induced with consequent modification of the resting membrane potential. Anodal stimulation will induce depolarization and increased cortical excitability; cathodal stimulation will induce hyperpolarization and decreased cortical excitability (Nitsche and Paulus, 2000; Fregni et al., 2005).

In the past, several studies have demonstrated a tDCS effect in terms of increased primary motor cortex activation assessed with fMRI (Hummel et al., 2005; Lindenberg et al., 2010).

The inter-hemispheric inhibitory competition model (Duque et al., 2005) implies that, to restore the interhemispheric balance altered after a stroke, one can either increase the excitability of the affected hemisphere with the anodal tDCS, or decrease the activity of the healthy hemisphere with cathodal tDCS (Hummel and Cohen, 2006).

The use of bilateral tDCS (applying simultaneously anodal electrode on the affected hemisphere and cathodal electrode on the unaffected hemisphere, Tazoe et al., 2014) could also be an effective strategy to produce interhemispheric rebalancing effects. Notwithstanding the promising achievements, the debate on tDCS efficacy in neurorehabilitation is still active and not entirely examined (Stagg and Johansen-Berg, 2013).

The application of tDCS might also have an impact on shoulder abduction (SABD) loading effects in individuals with moderate to severe chronic stroke; however, it is insufficient to make significant changes at higher SABD loads (Yao et al., 2015).

Furthermore, several neuromodulatory protocols have been applied together with robotic gait training to induce cortical plasticity and promote motor recovery after stroke. Motor excitability induced by paired associative stimulation, i.e., repetitive transcranial magnetic stimulation (rTMS) and tDCS has shown to be a potential neuromodulatory adjuvant of walking rehabilitation in patients with chronic stroke (Jayaram and Stinear, 2009) although there was no evidence regarding the efficacy of these protocols with respect to the others.

On the other hand, robot-assisted repetition with electromechanical gait trainer (Hesse et al., 1997; Hesse and Uhlenbrock, 2000) improved gait performance and maintained functional recovery at follow-up even during the chronic phase of stroke (Peurala et al., 2005; Dias et al., 2007). This could be likely due to the gait-like movement that allowed patients to practice a complete gait cycle, achieving better symmetric and physiological walking (Dias et al., 2007).

In this context, the adjunct of tDCS (delivered over the lower extremity motor cortex) to robotic locomotor exercises showed the capability to enhance the effectiveness of robotic gait training in chronic stroke patients (Danzl et al., 2013).

Conversely, while administering tDCS did not produce any reverse effects on chronic stroke patients, on the other hand it seemed to have no additional effect on robot-assisted gait training (Geroin et al., 2011). This could be due to the peculiar neural organization of locomotion, which involves both cortical (motor cortex) and spinal (central pattern generators) control (Dietz, 2002; Geroin et al., 2011).

Recently, another study has supported the hypothesis that anodal tDCS combined with cathodal transcutaneous spinal direct current stimulation (tsDCS) may be useful to improve the effects of robotic gait training in chronic stroke (Picelli et al., 2015).

Finally, combination of tDCS and robotic training has shown a promising strategy for improving arm, hand and lower extremity motor functions in persons with incomplete spinal cord injury (Raithatha et al., 2016; Yozbatiran et al., 2016).

All these approaches justify the growing interest of the scientific community in the evaluation of the effects of upper limb robot-aided motor training coupled with tDCS in stroke, relying on the adjunct of tDCS to further enhance primary effects of motor recovery (Triccas et al., 2016).

This paper intends to carry out an in-depth study of the literature regarding the effects of the combined use of tDCS and RT on motor and functional recovery in post stroke subjects. Moreover, the expected added value provided by this work is to complete the current knowledge in the neurorehabilitation field, by critically evaluating and comparing (when possible) the available results as well as discussing inconsistencies and possible issues. As a final goal, indications for the development of future and more specific rehabilitation protocols tailored to subject's needs are provided.

The paper is structured as follows. In Section “Overview of the Main Studies on tDCS Coupled with Upper-Limb Robotic Treatment” an overview of clinical studies that analyze effects of tDCS combined with upper limb robotic therapy (RT) is reported.

Section “Discussion” presents a critical discussion of the presented studies aimed to assess the efficacy of this novel combined approach. Finally, Section “Conclusions and future perspectives” reports final considerations and future suggestions.

Overview of the Main Studies on tDCS Coupled with Upper-Limb Robotic Treatment

The study of the effects deriving from the coupled use of tDCS and RT represents a relatively young field of interest. In fact, the number of studies that have tried to investigate and prove the successful combination of these two techniques is limited.

A wide literature search updated to January 2017 has been conducted resorting to the main databases, such as Pubmed Central (PMC), Cochrane, Scopus, Google Scholar. The following keywords have been employed: tDCS AND stroke* OR ictus OR hemiplegia* AND robot* OR robotic therapy*, upper-limb rehabilitation, brain stimulation techniques, neurorehabilitation, rehabilitation robotics. Studies have been included only when focused on the novel therapeutic approach based on tDCS combined with robotic upper limb therapy.

The following inclusion criteria have been utilized:

1. Be a single session clinical trial (i.e., compare pre-treatment and post-treatment performance) or controlled trial (i.e., clinical trial with a control group, either randomized or not).

2. Involve stroke patients.

3. Concern movement therapy with a robotic device.

4. Include transcranial Direct Current Stimulation (tDCS) as Non-Invasive Brain Stimulation Technique.

5. Focus on upper-limb motor control (and possibly functional abilities).

6. Use relevant motor control and functional ability outcome measures.

7. Be a full-length publication in a peer-reviewed journal.

To enable the most complete overview of the current literature, the search has not been limited by patient subgroups (i.e., acute, subacute, or chronic) or by language.

A flowchart of the search and inclusion process is shown in Figure 1. A total of 830 papers has been gathered by using the aforementioned search method. The abstracts matching the inclusion criteria have been selected. When appropriate, the full paper has been read. Therefore, from the initial 830 papers, 820 have been excluded since they did not meet the inclusion criteria. The remaining 10 papers have been carefully read. Eight studies are journal papers while 2 are conference papers.

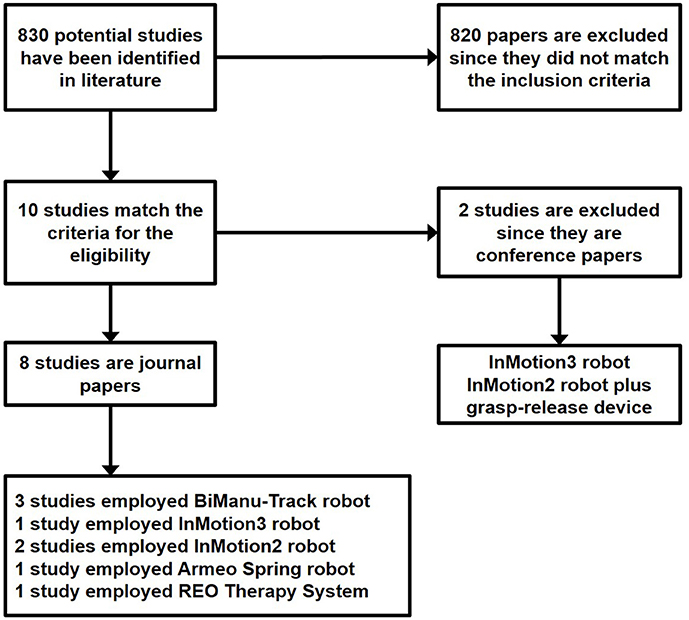

FIGURE 1
www.frontiersin.org

Figure 1. Flowchart of the search and inclusion process.

The two conference papers Ang et al. (2012) and Mazzoleni et al. (2015) have not been included into the review analysis since they did not match the last inclusion criteria (i.e., be full-length publication in a peer-reviewed journal); however, their contents will be briefly discussed in the following.

The eight retrieved journal studies are Hesse et al. (2007), Hesse et al. (2011), Giacobbe et al. (2013), Ochi et al. (2013), Ang et al. (2015), Triccas et al. (2015), Powell et al. (2016), and Straudi et al. (2016).

The following contents have been extracted from the analysis of the selected studies:

1. Descriptive features of the subjects;

2. Protocol used within the study;

3. Outcome measures of motor control, functional abilities and neurophysiological parameters of cortical excitability;

4. Conclusions based on results.

The results of the studies are considered positive if the difference between pre-post treatment and between robot-trained and control groups is significant (p < 0.05) as calculated by an appropriate statistical tool.

The selected studies use different methods to evaluate the patients' recovery, including clinical scales, kinematics, and neurophysiological parameters of cortical excitability. The multiple outcome measures have been collected, as explained below:

1. Eight clinical scales regarding upper limb motor and functional assessment [Fugl-Meyer Scale (FM), Modified Ashworth Scale (MAS), Barthel Index (BI), Medical Research Council (MRC) score for muscle strength, Box and Block test (B&B), Motor Activity Log (MAL), Action Research Arm Test (ARAT), Stroke Impact Scale (SIS)];

2. Four neurophysiological parameters of motor cortical excitability [Motor Evoked Potential (MEP), Motor Imagery-Brain Computer Interface (MI-BCI) screening, motor map volume of ispilesional hemisphere, Center of Gravity (COG)];

3. Seven kinematic indices [Mean speed, peak speed, deviation, smoothness, duration, aim, and Hand Path Ratio (HPR, Dietz et al., 2011) in Cartesian space].

Notwithstanding, upper limb Fugl-Meyer score (FMS; Fugl-Meyer et al., 1974) has been chosen as the primary outcome measure for a comparative analysis, being the clinical tool adopted across almost all the studies.

All the current studies are grounded on the theory of interhemispheric competition where anodal tDCS is applied on the lesioned hemisphere (excitatory protocol) and cathodal tDCS is delivered on the contralateral hemisphere (inhibitory protocol). Sham stimulation is applied with an increasing current at training onset, and is switched off for the remainder of the stimulation time.

Although the selected studies share the general objective of assessing the effects of tDCS combined with the RT, the employed investigation methods are different and provide heterogeneous data that are difficult to be analyzed in a systematic way. However, despite the difficulty to find a global primary outcome measure, interesting common features have been extracted and a list of factors has been identified.

For the sake of clarity, the retrieved studies have been grouped in the following four categories while the main characteristics are reported in Tables 1A,B:

1. Effects of anodal and/or cathodal tDCS coupled with RT in post stroke patients (compared or not with RT alone);

2. Effects of different anodal tDCS delivering time, i.e., before, during or after RT;

3. Effects of anodal tDCS compared to cathodal tDCS when coupled with RT;

4. Effects of anodal tDCS combined with other neurostimulation techniques and RT.

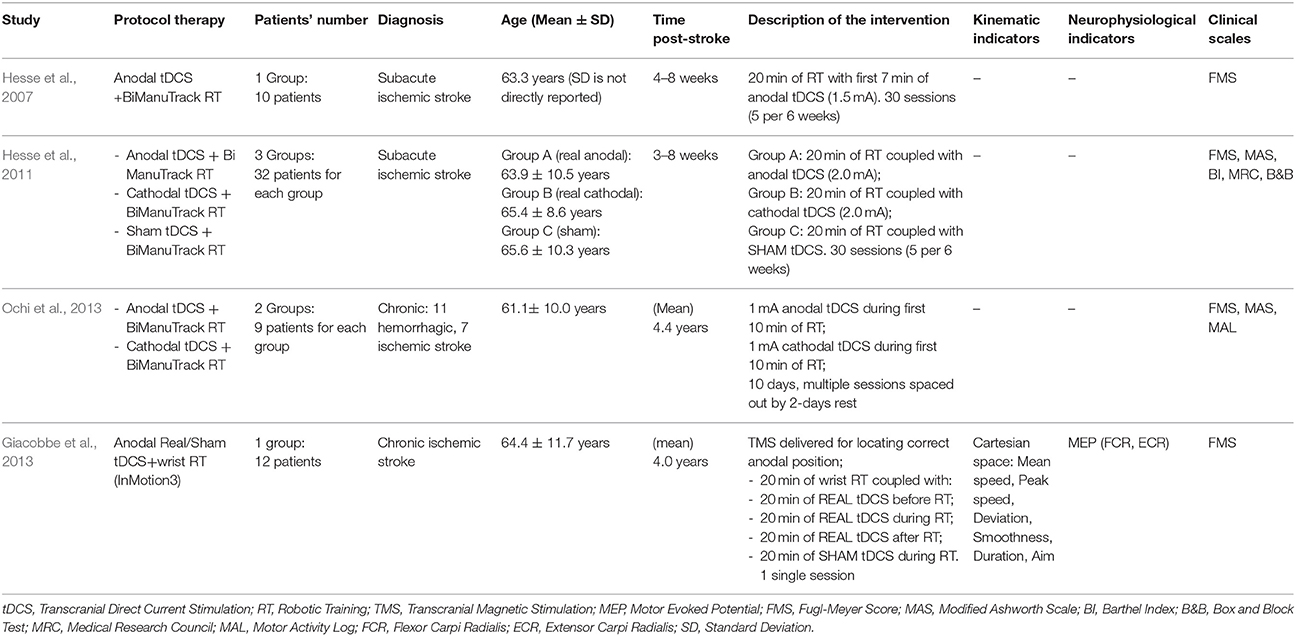

TABLE 1A
www.frontiersin.org

Table 1A. Overview of the studies on tDCS combined with robotic upper limb rehabilitation after stroke.

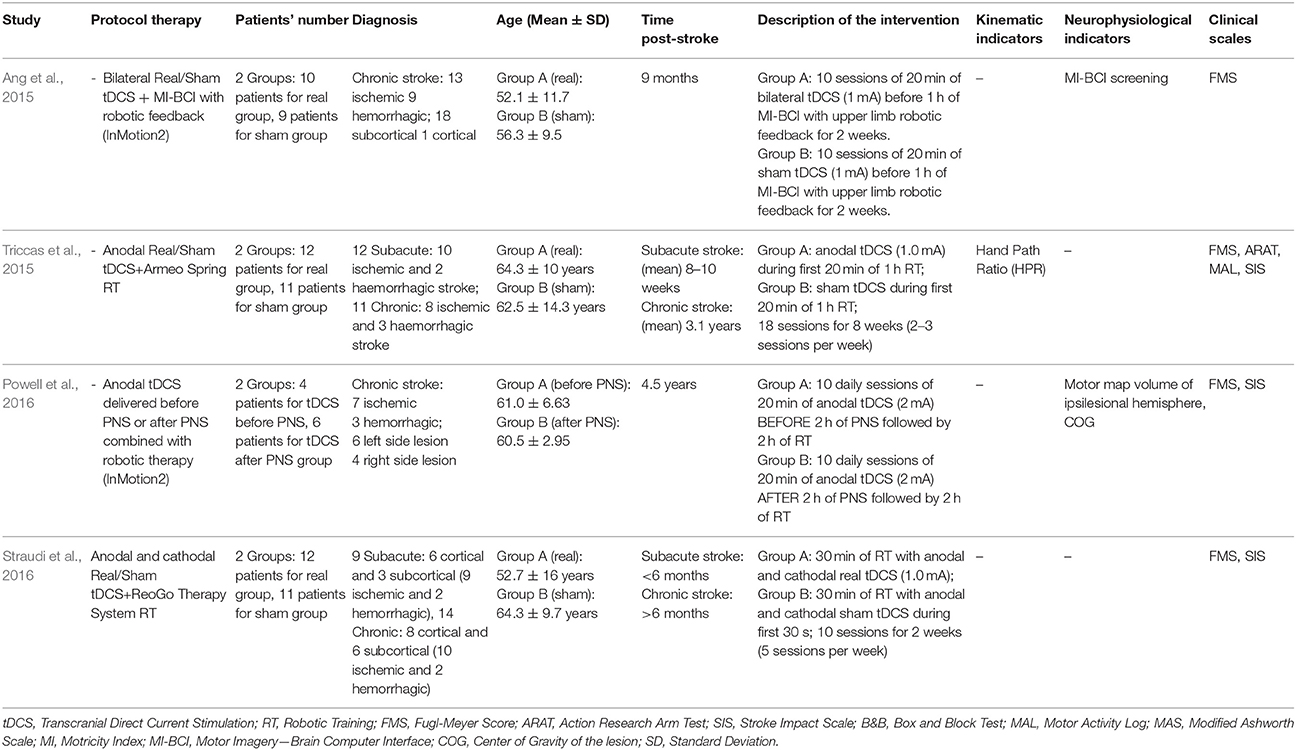

TABLE 1B
www.frontiersin.org

Table 1B. Overview of the studies on tDCS combined with robotic upper limb rehabilitation after stroke.

The number of patients in the groups treated with real tDCS ranged from a minimum of 4 (Powell et al., 2016) to a maximum of 32 (Hesse et al., 2011) for a total of 148 patients; the control group has been used by Hesse et al. (2011) (32 patients), Triccas et al. (2015) (11 patients), Ang et al. (2015) (9 patients), Straudi et al. (2016) (11 patients). More details on the enrolled patients and the experimental groups are reported in Tables 1A,B. It can be observed that in the eight selected studies the enrolled patients vary for number, diagnosis (i.e., chronic or subacute stroke, cortical, or subcortical lesion) and group break down while the mean age is very similar.

Five different robotic devices have been used for delivering therapy across the analyzed studies: the RehaStim BiManu Track, used in three studies (Hesse et al., 2007, 2011; Ochi et al., 2013), the InMotion3 adopted in one study (Giacobbe et al., 2013), the InMotion 2 employed in two studies (Ang et al., 2015; Powell et al., 2016) the Armeo®Spring used by Triccas et al. (2015), and the REO Therapy System, Motorika, LTD, Israel used in Straudi et al. (2016).

For a detailed technical description of these devices please see, Hogan et al. (1993), Hesse et al. (2003), Sanchez et al. (2004), and Krebs et al. (2007).

Effects of Anodal and/or Cathodal tDCS Coupled with Robotic Treatment

Four studies have investigated the effects of tDCS combined with RT and/or compared the effects with RT alone.

The work in Hesse et al. (2007) was the first to investigate the feasibility of combining the two techniques with a single session pilot study. Results showed that subjects with subcortical lesion improved more than patients with cortical damage suggesting that the lesion site represents a determinant factor for evaluating treatment efficacy (Table 2A).

TABLE 2A
www.frontiersin.org

Table 2A. Clinical scales scores.

The other three works, Hesse et al. (2011), Triccas et al. (2015), and Straudi et al. (2016) performed randomized controlled trials with a larger sample of patients. However, they have shown that the adjunct of tDCS to RT only lead to small significant changes in FMS adjusting statistical analysis for the lesion site (cortical vs. subcortical), the timing from the stroke onset (chronic vs. subacute) and the type of stroke (ischemic vs. hemorrhagic) (Tables 2AC).

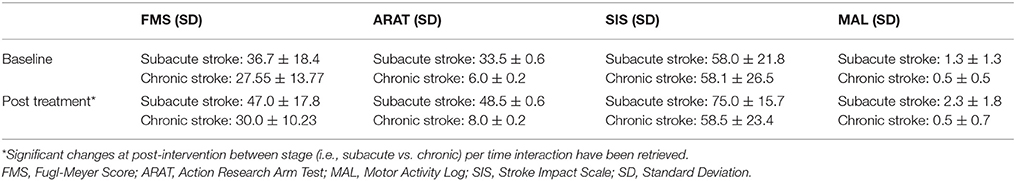

TABLE 2B
www.frontiersin.org

Table 2B. Clinical scales scores.

TABLE 2C
www.frontiersin.org

Table 2C. Clinical scales scores for Triccas et al. (2015).

Timing Effects of tDCS Combined with Robotic Therapy

The temporal relationship between brain stimulation and robotic therapy may play an important role in the design of successful clinical protocols. The study in Edwards et al. (2009) showed that the increase of corticomotor excitability induced by a period of anodal tDCS was still present whether the brain stimulation was followed by robotic practice.

Following this approach, the study in Giacobbe et al. (2013) confirmed that significant improvements (differences between pre/post intervention) were retrieved only in movement smoothness when anodal tDCS is delivered before RT. Conversely, tDCS delivered during practice (aim indicator worsened of 15%) or after practice (a 10% significant speed decrease) seemed to offer no performance improvement (Table 3).

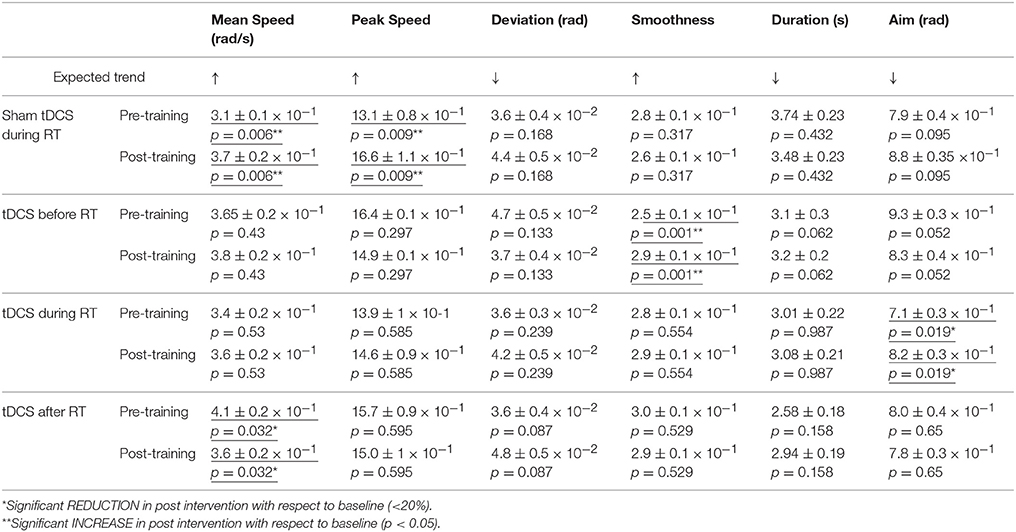

TABLE 3
www.frontiersin.org

Table 3. Kinematics indicators for Giacobbe et al. (2013).

In addition, the results in Table 4 confirmed that motor practice has increased corticomotor excitability of the trained muscles while on the other hand, electrical stimulation delivered at any of the time points in relation to robotic training resulted in no significant changes in muscles MEP amplitude.

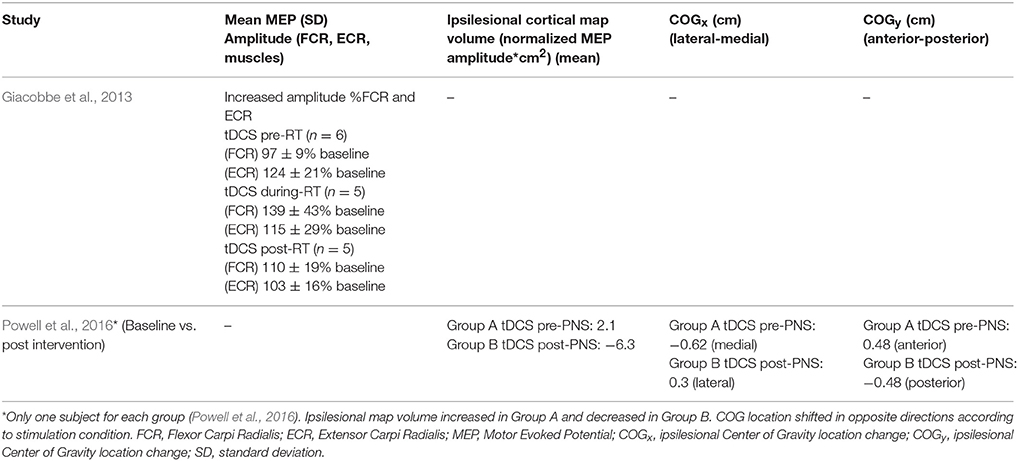

TABLE 4
www.frontiersin.org

Table 4. Neurophysiological indicators.

Effects of Anodal vs. Cathodal tDCS Combined with Robotic Practice

Another interesting aspect to be investigated is the different effect of anodal tDCS with respect to cathodal tDCS when delivered together with robotic therapy (Hesse et al., 2011; Ochi et al., 2013).

In Ochi et al. (2013) both interventions showed significant but moderate improvements in FMS and MAS in post intervention with respect to the baseline with a slight significant effect of cathodal tDCS in the MAS only for patients with right hemispheric lesions (Table 2A).

In addition, neither anodal nor cathodal tDCS enhanced the effects of bimanual RT (Hesse et al., 2011) on subacute stroke subjects in terms of FMS (Table 2A).

Effects of Anodal tDCS Combined with Other Neurostimulation Techniques and RT

In a recent study (Powell et al., 2016), timing variations of electrical brain stimulation paired with nerve stimulation and RT have been investigated to enhance motor recovery in chronic stroke subjects.

Slight significant effect has been observed for SIS in Group A while no significant changes have been retrieved in FMS for both groups and in SIS for Group B (Table 2B). Moreover, no between-group effects have been retrieved both for FMS and SIS.

Neurophysiological measurements were extracted only from two subjects; one subject in Group A showed an increase of cortical map volume while one subject in the Group B revealed a decrease for the same neurophysiological parameter (Table 4).

Another recent study (Ang et al., 2015) aimed to demonstrate the feasibility of using tDCS to facilitate the ability of stroke patients to operate a MI-BCI (Wolpaw et al., 2002) and, subsequently, the efficacy of the treatment together with robotic feedback in a sham-controlled randomized trial.

FMSs showed that real tDCS before MI-BCI and RT did not result in additional motor improvements compared to the single treatment (i.e., MI-BCI paired with robotic feedback) (Table 2B). On the other hand, the evaluation of online MI-BCI accuracy may have benefited from tDCS as already preliminary analyzed in Ang et al. (2012).

Discussion

The analysis of the literature presented in this paper has strengthened the efficacy of RT in stroke rehabilitation (Lo et al., 2010; Hesse et al., 2011; Ochi et al., 2013; Klamroth-Marganska et al., 2014; Triccas et al., 2015; Straudi et al., 2016).

However, the following limitations regarding the effects of combining tDCS and robotic therapy, in motor and functional recovery were retrieved:

• Coupling unilateral (anodal or cathodal) or bilateral tDCS to different RT (unilateral or bilateral, distal or proximal) did not produce significant effects in terms of FMS with respect to RT alone either in chronic or subacute stroke patients (Hesse et al., 2011; Ochi et al., 2013; Triccas et al., 2015; Straudi et al., 2016);

• Delivering anodal tDCS during and after unilateral wrist RT did not increase kinematic performance in chronic stroke patients (Giacobbe et al., 2013);

• Chronic stroke subjects treated with tDCS at the end of PNS followed by RT did not improve their motor functions, as assessed by means of FMS and SIS (Powell et al., 2016).

• Administering tDCS before MI-BCI with robotic feedback did not enhance motor functions (assessed by FMS) in chronic stroke patients respect to MI-BCI treatment alone (Ang et al., 2015).

Nevertheless, despite these limitations, the reported studies show some encouraging findings that would deserve to be investigated by means of larger randomized controlled trials with standardized treatment protocols.

These findings are listed in the following:

– A single session of anodal tDCS during bilateral RT on subacute stroke patients leads to significant improvements in FMS (Hesse et al., 2007);

– Delivering tDCS before RT seems to be more effective than during or after RT (Giacobbe et al., 2013);

– tDCS may enhance the averaged accuracy of classifying the MI of the stroke-affected upper limb (Ang et al., 2015).

– Combined with RT, cathodal stimulation of the contralateral hemisphere could yield higher effects with respect to anodal tDCS stimulation of the affected hemisphere considering lesion side (Ochi et al., 2013);

– Slight clinical effects of anodal tDCS plus exoskeletal robotic treatment were found in subacute vs. chronic stroke patients (Triccas et al., 2015);

– Bilateral tDCS combined with proximal upper limb RT seems to be more effective in chronic patients with subcortical lesions (Straudi et al., 2016);

– Delivering excitatory tDCS before PNS and RT may enhance the functional outcomes of chronic stroke patients more than applying tDCS after PNS and before RT (Powell et al., 2016).

The large variability in the characteristics of patients enrolled in different studies (chronic or acute, ischemic or hemorrhagic, cortical or subcortical lesion) and the lack of a standardized intervention protocol make difficult to compare and provide a definitive analysis of the results.

However, an attempt of analyzing factors influencing outcomes herein presented has been carried out. Several factors have been identified and discussed as responsible for the large variety of the reported results. They are discussed in the following subsections.

Several Types of Intervention and Treatment Intensity

Type of intervention and treatment intensity may represent crucial aspects for evaluating efficacy of tDCS coupled with robot-aided rehabilitation. In fact, from the literature analysis emerges that tDCS and RT effects have been investigated in multiple manners, thus producing different results.

For instance, the feasibility of the combined approach (tDCS and RT) both in chronic and in subacute stroke patients (Hesse et al., 2007; Giacobbe et al., 2013) has been studied in a single-session protocol without a control group.

Moreover, unilateral and/or bilateral tDCS has been applied without considering that the patients characteristics (i.e., type of stroke, lesion site, time post stroke) might have influenced the current findings.

Another important factor to be considered is the delivering time of tDCS respect to RT as well as the inhibitory and/or excitatory approach. In fact, duration, frequency, timing, and polarization of the stimulation are different in every study.

Furthermore, the use of different techniques such as PNS (Powell et al., 2016) and MI-BCI (Ang et al., 2015) in adjunct to tDCS and RT might also have influenced final FMS outcomes (Ang et al., 2015) either enhancing or decreasing the neuromodulatory effect.

For example, PNS activates proprioceptive sensory fibers (Kaelin-Lang et al., 2002) that results in increased excitability of motor cortex (Ridding et al., 2000); in this condition applying tDCS before, during or after PNS may result in constructive or disruptive effects in the targeted motor cortex area.

Finally, the use of tDCS to promote better operation of MI-BCI by stroke subjects represents a new research field. The detection of event-related desynchronization or synchronization (ERD/ERS) (Pfurtscheller and Da Silva, 1999) with EEG-motor imagery is expected to be enhanced by excitatory effect of anodal tDCS (Ang et al., 2012). Anodal tDCS may be employed as a conditioning tool for BCI in stroke (Kasashima et al., 2012), thus increasing the online accuracy of MI-BCI performance.

Stimulation parameters, such as electrical current intensity, represent the other factor that might have influenced results of the different studies; current stimulation varies in between 1 and 2 mA for different durations in the analyzed studies. So far, whether choosing different currents is equally effective in terms of brain stimulation remains unknown (Triccas et al., 2016).

Moreover, in all the selected studies tDCS was delivered using two common large electrodes; recent developments suggest the use of multiple small electrodes that allow optimizing the applied currents to achieve effective and targeted stimulation while ensuring safety of stimulation. Such an aspect may lead to tailor the stimulation to specific patients' population (Dmochowski et al., 2011).

Different Primary Outcomes

FMS is the primary outcome for all the selected studies, except for Giacobbe et al. (2013) where kinematics and neurophysiological parameters are adopted as reference measurements for evaluating motor recovery.

It can be observed that the FMS improvements between pre/post treatment for all the different protocols do not seem to show benefit deriving from the adjunct of tDCS both in real, cathodal, or bilateral configuration. On the other hand, the reported findings strengthen the efficacy of RT in stroke rehabilitation. Furthermore, the analysis of some neurophysiological measurements (Ang et al., 2015; Powell et al., 2016) revealed that tDCS can provide either a benefit or an obstructive effect on chronic stroke subjects when is coupled with other techniques (MI-BCI and PNS) and robotic therapy, depending on the type, size, and location of the lesion.

Type of Stroke and Lesion Site

Another factor that makes difficult to perform a comparative analysis among the studies is the different cohort of recruited patients and the non-homogeneity in their residual abilities.

Depth of the brain lesion, the lesion side, and stroke duration are crucial parameters in determining the more effective rehabilitative treatment. From the analysis of the literature, it emerges that chronic and subacute patients respond in different manners to the same intervention; in fact, subacute subjects undergoing anodal tDCS and RT may have greater improvements with respect to chronic stroke patients (Triccas et al., 2015). One possible explanation is that subacute patients may take advantage from the spontaneous natural recovery that normally occurs during the first days after stroke onset.

The location of the lesion is also another important discriminating factor; in fact, chronic stroke patients with subcortical lesion seem to improve better than subacute with cortical damage when treated with the combined approach (Hesse et al., 2011; Straudi et al., 2016). Patients with subcortical lesion may find more benefit respect to patients with cortical lesion since their cortical connectivity remains intact after a stroke.

Different Robotic Treatment

The last factor that may have influenced effects of the combined approach is represented by the different robotic treatments that are delivered, i.e., bilateral vs. unilateral arm training as well as planar vs. three-dimensional movements.

Some previous studies (Lin et al., 2008; Waller et al., 2008; Wu et al., 2011; Mazzoleni et al., 2013) have investigated effects of bilateral robotic arm training (BRT) vs. unilateral robotic arm training (URT). They have shown that URT has produced greater functional gains together with an increased use of the paretic arm in daily life, whereas BRT has improved proximal upper limb motor function and force generation or movement smoothness.

However, although the BiManu Track, InMotion2. and InMotion3 are conceived for different training methodologies, no great differences in terms of task difficulty are retrieved.

On the other hand, the Armeo® Spring and the ReoGo™ enable to actively train the entire arm thus indirectly allowing patients to compensate hand movements with shoulder. All these characteristics, combined with electrical stimulation may have influenced the Fugl-Meyer total scores at the end of treatment.

Final Considerations

It is worth considering that all the attempted approaches of neuromodulation are based on the inter-hemispheric inhibitory competition model. However, whether “up-regulation” of lesioned hemisphere lead to better results than “down-regulation” of contralateral hemisphere may not be valid in all conditions and for all patients. In fact, depending on the size of the lesion and the gravity of the impairment (moderate-to-severe impairment) it might be preferable to use the excitatory approach rather the inhibitory.

Recent findings suggest a possible alternative approach of neuromodulation. This method is based on the inhibition of the ipsilesional motor cortex aimed to favor motor learning through mechanisms of “homeostatic” plasticity (Di Lazzaro et al., 2013).

Recently, Di Pino et al. (2014) proposed a bimodal balance-recovery model, in which the influence of inter-hemispheric balancing on functional recovery depends on the structural reserve spared by the lesion. In this light, the above-described sources of individual variability, including lesion location and size as well as impaired connectivity, are all factors that could contribute to determine the theorized concept of structural reserve and thus guide the neuromodulatory intervention toward a “rebalancing” or a “vicariation” approach.

In this context, a multimodal pre-therapy diagnosis could be envisaged, involving the clinical history of the patient, time elapsed after the stroke, topography of the lesion, and type and severity of functional impairment (Di Pino et al., 2014).

Such a patient-tailored approach together with technology advancements in robotic devices may lead to obtain better improvements in motor and functional recovery.

Conclusions and Future Perspectives

This paper has presented a literature analysis of combining non-invasive electrical brain stimulation (tDCS) with upper limb robotic therapy. The large variability in the characteristics of patients enrolled in different studies (chronic or acute, ischemic or hemorrhagic, cortical or subcortical lesion) and the lack of a standardized intervention protocol make difficult to reach a definite conclusion.

Restoration of motor control seems to be the same after electrical brain stimulation coupled with RT and after RT alone as supported by a quantitative analysis of FMSs.

Furthermore, these findings confirm the effectiveness of RT in post-stroke patients.

However, slight encouraging effects arise accounting for the lesion site, the type of stroke and type of damage thus suggesting the development of patient-tailored rehabilitative treatments.

In future studies, a more individually tailored approach is required to choose the best type of tDCS (excitatory and/or inhibitory) and the best possible target (ipsilesional or contralesional hemisphere) after taking into consideration several parameters. Moreover, such studies will help to refine the bimodal balance–recovery model and test whether the efficacy of individualized NIBS therapy combined with robotic therapy might result superior to the current methods.

Author Contributions

DS and LZ designed the paper, analyzed the literature, analyzed robot data, and wrote the manuscript. StM partly analyzed the clinical literature together with SaM, MB, and GM and they also revised the manuscripts. FR revised the manuscript and contributed to write clinical parts related to neuromodulation. EG, VD, and SS supervised the writing. All the authors read and approved the final version of the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer PL and handling Editor declared their shared affiliation, and the handling Editor states that the process nevertheless met the standards of a fair and objective review.

Acknowledgments

This work was supported by: European Project H2020/AIDE, Multimodal and Natural Computer Interaction Adaptive Multimodal Interfaces to Assist Disabled People in Daily Activities (CUP J42I15000030006); Italian Institute for Labour Accidents (INAIL) in the framework of BRiC 2016 (CUP: C82F17000040001) and in the framework of the PPR 2 project (CUP: E58C13000990001).

References

Ang, K. K., Guan, C., Phua, K. S., Wang, C., Teh, I., Chen, C. W., et al. (2012). Transcranial direct current stimulation and EEG-based motor imagery BCI for upper limb stroke rehabilitation. Conf. Proc. IEEE Eng. Med. Biol. Soc. 2012, 4128–4131. doi: 10.1109/EMBC.2012.6346875

PubMed Abstract | CrossRef Full Text | Google Scholar

Ang, K. K., Guan, C., Phua, K. S., Wang, C., Zhao, L., Teo, W. P., et al. (2015). Facilitating effects of transcranial direct current stimulation on motor imagery brain-computer interface with robotic feedback for stroke rehabilitation. Arch. Phys. Med. Rehabil. 96, S79–S87. doi: 10.1016/j.apmr.2014.08.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Bastani, A., and Jaberzadeh, S. (2012). Does anodal transcranial direct current stimulation enhance excitability of the motor cortex and motor function in healthy individuals and subjects with stroke: a systematic review and meta-analysis. Clin. Neurophysiol. 123, 644–657. doi: 10.1016/j.clinph.2011.08.029

PubMed Abstract | CrossRef Full Text | Google Scholar

Bolognini, N., Pascual-Leone, A., and Fregni, F. (2009). Using non-invasive brain stimulation to augment motor training-induced plasticity. J. Neuroeng. Rehabil. 6:8. doi: 10.1186/1743-0003-6-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Brewer, B. R., McDowell, S. K., and Worthen-Chaudhari, L. C. (2007). Poststroke upper extremity rehabilitation: a review of robotic systems and clinical results. Top. Stroke Rehabil. 14, 22–44. doi: 10.1310/tsr1406-22

PubMed Abstract | CrossRef Full Text | Google Scholar

Danzl, M. M., Chelette, K. C., Lee, K., Lykins, D., and Sawaki, L. (2013). Brain stimulation paired with novel locomotor training with robotic gait orthosis in chronic stroke: a feasibility study. NeuroRehabilitation 33, 67–76. doi: 10.3233/NRE-130929

PubMed Abstract | CrossRef Full Text | Google Scholar

Dias, D., Lains, J., Pereira, A., Nunes, R., Caldas, J., Amaral, C., et al. (2007). Can we improve gait skills in chronic hemiplegics? A randomised control trial with gait trainer. Eur. Medicophys. 43, 499.

PubMed Abstract | Google Scholar

Dietz, V. (2002). Do human bipeds use quadrupedal coordination? Trends Neurosci. 25, 462–467. doi: 10.1016/S0166-2236(02)02229-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Dietz, V., Nef, T., and Rymer, W. Z. (Eds.) (2011). Neurorehabilitation Technology. London: Springer Science & Business Media.

Google Scholar

Di Lazzaro, V., Capone, F., Di Pino, G., Pellegrino, G., Florio, L., Zollo, L., et al. (2016). Combining robotic training and non-invasive brain stimulation in severe upper limb-impaired chronic stroke patients. Front. Neurosci. 10:88. doi: 10.3389/fnins.2016.00088

PubMed Abstract | CrossRef Full Text | Google Scholar

Di Lazzaro, V., Rothwell, J. C., Talelli, P., Capone, F., Ranieri, F., Wallace, A. C., et al. (2013). Inhibitory theta burst stimulation of affected hemisphere in chronic stroke: a proof of principle, sham-controlled study. Neurosci. Lett. 553, 148–152. doi: 10.1016/j.neulet.2013.08.013

PubMed Abstract | CrossRef Full Text | Google Scholar

Di Pino, G., Pellegrino, G., Assenza, G., Capone, F., Ferreri, F., Formica, D., et al. (2014). Modulation of brain plasticity in stroke: a novel model for neurorehabilitation. Nat. Rev. Neurol. 10, 597–608. doi: 10.1038/nrneurol.2014.162

PubMed Abstract | CrossRef Full Text | Google Scholar

Dmochowski, J. P., Datta, A., Bikson, M., Su, Y., and Parra, L. C. (2011). Optimized multi-electrode stimulation increases focality and intensity at target. J. Neural Eng. 8:046011. doi: 10.1088/1741-2560/8/4/046011

PubMed Abstract | CrossRef Full Text | Google Scholar

Duque, J., Hummel, F., Celnik, P., Murase, N., Mazzocchio, R., and Cohen, L. G. (2005). Transcallosal inhibition in chronic subcortical stroke. Neuroimage 28, 940–946. doi: 10.1016/j.neuroimage.2005.06.033

PubMed Abstract | CrossRef Full Text | Google Scholar

Edwards, D. J., Krebs, H. I., Rykman, A., Zipse, J., Thickbroom, G. W., Mastaglia, F. L., et al. (2009). Raised corticomotor excitability of M1 forearm area following anodal tDCS is sustained during robotic wrist therapy in chronic stroke. Restor. Neurol. Neurosci. 27, 199–207. doi: 10.3233/RNN-2009-0470

PubMed Abstract | CrossRef Full Text | Google Scholar

Feys, H., De Weerdt, W., Verbeke, G., Steck, G. C., Capiau, C., Kiekens, C., et al. (2004). Early and repetitive stimulation of the arm can substantially improve the long-term outcome after stroke: a 5-year follow-up study of a randomized trial. Stroke 35, 924–929. doi: 10.1161/01.STR.0000121645.44752.f7

PubMed Abstract | CrossRef Full Text | Google Scholar

Franceschini, M., La Porta, F., Agosti, M., and Massucci, M. (2010). Is health-related-quality of life of stroke patients influenced by neurological impairments at one year after stroke? Eur. J. Phys. Rehabil. Med. 46, 389–399.

PubMed Abstract | Google Scholar

Fregni, F., Boggio, P. S., Mansur, C. G., Wagner, T., Ferreira, M. J., Lima, M. C., et al. (2005). Transcranial direct current stimulation of the unaffected hemisphere in stroke patients. Neuroreport 16, 1551–1555. doi: 10.1097/01.wnr.0000177010.44602.5e

PubMed Abstract | CrossRef Full Text | Google Scholar

Fugl-Meyer, A. R., Jääskö, L., Leyman, I., Olsson, S., and Steglind, S. (1974). The post-stroke hemiplegic patient. 1. a method for evaluation of physical performance. Scand. J. Rehabil. Med. 7, 13–31.

PubMed Abstract | Google Scholar

Gensini, G. F (2005). Stroke Prevention and Educational Awareness Diffusion. Ictus Cerebrale: Linee Guida Italiane di Prevenzione e Trattamento. Milano. Available online at: http://www.iso-spread.it/capitoli/LINEE_GUIDA_SPREAD_8a_EDIZIONE.pdf

Geroin, C., Picelli, A., Munari, D., Waldner, A., Tomelleri, C., and Smania, N. (2011). Combined transcranial direct current stimulation and robot-assisted gait training in patients with chronic stroke: a preliminary comparison. Clin. Rehabil. 25, 537–548. doi: 10.1177/0269215510389497

PubMed Abstract | CrossRef Full Text | Google Scholar

Giacobbe, V., Krebs, H. I., Volpe, B. T., Pascual-Leone, A., Rykman, A., Zeiarati, G., et al. (2013). Transcranial direct current stimulation (tDCS) and robotic practice in chronic stroke: the dimension of timing. Neurorehabilitation, 33, 49–56. doi: 10.3233/NRE-130927

PubMed Abstract | CrossRef Full Text | Google Scholar

Hesse, S., Helm, B., Krajnik, J., Gregoric, M., and Mauritz, K. H. (1997). Treadmill training with partial body weight support: influence of body weight release on the gait of hemiparetic patients. Neurorehabil. Neural. Repair. 11, 15–20. doi: 10.1177/154596839701100103

CrossRef Full Text | Google Scholar

Hesse, S., Schulte-Tigges, G., Konrad, M., Bardeleben, A., and Werner, C. (2003). Robot-assisted arm trainer for the passive and active practice of bilateral forearm and wrist movements in hemiparetic subjects. Arch. Phys. Med. Rehabil. 84, 915–920. doi: 10.1016/S0003-9993(02)04954-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Hesse, S., and Uhlenbrock, D. (2000). A mechanized gait trainer for restoration of gait. J. Rehabil. Res. Dev. 37, 701–708.

PubMed Abstract | Google Scholar

Hesse, S., Waldner, A., Mehrholz, J., Tomelleri, C., Pohl, M., and Werner, C. (2011). Combined transcranial direct current stimulation and robot-assisted arm training in subacute stroke patients an exploratory, randomized multicenter trial. Neurorehabil. Neural Repair. 25, 838–846. doi: 10.1177/1545968311413906

PubMed Abstract | CrossRef Full Text | Google Scholar

Hesse, S., Werner, C., Schonhardt, E. M., Bardeleben, A., Jenrich, W., and Kirker, S. G. B. (2007). Combined transcranial direct current stimulation and robot-assisted arm training in subacute stroke patients: a pilot study. Restor. Neurol. Neurosci. 25, 9–15.

PubMed Abstract | Google Scholar

Hogan, N., Krebs, H. I., Charnnarong, J., Srikrishna, P., and Sharon, A. (1993). “MIT-MANUS: a workstation for manual therapy and training II,” in Applications in Optical Science and Engineering (Boston, MA: International Society for Optics and Photonics), 28–34. Available online at: http://proceedings.spiedigitallibrary.org/proceeding.aspx?articleid=1004403

Google Scholar

Hummel, F. C., and Cohen, L. G. (2006). Non-invasive brain stimulation: a new strategy to improve neurorehabilitation after stroke? Lancet Neurol. 5, 708–712. doi: 10.1016/S1474-4422(06)70525-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Hummel, F., Celnik, P., Giraux, P., Floel, A., Wu, W. H., Gerloff, C., et al. (2005). Effects of non-invasive cortical stimulation on skilled motor function in chronic stroke. Brain 128, 490–499. doi: 10.1093/brain/awh369

PubMed Abstract | CrossRef Full Text | Google Scholar

Jayaram, G., and Stinear, J. W. (2009). The effects of transcranial stimulation on paretic lower limb motor excitability during walking. J. Clin. Neurophysiol. 26, 272–279. doi: 10.1097/WNP.0b013e3181af1d41

PubMed Abstract | CrossRef Full Text | Google Scholar

Kaelin-Lang, A., Luft, A. R., Sawaki, L., Burstein, A. H., Sohn, Y. H., and Cohen, L. G. (2002). Modulation of human corticomotor excitability by somatosensory input. J. Physiol. 540, 623–633. doi: 10.1113/jphysiol.2001.012801

PubMed Abstract | CrossRef Full Text | Google Scholar

Kandel, M., Beis, J. M., Le Chapelain, L., Guesdon, H., and Paysant, J. (2012). Non-invasive cerebral stimulation for the upper limb rehabilitation after stroke: a review. Ann. Phys. Rehabil. Med. 55, 657–680. doi: 10.1016/j.rehab.2012.09.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Kasashima, Y., Fujiwara, T., Matsushika, Y., Tsuji, T., Hase, K., Ushiyama, J., et al. (2012). Modulation of event-related desynchronization during motor imagery with transcranial direct current stimulation (tDCS) in patients with chronic hemiparetic stroke. Exp. Brain Res. 221, 263–268. doi: 10.1007/s00221-012-3166-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Klamroth-Marganska, V., Blanco, J., Campen, K., Curt, A., Dietz, V., Ettlin, T., et al. (2014). Three-dimensional, task-specific robot therapy of the arm after stroke: a multicentre, parallel-group randomised trial. Lancet Neurol. 13, 159–166. doi: 10.1016/S1474-4422(13)70305-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Krebs, H. I., Volpe, B. T., Williams, D., Celestino, J., Charles, S. K., Lynch, D., et al. (2007). Robot-aided neurorehabilitation: a robot for wrist rehabilitation. IEEE Trans. Neural Syst. Rehabil. Eng. 15, 327. doi: 10.1109/TNSRE.2007.903899

PubMed Abstract | CrossRef Full Text | Google Scholar

Kwakkel, G., Kollen, B. J., and Krebs, H. I. (2007). Effects of robot-assisted therapy on upper limb recovery after stroke: a systematic review. Neurorehabil. Neural Repair. 22, 111–121. doi: 10.1177/1545968307305457

PubMed Abstract | CrossRef Full Text | Google Scholar

Lefaucheur, J. P. (2016). A comprehensive database of published tDCS clinical trials (2005–2016). Neurophysiol. Clin. 46, 319–398. doi: 10.1016/j.neucli.2016.10.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Lefaucheur, J. P., Antal, A., Ayache, S. S., Benninger, D. H., Brunelin, J., Cogiamanian, F., et al. (2017). Evidence-based guidelines on the therapeutic use of transcranial direct current stimulation (tDCS). Clin. Neurophysiol. 128, 56–92. doi: 10.1016/j.clinph.2016.10.087

PubMed Abstract | CrossRef Full Text | Google Scholar

Lin, K. C., Chang, Y. F., Wu, C. Y., and Chen, Y. A. (2008). Effects of constraint-induced therapy versus bilateral arm training on motor performance, daily functions, and quality of life in stroke survivors. Neurorehabil. Neural Repair. 23, 441–448. doi: 10.1177/1545968308328719

PubMed Abstract | CrossRef Full Text | Google Scholar

Lindenberg, R., Renga, V., Zhu, L. L., Nair, D., and Schlaug, G. M. D. P. (2010). Bihemispheric brain stimulation facilitates motor recovery in chronic stroke patients. Neurology 75, 2176–2184. doi: 10.1212/WNL.0b013e318202013a

PubMed Abstract | CrossRef Full Text | Google Scholar

Lo, A. C., Guarino, P. D., Richards, L. G., Haselkorn, J. K., Wittenberg, G. F., Federman, D. G., et al. (2010). Robot-assisted therapy for long-term upper-limb impairment after stroke. N. Eng. J. Med. 362, 1772–1783. doi: 10.1056/NEJMoa0911341

PubMed Abstract | CrossRef Full Text | Google Scholar

Mazzoleni, S., Dario, P., Posteraro, F., and Iardella, L. (2015). “Effects of combined transcranial direct current stimulation and wrist robot-assisted therapy in subacute stroke patients: preliminary results,” in 2015 IEEE International Conference on Rehabilitation Robotics (ICORR) (Singapore), 217–222.

Google Scholar

Mazzoleni, S., Sale, P., Franceschini, M., Bigazzi, S., Carrozza, M. C., Dario, P., et al. (2013). Effects of proximal and distal robot-assisted upper limb rehabilitation on chronic stroke recovery. Neurorehabilitation 33, 33–39. doi: 10.3233/NRE-130925

PubMed Abstract | CrossRef Full Text | Google Scholar

Mehrholz, J., Pohl, M., Platz, T., Kugler, J., and Elsner, B. (2015). Electromechanical and robot-assisted arm training for improving activities of daily living, arm function, and arm muscle strength after stroke. Cochrane Database Syst. Rev. 2015:CD006876. doi: 10.1002/14651858.CD006876

CrossRef Full Text | Google Scholar

Nitsche, M. A., and Paulus, W. (2000). Excitability changes induced in the human motor cortex by weak transcranial direct current stimulation. J. Physiol. 527, 633–639. doi: 10.1111/j.1469-7793.2000.t01-1-00633.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Ochi, M., Saeki, S., Oda, T., Matsushima, Y., and Hachisuka, K. (2013). Effects of anodal and cathodal transcranial direct current stimulation combined with robotic therapy on severely affected arms in chronic stroke patients. J. Rehabil. Med. 45, 137–140. doi: 10.2340/16501977-1099

PubMed Abstract | CrossRef Full Text | Google Scholar

Peurala, S. H., Tarkka, I. M., Pitkänen, K., and Sivenius, J. (2005). The effectiveness of body weight-supported gait training and floor walking in patients with chronic stroke. Arch. Phys. Med. Rehabil. 86, 1557–1564. doi: 10.1016/j.apmr.2005.02.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Pfurtscheller, G., and Da Silva, F. L. (1999). Event-related EEG/MEG synchronization and desynchronization: basic principles. Clin. Neurophysiol. 110, 1842–1857. doi: 10.1016/S1388-2457(99)00141-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Picelli, A., Chemello, E., Castellazzi, P., Roncari, L., Waldner, A., Saltuari, L., et al. (2015). Combined effects of transcranial direct current stimulation (tDCS) and transcutaneous spinal direct current stimulation (tsDCS) on robot-assisted gait training in patients with chronic stroke: a pilot, double blind, randomized controlled trial. Restorat. Neurol. Neurosci. 33, 357–368. doi: 10.3233/RNN-140474

PubMed Abstract | CrossRef Full Text | Google Scholar

Powell, E. S., Carrico, C., Westgate, P. M., Chelette, K. C., Nichols, L., Reddy, L., et al. (2016). Time configuration of combined neuromodulation and motor training after stroke: a proof-of-concept study. NeuroRehabilitation 39, 439–449. doi: 10.3233/NRE-161375

PubMed Abstract | CrossRef Full Text | Google Scholar

Prange, G. B., Jannink, M. J., Groothuis-Oudshoorn, C. G., Hermens, H. J., and Ijzerman, M. J. (2006). Systematic review of the effect of robot-aided therapy on recovery of the hemiparetic arm after stroke. J. Rehabil. Res. Dev. 43, 171. doi: 10.1682/JRRD.2005.04.0076

PubMed Abstract | CrossRef Full Text | Google Scholar

Raithatha, R., Carrico, C., Powell, E. S., Westgate, P. M., Chelette, I. I., Kenneth, C., et al. (2016). Non-invasive brain stimulation and robot-assisted gait training after incomplete spinal cord injury: a randomized pilot study. Neurorehabilitation 38, 15–25. doi: 10.3233/NRE-151291

PubMed Abstract | CrossRef Full Text | Google Scholar

Ridding, M. C., Brouwer, B., Miles, T. S., Pitcher, J. B., and Thompson, P. D. (2000). Changes in muscle responses to stimulation of the motor cortex induced by peripheral nerve stimulation in human subjects. Exp. Brain Res. 131, 135–143. doi: 10.1007/s002219900269

PubMed Abstract | CrossRef Full Text | Google Scholar

Sacco, S., Stracci, F., Cerone, D., Ricci, S., and Carolei, A. (2011). Epidemiology of stroke in Italy. Int. J. Stroke 6, 219–227. doi: 10.1111/j.1747-4949.2011.00594.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Sanchez, R., Reinkensmeyer, D. E. R. I. C., Shah, P., Liu, J., Rao, S., Smith, R., et al. (2004). “Monitoring functional arm movement for home-based therapy after stroke,” in 26th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (San Francisco, CA), 4787–4790.

Google Scholar

Stagg, C. J., and Johansen-Berg, H. (2013). Studying the effects of transcranial direct-current stimulation in stroke recovery using magnetic resonance imaging. Front. Hum. Neurosci. 7:857. doi: 10.3389/fnhum.2013.00857

PubMed Abstract | CrossRef Full Text | Google Scholar

Straudi, S., Fregni, F., Martinuzzi, C., Pavarelli, C., Salvioli, S., and Basaglia, N. (2016). tDCS and robotics on upper limb stroke rehabilitation: effect modification by stroke duration and type of stroke. Biomed Res. Int. 2016:5068127. doi: 10.1155/2016/5068127

PubMed Abstract | CrossRef Full Text | Google Scholar

Tazoe, T., Endoh, T., Kitamura, T., and Ogata, T. (2014). Polarity specific effects of transcranial direct current stimulation on interhemispheric inhibition. PLoS ONE 9:e11424. doi: 10.1371/journal.pone.0114244

PubMed Abstract | CrossRef Full Text | Google Scholar

Triccas, L. T., Burridge, J. H., Hughes, A. M., Pickering, R. M., Desikan, M., Rothwell, J. C., et al. (2016). Multiple sessions of transcranial direct current stimulation and upper extremity rehabilitation in stroke: a review and meta-analysis. Clin. Neurophysiol. 127, 946–955. doi: 10.1016/j.clinph.2015.04.067

CrossRef Full Text | Google Scholar

Triccas, L. T., Burridge, J. H., Hughes, A., Verheyden, G., Desikan, M., and Rothwell, J. (2015). A double-blinded randomised controlled trial exploring the effect of anodal transcranial direct current stimulation and uni-lateral robot therapy for the impaired upper limb in sub-acute and chronic stroke. Neurorehabilitation 37, 181–191. doi: 10.3233/NRE-151251

PubMed Abstract | CrossRef Full Text | Google Scholar

Waller, S. M., Liu, W., and Whitall, J. (2008). Temporal and spatial control following bilateral versus unilateral training. Hum. Mov. Sci. 27, 749–758. doi: 10.1016/j.humov.2008.03.006

CrossRef Full Text | Google Scholar

Warlow, C. P., Dennis, M. S., van Gijn, J., Hankey, G. J., Sandercock, P. A., Bamford, J. M., et al. (2001). Stroke: A Practical Guide to Management. Wiley-Blackwell.

Wolpaw, J. R., Birbaumer, N., McFarland, D. J., Pfurtscheller, G., and Vaughan, T. M. (2002). Brain–computer interfaces for communication and control. Clin. Neurophysiol. 113, 767–791. doi: 10.1016/S1388-2457(02)00057-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, C. Y., Chuang, L. L., Lin, K. C., Chen, H. C., and Tsay, P. K. (2011). Randomized trial of distributed constraint-induced therapy versus bilateral arm training for the rehabilitation of upper-limb motor control and function after stroke. Neurorehabil. Neural Repair 25, 130–139. doi: 10.1177/1545968310380686

PubMed Abstract | CrossRef Full Text | Google Scholar

Yao, J., Drogos, J., Veltink, F., Anderson, C., Concha Urday Zaa, J., Hanson, L. I., et al. (2015). The effect of transcranial direct current stimulation on the expression of the flexor synergy in the paretic arm in chronic stroke is dependent on shoulder abduction loading. Front. Hum. Neurosci. 9:262. doi: 10.3389/fnhum.2015.00262

PubMed Abstract | CrossRef Full Text | Google Scholar

Yozbatiran, N., Keser, Z., Davis, M., Stampas, A., O'Malley, M., Cooper-Hay, C., et al. (2016). Transcranial direct current stimulation (tDCS) of the primary motor cortex and robot-assisted arm training in chronic incomplete cervical spinal cord injury: a proof of concept sham-randomized clinical study. NeuroRehabilitation 39, 401–411. doi: 10.3233/NRE-161371

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: stroke, cerebrovascular accident (CVA), upper-limb, tDCS, neurorehabilitation, robot-aided therapy

Citation: Simonetti D, Zollo L, Milighetti S, Miccinilli S, Bravi M, Ranieri F, Magrone G, Guglielmelli E, Di Lazzaro V and Sterzi S (2017) Literature Review on the Effects of tDCS Coupled with Robotic Therapy in Post Stroke Upper Limb Rehabilitation. Front. Hum. Neurosci. 11:268. doi: 10.3389/fnhum.2017.00268

Received: 20 October 2016; Accepted: 05 May 2017;
Published: 23 May 2017.

Edited by:

Jean-Claude Baron, Université Paris Descartes, France

Reviewed by:

Pavel Lindberg, FR 3636, Université Paris Descartes, INSERM U894, France
Jean-Pascal Lefaucheur, Université de Créteil, France
Friedhelm C. Hummel, Swiss Federal Institute of Technology (EPFL), Switzerland

Copyright © 2017 Simonetti, Zollo, Milighetti, Miccinilli, Bravi, Ranieri, Magrone, Guglielmelli, Di Lazzaro and Sterzi. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Davide Simonetti, d.simonetti@unicampus.it

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
