Catherine Norise
Roy H. Hamilton- Laboratory for Cognition and Neural Stimulation, Department of Neurology, University of Pennsylvania, Philadelphia, PA, USA
Numerous studies over the span of more than a decade have shown that non-invasive brain stimulation (NIBS) techniques, namely transcranial magnetic stimulation (TMS) and transcranial direct current stimulation (tDCS), can facilitate language recovery for patients who have suffered from aphasia due to stroke. While stroke is the most common etiology of aphasia, neurodegenerative causes of language impairment—collectively termed primary progressive aphasia (PPA)—are increasingly being recognized as important clinical phenotypes in dementia. Very limited data now suggest that (NIBS) may have some benefit in treating PPAs. However, before applying the same approaches to patients with PPA as have previously been pursued in patients with post-stroke aphasia, it will be important for investigators to consider key similarities and differences between these aphasia etiologies that is likely to inform successful approaches to stimulation. While both post-stroke aphasia and the PPAs have clear overlaps in their clinical phenomenology, the mechanisms of injury and theorized neuroplastic changes associated with the two etiologies are notably different. Importantly, theories of plasticity in post-stroke aphasia are largely predicated on the notion that regions of the brain that had previously been uninvolved in language processing may take on new compensatory roles. PPAs, however, are characterized by slow distributed degeneration of cellular units within the language system; compensatory recruitment of brain regions to subserve language is not currently understood to be an important aspect of the condition. This review will survey differences in the mechanisms of language representation between the two etiologies of aphasia and evaluate properties that may define and limit the success of different neuromodulation approaches for these two disorders.
Introduction
In recent years there has been a surge of interest in the application of non-invasive brain stimulation (NIBS) techniques such a transcranial magnetic stimulation (TMS) and transcranial direct current stimulation (tDCS) to the treatment of a variety of conditions in psychiatry, neurology, and rehabilitation. In part, this move toward exploring the use of non-invasive neuomodulation is fueled by an increasing understanding of the mechanisms that drive abnormal structural and functional organization of the brain in psychiatric and neurologic disease, and an increasing realization that improved characterization of these mechanisms affords greater opportunities for focused intervention. Clinically-oriented discoveries in systems-level neuroscience have led to a sea change in the conceptualization of a variety of disease processes such as depression (Boggio et al., 2008; Brunoni et al., 2011, 2012), dementia syndromes (Freitas et al., 2011; Elder and Taylor, 2014), traumatic brain injury (Demirtas-Tatlidede et al., 2012), and focal deficits after stroke (Schjetnan and Escobar, 2012; Blesneag et al., 2015), not simply as problems with specific regions of the brain, but as problems with brain networks, the treatment of which is directly linked to the ability to harness and modulate the brains' capacity for functional reorganization.
Evidence indicates that recovery of language abilities in patients with aphasia depends on reorganization of brain function (Saur et al., 2006; Sarasso et al., 2010; Abel et al., 2015). Recent advancements in our understanding of the neurobiology of language and cognitive neuroscience has revealed the importance of dynamic alteration of the normally left-hemisphere dominant language network in the setting of aphasia and aphasia recovery (Fridriksson, 2010; Hamilton et al., 2011; Fridriksson et al., 2013). For instance, a recent a study by Fridriksson and colleagues indicated that alterations in activation of perilesional areas could predict treatment response in patients with chronic aphasia (Fridriksson et al., 2013).
Aphasia is most commonly seen after stroke, however a second pathologic process that can commonly lead to deficits of language is neurodegenerative disease. As the population ages neurodegenerative disorders represent a growing epidemic. Neurodegenerative dementias like Alzheimer's disease and frontotemporal degeneration frequently manifest with language disorder syndromes, which are collectively referred to as primary progressive aphasias (Mesulam, 2001).
There are a number of important phenomenological overlaps between aphasia due to stroke and primary progressive aphasia (PPA). There are also a number of notable differences. Undoubtedly, some of the key differences are mediated by a critical distinction in the underlying pathological processes between the two conditions: Aphasia after stroke is the result of acute, focal obliteration of components of the brain's language network, whereas PPA can be conceptualized as a gradual progressive degradation of the efficiency and activity of this network. This difference is likely to lead to important further distinctions in whether and how the representation of the language in the brain changes over time in these two disease processes. Examination of this topic may reveal important insights into how mechanisms of neurologic disease can be used to guide neuromodulatory therapies. At the same time, exploring the effects of brain stimulation on two different mechanisms of aphasia may also further inform our understanding of language systems in the brain, and the compensatory neuroplastic processes employed by neural systems to mediate recovery from aphasia (Tables 1, 2).
Table 1. Inclusion exclusion criteria for identifying treatment studies.
Table 2. Included treatments studies.
Comparing Causes and Consequences of Aphasia
Aphasia, is one of the most common post-stroke cognitive disorders. Stroke affects 795,000 Americans, and there are approximately 80,000 new cases of aphasia per year (Wade et al., 1986; National Stroke Association, 2008; Kyrozis et al., 2009; American Heart Association, 2016). Aphasia in the setting of stroke most often develops after left middle cerebral artery (Warburton et al., 1999) or left internal carotid artery territory infarcts. Depending on the location of the lesion in stroke, the clinical presentation of aphasia can be characterized by different profiles of language deficits.
The clinical characterization of aphasia syndromes due to stroke has been dominated by a model that was built and refined by critical clinical observations of Broca, Werinicke, Lichtheim, and later Geschwind (Broca, 1861; Wernicke, 1874; Geschwind, 1972; Prins and Bastiaanse, 2006). However, recent advances in the neurobiology of language have expanded aspects of this classical model in a variety of ways that are beyond the scope of this review (Poeppel, 2012). Therefore, without diminishing the historical importance of this model, which remains highly clinically relevant, we will largely limit our discussion of aphasia presentations to the symptom elements that have been used to define classic aphasia syndromes: fluency, comprehension, repetition, and naming ability.
Impaired fluency has been associated with lesions to the left inferior frontal gyrus, including Broca's area, but are also observed with lesions to the putamen or the anterior centrum semiovale (Kreisler et al., 2000). Patients with non-fluent aphasia due to stroke commonly exhibit effortful speech characterized by the inability to formulate grammatically correct utterances (agrammatism). In classical post-stroke aphasia models, deficits in the comprehension of words and sentences traditionally localize to injury of the posterior aspect of the superior temporal gyrus (Wernicke's area), as well as surrounding cortical areas and underlying white matter structures (Alexander, 1997). When more anterior regions of the perisylvian cortex are spared, these patients are left with a fluent aphasia in which the rate and flow of words is relatively preserved, despite impairment in the communication of content. Of note, errors of grammatical comprehension can also be seen with lesions of the inferior frontal gyrus, reflecting the frontal lobe's broader role in organizing grammatical constructions (Peelle et al., 2008; Charles et al., 2014). Relatively isolated deficits in repetition—a finding seen in so-called conduction aphasia—have traditionally been localized to lesions of the arcuate faciculus, but are also seen with damage to other areas including the left superior marginal gyrus and sometimes extend to the temporal cortex (Kreisler et al., 2000; Bernal and Ardila, 2009; Yourganov et al., 2015). Naming localizes poorly in the dominant hemisphere and is associated with lesions throughout the perisylvian cortex, underlying white matter pathways, and even deep gray areas like the thalamus (Kreisler et al., 2000). The degree to which individuals recover from post-stroke aphasia is variable (Laska et al., 2001; Meinzer et al., 2010), and persistent deficits are common (Robey, 1994; Robey and Wambaugh, 1999; Basso and Marangolo, 2000; Nickels, 2002). Unfortunately, despite continuing advances in our understanding of the neurobiology and cognitive neuroscience of language and aphasia, the efficacy of current behaviorally-based rehabilitation approaches remains quite limited (Mimura et al., 1998; Rosen et al., 2000; Winhuisen et al., 2005; Heiss and Thiel, 2006; Saur et al., 2006).
Primary progressive aphasia (PPA) refers to acquired language impairments that result from neurodegenerative diseases that affect cognition. Thus, far three variants of PPA have been identified: non-fluent, semantic, and logopenic. Similar to the deficits observed in aphasias due to stroke, those in PPA are characterized by impairments in fluency, comprehension, repetition, and naming. Each variant of PPA is characterized by a separate pattern of atrophy and a distinct clinical presentation. In the non-fluent variant of PPA, atrophy is typically observed in the left posterior frontal and insular region, including the inferior frontal gyrus, which overlaps to a large degree with the area of injury often seen in patients with non-fluent aphasia due to stoke. In some cases, atrophy is also distributed across the insula, and is seen in premotor and supplementary motor areas (Josephs et al., 2008; Gorno-Tempini et al., 2011; Wilson et al., 2011). The typical clinical presentation for these patients, like that seen in patients with non-fluent aphasia due to stroke, involves effortful speech, agrammatism, and production errors (Mesulam, 2001, 2008; Gorno-Tempini et al., 2011).
Clinically, semantic variant PPA shares some features with Wernicke's aphasia in that it is characterized by impairments in naming and single-word comprehension (Hodges and Patterson, 2007; Gorno-Tempini et al., 2011; Thompson et al., 2015). However, a notable difference between the two clinical presentations is that while repetition is impaired in Wernicke's aphasia, it can be relatively spared in the semantic variant of PPA (Hodges and Patterson, 2007; Gorno-Tempini et al., 2011; Thompson et al., 2015). Patterns of neural injury also differ between the two, in that the semantic variant of PPA features atrophy predominantly affecting the anterior, ventral, and lateral aspects temporal lobes. By contrast, the lesioned area in Wernicke's aphasia is traditionally seen in the posterior aspect of the left temporal lobe, although some recent evidence suggests that the anterior temporal lobe may also play an important role in language comprehension (Binder, 2015). While temporal lobe atrophy is often seen bilaterally in semantic variant PPA, it is typically most pronounced on the left (Hodges and Patterson, 2007).
Lastly, the logopenic variant of PPA, shares some similarities with conduction aphasia, in that it is associated with cerebral atrophy involving the posterior superior temporal gyrus, supramarginal gyrus, and angular gyrus, which overlaps with regions associated with conduction aphasia in patients with stroke. Reminiscent of conduction aphasia associated with stroke, one of the prominent features observed in the logopenic variant of PPA is impairment of repetition. However, logopenic PPA is also characterized by several other deficits, including impaired single word retrieval and phonologic errors in spontaneous speech (Gorno-Tempini et al., 2011). The term “logopenic” translates to “few words,” and in keeping with that label, the speech of patients with this variant of PPA is slow and halting with frequent pauses due to word-finding difficulties. However, unlike the non-fluent variant of PPA or most patients with non-fluent aphasia due to stroke, grammar is generally preserved in patients with the logopenic variant.
In summary, while the underlying pathoetiology clearly differs between these two causes of aphasia–lesion vs. atrophy—the three variants of primary progressive aphasia share some of the clinical deficits and anatomic regions of damage with the aphasia syndromes seen in aphasias after stroke including non-fluent aphasias (e.g., Broca's aphasia), fluent aphasias (e.g., Wernicke's aphasia), and conduction aphasia. Mounting evidence supports neuromodulation as a therapeutic option for language recovery in aphasia. As we will discuss below, there is now substantive evidence supporting the effectiveness of brain stimulation in treating aphasia due to stroke, and a small but growing body of evidence demonstrating the promise of these technologies in treating patients with PPA.
Non-Invasive Brain Stimulation in the Treatment of Aphasia
To date, two forms of NIBS have been explored as potential treatments for aphasia: (TMS) and (tDCS). TMS creates a fluxing magnetic field, which allows for the generation of current in underlying cortical neurons, causing them to depolarize. As a result, TMS can be used to manipulate cortical function in a focal manner, effectively allowing for investigation of structure-function relationships in the human cerebral cortex (Pascual-Leone et al., 1998). tDCS, another form of NIBS that has been employed in aphasia, modulates brain activity by delivering a weak polarizing electrical current, which subtly but demonstrably modulates neural activity in the cortex (Schlaug et al., 2009). In addition to the mechanistic differences between tDCS and TMS, these two technologies also differ in several practical ways that are germane to their potential use as therapies. tDCS is a less expensive and much more portable option compared to TMS. The sham condition in tDCS is more reliable, as patients are often able to perceive the sensation of the stimulus in TMS (Priori et al., 2009; Ambrus et al., 2012). The two methods also differ with regards to spatial resolution, where TMS provides focal stimulation and conventional tDCS provides a more distributed current flow in the brain, although recently developed “high-definition” tDCS systems may allow for more focused electrical stimulation (Datta et al., 2009). Lastly the manner in which the current is delivered in tDCS—that is, electrodes strapped to the scalp—allows for greater freedom of movement such that tDCS can be paired with other treatments like physical or speech therapy compared to TMS (Priori et al., 2009).
Non-invasive brain stimulation (NIBS) techniques have been shown to facilitate neuroplastic changes and to yield cumulative effects that last beyond the time of stimulation (Pascual-Leone et al., 1994; Bolognini et al., 2009; Rossi et al., 2009). The biological underpinnings of stimulation-induced changes in neural function are not completely understood. A recent review by Bolognini et al. (2009) highlights evidence that suggests that long-term changes in neural activity and behavior related to TMS are mediated by well-known neural mechanisms of plasticity, including long-term potentiation (LTP) or long-term depression (LTD) seen following repetitive activation of synaptic pathways (Hoffman and Cavus, 2002; Huang et al., 2005), sustained modulation of neurotransmitter levels (Hasselmo, 1995; Strafella et al., 2001, 2003), and gene induction (Hausmann et al., 2000). The same review also explored potential underlying mechanisms of tDCS, suggesting that the long-term effects that accompany this form of stimulation may also be due to synaptic mechanism similar to LTP and LTD (Bolognini et al., 2009). Additionally, the glutamatergic system, specifically NMDA, has been show to play a role in the maintenance of neuroplastic change following stimulation (Liebetanz et al., 2002; Paulus, 2004).
While the various mechanisms described above provide plausible explanations the behavioral effects of neuromodulation, it is noteworthy that the reliability and to some extent the efficacy of brain stimulation techniques—particularly tDCS—remains controversial. In different quantitative reviews and meta-analyses, investigators have debated whether the effects of tDCS on cognition and neurophysiology are reliable, consistent, and predictable (e.g., Horvath et al., 2015, 2016, but also Price et al., 2015). This ongoing controversy underscores the importance of conducting well-controlled, adequately powered studies employing brain stimulation, including studies of aphasia. Importantly, with respect to patients with aphasia, the notion that brain stimulation results can be unreliable or inconsistent further emphasizes the importance of characterizing underlying mechanisms of language reorganization in both post-stroke and neurodegenerative aphasia, and of understanding how these mechanisms ought to inform brain stimulation approaches.
TMS and tDCS in the Treatment of Post-Stroke Aphasia
TMS
To date, most of the TMS research involving brain stimulation and aphasia has been conducted on post-stroke aphasic patients. These studies frequently involve low frequency (1–4 Hz) stimulation to the right hemisphere at sites that are homotopic to damaged left hemisphere structures that are generally understood to be components of the intact language network. The stimulation typically lasts for 20–40 min per session over the course of 10–15 days, and the demonstrated language improvements have, in a number of studies, been shown to persist for months after the discontinuation of stimulation (Naeser et al., 2005; Barwood et al., 2011, 2013; Weiduschat et al., 2011; Abo et al., 2012; Medina et al., 2012; Waldowski et al., 2012; Thiel et al., 2013). For instance, in a case-study reported by our lab, we demonstrated that when low-frequency TMS was applied to the inferior frontal gyrus of the intact right hemisphere of a patient with chronic non-fluent aphasia, there were marked improvements in object naming and spontaneous speech that were maintained for 10 months following a 10-day course of stimulation (Hamilton et al., 2010).
A recent meta-analysis explored the utility of low-frequency repetitive transcranial magnetic stimulation (rTMS). Across 4 articles and 132 patients inhibitory TMS facilitated improvements in naming more so than repetition or comprehension (Li et al., 2015). A second meta-analysis focused specifically on studies that applied low-frequency TMS to the right inferior frontal gyrus of patients with subacute and chronic aphasia after stroke. In this study, Ren and colleagues demonstrated that inhibitory TMS to homotopic areas in the right hemisphere enhanced language recovery, as measured by aphasia severity, expressive language, and receptive language (Ren et al., 2014).
There are different theoretical models that account for how the brains of patients with stroke reorganize language ability, and these models prescribe different approaches for the use of TMS in persons with aphasia. The first and least controversial of these posits that after focal injury of the language dominant hemisphere in stroke, perilesional regions of the left hemisphere (i.e., regions near the area damaged by stroke) are recruited to subserve reorganized language function. This model suggests that one promising approach using TMS would be to excite brain activity in these perilesional left hemisphere regions, an approach successfully taken by Dammekens and colleagues when they applied high-frequency (10 Hz) TMS to the left inferior frontal gyrus a chronic aphasic patient that sustained a stroke affecting the left hemisphere. They found that patient's performance dramatically improved in repetition and naming tasks. These improvements lasted at least 4 months after stimulation (Dammekens et al., 2014).
Other models of stroke recovery focus on the observation that the right hemisphere increases its activation during language tasks in the setting of left-hemisphere strokes. However, the specific role played by the right hemisphere remains controversial. One often-invoked account suggests that right hemisphere activation in the setting of left hemisphere stroke and aphasia is deleterious to language performance. Following severe damage to the left hemisphere, there is thought to be a reduction of transcallosal inhibition, which leads to activation of the right hemisphere. The remodeled language network that arises from the recruitment of the right hemisphere is thought by some to result in inefficient functioning when compared to the activity of the left hemisphere prior to injury (Turkeltaub et al., 2011a). The deleterious nature of the right hemisphere is thought to be due to interhemisphereic inhibition preventing perilesional left hemisphere areas from resuming their role in language production (Belin et al., 1996; Rosen et al., 2000; Shimizu et al., 2002; Martin et al., 2004). This model suggests that inhibiting right hemisphere structures would be an appropriate strategy for enhancing language recovery.
A study by Naeser and colleagues targeted a focal segment of the non-damaged right hemisphere and applied low-frequency rTMS. They found that suppressing the right pars triangularis (PTr) with low-frequency (1 Hz) rTMS led to a significant increase in picture naming accuracy and a decrease in response time. Suppressing the right pars opercularis (Pop), on the other hand, led to a significant increase in response time and no change in the number of pictures named accurately (Naeser et al., 2011). This suggests certain specific areas of the right hemisphere may need to be inhibited for optimal language recovery. Further supporting the utility of inhibiting the right hemisphere, (Khedr et al., 2014) employed a bi-hemispheric stimulation paradigm. In their study Broca's area was stimulated with high-frequency rTMS (20 Hz) and the right hemisphere homolog of Broca's area was inhibited with low-frequency rTMS (1 Hz). In this sham controlled study, patients demonstrated improvement in language that was sustained at the 2-month follow up session (Khedr et al., 2014).
A third model is that the right hemisphere's main role is compensatory in nature. Because TMS studies have largely focused on the interhemispheric inhibition model, there is little data from magnetic brain stimulation studies to support this, however, it is supported by a variety of other accounts including case studies and functional neuroimaging reports (Turkeltaub et al., 2012).
Evidence, however, also supports the notion that these models are not mutually exclusive. Taking into consideration the evidence supporting left and right hemisphere models of aphasia recovery, it is likely that the process is dynamic and involves neuroplastic changes in both hemispheres. Utilizing studies of activation patterns and lesion distribution data, Heiss and Thiel presented a hierarchical model that explored three primary patterns of lesion distribution facilitating recovery in post-stroke aphasia. The first model proposes the restoration of the original activation pattern in the dominant hemisphere. In order to activate perilesional areas, the second model proposes the inhibition of recruited areas in the contralesional hemisphere. The last model, presents the idea of interhemispheric compensation, wherein the recruited homotopic areas are beneficial to language recovery (Heiss and Thiel, 2006).
A meta-analysis of functional imaging literature in patients with aphasia conducted by our lab utilized an activation likelihood estimation (ALE) on functional magnetic resonance imaging (fMRI) data to determine areas of language task-related activity in chronic non-fluent aphasic patients. This study demonstrated a bilateral network of activation in the aphasic population. We also compared patterns of functional activity between sites in patients with chronic aphasia and healthy individuals, in order to make inferences about the roles that activated regions may play in patients with aphasia. Areas recruited in the right hemisphere by aphasic patients by and large mirrored those activated in the left hemisphere of the healthy controls in both location and activation pattern, with the exception of one area, the right pars triangularis (PTr). The right PTr exhibited a different pattern of functional activity than the left hemisphere, suggesting some degree of discordance with the function of left hemisphere language areas in healthy subjects (Turkeltaub et al., 2011a). While this finding in the right PTr suggests that there are areas that do not contribute efficiently to language performance, the finding that most other active areas in the right hemisphere mirrored those of the left suggested that the activity of the right hemisphere is not entirely detrimental to the language recovery process, and may be largely compensatory.
Further exploring the role of the right hemisphere, our lab published a case report of a patient with sequential left and right hemisphere strokes. Following the initial stroke affecting the left hemisphere, the subject enrolled in a TMS trial where she received 10 daily sessions of inhibitory TMS to the right PTr. Inhibitory TMS to the right PTr led to improvements in naming that were maintained 2 months after stimulation. At that time, fMRI confirmed a reduction in the activity of the right PTr. Three months after TMS the patient sustained a second ischemic stroke affecting the right hemisphere, which resulted in worsening aphasia in the absence of other clinical deficits, such as weakness or sensory loss. Behavioral tests confirmed that language function was affected more so than other cognitive domains (Turkeltaub et al., 2011b). The improvements in language function seen after inhibitory TMS to the right PTr and the subsequent worsening after a stroke affecting the right hemisphere supports the idea that the role of the right hemisphere in aphasia recovery is not monolithic, and that some areas of the right hemisphere are beneficial to the recovery of language in post-stroke aphasia.
Language reorganization is a dynamic process and different mechanisms of recovery may be important to different degrees at different times in the post-stroke population. TMS studies, in general, have ranged in their chronicity from subacute to chronic. For example, the studies by Ren et al. and Dammekens et al. engage subjects ranging from 9.4 days to 75 months. A study by Saur and colleagues demonstrated that, after stroke, aphasic patients exhibit increased brain activation on the right during the subacute phase of recovery, followed by a leftward shift in the chronic phase (Saur et al., 2006). These dynamic shifts in language-associated brain activity could theoretically inform which brain stimulation approach is likely to be the most useful in different populations at different times. However, to date no investigation has directly investigated the efficacy of different sides of stimulation at different phases of post-stroke recovery. A recent meta-analysis by Shah-Basak et al. (2016) investigated the efficacy of rTMS and tDCS, including a subanalysis that explored stimulation at different post-stroke phases. They found comparable effect sizes in subacute and chronic studies, though the majority of studies employed a similar approach: low frequency stimulation of the right hemisphere. Whether patients in the subacute or acute phases of stroke recovery would benefit optimally from a different rTMS approach remains an open question.
tDCS
Evidence now suggests that tDCS, may also improve aspects of language production in persons with chronic left hemisphere stroke and non-fluent aphasia (Monti et al., 2008; Baker et al., 2010; Fiori et al., 2011; Fridriksson et al., 2011; Medina et al., 2012). Utilizing a multimodal approach, studies have explored whether different stimulation approaches might be more beneficial for different patients (Datta et al., 2011; Shah-Basak et al., 2015). For example, a study conducted by our lab investigated whether individualized tDCS with different montages could result in lasting language recovery. In this two-phase study chronic patients were first stimulated with four different montages, which included placement of the anode and the cathode over the right and left frontal lobes on different days. Then in the second phase, subjects were randomized into a sham or treatment arm. In the treatment arm patients were stimulated with the montage identified as being most effective in Phase 1 of the study for 10 consecutive days. If randomized into the sham arm subjects received sham stimulation for 10 consecutive days and then crossed over into the treatment arm. Language ability significantly improved at the 2-week and 2-month follow-up time point. Seven out of 12 subjects responded well to a least 1 montage, but the optimal electrode montage across subjects was inconsistent, suggesting not only that tDCS can effectively modulate language recovery, but also that the optimal current pattern for facilitating lasting recovery may differ between patients (Shah-Basak et al., 2015).
In support of the notion that language recovery can be driven by the activation of perilesional brain areas, several studies have demonstrated that activating the left hemisphere with excitatory anodal tDCS has been associated with lasting improvements in language (Flöel et al., 2008; Baker et al., 2010; Fiori et al., 2011; Marangolo et al., 2013; Santos et al., 2013; Meinzer et al., 2014; Vestito et al., 2014; Wu et al., 2015). Baker and colleagues evaluated the effect of tDCS on chronic aphasic patients. Subjects received 5 days of anodal tDCS and 5 days of sham stimulation to the left frontal cortex. During stimulation patients performed a computerized anomia treatment. Significant improvement was observed in naming accuracy after anodal tDCS compared to sham (Baker et al., 2010). A more recent study by Wu and colleagues demonstrated that following anodal stimulation to the left hemisphere, chronic and sub-acute patients demonstrated marked improvements in picture naming and auditory comprehension compared to sham stimulation (Wu et al., 2015).
Regarding the second model, in which the right hemisphere is thought to be deleterious to the language recovery process, some groups have explored inhibitory paradigms. Cathodal tDCS (ctDCS), for example, is thought to decrease excitability of stimulated cortical sites (Nitsche and Paulus, 2001). Kang and colleagues designed a study to evaluate the effect of ctDCS over the right hemisphere in the homologous region to Broca's area in 10 patients with aphasia after stoke. They found that patients demonstrated a significant improvement in picture naming after the last tDCS session, as compared to no change after sham tDCS (Kang et al., 2011). In a different study with patients receiving ctDCS to the undamaged right hemisphere, Rosso and colleagues found improvements in picture naming were predicated on whether or not the arcuate fasciculus had been damaged. The authors also found that patients who had an abnormal interhemispheric balance responded well to inhibition of the undamaged hemisphere (Rosso et al., 2014), which suggests that the right hemisphere contribution to language recovery may, in some circumstances, be deleterious.
Integrating the first and second model, there is growing body of evidence supporting bi-hemispheric stimulation, wherein patients receive anodal tDCS to the left hemisphere and cathodal tDCS to the right hemisphere (Lee et al., 2013; Marangolo et al., 2014; Meinzer et al., 2014; Costa et al., 2015). Meinzer and colleagues conducted a study that contrasted the effect of anodal tDCS, dual hemisphere tDCS, and sham. They found that in both stimulation conditions word retrieval greatly improved (Meinzer et al., 2014). Other studies employing a bilateral stimulation approach support Meinzer, demonstrating that ctDCS to the right hemisphere Brodmann area 44/45 and anodal stimulation to left Brodmann 44/45 results in improved language performance (Costa et al., 2015).
Currently there are not many tDCS studies that directly support the third model of language plasticity, in which the contribution of the recruited right hemisphere is presumed to be beneficial to language recovery. However, one study by Vines and colleagues reported excitatory tDCS to the right inferior frontal gyrus resulted in improved fluency of speech (Vines et al., 2011).
Insofar as different mechanisms of plasticity may emerge in post-stroke aphasia at different times, there is reason to examine whether different tDCS approaches are more or less effective at different stages of recovery. Shah-Basak et al. (2016) examined the relevance of stroke chronicity in a meta-analysis, demonstrating that tDCS delivered in the subacute period resulted in a smaller and less consistent language benefit than stimulation applied in the chronic phase. However, it is unclear from this analysis whether the difference in effect was related to consistent differences in study design between subacute (all between-subject) and chronic (within-subject) investigations.
TMS and tDCS in the Treatment of PPA
TMS
In primary progressive aphasia, the mechanisms by which language ability is represented in the brain are presumed to be different than those posited in post-stroke aphasia, insofar as these patients have cortical areas that are undergoing progressive atrophy, but are still believed to be involved in aspects of language function. Though these atrophic areas maintain some degree of activity in language tasks, over time they lose their processing efficiency and ultimately their functional and structural integrity (Ash et al., 2009; Grossman, 2010; Wilson et al., 2010; Rogalski et al., 2011)
Functional MRI performed during language tasks has been used to contrast the location and degree of brain activity of healthy subjects with that of subjects who have the non-fluent agrammatic variant of primary progressive aphasia (naPPA). Healthy controls were shown to activate both ventral regions of the left frontal lobe (which is associated with grammatical processing) and dorsal left frontal regions (which are associated with working memory). Patients with naPPA, however, only activated the dorsal portions of the left frontal lobe (Wilson et al., 2010). The absence of activity in the cortical regions associated with grammatical processing in the imaging data not only supports the clinical features of the disease, but also suggests that patients with naPPA utilize their remaining left hemisphere to engage in language production without significant right hemisphere recruitment. Of note, one study has previously suggested that a shift in temporal lobe activation from dominant to non-dominant hemisphere can be seen in PPA patients performing comprehension tasks (Vandenbulcke et al., 2005). The shift observed in this study was only observed in patients with a comorbid comprehension deficit (Vandenbulcke et al., 2005), which is not characteristic of non-fluent PPA. At this time the majority on (NIBS) studies in the PPA population focus on patients with fluency deficits. The overall interpretation and significance of this laterality shift remains unclear, particularly since it appears to correlate with worsening performance (Marsh and Hillis, 2006).
Currently, the conceptual approach taken by investigators studying PPA is not predicated on the idea that patients with different PPA subtypes are remapping language functions to novel networks, as seen in stroke patients, but rather that they are still using pre-existing neural areas, but with progressively declining efficiency. This suggests that a therapeutic strategy of facilitating brain activity in these pathologically weakened networks could be beneficial.
While low-frequency TMS is frequently implemented in studies with post-stroke aphasia, high-frequency excitatory rTMS (hf-rTMS) has more often been used in studies of PPA, based on the notion that the left hemisphere language network is broadly downregulated. Hf-rTMS (>5 Hz) has been shown to have an excitatory effect on cortical activity (Maeda et al., 2000). Studies have shown that left hemisphere hf-rTMS can augment a variety of language related tasks, including but not limited to picture naming (Töpper et al., 1998; Mottaghy et al., 1999) and oral word associations (Bridgers and Delaney, 1989). A case report by Finocchiaro and colleagues evaluated the effect of hf-rTMS to the left prefrontal cortex on language and memory. The study demonstrated that following hf-rTMS, subjects sustained a significant and lasting improvement in verb production (Finocchiaro et al., 2006). The study suggests that hf-rTMS to the dominant hemisphere directly strengthens processing within atrophic areas of the language network.
In a more recent study, Trebbastoni and colleagues demonstrated that when hf-TMS was applied to Broca's area and to underlying white matter bundles in the left dorsolateral prefrontal cortex (DLPFC), patients with logopenic variant PPA demonstrated improved accuracy of sentence production only after real stimulation (Trebbastoni et al., 2013). These results support the use of excitatory brain stimulation to enhance the remaining language function in atrophic cortical areas. Cotelli and colleagues conducted a similar study with progressive non-fluent aphasic patients. In their study, patients demonstrated improvement in action naming following hf-rTMS to the left and right DLPFC (Cotelli et al., 2012).
tDCS
Similar to TMS in PPA, research concerning tDCS in PPA is currently sparse. The few studies that have explored the effects of tDCS in PPA have focused on the use of anodal (facilitative) stimulation of the left hemisphere, in order to enhance the activity of still existent but atrophied elements of the perisylvian language network.
Wang and colleagues reported a case in which anodal tDCS of the left posterior perisylvian region was applied in the morning and anodal stimulation of Broca's area was applied in the afternoon in a patient with non-fluent variant PPA. The paradigm resulted in improved auditory word comprehension, picture naming, oral word reading, and word repetition (Wang et al., 2013). More recently, Tsapkini and colleagues explored the effects of anodal tDCS of the left inferior frontal gyrus paired with a behavioral spelling intervention in patients with primary progressive aphasia. Using a within-subject crossover design, they were able to compare a tDCS + spelling intervention paradigm to a sham + spelling intervention paradigm. They found that spelling ability in patients in both the sham group and the stimulation group improved, however, patients that received tDCS + spelling intervention had a persistent improvement at least 2 months after stimulation (Tsapkini et al., 2014). All studies to date have focused on increasing activity the dominant hemisphere. Consistent with differences in models of language representation between post-stroke aphasia and PPAs, no investigators to date have attempted to enhance language abilities in patients with PPA by applying excitatory stimulation to the non-dominant hemisphere.
Discussion
The differences in the mechanisms of language representation between post-stroke aphasia and PPA (Figure 1) inform us with respect to the factors and properties that may define and limit the success of different neuromodulation therapies. Additionally, these differences may also point to likely future directions for research in neuromodulation therapies for these two etiologies of aphasia.

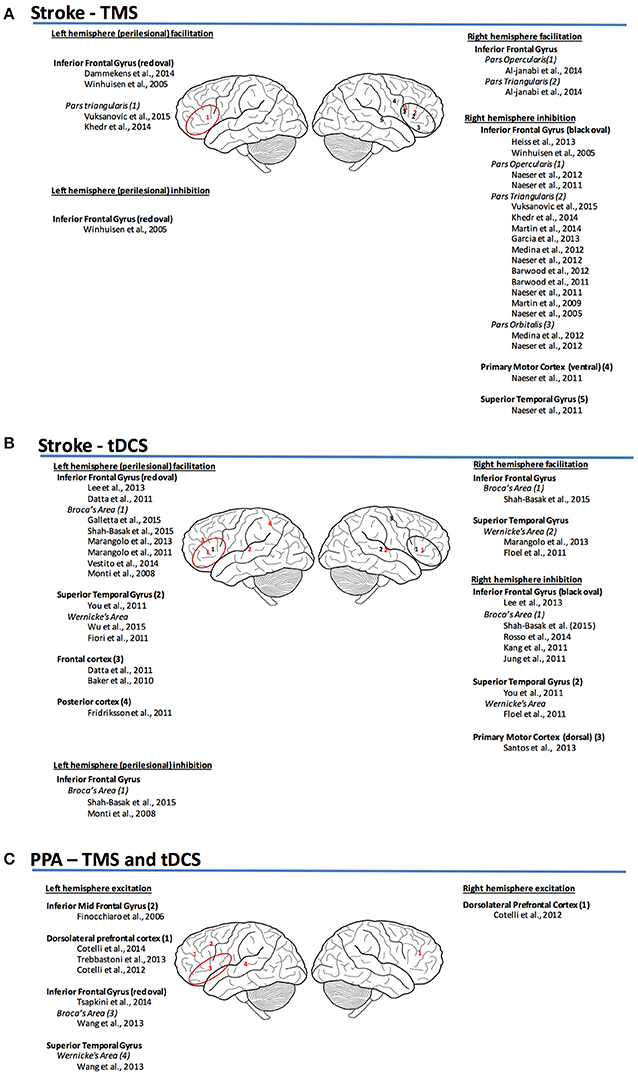

Figure 1. (A) Sites and mechanism of stimulation for TMS post-stroke aphasia (Garcia et al., 2013; Vuksanović et al., 2015). (B) Sites and mechanism of stimulation for tDCS post-stroke aphasia. (C) Sites and mechanism of stimulation for TMS and tDCS for PPA (red, facilitation; black, inhibition).
The theorized mechanisms for recovery in post-stroke aphasia are largely predicated on the notion that regions of the brain that had previously been uninvolved in language processing or involved in a different way may take on new roles that had previously been subserved by the dominant hemisphere's perisylvian structures (Belin et al., 1996; Rosen et al., 2000; Shimizu et al., 2002; Martin et al., 2004; Heiss and Thiel, 2006; Turkeltaub et al., 2011a; Anglade et al., 2014). Intuitively, the effectiveness of this mechanism is constrained by at least two basic properties. The first is the extent to which the regions of brain that are being recruited to compensate for lost functions harbor the same kinds of computational affordances and capacities that injured regions had possessed. In other words, how well are the brain areas that are reassigned to take over for lost areas able to perform the same tasks as the areas that were lost to injury? The second property is the degree of overlap in anatomic or functional connectivity between recruited compensatory brain regions and areas that have been injured. In other words, in order to do the job of a lesioned area of brain, it is beneficial to have existing connections to the areas that the old region used to connect to. With respect to both of these properties, perilesional and right hemisphere homotopes of the injured left hemisphere areas are reasonable targets. However, these may not be the only good anatomic candidates for neuroplastic change in patients with aphasia due to stroke. For example, a recent study by (Xing et al., 2016) suggests that increased right temporoparietal gray matter volume is associated with improved language performance in patients with post-stroke aphasia even when those regions are not homotopic to the patients' lesions (Xing et al., 2016).
Other studies favor the recovery of the residual left hemisphere, suggesting that the contributions of the right hemisphere are ineffective (Belin et al., 1996; Rosen et al., 2000; Shimizu et al., 2002; Martin et al., 2004). One property thought to influence the efficacy of left hemisphere perilesional compensation relative to right hemisphere recruitment with respect to language recovery is lesion size (Heiss and Thiel, 2006). It has been suggested that smaller lesions of the left hemisphere are more associated with left hemisphere/perilesional recruitment and large left hemisphere lesions are associated with more right hemisphere activity (Heiss and Thiel, 2006), although some recent lesion evidence may weigh against this view (Turkeltaub, 2015). Another property that has been shown to influence the compensatory potential of the right hemisphere worth considering is lesion location (Anglade et al., 2014). A recent review by Saur and colleagues explored the possibility that the involvement of right hemisphere homologs of left hemisphere language regions may depend on the degree of premorbid lateralization. That is, patients with more bilaterally distributed language representation prior to their stroke may be better able to recruit the right hemisphere for additional language processing in the setting of left hemisphere injury (Saur and Hartwigsen, 2012).
If we accept that these properties probably influence the compensatory potential of undamaged brain regions after stroke, it seems likely that the success of neuromodulation interventions in post-stroke aphasia rests on finding the best candidate targets to stimulate (i.e., those that have the necessary computational affordances and connectivity). Existing TMS studies have already provided some evidence of this. Our data and that of other investigators demonstrate that the site of stimulation in the brain is pivotal in post-stroke aphasia (Hamilton et al., 2010; Ren et al., 2014).
Moreover, as tools for characterizing connectivity in the brain become more sophisticated, models of language reorganization are being informed by an increasingly nuanced understanding of brain networks, which may in turn inform therapeutic neuromodulation approaches. Post-stroke aphasia studies have demonstrated that an increase in frontoparietal integration was correlated with language recovery (Sharp et al., 2010). Naming treatment studies have also demonstrated alterations in functional connectivity specific to a shift from activity in the right middle temporal gyrus to the left middle temporal and supramagrinal gyrus after treatment (van Hees et al., 2014). A recent study by Yang and colleagues demonstrated that patients with aphasia exhibited increased regional activity in the contralesional mesial temporal and lateral temporal cortices compared to aged matched controls (Yang et al., 2016). Taken together the post-stroke studies suggest that increased integration and/or activity in frontoparietal or contralesional temporal regions is associated with language recovery. To date, there are fewer functional connectivity studies in the PPA population compared to post-stroke aphasia. A recent study by Mandelli and colleagues evaluated functional connectivity in healthy controls and patients with PPA. Unlike the observed increase in contralateral activity seen in the post-stroke population, the authors demonstrated marked areas of reduced strength of functional connectivity to the dorsal portion of the opercular region of the left inferior frontal gyrus (Mandelli et al., 2016). Overall the existing functional connectivity literature for the two types of non-fluent aphasia suggests that that language-related changes in connectivity in PPA are relatively isolated, while post-stroke shifts in activity are more bilaterally distributed. This broader distribution supports consideration of multiple mechanisms of recovery and multiple montages as targets for neuromodulation.
We already have tools such as BOLD fMRI that are capable of suggesting which areas of the brain are capable of taking on compensatory roles with respect to language processing in patient with aphasia (Carter et al., 2012; Havsteen et al., 2013). Excitingly, more recent tools like advanced structural imaging, diffusion tensor imaging (DTI), diffusion spectrum imaging (DSI) and computational network modeling can be used to tell us which brain regions are the best candidates for compensation by characterizing their connectivity and network properties, respectively (Dijkhuizen et al., 2012; Ovadia-Caro et al., 2013). Moreover, a recent study by Cipollari and colleagues demonstrated that, in the post-stroke aphasic population, tDCS can be paired with TMS-EEG to target and modulate specific areas of excitability, resulting in specific language improvements (Cipollari et al., 2015). Armed with this knowledge, it may eventually be possible to use focused neuromodulation techniques like TMS and tDCS to entrain optimal regions into networks for language recovery (regions that may be potentially better suited for language processing than those that the brain may have otherwise recruited in the absence of neuromodulation).
The mechanisms of language representation and loss in PPAs present with different kinds of limitations and opportunities. PPAs are characterized by the slow, distributed degeneration of cellular units within the language system. This process may initially be characterized by a graceful degradation, wherein the language system and other affected systems are initially robust against the behavioral effects of diffuse ongoing injury. This is borne out by evidence from neuropathology studies, which demonstrate that in neurodegenerative dementias like AD and FTD, neural injury occurs for years and perhaps decades before patients become symptomatic (Grossman, 2010). Eventually, however, language systems and other behaviorally relevant networks cannot tolerate the distributed network failure created by neurodegenerative dementias.
Evidence indicates that neuromodulation techniques can be used to enhance neuronal plasticity at the level of synaptic communication (Bindman et al., 1964; Bliss and Lomo, 1973; Hattori et al., 1990; Moriwaki, 1991; Liebetanz et al., 2002). The onset of aphasia is less clearly defined in PPA as compared to stroke, so it is challenging to define a precise timeframe for intervention. In order to influence neuronal plasticity in the residually functioning networks, it is reasonable that the ideal timeframe for stimulation would be close to symptom recognition and diagnosis. We can conceptualize the effect of brain stimulation in PPA as a race to create neuroplastic changes that improve the strength of connections within language networks. These intervention-induced changes may work to partially counter the behavioral effects of distributed degradation of the language network at the cell and circuit level, in effect permitting the language network to do more with less. Therefore, it stands to reason that the efficacy of neuromodulation approaches in PPA would depend, at least to some extent, on the effectiveness of the intervention in inducing distributed increases in compensatory plasticity.
In light of this, our prediction is that, unlike stroke, the near future of neuromodulation in PPA is not going to be focused on identifying the best sites to stimulate in conjunction with behavioral therapies, but rather on determining the parameters and paired behavioral therapies that are best suited for inducing plastic changes that reinforce the robustness of already-connected but weakening language systems. While this may be attainable with TMS, tDCS seems well suited for these demands, owing to its comparatively low spatial resolution. Additionally, tDCS is a technique of interest because it has been shown that pairing stimulation with behavioral training can create persistent changes in neural activity and behavior that are specific to the kinds of activities that were employed during stimulation (Gill et al., 2015). Other related neuromodulation technologies like transcranial alternating current stimulation (tACS) and transcranial random noise stimulation (tRNS) may also have promising effects on network plasticity (Fertonani et al., 2011; Antal and Paulus, 2013) that may prove beneficial in these patient populations.
Given the presumed mechanism of language representation in PPA discussed above, it is not clear how inhibitory stimulation would be useful in PPAs. Unlike stroke, there is currently no theoretical role for suppressing components of the language network based on current evidence. Rather, the evidence favors using excitatory stimulation to create a more plastic and robust system. Again, like stroke, the development of imaging tools like resting state functional connectivity MRI (rs-fcMRI) allow us to discern change in the robustness of networks which will prove valuable for helping us understand the effects and efficacy of neuromodulation technologies in PPA.
Conclusion
Given the burden of suffering imposed on patients by both post-stroke aphasia and PPAs, and the promising results seen in neuromodulation studies of aphasia to date, larger and more extensive future clinical studies involving TMS, tDCS, and related NIBS approaches as treatments for both etiologies aphasia seem likely. These future investigations will need to take into account how pathologic processes could be strong determinants of brain stimulation effects, and could predict the optimal technology (TMS, tDCS, or other), target sites, and stimulation parameters for neuromodulation therapies. Importantly, the notion that the neural mechanisms of injury and neuroplastic reorganization should influence decision-making around the use of NIBS is not specific to the aphasia treatment. Models of normal and abnormal brain function are becoming increasingly complex, accurate, and predictive owing to continuing advances in cognitive neuroscience, neuroimaging, and network science. It is clear that clinicians and researchers hoping to pursue investigations involving the use of TMS, tDCS, or other non-invasive neuromodulation technologies to remediate cognitive deficits beyond aphasia as well as other symptoms associated with neurologic disease will need to devise approaches that align well with existing and future models of brain injury, plasticity, and recovery.
Author Contributions
CN contributed substantially to the conception of the work, was responsible for drafting the manuscript, and agrees to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. RH contributed substantially to the conception of the work, was responsible for revising the manuscript critically for important intellectual content, and agrees to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
Funding
Through the Master in Translational Research program CN received the CTSA TL1 award (TL1TR000138).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
