ORIGINAL RESEARCH article

Front. Genet., 25 May 2023
Sec. Genomic Assay Technology

Chromosome-scale assembly and quantitative trait locus mapping for major economic traits of the Culter alburnus genome using Illumina and PacBio sequencing with Hi-C mapping information

Shili Liu,,,Shili Liu1,2,3,4Jianbo ZhengJianbo Zheng1Fei LiFei Li1Meili ChiMeili Chi1Shun ChengShun Cheng1Wenping JiangWenping Jiang1Yinuo LiuYinuo Liu1Zhimin Gu
Zhimin Gu1*Jinliang Zhao,,
Jinliang Zhao2,3,4*
  • 1Key Laboratory of Freshwater Aquaculture Genetic and Breeding of Zhejiang Province, Zhejiang Institute of Freshwater Fisheries, Huzhou, China
  • 2Key Laboratory of Freshwater Aquatic Genetic Resources, Ministry of Agriculture, Shanghai Ocean University, Shanghai, China
  • 3Shanghai Engineering Research Center of Aquaculture, Shanghai Ocean University, Shanghai, China
  • 4National Demonstration Center for Experimental Fisheries Science Education, Shanghai Ocean University, Shanghai, China

Topmouth culter (Culter alburnus) is an economically important freshwater fish with high nutritional value. However, its potential genetic advantages have not been fully exploited. Therefore, we aimed to determine the genome sequence of C. alburnus and examine quantitative trait loci (QTLs) related to major economic traits. The results showed that 24 pseudochromosomes were anchored by 914.74 Mb of the C. alburnus genome sequence. De novo sequencing identified 31,279 protein-coding genes with an average length of 8507 bp and average coding sequ ence of 1115 bp. In addition, a high-density genetic linkage map consisting of 24 linkage groups was constructed based on 353,532 high-quality single nucleotide polymorphisms and 4,710 bin markers. A total of 28 QTLs corresponding to 11 genes, 26 QTLs corresponding to 11 genes, and 12 QTLs corresponding to 5 genes were identified for sex, intermuscular spine number and body weight traits, respectively. In this study, we assembled an accurate and nearly complete genome of C. alburnus by combining Illumina, PacBio, and high-throughput Chromosome conformation capture (Hi-C) technologies. In addition, we identified QTLs that explained variances in intermuscular spine number, body weight, and sex differences in C. alburnus. These genetic markers or candidate genes associated with growth traits provide a basis for marker-assisted selection in C. alburnus.

1 Introduction

The topmouth culter (Culter alburnus, 2n = 2× = 48), is a member of Cyprinidae, Cultrinae, Culter, and has high economic and nutritional values (Ren et al., 2014). Topmouth culter are widely distributed in the lakes and reservoirs of China (Liu et al., 2019). In the past 10 years, with the breakthroughs in artificial breeding and breeding technology, C. alburnus has been cultivated on a large scale in more than ten provinces and cities, with an output value of nearly 10 billion yuan (Wang et al., 2007). In addition, C. alburnus is at the top of the food chain in the freshwater ecosystem, playing important roles in maintaining the stability of the ecosystem. However, most of the species used for breeding are wild species that have not been bred, and their potential genetic advantages have not been fully exploited (Li et al., 2010). In addition, blind breeding, introduction, hybridization, and repeated breeding have caused the growth of the cultivated C. alburnus to slow down, resulting in individual germplasm decline or confounding phenomena, such as miniaturization. Therefore, germplasm improvement has become an urgent need for the sustainable and healthy development of the topmouth culter breeding industry.

To date, research on C. alburnus has mainly focused on nutrition, growth, artificial reproduction, pond culture, and genetic diversity (Liu et al., 2014; Xiao et al., 2014; Sun et al., 2015). From the perspective of breeding, although C. alburnus has not shown an obvious economic decline phenomenon, molecular studies on the genetic diversity of breeding populations have shown that the genetic diversity of C. alburnus is at a low level (Qi et al., 2013; Qi et al., 2015). To prevent the decay of the germplasm resources of C. alburnus and further tap the potential of its breeding traits, breeding work on C. alburnus is particularly important.

Meat quality is affected by many factors, including environmental, nutritional, and genetic factors (Pathare and Roskilly, 2016). Research on marine meat quality has lagged behind that of livestock and poultry. In recent years, the analysis of fish meat quality has been limited to the analysis of conventional nutrients, amino acids, and fatty acids (Wang et al., 2006; Calanche et al., 2019). With the rapid development of molecular biology technology, the mechanisms determining meat quality can be further studied at the molecular level, and the problem of meat quality improvement can be solved.

Growth is one of the most critical economic traits for fish (Feng et al., 2018). Multiple gene quantitative trait loci (QTLs) involving environmental and genome effects determine the growth trait (Feng et al., 2018). Genetic maps, the inheritance patterns of traits, and genetic markers have been developed and used for a wide range of species, including fish (Rexroad et al., 2008). These tools target the discovery of allelic variation that affects traits, with an ultimate goal of identifying DNA sequences underlying phenotypes (Rexroad et al., 2008). QTL mapping has identified many important traits for sex and growth in fish (Mackay et al., 2009). Traditional selective breeding methods have encountered some difficulties, such as uncertainty, extensive workload, being time-consuming, and slow to take effect. Hence, molecular breeding methods are needed to accelerate the breeding process in fish.

In this study, we applied a combined strategy involving Illumina, PacBio, and high-throughput Chromosome Conformation Capture (Hi-C) technologies to generate sequencing data for the chromosomal genome construction of C. alburnus. We identified putative genes associated with sex, intermuscular spine number, and body weight. In addition, we identified the QTLs explaining variances in intermuscular spine number, body weight, and sex differences in the C. alburnus. The results of this study will provide support for the molecular breeding of C. alburnus.

2 Materials and methods

2.1 Sample collection, library construction, and sequencing

A healthy female C. alburnus collected from the Balidian experimental base of Zhejiang Institute of Freshwater Fisheries was used for whole-genome sequencing. Total genomic DNA was extracted from a tail fin sample using the cetyltrimethylammonium bromide (CTAB) method. A whole-genome shotgun sequencing strategy was applied, and short-insert libraries (250, 500, and 800 bp) and long-insert libraries (2 and 5 kb) were constructed using the standard protocols provided by Illumina (San Diego, CA, United States). The resulting libraries were sequenced using the Illumina HiSeq X Ten platform. Furthermore, two 10 kb libraries were also constructed from the extracted DNA samples following the PacBio manufacturing protocols (Pacific Biosciences, Menlo Park, CA, United States). Subsequently, the libraries were sequenced with two cells based on the PacBio Sequel platform. Meanwhile, the same sample was also used to construct a Hi-C sequencing library. The Hi-C procedure was performed as described in previous studies (Zhang et al., 2019; Shan et al., 2020). Briefly, the extracted DNA was randomly broken into 300–500 bp fragments and labeled with biotin. The biotin-labeled fragments were extracted using magnetic beads. The Hi-C library was finally built after end repair, adding a poly-A tail, adapter ligation, PCR amplification cycle evaluation, and library purification. The Hi-C library was preliminarily quantified using a Qubit2.0 fluorometer (Themo Fisher Scientific, Waltham, MA, United States) and the insert size was determined using Agilent 2,100 instrument (Agilent Technologies, Santa Clara, CA, United States). The qualified library was sequenced on the Illumina Hiseq X ten platform to produce 150 bp paired-end reads.

The QTL analysis was performed on the male and female parental generation (F0) and the full-sib F1 offspring, including 101 females and 99 males. The figerlings of C. alburnus were stocked in an earthen pond (35 m × 35 m × 1.5 m) with a stocking density of 22500 fish/ha. They were fed with commercial extruded feed (Minghui Feed Co. LTD) containing 41% crude protein. No other special treatments were applied. Growth-related traits including body weight (g), body length (cm), body width (cm), head length (cm), total length (cm), and the number of intermuscular spines were collected after 580 days of feeding trials. The distribution patterns of these traits were calculated using the Kolmogorov–Smirnov test in GraphPad Prism (version 5.0; GraphPad Inc., La Jolla, CA, United States). These growth-related traits exhibited high variation in this family and therefore could be used for linkage construction and QTL analysis. Genomic DNA of the male and female parents and the 200 progeny was extracted and Illumina sequencing using the HiSeq 4,000 platform was performed by Origingene company (Shanghai, China).

2.2 Genome size estimation and de novo genome assembly

The genome size of C. alburnus was estimated based on the routine 17-mer depth frequency distribution analysis (Liu et al., 2013) using the clean reads from the short-insert libraries. Subsequently, a de novo genome assembly was generated using both the Illumina short reads and the PacBio long reads. First, the Illumina sequencing data were assembled into contigs using default parameters by Platanus version 1.2.4 (Kajitani et al., 2014). Next, the Platanus-generated contigs, together with the PacBio reads, were used to generate a hybrid assembly by DBG2OLC with default parameters (Ye et al., 2016). The obtained scaffolds were then polished using Pilon (Walker et al., 2014) to generate the final genome assembly of C. alburnus. Finally, the completeness of the genome sequence was evaluated using benchmarking universal single-copy orthologs (BUSCO) version 3.0 (Simão et al., 2015) together with the Actinopterygii_odb9 database.

2.3 Chromosome-level assembly of the Hi-C data

The raw Hi-C sequence data was subjected to quality control to obtain clean data, including removing adapters, the non-AGCT bases at the 5′ end, and low-quality reads. The clean reads were aligned against the genome assembled by PacBio sequencing using BWA (v 0.7.13) software with default parameters (Li and Durbin, 2010). For the Hi-C assembly, data were first processed using HiC-Pro v2.8.023 (default settings) (Servant et al., 2015), and then Juicer v1.524 (default settings) (Durand et al., 2016) was used to map the reads onto the genome to validate the available paired reads. The 3D-DNA pipeline v18092225 (parameters: m haploid -r 2) (Dudchenko et al., 2017) was used to construct a candidate chromosome-level genome. Finally, we reviewed the candidate assembly using juicebox assembly tools (Dudchenko et al., 2018) for quality control and for interactive correction of the automatic output, ultimately obtaining the final assembly.

2.4 Genome-wide evolutionary analysis and functional annotation

The coding gene sequences of 12 species of fish (Anabarilius grahami, Ctenopharyngodon idellus, Cyprinus carpio, Danio rerio, Gadus morhua, Gasterosteus aculeatus, Oryzias latipes, Petromyzon marinus, Takifugu rubripes and Megalobrama amblycephala) were downloaded from Ensembl or GenBank databases. Then, based on the OrthoMCL process (Li et al., 2003), a homologous gene search was performed, and the gene sequence supermatrix was constructed using RAxML software with 1,000 rapid bootstrap analyses to build a maximum-likelihood (ML) phylogenetic tree (Stamatakis, 2014). In addition, the divergence time of the 13 species was estimated using MCMCtree in the PAML package (Yang, 1997). Expansion and contraction of genes were analyzed using CAFE (version 2.1) (https://github.com/hahnlab/CAFE) calculation based on changes in gene cluster size and the species divergence time.

Gene annotation was performed by combing results of de novo analysis, homolog analysis, and RNA-seq assisted prediction. The homologous genes of five species, including C. alburnus, Cyprinus carpio, Danio rerio, Gadus morhua, and Megalobrama amblycephala were compared. The sequences of protein-coding genes were searched against the NCBI non-redundant Protein database (NR), String Protein database, Swiss-Prot protein database as well as Protein Families (PFAM), Kyoto Encyclopedia of Genes and Genomes pathway database (KEGG), and Gene Ontology (GO) using BlastX (Verison 2.2.25, E value < 1e−5). The GO annotations were determined using Blast2GO to obtain the functional classification of the unigenes (Conesa et al., 2005).

2.5 Single nucleotide polymorphism (SNP) calling

The raw reads were quality controlled to remove adaptors and low-quality reads to obtain clean reads. The high-quality clean reads were pre-processed, including mark duplicates, local realignment, and base recalibration, according to their location in the reference genome. Then, the SNPs was determined using the GATK software tool according to the instructions at URL (https://software.broadinstitute.org/gatk/best-practices/).

The SNPs of all samples were combined. Only the homozygous and different loci of the parents were retained, and the SNP loci with an uncertain genotype in the parents were filtered out. In addition, the low-quality SNPs including: 1) Quality < 30.0, logarithm of odds (LOD) threshold < 1.0, Fisher strand (FS) > 60.0, map quality (MQ) < 2.0, Strand Odds Ratio (SOR) > 8.0 and ReadPosRankSum< −8.0; 2) over-dense SNPs; 3) SNPs covering less than 50% of all offspring; and 4) SNPs with a minimum allele frequency (MAF) < 0.05 were filtered out. Finally, the high-quality SNP tags were obtained to construct genetic linkage maps.

2.6 Construction of linkage groups and QTL analysis

Linkage groups were constructed by calculating the recombination rate between pairs of tags. Linkage map construction was performed using JoinMap version 4.0 (Stam, 1993). Three traits, including body weight, sex, and intermuscular spine number were analyzed. The QTL analysis was conducted employing ICIM mapping 4.1 software (Meng et al., 2015). The significance criteria were set according to the permutation test (1,000 replicates). The confidence interval (CI) was first set at 99% to determine the LOD threshold. If there was no QTL at this threshold, the 95% CI and 90% CI would be considered. If there was still no QTL even at 90% CI, the LOD threshold was set as 3.0, then reduced to 2.5 and then to 2.0 to finally obtain the QTLs.

3 Results

3.1 Assembly of the C. alburnus genome using illumina and PacBio sequencing

We generated ∼192.54 Gb [298.31 Gb of Illumina plus 34.36 Gb of Pacific Biosciences (PacBio) reads] of sequencing data for C. alburnus (Supplementary Tables S1, S2). The resulting assembly comprised 1,055 Mb, corresponding to 4,122 reads (Table 1). These sizes were very similar to the genome sizes estimated using K-mer analysis. The peak around the depth of 44 represent the homozygous K-mer value. The genome size is 950 Mb according to formula: Genome Size = K-mer_num/Peak_depth (Supplementary Figure S1).

TABLE 1
www.frontiersin.org

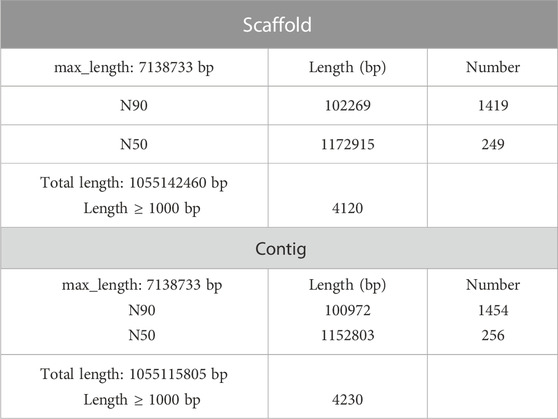

TABLE 1. The summary of C. alburnus genome.

The lengths of contig N50 and scaffold N50 were 1.15 Mb and 1.17 Mb, respectively (Table 1). Assessments of the genome assembly quality showed that the assembly covered 92.1% unigenes (4,219) derived from the whole-genome gene datasets of Actinopterygii and had few (5.1%, 238) missing benchmarking sets of universal single-copy orthologs (BUSCOs) (Supplementary Table S3). The final genome assembly and raw data from the PacBio and Hi-C libraries, as well as the annotation, have been deposited at NCBI under BioProject PRJNA700093.

3.2 The Hi-C assisted-assembly of the C. alburnus genomes

A total of 896,981,652 reads were obtained containing 134,547,247,800 bases. The Q20% and Q30% were 96.3% and 92.3%, respectively and the GC% was 37.7%, indicating relatively high quality sequencing. In total, 366,841,534 (40.9%) reads were mapped to the genome and 86,119,552 (9.6%) of them were effective data.

In total, 914.74 Mb (86.69%) of the C. alburnus sequences with an N50 length of 35.18 Mb were anchored to the 24 pseudo-chromosomes by mapping Hi-C contact data using 2438 contigs (Table 2). A heatmap of chromosome interactions was constructed to visualize the contact intensity among chromosomes (Figure 1A). The number of the pseudo-chromosomes was the same as that of chromosomes, and corresponded to the top 24 longest scaffolds. Then, a genetic interaction map between C. alburnus and zebrafish was constructed. Multiple genome alignments showed that the genome of C. alburnus had a high degree of collinearity with that of zebrafish (Figure 1B).

TABLE 2
www.frontiersin.org

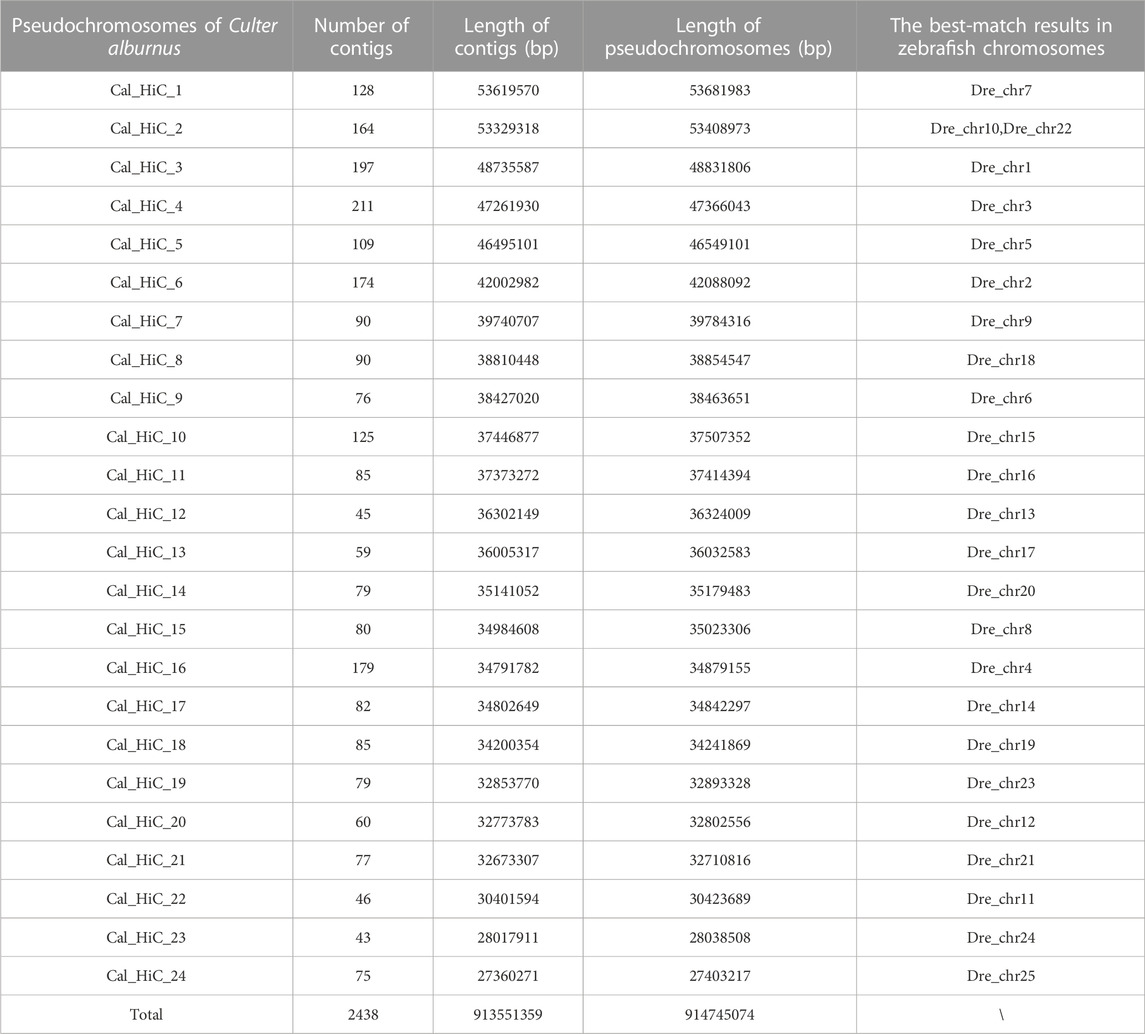

TABLE 2. Statistics the Hi-C assembly results.

FIGURE 1
www.frontiersin.org

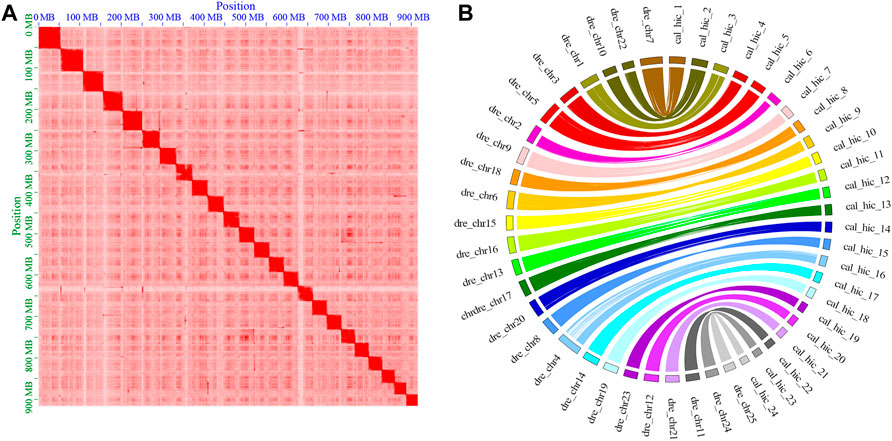

FIGURE 1. Overview of the assembly quality and characteristics of the C. alburnus genome. (A) Hi-C interactions among 24 chromosomes with a resolution of 2.5 Mb. The intensity of the interactions increased along with the color from light to dark. The abscissa and ordinate indicate the N*bin position on the genome. The 24 squares in the figure are the 24 pairs of chromosomes of C. alburnus. (B) Syntenic relationship between C. alburnus and Danio rerio. Maps of the 24 C. alburnus chromosomes and the 25 Danio rerio chromosomes based on the positions of highly conserved Syntenic orthologous gene pairs.

3.3 Genome evolution analysis of C. alburnus

To reveal the genome evolution of C. alburnus and other related species, we downloaded the coding gene sequences of 12 species of fishes to build a phylogenetic tree. As shown in Figure 2A, the ancestral lineage of C. alburnus was closest to Megalobrama amblycephala and farthest from Petromyzon marinus. C. alburnus diverged from Petromyzon marinus more than 600 million years ago, and from M. amblycephala about 7.7–8.8 million years ago.

FIGURE 2
www.frontiersin.org

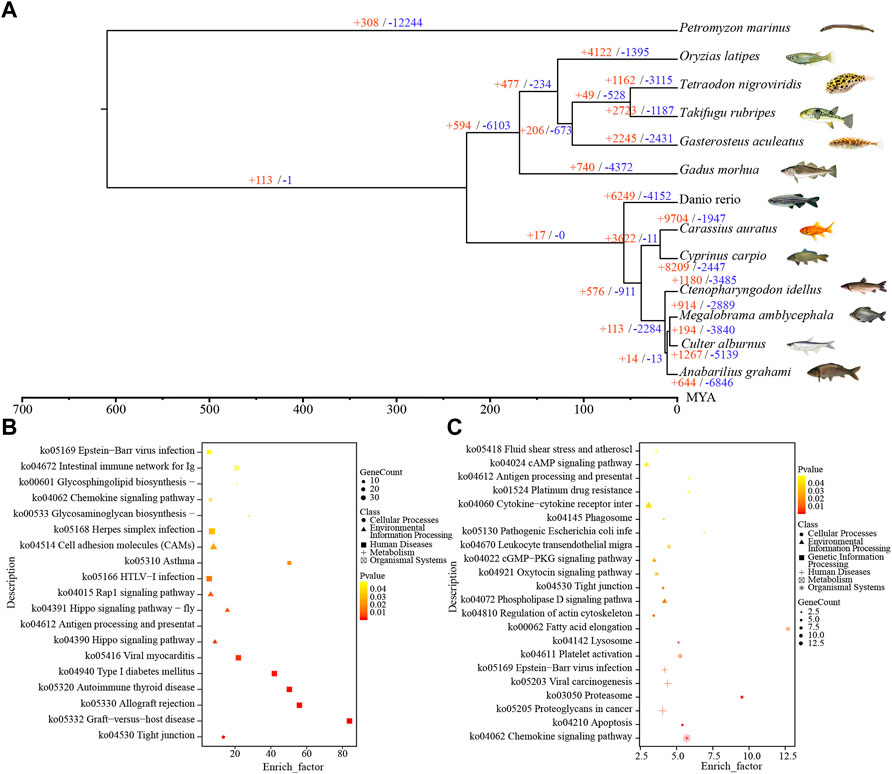

FIGURE 2. Genome evolution analysis of C. alburnus. (A) A phylogenetic tree of divergence time, and and contraction events of gene clusters constructed from 13 species. The time of divergence was analyzed using a maximum-likelihood tree. The number of expansion events in each gene cluster is indicated in red, and contraction events are indicated in blue. (B) KEGG enrichment analysis of the expansion events of the gene clusters. (C) KEGG enrichment analysis of the contraction events of the gene clusters.

Expansion and contraction analysis of gene clusters showed that 1267 expansion events and 5139 contraction events have occurred in C. alburnus. Among them, 24 expansion events and 37 contraction events were significant (p < 0.05). Then, functional annotation was performed for the expansion and contraction events (Supplementary Tables S4, S5). Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis indicated that the expansion events were significantly related to “Tight junction” (false discovery rate (FDR = 0.009209), “Hippo signaling pathway” (FDR = 0.047693), and “Antigen processing and presentation” (FDR = 0.047693) (Figure 2B). The contraction events were significantly associated with “Neuroactive ligand-receptor interaction” (FDR = 0.000492), “Sphingolipid signaling pathway” (FDR = 0.003244) and “Chemokine signaling pathway” (FDR = 0.024271) (Figure 2C).

3.4 De novo genome annotation of C. alburnus

The homologous genes of five species, including C. alburnus, Cyprinus carpio, Danio rerio, Gadus morhua, and Megalobrama amblycephala were compared. There were 5824 overlapping homologous genes among these five species (Figure 3A). Based on de novo, homolog-based, and RNA-seq approaches, 31,279 protein-coding genes with an average gene length of 8507.7 bp and average coding sequence (CDS) length of 1115.23 bp were identified in the assemblies. The overlapping homologous genes account for 38.51% (5824/15124) of genes in C. alburnus.

FIGURE 3
www.frontiersin.org

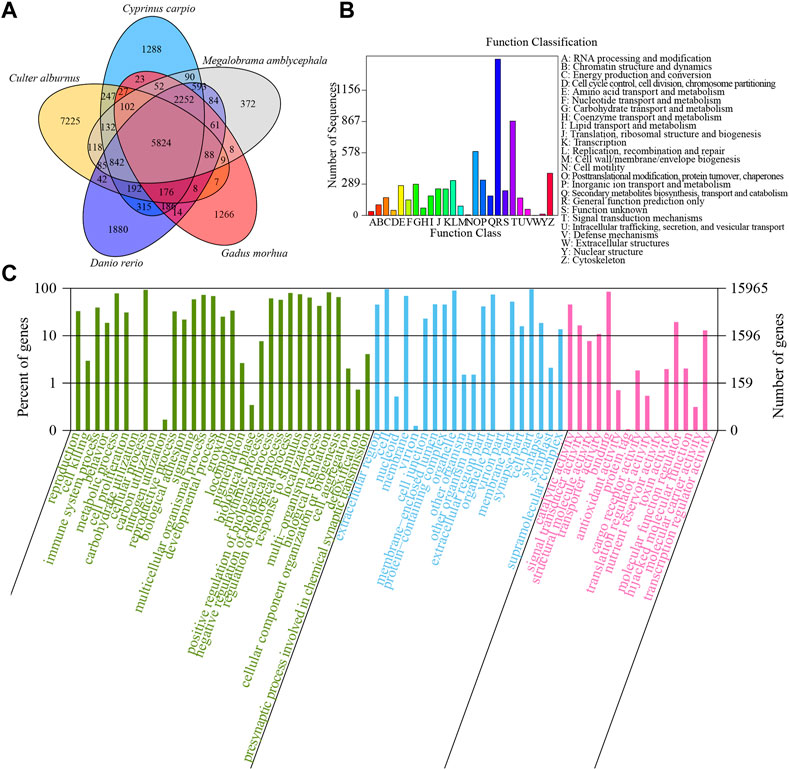

FIGURE 3. De novo genome annotation of C. alburnus. (A) VENN diagram of homologous genes in Culter alburnus, Cyprinus carpio, Danio rerio, Gadus morhua and Megalobrama amblycephala. (B) COG functional classification statistics. (C) GO enrichment analysis.

The mapping rates of protein-coding genes against the GO, KEGG, NR, PFAM, String, and Swissprot databases were 15.30%, 12.80%, 22.80%, 15.50%, 18.00%, and 15.60%, respectively (Supplementary Table S6). Clusters of orthogonal groups (COG) functional classification demonstrated that the most genes were related to “general function prediction,” “Signal transduction mechanisms,” “Posttranslational modification, protein turnover, chaperones” and “Cytoskeleton” (Figure 3B). GO enrichment analysis suggested the genes were related to the biological processes of “reproduction” (GO:0000003), “cell killing” (GO:0001906), “immune system process” (GO:0002376), and “cell proliferation” (GO: 0008283). The proteins encoded by these genes were predicted to be located on “extracellular region” (GO:0005576), “cell” (GO:0005623), “nucleoid” (GO:0009295), and “membrane” (GO:0016020) (Figure 3C). The molecular functions included “catalytic activity” (GO:0003824), “signal transducer activity” (GO:0004871), “structural molecule activity” (GO:0005198), and “transporter activity” (GO:0005215). The top 20 KEGG pathways involving the unigenes included “pathways in cancer” (494 unigenes), “neuroactive ligand-receptor interaction” (431 unigenes), “PI3K-Akt signaling pathway” (415 unigenes), and “Cell adhesion molecules (CAMs)” (400 unigenes) (Supplementary Figure S2).

3.5 Non-coding RNA annotation in the genome of C. alburnus

Non-coding RNA refers to RNA that does not translate into protein, including rRNA, tRNA, snRNA, and miRNA. These RNAs play important roles in biological regulation. Based on the RNA-seq data, 381 miRNAs, 3622 tRNAs, 1762 rRNAs, and 423 snRNAs were predicted in the C. alburnus genome (Table 3).

TABLE 3
www.frontiersin.org

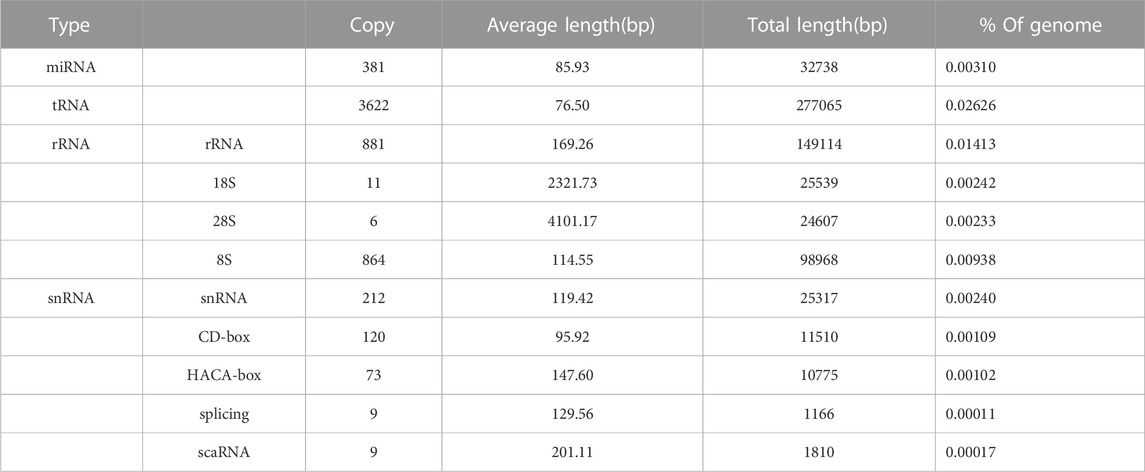

TABLE 3. Non-coding RNA annotation in the genome of C. alburnus.

3.6 Characteristics of the phenotypic traits

The mapping family in this study consisted of 200 C. alburnus progeny, and the phenotypic growth-related traits all passed the normality test (p > 0.05 for all) according to the Kolmogorov–Smirnov test. The average values of bodyweight, total length, body length, body height, and head length were 0.45 ± 0.10 kg, 38.96 ± 2.76 cm, 33.53 ± 2.64 cm, 8.06 ± 0.72 cm, and 7.10 ± 0.47 cm, respectively (Supplementary Table S7). The average total number of intermuscular spines was 132.6 ± 1.954 (Supplementary Table S8). The mapping family included 99 males and 101 females, with a sex ratio of 1:1.02.

3.7 QTL analysis

After filtering out the low-quality SNPs, 353,532 high-quality SNPs and 4,710 bin markers were retained in the “all” group (Supplementary Figure S3). These bin markers were grouped into 24 linkage groups (LGs). The genetic map spanned 2307.8 cM with an average marker interval of 1.35 cM. The genetic length of the LGs ranged from 47.40 cM (LG12) to 210.80 cM (LG10) with an average of 96.16 cM. The number of markers varied from 38 (LG24) to 177 (LG1) with an average of 81 (Supplementary Figure S3; Supplementary Table S9). For the “female” group, 355,547 high-quality SNPs and 4,240 bin markers were retained. The genetic map spanned 2032.4 cM with an average maker interval of 1.29 cM. The genetic length of the LGs ranged from 32.9 cM (LG24) to 155.6 cM (LG1)with an average of 84.68 cM, and the number of markers varied from 32 (LG24) to 189 (LG1) with an average of 80 (Supplementary Figure S4; Supplementary Table S10). For the “male” group, 354,207 high-quality SNPs and 4,385 bin markers were retained. The genetic map spanned 2514 cM with an average maker interval of 1.17 cM. The genetic length of the LGs ranged from 60.70 cM (LG14) to 200.8 cM (LG2) with an average of 104.58cM, and the number of markers varied from 43 (LG24) to 283 (LG1) with an average of 105 (Supplementary Figure S5; Supplementary Tables S11).

3.8 Identification of potential QTL-related genes

The genome-wide LOD significance threshold for the sex trait was 1.5 based on the permutation test. Using ICIM mapping 4.1 software, 28 QTLs associated with sex were detected on 17 LGs (Supplementary Table S12). The LOD scores ranged from 1.5163 to 4.1739 and the phenotypic variance explained (PVE) ranged from 1.0434% to 7.8872%. Eleven genes, including NLRC3 (encoding protein NLRC3-like), ZNF836 (encoding zinc finger protein 836-like), NLRP12 (encoding NACHT, LRR and PYD domains-containing protein 12-like), and CD163 (encoding scavenger receptor cysteine-rich type 1 protein M130-like), related to sex were identified from these QTL regions. The QTL with the highest PVE corresponded to the gene CUI009080. Annotation indicated that this gene encoded “PREDICTED: uncharacterized protein LOC109087430 (Cyprinus carpio)” in the NR database (Supplementary Table S13).

Based on a LOD significance threshold of 1.5 calculated from the permutation test, 26 QTLs associated with intermuscular spine number were detected on 15 LGs (Supplementary Table S13). The LOD scores ranged from 1.5134 to 3.7688 and the PVE ranged from 0.8557% to 3.4099%. Eleven genes, such as CSNK2A (encoding casein kinase II subunit alpha-like) and IAN12 (encoding immune-associated nucleotide-binding protein 12-like) related with intermuscular spine length were identified from these QTL regions. The QTL with the highest PVE (3.4099%) was annotated to a gene encoding “PREDICTED: uncharacterized protein LOC109094915 (Cyprinus carpio)” in the NR database.

Based on a significance threshold of 2 calculated from the permutation test, 12 QTLs associated with weight were detected on 10 LGs (Supplementary Table S13). The LOD scores ranged from 2.0402 to 3.3573 and the PVE ranged from 1.9805% to 4.8974%. Five genes, such as AK9 (encoding adenylate kinase 9) and TRIM (encoding tripartite motif-containing protein) related with weight were identified from these QTL regions. The QTL with the highest PVE (4.8974%) was annotated to an intergenic a region. The QTL with the second-highest PVE (3.272%) was annotated to the gene CUI012867, which was predicted to encode “uncharacterized protein LOC107665087” from the NR database.

4 Discussion

C. alburnus is an important economic fish in China which has been extensively cultured because of its rapid growth and excellent taste. Germplasm improvement has become an urgent need for the sustainable and healthy development of the C. alburnus breeding industry . In this study, we performed de novo sequencing by combining Illumina, PacBio, and Hi-C technologies. Next-generation sequencing is very accurate; however, the read length is short, which has obvious disadvantages for assembling heterozygous and repetitive sequence regions. Third-generation PacBio sequencing can generate long sequences to cross repetitive regions and reduces the impact of heterozygous sites on genome assembly, which can greatly improve the assembly integrity and quality of complex regions. However, the PacBio sequencing data has a high error rate and often needs to be corrected. In this study, we developed five libraries, including 250 bp, 500 bp, 800 bp, 2 kbp and 5 kbp libraries for next-generation sequencing. Illumina sequencing generated 298.31 Gb of data. The PacBio sequencing has 2 cells, and the data output was 34.36 Gb. Previously, Ren et al., assembled the genomes of C. alburnus and Megalobrama amblycephala. They generated 176.33 Gb, including171.05 Gb of Illumina and 5.28 Gb of PacBio reads (Ren et al., 2019). The nearly complete genome of C. alburnus reported in the present study is more accurate than that published by Ren et al.

The phylogenetic tree showed that the ancestral lineage of C. alburnus was closest to Megalobrama amblycephala and farthest from Petromyzon marinus. C. alburnus diverged from Petromyzon marinus more than 600 million years ago. According to previous studies, the divergence time between C. alburnus and Petromyzon marinus varied from 455 million years to 695 million years, with a median time of 615 million years (Aris-Brosou and Yang, 2002; Otsuka and Sugaya, 2003; Blair and Hedges, 2005; Roelants et al., 2010; Chen et al., 2012; dos Reis et al., 2015; Gold et al., 2015; Delsuc et al., 2018). We estimated the divergence time between C. alburnus and Megalobrama amblycephala as about 7.7–8.8 million years, which is within the range of the results reported by previous studies, ranging from 2.3 million years to 12.74 million years (Tao et al., 2010; Wang et al., 2012; Rabosky et al., 2013; Rabosky et al., 2018; Ren et al., 2019). These results suggested our results are reliable and creditable.

In this study, we used the SNPs approach to construct a new genetic linkage map for C. alburnus. A total of 4,710 bin markers were grouped into 24 LGs, which was consistent with the chromosome number from the Hi-C results. Currently, whole genome sequences combined with SNP markers are utilized for QTL analysis (Botstein et al., 1980). SNPs are abundant, widely distributed throughout the genome, and are associated with a unique sequence. SNP-based QTL analysis significantly increases the number of markers discovered compared with other methods (Uchino et al., 2018).

There are obvious differences in the growth rate, nutritional value, and other major economic indicators of the males and females of many kinds of fish. The breeding of unisexual groups can reduce the energy consumption of the reproductive process, as well as avoiding the excessive reproduction of fish with a strong reproductive ability, which is beneficial to control breeding density to obtain better economic benefits of breeding. In this study, we characterized the QTLs related with three traits: body weight, sex, and intermuscular spine number. Eleven genes, including NLRC3, ZNF836, NLRP12, and CD163 related to sex were identified from 28 QTL regions. NLRC3 is a cytoplasmic pattern recognition receptor, which belongs to the Nod-like receptor (NLR) family (Elinav et al., 2011). NLRs play important roles in microbial sensing and lead to the initiation of antimicrobial and antiviral immune responses (Elinav et al., 2011). Cádiz et al. (2020) found three genes previously associated with defense against bacterial pathogens such as NLRC3, PIGR, and MAP1S65 in Nile tilapia. NLRC3 mRNA expression was found to be upregulated in response to challenge with lipopolysaccharide and Edwardsiella tarda in Japanese flounder (Li et al., 2016). NLRP12 is an NLRP family member that could regulate nuclear factor kappa B (NF- κB) activation (Lich et al., 2007). These proteins might function in sex-determination. In addition, 11 genes, including CSNK2A and IAN12 were found to be located in intermuscular spine length-determining regions and 5 genes, including AK9 and TRIM, were found to be located in weight-determining regions.

5 Conclusion

In conclusion, this study assembled an accurate and nearly complete genome of C. alburnus by combing Illumina, PacBio and Hi-C technologies. Twenty-four peudochromosomes were anchored by 914.74 Mb of C. alburnus sequences. De novo sequencing identified 31,279 protein-coding genes, with an average gene length of 8507.7 bp and average CDS length of 1115.23 bp. In addition, a high-density genetic linkage map consisting of 24 linkage groups was constructed based on 353,532 high-quality SNPs and 4,710 bin markers. A total of 28 QTLs corresponding to 11 genes, 26 QTLs corresponding to 11 genes and 12 QTLs corresponding to 5 genes were identified for sex, intermuscular spine length and body weight traits, respectively. These genetic markers or candidate genes associated with growth traits provide a basis for marker-assisted selection in C. alburnus.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Ethics statement

The animal study was reviewed and approved by Committee for Animal Experiments of the Zhejiang Institute of Freshwater Fisheries.

Author contributions

ZG and JLZ conceived the study and supervised all parts of the project. SL, JBZ, and FL collected the samples, extracted the genomic DNA and conducted sequencing. SL, SC, and WJ performed genome assembly, genome annotation, and evolution analysis. YL and MC contributed to the QTL mapping and association analysis. SL wrote the manuscript. FL and JBZ revised the manuscript. All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Funding

This research was supported by grants from the Major Science and Technology Programs for Agriculture (Aquaculture) New Variety Selection of Zhejiang Province (grant number 2021C02069-3).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2023.1072506/full#supplementary-material
