Bowen Shi1
Inzamam Ul Haq2
Sajid Fiaz3Badr Alharthi4Ming-Long Xu1Jian-Lin Wang1Wei-Hai Hou1*Xi-Bo Feng1*- 1Plant Sciences College, Tibet Agricultural and Animal Husbandry University, Linzhi, Tibet, China
- 2College of Plant Protection, Gansu Agricultural University, Lanzhou, Gansu, China
- 3Department of Plant Breeding and Genetics, The University of Haripur, Haripur, Pakistan
- 4Department of Biology, University College of Al Khurmah, Taif University, Saudi Arabia
Pea is a conventional grain-feed-grass crop in Tibet and the only high-protein legume in the region; therefore, it plays an important role in Tibetan food and grass security. Zinc finger-homeodomain (ZF-HD) belongs to a family of homozygous heterotypic cassette genes, which play an important role in plant growth, development, and response to adversity stress. Using a bioinformatics approach, 18 PsZF-HD family members were identified. These genes were distributed across seven chromosomes and two scaffold fragments, and evolutionary analysis classified them into two subgroups, MIF and ZHD. The MIF subgroup was subdivided into three subclasses (PsMIFⅠ–III), and the ZHD subgroup was subdivided into five subclasses (ZHDⅠ–V). The PsZF-HD members were named PsMIF1–PsMIF4 and PsZHD1–PsZHD14. Twelve conserved motifs and four conserved domains were identified from PsZF-HD family, of which MIF subgroup only contained one domain, while ZHD subgroup contained two types of domains. In addition, there were significant differences in the three-dimensional structures of the protein members of the two subgroups. Most PsZF-HD genes had no introns (13/18), and only five genes had one intron. Forty-five cis-acting elements were predicted and screened, involving four categories: light response, stress, hormone, and growth and development. Transcriptome analysis of different tissues during pea growth and development showed that PsZHD11, 8, 13, 14 and MIF4 were not expressed or were individually expressed in low amounts in the tissues, while the other 13 PsZF-HDs genes were differentially expressed and showed tissue preference, as seen in aboveground reproductive organs, where PsZHD6, 2, 10 and MIF1 (except immature seeds) were highly expressed. In the aerial vegetative organs, PsZHD6, 1, and 10 were significantly overexpressed, while in the underground root system, PsMIF3 was specifically overexpressed. The leaf transcriptome under a low-nitrogen environment showed that the expression levels of 17 PsZF-HDs members were upregulated in shoot organs. The leaf transcriptome analysis under a low-temperature environment showed stress-induced upregulation of PsZHD10 and one genes and down-regulation of PsZHD6 gene. These results laid the foundation for deeper exploration of the functions of the PsZF-HD genes and also improved the reference for molecular breeding for stress resistance in peas.
1 Introduction
Pea (Pisum sativum L.) is a conventional grain-feed-grass crop that has been grown for a long time in the cold and dry Qinghai-Tibet Plateau and is a major crop for abandoned relief. It has a wide range of distribution and shows great resistance to cold, drought, and dryness. Pea can grow up to 4,700 m above the sea level, and it is often mixed with highland staple crops, such as hulless barley and oilseed rape. Plants with strong resistance against stress can adapt to the severe cold and drought environment of the plateau. Transcription factors (TFs) initiate target gene expression by binding to specific cis-acting elements in the promoter regions of related genes to regulate plant growth and development and resistance to stress (Zhou et al., 2019). Zinc finger homeodomain (ZF-HD) proteins are plant-specific TFs that play important roles in the regulation of flower development as well as biotic and abiotic stresses (Windhövel et al., 2001; Lai et al., 2021). ZF-HD proteins are classified into two subfamilies, the Zinc Finger Homotypic Box (ZHD) and the Mini Zinc Finger (MIF), according to a phylogenetic tree (Hu et al., 2008). Three MIF genes were identified for the first time in Arabidopsis thaliana, encoding proteins similar to the ZF structural domain of ZF-HD proteins but lacking the HD structural domain (Hu and Ma, 2006). To date, the origin and evolutionary relationship between the two remain unclear, but both belong to the ZF-HD family. The distinctive structural features of ZHDs comprise a zinc finger (ZF) structural domain at the N-terminal and a conserved homologous heterotetrameric box HD (homeo-domain) at the C-terminal (Wang et al., 2016). ZFs contain zinc ions and five conserved cysteine residues or at least three conserved histidine residues (Krishna et al., 2003). ZFs are widely present in different regulatory proteins, bind specifically to DNA/RNA sequences and enhance protein–DNA interactions, and are mediated by the HD structural domain (Xie et al., 2019). HD encodes a highly conserved DNA structural domain consisting of 60 amino acids that fold to form a 3-helix structure, with the first and second helix forming a loop between them and the second and third helix regions forming a helix-turned-helical structure (Mukherjee et al., 2009). Most HD proteins specifically adsorb to the major groove of DNA to activate and repress the expression of target genes (Mukherjee et al., 2009; Hu et al., 2018). Based on the HD amino acid sequence and other conserved motifs accompanying it, HD-bearing proteins are classified into typical HD structural domains (with 60 amino acids in length) and atypical HD structural domains (with variation in amino acid length). The latter is known as three amino acid loop extension homozygous heterotypic box superfamily proteins, encoding 63 with three additional amino acid residues (P-Y-P) between the first and second helices (Chen et al., 2003). In rice, 107 HD proteins were identified and classified into 10 subfamilies, including ZF-HD, KNOX I, KNOX II, WOX, HD-Zip I, BLH, HD-Zip II, HD-Zip III, HD-Zip IV, and PHD, based on the sequence length, structure, HD position, and other structural domains containing HD proteins (Jain et al., 2008). Subsequently, Mukherjee (2009) systematically studied plant homozygous heterotypic cassette genes and classified them into 14 subfamilies with the addition of NDX, DDT, PHD, LD, SAWADEE, and PINTOX (Mukherjee et al., 2009). ZF-HD proteins often bind to ATTA elements of DNA sequences to form homodimers and heterodimers (Tan and Irish, 2006).
ZF structures are widely found in a variety of regulatory proteins and play an important role in the formation of homodimers or heterodimers of different members of the ZF-HD family (Windhövel et al., 2001). A typical ZF structure contains two pairs of conserved cysteine residues or histidine residues and is coordinated to a single zinc ion to form a finger-like loop (Klug and Schwabe, 1995). They are classified into different types according to the number and nature of residues bound to zinc ions and zinc-binding protein residues. For example, C2H2, C3H, and C2C2 ZFs interact with one zinc ion, while PHD and LIM ZFs can interact with two zinc ions, with the C2H2 type being the most common (Englbrecht et al., 2004; Yanagisawa, 2004). Single proteins can have one or more ZF structures, and ZFs can recognize and bind DNA, RNA, DNA-RNA double-stranded molecules, or proteins (Takatsuji, 1999; Krishna et al., 2003) and regulate gene expression at the transcriptional and translational levels, which can play an important role in plant stress response and defense activation (Mackay and Crossley, 1998). In ZF-HD proteins, HD binds to DNA, and the ZF domain enhances HD-mediated protein–DNA interactions (Windhövel et al., 2001; Hu et al., 2008).
Currently, the ZF-HD family is widely studied in several higher plants, including 17 members in Arabidopsis thaliana (Hu et al., 2008), 32 members in tobacco (Niu et al., 2021; Sun et al., 2021), 37 members in wheat (Liu et al., 2021), 13 members in cucumber (Lai et al., 2021), 24 members in maize (Jing et al., 2022), 18 members in tea tree (Zhou et al., 2021), 60 members in alfalfa (He et al., 2022), 20 members in buckwheat, 62 members in kale type oilseed rape (Song et al., 2019), and 31 members in Chinese cabbage (Wang et al., 2016). To date, the biological functions of most of the ZF-HD genes identified in Arabidopsis thaliana have been characterized as being involved in blue light signaling regulation, vascular bundle development, outer cell biosynthesis of organs, stress response to adversity, and anthocyanin synthesis. For example, multiple ZF-HDs in Arabidopsis thaliana are involved in the regulation of floral organ development and functional sink residues, and similar findings have been reported in barley and wheat (Tran et al., 2007; Abu-Romman and Al-Hadid, 2017). Drought, salinity, and external application of abscisic acid induce AtZHD1 expression (Wang et al., 2014). The overexpression of ZF-HD1 and NAC genes enhances drought resistance in Arabidopsis thaliana (Tran et al., 2007; Hu et al., 2008). Using Arabidopsis thaliana overexpressing MIF1, it has been demonstrated that MIF1 regulates multiple hormones and affects plant growth and development. In addition, MIF1 overexpression impedes ZHD protein functions, and this may result from interactions with the ZF structural domain (Hu and Ma, 2006). ZF-HD4 expression can be induced by drought and salt stress (Hu et al., 2008). It has also been reported that the overexpression of ZF-HD5 can result into large plant leaves (Hong et al., 2011). ZF-HD10 is highly expressed in the hypocotyl and induces the expression of hypocotyl elongation-related genes HFR1 (Long hypocotyl in far-red) and ATXTH17 (Xyloglucan endotransglucosylase/hydrolase) (Shalmani et al., 2019). ZF-HD8 is highly expressed in floral organs and plays an important role in flower development (Hu et al., 2008). It has also been shown that most ZF-HD genes are expressed in floral organs, significantly associated with flowering-related hormones (GA, 6-BA), and may be involved in the regulation of floral organ development (Tan and Irish, 2006; Shalmani et al., 2019). Under low temperatures, drought, and mechanical damage, all four ZF-HDs bind to the DREB1B promoter to activate its expression (Figueiredo et al., 2012). Soybean ZF-HD1 and ZF-HD2 are transiently heterologously expressed in Arabidopsis thaliana protoplasts, confirming their response to pathogen infestation and activation of CaM4 gene expression (Park et al., 2007), which is involved in plant defense responses. In other species, ZF-HD, such as tomato SlZF-HD7 and buckwheat FtZF-HD1, plays an important role in leaf and flower bud development (Khatun et al., 2017; Liu et al., 2019). The expression analysis of 24 ZF-HD genes in maize under ABA, alpine, and drought stresses has showed that both ZF-HD11 and ZF-HD12 exhibit significant responses to abiotic stresses (Jing et al., 2022).
Pea is important for food security and the healthy development of animal husbandry in Tibet. To date, there have been no reports of systematic studies on the pea ZF-HD gene family. Moreover, since the pea whole genome sequencing results were published in 2022 (Yang et al., 2022), recent bioinformatics advances have made it easy to analyze the pea ZF-HD family variation on a broad genomic scale. Although the ZF-HD gene family has been identified in several species, the effects of its members on the growth, development, yield, and quality of pea have not been reported. In this study, bioinformatics was used to identify the ZF-HD gene family based on the sequencing results of the pea genome. Its protein structure, basic physicochemical characteristics, cis-acting elements, and gene covariance were analyzed to lay the foundation for further understanding of the biological functions of the ZF-HD gene family.
2 Materials and methods
2.1 Identification of the ZF-HD gene family in pea
Genomes, protein sequences, and gff3 annotation files of dicotyledons crops pea (Pisum sativum), soybean (Glycine_max L.), tomato (Solanum lycopersicum L), cabbage (Brassica Rapa L.), and monocotyledonous crops like Arabidopsis thaliana (Arabidopsis thaliana L.), rice (Oryza sativa L.) were obtained from Ensembl plants (http://plants.ensembl.org/index.html) and Phytozome (https://phytozome-next.jgi.doe.gov/) public databases. Pea ZF-HD family members were searched and identified by two methods. Firstly, a BLAST search of the pea proteome database was performed using the identified AtZF-HD protein sequence as a probe to obtain the first candidate ZR-HD family members. Second, the Pfam number (PF04770) of the ZF-HD gene family structural domain was searched on the Pfam website(http://pfam-legacy.xfam.org/), the corresponding Hidden Markov Model profile (HMM) was downloaded, the protein sequences containing similar structural domains to the Hidden Markov Model (E-value <1.2e-28) were searched for the first time with the HMMER software(version 3.3.2), and the ZF-HD structural domain sequences were extracted, and the ZF-HD structural domain sequences were analyzed with the Clustalw software(version 2.1) for multiple sequence alignment of ZF-HD structural domain sequences to construct a pea-specific stealth Markov model, search again for candidate ZF-HD family genes containing ZF-HD structural domains (E-value <.001), remove duplicate transcripts, select the longest transcripts, extract the protein sequences corresponding to the transcripts, and submit them to CDD (https://www.ncbi.nlm.nih.gov/cdd),SMART (http://smart.embl.de/), and PFAM (http://pfam.xfam.org/) databases to confirm the structural transgressions and remove sequences that do not contain the ZF-HD structural domain. The candidate genes identified first time were compared and analyzed with those identified the second time. The full lengths of the proteins and corresponding CDS sequences of the 18 ZF-HD gene family members were finally obtained. The amino acid length, molecular weight, and isoelectric point of the 18 ZF-HD family member proteins were predicted using the online tool ExPASy-ProtParam (https://web.expasy.org/protparam/). The obtained protein sequences were analyzed for subcellular localization using the WoLF PSORT online tool(https://wolfpsort.hgc.jp/) to construct phylogenies.
2.2 Phylogenetic tree analysis
The full-length sequences of ZF-HD proteins from Chinese cabbage(Brassica rapa L.), tomato(Solanum lycopersicum L.), soybean(Glycine max L.), rice(Oryza sativa L.), and Arabidopsis thaliana (Arabidopsis thaliana L.) were compared with Clustal X1.8 multiplex using MEGA X software(Kumar et al., 2018). The comparison results were used to generate evolutionary trees using the maximum likelihood method (ML) with parameters set to bootstrap 1,000 and the model set to JTT + G (Supplementary File S2). The evolutionary tree was embellished with the online tool Evolview (https://www.evolgenius.info/evolview/) (He et al., 2016).
2.3 Chromosome localization, gene duplication and ka/ks analysis
Information on the location of ZF-HD family genes on chromosomes was obtained from pea genome annotation files, and their gene lengths were obtained using samtools software. Centipede maps of genes on chromosomes were drawn using the online software MG2c (http://mg2c.iask.in/mg2c_v2.1/). MCScanX software is used for analyze gene doubling and gene tandem duplication events in pea genome, Then, KaKs_Calculator software calculates ka/ks values of duplicated genes and tandem repeats.
2.4 Conserved structural domains, conserved motifs, and gene structure and 3D structure analysis
Online program MEME (https://meme-suite.org/meme/tools/meme) discovers novel, ungapped motifs (recurring, fixed-length patterns) in your sequences (sample output from sequences). MEME splits variable-length patterns into two or more separate motifs. MEME tools was applied to predict the conserved motifs of 18 ZF-HD family protein, setting the search to a maximum of 12 motifs with amino acid motifs ranging from 6 to 100. The exon, CDS, and UTR position information of ZF-HD family genes were extracted based on the pea genome annotation file to map their gene structures. 18 PsZF-HD protein sequences were submitted to the online software SWISS-MODEL (https://swissmodel.expasy.org), retrieved the most similar models from the PDB library to predict the three-dimensional structure of pea PsZF-HD protein.
2.5 Prediction of cis-acting elements in promoter regions
The online software Plant CARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) was used to predict the cis-acting element of the 1,500 bp sequence upstream of the ZF-HD family gene.
2.6 Inter-tissue differential expression analysis of PsZF-HD family genes
Transcriptome FASTQdata from four groups of different treatments of pea were downloaded from the NCBI SRA database (http://www.Ncbi.Nlm.Nih.gov) and the EBI-ENA database (https://www.ebi.ac.uk/ena/browser/home) for data analysis. Among them, the participating varieties in group 1 were the Kaspa variety (semi-leafless medium-high, spherical brown medium grain) and Parafield variety (common plant phenotype, spherical brown large grain) varieties with transcriptome data accession numbers PRJNA277074 and PRJNA277076, respectively (Sudheesh et al., 2015). The test items were true leaves, stipules, stems, tendrils, roots, and root tip tissues of 4-week-old seedlings, stamens at fully open flowers (10–14 days after flowering), pistils, immature pods, immature seeds (20–25 days after flowering) and rhizome nodules (3-month-old plants) and seedlings (7-day-old seedlings) collected at multiple stem nodes at different developmental stages. The second group of participating materials was two varieties of vegetable peas and grain peas, sampled at five periods of post-flowering pod development to determine the transcriptome (Yang et al., 2019). The third group of participant test materials, two pea varieties with different cold effects, a cold-resistant winter forage variety and a cold-sensitive spring dry pea variety, were subjected to low-temperature treatment at different developmental stages with transcriptome data registration number PRJNA543764(Bahrman et al., 2019). The transcriptome of the fourth group of participant materials in different N-treated peas at three developmental stages in different tissues (Alves-Carvalho et al., 2015). For the above FASTQ data according to the type of library construction, they were de-spliced with fastp software (Chen et al., 2018), and the low-quality sequences were removed according to the default parameters to obtain clean and high-quality sequences. Subsequently, they were mapping to the pea reference genome using Hisat2 software (Kim et al., 2015) to generate Sam files and converted to Bam files, and the resultant files were subjected to quality control analysis using RSeQC comparison to detect whether the sequences were normal, genome coverage, and RNA explained. Gene expression was analyzed by FPKM using Htseq-count software (Anders et al., 2015).
3 Results
3.1 Identification of the ZF-HD gene family
To identify the ZF-HD genes in Pisum sativum, two HMM analyses were performed, generating 18 PsZF-HD genes after confirming ZF-HD domain by SMART and NCBI Conserved Domain Search Service Supplementary File S1). The longest variable splicing was adopted for the study (Supplementary File S2). Based on the evolutionary tree and the order and position of the ZF-HD proteins on the chromosome, they were named MIF1-4 and PsZFD1-14 (Table 1). Eighteen ZF-HDs proteins had amino acid lengths in the range of 75–417 amino acids, molecular weights in the range of 46,209.52–8,126.16 Da, and isoelectric points PI in the range of 4.78–9.08. PsZHD13 had the longest amino acid sequence, the largest molecular weight, and the smallest PI value. PsMIF2 had the shortest amino acid sequence, the smallest molecular weight, and a PI value of 8.97. PsZHD5 and PsMIF4 had equal and largest PI values, both at 9.08. The subcellular localization of the PsZF-HD family showed that PsMIF1, PsZHD8, PsZHD11, and PsZHD11 were located in the cytoplasm. PsZHD10 was localized in the cytoplasm or nucleus, and PsMIF2 and PsMIF3 were localized in the chloroplast. Other 11 PsZF-HD family members were localized in the nucleus. These findings showed that the 18 psZF-HD proteins differed significantly in their sequences and characteristics.

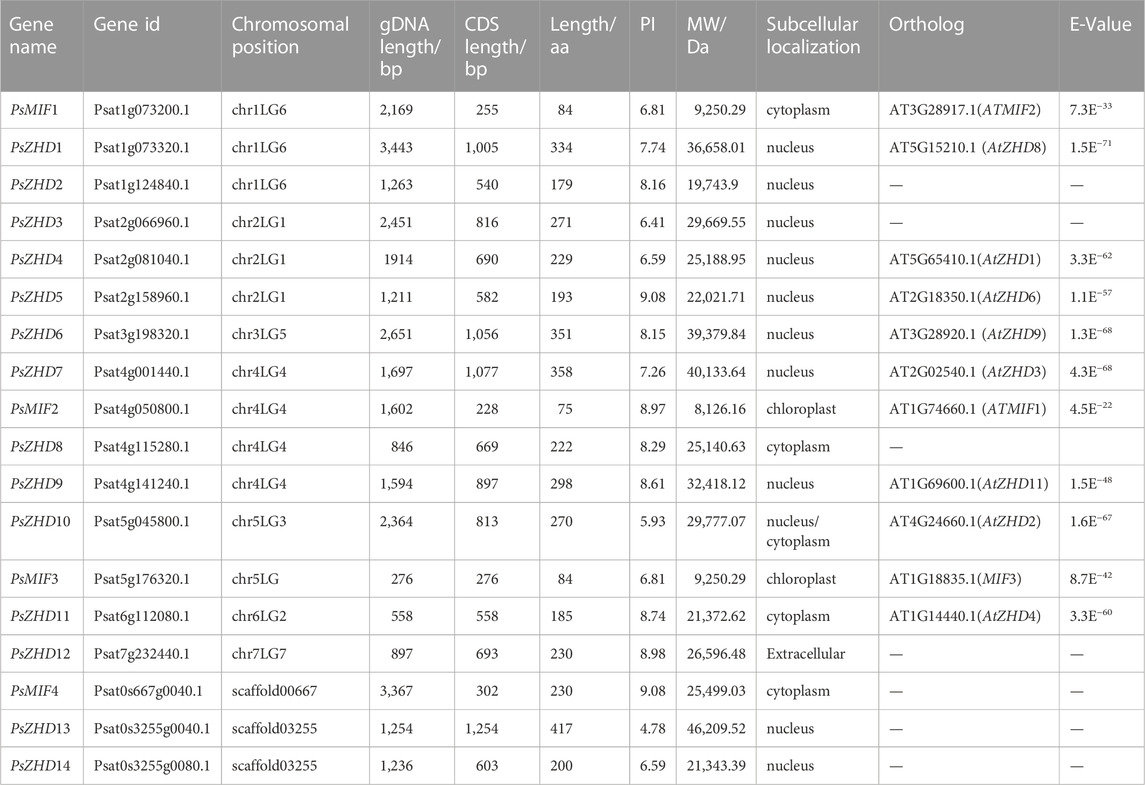

TABLE 1. Detailed information for the ZF-HD gene family in Pisum sativum.
3.2 Phylogenetic tree analysis
The phylogenetic tree classified the ZF-HD proteins into two subgroups, MIF and ZF-HD. MIF was further categorized into three branches (MIFⅠ, Ⅱ, and Ⅲ), and the ZF-HD subgroup was further classified into five branches (ZF-HD I, II, IV, and V) (Figure 1). PsMIF2 and PsMIF4 were classified into the MIF I branch, and PsMIF1 and PsMIF3 were classified into the MIF II branch. MIF III does not contain pea ZF-HD family members; the ZHD I subpopulation contains PsZHD8, 12, 3, and 10; the ZHD II subpopulation contains PsZHD4, 13 and 14; the ZHD III subpopulation contains PsZHD5; the ZHD IV subpopulation contains PsZHD1, 7, 11 and two; and ZHD V subpopulation contains PsZHD6 and 9. This evolutionary tree differs individually from that formed by the pea PsZF-HD family protein sequences and domain motifs, but it is highly consistent with the evolutionary tree generated by the CDS. Notably, the ZF-HD family has not diverged in the evolution of monocot and dicot plants.
FIGURE 1. The phylogenetic tree of ZF-HD proteins from pea (Pisum sativum,Ps), Arabidopsis (Arabidopsis thaliana,At), Tamato (Solanum lycopersicum,Sl), Soybean (Glycine max,,Glyma), Chinese cabbage (Brassica rapa,Bra) and rice (Oryza sativa,Os). The phylogenetic Tree members showed as blot and accompany a pentagram.
3.3 Chromosomal localization, gene duplication and ka/ks analysis
The 18 ZF-HD family members in peas were unevenly distributed on seven chromosomes, and two large segments were not mounted on chromosomes, with different densities of gene distribution (Figure 2). Chromosome 1LG6 contained three PsZF-HD genes; 2LG1 contained three genes; 3LG5 contained one gene; 4LG4 contained the largest number of PsZF-HD members (four genes); 5LG3 contained two genes; 6LG2 contained one gene; 7LG7 contained one gene; sequence large segment Scaffold00667 contained one gene; and sequence large sequence segment Scaffold03255 contains one gene. PsZF-HD gene did not have large segment gene duplication events in seven chromosomes and two Scaffolds of pea, and only one pair of genes (Psat0s3255g0040.1 and Psat0s3255g0080.1) showed tandem duplication pairs. The ka and ks values were .206,821 and .1879, respectively, and ka/ks was 1.1007, indicating that the gene was under positive selection pressure during evolution.

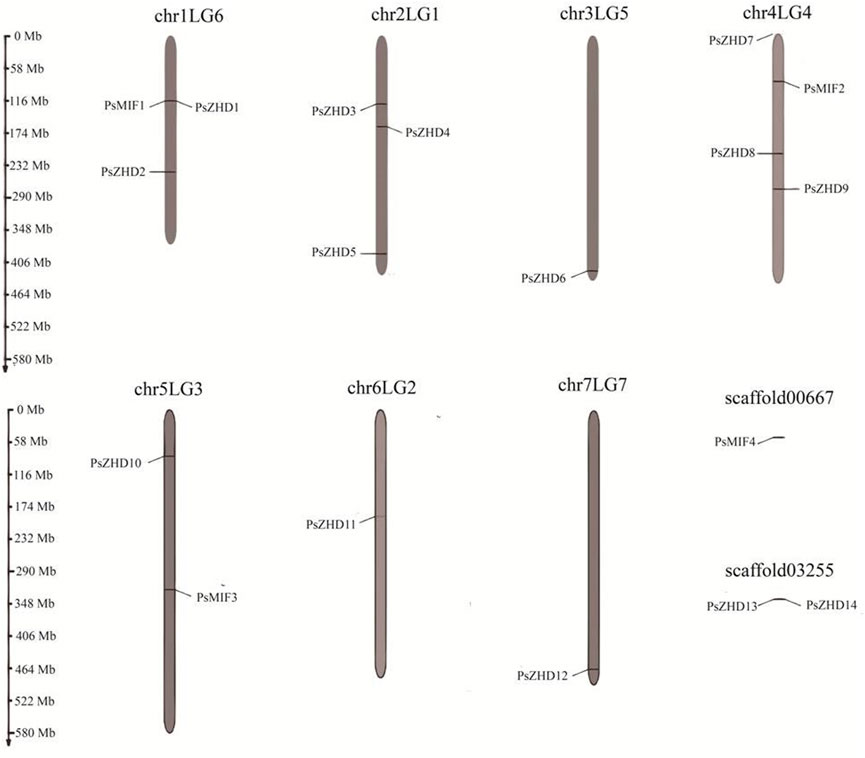

FIGURE 2. Physical distribution of PsZF-HD genes among seven chromosomes and scaffold.
3.4 Conserved motifs, conserved structural domains, and gene structure analysis
Twelve Motifs were identified from the 18 PsZF-HD family members, namely motif1-12 (Supplementary File S3). Motif1 was present in all the PsZF-HD family members, except PsMIF4 and PsZHD5, and Motif3 was present in all the PsZF-HD family members, except PsMIF2. Motif2 was found in 11 members of the PsZF-HD family. The MIF family members had the lowest number of motifs; Motifs were classified as MIFⅠ. Motif12 is unique to the MIF members, and the ZHD family has more motifs. Motif9 is specific to ZHDII subgroup PsZHD13, 14, and 4 (Figures 3A). The conserved domain analysis (Figures 3B) showed that the 18 PsZF-HD family members contained four conserved domains, while the MIF subgroup members contained only one conserved domain, and all the ZHD subgroup members contained two different conserved domains. PsMIF4, which is classified in the MIF subgroup, contains a specific ZF-HD dimer superfamily domain, while the other 17 members contain an N-terminal ZF-HD dimer domain (rich in cysteine and histidine). PsZHD3, 8, 12, 4, and nine contain another hemeo ZF-HD superfamily domain. Structural analysis of PsZF-HDs genes showed (Figures 3C) that most members had no introns (13/18), and five members (PsZHD4, PsZHD14, PsZHD9, PsZHD1, PsZHD5) contained only one intron. The psMIF4 contained the longest intron and the longest untranslated region sequence. The highest matching templates with the PDB library were selected to construct and visualize 3D models of PsZF-HDs family proteins (Figure 3). psat4g050800.1 (3qdy.pdb), Psat5g176320.1 (6eu0.1. I.pdb), Psat1g073200.1 (2fqh.pdb), Psat0s3255g0040.1 2 (lbc.1.A.pdb), Psat0s667g0040.1 (1fr5.1.A.pdb), and the rest of the proteins use the same template 1wh7. pdb. There were significant structural differences between the MIF subpopulation and the ZF-HD subpopulation, while there was a high degree of structural similarity within the subpopulation. Members of the MIF subpopulation had no α-helix. MIFⅠ consisted of β-fold and a ring, while MIFⅡ had neither helix nor fold and consisted of a ring. In contrast, the ZF-HD subfamily was β-folded and had a more complex structure than the MIF members. Notably, PsZHD13, the 3D model, was significantly different from other ZF-HD subgroup members.

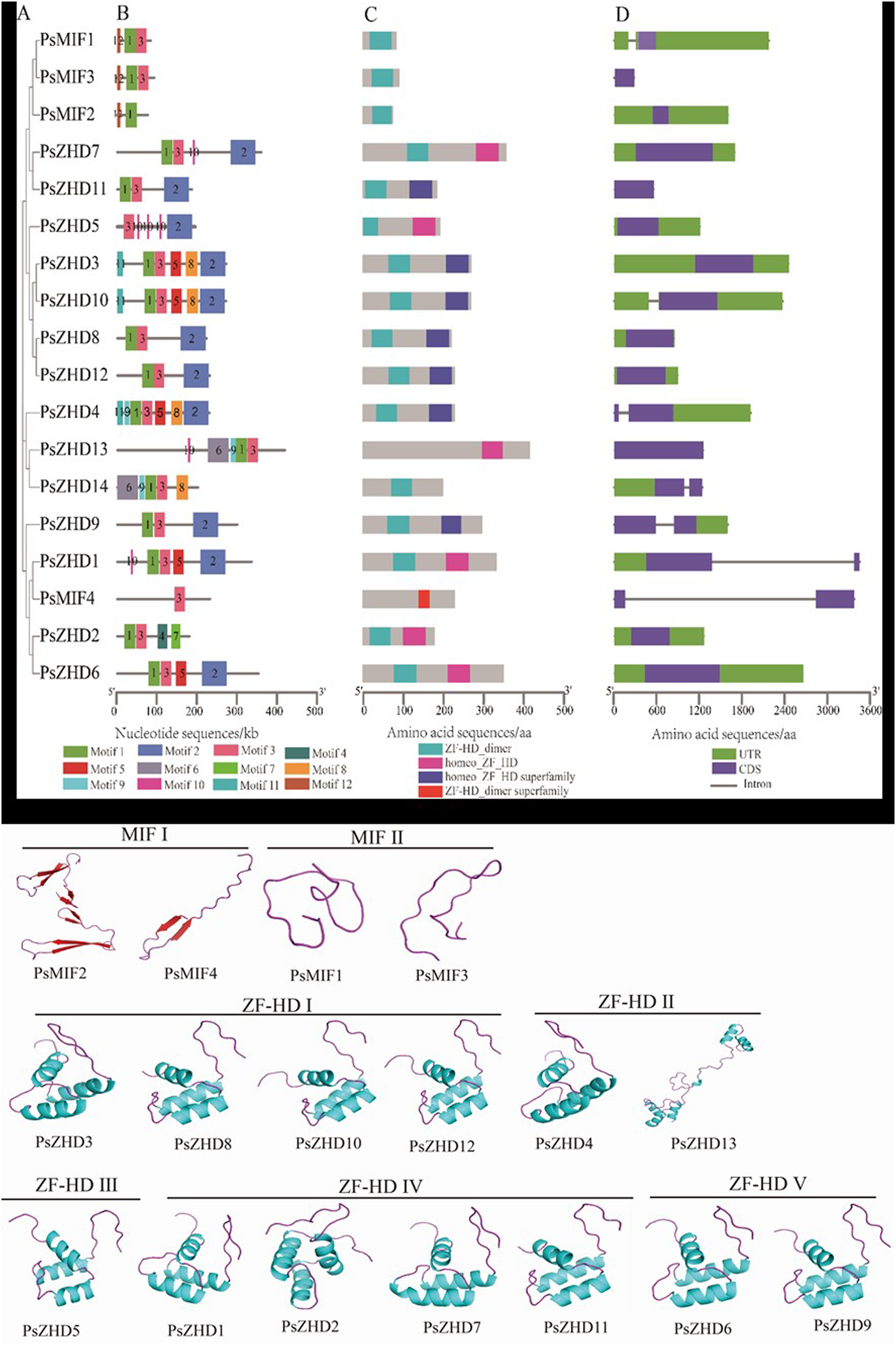

FIGURE 3. Phylogenetic relationship, conserved motifs, conserved domain and gene structure of the PsZF-HD genes. (A) An unrooted phylogenetic tree was constructed by the MEGA X based on Pea ZF-HD protein sequences using the Maximum likelihood method. (B) Conserved motif composition of the PsZF-HD proteins, and the colored box at the bottom represented the relative position of each conserved motif, Details are shown in Supplementary File S2. (C) conserved domain composition PsZF-HD proteins. (D) The CDS–UTR-introns structures of PsZF-HD genes were displayed by TBtools software.
3.5 Analysis of structural elements of the promoter region of PsZF-HD
Cis-acting elements serve as molecular switches in the promoter regions of genes and important regulators of gene transcription during plant development in response to biotic/abiotic stresses and phytohormones. We extracted elements in the 1.5 kb promoter region upstream of the transcriptional start of PsZF-HD family members and filtered out unknown and untrustworthy elements to analyze 21, 10, 9, and 5 cis-acting elements involved in light, hormone, and stress responses and the regulation of growth and development, respectively (Figure 4). Of the 21 light response elements found in the 18 PsZF-HD family members, Box4, GT1-motif, and G-box had the highest coverage percentages at 16/18, 14/18, and 14/18, respectively. Fourteen members contained more than two light-responsive elements. The hormone-regulated response elements involved growth hormone, gibberellin, methyl jasmonate, zeatin, and abscisic acid, and the abscisic acid response elements were common in the PsZF-HD family, accounting for 14/18. The growth hormone AuxRR-core and TGA-box response elements were only present in PsZF-HD9 and 2, respectively. Gibberellin response element GARE motif existed only in PsZF-HD4. The other 16 PsZ-HD members contained more than two hormone response elements. PsZF-HD family genes contained stress response elements involving abiotic stresses, such as those induced by drought, low temperature, salt, and anaerobic factors. Of these, ARE anaerobic response elements had the highest distribution in the PsZF-HD family, reaching 13/18. PsZF-HD17 (except WUN motif element) and PsZF-HD2 (except MBS drought response element) contained six other stress response elements. PsZF-HD8 and 14 contained only anaerobic response elements. PsZF-HD3 contained only drought response element MBS. Five response elements regulate pea growth and development, none of which was found in PsZF-HD9, 6, 14, 7 and 11, while the other 13 PsZF-HD members contained at least one response element. The as-1 elements were distributed in the largest proportion of the PsZF-HD family at 1/2. Cluster analysis showed that some PsZF-HD members in the same branch had similar cis-elements. This suggests that the PsZF-HD family is involved in different developmental processes in response to abiotic stresses and hormonal regulation.

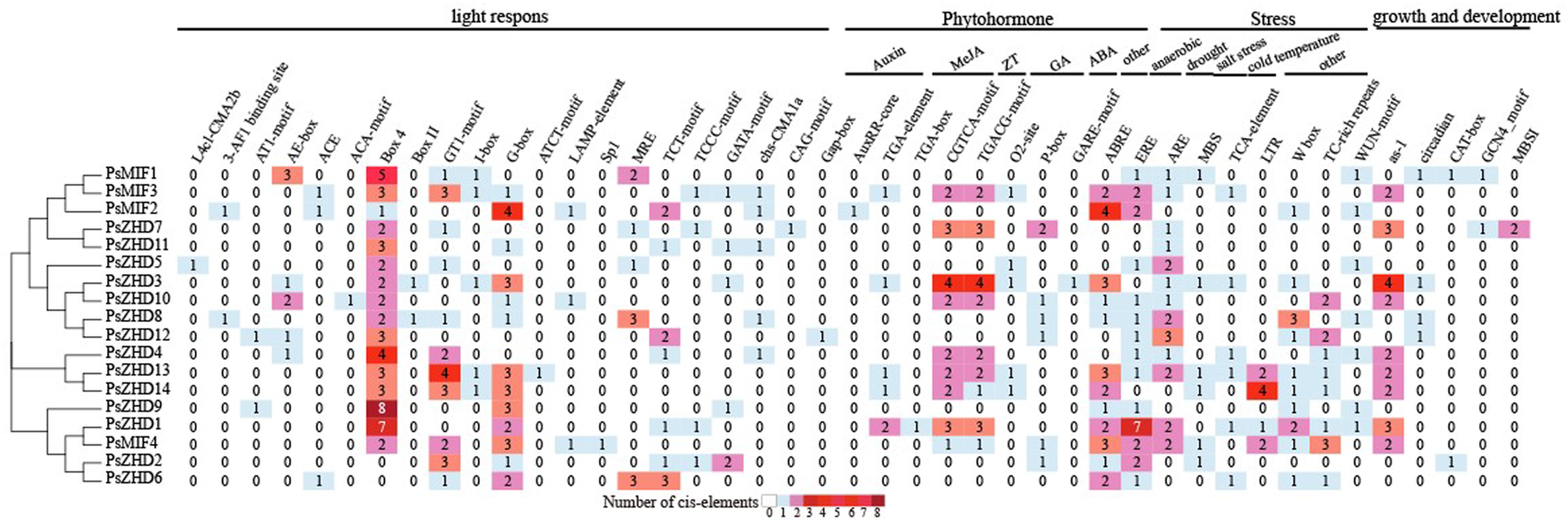

FIGURE 4. Analysis of Cis-acting elements of ZF-HD gene family in P. sative.
3.6 Inter-tissue differential expression analysis of PsZF-HDs genes
To investigate the biological roles of PsZF-HDs, the expression levels of 18 PsZF-HDs genes were systematically examined in pea flowers, immature pods, immature seeds, roots, root tips, seedlings, stems, leaves, stipules, tendrils, stamens, post-flowering pods at five developmental stages and under the stress conditions of N deficiency and low temperature (Figure 5, Supplementary File S4). The aforementioned tissue contained PsZHD11, 8, 13, 14 and MIF4 (Figure 5A). The other PsZF-HD members were differentially expressed in various tissues and demonstrated tissue specificity. However, they were similarly expressed in the same tissues of the two groups of phenotypically significantly different pea varieties (Kaspa and Parafield, WDZY-14 and WDZY-04) (Figure 5B-1). PsZHD6, 2, and 10 and MIF1 (except immature seeds) were significantly expressed in the aboveground reproductive organs. PsZHD6, 1, and 10 were significantly expressed in the aboveground nutritional organs, and PsMIF3 was highly expressed in the subterranean organs.
FIGURE 5. Expression patterns of PsZF-HDs in Different Tissues from Pisum sativum L. The heat map with clustering was created based on the FPKM value of PsZF-HDs. Differences in gene expression changes are shown in colour as the scale. (A) The expression pattern of PsZF-HD genes in the flower, immature pod, immature seed, nodule, root, root-tip, seeding, stem, stipule, tendril, pistil, stamen, leaf of Two pea varieties with significant phenotypic differences(Kaspa variety and Parafield variety). (B-1) Expression of PsZF-HDs gene in five stages of immature pod development. (B-2) The expression pattern of PsZF-HD genes in the leaf under different low-temperature stress. Scheme of the experiments and samplings of RNA-sequencing (RNA-seq) experiments:low temperature (L) treatment and control (N),low temperature in fuchsia, freezing in deepskyblue, and recovery period in darkviolet. (C) The expression pattern of PsZF-HD genes in different tissues of pea: The sampling points are shown in Supplementary File S3. The expression pattern of PsZF-HD genes in different tissues of pea: The sampling points are shown in Supplementary File S5.
In the petals, the expression of all PsZF-HD members was upregulated, except for the aforementioned non-expressed genes, of which PsZHD6, 2, and 10 and MIF1 genes were highly expressed in that order, presumably relating to pea flowering regulation. The genes PsZHD12, 6, MIF1 and 10 were the most highly expressed in Kaspa and Parafield pea varieties during pod development. Moreover, PsZHD5 was consistently more expressed than the other members of PsZF-HDs at the five pod developmental stages of WDZY-14 and WDZY-04 pea varieties. PsZHD10, 6, five and two were sequentially highly expressed in immature seeds. PsZHD6, MIF1, and MIF3 were relatively highly expressed in the root nodules. PsMIF3 was specifically highly expressed in the roots and root tips, and its expression in roots was the second highest value of this family of genes in all the organs of peas. In the seedlings, PsZHD1, 6, 10, and two were sequentially highly expressed. The stems showed a sequential upregulation of PsMIF1, 6, 1, and 10 over the course of their development. The stipules showed exceptionally high expression of PsZHD6 and 1. The tendrils showed sequentially high expression of PsZHD6, 1, and 2. The 12 PsZF-HD members were highly expressed in the pistil and stamen, except PsMIF2, with PsZF-HD2 in the pistil showing the highest expression in all the organs of pea and PsMIF1 showing the third highest expression in the stamen. The expression of PsZHD6 in the leaves was relatively high. The expression of PsMIF3 in pea underground tissues was higher than other members of PsZF-HDs under a high-low N environment (Figure 5C), but it did not show a certain pattern during its development. PsZHD6, 1, 10 and MIF1 (except leaves) showed significantly high expression in aboveground nutritional tissues, with the highest expression of PsMIF1 in stems and terminal nodes in the low-N environment and the highest expression of PsMIF1 in pedicels in aboveground reproductive organs. The expression of the 17 PsZF-HDs members in the shoot organs was slightly higher in the low-N environment compared with the high-N environment.
This study analyzed the leaf transcriptome of two pea varieties (Te: freeze-sensitive spring dry bean variety, Ch: freeze-resistant winter forage variety) under control (20 °C day/14 °C night), low temperature (8 °C day/2 °C night) for 3 days, and low temperature (8°C day/2 °C night) for 16 days to clarify the mechanism of PsZF-HDs affecting low-temperature stress (Figure 5B-2). PsZHD11, 8, 13 and one were not detected in all experimental groups. Meanwhile, the expression values of PsZHD12 and 14 were close to or equal to 0, indicating that they were almost independent of leaf development. On the contrary, PsZHD10,6,1 and one were highly expressed in the control and different low temperature environments, and their gene expression levels were ranked from high to low. Compared with the control, the gene expression of PsZHD10 and PsZHD10 was up-regulated. In contrast, PsZHD6, 2, MIF2 and MIF1 genes were down-regulated (except the PsZHD2 gene in ChN1 and ChL1 low-temperature treatment groups and the PsMIF1 gene in TeN2 and TeL2 low-temperature treatment groups), and their up- or down-regulation was less affected by the duration of low temperature. Other members of PsZF HDs did not show regular changes under the control and different low temperature durations.
3.7 Functional enrichment analysis of PsZF-HD gene and protein interaction network
GO enrichment analysis showed that the functions of ZF-HD family genes were mainly enriched in three levels: biological process (BP), cellular component (CC) and molecular function (MF). At the level of biological process, the target gene ZF-HD was significantly enriched in several GO items, such as the growth and development process (GO: 0032502), bioregulatory process (GO:0065007), metabolic process (GO: 008152), cell replication and reproduction, 11 genes were involved in biological metabolism, seven genes exercised biological management function, one gene had the function to resist At the cellular component level, most of the ZF-HD genes are the main components of the constituent cells, and a small number of ZF-HD genes are involved in the constitution of organs; and the molecular functions of the ZF-HD gene family are mainly enriched in the DNA binding function, which is one of the typical features of transcription factors. The results of GO enrichment showed that 18 PsZF-HD genes could be involved in rapid growth and development in peas.
4 Discussion
4.1 Evolutionary and structural characteristics of PsZF-HD genes in pea
The plant ZF-HD family genes play an important role in regulating plant growth and development and resisting stresses in a stressful environment. According to the bioinformatics analysis, the pea genome carried a total of 18 ZF-HD genes, with four PsMIF genes and 14 PsZHD genes similar to the categories of model plant Rice and Arabidopsis ZF-HD genes, respectively. However, the number of each subgroup in pea was different from that in rice and Arabidopsis. Previously, 58, 28, and 18 ZF-HD members were identified in soybean, wild soybean, and Tribulus alfalfa of the legume subfamily Pteridophyllaceae, respectively. In Chinese cabbage (Wang et al., 2016), tea (Zhou et al., 2021), buckwheat (Liu et al., 2019), maize (Jing et al., 2022), tobacco (Sun et al., 2021), and tomato (Hu et al., 2018), a total of 31, 18, 20, 24, 32, and 22 ZF-HD family members, respectively, have been reported. A total of 17 and 15 genes were identified in Arabidopsis and rice model crops, respectively. Although the number of the ZF-HD family members of the aforementioned plants are not less than that of pea, their genomes are much smaller (soybean, 1.15 Mb; alfalfa, 360 Mb; cabbage, 283.8 Mb; tea, 3.14 Gb; buckwheat, 489.3 Mb; tomato, 900 Mb. Previous studies have shown that ZF-HDs underwent a genetic expansion to differentiate between higher and lower plants. Most species undergo more than one genome contraction/expansion event during evolution, causing changes in gene numbers. A similar event has now been shown to occur in pea (Wang et al., 2016; Kreplak et al., 2019). Therefore, it is hypothesized that the gene duplication/loss events occurring in peas may be a key factor in the sparse distribution of PsZF-HDs genes in the genome.
The results of the biochemical analysis and phylogenetic tree showed that the ZF-HDs proteins were classified into two distinct subgroups (MIF and ZHD) and subdivided into three branches for MIF and five branches for ZHD (ZHD1-ZHDV) (Figure 1). This result is consistent with the previous reports on other crops (Liu et al., 2019; Zhou et al., 2021; He et al., 2022). The pea genome carried four PsZF-HD members classified into the MIF I subgroup and 14 members classified into the ZHD subgroup. Conserved motifs, protein structural domains, and 3D structures significantly differed between the MIF and ZHD subgroups. Members of the MIF subgroup contained the lowest number of motifs, which was unique to motif12. Meanwhile, the MIF subgroup contained only one conserved structural domain. Similarly, the ZHD subgroup contained only one conserved domain, and the ZHD subgroup had no motif12. However, both subgroups contained two different conserved domains. This is consistent with the previous proposal that the MIF subgroup contains only the ZF structural domain and lacks the C-terminal homology domain. In addition, the three-dimensional structures of the MIF and ZHD subgroups and the proteins within the MIF subgroup were significantly different. However, the members of the ZHD subgroup did not show significant structural differences among the branches. These results corroborate and support the correct classification of the PsZF-HD family, which has high evolutionary conservation. The present study did not show the evolutionary divergence of the ZF-HD family among monocots, which may be attributed to the small number of plants selected. Gene structure analysis may provide clues to gene family evolution (Lai et al., 2021). Most members of the pea PsZF-HD family are intronless, which matches the typical features of the ZF-HD family gene structure. It has been proposed that the loss of selective splicing of intronless genes facilitates the maintenance of the highly conserved sequence and functional stability of ZF-HD proteins during the evolutionary process. Moreover, it enables rapid transcription and translation in response to abiotic stresses (Shalmani et al., 2019). Furthermore, the five members of the PsZF-HD family contained only one intron, and we hypothesized that intron acquisition events occurred during the evolution of the pea ZF-HD gene. This provides further evidence that ZF-HD genes are subject to strong purifying selection, and it also suggests that members of the PsZF-HD family may have relatively conserved biological functions. However, the distinction between phase functions has not been made to date (Abdullah et al., 2018).
4.2 Analysis of cis acting elements of PsZF-HD gene promoter and its expression in different tissues at different growth stages and under abiotic stress
TFs are involved in the regulation of stress signals and expression of stress-responsive genes through various mechanisms, which depend on the presence of cis-acting elements in the promoter region. A growing body of evidence indicates that ZF-HD TFs play crucial roles in regulating various biological processes in plants (Hu et al., 2008; Khatun et al., 2017; Zhou et al., 2021). In our study, 45 cis-acting elements of the PsZF-HD with known biological functions were predicted and screened; these elements belonged to four categories: light response, stress, hormone, and growth and development, suggesting that the PsZF-HDs are also involved in different processes, such as photomorphogenesis, organ development, stress response, and hormone regulation, in pea plants. ZF-HD genes are differentially expressed in different tissues of different species and play an important role in plant growth and development (Khatun et al., 2017). Previous studies on ZF-HD genes have mostly focused on abiotic stresses and less on organ development. Previously, scholars analyzed the expression of ZF-HDs family genes in cabbage, buckwheat, and cucumber in their respective different organs and found significant spatiotemporal expression differences and tissue preference in different tissues (Liu et al., 2019). For example, buckwheat FtZHD10 and three were expressed only in the roots and FtMIF3 only in the flowers; the fruits showed high expression of FtZHD11/6/15/13 and no expression of FtZHD2. FtZHD1/2/4/5/7/9/12/16/17 and FtMIF2/3 were expressed more in the flowers than that in the other tissues; FtZHD1/6/11/12/15 were expressed more in the reproductive organs than that in the nutritional organs (Liu et al., 2019). Cucumber CsMIF1, CsMIF3, and CsZHD1 were highly expressed in the roots, flowers, and tendrils, respectively, and several CsZF-HD genes were significantly downregulated at the late stage of fruit development (Lai et al., 2021). We found that PsZF-HDs had a similar pattern as previously described. PsZHD11, 8, 13, and 14 and MIF4 were not expressed in the different tissues of the pea multiset transcriptome or were lowly expressed in the individual tissues. The other 13 PsZF-HDs genes were differentially expressed in the different tissues of pea. For example, in aboveground reproductive organs of pea, PsZHD6, 2, and 10 and MIF1 (except immature seeds) were significantly expressed; in aboveground nutritional organs, PsZHD6, 1, 10 were significantly expressed; and in the underground root system, PsMIF3 was highly expressed; in aboveground nutritional organs, PsZHD6, 1, 10 were significantly highly expressed; and in the underground root system, PsMIF3 was specifically highly expressed. It has been proposed that Arabidopsis thaliana AtZHD5 is highly expressed in leaves with the same branches as tobacco NtZF-HD22 and NtZF-HD2 and Arabidopsis thaliana AtZF-HD8 is highly expressed in flowers and leaves(Sun et al., 2021). In this study, high expression of PsZHD6 in leaves of the same branch as AtZF-HD8 was found. It indicates that PsZHD6 is involved in regulating the growth and development of pea leaves. Seedlings highly expressed genes (PsZHD1, 6, 10), stems (PsMIF1, 6, 1, 10), stipules (PsZHD6 and 1), tendrils (PsZHD6, one and 2), and leaves (PsZHD6 and MIF2). Notably, the pod transcriptome data published by Sudheesh et al. (2015); Yang et al. (2019) differed significantly, with the former showing high expression of MIF1/10/12/2/6 genes in all immature pods, while the latter showed only PsZHD5-specific high expression at five periods of pod development. In the floral organs (petals, pistils, and stamens), most PsZF-HD members were expressed at high values, with PsZF-HD2, PsMIF1, 6 and 10 being significantly overexpressed in the floral organs in that order, presumably in relation to pea flowering regulation. Previous studies have shown that most of the Arabidopsis thaliana ZF-HD family genes are expressed in the floral organs and overlap in regulating flower development (Shalmani et al., 2019). BraZF-HD30 is specifically expressed in the flower tissue of Chinese cabbage (Wang et al., 2015).
ZF-HD genes play key roles in response to biotic and abiotic stresses. For example, Arabidopsis thaliana AtZF-HD4 is up-regulated in response to drought, cold stress, and salinity. Most BraZF-HD genes in cabbage are induced by photoperiod, vernalization, low temperature and abiotic stresses (Wang et al., 2016). ZF-HD3 was gradually up-regulated, and ZF-HD15 was down-regulated by cold stress 0–24 h in a tea tree(Zhou et al., 2021). Tomato SlZHD13 was up-regulated under drought, and salt stress (Khatun et al., 2017), and silencing the SL-ZH13 gene reduced its resistance to cold and salt stresses (Zhao et al., 2018; Zhao et al., 2019). In this study, we analyzed the transcriptome results of pea leaves under low-temperature stress at 3 days and 16 days. We found that low temperature induced up-regulation of PsZHD10 and one genes and down-regulation of PsZHD6, 2, MIF2 and MIF1 genes, but their up- and down-regulation was not significant. Under low N stress, PsZHD6, 1, 10 and MIF1 (except leaves) were significantly highly expressed in aboveground nutrient tissues, with PsMIF1 showing the highest expression in stems, terminal nodes and pedicels. The expression of 17 PsZF-HDs members was slightly up-regulated in shoots. Similar results have been verified in other crops (Wang et al., 2016; Khatun et al., 2017). The PsZF-HD members in the same branch have more similar types of action elements. For example, the ZHD V branch members PsZF-HD7 and 11 are highly similar in hormone, stress and growth and development-related action elements, and the three members of the ZHD IV branch (except PsZF-HD2) are highly similar in their response elements. The ZHD III branch contains only PsZF-HD6, which contains the least number of active elements and is divided into a single branch. 16 genes were highly similar in some light-responsive and hormone-responsive element types. Overall, their expression was detected during pea organ development and morphogenesis; these genes may not be associated with pea organ development or light-induced morphogenesis. Overall, Some PsZF-HD family genes in pea are involved in regulating the response to stress, focusing on the functional verification of the above genes will help uncover the stress resistance of peas and play an important role in promoting the improvement of crop stress resistance.
Conclusion
18 PsZF-HD genes, including 14 ZHD genes and four MIF genes, were identified in the entire pea genome, and their Conserved motif, Conserved domain, structures and expression pattern of in various tissues, different stages of pod development, together with the expression patterns of BraZF-HD genes under low temperature and nitrogen stress were analyzed, provided a basic resource for the examination of the molecular regulation of pea development and stress resistance. Our findings is the first systematic and comprehensive analysis of ZF-HD genes in pea, it provides clues for revealing the potential roles of PsZF-HD genes in Morphogenesis and tissue development and stress tolerance of Pea.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Author contributions
W-HH and X-BF designed the research, funding acquisition and project administration. BS Conducted experiments, as well as wrote the manuscript. J-LW: prepared seed materials. IUH, BA and SF helped with experiments and streamlined the idea to further strengthen the study. BA, J-LW, SF and XF helped in revision of the manuscript.
Funding
This work was financially supported by the National Natural Science Foundation of China (31860410, 32060482), China Agricultural University- Tibet Agriculture and animal Husbandry University Joint Project (604419037; 766660010).
Acknowledgments
The authors are also thankful to Editage (www.editage.com) for providing English language editing services. The article was edited with certificate no. AJFIA_4 Dated 06 December 2022.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2022.1089375/full#supplementary-material
References
Abdullah, M., Cheng, X., Cao, Y., Su, X., Manzoor, M. A., Gao, J., et al. (2018). Zinc finger-homeodomain transcriptional factors (ZHDs) in upland cotton (gossypium hirsutum): Genome-wide identification and expression analysis in fiber development. Front. Genet. 9, 357. doi:10.3389/fgene.2018.00357
Abu-Romman, S., and Al-Hadid, K. (2017). Novel zinc finger-homeodomain gene from barley (HvZFHD1) is differentially regulated during spike development and under hormonal treatments and abiotic stresses. Not. Bot. Horti Agrobot. Cluj-Napoca 45, 89–96. doi:10.15835/nbha45110612
Alves-Carvalho, S., Aubert, G., Carrere, S., Cruaud, C., Brochot, A. L., Jacquin, F., et al. (2015). Full-length de novo assembly of RNA-seq data in pea (Pisum sativum L.) provides a gene expression atlas and gives insights into root nodulation in this species. Plant J. 84, 1–19. doi:10.1111/tpj.12967
Anders, S., Pyl, P. T., and Huber, W. (2015). HTSeq--a Python framework to work with high-throughput sequencing data. Bioinformatics 31, 166–169. doi:10.1093/bioinformatics/btu638
Bahrman, N., Hascoet, E., Jaminon, O., Depta, F., Hu, J. F., Bouchez, O., et al. (2019). Identification of genes differentially expressed in response to cold in Pisum sativum using RNA sequencing analyses. Plants (Basel) 8, 288. doi:10.3390/plants8080288
Chen, H., Rosin, F. M., Prat, S., and Hannapel, D. J. (2003). Interacting transcription factors from the three-amino acid loop extension superclass regulate tuber formation. Plant Physiol. 132, 1391–1404. doi:10.1104/pp.103.022434
Chen, S., Zhou, Y., Chen, Y., and Gu, J. (2018). fastp: an ultra-fast all-in-one FASTQ preprocessor. Bioinformatics 34, i884–i890. doi:10.1093/bioinformatics/bty560
Englbrecht, C. C., Schoof, H., and Böhm, S. (2004). Conservation, diversification and expansion of C2H2 zinc finger proteins in the Arabidopsis thaliana genome. BMC Genomics 5, 39. doi:10.1186/1471-2164-5-39
Figueiredo, D. D., Barros, P. M., Cordeiro, A. M., Serra, T. S., Lourenço, T., Chander, S., et al. (2012). Seven zinc-finger transcription factors are novel regulators of the stress responsive gene OsDREB1B. J. Exp. Bot. 63, 3643–3656. doi:10.1093/jxb/ers035
He, K., Li, C., Zhang, Z., Zhan, L., Cong, C., Zhang, D., et al. (2022). Genome-wide investigation of the ZF-HD gene family in two varieties of alfalfa (Medicago sativa L.) and its expression pattern under alkaline stress. BMC Genomics 23, 150. doi:10.1186/s12864-022-08309-x
He, Z., Zhang, H., Gao, S., Lercher, M. J., Chen, W. H., and Hu, S. (2016). Evolview v2: An online visualization and management tool for customized and annotated phylogenetic trees. Nucleic Acids Res. 44, W236–W241. doi:10.1093/nar/gkw370
Hong, S. Y., Kim, O. K., Kim, S. G., Yang, M. S., and Park, C. M. (2011). Nuclear import and DNA binding of the ZHD5 transcription factor is modulated by a competitive peptide inhibitor in Arabidopsis. J. Biol. Chem. 286, 1659–1668. doi:10.1074/jbc.M110.167692
Hu, J., Gao, Y., Zhao, T., Li, J., Yao, M., and Xu, X. (2018). Genome-wide identification and expression pattern analysis of zinc-finger homeodomain transcription factors in tomato under abiotic stress. J. Am. Soc. Hortic. Sci. 143, 14–22. doi:10.21273/jashs04245-17
Hu, W., Depamphilis, C. W., and Ma, H. (2008). Phylogenetic analysis of the plant-specific zinc finger-homeobox and mini zinc finger gene families. J. Integr. Plant Biol. 50, 1031–1045. doi:10.1111/j.1744-7909.2008.00681.x
Hu, W., and Ma, H. (2006). Characterization of a novel putative zinc finger gene MIF1: Involvement in multiple hormonal regulation of Arabidopsis development. Plant J. 45, 399–422. doi:10.1111/j.1365-313X.2005.02626.x
Jain, M., Tyagi, A. K., and Khurana, J. P. (2008). Genome-wide identification, classification, evolutionary expansion and expression analyses of homeobox genes in rice. Febs J. 275, 2845–2861. doi:10.1111/j.1742-4658.2008.06424.x
Jing, X., Li, C., Luo, C., Yao, C., Zhang, J., Zhu, T., et al. (2022). Identication and characterization of ZF-HD genes inresponse to abscisic acid and abiotic stresses in maize. Res. Sq. doi:10.1186/s12864-017-4082-y
Khatun, K., Nath, U. K., Robin, A. H. K., Park, J. I., Lee, D. J., Kim, M. B., et al. (2017). Genome-wide analysis and expression profiling of zinc finger homeodomain (ZHD) family genes reveal likely roles in organ development and stress responses in tomato. BMC Genomics 18, 695. doi:10.1186/s12864-017-4082-y
Kim, D., Langmead, B., and Salzberg, S. L. (2015). Hisat: A fast spliced aligner with low memory requirements. Nat. Methods 12, 357–360. doi:10.1038/nmeth.3317
Klug, A., and Schwabe, J. W. (1995). Zinc fingers. Faseb J. 9, 597–604. doi:10.1096/fasebj.9.8.7768350
Kreplak, J., Madoui, M. A., Cápal, P., Novák, P., Labadie, K., Aubert, G., et al. (2019). A reference genome for pea provides insight into legume genome evolution. Nat. Genet. 51, 1411–1422. doi:10.1038/s41588-019-0480-1
Krishna, S. S., Majumdar, I., and Grishin, N. V. (2003). Structural classification of zinc fingers: Survey and summary. Nucleic Acids Res. 31, 532–550. doi:10.1093/nar/gkg161
Kumar, S., Stecher, G., Li, M., Knyaz, C., and Tamura, K. (2018). Mega X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 35, 1547–1549. doi:10.1093/molbev/msy096
Lai, W., Zhu, C., Hu, Z., Liu, S., Wu, H., and Zhou, Y. (2021). Identification and transcriptional analysis of zinc finger-homeodomain (ZF-HD) family genes in cucumber. Biochem. Genet. 59, 884–901. doi:10.1007/s10528-021-10036-z
Liu, H., Yang, Y., and Zhang, L. (2021). Zinc finger-homeodomain transcriptional factors (ZF-HDs) in wheat (Triticum aestivum L.): Identification, evolution, expression analysis and response to abiotic stresses. Plants (Basel) 10, 593. doi:10.3390/plants10030593
Liu, M., Wang, X., Sun, W., Ma, Z., Zheng, T., Huang, L., et al. (2019). Genome-wide investigation of the ZF-HD gene family in Tartary buckwheat (Fagopyrum tataricum). BMC Plant Biol. 19, 248. doi:10.1186/s12870-019-1834-7
Mackay, J. P., and Crossley, M. (1998). Zinc fingers are sticking together. Trends Biochem. Sci. 23, 1–4. doi:10.1016/s0968-0004(97)01168-7
Mukherjee, K., Brocchieri, L., and Bürglin, T. R. (2009). A comprehensive classification and evolutionary analysis of plant homeobox genes. Mol. Biol. Evol. 26, 2775–2794. doi:10.1093/molbev/msp201
Niu, H., Xia, P., Hu, Y., Zhan, C., Li, Y., Gong, S., et al. (2021). Genome-wide identification of ZF-HD gene family in Triticum aestivum: Molecular evolution mechanism and function analysis. PLoS One 16, e0256579. doi:10.1371/journal.pone.0256579
Park, H. C., Kim, M. L., Lee, S. M., Bahk, J. D., Yun, D. J., Lim, C. O., et al. (2007). Pathogen-induced binding of the soybean zinc finger homeodomain proteins GmZF-HD1 and GmZF-HD2 to two repeats of ATTA homeodomain binding site in the calmodulin isoform 4 (GmCaM4) promoter. Nucleic Acids Res. 35, 3612–3623. doi:10.1093/nar/gkm273
Shalmani, A., Muhammad, I., Sharif, R., Zhao, C., Ullah, U., Zhang, D., et al. (2019). Zinc finger-homeodomain genes: Evolution, functional differentiation, and expression profiling under flowering-related treatments and abiotic stresses in plants. Evol. Bioinform Online 15, 1176934319867930. doi:10.1177/1176934319867930
Song, M., Zhang, Y., Wang, L. Y., and Pen, X. Y. (2019). Identification and phylogenetic analysis of ZF-HD gene family in Brassica napus. Chin. Bull. Bot. 54, 699–710. doi:10.11983/CBB19055
Sudheesh, S., Sawbridge, T. I., Cogan, N. O., Kennedy, P., Forster, J. W., and Kaur, S. (2015). De novo assembly and characterisation of the field pea transcriptome using RNA-Seq. BMC Genomics 16, 611. doi:10.1186/s12864-015-1815-7
Sun, J., Xie, M., Li, X., Li, Z., Wang, Q., Ding, A., et al. (2021). Systematic investigations of the ZF-HD gene family in tobacco reveal their multiple roles in abiotic stresses. Agronomy 11, 406. doi:10.3390/agronomy11030406
Takatsuji, H. (1999). Zinc-finger proteins: The classical zinc finger emerges in contemporary plant science. Plant Mol. Biol. 39, 1073–1078. doi:10.1023/a:1006184519697
Tan, Q. K., and Irish, V. F. (2006). The Arabidopsis zinc finger-homeodomain genes encode proteins with unique biochemical properties that are coordinately expressed during floral development. Plant Physiol. 140, 1095–1108. doi:10.1104/pp.105.070565
Tran, L. S., Nakashima, K., Sakuma, Y., Osakabe, Y., Qin, F., Simpson, S. D., et al. (2007). Co-expression of the stress-inducible zinc finger homeodomain ZFHD1 and NAC transcription factors enhances expression of the ERD1 gene in Arabidopsis. Plant J. 49, 46–63. doi:10.1111/j.1365-313X.2006.02932.x
Wang, H., Yin, X., Li, X., Wang, L., Zheng, Y., Xu, X., et al. (2014). Genome-wide identification, evolution and expression analysis of the grape (Vitis vinifera L.) zinc finger-homeodomain gene family. Int. J. Mol. Sci. 15, 5730–5748. doi:10.3390/ijms15045730
Wang, W., Wu, P., Li, Y., and Hou, X. (2016). Genome-wide analysis and expression patterns of ZF-HD transcription factors under different developmental tissues and abiotic stresses in Chinese cabbage. Mol. Genet. Genomics 291, 1451–1464. doi:10.1007/s00438-015-1136-1
Windhövel, A., Hein, I., Dabrowa, R., Stockhaus, J., and Windhovel, A. (2001). Characterization of a novel class of plant homeodomain proteins that bind to the C4 phosphoenolpyruvate carboxylase gene of Flaveria trinervia. Plant Mol. Biol. 45, 201–214. doi:10.1023/a:1006450005648
Xie, M., Sun, J., Gong, D., and Kong, Y. (2019). The roles of Arabidopsis C1-2i subclass of C2H2-type zinc-finger transcription factors. Genes (Basel) 10, 653. doi:10.3390/genes10090653
Yanagisawa, S. (2004). Dof domain proteins: Plant-specific transcription factors associated with diverse phenomena unique to plants. Plant Cell Physiol. 45, 386–391. doi:10.1093/pcp/pch055
Yang, P., Li, Z., Wu, C., Luo, Y., Li, J., Wang, P., et al. (2019). Identification of differentially expressed genes involved in the molecular mechanism of pericarp elongation and differences in sucrose and starch accumulation between vegetable and grain pea (Pisum sativum L.) Int. J. Mol. Sci. 20, 6135. doi:10.3390/ijms20246135
Yang, T., Liu, R., Luo, Y., Hu, S., Wang, D., Wang, C., et al. (2022). Improved pea reference genome and pan-genome highlight genomic features and evolutionary characteristics. Nat. Genet. 54, 1553–1563. doi:10.1038/s41588-022-01172-2
Zhao, T.-T., Wang, Z.-Y., Bao, Y.-F., Zhang, X.-C., Yang, H.-H., Zhang, D.-Y., et al. (2019). Downregulation of SL-ZH13 transcription factor gene expression decreases drought tolerance of tomato. J. Integr. Agric. 18, 1579–1586. doi:10.1016/s2095-3119(19)62621-3
Zhao, T., Hu, J., Gao, Y., Wang, Z., Bao, Y., Zhang, X., et al. (2018). Silencing of the SL-ZH13 transcription factor gene decreasesthe salt stress tolerance of tomato. J. Am. Soc. Hortic. Sci. 143, 391–397. doi:10.21273/JASHS04477-18
Zhou, C., Zhu, C., Xie, S., Weng, J., Lin, Y., Lai, Z., et al. (2021). Genome-wide analysis of zinc finger motif-associated homeodomain (ZF-HD) family genes and their expression profiles under abiotic stresses and phytohormones stimuli in tea plants (Camellia sinensis). Sci. Hortic. 281, 109976. doi:10.1016/j.scienta.2021.109976
