Tony Heitkam1*
Luise Schulte1,2‡Beatrice Weber1Susan Liedtke1Sarah Breitenbach1Anja Kögler1
Kristin Morgenstern3Marie Brückner4Ute Tröber4Heino Wolf4
Doris Krabel3Thomas Schmidt1†- 1Institute of Botany, Technische Universität Dresden, Dresden, Germany
- 2Institute of Biochemistry and Biology, University of Potsdam, Potsdam, Germany
- 3Institute of Forest Botany and Forest Zoology, Technische Universität Dresden, Tharandt, Germany
- 4Staatsbetrieb Sachsenforst, Pirna, Germany
In eukaryotic genomes, cycles of repeat expansion and removal lead to large-scale genomic changes and propel organisms forward in evolution. However, in conifers, active repeat removal is thought to be limited, leading to expansions of their genomes, mostly exceeding 10 giga base pairs. As a result, conifer genomes are largely littered with fragmented and decayed repeats. Here, we aim to investigate how the repeat landscapes of two related conifers have diverged, given the conifers’ accumulative genome evolution mode. For this, we applied low-coverage sequencing and read clustering to the genomes of European and Japanese larch, Larix decidua (Lamb.) Carrière and Larix kaempferi (Mill.), that arose from a common ancestor, but are now geographically isolated. We found that both Larix species harbored largely similar repeat landscapes, especially regarding the transposable element content. To pin down possible genomic changes, we focused on the repeat class with the fastest sequence turnover: satellite DNAs (satDNAs). Using comparative bioinformatics, Southern, and fluorescent in situ hybridization, we reveal the satDNAs’ organizational patterns, their abundances, and chromosomal locations. Four out of the five identified satDNAs are widespread in the Larix genus, with two even present in the more distantly related Pseudotsuga and Abies genera. Unexpectedly, the EulaSat3 family was restricted to L. decidua and absent from L. kaempferi, indicating its evolutionarily young age. Taken together, our results exemplify how the accumulative genome evolution of conifers may limit the overall divergence of repeats after speciation, producing only few repeat-induced genomic novelties.
Introduction
Ranging in size between 0.002 and nearly 150 Gb, eukaryotic genomes vary by several orders of magnitude (Hidalgo et al., 2017). Among those, conifer genomes are especially large with sizes up to 37 Gb (Ahuja and Neale, 2005). As new reference genome sequences are generated – among them conifers such as spruces, pines, and recently firs and larches – new insights into the composition of conifer genomes are brought forward (Nystedt et al., 2013; Wegrzyn et al., 2014; Stevens et al., 2016; Kuzmin et al., 2019; Mosca et al., 2019). It is becoming obvious that the conifer karyotypes are highly conserved with 2n = 2x = 24 chromosomes, that their genome sizes can be huge, ranging between 8 and 72 Gb, and that polyploidy can be largely excluded as a source of genome growth (Zonneveld, 2012; Neale and Wheeler, 2019a). Instead, one of the main takeaways is that the steady accumulation of repeats is the main driver for conifer genome expansion, presumably due to limited elimination of transposable elements (TEs; Nystedt et al., 2013; Prunier et al., 2016).
As the large conifer genomes have accumulated repeats over long periods of time with only slow removal and turnover of repetitive sequences, we wondered whether species-specific repeat profiles were able to evolve in closely related conifers. Regarding repetitive sequence classes, it is already hypothesized that TE families likely persist in conifers over long evolutionary timeframes (Zuccolo et al., 2015). In contrast, satellite DNAs (satDNAs) have much faster sequence turnovers than TEs. They form one of the major repeat groups, constituting up to 36% of some plant genomes (Ambrozová et al., 2011; Garrido-Ramos, 2017). SatDNAs are composed of short monomers with individual lengths often between 160 and 180 bp as well as 320 and 360 bp (Hemleben et al., 2007; Melters et al., 2013), and are arranged in long tandemly repeated arrays. As they confer important functions with roles in cell division, chromatid separation, and chromosome stability (Jagannathan et al., 2018), they often occupy specific chromosomal regions, such as the centromeres and the (sub-) telomeres (Schmidt and Heslop-Harrison, 1998; Melters et al., 2013; Oliveira and Torres, 2018). Due to their fast evolution and defined chromosomal localization, satDNAs may represent valuable targets to trace repeat evolution and divergence over long, evolutionary timeframes in conifers.
As models, we investigate two related conifers within the genus Larix, the deciduous European and Japanese larches, i.e., Larix decidua (Lamb.) Carrière and Larix kaempferi (Mill.). According to the fossil record, larches have been widespread in Asia and North America, and only reached Europe in the last million years (LePage and Basinger, 1995). Their genome size estimates range between 9.7 and 13 Gb (L. decidua) as well as 12.9 and 13.3 Gb (L. kaempferi; Zonneveld, 2012; Bennett and Leitch, 2019), with their huge genomes likely being the result of many divergent and ancient repeats (Nystedt et al., 2013; Pellicer et al., 2018). Larches frequently hybridize, leading to an unclear genetic basis with debated phylogenetic positions of individual species (Wei and Wang, 2003; Lu et al., 2014). From a breeding perspective, the interspecific hybrid Larix × eurolepis (with parental contributions of L. decidua and L. kaempferi) offers interesting possibilities for larch cultivation outside the natural range, especially in Europe (Pâques et al., 2013); however, determining the parental contributions to the traits of larch hybrids remains difficult.
Consistent with other Pinaceae species, all larches have 2n = 2x = 24 chromosomes with conserved sizes, divided into six meta- and six submetacentric chromosome pairs (Hizume et al., 1993; Prunier et al., 2016). In larches, the 18S-5.8S-26S (35S) and 5S rDNAs are physically separated (Garcia and Kovařík, 2013), and fluorescent in situ hybridization (FISH) with respective rDNA probes clearly mark three 35S and one 5S rDNA-labeled chromosome pairs for L. decidua (Lubaretz et al., 1996) and two 35S and one 5S rDNA-labeled chromosome pairs for L. kaempferi (Liu et al., 2006; Zhang et al., 2010). Similarly, a single satDNA family is known (“LPD”), marking a heterochromatic chromosomal band on 22 chromosomes in L. kaempferi (Hizume et al., 2002). However, how the accumulative genome evolution mode of conifers affects the landscapes of larch repeats after speciation is not understood by far.
To test this, we sequenced L. decidua and L. kaempferi in low coverage to quantify, classify, and compare the respective repeat fractions. As satDNAs are typically marked by high sequence turnovers, we expect the highest differences for this repeat class. Using comparative bioinformatics, Southern, and fluorescent in situ hybridization, we deeply profiled five selected satDNAs, focusing on their abundance, their higher order arrangements, and chromosomal location. Assessment of their genomic distribution over a wider range of gymnosperms may give insight into the evolutionary age of satDNAs, may allow pinpointing how conifer repeat landscapes have diverged after speciation, and may be used to gather information regarding the parentage of larch hybrids.
Materials and Methods
Plant Material and DNA Isolation
Needles and seeds of eleven gymnosperm accessions have been obtained from the Forest Botanical Garden of Tharandt (Technische Universität Dresden) and the Staatsbetrieb Sachsenforst (Table 1). DNA was isolated from 2 g of homogenized material from frozen needles using the DNeasy Plant Maxi Kit (Qiagen, Hilden, Germany) according to manufacturer’s instructions. To allow for a more efficient elution of conifer DNA, the incubation time during the elution step was increased to 10 min. Purified DNA was eluted into water instead of the provided AE buffer.

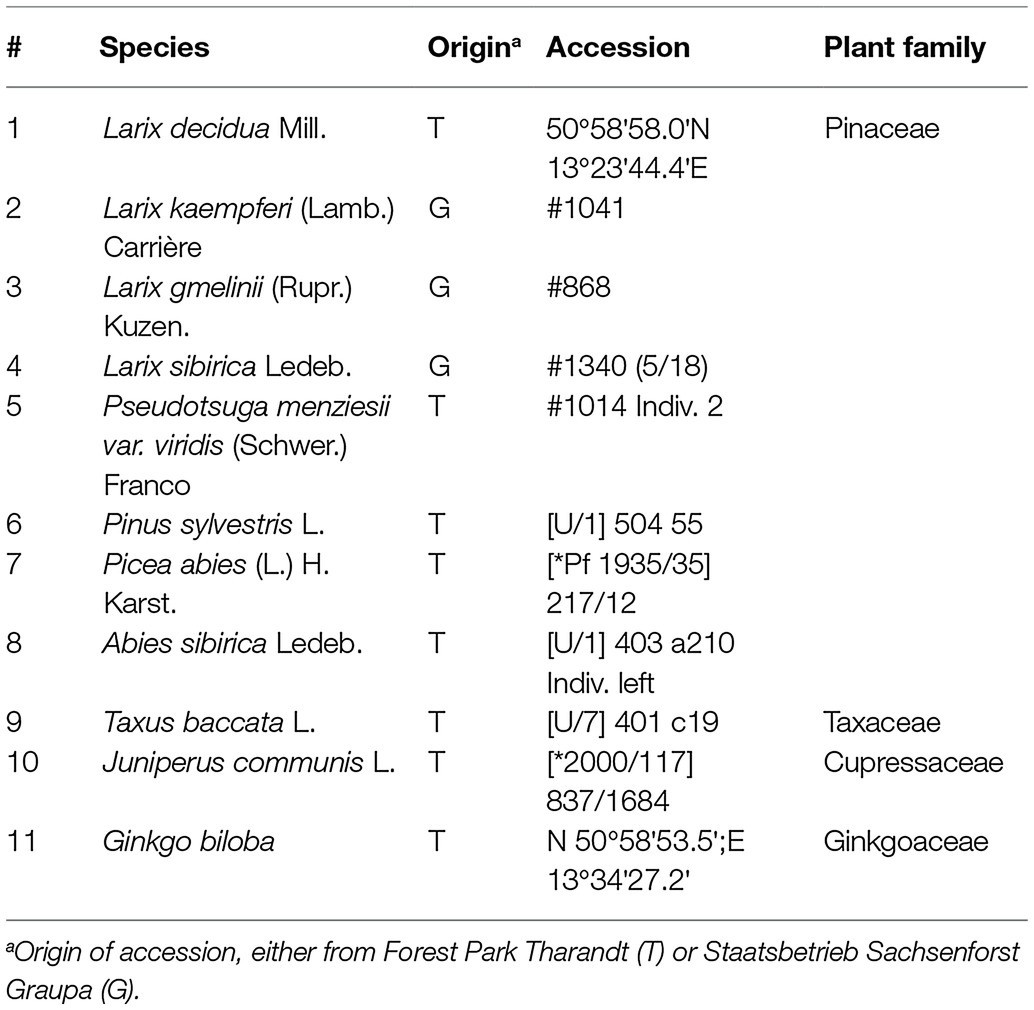

Table 1. Plant material.
For cytogenetics, we have used primary root tips from seeds of L. decidua (obtained as selected material for propagation from Staatsdarre Flöha, Partie number 1846, ELA/83704) and L. kaempferi seeds (obtained from Niedersächsische Landesforsten, provenance number 83901), as well as root tips from L. × eurolepis plantlets (clone 56.012.15) obtained from somatic embryogenic cultures from Madlen Walter and Kurt Zoglauer from the Humboldt Universität zu Berlin.
Sequencing, Read Clustering, Repeat Classification, and Characterization of One L. decidua and One L. kaempferi Individual
For sequencing, we used an individual of L. decidua and L. kaempferi each, with accessions as indicated in Table 1, lines 1–2. Whole genome sequence libraries with 350 to 500 bp fragment sizes have been generated by Macrogen Inc., followed by Illumina paired-end sequencing on Illumina HiSeq2000 and HiSeq2500 machines. The reads were trimmed to the same length (101 bp) using Trimmomatic (Bolger et al., 2014). We pre-treated and interlaced the read sequences using the custom scripts accompanying the local RepeatExplorer 1 installation (paired_fastq_filtering.R and fasta_interlacer, followed by SeqClust). The reads were quality-trimmed to include only sequences with a Phred score ≥10 over 95% of the read length. Overlapping paired ends have been excluded. We randomly selected five million paired reads from each library and subjected those to comparative clustering with the RepeatExplorer 1 software (Novák et al., 2010, 2013) and TAREAN (Novák et al., 2017). The resulting clusters were curated and classified manually, integrating similarity searches against the Conserved Domain Database for the functional annotation of proteins (Marchler-Bauer et al., 2011), RepBase Update (Jurka et al., 2005), the REXdb database (Neumann et al., 2019), as implemented in the local RepeatExplorer 1 installation, and a custom library containing ribosomal, telomeric, and plastid sequences collected from NCBI, as well as the PIER 2.0 transposable element database (Wegrzyn et al., 2013), as downloaded from the TreeGenes Web site (Wegrzyn et al., 2008). Each assignment to a repeat type was verified according to different characteristics: For protein-coding transposable elements, most weight was placed on the type of identified protein domain, and that their order and classification were consistent with the transposable element assignment. If one of the repeat databases produced a similar hit, this was seen as further evidence. For non-coding transposable elements, we have relied on the identification of other conserved sequence features, such as long terminal repeats, primer binding sites, or tRNA-derived promoter boxes. Finally, satDNAs were checked by dotplots and by the organization of paired reads to derive tentative candidates. Later, their tandem organization was experimentally verified by Southern hybridization. If we could not unambiguously assign a cluster to a repeat type, we have left it as unassigned. Hence, we consider all our repeat assignments as high-confidence classifications.
Clusters connected by paired reads and sharing a common annotation have been manually combined to superclusters, after making sure that the corresponding repeat classifications were compatible. Graphic representations as bar and pie charts have been produced with R using the ggplot2 library (Wickham, 2016).
Clusters with a satellite-typical star-like and circular graphical representation (Novák et al., 2010) have been selected for further analysis. Putative monomers were manually detected on the RepeatExplorer-derived contigs as well as with the software Tandem Repeats Finder (Benson, 1999), for which we combined a range of parameters with manual verification. Using the putative circular monomers as a template, we iteratively aligned the paired reads against these template sequences to derive more representative consensus sequences (Supplementary Data S1). Repeat sequences have been compared and characterized using multiple sequence alignments and dotplots of monomers with the packages MAFFT (Katoh and Standley, 2013) using standard parameters and FlexiDot (Seibt et al., 2018) with the parameters -k 18 -S 4 -p 2 -r 0 -x 1. General sequence investigation (such as the identification of restriction sites, the positioning of primer sequences, and the annotation of smaller, repetitive motifs) was performed with the multi-purpose software Geneious 6.1.8 (Kearse et al., 2012).
Repeat Quantification by Comparative Read Mapping
To determine the relative abundance of the selected Larix repeat families in other gymnosperms, we complemented our own data (L. decidua and L. kaempferi) with publicly available whole genome shotgun Illumina reads from twelve gymnosperms (Nystedt et al., 2013; Kuzmin et al., 2019; Zimmermann et al., 2019). The publicly available reads were obtained from NCBI under the following accession numbers: From the Pinaceae, these data sets include other larches (Larix sibirica, SRR8555411; Larix gmelinii, PRJNA528429), pines (Pinus taeda, SRR1054646; P. sylvestris, ERR268439; and P. lambertiana, SRR2027090), spruces (Picea abies, ERR268355; P. glauca, SRR1259615; and P. sitchensis, SRR3100750), fir (Abies sibirica, ERR268418), and Douglas fir (Pseudotsuga menziesii, SRR2027118). We also analyzed the genomes of distantly related gymnosperms, such as yew (Taxus baccata, ERR268427) and common juniper (Juniperus communis, ERR268423). We randomly extracted three million paired reads and iteratively mapped them against the circular satDNA consensus until it remained unchanged. This alignment to the consensus was performed with the Geneious 6.1.8 mapping tools (using medium sensitivity parameters; Kearse et al., 2012). We graphically represented mapping counts as bubble chart with R and ggplot2 (Wickham, 2016).
Repeat Detection in Genome Assemblies
If we detected EulaSat1 to EulaSat5 presence in additional genomes, we downloaded the corresponding genome assemblies, if available. These included assemblies of Pseudotsuga menziesii (Psme v.1.0 from treegenesdb.org, Neale et al., 2017) and Abies alba (Abal v.1.1 from treegenesdb.org, Mosca et al., 2019). Using a local BLAST search (Altschul et al., 1990), we have retrieved the five scaffolds with the most hits for each of the satDNA consensuses. In order to assess the organization of the satDNA families, we visualized each scaffold as a dotplot. For visualization purposes, we extracted representative 20 kb regions and generated FlexiDot dotplots (Seibt et al., 2018) with the parameters -k 18 -S 4 -c n -p 0 -A 1.5 -T 40 -E 16.
PCR and Cloning
From the monomeric consensus sequences, primer pairs have been designed from the L. decidua reference (Table 2). For the amplification of satDNA probes for Southern hybridization and FISH, PCR was carried out with the specific primer pairs. PCR reactions with 50 ng plasmid template were performed in 50 μl volume containing 10× DreamTaq buffer and 2.5 units of DreamTaq polymerase (Promega). Standard PCR conditions were 94°C for 5 min, followed by 35 cycles of 94°C for 1 min, primer-specific annealing temperature for 30 s, 72°C for 1 min, and a final incubation time at 72°C for 5 min. The resulting amplicons have been cloned into the pGEM-T vector (Promega), followed by Sanger sequencing. The clones containing inserts most similar to the satDNA consensus have been chosen for hybridization experiments.

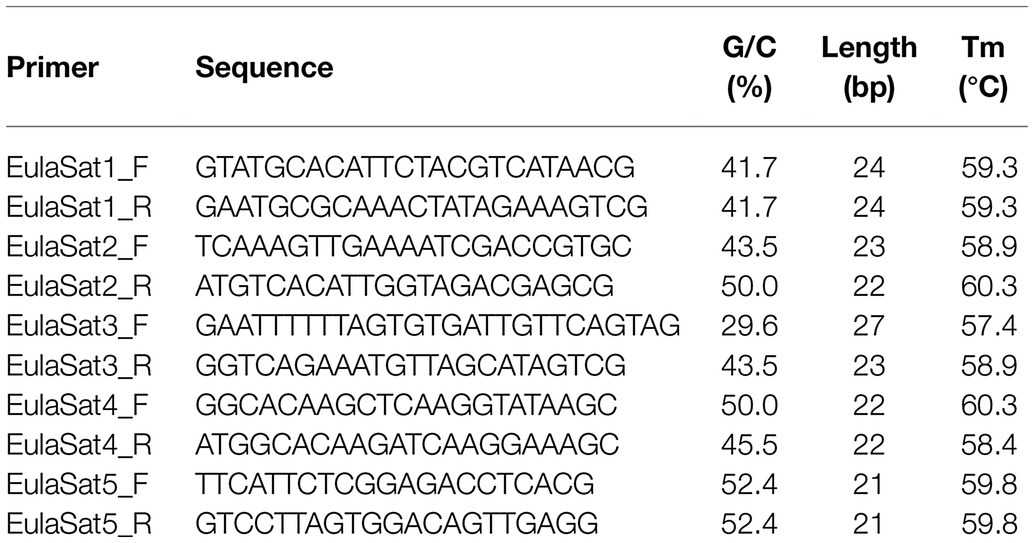

Table 2. Primer pairs for the generation of satDNA clones.
Southern Blot Hybridization
For Southern blots, genomic DNA was restricted with enzymes specific for each tandem repeat targeted, separated on 2% agarose gels, and transferred onto Hybond-N+ nylon membranes (GE Healthcare) by alkaline transfer. Hybridizations were performed according to standard protocols using probes labeled with 32P by random priming (Sambrook et al., 1989). Filters were hybridized at 60°C and washed at 60°C for 10 min in 2× SSC/0.1% SDS. Signals were detected by autoradiography.
Probe Labeling, Chromosome Preparation, and Fluorescent in situ Hybridization
Sequenced satDNA clones have been used as template for PCR-based labeling with biotin-16-dUTP. The probe pZR18S contains a 5,066 bp fragment of the sugar beet 18S rRNA gene within the 35S rDNA (HE578879; Paesold et al., 2012) and was labeled with DY-415 or DY-647-dUTP (Dyomics) by nick translation. The probe pXV1 (Schmidt et al., 1994) for the 5S rRNA gene was labeled with digoxygenin-11-dUTP by nick translation.
We prepared mitotic chromosomes from the meristems of young primary roots, harvested shortly after germination. Prior to fixation in ethanol:chloroform:glacial acetic acid (2:1:1), root tips were incubated either for 16 h in 2 mm 8-hydroxyquinoline or for 1 h in nitrous oxide at 10 bar. Fixed plant material was digested for 0.5 to 1.5 h at 37°C in an enzyme mixture consisting of 2% (w/v) cellulase from Aspergillus niger (Sigma C1184), 4% (w/v) cellulase Onozuka R10 (Sigma 16,419), 0.5% (w/v) pectolyase from Aspergillus japonicus (Sigma) P-3026, 1% (w/v) cytohelicase from Helix pomatia (Sigma) C-8274, 1% hemicellulase from Aspergillus niger (Sigma H2125), and 20% (v/v) pectinase from Aspergillus niger (Sigma P4716) in citrate buffer (4 mm citric acid and 6 mm sodium citrate). The root tips have been washed and transferred to a slide, before maceration with a needle in 45% glacial acetic acid. Before the slide dried, the chromosomes have been fixed with methanol:glacial acetic acid (3:1).
Prior to FISH, according to the amount of cytoplasm visible under light microscope, we pre-treated the slides with 100 μg/ml RNase in 2× SSC for 30 min, followed by 200 μl of 10 μg/ml pepsin in 10 mm HCl for 15 to 30 min. Slides with abundant cytoplasm were additionally treated for 10 min with proteinase K. FISH was performed according to the protocol of Heslop-Harrison et al. (1991) with modifications as described (Schmidt et al., 1994). Probes were hybridized with a stringency of 76% and subsequently washed with a stringency of 79%. The chromosome preparations were counterstained with DAPI (4', 6'-diamidino-2-phenylindole) and mounted in antifade solution (CitiFluor). Slides were examined with a fluorescence microscope (Zeiss Axioplan 2 imaging) equipped with Zeiss Filter 09 (FITC), Zeiss Filter 15 (Cy3), Zeiss Filter 26 (Cy5), AHF Filter F36-544 (aqua), and Zeiss Filter 02 (DAPI). Images were acquired directly with the Applied Spectral Imaging v. 3.3 software coupled with the high-resolution CCD camera ASI BV300-20A.
Results
L. decidua and L. kaempferi Show Very Similar Repeat Profiles
To assess the genome composition of L. decidua and L. kaempferi, we obtained paired-end Illumina whole genome shotgun sequences with fragment sizes of 500 bp. Five million reads of each genome have been randomly chosen for comparative low-coverage clustering with RepeatExplorer. The software automatically chose 2,124,798 (L. decidua) and 2,125,214 (L. kaempferi) reads (corresponding to a genome coverage between 1.6 and 1.9%) and yielded estimates of the repetitive fraction of 69.0% for L. decidua and 68.1% for L. kaempferi. We classified the read clusters according to their repeat class and manually combined clusters connected by read pairs and similar annotation to superclusters. This has led to similar repeat profiles for both genomes (Figure 1): In particular, Ty3-gypsy retrotransposons (approx. 31% for both genomes) made up the largest fraction, followed by Ty1-copia retrotransposons (both approx. 24%). Presentation of the first 214 read superclusters as a two-sided, comparative bar chart illustrates the high degree of genomic similarity between both genomes (Figure 1). With only few exceptions, the read clusters are equally abundant in L. decidua and L. kaempferi, with gaps indicating the absence of the repeat from one of the genomes. We detected most variation in the amount of satellite DNA, with 3.2% for L. decidua and 2.0% for L. kaempferi (Figure 1; marked in red). Read clustering with TAREAN delivered similar quantifications for the tandemly repeated sequences.
Figure 1. Comparison of repetitive genome fractions reveals high genomic similarity over all repeat types between Larix decidua and Larix kaempferi. At the center of each figure, a two-sided bar plot shows 214 repeat superclusters with respective read counts in L. decidua (top) and L. kaempferi (bottom). The read count is presented on a logarithmic scale. The composition of each Larix repeat fraction is summarized by pie charts. The plant illustrations are reproduced from Woodville, W., Hooker, W.J., and Spratt, G., Medical Botany, 3th edition, vol. 1: (1832; L. decidua) and M. E.-A. Carriere (ed.) Revue Horticole, serié 4, vol. 40: (1868), Paris (L. kaempferi).
Larix Tandem Repeats Vary in Abundance and Genome Organization, With Only Punctual Differences Between L. decidua and L. kaempferi
Six of the analyzed RepeatExplorer read clusters produced circular or star-shaped layouts, typical for tandem repeats (Supplementary Figure S1), representative of five satDNA families. Using L. decidua as reference organism, we extracted sequences of the candidates and named them EulaSat1 to EulaSat5, short for European larch satellite. We refined the monomer consensus sequences by iterative mapping of three million paired reads to generate robust consensus sequences (Figure 2; Supplementary Data S1), used for quantification and primer generation. In order to verify the consensus sequence and to generate hybridization probes, we amplified and cloned all five candidates from L. decidua. SatDNA characteristics are summarized in Table 3, whereas a multi-sequence dotplot shows the family and subfamily structure (Supplementary Figure S2).
Figure 2. Consensus sequences and subunit structure of the tandem repeat monomers. The monomer consensus sequences of the EulaSat1 to EulaSat5 satellite DNAs are shown. Recognition sites of restriction enzymes used to release the DNA ladder (Figures 3, 5) are indicated by rectangles. HpaII/MspI recognition sites are shaded in gray. EulaSat3 and EulaSat4 are divided into the EulaSat3a, EulaSat3b, and EulaSat3c as well as the EulaSat4a and EulaSat4b subfamilies. These sequences are represented as multiple sequence alignment, with ambiguities shaded in black.

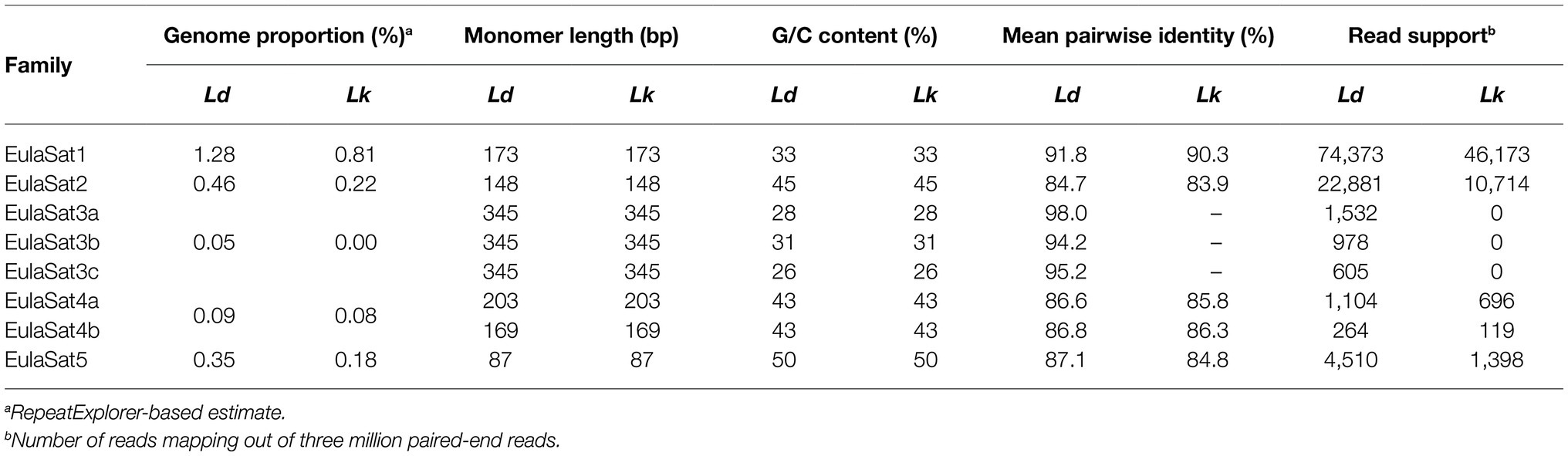

Table 3. Characteristics of satDNA in L. decidua (Ld) and L. kaempferi (Lk) genomes.
To verify the head-to-tail organization of the five EulaSat repeat families, we transferred restricted genomic L. decidua DNA onto Southern membranes. After Southern hybridization of the EulaSat probes, we investigated the resulting autoradiographs for the presence of satDNA-typical ladder hybridization (Figure 3), indicating repeat organization in long arrays. In detail, summarizing the computational and molecular data, the five satDNAs are characterized as follows:
1. Comprising approx. 1% of both Larix genomes, EulaSat1 is the major satDNA family in larches. First described as LPD, it is an integral part of many Larix genomes (Hizume et al., 2002), forming conserved 173 bp monomer with a G/C content of 33%. Six of the eleven enzymes tested produced a satellite-typical restriction ladder for EulaSat1, all supporting the monomer length of 173 bp (Figure 3A). Clearest signals up to the tetra- and pentamers have been generated with DraI (lane 4) and AluI (lane 8), whereas the remaining enzymes, such as HindIII (lane 2), released longer multimers up to the dodecamer. Although the EulaSat1 consensus contains a potential HpaII/MspI restriction site (indicated in Figure 2), we detected only high molecular weight signals, indicating a high degree of DNA methylation (Figure 3A; lanes 10, 11).
2. With a genomic representation of 0.46 and 0.22%, EulaSat2 is the second-most abundant satDNA family in L. decidua and L. kaempferi. EulaSat2 has a relatively high G/C content with 44% and consists of monomers with the satDNA-typical length of 148 bp. The EulaSat2 autoradiograph (Figure 3B) showed ladder-like patterns for five enzymes. FokI, MboI, and AluI (lanes 6–8) released the EulaSat2 monomer, supporting its length of 148 bp. DraI (lane 4) only produced weak monomeric signals, whereas RsaI (lane 9) did not generate any monomeric bands, pointing to only weak restriction site conservation. Bands up to the undecamer were released, before falling together in a smear. Hybridization of HpaII/MspI-restricted DNA (lanes 10, 11) did not produce any signals below 3 kb.
3. The EulaSat3 family is divided into three subfamilies with similar features: The conserved 345 bp long monomers contain a generally low G/C content between 26 and 31%. Out of all identified repeats, only the three EulaSat3 subfamilies are genome specific, as their clusters contain only reads from L. decidua and none from L. kaempferi. Consensus sequences of all EulaSat3 subfamilies can be subdivided into a 178 bp and a 167 bp subunit with identities ranging between 45.5 and 48.3% (Supplementary Figure S3), suggesting evolution by EulaSat3 reorganization into structures of higher order. EulaSat3 hybridization (Figure 3C) generated ladder-like patterns with different intensities in all lanes, with its monomeric length (345 bp) distinguishable in most cases. For two enzymes, DraI (lane 4) and AluI (lane 8), bands below the monomer size were visible. These additional bands can be explained by multiple restriction sites in the monomer (see Figure 2), giving rise to 163 and 182 bp fragments (DraI) as well as 36, 176, 196, and 212 bp fragments (AluI). In addition, HpaII and MspI were able to cut EulaSat3, both producing identical, weak ladders (lanes 10–11), pointing to the presence of at least some monomers without DNA methylation in the putative restriction site.
4. Similarly, for EulaSat4, we detected two subfamilies with different monomeric lengths. EulaSat4a has 203 bp monomers and is more abundant, supported by a mapping of 1,104 reads. In contrast, the less frequent EulaSat4b subfamily (supported by 696 reads) has a monomer length of 169 bp. We did not detect clear, canonical ladder patterns after hybridization of EulaSat4 (Figure 3D). However, signals as detected for BsmI (lane 3), MboI (lane 7), and RsaI (lane 9) can be explained by the recognition of both EulaSat4 subfamilies by the Southern probe. As observed, a combination of 203 and 169 bp fragments leads to the complex ladder patterns with unequal step sizes.
5. Out of all identified satDNA families, EulaSat5 has the shortest monomer (87 bp) and the highest G/C content (50%). Although the monomer is short, this satDNA family makes up 0.35 and 0.18% of the L. decidua and the L. kaempferi genomes, respectively. EulaSat5 hybridization (Figure 3E) yielded ladder patterns for the three enzymes: AIw26I, FokI, and MboI (lanes 5–7). For MboI, a strong monomeric signal was detected, providing additional support for the monomer size of 87 bp and for the high restriction site conservation within EulaSat5 arrays. Intense signals in the hexa- and heptamer regions indicate arrays with higher order repeat structures. Hybridization of HpaII/MspI-restricted DNA did not reveal bands in the low molecular weight region, suggesting strong EulaSat5 DNA methylation.
Figure 3. Genomic organization of the Larix satDNA families EulaSat1 to EulaSat5. Southern hybridization of restricted genomic L. decidua DNA with satDNA probes releases the satellite-typical ladder pattern of EulaSat1 (A), EulaSat2 (B), and EulaSat3 (C), EulaSat4 (D), and EulaSat5 (E). The exposition time is indicated in hours (h) or days (d) for each experiment.
Individual L. decidua Chromosomes Show Comparable satDNA Localizations
To determine the position of the satDNA families along Larix chromosomes, we prepared mitotic and interphase chromosomes from the L. decidua reference and in situ hybridized them with biotin-labeled satDNA probes (Figures 4A–E):
1. EulaSat1 hybridized to 18 from the 24 L. decidua chromosomes, co-localizing with the strongly DAPI-stained heterochromatic proximal bands (Figure 4A). EulaSat1’s occurrence in the deep heterochromatin was confirmed by co-localization with DAPI-positive regions on interphase nuclei (Figure 4A).
2. For EulaSat2, we have observed the presence on all chromosomes. The localization along the centromeric constriction of all chromosomes indicates EulaSat2’s suitability to serve as a marker for the centromere (Figure 4B). As this position is depleted in DAPI staining, we assume that the EulaSat2 regions are only loosely packaged. At higher resolution, using interphase nuclei, we confirmed that EulaSat2 is largely excluded from the heterochromatin (Figure 4B).
3. The three remaining satDNA families, EulaSat3 to EulaSat5, are marked by a dispersed localization along all L. decidua chromosomes (Figures 4C–E). For EulaSat3, we identified a range of minor signals without exclusion of the centromeres, spread along the chromosomes. At interphases, we noted the EulaSat3 presence in hetero- and euchromatic regions (Figure 4C).
4. This pattern is mirrored for EulaSat4. We found that most of the minor EulaSat4 signals were localized at the intercalary chromosome regions. The distal chromosome regions and the centromeric restrictions were not excluded, but only few chromosomes carried EulaSat4 signals at these regions. At interphases, most signals were localized in the DAPI-positive heterochromatin (Figure 4D).
5. EulaSat5 signals were scattered over the whole length of all chromosomes, with frequent enrichments at or near the (peri-)centromeric regions. The signals are often euchromatic, but without exclusion from the DAPI-positive heterochromatin (Figure 4E).
Figure 4. Chromosomal localization of the EulaSat families along Larix decidua chromosomes. Chromosomes have been counterstained with DAPI, indicated in blue and gray. Fluorescent in situ hybridizations of EulaSat1 (A), EulaSat2 (B), EulaSat3 (C), EulaSat4 (D), and EulaSat5 (E) to L. decidua meta- and interphases are shown in red.
Taken together, whereas three of the satDNA probes (EulaSat3 to EulaSat5) are dispersed along all chromosomes, EulaSat1 and EulaSat2 produce distinct signals, limited to the heterochromatic band and the centromeric constriction, and produce clear chromosomal landmarks.
Distribution, Abundance, and Genomic Organization in Related Conifer Genomes
We used bioinformatics and experimental approaches to investigate the abundance and genomic organization of the EulaSat repeats in related species. Using a read mapping approach, we screened whole genome shotgun Illumina reads of twelve Pinaceae species (Figure 5), including four larches, three pines, three spruces, a fir, and a Douglas fir. As outgroups, we also analyzed DNA of more distantly related yew (Taxus baccata) and juniper (Juniperus communis) trees.
Figure 5. Distribution of the EulaSat tandem repeats in fourteen gymnosperm genomes surveyed by read mapping. The area of each bubble represents the amount of whole genome shotgun Illumina reads mapping to the EulaSat consensus sequences. A total of three million paired reads have been used as input for the mapping analysis. The dendrogram indicates the evolutionary relationship between the species according to Wei and Wang (2003) for the genus Larix and Lu et al. (2014) for the overall phylogeny. The branch lengths are not to scale.
As read mapping may misrepresent the factual genome representation of repeats due to inherent G/C biases (Benjamini and Speed, 2012; Chen et al., 2013), we complemented our bioinformatics approach with an experimental verification. For this, we comparatively hybridized the satDNA probes onto restricted genomic DNA and quantified the repeat abundance in eleven species (Figure 6). Our species sampling includes L. decidua, L. kaempferi, L. gmelinii, L. sibirica (lanes 1–4), and a single representative of additional gymnosperm genera: Pseudotsuga menziesii (lane 5), Pinus sylvestris (lane 6), Picea abies (lane 7), Abies sibirica (lane 8), Taxus baccata (lane 9), Juniperus communis (lane 10), and Ginkgo biloba (lane 11). Please note that L. sibirica is absent from Figure 6A.
Figure 6. Organization and abundance of EulaSat repeats in related gymnosperm genomes. Genomic DNA of eleven gymnosperms has been restricted as indicated in each panel and was analyzed by comparative Southern hybridization of EulaSat1 (A), EulaSat2 (B), EulaSat3 (C), EulaSat4 (D), and EulaSat5 (E). Exposure times ranged between 25 min and seventeen days, as indicated below the autoradiographs.
Both approaches show that EulaSat1, EulaSat2, EulaSat4, and EulaSat5 are present in all Larix accessions analyzed, indicating their wide-spread occurrence throughout the genus (Figures 5, 6).
1. EulaSat1 is highly abundant in all Larix species examined, but without occurrence outside of the genus (Figure 5). Supporting this, EulaSat1 hybridization revealed clear ladder signals in the genus Larix for all three of the tested species, already after 25 min of exposition (Figure 6A). We observed similar patterns and signal strengths in all Larix species tested, indicating similar EulaSat1 monomer sizes with organization in long arrays across the genus. The remaining genomes did not produce any signal, pointing to EulaSat1 absence. Longer exposition time of 3 h revealed no further information.
2. A similar high abundance in Larix sp. was detected for EulaSat2. EulaSat2 was also present in P. menziesii, but in lower quantity (Figure 5). After EulaSat2 hybridization, clear ladder-like pattern is visible for all larch species tested (Figure 6B), supporting the organization of similar-sized monomers in a tandem arrangement. In addition, for P. menziesii (lane 5), very weak signals corresponding to the dimer and trimer are distinguishable, becoming more prominent after longer exposure (not shown), without additional signals in any other lanes. Hybridization to L. gmelinii DNA (lane 3) does only produce faint monomeric and dimeric bands, and instead leads to many signals in the higher, multimeric region. As the L. gmelinii DNA was restricted completely, this indicates a less conserved AluI restriction site in the EulaSat2 satDNA.
3. Computationally, the three EulaSat3 subfamilies have been analyzed individually, indicating considerable genomic impact only in L. decidua. We did not detect the presence in L. kaempferi and L. gmelinii. For subfamilies EulaSat3a and EulaSat3c, only few L. sibirica hits mapped to the consensus, suggesting a reduced abundance in this genome. The other gymnosperm sequences tested did not contain any similarity to the EulaSat3 subfamilies (Figure 5). The patchy distribution across the Larix genus was also apparent experimentally (Figure 6C), with hybridization revealing exclusive signals in L. decidua and L. sibirica. In both species, the monomeric band constituted the strongest signal, suggesting the high conservation of the MboI restriction site within EulaSat3. In L. decidua, the satDNA-typical ladder pattern was formed, whereas in L. sibirica, the multimeric bands were absent. As the signals were still faint after 17 days of exposure, we conclude a relatively low abundance in both genomes.
4. Out of all satDNAs analyzed, the EulaSat4a and EulaSat4b subfamilies had the broadest distribution. Apart from their presence in the Larix genomes, they also populate P. menziesii and A. sibirica genomes. In all six EulaSat4-containing genomes, EulaSat4a has been more abundant than EulaSat4b (Figure 5). Corroborating this, the corresponding autoradiograph showed signals in species of the Larix, Pseudotsuga, and Abies genera (Figure 6D; lanes 1–5, 8). The remaining Pinaceae species (Pinus sylvestris and Picea abies) did not carry any signals, with longer exposition time (7 days) not changing this result. Hybridization to the larches produced very similar patterns, pointing to similar genomic organization. In A. sibirica (lane 8), the lowest band represents a double signal, presumably generated by conserved MboI restriction sites in the two EulaSat4 subrepeats (169 and 203 bp). However, hybridization to P. menziesii (lane 5) produced a stronger ladder with bands slightly shifted toward lower molecular weights, suggesting a small deletion within the EulaSat4 monomers in this species.
5. Read mappings indicate EulaSat5 restriction to Larix genomes, with highest abundance in L. decidua (Figure 5). However, the corresponding probe hybridized to the species of the Larix and the Pseudotsuga genera (Figure 6E; lanes 1–5). Signal patterns of the larch species tested resemble each other, with a relatively strong monomeric band, a fainter dimeric band, and a smear at a higher molecular weight. In P. menziesii (lane 5), the smear was overlaid by a very faint band at approximately 480 bp, indicating low abundance. Longer exposition (6 days) of the autoradiograph did not reveal EulaSat5 in further species.
Experimental and computational approaches revealed that two satDNA families also occurred outside of the Larix genus, i.e., in Pseudotsuga (EulaSat2 and EulaSat4) and Abies (EulaSat4). For both genera, genome assemblies were made publicly available, namely, assemblies of P. menziesii and of A. alba (Neale et al., 2017; Mosca et al., 2019). Hence, we have broadened our species panel to include these datasets into our analysis: We queried both assemblies with all satDNA consensuses and deeply inspected the five scaffolds with the most satDNA hits in the genome assemblies of P. menziesii and A. alba:
In P. menziesii, we extracted long EulaSat2 arrays spanning scaffolds over a megabase, with and without higher order arrangements (Supplementary Figure S4A). This indicates that the EulaSat2 family, though less abundant (Figures 5, 6B), still plays a major role in this genome.
For EulaSat4, in P. menziesii, we detected some arrays over 20 kb, often interrupted by other repeats (Supplementary Figure S4B). The arrays included variable monomers and different homogenization with or without higher order. In A. alba, longer arrays have been detected more frequently. Strikingly, we noticed less monomer variation, with stronger homogenization and a higher abundance of EulaSat4a than EulaSat4b (Supplementary Figure S4C).
Taken together, our three approaches (read mapping, analyses of genome assemblies, and experimental quantification) corroborate the different abundances of the five satDNA repeats in the gymnosperms. We confirmed the presence of EulaSat1, EulaSat2, EulaSat4, and EulaSat5 in all Larix genomes tested. EulaSat2 and EulaSat4 reside also in more distantly related Pinaceae genomes. In contrast, experimental and bioinformatic evidence supports the young age of EulaSat3 that is restricted to Siberian and European larches.
Only Very Few Differences Distinguish the Chromosomes of L. decidua From Those of L. kaempferi
We aimed to combine the information gained from in situ hybridization to L. decidua chromosomes (Figure 4) as well as from the quantitative comparisons of conifer genomes (Figures 5, 6). We now asked how L. decidua and L. kaempferi genomes differ on a chromosomal scale and if this information can be used to determine the parentage of individual chromosomes in hybrids.
Therefore, we have comparatively hybridized the most promising tandem repeat landmark probes onto metaphases of both larch species (Figures 7A–D), including also the 5S and 35S rDNA probes and the satDNAs EulaSat1 and EulaSat2.
Figure 7. Chromosomal location of rDNAs and the EulaSat families for comparison of L. kaempferi, L. decidua, and L. × eurolepis. The chromosomes have been counterstained with DAPI, indicated in blue and gray. Reproduced are fluorescent in situ hybridizations of the 5S (magenta) and 18S-5.8S-26S (35S) rDNAs (green) to metaphases of L. decidua (A) and L. kaempferi (B). EulaSat1 (green) and EulaSat2 (red) were comparatively hybridized along metaphase chromosomes of L. decidua (C) and L. kaempferi (D). The genome-specific EulaSat3 family (red) was hybridized along chromosomes of the interspecific L. × eurolepis hybrid, along with probes for the 5S (magenta) and 35S rDNAs (green; E).
To check how the rDNA tandem repeat loci compare, we investigated the localization of the 5S and 35S rDNAs (Figures 7A,B). Both species harbor two 5S rDNA sites (magenta), located distally at the chromosome arms. For the 35S rDNA, we observed hybridization on three chromosome pairs for L. decidua and two pairs for L. kaempferi (green), all localized at the secondary constrictions of the chromosomes (Figures 7A,B).
Regarding the EulaSat1 and EulaSat2 satDNA families, a comparative hybridization onto L. decidua and L. kaempferi metaphases showed that the satDNA arrays bordered for both species, but with limited co-localization (Figures 7C,D). Overall, the comparison between the major satDNAs EulaSat1 and EulaSat2 yielded only very few differences between both species.
We then shifted attention to the genome-specific, but dispersed EulaSat3 satDNA family that may be used to discern the parentage of individual chromosomes in hybrids. For this, we have prepared metaphases from Larix × eurolepis, a hybrid between L. decidua and L. kaempferi (Figure 7E). Hybridization of the 5S (magenta) and 35S rDNAs (green) have yielded two and five signals, respectively, with the uneven 35S rDNA site number being a testimony to the hybrid status of the individual. The EulaSat3 hybridization yields chromosomes with dispersed EulaSat3 hybridization, indicating L. decidua heritage, as well as chromosomes without signals, pointing to descendance from L. kaempferi. Nevertheless, due to the dispersed pattern, theEulaSat3 satellite can only give clear parental information for few chromosomes and should be complemented by additional markers, if any become available.
Summarizing, genomes and chromosomes of European and Japanese larches are very similar, with only very few hallmark differences. These include the number in rDNA sites and the genome-specific satDNA family EulaSat3.
Discussion
Similar Repeat Profiles in European and Japanese Larch Genomes Likely Result From Repeat Accumulation and Reduced Turnover
Large conifer genomes evolve only slowly and keep many of their genomic repeats buried within the genomes. With only limited downsizing, we hypothesized that two closely related conifer genomes (such as those from European and Japanese larches) may not accumulate many changes in their overall repeat landscapes. To test this, we have investigated the repeat profiles of these related larch genomes, starting with a broad repeat comparison and then focusing on the repeat class with the fastest sequence turnover, the satDNAs. As a result, our study provides a first comparative overview of the repeat content in two larch species (L. decidua and L. kaempferi). It also surveys the satDNAs abundances in genomes of related conifer taxa to draw first evolutionary conclusions. Nevertheless, as only a single individual has been analyzed for all examined species, our results cannot account for intra-species variation and any evolutionary satDNA dynamics that may take place on a population genomics scale. Instead, our data allow drawing more general conclusions about satDNA evolution between related species, especially in regard to presence/absence patterns.
We have applied short read sequencing followed by read clustering to efficiently gain insights into both genomes’ satDNA contents (as laid out by Weiss-Schneeweiss et al., 2015; Novák et al., 2017). This approach has been successfully used to characterize the repeat landscapes of many non-model plant species as for example beans, various grasses, camellias, crocuses, quinoa, and ferns (Cai et al., 2014; Heitkam et al., 2015; Ávila Robledillo et al., 2018; Kirov et al., 2018; Liu et al., 2019; Schmidt et al., 2019; Heitkam et al., 2020; Ribeiro et al., 2020), and also of non-model animals, such as locusts, grasshoppers, or fishes (Ruiz-Ruano et al., 2016; Ferretti et al., 2020; Boštjančić et al., 2021). For larch genomes, we provided evidence that LTR retrotransposons and derived fragments are their main components, well in line with reports for the related pines and spruces (Kamm et al., 1996; Kossack and Kinlaw, 1999; Nystedt et al., 2013; Stevens et al., 2016; Voronova et al., 2017; Perera et al., 2018).
As only highly repetitive sequences ≥90% are considered in the RepeatExplorer cluster analysis, the size estimations of Larix repeat fractions (approximately 68% of the analyzed genomes) are bound to be vast underrepresentations, excluding the more fragmented repeats. Especially in large genomes, such as those of the conifers analyzed here, fragmentation and slow repeat divergence lead to barely recognizable transposable elements (TEs), often termed “dark matter” (Maumus and Quesneville, 2016). With increasing genome sizes, these dark matter repeats accumulate, leading to the observed and potentially misleading low repeat fraction estimates, as also recently highlighted by Novák et al. (2020).
For L. decidua and L. kaempferi, we find overall strikingly similar repeat profiles, especially regarding the TE content, without major differences between European and Japanese larches. The similarities include both, repeat family and abundance. In line with evidence from other conifers (Prunier et al., 2016), these results also suggest the limited TE elimination, usually carried out by recombination, reshuffling, fragmentation, or removal as aftermath to genomic rearrangements (Ma et al., 2004; Ren et al., 2018; Kögler et al., 2020; Maiwald et al., 2021; Schmidt et al., 2021). Along the same lines, we did not observe any transpositional bursts of amplification during the speciation of the larches. Thus, only limited TE-induced genomic novelty has likely occurred in the larches’ accumulative genome landscapes.
As a side note, apart from transposable elements and tandem repeats, a small repeat fraction corresponds to organellar DNA. Whether these sequences originated from nuclear integrations or from plastids and mitochondria cannot be assessed. Nevertheless, as this fraction is low in copy number (2%) and relatively similar to both genomes, we have decided to keep these sequences listed.
Young and Old satDNAs Contribute Both to Genomic Novelty in Larch Genomes
We asked whether the conifer’s genomic background of transposable element accumulation and fragmentation has impacted the evolution of satDNAs. These usually evolve by continued rounds of mutation and fixation leading to relatively fast sequence turnovers, even at structurally important chromosomal locations, such as the centromeric regions (Dawe, 2005; Plohl et al., 2012). Indeed, the satDNA abundances in the analyzed larch genomes differed much more than the respective TE portions: We estimated the total satDNA content of L. decidua to 3.2% and of L. kaempferi to 2.0%, corresponding to satDNA amounts of approximately 416 and 220 Mb, respectively. Overall, the larch satDNA proportions are of the same order of magnitude as already estimated from BACs and fosmids for the related pines (1%; Wegrzyn et al., 2013; Neale and Wheeler, 2019b). However, compared to the large values the satDNA genome fraction can occupy in angiosperms (up to 36%; Ambrozová et al., 2011), the relative amount for larches is rather low, though also not uncommon for angiosperm genomes (Garrido-Ramos, 2017).
To better understand the contribution of satDNA to the genomic differences in larches, we investigated five satDNA families in detail. Here, we will discuss their evolutionary trajectories ranging from the evolutionarily oldest families occurring in several conifer genera (EulaSat2 and EulaSat4), over to those distributed only in the genus Larix (EulaSat1 and EulaSat5), to the species-specific family EulaSat3.
The most widely distributed satDNA identified is EulaSat4, with occurrences in larches, Douglas fir and Siberian fir. Interestingly, the comparative read mappings, Southern hybridizations, and analyses of available genome assemblies point to longer and more homogenized EulaSat4 arrays in common and Douglas firs than those observed in larches. We therefore think that EulaSat4 is an evolutionarily old repeat, probably playing a larger role in the Abies and Pseudotsuga genomes. EulaSat4’s patchy distribution across the conifers is an example of a satDNA family’s occurrence that is incongruent with the species phylogeny. The satellite library hypothesis may explain this pattern, by assuming that a common set of satDNAs resides in genomes in low copy numbers (Fry and Salser, 1977; Utsunomia et al., 2017; Palacios-Gimenez et al., 2020). Different satDNA amplification would then lead to the observed patchy abundance pattern of EulaSat4. These low copy satDNAs may reside within transposable elements, possibly using these for their conservation and amplification (McGurk and Barbash, 2018; Belyayev et al., 2020; Vondrak et al., 2020). EulaSat4’s dispersed localization along all L. decidua chromosomes as well as the complex RepeatExplorer cluster graphs may indicate such a retrotransposon association. As retrotransposons are strongly conserved across conifer species (Zuccolo et al., 2015; this report), it is likely that EulaSat4 has been retained within a transposable element, followed by patchy amplification in Larix, Pseudotsuga, and Abies species.
The EulaSat2 family co-localizes with the primary constriction of the L. decidua and L. kaempferi chromosomes, indicating a possible role in centromere formation. Although some plants have centromeres that differ fundamentally from each other (Gong et al., 2012), that does not seem to be the case for larches. The centromeres of all chromosomes harbor EulaSat2, indicating similar sequences and structures. The 148 bp monomers of EulaSat2 are well in line with lengths observed for other centromeric satDNAs, such as that of rice (Zhang et al., 2013), and a bit shorter than the canonical ~170 bp monomers of the mammalian alpha satellite (Willard and Waye, 1987). EulaSat2 is more abundant in L. decidua than in L. kaempferi, indicating recent array size fluctuations. Nevertheless, EulaSat2 is evolutionarily older with presence in the related Douglas fir, but absence from the more distantly related pine, spruce, and fir species tested. In fact, centromeric satDNAs of related spruces have already been characterized and differ strongly from Eulasat2 in sequence and monomer length (305 bp; Sarri et al., 2008, 2011).
In all larches analyzed, the most abundant satDNA is EulaSat1, also known as LPD (Hizume et al., 2002). Its canonical monomer length of 173 bp is similar in all Larix species analyzed, but was not detected outside the genus. It is generally assumed that the most abundant satDNA localizes at the centromeres (Melters et al., 2013); however, some exceptions have been already reported, e.g., for camellias (Heitkam et al., 2015). Instead of the expected centromeric locations, EulaSat1 constitutes the highly heterochromatic, DAPI-positive band present on most of its 24 chromosomes. Regarding EulaSat1’s evolution, our data indicate strong EulaSat1 amplification after the split from Pseudotsuga. Interestingly, the different species set tested by Hizume et al. (2002) indicates also a patchy abundance in some Picea, Pinus, Abies, and Tsuga species – claims that we cannot verify with our data. Nevertheless, we can convincingly show that differences in abundance between L. decidua and L. kaempferi point to EulaSat1 array expansions and reductions during the more recent evolutionary events.
In contrast to EulaSat1 and EulaSat2, only short arrays were detected for EulaSat5; the second satDNA family restricted to the larches. In situ hybridization marked a scattered localization along all chromosomes, typical for short satDNA arrays. As with EulaSat4, an explanation for the short arrays may be an association with transposable elements. We have observed partially mixed RepeatExplorer clusters that may point toward an embedment within retrotransposons and also often observed for short satDNA arrays (Meštrović et al., 2015; Satović et al., 2016; Belyayev et al., 2020; Sultana et al., 2020). Similarly, concatenated TEs or part from TEs may have satDNA-like properties, but tend to occur dispersedly along chromosomes (Vondrak et al., 2020; Maiwald et al., 2021). Here, our data are not sufficient to conclusively resolve the large-scale organization of EulaSat5 in larch genomes.
In contrast to all other families investigated, EulaSat3 has experienced a very recent birth, indicating an evolutionarily young age. EulaSat3 is clearly absent from L. kaempferi, but occurs in L. decidua with three subfamilies, all containing distinct 345 bp monomers. Their arrangement in higher order is detectable by close inspection of the monomer consensuses and the autoradiograms after Southern hybridization, indicating still ongoing homogenization. FISH and hybridization to HpaII/MspI-restricted genomic DNA have indicated that at least some EulaSat3 monomers are embedded in euchromatic regions. We speculate that these genomic regions are still actively restructured and recombined, processes that potentially restrict the EulaSat3 array size. Taken together, EulaSat3 has developed recently and presumably marks the evolutionarily young regions of L. decidua genomes.
To investigate whether EulaSat3 can be applied as a chromosome-specific marker of L. decidua parentage in hybrid offspring, we have tested, if chromosome regions from L. decidua can be identified in L. × eurolepis hybrids between L. kaempferi and L. decidua. Although the in situ hybridization clearly marks some chromosome regions as derived from L. decidua, this method is not as useful as hoped for the clear differentiation of parentally derived regions along larch hybrid chromosomes.
Nevertheless, EulaSat3’s genome specificity within the Larix genus as well as the differences in abundance for many of the remaining satDNAs indicates that even large, highly repetitive genomes with slow sequence turnovers can yield new, evolutionarily young repeats and generate sequence innovation to further genome evolution. Whether these repeats also carry a phylogenetic signal and may be used for taxonomic means (e.g., as suggested by Dodsworth et al., 2014) is still open. Along the same lines, the analysis of more individuals and genotypes may advance our understanding of intra-species variation and the evolutionary satDNA dynamics that may take place within a population.
Conclusion
As conifers largely accumulate transposable elements with only reduced active removal processes, their genomes become huge, loaded with many fragmented, barely recognizable repeat copies. As a result, we believe that closely related conifers harbor very similar repeat landscapes. We have tested this hypothesis for two larch species and detected highly similar TE profiles as well as very few differences in their tandem repeat compositions. Nevertheless, despite the high overall repeat similarity, we detected EulaSat3, a satDNA family present in European larches, but absent from their Japanese counterparts. This illustrates that repeat-driven genome innovation still plays a role, even in the huge, repetitive, and fragmented conifer genomes.
Data Availability Statement
Whole genome shotgun Illumina sequences have been deposited at the European Bioinformatics Institute (EBI)’s short read archive in the project PRJEB42507 (http://www.ebi.ac.uk/ena/data/view/PRJEB42507). Cloned sequences used as Southern and FISH probes have been deposited at EBI with the accession numbers LR994496 to LR994500. Consensus sequences of the satDNA families analyzed are included in the Supplementary Materials (Supplementary Data S1).
Author Contributions
TH and TS coordinated the project and interpreted the results. TH, LS, and BW wrote the manuscript, and all authors contributed, proof-read, and edited. TH and AK coordinated the genome sequencing process. TH performed the bioinformatics analysis and contributed to probe preparation. LS and BW performed Southern experiments. LS, SL, and SB prepared metaphase spreads and performed FISH. KM, MB, UT, HW, and DK selected and provided plant material, and guided the project intellectually. All authors contributed to the article and approved the submitted version.
Funding
We gratefully acknowledge funding by the German Federal Ministry of Food and Agriculture (Fachagentur Nachwachsende Rohstoffe e. V.; grants 22031714 and 22002216) to TS, DK, and HW.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We remember the late Thomas Schmidt, who has initiated the comparative analyses of larch genomes and has made the ongoing cooperation between three of the partner institutes listed here possible. We also keep in mind the late Ines Walter who has established cytogenetics for larches in our laboratory. As a tribute, we have included her very first, serendipitous FISH on larches (Figure 7A).
We thank the Forest Botanical Garden of Tharandt, the Staatsbetrieb Sachsenforst, and Madlen Walther of the Humboldt Universität zu Berlin for the contribution of plant material. We thank Ulrike Herzschuh (Alfred Wegener Institute Potsdam) for providing pre-publication access to sequencing data of Larix gmelinii, and we acknowledge Stefan Wanke for supporting our research initiative. Furthermore, we acknowledge the TU Dresden Center for Information Services and High Performance Computing (ZIH) for computer time allocations.
Supplementary Material
The Supplementary Material for this article can be found online at https://www.frontiersin.org/articles/10.3389/fgene.2021.683668/full#supplementary-material
