Melanie A. Govender
Jean-Tristan Brandenburg
June Fabian
Michèle Ramsay- 1Division of Human Genetics, National Health Laboratory Service and School of Pathology, Faculty of Health Sciences, University of the Witwatersrand, Johannesburg, South Africa
- 2Sydney Brenner Institute for Molecular Bioscience, Faculty of Health Sciences, University of the Witwatersrand, Johannesburg, South Africa
- 3Wits Donald Gordon Medical Centre, School of Clinical Medicine, Faculty of Health Sciences, University of the Witwatersrand, Johannesburg, South Africa
Globally, chronic kidney disease (CKD) contributes substantial morbidity and mortality. Recently, various ‘omics platforms have provided insight into the molecular basis of kidney dysfunction. This scoping review is a synthesis of the current literature on the use of different ‘omics platforms to identify biomarkers that could be used to detect early-stage CKD, predict disease progression, and identify pathways leading to CKD. This review includes 123 articles published from January 2007 to May 2021, following a structured selection process. The most common type of ‘omic platform was proteomics, appearing in 55 of the studies and two of these included a metabolomics component. Most studies (n = 91) reported on CKD associated with diabetes mellitus. Thirteen studies that provided information on the biomarkers associated with CKD and explored potential pathways involved in CKD are discussed. The biomarkers that are associated with risk or early detection of CKD are SNPs in the MYH9/APOL1 and UMOD genes, the proteomic CKD273 biomarker panel and metabolite pantothenic acid. Pantothenic acid and the CKD273 biomarker panel were also involved in predicting CKD progression. Retinoic acid pathway genes, UMOD, and pantothenic acid provided insight into potential pathways leading to CKD. The biomarkers were mainly used to detect CKD and predict progression in high-income, European ancestry populations, highlighting the need for representative ‘omics research in other populations with disparate socio-economic strata, including Africans, since disease etiologies may differ across ethnic groups. To assess the transferability of findings, it is essential to do research in diverse populations.
Introduction
The global prevalence of chronic kidney disease (CKD) is estimated to be 13.4%, and thought to be higher in low- and middle-income settings, such as sub-Saharan Africa (SSA) (15.8%) (Hill et al., 2016; Kaze et al., 2018). End stage kidney disease (ESKD) is the most severe stage of CKD, at which point the damage is irreversible and support in the form of chronic dialysis or a kidney transplant is required to sustain life. Major risk factors for CKD vary by setting, with hypertension (HT) being the most common in east Asia, tropical Latin America, and Western and Southern SSA, whereas diabetes predominates as a risk factor in the remaining regions of the world (Bikbov et al., 2020). Endemic and other infectious diseases, for example schistosomiasis, malaria, and human immunodeficiency virus (HIV) still contribute substantial additional risk for CKD in high prevalence countries (Couser et al., 2011; Ekrikpo et al., 2018). The diagnosis of CKD is currently based on estimated glomerular filtration rate (eGFR) and/or albuminuria (Levey et al., 2002). However, low GFR defined as eGFR<60 ml/min/1.73 m2, is a relatively late marker of kidney disease, as organ damage may precede functional changes such as filtration impairment. Even though albuminuria is suggested to be an early marker of kidney disease, kidney disease may still progress despite the absence of albuminuria (Miller et al., 2009). Thus, there is a need for alternative markers of kidney disease that identify early disease and predict risk for progression. Such markers would enable interventions to prevent or slow progression of CKD, which is particularly relevant in resource-limited settings where access to kidney replacement therapy for ESKD remains severely restricted.
‘Omics technologies refer to collective analyses of cell populations, tissues, organs or the whole organism at the molecular level (Horgan and Kenny, 2011). In the last decade, there have been significant advances in use of ‘omics platforms to investigate susceptibility to, and detection of CKD, and related risk factors (Good et al., 2010; Abbiss et al., 2019; Cañadas-Garre et al., 2019). ‘Omics technologies permit high-throughput, comprehensive exploration of the genome (DNA sequence), epigenome (epigenetic modifications), proteome (proteins), transcriptome (transcribed RNA) and metabolome (metabolites), through a wide range of platforms including next-generation sequencing, protein and mRNA arrays and mass spectrometry (Papadopoulos et al., 2016). The past decade has seen significant advances in genome-wide association studies (GWAS) for CKD and kidney function traits, with study sample sizes increasing from >100,000 to 1,000,000 facilitating the identification of >250 genetic loci robustly associated with CKD in different ethnic groups (Tin and Köttgen, 2020). Proteomic approaches to identify urinary biomarkers for early detection and prediction of progression of CKD are also on the rise, attractive (in part) for their non-invasive use in clinical settings (Mischak et al., 2010). For example, capillary electrophoresis coupled with mass spectrometry (CE-MS) has been used to develop a proteome-based urine biomarker panel of 273 peptides with profiles that differed significantly between individuals with CKD and healthy controls (Good et al., 2010). These peptides were combined to develop a single score known as the CKD273 risk score (Good et al., 2010). Previous studies defined a CKD273 risk score cut-off of 0.343 to predict diabetic nephropathy (DN) (Alkhalaf et al., 2010). This threshold was lowered to 0.154 to accommodate the early detection of CKD (Lindhardt et al., 2016).
The overall aim of this scoping review was to evaluate existing literature for potential biomarkers–aside from those currently used, namely eGFR and albuminuria–that might facilitate early detection of CKD, and predict its progression. The specific objectives were to 1) describe potential biomarkers identified through different ‘omics platforms (genomics, proteomics, metabolomic, transcriptomics and epigenomics) that are associated with CKD, and 2) to explore potential pathways involved in CKD that could inform novel treatment strategies for CKD. This is pertinent for developing affordable diagnostic, prevention, and therapeutic strategies for countries with high prevalence of CKD and limited resources, such as are found in SSA.
Methods and Materials
Protocol Registration
This review was conducted using the Preferred Reporting Items for Systematic reviews and Meta-Analyses extension for Scoping Reviews (PRISMA-ScR) approach (de Oliveira, 2018). The background and methods were documented in a protocol in the Open Science Framework (OSF) database (Doi:10.17605/OSF.IO/QM64P, https://osf.io/sw8ne/).
Search Strategy
Relevant studies published from January 2007 to 18 May 2021 (Search date: 18 May 2021) were identified through a comprehensive search of electronic databases including Embase, Web of Science, PubMed, SCOPUS and African Index Medicus. The electronic database search was conducted using medical subject heading (MeSH) terms, keywords pertinent to the topic, and Boolean operators such as AND/OR to obtain the maximum number of studies (Table 1).

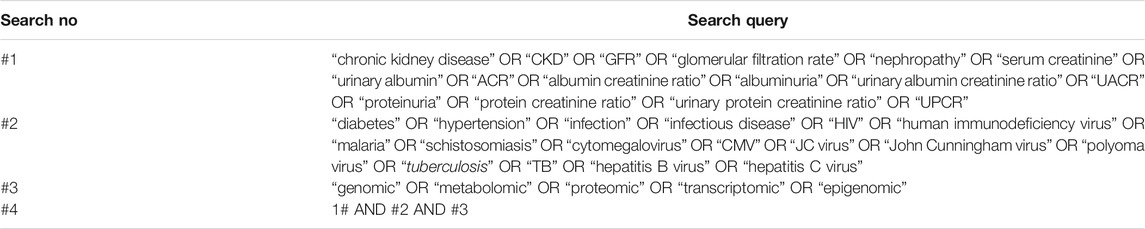

TABLE 1. Search strategy used in database searches.
Screening and Eligibility Criteria
Database search records were combined and all duplicate records removed. One investigator (MG) screened all records by title and abstract for inclusion, and articles with irrelevant topics were excluded. Investigators (J-TB and JF) independently screened records by title and abstract for verification. Any inconsistencies or disagreements were resolved by review with investigator MR. This was followed by screening full-text articles according to the eligibility criteria. The main inclusion criterion was that a study had to be an original study containing ‘omics data used to detect CKD and related risk factors. The studies had to report on the characteristics of the study population, type of ‘omics technique used, CKD or kidney function traits, relevant risk factors (defined in Table 1), and potential biomarker or indicator of early detection of CKD and prediction of progression (methylation profile, genes/genetic variants, transcripts, proteins and/or metabolites). Since the first large GWAS was conducted in 2007 (Craddock and Jones, 2007), we chose to include only studies published from January 2007 to May 2021. The age limit was restricted to participants 18 years and older and only studies published in English were included. Studies were excluded if the study was a review, meta-analysis, conference abstract or presentation, book chapter or response to treatment. Studies involving animals and paediatric participants were also excluded. The reasons for excluding each article were recorded.
Data Extraction
A data extraction sheet was created on Microsoft Excel (version 16.42, available at: https://office.microsoft.com/excel) to ensure all relevant data were extracted. Data extraction was performed by MG, and any discrepancies were resolved by J-TB, JF and MR. Data extracted for each article included the digital object identifier (DOI), name of first author, year of publication and title, participant/population characteristics (sample size, ethnicity, stage of CKD, presence of risk factors and/or infections), type of ‘omics technology, ‘omics technique, biological sample and potential biomarkers (genes, variants, miRNAs, mRNAs, proteins, and peptides) associated with early detection of CKD and prediction of progression. As PRISMA-ScR guidelines recommend, we conducted a qualitative synthesis to summarise the main components of the CKD ‘omics field.
Results
The database searches identified 4,793 articles, of which 1,291 were duplicates. Through title and abstract screening, we excluded 3,351 articles mainly due to the following reasons: irrelevant topic, year of publication outside the period for this review, and animal studies. A further 28 articles were excluded after assessing the full-text and applying the eligibility criteria. Thus, one hundred and twenty-three full-text articles were included in this review (Figure 1, Supplementary Appendix A).

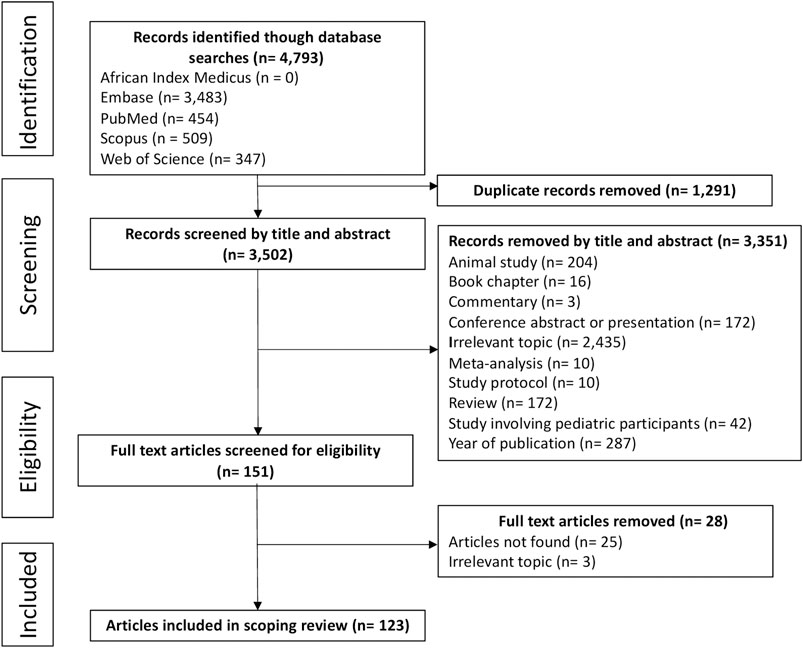

FIGURE 1. Article selection process according to PRISMA-ScR guidelines.
Participant and Study Characteristics
The participant and study characteristics of all studies (n = 123) included in this scoping review are shown in Table 2. There was an increase in publications from 2015. Majority of studies (28.5%) had sample sizes greater than 500. Most of the participants (42.3%) were between 51 and 60 years of age. Most of the studies (79.7%) included male and female participants. The most common ethnic group represented was European ancestry (15.4%), followed by Asian (12.2%), African ancestry (6.5%), Indian (3.3%), and studies reporting on multiple ethnicities (10.6%). It is important to note that ethnicity was not reported in over half of the studies (52.0%). Of eight studies that included participants of self-reported African ethnicity, only one included African individuals residing in Africa (Chen et al., 2007).

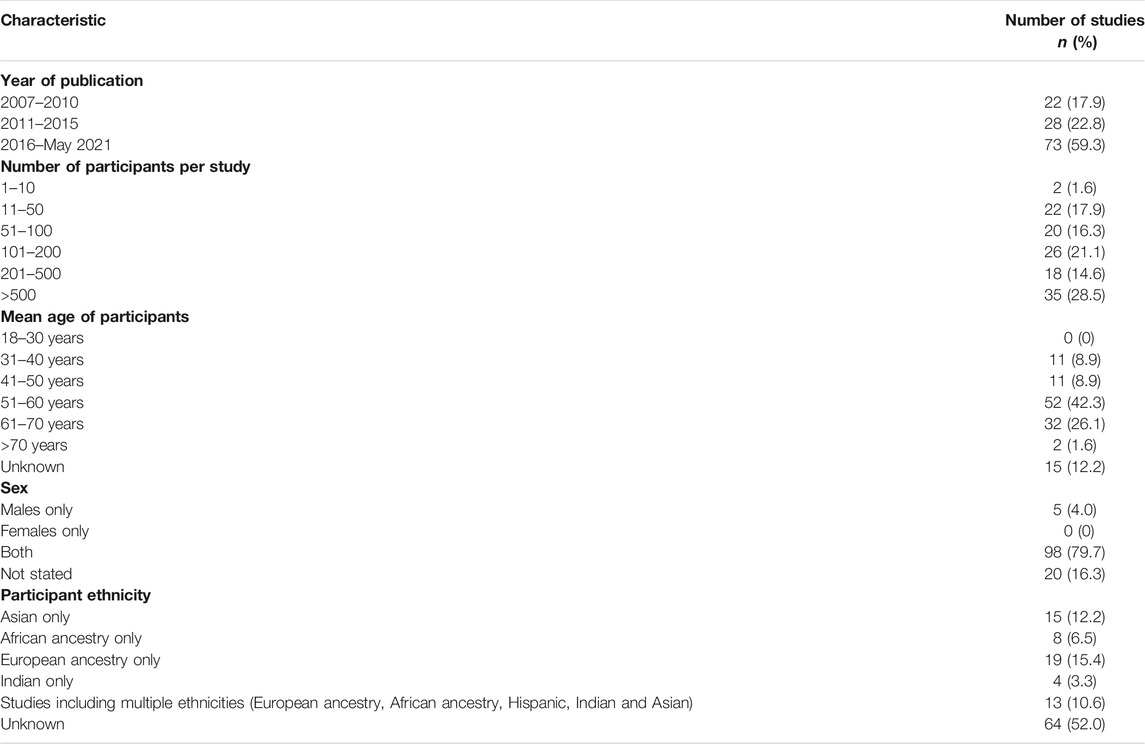

TABLE 2. Participant and study characteristics reported in 123 studies.
Omics’ Platforms and Techniques
We reported on five different ‘omics technologies including genomic, epigenomic, proteomic, metabolomic and transcriptomic (Table 3). The proteomic approach was the most common ‘omics platform (n = 53), followed by metabolomics (n = 30), genomics (n = 17), epigenomics (n = 10), transcriptomics (n = 5) and eight studies used a combination of ‘omics platforms. A wide range of techniques were used to analyse the ‘omics data (Table 3). Genomic analysis was mainly performed by arrays including Illumina’s High-throughput Bead array, Human Core Exome Bead array, HumanHap550-Duo Bead Chip and Omni Express Exome array. Proteomic analysis was mainly done by liquid chromatography coupled with mass spectrometry (LC-MS) and CE-MS. Gas chromatography-mass spectrometry (GC-MS) and LCMS were important analytical techniques for metabolomic analysis. Methylation arrays (including Illumina’s Infinium 27, 450 and 850K methylation arrays) were key for epigenomic analysis and transcriptomic analysis was mainly performed by RNA sequencing.
TABLE 3. The different ‘omics technologies and techniques reported in this scoping review for detection of CKD and associated risk in 123 studies.
CKD Risk Categories
The most common risk factors associated with CKD were diabetes mellitus (DM) (either type 1 diabetes, type 2 diabetes or both) (n = 91), followed by hypertension (n = 4), cardiovascular disease (n = 2), and infection (HIV) (n = 2). Sixteen studies reported on more than one risk factor and eight studies did not report on any risk factors (Figure 2).

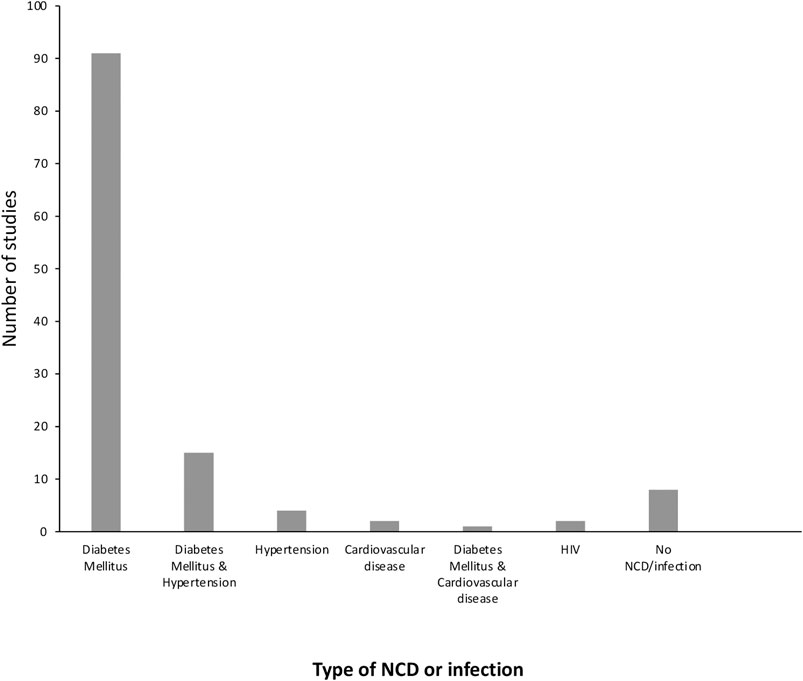

FIGURE 2. The number of papers describing each of the comorbidities associated with CKD.
Biomarkers Associated With Risk, Early Detection, and Progression of CKD
Whilst it was not feasible to discuss each biomarker identified for each study across all ‘omics platforms, a list of selected studies that identified biomarkers/indicators involved in risk, early detection and prediction of progression, and those that explored potential disease pathways, are shown in Table 4.
TABLE 4. Studies that identified biomarkers/indicators for early detection of CKD, prediction of CKD progression, and disease pathways.
Genetic Variants Associated With Risk for CKD
The genes implicated in risk for CKD were non–muscle myosin heavy chain 9 (MYH9), apolipoprotein L1 (APOL1) and uromodulin (UMOD). Kao et al. (2008) performed a genome-wide admixture scan in 2,178 individuals with European and African ancestry. They identified three SNPs (rs16996674, rs16996677, and rs5756152) in the MYH9 gene that were associated with a ∼3 times greater risk of nondiabetic ESKD in African Americans compared to European Americans. Similarly, Shlush et al. (2010) identified two SNPs (rs7286127 and rs5756133) associated with nondiabetic ESKD on chromosome 22 in the region that contains the MYH9 gene, as well as the neighbouring APOL1 gene. In addition, Igo et al. (2011) identified one SNP (rs5769116) 10 Mb distal to MYH9/APOL1 that was associated with DN. Morris et al. (2019) performed an association study of eGFR, a measure of kidney function, in 312,468 individuals of diverse ancestry. They identified a highly significant SNP (rs77924615; p = 1.5 × 10–54) in the UMOD gene associated with eGFR.
Biomarkers Associated With Early Detection of CKD
The proteomic CKD273 biomarker panel and metabolite pantothenic acid (PA) could potentially play a role in the early detection of CKD. Three proteomic studies by Siwy et al. (2014), Øvrehus et al. (2015), and Lindhardt et al. (2017) assessed the ability of a proteomic CKD273 biomarker panel to predict DN with diagnostic accuracy, measured as area under receiver operating characteristic curve, ranging from 0.84 to 1.0. All three proteomic studies used the CE-MS approach with sample sizes ranging from 35 to 737. In addition, Gonzalez-Calero et al. (2016) identified the metabolite PA as a potential predictor of albuminuria development in 118 hypertensive patients.
Biomarkers Associated With Progression of CKD
The proteomic CKD273 biomarker panel, metabolite PA, and methylation probe cg17944885 were suggested to be involved in progression of CKD. Two proteomic studies, Roscioni et al. (2013) and Tofte et al. (2020) found that a high CKD273 risk score was able to predict progression of microalbuminuria with an odds ratio (OR) of 1.35 and p value of <1.0 × 10–4, respectively. In addition to the metabolite PA being a potential predictor of albuminuria development in hypertensive patients, it was also associated with DN progression (p = 5.0 × 10–3) (Ma et al., 2020). Lecamwasam et al. (2020) compared methylation profiles between early and late stages of DN. They found that the methylation probe cg17944885 was associated with progressive renal dysfunction (p = 0.01 after adjustment for multiple testing).
Biomarkers Exploring Potential Disease Pathways
Genes of the retinoic acid pathway, UMOD and the metabolite PA provided insight into potential pathways involved in CKD. UMOD was specifically expressed in epithelial cells of the ascending loop of Henle in the kidney. This points to the role of uromodulin in kidney physiology (Morris et al., 2019). Genes of the retinoic acid pathway are essential for retinoic acid (RA) synthesis and impairment of RA synthesis leads to progression of kidney disease (Li et al., 2014). Pathway analysis of PA revealed that altered PA synthesis and PA-related metabolism could lead to DN (Ma et al., 2020).
Discussion
In this scoping review the first objective was to identify studies on potential biomarkers associated with CKD. The biomarkers that were most commonly associated with risk or early detection of CKD were genes and genetic variants on chromosomes 16 and 22 (Kao et al., 2008; Shlush et al., 2010; Igo et al., 2011; Liao et al., 2014; Taira et al., 2018; Morris et al., 2019), the CKD273 biomarker panel (consisting of proteins such as collagen fragments, uromodulin, α-1-antitrypsin, transthyretin and β-2-microglobulin) (Good et al., 2010; Siwy et al., 2014; Øvrehus et al., 2015; Lindhardt et al., 2017), and the metabolite PA (also known as pantothenate or vitamin B5) (Gonzalez-Calero et al., 2016). Majority of these potential biomarkers are exploratory, having been identified in small discovery studies and have not been validated, with the exception of the CKD273 biomarker panel.
It is well known from studies in the United States that individuals with African ancestry are at greater risk for developing incident CKD and progressing to ESKD, compared to other population groups (Perneger et al., 1995; Tarver-Carr et al., 2002; Saran et al., 2020). Much of this risk was attributed to genetic variants in the MYH9/APOL1 gene region on chromosome 22 that were strongly associated with non-diabetic ESKD (Kao et al., 2008; Shlush et al., 2010). The MYH9 and APOL1 genes are tightly linked on chromosome 22, and fine mapping studies revealed that the risk variants were actually in the APOL1 gene and not in the MYH9 gene, as originally thought (Genovese et al., 2010; Tzur et al., 2010). Zhang et al. (2016) developed and validated an APOL1 genotyping assay as a precision medicine genetic test for non-diabetic CKD risk prediction (Zhang et al., 2016). There are still ongoing clinical trials (http://www.clinicaltrials.gov; identifiers NCT02234063, NCT04191824 and NCT04910867), assessing the clinical utility of APOL1 genetic testing. Implementation of an APOL1 genotyping assay in a clinical setting could lead to a cost-effective screening program for African Americans who are at high risk for developing CKD and progressing to ESKD.
Studies have suggested the UMOD gene located on chromosome 16 as a candidate gene for CKD (Köttgen et al., 2009; Köttgen et al., 2010; Pattaro et al., 2016). Not only does it have a large effect on eGFR decline and CKD risk, the consistency of the effect is seen across different ethnicities (Devuyst et al., 2017). Morris et al. (2019) identified rs77924615 (p = 1.5 × 10–54), located in UMOD, as the main variant driving eGFR association. This variant was associated with decreased eGFR and increased UMOD expression (Morris et al., 2019).
Due to the multifactorial nature of CKD, a combination approach of several biomarkers is likely to be more predictive than a single biomarker. Compared to currently available markers such as reduced eGFR and albuminuria, the CKD273 biomarker panel enables more accurate diagnosis and earlier detection of CKD. For example, in one study, CKD273 enabled detection of CKD with 95% sensitivity, 100% specificity and an excellent diagnostic accuracy of 0.977 (95% confidence interval (CI) 0.930–1.000) (Øvrehus et al., 2015). In another study, CKD273 had the ability to detect DN in individuals with type 2 diabetes, with diagnostic accuracy ranging from 0.95 to 1.0 across nine study sites (Siwy et al., 2014). This same biomarker panel was able to predict the development of microalbuminuria in normoalbuminuric type 2 diabetic patients, with a diagnostic accuracy of 0.79 (95% CI 0.75–0.84; p < 1.0 × 10–4) (Lindhardt et al., 2017). The CKD273 biomarker panel includes clinically relevant proteins such as uromodulin and β-2-microglobulin, which are suggested to be markers of early renal damage (Torffvit and Agardh, 1993; Torffvit et al., 1999; Schlatzer et al., 2012; Zeng et al., 2014; Alaje Abiodun et al., 2016). These findings demonstrate the utility of CKD273 in early non-invasive renal risk assessment and may help to prevent unnecessary biopsies. While CKD273 has been validated for DN, its utility for hypertension-associated CKD is yet to be established. The CKD273 biomarker can assist clinicians in decision-making for more frequent check-ups in high-risk patients and guide therapeutic options to prevent long-term chronic conditions. Although the CKD273 biomarker panel has been supported by the FDA (https://www.fda.gov/files/drugs/published/Biomarker-Letter-of-Support_Mischak.pdf), its utility has yet to be established in African populations and the African diaspora. Furthermore, the current cost of screening using the CKD273 biomarker panel is €3,053 per patient making it unaffordable in resource-poor settings such as SSA (Critselis et al., 2018).
CKD273, PA, and methylation probe cg17944885 are suggested to be potential biomarkers associated with CKD progression. In addition to PA being used to predict albuminuria in hypertensive normoalbuminuric patients, it is suggested to be a promising biomarker for predicting diabetes-induced kidney impairment (Gonzalez-Calero et al., 2016; Ma et al., 2020). Methylation marker cg17944885 showed an increasing gradient of methylation with progressive renal dysfunction (Lecamwasam et al., 2020). A high CKD273 risk score was independently associated with faster progression of albuminuria in two separate studies (Roscioni et al., 2013; Tofte et al., 2020). The ability to identify individuals at high-risk for progression has important clinical implications. For those patients at a high-risk for progression, it is suggested that blood pressure be controlled to less than 130/80 mmHg. There are many therapeutic options to control blood pressure including angiotensin-converting enzyme (ACE) inhibitors, angiotensin-receptor blockers (ARBs) or a combination of ACE inhibitors or ARBs with a diuretic (Nguyen et al., 2010). Meanwhile, management of glucose and lipid levels are also suggested to delay the development of chronic complications in DN patients.
The second objective of the scoping review was to explore potential pathways involved in CKD. Using expression quantitative trait loci (eQTL) analysis, UMOD expression was mapped to epithelial cells lining the thick ascending limb of the loop of Henle (Morris et al., 2019). Studies on transgenic mice suggested that overexpression of uromodulin causes abnormal activation of the sodium-potassium-chloride transporter (NKCC2) involved in sodium chloride (NaCl) reabsorption by the thick ascending limb segment, leading to salt-sensitive hypertension and renal lesions (Trudu et al., 2013). Mice treated with a single dose of furosemide, a diuretic that targets NKCC2, exhibited a significant reduction in blood pressure (Trudu et al., 2013). This finding suggests that NKCC2 is a potential target for hypertension-induced CKD intervention.
Fan et al. (2020) compared gene expression profiles in three groups; controls, early DN and advanced DN (Fan et al., 2020). They identified genes of the retinoic acid pathway including retinol dehydrogenase 8 (RDH8), retinol dehydrogenase 12 (RDH12), and retinol binding protein 4 (RBP4) with increased expression in early DN but decreased expression in advanced DN. These findings suggest that RA might have kidney protective effects in the early stage of DN that slow the progression to advanced DN. A previous study suggested that downregulation of enzymes retinol dehydrogenase 9 (RDH9) and retinol dehydrogenase 1 (RDH1) essential for RA synthesis causes impaired local synthesis of RA in the kidney that contributes to the progression of kidney disease (Li et al., 2014). These results point to restoration of retinoic acid synthesis as a potential therapy to slow the progression of kidney disease. There is an ongoing clinical trial assessing the efficacy of RA isotretinoin for treatment of various podocyte diseases including collapsing glomerulopathy (http://www.clinicaltrials.gov; identifier NCT00098020).
The metabolite PA is suggested to be a predictive biomarker for development of CKD and progression in hypertensive and diabetic patients (Gonzalez-Calero et al., 2016; Ma et al., 2020). PA (also known as vitamin B5) is an essential vitamin and dietary factor, and has long been recognised as an essential cofactor of biochemical reactions in numerous physiological processes (Patassini et al., 2019). Pathway analysis results showed PA synthesis and PA-related metabolism were disturbed in individuals with DN (Ma et al., 2020). Since mammalian cells are unable to synthesize vitamin B5, they require it to be generated by the intestinal microbiome or to be part of the diet, resulting in a potential therapeutic target for DN treatment (Daugherty et al., 2002). A previous study in a type 2 diabetes rat model has shown that a vitamin B5 supplement restored body weight and blood pressure whilst also decreasing blood glucose levels (Demirci et al., 2014). In addition, this study also reported that a vitamin B5 supplement may reduce diabetes-related oxidative stress and prevent endothelial cell injury (Demirci et al., 2014). However, further studies are required to determine the efficacy of a vitamin B5 supplement in reducing blood pressure and glucose levels in humans.
The translation of ‘omics research into disease-related biomarkers for use in clinical practice is a complicated, time-consuming, and expensive process. Some challenges include clinical heterogeneity of individuals with a particular diagnosis, different standards of evidence to evaluate the validity of the biomarker, and a lengthy developmental pathway from biomarker discovery to clinical utility (Omenn et al., 2012). The diagnostic and therapeutic potential of the biomarker has to be carefully assessed before being considered for introduction into the clinic, and additional uses should be considered. For example, the CKD273 biomarker panel is available as a commercial in vitro diagnostic test and is a good example of a “bench-to-bedside” approach (Pontillo and Mischak, 2017). In addition to its diagnostic and prognostic value, CKD273 also has the potential to assess the impact (outcome) of therapeutic interventions (Haubitz et al., 2009). For example, in one study, CKD273 risk scores were significantly reduced (from 0.721 at visit 2 to 0.277 at visit 9), below the previously defined threshold (0.343) after 2 years of treatment with irbesartan (an antihypertensive and antiproteinuric drug) (Andersen et al., 2010).
Low-cost genomics-informed approaches to disease risk prediction pose great promise for low- and middle-income countries, where the morbidity and mortality of non-communicable diseases such as CKD are disproportionately high. However, there are many factors that hinder the implementation of a genomic medicine healthcare model for CKD in resource limited settings. These include population-specific research to validate predictive accuracy and clinical utility, a low critical mass of skilled scientists, insufficiently equipped diagnostic research laboratories and a lagging public health policy framework (Tekola-Ayele and Rotimi, 2015). For example, the paucity of genomics research in individuals from Africa has limited knowledge of clinically relevant CKD genetic variants in these populations. The clinical implementation of genomic medicine requires more than just developing a diagnostic or screening test. To have a functional genomic medicine healthcare model for CKD, costly technology and skill-strengthening among scientists in the fields of medical genetics, genetic counselling, genetic epidemiology, bioinformatics and computational biology are required. In addition, legal and ethical frameworks also need to be strengthened in local contexts (Tekola-Ayele and Rotimi, 2015; Pereira et al., 2021).
The strengths of the review include the novelty of the topic and the assessment of the literature on candidate biomarkers for early detection of CKD and prediction of progression. Several potential biomarkers are highlighted and may be useful in developing screening programs for CKD, however, they need validation in different clinical settings and ethnic backgrounds. In addition, this review has shown that ‘omics technologies can be used to explore potential disease mechanisms and therapeutic targets for treatment. There were some limitations in this scoping review. Despite internationally accepted guidelines, studies used various metrics to define CKD and potential sex differences in the manifestation of CKD were not examined. The sample sizes were usually small, and results may not be transferable to populations that were not included in the studies, for example African populations. Furthermore, it was difficult to compare the outcomes across studies because each study design was unique.
A few knowledge gaps were identified. While DM is a major risk factor for CKD in some regions of the world, reflected in the number of DN studies reported in the ‘omics literature, other regions such as Asia and Africa have other dominant risk factors such as hypertension and other contributing factors that remain to be identified. The major underlying causes of kidney disease in Africa are poorly understood and often attributed to hypertension which is likely to be secondary hypertension as a consequence of numerous insults. In this regard, there are relatively few ‘omics studies that focus on hypertension in the context of CKD in African populations (Alicic et al., 2017). There was a single study with individuals from West Africa, highlighting the lack of ‘omics research in continental Africans (Chen et al., 2007), despite many studies documenting the well-established genetic link to CKD in African Americans (APOL1-associated nephropathy) (George et al., 2018).
In sub-Saharan Africa, there are limited resources for treating individuals with CKD who progress to ESKD, rendering this condition fatal for those who are not treated. At least half of the patients who require ESKD treatment do not have access to treatment, and only 1.5% are predicted to receive renal replacement therapy (Ashuntantang et al., 2017). Approximately 75% of patients who begin dialysis will subsequently demise due to poor quality of dialysis or termination of dialysis based on its cost (Ashuntantang et al., 2017). This makes screening, early detection and the implementation of preventative interventions for CKD particularly relevant. Clinically relevant biomarkers will be useful to develop screening programs and potential therapeutic approaches to treat CKD in sub-Saharan Africa. Ideally the goal is to identify individuals at risk for developing CKD in the future and develop preventative intervention strategies that would delay onset and slow progression, by treating the underlying etiologies.
The reported ‘omics studies identified potential biomarkers associated with CKD. These biomarkers provide insight into the pathways involved in CKD and could possibly be used to guide diagnostic and treatment options. The biomarkers that have emerged through synthesis of existing literature provide evidence for effective approaches for early detection of CKD and prediction of progression in European populations. Their transferability to Africans and other ethnicities needs to be verified through research in relevant populations and assessment of diagnostic implementation in low-resourced healthcare settings. There is extensive regional and ethnic diversity in Africa, and the major causes of CKD appear to differ substantively from those in high-income settings, requiring population representative studies that address the local context and causes of CKD. In addition, many factors need to be addressed to facilitate effective genomic medicine healthcare models for CKD.
Data Availability Statement
The search terms and methodology are fully described in the paper and the list of papers included in the review are shown in the Supplementary Material.
Author Contributions
MG screened all records by title and abstract for inclusion. J-TB and JF independently screened records by title and abstract for verification. Any inconsistencies or disagreements were resolved by mutual agreement including investigator MR. Writing of the paper was done by MG. MR, JF, and J-TB contributed to editing the paper.
Funding
MG has a bursary from the South African National Research Foundation (NRF); J-TB’s postdoctoral fellowship was funded by the NRF and MR is a South African Research Chair in Genomics and Bioinformatics of African populations hosted by the University of the Witwatersrand, funded by the Department of Science and Technology, and administered by the NRF.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2021.682929/full#supplementary-material
References
Abbiss, H., Maker, G., and Trengove, R. (2019). Metabolomics Approaches for the Diagnosis and Understanding of Kidney Diseases. Metabolites 9, 34. doi:10.3390/metabo9020034
Alaje Abiodun, K., Benedict, N., and Idogun Sylvester, E. (2016). β2 Microglobulin as A Marker of Early Renal Damage in Patients with Sickle Cell Nephropathy. IOSR J. Dental Med. Sci. 15, 118–121. doi:10.9790/0853-150805118121
Alicic, R. Z., Rooney, M. T., and Tuttle, K. R. (2017). Diabetic Kidney Disease. Cjasn 12, 2032–2045. doi:10.2215/cjn.11491116
Alkhalaf, A., Zürbig, P., Bakker, S. J. L., Bilo, H. J. G., Cerna, M., Fischer, C., et al. (2010). Multicentric Validation of Proteomic Biomarkers in Urine Specific for Diabetic Nephropathy. PloS one 5, e13421. doi:10.1371/journal.pone.0013421
Andersen, S., Mischak, H., Zürbig, P., Parving, H. H., and Rossing, P. (2010). Urinary Proteome Analysis Enables Assessment of Renoprotective Treatment in Type 2 Diabetic Patients with Microalbuminuria. BMC Nephrol. 11, 29–9. doi:10.1186/1471-2369-11-29
Ashuntantang, G., Osafo, C., Olowu, W. A., Arogundade, F., Niang, A., Porter, J., et al. (2017). Outcomes in Adults and Children with End-Stage Kidney Disease Requiring Dialysis in Sub-saharan Africa: a Systematic Review. Lancet Glob. Health 5, e408–e417. doi:10.1016/s2214-109x(17)30057-8
Bikbov, B., Purcell, C. A., Levey, A. S., Smith, M., Abdoli, A., Abebe, M., et al. (2020). Global, Regional, and National burden of Chronic Kidney Disease, 1990-2017: a Systematic Analysis for the Global Burden of Disease Study 2017. Lancet 395, 709–733. doi:10.1016/S0140-6736(20)30045-3
Cañadas-Garre, M., Anderson, K., Cappa, R., Skelly, R., Smyth, L. J., Mcknight, A. J., et al. (2019). Genetic Susceptibility to Chronic Kidney Disease - Some More Pieces for the Heritability Puzzle. Front. Genet. 10, 453. doi:10.3389/fgene.2019.00453
Chen, G., Adeyemo, A. A., Zhou, J., Chen, Y., Doumatey, A., Lashley, K., et al. (2007). A Genome-wide Search for Linkage to Renal Function Phenotypes in West Africans with Type 2 Diabetes. Am. J. kidney Dis. 49, 394–400. doi:10.1053/j.ajkd.2006.12.011
Couser, W. G., Remuzzi, G., Mendis, S., and Tonelli, M. (2011). The Contribution of Chronic Kidney Disease to the Global burden of Major Noncommunicable Diseases. Kidney Int. 80, 1258–1270. doi:10.1038/ki.2011.368
Craddock, N. J., and Jones, I. R. (2007). Genome-wide Association Study of 14,000 Cases of Seven Common Diseases and 3,000 Shared Controls. Nature 447, 661–678. doi:10.1038/nature05911
Critselis, E., Vlahou, A., Stel, V. S., and Morton, R. L. (2018). Cost-effectiveness of Screening Type 2 Diabetes Patients for Chronic Kidney Disease Progression with the CKD273 Urinary Peptide Classifier as Compared to Urinary Albumin Excretion. Nephrol. Dial. Transplant. 33, 441–449. doi:10.1093/ndt/gfx068
Daugherty, M., Polanuyer, B., Farrell, M., Scholle, M., Lykidis, A., de Crécy-Lagard, V., et al. (2002). Complete Reconstitution of the Human Coenzyme A Biosynthetic Pathway via Comparative Genomics. J. Biol. Chem. 277, 21431–21439. doi:10.1074/jbc.m201708200
De Oliveira, B. G. R. B. (2018). Preferred Reporting Items for Systematic Reviews and Meta-Analyses Extension for Scoping Reviews (PRISMA-ScR) Checklist.
Demirci, B., Demir, O., Dost, T., and Birincioglu, M. (2014). Protective Effect of Vitamin B5 (Dexpanthenol) on Cardiovascular Damage Induced by Streptozocin in Rats. Bll 115, 190–196. doi:10.4149/bll_2014_040
Devuyst, O., Olinger, E., and Rampoldi, L. (2017). Uromodulin: from Physiology to Rare and Complex Kidney Disorders. Nat. Rev. Nephrol. 13, 525–544. doi:10.1038/nrneph.2017.101
Ekrikpo, U. E., Kengne, A. P., Bello, A. K., Effa, E. E., Noubiap, J. J., Salako, B. L., et al. (2018). Chronic Kidney Disease in the Global Adult HIV-Infected Population: a Systematic Review and Meta-Analysis. PLoS One 13, e0195443. doi:10.1371/journal.pone.0195443
Fan, Y., Yi, Z., D'Agati, V. D., Sun, Z., Zhong, F., Zhang, W., et al. (2020). Erratum. Comparison of Kidney Transcriptomic Profiles of Early and Advanced Diabetic Nephropathy Reveals Potential New Mechanisms for Disease Progression. Diabetes 2019;68:2301-2314. Diabetes 69, db20er04b. doi:10.2337/db20-er04b
Genovese, G., Friedman, D. J., Ross, M. D., Lecordier, L., Uzureau, P., Freedman, B. I., et al. (2010). Association of Trypanolytic ApoL1 Variants with Kidney Disease in African Americans. Science 329, 841–845. doi:10.1126/science.1193032
George, C., Yako, Y. Y., Okpechi, I. G., Matsha, T. E., Kaze Folefack, F. J., and Kengne, A. P. (2018). An African Perspective on the Genetic Risk of Chronic Kidney Disease: a Systematic Review. BMC Med. Genet. 19, 187. doi:10.1186/s12881-018-0702-x
Gonzalez-Calero, L., Martin-Lorenzo, M., Martínez, P. J., Baldan-Martin, M., Ruiz-Hurtado, G., Segura, J., et al. (2016). Hypertensive Patients Exhibit an Altered Metabolism. A Specific Metabolite Signature in Urine Is Able to Predict Albuminuria Progression. Translational Res. 178, 25–37. doi:10.1016/j.trsl.2016.07.003
Good, D. M., Zürbig, P., Argilés, À., Bauer, H. W., Behrens, G., Coon, J. J., et al. (2010). Naturally Occurring Human Urinary Peptides for Use in Diagnosis of Chronic Kidney Disease. Mol. Cell Proteomics 9, 2424–2437. doi:10.1074/mcp.m110.001917
Haubitz, M., Good, D. M., Woywodt, A., Haller, H., Rupprecht, H., Theodorescu, D., et al. (2009). Identification and Validation of Urinary Biomarkers for Differential Diagnosis and Evaluation of Therapeutic Intervention in Anti-neutrophil Cytoplasmic Antibody-Associated Vasculitis. Mol. Cell Proteomics 8, 2296–2307. doi:10.1074/mcp.m800529-mcp200
Hill, N. R., Fatoba, S. T., Oke, J. L., Hirst, J. A., O’Callaghan, C. A., Lasserson, D. S., et al. (2016). Global Prevalence of Chronic Kidney Disease - A Systematic Review and Meta-Analysis. PloS one 11, e0158765. doi:10.1371/journal.pone.0158765
Horgan, R. P., and Kenny, L. C. (2011). 'Omic' Technologies: Genomics, Transcriptomics, Proteomics and Metabolomics. The Obstetrician & Gynaecologist 13, 189–195. doi:10.1576/toag.13.3.189.27672
Igo, Jr., R. P., Iyengar, S. K., Nicholas, S. B., Goddard, K. A. B., Langefeld, C. D., Hanson, R. L., et al. (2011). Genomewide Linkage Scan for Diabetic Renal Failure and Albuminuria: the FIND Study. Am. J. Nephrol. 33, 381–389. doi:10.1159/000326763
Kao, W. H. L., Klag, M. J., Klag, M. J., Meoni, L. A., Reich, D., Berthier-Schaad, Y., et al. (2008). MYH9 Is Associated with Nondiabetic End-Stage Renal Disease in African Americans. Nat. Genet. 40, 1185–1192. doi:10.1038/ng.232
Kaze, A. D., Ilori, T., Jaar, B. G., and Echouffo-Tcheugui, J. B. (2018). Burden of Chronic Kidney Disease on the African Continent: a Systematic Review and Meta-Analysis. BMC Nephrol. 19, 1–11. doi:10.1186/s12882-018-0930-5
Köttgen, A., Pattaro, C., Böger, C. A., Fuchsberger, C., Olden, M., Glazer, N. L., et al. (2010). New Loci Associated with Kidney Function and Chronic Kidney Disease. Nat. Genet. 42, 376–384. doi:10.1038/ng.568
Köttgen, A., Glazer, N. L., Dehghan, A., Hwang, S.-J., Katz, R., Li, M., et al. (2009). Multiple Loci Associated with Indices of Renal Function and Chronic Kidney Disease. Nat. Genet. 41, 712–717. doi:10.1038/ng.377
Lecamwasam, A., Novakovic, B., Meyer, B., Ekinci, E. I., Dwyer, K. M., and Saffery, R. (2020). DNA Methylation Profiling Identifies Epigenetic Differences between Early versus Late Stages of Diabetic Chronic Kidney Disease. Nephrol. Dial. Transplant., gfaa226. doi:10.1093/ndt/gfaa226
Levey, A. S., Coresh, J., Bolton, K., Culleton, B., Harvey, K. S., Ikizler, T. A., et al. (2002). K/DOQI Clinical Practice Guidelines for Chronic Kidney Disease: Evaluation, Classification, and Stratification. Am. J. Kidney Dis. 39, S1–S266.
Li, X., Dai, Y., Chuang, P. Y., and He, J. C. (2014). Induction of Retinol Dehydrogenase 9 Expression in Podocytes Attenuates Kidney Injury. Jasn 25, 1933–1941. doi:10.1681/asn.2013111150
Liao, L. N., Chen, C. C., Wu, F. Y., Lin, C. C., Hsiao, J. H., Chang, C. T., et al. (2014). Identified Single-Nucleotide Polymorphisms and Haplotypes at 16q22.1 Increase Diabetic Nephropathy Risk in Han Chinese Population. BMC Genet. 15, 1–11. doi:10.1186/s12863-014-0113-8
Lindhardt, M., Persson, F., Zürbig, P., Stalmach, A., Mischak, H., De Zeeuw, D., et al. (2017). Urinary Proteomics Predict Onset of Microalbuminuria in Normoalbuminuric Type 2 Diabetic Patients, a Sub-study of the DIRECT-Protect 2 Study. Nephrol. Dial. Transpl. 32, 1866–1873. doi:10.1093/ndt/gfw292
Lindhardt, M., Persson, F., Currie, G., Pontillo, C., Beige, J., Delles, C., et al. (2016). Proteomic Prediction and Renin Angiotensin Aldosterone System Inhibition Prevention of Early Diabetic nephRopathy in TYpe 2 Diabetic Patients with Normoalbuminuria (PRIORITY): Essential Study Design and Rationale of a Randomised Clinical Multicentre Trial. BMJ open 6, e010310. doi:10.1136/bmjopen-2015-010310
Ma, T., Liu, T., Xie, P., Jiang, S., Yi, W., Dai, P., et al. (2020). UPLC-MS-based Urine Nontargeted Metabolic Profiling Identifies Dysregulation of Pantothenate and CoA Biosynthesis Pathway in Diabetic Kidney Disease. Life Sci. 258, 118160. doi:10.1016/j.lfs.2020.118160
Miller, W. G., Bruns, D. E., Hortin, G. L., Sandberg, S., Aakre, K. M., Mcqueen, M. J., et al. (2009). Current Issues in Measurement and Reporting of Urinary Albumin Excretion. Clin. Chem. 55, 24–38. doi:10.1373/clinchem.2008.106567
Mischak, H., Delles, C., Klein, J., and Schanstra, J. P. (2010). Urinary Proteomics Based on Capillary Electrophoresis-Coupled Mass Spectrometry in Kidney Disease: Discovery and Validation of Biomarkers, and Clinical Application. Adv. chronic kidney Dis. 17, 493–506. doi:10.1053/j.ackd.2010.09.004
Morris, A. P., Le, T. H., Wu, H., Akbarov, A., Van Der Most, P. J., Hemani, G., et al. (2019). Trans-ethnic Kidney Function Association Study Reveals Putative Causal Genes and Effects on Kidney-specific Disease Aetiologies. Nat. Commun. 10, 29–14. doi:10.1038/s41467-018-07867-7
Nguyen, Q., Dominguez, J., Nguyen, L., and Gullapalli, N. (2010). Hypertension Management: an Update. Am. Health Drug Benefits 3, 47–56.
Omenn, G. S., Nass, S. J., and Micheel, C. M. (2012). Evolution of Translational Omics: Lessons Learned and the Path Forward. Washington (DC): National Academies Press.
Øvrehus, M. A., Zürbig, P., Vikse, B. E., and Hallan, S. I. (2015). Urinary Proteomics in Chronic Kidney Disease: Diagnosis and Risk of Progression beyond Albuminuria. Clin. Proteomics 12, 21–29. doi:10.1186/s12014-015-9092-7
Papadopoulos, T., Krochmal, M., Cisek, K., Fernandes, M., Husi, H., Stevens, R., et al. (2016). Omics Databases on Kidney Disease: where They Can Be Found and How to Benefit from Them. Clin. Kidney J. 9, 343–352. doi:10.1093/ckj/sfv155
Patassini, S., Begley, P., Xu, J., Church, S., Kureishy, N., Reid, S., et al. (2019). Cerebral Vitamin B5 (D-Pantothenic Acid) Deficiency as a Potential Cause of Metabolic Perturbation and Neurodegeneration in Huntington's Disease. Metabolites 9, 113. doi:10.3390/metabo9060113
Pattaro, C., Teumer, A., Gorski, M., Chu, A. Y., Li, M., Mijatovic, V., et al. (2016). Genetic Associations at 53 Loci Highlight Cell Types and Biological Pathways Relevant for Kidney Function. Nat. Commun. 7, 1–19. doi:10.1038/ncomms10023
Pereira, L., Mutesa, L., Tindana, P., and Ramsay, M. (2021). African Genetic Diversity and Adaptation Inform a Precision Medicine Agenda. Nat. Rev. Genet. 22, 284–306. doi:10.1038/s41576-020-00306-8
Perneger, T. V., Whelton, P. K., and Klag, M. J. (1995). Race and End-Stage Renal Disease. Socioeconomic Status and Access to Health Care as Mediating Factors. Arch. Intern. Med. 155, 1201–1208. doi:10.1001/archinte.155.11.1201
Pontillo, C., and Mischak, H. (2017). Urinary Peptide-Based Classifier CKD273: towards Clinical Application in Chronic Kidney Disease. Clin. kidney J. 10, 192–201. doi:10.1093/ckj/sfx002
Roscioni, S. S., De Zeeuw, D., Hellemons, M. E., Mischak, H., Zürbig, P., Bakker, S. J. L., et al. (2013). A Urinary Peptide Biomarker Set Predicts Worsening of Albuminuria in Type 2 Diabetes Mellitus. Diabetologia 56, 259–267. doi:10.1007/s00125-012-2755-2
Saran, R., Robinson, B., Abbott, K. C., Bragg-Gresham, J., Chen, X., Gipson, D., et al. (2020). US Renal Data System 2019 Annual Data Report: Epidemiology of Kidney Disease in the United States. Am. J. Kidney Dis. 75, A6–A7. doi:10.1053/J.AJKD.2019.09.003
Schlatzer, D., Maahs, D. M., Chance, M. R., Dazard, J.-E., Li, X., Hazlett, F., et al. (2012). Novel Urinary Protein Biomarkers Predicting the Development of Microalbuminuria and Renal Function Decline in Type 1 Diabetes. Diabetes care 35, 549–555. doi:10.2337/dc11-1491
Shlush, L. I., Bercovici, S., Wasser, W. G., Yudkovsky, G., Templeton, A., Geiger, D., et al. (2010). Admixture Mapping of End Stage Kidney Disease Genetic Susceptibility Using Estimated Mutual Information Ancestry Informative Markers. BMC Med. Genomics 3, 47–12. doi:10.1186/1755-8794-3-47
Siwy, J., Schanstra, J. P., Argiles, A., Bakker, S. J. L., Beige, J., Boucek, P., et al. (2014). Multicentre Prospective Validation of a Urinary Peptidome-Based Classifier for the Diagnosis of Type 2 Diabetic Nephropathy. Nephrol. Dial. Transplant. 29, 1563–1570. doi:10.1093/ndt/gfu039
Taira, M., Imamura, M., Takahashi, A., Kamatani, Y., Yamauchi, T., Araki, S.-I., et al. (2018). A Variant within the FTO Confers Susceptibility to Diabetic Nephropathy in Japanese Patients with Type 2 Diabetes. PloS one 13, e0208654. doi:10.1371/journal.pone.0208654
Tarver-Carr, M. E., Powe, N. R., Eberhardt, M. S., Laveist, T. A., Kington, R. S., Coresh, J., et al. (2002). Excess Risk of Chronic Kidney Disease Among African-American versus white Subjects in the United States: a Population-Based Study of Potential Explanatory Factors. Jasn 13, 2363–2370. doi:10.1097/01.asn.0000026493.18542.6a
Tekola-Ayele, F., and Rotimi, C. N. (2015). Translational Genomics in Low- and Middle-Income Countries: Opportunities and Challenges. Public health genomics 18, 242–247. doi:10.1159/000433518
Tin, A., and Köttgen, A. (2020). Genome-Wide Association Studies of CKD and Related Traits. Clin. J. Am. Soc. Nephrol. 15, 1643–1656. doi:10.2215/cjn.00020120
Tofte, N., Lindhardt, M., Adamova, K., Bakker, S. J., Beige, J., Beulens, J. W., et al. (2020). Early Detection of Diabetic Kidney Disease by Urinary Proteomics and Subsequent Intervention with Spironolactone to Delay Progression (PRIORITY): a Prospective Observational Study and Embedded Randomised Placebo-Controlled Trial. Lancet Diabetes Endocrinol. 8, p301–p312.
Torffvit, O., Agardh, C.-D., and Thulin, T. (1999). A Study of Tamm-Horsfall Protein Excretion in Hypertensive Patients and Type 1 Diabetic Patients. Scand. J. Urol. Nephrol. 33, 187–191. doi:10.1080/003655999750015970
Torffvit, O., and Agardh, C.-D. (1993). Tubular Secretion of Tamm-Horsfall Protein Is Decreased in Type 1 (Insulin-dependent) Diabetic Patients with Diabetic Nephropathy. Nephron 65, 227–231. doi:10.1159/000187479
Trudu, M., Janas, S., Janas, S., Lanzani, C., Debaix, H., Schaeffer, C., et al. (2013). Common Noncoding UMOD Gene Variants Induce Salt-Sensitive Hypertension and Kidney Damage by Increasing Uromodulin Expression. Nat. Med. 19, 1655–1660. doi:10.1038/nm.3384
Tzur, S., Rosset, S., Shemer, R., Yudkovsky, G., Selig, S., Tarekegn, A., et al. (2010). Missense Mutations in the APOL1 Gene Are Highly Associated with End Stage Kidney Disease Risk Previously Attributed to the MYH9 Gene. Hum. Genet. 128, 345–350. doi:10.1007/s00439-010-0861-0
Zeng, X., Hossain, D., Bostwick, D. G., Herrera, G. A., and Zhang, P. L. (2014). Urinary β2-microglobulin Is a Good Indicator of Proximal Tubule Injury: a Correlative Study with Renal Biopsies. J. biomarkers 2014, 492838. doi:10.1155/2014/492838
