Genome-Wide Identification and Characterization of bHLH Transcription Factors Related to Anthocyanin Biosynthesis in Red Walnut (Juglans regia L.)

Basic helix-loop-helix (bHLH) proteins are transcription factors (TFs) that have been shown to regulate anthocyanin biosynthesis in many plant species. However, the bHLH gene family in walnut (Juglans regia L.) has not yet been reported. In this study, 102 bHLH genes were identified in the walnut genome and were classified into 15 subfamilies according to sequence similarity and phylogenetic relationships. The gene structure, conserved domains, and chromosome location of the genes were analyzed by bioinformatic methods. Gene duplication analyses revealed that 42 JrbHLHs were involved in the expansion of the walnut bHLH gene family. We also characterized cis-regulatory elements of these genes and performed Gene Ontology enrichment analysis of gene functions, and examined protein-protein interactions. Four candidate genes (JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2) were found to have high homology to genes encoding bHLH TFs involved in anthocyanin biosynthesis in other plants. RNA sequencing revealed tissue- and developmental stage-specific expression profiles and distinct expression patterns of JrbHLHs according to phenotype (red vs. green leaves) and developmental stage in red walnut hybrid progeny, which were confirmed by quantitative real-time PCR analysis. All four of the candidate JrbHLH proteins localized to the nucleus, consistent with a TF function. These results provide a basis for the functional characterization of bHLH genes and investigations on the molecular mechanisms of anthocyanin biosynthesis in red walnut.

Introduction

Walnut (Juglans regia L.) is among the top four economically and ecologically important nuts worldwide (Zheng et al., 2020). Walnuts have been praised as the “superfood of the 21st century” because of their abundance of nutrients, such as unsaturated fatty acids, proteins, sugars, cellulose, vitamins, and minerals (Li et al., 2018a). The leaf and pericarp of the most widely cultivated walnut varieties are green and the seed coat is generally light yellow. The red walnut found in China has a red leaf, pericarp, seed coat, and xylem (Supplementary Figure S1; Li et al., 2018b). The leaf and pericarp have been shown to contain a large number of anthocyanins (Wang et al., 2009; Li et al., 2018a), which are secondary metabolites that are usually found in the flower, fruit, leaf, stem, and root of plants and play critical roles in pigmentation, fruit quality, and pathogen resistance (Ji et al., 2019). However, the molecular mechanisms of pigment formation in walnut have not yet been elucidated.

Anthocyanin biosynthesis is affected by intrinsic and environmental factors and involves enzymatic reactions and modulation of regulatory factors (Supplementary Figure S2; Misyura et al., 2013). Key enzymes encoded by structural genes have been shown to promote anthocyanin biosynthesis, including chalcone synthase, chalcone isomerase, dihydroflavonol 4-reductase, and anthocyanidin synthase; their spatial and temporal expression patterns are regulated by various transcription factors (TFs; Butelli et al., 2012). The functions of structural genes are for the most part conserved, and interspecies differences in the mechanisms of anthocyanin accumulation are attributable to the activities of distinct TFs.

bHLH proteins constitute the second largest superfamily of TFs and play an important role in anthocyanin biosynthesis. The bHLH motif contains ~60 amino acid residues and includes 2 functional domains: the C-terminal HLH region and N-terminal basic amino acid region (which interacts with cis-regulatory elements; Toledo-Ortiz et al., 2003). The HLH loop has a variable length and can form homo- or heterodimers depending on the interactions of hydrophobic amino acids (Li et al., 2006). In general, the conserved motifs of bHLH proteins are involved in protein-protein interactions (PPIs; Feller et al., 2017). bHLH TFs regulate many physiologic processes and metabolic pathways in plants including anthocyanin biosynthesis (Hu et al., 2016; Zhao et al., 2017). The first bHLH TF identified in plants was the Lc protein encoded by the R gene in maize, which was shown to regulate at least 2 structural genes involved in anthocyanin biosynthesis (Chandler et al., 1989). Other bHLH TFs related to anthocyanin biosynthesis that have been identified in plants include AtEGL3, AtGL3, and AtTT8 in Arabidopsis (Bailey et al., 2003); VvMYCA1 in grape (Vitis vinifera; Matus et al., 2010); NtAn1 and NtAn2 in tobacco (Nicotiana tabacum; Bai et al., 2011); and MdbHLH3 and MdMYC2 in apple (Malus domestica; Espley et al., 2007; An et al., 2016). bHLH TFs interact with MYB and WD40 TFs to form a ternary complex (MBW) that regulates the expression of flavonoid biosynthesis and structural genes (Zhou et al., 2015; Lloyd et al., 2017). VcbHLHL1 was found to interact with VcMYBL1 and VcWDL2 to enhance anthocyanin accumulation and color development in blueberry fruit (Vaccinium spp.; Zhao et al., 2019).

Recently, a high-quality genome sequence of J. regia was obtained by second- and third-generation sequencing combined with high-throughput chromosome conformation capture and genetic and physical mapping (Zhang et al., 2020); and the Portal of Juglandaceae was established by integrating genome, coding, and amino acid sequences as well as various types of annotation, expression, and microRNA data obtained using BLAST, jbrowse, and other query tools (Guo et al., 2020). Although these resources provide a theoretical basis for genetic improvement of walnut, comparative genomic data of Juglandaceae are still lacking. The present work was carried out in order to identify bHLH TFs in J. regia from genome data and characterize their spatiotemporal expression patterns. Our findings provide insight into the roles of bHLHs in the regulation of anthocyanin biosynthesis in red walnut.

Materials and Methods

Plant Material

Tissue specimens of red walnut (J. regia L. “RW-1”) and common green walnut (J. regia L. “Zhonglin 1”) were collected from the Fruit Tree Experimental Station of College of Horticulture, Henan Agricultural University, Zhengzhou, China. The samples were obtained at the following time points: when leaf color changed from red to green; the leaf expansion (NY-1 and RY-1), new shoot growth (NY-2 and RY-2), and fruit swelling (NY-3 and RY-3) stages; and early period of fruit ripening (NY-4 and RY-4). Fruit peels were collected 30 days (NP-1 and RP-1), 60 days (NP-2 and RP-2), and 90 days (NP-3 and RP-3) after flowering. Samples were obtained as three biological replicates from three comparable plants and immediately frozen in liquid nitrogen for transcriptome sequencing as previously described (Li et al., 2018a). A total of 42 libraries were constructed by RNA sequencing (RNA-seq).

In order to maintain a consistent genetic background, different phenotypes (red vs. green leaves) of “RW-1” natural hybrid progeny were selected and cultivated at the Fruit Tree Experimental Station. Because of the long juvenile period of walnut, the progeny have not yet borne fruit; therefore, leaves of different colors were used as the material for experiments. The leaves were sampled at the full red period [new shoot growth stage (SG-1 and SR-1)], red-green period [fruit swelling stage (SG-2 and SR-2)], and full green period [early period of fruit ripening (SG-3 and SR-3); Supplementary Figure S3]. Leaves were sampled as three biological replicates from three comparable plants and wrapped in aluminum foil, placed in liquid nitrogen, and stored at −80°C until use.

Nicotiana benthamiana plants used for protein subcellular localization analysis were maintained in growth chambers at 22°C on a 16-h photoperiod.

RNA-Seq and Library Construction

Total RNA was extracted from leaves and the purity and integrity were analyzed as previously described (Li et al., 2018a). Each 0.5 g sample was prepared as three biological replicates. RNA concentrations were determined using a NanoDrop 1,000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, United States) and the quality was verified on a 1% agarose gel. Library construction and RNA-seq were performed by Biomarker Biotechnology Corp. (Beijing, China) on a HiSeq 2,500 platform (Illumina, San Diego, CA, United States).

RNA-seq data from different tissues (peel and leaf) of red walnut and common green walnut at different developmental stages were analyzed as described in our previous work (National Center for Biotechnology Information [NCBI] accession no. GSE162007). The heatmap of walnut bHLH gene expression patterns was constructed with TBtools (Chen et al., 2020), with the color scale representing fragments per kilobase of transcript per million mapped read counts.

Identification of JrbHLH Genes by Bioinformatic Analysis

Walnut genome annotation information, genome sequences, and protein sequences were obtained from the walnut genome database (Guo et al., 2020).¹ The coding sequences of all walnut bHLH genes were extracted from the genome using TBtools (Liu et al., 2020). A hidden Markov model of the bHLH domain (PF00010) was downloaded from Pfam and used for protein screening with HMMER software (e-value < 0.01; Finn et al., 2011).² bHLH protein sequences of Arabidopsis were obtained from The Arabidopsis Information Resource,³ and were searched in BLASTP against the common walnut genome database. Candidate proteins obtained by the above methods were merged and confirmed using NCBI Conserved Domains Database (CDD; Marchler-Bauer et al., 2017) and Simple Modular Architecture Research Tool (SMART; Letunic and Bork, 2017).⁴

Identified walnut bHLH family genes were analyzed in terms of chromosomal position and gene collinearity based on a published genomic sequence annotation file (Zhang et al., 2020) and mapped using TBtools,⁵ which were also used to determine the nonsynonymous/synonymous mutation (Ka/Ks) ratio of the genes. Conserved cis-regulatory elements in the promoter region of walnut bHLH genes were identified by analyzing the 2000-bp sequence upstream of the transcription start site obtained from Phytozome online webserver.⁶ Promoter sequence analysis was carried out using PlantCARE.⁷

Analysis of JrbHLH Gene Structure

Information on bHLH sequences was obtained using NCBI BLAST. The theoretical isoelectric point (pI) and molecular weight (MW) were predicted using ExPASy (Artimo et al., 2012).⁸ Cell-PLoc software was used to predict the subcellular localization of the proteins (Chou and Shen, 2008).⁹

The structure of walnut bHLH genes was analyzed using TBtools. Conserved motifs in full-length bHLH proteins were identified using the Multiple Expectation Maximization for Motif Elicitation (MEME) program (Bailey et al., 2009) with an optimum motif width ranging from 6 to 200 amino acid residues and a maximum of 10 misfits.¹⁰ Multiple sequence alignment was performed for the amino acid sequences of walnut bHLH proteins using DNAMAN (Zang et al., 2015).

Functional Analysis of JrbHLH Genes

Blast2GO software (Conesa and Götz, 2008) was used for Gene Ontology (GO) analysis of walnut bHLH genes using full-length amino acid sequences. Putative JrbHLH protein sequences were submitted to the online server STRING v10, with A. thaliana specified as the organism. The set of genes with the highest bit scores were used to construct the network. The annotation information of the functional domains was manually copied from the BLAST results.

Phylogenetic Analysis of JrbHLH Protein Sequences

Phylogenetic analysis of bHLH protein sequences of walnut was performed using MEGAX software; bHLH protein sequences are known to be related to anthocyanin biosynthesis in other plant species. A phylogenetic tree was constructed with the maximum likelihood method, with a partial deletion of 1,000 bootstraps and a JTT+F+G model.

JrbHLH Gene Expression Profiling by Quantitative Real-Time (qRT)-PCR

First-stand cDNA was synthesized using the FastQuant RT Kit (with gDNase; Tiangen Biotech, Beijing, China) and stored at −20°C. Primers were designed using Primer Premier 5.0 (Supplementary Table S1). qRT-PCR was performed on an ABI 7500 Real-Time PCR system (Applied Biosystems, Foster City, CA, United States) with the ChamQ Universal SYBR qPCR Master Mix (Vazyme, Nanjing, China). The cDNA was diluted to 200 ng, and 20 μl reactions were prepared as three technical replicates with a 1-μl template per reaction. The qRT-PCR conditions were as follows: 95°C for 5 min, followed by 40 cycles of 95°C for 15 s and 60°C for 1 min, and 72°C for 5 min. The β-actin gene (LOC108996275) was used as an internal reference (Li et al., 2018a). Target gene levels were calculated with the 2^−∆∆Ct method (Livak and Schmittgen, 2001).

In vitro Analysis of JrbHLH Protein Subcellular Localization

We generated recombinant JrbHLH proteins for subcellular localization analysis. We first PCR-amplified the coding sequences of the four candidate JrbHLHs related to anthocyanin biosynthesis using specific primers (Supplementary Table S2). Two restriction endonucleases (EcoRI and KpnI) were used to digest the amplification products, which were subcloned into the pCAMBIA Super 1,300-green fluorescent protein (GFP) vector using the ClonExpress Ultra One Step Cloning Kit (Vazyme Biotech, Nanjing, China). Positive clones were confirmed by sequencing and transformed into Agrobacterium tumefaciens strain GV3101. Cells transformed with the empty vector served as a negative control. Transformed A. tumefaciens were infiltrated into the fully expanded leaves of N. benthamiana. After 72 h, GFP expression was visualized with an LSM 710 laser confocal microscope (Carl Zeiss, Jena, Germany).

Results

Identification and Characterization of Walnut bHLH Genes

Using the Arabidopsis bHLH protein domain as the query sequence, 192 putative walnut JrbHLH protein sequences were obtained with default parameters using HMMER and BLASTP. After removing redundant sequences, 102 bHLH genes with a conserved bHLH domain were identified in walnut and confirmed in NCBI CDD and with SMART (Supplementary Table S3).

The physiochemical properties of the 102 JrbHLH genes, including amino acids, length of coding sequences, theoretical pI, predicted MW, and predicted subcellular localization, are shown in Supplementary Table S3. Sequence analysis revealed that the JrbHLH genes encoded proteins ranging in length from 156 (JrLAX) to 842 (JrbHLH157) amino acids, with theoretical pI values ranging from 4.78 (JrUNE12c) to 10.46 (JrbHLH131). JrbHLH36a and JrbHLH131 were predicted to localize to mitochondria, while all other JrbHLHs were predicted to localize to the nucleus.

Gene Structure, Conserved Motifs, and Multiple Sequence Alignment

To elucidate the structure and functions of JrbHLH genes, we analyzed their conserved motifs and gene structure (Supplementary Figure S4). The most highly conserved JrbHLH genes shared a common structure, with the number of introns ranging from 0 (17 genes were without introns) to 9 (JrbHLH155 and JrbHLH157; Supplementary Figure S4C). In the phylogenetic analysis, the 102 bHLHs were divided into 15 groups according to conserved domains, and 10 conserved protein motifs were identified using MEME (Supplementary Figures S4A,B). Among them, all sequences were found to exhibit two types of highly conserved protein motifs which are demonstrated as green (motif 1) and yellow (motif 2) blocks, respectively; and these two conserved domains were adjacent to each other. Motif 1 of JrbHLH was composed of basic residues and loop helix 1, while motif 2 comprised a loop and helix 2 (Supplementary Figures S4B, S5). The gap between motifs 1 and 2 varied depending on loop length. The sequences of the basic region and the position of the two helix domains were more conserved compared with the sequences obtained from the loop region, and the conserved motif model of the bHLH proteins in walnut were E-R-R-R-L-L-P-L-L.

Chromosomal Location and Gene Collinearity Analysis of Walnut bHLH Family

We analyzed the chromosomal location and distribution of JrbHLH genes in the walnut genome (Figure 1). The density of gene distribution on each chromosome is basically higher on both sides, but lower in the middle. Chromosome 8 harbored the largest number of JrbHLH genes (12), followed by chromosomes 1 and 11 (10 each); chromosomes 4, 5, 9, 10, 12, 15, and 16 (4 each); and chromosome 14 (3). To investigate whether segmental duplication contributed to the expansion of the walnut bHLH gene family during evolution, we mapped the genes onto duplicated walnut chromosome blocks (Supplementary Figure S6) and found that 42 JrbHLH genes comprising 21 paralogous pairs and accounting for 41.2% of the entire gene family were located on the duplicated blocks. Genes were replicated on all 16 chromosomes; chromosomes 7, 8, 9, and 10 had the most genes (4 each), followed by chromosomes 5, 6, 13, and 14 (3 each). Gene clustering was observed on chromosomes 8 (JrbHLH87a and JrbHLH2), 9 (JrbHLH122, JrbHLH96, and JrbHLH25a), and 10 (JrbHLH85b, JrbHLH30a, and JrbHLH71a). These results suggest that the expansion of the walnut bHLH gene family occurred through tandem duplication. The Ka/Ks ratio can serve as an indicator of selection pressure on a gene during evolution; the ratio was <1 for all duplicated bHLH gene pairs in red walnut (Table 1), indicating that the genes primarily evolved under the influence of purifying selection.

FIGURE 1

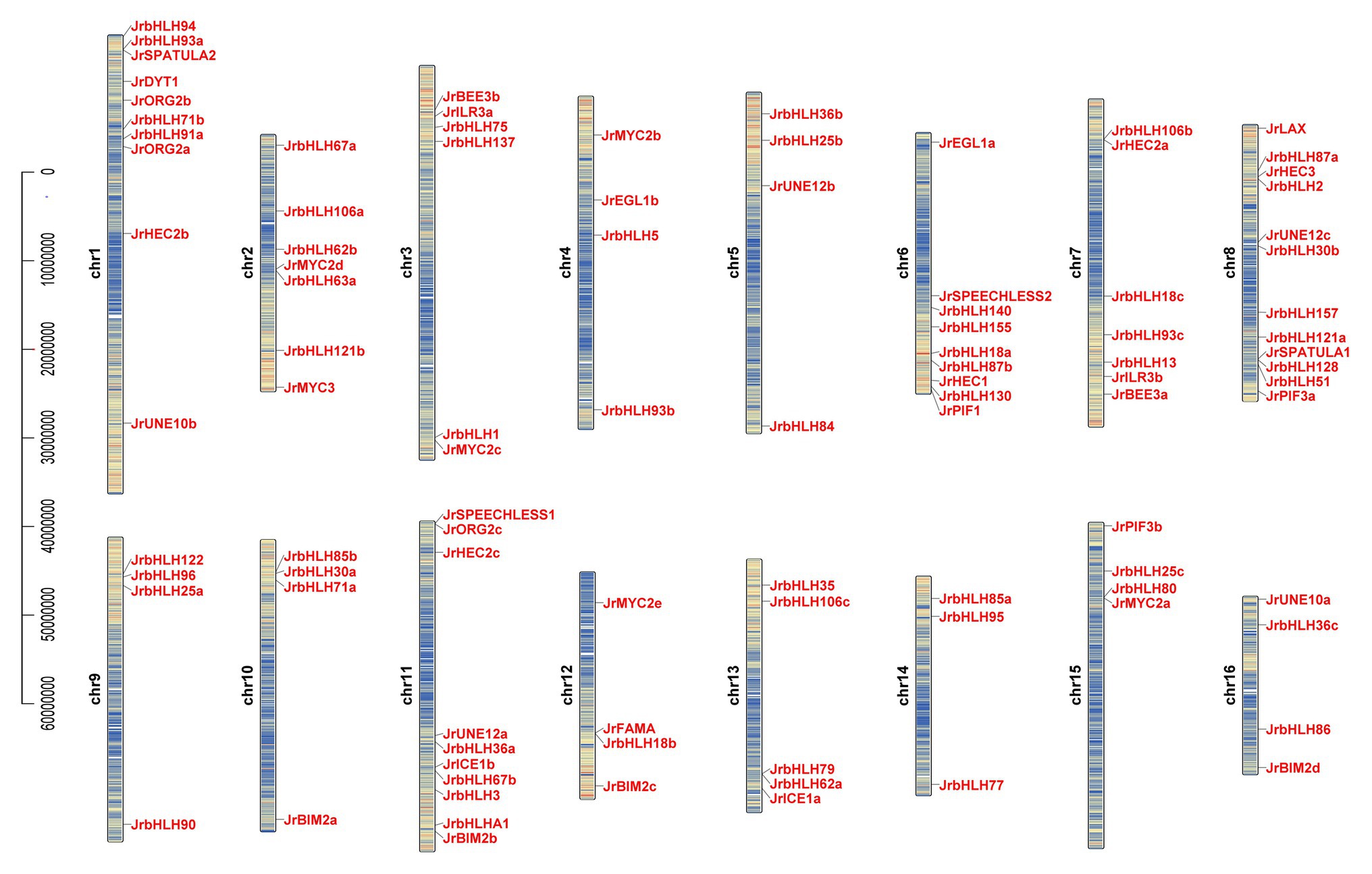

Figure 1. Gene location and distribution of walnut bHLH genes on chromosomes. There are 16 chromosomes (Chr1-Chr16) in the walnut genome (2n = 32). Gene positions and chromosome length were measured using the scale on the left in mega bases (bp). Red indicates high density and blue indicates low density.

TABLE 1

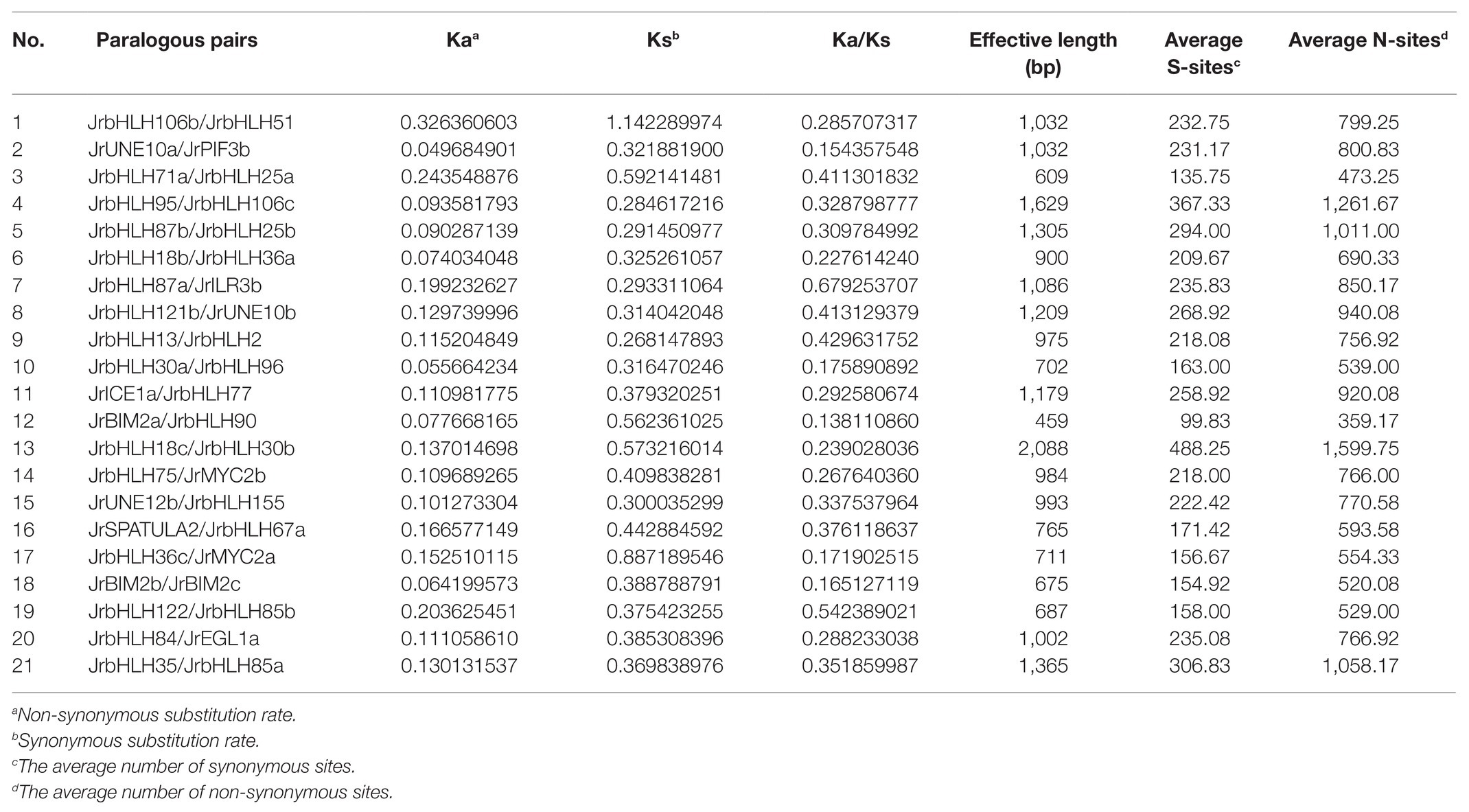

Table 1. Estimated Ka/Ks ratios of the duplicated bHLH genes in walnut.

Pivotal cis-Elements in the Promoters of Walnut bHLH Genes

We investigated gene regulation patterns by analyzing cis-regulatory elements in the 2000 bp upstream of the transcription start site (promoter region) of JrbHLH genes using PlantCARE (Supplementary Figure S7 and Supplementary Table S4). There were 16 functionally annotated cis-regulatory elements in the promoters of most JrbHLHs that were roughly divided into three categories: light-responsive elements (Box 4, G-box, GT1 motif, TCT motif, and I-box); stress-responsive elements (antioxidant response element, MYB-binding site [MBS], and long terminal repeat); and hormone-responsive elements (abscisic acid-responsive element, CGTCA motif, TGACG motif, O2-site, TCA element, TGA element, and P-box). The presence of MBSs in the JrbHLH gene promoter suggests that bHLH proteins in red walnut interact with MYB TFs to modulate the expression of downstream targets.

Gene Ontology Annotations

To analyze the functions of walnut bHLH TFs, Arabidopsis was used as model species for GO analysis with Blast2Go (Supplementary Figure S8). In the biological process category, JrbHLH genes were significantly enriched in biological regulation (n = 16, 29%), cellular process (n = 14, 25%), metabolic process (n = 10, 18%), single-organism process (n = 6, 11%), developmental process (n = 4, 7%), response to stimulus (n = 2, 4%), multicellular organismal process (n = 2, 4%), and signaling (n = 1, 2%). In the cellular component category, the genes were enriched in cell (n = 15, 24%), cell part (n = 15, 24%), organelle (n = 15, 24%), organelle part (n = 8, 13%), macromolecular complex (n = 8, 13%), and membrane (1, 2%). In the molecular function category, the genes were enriched in binding (n = 69, 80%), nucleic acid-binding TF activity (n = 13, 15%), and catalytic activity (n = 4, 5%). Thus, the functions of JrbHLH genes mainly involve nucleic acid-binding TF activity and catalytic activity in biological regulation; cellular, single-organism, and developmental processes; and metabolism. Some JrbHLH proteins were identified as components of macromolecular complexes.

Protein Interaction Network

bHLH family members generally function by forming homo- or heterodimers with other proteins, which is critical for their binding to target gene promoters (Carretero-Paulet et al., 2010). We analyzed orthologous AtbHLH proteins to construct a PPI network of the 102 candidate JrbHLH proteins (Figure 2). The interactions between proteins were established from known interactions (from curated databases and experimental findings) and predictions (ie, based on neighboring genes, gene fusions, and gene co-occurrence) using various tools (text mining and co-expression and protein homology analyses). Thirteen of the bHLH TFs, JrbHLH121a, JrbHLH121b, JrbHLH57, JrbHLH1, JrbHLH155, JrUNE12c, JrbHLH5, JrLAX, JrbHLH140, JrbHLH131, JrMYC2c, JrMYC2d, and JrMYC2e, did not interact with other family members. On the other hand, over 30 proteins interacted with at least 4 other bHLH proteins, with JrbHLH71b having the largest number of interaction partners. These 30 JrbHLH proteins – especially JrbHLH71b – are presumed to play important roles in plant growth and development.

FIGURE 2

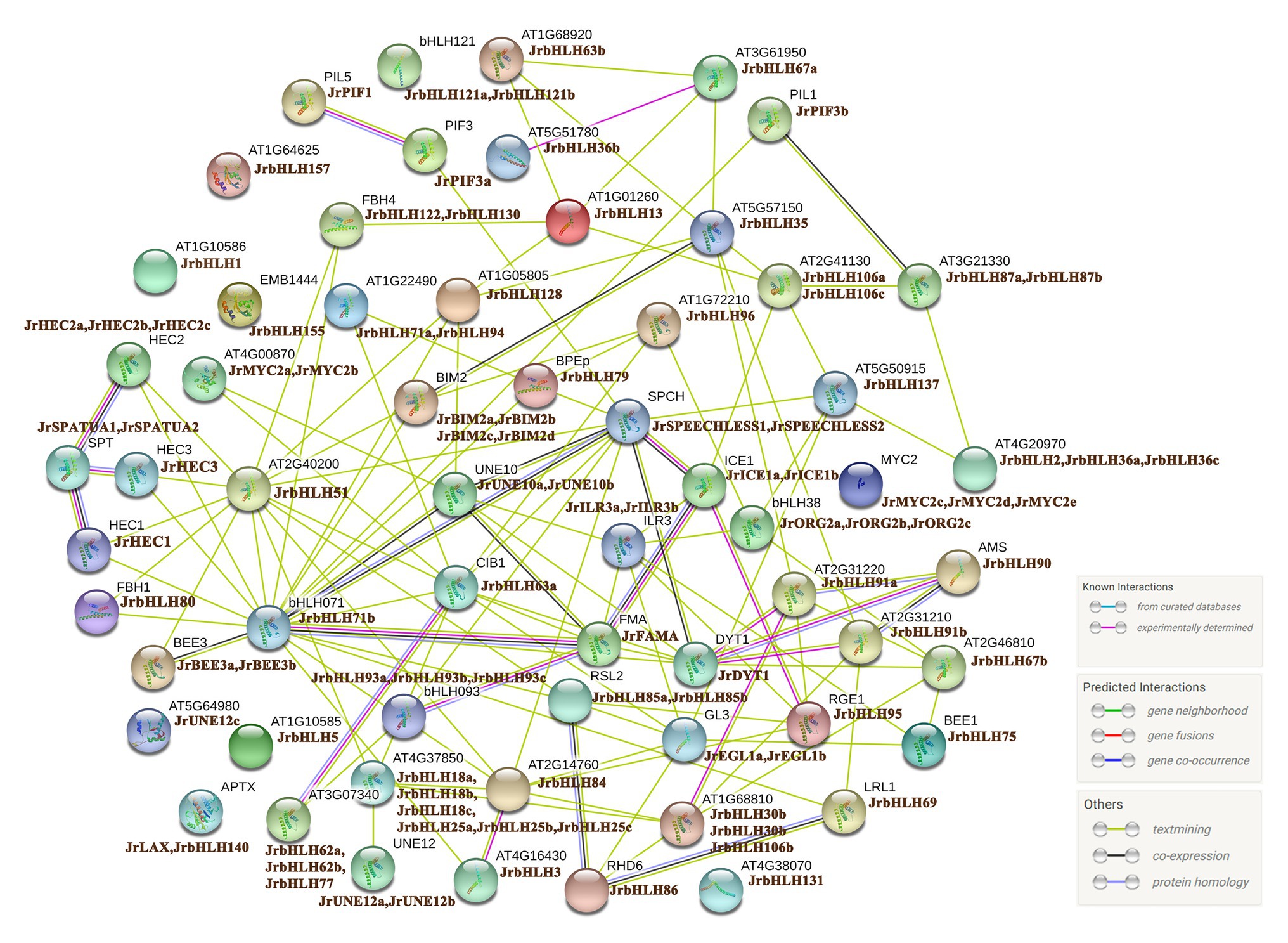

Figure 2. Protein interaction network for JrbHLHs according to JrbHLH orthologs in Arabidopsis. The online tool STRING was used to predict the network. JrbHLH proteins are shown on the side with Arabidopsis orthologs.

Screening of the Candidate bHLH Genes by Phylogenetic Analysis

To investigate the evolutionary relationships and functions of red walnut bHLH proteins and identify those that are involved in anthocyanin biosynthesis, we constructed a phylogenetic tree comprising the 102 JrbHLH proteins along with 145 AtbHLH proteins and 10 proteins related to this process in other plant species (Figure 3). The proteins were classified into 16 subfamilies (I-XVI) based on the classification in Arabidopsis (Toledo-Ortiz et al., 2003). Group I was largest with 40 proteins, while group XIII was the smallest with 4 proteins. There were no walnut bHLH proteins in group XIV. bHLH proteins related to anthocyanin biosynthesis were concentrated in group V-1; 4 from J. regia were in this group (JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2). JrEGL1a and JrEGL1b showed the highest degree of homology with VvMYCA1 and cucumber (Cucumis sativus) MYC2, while JrbHLHA1 and JrbHLHA2 were most closely related to strawberry (Fragaria × ananassa) bHLH3. Thus, these 4 JrbHLH genes are potentially involved in anthocyanin biosynthesis in red walnut.

FIGURE 3

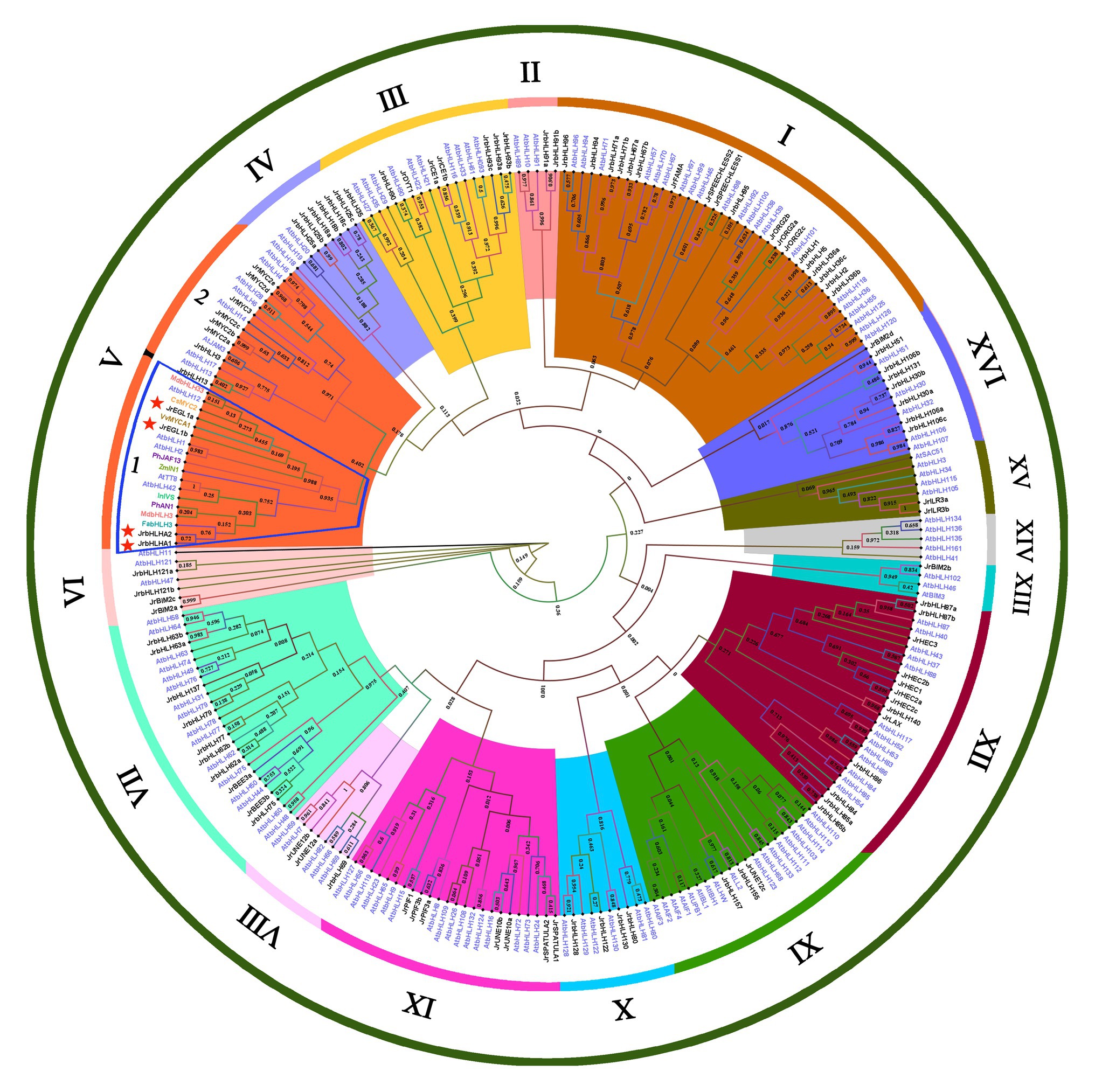

Figure 3. Phylogenetic tree analysis of bHLH proteins between different species. Phylogenetic tree constructed with bHLHs of walnut, Arabidopsis thaliana, and proteins related to anthocyanin biosynthesis in other species, including Fragaria × ananassa FabHLH3 (AFL02463.1), Malus domestica MdbHLH3 (ADL36597.1) and MdbHLH33 (ABB84474.1), Petunia × hybrida PhAN1 (AAG25927.1), and PhJAF13 (AAC39455.1), Ipomoea nil InIVS (BAE94394.1), Zea mays ZmIN1 (AAB03841.1), Citrus sinensis CsMYC2 (ABR68793.1), and Vitis vinifera VvMYCA1 (NP_001267954.1).

Expression Pattern of the Walnut bHLH Genes in Different Tissues of Red Walnut and Common Green Walnut

The expression patterns of bHLH genes at different developmental stages were analyzed in different tissues (leaf and peel) of red walnut and common green walnut (Figure 4) using published RNA-seq data (NCBI accession no. GSE162007; Li et al., 2018a). The genes were divided into 5 groups based on expression pattern. JrbHLH genes in group 1 were more highly expressed in the late stages of leaf and peel development than at the early stages, whereas the opposite trend was observed in group 4. Genes in group 2 showed elevated expression at different stages of leaf development but had lower expression in peel; conversely, genes in group 3 showed low expression in leaves but were highly expressed in the peel. Nine genes in group 5 (JrbHLH86, JrbHLH63a, JrbHLH122, JrbHLH121b, JrbHLH85b, JrBIM2d, JrDYT1, JrbHLH84, and JrbHLH5) showed no differences in expression between tissues in red walnut and common green walnut. Genes related to anthocyanin biosynthesis (JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2) showed similar expression patterns in the leaf and peel of red walnut and common green walnut at different developmental stages.

FIGURE 4

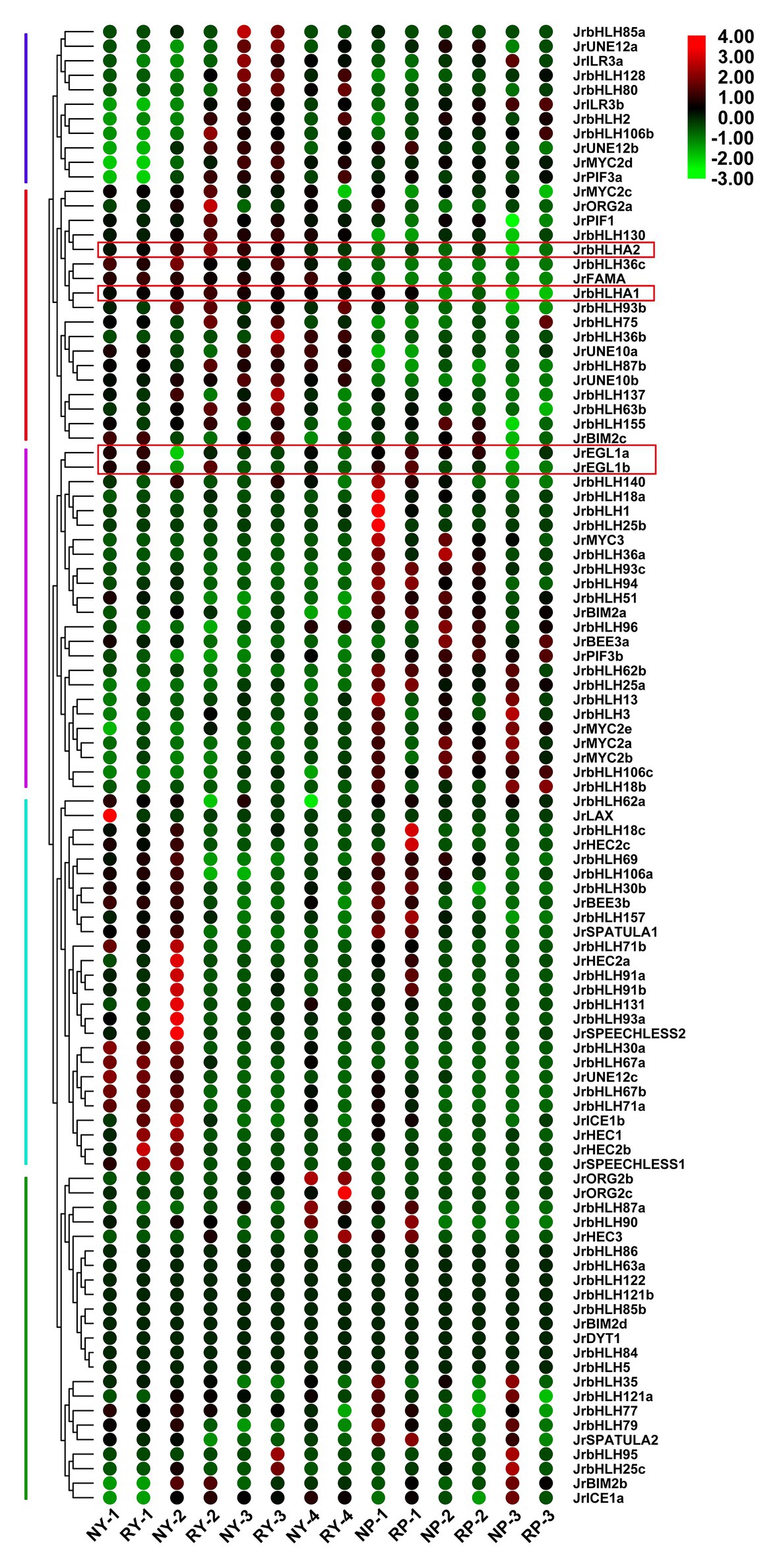

Figure 4. Gene expression pattern of JrbHLHs in different tissues (leaves and peels) of red walnut and common green walnut by RNA-seq. Leaves of the red walnut and common green walnut were collected at four stages. NY, common green walnut leaves; RY, red walnut leaves. (1) Leaf-expansion stage; (2) new shoot growing stage; (3) fruit swelling stage; and (4) early period of fruit ripening. Peels of the red walnut and common green walnut were collected at three stages. NP, common green walnut peel; RP, red walnut peel. 1–3, 30, 60, and 90 days after flowering, respectively. The scale bars represent the log2 transformations of the RPKM values.

Expression Pattern of the Walnut bHLH Genes in Different Phenotypic Leaves of Red Walnut Natural Hybrid Progeny

We compared the functions of JrbHLH genes during the development of different phenotypes of red walnut natural hybrid progeny (red vs. green leaves) by analyzing the associated gene expression profiles obtained by RNA-seq. A total of 43,291,604–62,191,784 raw reads and 22,193,238–31,095,892 clean reads were obtained from the 18 libraries. The percentage of bases with a quality score of Q30 was ≥95.22%, indicating that the sequencing results were reliable and could be used for subsequent analysis (Supplementary Table S5).

The JrbHLH genes had distinct expression patterns in different colored leaves of red walnut progeny (Figure 5). The genes were divided into 4 groups according to expression level; expression patterns within each group were similar. The differential expression indicated functional divergence of JrbHLH genes although some (JrLAX, JrORG2c, JrbHLH95, JrbHLH25b, JrbHLH84, JrbHLH5, JrbHLH25c, JrbHLH85b, JrbHLH36a, JrBEE3b, JrDYT1, JrHEC2b, JrHEC2c, and JrHCE3) were expressed at comparable levels in all samples. There were 37 JrbHLH genes – including the candidate anthocyanin biosynthesis-related genes JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2 – that showed maximum expression in the darkest period of red leaves (SR-1, the full red period of red leaves in seedling progeny) and lower expression during other periods, suggesting that these genes are responsible for the red color of walnut leaves.

FIGURE 5

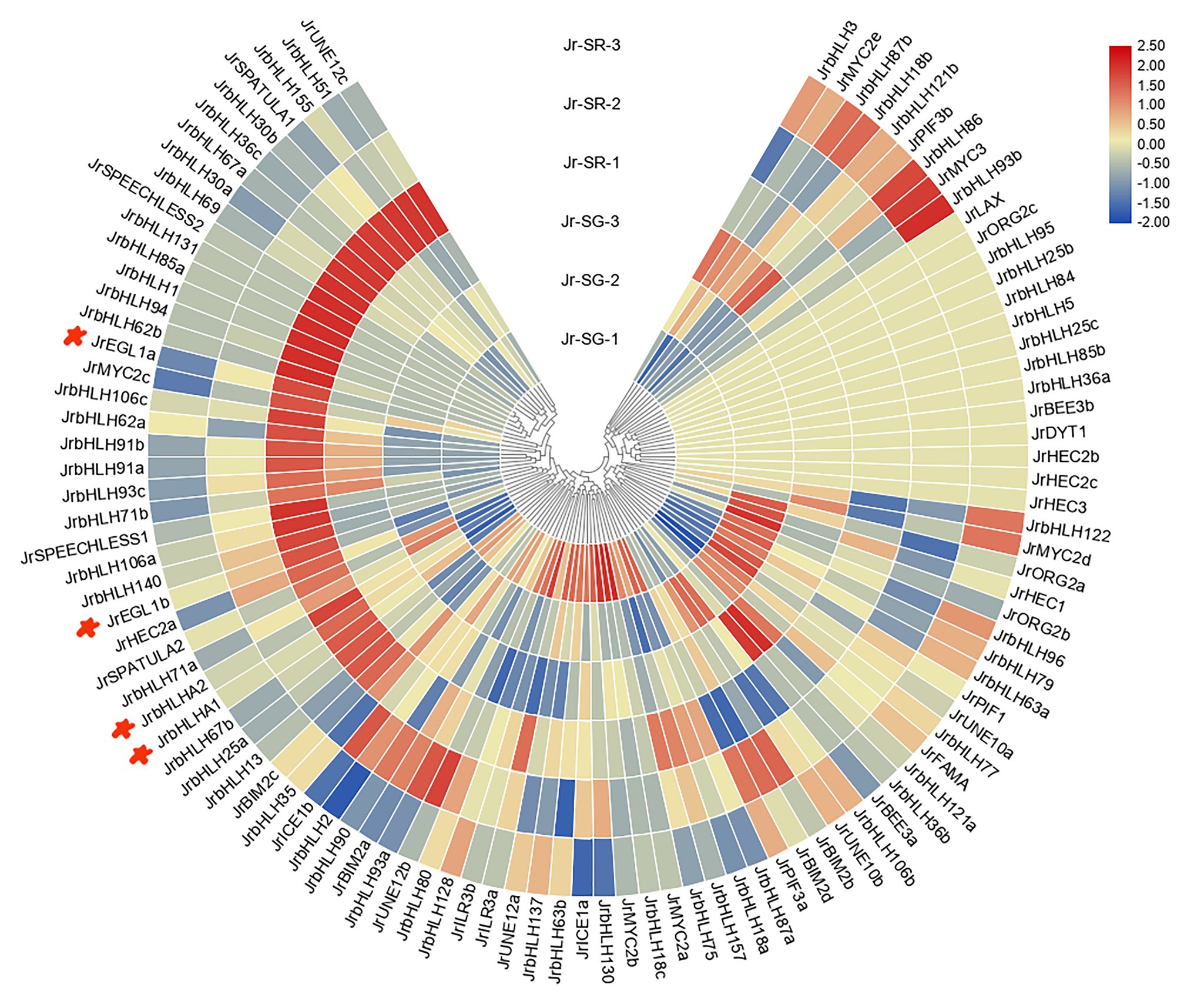

Figure 5. Gene expression pattern of JrbHLHs in different phenotypic (red leaves and green leaves) of red walnut natural hybrid progeny by RNA-seq. Leaves of the different phenotypes (red leaves and green leaves) of red walnut natural hybrid progeny were collected at three stages. SG, Seedling progenies-Green leaves; SR, Seedling progenies-Red leaves. (1) The full red period (vigorous growth period of new shoots); (2) the red-green period (seed filling period); and (3) the whole green period (early period of fruit ripening). The scale bars represent the log2 transformations of the RPKM values.

Gene Expression Analysis by qRT-PCR

To further investigate the relationship between JrbHLH genes and leaf color in red walnut, the expression levels of 16 candidate genes that were found to be differentially expressed by RNA-seq were analyzed by qRT-PCR (Figure 6). The genes showed variable expression at different developmental stages according to leaf color. At stage 1, 10 genes – namely, JrEGL1b, JrbHLHA1, JrbHLHA2, JrbHLH36c, JrbHLH62a, JrbHLH67a, JrbHLH69, JrbHLH71a, JrbHLH77, and JrbHLH87b were more highly expressed in red leaves (SR) than in green leaves (SG), while the opposite was true for JrbHLH80 and JrbHLH157. Meanwhile, JrEGL1a, JrbHLH63a, JrbHLH96, and JrbHLH106a showed no differences in expression levels between SR and SG at this stage. With the exception of JrEGL1b, which continued to be expressed at a higher level in SR than in SG, at stage 2 the expression of JrbHLH genes were higher in green leaves, with significant differences observed for 8 of the genes (JrbHLHA2, JrbHLH36c, JrbHLH63a, JrbHLH71a, JrbHLH77, JrbHLH87b, JrbHLH96, and JrbHLH106). At stage 3, JrbHLH genes were more highly expressed in SG than in SR except for JrbHLH80 and JrbHLH87b, with 9 of the genes (JrEGL1a, JrEGL1b, JrbHLHA1, JrbHLHA2, JrbHLH36c, JrbHLH62a, JrbHLH71a, JrbHLH96, and JrbHLH157) showing significant differences. The expression levels of the remaining bHLH genes did not differ between SR and SG at this stage. Pearson correlation analysis showed a strong correlation (R² = 0.8292) between RNA-seq data and qRT-PCR results (Supplementary Figure S9), supporting the validity of our data.

FIGURE 6

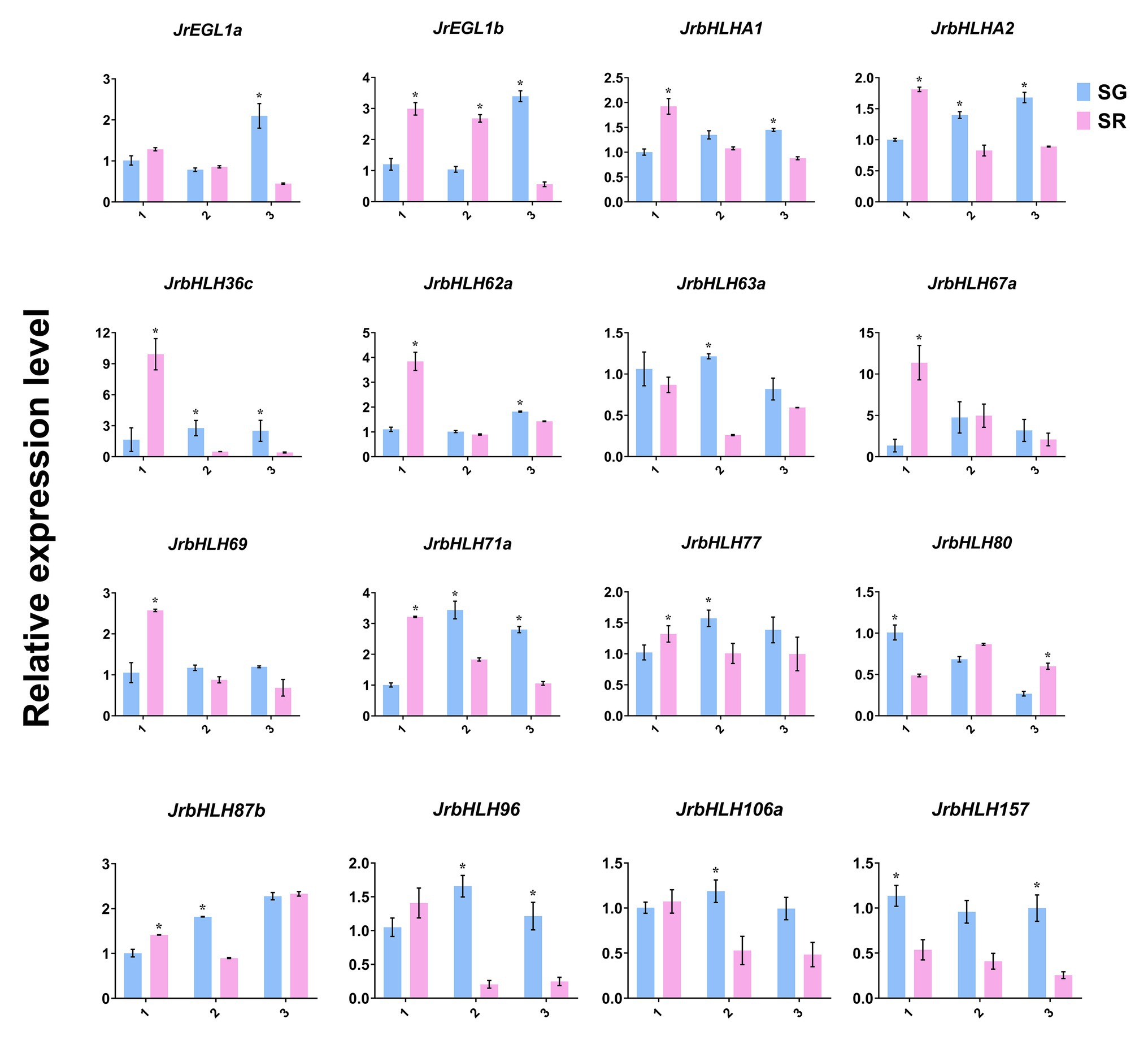

Figure 6. Expression of the 16 JrbHLHs in the different phenotypes (red leaves and green leaves) of the red walnut natural hybrid progeny. The relative expressions were detected by qRT-PCR. Leaves of the different phenotypes (red leaves and green leaves) of red walnut natural hybrid progeny were collected at three stages. SG, Seedling progenies-Green leaves; SR, Seedling progenies-Red leaves. (1) The full red period (vigorous growth period of new shoots); (2) the red-green period (seed filling period); and (3) the whole green period (early period of fruit ripening). Significant differences were determined using a one-sided paired t-test (^*p < 0.05). Expression values (±SE) of three replicates were normalized using JrActin as the internal control.

Subcellular Localization of JrbHLH Proteins

We examined the subcellular localization of the four candidate anthocyanin biosynthesis-related TFs (JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2) in N. benthamiana transiently infiltrated with plasmids encoding the cDNA of the corresponding genes. The GFP reporter protein was detected in both the nucleus and cytoplasm in the leaves of control plants; however, in plants transfected with the four JrbHLH-GFP fusion constructs, there was nuclear accumulation of the GFP signal (Figure 7).

FIGURE 7

Figure 7. Subcellular localization of JrbHLH proteins. Transient expression of Super1300 construct and Super1300-JrbHLH fusion in tobacco epidermal cells by Agrobacterium-mediated transient transformation; the GFP signal was observed by confocal laser microscopy. From left to right, the pictures show GFP, bright-field, and merged. Bar = 20 μm.

Discussion

Anthocyanins are plant secondary metabolites that play essential roles in plant growth and development and stress tolerance (Meng et al., 2020). The biosynthesis of anthocyanin depends on phenylalanine metabolism (Supplementary Figure S2) and involves the regulation of structural genes by the MBW complex formed by MYB, bHLH, and WD40 TFs (Baudry et al., 2004; Ma et al., 2018). In apple, the upregulation of MdMYB1 mediated by MdbHLH3 amplified the regulatory signal for anthocyanin biosynthesis (Xie et al., 2012), while in mulberry, abnormal expression of bHLH3 disrupted flavonoid homeostasis, resulting in variable pigmentation (Li et al., 2020). However, the bHLH TFs involved in anthocyanin biosynthesis have not been reported in walnut. In this study, we identified 102 bHLH genes in the walnut genome, and their predominantly nuclear localization was in accordance with their function as TFs (Supplementary Table S3). bHLH genes constitute large families, with 188 members in apple and 138 in jujube (Ziziphus jujuba; Mao et al., 2017; Shi et al., 2019) that can be divided into 15–25 subfamilies (Pires and Dolan, 2010). Our phylogenetic analysis showed that walnut bHLHs formed 15 subfamilies (Supplementary Figure S4A and Figure 3; Heim et al., 2003). Interestingly, there were no JrbHLH proteins in group XIV based on the Arabidopsis classification; similar results have been reported for safflower (Carthamus tinctorius), which lacks members in subfamilies 5, 8, 15, 18, and 21 that may have been lost over the course of evolution (Hong et al., 2019). One of the conserved motifs of bHLH proteins in walnut contains several highly conserved residues – namely, E (Glu), R (Arg), and L (Leu) – that are required for binding to target DNA sequences (Supplementary Figure S4B; Toledo-Ortiz et al., 2003). By sequence alignment we identified 2 main conserved domains in the bHLH protein, the basic region and helix region with loop; additionally, a conserved proline marks the beginning of the first helix (Supplementary Figure S5). Our results are consistent with previous reports (Toledo-Ortiz et al., 2003; Hong et al., 2019).

The expansion of gene families during evolution is mainly the result of duplication events. JrbHLH genes were present on each chromosome but were unevenly distributed (Figure 1). In silico mapping of the genes to chromosomes suggested a large number of gene duplication events including segmental and tandem duplication, which likely played an important role in the expansion of the walnut bHLH gene family (Supplementary Figure S6 and Table 1).

The promoter of a gene contains cis-regulatory elements that can potentially reveal gene function (Xie et al., 2020). Walnut bHLH genes were found to contain three types of cis-acting elements, light-, stress-, and hormone-responsive elements (Supplementary Figure S7). Moreover, JrbHLH gene promoters contained the bHLH binding site (G-box) and MBS, indicating that JrbHLH TFs can interact with each other or with MYB TFs in the regulation of walnut growth and development. This was confirmed by the enrichment in binding activity (Supplementary Figure S8) in GO annotations as well as the PPI network (Figure 2).

Most JrbHLHs showed distinct spatial and temporal expression patterns (Figures 4, 5), suggesting varied functions in walnut growth and development. JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2 belonging to group V-1 clustered together in a subgroup containing anthocyanin-related bHLH genes of several plant species (Figure 3; Cultrone et al., 2010; Matus et al., 2010; Chen et al., 2016). RNA-seq confirmed that these four genes were highly expressed during the color change stages of leaf and peel development in red walnut, and in red leaves of red walnut natural hybrid progeny, but had lower expression in common green walnut and green leaves of red walnut progeny at the stage where the phenotypic difference was greatest (Figures 4, 5). This was supported by qRT-PCR analysis of genes that were differentially expressed in red walnut natural hybrid progeny with different leaf colors (Figure 6). As leaf development progressed, the difference in leaf color increased whereas the differential gene expression decreased, such that JrbHLHA2 was more highly expressed in green as compared to red leaves. We speculate that at this point the biosynthesis of anthocyanin was blocked and its degradation accelerated in red leaves, resulting in the downregulation of the JrbHLH gene, reduced anthocyanin accumulation, and a color change from red to green. At the late stage of leaf development, anthocyanin biosynthesis stabilized and the expression of JrbHLH genes was upregulated in green leaves. Other TFs besides JrbHLH proteins may participate in the regulation of anthocyanin content in walnut. However, the difference in peel color between red walnut and common green walnut increased over the course of development, with a correspondingly higher expression of JrbHLH genes in the former (Figure 4). Taken together, our results indicate that JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2 regulate anthocyanin biosynthesis in walnut, although the detailed mechanisms require further investigation.

Conclusion

This is the first comprehensive and systematic genome-wide analysis of the J. regia bHLH gene superfamily. We identified 102 JrbHLH genes and characterized their structure and evolutionary conservation. The genes were located on the 16 chromosomes of J. regia and could be classified into 15 subfamilies. We determined that 42 of the JrbHLH genes were involved in the expansion of the walnut bHLH family, and phylogenetic comparisons with other plant species revealed four JrbHLH genes (JrEGL1a, JrEGL1b, JrbHLHA1, and JrbHLHA2) that are likely involved in anthocyanin biosynthesis in walnut. This was supported by in silico functional enrichment and PPI analyses, as well as RNA-seq and qRT-PCR analyses of genes that were differentially expressed between red walnut and common green walnut and between red vs. green leaves of red walnut natural hybrid progeny at various developmental stages. Our findings provide a basis for future investigations on the molecular mechanisms of anthocyanin biosynthesis in red walnut.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The name of the repository and accession numbers can be found at: National Center for Biotechnology Information, https://www.ncbi.nlm.nih.gov/, GSE162007 and PRJNA688391.

Author Contributions

GW designed the research. WZ and YL performed experimental works and data analysis, and prepared the original draft. LL and LW participated in data analysis. HM and YY helped review and editing the draft. ZD provided experimental materials. LW and GW provided support for projects and funds, and revised the manuscript. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by the National Key R&D Program of China (2018YFD1000604), the Science and Technology Development Project of the Department of Science and Technology of Henan Province, China (192102110041), and the Support Plan of Scientific and Technological Innovation Team in Colleges and Universities of Henan Province, China (19IRTSTHN009).

Conflict of Interest

ZD was employed by the Shangluo Shengda Industrial Co., Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2021.632509/full#supplementary-material

Abbreviations

bHLH, basic helix-loop-helix; TFs, Transcription factors; PI, Isoelectric points; MW, Molecular weight; Kda, Killi dalton; MW, Molecular weight; CDS, Coding sequences; HMM, Hidden Markov model; GDB, Genome database; CDD, Conserved domain; DEGs, Differentially expressed genes; qRT-PCR, Quantitative real-time PCR.
