An Intronic Alu Element Attenuates the Transcription of a Long Non-coding RNA in Human Cell Lines

Alu elements are primate-specific repeats and represent the most abundant type of transposable elements (TE) in the human genome. Genome-wide analysis of the enrichment of histone post-translational modifications suggests that human Alu sequences could function as transcriptional enhancers; however, no functional experiments have evaluated the role of Alu sequences in the control of transcription in situ. The present study analyses the regulatory activity of a human Alu sequence from the AluSx family located in the second intron of the long intergenic non-coding RNA Linc00441, found in divergent orientation to the RB1 gene. We observed that the Alu sequence acts as an enhancer element based on reporter gene assays while CRISPR-Cas9 deletions of the Alu sequence in K562 cells resulted in a marked transcriptional upregulation of Linc00441 and a decrease in proliferation. Our results suggest that an intragenic Alu sequence with enhancer activity can act as a transcriptional attenuator of its host lincRNA.

Introduction

Repetitive elements constitute ~50% of the human genome (Lander et al., 2001; Bannert and Kurth, 2004). Different lines of research suggest that they can affect transcriptional regulation, however, most evidence supporting a direct regulatory activity of repetitive elements has been correlative at best (Mallona et al., 2016). The Alu subfamily of repetitive elements is a class of primate-specific Short Interspaced Nuclear Elements (SINEs) of ~300 base pair (bp) length that is present in more than 1 million copies in the human genome and hence constitutes the most abundant class of transposable element in humans (Lander et al., 2001). Nevertheless, their role in regulating gene expression and chromatin structure remains poorly characterized.

Alu elements are located preferentially in the proximity of gene-rich regions (Batzer and Deininger, 2002; Kim et al., 2016) and are rich in Transcription Factor Binding Sites (TFBS), which suggests a possible function as regulatory platforms for the transcriptional control of host or neighboring genes (Polak and Domany, 2006). In this regard, Alu elements have been suggested to nucleate epigenetic silencing via the acquisition of DNA methylation and histone post-translational modification H3K9me3, resulting in transcriptional silencing of neighboring genes (Graff et al., 1997; Baylin et al., 1998; Estecio et al., 2012). Recent reports have put forward the idea that Alu elements have evolved toward enhancer elements in the human genome. This concerns particularly old Alu families like AluSx, AluJo, and AluJb, as they are enriched for the histone post-translational modifications H3K4me1, H3K27ac and have gained transcription factor binding motifs over time (Su et al., 2014). These enhancer-like characteristics are present in a tissue-specific manner and preferentially engage in long-range interactions with gene promoters and with Alu sequences thereof. Although these lines of evidence implicate that Alu elements, or at least a subset of them, can exert direct regulatory effects in gene transcription, direct characterization of the biochemical regulatory capacity of Alus (Chuong et al., 2017) and their function in situ need to be explored.

Here, we characterize the regulatory activity of an intronic Alu element of the AluSx family in the transcriptional gene regulation of the human Linc000441-RB1 locus in the K562 erythroleukemic cell line. By employing plasmid-based reporter assays of stably transfected pools of cells and single clones coupled with Fluorescence-Activated Cell Sorting (FACS), we show that this Alu sequence behaves as an enhancer element protecting against epigenetic silencing for over 100 days of continuous cell culture. Remarkably, CRISPR-Cas9 deletion of the Alu element results in strong transcriptional upregulation of the long intergenic non-coding RNA (lincRNA) Linc000441 with consequences in cell proliferation, suggesting that the Alu sequence behaves as a transcriptional in situ attenuator. Overall, our results reveal that a single Alu sequence can affect gene transcription and cell proliferation. Importantly, biochemical and in situ activities could differ and highlight the importance of analyzing both when characterizing repeat sequences. Furthermore, our results underscore the possibility that Alu elements have a more widespread role for transcriptional regulation of lincRNAs than previously anticipated.

Materials and Methods

Plasmid Constructs

pRB1prom-GFP plasmid contains RB1 promoter already characterized and cloned into pEGFP plasmid (pEGFP-1; Clontech, Palo Alto, CA; De La Rosa-Velazquez et al., 2007), which is the intergenic region between Linc00441 and the human RB1 gene (chr13:48,877,623-48,878,023; h19 version). The closest Alu repeat upstream of RB1 gene promoter (AluSx1 repeat chr13: 48,874,474-48,874,760) was amplified (Supplementary Table S1) from human lymphocyte genomic DNA and subcloned into the pRB1prom-GFP in two orientations to generate pAlu(5'-3')-RB1prom-GFP and pAlu(3'-5')-RB1prom-GFP plasmids. All the plasmids contain a neomycin-resistance cassette, which allows G418 selection of stably transfected cells. The integrity of all plasmid constructs was verified by DNA sequencing.

Cell Culture

K562 human erythroleukemic cells were cultured in ISCOVE medium (Invitrogen). K562 cells (K562 ATCC®CCL-243™) were provided by Gary Felsenfeld (National Institutes of Health, Bethesda, Maryland, USA) and were cultured in DMEM. All media contained 10% (v/v) fetal bovine serum (FBS) and 1% penicillin/streptomycin and were maintained in an incubator at 37°C with 5% CO₂. Human lymphocytes were obtained from peripheral blood of a healthy donor, isolated with Ficoll-Paque Plus 2 (Amersham) following the manufacturer’s instructions. Written informed consent was obtained from this healthy donor.

Stable Transfection of K562 Cells

K562 cells were washed twice with phosphate buffered saline (PBS) and resuspended in DMEM. A total of 3 × 10⁵ K562 cells were then transferred to a 6-well plate and transfected with 1 μg (1 μg/μl) of corresponding linearized plasmids using Lipofectamine 2000 (Invitrogen, MA, USA) according to the manufacturer’s instructions. After 6 h, 4 ml of non-selective medium was added to transfected cells. Following 48 h of cell recovery, the cells were transferred to media containing 0.9 mg/ml of G-418 (Geneticin, Calbiochem) for selection. Geneticin-resistant pools were analyzed by FACS at different time points (day 0, day 15, day 25, day 40, and day 60) to obtain the percentage (%) of GFP-positive cells and the mean fluorescence intensity from each construct at every time point. Data were analyzed with BD CellQuest Pro software (BD Biosciences). We performed four independent experiments and computed using the Graphpad Prisma Software 7.0. Statistically significant differences in mean fluorescence intensity values between the Alu-containing constructs and the one without it were computed using a two-tailed Mann-Whitney test (p < 0.05).

Cell Clone Isolation

After 48 h of cell recovery, ~5 × 10⁵ (500 μl) of transfected cells were transferred to a cellulose matrix (Methocel, FLuka) containing 0.9 mg/ml of G-418. Individual colonies were picked after 2–3 weeks and expanded in G-418 containing liquid DMEM to perform subsequent experiments. For each construct, we isolated and analyzed 14 independent clones at different points (day 0, day 15, day 30, day 45, day 60, day 80, and day 100) of continuous cell culture for 100 days. The integrity of the transgene was verified by PCR (Supplementary Figure S1C) and Southern blot (data not shown).

CRISPR/Cas9-Mediated Targeted Deletion

AluSx element (chr13: 48,874,474-48,874,760, Figure 1A) upstream of the RB1 gene promoter locus was deleted in K562 cells by co-transfecting two Cas9 containing plasmids plentiCRISPRv2 (Addgene Cat. 52961; Cambridge, MA, USA), each carrying a unique single guide RNA (sgRNA) flanking the Alu sequence.

FIGURE 1

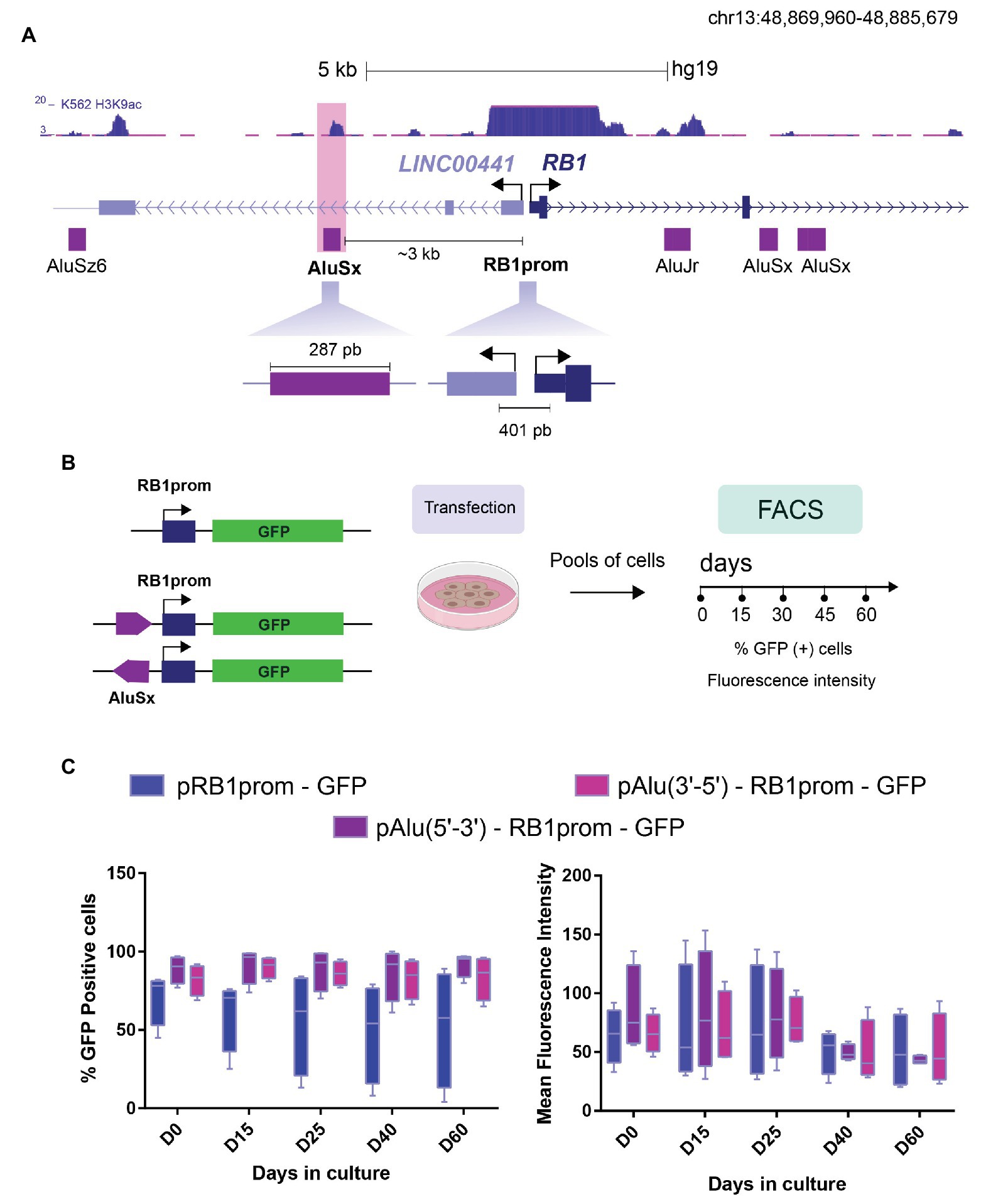

Figure 1. The intrinsic regulatory function of AluSx over a promoter. (A) Schematic representation of Linc00441-RB1 locus (chr13: 48,869,960-48,885,679) and localization of Alu repeat sequences (purple rectangles). The AluSx (highlighted in pink) selected for our analysis is located within the second intron of LincRNA00441, about 3 kb upstream of retinoblastoma promoter (RB1prom). Both fragments, AluSx (283 pb) and RB1prom (401 pb) were cloned in GFP reporter plasmid. (B) Workflow of the reporter assays showing pRB1prom-GFP and pAlu-RB1prom-GFP plasmid constructs transfected into K562 cells. After selection, we isolated two different cell pools that were analyzed by flow cytometry at different time points of continuous cell culture (Day 0, Day 15, Day 30, Day 45, and Day 60) source icons ©Biorender.com. (C) Boxplots that summarize the expression of the GFP reporter gene in K562 cells transfected with different constructs over time. Percentage of fluorescent cells defined by fluorescence-activated cell sorting (FACS) was plotted for each construct for 60 days (left graph). The same cell pools with the corresponding transgenes were evaluated in terms of GFP mean fluorescence intensity (right graph). These graphs represent the data collected from four independent assays (n = 4).

We designed the CRISPR-Cas9 sgRNAs using CRISPOR¹, as described (Haeussler et al., 2016), to minimize off-target effects. Bsmb1 linkers were added to sgRNAs. The oligonucleotides were then annealed following a standard protocol (Sambrook and Russell, 2006), ligated into the vector and confirmed by sequencing prior transfection. See Supplementary Table S1 for the list of sgRNAs sequences.

The plasmidic vectors were transfected into cells by using Lipofectamine 2000 (Invitrogen) as per manufacturer protocol. Cultures were then selected for 3–4 days with puromycin (5 μg/ml; Sigma). We obtained genomic DNA from CRISPR-Cas9 pools of transfected cells and screened by PCR to confirm the deletion of the evaluated fragment.

Then, CRISPR-Cas9 pools of transfected cells were seeded at low density to isolate monoclonal cell clones with respective mutations through serial dilution in a 96-well plate. Forty-eight randomly selected puromycin-resistant colonies were individually expanded and splitted for future culture and genomic DNA isolation. A hundred nanograms of genomic DNA from these cell clones or K562 genomic DNA (control) were screened by PCR with primer pairs annealing to the region outside of the double-strand break (DSB) sites. See Supplementary Table S1 for the list of screening primers used to confirm targeted deletions. PCR reactions were evaluated on 1% agarose gels. Bands were excised from the gel and purified using the QIAquick Kit (QIAGEN) and the status of the deletion was confirmed by Sanger sequencing. We selected three homozygous clones for two different deletions of the AluSx repeat, for further analysis (ΔAlu-C1, ΔAlu-C2, and ΔAlu-C3).

RNA Extraction and Real-Time Quantitative PCR

Total RNA was extracted from K562 cells with TRIzol Reagent (Invitrogen) according to the manufacturer’s instructions. RNA concentrations were determined using the NanoDrop ND-1000 spectrophotometer (NanoDrop Inc., DE, USA).

Real-time quantitative PCR (RT-qPCR) was carried out with KAPA SYBR® FAST One-Step qRT-PCR kit and specific primers for RB1, Linc00441, and α-tubulin as an endogenous normalization control (Supplementary Table S1). The qPCR reactions were carried out in the StepOne detection system (Applied Biosystems) at 42°C for 5 min, 95°C for 30 s, followed by 40 three-step cycles of 95°C for 3 s, 62°C for 10 s, and 72°C for 10 s, in triplicate for each sample. Relative RNA levels were calculated using the comparative ΔΔCt method (Schmittgen and Livak, 2008). Statistically significant differences in gene expression between the wild-type and the CRISPR mutants were computed using a t-test (p < 0.05) and the Graphpad Prisma Software 7.0.

Cell Proliferation Assay

We used Trypan Blue assay to determine cell viability by counting viable cell numbers with a microscope in the following cell lines: K562 WT vs. ΔAlu-C1, ΔAlu-C2, and ΔAlu-C3 (Strober, 2015). On day 0, we started with 1 × 10⁵ cells in a volume of 3 ml by triplicate. We counted in a hemocytometer the cell number for each condition every 24 h during 4 days. Finally, we plotted the average values from triplicates of cell number counts as a function of time for the different cell lines.

Bioinformatic Analysis

Motif Data Analysis

Identification of binding sites for TFs was done using the JASPAR (Fornes et al., 2020) Vertebrate Database using a threshold p < 0.0001.

Results

An Intronic Alu Element Behaves as an Enhancer and Protects Against Epigenetic Silencing in Reporter Constructs

To investigate the regulatory function of Alu sequences, we chose the well-characterized RB1 gene locus. We and others have previously shown, different epigenetic mechanisms are at play to ensure proper control of RB1 gene expression (De La Rosa-Velazquez et al., 2007; Dávalos-Salas et al., 2011). We hypothesized that the Alu sequences closest to the RB1 gene promoter could impact its transcriptional regulation via two general mechanisms. Firstly, induced epigenetic silencing, as it has been reported that young Alu elements are epigenetically repressed (ref) and Alu sequences can gain DNA methylation in cancer cells (Akers et al., 2014; Bakshi et al., 2016; Jorda et al., 2017) and secondly, transcription boosting by acting as enhancers, as has been proposed for old Alu families (Su et al., 2014). Therefore, we retrieved the location of Alu sequences surrounding the minimal RB1 gene promoter including sequences 5 kb upstream and downstream of the transcription start site (TSS), based on the annotation by Repeat Masker (Stirzaker et al., 1997; Figure 1A). The two Alu repeats closest to the RB1 gene promoter are an AluSx and an AluJr element. The AluSx element is located 3 kb upstream of the RB1 TSS and lies within the second intron of Linc00441, a lincRNA divergent to RB1, that has been shown to affect RB1 transcription in cancer cells (Tang et al., 2017). The AluJr element is positioned in the first intron of RB1 gene, about 2.5 kb downstream of the RB1 TSS. Both Alu elements are characterized by multiple TFBS (Supplementary Figure S1) and are enriched for the euchromatin and associated histone post-translational modification H3K9ac. Notably, the H3K9ac, a histone mark associated with active enhancers, was recently found enriched in Alu elements expressed in a cell-type specific manner (Zhang et al., 2019). However, only AluJr partially overlaps with a region annotated as a promoter in the RB1 locus based on Chromatin Segmentation by HMM from ENCODE (ENCODE Project Consortium, 2012). Additionally, it is immediately next to a FLAM SINE element, posing technical challenges for the manipulation of this sequence (Supplementary Figure S1C). Due to the AluJr sequence overlapping with other potential regulatory elements in the RB1 locus, we dismissed working with the latter and decided to focus our study on the regulatory activity of the AluSx element upstream of RB1 TSS.

Initially, to characterize the regulatory activity of the AluSx in vitro, we cloned the Alu element in both orientations (5'-3' and 3'-5') in a reporter plasmid containing the RB1 promoter sequence (RBprom) and GFP as a reporter gene (Figure 1B). We have previously employed this reporter plasmid to monitor the epigenetic silencing of the RB1 gene promoter (De La Rosa-Velazquez et al., 2007). Reporter constructs were transfected into K562 cell line and selected with geneticin to obtain pools of cells with stable integrants that were then evaluated by FACS. As expected, more than 50% of cells transfected with the pRB1prom-GFP construct were GFP-positive [GFP(+); Figure 1C, left, day 0], which is consistent with the promoter activity of this sequence. Unexpectedly, the mean number of GFP(+) cells carrying the Alu-containing construct in both orientations (pAlu(5'-3')-RB1prom-GFP and pAlu(3'-5')RB1prom-GFP) was higher than the one observed in pRB1prom-GFP cells (89 and 82%, pAlu-RB1prom vs. 71%, pRB1prom; Figure 1C, left, day 0). A similar trend was observed when analyzing mean fluorescence intensity (86 and 66, pAlu-RB1prom vs. 64, pRB1prom Figure 1C, right, day 0). Importantly, we observed this regulatory effect in four independent experiments, strongly suggesting that the AluSx sequence behaves as an enhancer element in this reporter assay. The increase in the number of GFP(+) cells irrespective of the Alu sequence orientation is an effect well-characterized for enhancer elements.

We have previously described the progressive epigenetic silencing of stably integrated transgenes over time in cell cultures (Dávalos-Salas et al., 2011). Since the acquisition of epigenetic silencing can be a time-dependent process, it was evaluated if the Alu element could still enhance transcription of the reporter gene despite their epigenetic silencing over time. Therefore, we followed pools of cells with stable integrants for the pRB1prom-GFP and pAlu-RB1prom-GFP transgenes over 60 days and quantified the number of GFP(+) cells. As expected for the RB1 gene promoter, we observed a time-dependent reduction in the mean number of GFP(+) cells (71%, day 0 vs. 52%, day 60) and mean fluorescence intensity (64, day 0 vs. 50, day 60) indicative of epigenetic silencing of the RB1 gene promoter as we have reported before (Dávalos-Salas et al., 2011). Remarkably, the presence of the Alu sequence upstream of the RB1 gene promoter protected against epigenetic silencing. Accordingly, 92% of the pAlu-RB1prom-GFP cells were GFP(+) on day 60, in sharp contrast to just 52% GFP(+) cells containing the pRB1prom-GFP construct (Figure 1C, left). This effect is less evident at the level of mean fluorescence intensity, which is highly maintained in the pAlu-RB1prom-GFP cells during the first 25 days, and then decreases to the levels of pRB1prom-GFP cells (Figure 1C, right).

Finally, we also evaluated the regulatory activity of the AluSx in cell clones with stably integrated constructs and analyzed them for 100 days of continuous cell culture. Consistent with our results in pools of cells, we observed that the Alu sequence behaves as an enhancer and protects against epigenetic silencing although showing an increased variability, probably reflecting the effect of integration into different chromatin environments (Supplementary Figure S2). In summary, plasmid-based reporter assays suggest that the Alu sequence can act as an enhancer increasing the probability that more cells will become more transcriptionally active, opposed to promoting the number of transcription events in a specific population or acting as a protector against epigenetic silencing (Blackwood and Kadonaga, 1998).

In situ Deletion of the Intronic Alu Sequence Results in Changes in Transcription

To assess the in situ function of the AluSx element, we employed the CRISPR-Cas9 system to generate a deletion of the Alu sequence in K562 cells. Using two sgRNAs targeting flanking sequences of the AluSx element, we generated a deletion of 353 bp (Figure 2A). After transfection, drug selection, and clonal dilution, we isolated three homozygous clonal cell lines that showed two different molecular lesions (Figures 2B,C). The mutant clone ΔAlu-C1 is characterized by a deletion of 186 bp that removes 172 bp of the 3' region of the AluSx. In contrast, the mutant clones ΔAlu-C2 and ΔAlu-C3 have a deletion of 460 bp that removes the Alu sequence completely, as well as an additional 150 bp 5' upstream of the repeat (Figure 2C and Supplementary Figure S2). Next, we evaluated the effect of the deletion on the transcription of RB1 and the host gene Linc00441 of the deleted AluSx sequence. We found that in the three mutant clones the transcription of RB1 gene is only marginally affected, showing a tendency toward an increase that did not reach statistical significance. Unexpectedly, Linc00441 expression was strongly upregulated; in particular, the increase was higher in the clones that lack the entire AluSx element (Figure 2D). Given our results in reporter constructs that suggest that AluSx possesses an intrinsic enhancer activity, the intragenic AluSx could be acting as an intragenic enhancer of Linc00441, which attenuates the host gene expression. Similar observations have been made for intragenic enhancers of protein-coding genes in humans (Cinghu et al., 2017).

FIGURE 2

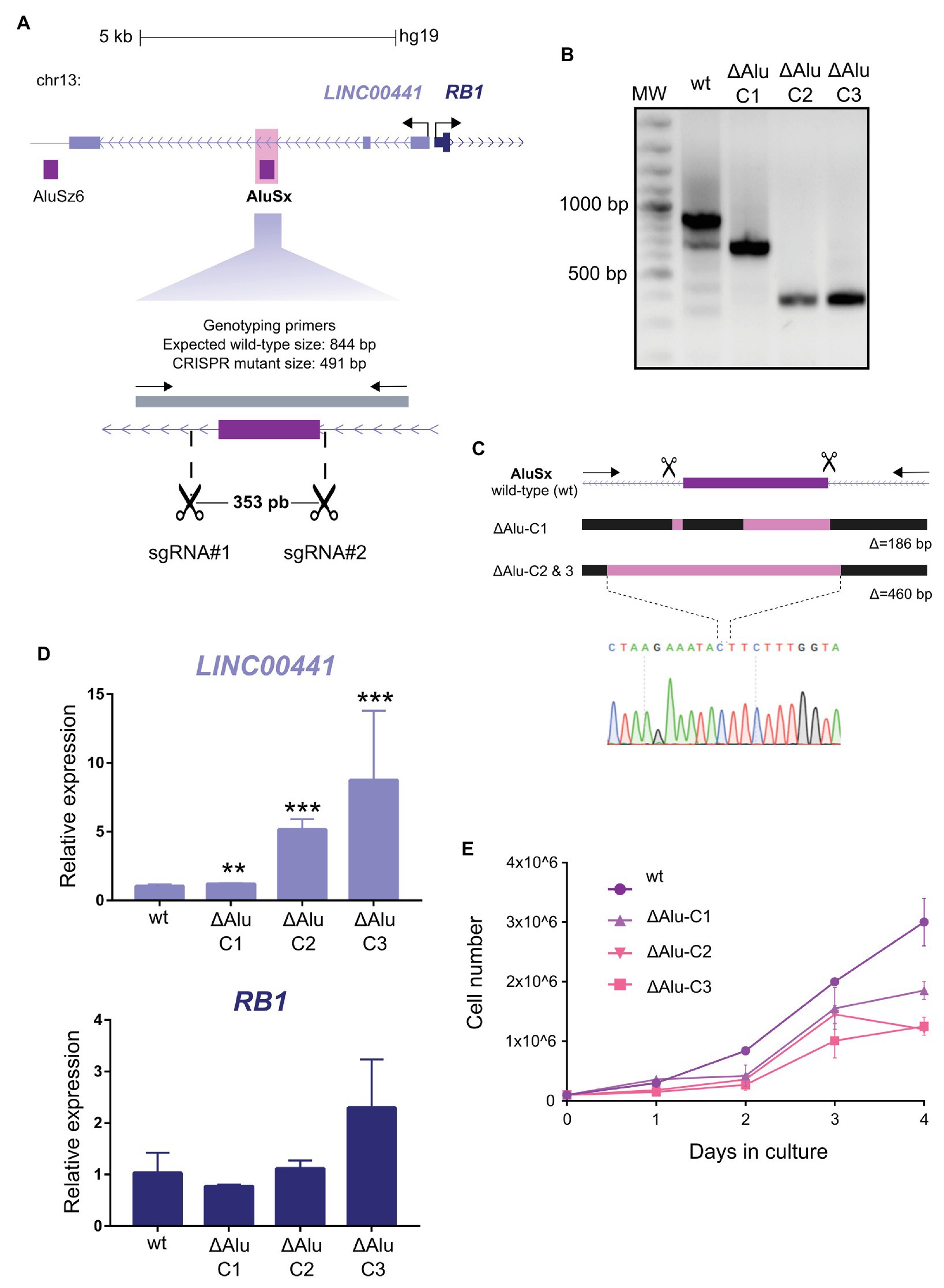

Figure 2. Functional contribution of AluSx to the Linc00441 expression levels. (A) Design of CRISPR/Cas9 mediated deletion of AluSx in the Linc00441-RB1 locus. The purple rectangle represents the Alu repeat. Scissors indicate the target sites of sgRNAs used to generate the deletion. The gray bar depicts the fragment amplified by the genotyping primers (arrows). (B) Genotyping of CRISPR mutant clones with deletions spanning the AluSx repeat. Expected wild type amplicon size, 844 base pairs (bp). Three CRISPR mutant clones ΔAlu-C1, ΔAlu-C2, and ΔAlu-C3 homozygous for two different deletions of the Alu repeat. (C) Schematic representation of CRISPR mutant clones ΔAlu-C1, ΔAlu-C2, and ΔAlu-C3 with deletions of the AluSx repeat. Pink rectangles represent the deleted sequence in each mutant. The electropherogram of the sequencing at the deletion breakpoints of ΔAlu-C2 and ΔAlu-C3 mutant clones is shown. Δ = the number of base pairs deleted in each CRISPR mutant clone. (D) Gene expression analyses of Linc00441 and RB1 gene by real-time quantitative PCR (RT-qPCR). Transcriptional quantifications in each CRISPR mutant compared to wild type using Linc00441 Exon 1 (upper graph) and RB1 (bottom graph) gene specific primers. Significant differences between wild type and CRISPR mutants were calculated using a t-test n = 3, ^**p < 0.01, ^***p < 0.001. Error bars represent the standard deviation (SD) of three independent experiments at least (n = 3). (E) Quantification of cell proliferation by a trypan blue cell counting assay. The graph shows the average viable cell numbers of three replicates counted for 4 days on the three CRISPR mutant clones (ΔAlu-C1, ΔAlu-C2, and ΔAlu-C3) compared to wild type.

Since Linc00441 has been involved in cancer (Tang et al., 2017), we evaluated the effect of the AluSx element deletion on cell proliferation in mutant clones. The deletion of the AluSx element resulted in a decrease of K562 proliferation (Figure 2E). It is worth mentioning that when we analyzed the effect that Alu removal had on our three mutant clones, we observed different behaviors between ΔAlu-C1 and ΔAlu-C2/ΔAlu-C3 both on the level of gene expression levels and cell proliferation.

It was proposed that Alu elements could also participate in transcription regulation by providing multiple TFBS when inserted in gene-rich regions (Polak and Domany, 2006). Therefore, we carried out an analysis of TFBS on the AluSx, identifying the ones that remained intact in clone C1 and not in clones C2 and C3 (Supplementary Figure S3). As we expected, we found several TFBS previously reported to be enriched in Alu sequences (Norris et al., 1995; Polak and Domany, 2006; Bouttier et al., 2016). Interestingly, the six TFBS that were absent in clones C2 and C3 was SREBF1, ESR1, Gfi1b, CTCFL, VDR, and TFAP2C that could have an essential role for these AluSx functioning in transcriptional regulation of Linc00441.

Taken together, the in situ deletion of the AluSx sequence promotes the transcription of the Linc00441 gene, but not RB1 gene, and importantly inhibits cell proliferation. This strongly suggests that Alu sequences can impact transcription and thereby change cellular phenotypes, such as cell proliferation.

Discussion

Recent studies have revealed a link between Alu elements and the control of gene expression (Hanke et al., 1995; Mallona et al., 2016; Chen et al., 2018). Many of these findings came from extensive computational analyses of genome-wide epigenomic and transcriptomic data (Goerner-Potvin and Bourque, 2018; Zhang et al., 2019); however, the direct functional testing of Alu sequences and their contribution repeat to gene regulatory networks have remained poorly explored.

Here, we provide evidence that an Alu repeat can behave as an enhancer and protect against epigenetic silencing using reporter assays. Furthermore, partial deletion or the complete removal of the AluSx from its endogenous locus increases the transcription of its host lincRNA, affecting cell proliferation. These findings contribute to our understanding of the regulatory potential these primate-specific sequences have in gene expression on the human genome.

In this study, we focused on the AluSx repeat located upstream of the RB1 gene promoter and within Linc00441. The presence of this Alu repeat increases both the number of GFP-positive cells and the mean fluorescence intensity, suggesting that it acts as an enhancer element. In support of the aforementioned, a recent study analyzed genome-wide nucleosome occupancy, histone modification, and sequence motif features at Alu elements, concluding that Alu elements showed enhancer features (Su et al., 2014). Interestingly, the effect of the AluSx was more evident in the increase of GFP-positive cells instead of the mean fluorescence intensity. This supports the idea that AluSx repeat increases the burst frequency of transcription according to the binary model, where enhancers increase transcriptional levels of associated promoters (Blackwood and Kadonaga, 1998). Of note, while our data using plasmid-based reporters to test the regulatory potential of the AluSx suggest an effect in transcription and protection against epigenetic silencing, we cannot discard that the AluSx sequence, outside of its genomic context, could act as a non-specific DNA spacer that affect epigenetic silencing of the RB-1 promoter.

Although we demonstrated the cis-regulatory effect of the Alu in reporter assays, these experiments are naturally limited by the fact that the repeat sequence is investigated independently of its native chromosomal context. Therefore, we chose to determine its role in the regulation of its host and neighboring genes and its implications in cell proliferation, through a combination of CRISPR-Cas9 mediated deletions and gene expression analysis. Contrary to the classical function of an enhancer element, we observed in mutants lacking the AluSx sequence a significant increase in the expression of Linc00441, but not RB1. From this, we conclude that AluSx must attenuate its host gene expression as reported for intragenic enhancers of protein-coding genes in humans (Cinghu et al., 2017). Notably, this attenuator effect was observed specifically for intragenic enhancer-containing genes with low-to-moderate expression levels in embryonic stem cells, reasoning that the enhancer’s dominant function is presumably the one of an attenuator at these genes.

A recent report raised another important aspect for enhancer activity of TE that depends on the cooperative action of multiple TFs, whose binding motifs appear to have been already present in the corresponding ancestral TE insertions (Sundaram et al., 2017). We performed an analysis of the motifs of TFBS present in the AluSx repeat element. We found that many of the TFBS identified, are binding sites for nuclear factors, hormones ligands as well as other TFs related to differentiation processes, which correlates with motifs that have been reported to be enriched on Alu sequences (Polak and Domany, 2006). Interestingly, we found that six TFBS remain intact in the mutant that carry a partial deletion of the AluSx, probably related to the modest effect observed on expression and proliferation, compared with the mutants that have a complete removal of AluSx. Among these TFBS, we identified binding motifs related with metabolic pathways (SREBF1; sterol biosynthesis), hormone response elements (ESR1 and VDR) and differentiation processes (Gfi1b in hematopoietic lineage and TFAP2C in early morphogenesis). Interestingly, we also identified a TFBS for CTCF paralog (CTCFL) that can be related with the protective effect against epigenetic silencing observed to this AluSx. However, how these TFs are involved in the enhancer activity of this Alu repeat is currently unknown. Trying to identify differential contribution of each TFBS related to the attenuator activity may help to get a better understanding of this novel function of repeat elements.

Given the recent observations that Alu sequences present enrichment of histone post-translational modifications associated with enhancer elements or the binding of RNA Pol II/III in a tissue or cell-type-specific manner (Su et al., 2014; Zhang et al., 2019), it would be of great interest to investigate the role of the AluSx in other cell-types. Such an experiment would inform on the presence of specific factors, such as cell-type specific transcription factors that impact the regulatory activity of an Alu sequence.

Further studies are required to investigate, on a genome-wide scale, the net impact of intragenic Alu in lincRNA expression. Nevertheless, our findings suggest that these repeat elements may be part of the complex machinery fine-tuning transcriptional regulation, highlighting the need for more functional assays to unravel the mechanisms of these enigmatic elements.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics Statement

Written informed consent was obtained from the donor.

Author Contributions

RP-M performed the experiments with the support of RA-M, EA-O, GG, and FS-O. RP-M RA-M, and FR-T analyzed the data and performed the statistical analysis. RP-M, RA-M, and FR-T conceived the study, participated in its design, and wrote the manuscript. KM and EA-O critically revised the manuscript. All authors have read and approved the final version of the manuscript.

Funding

This work is supported by a grant from Consejo Nacional de Ciencia y Tecnología (CONACyT: 128464 and 220503), Programa de Apoyo a Proyectos de Investigación e Innovación Tecnológica, UNAM (DGAPA-PAPIIT IN203811, IN201114 and IN203620) and Fundación Miguel Alemán to FR-T.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We are grateful with the Molecular Biology Unit at the Instituto de Fisiología Celular, UNAM for the services provided for the sequencing experiments. RP-M is a doctoral student from Programa de Doctorado en Ciencias Bioquímicas, Universidad Nacional Autónoma de México, and received fellowship 173754 from Consejo Nacional de Ciencia y Tecnología (CONACyT).

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2020.00928/full#supplementary-material

SUPPLEMENTARY FIGURE S1 | Alu elements surrounding the Linc00441-RB1 locus are enriched for TF binding sites and show enrichment for H3K9ac. (A) Genomic landscape surrounding the Linc00441-RB1 locus. Data derived from the UCSC Genome Browser. (B) Genomic landscape of the AluSx element upstream of the RB1 gene promoter and located in the intron 2 of Linc00441. (C) Genomic landscape of the AluJr element located in the intron 1 of RB1.

SUPPLEMENTARY FIGURE S2 | The intrinsic regulatory effect of AluSx on a promoter. (A) Representative flow cytometry profiles of K562 cellular pools expressing the transgenes described in Figure 1B after 0, 15, 30, 45, and 60 days of continuous cell culture. (B) Schematic workflow of the isolation of individual cell lines carrying each one of the transgene reporter constructs. Fourteen cell independent clones were isolated after selection and the integrity of transgenes in each cell line was confirmed by PCR and Southern blotting (data not shown). Fourteen independent clones from each GFP-transgene were analyzed by FACS at different time points (Day 0, Day 15, Day 30, Day 45, Day 60, Day 80, and Day 100) of continuous cell culture (Source icons ©Biorender.com). (C) Amplification using three different primer pairs (depicted as blue, green, and orange arrows) was performed on genomic DNA obtained from each cell line. The blue and green primers were used to verify the integrity of the transgenes. Single and multi-copy integrants were determined using the orange primers. The expected amplicon lengths are indicated below the arrows. At the bottom a representative gel for the three PCRs is shown. (D) Boxplots that summarize the expression of the GFP reporter gene in the 14 isolated cell lines (n = 14) obtained for each construct over time. The percentage (%) of fluorescent cells (upper graph) and the mean fluorescence intensity (bottom graph) determined by flow cytometry are shown. Significant differences between the different constructs were calculated using a Mann-Whitney test, with confidence level set as 95%. ^**p < 0.01.

SUPPLEMENTARY FIGURE S3 | Analysis of motifs in AluSx and their removal in CRISPR mutants. Schematic representation of the region (chr13: 48,874,274-48,874,960) that contains the AluSx element upstream of the RB1 gene promoter. Light purple rectangles represent the deleted region in each mutant (top panel). Motif binding sites in AluSx (chr13: 48,874,474-48,874,760) by MEME (p < 0.0001) are shown as boxes in light purple. Highlighted region in pink corresponds to the non-deleted sequence in the ΔAlu-C1 mutant allele, with a partial deletion of the AluSx, containing six TFBS (middle panel). Logo motifs from each TFBS with their corresponding p are shown (bottom panel).
