Dual Convolutional Neural Networks With Attention Mechanisms Based Method for Predicting Disease-Related lncRNA Genes

A lot of studies indicated that aberrant expression of long non-coding RNA genes (lncRNAs) is closely related to human diseases. Identifying disease-related lncRNAs (disease lncRNAs) is critical for understanding the pathogenesis and etiology of diseases. Most of the previous methods focus on prioritizing the potential disease lncRNAs based on shallow learning methods. The methods fail to extract the deep and complex feature representations of lncRNA-disease associations. Furthermore, nearly all the methods ignore the discriminative contributions of the similarity, association, and interaction relationships among lncRNAs, disease, and miRNAs for the association prediction. A dual convolutional neural networks with attention mechanisms based method is presented for predicting the candidate disease lncRNAs, and it is referred to as CNNLDA. CNNLDA deeply integrates the multiple source data like the lncRNA similarities, the disease similarities, the lncRNA-disease associations, the lncRNA-miRNA interactions, and the miRNA-disease associations. The diverse biological premises about lncRNAs, miRNAs, and diseases are combined to construct the feature matrix from the biological perspectives. A novel framework based on the dual convolutional neural networks is developed to learn the global and attention representations of the lncRNA-disease associations. The left part of the framework exploits the various information contained by the feature matrix to learn the global representation of lncRNA-disease associations. The different connection relationships among the lncRNA, miRNA, and disease nodes and the different features of these nodes have the discriminative contributions for the association prediction. Hence we present the attention mechanisms from the relationship level and the feature level respectively, and the right part of the framework learns the attention representation of associations. The experimental results based on the cross validation indicate that CNNLDA yields superior performance than several state-of-the-art methods. Case studies on stomach cancer, lung cancer, and colon cancer further demonstrate CNNLDA's ability to discover the potential disease lncRNAs.

Introduction

Long non-coding RNA genes (lncRNAs) are transcripts longer than 200 nucleotides which are not translated into proteins (Reik, 2009). Accumulating evidences have indicated that lncRNAs play crucial roles in the metastasis and progression of various diseases (Prensner and Chinnaiyan, 2011; Schmitt and Chang, 2016; Hu et al., 2018). Therefore, identifying the associations between lncRNAs and diseases is important for understanding the functions of lncRNAs in the disease processes.

Predicting disease-related lncRNAs (disease lncRNAs) can screen the potential candidates for the biologists to discover the real lncRNA-disease associations with the wet-lab experiments (Chen et al., 2016a). Existing methods have been presented for prioritizing the candidate disease lncRNAs, which fall into three main categories. Methods in the first category utilize the biological information related to lncRNAs, such as the genome locations, tissue specificity and expression profile. Chen et al. and Li et al. predicted disease lncRNAs by exploiting the locations of lncRNAs and genes in the genome (Chen et al., 2013; Li et al., 2014a). However, the methods are not effective on the lncRNAs which have no adjacent genes. Liu et al. and Chen predicted the potential associations by using the lncRNA tissue specificity or lncRNA expression profile (Liu et al., 2014; Chen, 2015). The methods suffered from the limited information of tissue-specific expressions and low expression levels of lncRNAs.

Methods in the second category construct the prediction models based on machine learning for inferring the lncRNA-disease associations. A semi-supervised learning based method was proposed to predict the potential associations (Chen and Yan, 2013). On the basis of this study, Chen et al. and Huang et al. optimized the calculation of the similarities of lncRNAs and diseases (Chen et al., 2015; Huang et al., 2016). However, the methods considered the information of the lncRNA and disease spaces, and did not fuse them completely. Several methods infer the candidate lncRNAs related to a disease by random walk on the lncRNA functional similarity network or heterogeneous network composed of lncRNAs, genes and diseases (Sun et al., 2014; Chen et al., 2016b; Gu et al., 2017; Yao et al., 2017). The common and similar neighbors of two diseases (or two lncRNAs) in the lncRNA-disease bipartite network are utilized to infer the association scores between lncRNAs and diseases (Ping et al., 2018). Nevertheless, most of these methods fail to be applied to new diseases without any known related lncRNAs.

The methods in the third category integrate the multiple data sources about the proteins and miRNAs that are interacted with lncRNAs, and the drugs associated with the proteins. Zhang et al. constructed the lncRNA-protein-disease network and obtained the candidate disease lncRNAs by propagating information flow in the heterogeneous network (Zhang et al., 2017). After calculating the various lncRNA and disease similarities, LDAP used the bagging SVM classifier to uncover the potential diseases lncRNAs(Lan et al., 2017). A couple of methods established the matrix factorization based prediction models to fuse the multiple kinds of information related to the lncRNAs, diseases and proteins (Fu et al., 2017; Lu et al., 2018). However, most of the previous methods are the shallow learning methods which cannot learn the deep and complex representations of lncRNA-disease associations.

Deep learning approaches can hold the promise of much better performance (Xu et al., 2017). In our study, we propose a novel method based on dual convolutional neural networks to predict lncRNA-disease associations, which we refer to as CNNLDA. CNNLDA exploits the similarities and associations of lncRNAs and diseases, the interactions between lncRNAs and miRNAs, and the miRNA-disease associations. The feature matrix is firstly constructed based on the biological premises about lncRNAs, miRNAs, and diseases. Combining the biological premise about the cases that two lncRNAs (diseases) should be more similar can capture the relationships between the lncRNA-disease associations and the lncRNA (disease) similarities. Integrating the interactions between lncRNAs and miRNAs, and the miRNA-disease associations can capture the relationships between the lncRNAs and miRNAs interacted with each other and the lncRNA-disease associations. A new framework based on the dual convolutional neural networks is established for extracting both the global and the attention feature representations of lncRNA-disease associations. The left part of the framework is concentrated on extract features from the associations and similarities of lncRNAs and diseases. In the right part of the framework, each of features and each kind of features are assigned to different weights by applying our proposed attention mechanisms, which may discriminate their different contributions for predicting the potential disease lncRNAs. The comprehensive cross-validation experiments confirm that CNNLDA outperforms several state-of-the-art methods for predicting candidate disease lncRNAs. Moreover, case studies on 3 diseases indicate that CNNLDA is able to discover potential association candidates that are supported by the corresponding databases and literature.

Materials and Methods

Datasets for Disease lncRNA Prediction

The lncRNA-disease associations, the lncRNA-miRNA interactions, and the miRNA-disease associations are obtained from the previous work on prediction of the lncRNA-disease associations (Fu et al., 2017). The 2687 lncRNA-disease associations are originally extracted from the databases LncRNADisease (Chen et al., 2013) and Lnc2Cancer (Ning et al., 2016) that contains the experimentally confirmed lncRNA-disease associations, and the database GeneRIF (Lu et al., 2006) that records the lncRNA functional description. The 1002 lncRNA-miRNA interactions are extracted from database starBase (Li et al., 2014b) which includes the interaction information between multiple kinds of RNAs. The disease semantic similarities are obtained from DincRNA (Cheng et al., 2018) that are used by us to calculate the lncRNA similarities based on their associated diseases. The 5218 verified miRNA-disease associations by experiment are obtained from the human miRNA-disease database HMDD (Li et al., 2013). All of these associations and interactions cover 240 lncRNAs, 402 diseases, and 495 miRNAs.

Calculation and Representation of Multiple Kinds of Data

Representation of the lncRNA-Disease Associations and miRNA-Disease Associations

The bipartite graph composed of lncRNAs and diseases is constructed by the known lncRNA-disease associations (Figure 1A). We use matrix $Aϵ{ℝ}^{n_l\times n_d}$ to represent the association case between n_l lncRNAs and n_d diseases, where A_ij is 1 if lncRNA l_i has been observed to be related to disease d_j or 0 otherwise. As shown in Figure 1C, the known miRNA-disease associations form the miRNA-disease bipartite graph. Matrix $Bϵ{ℝ}^{n_m\times n_d}$ represents the associations between n_m miRNAs and n_d diseases. B_ij is set to 1 means there is observed association between miRNA m_i and disease d_j, and it is 0 otherwise.

FIGURE 1

Figure 1. Construction of the feature matrix of lncRNA l₁ and disease d₂. (A) Construct the first part of feature matrix by integrating the lncRNA similarities and the lncRNA-disease associations. (B) Construct the second part by incorporating the lncRNA-disease associations and the disease similarities. (C) Construct the third part by exploiting the lncRNA-miRNA interactions and the miRNA-disease associations. (D) Concatenate these three parts to form the feature matrix P.

Representation of the Disease Similarities

The more similar that two diseases are, the more likely that they are associated with similar lncRNAs. Hence the disease similarities are integrated by our model for predicting disease-related lncRNAs. A disease can be represented by a directed acyclic graph (DAG) that includes all the disease terms related to the disease. If two diseases have more common disease terms, they are more similar, which is the basic idea for semantic similarity between Gene Ontology terms (Xu et al., 2013b). Wang et al. have successfully measured the similarity of two diseases based on their DAGs (Wang et al., 2010). The disease similarities are calculated by Wang's method, and they are represented by matrix $Dϵ{ℝ}^{n_d\times n_d}$ where D_ij is the similarity of two diseases d_i and d_j(Figure 1B).

Representation of the lncRNA Similarities

As the lncRNAs associated with the similar diseases are generally possible to have more similar functions, Chen et al. measured the similarity of two lncRNAs based on their associated diseases (Chen et al., 2015), of which similar approaches have been used for miRNA-miRNA network inference (Xu et al., 2013a). The lncRNA similarities that we used are calculated by Chen's method. For instance, the lncRNA l_a is associated with a group of diseases DT_a = {d_i1, d_i2, …, d_im}, lncRNA l_b is associated with a group of diseases DT_b = {d_j1, d_j2, …, d_jn}. The similarity between DT_a and DT_b is then calculated as the similarity of l_a and l_b, and it is denoted as LS(l_a, l_b). LS(l_a, l_b) is defined as,

$\begin{array}{ll}LS\left(l_a,l_b\right)=\frac{{\displaystyle {\sum }_{i=1}^m\underset{1\le j\le n}{\max }\left(DS\left(d_{ai},d_{bj}\right)\right)+{\displaystyle {\sum }_{j=1}^n\underset{1\le i\le m}{\max }\left(DS\left(d_{bj},d_{ai}\right)\right)}}}{m+n},& (1)\end{array}$

where DS(d_ai, d_bj) is the semantic similarity of disease of d_ai and d_bj which belong to DT_a and DT_b respectively. m and n are the numbers of diseases that are included by DT_a and DT_b. The lncRNA similarities are denoted by matrix $Lϵ{ℝ}^{n_l\times n_l}$ where L_ij is the similarity of two lncRNAs l_i and l_j (Figure 1A).

Representation of the lncRNA-miRNA Interactions

It is well-known that the lncRNAs often interact with the corresponding miRNAs and they are involved in the biological processes synchronously (Yang et al., 2014; Paraskevopoulou and Hatzigeorgiou, 2016). Hence our prediction model also takes the interaction relationships between lncRNAs and miRNAs into account (Figure 1C). The interactions between n_l lncRNAs and n_m miRNAs are represented by the matrix $Yϵ{ℝ}^{n_l\times n_m}$, and each row of Y corresponds to a lncRNA and each column of Y corresponds to a miRNA. Y_ij is 1 when lncRNA l_i interacts with miRNA m_j and it is 0 otherwise.

Disease lncRNA Prediction Model Based on Dual CNN

In this section, we describe our prediction model for learning the latent representations of lncRNA-disease associations and predicting the disease-related lncRNAs. The feature matrix is constructed firstly by incorporating the similarities, interactions, and associations about lncRNAs, miRNAs, and diseases (Figure 1). A novel framework is then established based on dual convolutional neural networks with attention mechanisms (Figure 2). The left part of the framework learns the global representation of a lncRNA-disease association, while the right part learns the more informative connection relationships among lncRNAs, miRNAs, and diseases. These two representations are integrated by an additional convolutional and fully connected layer and the possibility that a lncRNA is associated with a disease is obtained as their association score. We take the lncRNA l₁ and the disease d₂ as an example to describe our model CNNLDA for lncRNA-disease association prediction.

FIGURE 2

Figure 2. Construction of the framework based on the dual convolutional neural networks for learning the global and attention representations. (A) Construct the convolutional and pooling layers. (B) Establish the attention mechanism at the feature and relationship levels. (C) Construct the final module to estimate the association score.

Construction of Feature Matrix

The feature matrix of the lncRNA l₁ and the disease d₂ is constructed by combining three biological premises. First, if l₁ and d₂ have similarity and association relationships with more common lncRNAs, they are more likely associated with each other. For instance, if l₁ and l₂ have similar functions, and d₂ has been observed to be associated with l₂, l₁ will be possibly associated with d₂. Let x₁ represent the 1st row of L which contains the similarities between l₁ and the various lncRNAs. The 2nd column of D, x₂, records the associations between d₂ and all the lncRNAs. x₁ and x₂ are put together to form a matrix whose dimension is 2 × n_l (Figure 1A). Second, when l₁ and d₂ have the association and similarity connections with more common diseases, l₁ is more likely to be associated with d₂. x₃ is the 1st row of A and it records the associations between l₁ and all the diseases. x₄ is the 2nd row of D and it contains the similarities between d₂ and these diseases. x₃ and x₄ are also combined and they form a matrix with dimension 2 × n_d (Figure 1B). Third, there is a possible association between l₁ and d₂ when they have the interaction and association connections with the common miRNAs. The 1st row of Y, x₅, records the interactions between l₁ and the various miRNAs, while the 2nd column of B, x₆, records the associations between d₂ and these miRNAs. x₅ and x₆ are integrated to form a matrix with dimension 2 × n_m (Figure 1C). All of these three matrices are concatenated and then form a feature matrix of lncRNA l₁ and disease d₂ whose dimension is 2 × (n_l + n_d + n_m) (Figure 1D).

Convolutional Module on the Left

The feature matrix of l₁ and d₂, P, is input to the convolutional module on the left to learn a global deep representation for l₁ and d₂. The convolutional module includes two convolutional layers and two pooling layers (Figure 2A), we take the first convolutional layer and the first pooling layer as examples to describe the process of the convolution and the pooling. To learn the marginal information of P, we pad zeros around P and obtain a new matrix named P′.

Convolutional layer

For the first convolutional layer, the length of a filter is set as n_f, and its width is n_w. If the number of filters is n_conv1, the filters $W_{conv1}\in {ℝ}^{n_{conv1}\times {n_w\times n}_f}$ are applied to the matrix P′, and get the feature maps $Z_{conv1}\in {ℝ}^{n_{conv1}\times (4-n_w+1)\times (n_t+2-n_f+1)}$. P′(i, j) is the element at the ith row and the jth column of P′, and P′_k,i,j represents a region within the filter when the kth filter slides to the position P′(i, j). The formal definitions of P′_k,i,j and Z_conv1,k are as follows,

$\begin{array}{ll}P{\prime }_{k,i,j}=P\prime \left(i:i+n_w,j:j+n_f\right),P{\prime }_{k,i,j}\in {ℝ}^{n_w\times n_f},& (2)\end{array}$

$\begin{array}{ll}{Z}_{conv1,k}\left(i,j\right)=f\left(W_{conv1}\left(k,:,:\right)\ast P{\prime }_{k,i,j}+b_{conv1}\left(k\right)\right),& (3)\end{array}$

$\begin{array}{l}i\in \left[1,4-n_w+1\right],j\in \left[1,n_t+2-n_f+1\right],k\in \left[1,n_{conv1}\right],\end{array}$

where b_conv1 is the bias vector, f is a relu function (Nair and Hinton, 2010), and n_t = n_l + n_d + n_m. Z_conv1,k(i, j) is the element at the ith row and jth column of the kth feature map Z_conv1,k.

Pooling layer

We apply the max pooling to extract the robust features from the feature maps Z_conv1. n_g and n_p are the length and width of a filter of pooling layer, respectively. The pooling outputs of all the feature maps are Z_convpool1,

$\begin{array}{ll}{Z}_{convpool1,k}(i,j)=Max(Z_{conv1,k}(i:i+n_g,j:j+n_p)),& (4)\end{array}$

$\begin{array}{l}i\in \left[1,5-n_w-n_g+1\right],j\in \left[1,n_t+3-n_f-n_p+1\right],\\ k\in \left[1,n_{conv1}\right],\end{array}$

where Z_convpool1,k is the kth feature map, and Z_convpool1,k(i, j) is the element at its' ith row and jth column.

Attention Module on the Right

In our model, the attention module are used to learn which features or connection relationships are more informative for the representation of lncRNA l₁ and disease d₂. Thus, the module consists of the attention mechanism at the feature level and the one at relationship level (Figure 2B).

Attention at the feature level

The features within P usually have different contributions for representations of lncRNA-disease associations. For instance, in terms of a specific disease, the lncRNAs that have been observed to be associated with the disease are often more important than the unobserved ones. In the feature matrix P = {x₁, x₂, …, x_i, …, x₆ }, each feature x_ij of vector x_i is assigned an attention weight ${\alpha }_{ij}^F$. ${\alpha }_{ij}^F$ is defined as follows,

$\begin{array}{ll}{s}_i^F=H^{F}tanh(W_x^F{x}_i+b^F),& (5)\end{array}$

$\begin{array}{ll}{\alpha }_{ij}^F=\frac{exp\left(s_{ij}^F\right)}{{\displaystyle {\sum }_k}exp\left(s_{ik}^F\right)},& (6)\end{array}$

where H^F and $W_x^F$are the weight matrices, and b^F is a bias vector. $s_i^F=\left[s_{i1}^F,s_{i2}^F,\dots ,s_{ik}^F,\dots ,s_{i{n}_i}^F\right]$ is the vector that records the attention scores representing the importance of different features in x_i, where n_i is the length of x_i, $s_{i{n}_i}^F$ is the score of x_ini. ${\alpha }_{ij}^F$ is the normalized attention weight for feature x_ij. Thus the latent representation of different features may be denoted as y_i,

$\begin{array}{ll}{y}_i={\alpha }_i^F\otimes x_i,& (7)\end{array}$

where ⊗ is the element-wise product operator, and the symbol F represents the feature level.

Attention at the relationship level

There are several connection relationships among lncRNAs, diseases, and miRNAs, including the similarities between lncRNAs, the associations between lncRNAs and diseases, the similarities between diseases, the interactions between lncRNAs and miRNAs, and the associations between diseases and miRNAs. Different relationships also have different contributions to the representation of lncRNA-disease associations. Therefore, in relationship level, we use an attention mechanism on each feature vector y_i to generate the final attention representation. The attention scores at relationship level are given by,

$\begin{array}{ll}{s}_i^R=h^{R}tanh\left(W_y^R{y}_i+b^R\right),& (8)\end{array}$

$\begin{array}{ll}{\beta }_i^R=\frac{exp(s_i^R)}{{\displaystyle {\sum }_{j\in 6}}exp(s_j^R)},& (9)\end{array}$

where $W_y^R$ is the weight matrix, and b^R is a bias vector. h^R is a weight vector and $s_i^R$ represents the score of the ith relationship y_i. ${\beta }_i^R$ is the normalized attention weight for relationship y_i. The latent representation of association through the attentions at the feature and relationship levels is obtained and represented by

$\begin{array}{ll}g={\sum }_i{\beta }_i^R{y}_i,& (10)\end{array}$

where the symbol R represents the relationship level. Let G be the matrix after g is padding zeros. The attention representations Z_att are obtained by feeding G into a convolutional layer and a maxpooling layer.

Final Module

Let Z_glo be the global representation that are learned from the left convolutional module and Z_att be the attention representation that are learned from the right convolutional module. Z_glo and Z_att are combined by putting the former on top and putting the later under it, and denoted as Z_con (Figure 2C). Z_con runs through an additional convolutional layer to obtain the final representation Z_fin. z_o is a vector of flattening Z_fin and it is inputted into a fully connected layer W_out and a softmax layer (Bahdanau et al., 2014) to get p

$\begin{array}{ll}p=softmax(W_{out}{z}_o+b_o).& (11)\end{array}$

p is an association probability distribution of C classes (C = 2), and it contains the probability that a lncRNA and a disease is determined to have an association relationship and the probability that they have no association.

Loss of Association Prediction

In our model, the cross-entropy loss between the ground truth distribution of lncRNA-disease association and the prediction probability p is defined as ${L}$,

$\begin{array}{ll}L=-{{\displaystyle \sum }}_i^T{{\displaystyle \sum }}_{j=1}^C{z}_{j}log{p}_j,& (12)\end{array}$

where z ∈ ℝ² is the classification label vector and T is a set of training samples. If l₁ is associated with d₂, the second dimension of the vector z is 1 and the first one is 0. On the contrary, if l₁ is not associated with d₂, the first dimension of z is 1 and the second one is 0.

We denote all neural network parameters by θ. The objective function in our learning process is defined as follows,

$\begin{array}{ll}\begin{array}{c}\min \\ \theta \end{array}ℒ\left(\theta \right)=ℒ+\lambda {\Vert \theta \Vert }^2,& (13)\end{array}$

where λ is a trade-off parameter between the training loss and regularization term. We use Adam optimization algorithm to optimize the objective function (Kingma and Ba, 2015).

Results and Discussion

Parameter Setting

In CNNLDA, 2 × 2 window size is used for all of the convolutional and pooling layers. In the left convolutional module (Figure 2A), the number of filters in the first convolutional layer is 8 and one in the second layer is 16. In the right attention convolutional module (Figure 2B), the number of filters is 16. In the final module (Figure 2C), we set the number of filters to 32. We implement our method using Pytorch to train and optimize the neural networks, and a GPU card (Nvidia GeForce GTX 1080Ti) is utilized to speed up the training process. The training process is terminated when the maximum number of iterations, 80, is reached.

Performance Evaluation Metrics

Five-fold cross-validation is performed to evaluate the performance of CNNLDA and other state-of-the-art methods for predicting lncRNA-disease associations. If a lncRNA l_s is associated with a disease d_t, we treat the l_s-d_t node pair as a positive sample. If l_s is not observed to associate with d_t, it is treated as a negative sample. For each cross validation, we randomly select 80% positive samples and the same number of negative samples as the training data and use the remaining 20% positive samples and all of the negative samples for testing. Note that the association dataset is separated to 5 folds for cross-validation, and we recomputed the lncRNA similarities by using the known associations that are used for training in each cross validation process.

The samples are ranked by their association scores after the association probabilities of the testing samples are estimated. The higher the node pairs of the positive samples are ranked, the better CNNLDA performs. If an observed association exists in lncRNA-disease node pair samples, and its association score is greater than a threshold θ, it is a successfully determined positive sample. If the prediction score of a negative sample is smaller than θ, it is a determined correctly negative sample. We calculate the true positive rates (TPRs) and the false positive rates (FPRs) to get a receiver operating characteristic (ROC) curve by changing threshold θ. TPR and FPR are defined as follows,

$\begin{array}{ll}TPR=\frac{TP}{TP+FN},FPR=\frac{FP}{FP+TN},& (14)\end{array}$

where TP is the number of successfully identified positive samples, and FN is the number of misidentified negative samples. TN is the number of correctly identified negative samples, and FP is the number of incorrectly identified positive samples. The global prediction performance of a method is always measured by the area under the ROC curve (AUC) (Karimollah, 2013).

The known lncRNA-disease associations (the positive samples) and the unobserved ones (the negative samples) form the serious imbalance. In such case, we also use the precision-recall (PR) curve and its area (AUPR) to assess the performance of a prediction method (Takaya and Marc, 2015). Precision and recall are defined as follows,

$\begin{array}{ll}Precision=\frac{TP}{TP+FP},Recall=\frac{TP}{TP+FN}.& (15)\end{array}$

Precision is the rate of the correctly identified positive samples among the samples that are retrieved, and recall is the rate of the correctly identified positive samples among all the positive samples. In terms of 5-fold cross-validation, we use averaging CV to obtain the final performance. Averaging CV means that we obtain a separate performance (AUC or AUPR) for each of the 5 folds when used as a test set, and the 5 performances are averaged to give the final performance.

In addition, the biologists usually select lncRNA candidates from the top part of the ranking list, and then further validate their associations with diseases. Therefore, the recall values of top 30, 60, …, 240, are calculated, and they represent the fraction of the successfully recovered positive samples in the top list k among the total positive samples.

Comparison With Other Methods

To evaluate the performance of CNNLDA, we compare it with several state-of-the-art methods including SIMCLDA (Lu et al., 2018), Ping's method (Ping et al., 2018), MFLDA (Fu et al., 2017) and LDAP (Lan et al., 2017) for lncRNA-disease association prediction. As shown in Figure 3A and Table 1, CNNLDA achieves the highest average AUC on all of the tested 402 diseases (AUC = 0.952). It outperforms SIMCLDA by 20.6%, Ping's method by 8.05%, MFLDA by 32.6% and LDAP by 8.85%. We also list the AUCs of the five methods on 10 well-characterized diseases that are associated with at least 15 lncRNAs (Table 1). CNNLDA yields the best performance for 9 out of 10 diseases. CNNLDA achieves best average performance (AUPR = 0.251) which is 15.6%, 3.19, 18.5, and 8.51% better than SIMCLDA, Ping's method, MFLDA and LDAP respectively (Figure 3B). In addition, CNNLDA achieves the highest AUPRs on 9 out of 10 well-characterized diseases (Table 2). The performance of Ping's method is similar to that of LDAP as they exploit different types of similarities of lncRNAs and diseases. These two methods achieves the second and third best performance respectively. The performance of MFLDA is not as good as the other four methods as it did not exploit the disease similarities and the lncRNA similarities. The improvement of CNNLDA over the compared methods is primarily due to its deeply learning the global and attention representations of lncRNA-disease associations.

FIGURE 3

Figure 3. ROC curves and PR curves of CNNLDA and other methods for all the diseases. (A) ROC curves of all the methods. (B) PR curves of all the methods.

TABLE 1

Table 1. AUCs of ROC curves of CNNLDA and other methods for all of the diseases and 10 well-characterized diseases.

TABLE 2

Table 2. AUPRs of PR curves of CNNLDA and other methods for all of the diseases and 10 well-characterized diseases.

We perform a paired Wilcoxon-test to evaluate whether CNNLDA's AUCs and AUPRs across all of the tested diseases are significantly higher than those of another method. CNNLDA achieves significantly higher performance than the other methods in terms of both AUCs and AUPRs as the corresponding P-values are smaller than 0.05 (Table 3).

TABLE 3

Table 3. A pairwise comparison with a paired Wilcoxon-test on the prediction results in terms of AUCs and AUPRs.

The higher the recall rate on the top k ranked lncRNA-disease associations is, the more genuine associations are determined correctly. Under different k cutoffs, the performance of CNNLDA consistently outperforms other methods (Figure 4), and ranks 89.6% of the positive samples in the top 30, 96.2% in the top 60, and 98.8% in the top 90. Most of the recalls of Ping's method are very close to LDAP, while Ping's method ranks 68.9% in top 30, 81.3% in top 60, 88% in top 90. LDAP ranks 68.5% in top 30, 81.3% in top 60, 88% in top 90. SIMCLDA ranks 49.3% in top 30, 63% in top 60, 74.1% in top 90, which is not as good as Ping's method but better than MFLDA (42%, 53.9% and 61%).

FIGURE 4

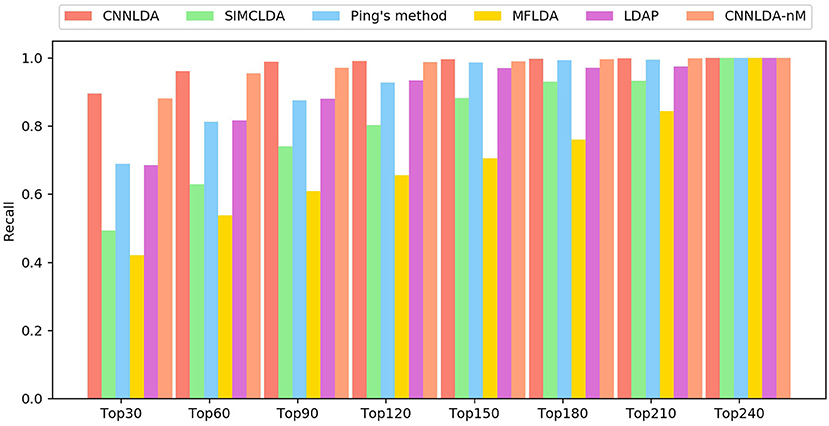

Figure 4. The average recalls across all the tested diseases under different top k cutoffs.

In addition, to validate the effectiveness of exploiting the information related to the miRNAs, we construct another instance of CNNLDA that is trained without this kind of information, and the instance is referred to as CNNLDA-nM. The instance of CNNLDA that is trained by using the miRNA-related information is still named as CNNLDA. CNNLDA's AUC and AUPR are 0.2%and 0.94% greater than CNNLDA-nM, which confirms the importance of integrating the information for improving CNNLDA's prediction performance.

Case Studies: Stomach Cancer, Lung Cancer, and Colon Cancer

To demonstrate CNNLDA's ability to discover potential candidate disease lncRNAs, we execute the case studies on stomach cancer, lung cancer, and colon cancer and analyze the top 15 candidates respectively related to these cancers (Table 4).

TABLE 4

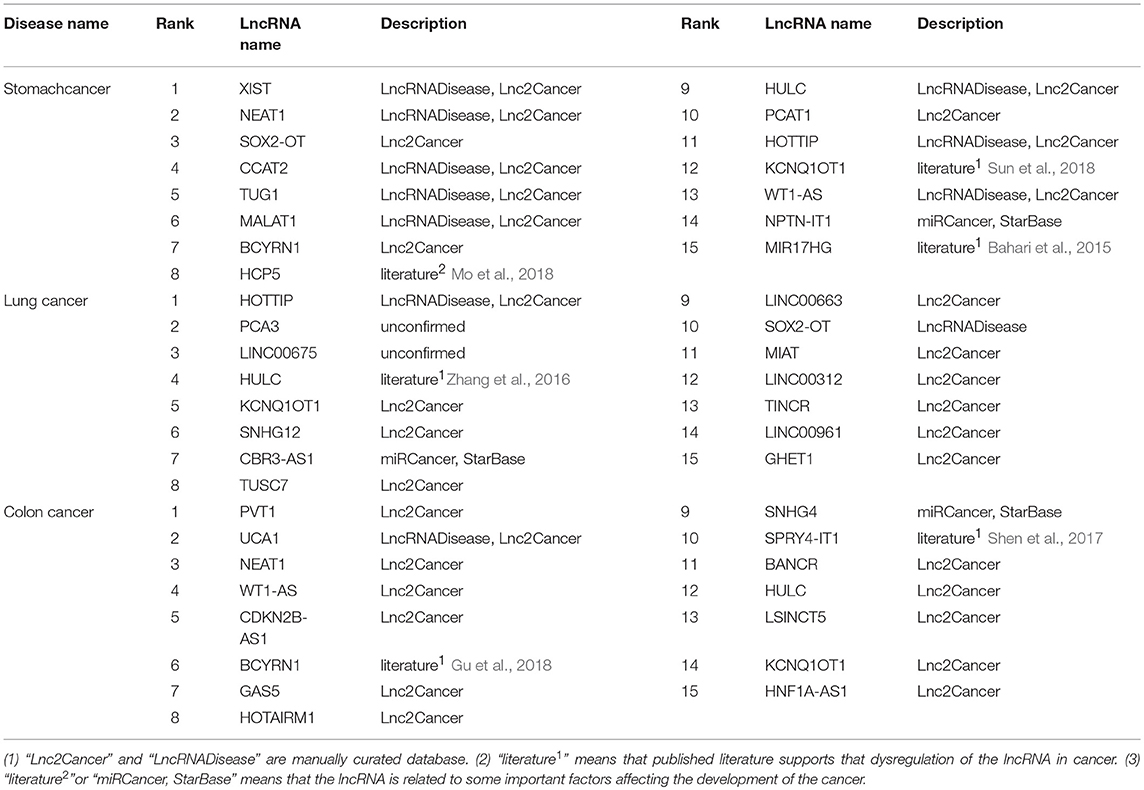

Table 4. The candidate lncRNAs associated with stomach cancer, lung cancer and colon cancer.

First, a database named Lnc2Cancer curates the lncRNAs that have different expression in the disease tissues compared to the normal ones. Lnc2Cancer contains lncRNAs related to cancers that have been identified by analyzing the results of northern blot experiments, microarray experiments, and quantitative real-time polymerase chain reaction experiments (Gao et al., 2018). LncRNADisease is also a database which includes 2,947 lncRNA-disease entries (Chen et al., 2013). By using text mining techniques, these associations are extracted from the published literature, and then the dysregulation of lncRNAs are manually confirmed. As shown in Table 4, 33 candidate lncRNAs are contained by Lnc2Cancer and 13 candidate lncRNAs are included by LncRNADisease, which confirms these lncRNAs have been upregulated or downregulated in these cancers.

Next, 2 candidates of stomach cancer, 1 candidate of lung cancer and 2 candidates of colon cancer labeled with “literature¹” are supported by several published literature. These lncRNAs are confirmed to have dysregulations in the cancers when compared with the normal tissues (Bahari et al., 2015; Zhang et al., 2016; Shen et al., 2017; Gu et al., 2018; Sun et al., 2018).

Finally, 5 candidates labeled with “literature²,” and “miRCancer, StarBase” are related to the important factors affecting the development of the corresponding cancers. In the metabolic network, lncRNA HCP5 is regulated by three miRNAs, and the miRNAs are downregulated in stomach cancer. It indicates that the expression of HCP5 is more likely to associate with stomach cancer (Mo et al., 2018). Four lncRNAs (CBR3-AS1, NPTN-IT1, CDKN2B-AS1 and SNHG4) have interactions with four corresponding miRNAs (hsa-miR-217, hsa-miR-520c-3p, hsa-miR-320a and hsa-miR-4458) (Li et al., 2014b). These four miRNAs have been to be observed associated with stomach cancer, lung cancer and colon cancer (Xie et al., 2013). Hence these lncRNAs are probably involved in the progression of these cancers.

Predicting Novel Disease-Related lncRNAs

After evaluating its prediction performance through the cross-validation process and case studies, CNNLDA is applied to all 402 diseases. All the positive samples and the negative ones are used to train CNNLDA to predict the novel disease-associated lncRNAs. The potential candidate lncRNAs for these diseases are listed in Supplementary Table 1. In addition, the lncRNA similarities based on the diseases associated with these lncRNAs are shown in Supplementary Table 2.

Conclusions

A novel method based on dual convolutional neural networks, CNNLDA, is developed for predicting the potential disease-related lncRNAs. We respectively construct the attention mechanism at feature and relationship levels to discriminate the different contributions of features and learn the more informative representation of lncRNA-disease associations. The new framework based on dual convolutional neural networks is developed for learning the global representation and the attention of lncRNA-disease associations. The experimental results indicate that CNNLDA is superior to the compared other methods in terms of both AUCs and AUPRs. The case studies on 3 diseases demonstrate CNNLDA's ability for discovering potential disease-associated lncRNAs.

Data Availability

All datasets analyzed for this study are cited in the manuscript and the Supplementary Files.

Author Contributions

PX and YC conceived the prediction method, and they wrote the paper. YC and ZZ developed computer programs. TZ and RK analyzed the results and revised the paper.

Funding

The work was supported by the Natural Science Foundation of China (61702296, 61302139), the Heilongjiang Postdoctoral Scientific Research Staring Foundation (LBH-Q18104, LBH-Q16180), the Natural Science Foundation of Heilongjiang Province (FLHPY2019329), the Fundamental Research Foundation of Universities in Heilongjiang Province for Technology Innovation (KJCX201805), the Fundamental Research Foundation of Universities in Heilongjiang Province for Youth Innovation Team (RCYJTD201805), the Young Innovative Talent Research Foundation of Harbin Science and Technology Bureau (2016RQQXJ135), the Research Fund of the First Affiliated Hospital of Harbin Medical University (2019M24), and the Foundation of Graduate Innovative Research (YJSCX2018-140HLJU).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2019.00416/full#supplementary-material

Supplementary Table 1. Potential candidate lncRNAs related to 402 diseases.

Supplementary Table 2. The lncRNA similarities.
