Complexity of downy birch emissions revealed by Vocus proton transfer reaction time-of-flight mass spectrometer

Biogenic volatile organic compounds (BVOCs) are known to strongly influence the global climate by affecting various atmospheric constituents such as oxidants and aerosols. Among the several BVOCs that are emitted continuously into the atmosphere, studies have shown that up to 96% of the emissions have been missed out by current analytical techniques. In this study, we used a Vocus proton-transfer-reaction time-of-flight mass spectrometer (Vocus) to characterize and quantify emissions from a branch of a downy birch tree at a boreal forest site in Hyytiälä, Finland in August 2019. During the measurement period, we were able to observe real-time emissions of hydrocarbons with up to 20 carbon atoms and oxygenated compounds (OVOCs) with up to 4 oxygen atoms. OVOCs accounted for around 90% of the total observed emissions with the largest contribution from C₈H₈O₃ (0.37 μgg^–1h^–1; ∼60% of total). For the first time, emissions of diterpenes (C₂₀H₃₂, C₂₀H₃₆, and C₂₀H₃₈) were observed from downy birch tree, although in minor quantities (0.1% of total emissions). During this late growing season, C₁₀H₁₆ and C₁₀H₁₄ contributed ∼7% in total emissions, while the sum of C₅H₈, C₁₅H₂₂, and C₁₅H₂₄ contributed around ∼3%. The branch experienced abiotic stress during the measurement period, which might explain the unusually high emissions of C₈H₈O₃. Standardized emission potentials are reported for all compounds using two Guenther algorithms. While emissions of most compounds fit well with either of the two algorithms, emissions of certain compounds like C₈H₈O₃ could not be explained by either suggesting the influence of other factors besides temperature and light. Vocus PTR-TOF-MS can help identify a diverse range of molecules even if emitted in minute quantities. The BVOCs detected from birch emissions may be important in the formation of secondary organic aerosols but their implications in the atmosphere need to be verified with further studies.

Introduction

Volatile organic compounds (VOCs) are emitted into the atmosphere from various biogenic and anthropogenic sources. The global annual biogenic VOC (BVOC) emissions are calculated to be ca. 1,000 Tg C, while the global anthropogenic estimation is suggested to be ten times lower (Simon et al., 2001). A diverse array of compounds has been identified to be emitted from vegetation. The major chemical classes can be classified into terpenoids (isoprene, monoterpenoids, and sesquiterpenoids), green leaf volatiles (GLVs; C6-aldehydes, -alcohols and their acetates), aromatic compounds such as benzenoids, and short-chained BVOCs (methanol, acetone, acetic acid, acetaldehyde, etc.). To avoid confusion, in this manuscript the word terpenes will refer to only the basic hydrocarbons, while the word terpenoids will refer to the whole group that includes both basic terpenes and a modified class of terpenes (oxygenated terpenes). These compounds have been recognized to have prominent effects on the atmosphere, with their lifetimes varying from seconds to days (Roger Atkinson and Arey, 2003). In the atmosphere, BVOCs can be oxidized by the hydroxyl radical (OH), nitrate radical (NO₃) and tropospheric ozone (Li et al., 2018; Šimpraga et al., 2019). These oxidation processes lead to the production of various compounds that are less volatile, including Highly Oxygenated Molecules (HOMs) that are products formed in the atmosphere and contain multiple functional groups (Kirkby et al., 2016; Bianchi et al., 2019). The reaction products (e.g., HOMs) are known to contribute to new particle formation (NPF) and secondary organic aerosols (SOA) (Bianchi et al., 2019). SOA can help cool the Earth by scattering solar radiation thereby altering the net radiation balance and also act as cloud condensation nuclei (Yli-Juuti et al., 2021).

Besides their impact on the atmosphere, BVOCs also have important biological and ecological functions. They act as tools for communication within the plant community as well as between plants and insects. They also help to relieve plants from stress caused by biotic and abiotic factors. The quantity and quality of BVOCs emitted can describe the state of the vegetation (stressed and non-stressed). Factors like temperature, light intensity, carbon dioxide, ozone, nutrients, and other factors like insect infestation can shift the BVOC emission dynamics (Hartikainen et al., 2009; Loreto and Schnitzler, 2010; Ormeño and Fernandez, 2012). As a result of these biotic and abiotic stresses, constitutive BVOC emissions are either enhanced or inhibited (Toome et al., 2010; Kleist et al., 2012; Jiang et al., 2016; Guidolotti et al., 2019; Yu et al., 2021). However, various stress elements, especially herbivory damage or pathogen infestation, can lead to stimulation of biochemical pathways that can induce a new blend of BVOCs (Blande et al., 2007; Aartsma et al., 2017; Guidolotti et al., 2019). For example, GLVs are a class of compounds that are emitted almost immediately after any stress that cause membrane damage to plants (Šimpraga et al., 2019).

While more than 1700 BVOCs have been recognized to originate from plant emissions (Faiola and Taipale, 2020), there remains a large chunk that is yet to be characterized. Recent studies concerning total OH reactivity especially in the boreal region have revealed the huge fraction of reactivity that remained unexplained. The following studies present a fact that using the current measurement techniques several reactive species emitted directly from trees are overlooked particularly during periods of stress. In a study held in Hyytiälä, Finland in 2008, on average, 50% of measured total OH reactivity could not be explained (Sinha et al., 2010). Total OH reactivity measurements from direct emissions of Norway spruce revealed 84% to be missing during late summer and autumn, especially during periods of heat-stress (Nölscher et al., 2013). In a study by Praplan et al. (2020), missing fraction of OH reactivity from birch emissions remained as high as 96% constantly.

While some trees in the boreal zone like Norway spruce and Scots pine have been studied extensively for their BVOC emissions, studies involving birch species mostly revolve around terpenoids namely monoterpenoids and sesquiterpenoids (Hakola et al., 1998, 2001; Vuorinen et al., 2005; Haapanala et al., 2009). However, diverse VOCs have been observed from headspace of birch branches (Zhang et al., 1999), buds (Isidorov et al., 2019), and also in essential oils (Demirci et al., 2000). Recently, Hellén et al. (2021) observed compounds ranging from GLVs to oxygenated sesquiterpenes from the emissions of downy birch. The study was conducted in two different years starting from the budding stage to the late growing season. A high amount of sesquiterpenes and oxygenated sesquiterpenes were emitted during the growing season with considerable GLV emissions observed in times of stress. This is the only study to observe a diverse range of BVOCs to be emitted from birch over a long period.

Proton-transfer-reaction mass spectrometry (PTR-MS) provides high sensitivity and time resolution to observe the drastic changes from plant emissions of BVOCs. However, the sensitivities of traditional quadrupole PTR-MS (Blake et al., 2009) are not enough to measure compounds of high molecular weight such as diterpenes and oxygenated sesquiterpenes. In this study, we used a Vocus proton-transfer-reaction time-of-flight mass spectrometer (Vocus PTR-TOF-MS), which is an improvement over conventional PTR instruments with enhanced capability to detect a broader spectrum of VOCs (Krechmer et al., 2018; Riva et al., 2019; Li et al., 2020b). The Vocus PTR-TOF-MS was deployed in August 2019 during the late growing season in a boreal forest to measure emissions from downy birch. We report a comprehensive list of compounds, varying from hydrocarbons to oxygenated molecules with the number of oxygen atoms up to 4. This would be the first time that a wide range of different molecules have been detected in real time from direct birch emissions, highlighting the importance of birch in the boreal ecosystem.

Materials and methods

Measurement site

Biogenic volatile organic compound (BVOC) emissions from birch were measured at the SMEAR II station (Station for Measuring Forest Ecosystem-Atmosphere Relations) in Hyytiälä located in southern Finland (61°50’ N 24°17’ E, 181 m a.s.l.) (Hari and Kulmala, 2005). The site is mainly a forest with a few houses and fields in the surroundings. The forest is dominated by conifers, mainly Scots pine but also Norway spruce. The forest also has a minor population of birch and aspen. Emissions were observed from a young downy birch (Betula pubescens) tree which was roughly 4 m tall. Measurements were recorded for a period of 10 days, from 14 to 23 August in 2019, during Finnish late summer. It is expected that senescence of leaves started during this period (Hellén et al., 2021). All results mentioned in the study are in universal time coordinated (UTC) time standard.

Experimental setup

The sampling technique in this study was similar to that used by Hellén et al. (2021). The downy birch branches were placed inside a 6 L cylindrical Teflon (FEP) film branch chamber and the emission rates were measured using a dynamic flow through technique. The chamber was equipped with inlet and outlet ports and the temperature and relative humidity in the chamber were recorded with a thermistor (Philips KTY 80/110, Royal Philips Electronics, Amsterdam, Netherlands). The photosynthetically active radiation (PAR) was recorded on top of the enclosure using a quantum sensor (LI-190SZ, LI-COR, Biosciences, Lincoln, NE, USA).

Zero air produced by a zero air generator (HPZA-7000, Parker Hannifin Corporation) was pumped into the chamber at a rate of 7 L min^–1 through FEP tubing. The zero air going into the chamber was humidified with ultrapure water to avoid dry conditions in the chamber. From the chamber outlet port, air was directed to the entrance of the Vocus PTR-TOF-MS at a rate of 2.5 L min^–1 through a 3 m long FEP tubing. The main sampling line was heated to reduce wall losses in the tubing. While we assume wall losses in the sampling line and the chamber to be negligible due to the high flow rate, there could have been losses of compounds with high molecular weight causing underestimation in the emission rates.

Biogenic volatile organic compounds emission analysis

A Vocus PTR-TOF-MS (Tofwerk AG/Aerodyne Research Inc.) was deployed to quantify BVOC emissions from the birch tree. Compared to conventional PTR instruments (Blake et al., 2009), the Vocus PTR-TOF-MS, referred to thereafter as Vocus, is equipped with a new chemical ionization source with a low-pressure reagent ion source and focusing ion-molecule reactor, thus improving the detection efficiency of product ions (Krechmer et al., 2018; Li et al., 2020a). In this study, the ionization source of the Vocus was operated at 1.4 mbar. At this pressure, around 0.1 Lmin^–1 of the total sample flow was directed into the Vocus, while the rest was used by other instruments. Krechmer et al. (2018) has given a detailed account on the dimensions and working of Vocus.

The instrument was automatically calibrated every 3 h using a calibration gas tank (Apel Riemer Environmental Inc.) containing 16 different compounds. The calibration gas tank included standards with the molecular formulas C_xH_y, C_xH_yO_z, and C_xH_yN_z. All compounds present in the calibration standard are listed in Supplementary Table 1. Isoprene and monoterpenes were quantified based on the calibration of their authentic standards. Other BVOCs with the formula of C_xH_y and C_xH_yO_z were quantified using the average sensitivity of the standards C₁₀H₁₆ and C₄H₆O, respectively.

The data were recorded with a time resolution of 5s using TofDaq Recorder provided by Tofwerk AG. The data were processed using the software package Tofware developed by Tofwerk AG, that enables mass calibration, baseline subtraction and molecular formula assignment to the identified ions. The application runs in the Igor Pro environment (Wavemetrics, Lake Oswego, OR, USA). Further analyses of the data were done in Excel and Python. The ambient weather data of Hyytiälä was taken from FMI open weather data (URL: https://en.ilmatieteenlaitos.fi/download-observations; accessed on 22-04-2021).

Calculation of emission rates

The emission rate of BVOCs is defined as the mass of compounds emitted per gram from dried leaves and can be calculated using equation 1 (Hakola et al., 2001).

$E=\frac{C*F}{m_{DW}}(1)$

where E is the emission rate of BVOCs (μg g^–1 h^–1), C is the concentration of VOCs in the outgoing air (μg m^–3), F is the flow rate of air through the enclosure (m³ h^–1). The dry weight of the leaves is m_DW (g). To determine dry weight, the leaves were cut and dried at 60°C for at least 24 h and then weighed.

Calculation of emission potentials

Biogenic volatile organic compound (BVOC) emissions are controlled by various factors such as leaf temperature, stomatal conductance, humidity, light, and others. The temperature-controlled emission of BVOCs from storage structures (pool emissions) and direct emissions (de novo emissions) of synthesized compounds that are dependent on both leaf temperature and light intensity have been used to effectively model BVOC emission in other studies (Tarvainen et al., 2005). In this study, emission potentials using both temperature (T) algorithm and temperature-light (TL) algorithm were calculated as proposed by Guenther et al. (1993).

For pool emissions, the emission rate is parameterised using the following equation:

$E=E_T*ex{p}^{\beta \left(T-T_S\right)}(2)$

where, E is the emission rate at temperature T (K). By performing a linear fit to the log of measured emissions and T-T_S, we can get β (K^–1), the slope ($\frac{dlnE}{dT}$) that describes the sensitivity of temperature on emissions, while exponential of y-intercept gives E_T (μg g^–1 h^–1) which is the emission potential at standard temperature (T_S = 303.15 K).

For the direct emission of compounds, the emission rate is parameterised using the formula.

$E=E_{TL}\left(C_T*C_L\right)(3)$

where, E_TL is the emission potential at standard temperature and light (303.15 K, 1,000 μmol m^–2 s^–1) obtained from the slope of linear fit between C_T*C_L and measured emission rate. C_T and C_L are temperature and light correction factors, respectively. These are formulated as,

$C_T=\frac{exp([C_{T1}\left(T-T_S\right)]/R{T}_{S}T)}{1+exp([C_{T2}\left(T-T_M\right)]/R{T}_{S}T)}(4)$

$C_L=\frac{\alpha C_{L1}L}{\sqrt{1+{\alpha }^2{L}^2}}(5)$

where T (K) and T_S are chamber temperature and standard temperature, respectively. L is the photosynthetically active radiation (PAR, μmol m^–2 s^–1), R is the universal gas constant and T_M,C_T1,C_T2,C_L1and α are empirical constants as given in Guenther et al. (1993).

Results

Molecular composition of biogenic volatile organic compound emissions

The BVOC emissions from birch were measured by Vocus for a period of 9 days. While several studies have deployed Vocus to study ambient VOCs, this would be the first one to quantify direct BVOC emissions from trees using Vocus. Figure 1 shows the mass defect plot of the identified BVOCs from birch emissions, colored according to their elemental composition. In addition to isoprene (C₅H₁₀) and monoterpenes (C₁₀H₁₄, C₁₀H₁₆), direct emissions of sesquiterpenes (C₁₅H₂₂, C₁₅H₂₄) and diterpenes (C₂₀H₃₂, C₂₀H₃₆, and C₂₀H₃₈) were also clearly observed. Overall, most of the compounds were identified as oxygenated VOCs.

FIGURE 1

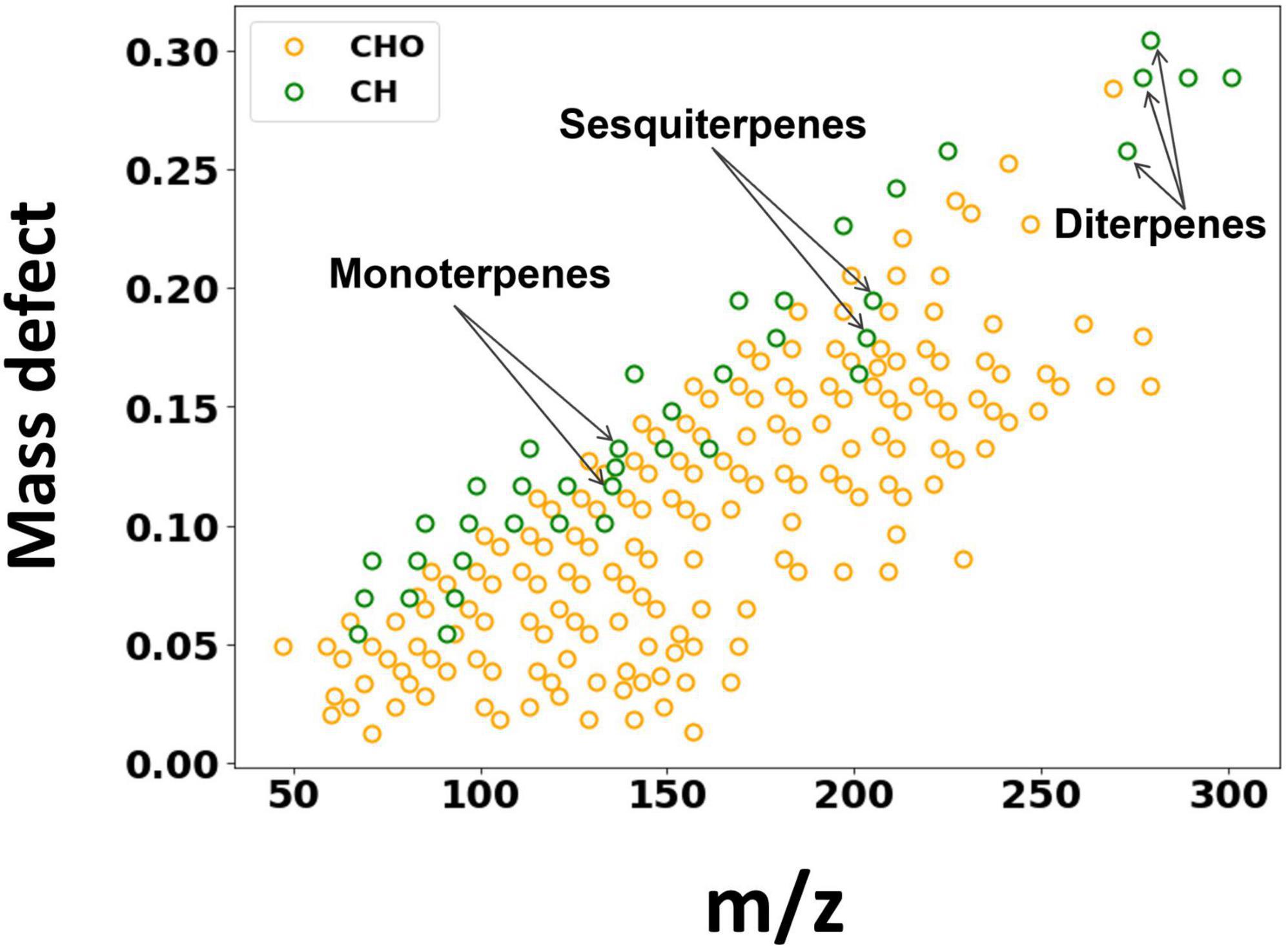

Figure 1. Mass defect plot of the ions identified by the Vocus. The x axis is the mass-to-charge ratio and the y axis shows the mass defect, which is the deviation of the exact mass from the nominal mass. Data points are colored by their elemental composition.

Among all the identified molecular formula, 49 of them were further investigated in this study (Supplementary Table 2). The oxygenated compounds are classified into three classes (OVOC class 1, OVOC class 2, and OVOC class 3) based on the number of oxygen atoms. Class 1 consists of compounds with 1 oxygen atom, class 2 consists of compounds with 2 oxygen atoms and class 3 contains compounds with 3 and 4 oxygen atoms. These compounds were selected according to the following guidelines to avoid the possibility of contamination or fragmentation: (1) they have a clear diurnal pattern that are similar to the more frequently measured BVOCs such as isoprene and monoterpenes, and (2) In PTR-MS, different isomers can fragment into smaller molecules based on the physical and chemical properties. It is difficult to separate real emission from fragmentation, and all compounds included in this list have been demonstrated to be present in plant emissions previously. Moreover, data from 19 August to 21 August were excluded for calculation of emission potentials due to the relatively higher background levels than the other days. The measurements are also attributed to uncertainties from the following sources: (1) Background signal could not be corrected due to contamination of zero air of Vocus. While this may not be an issue for highly emitted compounds, there were a couple of days that clearly affected the compounds emitted at a rate close to the detection limit of the instrument. (2) The drop in relative humidity in the chamber may have influenced the emissions of BVOCs. (3) The calibration standard does not contain all gases and hence this would contribute to the uncertainty as all gases respond differently in the PTR system. (4) While inlet lines and chamber have been tested for the sampling of terpenes (Helin et al., 2020), losses can still exist for oxygenated compounds.

Environmental parameters in the atmosphere and chamber

The branch experienced a certain level of stress inside the chamber. The ambient conditions remained relatively stable with temperature ranging between 6 and 21°C, while chamber temperature varied drastically. The lowest temperature was around 7°C and it rose to 41°C during the measurement period. The temperature inside the chamber was much higher than ambient when PAR was higher than 500 μmol m^–2 s^–1 during the day. Otherwise, the average temperature in the chamber did not differ from ambient by more than 2°C. High PAR was observed on 16 August although similar PAR was observed for a longer duration on 20 August which could have caused the chamber temperature to be slightly higher on 20 August.

Besides that, the branch also experienced dry conditions relative to the surroundings, for a period of 3 days (Figure 2) as relative humidity in the chamber decreased from 62–84% to 34–84% on 16 August. The relative humidity inside the chamber returned to higher RH on 19 August. The subsequent increase in RH was a consequence of refilling the humidifier. The relative humidity inside the chamber was similar to the ambient conditions differing only by 5% when ignoring the dry period. Generally, the branch experienced considerable stress due to the dry and warm conditions. While the stress due to relative humidity cannot be explained from the emissions, temperature stress has clearly induced higher BVOC emissions which will be discussed later.

FIGURE 2

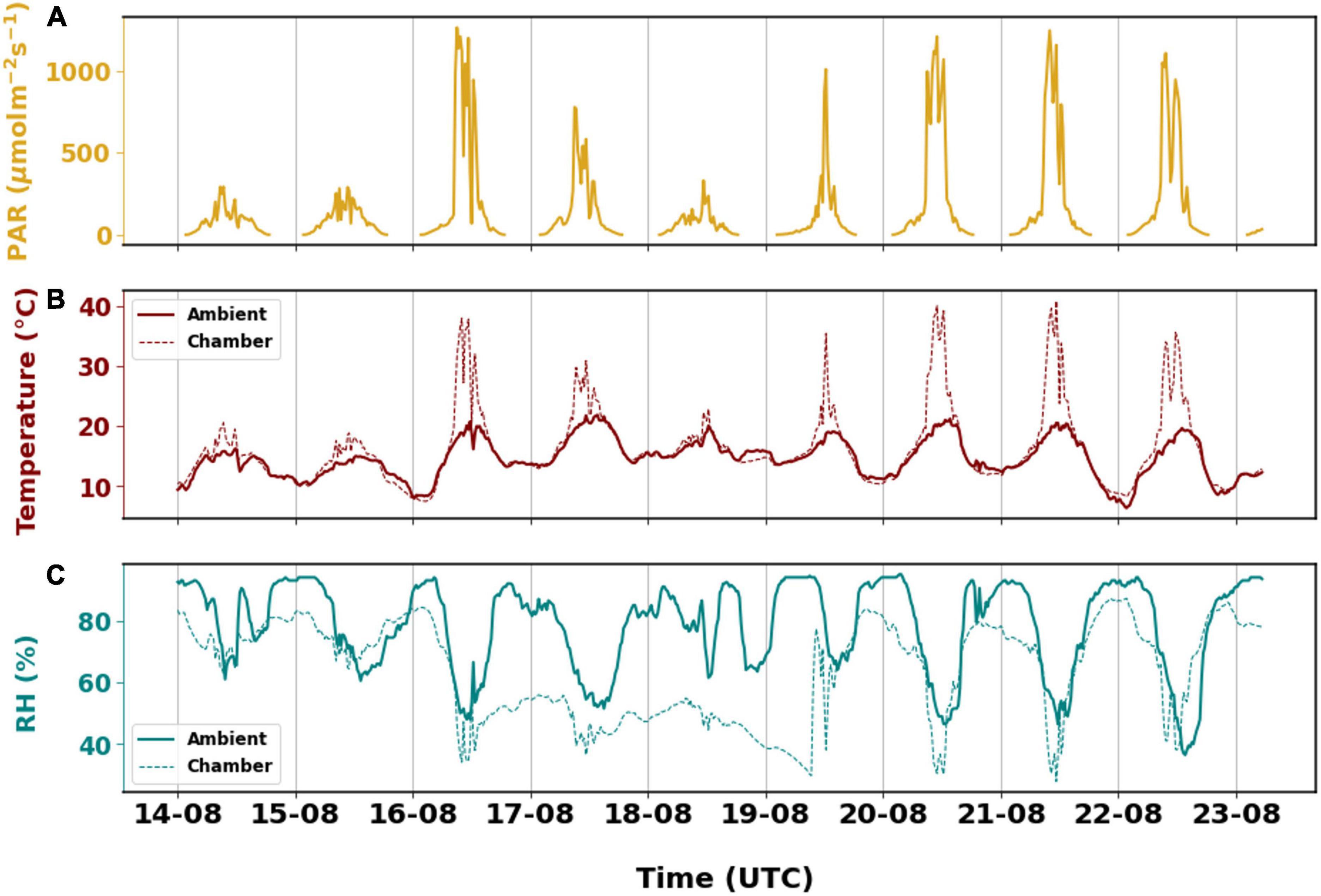

Figure 2. The different environmental parameters that are observed from August 14th, 2019 to August 23rd, 2019. (A) Photosynthetic active radiation recorded on top of the branch enclosure. Observations of (B) temperature and (C) relative humidity inside the chamber and in ambient environment. In panels (B,C), the solid lines are ambient observations downloaded from FMI open weather data. The dashed lines are measurements from the sampling enclosure.

Overview of biogenic volatile organic compound emissions

Figures 3A,C show the average diurnal pattern of BVOC emissions from the measured downy birch. BVOC emissions peaked at 10:00. However, PAR was high an hour before while temperature was seen to be high at both 9:00 and 11:00 (Figure 3B). The branch seemed to have responded an hour later at 10:00 with higher BVOC emissions as a consequence of high PAR and temperature. An increase of 20°C in chamber temperature was observed from 8:00 to 9:00. Consequently a 90% increase in total emission rate also occurred.

FIGURE 3

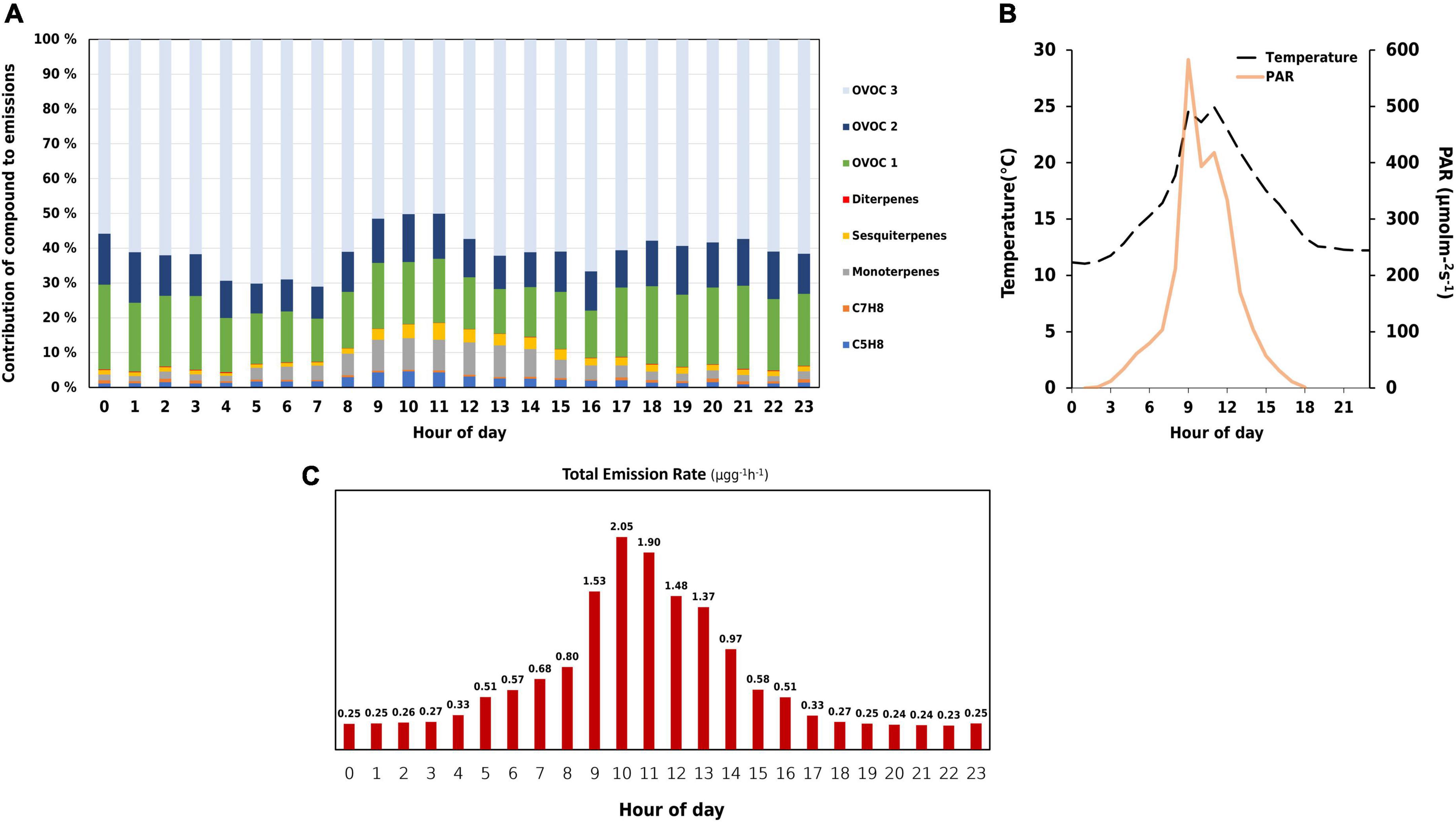

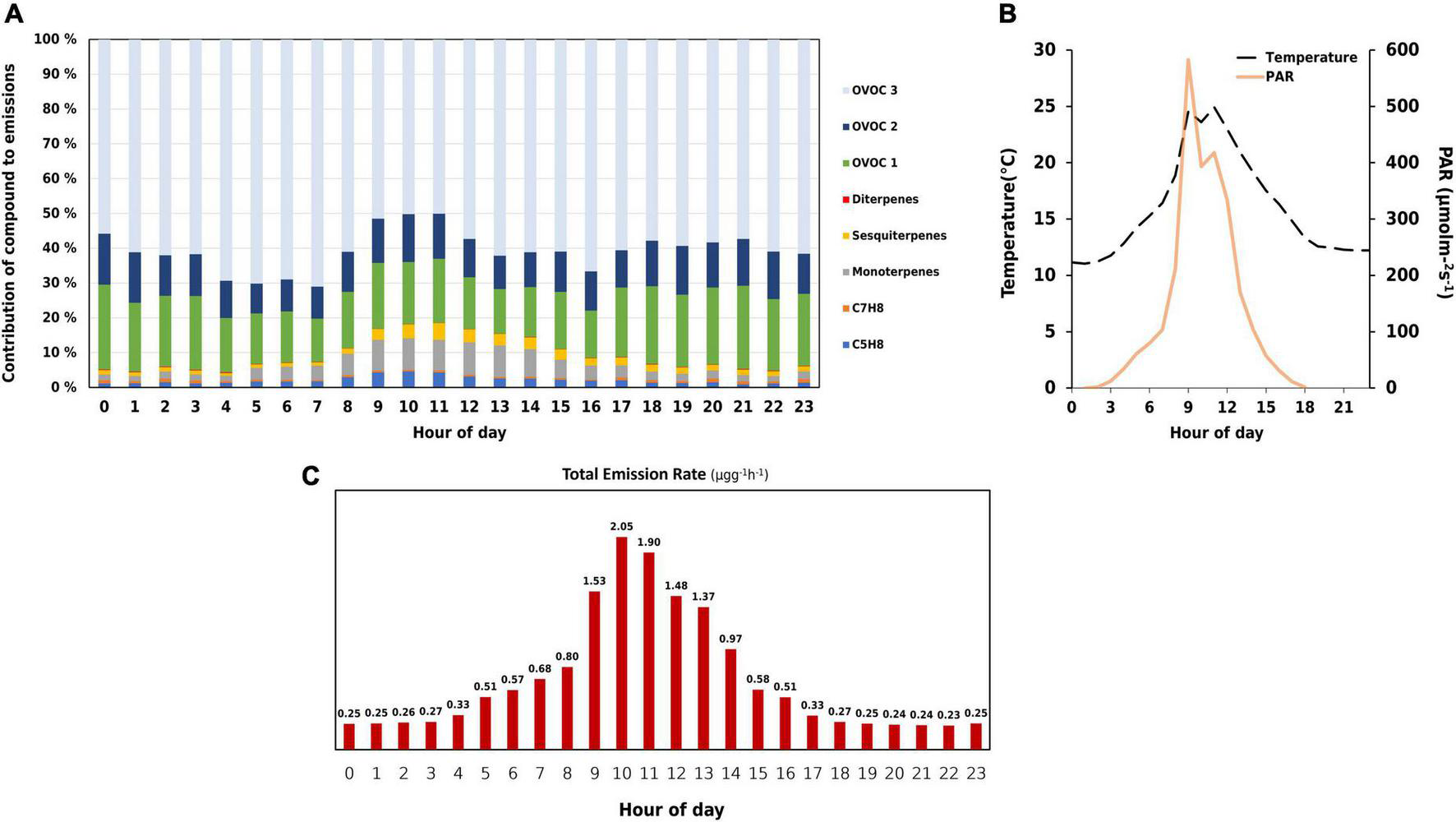

Figure 3. Plots describing hourly variations of (A) emission contribution of different biogenic volatile organic compounds (BVOCs). Monoterpenes include C₁₀H₁₄ and C₁₀H₁₆, sesquiterpenes include C₁₅H₂₂ and C₁₅H₂₄, and diterpenes include C₂₀H₃₂, C₂₀H₃₆, and C₂₀H₃₈. Oxygenated compounds (OVOCs) have been split into three classes based on the oxygen number. OVOC class 1 consists of 1 oxygen, OVOC class 2 consists of compounds with 2, while OVOC class 3 contains compounds with 3 or more. (B) Chamber temperature (°C) and PAR (μmol m^{– 2} s^{– 1}), and (C) total emission rate (μgg^{– 1}h^{– 1}).

From the daily variations, almost every compound (or) class reached its maximum on 20 August, which could be attributed to the high PAR and considerably high temperature (Table 1). In this study, oxygenated compounds were seen to contribute significantly to the birch emissions. OVOC class 3 emissions increased gradually with a dip on 19 August. OVOC class 1 and 2 peaked on days when the mean temperature was at least 3°C higher than the previous day. However, a burst in their emissions was seen on 19 August which could be a result of the sudden increase in humidity in the chamber around noon. Emissions from OVOC class 3 were highest on 22 August. Due to low temperature and PAR during the first two days of the campaign, emissions were low too.

TABLE 1

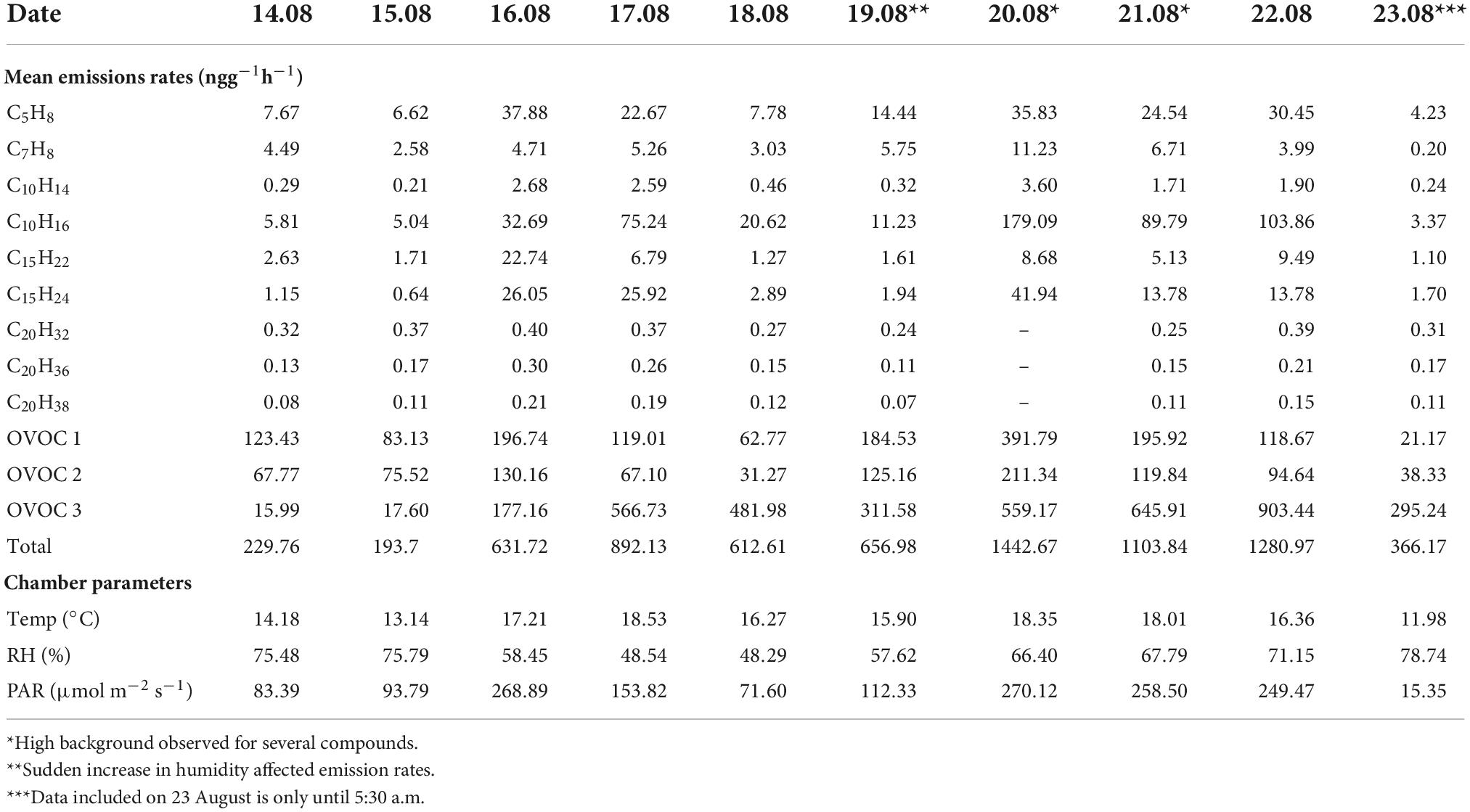

Table 1. Daily mean emission rates (ngg^–1h^–1) of different compounds and mean of observed chamber parameters. The emission rates of oxygenated compounds (OVOC) classes are sum of the mean of individual compounds in the respective classes.

C_xH_y compounds

Figure 4 shows the different C_xH_y compounds that were observed during the measurement period. Monoterpenes (C₁₀H₁₄ and C₁₀H₁₆) had highest emissions among non-oxygenated compounds (∼7% overall). Emissions of C₁₀H₁₆ were greatest on 20 August although similar chamber temperatures were observed on 16 August too. During the measurement period, C₁₅H₂₂ emissions were the highest on 16 August, while highest emissions of C₁₅H₂₄ were observed on 20 August. We observed emissions of isoprene to be emitted similarly (∼0.02 μg g^–1h^–1) to sesquiterpenes in the late growing period. Emissions of isoprene correlated well with PAR (r = 0.90) in our study.

FIGURE 4

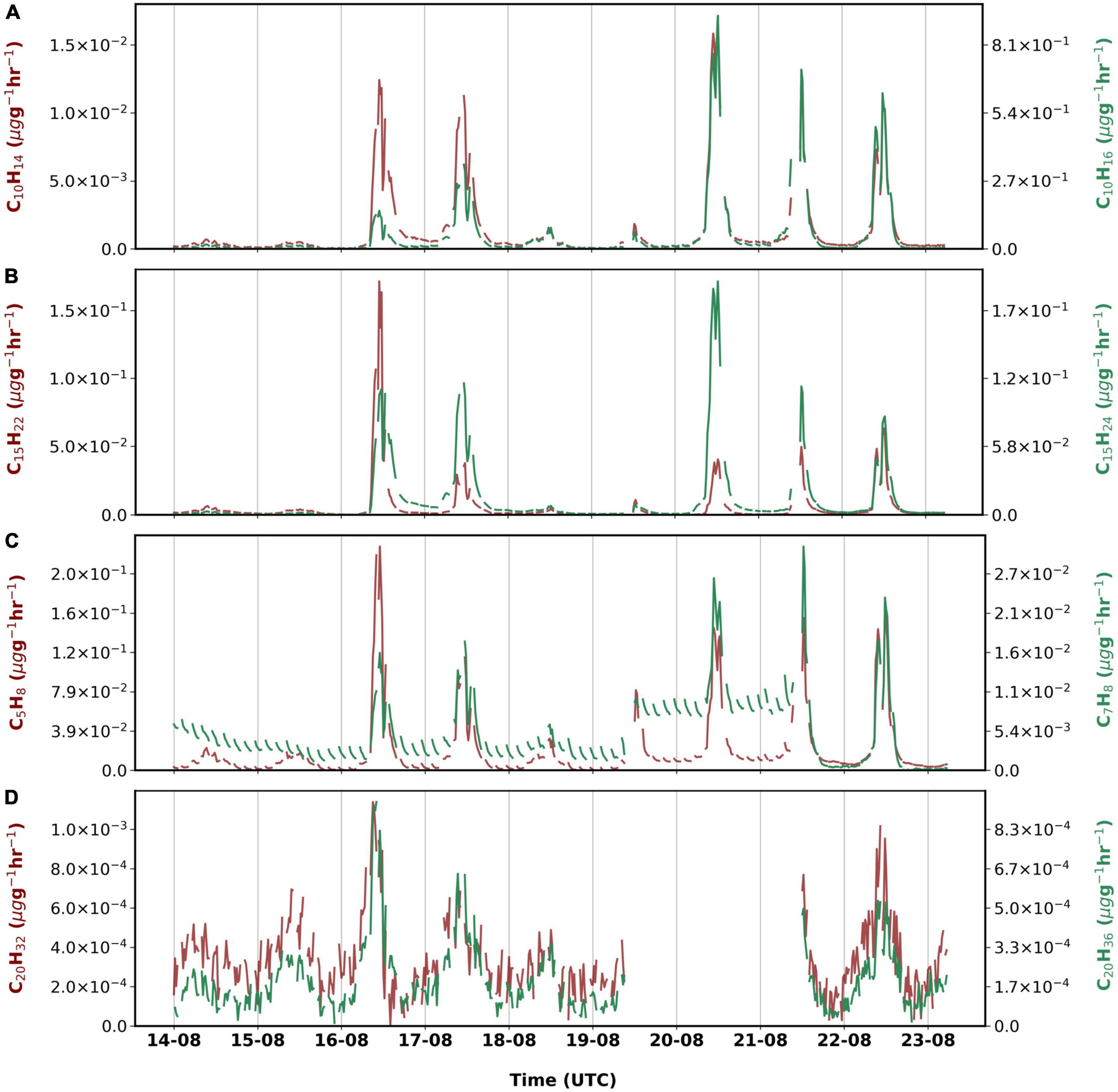

Figure 4. Emissions rates of (A) monoterpenes, (B) sesquiterpenes, (C) isoprene and toluene and (D) diterpenes measured from 14 August 2019 to 23 August 2019.

For the first time, emissions of different diterpenes (C₂₀H₃₂, C₂₀H₃₆, and C₂₀H₃₈) from birch were observed using the Vocus. The sum of their emissions accounts for less than a percent of the total observed, which could be due to the time of the measurements during the late growing season.

Oxygenated compounds classes 1 and 2 emissions

A wide array of oxygenated compounds was observed from birch emissions using the Vocus. In OVOC class 1, 65% was seen from C₃H₆O, while C₄H₆O, C₆H₁₀O, and C₉H₁₈O amounted to 17%. In OVOC class 2, emissions were mostly from C₂H₄O₂ (∼76%) and around 17% from C₃H₆O₂, C₇H₆O₂, and C₈H₁₄O₂. Several compounds in class 1 and 2 emitted a lot more on 16 and 20 August which was a result of the high temperature observed during the daytime. Emissions of the observed oxygenated compounds have rarely been reported.

The compounds C₂H₄O₂ and C₃H₆O were emitted in a similar pattern (r = 0.92) and contributed approximately 9 and 11% to the total observed emissions, respectively. C₂H₄O₂ and C₃H₆O are tentatively identified as acetic acid and methyl acetate. In the overall OVOC class, all other 37 compounds belong to minor components and have a total share of about only 10%. We also observed emissions of C₁₀H₁₈O, C₁₀H₁₆0, and C₁₀H₂₀O which could be oxygenated monoterpenes. However, their sum emissions contributed up to only 0.5% to the total observed emissions. All three positively responded to the spikes in temperature with significant emissions observed on 16 August and 21 August. We also observed several oxygenated sesquiterpenes (C₁₅H₂₂O, C₁₅H₂₄O, C₁₅H₂₄O₂, C₁₅H₂₂O₂, and C₁₅H₂₆O) with C₁₅H₂₂O contributing the highest (0.3%) to the total emissions. While C₁₅H₂₆O had only 0.1% share in the total, the compound was emitted at a higher rate than the other four on 20 August.

C₄H₆O, C₅H₆O, and C₅H₁₀O could be in plant isoprene oxidation products (methyl acrolein (MACR)/methyl vinyl ketone (MVK) and 3-methyl furan (3-MF) respectively) and 2-methyl-3-buten-2-ol (MBO). All these three masses were found to be emitted in minor quantities, lower than isoprene. In our study we observed significant emissions of C₄H₆O (0.01 μg g^–1h^–1), but much lower emissions of C₅H₆O (0.0017 μg g^–1h^–1) and C₅H₁₀O (0.0019 μg g^–1h^–1). Relatively higher emissions of all these compounds were observed during high temperature and light events such as on 16 August and 22 August.

Emissions of other BVOCs such as C₆H₁₀O, C₆H₁₂O, C₈H₁₄O₂, and C₉H₁₈O were an order of magnitude more on 16 August and 22 August in comparison to other days. The branch in our study experienced dry periods (RH < 40%) from August 16 to August 19 and high temperatures (> 30°C) between 9:00 a.m. and 14:00 p.m. on 16, 19 20, and 21 August (Figure 2.). The increased emissions of compounds observed during this period may have been a consequence of stress (Figure 3).

Oxygenated compound class 3 emissions

The compound with molecular formula C₈H₈O₃ was emitted the most during our measurement period, contributing to around 60% in total emissions and 99% of the OVOC 3 group. Diurnal variation of the C₈H₈O₃ emissions followed the temperature, but daily mean emissions showed a delay in response to temperature (Table 1 and Figure 5). For example, daily mean temperature was > 18^oC on 20 and 21 August, while on 22 August, when the emissions of C₈H₈O₃ were highest, the mean temperature was only 16°C (Figure 5). Likewise, temperatures rose to around 40°C on August 16, but emissions of C₈H₈O₃ were higher on 17 August. The correlation between temperature and C₈H₈O₃ was better when temperature was shifted forward by 1 day.

FIGURE 5

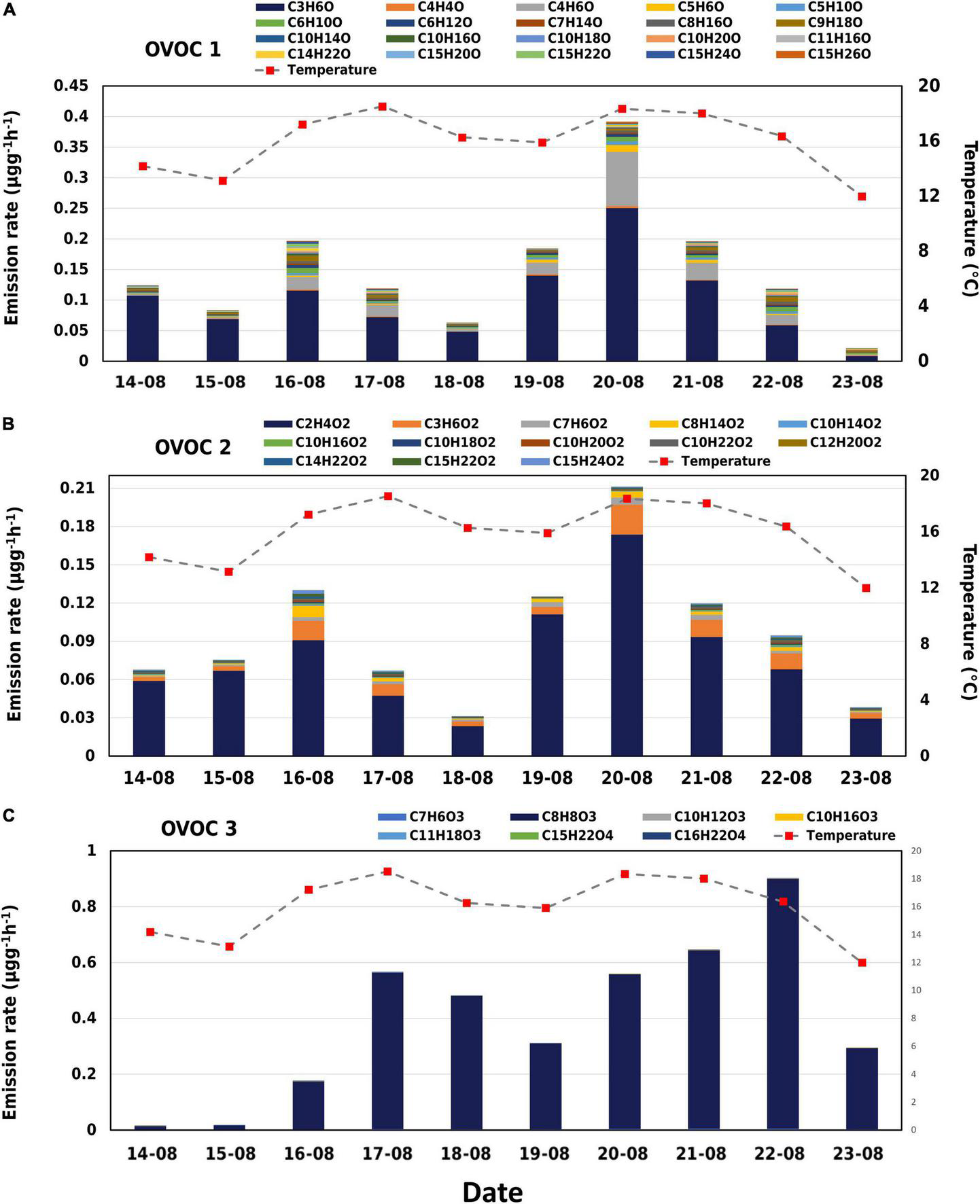

Figure 5. Emissions of the oxygenated compounds split into different classes measured from 14 August 2019 to 23 August 2019. (A) OVOC class 1 consists of compounds with 1 oxygen atom. (B) OVOC class 2 consists of compounds with 2 oxygen atoms. (C) OVOC class 3 consists of compounds with 3 or more oxygen atoms.

Another OVOC 3 compound, C₇H₆O₃ was also observed here, and it correlated closely with C₈H₈O₃ emissions (r = 0.96). Compounds consisting of even 4 oxygen atoms were also observed but their contributions were negligible.

Temperature and light dependence of biogenic volatile organic compound emissions

In this study, we tried to understand how temperature and light influences BVOC emissions using the algorithms given in section “Calculation of emission potentials.” Terpenoid emissions from trees originate as a result of evaporation from storage pool (pool emissions) such as resins and canals found in conifers (Grote and Niinemets, 2008; Ghirardo et al., 2010; Loreto and Schnitzler, 2010). However, they can also be emitted directly (de novo) as a result of photosynthesis in chloroplasts in deciduous trees like birch (Loreto et al., 1996; Ghirardo et al., 2010; Taipale et al., 2011). In reality it is not possible to give a clear distinction with regard to BVOC emissions between storage pools and de novo production (Grote and Niinemets, 2008). Other BVOCs besides terpenoids are emitted directly as a result of stress or in connection with plant metabolic activity (Šimpraga et al., 2019).

A graph illustrating the fit for C₁₀H₁₆ using the two algorithms has been shown as an example in the Supplementary Figure 1. The same was repeated for all compounds to obtain the different parameters using both algorithms. The T-algorithm explained the emission rates of monoterpenes and sesquiterpenes better than the TL-algorithm and yielded a higher R². As shown in Table 2, the R² of T-algorithm was slightly higher than that of TL-algorithm for C₁₅H₂₂ and C₁₅H₂₄. For C₁₀H₁₆, R² was much higher using the T-algorithm than the TL- algorithm. For isoprene, the temperature and light algorithm better explained its emissions (R² = 0.95; Table 2). The correlations of diterpenes using both algorithms were generally less (R² < 0.7). Although we see a slightly better correlation using the TL-algorithm, conclusive results cannot be obtained from our field experiments. The emissions of C₈H₈O₃ gave one of the lowest correlations with both algorithms (R² < 0.4). Its emissions from downy birch tree may be induced by stress. In our study, C₁₀H₁₈O was better correlated using the TL-algorithm (R² = 0.96) than just using temperature. The TL-algorithm clearly fit the emissions of several oxygenated compounds much better than the T-algorithm, producing R² as high as 0.96.

TABLE 2

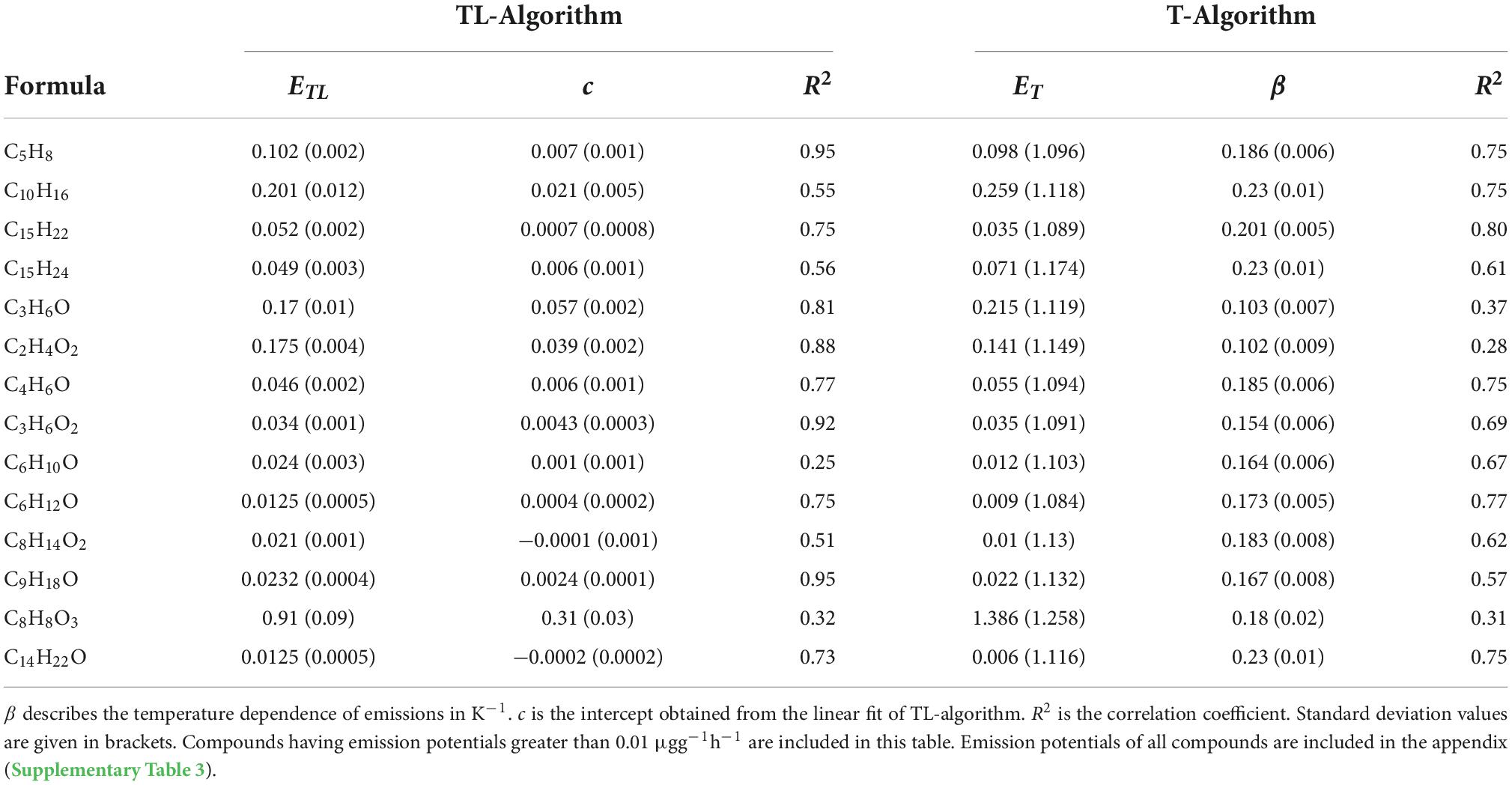

Table 2. Emission potentials of different compounds calculated using temperature (E_T) and temperature-light algorithm (E_TL) in μgg^–1h^–1.

The β values that describe the sensitivity of emissions on temperature calculated here are higher than usual (Table 2). The highest β value calculated in this study was 0.23 K^–1 for C₁₀H₁₆, C₁₅H₂₄, and C₁₄H₂₂O respectively. Temperature dependency for both sesquiterpenes and monoterpenes were similar in our study. The diterpene C₂₀H₃₂ showed the least temperature dependency, with a β value of only 0.04 K^–1, unlike the other two diterpenes.

Emission potentials

All emission potentials (Supplementary Table 3) were calculated at the temperature of 30°C for comparison with other studies. This is one of the first studies to calculate emission potentials for a vast range of oxygenated compounds and therefore is difficult to compare with other studies. Emission potentials of the different compounds observed vary over three orders of magnitude.

We report for the first-time emission potentials of diterpenes from birch. The values varied from 0.0002 to 0.0003 μg g^–1 h^–1 (TL-algorithm) and 0.001 to 0.0004 μg g^–1h^–1 (T-algorithm) depending on the compound (Supplementary Table 3). The emission potentials of all diterpenes calculated for birch in our study were found to be three orders lower than C₁₀H₁₆, which highlights low emissions of diterpenes even in high temperatures during late summer. The highest emissions potentials were observed for C₈H₈O₃ (E_T: 1.386 μg g^–1h^–1; E_TL: 0.91 μg g^–1h^–1) followed by C₁₀H₁₆ (E_T: 0.259 μg g^–1h^–1; E_TL: 0.201 μg g^–1h^–1) using both T and TL algorithms.

Discussion

The emission spectra

The downy birch emissions in our study were dominated by oxygenated compounds, while monoterpenes (C₁₀H₁₄ and C₁₀H₁₆) dominated the emissions of non-oxygenated compounds. Higher emissions of monoterpenes in comparison to sesquiterpernes during the late growing season are in agreement with that reported in Hellén et al. (2021) and Zhang et al. (1999). Both studies also reported that sesquiterpenes and oxygenated sesquiterpenes dominated during the main growing season while monoterpenes were emitted in the largest proportions during late summer. In the study by Hellén et al. (2021), sesquiterpenes were emitted 2–15 times more than monoterpenes during the early and main growing seasons.

C₇H₈ which is speculated to be toluene, was measured to be around 1% for the whole period. A few other studies have reported toluene emissions from plants (Heiden et al., 1999; Holzinger et al., 2000; White et al., 2009; Misztal et al., 2015). Toluene is a compound that is widely present in the atmosphere and assumed to be emitted primarily from various anthropogenic sources (White et al., 2009). While a broad array of benzenoid compounds are produced in plants from different metabolic pathways, studies reporting natural emissions of toluene are less and hence their emissions into the atmosphere could be underestimated (Misztal et al., 2015).

Matsunaga et al. (2011) and Yáñez-Serrano et al. (2018) have reported emissions of diterpenes from shrubs and conifers, respectively. However, kaur-16-ene emissions observed in their studies were either comparable or exceeded monoterpene emissions. Helin et al. (2020) found six different diterpenes in the emission from Norway spruce needles while heated to > 40°C. In our study the emissions of diterpenes were almost three orders of magnitude lower than those of monoterpenes.

Compared with previous birch studies that have taken place in natural growing conditions, we have reported oxygenated molecules, with up to 4 oxygen atoms to be emitted from the downy birch leaves. Only one another study which was conducted in the headspace of birch buds has reported similar oxygenated compounds (Isidorov et al., 2019). The study identified 156 compounds, most of which had a minor contribution (< 1% of the chromatograph), besides a few belonging to oxygenated monoterpenes and oxygenated sesquiterpenes. In our study, 37 oxygenated molecules have a share of about only 10% in the OVOC group, while C₈H₈O₃ contributed to 65% of the OVOC emissions. Zhang et al. (1999) also observed oxygenated compound emissions from downy birch although many of them were not identified. Klika et al. (2004) reported several oxygenated sesquiterpenes with up to three oxygen atoms present in the essential oil of mountain birch buds. While studies have given insights on the wide array of oxygenated compounds present in oils or emitted from buds, only Hellén et al. (2021) has observed leaf emissions of different oxygenated compounds from downy birch.

Signs of stress

The branch experienced heat and dry conditions. Signs of other infections such as insect herbivory were not visible at the time of measurement. C₈H₈O₃ that was emitted in plenty could be methyl salicylate (MeSa), which is a BVOC emitted upon both biotic and abiotic stresses (Llusià et al., 2005; Filella et al., 2007; Vuorinen et al., 2007; Blande et al., 2010; Liu et al., 2018). Llusià et al. (2005) and Filella et al. (2007) found increasing MeSa emissions with increase in temperature. MeSa emissions from Norway spruce observed by Filella et al. (2007) were lower than those of monoterpenes. When silver birch was infested with aphids in a study by Blande et al. (2010), MeSa contributed up to 50% to the observed emissions, while Vuorinen et al. (2007) reported greater induction of terpenoids than MeSa when silver birch was infested with moths. There is evidence that MeSa may have an impact on monoterpene emissions. Liu et al. (2018) found that when silver birch was exposed to MeSa, monoterpene emissions decreased. Only exception was β-ocimene, which had positive correlation with MeSa concentrations. However, it is not possible to check such correlations with just Vocus data. Based on the studies by Hellén et al. (2021) high emissions of β-ocimene were measured from the downy birch branch in 2019 at the same time as C₈H₈O₃ emissions were detected in this study. Diurnal variation of the C₈H₈O₃ emissions followed the temperature (Figure 6), but daily mean emissions showed a delay in response to temperature (Table 1 and Figure 5). For example, daily mean temperature was > 18^oC on 20 and 21 August, while on 22 August, when the emissions of C₈H₈O₃ were highest, the mean temperature was only 16°C (Figure 5). Likewise, temperatures rose to around 40°C on August 16, but emissions of C₈H₈O₃ were higher on 17 August. The correlation between temperature and C₈H₈O₃ was better when temperature was shifted forward by 1 day. The emissions of C₈H₈O₃ also gave one of the lowest correlations with both algorithms (R² < 0.4). Therefore, implying their emissions from downy birch tree may be induced by stress. Bourtsoukidis et al. (2014) also reported that MeSa and linalool emissions from Norway spruce were poorly described by the T-algorithm (R² < 0.2). In addition to temperature and other stress factors, late growing season with starting senescence of the leaves may have an impact on these emissions. The emission of C₇H₆O₃ that correlated well with MeSa, could be salicylic acid, which is an important signaling molecule that induces heat tolerance in plants (Filella et al., 2007).

FIGURE 6

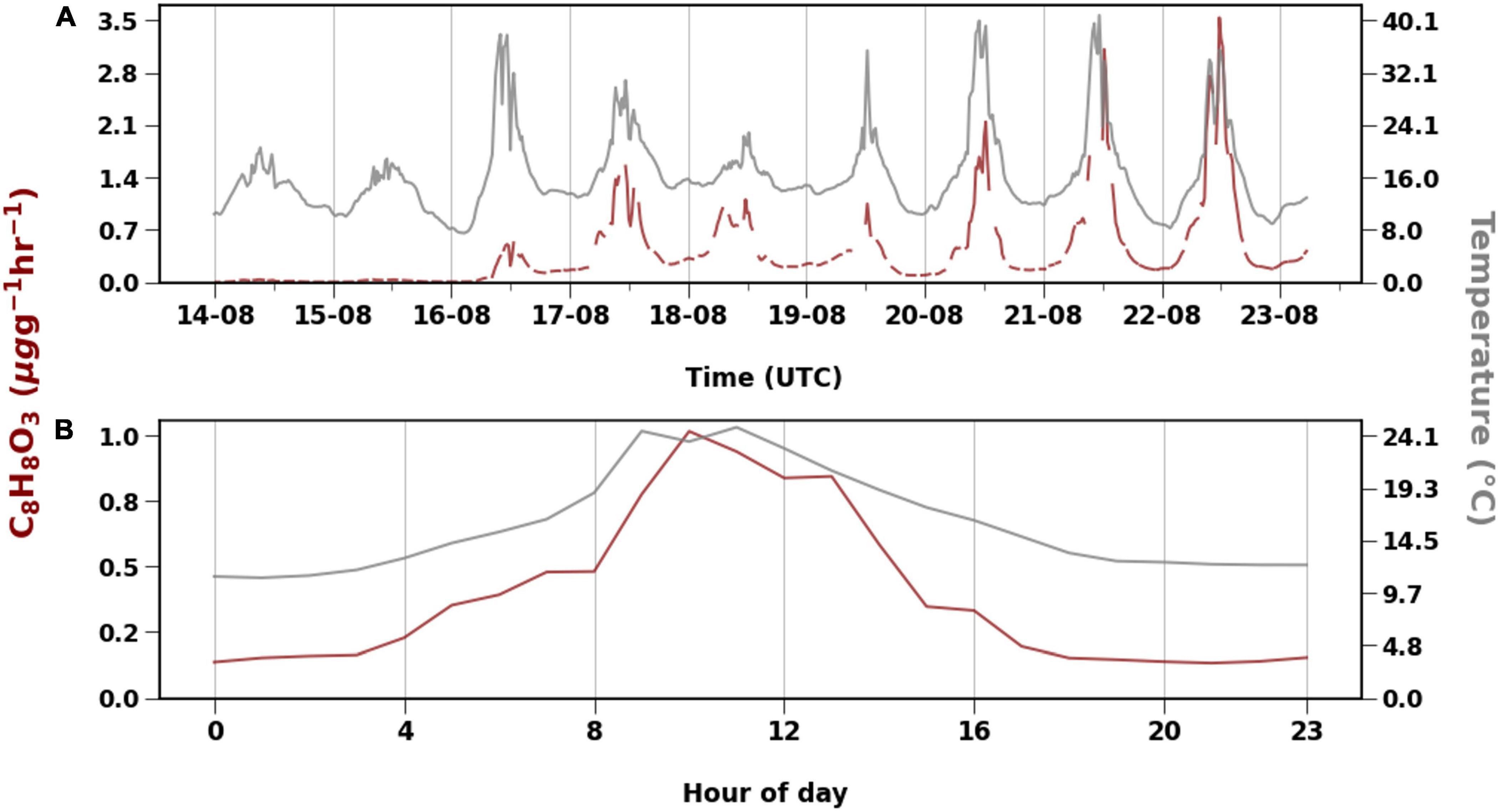

Figure 6. Emission of C₈H₈O₃ with temperature (°C) for the whole measurement period (A) and diurnal variation (B).

Toluene can also be induced from plants in response to stress (Heiden et al., 1999; Guenther, 2013). Heiden et al. (1999) measured toluene emissions from non-stressed pine trees and it reached a maximum of approximately 13 ng g^–1h^–1, which is less than what was observed here (max ∼ 30 ng g^–1h^–1). Misztal et al. (2015) observed spikes in toluene emissions when the plant was subjected to rapid temperature bursts for short periods which normally occur with the type of setup used in our study.

Emissions of other BVOCs such as C₆H₁₀O, C₆H₁₂O, C₈H₁₄O₂, and C₉H₁₈O increased by an order of magnitude on 16 August and 22 August in comparison to other days. Hellén et al. (2021) observed C₄–C₁₀ aldehydes and green leaf volatiles (GLVs) such as cis-3-hexenyl acetate and cis-3-hexen-1-ol from downy birch trees. In the same study, aldehydes were not measured in 2019 but their mean emission rate in 2017 was measured to be 0.023 μg g^–1h^–1. The emission rate of cis-3-hexenol measured in that study was 0.006 μg g^–1h^–1 during the late growing season in 2019. In our study, we observed lower emissions of C₆H₁₂O (0.0019 μg g^–1h^–1). GLVs are compounds that are normally released in large amounts from damaged membranes of the leaves (Holopainen, 2004). Jardine et al. (2015) observed bursts of C₆ and C₅ GLV emissions at high temperature (42°C) with a continuous increase even after stabilization of leaf temperature. It was hypothesized that high temperatures and low humidity levels may cause membrane damage and consequently increase GLV emissions (Kleist et al., 2012; Jardine et al., 2015). The branch in our study experienced dry periods (RH<40%) from August 16 to August 19 and high temperatures (> 30°C) between 9:00 a.m. and 14:00 p.m. on 16, 19 20 and 21 August (Figure 2.). The increased emissions of compounds were observed during this period which may have been a consequence of such stress (Figure 3).

C₄H₆O, C₅H₆O, and C₅H₁₀O could be in plant isoprene oxidation products [methyl acrolein (MACR)/methyl vinyl ketone (MVK) and 3-methyl furan (3-MF), respectively] and 2-methyl-3-buten-2-ol (MBO). Reports of direct emissions of isoprene oxidation products are less, although MBO has been reported in plenty. Jardine et al. (2012) confirmed in-plant isoprene oxidation and high emissions of MVK and MACR relative to isoprene during temperature and light stress. Jardine et al. (2013) conducted stress experiments on isoprene and non-isoprene emitting species (mango tree and soursop, respectively) to observe emissions of isoprene, MACR, MVK, 3-MF, and MBO. In the same study, while there was clear enhancement of isoprene oxidation products in response to high temperature and light from mango trees, this was not seen from non-isoprene emitting species. In our study we observed significant emissions of C₄H₆O (0.01 μg g^–1h^–1), but much lower emissions of C₅H₆O (0.0017 μg g^–1h^–1) and C₅H₁₀O (0.0019 μg g^–1h^–1) were detected. Meanwhile, C₅H₁₀O could be attributed to pentanal, a common aldehyde that can be constitutive but also induced (Hakola et al., 2017; Kanagendran et al., 2018). In this study, we found relatively higher emissions of all these compounds during high temperature and light events such as on 16 August and 22 August.

While previous emission studies of birch leaves have shown substantial amounts of monoterpenes released especially closer to autumn, emission of many of the detected oxygenated compounds has not been observed from downy birches before. In addition to differences in the emissions and stress situations, the reason for this may also be instrumental limitations. Basic gas chromatographic set ups traditionally used for the BVOC emission studies are not sensitive to MeSa or other compounds with 3 oxygen atoms and therefore even relatively high emissions may have remained undetected. To confirm significance of these emissions more measurements during different seasons and stress situations are needed.

Conclusion and outlook

A Vocus PTR-TOF-MS was deployed in a boreal forest to measure BVOC emissions of downy birch during late August 2019. With increased detection efficiency and higher mass resolution, the Vocus proved much more than capable to be used as a tool to observe direct biogenic emissions. In addition to common BVOCs, it was able to detect for example larger terpenoids (e.g., diterpenes) and huge set of oxygenated compounds which have not been traditionally measured.

Due to the late growing season, the emission rates from downy birch leaves were relatively low albeit diverse. Hydrocarbons with up to 20 carbon atoms, as well as oxygenated compounds with up to 4 oxygen atoms from birch emissions are reported in this study. Monoterpenes contributed the largest among non-oxygenated compounds, around 7% of total BVOC emissions. For oxygenated compounds, C₈H₈O₃ contributed most and accounted for ∼57% of total birch emissions. It was tentatively identified as methyl salicylate. Methyl salicylate is known to be a stress induced compound. During the late growing season, the high temperatures could have stressed the branch in this study, causing MeSa emissions. Among oxygenated compounds, the total contribution besides C₈H₈O₃, C₃H₆O, and C₂H₄O₂ amounted only to 10%. Although in minor quantities we observed for the first-time emissions of rarely reported diterpenes from birch (C₂₀H₃₂: 0.0003 μg g^–1h^–1; C₂₀H₃₆: 0.0002 μg g^–1h^–1 C₂₀H₃₈: 0.0001 μg g^–1h^–1). Due to their low volatility and instrument limitations, only a few studies have observed diterpene emissions from vegetation.

We observed for this brief period that emissions of all non-oxygenated compounds besides isoprene were slightly better explained using the temperature algorithm. This study is one of the few to report emission potentials for a wide range of oxygenated compounds. For oxygenated compounds, emissions of many compounds better correlated using the TL-algorithm. However, for compounds like C₈H₈O₃, both algorithms failed to explain its emissions suggesting that there are other factors besides temperature and light that may strongly control its emissions from downy birch. The emissions potentials calculated here are quite low in comparison to previous studies, which may be attributed to the late growing season.

This study, with the use of a new PTR-MS, clearly shows the diverse range of molecules that the downy birch can emit into the atmosphere. With downy birch being a prominent species in the boreal zone, these compounds can be vital in a forest environment like Hyytiälä where BVOCs have a major impact in events like new particle formation. The emissions of several compounds observed could become prominent in times of stress or during other seasons. The differences in behavior of these compounds and their importance in the environment deems it necessary to conduct more BVOC emissions studies especially in response to stress. While several studies based on stress induced compounds have been conducted, there is still a lack of understanding in their emission mechanism and identity and amount of emitted BVOCs. In a time where such stress episodes are predicted to occur more frequently it is crucial to investigate them as they can also have prominent effects on the atmospheric chemistry and physics.

Further studies to understand the emission profiles of these BVOCs across different seasons and in response to stress along with their influence in SOA formation and concentration of oxidants such as OH, O₃, and NO₃ are required to comprehend the importance of these compounds on regional and global scale.
