Only Minor Changes in the Soil Microbiome of a Sub-alpine Forest After 20 Years of Moderately Increased Nitrogen Loads

$\nBeat Frey$ Beat Frey¹^*

Monique Carnol²

Alexander Dharmarajah¹

Ivano Brunner¹

Patrick Schleppi¹

¹Forest Soils and Biogeochemistry, Swiss Federal Research Institute WSL, Birmensdorf, Switzerland
²Laboratory of Plant and Microbial Ecology, InBioS, University of Liège, Liège, Belgium

Soil appears to play a key role in the response of the forest ecosystems to N deposition. Twenty years of experimental moderate N addition in a sub-alpine forest increased nitrate leaching, but the soil immobilized most of the N input, gradually decreasing the C:N ratio. Exchangeable and microbial N were only slightly affected, but denitrification and N₂O production were increased and soil respiration tended to be reduced while soil microbial communities were remarkably resistant. It is assumed that these changes at the process level are related to the soil microbiome, but soil microbial communities have not been assessed so far at lower taxonomical resolution in this long-term experiment. The aim of this study is to understand the underlying causes of the results obtained so far by assessing how N treatment affects the soil microbiome at different soil depths. We analyzed bacterial and fungal diversity and community structures using Illumina MiSeq sequencing and quantified the responses of the N cycling communities to elevated N loads by quantitative PCR. The microbial functions were assessed by respiration, N mineralization, and potential nitrification. Bacterial and fungal α-diversity, observed richness and Shannon diversity index, remained unchanged upon N addition. Multivariate statistics showed shifts in the structures of fungal but not bacterial communities with N load, while the changes were minor. Differences in the community compositions associated with the N treatment were mainly observed at a lower taxonomical level. We found several fungal OTUs in particular genera such as the ectomycorrhizal fungi Hydnum, Piloderma, Amanita, and Tricholoma that decreased significantly with increased N-loads. We conclude that long-term moderate N addition at this forest site did not strongly affect the soil microbiome (which remained remarkably resistant) and its functioning.

Introduction

As a result of human activities, forests are exposed to unprecedented levels of N inputs (Bobbink et al., 2010; Schmitz et al., 2019). Biologically reactive N is mainly emitted by fossil fuel combustion or intensification of agriculture, leading to atmospheric deposition over all types of ecosystems even at long distance from sources (Galloway et al., 2008; Simpson et al., 2014). Because N is a key element in ecosystem processes (Nadelhoffer et al., 1999; Galloway et al., 2004), the effects of increased N loads on temperate forests have been intensively studied over the last three decades (e.g., Dise and Wright, 1995; Bredemeier et al., 1998; Emmett et al., 1998; Aber, 2002).

In temperate and boreal forests, reactive N inputs have been shown to alter tree growth and understory biomass, sometimes positively, sometimes negatively, depending on the N status, and other site factors (Solberg et al., 2009; Thomas et al., 2010; Gundale et al., 2014; Forstner et al., 2019a). N deposition can further accelerate soil acidification and base cation loss (Carnol et al., 1997; Högberg et al., 2006; Forstner et al., 2019a), increase N leaching (Carnol et al., 1997; Moldan and Wright, 2011; Schleppi et al., 2017), favor forest nutritional imbalances (Mooshammer et al., 2014; Zechmeister-Boltenstern et al., 2015; Forstner et al., 2019b) and affect the cycling and storage of soil organic C (Treseder, 2008; Janssens et al., 2010; Maaroufi et al., 2015). N deposition can also accelerate microbial soil processes that are part of the N cycle, such as nitrification and denitrification (Gundersen et al., 2012). However, N deposition often reduces the overall soil biological activity as measured by respiration (Janssens et al., 2010; Zhang et al., 2019) or extracellular enzyme activities (Saiya-Cork et al., 2002; Sinsabaugh et al., 2002; DeForest et al., 2004). Frey et al. (2014) reported that organic horizon SOC pools increased by 33 and 52% in hardwood and pine stands, respectively, whereas in mineral horizons SOC pools did not respond to 20 years of N addition treatment (50 kg ha⁻¹ y⁻¹). In two Norway spruce stands, Forstner et al. (2019a) also found an SOC increase in the organic layer, but compensated by a decrease in the mineral soil. The main mechanisms behind the observed increases in topsoil SOC appear to be higher litter inputs to soil via stimulated tree productivity and a slower decomposition of soil organic matter (SOM). There are, however, contradictory reports on the effect of N deposition specifically on the decomposition of less decomposable, recalcitrant SOM (Janssens et al., 2010; Forstner et al., 2019a).

Earlier reports on soils from various forests revealed that N addition reduces microbial biomass and activity (Bowden et al., 2004; Frey et al., 2004; Wallenstein et al., 2006; Demoling et al., 2008; Treseder, 2008). Shifts in fungal:bacterial (F:B) biomass ratios (decrease in fungal biomass with little change in bacterial biomass) indicate alterations in the composition of the microbial community (Wallenstein et al., 2006). The decline in fungal biomass was largely attributed to a decrease in ectomycorrhiza, which form associations with trees, suggesting that fungi are more sensitive to long-term N fertilization than bacteria. Most previous research focused on soil bacterial communities in forests (Shen et al., 2010; Turlapati et al., 2013), and we are aware of only a few studies that examined changes in soil fungal community composition following increased N loads (Boxman et al., 1998; Allison et al., 2007; Edwards et al., 2011; Maaroufi et al., 2019).

Soil microorganisms, regulated by soil N availability, are able to change the terrestrial C cycling by decomposition and formation of soil organic matter (SOM) (Uroz et al., 2016; Baldrian, 2017; Llado et al., 2017). For example, organic substrate with a high N content can be rapidly decomposed by microorganisms at the initial stage, resulting in large accumulation of microbial products and concomitant formation of stable SOM. In contrast, for substrate with a low N content, more C tends to be respired rather than stored as stable SOM (Cotrufo et al., 2013). However, it remains unclear how moderate N addition regulates soil microbial biomass and community composition in forest ecosystems, which constrains our understanding of soil C cycling in response to N deposition. Fungi dominate in the decomposition of the SOM with a low nutrient content, because their nutrient demand and metabolic activity are low compared to bacteria (Mooshammer et al., 2014; Zechmeister-Boltenstern et al., 2015; Zhou et al., 2017). Consequently, N addition may decrease the F:B ratio. Meanwhile, soil acidification induced by N addition is likely to increase the F:B, because fungi are better adapted to environments with high H⁺ concentration than bacteria (Högberg et al., 2006; Rousk et al., 2010). However, the effect of N addition on soil microbial biomass and community composition remains unclear and the current fragmentary knowledge needs to be improved across temperate forest ecosystems (Forstner et al., 2019b).

The effects of N deposition on forests largely depend upon soil processes such as immobilization, mineralization, nitrification, and denitrification. At the time scale of decades, soils tend to accumulate most of the N inputs (Nadelhoffer et al., 1999), which is reflected in a gradually decreasing soil C:N ratio (Gundersen et al., 1998; Morier et al., 2010; Moldan and Wright, 2011). While these overall processes are well-understood and somehow quantified, the effects on the forest soil microbiome in the context of increased atmospheric N deposition remain very poorly studied, even if microorganisms are the main actors in nutrient cycling and are likely affected by N deposition. Shifts in microbial community diversity and composition through anthropogenic stressors (e.g., atmospheric N deposition) may lead to unpredictable alterations in critical ecosystem processes.

The present study builds on an existing long-term (>20 years) N addition field experiment where atmospheric N deposition is artificially increased by adding small but recurrent amounts of ammonium nitrate (NH₄NO₃) dissolved in water. This experiment is carried out in the Alptal valley, central Switzerland, and it simulates a moderately increased N deposition (Schleppi et al., 2017). The site is stocked by old Norway spruce trees and the soil type is a relatively nutrient-rich Gleysol. From the previous results of this field study, the soil appears to play a key role in the reaction of the ecosystem to N deposition. The experimental N addition increased nitrate leaching, but, as in the comparable studies mentioned above, the soil immobilized most of the N input, progressively decreasing its C:N ratio (Schleppi et al., 2004). Denitrification and production of N₂O were increased and soil respiration tended to be reduced (Mohn et al., 2000; Krause et al., 2013). The abundance and biodiversity of Collembola (feeding mainly on microbes) decreased due to the N treatment (Xu et al., 2009). All these effects are likely linked to modifications of the forest soil microbiome. As one of the few of this kind and duration worldwide, the experiment offers a unique chance to study how N deposition affects microbial communities in natural forest soils in the long term.

Here, we analyzed the soil microbiome in different soil horizons. More specifically, we studied the effects of the long-term N addition on (i) the soil microbial biomass (by fumigation/extraction and as the abundance of bacterial and fungal marker genes), (ii) the microbial diversity, and community structure, and (iii) various aspects of ecosystem functions such as respiration potential, N mineralization and nitrification potential, fine root traits, together with quantifying key functions of the microbiome to increased N loads by quantitative polymerase chain reactions (qPCR). Genes encoding for enzymes catalyzing major processes during N fixation (nifH), nitrification (bacterial amoA, archaeal amoA, nxrB), and denitrification (nirS, nosZ) were targeted. We specificially asked: (1) Do long-term N addition change the microbial communities?; (2) Are these changes evident in different soil layers?; (3) Are community structure shifts represented in altered microbial functions in terms of C and N cycling processes. We hypothesized that chronic N inputs to forest soils alter the soil microbiota compared to soils subjected to ambient deposition only, whereas fungal communities react more strongly than bacterial ones, with symbiotrophs more sensitive than saprotrophs. We further hypothesized that chronic but low N loads induce significant changes in N cycling gene abundances, which might therefore alter nutrient availability of the forest systems.

Materials and Methods

Study Site

The present study was conducted in a subalpine Norway spruce forest (Picea abies (L.) Karst.) of the Alptal valley, in Central Switzerland (47°03 N, 8°43 E), at an elevation of 1,200 m a.s.l. Beside Norway spruce, the tree layer features about 15% silver fir (Abies alba Mill). In the herb layer, Vaccinium spp. (L.), Carex spp. (L.), Petasites albus [(L.) Gaertn.], Caltha palustris (L.), Knautia dipsacifolia [(Host) Kreutzer], Chaerophyllum hirsutum (L.), and Lycopodium annotitum (L.) make up most of the biomass. The climate is cool and wet, with a mean air temperature of 6°C and a mean annual precipitation of 2,300 mm. Bulk N deposition measured at the site is 12 kg ha⁻¹ y⁻¹, equally partitioned between ${NH}_{4}^{+}$ and ${NO}_{3}^{-}$ . Throughfall N deposition amounts to 17 kg ha⁻¹ y⁻¹ (Schleppi et al., 1998). According to the scale of Mellert and Göttlein (2012) for foliar concentrations, the nutrition of the Norway spruce can be considered as latent deficient for N and P. For K, Ca, and Mg, concentrations are in the normal range. The parent rock material of the site is Flysch, composed of sedimentary conglomerates with clay-rich schists. The slope is about 20% with a west aspect. Soils are very heavy Gleysols. Because of the high clay content (on average 48%), they have a high cation-exchange capacity but a low permeability. A water table is present throughout the year, on average at a depth of 23 cm (Krause et al., 2013). The pH of the mineral soil increases with depth, from 4.6 to 5.9 on the mounds and from 5.4 to 6.9 in the depressions. Net nitrification rates (measured for of the upper 15 cm) are either positive at some locations, negative at others (N immobilization). The net overall rate is overall not significantly different from zero (Hagedorn et al., 2001b). More details about the experimental site were given previously (Schleppi et al., 2017).

Nitrogen Treatment

The N addition experiment at Alptal started in 1995. It combines a paired-catchment design (Schleppi et al., 2017) with a replicated plot design (Mohn et al., 2000; Hagedorn et al., 2001a; Xu et al., 2009; Krause et al., 2013). The ten 20-m² plots of this latter design were sampled for this study. Each of five N-treated plots was paired with a nearby control plot of similar micro-topography and vegetation. Nitrogen was added to treated plots by sprinkling of NH₄NO₃ dissolved in rainwater (Schleppi et al., 2017) during precipitation events. Hence, N addition varied annually with local precipitation regime, amounting to an average of 22 kg N ha⁻¹ y⁻¹ (Schleppi et al., 2017). Control plots received the same amount of unaltered rainwater. In winter, automatic irrigation was replaced by the occasional application of concentrated NH₄NO₃ solution on top of the snowpack using a backpack-sprayer.

Soil Sampling and Processing

We sampled soils in 2014 (September) and 2015 (June, September). Three intact soil cores, 5 cm in diameter and 25 cm deep, were taken from each plot, placed on ice and transported to the laboratory. Within 24 h, each core was sectioned into three soil horizons and these horizons were pooled over the three cores from a single plot. From the top to the bottom of the cores, these layers were on average 4.5 (A horizon), eight (oxic B horizon), and nine (reduced B horizon) cm in thickness. The litter layer (L) was separated. At the time of sampling (September), before the main needle fall of the spuce trees and before the decay of the annual plant species, there was few litter (0.06 g cm⁻² on average) on the ground. In this season, most of the litter is almost decomposed and integrated in the A horizon. For this reason, the L layer was not further considered in the present study. This sampling scheme thus yielded a total of 30 samples (2 treatments × 3 horizons × 5 replicates). Samples were homogenized by passing through a 2-mm sieve. Fine roots (<2 mm) were removed from sieved soils using forceps. Aliquots of field-moist soil were stored at 4°C up to 2 weeks for analysis of microbial activities. Subsamples were stored at −18°C until analysis of DNA. Gravimetric water content was determined from subsamples dried to constant mass at 65°C. Soil C and N concentrations were measured from milled soil material using an elemental analyzer (Euro-EA, Hekatech GmbH, Germany) coupled to a continuous flow isotope ratio mass spectrometer (Delta-V Advanced IRMS, Thermo GmbH, Germany).

Fine-Roots Traits

After removing fine roots from soils, they were washed under rinsing demineralized water and stored in plastic bags at 4°C up to 2 weeks for analysis of fine-root traits. Firstly, the fine roots were scanned using a scanner, and the scanned pictures were analyzed using the WinRHIZO software package (version 4.1c, Regent Instruments Inc., Québec, Canada) for morphological and architectural traits such as length, average diameter, and number of tips. Then the fine roots were dried at 60°C for 3 days, weighed, and milled. Fine-root biomass was calculated per soil volume to obtain comparable data. Specific root length (SRL; m g⁻¹) was calculated by combining scanned data with biomass data, and tip frequency (cm⁻¹) was calculated from scanned data (Brunner et al., 2019). Fine-root C and N concentrations were measured from milled root material using an elemental analyzer-continuous flow isotope ratio mass spectrometer (Euro-EA, Hekatech GmbH, Germany, interfaced with a Delta-V Advanced IRMS, Thermo GmbH, Germany).

Potential C Mineralization Rates and N Processes and Microbial Biomass

Potential nitrification was determined using the shaken slurry method (Hart et al., 1994). 10 g of field-moist, sieved soil were shaken in 100 ml of a solution (pH 7.2) containing 1 mM ${PO}_{4}^{3 -}$ and 15 mM ${NH}_{4}^{+}$ at 22°C in the dark. These conditions ensured a maximum ${NO}_{3}^{-}$ production rate with minimal N immobilization and denitrification. Homogenized sub-samples (15 ml of the slurry) were taken at 2, 6, 23.5, 26, and 29 h after the start of the incubation. These sub-samples were filtered and stored at −20°C until analysis. ${NO}_{3}^{-}$ -N was determined colorimetrically with a continuous flow analyzer (Auto-Analyzer 3, BranLuebbe, Germany). Nitrification rates were calculated by linear regression of ${NO}_{3}^{-}$ -N concentrations over time.

Net nitrogen mineralization was measured through a 28-days aerobic laboratory incubation of 15 g soil at constant temperature (22°C) in the dark (Hart et al., 1994). At the beginning and at the end of the incubation, inorganic N was extracted with a 1 M KCl solution (1:5 w:v) (Allen, 1989) and analyzed as described above. The mineralization rate was calculated from the net increase in inorganic N ( ${NH}_{4}^{+}$ -N and ${NO}_{3}^{-}$ -N) during the incubation period.

The respiration potential was measured according to Robertson et al. (1999) as the CO₂ accumulation in the headspace (250 ml) of an amber bottle containing 20 g fresh soil, at 22°C in the dark after an overnight pre-incubation. Gas samples (4 ml) were taken at 0, 120, 150, and 180 min with an airtight syringe and analyzed with an infrared gas analyzer (EGM-4, PP Systems, UK). The respiration rate was estimated by linear regression of these measurements against time.

Soil microbial biomass C and N (MBC, MBN) were determined by the chloroform fumigation extraction method (Vance et al., 1987). Fumigations were carried out for 3 days in a vacuum desiccator with alcohol-free chloroform, followed by 0.5 M K₂SO₄ extraction. Dissolved organic C was measured with a Total Organic Carbon Analyzer (Labtoc, Pollution and Process Monitoring Ltd, UK) and total N was measured colorimetrically as described above. Soil MBC and MBN were calculated from the difference of total extract between fumigated and unfumigated samples, with a conversion factor of 0.45 for MBC (Jenkinson et al., 2004) and 0.54 for MBN (Joergensen and Mueller, 1996).

Water-soluble C and N were extracted from 10 g fresh sieved (4 mm) soil, following Ghani et al. (2003). First, readily soluble C and N (water soluble C and N) were extracted at room temperature with 30 ml distilled water. After 30 min agitation at 2 Hz, the suspension was centrifuged for 10 min (3,000 min⁻¹) and the supernatant filtered at 0.45 μm (GN-6 Metricel, Pall Corporation, US). Total organic C was measured with a Total Organic Carbon analyzer (Labtoc, Pollution and Process Monitoring Ltd, UK). Total N, ${NO}_{3}^{-}$ N, and ${NH}_{4}^{+}$ -N were measured colorimetrically as described above. Organic N was calculated by subtracting ${NO}_{3}^{-}$ -N and ${NH}_{4}^{+}$ -N from total N. After this first extraction step, labile components of soil C were extracted at 80°C (hot water extractable C and N). The centrifuge tube with the remaining wet soil was weighted to calculate the remaining water volume, and a further 60 ml distilled water was added. Samples were shaken for 30 min to re-suspend the soil, closed and placed in a pre-heated oven at 80°C for 16 h. The samples were then shaken again for 30 min, centrifuged, filtered, and analyzed as explained above. As water soluble fractions contains mineral N initially present in soils, water soluble C:N ratios were calculated as water-soluble C divided by water-soluble organic N. As initially present mineral N is mostly removed in the first extraction step, and as ${NH}_{4}^{+}$ in hot water extracts may result from the hydrolysis of organic N (Gregorich et al., 2003), hot water C:N ratios were calculated as hot-water-soluble C divided by hot-water-soluble total N.

Soil DNA Extraction, MiSeq Sequencing, and Bioinformatic Analyses

Total DNA was extracted from ~0.5 g soil using the PowerSoil DNA Isolation Kit (Qiagen). DNA was quantified using the high sensitivity Qubit assay (Thermo Fisher Scientific). The V3–V4 region of the bacterial small-subunit (16S) rRNA gene and the internal transcribed spacer region 2 (ITS2) of the eukaryotic (fungal groups, some groups of protists, and green algae) ribosomal operon were PCR amplified using primers previously described by Frey et al. (2016). PCR amplification was performed with 20 ng soil DNA and the HotStar Taq amplification kit (Qiagen, Hilden, Germany) in a final volume of 50 μL per samples (16S: 15 min at 95°C/30 cycles: 40 s at 94°C, 40 s at 58°C, 1 min at 72°C/10 min at 72°C; ITS-2: 15 min at 95°C/36 cycles: 40 s at 94°C, 40 s at 58°C, 1 min at 72°C/10 min at 72°C). PCRs were run in triplicates, pooled, and purified using Agencourt Ampure XP beads (Beckman Coulter). Bacterial and fungal amplicon pools were sent to the Génome Québec Innovation Center at McGill University (Montreal, Canada) for barcoding using the Fluidigm Access Array technology and paired-end sequencing on the Illumina MiSeq v3 platform (Illumina Inc.). Raw sequences have been deposited in the NCBI Sequence Read Archive under the BioProject accession number PRJNA595488.

Quality filtering, clustering into operational taxonomic units (OTUs) and taxonomic assignments were performed as previously described in Frey et al. (2016). In brief, a customized pipeline largely based on UPARSE (Edgar, 2013; Edgar and Flyvbjerg, 2015) implemented in USEARCH (v9.2; Edgar, 2010) was used. Filtered reads were de-replicated and singleton reads removed prior to clustering. Sequences were clustered into OTUs at 97% sequence identity (Edgar, 2013). For taxonomic classification of the OTUs, corresponding centroid sequences were queried against selected reference databases using the naïve Bayesian classifier (Wang et al., 2007) and a minimum bootstrap support of 80%. Prokaryotic sequences were queried against the SILVA database (v132; Quast et al., 2013). Eukaryotic ITS2 sequences were first queried against a custom-made ITS2 reference database retrieved from NCBI GenBank, and sequences assigned to fungi were subsequently queried against the fungal ITS database UNITE (v8.0; Abarenkov et al., 2010). Prokaryotic centroid sequences identified as originating from organelles (chloroplast, mitochondria), as well as eukaryotic centroid sequences identified as originating from soil animals (Metazoa), plants (Viridiplantae, except green algae), or of unknown eukaryotic origin, were removed prior to data analysis.

Quantitative PCR of Bacterial and Fungal Ribosomal Markers and Functional Genes

Relative abundances of the bacterial 16S rRNA genes, fungal ITS, and various C- and N-cycling genes were determined as previously by quantitative PCR as previously described (Frey et al., 2011; Rime et al., 2016) using an ABI7500 Fast Real-Time PCR system (Applied Biosystems). The same primers (without barcodes) and cycling conditions as for the sequencing approach were used for the 16S and ITS (Frossard et al., 2018). For qPCR analyses 2.5 ng DNA in a total volume of 25 μl containing 0.5 μM of each primer, 0.2 mg of BSA ml⁻¹, and 12.5 μl of QuantiTect SYBR Green PCR master mix (Qiagen, Hirlen, Germany) were used. Abundances of C- and N-cycling genes were quantified using primers and thermocycling conditions as reported in Table S1. Functional marker genes encoding for enzymes catalyzing major processes during methanogenesis (mcrA) nitrogen fixation (nifH), nitrification (bacterial amoA, archaeal amoA, nxrB), and denitrification (nirS, nosZ) are targeted. The specificity of the amplification products was confirmed by melting-curve analysis, and the expected sizes of the amplified fragments were checked in a 1.5% agarose gel stained with ethidium bromide. Three standard curves per target region (correlations ≥ 0.997) were obtained using tenfold serial dilutions (10⁻¹-10⁻⁹ copies) of plasmids generated from cloned targets (Frey et al., 2011). Data was converted to represent average copy number of targets per μg DNA.

Data Analysis

All statistical analyses were performed using R (v.3.6.0; R Core Team, 2017). Variables were tested for normality and homogeneity of variances using Shapiro-Wilk and Levene's tests, respectively. In case of non-normality and/or heteroscedasticity, the data were transformed by either by taking the natural logarithm or by using the Box-Cox family of power transformations. We used analysis of variance (ANOVA) to test for effects of N addition treatment, soil horizon, and their interaction on univariate response variables. Post-hoc differences between soil horizons were assessed with Tukey's HSD tests, and Dunnett's tests were used to check for treatment effects within horizons.

For analysis of bacterial and fungal α-diversities, observed richness (number of OTUs) and Shannon diversity index were estimated based on OTU abundance matrices rarefied to the lowest number of sequences using the R package phyloseq (v1.28.0; McMurdie and Holmes, 2013). To assess the main and interactive effects of N treatment and soil horizon on α-diversities a two-way ANOVA was performed. Pairwise comparisons of significant effects were conducted using Tukey's HSD post-hoc tests.

Bray-Curtis dissimilarities were calculated based on square root transformed relative abundances of OTUs (Hartmann et al., 2017). The effects of N treatment, soil horizon, and interactive effects on microbial community structures (ß-diversities) were assessed by conducting a permutational ANOVA (PERMANOVA, number of permutations = 9,999) with the function adonis implemented in the vegan package (v2.5.5; Oksanen et al., 2017). Canonical analysis of principal coordinates (CAP) ordinations of microbial community structures were calculated using the ordinate function implemented in the R package phyloseq.

Changes in the relative abundances of the most abundant phyla (classes, orders) were assessed by conducting a two-way analysis of variance (ANOVA). Differences were considered significant at p < 0.05 unless mentioned otherwise. To identify microbial genera that were significantly different between N amended and control samples we first agglomerated OTUs to the genus level, and generated subsets for each soil horizon. Differential abundance analysis by applying a negative binomial generalized linear model to the OTU count data using the DESeq2 package (v.1.24.0; Love et al., 2014) was performed. Genera were considered significantly different (Wald test) between N-treated and control samples if the false discovery rate (adjusted p-value) was < 0.05. Fungal functional guilds were assigned within the six most abundant guilds, namely ectomycorrhizal fungi, arbuscular mycorrhizal, endophyte, undefined saprotrophs, animal pathogens, and plant pathogens, using an open annotation tool (FUNGuild) according to Nguyen et al. (2016). Only the guild assignment with “highly probable” confidence rankings was accepted.

Results

Soil and Biological Characteristics

Overall, soil properties and processes showed only a small impact of two decades of N addition. The total C and N concentrations clearly declined with depth but were not significantly affected by the treatment (Table 1). The N addition, however, significantly decreased the soil C:N ratio by about two in all three layers. Hot water extractable C and N (Figure 1) were also very similar in the N-addition plots compared to the control plots, and concentrations of both elements clearly decreased with depth. C:N ratios in the extractable organic matter showed no effects at all, except that the ratio was lower in the hot-water than in the cold-water extract. Water soluble and hot water extractable ${NH}_{4}^{+}$ was not significantly affected either, even if the cumulated addition of ${NH}_{4}^{+}$ -N amounted to 220 g m⁻², which would represent 250 mg g⁻¹ if it would be homogenously mixed into the 25 cm depth of the soil cores. There was a significant interaction of N addition treatment and horizon on water soluble and hot water extractable ${NO}_{3}^{-}$ , with higher values under N inputs in the A-horizon (p < 0.001). In lower layers, the tendency was even opposite pointing to reducing conditions in lower layers.

TABLE 1

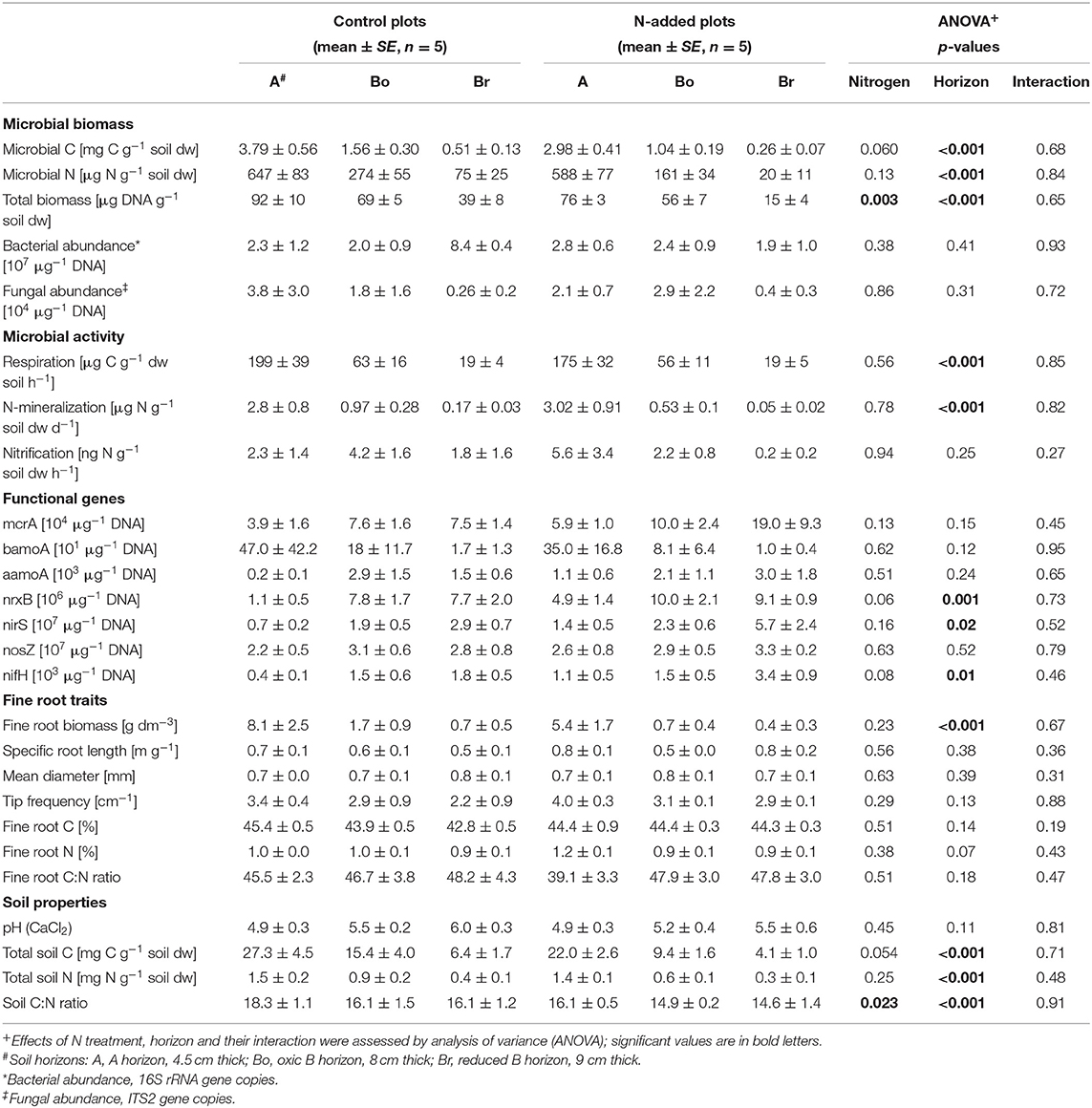

Table 1. Biotic and abiotic site characteristics of soil horizons (A, Bo, Br) in the control and N-added plots of the Alptal N addition experiment.

FIGURE 1

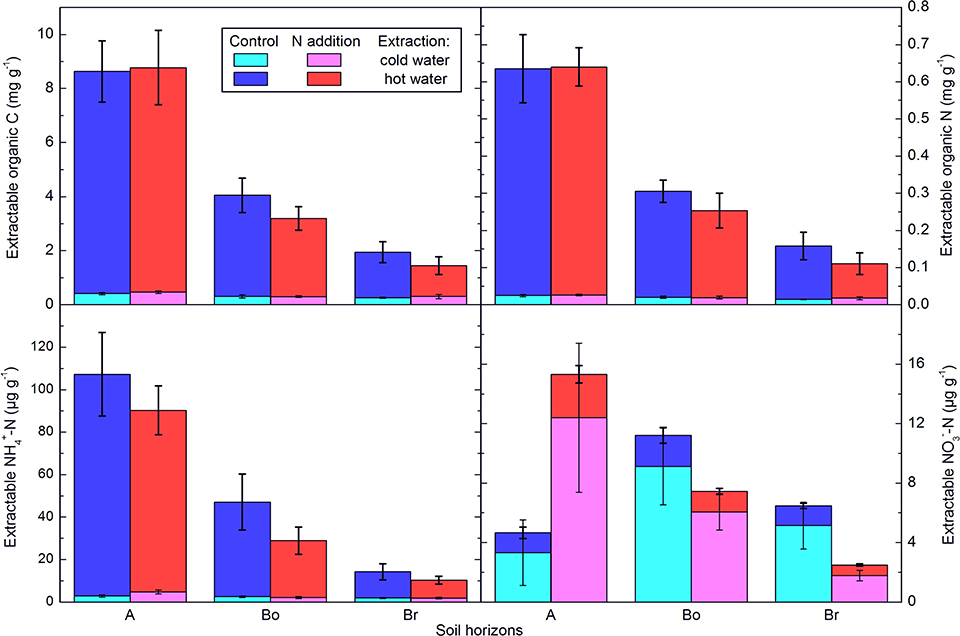

Figure 1. Extractable C and N concentrations in the horizons of the mineral soil in the control and N-addition plots. A first extraction was done with cold water and a subsequent one with hot water. All results are from three cores per plot and given per dry soil mass as averages ± standard error (n = 5; A, A horizon; Bo, oxic B horizon; Br, reduced B horizon).

Microbial biomass C and N (Table 1) decreased with depth (p < 0.001) with a tendency of less (p = 0.062) microbial biomass C in N-treated plots, resulting in a lower microbial C:N ratio in the top soil layer (0–4.5 cm) with N addition (interaction N × horizon: p = 0.007). Respiration and N mineralisation (Table 1) strongly decreased with soil depth (p < 0.001). No effect of the N treatment could be detected, neither if process rates were expressed per soil dry mass nor per total or extractable C or N. We also found no significant interactions between horizons and N addition. Potential nitrification did not change with N addition nor with soil depth (Table 1).

In contrast to microbial biomass C, DNA content was significantly lower under N treatment (p = 0.003) and decreased with soil depth (p < 0.001; Table 1). Bacterial and fungal abundance (16S and ITS copy numbers) as well as the seven C- and N-cycling genes were not affected by the N addition (Table 1, Figure 2). Similarly, we found that the abundance of fungal biomass relative to bacterial (F:B ratio) did not change with the addition of N. There was a tendency of higher nrxB (p = 0.06) and nifH (p = 0.08) genes in plots with N inputs. Three functional genes (nrxB, nirS, and nifH) significantly increased with soil depth (Table 1, Figure 2).

FIGURE 2

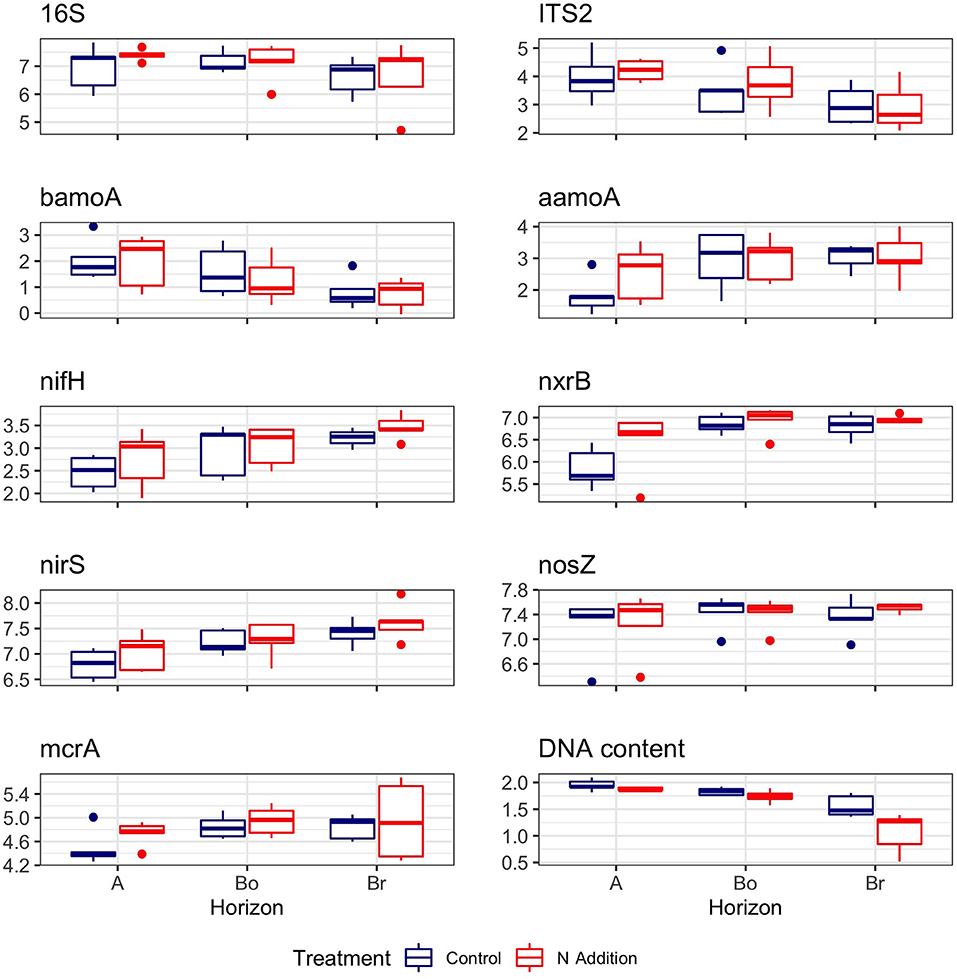

Figure 2. DNA content and abundances of bacterial (16S), fungal (ITS2), and C- and N-cycling genes in the horizons of the mineral soil in the control and N-addition plots (n = 5; A, A horizon; Bo, oxic B horizon; Br, reduced B horizon). Gene copies (as log10) were given per μg DNA.

N addition had no effect on fine root traits of Norway spruce. Fine root biomass, morphology (specific root length, tips, and diameter) and root chemistry (C, N) did not respond significantly to N addition (Table 1).

Microbial Diversity and Community Structure

Since the results of the community analyses were similar for the three sampling times (with no or only minor changes in the soil microbiome), we decided to present only the analyses from the last sampling (September 2015). The overall microbial community analysis has been documented in the Supplementary Results. Bacterial α-diversity indices in control and N-added soils were unchanged (p = 0.9; Table 2, Figure 3). Bacterial α-diversity was also similar between different horizons under control and experimental N deposition (Table 2, Table S2). In contrast, we found a significant decline (p = 0.05) of fungal α-diversity indices (Richness and Shannon Index) with soil depth (Table 2, Figure 3), while neither effects of treatment (N addition) nor interactions (N × depth) on fungal α-diversity indices were recorded (Table 2). Among the fungal populations we found that animal pathogen (35%), ectomycorrhizal (30%), saprotroph (12%), arbuscular mycorrhizal (10%), endophyte (8%), and plant pathogen (2%) were the dominant functional guilds with a “highly probable” classification (Nguyen et al., 2016). Overall, there was a decrease of richness with N addition with strongest (p < 0.001; data not shown) impact on ectomycorrhizal, arbuscular mycorrhizal fungi, and endophytes (Figure 4). PERMANOVA analysis revealed a weak (p = 0.06) but not significant difference in fungal ß-diversities with N addition (Table 2) as also shown by canonical analysis of principal coordinates (CAP) based on the Bray-Curtis dissimilarities (Figure 5). In contrast, bacterial community structures were not influenced by N addition and soil depth.

TABLE 2

Table 2. Treatment (N addition) and spatial (horizon) effects on α-diversity (Richness and Shannon Index) and ß-diversity (Bray-Curtis dissimilarities) in the Alptal N addition experiment.

FIGURE 3

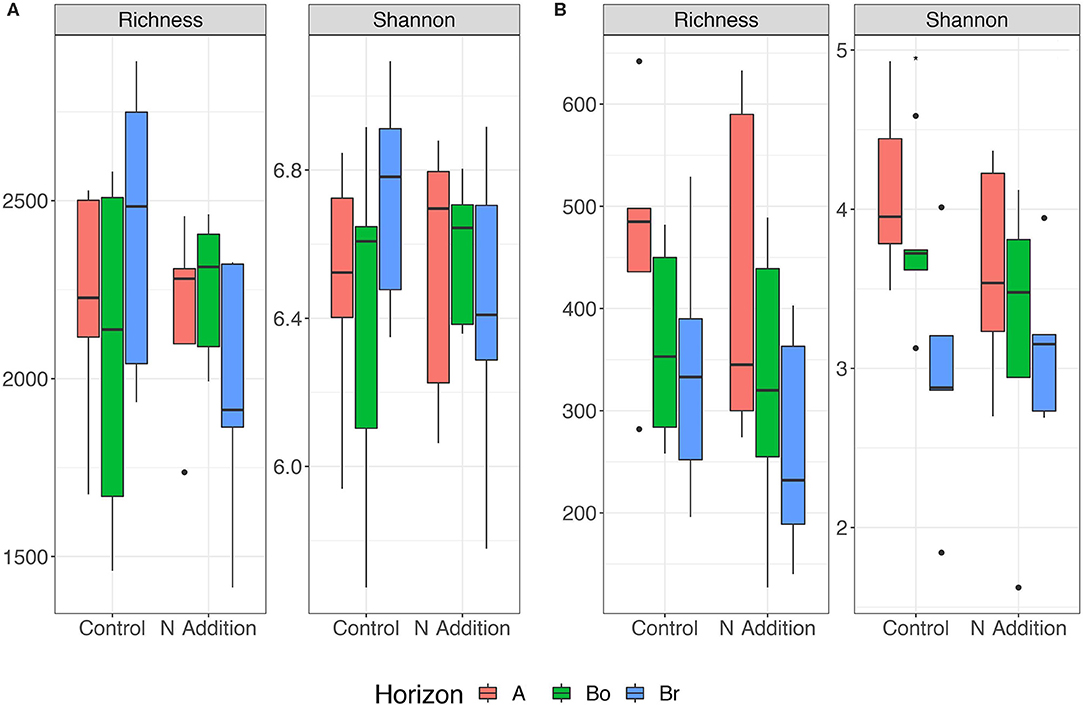

Figure 3. Variation in Richness and Shannon index of bacterial (A) and fungal (B) communities in the horizons of the mineral soil in the control and N-addition plots (n = 5; A, A horizon; Bo, oxic B horizon; Br, reduced B horizon).

FIGURE 4

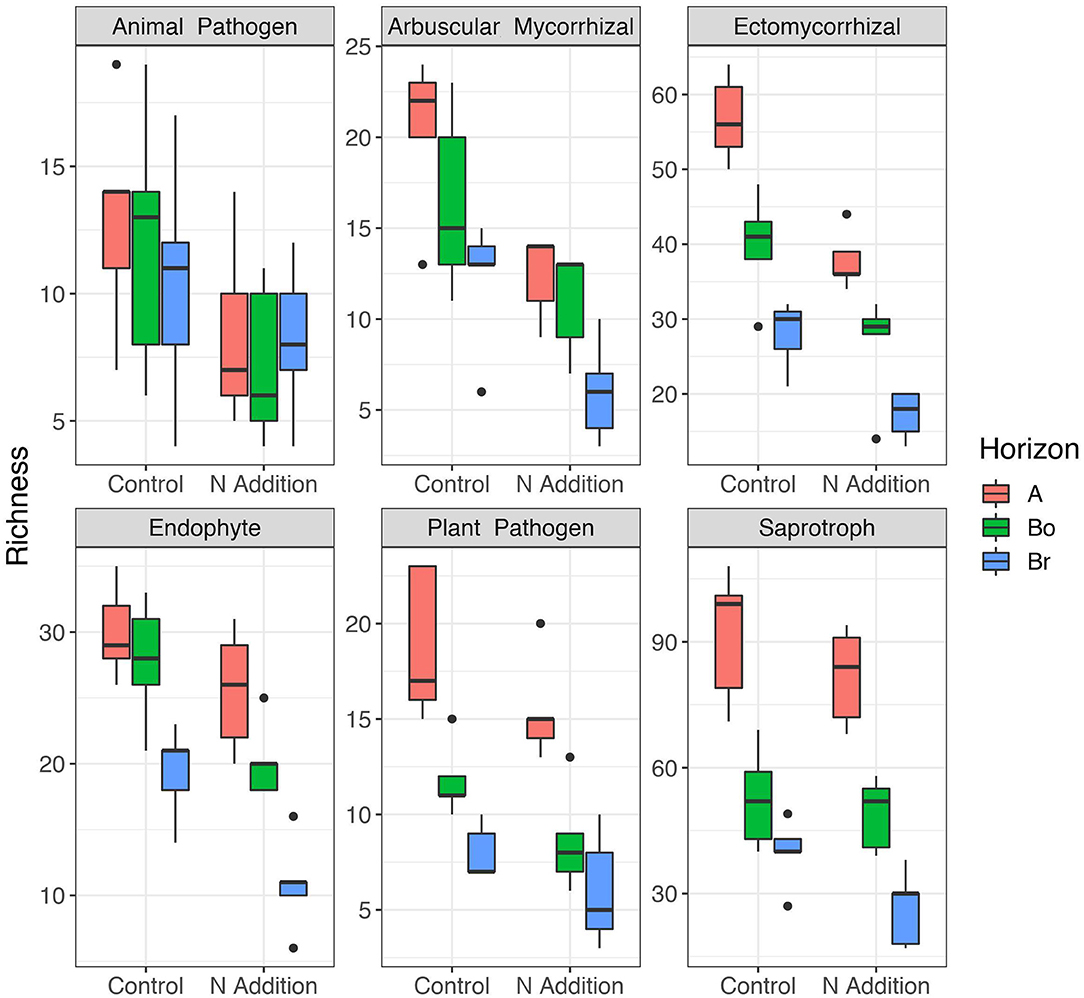

Figure 4. Patterns of α-diversity (Richness) of the different fungal guilds in the horizons of the mineral soil in the control and N-addition plots (n = 5; A, A horizon; Bo, oxic B horizon; Br, reduced B horizon). Fungal functional guilds were analyzed by FUNGuild showing the six most abundant guilds. Only the guild assignment with “highly probable” confidence rankings was accepted.

FIGURE 5

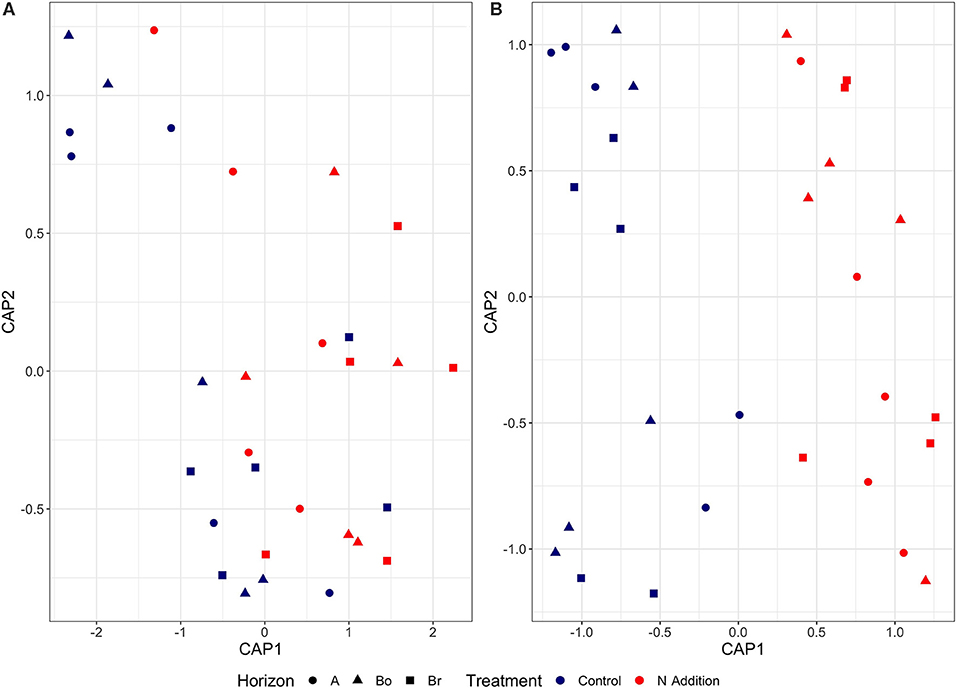

Figure 5. Canonical analysis of principal coordinates (CAP) based on the Bray-Curtis dissimilarities for bacterial (A) and fungal (B) communities in the horizons of the mineral soil in the control and N-addition plots (n = 5; A, A horizon; Bo, oxic B horizon; Br, reduced B horizon). The variation in microbial community structures was explained by each CAP axis (for bacteria: CAP 1, 5.2%; CAP 2, 3.9%; for fungi: CAP 1, 15.5%; CAP 2, 9.6%).

Changes in Relative Abundance of the Most Dominant Phyla (Classes, Orders) in Response to N

The relative abundance of bacterial phyla did not change between the ambient and experimental N deposition. No bacterial phyla and classes exhibited a significant change in relative abundance with the N treatment. However, we found significant (p < 0.05) depth effects in the relative abundance of OTUs attributable to Anaerolineae (Table 3). Within fungi, the phylum Basidiomycota significantly decreased in relative abundance with N (Table 3). The other fungal phyla did not exhibit significant changes with the experimental N deposition treatment. A few fungal classes and orders were affected by the experimental N deposition treatment. Relative abundance of Agaricomycetes, Agaricales, and Cantharellales decreased (p < 0.05) whereas the relative abundance of Heliotales increased (p < 0.1) under experimental N addition.

TABLE 3

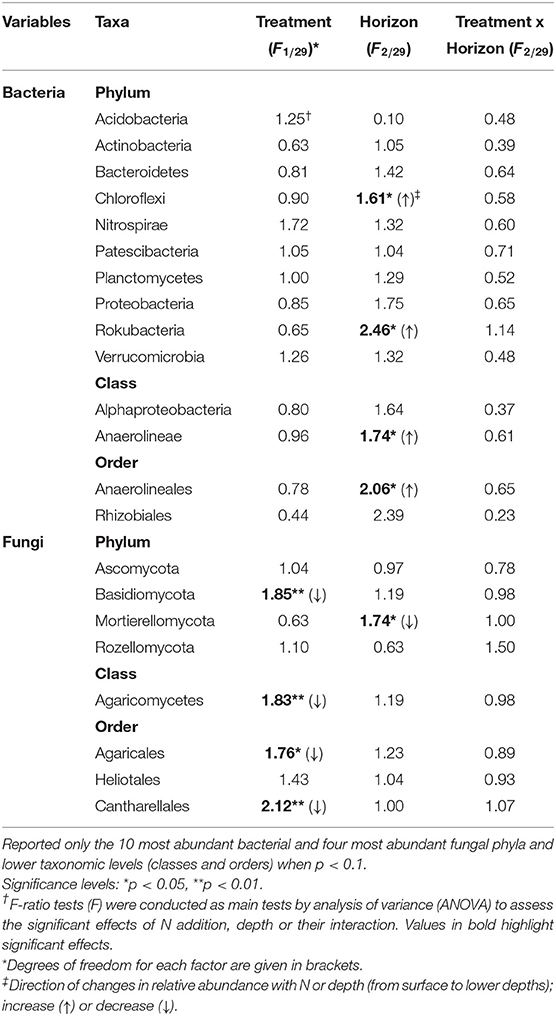

Table 3. Treatment (N addition) and spatial (horizon) effects on the relative abundance of bacteria and fungi in the Alptal N addition experiment.

Differential Abundance of the Most Dominant Genera in Response to N Deposition

As bacterial and fungal phyla consist of various heterogeneous groups, we also investigated the changes in the differential abundance of the most common bacterial and fungal genera in response to N treatment among the three soil horizons. Since we did not find any taxa with significant (p < 0.05) log₂ fold change in bacteria, we report on those that responded weakly (p < 0.1) to N addition (Figure S1). The majority of genera that had positive log₂ fold changes upon N treatment belonged to the phylum Proteobacteria. Within this phylum, Rhodoblastus and the sulfur-oxidizing genus Sulfurifustis exhibited the strongest positive response to N (increase with N addition). In addition, the methane-producing Methanocella and Methanolinea showed higher positive log₂ fold changes, indicating anaerobic soil conditions (Figure S1). The greatest negative log₂ fold change in response to N addition was exhibited by genera of the phylum Acidobacteria such as the acidophilic Granulicella and Acidipila. Genera of the phylum Proteobacteria also decreased with N deposition, with Rickettsiella and Inquilinus having overall the greatest negative log₂ fold change (Figure S1).

Within the fungal kingdom, the majority of genera that exhibited either positive or negative log₂ fold changes were members of the phyla Ascomycota and Basidiomycota (Figure 6, Figure S2). The genera Clavulina and Physisporinus had the strongest positive responses to the N addition (Figure 6). Clavulina is an ectomycorrhizal fungus (Basidiomycota) with some saprophytic lifestyle and Physisporinus is a wood saprotroph (Ascomycota). Interestingly, fungal entomopathogens such as Metarhizium and Trichoderma (both Ascomycota) showed negative log₂ fold changes upon treatment with N. Genera belonging to Basidiomycota, such as the ectomycorrhizal fungi Membranomyces, Thelephora, Hydnum, Piloderma, and Amanita were found to decrease in N-treated samples (Figure 6, Figure S2). Membranomyces had the largest negative log₂ fold change followed by Thelephora. Ectomycorrhizal fungi showed a mixed response with Thelephora declined significantly with N fertilization, while Clavulina increased.

FIGURE 6

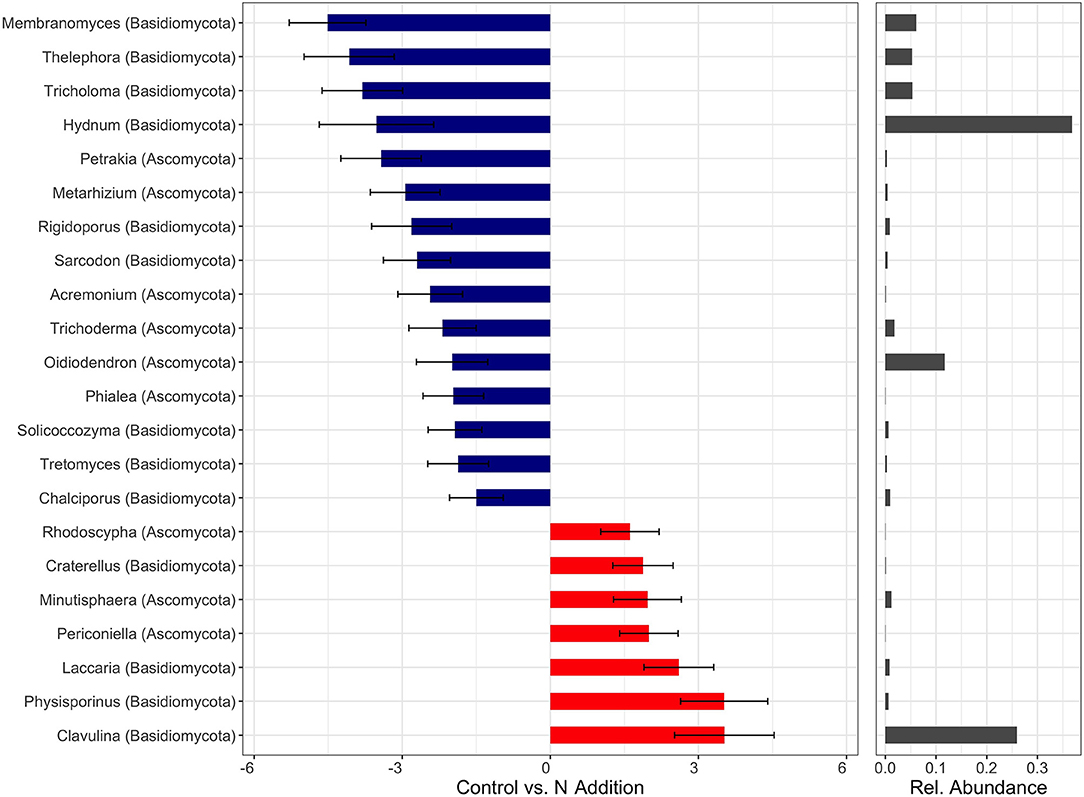

Figure 6. Differently abundant fungal genera (statistically different p < 0.05) which respond to N treatments across all soil horizons with a log₂-fold change > 1.0. Negative values (blue) refer to Control-upregulated genera, positive values (red) to N-Addition-upregulated genera. Bar diagrams on the right shows the relative abundance.

Discussion

There are only a few long-term (20 years and more) N addition experiments in forest ecosystems worldwide. They all have one result in common: from an annual up to a decadal scale, added N is mainly sequestered into the soil (Cheng et al., 2019). Higher deposition rates therefore lead to an accumulation of N in the soil, with potentially effects on soil organisms and the biochemical processes that they drive. Such effects are not limited to the N cycle, but also affect C and other elements.

Long-Term N Addition Effects on Soil Processes

In the present study we did not find any significant effect of the treatment or interaction thereof with the mineral soil layers. Similarly, for soils from the same site, Forstner et al. (2019a) also reported no significant differences in C mineralization rates with N treatment. Some studies showed an increase in forest soil respiration as a result of N addition (Hasselquist et al., 2012; Zhang et al., 2019), but in other reports there was no effect (e.g., Haynes and Gower, 1995; Bowden et al., 2000; Liu et al., 2017). Based on 5 years measurements with static chambers, Krause et al. (2013) found only a weak tendency of soil respiration rates to be reduced by N addition. At our site, more C tended to accumulate in the organic layer of N-addition plots, but C was decreased in the mineral soil (Forstner et al., 2019a). At the same time, the input of litter remained in the same range as for control (Krause et al., 2013). This means that neither the soil C pool nor its main fluxes in and out of the soil were significantly affected by the N treatment. Therefore, despite theoretically large potential effects, our results can only confirm that N deposition effects in relation to the C balance of forest soils are minor (Erisman et al., 2011).

At our site, in our results as well as in the previous study of Schleppi et al. (2004), the C:N ratio of the mineral soil significantly decreased as a result of the N addition. As shown by Providoli et al. (2006) using ¹⁵ ${NO}_{3}^{-}$ or ¹⁵ ${NH}_{4}^{+}$ , most of the N from deposition entering the soil is rapidly immobilized and bound to its organic matter. This explains why the extractable inorganic N was not increased in the present study. Compared to the control plots, we observed a clear increase of extractable ${NO}_{3}^{-}$ in the A-horizon of the N addition plots. However, in relation to the annual ${NO}_{3}^{-}$ added, this represents only about one-tenth of the total. Due to the high mobility of this ion, this measurement can anyway only be considered as a snapshot. Together with the extractable ${NH}_{4}^{+}$ , it indicates that only very little N as inorganic N is present in the soils (i.e., very little in a form that is directly available to plants and microbes).

Long-Term N Addition Effects on Root Growth

Interestingly, no significant effects by long-term moderate N addition on any of the fine root traits of Norway spruce investigated have been observed, which is in accordance with Carnol et al. (1999). This is in contrast to what could be expected when N is added to an ecosystem (Ostonen et al., 2007; Li et al., 2015). Li et al. (2015) observed in a meta-analysis on simulated N deposition an overall significant increase of the total root biomass, with the coarse roots increasing and the fine roots decreasing significantly. In addition, they observed a significant increase of the root N concentration. However, a few fine-roots traits seemed not to be affected by N addition, in particular fine root length and diameter (Li et al., 2015). Ostonen et al. (2007) observed in their meta-analysis a significant decrease of the specific root length, whereas Li et al. (2015) did not observe any significant change of this parameter. In our study, despite the fact that we did not observe any change of biomass or N concentrations in the fine roots, needle dry weight as well as needle N concentration increased significantly from the 4th year of the N addition (Krause et al., 2012). This indicates that some additional N is indeed available to tree roots but that it was transported to aboveground tree compartments. The fact that none of the fine-root traits significantly responded to the N addition is likely related to other factors limiting root growth, especially the anoxic conditions that prevail most of the time in the lower gleyic layers of the soil. Combined with waterlogging, this can indeed strongly limit root growth and, subsequently, the uptake of N (Fan et al., 2017).

Long-Term N Addition Effects on Soil Microbial Communities

Soil microbial communities were remarkably resistant to long-term N addition. Although there have been several studies examining the effects of N deposition on microbial communities across ecosystems (Treseder, 2008; Zhou et al., 2017), ours is one of the few that comprehensively describes the long-term (>20 years) effects of moderate N addition on bacterial and fungal diversity and community structures in forest soils. Overall, the soil microbiome was relatively resistant and responded only weakly to long-term moderate N addition at our forest site. In the long-term soil microbial communities seem to be very resilient to environmental change or disturbance and adapt to new environmental conditions (Hartmann et al., 2014; Frossard et al., 2018). Another reason for the weak response of the soil microbiome might be that the added N is easily available and soluble, so it can either be washed out, or readily taken up by ectomycorrhizal fungi and roots and transported to the aboveground parts or readily immobilized in the soil (Schleppi et al., 2004; Providoli et al., 2006). Since N is not a limiting factor for the belowground communities here, more N cannot be truly used for more growth (microbial biomass). Another factor limiting the responses of N to the microbial communities is certainly the low oxygen available at lower soil depths. Because of their high clay content, Alptal soils feature anaerobic microenvironments. At this forest site a water-impermeable soil layer in the underground (gleyic soils) hinders to alleviate the oxygen limitation. All these mentioned reasons explain why we found no or only minor changes of the soil microbial communities to the moderate long-term N addition at this forest site.

The bacterial and fungal abundance remained unchanged, which is in agreement with others (Peng et al., 2017; Forstner et al., 2019b). Similarly, Hesse et al. (2015) found no change in fungal biomass in a natural maple forest in USA treated with N for 16 years. We assume that the lack of a significant effect on microbial biomass is linked to the fact that the root biomass was not affected and that the effects on C-exudate production did not alter the size of the root-associated microbes. Similarly, the abundance of C and N cycling genes were not affected by N addition.

Fungal α-diversity (Richness and Shannon Index) also remained unchanged, which is consistent with other studies with long-term N addition experiments in forests (Freedman et al., 2015; Hesse et al., 2015; Morrison et al., 2016). Morrison et al. (2016) reported no effect on fungal diversity with the addition of 50 kg N ha⁻¹ yr⁻¹ but an increase of fungal richness with higher N addition rates (150 kg N ha⁻¹ yr⁻¹). A change of fungal richness in response to N-fertilization was reported in 0–2 cm soil depth but not at lower soil depths (5 and 10 cm). Similarly, Haas et al. (2018) showed an increase in fungal diversity with nutrient addition (100 kg N ha⁻¹ y⁻¹), indicating that the effects on fungal diversity dependent on the amount of N added and soil horizon. N addition may affect microbial communities mainly as a nutrient rather than via soil acidification as suggested by Zhou et al. (2017).

Long-term N additions showed weak (p = 0.06) changes in the structure of the fungal communities. This response was similar across depths (treatment × depth, p = 0.77). It was observed that elevated N deposition has either a significant influence (Eisenlord et al., 2013; Entwistle et al., 2013; Weber et al., 2013; Hesse et al., 2015; Morrison et al., 2016; van der Linde et al., 2018) or no effect (Freedman et al., 2015) on the fungal community composition. N treatments effects were dependent on soil depth in another study (Weber et al., 2013) and were most evident in very shallow surface horizons. We also expected the strongest effects of N deposition in the first (0–5 cm) soil layer according to the partitioning of N deposition (Hagedorn et al., 2001a; Providoli et al., 2006) but here in our study we did not find treatment × soil depth interactions neither for bacteria nor fungi.

The observed change of fungal community composition with elevated N deposition was mainly driven by a shift of relative abundance of Basidiomycota and Ascomycota. Consistent with previous studies that examined the response of soil fungal community composition to N fertilization (Weber et al., 2013), we recovered increased numbers of Ascomycota sequences and decreased numbers of Basidiomycota sequences (i.e., Agaricales) from N-treated soils in all depth intervals. Reduction in Basidiomycota abundance may alleviate some of the competitive pressures on Ascomycota for resources and thus explain the contrasting changes observed in these phyla (Geisseler and Scow, 2014; Farrer and Suding, 2016; Zhou et al., 2017). This phylum-level composition shift was accompanied by changes on lower taxonomical level that warrant further study. Differential abundant taxa analysis indicated that fungal genera such as the ectomycorrhizal fungi Hydnum, Piloderma, Amanita, and Tricholoma showed decreased recovery of sequences in response to N addition. Treseder (2004) and Li et al. (2015) as well observed in their meta-analysis on simulated N deposition a significant decrease of fungal colonization of roots. Because simulated N deposition supplies directly plant-available N, plant investment in ectomycorrhizal fungi may be minimal and result in a reduction of ectomycorrhizal mycelia growth and production (Sims et al., 2007). A decline in the relative abundance of ectomycorrhizal fungi, in particular members of Amanitaceae, Cortinariaceae, and Russulaceae following long-term N addition has also been reported by others (Burke et al., 2006; Weber et al., 2013; Morrison et al., 2016). However, ectomycorrhizal responses have been shown to be taxon-specific with N enrichment by disfavoring Cortinarius species and most Russula species, while significantly enhancing the relative abundance of Russula vinacea (Morrison et al., 2016). Here, nitrophilic species included ectomycorrhizal as well as saprotrophic fungi. In particular, Laccaria, Hygrophorus, and Pachyphlodes, a truffle-like fungi belonging to the Pezizaceae, all known to be ectomycorrhizal associates of trees, were favored by the addition of N.

In contrast to fungi, bacteria were remarkably resistant and did not show changes due to long-term N addition. While the effects of N addition on the diversity of bacterial communities are not always clear, including negative, positive or no effects, changes in the composition across different ecosystems are the rule (Ramirez et al., 2012; Leff et al., 2015; Haas et al., 2018). Studies in mixed hardwood stands, loblolly pine plantations, and boreal forest have all reported either no effect (Burke et al., 2006) or an increase of bacterial richness and diversity after long-term N-addition (Turlapati et al., 2013; Haas et al., 2018). Twenty years of N-addition in a mixed hardwood stand induced a significant increase in diversity as well as a change in composition in both organic and mineral soils (Turlapati et al., 2013). The increase in diversity was attributable to changes in community structure with significantly higher relative abundance of Acidobacteria, Chlamydiae, and Proteobacteria with N addition. In contrast, in our experiment N addition did not change bacterial community structure neither at the phylum level nor at different soil depths after 20 years. Even at lower taxonomic level (e.g., genus) we did not detect significant (p < 0.05) responses of specific bacterial taxa to long-term N addition.

Within deeper soil depths we found significant more bacterial sequences from the class Anaerolineae of the phylum Chloroflexi, independently on the N addition. Members of the phylum Chloroflexi are slow growing heterotrophic bacteria, that are ubiquitous in natural ecosystems, whereas Anaerolineae become abundant at anaerobic conditions (Yamada and Sekiguchi, 2009; Hartmann et al., 2014). Because of their high clay content, combined with the wet climate of the site, this obviously favors the anoxic classes of Chloroflexi like Anaerolineae (Vos et al., 2013). Moreover, the increased presence of the methane-producing Methanocella and Methanolinea in the gleyic soil layers points to prevailing anaerobic conditions that strongly limits the root growth and most probably the response of the soil microbes to long-term moderate N addition.

Conclusions

From a functional approach, we conclude that long-term moderate N addition at the Alptal forest site did not strongly affect the soil microbiome and its functioning. Changes due to the treatment were small compared to the heterogeneity of the soil and to differences between soil horizons. The present study including DNA analyses largely confirms the conclusion that the soil microbiome is remarkably resistant to such a chronic low-dose N treatment. We can see some shifts that can be ascribed to the surplus of N that accumulates in the soil, mainly in the composition of the fungal community. Even if the soil microbiome appears to retain its functions and trees are still taking advantage of the additional N to build larger needles and increase their stem growth (Krause et al., 2012), N continues to accumulate in the soil of the treated plots. All the small changes seen so far could intensify in the future and possibly lead to much stronger impacts in a non-linear way. At (slowly decreasing) ambient deposition rates, however, it seems that no negative consequences on the soil microbiome and its function should be feared within the next decades.

Data Availability Statement

The datasets generated for this study can be found in the NCBI Sequence Read Archive, PRJNA595488.

Author Contributions

PS designed the study and participated in sample collection. IB, MC, BF, and PS contributed to data collection. IB, AD, BF, and PS performed data analysis. IB, BF, and PS wrote the study. All authors commented on previous versions of the manuscript, read and approved the final manuscript.

Funding

This study was partly funded by the Swiss National Science Foundation (SNSF) under the grant C16.0052: Linking forest soil food-web patterns with soil organic matter characteristics across five European biogeographical regions.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank the Central Laboratory, Bernhard Elsner, Simon Baumgartner, and Beat Stierli (Swiss Federal Research Institute WSL) for completing soil analyses and assisting with other laboratory work. We also acknowledge the Genetic Diversity Centre (GDC) of the ETH Zurich and the contribution of scientists at the McGill University and Génome Québec Innovation Center in Montréal, Canada, for performing Illumina MiSeq sequencing.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/ffgc.2020.00077/full#supplementary-material
