ORIGINAL RESEARCH article
Front. Environ. Sci. , 21 February 2025
Sec. Soil Processes
Volume 13 - 2025 | https://doi.org/10.3389/fenvs.2025.1477459
Duolun County in Inner Mongolia, a typical agro-pastoral ecotone, serves as an important ecological barrier in northern China. To combat windblown sand and land degradation, the government has established extensive P. sylvestris var. mongolica Litv. plantations. This study investigated the effects of three afforestation modes (2 m × 6 m, 2 m × 3 m, and 1 m × 1 m), which were used as treatments, and unafforested bare sandy land as a control, on soil physicochemical properties and soil fertility. The results showed that row spacing significantly affected soil characteristics and soil fertility. With an increase in plant row spacing, the content of coarse particles decreased, while fine particle content, soil water and nutrient levels, and soil porosity increased. Additionally, the bulk density of the soil decreased, particularly in the topsoil. However, planting P. sylvestris var. mongolica in sandy land increased the soil’s electrical conductivity, which declined with wider spacing. Soil fertility of different types of plantation forests was evaluated using the soil quality index (SQI) and grey relation analysis (GRA) combined with the minimum dataset (MDS), and the results showed that: 2 m × 6 m > 2 m × 3 m > 1 m × 1 m > bare sandy land. The results of the two evaluation systems were consistent and their TDS (total dataset) and the MDS in the two evaluation systems were significantly positively correlated (SQI: P < 0.05, R2 = 0.9384). GRA: P < 0.05, R2 = 0.8929). Compared with bare sand, the soil bulk density and pH of 2 m × 6 m plantation was 13.72% and 4.02% lower; the soil water content and total porosity were 49.75% and 27.88% higher; the soil organic matter, total N, P, and K were 250.99%, 136%, 100%, and 19.53% higher; the available N, P, and K were 29.95%, 94.3%, and 12.71% higher; and the clay, silt and very fine sand contents were 242.55%, 343.1%, and 17.21% higher, respectively. These findings indicate that the development of soil characteristics and fertility accumulation are not ideal when the planting density is larger, among the above three afforestation modes, 2 m × 6 m plantation forests can better improve the soil characteristics and fertility quality of sandy soils.
Land desertification has emerged as a global phenomenon that threatens human livelihoods and activities. It is no longer merely an ecological or environmental problem; rather, it has evolved into an important economic and social problem (Qiu et al., 2024). With the deterioration of the ecological environment, the importance of vegetation communities has become increasingly recognized; to cope with ecological problems such as soil erosion and desertification, many countries have developed plantations to resist these natural disasters (Mongil-Manso et al., 2022; Sun et al., 2023). China faces one of the most severe land desertification problems in the world and is also a leader in desertification research and control. Since the 1970s, the government has initiated large-scale forestry projects such as the well-known “Three Norths” shelterbelt project (Guo et al., 2024).
The planting method of sand-fixing shelterbelts in China is usually a row belt with different spacing. Variation in planting spacing results in differences in plant density and, consequently, differences in stand structure (Yan et al., 2015). Factors affecting the growth of forest trees include site conditions, planting time, and planting density, with the latter being the most controllable (Smith and Brennan, 2006). Research has shown that different densities or spacing of plantations not only significantly impact soil characteristics and vegetation growth (Mallik et al., 2008; Prasad et al., 2010; Benomar et al., 2013; Sirohi and Bangarwa, 2017; Farooq et al., 2019) but also affect wood quality and yield (Kang et al., 2004; Cassidy et al., 2013). In recent years, the influence of plantations on soil quality has become a focal research topic, including the effects of forest age (Jin et al., 2008; Fuss et al., 2019; Guo et al., 2024), tree species (Augusto et al., 2002; Yang et al., 2021), and site conditions (Zhang et al., 2018). Soil quality is the quantitative analysis of the total properties of the soil, which is usually expressed through the biological and physicochemical properties of the soil (Guo et al., 2024).
The agro-pastoral ecotone is a semi-arid ecological transition zone connecting the agricultural areas of eastern China with the pastoral grassland of the west. This region is not only marginal for agricultural production but also ecologically fragile (Huang et al., 2007). Due to the combined effects of natural conditions and human activities, land degradation has emerged as the most pressing environmental problem in the agro-pastoral ecotone. In many areas, this degradation is characterized by the simultaneous occurrence of sandy desertification and soil erosion, resulting in soil barrenness, desertification, and aridification (Liu et al., 2018; Yang et al., 2020; Wuyun et al., 2022). The study area was located within a typical agricultural and pastoral zone that includes one of China’s four major sandy regions, the Hunsandak Sandy Land, which is a key area for the Three-North Sheltering Forest Construction Project. Pinus sylvestris var. Mongolica Litv. is the most representative plantation species in this region. Numerous shelter forests of P. sylvestris var. mongolica with varying tree densities and row spacings have been established for sand fixation. Long-term community succession has altered stand growth, Some of these P. sylvestris var. mongolica plantations showed declines, yellowing, and tree mortality, and the performance of the plantations varied at different plant spacing.
As the foundation for plant growth and survival, soil plays a crucial role in the growth of forest trees. Although there are many relevant studies on plantations and soils mentioned above, there are few studies examining soil fertility across various stand structures, particularly within the agro-pastoral ecotone. Most researchers have relied on a single evaluation method to examine the soil quality of plantations, leading to a general lack of verification of results. Therefore, in order to elucidate the differences in soil properties of plantation forests with different spacing. We took three plantations of P. sylvestris var. mongolica with different spacing in the sandy agro-pastoral ecotones of China as the research object. We evaluated the quality of soil fertility by two methods (soil quality index and grey relational analysis) to determine the existing afforestation modes suitable for soil restoration in the study area. We hypothesized that planting P. sylvestris var. mongolica in the sandy land within the agro-pastoral ecotone would positively impact soil development and restoration and that this impact would be variable across soil depths. We further hypothesized that plant spacing would significantly influence soil properties, with appropriate spacing effectively improving soil fertility. The results of this study can serve as a reference for the construction and management of plantations in agro-pastoral ecotones and other fragile ecological zones.
The study area (Figure 1) is located in the Xilin Gol League of China, at the southern edge of the Inner Mongolia Plateau, near the northern foothills of the eastern end of the Yinshan Mountains and along the southern edge of the Hunshandak Sandy Land. Duolun County, situated 180 km from Beijing, exemplifies a typical agro-pastoral ecotone in northern China. This region has a continental climate that transitions from temperate semi-arid to semi-humid (Yan et al., 2012). The selected planting area of P. sylvestris var. mongolica was located within the Hunshandak Sandy Land in Duolun County, with geographical coordinates of 116°45′E, 42°15′N, at an altitude of 1,261 m. This area experiences windblown sand in the spring and autumn months, with an average annual wind speed of 3.6 m/s and an average annual precipitation of 385 mm. The frost-free period is about 100 days, with an average annual sunshine duration of 3,000 h and an average annual temperature of 1.6°C. P. sylvestris var. mongolica is a deep-rooted species, forest growth faster, light-loving, adaptable, can adapt to more arid sandy and gravelly sandy soil areas, therefore often used as the Three-North regions of the shelter forests and sand afforestation of the main tree species. In May 2000, the state launched the Beijing-Tianjin sand source control project, aimed at combating desertification in Duolun County through the establishment of plantations in the Hunshandak Sandy Land. Subsequently, Duolun County implemented a series of forestry ecological construction projects based on millions of acres of P. sylvestris var. mongolica plantations (Office of the People’s Government of Duolun County, 2024). The study plot, was initially bare sand before afforestation, is now stabilized by vegetation. The main soil type in this region is aeolian sandy soil, with the zonal plant species including Leymus chinensis (Trin. ex Bunge) Tzvelev, Cleistogenes squarrosa (Trin.) Keng, and Agropyron cristatum (L.) Gaertn. (Yang et al., 2013; Dai et al., 2022; Liu et al., 2022; Zongfan et al., 2022).
Figure 1. Maps of the study area showing the locations of (A) Xilingol League in the Inner Mongolia Autonomous Region, (B) Duolun County within the Xilingol League, and (C) A digital elevation map of Duolun County.
A field survey of a P. sylvestris var. mongolica botanical garden in the study area was conducted in August 2023. The survey identified three of the most widely used afforestation models as the research objects, each of which was planted in 2001. Before the seedlings were planted, the hole preparation should be carried out in advance, and the size of the planting hole of the plantation in Duolun County is generally 60 cm × 60 cm × 50 cm. The planting areas were all located on sandy land, with consistent site conditions; the main differences among them was the plant and row spacing. We used Type I, Type II, and Type III to represent the three different models and selected unafforested bare sandy land as the control plot (CK) (Figure 2). Three replicate plots, each measuring 15 m × 15 m, were set up in each of the three afforestation types. The basic information for the sample plots is listed in Table 1.
Three soil sampling points were evenly distributed along the diagonals of each sample plot, and 40 cm soil profiles were obtained at these sampling points. Undisturbed soil was collected in two layers from the bottom to the top at depths of 0–20 cm and 20–40 cm, respectively. A total of 72 soil samples were collected in August 2023. The soil samples were used to determine soil water content, bulk density, and porosity, collected using a 100 cm3 cutting ring. For soil particle size, pH, conductivity, nutrient analysis, and other indicators, plant residues removed were removed from the samples, which were then packed into sealed bags and brought back to the laboratory, where they were air-dried in a light-protected environment for the analysis.
The soil moisture content, bulk density, and porosity were determined by drying and weighing, according to the soil environmental protection standards issued by the PRC (National Forestry and Grassland Administration, 1999). The soil pH was determined by the potentiometric method, and the soil conductivity was determined by the electrode method. The combustion oxidation-titration method was used to measure the soil’s organic matter content, and the Kjeldahl method was used to determine the soil total nitrogen content. The total potassium content of the soil was determined by acid-solubilization-flame photometry. The available nitrogen content was determined by the alkaline hydrolysis-diffusion method, the available phosphorus content was determined by sodium hydrogen carbonate solution-Mo-Sb anti-spectrophotometric method, and the available potassium content was measured using a CH3COONH4 extraction-flame photometer. We used an Analysette22 MicroTecPlus laser particle size analyzer (Fritsch GmbH, Idar-Oberstein, Germany) to determine the volume fraction of soil particle sizes acr the different types of plots.
The soil was divided into seven categories based on the United States Department of Agriculture (USDA) soil texture grading standards: clay (r < 0.02 mm), silt (0.02 mm < r < 0.05 mm), very fine sand (0.05 mm < r < 0.1 mm), fine sand (0.1 mm < r < 0.25 mm), medium sand (0.25 mm < r < 0.5 mm), coarse sand (0.5 mm < r < 1 mm), and very coarse sand (1 mm < r < 2 mm). Based on the particle size volume data obtained from the laser particle size analyzer, the volume fractal dimension was obtained using the following formula (Tyler and Wheatcraft, 1989):
Taking the logarithms of both sides of Equation 1 provides the formula for calculating the fractal dimension of the soil:
where V is the total volume of soil smaller than the particle size R (%); VT is the total volume of soil measured (%); R is the average value of the particle size between the two sieve particle size classes Ri and Ri +1 (mm); Rmax is the largest particle size in the soil particle size grading, where the largest particle size of the soil in this study was 2 mm; and D is the volumetric fractal dimension of the soil particles, where the left and right sides of Equation 2 are the longitudinal and transverse coordinates, respectively, of the fitted linear regression equation. The difference in the linear slope value is the soil fractal dimension D.

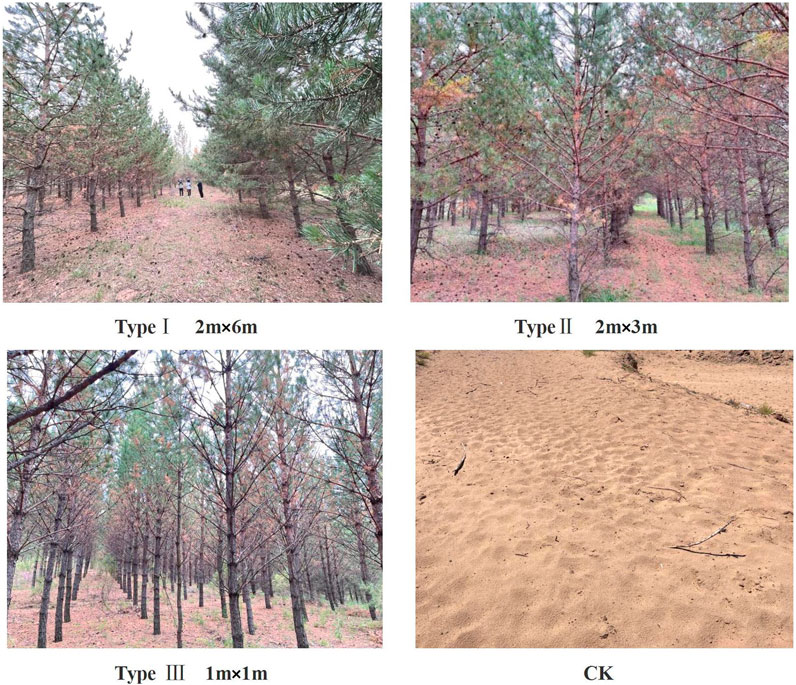

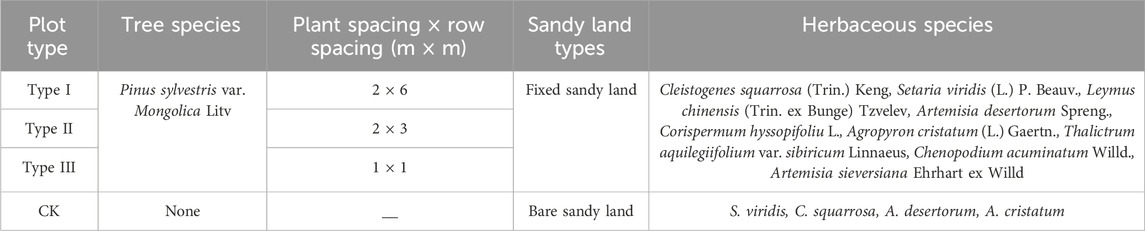

Three spacing patterns of P. sylvestris var. mongolica planted in 2001 (2 m × 6 m, 2 m × 3 m, and 1 m × 1 m) in the sandy land of the agro-pastoral ecotone were used to analyze changes in forest soil characteristics. We used two methods, the soil quality index method and the grey correlation degree, to evaluate the soil fertility.
To solve the problem of differing dimensions among evaluation indicators, we normalized the indicators through the membership degree function. The membership function used in this study was expressed as Equation 3 (Cherubin et al., 2016; Hemati et al., 2020):
where A is the maximum membership degree of the evaluation index with the value 1; Xi is the value of each evaluation index; X0 is the average value of each evaluation index; B is the slope of the equation, where the value −2.5 indicates that the index has a positive effect on soil quality, and 2.5 means that the index has a negative effect on soil quality.
In this study, 15 physical and chemical property indices related to soil fertility were selected to establish the dataset, and a principal component analysis (PCA) was used to determine the minimum dataset by combining the Norm values (comprehensive loading values) with Pearson correlation analysis. To avoid redundancy between indicators, only those with higher factor loadings and low correlations were retained in the minimum dataset (Larson and Pierce, 1994; Guo et al., 2024). The Norm values were calculated as Equation 4:
where Nia is the comprehensive factor load of index i in the principal component a; uia and λa are the factor load values and corresponding eigenvalues of index i in principal component a.
PCA was performed on the standardized evaluation indices to calculate the variance contribution and determine the weight of each index. The weighted summation index method was then used to calculate the soil fertility quality. The specific mathematical model was as Equation 5 (Vasu et al., 2016; Paul et al., 2020):
where n is the total number of soil indicators, and Kj and Sj are the weights and membership values of the jth soil index, respectively.
Grey system theory was introduced by Professor Deng Julong of Huazhong University of Science and Technology in China (Julong, 1989). Grey relation analysis is an important part of grey system theory. The principle behind it is that when the geometry shapes of curves formed by several statistical series are similar, i.e., there similar trends in the curves, the correlation is high. The proximity of the evaluation object to the ideal object is represented by the association order. This method is often used to compare and rank the evaluation objects, and the better the evaluation object, the closer it is to the ideal sequence (Liu and Forrest, 2010; Chen, 2023). The steps of grey relation analysis are as Equations 6–10:
(1) Establish the evaluation object sequence and the ideal sequence.The ideal object order is:
The sequence of evaluation objects is as follows:
where p = 1, 2, … , m.
(2) The grey relation factor is calculated as
where │Xt(h)-Xp(h)│ represents the absolute difference between data sequences Xt and Xp at a particular measurement point h. The term minp minh│Xt(h)-Xp(h)│ represents the minimum absolute difference corresponding to factor p = 1,2, … ,m at the same point h = 1,2, … , which is called the second-order minimum difference; maxp maxh│X0(h)-Xp(h)│ represents the second-order maximum difference, and ρ is a resolution coefficient with a value between 0 and 1 that is usually set to 0.5.
(3) Grey relevance is determined as follows:
Here, γp is the equal weight relevance; n is the number of evaluation indicators determined. Rp is the weighted relevance, and Kp is the weight of the soil index.
We used one-way ANOVA and LSD multiple comparisons to determine whether there were statistically significant differences in soil physicochemical properties across plantations with different cropping patterns. The correlations between soil properties and vegetation characteristics were analyzed using Pearson correlation. PCA was used to determine the index weights of soil quality, which were then employed in the index method to evaluate soil fertility. The reliability of the minimum dataset was verified by linear regression analysis. All data analyses were performed using SPSS 26.0 software, with statistical significance defined as P < 0.05. Data visualization was performed using Origin Pro 2021.

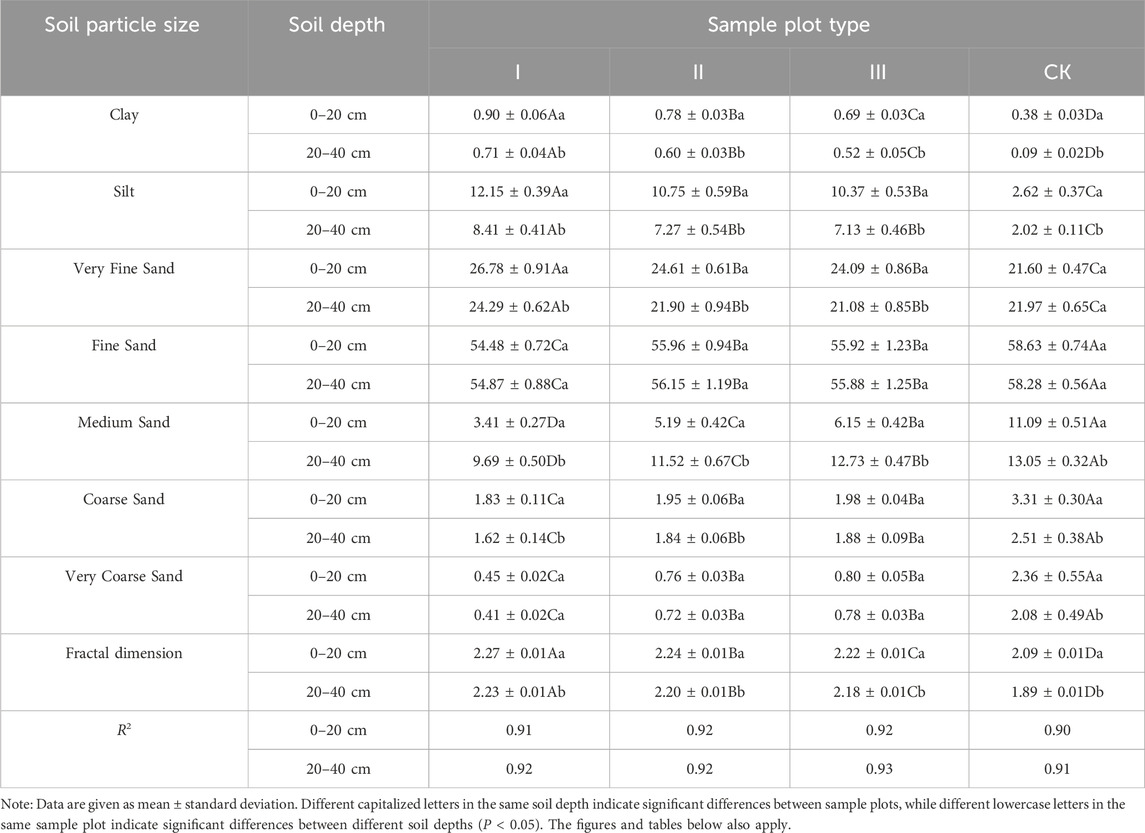

The contents of clay and silt at the same soil depth showed a pattern of Type I > Type II > Type III > CK (Table 2), while the contents of medium sand, coarse sand, and very coarse sand in the soil showed the opposite trend. There were significant differences in the soil clay and medium sand contents among different plots (P < 0.05). However, there were no significant differences in soil silt, very fine sand, fine sand, coarse sand, or very coarse sand contents between sample Type II and sample Type III (P > 0.05). In different soil depths within the same plantation land, the contents of clay, silt and very fine sand varied between the 0–20 cm and 20–40 cm layers, and there were significant differences among soil layers (P < 0.05). The variation trend for medium sand and very coarse sand was the opposite. The content of medium sand was significantly different among soil layers (P < 0.05), but the content of very coarse sand was not significantly different among soil layers (P > 0.05). The variation in soil fine sand content showed no clear pattern. The variation of the fractal dimension of soil particle size in different soil layers was in the order Type I > Type II > Type III > CK. All plots showed the pattern 0–20 cm > 20–40 cm, and there were significant differences between each plot and each soil depth (P < 0.05). The wider afforestation plant spacing increased the content of fine soil particles and the fractal dimension of the soil.

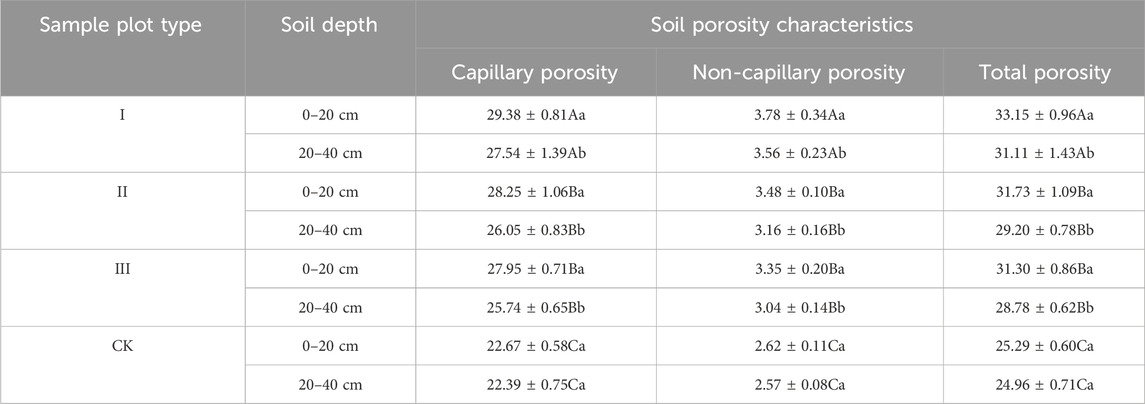

Soil capillary porosity, non-capillary porosity, and total porosity were in the order 0–20 cm > 20–40 cm in all plots (Table 3). Except for the bare sandy land, there were significant differences in the sample plots of forest land in all soil layers (P < 0.05), while there was no significant difference among soil layers in bare sandy land (P > 0.05). The changes in soil capillary porosity, non-capillary porosity, and total porosity were in the order Type I > Type II > Type III > CK. There was no significant difference between Type II and Type III in the two soil layers (P > 0.05), but there was a significant difference between the two plots and Type I and CK (P < 0.05). Overall, the construction of plantations on bare sand significantly improved the soil porosity. Type II and Type III had similar effects on soil porosity; Type I had the best effect on soil porosity, and the total porosity of Type I was 1.25–1.31 times that of bare sand.

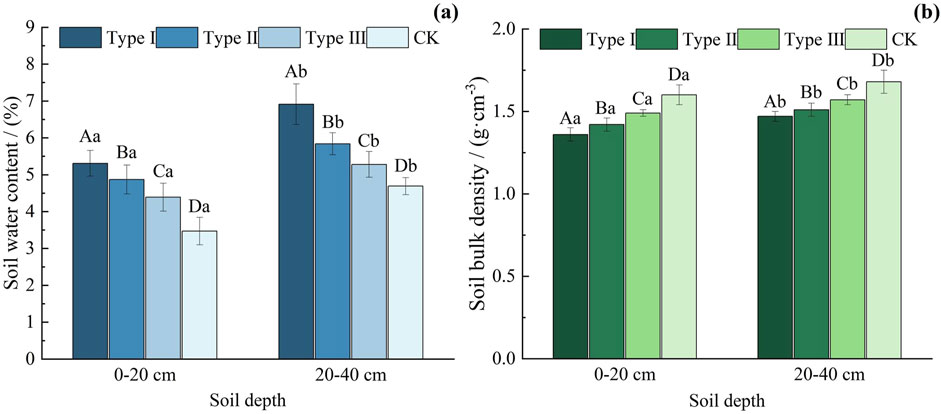

At the same soil depth, the soil water contents of the plantations with different plant spacing were in the order Type I > Type II > Type III > CK, and the pattern for the soil bulk density was the opposite (Figure 3). In different soil depths of the same sample plot, the soil water content and soil bulk density were in the order 0–20 cm < 20–40 cm. There were significant differences in soil water content and bulk density among different soil depths and plots (P < 0.05). The results showed that the difference in afforestation spacing had significant effects on the soil water content and bulk density.

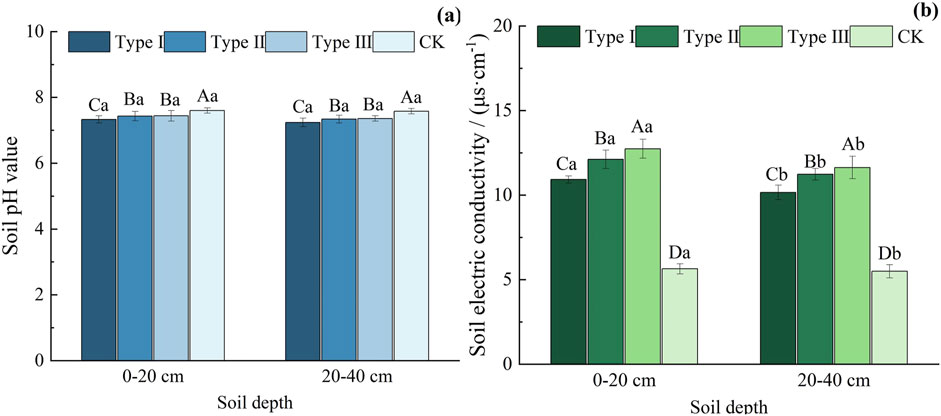

At the same depth, the pH of the soil with different planting spacing was in the order Type I < Type II < Type III < CK. Soil electrical conductivity (EC) was in the order CK < Type I < Type II < Type III (Figure 4). In different soil depths of the same sample plot, soil pH and EC were in the order 0–20 cm > 20–40 cm. There were significant differences in soil EC among different soil depths and plots (P < 0.05). There were no significant differences in soil pH among different soil depths in the same sample plot (P > 0.05), and no significant differences between sample Type II and sample Type III at the same soil depth (P > 0.05). These results indicate that afforestation in sandy land can reduce soil pH and increase soil EC. The influence of plant spacing on soil pH value was reflected in the plantations with wide afforestation spacing, and the soil EC decreased with an increase in plant spacing.

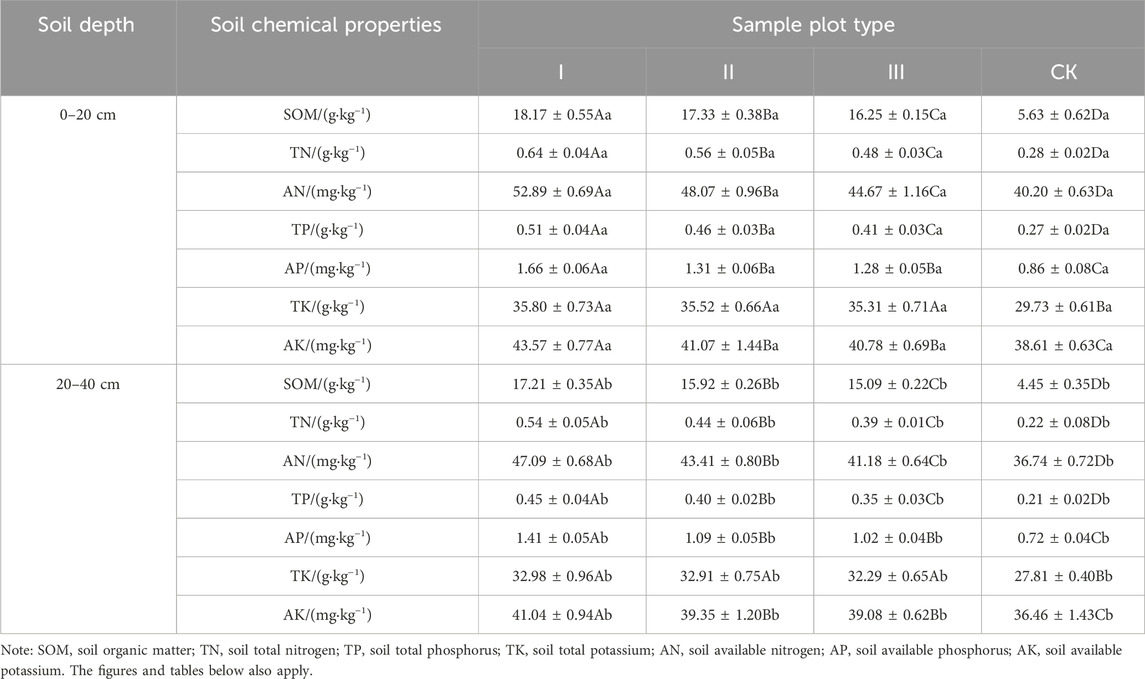

The contents of soil organic matter, total nutrients, and available nutrients in the 0–20 cm layer were significantly higher than those in the 20–40 cm layer (P < 0.05). The contents of soil organic matter, total N, total P, available N, available P, and available K in all soil layers showed a pattern of Type I > Type II > Type III > CK, and the contents of soil organic matter, total N, total P, and available N were significantly different among sample plots and at each soil depth (P < 0.05). There were no significant differences in soil available P or K contents between sample Type II and sample Type III (P > 0.05). There was no significant difference in soil total K content in the plantations with different planting spacings (P > 0.05), but there was a significant difference in the soil total K content between the plantations and the moving sandy land (P < 0.05). In summary, afforestation in moving sandy land significantly improved the soil organic matter and nutrient contents, and the change in afforestation spacing had no significant effect on the soil total K content. The improvement of soil nutrients in sample plot Type I was the highest among all plots (Table 4).
Fifteen indexes reflecting the soil fertility of P. sylvestris var. mongolica plantations were selected to establish a total data set (TDS) for soil fertility evaluation: fractal dimension of soil particle size, capillary porosity, non-capillary porosity, total porosity, bulk density, water content, pH, EC, organic matter, total nitrogen, total phosphorus, total potassium, available nitrogen, available phosphorus, and available potassium. The fractal dimension can describe the particle size composition and distribution of the soil, and thus the TDS did not include the soil particle composition. PCA was used to analyze the 15 soil indexes. The results showed that the cumulative contribution rate of the principal components of the two extracted eigenvalues ≥1 was 85.1% (Table 5), indicating that they could explain the variation of most of the soil indicators.

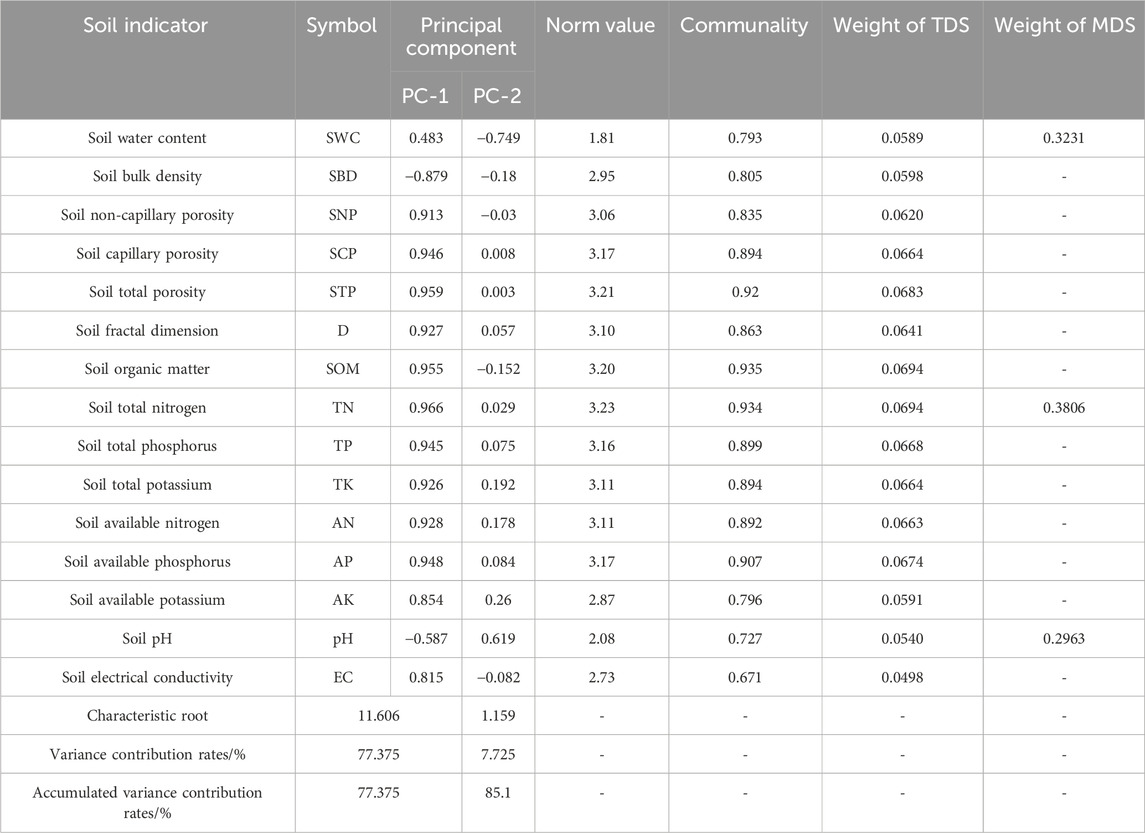

The factor loadings (>0.5) and the Norm values of the soil indices in the principal component analysis were considered for the minimum dataset (MDS). Figure 5 shows the results of Pearson correlation analysis of soil indicators in the study area. TN had the largest factor loading and Norm value in PC-1, and the other indexes in PC-1 were significantly correlated with TN (P < 0.05), and thus only TN was included in the MDS in PC-1. The indices with the highest Norm values in PC-2 were pH and SWC, with a correlation coefficient of −0.55, and these indices were included in the MDS. The weights of the indices were determined according to the contribution to the variance of each index, and the calculation results are shown in Table 5.

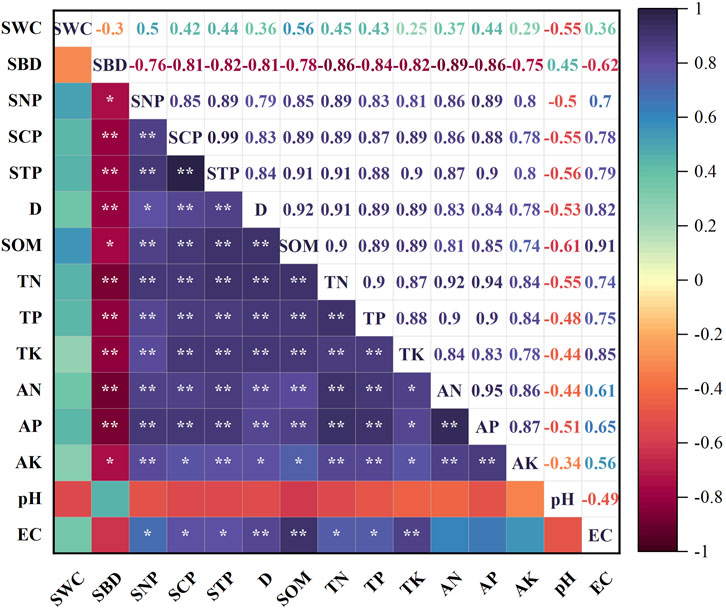

Figure 5. Pearson correlations between the soil properties. Note: SWC, soil water content; SBD, soil bulk density; SNP, soil non-capillary porosity; SCP, soil capillary porosity; STP, soil total porosity; D, soil fractal dimension; EC, soil electrical conductivity. The numbers displayed represent correlation coefficients. Purple, blue, and green indicate positive correlations between parameters, while red, orange, and yellow indicate negative correlations between parameters. The significance levels are *P < 0.05; **P < 0.01.
The variation in TDS-SQI was in the order Type I (0.55) > Type II (0.50) > Type III (0.47) > CK (0.36). The variation in MDS-SQI was in the order Type I (0.60) > Type II (0.54) > Type III (0.48) > CK (0.34) (Figure 6A). The trends of TDS-SQI and MDS-SQI were the same among different soil depths (Figure 6B).

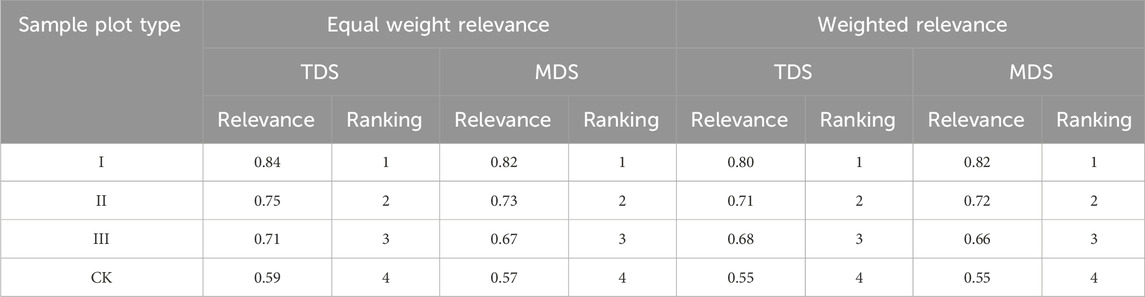

The ranking of the evaluation results with equal weights in correlation degree between TDS and MDS was as follows: Type I > Type II > Type III > CK. In the evaluation of soil fertility, the importance of each soil index is different; therefore, the evaluation of soil fertility cannot be objectively reflected by the equal weighting of relation degree, and thus it is more appropriate to use the weighted relation degree for evaluation. In this study, the evaluation results of TDS and MDS weighted relation degrees were consistent with the ranking of equal weights for relation degrees (Table 6).
The rationality of the MDS construction was directly related to the accuracy of the evaluation of soil fertility. We compared the TDS with the MDS by regression analysis. The results showed that TDS-SQI was significantly positively correlated with MDS-SQI (P < 0.05, R2 = 0.9384) (Figure 7A), and the grey correlation between the TDS and the MDS was significantly positive (P < 0.05, R2 = 0.8929) (Figure 7B). Therefore, the MDS index could be used instead of the TDS to evaluate the soil fertility of P. sylvestris var. mongolica plantations with different planting spacings in the study area.

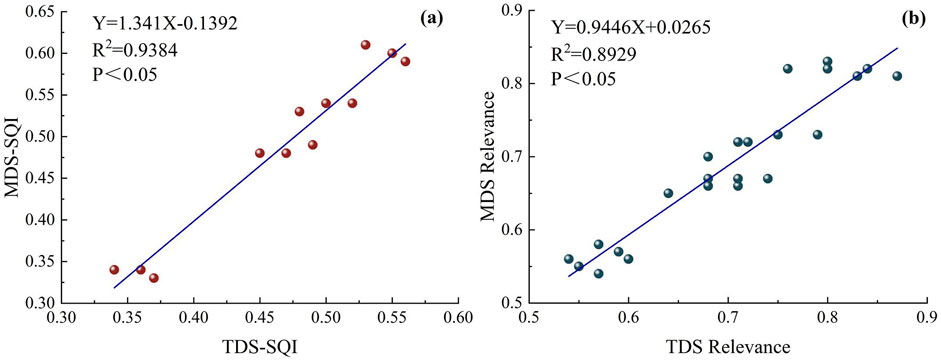

Figure 7. (A) The linear relationship between the SQI values of the TDS and the MDS. (B) The linear relationship between the grey relations of the TDS and MDS.

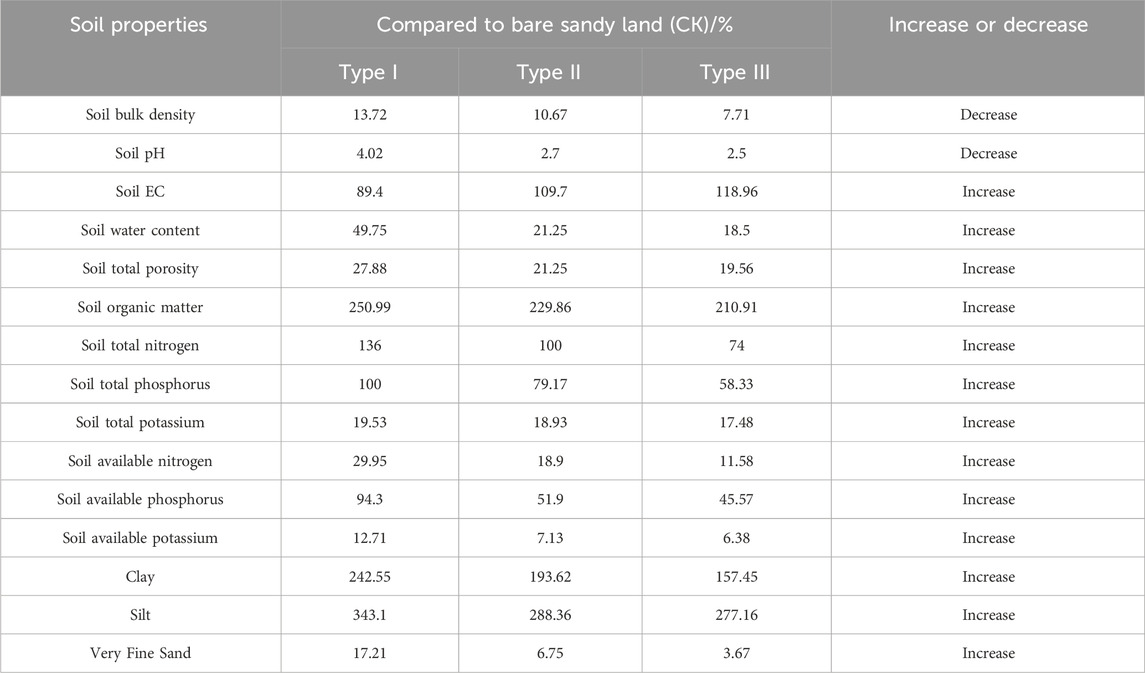

As the basis for plant growth and survival, soil plays crucial roles in the growth of individual plants and the succession of vegetation communities, and the structure of these vegetation communities is closely tied to soil quality and nutrient cycling (Van der Putten et al., 2013; Normand et al., 2017; Gatica-Saavedra et al., 2023). Plants significantly influence the structure and properties of soil through mechanisms such as root growth, litter mulching, and the exudation of substances. In turn, soil provides the essential medium for plant growth and development, and any changes in soil properties can affect plant health and growth, highlighting the dynamic interaction between understory vegetation and soil. This reciprocal influence is known as “plant–soil feedback” (van der Putten et al., 2016), a phenomenon observed across various plants and soil types (Arunrat et al., 2023a; Arunrat et al., 2023b). Therefore, in any forestry project focused on ecological restoration, soil development and restoration are long and complex processes (Halme et al., 2013; Widyati et al., 2022). An increasing body of relevant research confirms that altering stand density has a significant effect on soil physico-chemical properties, a hypothesis that is corroborated by the results of the present study (Razafindrabe et al., 2010; Qiu et al., 2019; Menyailo et al., 2022). At present, many studies, focusing on the impact of stand density on soil characteristics and quality, conducted in arid and semi-arid areas have concluded that appropriately reducing stand density is beneficial to soil development, a conclusion that is consistent with the results of this study (Andrews et al., 2020; Liu et al., 2024). However, some researchers have found that both excessively high or low stand densities is not conducive to soil fertility. When the stand density is too low, it can hinder canopy closure, resulting in inadequate surface vegetation restoration and litter coverage; this condition can expose bare areas of forest land, leading to increased evapotranspiration of soil moisture and nutrients, while rainfall can lead to surface runoff and soil erosion. If the stand density is too high, it inevitably leads to intense competition for water and nutrients among vegetation and trees in arid areas characterized by poor soil nutrient and water conditions; this competition hinders the restoration of understory species diversity (Zhang, 2022). Therefore, varying climatic conditions and geographic locations across different study areas can influence the results of the study, making it essential to explore the thresholds for reasonable stand density of different tree species as a critical consideration in afforestation efforts.
The planting patterns in afforestation projects directly or indirectly lead to changes in soil properties (Enoki et al., 1996; Wang et al., 2019). The results of this study show that the wider spacing of P. sylvestris var. mongolica positively affects the soil characteristics and fertility of the understory. This can be attributed primarily to the lower canopy density associated with wider spacing that weakens the canopy’s ability to intercept precipitation, allowing herbs to better absorb natural precipitation. As a result, the low-growing vegetation can access more sunlight, enhancing light compensation, promoting photosynthesis, and also improving the soil temperature, thereby providing a suitable environment for litter decomposition and microbial reproduction beneath the forest floor. Therefore, wider spacing can increase the richness and biomass of understory vegetation, thereby altering the soil microenvironment, and the return and decomposition of nutrients from community species further affect the characteristics of understory soil, improve soil quality, and promote soil nutrient cycling. Based on the above analysis, we investigated the vegetation in the sample plots and analyzed the correlations between vegetation characteristics and soil characteristics across different plots. There were significant correlations between vegetation characteristics, soil characteristics, and plant row spacing, with particularly strong correlations between vegetation characteristics and soil characteristics (Table 7).

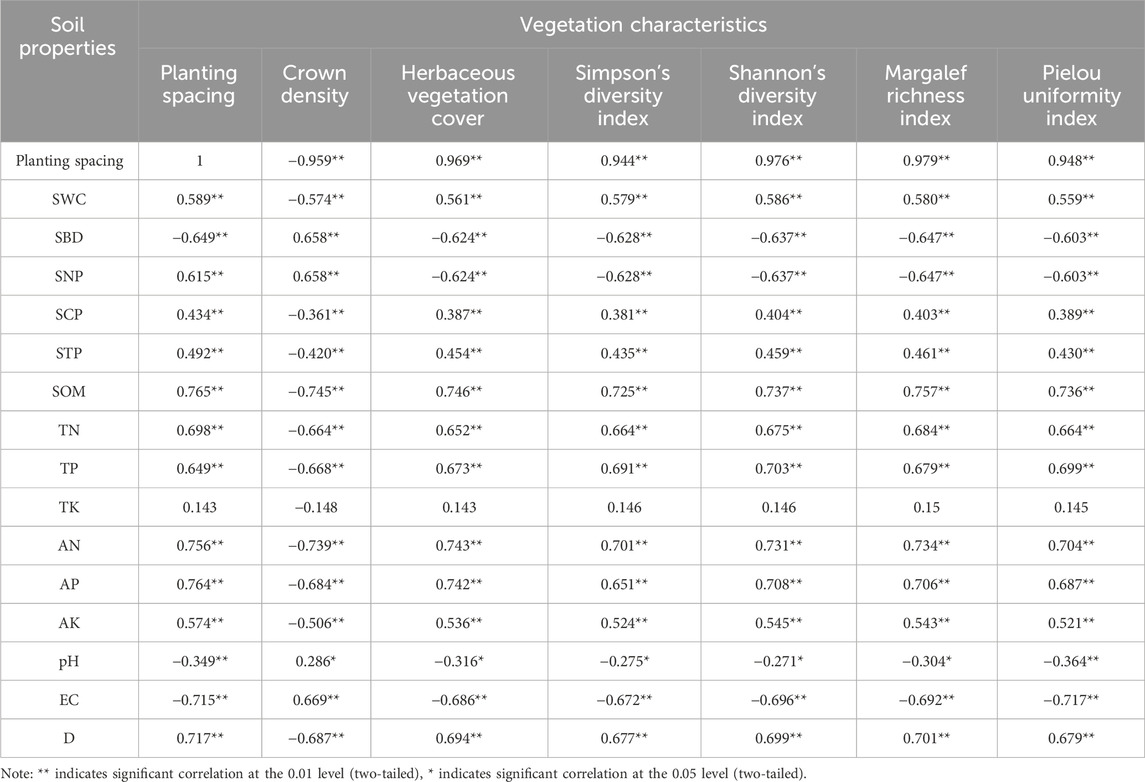

Table 7. Correlation analysis of soil properties and vegetation characteristics among sample plots with different plant spacing.
Our study observed a notable phenomenon in which different plant spacings had a positive effect on most physical and chemical properties of the soil compared to the unafforested bare sandy land, while planting P. sylvestris var. mongolica in the study area resulted in increased soil conductivity, suggesting a potential risk soil salinization associated with the existing planting patterns of P. sylvestris var. sylvestris plantations. We speculate that this may be because P. sylvestris var. mongolica survives best in rain-fed conditions without artificial irrigation or fertilization. The average annual precipitation in Duolun County is about 350 mm, while the average annual evaporation is about 1,769 mm, which is five times the amount of precipitation. Under drought conditions characterized by minimal rainfall and a lack of irrigation, strong surface evaporation can cause water from deeper layers of the soil to rise due to capillary forces, resulting in the accumulation of salts on the soil surface. The results of this study show that the closer the plant spacing, the higher the soil EC, while increasing spacing leads to a decrease in soil EC. This phenomenon can be mitigated by adjusting the planting density during afforestation. In the field investigation, we found that the smaller the afforestation spacing, the greater the decline of the stand health (Figure 2). This decline potentially involves salt content in the soil, as excessive salinity can damage plants, hinder their normal growth and development, lead to physiological drought, and finally result in plant desiccation and mortality (Munns, 2002; Mahajan and Tuteja, 2005). Existing studies have found that the root system of Pinus sylvestris sylvestris var. mongolica is largely distributed at depths of 1–1.5 m (MENG et al., 2018; Zhang et al., 2021), making it challenging for these trees to use groundwater effectively. Consequently, trees in these plantations often rely on soil moisture and rainfall. As mentioned above, increasing row spacing reduces canopy density of the stand, allowing for greater soil moisture replenishment from rainfall, and the results of this study demonstrate that wider row spacing corresponds to higher soil moisture content, potentially alleviating the phenomenon of root salinity stress. This hypothesis required further experimental verification and thus shapes our future research directions.
Row spacing is critical for plantation ecosystems, as it directly affects the allocation of natural resources and further leads to differences in soil recovery. Here, we analyzed the changes in soil characteristics of P. sylvestris var. mongolica plantations in a typical agro-pastoral ecotone under different row spacing patterns and assessed their comprehensive soil fertility. Compared to the unafforested bare sandy land, planting P. sylvestris var. mongolica with different row spacing in the sandy land of the agro-pastoral ecotone can significantly improve the physical and chemical properties of soil (except EC). The soil improvement effect was notably greater in the 0–20 cm layer than that of the 20–40 cm layer. These findings suggest that our first hypothesis is valid. The row spacing of afforestation plants significantly affected soil characteristics and soil fertility. In the three afforestation modes studied in this experiment, as row spacing increased, soil coarse particle content decreased while fine particle content as well as water and nutrient content increased; soil porosity increased and soil bulk density decreased. Planting P. sylvestris var. mongolica in sandy land increased the soil electrical conductivity, which decreased with greater band spacing (Table 8). The results of the evaluation of fertility of different types of plantations were consistently in the order 2 m × 6 m > 2 m × 3 m > 1 m × 1 m > bare sandy land, and the results for the TDS and the MDS in the two evaluation systems were significantly positively correlated (Soil quality index method: P < 0.05, R2 = 0.9384). Grey relation analysis: P < 0.05, R2 = 0.8929). These findings suggest that our second hypothesis is also valid. In summary, P. sylvestris var. mongolica is a suitable tree species for afforestation in the degraded land of the agro-pastoral ecotone, but the development of soil characteristics and fertility accumulation are not ideal when the planting density is larger. It will also increase soil EC content, which may further lead to tree decline and soil salinization. Among the above three afforestation modes, 2 m × 6 m plantation forests can better improve the soil characteristics and fertility quality of sandy soils. The results of this study can serve as a reference for the construction and management of plantations in agro-pastoral ecotones and other fragile ecological zones.
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
XG: Conceptualization, Formal Analysis, Investigation, Methodology, Visualization, Writing–original draft, Writing–review and editing. GY: Conceptualization, Funding acquisition, Methodology, Writing–review and editing. YM: Formal Analysis, Writing–review and editing. SQ: Investigation, Validation, Visualization, Writing–original draft. HC: Investigation, Writing–review and editing. FL: Investigation, Writing–review and editing. SM: Investigation, Validation, Writing–review and editing.
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This research was funded by the Inner Mongolia Autonomous Region “Unveiling the List of Commanders” Programme grant number 2024JBGS0023, the Inner Mongolia Autonomous Region Science and Technology Programme grant number 2021GG0070, the Inner Mongolia Autonomous Region Water Resources Department Financial Special grant number WH-1833-ZHJC-FW, and the Inner Mongolia Autonomous Region Water Conservancy Development Center Project Programme grant number BHZB-FW-202403036.
We thank LetPub (www.letpub.com.cn) for its linguistic assistance during the preparation of this manuscript.
Author FL was employed by National Energy Pingzhuang Coal Industry Mengdong Energy Holding Co., Ltd.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Andrews, C. M., D'Amato, A. W., Fraver, S., Palik, B., Battaglia, M. A., and Bradford, J. B. (2020). Low stand density moderates growth declines during hot droughts in semi-arid forests. J. Appl. Ecol. 57 (6), 1089–1102. doi:10.1111/1365-2664.13615
Arunrat, N., Sereenonchai, S., Kongsurakan, P., Iwai, C. B., Yuttitham, M., and Hatano, R. (2023a). Post-fire recovery of soil organic carbon, soil total nitrogen, soil nutrients, and soil erodibility in rotational shifting cultivation in Northern Thailand. Front. Environ. Sci. 11. doi:10.3389/fenvs.2023.1117427
Arunrat, N., Sereenonchai, S., Kongsurakan, P., Yuttitham, M., and Hatano, R. (2023b). Variations of soil properties and soil surface loss after fire in rotational shifting cultivation in Northern Thailand. Front. Environ. Sci. 11. doi:10.3389/fenvs.2023.1213181
Augusto, L., Ranger, J., Binkley, D., and Rothe, A. (2002). Impact of several common tree species of European temperate forests on soil fertility. Ann. For. Sci. 59 (3), 233–253. doi:10.1051/forest:2002020
Benomar, L., DesRochers, A., and Larocque, G. R. (2013). Comparing growth and fine root distribution in monocultures and mixed plantations of hybrid poplar and spruce. J. For. Res. 24 (2), 247–254. doi:10.1007/s11676-013-0348-7
Cassidy, M., Palmer, G., and Smith, R. G. B. (2013). The effect of wide initial spacing on wood properties in plantation grown Eucalyptus pilularis. New For. 44, 919–936. doi:10.1007/s11056-013-9385-5
Chen, X. (2023). “Gray correlation analysis,” in Application of gray system theory in fishery science (Springer), 35–75.
Cherubin, M. R., Karlen, D. L., Cerri, C. E., Franco, A. L., Tormena, C. A., Davies, C. A., et al. (2016). Soil quality indexing strategies for evaluating sugarcane expansion in Brazil. PloS one 11 (3), e0150860. doi:10.1371/journal.pone.0150860
Dai, L., Tang, H., Pan, Y., and Liang, D. (2022). Enhancing ecosystem services in the agro-pastoral transitional zone based on local sustainable management: insights from Duolun county in northern China. Land 11 (6), 805. doi:10.3390/land11060805
Enoki, T., Kawaguchi, H., and Iwatsubo, G. (1996). Topographic variations of soil properties and stand structure in a Pinus thunbergii plantation. Ecol. Res. 11 (3), 299–309. doi:10.1007/bf02347787
Farooq, T., Ma, X., Rashid, M., Wu, W., Xu, J., Tarin, M., et al. (2019). Impact of stand density on soil quality in Chinese fir (Cunninghamia lanceolata) monoculture. Appl. Ecol. and Environ. Res. 17 (2), 3553–3566. doi:10.15666/aeer/1702_35533566
Fuss, C. B., Lovett, G. M., Goodale, C. L., Ollinger, S. V., Lang, A. K., and Ouimette, A. P. (2019). Retention of nitrate-N in mineral soil organic matter in different forest age classes. Ecosystems 22, 1280–1294. doi:10.1007/s10021-018-0328-z
Gatica-Saavedra, P., Aburto, F., Rojas, P., and Echeverría, C. (2023). Soil health indicators for monitoring forest ecological restoration: a critical review. Restor. Ecol. 31 (5), e13836. doi:10.1111/rec.13836
Guo, X., Yang, G., Wu, J., Qiao, S., and Tao, L. (2024). Impacts of forest age on soil characteristics and fertility quality of Populus simonii shelter forest at the southern edge of the Horqin Sandy Land, China. PeerJ 12, e17512. doi:10.7717/peerj.17512
Halme, P., Allen, K. A., Auniņš, A., Bradshaw, R. H., Brūmelis, G., Čada, V., et al. (2013). Challenges of ecological restoration: lessons from forests in northern Europe. Biol. Conserv. 167, 248–256. doi:10.1016/j.biocon.2013.08.029
Hemati, Z., Selvalakshmi, S., Xia, S., and Yang, X. (2020). Identification of indicators: monitoring the impacts of rubber plantations on soil quality in Xishuangbanna, Southwest China. Ecol. Indic. 116, 106491. doi:10.1016/j.ecolind.2020.106491
Huang, D., Wang, K., and Wu, W. (2007). Problems and strategies for sustainable development of farming and animal husbandry in the Agro-Pastoral Transition Zone in Northern China (APTZNC). Int. J. Sustain. Dev. and World Ecol. 14 (4), 391–399. doi:10.1080/13504500709469739
Jin, Z., Lei, J., Xu, X., Li, S., Zhao, S., Qiu, Y., et al. (2008). Evaluation of soil fertility of the shelter-forest land along the Tarim Desert Highway. Chin. Sci. Bull. 53 (Suppl. 2), 125–136. doi:10.1007/s11434-008-6015-2
Julong, D. (1989). Introduction to grey system theory. J. grey Syst. 1 (1), 1–24. doi:10.5555/90757.90758
Kang, K.-Y., Zhang, S. Y., and Mansfield, S. D. (2004). The effects of initial spacing on wood density, fibre and pulp properties in jack pine Pinus banksiana Lamb. Holzforschung 58, 455–463. doi:10.1515/hf.2004.069
Larson, W. E., and Pierce, F. J. (1994). The dynamics of soil quality as a measure of sustainable management. Defin. soil Qual. a Sustain. Environ. 35, 37–51. doi:10.2136/sssaspecpub35.c3
Liu, D., Feng, W., Wang, T., Yang, W. B., Zhu, B., Zou, H., et al. (2024). A review of the mechanisms of artificial-natural coupled vegetation restoration under the low cover sand control theory. J. Desert Res. 44 (01), 170–177. doi:10.7522/j.issn.1000-694X.2023.00079
Liu, S., and Forrest, J. Y. L. (2010). Grey systems: theory and applications. Springer Science and Business Media.
Liu, X., Li, L., Qin, F., Li, Y., Chen, J., and Fang, X. (2022). Ecological policies enhanced ecosystem services in the Hunshandak sandy land of China. Ecol. Indic. 144, 109450. doi:10.1016/j.ecolind.2022.109450
Liu, Z., Liu, Y., and Li, Y. (2018). Anthropogenic contributions dominate trends of vegetation cover change over the farming-pastoral ecotone of northern China. Ecol. Indic. 95, 370–378. doi:10.1016/j.ecolind.2018.07.063
Mahajan, S., and Tuteja, N. (2005). Cold, salinity and drought stresses: an overview. Archives Biochem. biophysics 444 (2), 139–158. doi:10.1016/j.abb.2005.10.018
Mallik, A. U., Hossain, M. K., and Lamb, E. G. (2008). Species and spacing effects of northern conifers on forest productivity and soil chemistry in a 50-year-old common garden experiment. J. For. 106 (2), 83–90. doi:10.1093/jof/106.2.83
Meng, P., Zhang, B.-x., and Wang, M. (2018). Biomass distribution and architecture of roots in Pinus densiflora and Pinus sylvestris var. mongolica in Horqin sandy land. Chin. J. Ecol. 37 (10), 2935. doi:10.13292/j.1000-4890.201810.029
Menyailo, O. V., Sobachkin, R. S., Makarov, M. I., and Cheng, C.-H. (2022). Tree species and stand density: the effects on soil organic matter contents, decomposability and susceptibility to microbial priming. Forests 13 (2), 284. doi:10.3390/f13020284
Mongil-Manso, J., Navarro-Hevia, J., and San Martín, R. (2022). Impact of land use change and afforestation on soil properties in a mediterranean mountain area of Central Spain. Land 11 (7), 1043. doi:10.3390/land11071043
Munns, R. (2002). Comparative physiology of salt and water stress. Plant, Cell. and Environ. 25 (2), 239–250. doi:10.1046/j.0016-8025.2001.00808.x
National Forestry and Grassland Administration (1999). “People's Republic of China forestry industry standards,” in Forest soil analysis methods. Beijing: Standards Press of China.
Normand, A. E., Smith, A. N., Clark, M. W., Long, J. R., and Reddy, K. R. (2017). Chemical composition of soil organic matter in a subarctic peatland: influence of shifting vegetation communities. Soil Sci. Soc. Am. J. 81 (1), 41–49. doi:10.2136/sssaj2016.05.0148
Office of the People's Government of Duolun County (2024). “Duolun County: a green sea is planted on the sand,” in Released on the official website of the administrative Office of the Xilin Gol League of inner Mongolia. The information comes from the Office of the People's Government of Duolun county. Available at: https://www.xlgl.gov.cn/xlgl/zx/qxdt/2024053110362290464/index.html (Accessed July 5, 2024).
Paul, G. C., Saha, S., and Ghosh, K. G. (2020). Assessing the soil quality of Bansloi river basin, eastern India using soil-quality indices (SQIs) and Random Forest machine learning technique. Ecol. Indic. 118, 106804. doi:10.1016/j.ecolind.2020.106804
Prasad, J., Korwar, G., Rao, K., Mandal, U., Rao, C., Rao, G., et al. (2010). Tree row spacing affected agronomic and economic performance of Eucalyptus-based agroforestry in Andhra Pradesh, Southern India. Agrofor. Syst. 78, 253–267. doi:10.1007/s10457-009-9275-1
Qiu, K., Li, Z., Xie, Y., Xu, D., He, C., and Pott, R. (2024). Desertification reversal promotes the complexity of plant community by increasing plant species diversity of each plant functional type. Agronomy 14 (1), 96. doi:10.3390/agronomy14010096
Qiu, X., Peng, D., Wang, H., Wang, Z., and Cheng, S. (2019). Minimum data set for evaluation of stand density effects on soil quality in Larix principis-rupprechtii plantations in North China. Ecol. Indic. 103, 236–247. doi:10.1016/j.ecolind.2019.04.010
Razafindrabe, B. H., He, B., Inoue, S., Ezaki, T., and Shaw, R. (2010). The role of forest stand density in controlling soil erosion: implications to sediment-related disasters in Japan. Environ. Monit. Assess. 160, 337–354. doi:10.1007/s10661-008-0699-2
Sirohi, C., and Bangarwa, K. (2017). Effect of different spacings of poplar-based agroforestry system on soil chemical properties and nutrient status in Haryana, India. Curr. Sci. 113, 1403–1407. doi:10.18520/cs/v113/i07/1403-1407
Smith, R. G. B., and Brennan, P. (2006). First thinning in sub-tropical eucalypt plantations grown for high-value solid-wood products: a review. Aust. For. 69 (4), 305–312. doi:10.1080/00049158.2006.10676251
Sun, J., Wang, N. a., and Niu, Z. (2023). Effect of soil environment on species diversity of desert plant communities. Plants 12 (19), 3465. doi:10.3390/plants12193465
Tyler, S. W., and Wheatcraft, S. W. (1989). Application of fractal mathematics to soil water retention estimation. Soil Sci. Soc. Am. J. 53 (4), 987–996. doi:10.2136/sssaj1989.03615995005300040001x
Van der Putten, W. H., Bardgett, R. D., Bever, J. D., Bezemer, T. M., Casper, B. B., Fukami, T., et al. (2013). Plant–soil feedbacks: the past, the present and future challenges. J. Ecol. 101 (2), 265–276. doi:10.1111/1365-2745.12054
van der Putten, W. H., Bradford, M. A., Pernilla Brinkman, E., van de Voorde, T. F., and Veen, G. (2016). Where, when and how plant–soil feedback matters in a changing world. Funct. Ecol. 30 (7), 1109–1121. doi:10.1111/1365-2435.12657
Vasu, D., Singh, S. K., Ray, S. K., Duraisami, V. P., Tiwary, P., Chandran, P., et al. (2016). Soil quality index (SQI) as a tool to evaluate crop productivity in semi-arid Deccan plateau, India. Geoderma 282, 70–79. doi:10.1016/j.geoderma.2016.07.010
Wang, X., Huang, Z., Hong, M. M., Zhao, Y. F., Ou, Y. S., and Zhang, J. (2019). A comparison of the effects of natural vegetation regrowth with a plantation scheme on soil structure in a geological hazard-prone region. Eur. J. Soil Sci. 70 (3), 674–685. doi:10.1111/ejss.12781
Widyati, E., Nuroniah, H. S., Tata, H. L., Mindawati, N., Lisnawati, Y., Darwo, , et al. (2022). Soil degradation due to conversion from natural to plantation forests in Indonesia. Forests 13 (11), 1913. doi:10.3390/f13111913
Wuyun, D., Sun, L., Chen, Z., Hou, A., Crusiol, L. G. T., Yu, L., et al. (2022). The spatiotemporal change of cropland and its impact on vegetation dynamics in the farming-pastoral ecotone of northern China. Sci. Total Environ. 805, 150286. doi:10.1016/j.scitotenv.2021.150286
Yan, D., Wang, G., Wang, H., and Qin, T. (2012). Assessing ecological land use and water demand of river systems: a case study in Luanhe River, North China. Hydrology Earth Syst. Sci. 16 (8), 2469–2483. doi:10.5194/hess-16-2469-2012
Yan, Y., Fang, S., Tian, Y., Deng, S., Tang, L., and Chuong, D. N. (2015). Influence of tree spacing on soil nitrogen mineralization and availability in hybrid poplar plantations. Forests 6 (3), 636–649. doi:10.3390/f6030636
Yang, X., Li, T., Zhang, Q., Gan, M., Chen, M., Bai, X., et al. (2021). Distribution of soil nutrients under typical artificial vegetation in the desert–loess transition zone. Catena 200, 105165. doi:10.1016/j.catena.2021.105165
Yang, X., Wang, X., Liu, Z., Li, H., Ren, X., Zhang, D., et al. (2013). Initiation and variation of the dune fields in semi-arid China–with a special reference to the Hunshandake Sandy Land, Inner Mongolia. Quat. Sci. Rev. 78, 369–380. doi:10.1016/j.quascirev.2013.02.006
Yang, Y., Wang, K., Liu, D., Zhao, X., and Fan, J. (2020). Effects of land-use conversions on the ecosystem services in the agro-pastoral ecotone of northern China. J. Clean. Prod. 249, 119360. doi:10.1016/j.jclepro.2019.119360
Zhang, T. (2022). Characteristics of understory vegetation and soil physicochemical properties of Pinus tabulaeformis plantation in the southern horqin sandy land. Hohhot, China: Bachelor's degree, Inner Mongolia Agricultural University.
Zhang, T., Song, L., Zhu, J., Wang, G., Li, M., Zheng, X., et al. (2021). Spatial distribution of root systems of Pinus sylvestris var. mongolica trees with different ages in a semi-arid sandy region of Northeast China. For. Ecol. Manag. 483, 118776. doi:10.1016/j.foreco.2020.118776
Zhang, X., Zhang, F., Wang, D., Fan, J., Hu, Y., Kang, H., et al. (2018). Effects of vegetation, terrain and soil layer depth on eight soil chemical properties and soil fertility based on hybrid methods at urban forest scale in a typical loess hilly region of China. PLoS One 13 (10), e0205661. doi:10.1371/journal.pone.0205661
