Seasonal co-pollution characteristics of parent-PAHs and alkylated-PAHs in karst mining area soil of Guizhou, Southwest China

The research on polycyclic aromatic hydrocarbons (PAHs) in karst soil mainly focuses on 16 kinds of parent-PAHs (p- PAHs), and little attention is given to alkylated-PAHs (a-PAHs) with higher concentration and greater toxicity. Five surface soils of coal mining area and their surrounding areas in karst area were sampled as subject investigated, and the spatiotemporal pollution characteristics of p-PAHs and a-PAHs were analyzed to discuss the impact of karst soil properties and environmental conditions on the migration of a-PAHs. The research results showed that the pollution concentration of a-PAHs in the soil of the southwestern karst area, especially the coal mining area, was significantly higher compared to the 16 kinds of p-PAHs, and the average concentration of the p-PAHs was 177.29 ± 37.36 ng/g; the concentration of a-PAHs was 346.87 ± 104.91 ng/g; the concentration of PAHs presented a seasonal pattern of that in winter > spring > autumn > summer. At the same time, seasonal rainfall could affect and change the occurrence state of PAHs in karst soils, but the effect on p-PAHs was weaker than on a-PAHs. The concentration of PAHs in the coal mining area and forest soil were 651.68 ng/g and 755.38 ng/g, respectively, so they belonged to contaminated soil, while the concentrations of two cultivated soil and abandoned soil were 475.51 ng/g, 367.58 ng/g and 370.63 ng/g, respectively, belonging to weakly contaminated. Toxicity assessment showed that p-BaP with a maximum toxic equivalent of 62.35 ng/g, C₁-BaP (42.09 ng/g), DaA (37.82 ng/g) and C_1-3 BaA (25.91 ng/g) were toxic PAHs with higher risk. The results of the correlation study showed that soil organic carbon, soil clay and soil calcium content were the dominant factors affecting the spatiotemporal distribution of PAHs of soils in karst coal mining areas and their surrounding areas. The research can provide data guidance for the management, control and restoration of soil pollution in karst areas, and offer a reference for Guizhou province to implement the big-ecological strategy.

Introduction

Global karst landforms were widely distributed, accounting for about 15% of the terrestrial area (Larson and Mylroie, 2018). Guizhou province was China’s distribution center of karst landforms (Yan et al., 2019). Karst areas are vulnerable to various exogenous pollutants due to their extremely fragile ecosystems and thin soil layers. The coal-dominated energy consumption structure, rapid urbanization, and the increasing number of motor vehicles have made Guizhou province karst soil a major “sink” of PAHs. Research pointed out that the total emission of PAHs was 1730 tons in Guizhou province, ranking fourth in the country in 2003 (Xu et al., 2006), and Guizhou province’s overall emission intensity was also at a high level in China (Zhang et al., 2007). Han et al. (2019) pointed out that China emitted 32,700 tons of PAHs because of incomplete fuel combustion in 2016, and the emission intensity of Guizhou province was high. Zhang et al. (2022) pointed out that the pollutant concentration of soil PAHs near the coal-fired power plant in the karst area of Guizhou province reached 12.2 mg/kg.

The occurrence, migration and fate of 16 kinds of p-PAHs in the environmental priority control pollutants in soil have been widely studied, but the total polycyclic aromatic compounds (PACs) in the environment not only contain 16 kinds of p-PAHs, but also include a-PAHs, nitro-polycyclic aromatic hydrocarbons (n-PAHs), dibenzothiophenes (DBTs), etc. In recent years, researchers have found that aerosols (Wei et al., 2015), bituminous coal (Zhang et al., 2021), coking plants and coal gangue (Lin et al., 2017; Liang et al., 2018), oil-contaminated sites (Golzadeh et al., 2021), untreated sludge and municipal wastewater (Hellou et al., 1999) include not only 16 kinds of p-PAHs, but also a large number of a-PAHs whose proportion was often greater than p-PAHs. The main sources of a-PAHs included the accompanying products of petroleum, namely diagenetic sources; a-PAHs also existed in raw coal; the processing and combustion of petroleum and coal products also released a part of a-PAHs. The substitution reaction of p-PAHs in the environment also increased the concentration of a-PAHs in the environment. Studies have found that a-PAHs may be significantly more toxic than p-PAHs (Andersson and Achten 2015; Golzadeh et al., 2021). The study believed that PAHs with a “Bay region” structure was the key molecular feature that affected whether PAHs would lead to mutagenesis, carcinogenesis and teratogenesis. The study also found that 38 kinds of a-PAHs had the above three effects (Baird et al., 2007).

The climate, precipitation and various Earth surface processes in southwest China’s karsts were extremely complicated, which may affect PAH’s environmental migration and final fate. Lan et al. (2016, 2018) showed that rainfall events changed the distribution of PAHs in karst groundwater, the mass concentration of PAHs in water increased with the increase of rainfall or flow, and the ecological risk of underground water changed during rainfall. Zhu et al. (2022) showed that high ring PAHs were more enriched in the soil of typical karst trough valleys in Chongqing, and soil PAHs generally caused a low risk of carcinogenicity. Qian et al. (2020) showed that low cyclic PAH was mainly found in the karst cave sediment, and PAHs distribution had no significant relationship with the sediment particle size. Ye et al. (2015) believed that the migration of PAHs in karst areas was mainly controlled by two mechanisms: organic matter and water dissolution. They believed that energy combustion and traffic pollution, and atmospheric deposition were the main pollution pathway for PAHs in the study area. An et al. (2021) believed that the migration of PAHs in karst soil was closely related to natural ecological processes such as freezing and thawing. Freeze-thaw cycles may affect the form of calcium ions in the karst environment, thereby changing the microscopic morphology and structure of soil organic matter, resulting in chvvvanges in PAHs occurrence state and desorption process. The research on PAHs in the karst environment mainly focused on groundwater and 16 kinds of p-PAHs, while the more toxic a-PAHs and 16 kinds of p-PAHs in soil had not been reported.

Meanwhile, the physicochemical properties of a-PAHs and p-PAHs were quite different, which may affect the occurrence, migration and toxicity in the environment (Kang et al., 2016). The pollution of a-PAHs in southwestern karst areas, especially in coal-rich areas, would inevitably affect soil health and groundwater safety, and ultimately affected the safety of the entire regional ecosystem and human health. In addition, the unique climatic conditions in the karst area of Guizhou province may change the occurrence and migration of p-PAHs and a-PAHs. Hence, studying the pollution characteristics of a-PAHs in karst areas was necessary. The main purpose of this study was to find out the temporal and spatial distribution tendency of PAHs in the soil of karst coal-rich areas in different seasons, analyze the possible influencing factors, calculate the ecological risk value. The research can provide data guidance for the management, control and restoration of soil pollution in karst areas, and provide a reference for implementing the big ecology strategy in Guizhou province.

Material and methods

Sample collection

The study selected five surface soils (0–10 cm) in a coal mining area in Hezhang County, Guizhou province (Figure 1). The coal mining area was 2.29 km², and the production scale was 0.45 Mt/a. The coal-bearing formation of the coal mine was Xuanwei Group (P3x), which mainly was lignite with medium high sulfur and low volatile anthracite. The study was conducted in March, 2021 (spring, with continuous light rain for a week before sampling), June, 2021 (summer, with a heavy rain for a week before sampling), September, 2021 (autumn, without rainfall for a week before sampling), and December, 2021 (winter, without rainfall for a week before sampling). 10 m × 10 m surface soil mixed sample was collected by the W-type sampling method, which was air-dried at room temperature in the laboratory in the dark to remove plant roots and debris, ground and screened through a 100-mesh stainless steel sieve, and put in a sealed bag for later use. The basic characteristics of the soil are shown in Table 1. The total organic carbon (TOC) was measured by an organic element analyzer (vario Macro cube), and the cation exchange capacity (CEC) was measured by the NH₄Cl-NH₄OAc method. The total calcium amount of the soil (TCA) was digested using aqua regia-perchloric acid and determined by the ICP-OES method. Soil texture was determined using a laser particle size analyzer (BT-9300ST).

FIGURE 1

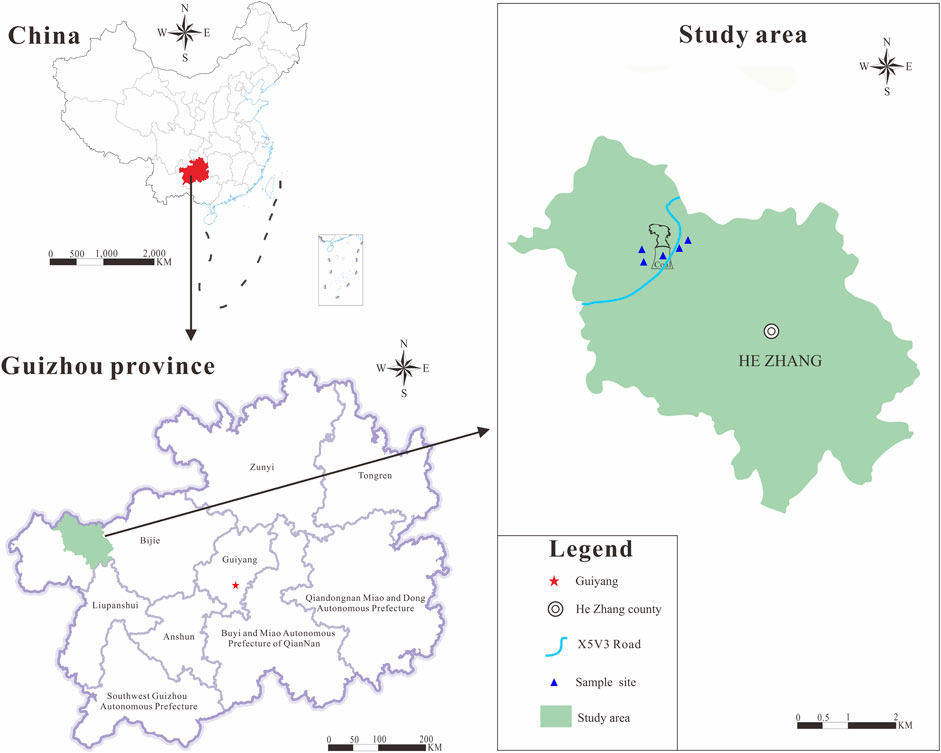

FIGURE 1. Location of samples site of karst soil in Guizhou province.

TABLE 1

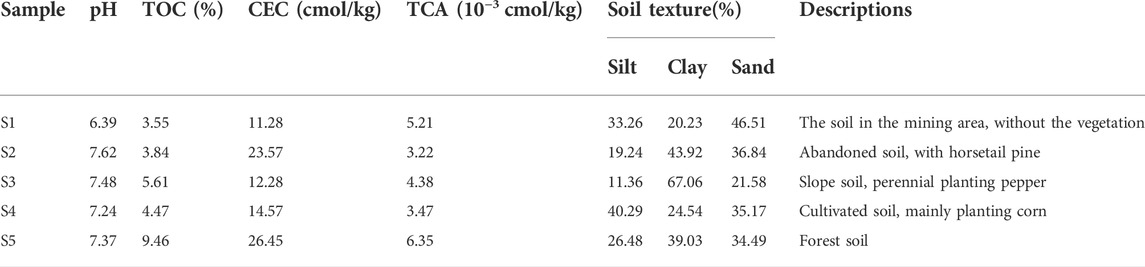

TABLE 1. Physical and chemical properties of the soil at the sampling sites.

Instruments and reagents

The main experimental apparatus included Agilent 6890/5973B gas chromatography-mass spectrometer (equipped with EI ionization source and automatic sampler); rotary evaporator (VORTEX-5), ultrasonic cleaner (KG-250DE type), centrifuge (TGL -16C).

N-hexane and dichloromethane were products of Thermal Fisher, the United States; methanol and anhydrous sodium sulfate were bought from Sinopharm Group Corporation. The standard mixed samples of 16 kinds of p-PAHs were purchased from AccuStandard, the United States, and the standard solutions of 12 a-PAHs were purchased from Ehrenstorfer, Germany. Preprocessing standard internal D₈-naphthalene, quantitative internal standard D₁₀-acenaphthene, D₁₀-phenanthrene, D₁₂-perylene, D₁₂-chrysen, and injection internal standard D₁₄-tribiphenyl were purchased from Cambridge Isotope Laboratories.

Extraction and analysis

Ultrasonic extraction was used to extract the p-PAHs and a-PAHs in the soil. Briefly, 5 g sample was put into a 10 ml screw-top glass test tube, then 2 g high-temperature treated anhydrous sodium sulfate was added, then 100 μL with 20 μg/ml recovery internal standard D₈-naphthalene was added, and meanwhile 10 ml of dichloromethane was added. At a constant water temperature of 20°C, the sample was sonicated for 5 h, and stirred once per hour during ultrasonication. The supernatant was transferred to a centrifuge tube, centrifuged at 14,000 r/min for 5 min, and then transferred to a rotary evaporator, which was concentrated to 0.5 ml, transferred to a 1.5 ml brown injection bottle. 100 μL with 400 ng/g quantitative internal standard (D₁₀-acenaphthene, D₁₀-phenanthrene, and D₁₂-perylene) was added. The sample capacity was fixed to 1 ml using methanol, and evenly was mixed in a vortexer for 5 min to tested on the machine.

The sample was measured by GC-MS, and the specific chromatographic parameters were as follows: temperature programming of the chromatographic column (DB-5MS, 30 m × 0.25 mm × 0.25 μm, United States) started from 70°C, and held for 1 min; the chromatographic column was heated to 180°C at 15°C/min, held for 2 min; heated to 220°C at 10°C/min, held for 0.5 min, and finally heated to 300°C at 8°C/min, held for 5 min. The carrier gas was helium, the flow rate was constant flow with 1.0 ml/min; the injection port temperature was 280°C, and the injection volume was 1 μL without split sampling. Mass spectrometry parameters: electron bombardment ion source, ionization voltage 70 eV, ion source temperature 230°C, interface temperature 280°C, mass scanning range m/z 50–550, in full scan mode, solvent delay for 4 min.

Data processing and quality control

The p-PAHs were determined by gas chromatography-mass spectrometry, specifically referred to by Lan et al. (2016). The a-PAHs were qualitatively and quantitatively analyzed using MassLynx V4.2 software by referring to the mass spectrum of the standard sample and the mass spectrum in the standard mass spectrum database (NIST Mass Spectral Database), and qualitative analysis was made based on retention time. The relative response factor (RF) internal standard method was used for quantitative analysis; the components of a-PAHs not included in the standard sample were quantified according to the response factors of PAHs or a-PAHs with the closest retention time in the homologues or the chromatogram (Qian et al., 2022). The RF calculation formula was as follows:

$RF=\frac{K_{S-PAH}}{K_{IS}}(1)$

In Eq. 1, K_S-PAH was the regression curve slope of a single PAH standard substance; K_IS was the regression curve slope of the added standard internal substance corresponding to a single PAH standard substance.

All samples were subject to a strict quality assurance and quality control system: 3 parallel samples were set for each sample, and the recovery standard sample was added; the actual recovery ranges were D₈-naphthalene (83.2% ± 6.3%), D₁₀-Acenaphthene (79.2% ± 8.4%), D₁₀-phenanthrene (95.1% ± 2.8%), D₁₂-chrysen (98.2% ± 3.4%), D₁₂-perylene (102.6% ± 6.5%); one blank was added for every 10 samples, and the concentration range of naphthalene was 0.03–0.95 ng/g in the blank sample; the final data were revised from the blank and corrected for recovery.

Results

Concentration characteristics of ∑PACs

35 kinds of PACs (14 kinds of p-PAHs and 21 kinds of a-PAHs) were detected in the samples, and the concentrations of 14 kinds of p-PAHs ranged from 224.66 ± 55.78 ng/g to 121.43 ± 26.89 ng/g, with an average value of 177.29 ± 37.36 ng/g; 21 kinds of a-PAHs concentrations ranged from 530.72 ± 172.17 ng/g to 444.04 ± 94.19 ng/g, with an average value of 346.87 ± 104.91 ng/g (Tables 2, 3). The two p-PAHs (acenaphthylene and acenaphthene) were not detected in the karst soil, but their alkyl-substituted hydrocarbons had high concentrations. According to analysis from the polluted site, the forest soil sampling site (S5) had the maximum concentration of p-PAHs (224.66 ± 66.82 ng/g), and the soil sampling site of traditional corn crop cultivated soil (S4) had the minimum value of p-PAHs (121.43 ± 31.94 ng/g). The specific concentration tendency was S5 > S1 > S3 > S2 > S4. Forest soil sampling site (S5) had the maximum concentration of the a-PAH (530.72 ± 172.17 ng/g), and cultivated corn crop soil (S4) still was the minimum value (249.21 ± 94.69 ng/g). The specific concentration tendency was S5 > S1 > S3 > S4 > S2. According to analysis from the sampling season: the average concentration of total PAHs in the five sampling sites was winter (588.01 ng/g) > spring (573.26 ng/g) > autumn (499.41 ng/g) > summer (435.95 ng/g). The average concentration of p-PAHs in the five sampling sites was winter (203.09 ± 41.65 ng/g) > autumn (177.56 ± 36.21 ng/g) > spring (169.31 ± 40.25 ng/g) > summer (159.18 ± 60.17 ng/g). Except for the winter in which the concentration of the S1 was higher than that of the other four sampling sites, the concentration of the sampling site was exhibited with S5 > S1 > S3 > S2 > S4 in other seasons. However, there were differences in the seasonal distribution characteristics of a-PAHs. The seasonal distribution order of the five soil samples was spring (403.95 ± 41.65 ng/g) > winter (384.92 ± 113.38 ng/g) > autumn (321.85 ± 104.19 ng/g) > summer (276.77 ± 91.31 ng/g). Except for the spring sampling in which the content of a-PAHs in cultivated soil (S4) was lower than that in the abandoned soil (S2), the general trend of a-PAHs concentrations was S5 > S1 > S3 > S4 > S2 in the four seasons. A comparison of the concentration distribution of PAHs in different sites and in different sampling seasons with the soil properties of the sampling sites revealed that the spatial distribution of p-PAHs and a-PAHs were closely related to soil organic carbon content.

TABLE 2

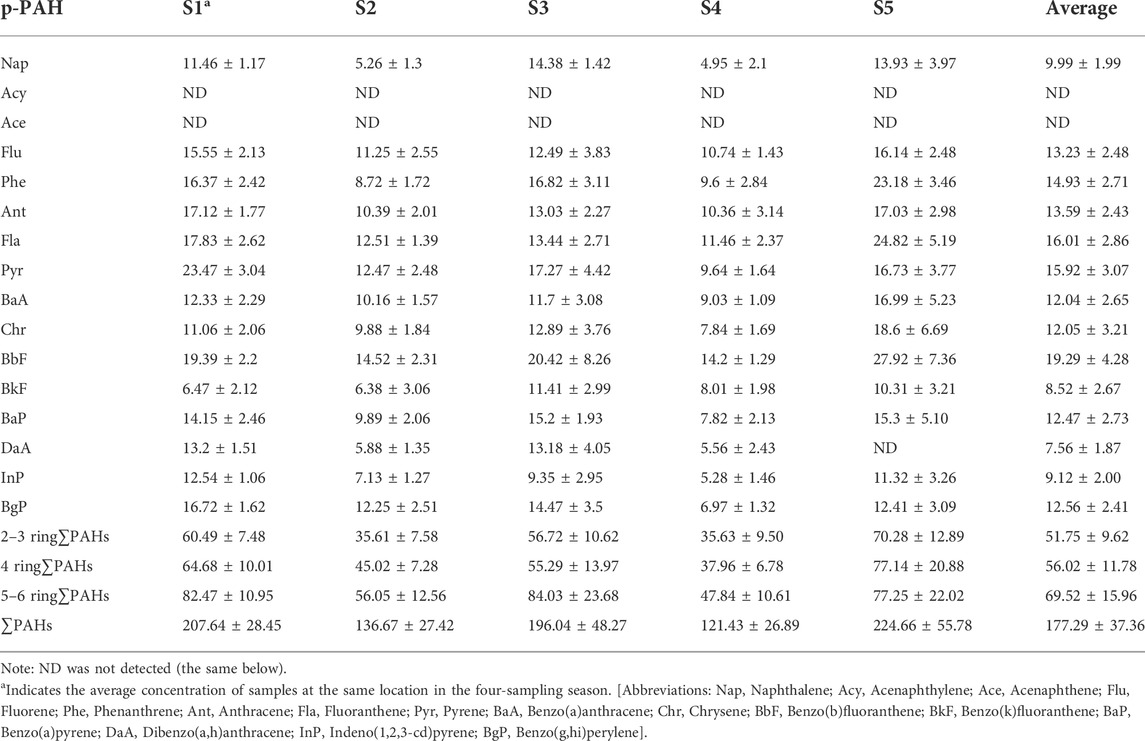

TABLE 2. Concentration of ∑₁₆ p-PAHs in samples of soil (ng/g).

TABLE 3

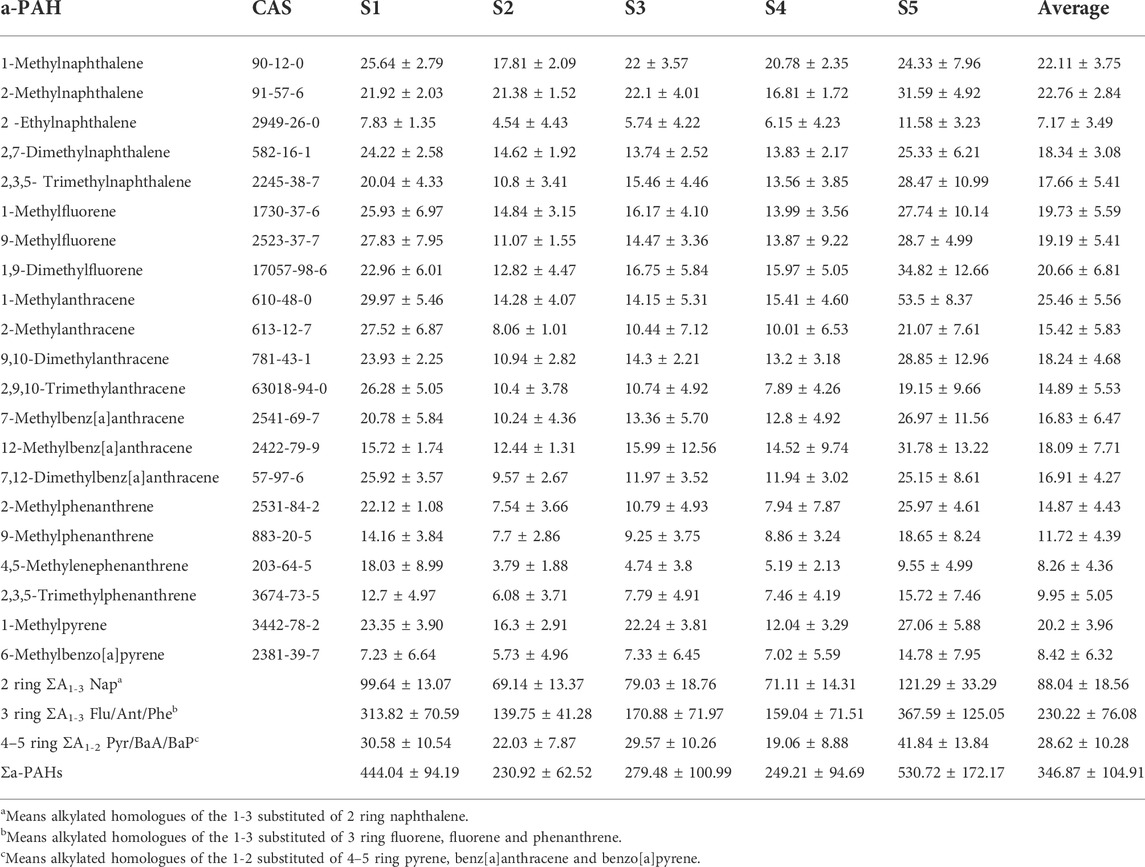

TABLE 3. Concentration of ∑₂₁ a-PAHs in samples of soil (ng/g).

The ∑PACs in the mining area (S5) were significantly higher than in the other 4 sampling sites (Table 4); the p-PAHs concentration at all sampling sites was lower than the a-PAHs concentration. The a-PAHs accounted for 63%–70% of PACs, with an average value of 64%, which indicated that a-PAHs might be the main type of PAHs of the sampling sites surface soil in the karst area. In different seasons, the concentrations of PAHs in the soil were significantly different, with the total concentration of PAHs in the soil in winter and spring higher than that in autumn and summer.

TABLE 4

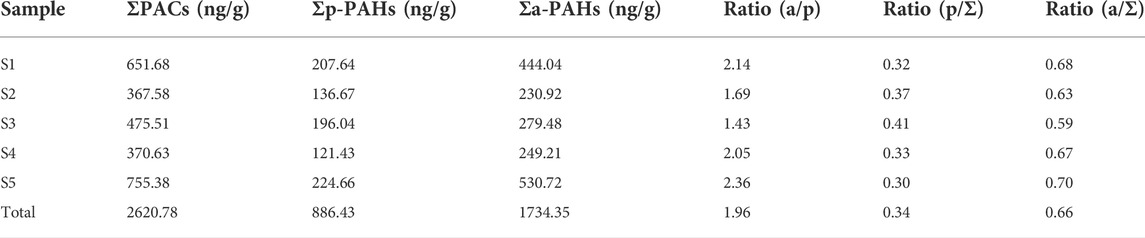

TABLE 4. Distribution and ration of different kinds of PAHs content in sampling sites.

∑PACs pollution pattern

In all sampling sites, the a-PAHs were a significantly higher proportion than p-PAHs, and the proportion of a-PAHs accounted for 59%–70% of the total aromatic hydrocarbons. In terms of 16 kinds of p-PAHs, the concentration of 2–3-ring PAHs ranged from 35.61 ± 7.58 ng/g to 70.28 ± 12.89 ng/g, with an average value of 51.75 ± 9.62 ng/g, accounting for 29.19%; the concentration of 4-ring p-PAHs ranged from 37.96 ± 6.78 ng/g to 77.14 ± 20.88 ng/g, with an average value of 56.02 ± 11.78 ng/g, accounting for 31.60%; the concentration of 5–6-ring p-PAHs ranged from 56.05 ± 12.56 ng/g to 84.03 ± 23.68 ng/g, with an average value of 69.52 ± 15.96 ng/g, accounting for 39.21%. The 2-ring a-PAHs had the highest value of 121.29 ± 33.29 ng/g in the S5 and the lowest value of 69.14 ± 13.37 ng/g in the S2, with an average value of 88.04 ± 18.56 ng/g, accounting for 25.38%. The 3-ring a-PAHs had the highest value of 367.59 ± 125.05 ng/g in the S5 and the lowest value of 139.75 ± 41.28 ng/g in the S2, with an average value of 230.22 ± 76.08 ng/g, accounting for 66.37%. The 4–5-ring a-PAHs had the highest value of 41.84 ± 13.84 ng/g in the S5 and the lowest value of 19.06 ± 8.88 ng/g in the S4, with an average value of 28.62 ± 10.28 ng/g, accounting for 8.25%.

Seen from the analysis of different sampling seasons (Figures 2, 3), the average concentrations of 2–3-ring p-PAHs were 47.27 ± 7.10 ng/g (spring), 46.97 ± 9.37 ng/g (summer), 54.38 ± 6.99 ng/g (autumn) and 58.36 ± 8.60 ng/g (winter); the average concentrations of 4-ring p-PAHs were 59.18 ± 13.04 ng/g (spring), 50.89 ± 22.75 ng/g (summer), 54.68 ± 11.22 ng/g (autumn) and 59.33 ± 11.90 ng/g (winter); the average concentrations of 5–6-ring p-PAHs were 62.86 ± 12.33 ng/g (spring), 61.32 ± 17.36 ng/g (summer), 68.51 ± 10.86 ng/g (autumn) and 85.40 ± 12.65 ng/g (winter). The average concentrations of 2-ring a-PAHs in spring, summer, autumn, and winter were 116.70 ± 20.66 ng/g, 57.47 ± 16.23 ng/g, 95.39 ± 19.93 ng/g, and 82.63 ± 17.42 ng/g, respectively; the average concentrations of 3-ring a-PAHs in spring, summer, autumn, and winter were 250.15 ± 79.98 ng/g, 193.58 ± 66.12 ng/g, 194.24 ± 74.46 ng/g, and 282.89 ± 83.74 ng/g, respectively. The average concentrations of 4∼5-ring a-PAHs were 37.10 ± 10.12 ng/g in spring, 25.72 ± 8.96 ng/g in summer, 32.25 ± 9.80 ng/g in autumn, and 19.39 ± 12.22 ng/g in winter, respectively. As seen from the analysis of a-PAHs homologs of the same type, the concentration of alkylated-naphthalene and alkylated-anthracene homologs were significantly higher than that of other a-PAHs homologs, while alkylated-BaP homologs had the smallest concentration and proportion (Figure 4). The 4–5-ring p-PAHs was a relatively high proportion, and there was a small difference between p-PAHs with different ring numbers, with a maximum value of 50.44% in winter. The a-PAHs with different ring numbers varied significantly, and the 3-ring a-PAHs were significantly higher proportion than 2-ring and 4–5-ring, and the largest proportion was 70.03% in winter.

FIGURE 2

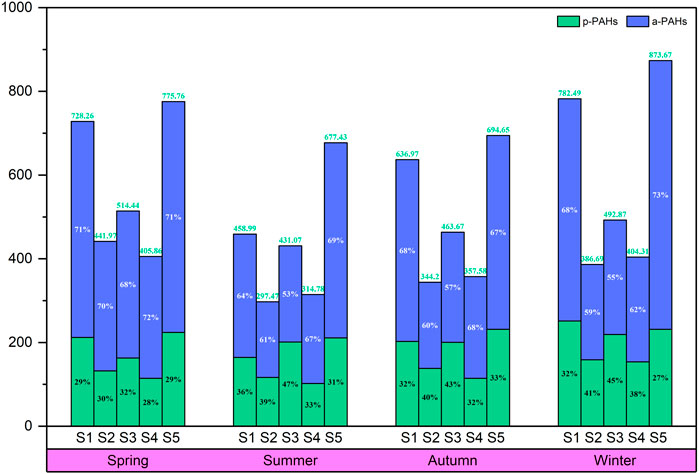

FIGURE 2. Distribution of p-PAHs and a-PAH in karst soils for different seasons.

FIGURE 3

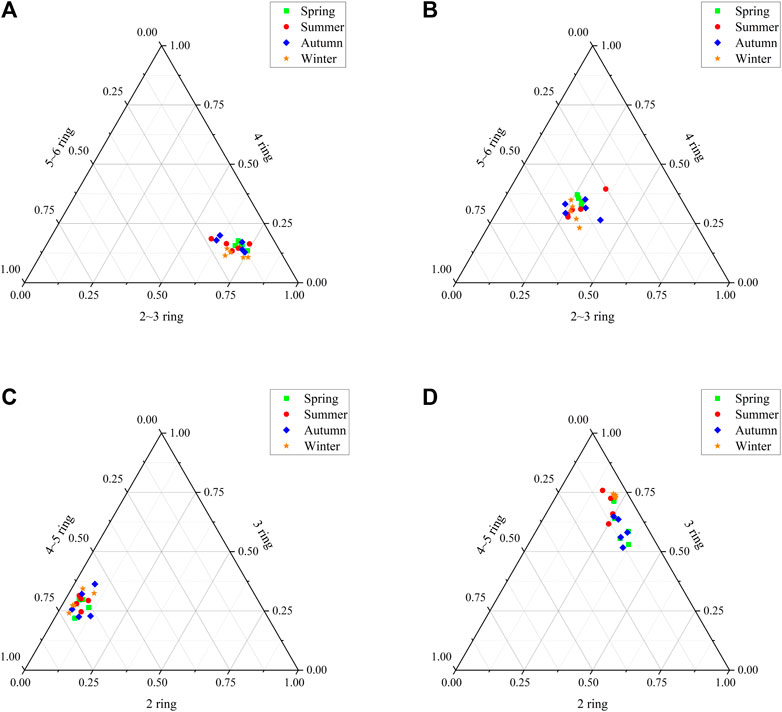

FIGURE 3. Triangle diagram of different kinds of PAHs for the seasonal distribution [Seasonal distribution of low and high ring of total PAHs (A); Seasonal distribution of 2–3, 4 and 5–6 ring of p-PAHs (B); Seasonal distribution of 2, 3 and 4–5 ring of p-PAHs (C); Seasonal distribution of 2, 3 and 4–5 ring of a-PAHs (D)].

FIGURE 4

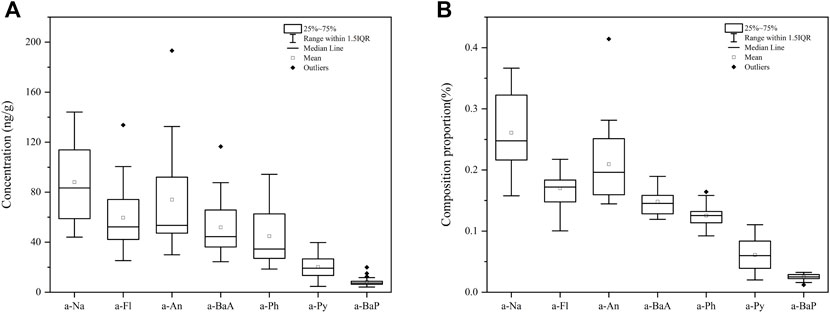

FIGURE 4. Box plot of a-PAHs homolog [concentration (A); proportion (B)].

Polycyclic aromatic compounds risk assessment

The soil PAHs pollution standard (Maliszewska-Kordybach 1996) was combined with the substance toxicity equivalent factor (Table 5) to evaluate the toxic concentration of p-PAHs and a-PAHs in the coal mining area and then conduct a risk assessment of the sample site in the coal area (Figure 5). The results showed that when only 16 kinds of p-PAHs were considered, except that the average concentration of the S5 (0.22 μg/g) and the average concentration of the S1 (0.21 μg/g) were slight pollutions, the samples of other sites were all non-pollution (Figure 5B). The concentration of a-PAHs in different sites and seasons was significantly higher than that of p-PAHs, and the pollution level was also significantly increased. The S5 was moderately contaminated in winter, and the S2 was non-pollution in summer and autumn, and the rest of the sample sites were all weakly polluted (Figure 5C). As seen from the analysis of total PAH concentrations, PAHs of all soil samples were above the level of weak contamination. Except for the S1 in summer, S1 and S5 samples of other sites and seasons were moderately contaminated (Figure 5A).

TABLE 5

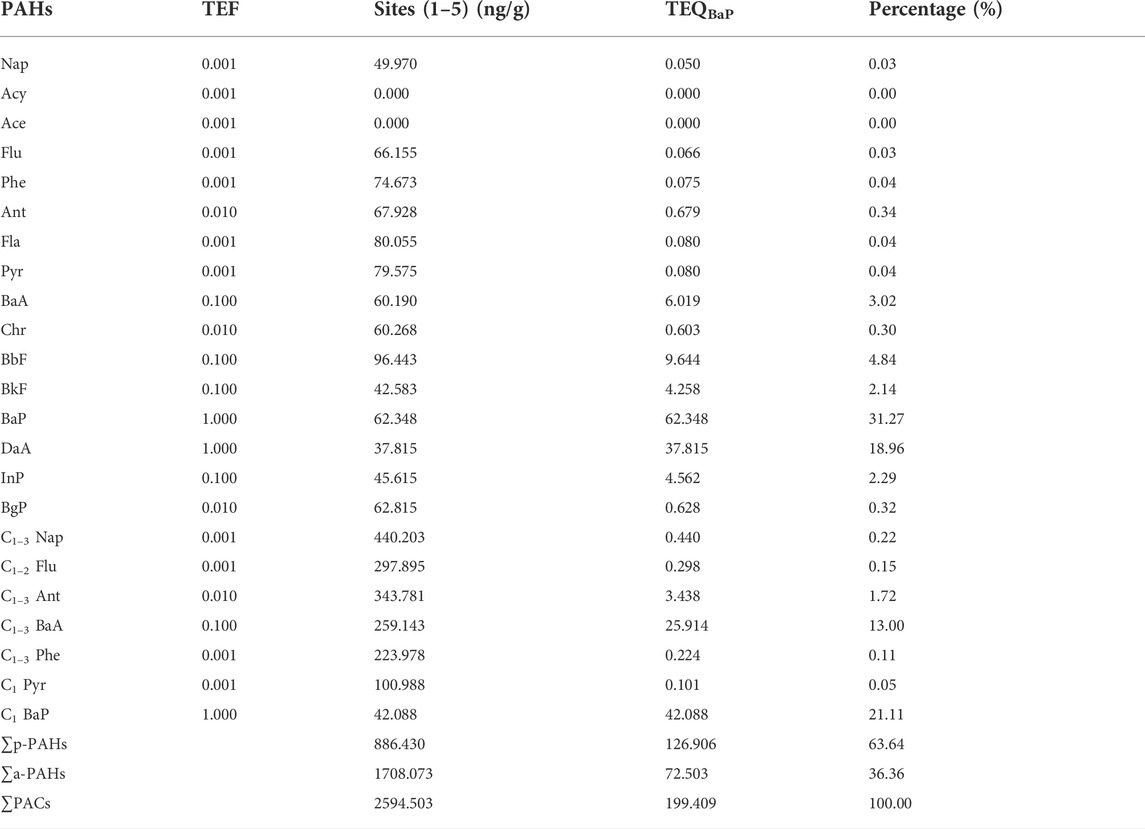

TABLE 5. Toxic equivalent factors (TEFs), and BaP equivalent concentration (BaP_eq).

FIGURE 5

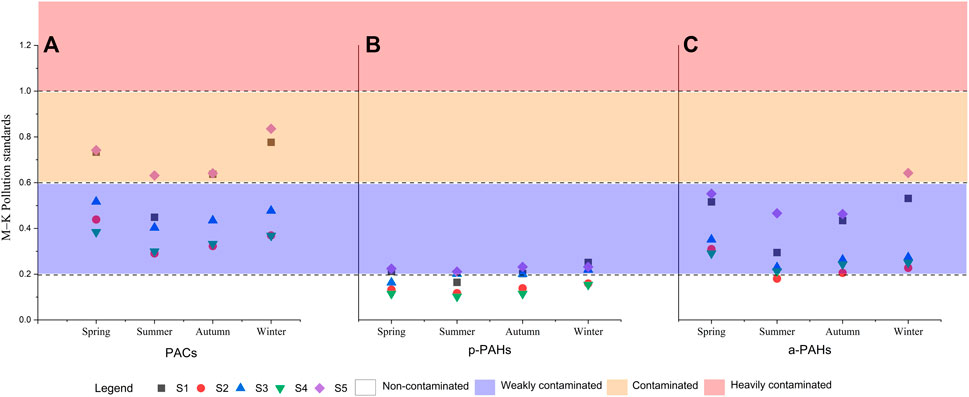

FIGURE 5. Sample soils contamination grade based on the Maliszewska-Kordybach criteria [Total PAHs (A); p-PAHs (B); a-PAHs (C)].

The equivalent concentration factor of a-PAHs was calculated based on p-PAHs (Chen et al., 2016). The toxicity equivalent concentration results showed that (Table 5): the maximum concentration of p-PAHs was BbF (96.44 ng/g); the minima were Acy and Ace; the maximum concentration of a-PAHs was C_1-3 Nap (440.20 ng/g); the minimum was C₁-BaP (42.09 ng/g). The evaluation results showed that BaP with a maximum toxic equivalent of 62.35 ng/g, C₁-BaP (42.09 ng/g), DaA (37.82 g/g) and C_1-3 BaA (26.91 ng/g) were the most important 4 types of PAHs with high toxicity risk. The risk value of ∑p-PAHs accounted for 63.64%, and it was the most important toxic risky PAHs in the soil of the karst coal mining area. As seen from the analysis of monomers and homologs, BaP and C₁-BaP contributed 52.38% of the toxicity risk, which were the most important toxic risky substances. It was worth noting that both DaA and C_1-3 BaA toxicity risk accounted for more than 10%, which were also the main types of PAHs that affect the regional ecological risk. In the cultivated soil S3 and S4, a certain content of BaP may cause the enrichment of plants, which were transmitted in the food chain and caused certain toxicity risks to the local residents.

Discussion

Coal mining and consumption were the main sources of PAHs in soil. The average concentration of p-PAHs in the soil of karst coal mining areas was177.29 ng/g. Shang et al. (2019) showed that the average concentration of p-PAHs in Chinese surface soil was 1217 ng/g, and the average content in Guizhou province was 117.8 ng/g. Compared with other chemical areas in China (Table 6), the pollution concentration of PAHs in the coal mining area of Guizhou province was at a low level. Compared with the PAHs pollution concentration in other regions of Guizhou province, the total concentration of PAHs in this study was at a moderate level, but was significantly lower than the regional pollution concentration of PAHs in Guizhou province coal power plants (4866 ng/g on average). The concentration in the karst area soil was at a moderate level, which may be because coal was the main energy consumption patterns in the southwest karst area. Most of the coal consumption was at a low grade in northwest Guizhou province, and the emission of PAHs from coal was significantly higher than that from high grade anthracite. Geng et al. (2014) believed that the overall emission coefficient of Guizhou province anthracite was 129.47 mg/kg, which was significantly higher than that of anthracite in other parts of China. Therefore, the accumulation of PAHs in the soil of Guizhou province coal mining areas may be derived from coal combustion and the emission of lithogenic PAHs during coal mining. In addition, the southwest karst area with high altitude, humid air, relatively closed terrain, and short illumination time hindered the diffusion of PAHs in the atmosphere, thereby increasing the concentration of PAHs in the soil matrix. The author’s previous research showed that the karst soil with calcium-enriched characteristics might reduce the adsorption of PAHs. The main reason was that, in a complex karst environment, the soil inorganic ions repeatedly dissolve and precipitate, and occupied the high-energy sites for soil adsorption of PAHs, and filled soil pores. As a result, the PAHs entering the soil in karst areas may further migrate into groundwater or other environmental substrates, thus increasing the risk of environmental toxicity (An et al., 2021; An et al., 2022).

TABLE 6

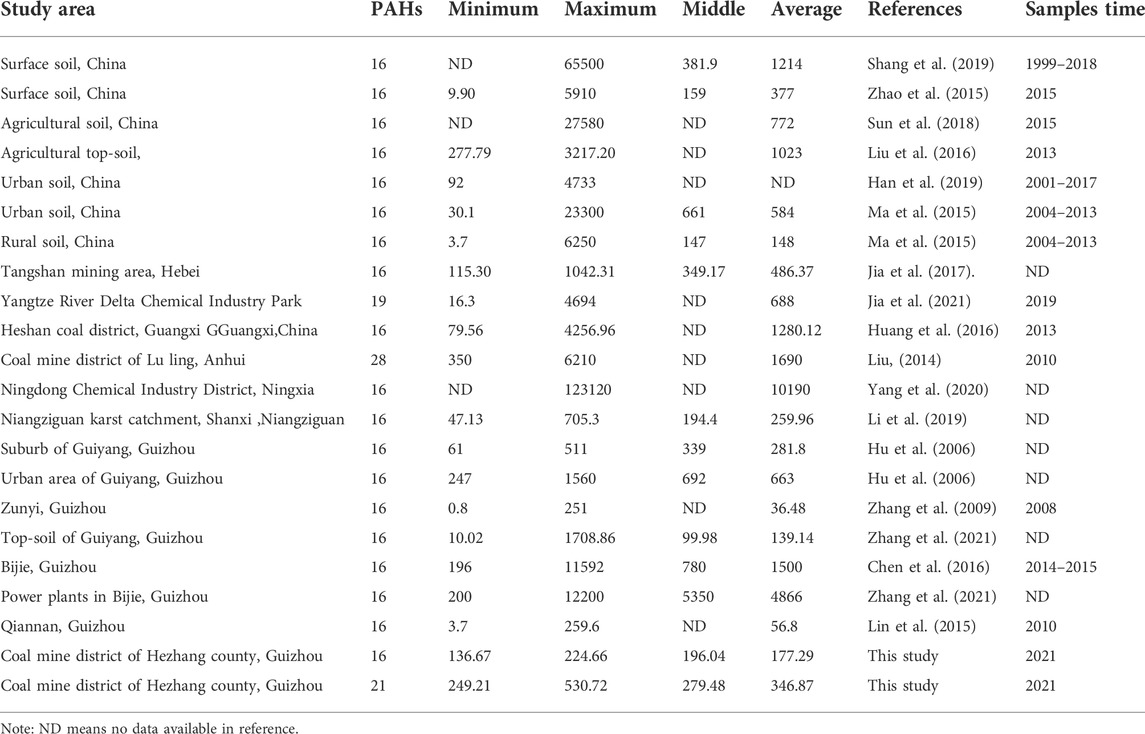

TABLE 6. Concentrations of PAHs in surface soils from different areas in China.

Soil organic matter, organic carbon, pH, particle composition, and soil microstructure are all factors to affect the occurrence state of PAHs. Many studies have shown that SOM was the key component for the sorption of organic pollutants by providing highly active combination sites, which was the key component for the adsorption and desorption of PAHs. It was believed that the PAHs desorption fractions and fast desorption rate constants of soils decreased with SOM increase (Li et al., 2007). Luo et al. (2012) illustrated that the fast-migrating components of PAHs in soil were directly related to organic carbon and the distribution of mesopores and micropores in soil. Ukalska-Jaruga et al. (2019) pointed out that different types of soil organic matter significantly affected the availability and durability of PAHs, and soil organic matter components of FA and HA were unstable components of organic matter, which had a significant positive correlation with the potential utilization of PAHs. HM was a stable organic matter with high hydrophobicity and poor degradability, which was the main factor affecting the durability of PAHs in soil. The sample site of S5 was rich in woodland and less affected by human activities.

The soil organic carbon content of S5 was significantly higher than other 4 sample sites. The total concentration of PAHs, the concentration of p-PAHs and a-PAHs of S5 was significantly higher than other 4 sample sites, which showed that PAHs concentration in the soil of the karst rocky desertification area was mainly controlled by soil organic carbon. High-ring (4-ring and 5–6-ring) p-PAHs and a-PAHs were more enriched for the sample sites of S5 and S3 with higher organic carbon content, indicating that high ring PAHs were more likely to bond with colloids such as soil organic matter and had greater migration difficulty in soil, which were consistent with previous findings (Łyszczarz et al., 2021). At the same time, soil type was also an important factor to affect the environmental migration of PAHs. In this study, the soils of the S1 and S5 belonged to the clay soil type (Figure 6), which had a large sorption capacity for PAHs. The concentration of total PAHs in the study area had a good positively correlated with the soil clay content (Figure 7) (R² = 0.88). This was consistent with the findings of Luo et al. (2008) found that PAHs were mainly enriched in soil clay components. Pearson correlation analysis indicated that the total concentration of PAHs in soil was not only correlated with soil organic carbon and clay, but also had a significant positive correlation with the total calcium content of soil (Figure 7). Some studies pointed out that the higher the content of water-soluble calcium ions was in the soil, the greater the desorption components of PAHs were (An et al., 2022). The complex environmental conditions of karst may change the existing form of calcium ions in the soil, thus affecting the occurrence state of PAHs. Soil calcium can be divided into five forms: water-soluble calcium, exchangeable calcium, acid-soluble calcium, organically bound calcium and residual calcium. Soil calcium may also be an important driver of karst rocky desertification (Tang et al., 2019). The author believed that high calcium ions in karst soil might affect the occurrence and environmental migration of PAHs from two aspects: on the one hand, calcium ions affected the adsorption and desorption environmental conditions of PAHs, such as the cation exchange capacity; on the other hand, calcium ions was chemically changed in the complex karst environment, by forming inorganic precipitation or mineral polymer to affect the specific surface area of soil and its organic matter, reduce the high energy site of adsorption of PAHs, and the adsorption pores (An et al., 2021). The role of various forms of calcium in the environmental transport of PAHs has not been systematically reported. Therefore, the effects of different calcium forms on PAHs carry great significance for karst soil management and remediation, and more in-depth studies are needed.

FIGURE 6

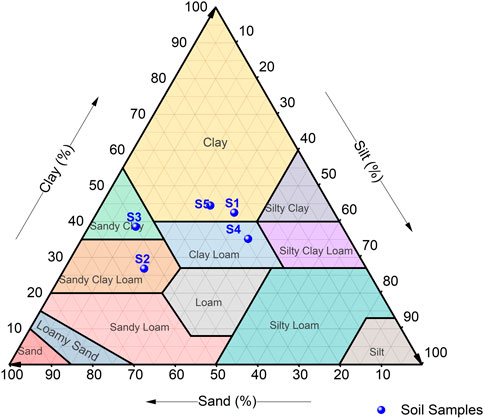

FIGURE 6. Soil texture classes of sample sites.

FIGURE 7

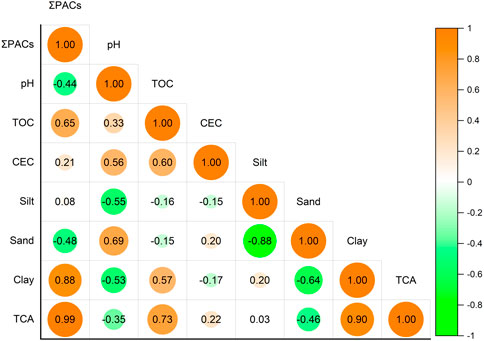

FIGURE 7. Correlation analysis of ΣPAHs concentration and soil properties.

The natural environmental conditions in the karst rocky desertification area were complex, and the alternation of dry and wet, freeze-thaw cycles, rainfall leaching, and temperature fluctuations may change the occurrence state of PAHs in the regional soil and affect their migration. Seasonal alternation, temperature, rainfall, and large fluctuations in coal combustion can significantly affect the pollution concentration of PAHs in karst soils. Studies found that soil samples of PAHs concentration were higher in winter and spring than in summer and autumn, mainly due to the excessive coal combustion and the higher concentration of PAHs in the air in winter. In the karst mountain area, the temperature was relatively low in spring, and the amount of coal combustion was also high. In addition, there was continuous light rain before sampling in spring, making a large number of solid particles adsorb PAHs in the air and settle on the soil surface. Meijer et al. (2003) believed that the main factors affecting the distribution of PAHs between soil and atmosphere were soil characteristics, PAHs type and concentration, and air temperature. The concentration of PAHs in the soil was lower in summer, mainly because the amount of coal combustion was reduced and the temperature was high enough in summer, which made PAHs with higher volatility tend to re-volatilize in the atmosphere. At the same time, after the leaching of heavy rain, the vertical migration of PAHs concentration in soil was strengthened, which affected the PAHs concentration in the surface soil. It was worth noting that a-PAHs have greater concentration reduction than p-PAHs during rainfall (the average soil concentration of p-PAHs reduced by 5.98% in summer than spring, and the average concentration of a-PAHs reduced by 31.48% in summer than spring). In particular, the low-ring a-PAHs had the most obvious reduction, which showed that the a-PAHs were greater environmental migration characteristics, so the environmental risk impact was more obvious, which may be closely related to the properties of the a-PAHs. Studies had shown that the physicochemical properties of a-PAHs (such as solubility, partition coefficient, etc.) were significantly different from those of p-PAHs (Kang et al., 2016). The solubility of 9-methylanthracene was 0.39 mg/L, which was significantly higher than the 0.044 mg/L of anthracene, (Kwon and Kwon, 2012), which related to the position and symmetrical structure of the alkylated substituent (Pinal 2004). Rainfall can significantly alter soil water content, affecting SOM’s ability to adsorb PAHs. Schneckenburger and Thiele. (2020) pointed out that SOM matrix rigidity varied with prehydration status; the water content of SOM could change the soil matrix rigidity, which affected the adsorption and desorption of PAHs, altering the environmental migration of PAHs and their homologs. The complex karst environmental conditions such as the dry-wet cycle and freeze-thaw cycle also affect the migration behavior of PAHs in soil. Dry-wet cycles and freeze-thaw effects can alter the soil structure and affect the form of mineral ions in the soil, thereby changing the occurrence state of PAHs. Studies have shown that multiple freeze-thaw cycles of karst soils would reduce the soil’s ability to desorb PAHs, making more PAHs turn into isolated states (An et al., 2021).

Risk assessments of PAHs in soil tend to focus on the 16 kinds of p-PAHs. However, a-PAHs were more environmentally toxic (Zhang et al., 2020; Huang et al., 2021), which may be related to the structure (Bay region) of a-PAHs (Baird et al., 2007). According to the air quality standards published in Canada, the BaP equivalent toxicity of dimethyl substituted BaA was 100 times that of parent BaA (Atmospheric quality standards and criteria, 2021). Without considering the concentration of a-PAHs, the S1 and S5 belonged to slightly polluted soil, while the concentration of a-PAHs in the five sampling sites was above the threshold of 200 ng/g of slight soil pollution (Maliszewska-Kordybach 1996). In general, the coal mining area soils and forest soils in the karst mining areas of southwest China were moderately polluted, while the cultivated soils were slightly polluted. Although the total concentration of PAHs was not equal to the bioavailability concentration of PAHs, the environmental risks of PAHs still should be paid more concern from local governments and residents. Therefore, to assess the risk of PAHs in soil, more consideration should be given to PAH substitutions such as the alkylated and nitro functional group to truly and accurately calculate the environmental risk of PAHs.

Conclusion

The concentration of p-PAHs and a-PAHs in surface soils of karst coal mining areas in Guizhou province, China displayed significantly different spatial and temporal distribution characteristics. The a-PAHs in the soil of the coal mining area had significantly higher pollution concentration than p-PAHs. The average concentration of p-PAHs and a-PAHs were 177.29 ± 37.36 ng/g and 346.87 ± 104.91 ng/g, respectively. The pollutant concentrations of PAHs exhibited a seasonal tendency with winter > spring > autumn > summer. The two types of PAHs in the study area were both affected by environmental events such as seasonal rainfall, and the a-PAHs were more greatly affected by rainfall than the p-PAHs, which closely related to the soil properties of the sampling site and the properties of a-PAHs. The soils of coal mining area and forest soils were moderately polluted, while cultivated soil and abandoned soil were slightly polluted. The toxicity results showed that p-BaP, C₁-BaP, DaA and C_1-3 BaA were the most important four types of toxic PAHs. Pearson correlation analysis illustrated that soil calcium content in the karst area was also an important factor affecting the distribution of regional PAHs. The environmental migration and fate of PAHs under different forms of calcium in karst soils require to be more deeply and systematically study in future. The research is helpful for guiding significance for the control and restoration of soil PAH in the karst area of southwest China with fragile ecology and complex environment.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding author.

Author contributions

XA: Conceptualization, Methodology, Validation, Resources, Data Curation, and Writing-Original draft preparation. WL: Supervision, Investigation, Writing-reviewing and Editing. JL: Investigation, Data Curation, and Software. XD: Visualization, Software, and Formal analysis. MA: Writing-reviewing, Editing, and Data curation.

Funding

This work was supported the National Natural Science Foundation of China (No. 41761091); The First-class Discipline Group of Geography of Guizhou Province (No. [2019]125); Guizhou Education Department Youth Science and Technology Talents Growth Project, China (KY[2022]001); Fundamental Scientific Research Funds of Guiyang University, China (GYU-KY-[2022]); The Joint Foundation of Guizhou Province (LH[2017]7348); The Doctor Foundation of Guizhou Normal University (GZNUD [2017]10).

Acknowledgments

We thank the editor and three anonymous reviewers for their valuable comments on the manuscript. The authors thank the support of Open Project Fund of school of Mountain Research of Guizhou Education University.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
