Microscopic observation of a liquid-liquid-(semi)solid phase in polluted PM2.5

Atmospheric aerosol particles are complex mixtures having various physicochemical properties. To predict the role and characteristics of such complex aerosol particles in air pollution and related atmospheric chemistry, our knowledge of the number and types of phases in complex aerosol particles should be improved. However, most studies on the phase behavior of aerosol particles have been conducted in the laboratory and have not used real-world aerosol particles. In this study, using a combination of optical microscopy and poke-and-flow technique, we investigated the number and types of phases of actual aerosol particles of particulate matter < 2.5 µm (PM_2.5) collected on heavily polluted days in Seosan, South Korea in winter 2020–2021. From the microscopic observations at 293 K, it showed that the PM_2.5 particles exist in a single liquid phase at relative humidity (RH) >∼85%, a liquid-liquid phase at ∼70% < RH <∼85%, a liquid-liquid-(semi)solid phase at ∼30% < RH <∼70%, and a (semi)solid phase at RH <∼30% upon dehydration. This reveals that three phases of atmospheric aerosol particles coexisting as liquid-liquid and liquid-liquid-(semi)solid would be the most common phases in the atmosphere considering ambient RH ranges. These observations provide fundamental properties necessary for improved predictions of air quality and aerosol chemistry such as reactive uptake of N₂O₅, size distributions, and mass concentrations of aerosol particles.

Introduction

Particulate matter (PM) is a ubiquitous component of the atmosphere. PM is emitted from primary sources and can also be generated by secondary formation owing to chemical reactions in the atmosphere (Seinfeld and Pandis, 2016). PM, especially PM_2.5, can significantly affect ecosystems, climate, and human health (Peng et al., 2016; Wang et al., 2016; Bhattarai et al., 2020). In Asia, PM_2.5 pollution has become a serious environmental issue over the past few decades (Pörtner et al., 2019; Ting et al., 2022). Numerous field measurements have shown that PM_2.5 mainly comprises organic materials and inorganic salts (Jimenez et al., 2009; Zhang et al., 2017) and are often internally mixed in PM_2.5 in various environments (Vester et al., 2007; Ye et al., 2018).

To understand the impacts of PM_2.5 on atmospheric chemistry and air quality, information on the physical properties of the phase types (i.e., liquid, semisolid, or solid) and number of phases (i.e., one, two, or three phases) of atmospheric aerosol particles is essential. The phase states of particles are a crucial part of aerosol growth and evaporation, mass concentration of aerosol particles (Shiraiwa and Seinfeld, 2012; Yli-Juuti et al., 2017), ice nucleation efficiency (Ladino et al., 2014; Knopf et al., 2018), crystallinity of salts (Ji et al., 2017; Wang et al., 2017), and heterogeneous reactivity (Li et al., 2020; Xu et al., 2020). Many laboratory experiments and modelling studies have been performed to explore the phases of atmospheric aerosol particles (Virtanen et al., 2010; Koop et al., 2011; Renbaum-Wolff et al., 2013; Song et al., 2015; Reid et al., 2018; Riemer et al., 2019; Lilek and Zuend, 2022). Most laboratory studies on phase states have focused on pure secondary organic aerosols (SOA) as a function of relative humidity (RH) (Koop et al., 2011; Song et al., 2015; Athanasiadis et al., 2016; Song et al., 2016; Schmedding et al., 2020). These studies have reported that SOA particles range from liquid to semisolid or solid depending on the RH. Moreover, a recent study investigated SOA mixed with inorganic salts, and showed a sudden change in their phase state at a certain RH close to efflorescence RH as the inorganic fraction increased (Song et al., 2021; Jeong et al., 2022).

Mixtures of SOA and inorganic salts have also been investigated to determine the number of phases and their corresponding morphologies (Krieger et al., 2012; Song et al., 2012a; You et al., 2014; Freedman, 2017). In internally mixed organic/inorganic salt aerosol particles, two liquid phases by liquid-liquid phase separation are always observed over a wide range of RH when the oxygen-to-carbon ratio (O:C) is lower than 0.56 (Bertram et al., 2011; Song et al., 2012a; Song et al., 2012b; Song et al., 2013). Interestingly, recent studies have reported three liquid phases in organic/inorganic aerosol particles (Kucinski et al., 2019; Huang et al., 2021). Moreover, liquid-liquid phase separation has also been observed in some types of SOA particles free of inorganic salts (Renbaum-Wolff et al., 2016; Song et al., 2017; Ham et al., 2019). To date, most of the types and number of phases have been investigated based on laboratory studies as it is challenging to directly monitor the types and number of phases of real atmospheric aerosol particles using online instruments, and very few instruments are available to analyze such properties.

Several studies have been conducted on the types and number of phases using ambient PM with complex chemical compositions. Pöhlker et al. (2012) and You et al. (2012) analyzed liquid–liquid phase separation in total suspended particulates collected from clean areas in the Amazonian rainforest and central Atlanta, respectively. Virtanen et al. (2010) observed an amorphous solid phase of atmospheric PM in a boreal forest environment under low RH conditions in Hyytiälä, Finland. In contrast, Pajunoja et al. (2016) observed mostly organic ambient particles in a liquid phase over the southeastern United States. Bateman et al. (2017) showed that submicron PM was in a liquid phase at RH >80%, while non-liquid behavior was observed at RH <60% in central Amazonia. Liu et al. (2017) showed a more liquid-like behavior with an increase in the inorganic fraction in submicron PM during a haze episode in Beijing. Although the physical properties of aerosol particles are key parameters for predicting heterogeneous reactions and particle size distributions (Shiraiwa et al., 2013; Su et al., 2020), our understanding of the phase behavior of real aerosol particles is far from complete.

To obtain further insights on the phase behavior of real-world aerosol particles, we collected seven PM_2.5 samples at Seosan, South Korea, during December 26 – 29, 2020, and January 11–13, 2021. The atmosphere in and around Seosan is heavily influenced by agricultural and anthropogenic emissions (Ju et al., 2020; Hwang et al., 2021). Inorganic salts and water-soluble organic material were extracted in pure water from the PM_2.5 filters. Using the PM_2.5 droplets at 293 ± 1 K, we determined the types and number of phases upon dehydration by microscopic observations combined with the poke-and-flow technique.

Experimental

Site description

Measurements were carried out at the Chungcheong Air Environment Research Center, Seosan, Chungcheongnam-do, Republic of Korea (126.494°E, 36.777°N), during December 26–29, 2020, and January 11–13, 2021 (Figure 1). Seosan is a rural area, where the air quality is heavily influenced by both agricultural and anthropogenic emissions (Ju et al., 2020; Hwang et al., 2021). It is surrounded by an agricultural cluster, a petrochemical complex is located 26 km to the northwest, and thermal power plants (10 units) are located ∼27 km to the northwest (Lee et al., 2017; Ju et al., 2020). The total land area of Seosan city is 743.9 km² and it has a population of 176,379 with a population density of 237.1 people/km² of land area (Ju et al., 2020).

FIGURE 1

FIGURE 1. Location of a sampling site at rural area, Seosan.

Collection and production of PM_2.5

PM_2.5 was collected on quartz filters for 23 h (10:00 a.m. – 09:00 a.m.) using a high-volume air sampler (SIBATA, HV-1000R, Japan) on the rooftop of the monitoring site, ∼10 m above the ground level. After collection, the filter samples were stored in a freezer (−18°C) until further analysis. We analyzed PM_2.5 particles from the filter samples to explore the phase behavior of PM_2.5. The inorganic salts and water-soluble organic material on the PM_2.5 filters were extracted in purified water (18.2 MΩ cm, Merck Milli-Q^®, Millipore, Burlington, MA, United States) within 1 month of collection. The extracts were then nebulized using a nebulizer (MEINHARD^®, United States) onto a hydrophobic substrate to produce micrometer-sized particles, which were used for optical observations at 293 ± 1 K.

Optical microscopy of PM_2.5 single droplets

The PM_2.5 extracts on a hydrophobic glass slide were placed in a temperature- and RH-controlled flow-cell (Song et al., 2012a; Ham et al., 2019). At the beginning of the experiment, the PM_2.5 droplets in the cell were equilibrated at ∼100% RH for ∼20 min. RH was then decreased at a rate of ∼0.5% RH/min. During the experiment, the morphological changes in the droplets were monitored using an optical microscope (Olympus BX43, 40× objective, Japan) and recorded every 5 s using a charge-coupled device camera (DigiRetina 16, Tucsen, China). The RH in the cell was controlled by the N₂ and H₂O ratio, with a total flow rate of 500 sccm. The RH was calibrated by measuring the deliquescence RH of K₂CO₃ (44% RH) and NaCl (76% RH) at 293 ± 1 K, leading to an RH uncertainty of ± 1.5% (Winston and Bates, 1960).

Poke-and-flow technique for single droplets

The poke-and-flow experiment (Murray et al., 2012; Renbaum-Wolff et al., 2013) was performed to determine the semisolid or solid [herein, we refer to semisolid or solid as “(semi)solid”] phase state of PM_2.5, based on a previously reported procedure (Renbaum-Wolff et al., 2013; Grayson et al., 2016; Song et al., 2019; Jeong et al., 2022). In this study, the experimental flow time, which is the recovery time of the inner hole of a particle after poking, could not be determined because the PM_2.5 droplets were supersaturated with inorganic salts upon dehydration. Therefore, we attempted to determine the RH at which the particles cracked using a sharp sterile needle (Jung Rim Medical Industrial, South Korea) upon dehydration. The droplets on the hydrophobic substrate were conditioned at a target RH for ∼2 h into an RH-controlled flow-cell after conditioning at an RH of ∼100%. The droplets were then poked, and the particles were observed for ∼3 h to check whether inflow or outflow occurred. If no flow was observed, we defined the particle as (semi)solid based on previous studies (Renbaum-Wolff et al., 2013; Grayson et al., 2016; Song et al., 2019; Jeong et al., 2022). During the poke-and-flow experiments, the particles were observed before, during, and after they were poked with a needle using an optical microscope (Olympus CKX53 with a 40× objective, Japan) and recorded using a charge-coupled device camera (Hamamatsu, C11440-42U30, Japan).

Chemical composition of PM_2.5

Raman spectroscopy (XploRA PLUS, HORIBA, France) coupled with an optical microscope was used to identify the main chemical compositions of liquid-liquid phase-separated PM_2.5 droplets. An Nd:YAG laser (532 nm wavelength) was used as the excitation source. A grating with 1,800 grooves mm⁻¹ and an acquisition time of 5 s with an accumulation of 20 grooves was used. The Raman spectra at different positions of the inner and outer phases of PM_2.5 droplets were recorded in the range of 150–4,000 cm⁻¹.

The oxygen-to-carbon elemental ratio (O:C) of WSOC fraction in PM_2.5 sample was estimated from molecular formulas identified by Fourier transform ion cyclotron resonance mass spectrometer, as previously demonstrated (Choi et al., 2017). The chemical compositions and meteorological parameter were reported in Kim et al. (2022) and, in this study, we analyzed the data based on the interval of the filter sampling.

Results and discussion

To determine the phase behavior of real aerosol particles, we collected seven different PM_2.5 samples during winter in a rural area, Seosan, in South Korea. It has been reported that severe PM_2.5 pollution occurs frequently in this area (Ju et al., 2020; Hwang et al., 2021; Park et al., 2022). During the sampling period, all seven samples indicated PM_2.5 pollution based on the guideline value of 15 μg/m³ for 24-h mean PM_2.5, according to the World Health Organization (2021). Information on the chemical compositions and meteorological parameters of PM_2.5 samples is summarized in Table 1.

TABLE 1

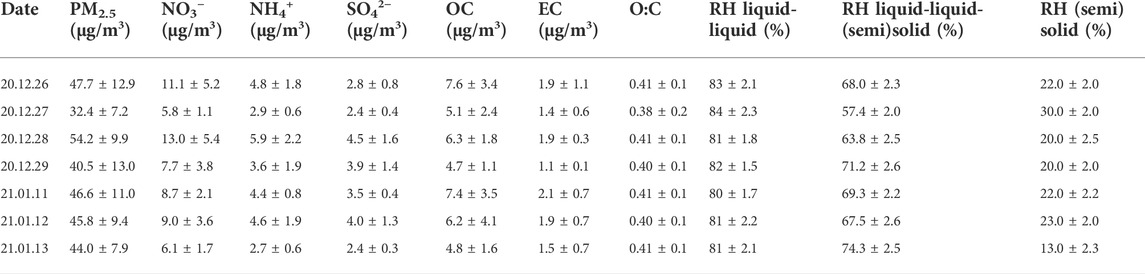

TABLE 1. Summary of the chemical compositions, oxygen-to-carbon elemental ratio (O:C), and relative humidity (RH) in liquid-liquid, liquid-liquid-(semi)solid, and (semi)solid phase states of PM_2.5 with decreasing RH based on the interval of filter sampling.

Figure 2 shows the optical images and corresponding illustrations of each polluted PM_2.5 sample as the RH decreased at 293 K. The phase changes in the optical images of each PM_2.5 droplets are also shown in Supplementary Movies S1–S7. Initially, PM_2.5 was maintained at ∼100% RH for 20 min and the droplets exhibited a single liquid phase. With decreasing RH, the size of the droplets decreased because of the evaporation of water. The second column in Figure 2 represents the single liquid phase of each PM_2.5 sample collected on different dates for the RH at which the droplets did not undergo any phase transitions during the decrease in RH. At ∼85% RH upon dehydration, all PM_2.5 droplets underwent liquid-liquid phase separation and formed a core-shell morphology with some inclusions in the inner phase. Laboratory studies have established that liquid-liquid phase separation always occurs for O:C < 0.56 in organic/inorganic aerosol particles (Bertram et al., 2011; Song et al., 2012b). In the current study, the O:C of the PM_2.5 ranged from 0.38 to 0.41 (Table 1). These values are within the range of occurrence of liquid-liquid phase separation. You et al. (2012) and Pöhlker et al. (2012) also observed liquid-liquid phase separation in total suspended particles within these O:C ratios, which were established from laboratory studies in clean environments in Atlanta and near Amazon, respectively.

FIGURE 2

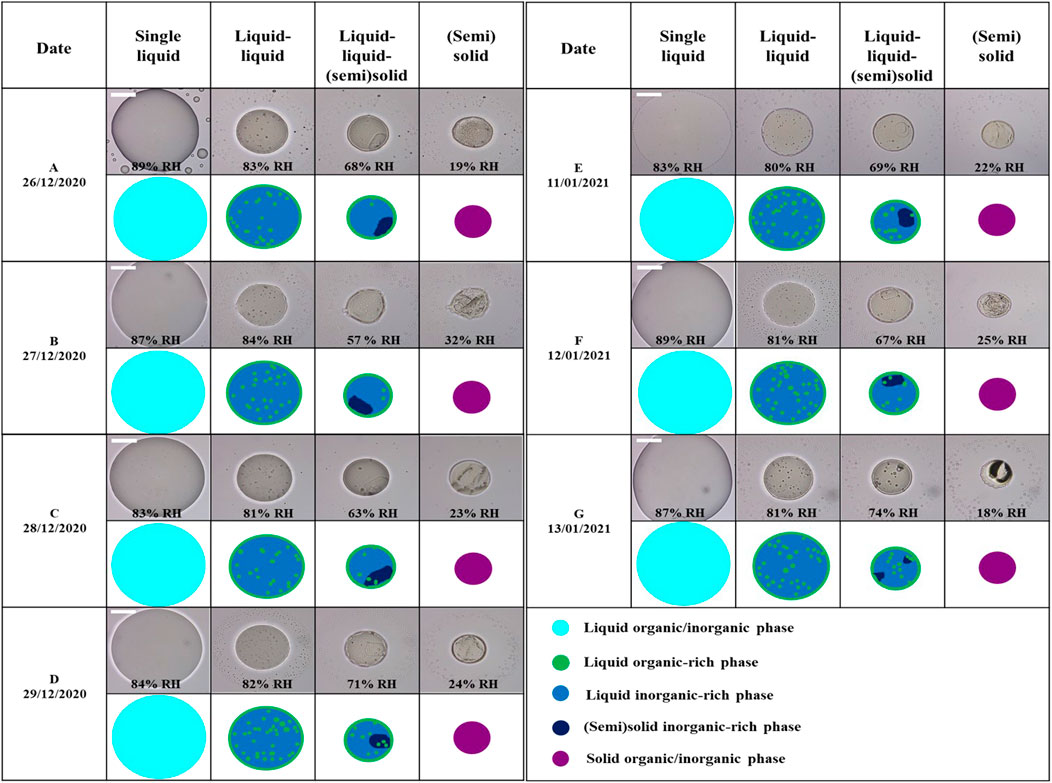

FIGURE 2. Optical images of PM_2.5 filter samples collected in winter at Seosan, South Korea, and its cartoon with decreasing RH at ∼293 K. The Second, third, and fourth columns represent the single liquid, liquid-liquid, and liquid-liquid-(semi)solid phase states of PM_2.5, respectively. The fifth columns represent a (semi)solid phase state showing efflorescence over the particles. The scale bar is 20 µm. In the illustration, cyan color: liquid organic/inorganic phase, green color: liquid organic-rich phase, blue color: liquid inorganic-rich phase, dark blue color: semi(solid) inorganic-rich phase, and purple color: (semi)solid organic/inorganic.

In the phase-separated PM_2.5 droplets, small satellite inclusions were observed in the inner phase as shown in third columns of Figure 2. Such small satellite inclusions were also observed in outer phase when phase separation occurred in organic/inorganic/H₂O particles, and then they were disappeared as RH decreased (Ciobanu et al., 2009; Song et al., 2012a). Although we could not access to determine the chemical compositions using the tiny satellite inclusions of the PM_2.5 in this study, we observed during decreasing RH that the tiny satellite inclusions appeared when the phase separation occurred and then disappeared as RH decreased further. This behavior of the satellite inclusions is very similar to the behavior observed in the organic/inorganic/H₂O particles. Thus, we expect that the satellite inclusions observed in the inner phase of the PM_2.5 droplet are most likely organic compounds.

We analyzed the chemical compositions of the inner and outer phases of a phase-separated PM_2.5 droplet at ∼80% RH collected in 28 December 2020. Raman spectra from the inner phase of the droplet showed two sharp peaks at ∼971 cm⁻¹ and ∼1,030 cm⁻¹ belonging to SO₄²⁻ and NO₃⁻, respectively (Cheng et al., 2021) (blue line in Figure 3). Two distinct peaks were also observed from the outer phase of the droplet at 1,096 cm⁻¹, relevant to the vibrational mode of organic functional group ν(C−O) (Bondy et al., 2018), and at 576 cm⁻¹ due to the carboxyl vibration (Eshelman et al., 2014) (red line in Figure 3). This result reveals that the core consists mainly of inorganic salts surrounded by organic materials in the liquid-liquid phase-separated particles. This is consistent with previous work (Song et al., 2012b).

FIGURE 3

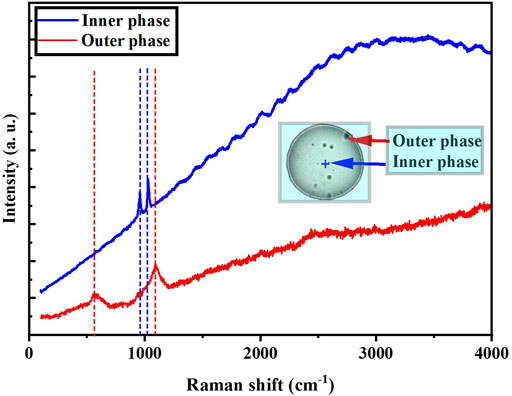

FIGURE 3. Raman spectra of liquid-liquid phase-separated PM_2.5 particle collected in 28 December 2020 at relative humidity of 80%. Blue dash lines represent the inorganic peaks while the red dash lines represent the organic peaks.

Interestingly, as RH decreased, a crystal suddenly appeared in the liquid inner phase of each PM_2.5 sample, leading to three coexisting phases at RH between ∼70% and ∼30%, as shown in forth columns of Figure 2 (also Supplementary Movies S1–S7). This result is the first such observation of the phase behavior of real aerosol particles of PM_2.5, with three phases coexisting a liquid-liquid-(semi)solid. Based on the shape and morphology of the crystal in the inner liquid phase, these were assumed to be (semi)solid inorganic salts such as ammonium nitrate, ammonium sulfate, or sodium chloride (Ebert and Weinbruch, 2001; Zelenyuk et al., 2006; Furstenberg et al., 2010). A recent study by Huang et al. (2021) observed the existence of three phases with liquid-liquid-liquid for ∼40% – ∼90% RH in a mixture of SOA, primary organic aerosols, and secondary inorganic aerosols. This is a contrast with our observation that three phases with a liquid-liquid-(semi)solid in the PM_2.5 were coexisted for RH of ∼30% – ∼70%. These three phases of the droplets coexisted until the droplets effloresced over the particle (i.e., ∼30% RH, Figure 2).

A further decrease in RH led to efflorescence of the droplets (last columns of Figure 2). However, at this stage, it was not clear based on the optical image whether the droplets fully or partially effloresced so that the phase state became (semi)solid or still liquid-like over the total particle. Thus, we applied another technique using the poke-and-flow to define the phase with the same procedure of a recent study of Jeong et al. (2022) that determined the phase of particles of organic/inorganic mixtures. Figure 4 shows the poke-and-flow result for the seven different PM_2.5 particles. On pre-poking, effloresced particles were present, and the particles started to crack at RH <∼30% after being poked with the needle. Subsequently, no restorative flow was detected for approximately 3 h. This produces viscosities of greater than ∼10⁸ Pa s corresponding to a semisolid or a solid phase state (Renbaum-Wolff et al., 2013; Grayson et al., 2016; Song et al., 2019; Jeong et al., 2022). Additionally, we tried to poke the particles at an RH ∼10% higher than the RH at which they cracked, but the particles were stuck to the needle. Based on the procedure, the point at which all PM_2.5 particles cracked was determined as (semi)solid phase (Table 1). The RH values of efflorescence (fourth column of Figure 2) and particle cracked (Figure 4) are similar within experimental errors. The overall results showed that the PM_2.5 exhibited a single liquid phase at RH >∼85%, liquid-liquid phase at ∼70% < RH < ∼85%, liquid-liquid-(semi)solid phase at ∼30% < RH < ∼70%, and a (semi)solid phase at RH < ∼30%. This result indicates that phases coexisting a liquid-liquid or a liquid-liquid-(semi)solid of aerosol particles would be the most common phases in the atmosphere considering ambient RH distributions (Song et al., 2019).

FIGURE 4

FIGURE 4. Optical images of pre-poking, poking, and post-poking for polluted PM_2.5 filter samples during the poke-and-flow experiment. The scale bar is 10 µm.

This study provides observational evidence for the phase behavior of real aerosol particles. The existence of three phases consisting of a liquid-liquid-(semi)solid (outer phase is mainly liquid organic-rich) has implications for the uptake rate of reactive gases into particles. Studies have shown that N₂O₅ reacts with inorganic-rich droplets, which leads to increased concentrations of particulate nitrate (Dentener and Crutzen, 1993; Riemer et al., 2009; Huang et al., 2021). However, recent studies have shown that organic coating in a droplet can lead to reactions on the surface area resulting in the reduction of the reactive uptake of N₂O₅ (Folkers et al., 2003). The uptake rate of a particle can be varied based on the polarity of the organic phase (Huang et al., 2021). Furthermore, studies have shown that other trace reactive gases such as amines exhibited a lower tendency towards heterogeneous uptake by organic-coated particles (Chu and Chan, 2017; Sauerwein and Chan, 2017). Further studies are thus required to confirm our results with different conditions (i.e., various environments and temperature) and to extend the phase effects on heterogeneous reactions.
